Quantum Design UK and Ireland is part of the Quantum Design International (QDI) group. QDI is a global laboratory equipment manufacturer The company distributes scientific and industrial instrumentation through an international network, with subsidiaries in every major technological centre around the world
WITH CONTENT CONTRIBUTIONS FROM OUR PARTNERS:
Foreword
Company Video
New Partner IXRF Systems
Meteorite Analysis App Note
Crack and Void Identification in Solder
Cracks in Solder Connections and/or PCB
Substrate
Space Instrument Failure Analysis
James Webb vs. Hubble Telescopes
Measuring Up to NASA’S James Webb
Space Telescope
ProFlux Nanowire UV Polarisers
Moxtek in Space - a Timeline
FOREWORD
With these ever-changing landscapes, we at Quantum Design UK and Ireland are always looking to develop and grow to provide you the best solutions for todays challenges.
Our suppliers are responsible for supporting the development of iconic inventions such as the James Webb Space Telescope and the Mars Perseverance Rover The QDUKI team are happy to introduce a taster of our full solution for space and spacequalified testing in this new magazine.
The Quantum Design UK and Ireland Sales Team
COMPANY VIDEO
POWERING PROGRESS: IXRF SYSTEMS INC.
MICROANALYSIS AND MICROXRF ANALYTICAL INSTRUMENTATION

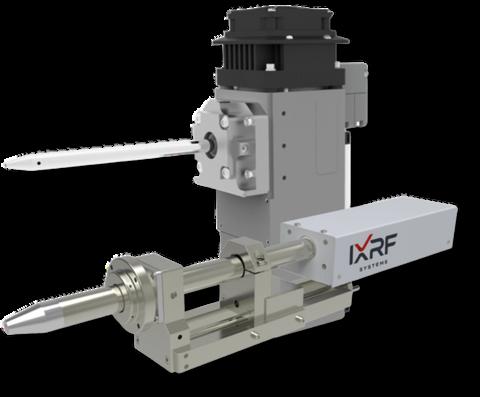

For almost three decades IXRF has been designing and manufacturing high-end X-ray Microanalysis systems that are fitted to Scanning Electron Microscopes (SEM/EDS) Almost 10 years ago, IXRF developed SEM-XRF microscope attachments allowing broader elemental analysis coverage

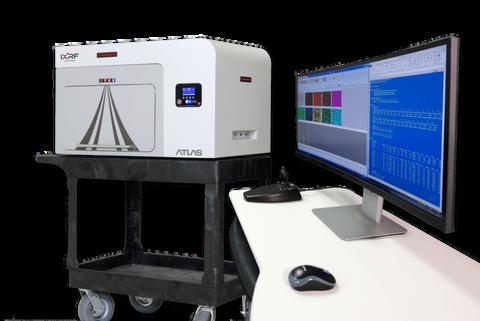

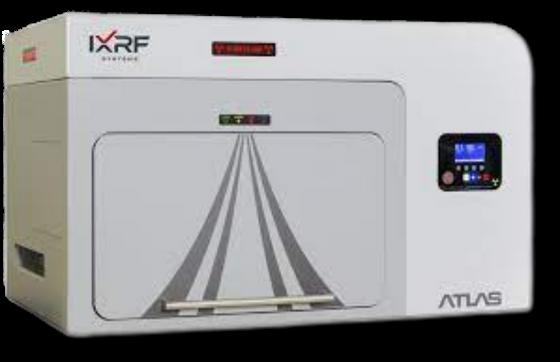

In 2014, IXRF launched the ATLAS series of general purpose, microXRF energy dispersive X-ray fluorescence
(micro-XRF) spectrometers for elemental analysis and hyperspectral imaging of elements from sodium (Na) through uranium (U) IXRF specialises in: SEM/EDS, SEM-XRF and micro-XRF. VISIT THE X-RAY RANGE
Meteorite Analysis
App note from IXRF Systems

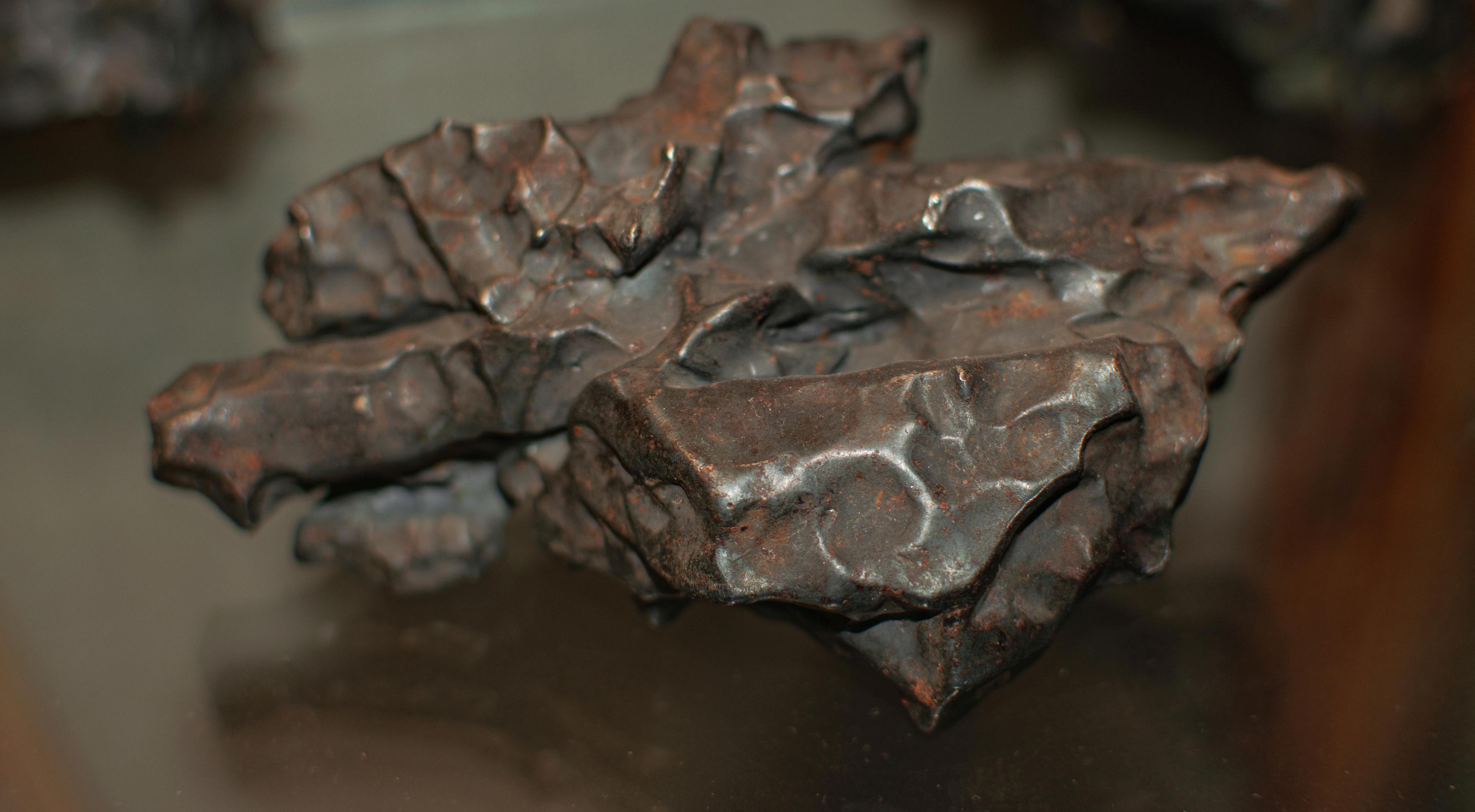

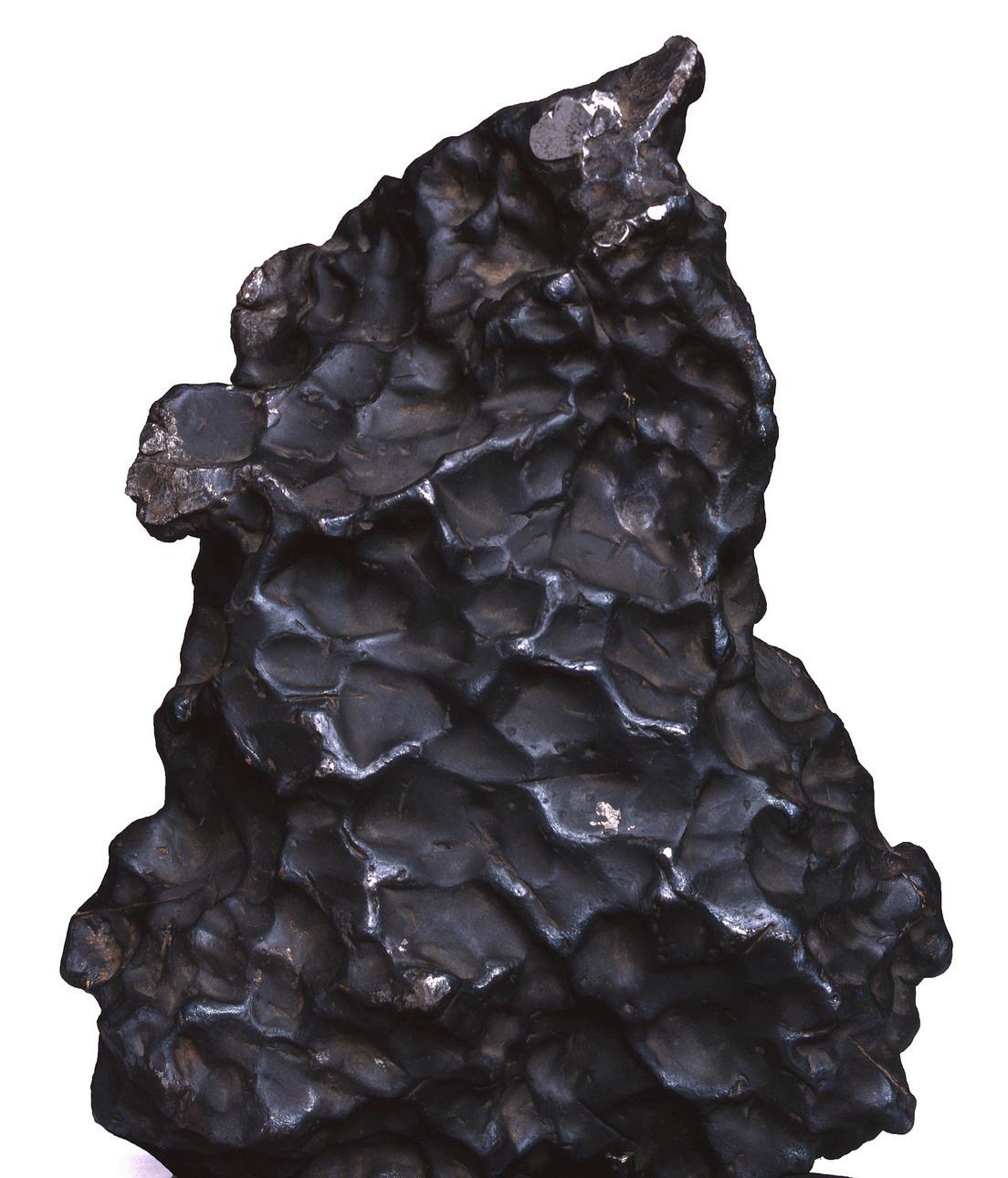

The Murchison meteorite fell in Australia in 1969 near Murchison, Victoria...
A meteorite is the term given to a piece of a comet or asteroid that falls into the Earth's atmosphere and survives to hit the surface Modern classification schemes divide meteorites into groups according to their structure, chemical and isotopic composition and mineralogy
The Murchison Meteorite belongs to the CM group of carbonaceous chondrites. Carbonaceous chondrites are primitive and undifferentiated meteorites that formed in oxygen-rich regions of the early solar system so that most of the metal is not found in its free form but as silicates, oxides, or sulphides
CM chondrites are well known to contain a wealth of complex organic compounds Like most CM chondrites, it experienced extensive alteration by water-rich fluids on its parent body before falling to Earth.
Cosmochemists reported in January 2020 that the silicon carbide particles in the Murchison meteorite have been determined to be 7 billion years old.
Instrumentation:
Model: Atlas M microXRF
Map (pixels): 1600 x 902
Software: Iridium Ultra Size (mm): 11.40 x 6.42
Voltage: 50 kV
Current: 1000 µA
Filter: open
Point dwell: 130 ms
Atmosphere: vacuum
Spot size: 5 µm
Data:
Micro-spot energy dispersive X-ray fluorescence spectroscopy was employed to produce hyperspectral XRF images of the distribution of the primary elements identified in the Murchison meteorite sample. Under the analysis conditions employed, the observable elements were: Mg, Al, Si, S, K, Ca, Ti, V, Cr, Mn, Fe and Ni.
Meteorites are known to contain a significant amount of iron. The elemental map of iron (Figure 2) was set to a thermal scale in the image … to not only show the presence of iron but also the dramatic concentration distribution.
The Si-map (Figure 3) shows the silicon from silicon carbide inclusions
This meteorite is similar to other CM chondrites in that it contains abundant calcium and aluminium rich inclusions. These inclusions can be seen in the elemental map overlay (Figure 4), where calcium is yellow and aluminium is blue.

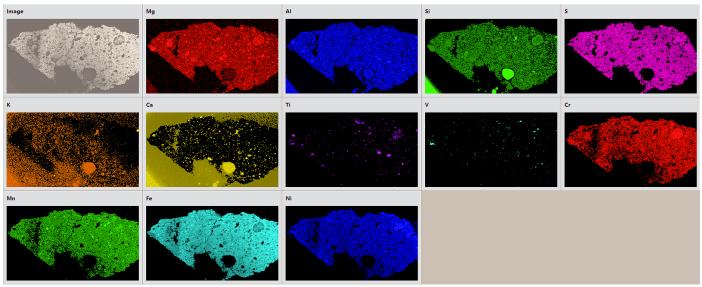

Figure 1. XRF maps by element

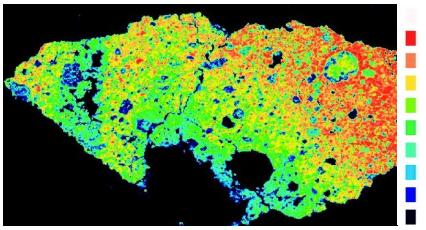

Figure 2 Thermal map of Fe concentration (red is highest)

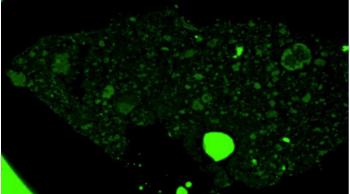

Figure 3 Silicon carbide map

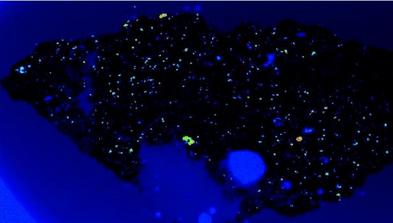

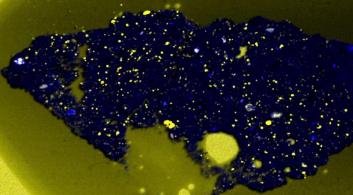

Figure 4 Inclusions: Ca is yellow and Al is blue
Other elements of research interest were also identified in the meteorite; just a few are shown (Figures 5-7) and are set to a thermal scale to highlight details of areas of higher concentration The use of a 5 µm spot size allows for incredible detail in the elemental maps.
Discussion:
Application of a non-destructive analytical procedure, such as microXRF, to characterise the mineral phases in meteorites solves a key issue in the preservation of these scarce materials. Elemental composition analysis was performed using the ATLAS M hyperspectral microXRF imaging spectrometer, affording elemental distribution maps – with 5 µm special resolution – for the meteorite sample Microspot EDXRF expands the abilities of researchers.
This analytical technology is ideally suited for the analysis of inorganic species, and offers excellent sensitivity to trace elements (for example, concentrations less than 100 ppm can be detected, depending on the element and sample matrix). Point analysis allows fast identification of mineral species, even when analysing individual grains in a section. Hyperspectral imaging provides detailed elemental images, highlighting the distribution of mineral phases and graphically illustrating general structure

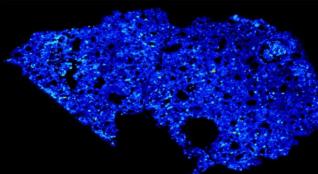

Figure 5 Al map
Figure 6 S map
Figure 7 Ca map
CRACK AND VOID IDENTIFICATION IN SOLDER TO CHECK FOR CONNECTIVITY AND LEAK
PATHWAYS

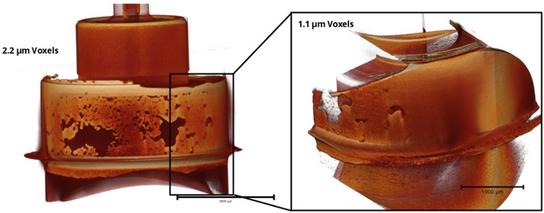

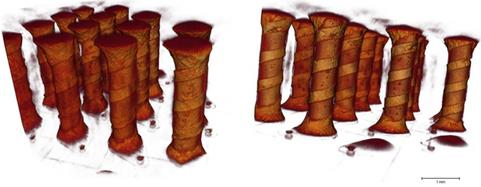

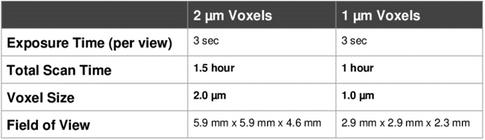

High Resolution Virtual Sectioning for 1 1um virtual slice
CRACKS IN SOLDER CONNECTIONS AND/OR PCB SUBSTRATE
Using the Sigray Apex 3D X-ray Microscope
Rendering

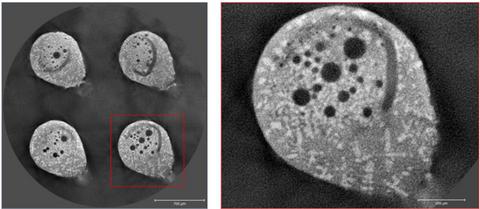

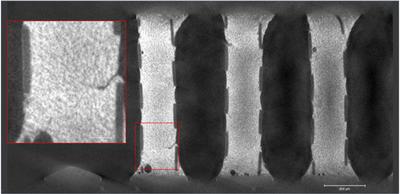

Cross-Section, sagittal view of PCB solder connections
1um Virtual Slice Analysis – visualising microstructure of joints, locating voids and defects
About the Sigray Apex
Rethink Impossible
Sub-Micron 3D X-ray In Minutes
Advanced semiconductor packaging & FA

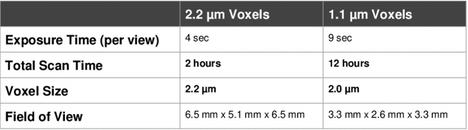

2um Voxel, 3D Volume

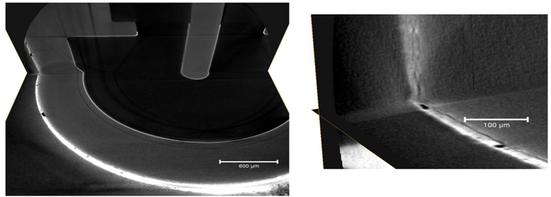

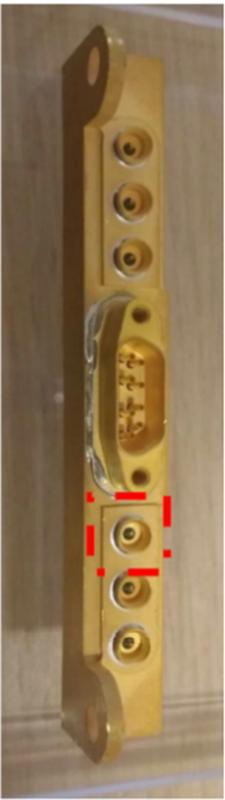

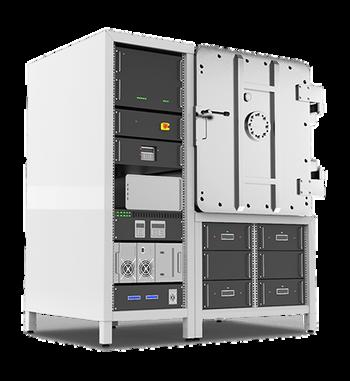

SPACE INSTRUMENT FAILURE ANALYSIS
with Synchrotron Grade MicroCT
3D x-ray microscope with industry-leading spatial resolution
Achieve down to 0.5 µm spatial resolution and <100nm voxels
Powerful reconstruction and data analysis software
Advanced artifact reduction and image optimisation GPU-accelerated FDK and iterative reconstruction engines
Multiple detectors in a single system
Optimise your field of view and resolution
About Sigray
Sigray, Inc. is a San Francisco Bay Area company founded with the aim to accelerate scientific progress by providing powerful, synchrotron-grade research capabilities in its laboratory x-ray systems
High Throughput (>10X)
For flat, thin samples, such as dies, packages and wafers Can acquire high quality tomographies within 15minutes
High Throughput preservation for large samples
System geometry makes this possible even for 300mm wafers
True 3D Volumetric Imaging at 1um resolution
Virtual Cross-Sectioning. Failure Analysis.
These systems represent a major step-change from existing laboratory x-ray systems and their breakthrough performance are uniquely enabled by Sigray’s patented innovations in x-ray source, optics, and detector technologies
Since its founding in 2013, Sigray’s products have already been adopted by prominent scientific leaders in Asia, America, and Europe. The company holds over 40 patents on x-ray component and system technologies

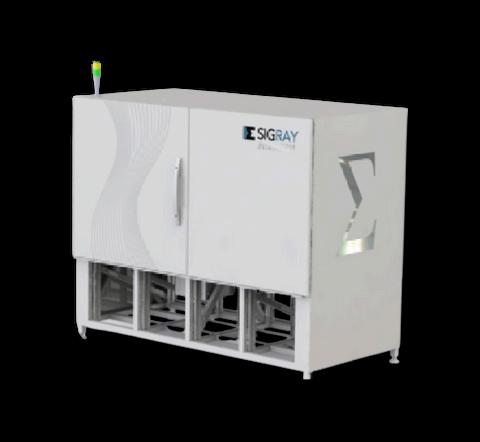

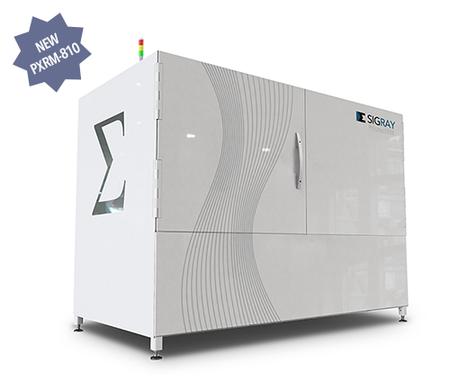

Sigray PrismaXRM

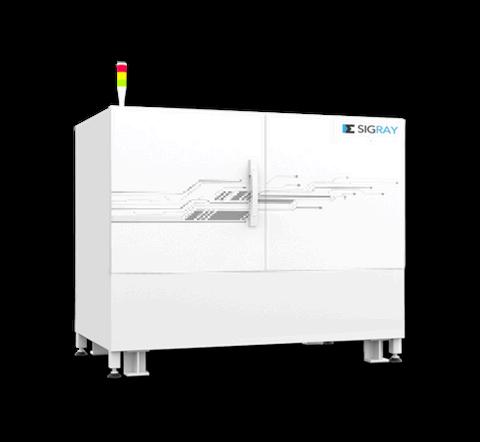

Sigray ApexXCT
Join our Mailing List and be first to hear about events
QDUKI hosts a number of events each year, we strongly encourage you to join our mailing list to be the first to hear about these. We also keep you updated with webinars from our partners, as well as other industry conferences, exhibitions and seminars we think you may be interested in.
explainer

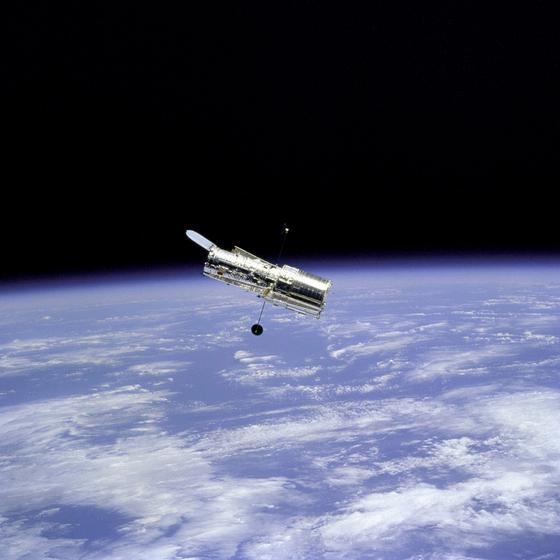

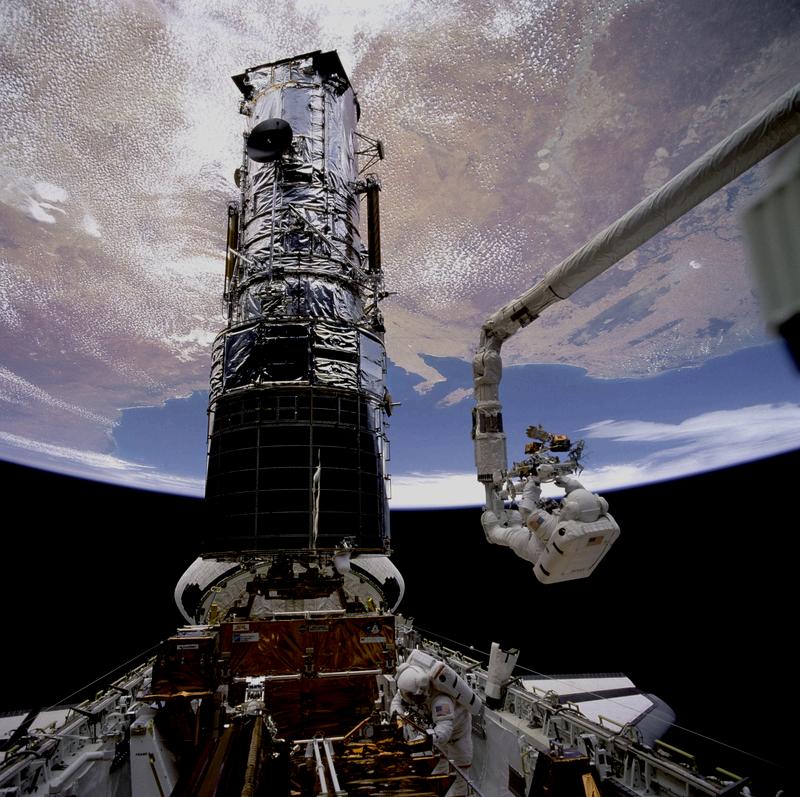

James Webb Space Telescope Hubble Space Telescope
JWST is 100 times more powerful
JWST mirror is 6 larger
JWST can see IR wavelengths
Hubble can see ~480 Million years after the Big Bang
JWST can see ~250 Million years after the Big Bang
Hubble orbits the Earth, James Webb does not
"Any way you slice it, the Cartwheel Galaxy is magnificent to behold. The top half of this image shows the galaxy as seen by NASA's Hubble Space Telescope in visible light, while the lower half of this image shows the James Webb Space Telescope's infrared view. Hubble and Webb will continue to work together to provide complementary views of the universe."
JSWT Mission Goals
Search for the first galaxies formed after the Big Bang
Determine how galaxies have evolved
Observe the formation of stars and the formation of planetary systems
Measure the physical and chemical properties of planetary systems
Investigate the potential for life in the Universe
NASA
CASE STUDY: MEASURING UP TO NASA’S JAMES WEBB SPACE
TELESCOPE
"Probably the most difficult metrology project in a generation of astronomical optics"
H. Philip Stahl Senior Optical Physicist, NASA

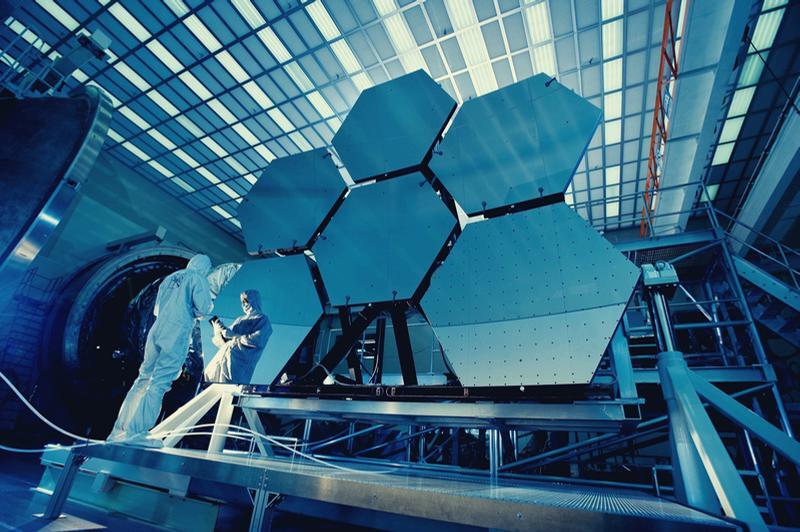

The 18 mirror segments, the secondary mirror, and the tertiary mirror were measured individually and in sets, for surface figure and surface roughness They were re-measured in cryogenic vacuum conditions It required a giant helium refrigeration chamber to bring the optics to -240 °C (30K). With pump vibrations surrounding the mirrors, the vibration would be high
4D Technology was designated primary metrology supplier, providing instruments for several measurements of the optics and the support structure The selection was in part because of our dynamic metrology technology, and in part because of our willingness to engineer and design to the extremely stringent requirements.

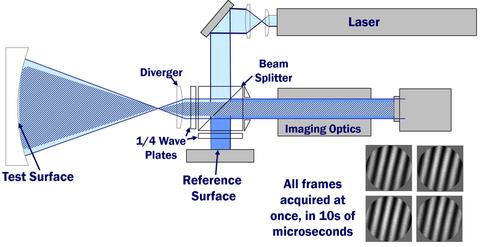

The reason TwymanGreen was best
A Twyman-Green configuration of interferometer is capable of retaining light, and expanding to large spherical surfaces.
Measuring concave segmented mirrors
One challenge of measuring a segmented mirror, using interferometry, is that the interferometer has a small tolerance for measuring step discontinuities that is, the difference in Z of one mirror segment to its neighbours in the array. The system is prone to vibration, because the focal lengths and the size of the array could not permit the interferometer and the optical array to be coupled together
To ensure NASA could make a measurement that 1) would be vibration immune, 2) could tolerate the step discontinuities, and 3) could capture enough light in a light-absorbing computergenerated hologram measurement, we offered our dynamic interferometry technique in a Twyman-Green interferometer, using twowavelength measurements
The ability of an interferometer to differentiate step discontinuities is just ¼ of the wavelength used to measure. By using two-wavelength interferometry, the dynamic range increases dramatically by creating a longer functional wavelength The downside is that the time taken to acquire two measurements makes the results more likely to be obscured by vibration. In one proof of concept test, we demonstrated two wavelength acquisitions in less than 100 millionths of a second – effectively making ‘stopaction’ out of any vibration.
The 4D PhaseCam line of Twyman-Green dynamic interferometers we first released for this project served in both the ambient and cryochamber tests, and the end-to-end test

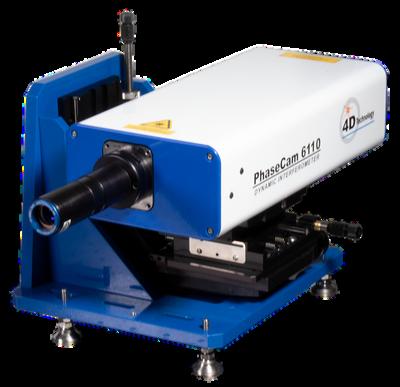

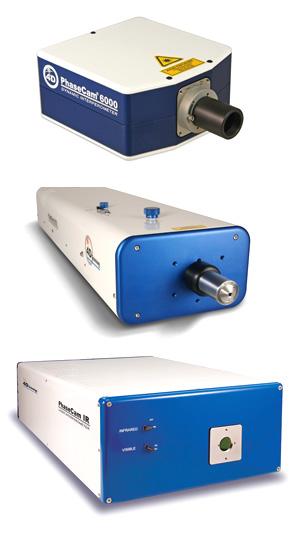

PhaseCam Models
Three models of PhaseCam, a Twyman-Green interferometer with dynamic measurement capabilities.
Shorter frequency measurements
The simultaneous phase-shift architecture of the PhaseCam permits rapid measurement of the surface shape for specular reflecting objects
A Tywman-Green interferometer, measuring surface figure, is unable to resolve the microscopic variances and roughness of polish that affect scatter In space telescopes attempting to image exoplanets, and in X-ray telescopes, ultralow surface roughness and the complex shapes of the optics themselves require tools capable of rapidly measuring surface quality across a very large aperture
About 4D Technology
4D Technology is the leader in high-resolution surface and wavefront measurements for challenginglocationsandapplications.
4D pioneered “dynamic” measurement technology, paving the way for entirely new classes of instruments that change how manufacturers and scientists think about measurement. From the world’s premiere astronomical observatories, to optical manufacturing shops, to aircraft flight lines, 4D gages and instruments provide 3D measures accurately, despite vibration and noise that stop other instruments in their tracks
Interferometric measurement of the vibrational characteristics of light-weight mirrors
ProFlux Nanowire UV Polarisers
Moxtek® has invested many man-years of research into producing high performance polariser options to complement many emerging technologies.
ProFlux® Nanowire® Ultraviolet polarisers offer excellent solutions for UV and DUV applications They are specifically designed for UV applications from 240nm to 400nm. Also, by nature of Moxtek’s patented Nanowire® technology, these polarisers are broad band capable and on fused silica substrates, function well at IR wavelengths up to 4um
High transmission and high contrast choices are available The large acceptance angle eases alignment concerns
Durability is equivalent to Moxtek's standard visible spectrum products recognised for their high durability in hot and environmentally difficult applications. such as astronomy.
The UVT and UVD Series ProFlux Nanowire Ultraviolet polarisers offer excellent solutions for UV and DUV applications. High transmission and high contrast choices are available The high transmission products are indicated by UVT and the high contrast products are indicated by UVD The UVT series are naturally capable of broadband applications into the NIR spectral range to 4μm.
Ultraviolet imaging of objects in space gives an enhanced view and can detect differences not seen in visible light images NASA Hubble Space Telescope high resolution UV image of Jupiter’s satellite Io is shown here. Want to learn
Moxtek in Space Timeline
In 1996, Moxtek’s provided their first space flight component (x-ray window) to NASA/JPL onboard the Mars Sojourner rover. Since then, NASA/JPL has used a Moxtek window on every Mars mission (Sojourner, Spirit, Opportunity, Curiosity, and now the Perseverance).
2020 Mars Rover - Perseverance (NASA - X-ray Tube & Window - more on next page)
2003 Mars Rover - Opportunity (NASA - X-ray Window)
2003 Mars Rover - Spirit (NASA - X-ray Window)
1999 EPIC Camera - XMMNewton (ESA - X-ray Window)
1996 Mars Rover - Sojourner (NASA - X-ray window)
MATISSE UPDATE
(MATURATION OF INSTRUMENTS FOR SOLAR SYSTEM EXPLORATION)
An international team of astronomers led by Violeta Gámez Rosas (Leiden University) has observed a supermassive black hole hidden in a ring of dust. This discovery fits the idea that the so-called active centres of galaxies are much more similar than observations show, because the viewing angle from Earth causes distortions. The research was done with the MATISSE instrument, co-developed in the Netherlands, which combines infrared light from four European Very Large Telescopes (VLT) in Chile.
MATISSE is the acronym for Multi AperTure mid-Infrared SpectroScopic Experiment. MATISSE not only couples the ls between light from the VLT, but also
Netherlands Research School for Astronomy (NOVA) built all the lenses and mirrors in the cooled part of MATISSE together with the Dutch space industry. The Netherlands had gained experience while developing its forerunner MIDI, which could link two telescopes instead of four.
The heart where the beams of the four VLT telescopes converge, consists of two aluminium boxes that are almost a meter in size. These boxes are filled to the brim with hundreds of optical components, dozens of sensors and dozens of tiny motors. Most of the components work with nanometer precision or even higher.
Credit: ESO/M Kornmesser and L Calçada analyses it. MATISSE was created specifically for infrared light with wavelength 3 micrometers and 13 micrometers. Infrared light is also created when something gives off heat. Therefore, MATISSE is cooled to minus 241 degrees Celsius so the instrument itself does not interfere with the measurements Nanometer precision.

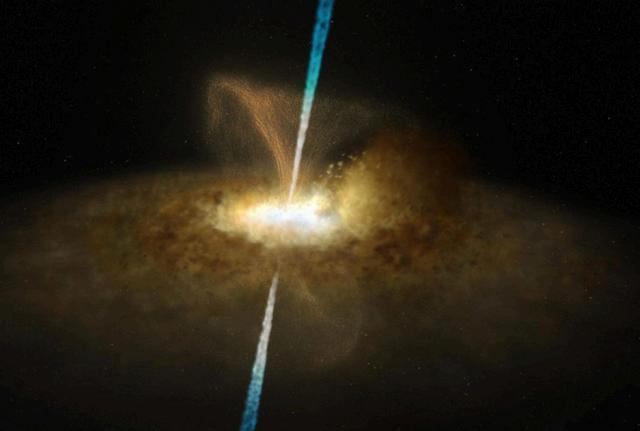

This illustration shows what the core of Messier 77 might look like As other active galactic nuclei, the central region of Messier 77 is powered by a black hole that is surrounded by a thin accretion disc, which itself is surrounded by a thick ring or torus of gas and dust. In the case of Messier 77, this thick ring completely obscures our view of the supermassive black hole This active galactic nucleus is also believed to have jets, as well as dusty winds, that flow out of the region around the black hole perpendicularly to the accretion disc around it.
