PREAMPLIFIER OPERATING INSTRUCTIONS
OPERATING INSTRUCTIONS EVOLUTION
IMPORTANT
LINE PREAMPLIFIER

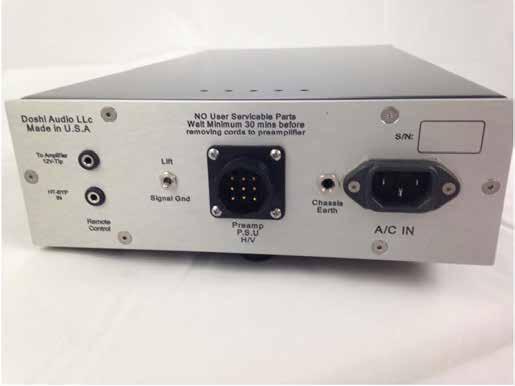

The umbilical cables carry high voltages. Care must be taken to make sure they are properly inserted. The Chassis earth wire must always be installed for safety. The umbilical cables are polarized such that they will fit only in one direction. The end of the cable with the female sockets will fit into the PSU and the end with the male pins will fit into the audio amplifier unit.
Allow at least 30 minutes after turn off before removing the umbilical cable to allow the high voltage to drain.
UNPACKING

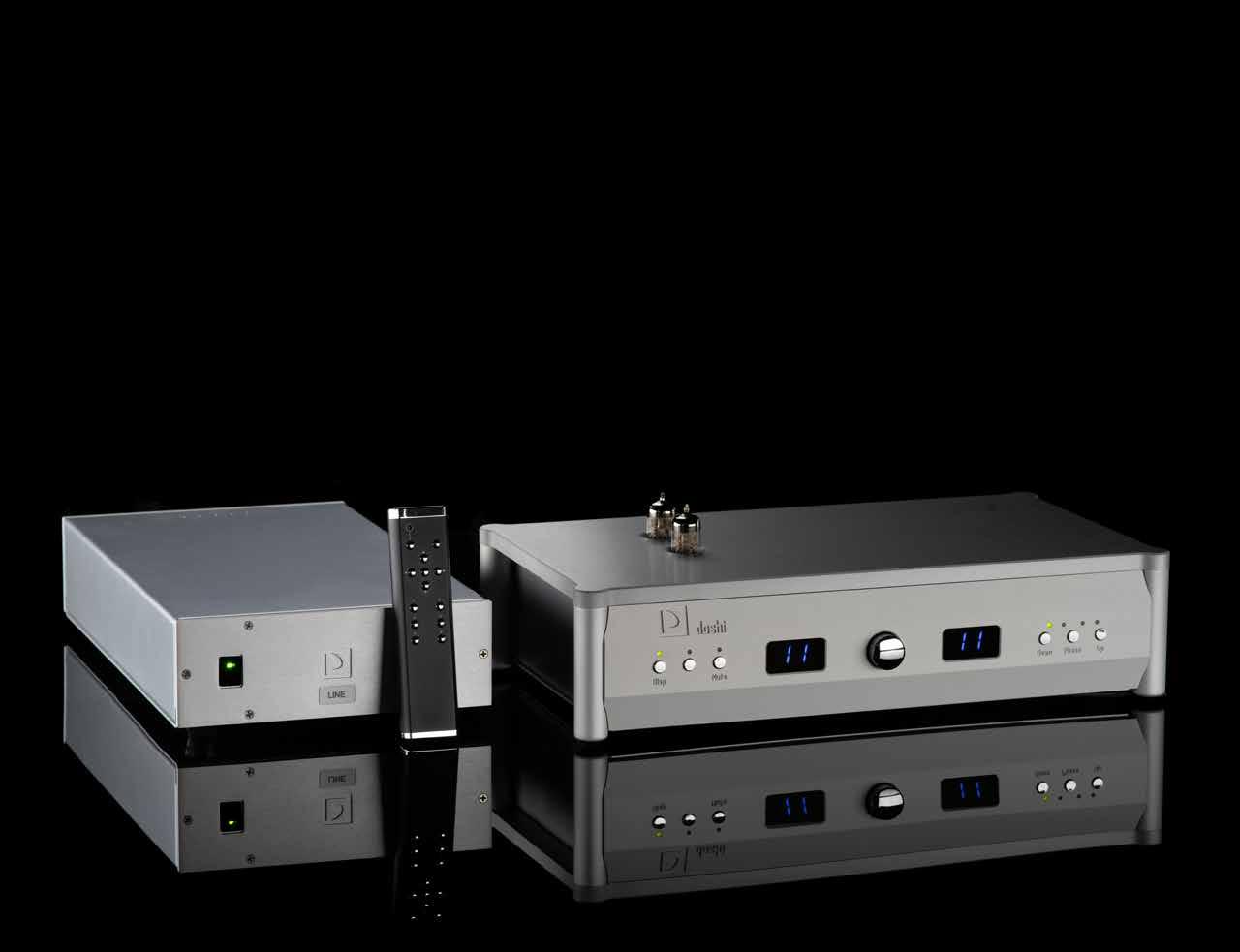

The Doshi Audio Line Stage is made up of an audio amplifier unit, power supply and umbilical cords. Please unpack these from the carton and inspect to make sure that there is no damage from shipping
INSTALLATION
Install the supplied tubes into the audio unit. Please be extremely careful so the tube pins or sockets are not damaged (see tube section in this manual for installation instructions)
Connect the umbilical cords to from the Power supply to the Audio preamplifier.
The Power Supply is also the main ON/OFF control for the preamplifier so it is helpful if it is located for easy access to the front panel power switch
4
| 3
of
DESIGN PHILOSOPHY
The primary function of a line stage is to serve as a device that enables switching and control of multiple inputs and control of audio level into the amplifier. In addition to this functionality, the line stage has to be able to isolate source equipment and drive the combined load of the cable and amplifier input.
Doshi line stage achieves these objectives by combining transparent relay switching and a stepped secondary volume control transformer (TVC). The use of a transformer in this application provides an additional benefit over level adjustment. It also provides isolation between source and amplification circuitry. This isolates the amplification from noisy sources (digital equipment, etc). An additional benefit of the TVC is a constant input load and a low impedance drive to the Line stage amplification. The active circuitry in the Doshi Line Stage is comprised of a dual triode operating with the first section providing amplification. This is then directly coupled into the second triode section which is configured as a follower. This results in a amplification of 12db and an output impedance of less than 30 ohms across the audio band.
Mechanical isolation is provided in the form of isolation grommets for the audio circuit board and mass damping of the chassis in the form of the top plate. This results in a high degree of mechanical isolation of the audio circuitry.
he Doshi Audio Line stage is supplied as stock with 2 pairs of XLR and 2 pairs of RCA inputs. It is supplied with one pair of XLR and one pair of RCA outputs. The design of this unit is very flexible in that it can be custom ordered with any combination of inputs and outputs, with or without a Home Theater bypass and in 4 channels if required. Please contact your dealer with specific needs.
This unit has 4 sets of inputs and 2 sets of outputs. The outputs are provided as 2 stereo pairs and are isolated. This allows for any combination of
interconnects to be used. For example : Amplifiers with SE inputs and Subwoofers with Balanced inputs can be used with little chance of ground loops and noise. A combination of loading is permissible. The outputs of the line stage are designed to function with optimum distortion into loads from 5K ohms to 100K ohms. At higher loading, it may be advisable to use the unused output socket to add a dummy load . This will optimize the transient response of the unit. RCA dummy plugs with loads can be supplied to experiment. As always, the ears are the best judge and any one unit does not operate in a vacuum and the overall system response is the goal.
The unit can be setup from the factory with 2 sets of XLR or RCA outputs. Any other combination is a no charge option.
REMOTE CONTROL
The Remote Handset can be used to access all functions of the Preamplifier except for Power On/Off.

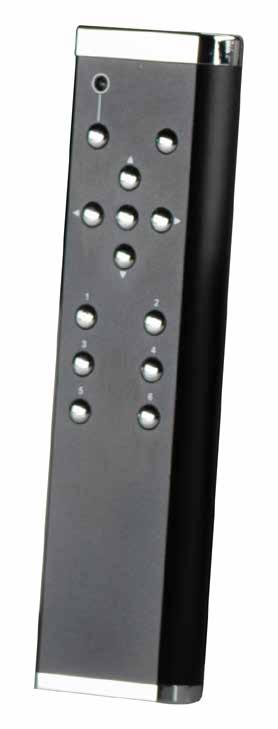

The picture and layout above describes the function of the handset.
Please note the operation of the phase function. The LED above the input will glow green when the phase through the preamplifier is non-inverted. The LED will glow amber/ orange when the phase is inverted. The unit retains memory of the phase setting while it is powered up.
HOME THEATER BYPASS
The Doshi Audio Line stages are optionally fitted with a Home Theater Bypass facility. The unit does not need to be powered on for this facility to work. A suitable signal and remote connection from the HT processor to the HT bypass inputs of the Preamplifier. A remote bypass trigger of 12vdc must be present at the bypass input on the PSU and the preamplifier must be plugged into the wall for the bypass function to operate. The unit does not need to be turned on for the bypass function to operate. If the unit is turned on, it will de-activate the bypass relay.
When the preamplifier receives a remote trigger from the processor, it operates a set of relays that route the signals present on the HT Bypass input to both outputs. When the unit is in bypass, the trigger signal from the processor is present on the remote out jack as well to turn on any amplifier connected for remote start.
REMOTE START
The signal from the remote start jack on the PSU is a 12vdc trigger output to enable remote start to amplifiers. 12vdc is present on the jack as follows :
PSU OFF / NO HT BYPASS Trigger: Remote OFF
PSU OFF / HT BYPASS Trigger ON: Remote ON
PSU ON : Remote ON
TUBE:
The Unit uses a total of 2 tubes (1 Per channel)
All tubes are of the ECC99 type.
Tube Substitute: 12BH7A , 13D6
The tubes provided are of good quality OS or NOS. The User may prefer to substitute other tubes of the same type to tailor the sound characteristics to their taste.
IMPORTANT: BE VERY CAREFUL when inserting and removing tubes. Avoid touching the glass with bare hands and do not force the tube into the socket. Gently seat the tube into the socket and a firm push will seat it in.

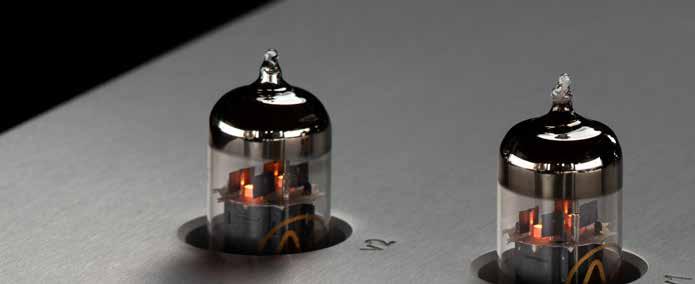

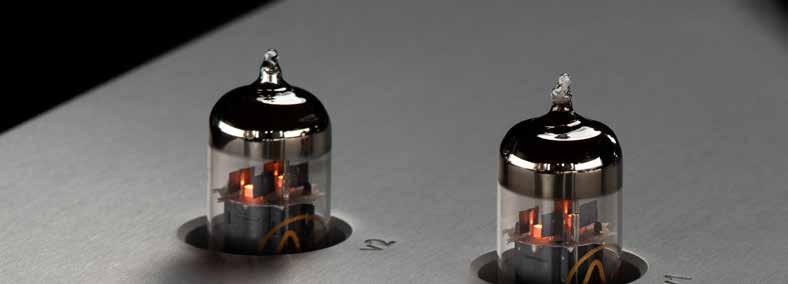

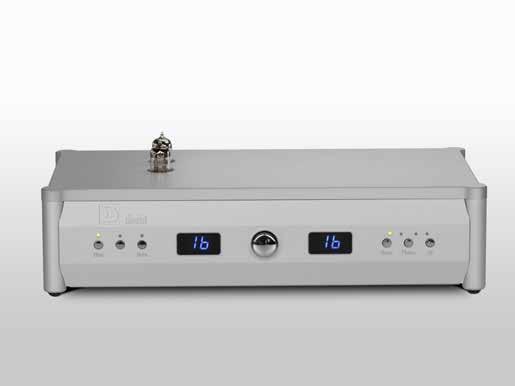

TUBE LOCATION
V1 v2
CLEANING OF THE UNIT
Please do not use solvents of any kind. A slightly damp cloth adequate, the top of the unit is made from Anodized aluminum over a constrained layer of damping compound. This combination has very high damping and is used as a mass damping layer in the preamplifier.
SPECIFICATIONS
Weight – total weight 38lbs
Power Consumption – 20W
Gain - Max 12db (adjustable)
Hum and Noise – At least 100db below 0dbv
