OUTDOOR KITCHENS DESIGNED TO FIT COYOTE AND ARTISAN GRILLS AND ACCESSORIES

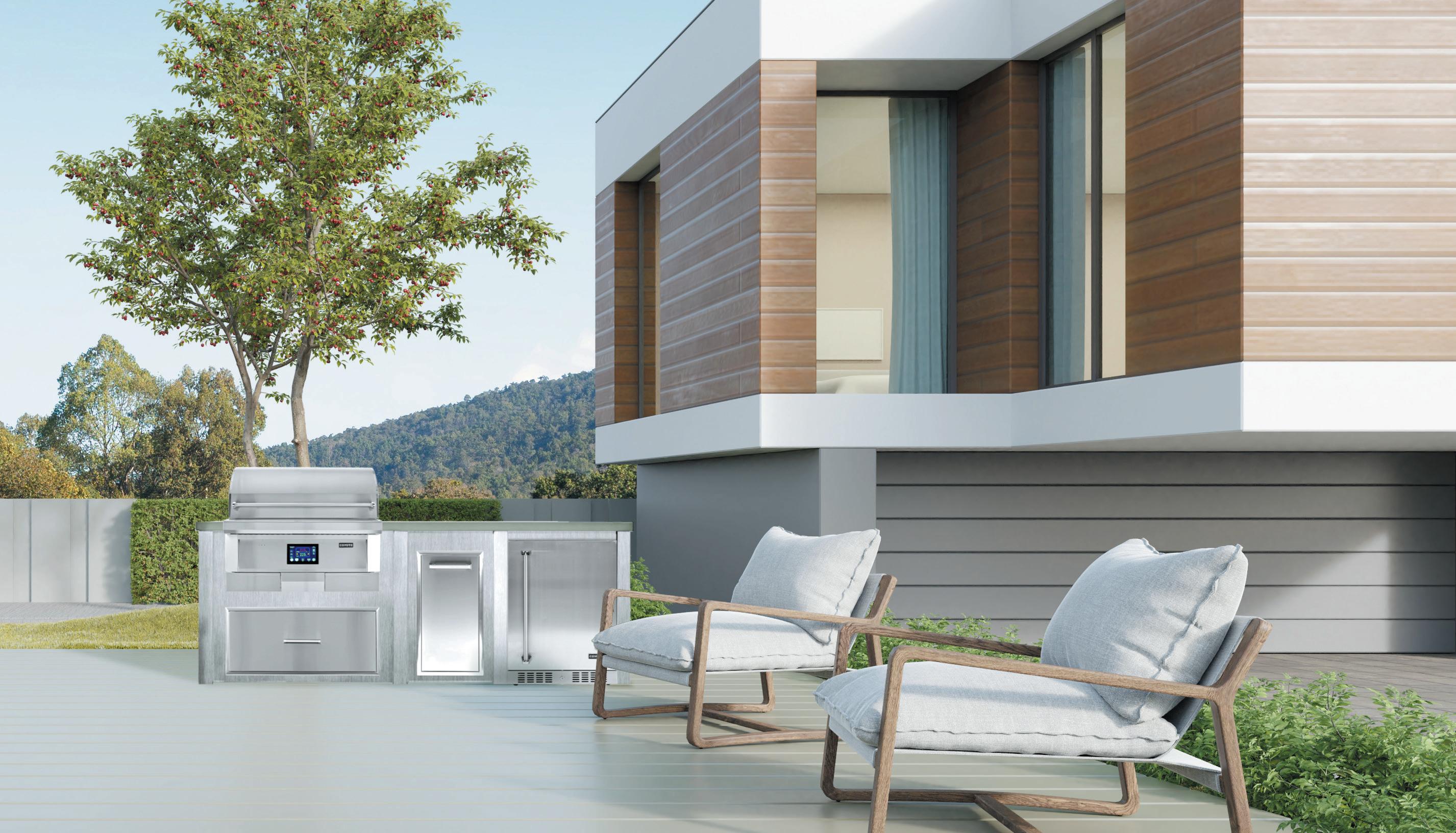

Discover the epitome of outdoor culinary excellence with Haven Outdoor ’s Premium Aluminum Construction outdoor kitchen islands.
Meticulously crafted from high-quality aluminum, these islands are built to withstand the harshest elements while exuding elegance and durability. With easy installation, you can effortlessly transform your backyard into a culinary oasis in no time.
Enjoy ample countertop space, intelligent storage solutions, and integrated features that make outdoor cooking a breeze.

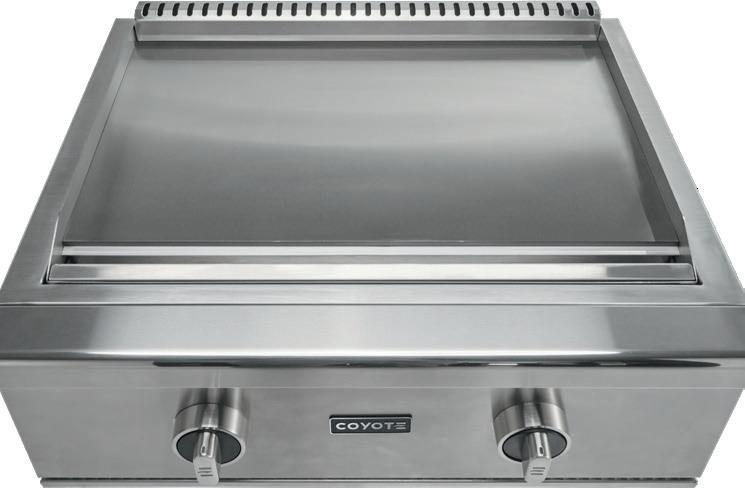

GAS GRIDDLE
Elevate your outdoor entertaining experience with Haven Outdoor ’s kitchen islands - the perfect fusion of style, functionality, and convenience. *NOT ALL BRANDS ARE AVAILABLE IN ALL TERRITORIES
WHY CHOOSE ?
American Made
Manufactured in the USA utilizing domestically sourced materials and resources.
Ease of Installation
From opening the packaging to preparing a meal, constructing your brand-new outdoor kitchen can be completed in under an hour.
Premium Aluminum Construction
Crafted entirely from aluminum, you can have peace of mind knowing your outdoor kitchen is engineered to endure the elements while maintaining its aesthetic appeal for years to come.
In Stock and Ready to Ship
Your fresh outdoor kitchen can reach your doorstep within a matter of days, eliminating the need for prolonged waiting. Get prepared for your weekend gathering without any delay!
Warranty
Haven Outdoor guarantees the materials and applied finish of the product to be devoid of defects in material and craftsmanship for a duration of three (3) years.
HAVEN OUTDOOR
CUSTOMIZABLE
• Select outdoor kitchen components that align best with your lifestyle through our modular design
QUICK ASSEMBLY
• Designed for swift installation, these outdoor kitchens save you valuable time and prevent the need to wait or incur additional expenses for your dream kitchen
ALL ALUMINUM CONSTRUCTION
• Crafted entirely from aluminum, you can have peace of mind knowing your outdoor kitchen is engineered to endure the elements while maintaining its aesthetic appeal for years to come
AMERICAN MADE
• Manufactured in domestically sourced and resources
KITCHEN FEATURES
PORTABLE
• With our lightweight modular design, relocating our outdoor kitchens takes just a few effortless steps
STYLISH
• Offered in three brushed finishes to seamlessly match the cool or warm color scheme of your home and decor
ROBUST CONSTRUCTION
the USA utilizing sourced materials
• Incorporating numerous support points and a triple-layered powder coating, our sturdy production process ensures the protection of your outdoor kitchen
1
Measure your space
Determine the size needed for your outdoor kitchen. Haven Outdoor offers kitchens in 5.5’, 6’ and 8’ configurations to best fit your needs and available space.
2
Choose your finish
Select any of our finishes and add an optional countertop in a concrete finish.
3
4
Select your grill Select your accessories
Select an Artisan or Coyote Grill, Pellet Grill or Flat Top Griddle that fits your outdoor kitchen size. See pages 10 and 16 for available options.
Designed to accept multiple configurations of products, choose the products needed to create your ideal space.

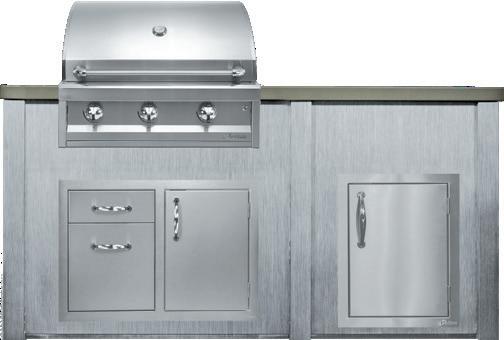

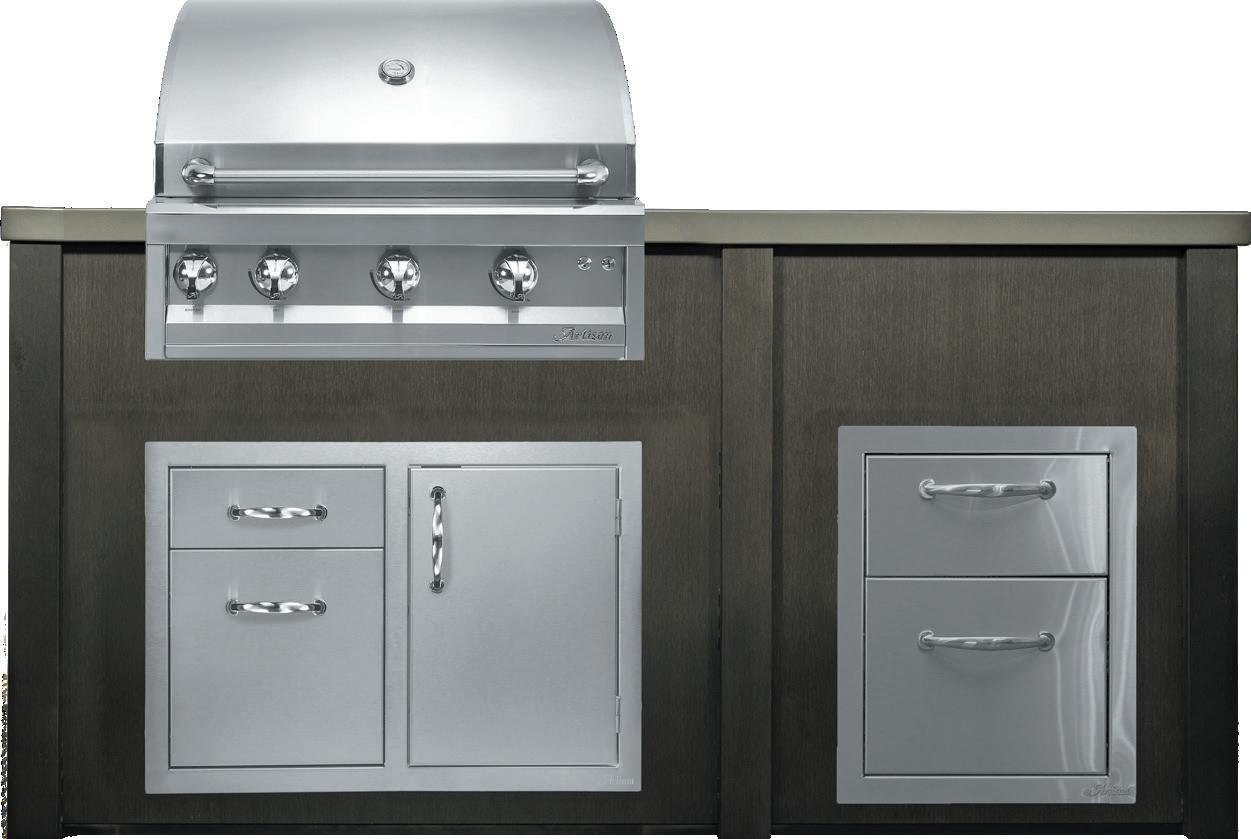

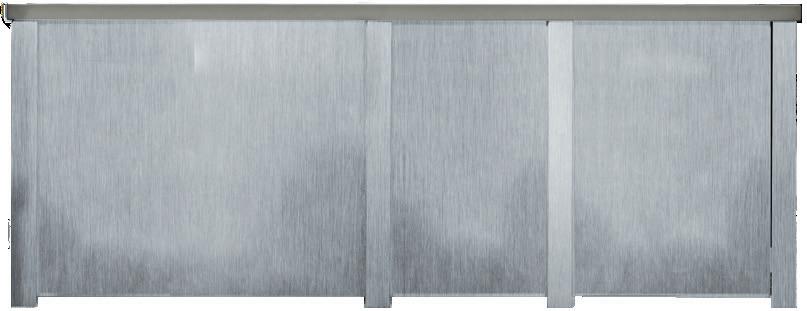

6’ Haven Outdoor for Artisan Products
* Must specify Harbor Gray (HG), Brushed Black (BB) or Antique Bronze (AB) when ordering. Remove the XX and replace with applicable color code.. Remove the XX and replace with applicable color code.
HART72DRAWAB
HART72PANBB
HART72TRASHAB

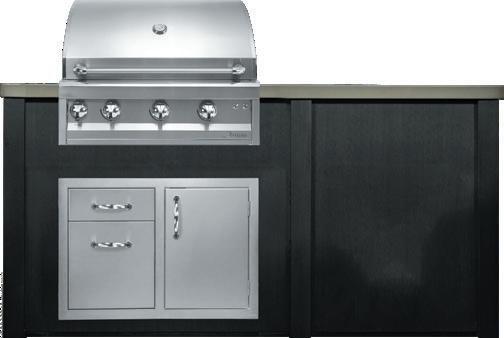

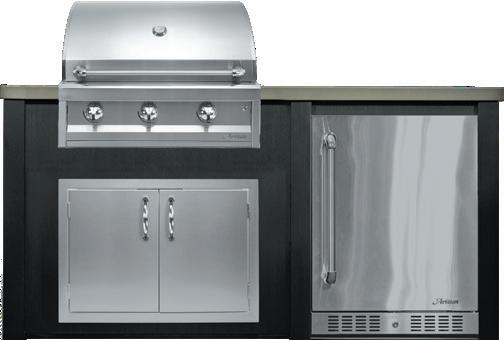

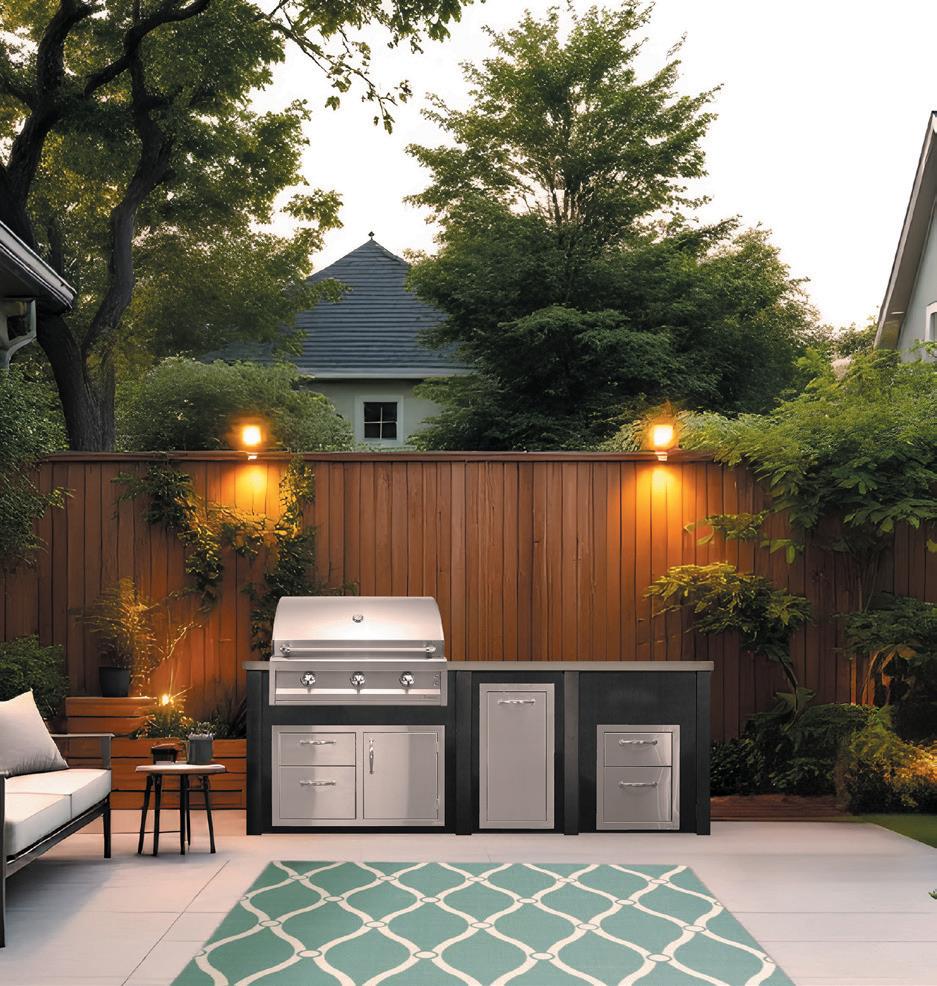

Build Out Your 6’ Haven Outdoor Kitchen with Artisan
6’ Kitchens are specially designed and configured to fit the following Artisan Professional Grills and accessories. See page 16 for additional HAVEN OUTDOOR kitchens for Coyote products.
1
ARTISAN GRILLS (CHOOSE ONE)

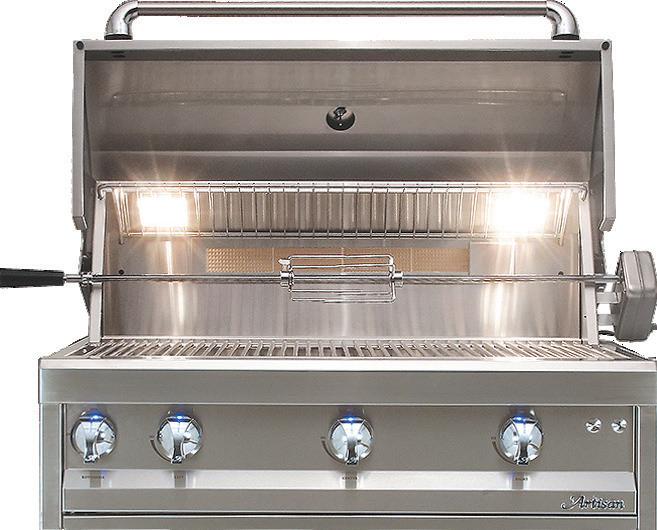

32” Artisan Professional Built-In Grill
32” Artisan American Eagle Grill
Propane ARTP-32-LP
Propane AAEP-32-LP
ARTISAN ACCESS DOORS (CHOOSE ONE)
Artisan 32” Double Doors

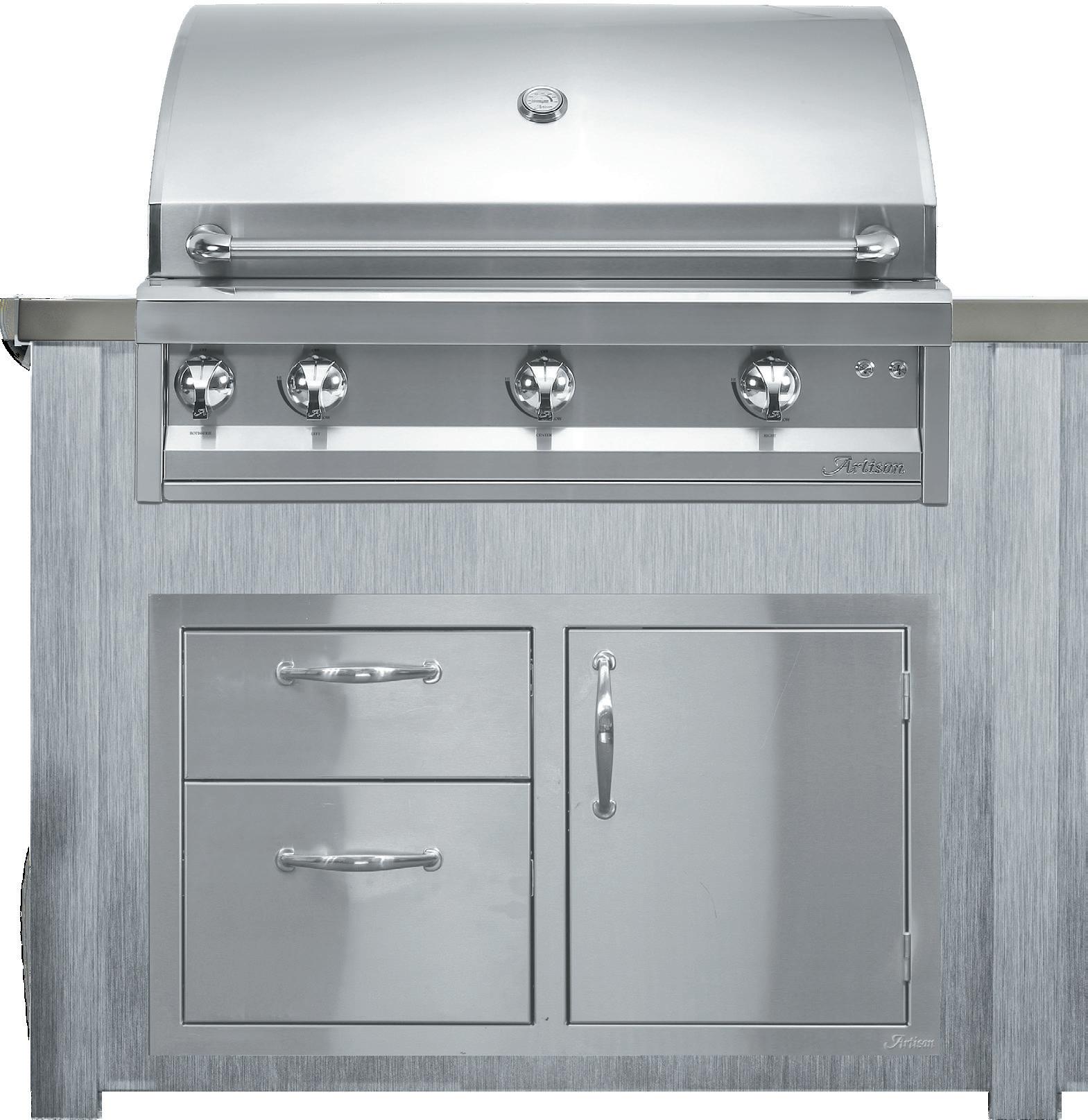

Artisan 32” Door, Drawer Combo Unit
ARTP-32DD
Natural Gas ARTP-32-NG
Natural Gas AAEP-32-NG
ISLAND COLORS (CHOOSE
ONE)
ARTP-DDC-32SC
AVAILABLE ARTISAN ACCESSORIES (CHOOSE ONE)

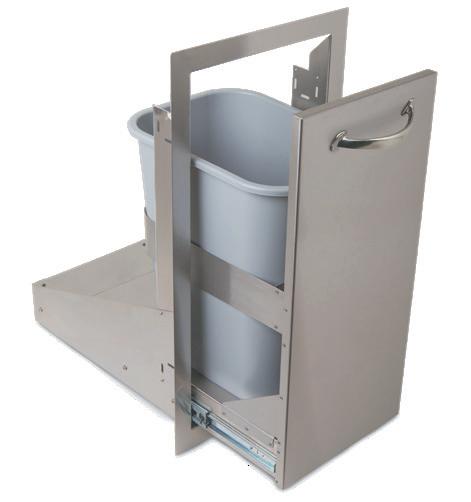

Artisan 15” Trash Center Drawer (Order HART72TRASH Island)
Artisan 17” Single Door (Left or Right) (Order HART72DOOR Island)

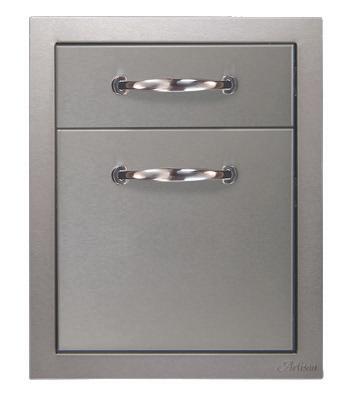

Artisan 17” Two Drawer Unit (Order HART72DRAW Island)

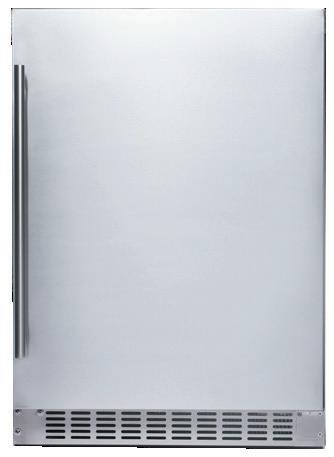

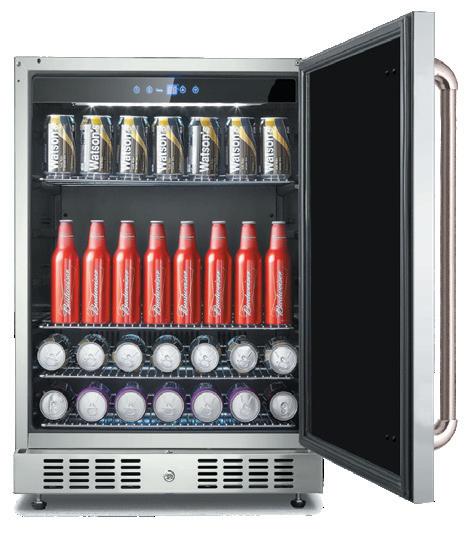

Artisan 24” Outdoor Refrigerator (RH or LH Door Swing) (Order HART72REF Island)

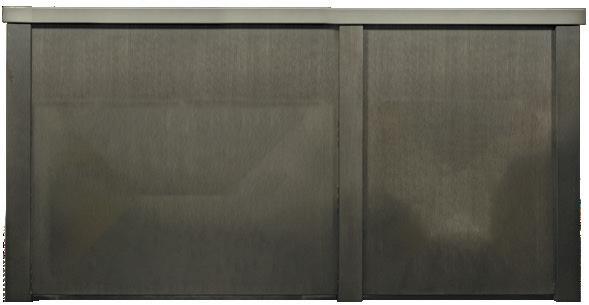

No Accessory (Order HART72PAN Island)
ARTP-TC-15SC
ARTP-17DL
ARTP-2DR-17SC
ARTP-17DR
ADD COLOR CODE TO END OF ISLAND MODEL NUMBER
* Please reference the latest Alfresco and Artisan Price Book for the most up to date pricing and features.
Harbor Gray (HG)
Brushed Black (BB)
Antique Bronze (AB)
* Must specify Harbor Gray (HG), Brushed Black (BB) or Antique Bronze (AB) when ordering. Remove the XX and replace with applicable color code.. Remove the XX and replace with applicable color code.
HART96REFHG
HART96PANAB
HART96DRAWHG

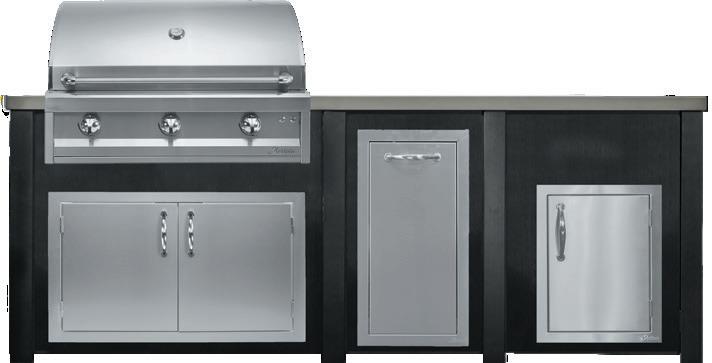

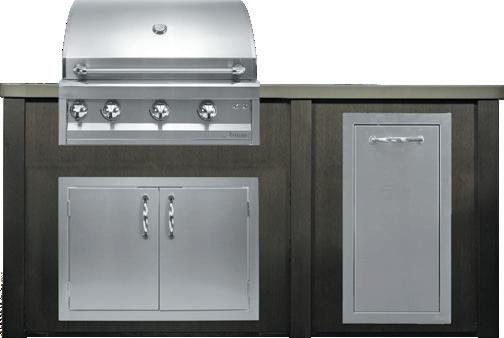

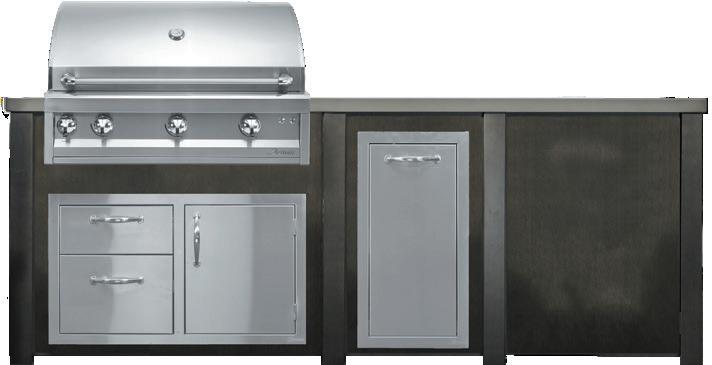

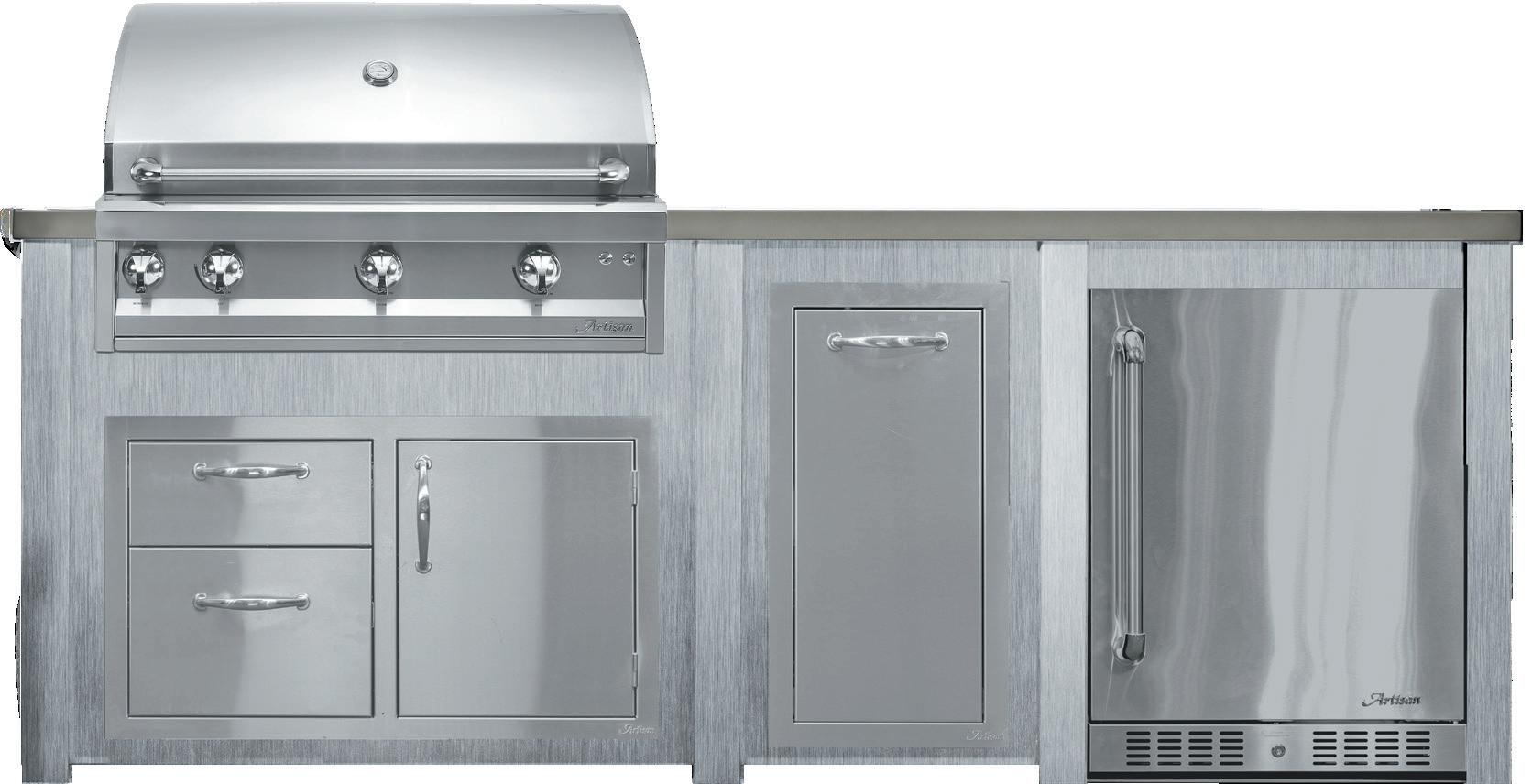

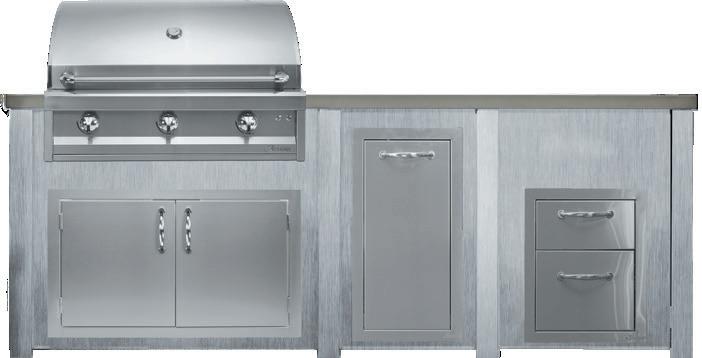

Build Out Your 8’ Haven Outdoor Kitchen with Artisan
8’ Kitchens are specially designed and configured to fit the following Artisan Professional Grills and accessories. See page 16 for additional HAVEN OUTDOOR kitchens for Coyote products.
1
ARTISAN GRILLS (CHOOSE ONE)
36” Artisan Professional Built-In Grill
Propane ARTP-36-LP
36” Artisan American Eagle Grill Propane AAEP-36-LP
ARTISAN ACCESS DOORS (CHOOSE ONE)
3
Artisan 36” Double Doors
Artisan 36” Door, Drawer Combo Unit
ARTP-36DD
ARTP-DDC-36SC
AVAILABLE TRASH CENTER (MUST ORDER)
Gas ARTP-36-NG
Gas AAEP-36-NG
ISLAND COLORS
ARTP-TC-15SC
Artisan 15” Trash Center Drawer
AVAILABLE ARTISAN ACCESSORIES (CHOOSE ONE)
Artisan 17” Single Door (Left or Right) (Order HART96DOOR Island)
Artisan 17” Two Drawer Unit (Order HART96DRAW Island)

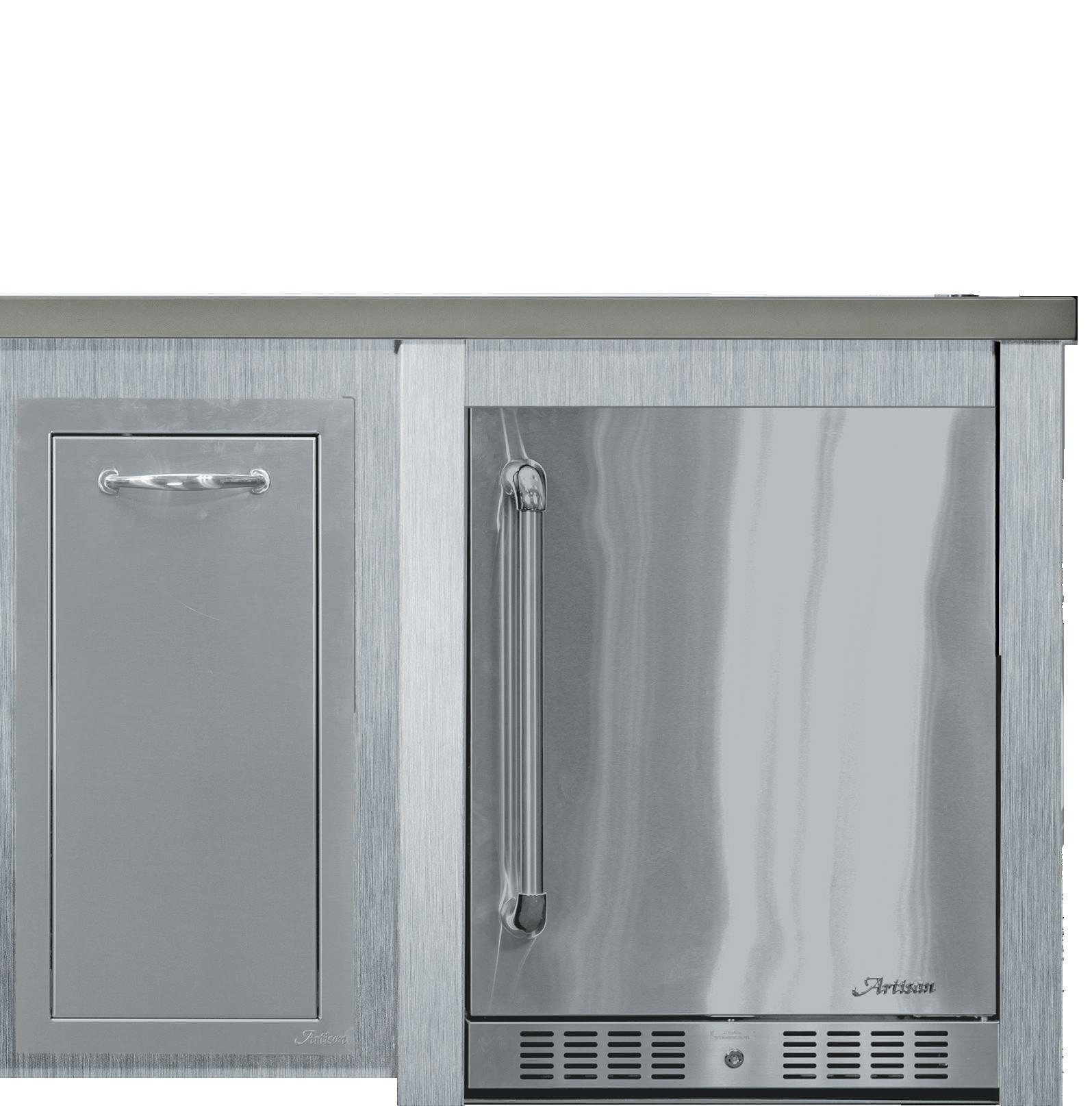

Artisan 24” Outdoor Refrigerator (RH or LH Door Swing) (Order HART96REF Island)
ARTP-17DL
ARTP-2DR-17SC
ART-BC24
No Accessory (Order HART96PAN Island) n/a
ARTP-17DR
ART-BC24L
(CHOOSE ONE)
ADD COLOR CODE TO END OF ISLAND MODEL NUMBER 5
* Please reference the latest Alfresco and Artisan Price Book for the most up to date pricing and features.
Harbor Gray (HG)
Brushed Black (BB)
Antique Bronze (AB)

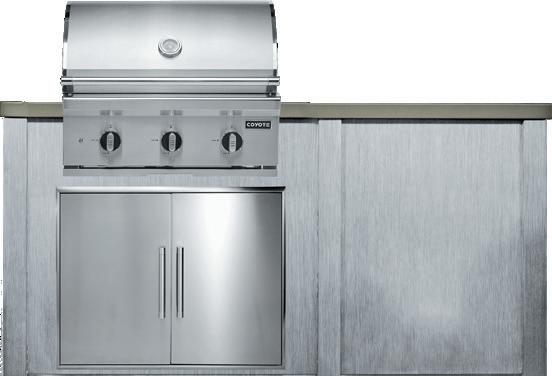

6’ Haven Outdoor for Coyote Outoor Products
* Must specify Harbor Gray (HG), Brushed Black (BB) or Antique Bronze (AB) when ordering. Remove the XX and replace with applicable color code.. Remove the XX and replace with applicable color code.
HCOY72TRASHHG
HCOY72PANHG
HCOY72DRAWBB
HCOY72REFAB

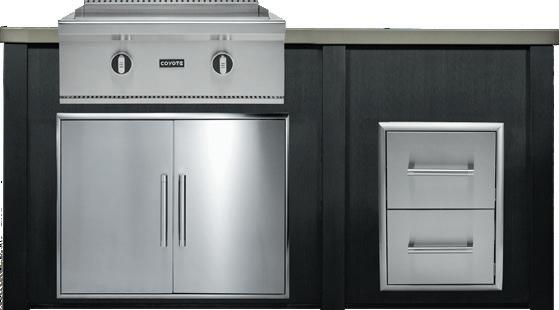

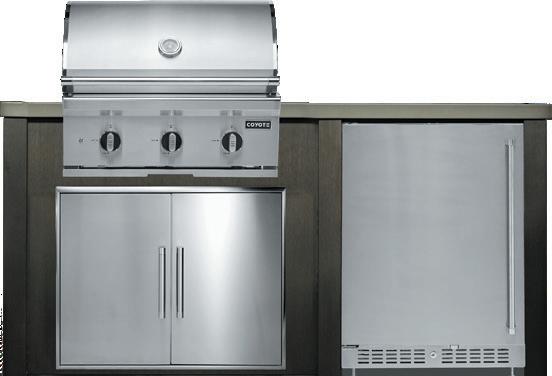

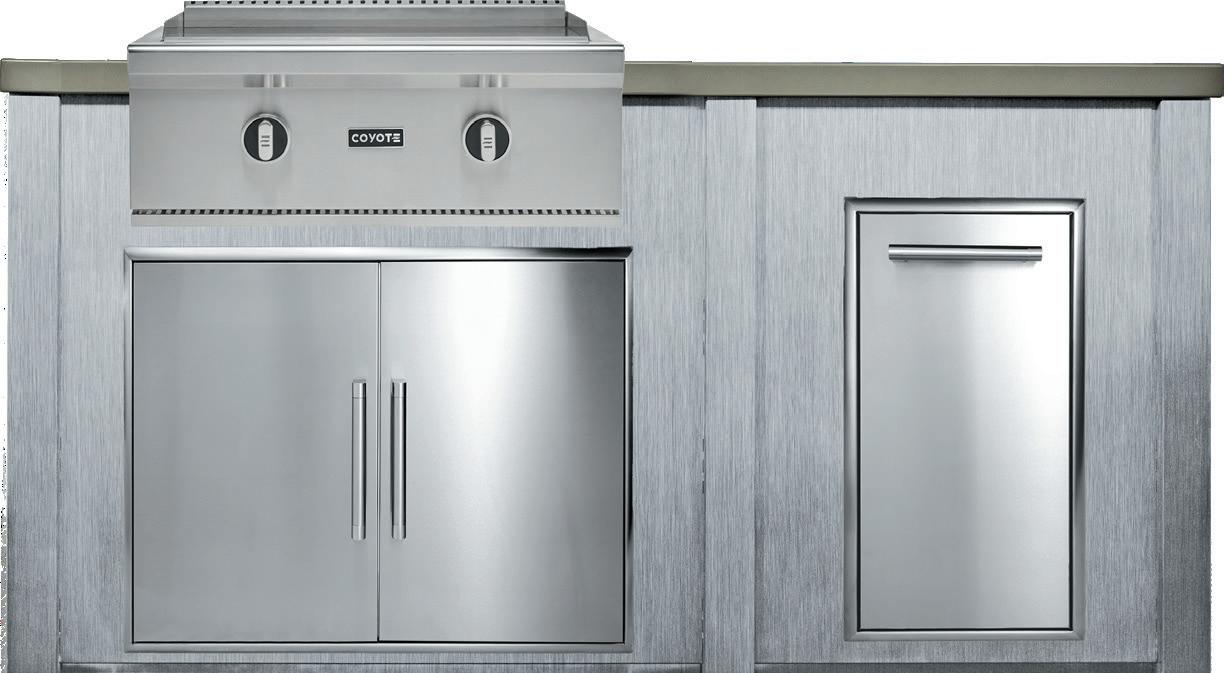

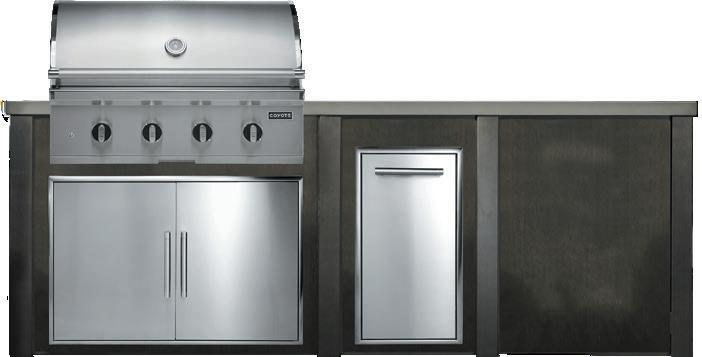

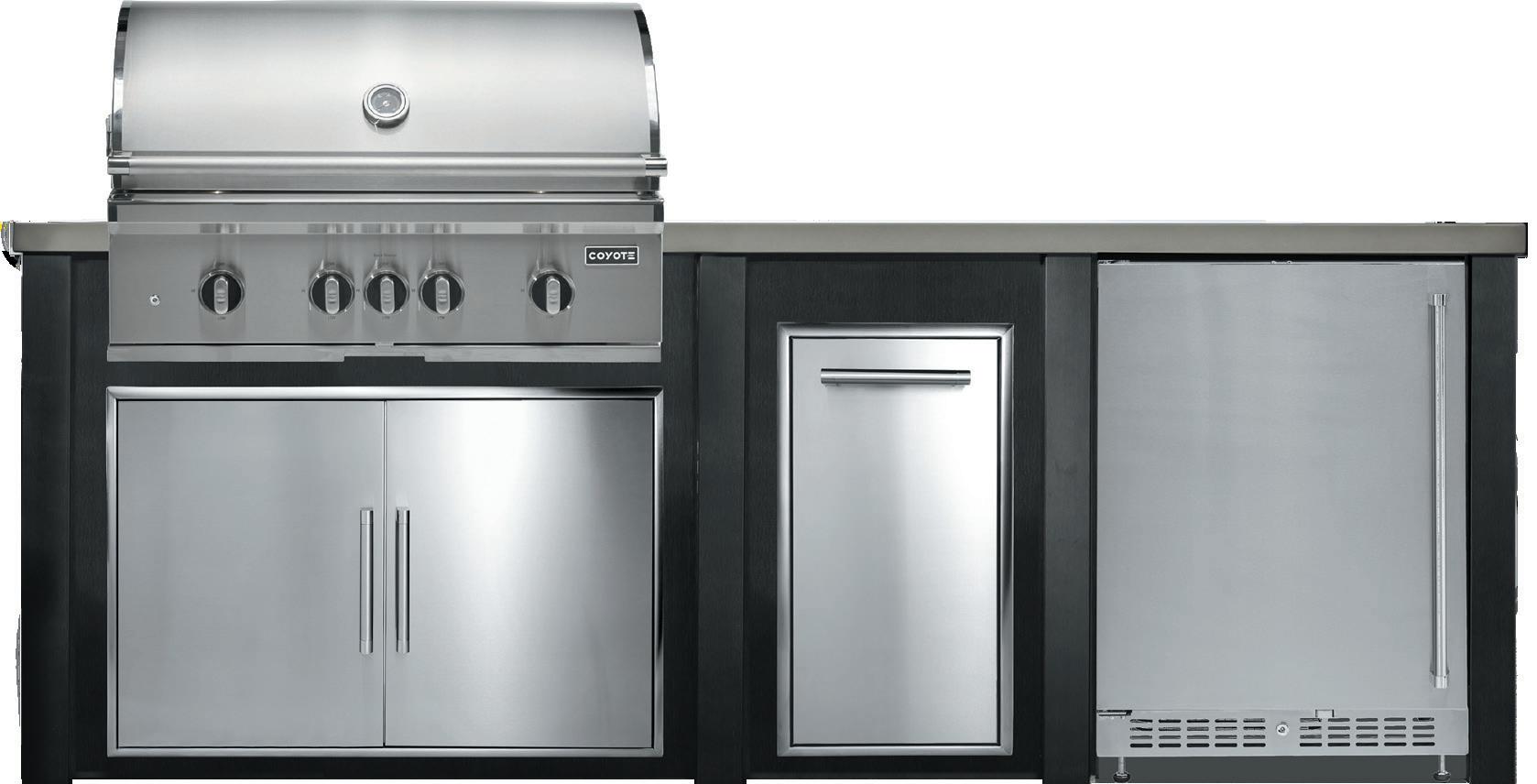

Build Out Your 6’ Haven Outdoor Kitchen with Coyote Outdoor
6’ Kitchens are specially designed and configured to fit the following Coyote Outdoor Grills and accessories. See page 10 for additional HAVEN OUTDOOR kitchens for Artisan products.
COYOTE GRILLS (CHOOSE ONE)
30” Coyote Outdoor SL-Series Grill
30” Coyote Outdoor Flat Top Grill
Propane C3SL30LP
Propane C3FTG30LP
COYOTE ACCESS DOORS (MUST ORDER)
Coyote Outdoor 31” Double Access Door
Coyote Outdoor 31” Combo Drawer 2 Drawer Cab and Single Door
C3-DA2431
Natural Gas C3SL30NG
Natural Gas C3FTG30NG
ONE)
C3-CD2DC31
AVAILABLE COYOTE ACCESSORIES (CHOOSE ONE)
Coyote Outdoor 15” Trash Center Drawer (Order HCOY72TRASH Island)

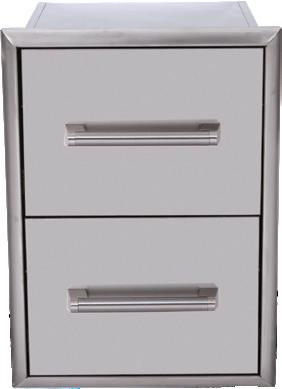

Coyote Outdoor 17” Two Drawer Unit (Order HCOY72DRAW Island)
C3-2DC

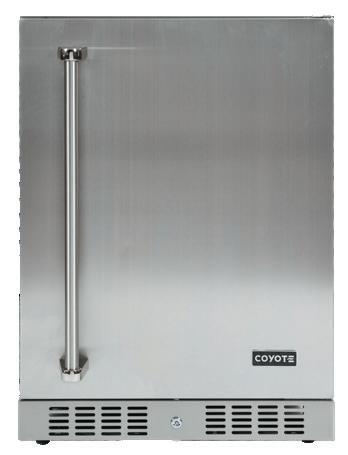

Coyote Outdoor 24” Outdoor Refrigerator (RH or LH Door Swing) (Order HCOY72REF Island) C124R-S
* Please reference the latest Coyote Outdoor Price Book for the most up to date pricing and features.
C3-STC
Harbor Gray (HG)
Brushed Black (BB)
Antique Bronze (AB)

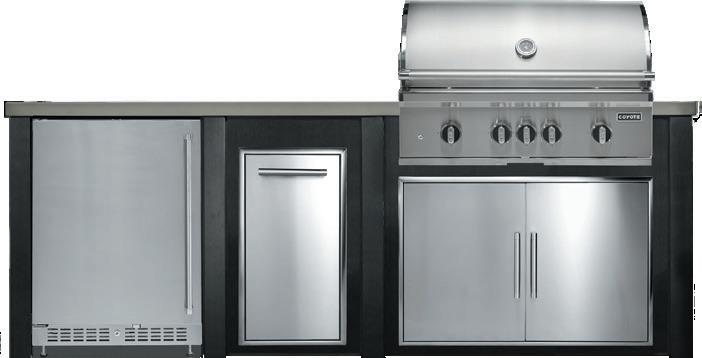

8’ Haven Outdoor for Coyote Outoor Products
* Must specify Harbor Gray (HG), Brushed Black (BB) or Antique Bronze (AB) when ordering. Remove the XX and replace with applicable color code.. Remove the XX and replace with applicable color code.
HCOY96REFBB
HCOY96REFBB-R
HCOY96DRAWHG-R
HCOY96PANAB

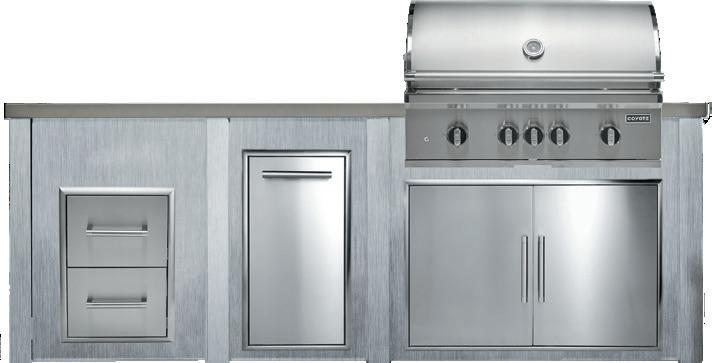

Build Out Your 8’ Haven Outdoor Kitchen with Coyote Outdoor
8’ Kitchens are specially designed and configured to fit the following Coyote Outdoor Grills and accessories. See page 10 for additional HAVEN OUTDOOR kitchens for Artisan products.
* Please reference the latest Coyote Outdoor Price Book for the most up to date pricing and features.
Harbor Gray (HG)
Brushed Black (BB)
Antique Bronze (AB)
8’ Haven Outdoor for Coyote Outoor Products
* Must specify Harbor Gray (HG), Brushed Black (BB) or Antique Bronze (AB) when ordering. Remove the XX and replace with applicable color code.. Remove the XX and replace with applicable color code.
HCOY96PREFAB
HCOY96PPANAB
HCOY96PDRAWBB

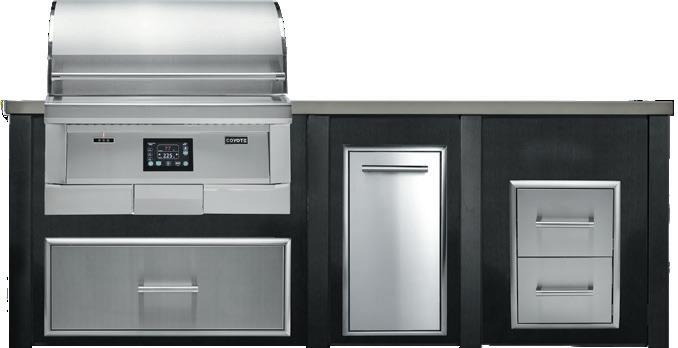

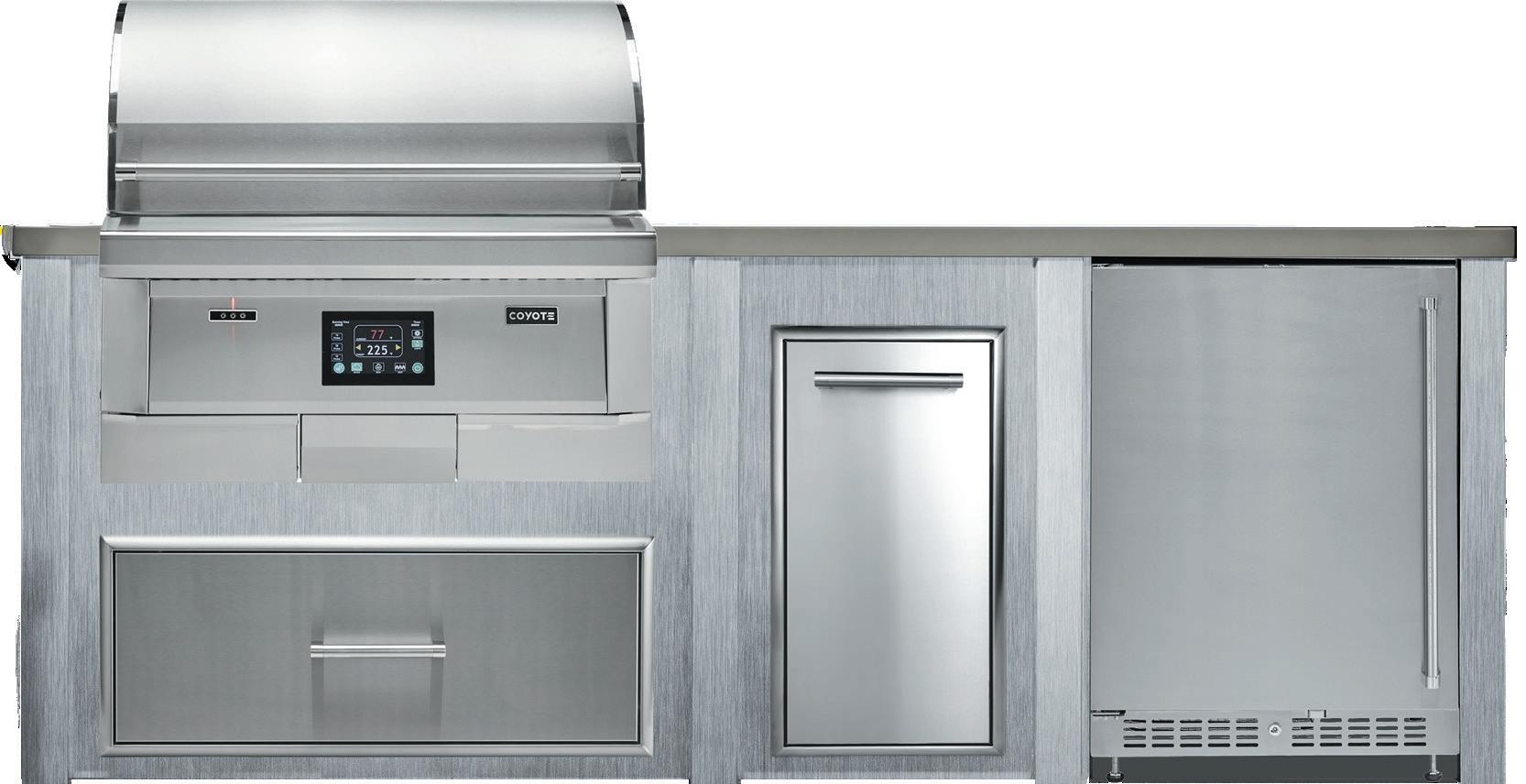

Build Out Your 8’ Haven Outdoor Kitchen with Coyote Outdoor
8’ Kitchens are specially designed and configured to fit the following Coyote Outdoor Grills and accessories. See page 10 for additional HAVEN OUTDOOR kitchens for Artisan products.

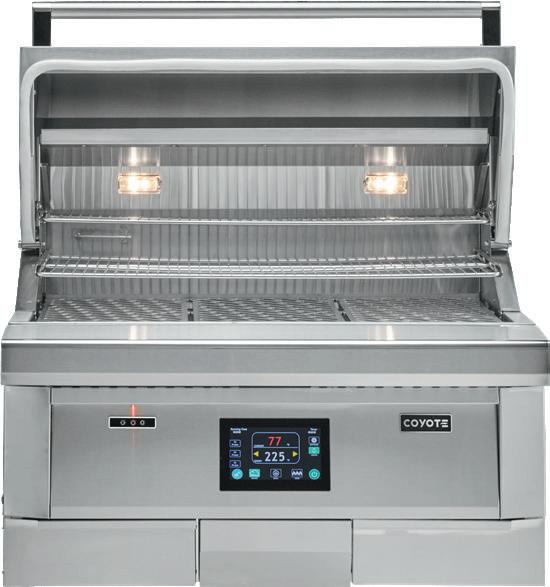

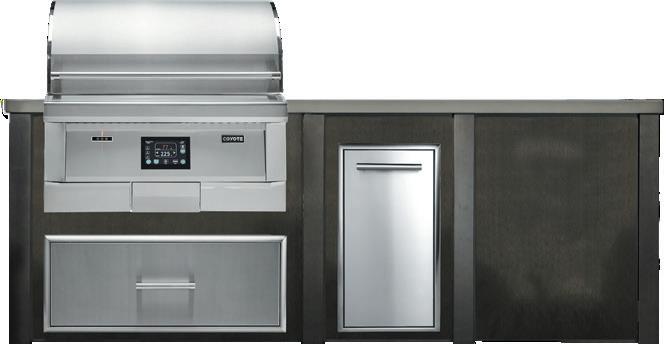

(MUST ORDER) 36” Coyote Outdoor Pellet Grill
Single Sealed Storage Drawer
Coyote Outdoor 15” Trash Center Drawer
Coyote Outdoor 17” Two Drawer Unit (Order HCOY96PDRAW Island)
Coyote Outdoor 24” Outdoor Refrigerator (RH or LH Door Swing) (Order HCOY96PREF Island)
* Please reference the latest Coyote Outdoor Price Book for the most up to date pricing and features.
C3-2DC
C124R-S
C3-STC
Harbor Gray (HG)
Brushed Black (BB)
Antique Bronze (AB)
INSTALLATION INSTRUCTIONS

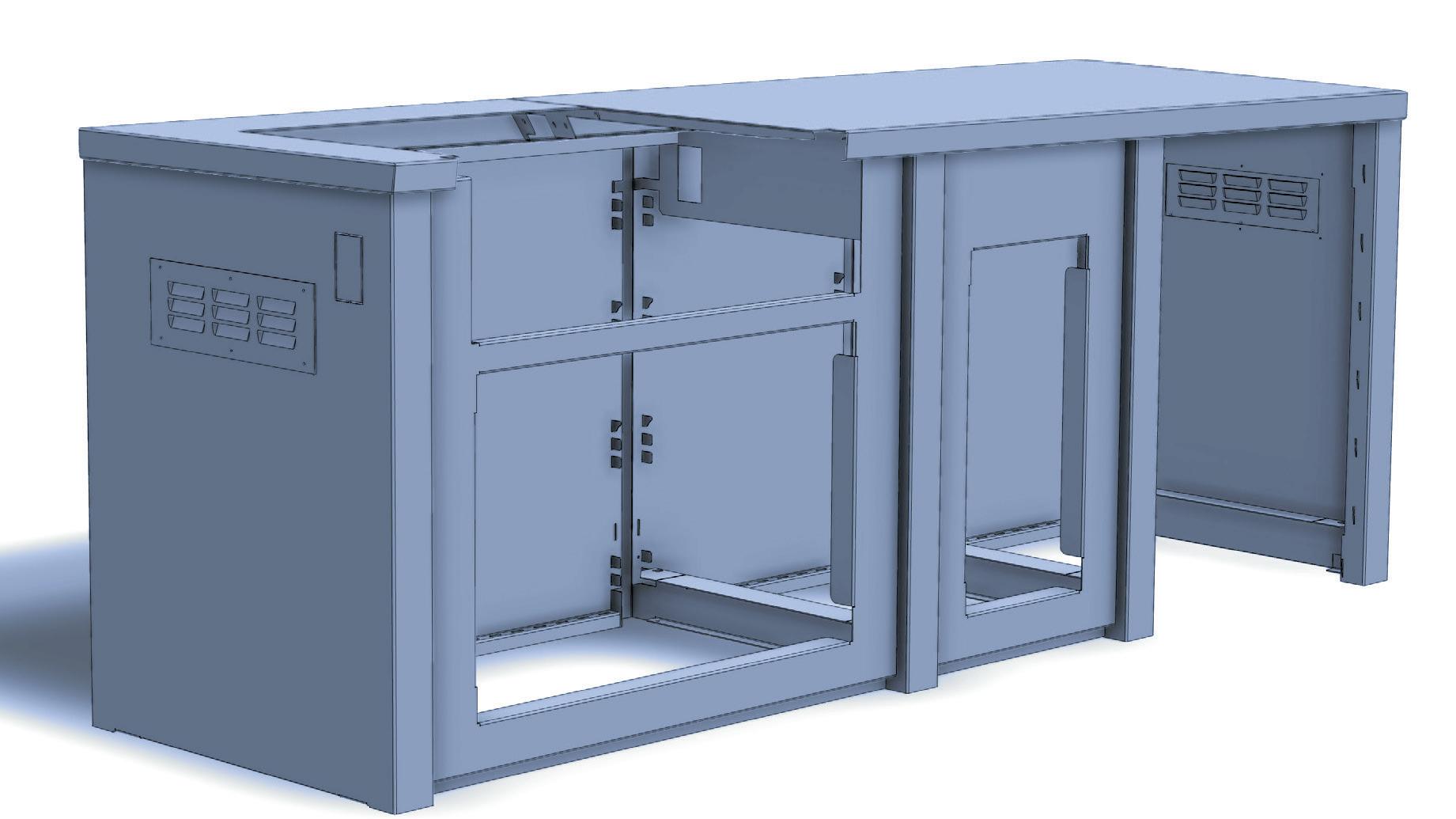

Shell Contruction

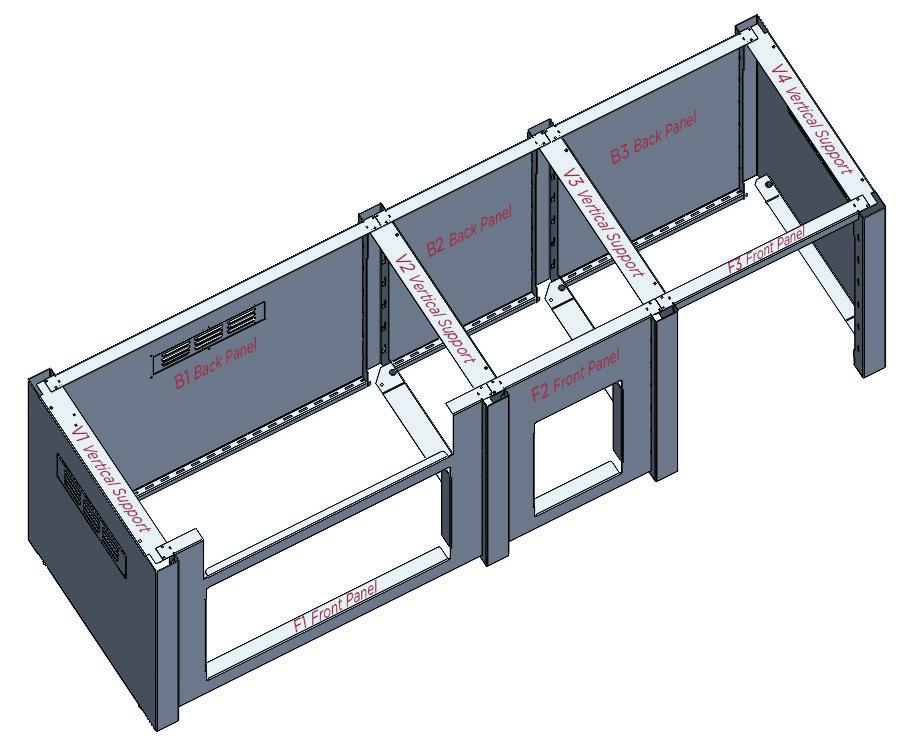

Construction of the shell is a process of connecting vertical supports to the front and back panels. The primary fastening mechanism is a slot and cleat system that is laser cut in the supports and panels. The vertical supports will have slots cut in them that correspond with cleats that are cut in the front and back panels.

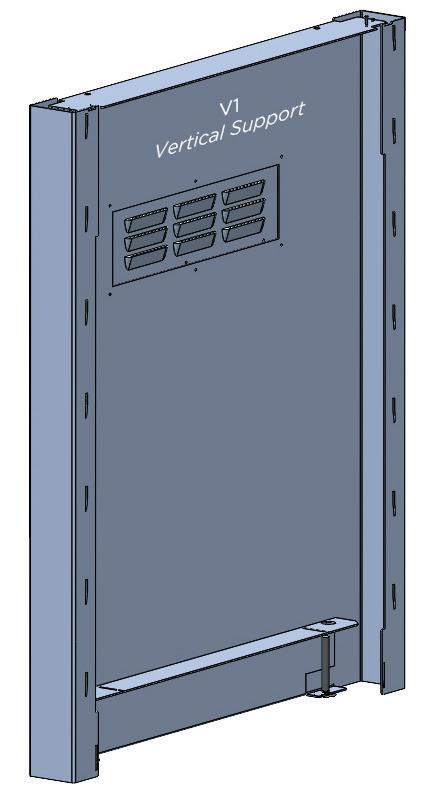

Construction will begin on the left side with vertical support 1, labeled V1. Connect panels B1 and F1 through the appropriate slots. Using a rubber mallet, ensure cleats are fully seated in the corresponding slots.
After finishing the first section, continue assembly following the next numbers in sequence (V2, B2, etc). Although your kitchen design and layout may vary, always follow this sequence of numbers for the next section. Repeat this process until all of the Vertical Supports and Panels are connected.

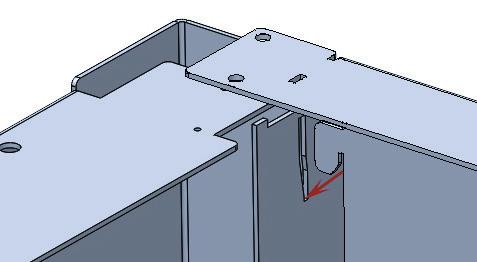

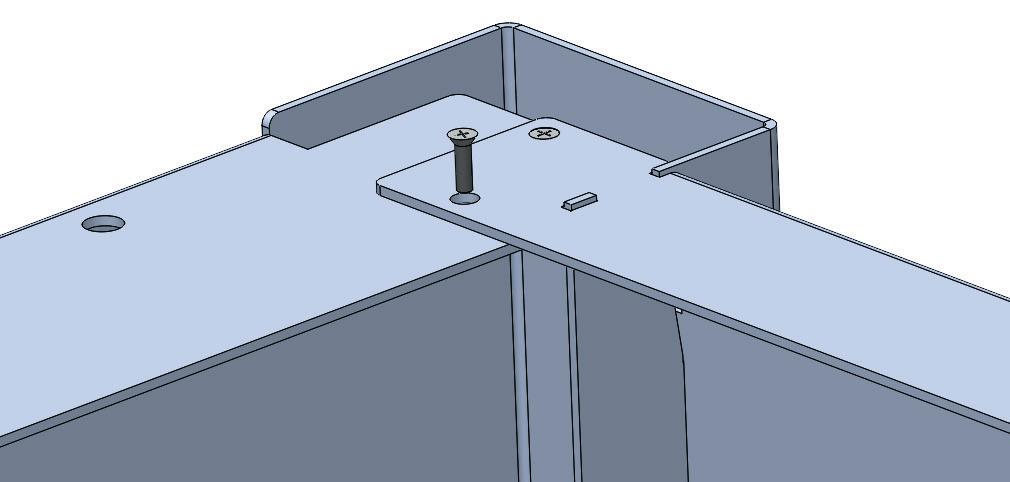

Using the provided screws, fasten each Support and Panel together in the corners of each section.

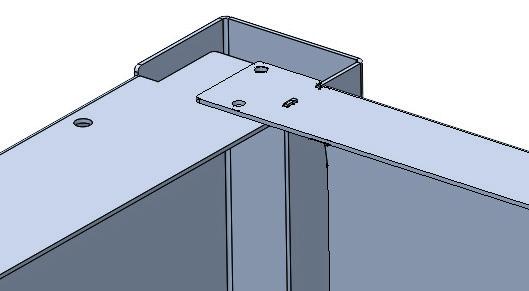

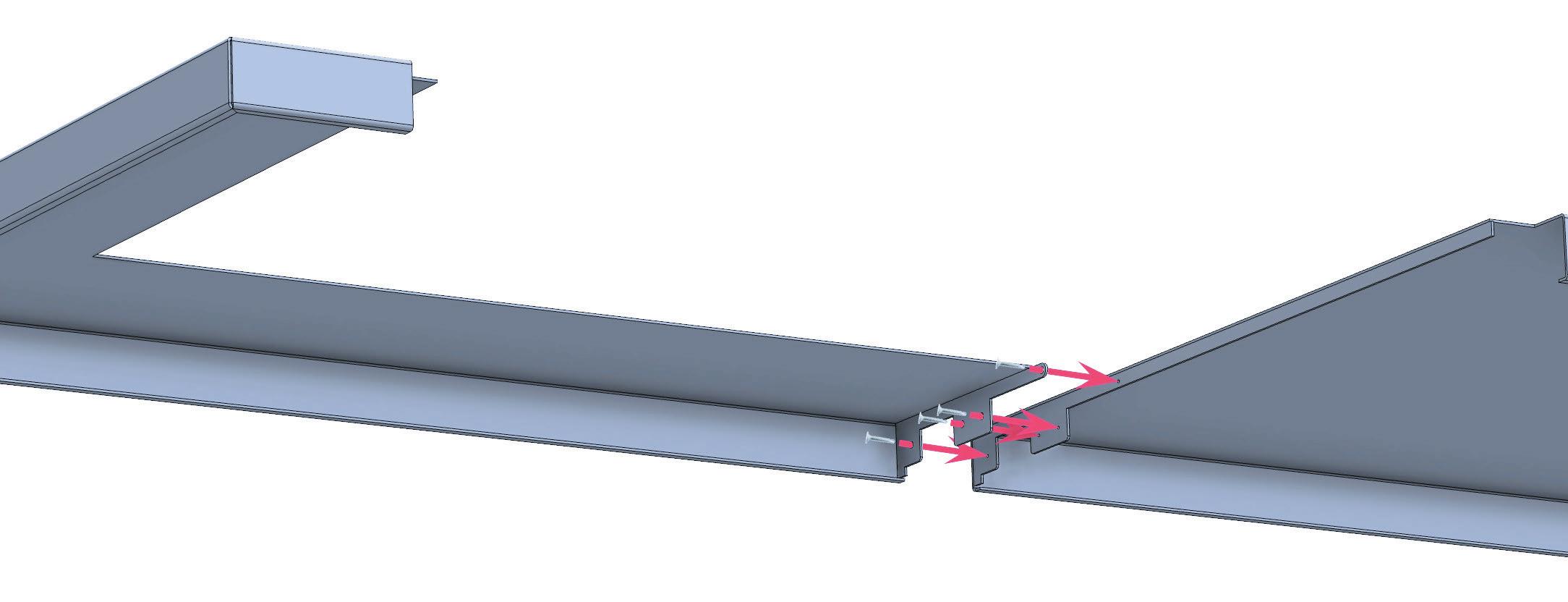

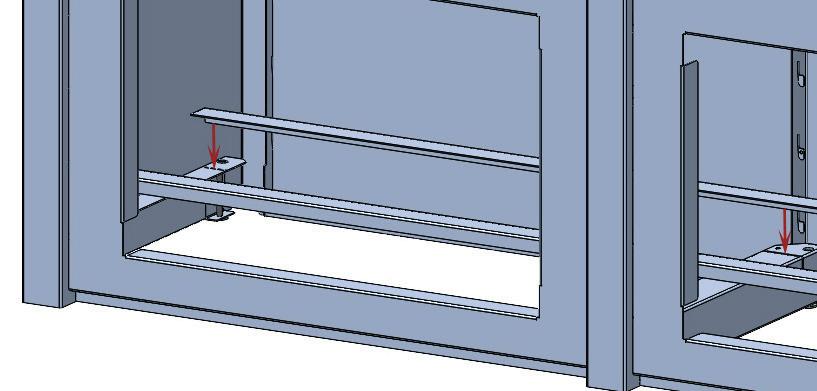

On the left end of the Island, install the long Horizontal Rails by sliding them into the appropriate slots in the bottom of each vertical support. Ensure that each Horizontal Rail is pointing inwards as shown below. If using optional accessories panel, install the small Horizontal Rails for that section as well.

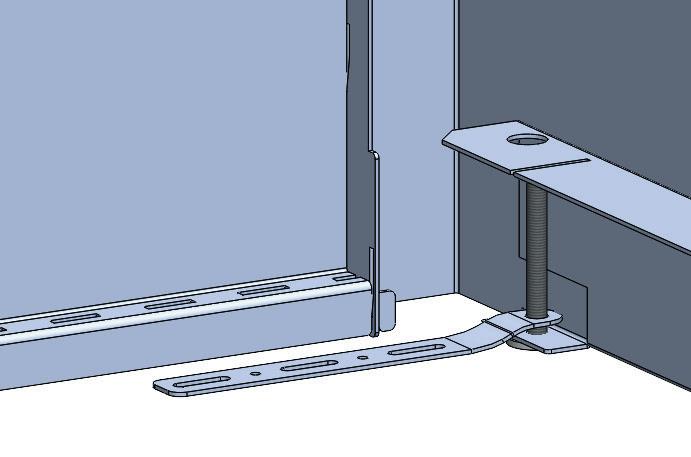

Each unit will come with an adjustable leveling kit pre-installed. If desired, adjust with the included allen wrench as needed to achieve level. Using the leveling feet will be at the discretion of the installer, Haven Outdoor does not require that the feet be used to elevate the product.
If desired, insert storm tie-down straps over leveling legs, and secure in place with the appropriate fasteners (not included)
Grill Support Installation

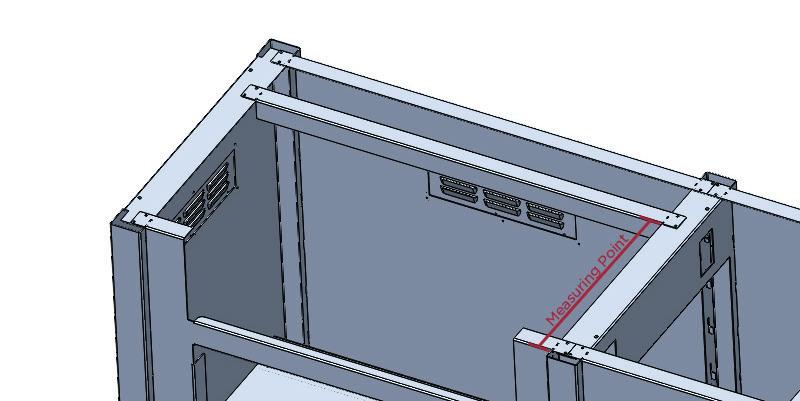

Measure the depth of your grill cutout in your countertop, and place the grill support accordingly in the appropriate section of the Island. (Make sure to measure from the outward-most point of the vertical support, see drawing below).
Using the provided screws, secure the grill support in place.
Install the Floor Panel in section 1 (far left section). Insert through top of kitchen, with raised lip up and towards the back. Screw in place with provided screws through the pre-drilled holes.

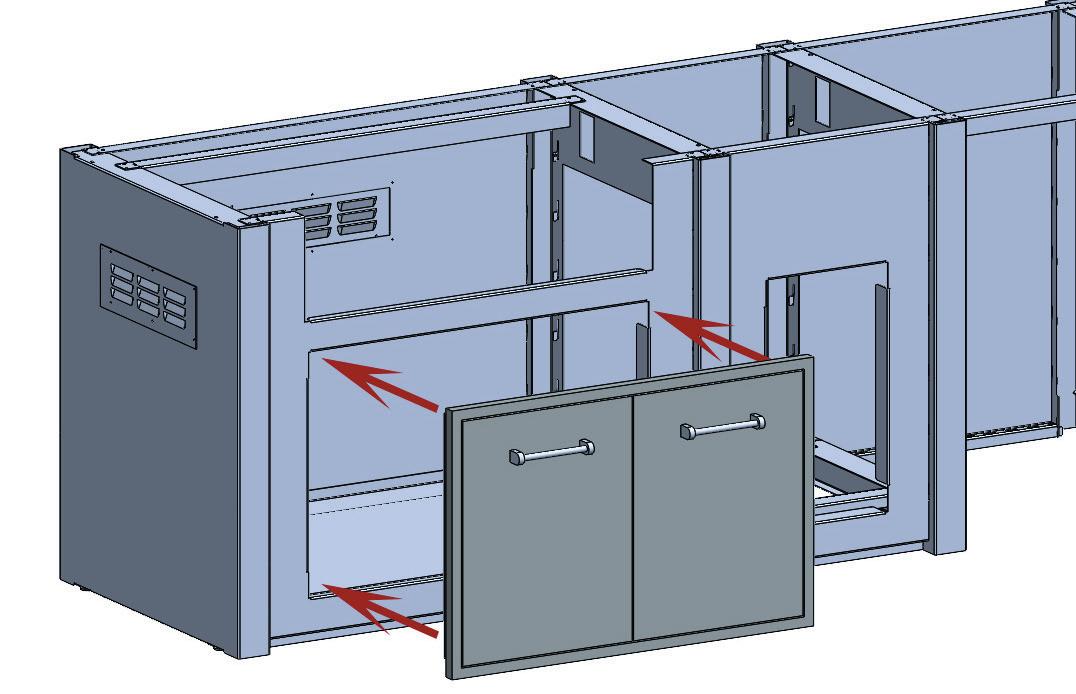

Following any specific instructions from the manufacturer of your components, install your components into the kitchen framework.

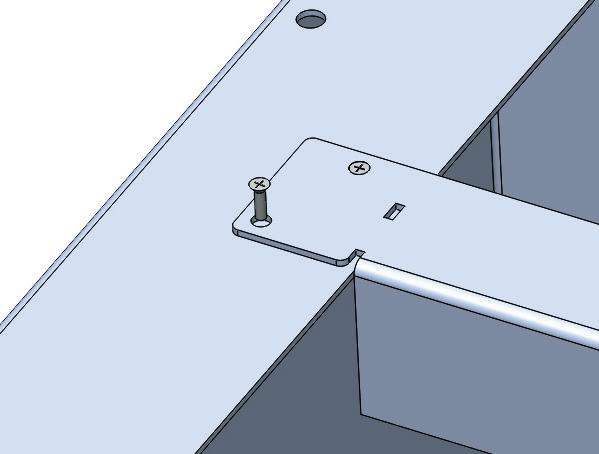

Countertop Assembly
If your countertop is one piece and does not require assembly, skip this section and proceed to the next step (installation).
Lay both sections of the countertop upside down on a soft or smooth surface, ensuring there is no dirt or debris to prevent surface scratches. Line up the mounting tabs at the adjoining seam as shown in the image below. Install 4 of the provided self tapping screws through the pre-drilled mounting holes located in the mounting tabs. Always install the screws from the grill opening side of the countertop as shown.

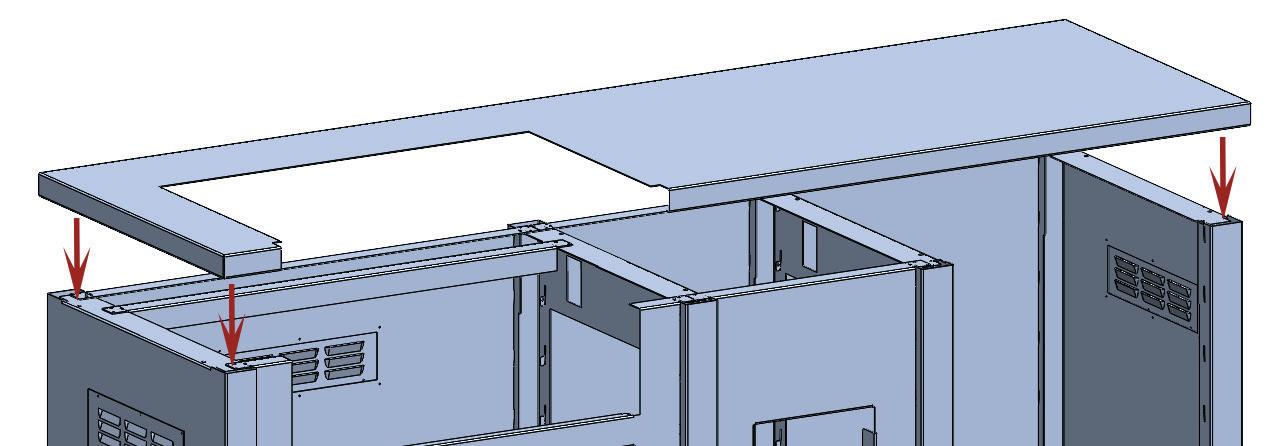

Countertop Installation
Turn the countertop upright while keeping it rigid and square to prevent damage. Install the countertop by setting it in place on top of your kitchen base. Glue or silicone may be used to secure the countertop, but will make it very difficult to remove in the future to replace panels or disassemble the kitchen.

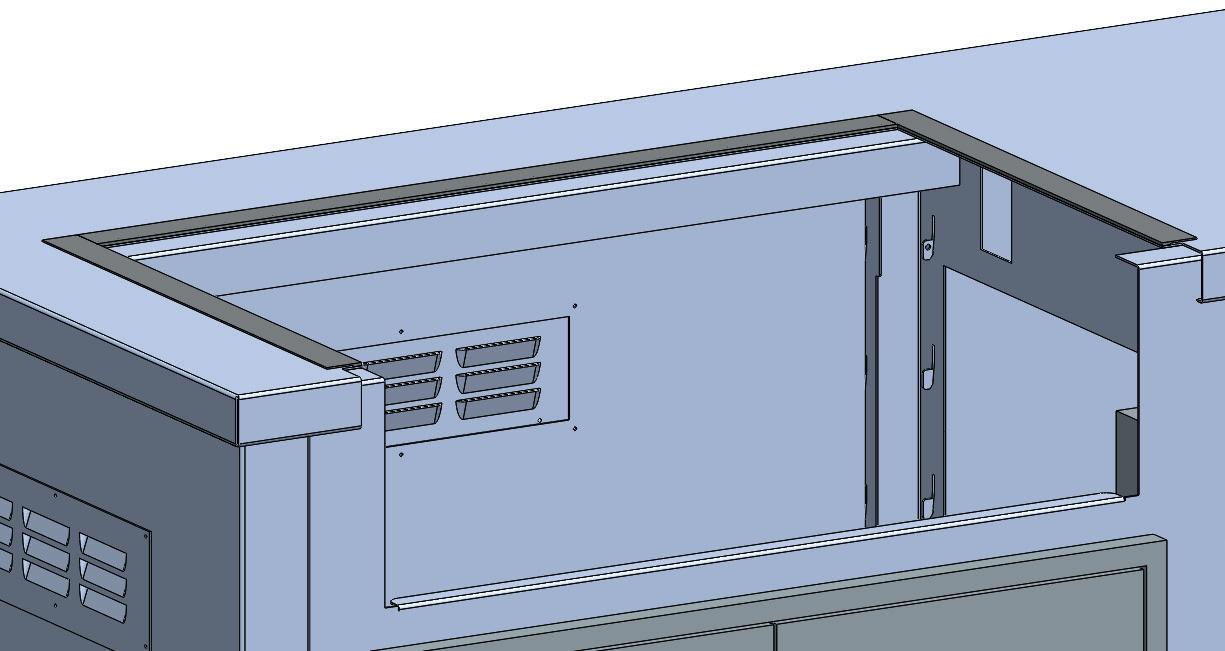

Cut the included grill gasket to length to fit around the perimeter of the grill cutout. Remove the red adhesive film, and install the gasket in place with the adhesive strip towards the grill cutout as shown below. Following any specific instruction provided by the manufacturer, install your Grill into the countertop. If desired, trim any excess grill gasket that is exposed around your grill.
Operation & Maintenance !
To ensure a lifetime of use, and extend the longevity and beauty of your product, we recommend regular care and cleaning of your Outdoor Kitchen.
Routine cleaning can be accomplished by rinsing away dirt and debris, and then gently wiping with a damp, non-abrasive cloth or sponge using warm water. Towel drying will help prevent water spotting. If additional cleaning is necessary, mild household cleaners can be used. The use of solvents or abrasive cleaners may damage the product’s finish, always test any cleaning solution in an inconspicuous area before applying to the entire product.
Storing objects on the surface for extended periods of time may trap moisture and debris, and dis-color or damage the finish.
Placing hot items directly on any surface of your outdoor kitchen may damage the finish. Hot ashes and exposure to ash debris over long periods of time may also cause damage.
Appliance and stainless steel cleaning solvents should never come in contact with your outdoor kitchen surface. Spray the solvent onto a cloth and wipe only on the appliance surface to help eliminate overspray.
Light or superficial scratches to the finish are likely to occur during normal use and do not affect the integrity of the product. Using your outdoor kitchen surfaces as a cutting board for food, or sliding items such as grilling tools, utensils, and abrasive or ceramic items across the surface may also cause wear and tear.
Frequently Asked Questions
Why should I choose an outdoor kitchen from Haven Outdoor?
• Bring the outdoor kitchen of your dreams to your backyard
• Easy to install in minutes, portable if you decide to move
• No more waiting, all kitchens are in stock and ready to ship
• Ability to customize your grill and components
• Made in the USA by skilled craftsmen
Where can I use these Haven Outdoor?
These products are perfect for decks, patios, rooftops, balconies and even swimming pool areas.
Will your product stand up to the weather?
These outdoor kitchens are constructed of weather-resistant aluminum. Everything is corrosionresistant—including the hardware.
Can I use your outdoor kitchen on a balcony or rooftop?
The aluminum construction keeps the outdoor kitchen lightweight, and the modular design makes it portable. Your kitchen will be shipped knocked down so you can easily transport it via stairwells or elevators. Once you reach your destination, installation takes 30-60 minutes on average.
What sizes are available?
We have standard outdoor kitchen island sizes available in 5 ½’, 6’ and 8’, but we can custom build any size for an upgrade and with an extended lead time.
Are countertops included with the outdoor kitchens?
We offer aluminum countertops for all of our outdoor kitchens. If you want to use a different countertop, you can definitely source that locally.
Will my kitchen scratch easily?
All of our finishes are tested by a 3rd party testing lab to ensure they meet industry standards. Proper care and maintenance will also help extend the life of your kitchen.
Is the grill included?
Grills and appliances are not included.
Are Haven Outdoor kitchens permanent structures?
Our outdoor kitchens are thoughtfully designed with added features to allow you to disassemble if you move. Our innovative, laser-cut assembly system makes re-installation a breeze.
What is the turnaround time?
Our standard outdoor kitchens are stocked in Central Florida and can be delivered to your location in a matter of days.
Haven Outdoor Limited Warranty
LIMITED WARRANTY
A. Pinnacle Sales Group warrants all materials and the applied finish of the product to be free from defects in the materials and workmanship for a period of three (3) years, subject to the limitations outlined below.
LIMITATIONS
A. The repair or replacement of parts, or the performance of service under this warranty, does not extend the life of this warranty beyond its original expiration date.
B. The warranty is non-transferable and is offered exclusively for the benefit of the original owner, beginning on the original date of retail sale.
C. Pinnacle Sales Group does not warrant this products against the following:
• Damage occurring during transportation or installation.
• Damage or breaking of the connecting tabs due to incorrect installation.
• Discoloration of finish or distortion of metal parts due to high heat.
• Damage as a result of an accident, alteration or abuse or product.
• Scratches and damage from normal wear and tear.
• Damages occurring due to owner not following proper care and maintenance instructions.
D. Color finishes may vary slightly in shade and are not guaranteed to perfectly match images shown in this book. Color changes and variations may occur from direct exposure to sunlight and the elements.
E. Pinnacle Sales Group is not responsible for any additional charges that may occur during warranty process, including travel, labor or installation expenses.
WARRANTY PROCESS
A. If, during the given warranty period, a product covered under this warranty proves to be defective in material or workmanship, a claim for warranty service should be made using the SERVICE REQUEST FORM found on www.pinnaclesalesgroup.com
Pinnacle Sales Group, Inc. Terms and Conditions of Sale
Orders: All orders and any subsequent change orders must be submitted in writing and delivered to Pinnacle Sales Group, Inc. by mail, fax or e-mail. No telephone orders will be accepted. Special Order items are Non-Cancellable.
Prices: All prices are subject to change without notice and are exclusive of any sales or use taxes, shipping, delivery, special packaging, or handling charges that may apply to each customer or to each order.
Minimum Advertised Pricing: All sales are subject to Pinnacle Sales Group, Inc. or Manufacturer minimum advertised prices. Failure to comply with minimum advertised prices will result in cancellation of any agreement and violators will not be entitled to purchase further products.
Minimum Sale Price: All sales are subject to Pinnacle Sales Group, Inc. or Manufacturer minimum sale prices. Failure to comply with minimum sale prices will result in cancellation of any agreement and violators will not be entitled to purchase further products.
Freight and Handling: Pinnacle Sales Group, Inc. reserves the right to ship products by its choice of carrier. All shipments are F.O.B. from place of shipment, and risk of loss shall pass to the Buyer upon delivery to the carrier at the point of shipment. Additional charges may apply for special handling and packaging.
Deliveries: Pinnacle Sales Group, Inc. shall not be liable for failure to deliver or for delays in delivery or performance due to: (1) causes beyond its reasonable control; (2) acts of God, acts of Buyer, acts of civil or military authority, governmental allocations or controls, fires, strikes or other labor difficulties, riots or other civil disturbances, delays in its usual source of supply, delays in transportation; (3) any other commercial impracticability. In the event of such delay, the date of delivery or performance shall be extended for a period equal to the time lost by reason of the delay.
Claims: All claims for non-conforming delivery of Products must be made within thirty (30) days of receipt of shipment.
Damage or Loss: Any claim for damage or loss in shipment should be made to the carrier immediately by the customer. Products become the responsibility of the Buyer when accepted by the carrier in good condition from Pinnacle Sales Group, Inc. and we are not able to process shipping damage claims.
Returns: Only Items marked in this Price List as “Stock Item” are subject to return. All other items are considered Special Order Items and are NOT RETURNABLE. No Products may be returned without a Pinnacle Sales Group, Inc. Return Goods Authorization (RGA) Number issued prior to the return of Product. Any product returned without an RGA will be refused and returned to the sender. RGA’s are valid for thirty (30) days only. All returns are subject to inspection before being approved for credit – products must be in salable condition to be considered for return or replacement. A 20% restocking charge will apply to all returns.
Payment: Unless otherwise noted, payment terms are Net Due on Receipt. Balances owed on invoices over 30 days old are subject to a 1.5% per month charge. Payments made by credit card are subject to a 3% processing fee. Each shipment or delivery shall be deemed to have been sold under a separate and or independent contract and payment thereof shall be made in accordance with the terms of this agreement and of the invoice rendered by Pinnacle Sales Group, Inc. Buyer agrees that title to the personal property described herein shall not vest in Buyer until paid in full. In the event of insolvency or the filing of bankruptcy by the Buyer, Buyer agrees to return all merchandise to Pinnacle Sales Group, Inc.
Warranties: Products distributed by Pinnacle Sales Group, Inc. are the products of reputable manufacturers sold under their respective brand or trade names. Pinnacle Sales Group, Inc. shall use its best efforts to obtain from each manufacturer, in accordance with the manufacturer’s warranty or customary practice, the repair or replacement of products that may prove defective in material or workmanship. The foregoing shall constitute the exclusive remedy of the Buyer and the sole obligation of Pinnacle Sales Group, Inc. Except as to Title, THERE ARE NO WARRANTIES, EITHER WRITTEN, ORAL, IMPLIED, OR STATUTORY relating to the described products which shall extend beyond that described in this paragraph. NO WARRANTY OF MERCHANTABILITY OR OF FITNESS FOR PURPOSE SHALL APPLY.
Limitation of Liability: Pinnacle Sales Group, Inc.’s liability on any claims for loss or damage arising out of this contract or from the performance or breach thereof or connected with the supplying of products hereunder, or its sale, resale, operation or use, whether based on warranty, contract, negligence or other grounds shall not exceed the price allowable for such products or parts thereof involved in the claim. Pinnacle Sales Group, Inc. shall not, under any circumstances, be liable for any labor charges unless agreed upon in advance and in writing by Pinnacle Sales Group, Inc. and the manufacturer of the products involved.
Pinnacle Sales Group, Inc. shall not in any event be liable for special or consequential damages, including, but not limited to, loss of profits or revenue, loss of use of the product or any associated product, cost of capital, cost of substitute products, facilities or services, downtime costs, or claims of customers of the Buyer for such damages.
General: The possession of this Price List by anyone is not to be considered as an offer to sell any of the Products contained herein. This Price List supercedes all previous price lists or memorandums. Pinnacle Sales Group, Inc.’s existing Trade Terms and Conditions remain in effect. The above Terms and Conditions shall be a part of all Orders accepted by Pinnacle Sales Group, Inc. and shall supercede any conflicting provisions of our customer’s purchase orders. These terms and conditions are subject to change without notice.
