COMBi - GTE 3000
- 5500
The side loader forklift designed for the safe, space saving and productive handling of long and bulky loads.
combilift.com
COMBi - GTE 3000 - 5500
•
Optional:
•
COMBILIFT HAS A POLICY OF CONTINUOUS PRODUCT DEVELOPMENT AND RESERVES THE RIGHT TO ALTER SPECIFICATIONS WITHOUT PRIOR NOTICE. SPECIFICATIONS AND/OR DIMENSIONS MAY VARY FROM THOSE ILLUSTRATED IN SOME COUNTRIES.
combilift.com CO. MONAGHAN IRELAND +353 47 80500 INFO@COMBILIFT.COM PCT Patent Application No. PCT/EP2014/053066; UK Patent Application No. GB1302811.3
Distributed by:

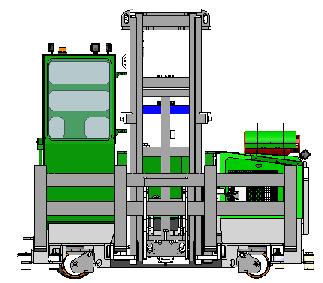

REF. DESCRIPTION 3000 GTE 5500 GTE 1a Standard Lift Height 5994mm 1b Freelift Height 2489mm 2 Height Mast Closed 3988mm 3 Max. (Mast raised) 7086mm 4 Overall Length 1270mm 1372mm 5 Mast Travel 698.5mm 6 Ground Clearance Under Mast 127mm 7 Ground Clearance to Wheelbase 127mm 8 Height Over Cab (Without work lights) 2667mm 9 Width 2946mm 10 Outside Spread of Fork Arms 1346mm 11 Wheelbase 2286mm 12 Frame Opening 1397mm 13 Load Centre Distance 305mm 14 Overhang Front 152mm 15 Track 965mm 16 Overhang Back 140mm 17 Length From Face of Fork 660mm 762mm 18 Forward Tilt 3° 19 Backward Tilt 4 ½° 20 Platform Height (with front lowered) 406mm 21 Platform Length 609mm 22 Overall Width 3429mm A Capacity 3000 kg 5500 kg B Unladen Weight 9500 kg 10,5000 kg C Maximum Ground Speed 11 km p/h D Gradeability 10% E Battery Capacity 72 V 560 Ah F Fork Section 50 x 152.4 x 610 G 350 / 150 - 280 Front Tire OD 330mm / Width 152mm H 16 x 7 - 12 Rear Tire OD 406mm / Width 177mm I Standard Colour Yellow & Grey 14 16 18 19 1 1a 1b 3 13 8 15 6 7 2 11 12 9 10 5 4 21 17
Rubber Mounted Overhead Guard
Wheel Steering
Load Sensing Steering
Features Include: •
• 4
•
Wheel Hydrostatic Drive
• 2
Chassis
½” at front
• Tilting
+/-
Hydraulic Oil Cooler
Guidance
• Wire
Fold-up Forks
