LED Throwies

Page 12

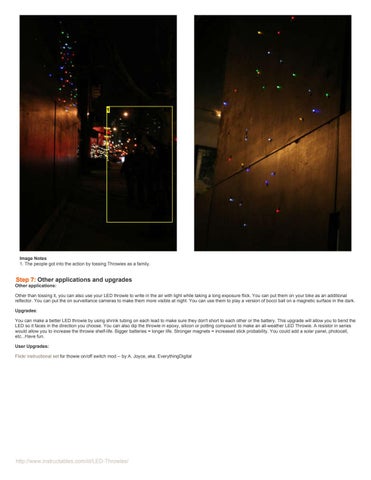

Image Notes 1. The people got into the action by tossing Throwies as a family.

Step 7: Other applications and upgrades Other applications: Other than tossing it, you can also use your LED throwie to write in the air with light while taking a long exposure flick. You can put them on your bike as an additional reflector. You can put the on surveillance cameras to make them more visible at night. You can use them to play a version of bocci ball on a magnetic surface in the dark. Upgrades: You can make a better LED throwie by using shrink tubing on each lead to make sure they don't short to each other or the battery. This upgrade will allow you to bend the LED so it faces in the direction you choose. You can also dip the throwie in epoxy, silicon or potting compound to make an all-weather LED Throwie. A resistor in series would allow you to increase the throwie shelf-life. Bigger batteries = longer life. Stronger magnets = increased stick probability. You could add a solar panel, photocell, etc...Have fun. User Upgrades: Flickr instructional set for thowie on/off switch mod -- by A. Joyce, aka. EverythingDigital

http://www.instructables.com/id/LED-Throwies/
