BODIES
VOLGREN
MAKE: VOLGREN
ADDRESS:
WEB:
221-243 Hammond Road Dandenong VIC 3175 Phone: 03 9791 4255 Email: info@volgren.com.au
www.volgren.com.au
MODEL: OPTIMUS
MAKE: VOLGREN
MODEL: OPTIMUS
SERIES: ELECTRIC – ZERO EMISSION, HYBRID, HYDROGEN
SERIES: RIGID & ARTICULATED
APPLICATION: CITY – ROUTE BUS
APPLICATION: CITY – ROUTE BUS
VARIATIONS: – 9.9m-12.5m

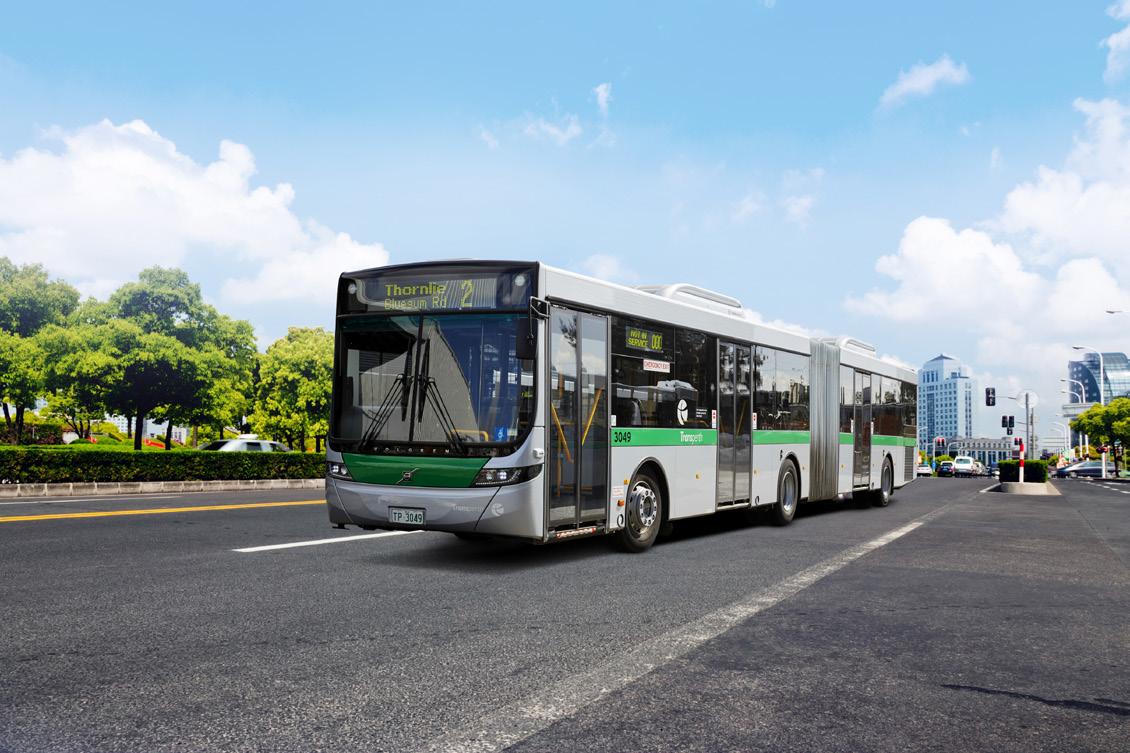

VARIATIONS: – 10.9m-14.5m, 18m Articulated
BODY SPECIFICATIONS:
BODY SPECIFICATIONS:
Frame Material
Bolted extruded aluminium system
Frame Material
Bolted extruded aluminium system
Body Material
Fibreglass front and rear panels
Body Material
Fibreglass front and rear panels
Seating Capacity
39-44
Seating Capacity
41-49
Passenger Capacity
61-77
Passenger Capacity
80
No. of Doors
1-2
No. of Doors
1 - 2 and up to 3 for Articulated
SEATING OPTIONS:
SEATING OPTIONS:
Seating Type
Individual or bench type
Seating Type
Individual or bench type
Seating Make/s
Customer choice
Seating Make/s
Customer choice
Seating Model/s
Customer choice
Seating Model/s
Customer choice
Seatbelts (Yes / No)
Optional
Seatbelts (Yes / No)
Optional (N/A for Articulated)
BODY DIMENSIONS:
BODY DIMENSIONS: Body Length - metres
9.9m-12.5m
Body Length - metres
10.9m-14.5m & 18m Articulated
Body Width - metres
2.5m
Body Width - metres
2.5m
Body Height -metres
3.4m - 3..5m
Body Height - metres
3.2m
Body Floor Height - mm
N/A
Body Floor Height - mm
NA
STORAGE:
STORAGE: Side bins
No
Side bins
No
Thru bins
No
Thru bins
No
Internal luggage racks
No
Internal luggage racks
No
AIR-CONDITIONING:
AIR-CONDITIONING: Air-Conditioning Standard
Yes
Air-Conditioning Standard
Yes
Air-Conditioning Make/s
Customer choice
Air-Conditioning Make/s
Customer choice
Air-Conditioning Model/s
Customer choice
Air-Conditioning Model/s
Customer choice
BODY OPTIONS:
BODY OPTIONS: Wheelchair lift/access
Yes (Manual or electric)
Wheelchair lift access
Yes (Manual or electric)
CD/PA/Radio
Optional
CD/PA/Radio
Optional
DVD/TV
Optional
DVD/TV
Optional
Toilet
No
Toilet
No
Individual reading lights
No
Individual reading lights
No
Individual AC vents
No
Individual AC vents
No
Reverse camera
Optional
Reverse camera
Other (please specify)
30
Driver interface screen, Wireless bell pushes, Bonded Double Dark tinted side windows, 4-8 Camera CCTV system, Electric windscreen blinds, Electric heated external mirrors, Driver’s security screen, TS160 compliance Safety System (Suitable), Additional Electric bus options: Illuminated Step Edges, Electric Doors, Consat passenger Information system , WiFi system, USB Charge Ports, 300 km Range, 324 KWH Battery Capacity, 4 Hour Recharge time, 13,000kg Tare Weight, AVAS system
ABC 2023 BUS SEARCH BUYERS’ GUIDE
Other (please specify)
Optional Driver interface screen, Independent LED driving lights, Bonded Double Dark tinted side windows, 4-8 Camera CCTV system, Electric windscreen blinds, Electric heated external mirrors, Wireless bell pushes, Driver’s security screen, TS160 compliance Safety System (Suitable)
