EMERGENCY PRESSURE RELIEF VALVE MODEL 2400A
MODEL 2400A

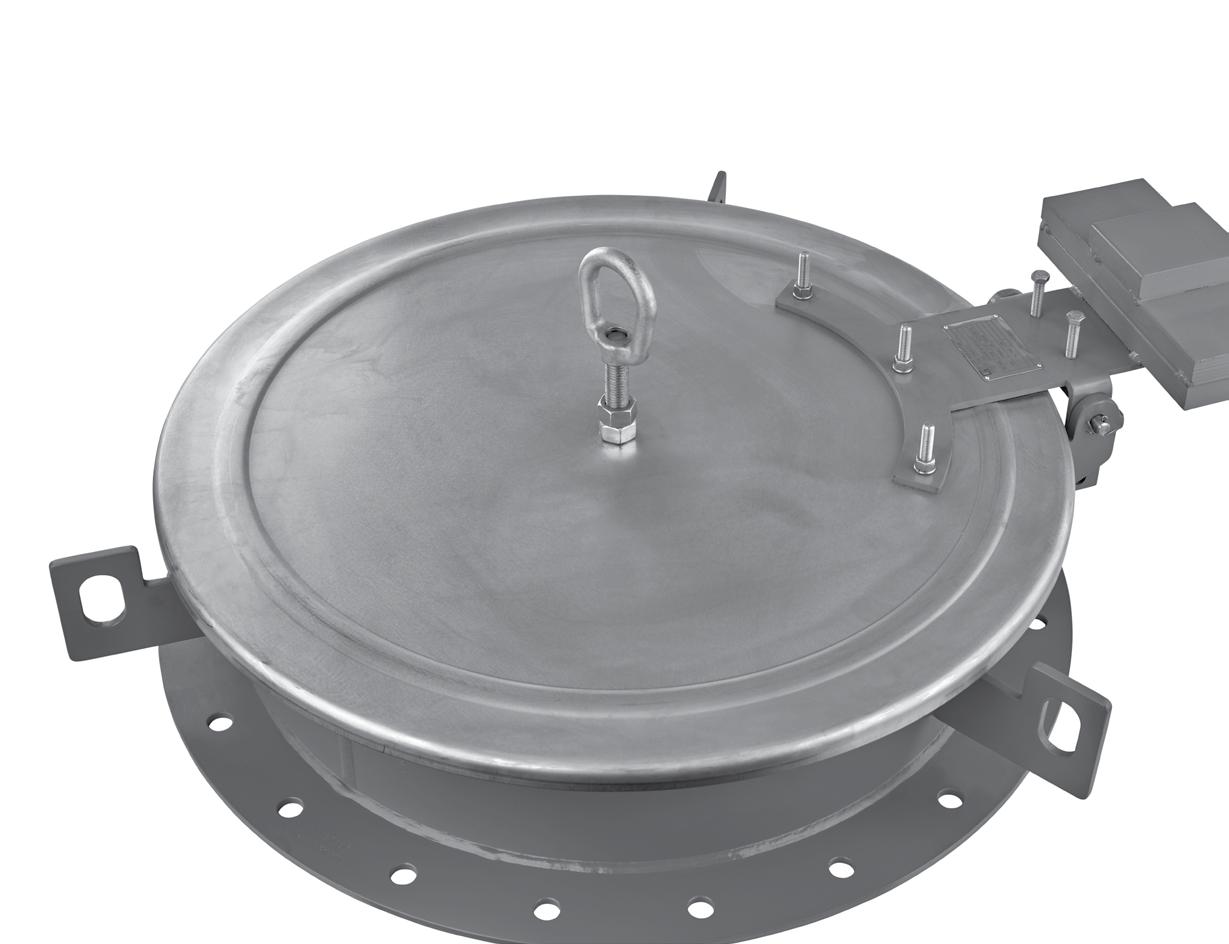

The Groth Model 2400A Emergency Pressure Relief Valve is designed to provide emergency relief capacity beyond that furnished by the normal operating pressure relief valve on the tank. The valve helps protects the tank against rupture or internal pressures caused by fire exposure and other emergency events and can be offered in corrosion resistant materials throughout. Model 2400A is designed to be self-closing, while Groth’s special fluoropolymer “cushioned air” pallet and peripheral guiding insures proper alignment and integrity of seating.
echnical Details
Sizes: 16” (DN 400) , 20” (DN 500) and 24” (DN 600)
Pressure Setting: 1.5 - 8 oz/in2 (6.46 mbarg to 34.5 mbarg)
Vacuum Settings: 0.5 - 4 oz/in2 (2.15 mbarg to 17.2 mbarg)
Materials: Carbon Steel, Stainless Steel, special materials upon request
Certified to the ATEX 2014/34/EU Directive
A wide stainless steel seat and air-cushion seal keeps leakage low long after the valve is put in service
A hinged design including a lift stop ensuring positive re-seating for reliable performance
Easy access manway combined with emergency relief
Options
• Steam Jacket
• Buna-N, Fluoropolymer, FKM
• ANSI 150# and API 650 drilling classes
• Counter weights
SPECIFICATIONS
16 (406)1.5 (6.5)8 (34.5)23.50 (587)11 (279)20.50 (521)72 (22) 20 (5081.5 (6.5)8 (34.5)28.75 (730)11 (279)22.50 (572)98 (45) 24 (610)1.5 (6.5)8 (34.5)33.25 (845(11 (279)24.50 (622)124 (56) * 150# ANSI. or API 650 drilling compatibility. † Minimum pressure setting 1.0 oz/in2 on special application. s Maximum pressure setting on 16” size = 4 oz/in2. Fiberglass dimensions on request. “Caution” — See IOM when mounting to API 650 flange. ◊ Max. vacuum setting is 4 oz./in2. **Minimum pressure setting 1.5 oz/in2 on special application.
PRESSURE RELIEF CAPACITY
Air Flow Capacity at 100% Overpressure (Double Set Pressure/Vacuum) 1000 Standard Cubic Feet per Hour at 60°
* Standard vacuum settings, consult factory for other settings.
Flow Capacity Calculation
Flow capacity values listed above are based on full open valves at 100% overpressure. Read the flow capacity at 100% overpressure directly from the table above. Use linear interpolation if the set pressure is not listed. If the allowable overpressure is less than 100%, modify the flow capacity using the appropriate “C” factor from the table. If allowable overpressure is more than 100%, consult your Groth Representative.
Calculate the percentage overpressure by the following formula. Note that all pressures are gauge pressure expressed in the same units of measure.
Pf = Flowing pressure
Ps = Set pressure
% OP = [(Pf - Ps)/Ps] x 100
Calculate flow capacity at less than 100% overpressure according to the following example.
Example Flow Capacity Calculation 20”
7 InWC flowing pressure [Pf]3.Read “C”
400.850.860.860.870.870.880.880.890.890.90 500.900.900.900.910.910.910.910.910.920.92 600.920.920.920.930.930.930.930.930.940.94 700.940.940.940.950.950.950.950.950.960.96 800.960.960.960.970.970.970.970.970.980.98 900.980.980.980.990.990.990.990.991.001.00
Example to find “C” factor from table: Read “C” factor for 75% overpressure at intersection of row 70 and column 5
“C” factor at 75% OP = 0.95
PRESSURE RELIEF CAPACITY
* Standard vacuum settings, consult factory for other settings.
Flow Capacity Calculation
Flow capacity values listed above are based on full open valves at 100% overpressure. Read the flow capacity at 100% overpressure directly from the table above. Use linear interpolation if the set pressure is not listed. If the allowable overpressure is less than 100%, modify the flow capacity using the appropriate “C” factor from the table. If allowable overpressure is more than 100%, consult your Groth Representative.
Calculate the percentage overpressure by the following formula. Note that all pressures are gauge pressure expressed in the same units of measure.
Pf = Flowing pressure
Ps = Set pressure
% OP = [(Pf - Ps)/Ps] x 100
Calculate flow capacity at less than 100% overpressure according to the following example.
Example Flow Capacity Calculation 20” Model 2400A 1.Read flow
175 mmWC Flowing Pressure [Pf]3.Read “C”
Factor Table
400.850.860.860.870.870.880.880.890.890.90 500.900.900.900.910.910.910.910.910.920.92 600.920.920.920.930.930.930.930.930.940.94 700.940.940.940.950.950.950.950.950.960.96 800.960.960.960.970.970.970.970.970.980.98 900.980.980.980.990.990.990.990.991.001.00
Example to find “C” factor from table: Read “C” factor for 75% overpressure at intersection of row 70 and column 5
“C” factor at 75% OP = 0.95
HOW TO ORDER
For easy ordering, select proper model numbers
Notes
• Include model number and setting when ordering.
• For special options, consult factory.
• When ordering steam jacket, include steam pressure / temperature.
* Seat material on carbon steel base is Stainless Steel weld overlay.
= No Options
= Special Options
= No Jacket
= Steam Jacket 1 = ANSI 150# drilled 2 = A.P.I. 650 drilled
Material (Seat):
= Buna-N
= Fluoropolymer
= FKM
= Special
Indicates a 20” Model 2400A with Stainless Steel Body, Fluoropolymer Seat Diaphragm, ANSI 150# drilled, Steam Jacket and no other options.
