GAUGE HATCH
MODEL 61T
MODEL 61T

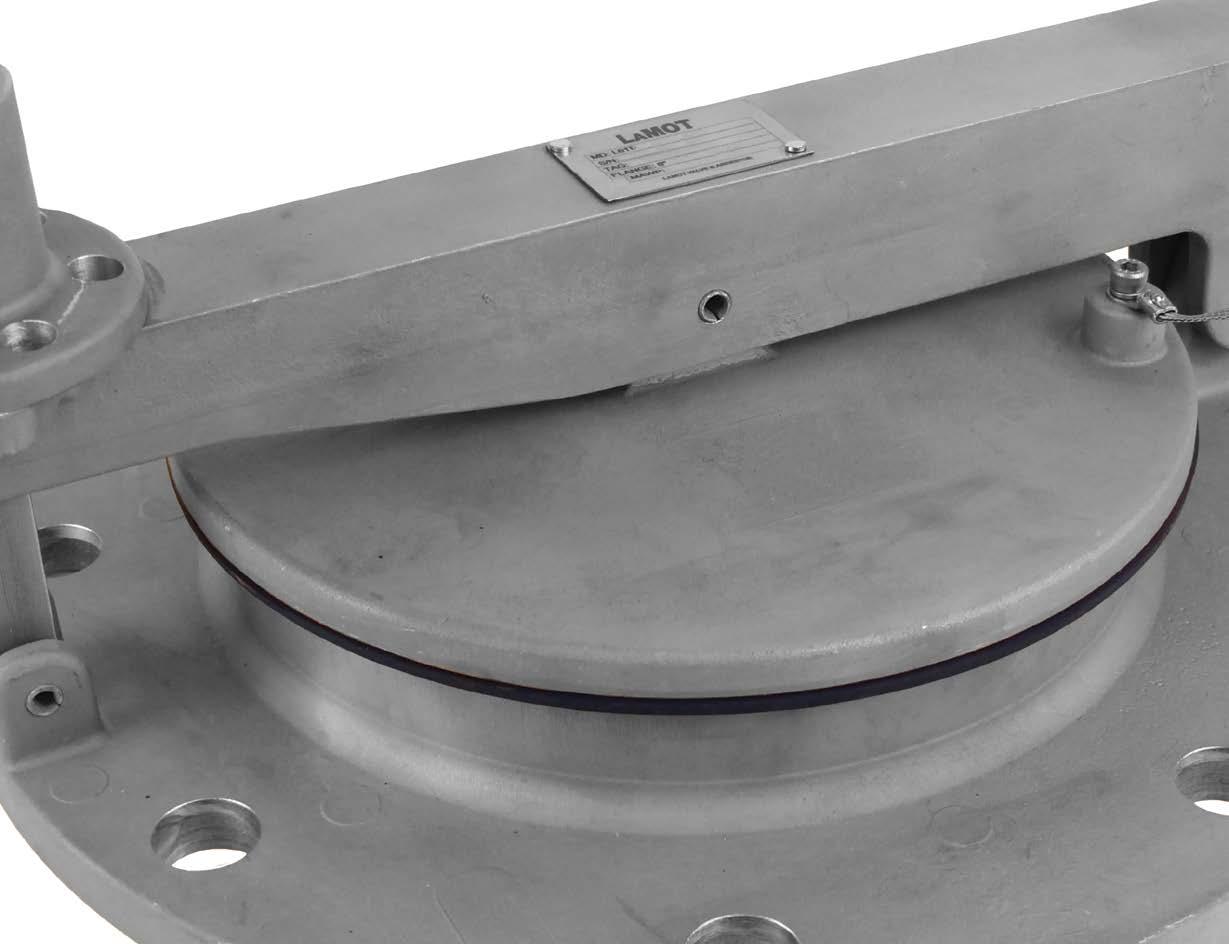

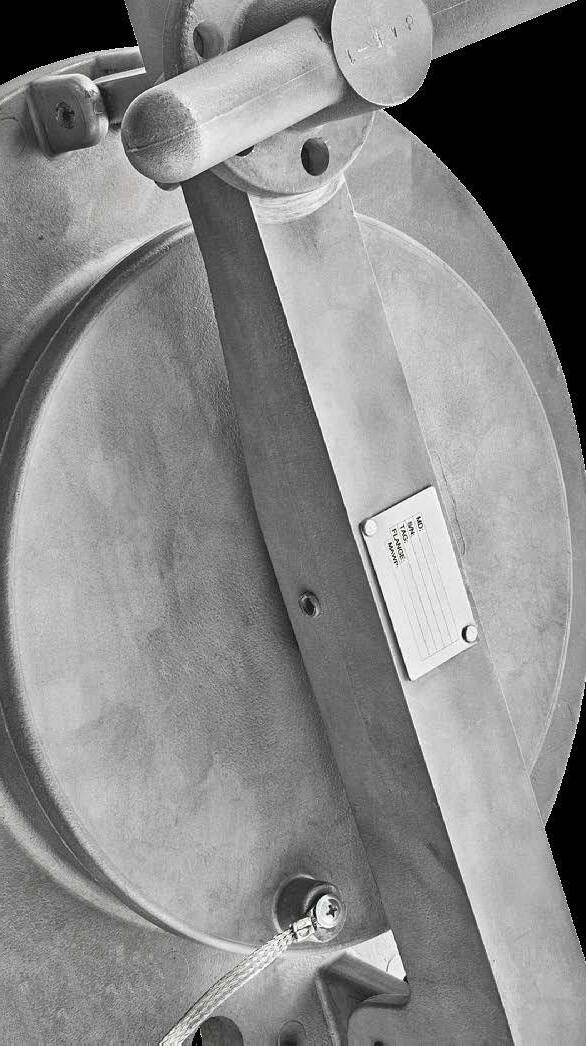

The Groth Model 61T Gauge Hatch provides access for gauging or obtaining product samples from storage tanks. The gauge hatch has a gauge hook integrated to the base to facilitate sampling the tank. The Model 61T Gauge Hatch incorporates “cushioned-air” seating which assures a superior seal to ensure minimal fugitive emissions.
Technical Details
• Sizes: 4” (100 mm) to 10” (250 mm)
• Material of Construction: Aluminum (Non-Sparking), Carbon Steel, Stainless Steel
• Bolting: 150# ASME, PN 10 DIN, PN 10/16 DIN, PN 16 DIN, Un-drilled
• Diaphragm: Buna-N (black), FKM (blue), or FEP (clear)
Features
• Permits the use of both hands during gauging or sampling
• Ultra-tight sealing reduces product leakage and fugitive emissions
• Designed for easy maintenance, thus reducing downtime and lowering operational cost
• Gauge hatch is able to be mounted to 150# ASME flanges or DIN bolting
• Incorporates a mechanical lock system to be used with a pad lock or lock out bar
• Bonding straps are standard
• Foot Pedal with serrated treadle surface to avoid foot slippage when opening
4” (100mm)
6” (150mm)
8” (200mm)
10” (250mm)
