WORKS PORTFOLIO.

Jl. Apel Raya B3 No.13 Sukamaju Baru, Tapos, Depok 16455 padantyaramadhanidevaputri@gmail.com +6287883154630

Driven and knowledgeable Bachelor of Architecture with 2 years of experience as Project Architect offer extensive knowledge about BIM construction details, and utility strategies Skilled in high-quality drawings and detailed 3D Models transform complex ideas into highquality project execution Committed to leverage functional, resilience, and aesthetically refined design solutions.

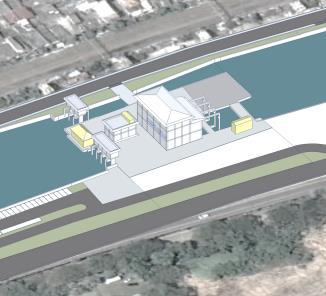

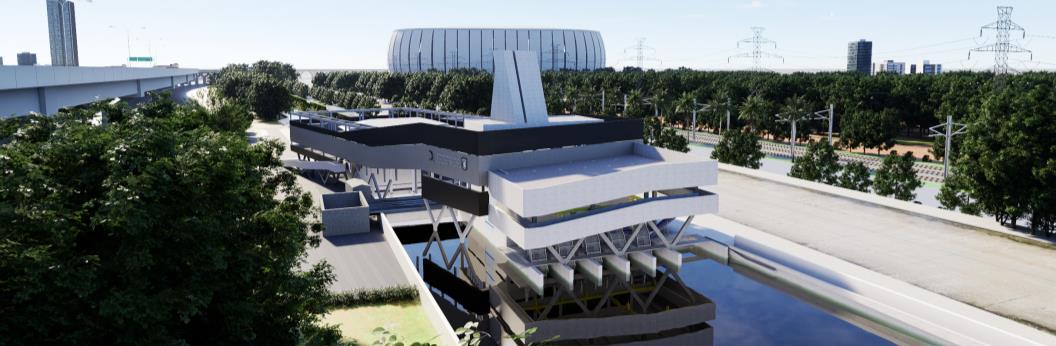

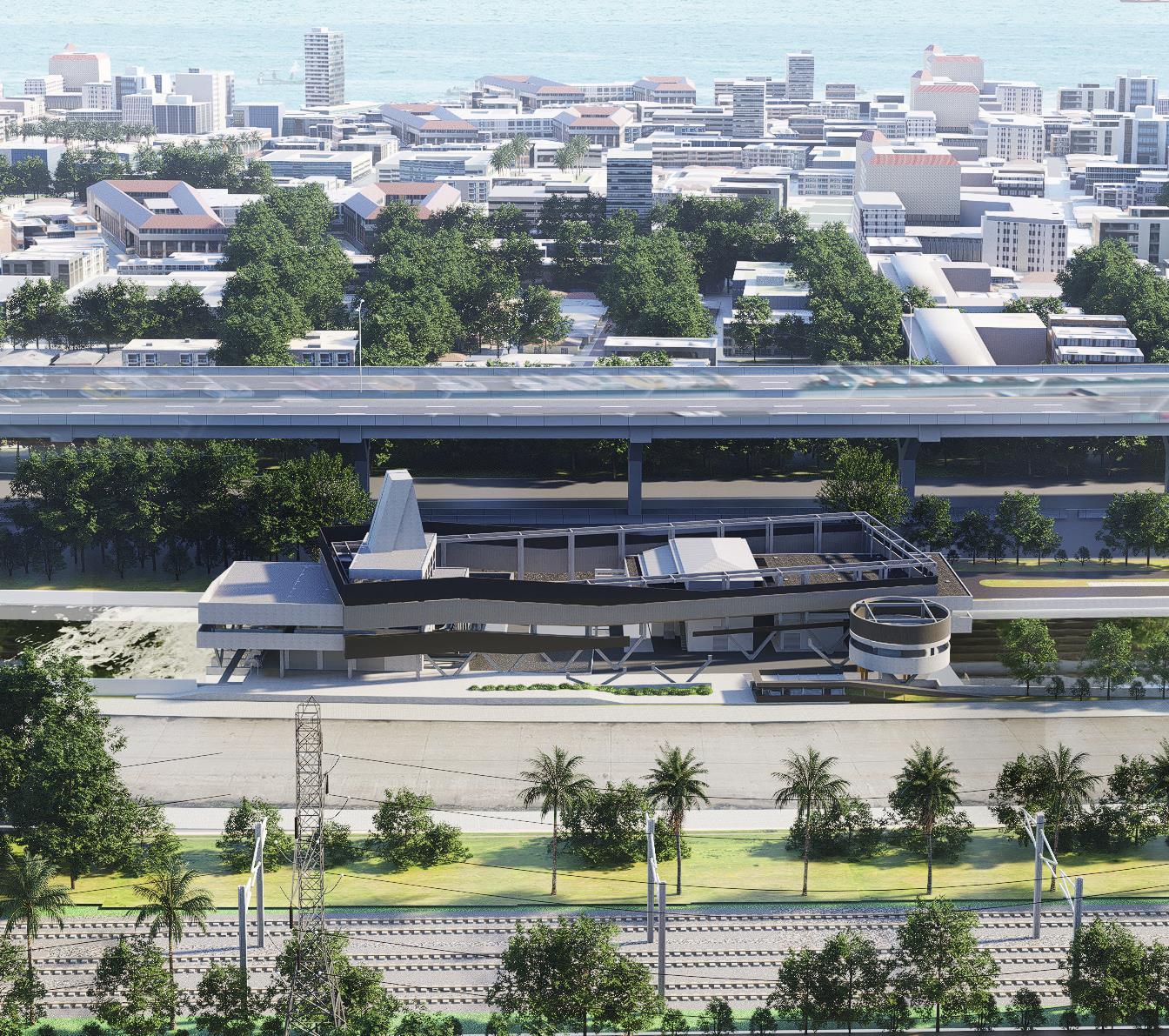

Rumah Pompa Ancol is a key water management facility designed to support flood control efforts in the Ancol coastal area of North Jakarta The building functions as an operational hub for a series of high-capacity pumps that regulate water levels within the surrounding drainage network, especially during tidal surges and peak rainfall events. The project integrates industrial functionality with robust architectural detailing, ensuring durability, maintainability, and efficient workflow for on-site personnel The form and the main layout of the building is designed by the principal and lead architect I contributed to the making of diagrams seen in the following pages, excluding exterior renders.

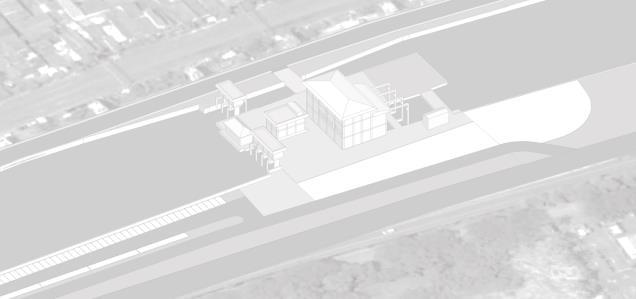

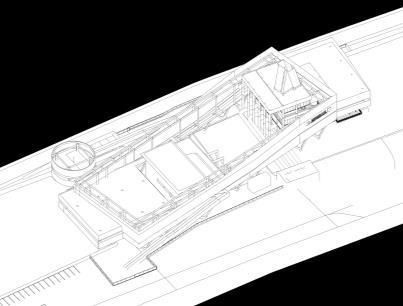

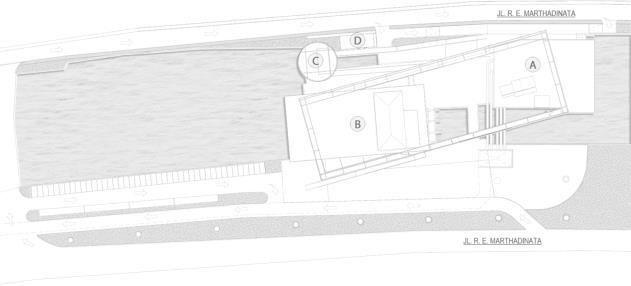

The building has 4 different building masses: (1) the mass of the new pump house building, (2) the mass of the existing pump house building with an extension for the gallery area, (3) the mass of the water gate guard, and (4) the guard post

The building's materials include a concrete structure with a GRC composite facade and a polycarbonate crown roof bearing the relevant agency's identity. The materials chosen focused on weather resistance, low maintenance, and primary protection.

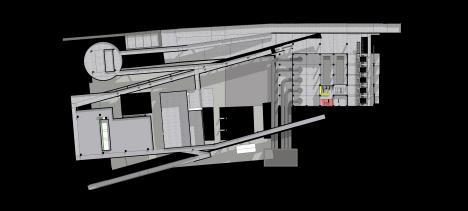

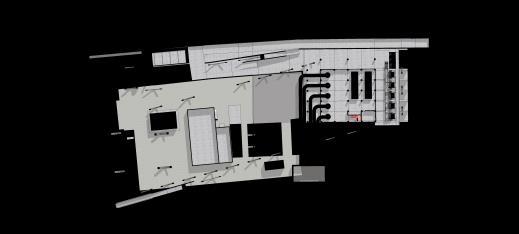

1ST FLOOR

1. Polycabronate Crown

2. Tie Concrete Beam

3. Grc Façade

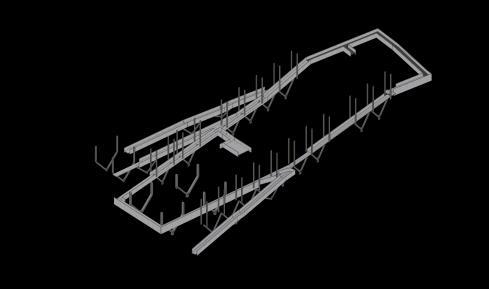

4. Perimeter Ramp + V Column structure

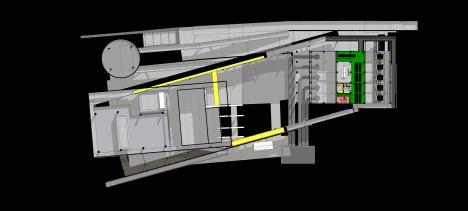

2ND FLOOR

MEZZANINE FLOOR

ROOFTOP

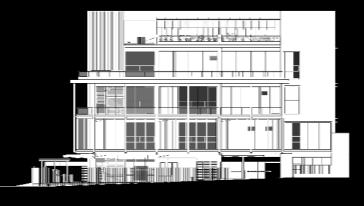

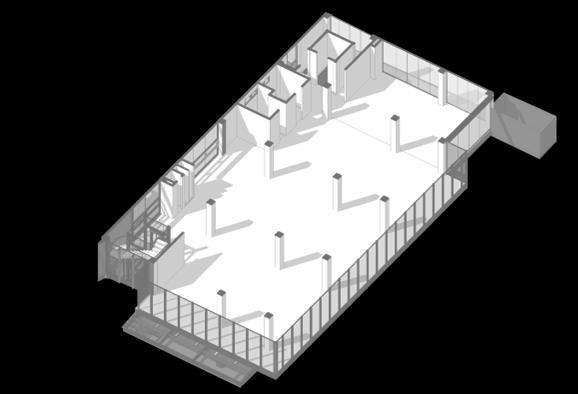

Area76 project is a 5-story commercial building located in Cipete, South Jakarta Strategically located in a high-mobility area, it has great potential to serve residents well The building is expressed in a contemporarymodern design, creating a sense of transparency into the activities inside and inviting passersby to enter

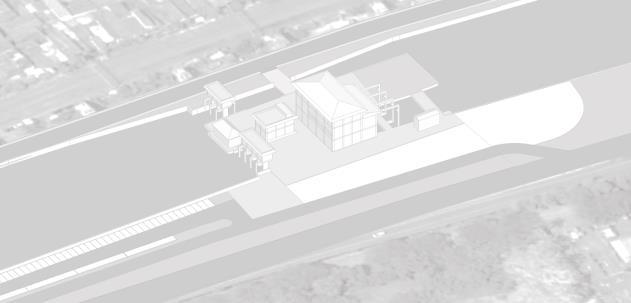

It is situated at the hook that faces east and south.

zoning for public transportation, services, and rental areas.

The offset facade of the building mass is influenced by the sun's orientation and the location of the roadway.

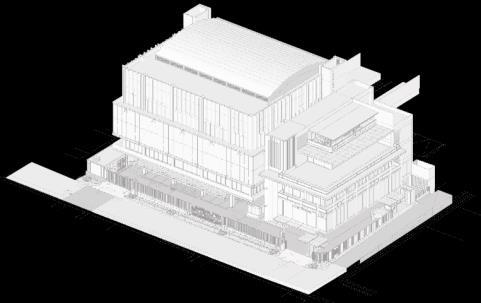

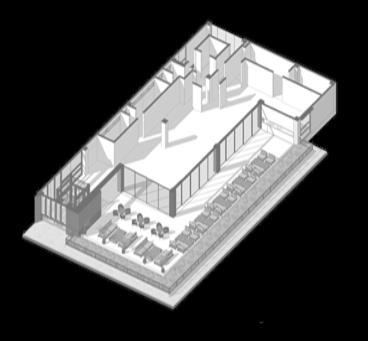

MASSING

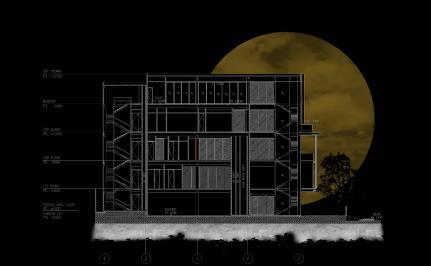

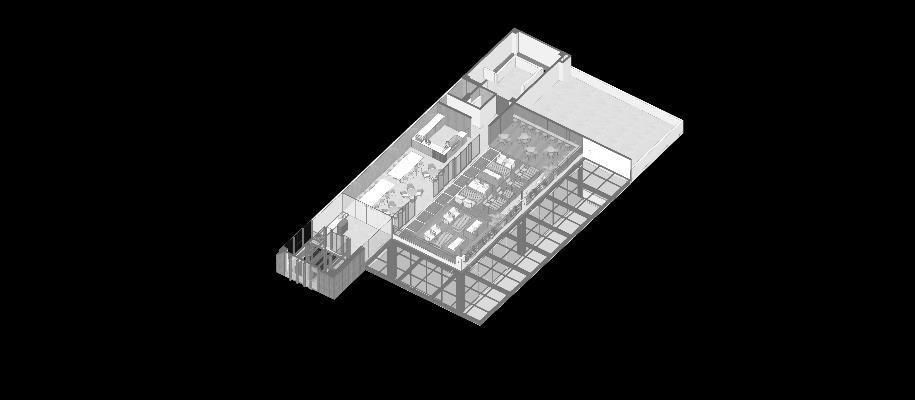

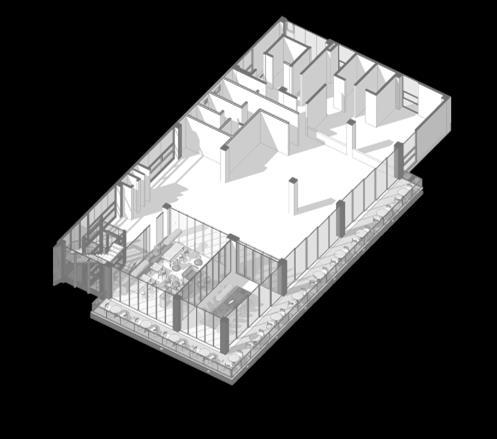

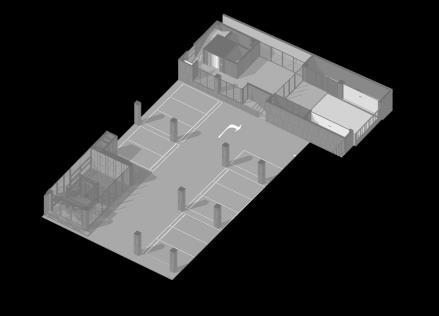

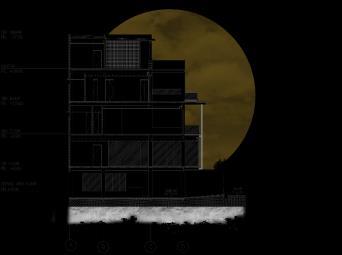

Located at the same site as the office building on Cipete Raya Street, the building serves as a commercial structure for the complex. The building consists of 5 storeys: 1 floor specialized for a parking lot, 3 functional floors, and 1 rooftop floor

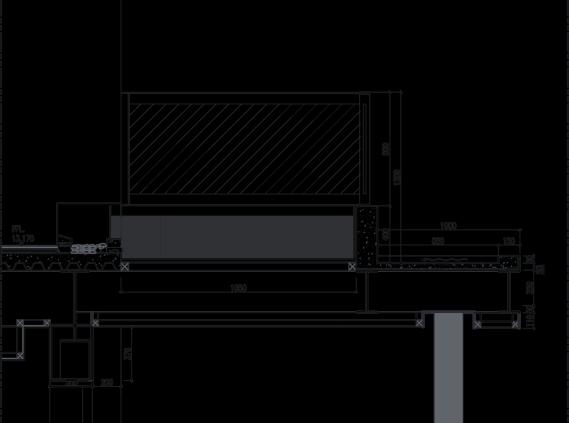

REFLECTING POOL

The reflective pool uses a skimmer system to bring the natural atmosphere into the occupants’ dining experience. The bottom glass part allows water to refract, casting abstract shadows on the dining floor below

VERTICAL TUBE STEEL COLUMNS

The decorative cylinder column on the façade accentuates the building's vertical language

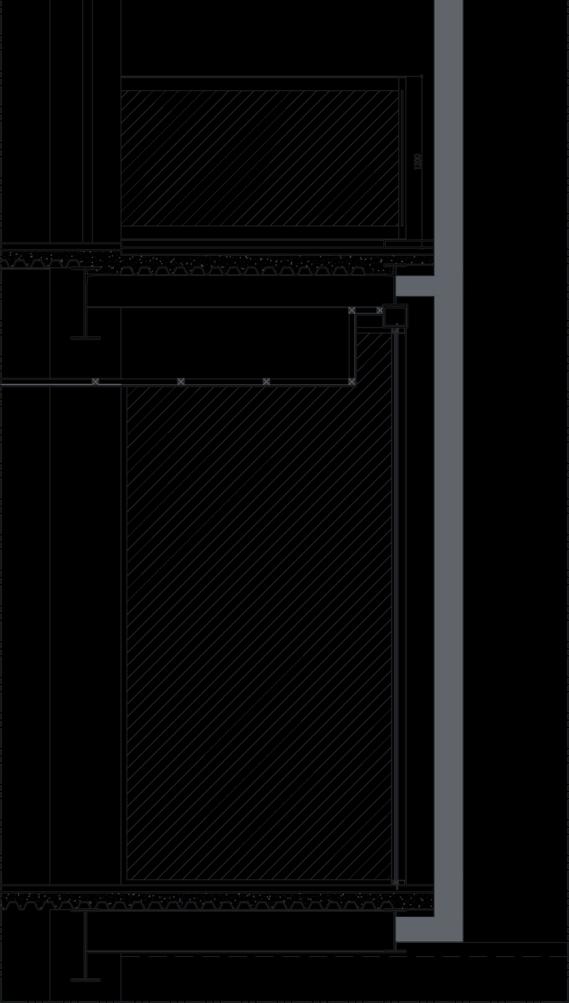

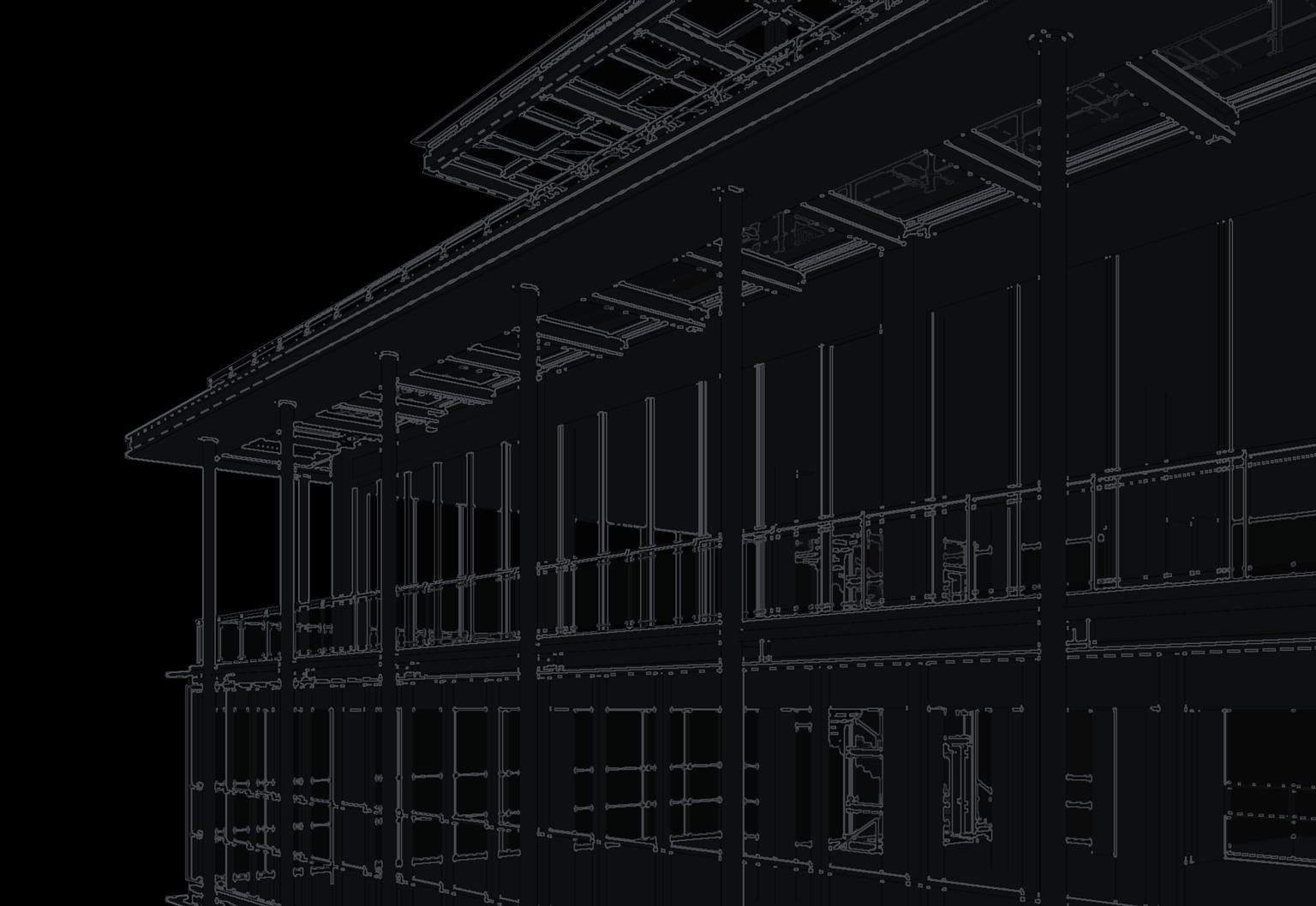

CURTAIN WALL SYSTEM

The system uses a set of full-height window displays to commercialize activities to the outside, giving the sense of a public-dedicated space

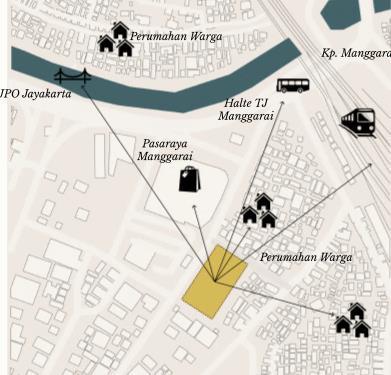

Volume Zero: Ciliwung Plastic Project is designed to enhance the livelihood of the Ciliwung community by introducing a series of creative home-industry activities that leverage local resources and abundant plastic waste in the environment to build a sustainable livelihood chain

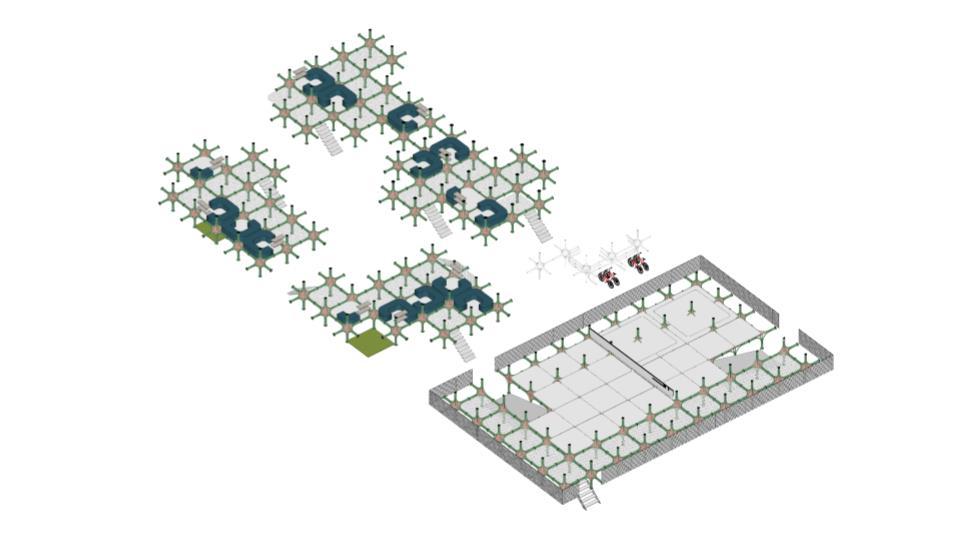

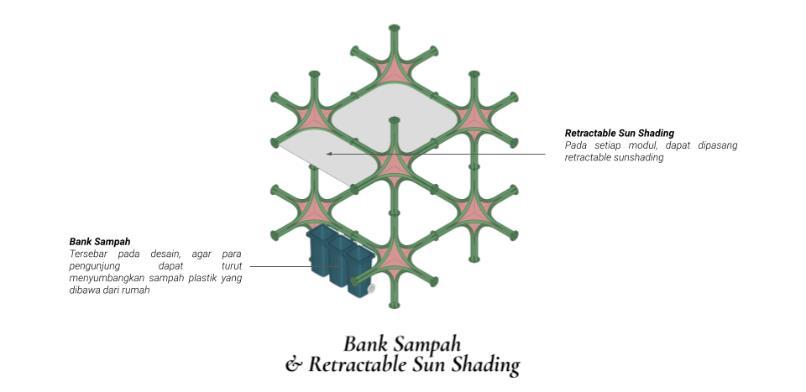

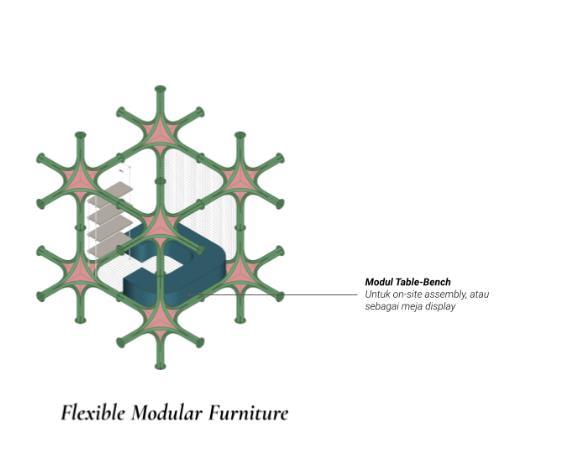

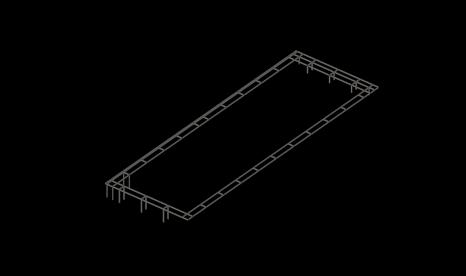

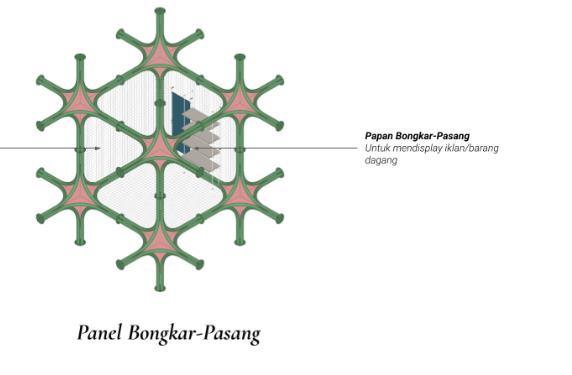

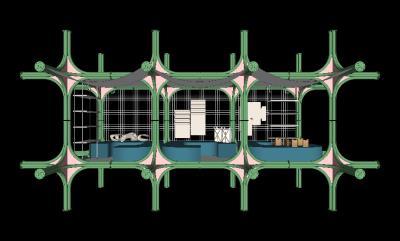

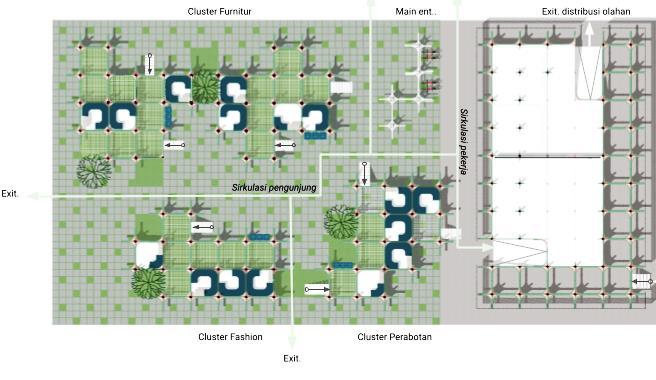

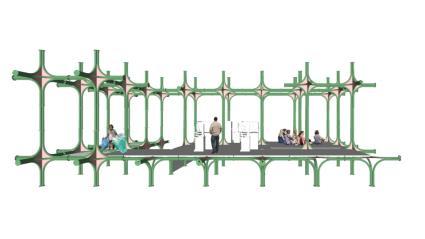

This project consists of production and sales areas, divided into 4 permeable areas Permeable open space allows the public, as well as various involved agents, to easily access the Ciliwung plastic project The modules are constructed by Customized metal welded flange with reinforced metal plate
