Value and choice go hand in hand

Sometimes OEM parts are the obvious answer. While at other times, lower-cost alternative parts make more sense.

At John Deere, we understand that one size doesn’t fit all. That’s why we provide choices beyond Genuine John Deere Parts for your equipment, including:

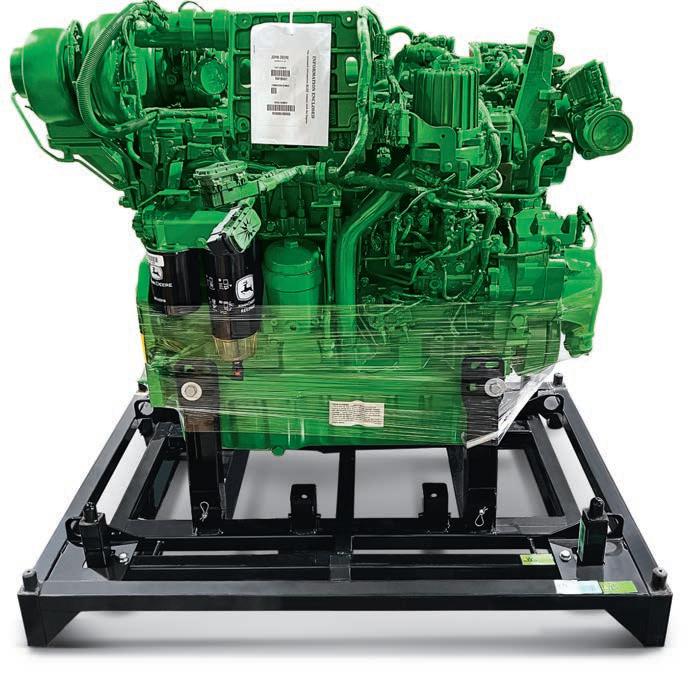

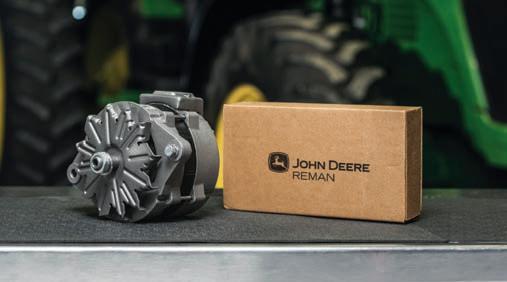

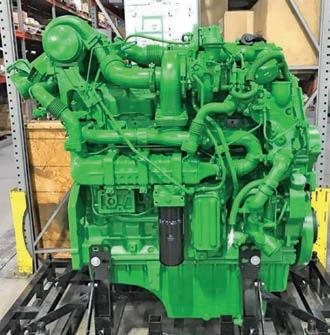

 John Deere Reman

 A&I Parts

 Sunbelt Outdoor Products

Keep that in mind as you browse through our annual Parts Catalog. From replacement and maintenance parts to attachments and upgrades, you can hopefully find just what you need at just the right price.

To change your address, send your old address label along with your new address to:

John Deere c/o Customer Mail P.O. Box 417 Moline, IL 61266-0417

The John Deere green and yellow color scheme, the leaping deer symbol and JOHN DEERE are registered or unregistered trademarks of Deere & Company.

JohnDeere.com/RunItYourWay

When you choose John Deere, you get more than just horsepower. You get game-changing technology that provides clear, reliable information for you to get the most out of your machine. With digital tools like John Deere Operations Center™, Equipment Mobile app, and Shop.Deere.com, it’s easier to use, maintain, diagnose, repair, and protect your investment for the long run. Whether you perform the work yourself – or partner with your local John Deere dealer and/or alternative service provider – you can run it your way with confidence.

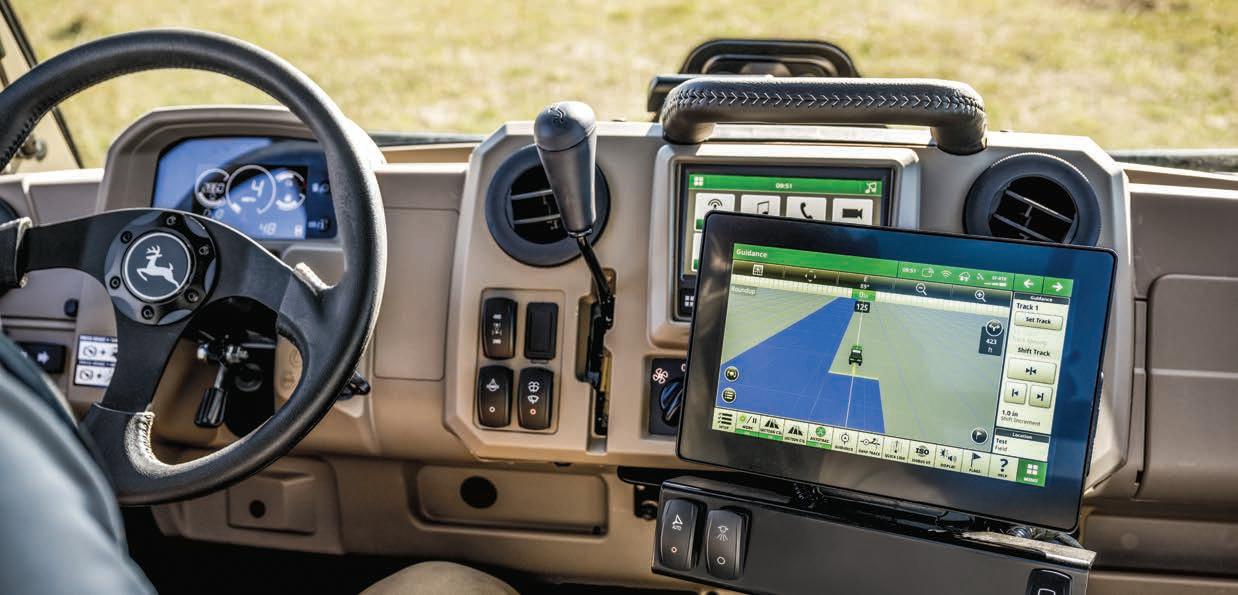

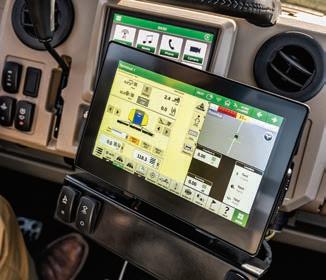

JOHN DEERE OPERATIONS CENTER

Manage your operation anytime, anywhere. Discover the value of the Operations Center, a convenient resource that enables you to manage your day-to-day decisions more efficiently – giving you more control over your operations like never before.

EQUIPMENT MOBILE APP

With the free, user-friendly Equipment Mobile app, you’re just a few taps away from searchable Operator’s Manuals, maintenance tracking, seamless parts ordering, machine setup tips, and other valuable information.

Get the parts you need when you need them. Experience choice when you place your order – along with support from your local John Deere dealer – and have product delivered right to your doorstep.

You’re In Charge With John Deere Operations Center™

PRO Service

Oversee the operation and performance of your equipment with the new Operations Center PRO Service module from John Deere Operations Center. Designed to empower you to make the best decisions for your machine(s), you can confidently manage your equipment from usage and maintenance to diagnosis and repair. No matter the age of your John Deere machine, you can benefit from Operations Center PRO Service.

DIGITAL CUSTOMER ACCOUNT

One John Deere account offers seamless access to tools, support, and insights.

PROACTIVE INSIGHTS

Near real-time remote monitoring provides data trends, expected equipment impact, and step-by-step diagnostics and repair guidance.

FLEET VIEW

Licensed equipment and insights appear in one place. The machine list displays organization, license status, engine hours, product improvement plans (PIP) and digital trouble code (DTC) counts, warranty, maintenance plan, software updates, and machine health insights (MHI) count.

MACHINE HEALTH

Machine health insights — powered by telematics and analysis backed by John Deere engineers — help detect issues early, guide diagnostics and repairs, and keep your operation running smoothly.

PARTS ONLINE

Each licensed machine links directly to its PIN-specific Shop.Deere. com page to purchase parts, attachments, and accessories.

AI-ENHANCED MANUALS

AI-powered guidance delivers accurate repair procedures for your specific machine by intelligently searching across all relevant operator, technical, and parts manuals.

SOFTWARE REPROGRAMMING1

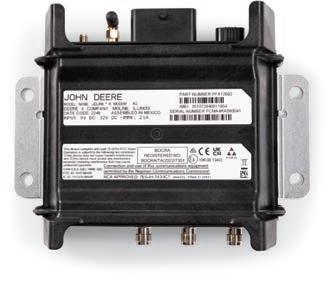

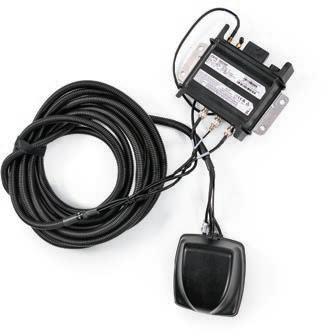

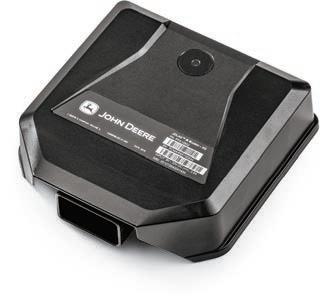

Reprogram, replace, or update controllers remotely via 4G MTG modem or at the machine (may need compatible cables).

MACHINE DIAGNOSTIC INSIGHTS

View, refresh, and clear DTCs; access readings, recordings, tests, and calibrations.1

INTERACTIVE SCHEMATICS

Explore electrical systems with schematics by component, system, DTC, or voltage supply to pinpoint issues.

OFFLINE CAPABILITIES

Download the local version to program and conduct diagnostics through wired connections when online access is unavailable.

1Certain engine related tests and calibrations are not currently available. Reprogramming functionality may not be available for some controllers; see JohnDeere.com/PROService for further details.

PEACE OF MIND

IT’S NOT JUST FOR NEW EQUIPMENT INTRODUCING

Go from “out of warranty” to “under warranty” with a Used PowerGard Plan from John Deere. Designed to preserve the performance and reliability of your aging equipment, Used PowerGard (an Inspect & Protect Program) now offers an option for out-of-warranty, customer-owned machines. Our Limited engine and powertrain warranty and Comprehensive Coverage, can help keep your tractor, combine, sprayer, SPFH, cotton harvester or nutrient applicator running for a lot longer. Plus, you get to choose from a variety of flexible terms, in total months and total hours, along with determining the deductible that’s right for you. Get covered today!

BeatEase

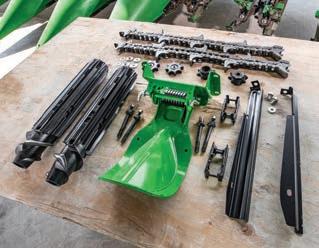

RETOOL WITH ROWMAX™

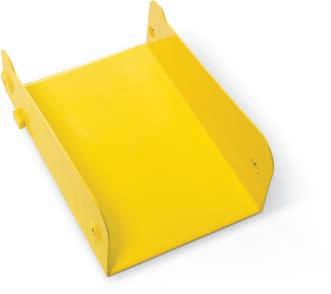

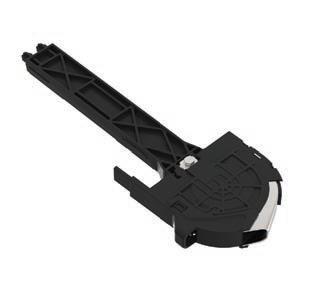

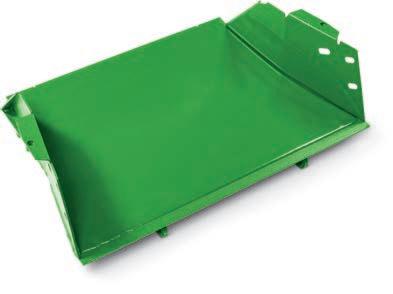

STALK DEFLECTOR

CHAIN KIT STALK ROLLS

Scan for more information about Stalk Deflector

Installation

BXE11424

HXE184546

HXE184547

HXE184548

HXE184549

HXE141569

HXE141570

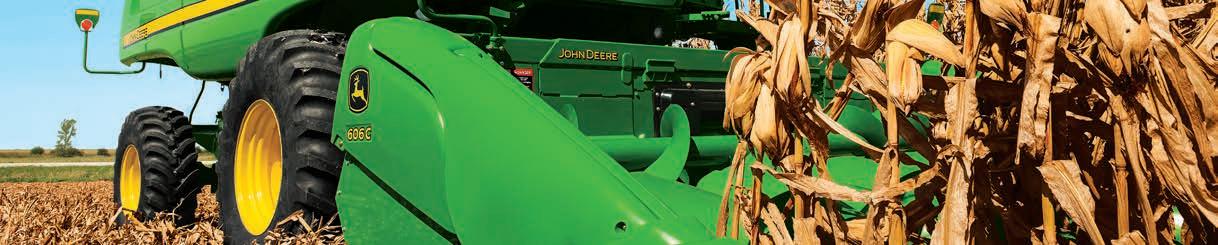

Extend the life of your John Deere corn head (Model Year 2012 or newer) with RowMax. Features include:

■ Advanced gathering chain with 12 additional links, 2 extra sprocket teeth, and upgraded alloy bushings for enhanced durability.

■ Optional stalk deflectors to help reduce damage to tires and tracks.

■ New poly skid attachments that pair with stalk deflectors to extend wear life even further.

■ Your choice of stalk rolls: straight fluted, opposed knife, intermeshing knife, or chopping stalk roll—tailored to your harvest needs.

Upgrade with confidence. RowMax delivers performance, protection, and customization—all without the cost of a new corn head.

JohnDeere.com/CombineParts or JohnDeere.ca/CombineParts

BXE11362 Stalk Deflector1 MY12 or newer 600C/FC, 700C/FC, CF, and CR series

PolySkid Attachment MY12 or newer 600C/FC, 700C/FC, CF, and CR series

KXE10487 RowMax Gathering Chain Kit2 MY12 or newer 600C/FC, 700C/FC, CF, and CR series

LH Opposed Stalk Roll

RH Opposed Stalk Roll

MY12 or newer 600C/FC, 700C/FC, CF, and CR series

MY12 or newer 600C/FC, 700C/FC, CF, and CR series

LH Intermeshing Stalk RollMY12 or newer 600C/FC, 700C/FC, CF, and CR series

RH Intermeshing Stalk RollMY12 or newer 600C/FC, 700C/FC, CF, and CR series

LH Chopping Stalk Roll

RH Chopping Stalk Roll

MY12 or newer 600C/FC, 700C/FC, CF, and CR series

MY12 or newer 600C/FC, 700C/FC, CF, and CR series

Platform Parts

GENUINE JOHN DEEREJOHN DEERE REMANA&I PRODUCTSSUNBELT OUTDOOR PRODUCTS | | |

Innovative Engineering

Controlled Breakage Zone

Full Section Undergoes Austempering Heat Treatment

Anti-Buildup Zone

Tapered Tip

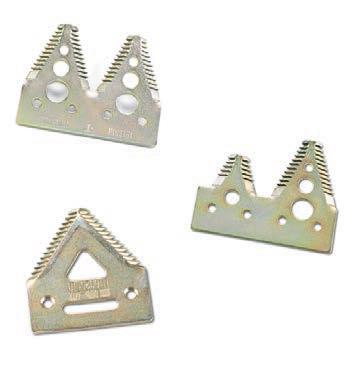

John Deere sickle sections are engineered for maximum performance.

■ The tapered tip and consistent serrations maintain sharpness

■ The anti-buildup zone reduces clogging and increases capacity

■ The innovative breakage zone allows the section to break, rather than bend, without damaging guards–all while reducing overall cutterbar weight

■ Austempering heat treatment gives the entire section strength and balanced wear

Sections

Fine-Tooth Sections – Ideal for small grains

Coarse-Tooth Sections – Recommended for green-stemmed crops like soybeans

No-Till Sections – Suited for no-till conditions to prevent corn stalks from pinching

900, 900F, 900R Series – 3” Cutting Systems

John Deere A&I

Dura-LiteFine-Tooth H207929

Dura-LiteCoarse-Tooth H207930

600/700, HD, FD, & RDF Series – 4” Cutting Systems, Dura-Twin Sections

Fine-Tooth H153329A-H153329

Coarse-Tooth H163131A-H163131

600/700, HD, FD, & RDF Series – 4” Cutting Systems, No-Till sections, Short/Long

Fine-Tooth H215025

Coarse-Tooth H215064A-H215064

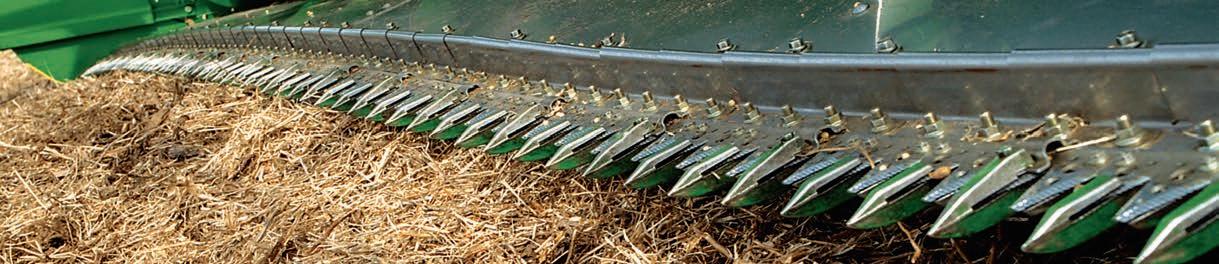

Don’t discount your guards

Only replacing your knives is like sharpening one side of your scissors. A dull edge on your guards can sacrifice cut quality and potentially force you to run slower…costing acres per hour.

John Deere offers green, high-wear guards that come standard from the factory. These guards go through an added boronization process that gives them twice the wear life compared with the standard black guards. If your conditions don’t require that added wear life, the standard black guards are case hardened all the way around. This provides a longer wear life compared to some aftermarket guards that are only induction hardened at the corners of the cutting edge.

Make sure you’re using the right cutting system for your primary crop.

■ Long-point guards and fine-tooth sections – small grains

■ Blunt-point guards and coarse-tooth sections – soybeans

■ No-till sections and guards – to help prevent corn stalks from hairpinning

Learn more at JohnDeere.com/CombineParts or JohnDeere.ca/CombineParts Scan for more information

Guards

900, 900F, 900R Series

Standard Heat Treated

Double Heat Treated

600/700, HD, FD, & RDF Series – Long Point (Small Grains)

Standard (Short-Long-Short)

Standard (Long-Short-Long)

High Wear (Short-Long-Short))

High Wear (Long-Short-Long)

600/700, HD, FD, & RDF Series – Blunt Point (Coarse Grains)

Black, Standard (Short-Long-Short)

Black, Standard (Long-Short-Long)

High Wear (Short-Long-Short)

High Wear (Long-Short-Long)

600/700, HD, FD, & RDF Series – No-Till Blunt Point (Coarse Grains)

High Wear (Short-Long-Short)

John DeereA&I

H145791

H153719

H213508

H213405

H229540A-H229540

H229539A-H229539

H213507

H213398

H229538A-H229538

H229537A-H229537

H218701

High Wear (Long-Short-Long) H218702

New! Rock guards offer enhanced protection by deflecting debris, feature durable high-strength steel construction; install easily with a bolt-on design; and help reduce costly repairs and downtime. Rock Guard

REPLACEMENT PARTS GUIDE S700 Series Combines S760, S770, S780, S790

MAIN ENGINE GEARCASE FILTER (ProDrive™ TRANSMISSION)

AH128449

Replace within first 100 hours and every 400 hours.

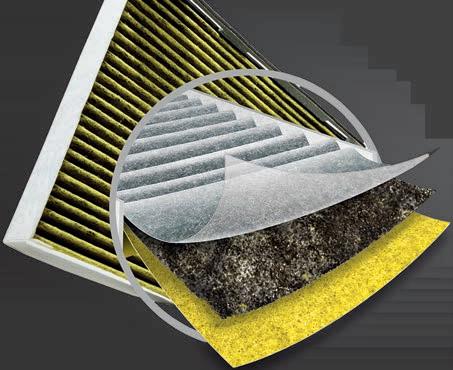

RECIRCULATION AIR FILTER

L214634 Clean or replace every 200 hours and as required.

FRESH AIR FILTER

RE284091

Clean or replace every 50 hours and as required.

ProDrive™ LUBRICATION FILTER

AH128449

Replace within first 100 hours and every 400 hours.

TIER 4

PRIMARY AIR FILTER

HXE11090

SECONDARY AIR FILTER

HXE11091

Check every 400 hours. Service Primary Air Filter when engine air filter restricted indicator is shown on display. Check safety filter for plugging.

PRIMARY FUEL FILTER

(FT4/STAGE IV ENGINE)

RE539465

SECONDARY FUEL FILTER

(FT4/STAGE IV ENGINE)

DZ112918

Replace every 400 hours and when performance decline is noticed or Diagnostic Trouble Code (DTC) is generated.

FUEL FILTER (TIER 3 ENGINE)

PRIMARY FUEL FILTER

RE520906

PRIMARY AND SECONDARY FUEL FILTER

RE525523

Change as require or when Diagnostic Trouble Code (DTC) is generated.

HYDRAULIC RETURN FILTER

AT129775 - (S760, S770)

Replace every 400 hours.

DIESEL EXSHAUST FLUID DOSING FILTER

DZ114640

Replace every 4500 hours or every three years of operation, whichever occurs first.

DIESEL EXHAUST FLUID (DEF) TANK VENT FILTER (FT4/STAGE IV ENGINE)

H216169

FUEL TANK VENT FILTER

H216169

Clean every 250 hours and replace every 400 hours.

DIESEL PARTICULATE FILTER

DZ100174 - (S760, S770)

DZ100175 - (S760, S770)

See yourJohn DeereTM dealer or qualified service provider.

OIL FILTER

RE509672 - (S760, S770)

RE572785 - (S780, S790)

Initial Oil and filter change at 100 hours, there after every 250 hours or annually, whichever comes first.

FUEL PRECLEANER FILTER

R502778

Inspect every 10 hours, clean ev-ery 50 hours and every 400 hours or when Diagnostic Trouble Code (DTC) is generated.

HEAVY-DUTY FUEL PRECLEANER FILTER (OPTIONAL)

N378886

Back flush when bowl is half full or when Dianotic Trouble Code (DTC) is generated. Clean afterevery fifth back flushing. Replace when light is no longer visible when filter is held up to light.

HYDROSTATIC DRIVE PUMP FILTER (ProDrive™ TRANSMISSION)

AN207368

HYDROSTATIC CHARGE PUMP FILTER (NON-ProDrive™ TRANSMISSION)

AH128449

Replace every 400 hours

HYDRAULIC RETURN FILTER (Reservoir)

AXE12964 - (S780, S790)

Replace every 1000 hours

DEBRIS MANAGEMENT AIR FILTERS (FT4/STAGE IV ENGINE) PRIMARY

AXE42066

Clean or change as required.

SECONDARY

AXE42065Never clean the safety filter. Change if dirty.Change Secondary filter only with Primary filter. Change as required with Primary filter.

Draper Head Aftermarket Upgrades

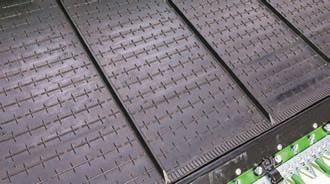

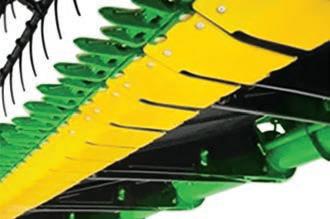

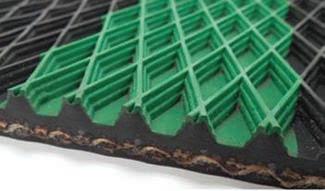

Grain Saver Belt

John Deere grain saver belt’s special crosshair design helps trap free grain before it can roll past the cutterbar onto the ground, helping you reduce harvest losses and increase revenue. Retrofit kits are available for MY12 600FD and up.

AXE88884

and AXE8888440

feet (13.72 meters)

MY16–18*

*4

*New Draper Rollers are required for 600FD-Series Retrofit. Contact dealer for full upgrade parts list needed.

*1Must order 2 AXE88885 to complete set. *2Must order 4 AXE88883 to complete set.

*3Must order 2 AXE88883 and 2 AXE88884 to complete set. *4Must order 4 AXE88884 to complete set.

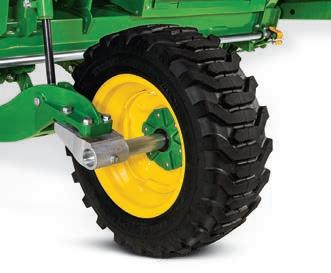

Gauge Wheel Kit

Created for MY21+, HDR/HDF hinged drapers allows a conversion from non-gauge wheels to gauge wheels. Equipping the draper head with this conversion gauge wheel kit will produce consistent stubble height and cut height across the full header. Without leaving the cab, switch from off-ground to on-ground in 10 seconds to increase valuable harvest time.

NUMBER DESCRIPTION

KXE10964*Tire Kit, Non-Gauge Wheel to Gauge

AXE77160 LH – Tire and Wheel Assembly

AXE77161 RH – Tire and Wheel Assembly

*Also order through service parts (2) each LH and RH Tire and Wheel Assembly kits per one Conversion Gauge Wheel Kit

HDR/HDF High Wear Skid Shoes

The HDR/HDF high wear skid shoes double the amount of material in key areas compared to standard for improved wear life. They are recommended for use in highly abrasive and/or rocky conditions.

NUMBER DESCRIPTION

AXE95799 RH Outer Float Arm Skid Plate

AXE95797 LH Outer Float Arm Skid Plate

AXE95777 Wing Skid Plate

AXE95795 Center Skid Plate

AXE95796 Wing Pivot Skid Plate

HXE171356 Skid Plate

CAM Reel

New! The CAM reel improves crop flow in both short and bushy conditions by aggressively sweeping crops onto the cutter bar without tossing them over the header. This reduces bunching and enhances side belt feeding compared to flip-over reels.

NUMBER DESCRIPTION

BXE11695 Cam reel attachment for RDF 30 and RDF 35 (and model year 2016 and newer 630FD, 635FD, 730FD, and 735FD)

BXE11696Cam reel attachment for RDF 40 (and model year 2016 and newer 640FD and 740FD)

BXE11731Cam reel attachment for RDF 45 (and model year 2016 and newer 645FD and 745FD)

BXE11694Cam reel attachment for HDR and HDF (all model years)

STS- and S-Series Combine Parts

Lower Clean Grain Augers

The clean grain auger delivers grain from the shoe to the clean grain elevator.

Part Description Application

John Deere A&I

Clean Grain Lower Auger9770 and all S-SeriesAXE59539A-AH219339

Clean Grain Lower Auger

All STS and S650, S660, S670, S690, S760, S770

AH162154A-AH162154

Clean Grain Lower AugerS690, S690H, S790AXE45389

Tailing Augers

The lower tailings auger moves the unthreshed material from the chaffer or sieve to the tailings elevator. The elevator then carries the material to the upper tailings auger, which drops the tailings in the center of the separator just above the threshing cylinder.

Part Description Application John DeereA&I

Lower Tailings Auger

All STS and S560, S650, S660, S670, S690, S760, S770

AH147472A-AH147472

Lower Tailings Auger, Rethresher S680, S685, S690, S780, S785, S790 AH232830

Upper Tailings Trough Auger

All STS and S560, S650, S660, S670, S690, S760, S770

AH209421A-AH209421

STS- and S-Series Vertical Unloading Augers

There are three different types of vertical augers:

Regular – Standard wear were base equipment on S550, S650, and S660 combines High Wear – Option on S550, S650, and S660 combines High Wear/High Unloading Rate – Standard on S670, S680, and S690

9650, 9750, 9560, 9660, 9760, 9570, 9670, S560John Deere A&I

Regular

High Wear

9660, 9760, 9860, 9670, 9770, 9870

High Wear/High Unloading Rate

S550, S650, S660

Regular

High Wear

S660, S670, S680, S690

High Wear/High Unloading Rate

AH146840A-AH146840

AH164070A-AH164070

AXE12921A-AXE12921

AXE53848

AXE53849

AXE18070A-AXE18070

Tech Tip

Keep a clearance gauge handy

John Deere offers a convenient gauge that measures wear on threshing elements, separator tines, and concaves to help you know when it’s time to replace them. Order yours today.

KXE10110 Variable Stream Rotor Gauge

AH204933 Tri-Stream Rotor Gauge

MCXFA1962 Chaffer/Sieve Clearance Gauge

KXE10805 X-Series Rotor Gauge

Learn more at JohnDeere.com/CombineParts or JohnDeere.ca/CombineParts.

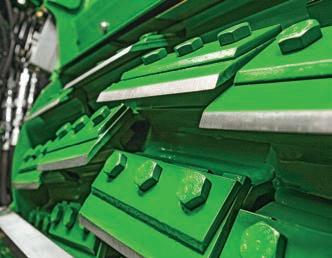

STS- and S-Series Threshing Elements

It is important to note that three different threshing element designs are needed for the Bullet Rotor:

■ First Row of Front Cone: Requires one kit of three threshing elements designed for mounting on the front surface of the front cone

■ Second Row of Front Cone: Requires one kit of three threshing elements designed for mounting on the surface of the mid-section of the front cone

■ Rear Portion: Requires three kits of three threshing elements designed to mount on the rear portion of the rotor

All threshing elements listed below are available in kits of three only. To maintain rotor balance, all three must be installed in a row around the circumference.

Part Description Application

Corn and Grain Elements for 9560, 9570, S550:

John DeereA&I

1st Row Standard-Wear, Rifled AH219770

2nd Row Standard-Wear, Rifled AH219771

3rd–5th Row Standard-Wear, Rifled KXE10160

3rd–5th Row High-Wear, Rifled AH219773

Corn and Grain Elements for 9660, 9760, 9860, 9670, 9770, 9870, S650, S660, S670, S680, S690:

1st Row Standard-Wear, High-Wear, Rifled AH216674A-AH216674

2nd Row Standard-Wear, High-Wear, Rifled AH216675A-AH216675

3rd–5th Row Standard-Wear, Rifled AH216677A-AH216677

3rd–5th Row High-Wear, Rifled AH216678A-AH216678

STS- and S-Series Separator Tines

All separator tines listed below are available in kits of three only. To maintain rotor balance, all three must be installed in a row around the circumference of the rotor.

Part Description

9560, 9570, S550

John DeereA&I

Standard AH209452

9650, 9750, 9660, 9760, 9860, 9670, 9770, 9870, S650, S660, S670, S680, S690

Standard AH208554A-AH208554 High Wear AH209123A-AH209123

How To Select The Right Concave

With the correct concave configuration, you can enhance combine performance in a wide variety of crops and conditions. Use the concave guidelines below to determine how you can increase the threshing capacity of your John Deere STS or S Series combine For specialty and seed crops, always use the best-rated concave configuration.

1. Large-wire concaves are not recommended for corn with moisture above 25 percent. Matting of green, leafy material significantly reduces separating capacity.

2. Optional threshing inserts are available to improve threshing ability in tough threshing varieties or conditions.

3. Optional concave threshing inserts are required in the first concave to improve threshing ability. Tough threshing conditions may require additional threshing inserts in the second and third concave sections.

4. Optional concave cover plates are available to improve threshing ability and sample cleanliness (white caps, snapped heads, unthreshed pods). Recommended for tough, damp, hard-to-thresh conditions only. Removal of every other wire is recommended for best grain quality results.

5. Optional Kondex® MaxThresh™ Concave in the first section to improve threshing.

6. Optional Kondex® MaxRound™ Concave in the first section to improve threshing.

See following two pages for parts numbers

Kondex Revolution Concaves

Kondex Revolution concaves, made exclusively for John Deere, feature a lasercladded high-wear additive that extends life by two to three times and provides enhanced versatility for tough threshing and high-moisture crop conditions.

NUMBER

BXE11145

BXE11144

AXE91114

AXE76999

AXE77000

AXE76998

BXE11457

BXE11458

BXE11581

DESCRIPTION

S-Series/STS Kondex® Revolution™ Small Grain 2-pc. Bundle

S-Series/STS Kondex® Revolution™ Coarse Grain 2-pc. Bundle

S-Series/STS Single Kondex® Revolution™ MaxThresh™ Half Width Small Slot Concave

S-Series/STS Single Kondex® Revolution™ MaxThresh™ Half Width Small Slot Concave

S-Series/STS Single Kondex® Revolution™ MaxRound™ Half Width Concave

S-Series/STS Plate, Concave Front Lip

S-Series/STS Kondex® Revolution™ 6-pc. Half Width Small Grain Bundle

S-Series/STS Kondex® Revolution™ 6-pc. Half Width Coarse Grain Bundle

X-Series Small Grains 4-pc. Bundle

BXE11582 X-Series Coarse Grains 4-pc. Bundle

AXE90830 X-Series LH Single Kondex® Revolution MaxThresh™ Half-Width Concave

AXE90831 X-Series RH Single Kondex® Revolution MaxThresh™ Half-Width Concave

AXE90832

X-Series Single Kondex® Revolution MaxRound™ Half-Width Concave

*Not available for 9560 STS, 9570, or S550 Combines.

John Deere Concaves

John Deere OEM concave’s reputation for reliability, optimal threshing, and separation is long-standing. They also allow for versatility in crops and fine-tuning performance via use of inserts, cover plates, or combining with Revolution concaves.

NUMBER

DESCRIPTION

BXE10387 S-Series Round Bar Extended Wear Concave Kit

BXE10388 S-Series Small Wire Extended Wear Concave Kit

BXE11375 X-Series Round Bar Standard Wear Concave Kit

BXE11376 X-Series Round Bar Extended Wear Concave Kit

BXE11861 X-Series Small Wire Standard Wear Concave Kit

BXE11860 X-Series Small Wire Extended Wear Concave Kit

BXE11862 X-Series Large Wire Standard Wear Concave Kit

BXE11863 X-Series Large Wire Extended Wear Concave Kit

Concave Inserts

Concave inserts provide the additional threshing action required for harvesting small grains with the round bar concaves. Concave inserts are easy to install and remove as you switch between crops.

Concave Inserts (9560, 9570, S550):

BH84294 Set of 2

Concave Inserts (9650, 9750, 9660, 9760, 9860, 9670, 9770, 9870, S650, S660, S670, S680, S690):

BH84308 Set of 2

Concave Inserts (X-Series)

AXE90486

Round Bar LH Insert

AXE89573 Round Bar RH Insert

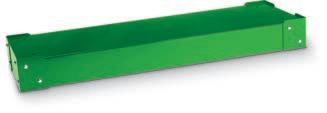

Concave Cover Plates

The sectionalized concave covers help to provide additional threshing in the concave area when harvesting hard-to-thresh-type cereal crops. They can also help to reduce white caps and increase grain tank cleanliness.

NUMBER

DESCRIPTION

BH84534 STS and S-Series Small Wire and Large Wire Covers

BH84535 STS and S-Series Round Bar Covers

BXE11382X-Series Concave Cover Kit

Heavy Duty Separator Grates with Interrupters

HD separator grates are stiffer and more robust than the standard separator grates for increased performance in tough threshing crops, like straw and green-stemmed beans. The HD weld separator grate is a welded separator grate while the standard separator grates are single-piece casted steel. The NEW HD cast separator grate offers the same robust separator strength but at a lower price point.

NUMBER DESCRIPTION

AXE44522 HD Weld

HXE120796 HD Cast*

HXE120795 HD Cast*

*Must order all 3 part numbers for HD Cast, it comes in 3-pieces.

Separator Grate Covers

Separator grate covers help balance the shoe load and improve capacity in very dry small grain conditions by reducing the chaff load to the cleaning shoe. STS and S-Series can use up to 20 covers, while X-Series need one grate on each rotor but may require two covers in extreme dry crop conditions.

NUMBERDESCRIPTION

BXE10645

STS and S-Series Standard Grate Covers (Set of 4)

BXE10646 STS and S-Series HD Grate Covers (Set of 20)

BXE11383X-Series Separator Grate Cover Kit

Feederhouse Chain

Excessive tension is a major cause of feederhouse conveyor chain wear. It is normal for center strands to sag more because of the weight of the slat and the upward force of crop material.

HXE120794 HD Cast* Part

9560, 9570, S550

Feederhouse Chain

John DeereA&I

AH231006A-AH231006 9650, 9750, 9660, 9760, 9860, 9670, 9770, 9870

Feederhouse Chain

S650, S660, S670, S680, S690 (below Serial Number -775001)

Feederhouse Chain

S650, S660, S670, S680, S690 (above Serial Number 775001-)

Feederhouse Chain

X-Series

Conveyor Chain, 6-Pitch

Conveyor Chain, 12-Pitch

AH224926A-AH224926

AXE24307A-AXE24307

AXE27247A-AXE27247

AXE91154

AXE91155

X-Series Combines

X-Series Threshing Elements and Separator Tines

All threshing elements are avaliable in kits of three only and separator tines in kits of two only. To maintain rotor balance, both must be installed in a row around the circumference of the rotor.

KXE10755 LH Threshing Element Kit (3)

KXE10756 RH Threshing Element Kit (3)

KXE10959Separator Tine Extended Wear Kit (2)

X-Series Elevator Chains

Elevator chains should be checked for stretch and adjusted or replaced as required. The rubber paddles can develop rounded corners and edges, resulting in grain leakage.

AXE86232 Clean Grain Elevator Roller Chain

X-Series Chopper Knives

X-Series chopper knives deliver value by offering excellent residue management; enhanced chopping performance; reduced maintenance requirements; improved harvesting efficiency; and seamless integration with existing equipment.

KXE11195 Straight Blade

X-Series Augers

X-Series augers deliver value by improving harvesting efficiency; preserving grain quality; enhancing productivity; ensuring long-term reliability; and offering seamless integration with existing equipment.

AXE98517

AXE104317

AXE92496

John Deere Combine Cab Enhancements

To help make your life easier on those long harvesting days

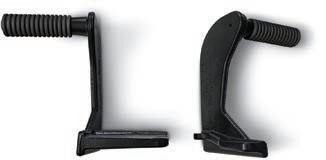

Foot Pegs

Improve comfort while harvesting with this simple upgrade. Foot pegs are available from John Deere and A&I Products.

NUMBERAPPLICATIONS

KXE10454S600/S700 Series

A-JDFR100 9000, 9010, 9050, 9060, 9070 Series

Heated Floor Mat

Keep your feet warm with this easy upgrade. An internal heating element conducts reliable warmth directly under your feet for all day comfort.

Features:

• Lays over existing floor mat

• Same material and color as existing floor mat

• Plugs into auxiliary power strip

Headrests

Keep your head and neck optimally aligned with a headrest that tilts forward and rearward. Available in leather and cloth options.

In-Cab Mobile Device Mounting

NUMBERDESCRIPTION/APPLICATION

AXE96856Leather headrest (S600 and S700 Series)

AXE96857Cloth headrest (S600 and S700 Series)

AL210444Guide Kit: Includes extension for leather seat ONLY (S600 and S700 Series)

Enjoy hands-free access and improved viewing of your iPad®, iPhone®*, or other mobile device from the seat of your cab. These mounted brackets are adjustable, providing easy access without interfering with visibility or machine controls.

NUMBERDESCRIPTION/APPLICATION

BXE10481Guide Bar (MY12–MY13 S600 Series)

BXE10927Guide Bar (MY14–MY17 S600 Series)

BXE10480Slide Kit (MY12–MY17 S600 Series)

BXE10479Tablet Mount (MY12 –MY17 S600 Series)

BRE10015Cell Phone Mount (MY12–MY17 S600 Series)

BXE109019 inches (22.86 cm)–10 inches (25.4 cm) Tablet Mount (S700 Series)

BXE1086411

Harvest Longer, Harvest Brighter

Grain Tank Mirror Kit

Add the grain tank mirror kit to any S-Series Combine to increase visibility of the grain tank.

NUMBERDESCRIPTION/APPLICATION

KXE10458Mirror Kit

S-Series Combine Camera Kits

John Deere Motec, JDM Voyager, and A&I Products cameras available.

NUMBERDESCRIPTION/APPLICATION

OEM Option (Motec Cameras)

AXE41697 Single Camera

KXE10433 Kit: Includes three Motec cameras, hardware, and instructions

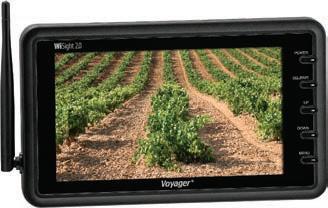

Aftermarket Option (Voyager Cameras)

SWVCMS20JD1

Kit: Includes one Voyager camera, bracket, and Motec adapter cable

SWVCMS20JD3 Kit: Includes three Voyager cameras, brackets, and Motec adapter cables

SWVCMS155BRKCamera bracket

SWVCMSADPTR Motec adapter cable

Aftermarket Option (A&I Products CabCAM™)

A-MC110S

Kit: Includes one plug and play A&I Products camera and bracket. The A&I CabCAM™ camera plugs directly into the OEM harness, no adapter cable needed.

A-PVC20S20 feet (6.10 meters) Extension Cable (for relocating camera)

A-PVC65S65 feet (19.81 meters) Extension Cable (for relocating camera)

OEM LED Light Kits from John Deere

Boost your visibility in low light and nighttime harvesting conditions with bright, longlasting OEM LED lights.

• Brighter than standard LED lights to cut through dust and improve visibility

• Row finder light points exactly where you want to see

NUMBERDESCRIPTION/APPLICATION

BXE11505 Kit: Includes complete, 18-pc machine LED lights (S600 and S700 Series)

BXE11506Kit: Includes cab LED lights only (S600 and S700 Series)

BXE11507 Kit: Includes machine work LED lights only (S600 and S700 Series)

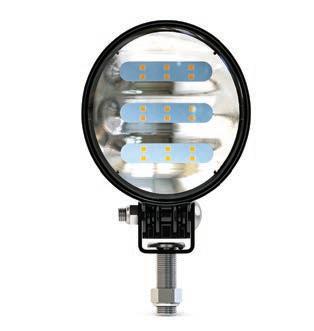

LED Light Kits from A&I Products

Upgrade your factory lights to LED with one simple kit.

• Includes lights for all front headlights located at the top of the cab

• Direct fit: plugs into existing machine wiring harness

NUMBERDESCRIPTION/APPLICATION

A-WL9000KT Kit: Includes 6 rectangle lights (9000, 9010, 9050, 9060 Series with rectangle lights)

A-WL9697KT Kit: Includes 8 oval lights (9060, 9070 Series with oval lights)

Precision Ag Modems – R Modem

• The 4G modem is ideally suited for advanced telematics applications such as machine health monitoring, advanced logistics, machine control, and remote diagnostics. It is environmentally sealed and rigorously tested to ensure performance in the most demanding environmental conditions.

• The JDLink™ R Modem - 4G is the recommended 2G or 3G upgrade solution for most situations.

The 4G modem with a high-profile antenna (PFA10882) is required for the following:

• Machine Sync

• Machines requiring wireless or Bluetooth1® wireless functionality

• New machine installations Benefits

• Quick and easy upgrade to older machines with the latest hardware solutions

• Keep costs low as kit uses existing parts for mounting previous generation antennas

Precision Ag modems unlock additional value within your free John Deere Operations Center™ account so you can better use, maintain, diagnose, repair, and protect your equipment for the long run. Whether you perform the work yourself – or partner with your local John Deere dealer and/or local service center – you can run it your way with confidence.

Precision Ag Modems – M Modem

• The JDLink™ M modem is a perfect complement to new G5 and G5Plus Universal displays – particularly in older John Deere or non-John Deere machines and is also compatible with older generations of John Deere displays.

• The M modem gives you one portal for seamless data flow, automated data transfer, and remote dealer support. That connection with your dealer provides machine monitoring, fleet management, machine maintenance plans, and important machine alerts. With all your machines (John Deere and competitive alike) connected, you get a consistent, reliable view of your data, your equipment, and the activities of your operation.

The M modem is the best option for:

• Mixed fleets needing all machine data to flow into Operations Center

• Older machines not equipped with built-in modems

• Smaller rental tractors that require reliable data connection to Operations Center

Precision Ag Solutions for Harvest

Combine – Precision Ag Display and Receiver Brackets

Get ready for harvest with the right attachments for your combine displays and receivers.

NUMBER DESCRIPTION

AH211594 GreenStar™ Display Bracket, 60- or 70-Series Combines

BPF11186 Cornerpost Display Bracket Kit, S-Series Combines

BPF11356 Universal GPS Bracket

PF10758 StarFire™ Receiver Deluxe Shroud Conversion Bracket

PF90500 Combine StarFire Position Receiver Bracket – 60-Series

PF91009 Combine StarFire Position Receiver Bracket – 50-Series

Starfire Accessories

NUMBER DESCRIPTION

BPF11882Mounting Bracket Kit

BPF81190GPS Receiver Mounting Bracket

BPF12464StarFire 6000 Receiver Locking Bracket Attachment

BPF12459StarFire 7000 and 7500 Receiver Locking Bracket Attachment

Guidance and Machine Control

AutoTrac™ Integrated Machine Kits and GreenStar Ready Kits make it easy for you to be Precision Ag-ready when the time arrives. The AutoTrac Machine Kits include the appropriate machine steering controller when necessary and AutoTrac Ready accessories. The display, receiver, and software to complete the system are sold separately. These field-installed kits are an integrated guidance solution for John Deere machines and are compatible with the GreenStar 3 or GreenStar 2 system components. Gain the edge and get the results you want and need with genuine John Deere Precision Ag components. NUMBER

PF90875 AutoTrac Combine Machine Kit60-Series

PF90629 AutoTrac Combine Machine Kit70-Series

BPF12231 GreenStar Ready Universal Guidance Kit, Upgradable John Deere and other makes equipment

BPF12305 AutoTrac™ RowSense Kit for Universal Sensor Combines

PF91001 AutoTrac RowSense Universal SensorCorn Heads

PF90697 AutoTrac RowSense Mechanical Feelers 30-in. (76.2 cm) Spacing

PF90755 AutoTrac RowSense Retrofit Kit 50- or 60-Series John Deere Combines

PF90757 AutoTrac RowSense Retrofit Kit

Corn Heads

Maintenance made easy.

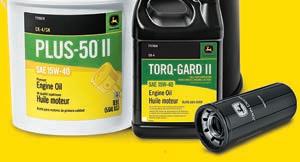

Filter​Paks​for​Compact​Tractors

​Keep​your​tractor​running​at​its​peak.​Most​kits​contain​an​oil​filter,​air​filter,​fuel​ filter,​and​hydraulic​filter.

NUMBERAPPLICATION

LVA21035 Filter​Pak,​1023E​(SN​-117913)​and​1026R​Tractors

LVA21036 Filter​Pak,​1025R​(SN​-153036),​2025R​(SN​HH100001–HH103920),​w/​Engine​Mount​ Air Filter

LVA21196 Filter​Pak,​2210​Tractors

LVA21200 Filter​Pak,​2305​Tractors

LVA21204 Filter​Pak,​2320​and​2025R​(SN​-HH100000)​Tractors

LVA21201 Filter​Pak,​2520,​2720,​and​2032R​(SN​GH100008-)​Tractors

LVA21128 Filter​Pak,​3032E​and​3038E​(SN​-610,000)​Tractors

TA26997 Filter​Pak,​3032E​and​3038E​(SN​610,000-)​Tractors​ Filter​Pak,​3025E

TA25769 1023E*​(SN​117914-),​1025R*​(SN​153037-),​2025R*​(SN​103921-),​or​Updated​Models​ with​Fan​Shroud​Mount​Air​Filters​​​

TA25767 Filter​Pak,​2032R​(SN​-GH100007)​and​2038R​Tractors​

TA25768 Filter​Pak,​3033R,​3039R,​and​3046R​Tractors​​​

TA25765 Filter​Pak,​4M​and​4R​Series​Tractors​​​

LVA21202 Filter​Pak,​3120,​3320,​3520,​3720,​4005,​and​4105​Tractors

LVA21192 Filter​Pak,​4010​Tractors

LVA21197 Filter​Pak,​4100​and​4110​Tractors

LVA21193 Filter​Pak,​4115​Tractors

LVA21203 Filter​Pak,​4120,​4320,​4520,​and​4720​Tractors

LVA21198 Filter​Pak,​4200,​4300,​and​4400​Tractors

LVA21194 Filter​Pak,​4210,​4310,​and​4410​Tractors

LVA21199 Filter​Pak,​4500,​4600,​and​4700​Tractors

LVA21195 Filter​Pak,​4510,​4610,​and​4710​Tractors

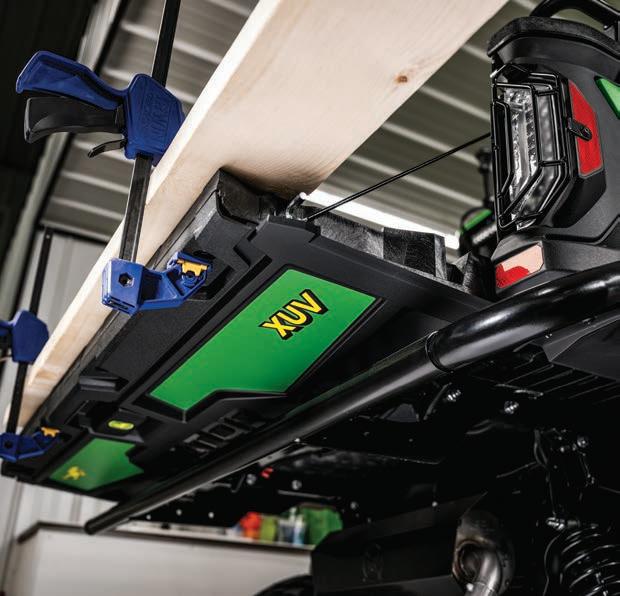

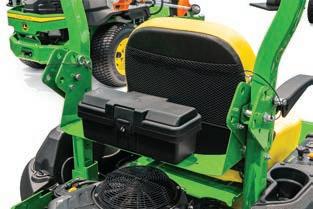

JUST STOW AND GO AND

Have the right tools for the job at hand with John Deere Tool Storage Now you can safely transport lots of landscaping and power equipment and reduce trips to the garage or shed. Featuring modular design for various tractor mounting configurations, load up items like:

Shovels

Rakes

Trimmers

Blowers

Tool Storage simply attaches to a ROPS, ballast box, or iMatch™ Quick-Hitch. And it doesn’t interfere with tractor functionality. Wall mounting accessories are also available for storage. Available in store or order online at Shop.Deere.com / Shop.Deere.ca

NUMBERDESCRIPTION

5WS812425 ROPS Rack

5WS812430 ROPS Rack (3D, 3E, 4M, 4R)

5WS812435 Universal Mount Kit

5WS812450 Long Tool Holder (Double)

5WS812455 Long Tool Holder (Quad)

Chain Saws

5WS812460 Chainsaw Holder

5WS812466 Handheld Leaf Blower Holder

5WS812470 Chain Box

5WS812475 String Trimmer Holder

5WS812480 Mini Clamp Kit

5WS812485 Clamp Kit

5WS812490 Super Clamp Kit

Auxiliary Power Adapters for 7R and 8R/8RT/8RX (with new cab)

Two new solutions are available to provide an octagon style power outlet for connecting displays, monitors, and other electronic devices. The first is a 3-pin octagonal power adaptor that connects to the 3-pin round convenience outlet. The second option will retrofit a power strip with 6 octagon style outlets; same as what was available in 7- and 8-Series tractors prior to the new cab design.

NUMBERDESCRIPTION

Adapter for 1 Octagon Outlet Plug

RE596959 3-pin Octagonal to 3-pin Round Convenience Outlet (flat pins) Single Device Adaptor 6-way Power Strip and Mount

RE596958 6-outlet Octagonal Powerstrip with Pre-installed Round Convenience Outlet (flat pins)

BRE10575 Mounting Rail, C-pillar 1750 cab

Foot Rests – Retrofit Kit

Kick up your feet and drive like a boss with easy-to-install foot rests. Kit BRE10471 adds two forward facing risers and foot rests to the cab (no drilling or welding required). These custom cast iron risers are designed for this cab series and bolt into existing locations used to mount the steering column to the cab frame. Kit BRE10458 fits 7R and 8R/8RT/8RX with the updated new cab and contains three foot rests. These foot rests are helpful when operating on steep downhill grades and sidehills or watching towed implements. Complete kits include all parts and hardware.

NUMBER DESCRIPTION

BRE10458 MY20 and newer 7R, 8R/8RT/8RX (with updated cab), MY22 9R/9RT/9RX.

BRE10471 Foot Rest Support Kit - Fits R4030 to R4060 sprayer models and F4365 Nutrient Applicator

LED Beacon – Retrofit Kit

This kit completely eliminates the rotating beacon assembly. The riser system retains the approved DOT height requirements and includes a patent pending fold-lock “breakaway” system folds out of the way by hand, and can easily be unfolded when needed. Kit includes harness, foldable riser, and LED beacon. Install requires existing beacon harness, cab switch, and mounting post. Note: If tractor already uses two beacons, order two LED retrofit kits.

NUMBER DESCRIPTION

RE596638 MY11–MY20 7R Tractors (excluding new 2020 cab design), MY09–MY20 8R and 8RT Tractors (excl. new 2020 cab design), MY12–MY22 9R/9RT/9RX Tractors Also fits: 7X20, 7X30, 8X20, 8X30, 9X20, and 9X30

7R/8R Greaseable Hitch Pins – Retrofit

These pins can be universally used in six locations on the rear hitch. The greaseable hitch pins can provide extended life with proper lubrication compared to the previous nongreaseable design.

NUMBERDESCRIPTION

BRE10500 MY11–MY20 7R Tractors (excluding new 2020 cab design), MY09–MY20 8R/8RT Tractors (excluding new 2020 cab design)

Wide Angle Mirrors

See the benefits from a wider range of rear visibility with wide-angle mirrors. Regardless of how the tractor came equipped, these kits will upgrade existing mirrors with wide-angle lenses and a standard mirror. This upgrade includes power extending arms, power rotating head, and heated lenses. The kit provides mirrors for the left and right side of the tractor.

NUMBERDESCRIPTION

BRE10470 MY14–MY19 7R and 8R Wheel Tractors. Full electric operation and kit includes LH and RH Mirrors. (not compatible with 8RT, 9R, 9RT, and 9RX models)

Mid-Size/Large Tractor Alternators and Starters

Choice is abundant when it comes to alternators and starters for mid-size/large John Deere tractors. With OEM, John Deere Reman, and A&I Products available in many cases, you can find the right part at the right price.

DESCRIPTION

5225–5625, 5E Limited, 5M Tier 3, 90 Amp

RE205273

A-RE205273 4040–4840, 4050–4850, 8430, 8630, 8440, 8640 Tractors

SE501363 4040–4840 w/ cab, 4050–4650 w/ cab, 8430, 8630, 8440, 8640 Tractors

A-TY26050 4055–4455, 4555–4955, 4560–4960, 8560–8960, 8570–8970 Tractors

SE501371A-TY6684 6200, 6300, 6400. 55 Amp AL207585 SE501346A-AL81436 6020, 6015, 6030,7220–7520 – 90 amp AL166645 A-AL166645 6110–6410, 6120–6420, 6405, 6605, 6015, 7220–7520. 90 Amp

SE501829 6110–6410, 6120–6420, 6215–6715, 6230–6430 Prem., 7220–7520, 7130–7430 Prem.120Amp

AL166646 SE501827 A-AL166646 8120–8520,8120T,8520T

RE218703 SE501825 A-RE218703 7600–7800, 7610–7810, 8100–8400, 8110–8410, 9100–9400, 9120–9520RE46608SE501380A-RE46608

Price shown is exchange price after core is returned.

Mid-Size/Large Tractor Alternators and Starters

Choice is abundant when it comes to alternators and starters for mid-size/large John Deere tractors. With OEM, John Deere Reman, and A&I Products available in many cases, you can find the right part at the right price.

DESCRIPTION John DeereRemanA&I 5603, 5425–5625, 5E Limited, 5085–5125 E/EL/M/ML/R, 6D, 6E

RE543483 SE502913 4650, 4850, 8430, 8440, 8640 – Nippondenso SE501414 4000, 4020, 4030–4630, 4040–4440, 4050–4850, 8440, 8640, 8450 Tractors – Nippondenso A-RE41875 4000, 4020, 4030–4630, 4040–4440, 4050–4850, 8440, 8640, 8450 Tractors – Delco SE501444 4000, 4020, 4030–4630, 4040–4440, 4050–4850, 8430, 8440, 8450, Tractors – Delco A-TY6701 6230–6430, 6030 Premium, 6615–6715, 71–7330, 7030 Premium, 6M, 6R Series Tractors

RE527400 SE501868 A-RE527400 40, 50, and 55 Series Utility Tractors, 6100–6400, 6110–6410, 6405

DZ110081 SE501427 A-AL110597 6120–6420, 6215, 6415

DZ110081 SE501854 A-RE519975 7700, 7800, 8100–8300 SE501420 A-SE501420 8770, 8870, 9200–9400, 9220–9620, 9330–9630, 9R RE515843 SE501862 A-RE515843

Price shown is exchange price after core is returned.

Expansion Valve

DESCRIPTION

2050, 2055, 3050, 3055, 4050, 4055, 4060, 8040, and 8050 Series Tractors

Deere A&I

RE577432 A-904-304 5E, 5M, 5R, 5420, 5520, 5425, 6020, 6030, 6003, 6D, 6M, and 7130–7530 Series Tractors

AL219020 A-AL219020 5010, 6010, 8000, 7020, 7030, 8000, 8010, 8020, 8030, 8R, 9000, 9020, 9030, and 9R Series Tractors RE283957

AC Compressors

When things heat up and you need to replace your AC compressor, make sure you talk to the experts at your John Deere dealer. Many aftermarket offerings are automotivestyle compressors and not meant for off-road applications. Compressor offerings from John Deere include original equipment new compressors, John Deere Reman compressors, and A&I Products. John Deere Reman compressors are remanufactured back to the original John Deere specifications. A&I Products offer AC compressors without the oil so they can be used in either R12 or R134a applications.

6200–6400, 6210–6410, 6405, 6605

6200–6400, 6210–6410

72–7400, 7210–7510, 7020, 7030, 8000, 8010, 8020, 8030, 8R, 9020, and 9030

Denso Style w/ Clutch – 72–7400, 7210–7510, 7020, 7030, 8000, 8010, 8020, 8030, 8R, 9020, and 9030

4000, 4020–4620, 4030–4630, 4040–4840, 5020, 6030, 7020, 8430–8630, 8440–8640 – R134a

Compressor, New w/ Clutch (1 groove 5.75" pulley, 12V) – 4030–4630, 4040–4840, 8430–8630, 8440–8640

4230–4630, 4040–4840, 4050–4850, 4055–4955, 4560–4960, 8450–8850, 8560–8960 – R134a 6E SE503051

Compressor, New, Denso Style w/ Clutch (ear mtd., 5.75" pulley) 4050–4650, 4055–4755, 4560–4960, 8450–8850, 8560–8960

Note: For parts that have a core charge, the price shown is the exchange price after core has been returned.

Receiver Dryer

The receiver/dryer is designed to remove moisture from the air-conditioning system. Over time, it will become saturated with moisture. Moisture combines with refrigerants and creates acids that accelerate the corrosion of internal component parts. As a result, if an air-conditioning system has been in service for any extended period of time and is opened for service, it is wise to replace the receiver/dryer.

DESCRIPTION

4050, 4055, 8040, 7000, 7010, 7030, 9000, 9020, 9030, 7R, 8R, 8RT, 9R, 9RT

RE576834 A-804-464

8100–8400, 8100T–8400T, 8110–8410, 8110T–8410T AT162848 A-AT162848 7720–7920, 8120–8520, 8120T–8520T, 8130–8430 RE576835 A-RE214440 40, 50, 55, 6000, 6010 Series Utility Tractors – R134A AL220790 6015, 6020 Series AL220792 A-AL162467

Water Pumps

Water pump seals have two mating surfaces that take a lot of abuse and are susceptible to wear and failure when exposed to contaminants. John Deere OE water pumps use hard tungsten carbide on both seal surfaces to provide maximum protection and component life. The seal face is scratch resistant and also has excellent thermal conductivity to dissipate hot spots.

John Deere Reman water pumps are remanufactured to the current John Deere specifications. The Reman pumps are completely disassembled, and bearings and seals are replaced and tested to verify integrity. In addition to the OE and the John Deere Reman offerings, your dealer also carries A&I Products water pumps, which offer a quality aftermarket product at an economical price.

APPLICATION

John DeereRemanA&I

3010, 3020, 4000, 4010, 4020 AR45332 SE500919 A-AR45332 4430, 4630 RE20023 SE500915 A-RE20023 4120–4720 Compact Tractor RE545572 SE502115 A-RE545572 5225, 5325, 5065M, 5075M

RE545573 SE502114 A-RE545573 7600–7800, 8560–8960 – Hi Flow RE68230 SE501011 A-RE68230 9120–9520 RE549153 SE501592

Water Pump Repair Kits

Make sure your engine is properly cooled with a John Deere water pump service kit. Water pump service kits come with the necessary genuine John Deere parts to rebuild your water pump and keep your cooling system operating at maximum performance.

APPLICATION

John DeereA&I

4020–4620, 4030–4630, 4040–4840, 4350, 4455, 8430, 8440, 8640 AR101549A-AR101549

2940, 3040, 3140, 2950, 3050, 2955, 3155, 4050, 4250, 4450RE70143 A-RE11348 8560, 8760, 8960, 8570, 8770, 8870, and 8970 RE524383 4255, 4455, 4555, 4755, 4955, 4560, 4760, and 4960 RE524406 5103–5403, 5105, 5205, 5200–5400, 5210–5410, 5220, 5320, 5045E–5075E, 5075M RE62658 A-RE62658 4050–4850, 4055–4955, 4560–4960, 8450, 8560, 8100–8400, 8110–8410 RE69844

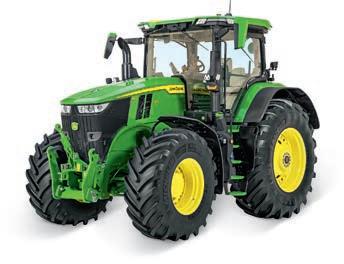

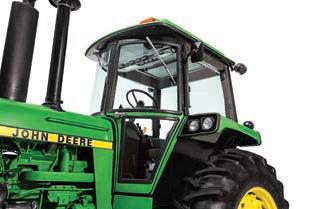

Upgrade your 7R Series Tractor

Cab Upgrades

Enhance your tractor cab with John Deere’s extensive range of upgrade parts. Relax with easy-to-install footrests, or improve your ride with a more supportive seat— perfect for tough conditions. Add comfort by shielding yourself from the sun with a new visor or sunshade. Stay cool and keep your screen visible with our wireless phone mount, offering a safe and convenient way to secure your mobile device.

NUMBERDESCRIPTION

BRE10458 Footrest Kit

TA35930 Mounting Parts, LED Beacon Light

RE596959 3-pin Convenience Outlet

RE596958 6-outlet Powerstrip

BRE10575 Mounting Rail, C-post (8R and 9R Series Tractors)

BRE10588 Category 4 Cab Air Filtration System Kit

BXX11490 Field Installed Foot Throttle Kit

BRE10511 Adjustable Footrest Kit

RE593670 Rear Sun shade

RE584990 Leather Steering Wheel

TA33067 Cab Refrigerator

RE588734 Rear View Mirror

BRE10452 120-V AC Power Inverter

BRE10453 230-V AC Power Inverter

7/8/9 Series

NUMBERDESCRIPTION

RE597710 Wiring Harness, Business Band Radio

RE37651 Plug, Monitor w/Leads

RE67015 3-way Convenience Adapter For Power Strip

RE588540 External StarFire™ Mounting Bracket

R569171 Custom Door Lock Handle Kit With 2 Keys

BRE10451 Subwoofer & Tweeter

BXX11045 Remote-mounted Display For Touchscreen Radio

BRE10502 Auxiliary Camera Input Kit

BRE10152 Self Leveling Cup Holder

BXX10988 Quick-Grip Phone Mount

BXX10987 X-Grip Phone Mount

BXX10883 Cup Holder Kit

BRE10202 Floor Insulation Kit

Tractor Greaseable Hitch Pin – Retrofit

The greaseable hitch pins can provide extended life with proper lubricants in contrast to the prior non-greaseable design.

BRE10331 9360R, 9410R, 9460R/RT, 9510R/RT, 9560R/RT, 9370 R/RT, 9570RX, 9620RS, and 9470RX

BRE10332 9520RX, 9570RX, 9620RX, and 9470RX

Hydraulics

BRE10212 Hydraulic Oil Cooler Screen

BRE10067 Six Mid SCV Quick Coupler BRE10068 Four Mid SCV Quick Coupler RE340789 Third Mid-mounted SCV

RE340785 First and second Mid-Stack SCV with TLS

RE340786 First and second Mid-Stack SCV without TLS

RE340780 Second Mid-Stack SCV

NUMBER

RE340782 Third Mid-Stack SCV

BRE10048 Fifth Rear SCV

BRE10049 Sixth Remote SCV with Electrohydraulic Controls

BRE10075 Hydraulic Quick-connect Power Beyond Coupler (0.5

RE300467 Power Beyond Couplers

RE328941 Hitch Auxiliary Raise Kit

Maintain Your 8 Family Tractor

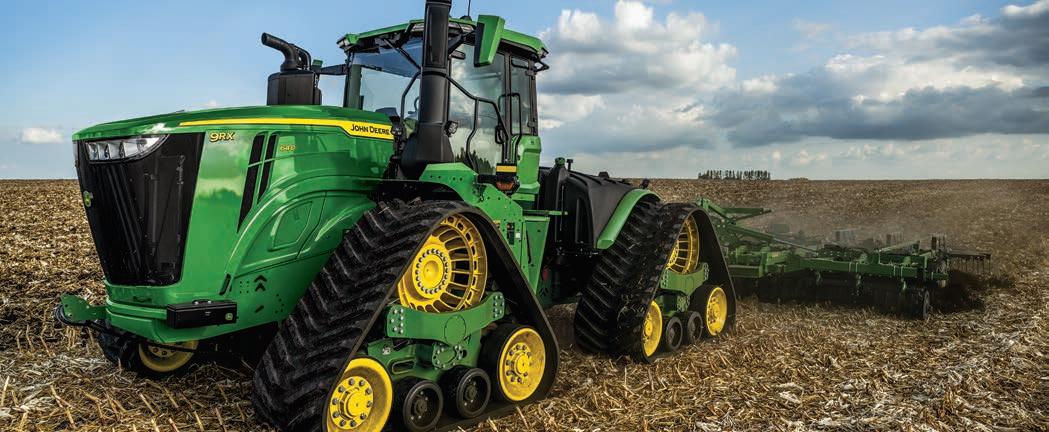

Rubber Tracks Belts

NUMBERDESCRIPTION

Rubber Track Belts are wornout when the tread bar is 1/2" (1.27cm) or less in height, cables are protruding from the carcass, or drive lug wear exceeds 50%. A selection of track belt options are available for your tractor. The track belt list below is only a small sample of options for twoand four-track tractors.

TR129235 Trackman by Loc® Track Belt, 18-in. (45.72cm) Wide

TR130817 Trackman by Loc® Track Belt, 16-in. (40.64cm) Wide

NUMBERDESCRIPTION

R545859 Camso Track Belt, 18-in. (45.72cm), 6500 Series

R545856 Camso Track Belt, 18-in. (45.72cm), 4500 Series

R576549Trackman® HP Standard Duty, 16-in. (40.64cm) 8X00T, 8X10T, 8X20T, 8X30T

R576550Trackman® HP Standard Duty, 18-in. (45.72cm) 8X00T, 8X10T, 8X20T, 8X30T

R576551Trackman® HP Standard Duty, 24-in. (60.96cm) 8X00T, 8X10T, 8X20T, 8X30T

R576552Trackman® HP Standard Duty, 30-in. (76.2cm) 8X00T, 8X10T, 8X20T, 8X30T

R545855 Camso Track Belt, 16-in. (40.64cm), RH, 6500 Series

R545854 Camso Track Belt, 16-in. (40.64cm), LH, 6500 Series

R545860 Camso Track Belt, 24-in. (60.96cm), 4500 Series R545862 Camso Track Belt, 25-in. (63.5cm), 6500 Series R545861 Camso Track Belt, 25-in. (63.5cm), 4500 Series

R545864 Camso Track Belt, 30-in. (76.2cm), 6500 Series

R545863 Camso Track Belt, 30-in. (76.2cm), 4500 Series R563760 Camso Track Belt, 16-in. (40.64cm), 6500

All applicable rubber track belts are not listed above. Please contact your local John Deere dealer to discuss our complete track belt portfolio offering.

Independent Link Suspension

Like any other vehicle, suspension is a wearable system and requires annual checks and maintenance. New upgrades and price competitive part options are available to keep your tractor where you want it in the field. Most parts upgrades and enhancements fit all ILS tractors back to 2002 model years.

RE587968 Tie-rod Assembly (Inner and Outer)

Control Arm Ball Joint

A-Arm Upper Pivot Shaft Expander Pin A&I NUMBERDESCRIPTION

A-RE583653 Outer Tie-Rod

A-RE567107 Seal Kit, ILS Steering A&I Parts Cylinder (Repl. RE556361, RE304943) (NEW)

A-RE580643 Ball Joint

A-RE583653 Tie Rod End (Repl. RE184942, RE216822)

Vari-Cool™ Fan Drives

To maximize the reliability of the fan drive system, we encourage customers to replace the driver and driven assemblies at the same time. A work driven assembly will potentially reduce the expected life of a new driver when only one is replaced. The V-belt is the most critical part of this system and should be inspected with the go/no-go gauge tool at least every 200 hours and replaced immediately to save from costly repairs.

9L,

ExactRate™ Tractor Tank Kit for 8RX Tractors

Tractor Tanks system as a field installed solution. Kit Compatible with 8RX 340, 8RX 370, 8RX 410 tractors with 18 in. (45.72cm) or 24 in. (60.96cm) track belts, and requires 120 inch (304.8cm) tread spacing. A front fill connection kit is also available to provide convenient access to fill the ExactRate™ tanks.

NUMBERDESCRIPTION

BRE10587 ExactRate Tank Kits (complete ExactRate tank system)

RE598041 120 in. (304.8cm) Axle Spacer, Left Rear

RE598042 120 in. (304.8cm) Axle Spacer, Right Rear

BRE10510 Front Fill Connection Kit (optional)

*Additional parts required for MY2020-2021 and MY2024-install.

Hydraulic Pump Upgrades for 8000–8030 Series Row Crop Tractors

Upgrade today for increased efficiencies and capabilities. New implements such as air seeders, tillage equipment, and planters may require more hydraulic flow to perform effectively. If your current planter raise and lower times are too slow — or you are using a system with three or more vacuum motors — increased hydraulic flow may improve performance.

The benefits of installing a high-capacity hydraulic pump:

• Higher flow at lower engine RPM equals better fuel economy and less noise

• Offers faster multiple hydraulic functions

Hydraulic pump flow availability is directly affected by engine speed, how many SCVs are being used at the same time, as well as other factors. Refer to your John Deere Operator’s Manual for more information in section 60 – Determining Total Flow Demand. Contact your local John Deere Dealer to determine which pump is on your tractor and if a hydraulic pump upgrade will provide the solution you need.

RE599247 57cc – 8000 and 8010 Series TractorsJohn Deere

RE214405 60cc – 8020 Series Tractor

John Deere

RE563717 85cc – 8030 Series Tractor John Deere

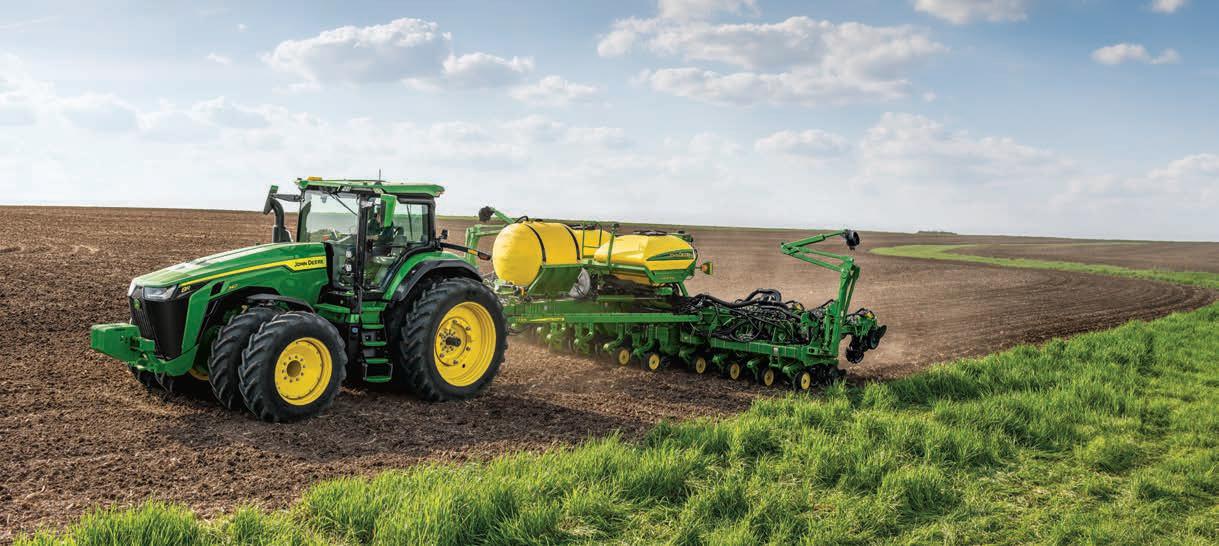

Upgrade the Hydraulic Capacity on Your 8R / 8RX

Today’s planters require a high amount of hydraulic flow. If you have a John Deere 8R or 8RX with a single hydraulic pump, now you have the opportunity to upgrade to dual pumps. This update adds an additional 35cc pump to the standard 85cc pump and provides a total output of 85 gallons per minute (321.76 LPM). The dual hydraulic system boasts plenty of reserve capacity to operate large hydraulic motors, even at reduced engine speeds.

■ 40% increase hydraulic flow capability

■ Uses the exact same parts used in factory installed option code

■ Reduced cab noise with the efficiency of dual pumps

■ Meets they hydraulic requirements of high-capacity planters

■ Run faster in the field or more efficiently at slow speeds

KITS TO UPGRADE TO DUAL HYDRAULIC PUMP

BXX11243 Dual hydraulic pump kit

NOTE: Only compatible with IVT™ transmission, with or without ILS™ system.

BXX11244Dual hydraulic pump kit

Note: Only compatible with e23™ transmission, with or without ILS system.

BXX11543 Dual hydraulic pump kit

Note: Only compatible with IVT transmission, with or without ILS system.

Compatible with 8RW (serial number 170001- ) and 8RX (serial number 801001- ).

Compatible with 8RW (serial number 090001-170000).

Compatible with 8RW (serial number 090001-170000).

Maintain Your 9 Family Tractor

Rubber Track Belts*

Your farming operation is unique, and our robust lineup of rubber track belt offerings is designed to meet the needs of your specific application. Your local John Deere dealership mechanics are equipped with the resources, experience, and expertise to provide unmatched undercarriage service and support. Visit your local dealer for track belt selection, installation, and alignment today!

NUMBERDESCRIPTION

R257977

R257978

R241748

R241749

R545869

R545868

R545867

R545871

R545870

Camso Track Belt, 30-in. (76.2cm), 3500 Series

Camso Track Belt, 36-in. (91.44cm), 3500 Series

Camso Track Belt, 30-in. (76.2cm), 5500 Series

Camso Track Belt, 36-in. (91.44cm), 5500 Series

Camso Track Belt, 30-in. (76.2cm), Scraper, 6500 Series

Camso Track Belt, 30-in. (76.2cm), 6500 Series

Camso Track Belt, 30-in. (76.2cm), 4500 Series

Camso Track Belt, 36-in. (91.44cm), 6500 Series

Camso Track Belt, 36-in. (91.44cm), 4500 Series

NUMBERDESCRIPTION

R550588 Camso Track Belt, 30-in. (76.2cm), 3500 Series

R550228 Camso Track Belt, 36-in. (91.44cm), 3500 Series

R554229 Camso Track Belt, 30-in. (76.2cm), 6500 Series

R554230 Camso Track Belt, 36-in. (91.44cm), 6500 Series

R550589 Camso Track Belt, Scraper, 30-in. (76.2cm), 6500 Series

R565017 Camso Track Belt, Scraper, 18-in. (45.72cm), 6500 Series

R565018 Camso Track Belt, Scraper, 24-in. (60.96cm), 6500 Series

R576553Trackman® HP Extreme, Heavy Duty, 30-in (76.2cm) 9X00T, 9X20T

R576554Trackman® HP Extreme, Heavy Duty, 36-in (91.44cm) 9X00T, 9X20T

*All applicable rubber track belts are not listed above. Please contact your local John Deere dealer to discuss our complete track belt portfolio offering.

Hydraulic Upgrade Kits For 9 Series

Coupler Conversion Kits – 1/2-in. (1.27cm) to 3/4-in. (1.91cm) High-Flow Couplers

The conversion design is exclusive to John Deere and converts the couplers on a standard flow SCV from 1/2-in. (1.27cm) couplers to 3/4-in. (1.91cm) couplers. This conversion is an economical solution to improve the transfer of hydraulic horsepower from the tractor to the implement. Convert one to six SCV couplers on a single stack tractor. This kit is ideal for operators with:

• High hydraulic demand implements, such as large air seeders and planters

• Implements that require 3/4-in. (1.91cm) couplers

• A desire to improve implement raise/lower cycle times for faster headland turns

Coupler Conversion Kits – 1/2-in. (1.27cm) to 3/4-in. (1.91cm)

BRE10486 3/4-in. (1.91cm) Coupler Adapter Conversion (converts 1 SCV) 9R, 9RX, 9X30 Tractors (SN 13001- wheel, SN, 9110112T) without rear 3-point hitch and BOSCH CAN SCV’s only

BRE10485 Hardware Kit

RE593820 Mounting Bracket (single reduction axle) 9230, 9330, 9430, 9360R, 9410R, 9460R, 9370R, 9420R, 9470R

RE593821 Mounting Bracket (double reduction axle) 9530, 9630, 9510R, 9560R, 9520R, 9570R, 9620R

Bring New Life to Your Old Cab

Sound-GardTM Body Upholstery Kits

Enhance the appearance of your tractor cab with new cab upholstery. Beltline, post, and headliner kits are available for row crop, 4WD, and utility tractors with Sound-Gard bodies. Made of pre-cut brown or black original equipment upholstery/insulation for precise fit. Insulation is 2-in. (5.08 cm) thick in key areas for greater sound deadening capacity. Compare the cost to replace cab upholstery in your tractor using all John Deere parts or a lower cost aftermarket alternative available from A&I Products.

John Deere 55 and 60 Series Tractor Cab Upholstery

DESCRIPTION

Upholstery Kit

Post Upholstery Kit

Headliner (front)

Headliner (rear)

John Deere A&I

RE155148 A-CKT350

RE155149 A-CPK420

RE37757 A-CHL240

RE37820

John Deere 40 Series Tractor Cab Upholstery (Black SN 185707-)

DESCRIPTION

Upholstery Kit

Post Upholstery Kit

Headliner (front)

Headliner (rear)

John Deere A&I

RE57259 A-CKT305L

RE223619 A-CHL215

RE48532 A-CPK400

RE232146 A-CWL500

John Deere 30–60 Series Tractor Cab Glass

John Deere has a wide selection of tractor cab glass for your John Deere tractor. Replace broken glass and cracked/scratched windows to improve the view from your tractor cab. Choose from a selection of OEM cab glass or lower cost options.

John Deere Parts

Number

Description

R50756Glass, Door, Lower (LH) - 30,40,50 Series Tractors

R50757 Glass, Side (RH/LH) - 30-60 Series Tractors

R50758 Glass, Rear, foor Apps w/ Latch 30-60 Series Tractors

AR87997 Glass, Rear-Sliding -30,40,50,55 and 60 Series Row Crop Tractors

A&I Products

Number

Description

A-R50756Glass, Door, Lower (LH) – 30, 40, 50 Series Tractors

A-R50755 Glass, Door, Upper (LH) – 30, 40, 50 Series Tractors

A-R50754 Glass, Lower (RH) – 30, 40, 50 Series Tractors

A-R50757 Glass, Side (RH/LH) – 30–60 Series Tractors

A -AR87997 Glass, Rear-Sliding – 30–60 Series Tractors Utility Tractors, 30, 40, 50, 55, and 60 Series Row Crop Tractors

A-R50758 Glass, Rear, for Apps w/Latch 30–60 Series Tractors

A-R50753Glass, Windshield, Upper (RH) 30–50 Series Tractors

Waterpump:

John Deere 6000 and 7000 Series Tractor

Parts

John Deere dealers offer the right part, with the right fit, at the right price to repair your John Deere tractor. Choose from Genuine John Deere, John Deere Reman, or A&I Products.

6010, 6030,6003,6005,6015,6D,6030 Premium, 7210-7510, 7220-7529, 7030 Premium

Glass, Door, Upper (LH) – 30, 40, 50 Series Tractors: 6000 ,6010

7210-7510

Alternators:

6110-6410,6120-6420, 6215-6715, 6230-6430 Prem.,7220-7250,7130-7430 Prem. (120A)

6200–6400 (55 Amp)

6200–6400 (85 Amp)

6020, 6015, 6030, 7220–7520 (90 Amp)

6110–6410, 6020, 6605, 6015, 6030, 7220–7520 (90 Amp)

6110–6410, 6020, 6605, 6015, 6030, 7220–7520 (90 Amp)

Turbochargers:

6110–6410 and 6120–6420

Hydraulic Quick Coupler, STD 6030, 6030 Premium, 6M, 6R

Hydraulic Quick Couplers

Hydraulic quick disconnect couplers are available in both standard and deluxe versions. The standard couplers allow coupling and uncoupling of hydraulics with pressure from the implement side, while deluxe couplers provide tractor and/or implement side coupling/uncoupling. Choose from Genuine John Deere and A&I Products.

Hydraulic Quick Coupler, Deluxe 6200–6500, 6110–6410, 6110L–6510L, 6120–6420, 6130–6430, 6M and 6R IT4 Tractors, 7130–7530

Crankshaft Dampers

Replace damper as recommended to avoid costly repairs such as potential crankshaft breakage or front engine cover damage.

• Dual Dampers – replace both at the same time

Important Repair Note:

• When required use new cap screws when installing the damper to the crankshaft and fan pulley to damper.

• Damper can be damaged by dropping it or striking it with a hammer during installation. Use the proper procedure and tools listed in the technical manual.

Did you know your crankshaft damper has a service life? When torque is applied, engines generate harmful vibrations. A damper reduces these vibrations, which extends belt life and reduces gear wear. Our engine damper consists of an inertia ring, elastic member, and hub assembly attached to the crankshaft. John Deere recommends changing the crankshaft damper at 4,000 to 5,000 hours or 5 years, whichever comes first in some applications. Contact us to see if your crankshaft damper needs replacing today.

R Series Cab Bracket Kit

The R series cab bracket kit is available for mounting monitors, phones, displays, and mounts to existing holes inside the cab. Fits 7R–9R Series tractor cabs.

RE317435

BRE10574 Fits MY20-Current 7R, 8R/8RT/8RX with new cab

Short Vertical Mounting Rail

This rail kit also includes all the hardware to mount the rail in up to five vertical locations, using existing threaded bosses at the A and C posts inside the cab. This rail can be used to mount tablets, cell phones, cup holders, or displays. Fits: 7020 – 7R, 8020 – 8R/8RT, 9020 – 9R/9RT/9RX, and MY2020 7R and 8R/8RT/8RX (with new cab).

BRE10575

Mounting Bracket Kit – Long Bar and Tray Kits

The accessory mounting bracket with optional tray kit provides a low-cost solution to all your mounting needs in the cab. Fits 7020, 7030, 8010–8030, 9020, and 9030 Series.

BRE10141 Bracket Kit

BRE10142 Tray Kit

CommandARMTM Bracket

The CommandARM bracket offers a safe and convenient way to mount a mobile device or tablet to the CommandARM on 6R–9R FT4 tractors. Includes bracket and hardware only.

BRE10147

BRE10501 Fits MY20-Current 7R, 8R/8RT/8RX with new cab

Cell Phone Bracket Kit

The RAM X-Grip® bracket’s four-leg design offers great holding power, without covering your phone’s screen.

BRE10015

RAM Tablet Mount Kit

This kit’s high-strength design keeps your tablet secure, without restricting access to audio jacks or USB or other ports.

BRE10255

Accessory Mounting Bracket Kit

Mount, adjust, and position key controls and displays within the cab for maximum accessibility without compromising visibility. The John Deere design can be used in multiple configurations and tailored to the specific machine and task.

RE343680

Greenstar™ Display Bracket

Corner post cab bracket for mounting Greenstar display.

BPF12124 Single Display Bracket Mount

PF90430 Dual Display Adapter Mounting

Canopies for Compact and Utility Tractors

Protect yourself from extreme weather conditions throughout the year with a canopy from John Deere.

NUMBER APPLICATION

Canopy:

LVB25334 Standard Canopy fits 3E, 3R, 4M, 4R, 5D, 5E, 5M, 3320, 3520, 3720, 4105, 4320, 4520, 4720, 5003, 5020, and 5025

BXX10589 Small ShadeProTM Canopy w/Fan Option fits select 1023E, 1025R, and 2025R Model Year 2017 (SN HH1000001-) and newer tractors

BXX10591 ShadePro Fan Kit for use with ShadePro Canopy BXX10589

BXX10590 Large ShadePro Canopy fits select 2032R, 2038R, 3E, 3R, 4M, 4MHD, and 4R Model Year 2017 and newer tractors

AR201256 Fits 6000, 6010, 6030, 6015, 6003, 6005, 7020, and 7030 Series Open Station

RE270484 Deluxe Canopy fits 5D, 5E, 5M, 5003, 5025, 5105, 5205, and 5020 Series Tractors

Metal Canopy:

1. Additional mounting hardware might be required. Ask us about the proper mounting hardware for your machine.

2. Each kit includes all necessary universal mounting brackets and hardware to accommodate and (ROPS) that are between 27" (68.58cm) and 40" (101.6cm) wide.

3. Also available in red, blue, or orange. Ask us for details.

The All-New Lighter Weight and Redesigned Category 2 Quick Hitch

Benefits include:

• Cast design for strength and durability

• Does not interfere with rear fenders

• Lighter weight than the existing Category 2 quick hitch weighing in at 138.9 lb. (63kg) in comparison to 187.4 lb. (85kg) for TY27545

A-C7481G 47 x 58 in (119.38 x 147.32 cm) Universal Fit Green Metal Canopy Kit (Hardware Included) – 18 degrees of angle fore or aft, powder-coated finish, and insulated to reduce noise/vibrations/heat transfer NUMBERDESCRIPTIONAPPLICATION

BSJ10595 Quick Hitch Category 2 5045, 5050, 5075 Tractors - Check with dealer for full list of applications

Rear Fender Updates

Fender extensions are available for many models of tractors. Some models of tractors, with the right extensions, offer added functions to increase your convenience at the rear of your machine. Hardware required for mounting may need to be ordered separately. See some of the offerings below.

R257487

RE227205 Electro-Hydraulic Hitch Fender Switch, RH

R242230 Cover for Hitch Switch

5M Series Tractors

BSJ10044 Rear Fender Extensions w/o Work LightsSelect Model 5E and 5M Series Tractors

John Deere Reman DEF Parts

Upgraded to the latest design specifications to ensure superb performance and durability, John Deere Reman DEF parts offer substantial cost savings versus new replacement components.

John Deere Reman DEF Header

The header is available in the 12V version at a variety of lengths for multiple applications.

RM100343 DZ11109612V, 300mm 4045, 6068

RM100344 DZ11116512V, 525mm 6068, 6090

RM100345 DZ11340112V, 525mm 6068, 6090

RM100346 DZ11829212V, 300mm 4045, 6068, 6090

RM100347 DZ11829312V, 400mm 6068

RM100348 DZ11829412V, 525mm 6068, 6090

RM100349 DZ11829612V, 700mm 4045, 6068, 6090, 6135

RM100350 DZ11867012V, 525mm 6068, 6090

Tractor

Tractor

Combine, Sprayer

Tractor, Sprayer, Windrower, 4WDL, OEM

Tractor, Sprayer, Windrower, Backhoe

Tractor, Combine, Sprayer

Combine, Sugarcane Harvester, OEM

Tractor

RM100351 DZ11867112V, 300mm 4045, 6068, 6090, 6135, 6136Tractor, Sprayer, 4WDL, OEM

RM100352 DZ11867412V, 600mm 4045, 6068, 6090, 6135, 6136Tractor, Cotton Picker/Stripper, SPFH, OEM

RM100353 DZ11867512V, 700mm 4045, 6068, 6090, 6135, 6136Combine, Harvester, OEM

John Deere Reman DEF Supply Module

The module comes in 12V and 24V versions and is used across multiple engine models and applications.

John Deere Reman DEF Dosing Injector

The injector is for use in multiple engine models and applications.

REMAN Electronic Unit Injector

Available at a 20% to 30% lower price than OEM parts, Reman electronic unit injectors are an excellent alternative thanks to precision remanufacturing processes and rigorous testing. By meeting or exceeding original OEM specifications, you can expect reliable performance and durability.

REMANUFACTURED

NOT REPAIRED. NOT REBUILT. NOT RECONDITIONED.

John Deere dealers have a lot of confidence in John Deere Reman. There’s no hesitation in recommending Reman to value-conscious customers seeking reliable parts at lower prices. Ask us about Reman today!

RELIABLE

Reman parts are designed by John Deere engineers and built by our certified technicians, using only John Deere components Rest assured that you’re getting sound products for your machine.

REASONABLE

With over 2,300 remanufactured parts available, John Deere Reman helps you reduce equipment operating costs with prices typically 20 to 30 percent less than new Genuine John Deere OEM parts.

REPUTABLE

Guaranteed to perform as well as OEM parts, Reman is protected by a standard warranty with up to two years of coverage – which includes labor costs if installed by an authorized John Deere dealer1

Remanufactured Complete Engines Assemblies

available from John Deere REMAN

John Deere Reman has added three Final Tier 4 complete engines to its product line up: 13.5L FT4, 9.0L FT4, and the new 6.8L FT4. These engine solutions offer a convenient component exchange repair solution and cost less than a new replacement. Completely remanufactured by Reman, engines are fully disassembled, cleaned, and inspected. All wear parts are replaced, while failed or damaged parts are replaced or reconditioned. Engines are upgraded to the latest design specifications in addition to being dyno tested at the Reman factory to meet original OEM performance specifications. Reman engines include a 2-year/2000-hour warranty* (parts and labor when dealer installed). Extended warranty coverage is also available for purchase for complete engines.

Extended Warranty for John Deere Reman Engines*

Optional extended warranty terms for John Deere Reman engines can be purchased. Coverage options are between 2-year/2,500 hours and 5-year/4,000 hours. To qualify for the program, the engine must be dealer installed and the customer must purchase the extended warranty contract within 90 days of engine installation. Contact your John Deere dealership for complete details. *Complete

Electronics “Repair & Return” Service from John Deere REMAN

Your John Deere dealer has a lower-cost repair solution for precision ag electronic components. Don’t send your electronic components to just any repair shop. Factory-trained John Deere Reman technicians will complete the repairs using genuine OEM parts. Components are tested back to the original OEM specifications and carry a 12-month warranty.

John Deere Exchange Service

John Deere Exchange Service for electronic components provides a refurbished electronic component as a tiered service solution. Refurbished means the electronic components go through an initial test/failures and are fixed using OEM or alternative parts to meet the performance standard for the electronic component. It will be loaded with the “latest” software and finally re-tested. These parts will fit 100% in the form and function like the original part. Return of the old part (as core) is required. John Deere Exchange Service parts are ordered like other service parts and come with a regular 12-month service parts warranty*.

We got you covered

John Deere Reman starters and alternators now come with a standard, 2-year factory warranty* for added peace of mind.

2 years = Two planting and harvesting cycles. All covered by a factory warranty.* Reman Tough.

NEW REMAN FT4 Turbochargers

John Deere Reman now offers additional FT4 turbochargers – providing a reliable, cost-effective repair solution that increases uptime. Key benefits include:

• Remanufactured to strict John Deere quality standards, including extensive testing and genuine OEM parts

• Competitive pricing – 20% less than new OEM

• One-year, unlimited-hour warranty on dealer-installed products

• Complete disassembly and verification of all components

• 100% replacement of bearings and seals

• Precision machining of mounting flanges for optimal fit

• Balanced turbine and compressor wheels

HAS YOURS GONE HAYWIRE?

Get your BaleTrak™ monitor in good working order with John Deere Repair & Return Service. Available for Value, Pro, and Plus monitors.

FEEL CONFIDENT. SEE VALUE. OWN CHOICE. CONTACT US ABOUT THIS SERVICE.

TAKE A LOAD OFF

Watch a video on Net Lift Assist

Elevate your Netwrap loading experience with the Net Lift Assist and Net Lighting from John Deere. Increase field safety and efficiency by adding this attachment to your John Deere round baler. Our bolt-on design streamlines the installation and is compatible with 7-, 8-, 9-, and 0-Series Round Balers. Upgrade today for the ultimate loading experience.

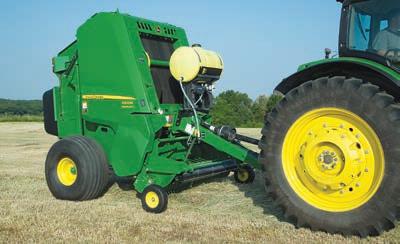

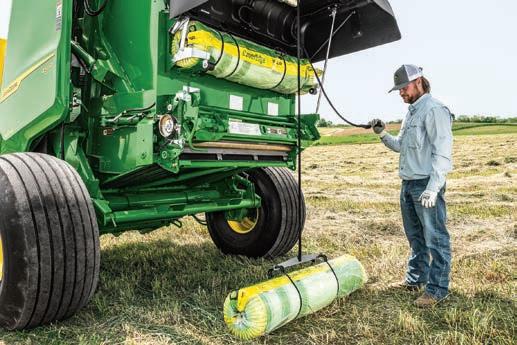

Round Baler Net Lift Assist and Net Lighting

The ultimate solution for effortlessly loading net wrap on your round baler day or night. Reliable and durable. No cutting is required. A true bolt-on solution.

NUMBER

BE33116 Net Lift Assist for 7-, 8-, and 9-Series Round Balers

BE33117 Net Lift Assist for 0-Series Round Balers

BE33118 Net Lighting Kit

Visit Shop.Deere.com or Shop.Deere.ca and order yours today.

John Deere Netwrap and Twine

John Deere Mega Roll® with TamaTec+®

John Deere Edge to Edge® with TamaTec+®

The John Deere Mega Roll is available in both CoverEdge™ and Edge to Edge®, which lasts up to 46% longer than a traditionalsized roll. With a larger roll, you have less downtime, less time spent reloading the baler with net, and enough net on one roll for a BIG day of baling—more than 300 6 feet (1.83 meters) bales at two wraps of net on hay. Mega Roll meets the maximum roll diameter for a John Deere round baler. Pair the Mega Roll with a Net Lift Assist for even easier loading.

With more footage per roll, now you can make 10 to 15% more bales with each roll of net for more baler productivity and less downtime. The net is lighter and easier to handle, and it’s priced right to reduce your cost per bale. It continues to give the same great bale coverage over the entire width of the bale, protecting the crop as well as helping to maintain the bale’s shape and make handling and storage much easier. Now that’s delivering the high-quality baling you have come to know and expect from John Deere Netwrap.

John Deere CoverEdge™ with TamaTec+®

John Deere XtraTwine™ Plus

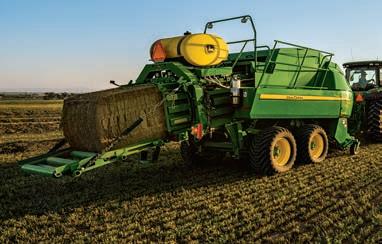

Large Square Bales

Helps reduce your cost and increases your baler’s potential! Exclusively available through John Deere dealers.

Features include:

• Uniform spool shape and consistent yarn to ensure trouble-free running in the baler

• Guaranteed length

• Unrivaled knotting performance

• Special UV light inhibitors to withstand intense exposure over long periods

• Unique color combination for bale identification

• Compatible with ALL large square balers

Extra spool length

Helps you limit both spool changes and waste*.

John Deere CoverEdge goes right over the edge of the bale and snaps into place for better protection. With the elimination of shoulders, bales are perfectly shaped for better handling, transport, and storage. John Deere CoverEdge covers 15% more surface area of the round bale and protects the edges of the bale to help prevent rainwater penetration and moisture collection within the bale. No loose “fluff” to pick up the moisture from rainfall. With John Deere CoverEdge, you can produce high-quality silage bales when wrapped with stretch film because the bale surface is smooth, eliminating air pockets in the bale.

John Deere Round Baler Belts

John Deere offers two options for baler belts: DiamondTough

Did you know that not all baler belts are created equal? DiamondTough 1-ply baler belts are made with advanced technology and materials, designed to withstand the rigors of hay production in any crop or field condition. Our 1-ply design reduces the risk of delamination caused by multi-ply design that have multiple rubber layers. We also offer a larger single channel for our patented triple-weave design. The three-step diamond tread design provides both built-in wear indicators and self-cleaning characteristics. As the diamond tread moves over the rollers, it stretches the concave, which releases the dirt and debris that could be trapped inside.

and DiamondTough

The John Deere industry-leading DiamondTough baler belts feature:

• Nylon-fill cords that provide superior puncture and tear resistance, along with excellent fastener-holding strength

• Excellent resistance to punctures and tears by inserting heavy-duty polyester straight-warp cords between the fill cords

• Polyester surface warp cords that resist abuse and increase flexibility over small baler rollers

• Nylon binder warp cords that help promote fabric integrity and abuse-resistant properties

NUMBERDESCRIPTIONAPPLICATION

AFH215157

AFH215159

AE74209

AE74210

AE74177

AE74178

DiamondTough Short330, 335, 375, 446, 546, 447, 448, 449, 440E, and 547

DiamondTough Long330, 335, 375, 446, 546, 447, 448, 449, 440E, and 547

DiamondTough Short385, 6-, 7-, 8-, 9-, and 0-Series 5-ft. (1.52 meters) Balers

DiamondTough Long385, 6-, 7-, 8-, 9-, and 0-Series 5-ft. (1.52 meters) Balers

DiamondTough Short435, 535, 6-, 7-, 8-, 9-, and 0-Series 6-ft. (1.83 meters) Balers

DiamondTough Long435, 535, 6-, 7-, 8-, 9-, and 0-Series 6-ft. (1.83 meters) Balers

DiamondTough PRO Baler Belts

Our DiamondTough PRO baler belts are wear-and-tear resistant and feature:

• Special rubber compound that offers excellent resistance to cutting, gouging, and abrasion — a step above standard DiamondTough, it’s the same compound used in rugged conveyor belt applications

• Better performance in harsh baling conditions

• Withstand abrasive conditions, such as when bailing corn stalks and peanut hay or when working in sandy soils

AFH212598

DiamondTough Baler Belts Net Guide

AFH210849

8-, 9-, and 0-Series 6 ft. (1.83 m). Balers

PRO Long7-, 8-, 9-, and 0-Series 6-ft. (1.83 m). Balers

Net guides are a great addition for any round baler 6-Series or newer. Net Guides bridge the gap between #10 and #12 rollers to prevent the net from taking a detour and wrapping around the #11 roller. John Deere recommends installing three net guides (gap 2, 4, 6) on a 5 ft. (1.52 m) wide round baler or two net guides (gap 2, 4) on a 4-ft. (1.22 m) wide round baler. Each net guide requires 2 chain links which are ordered separately.

FH345025

AFH223103

1 Series Round Baler Attachments

You don’t have time to waste. You need practical, efficient timesavers. That’s where John Deere attachments come in. They make your hard-working baler perform even better. Attachments are a strong investment in your growing success by adding real value to your round baler.

and

Kit

Designed to lift a John Deere netwrap roll utilizing the plastic handles or nylon straps already found on existing netwrap rolls. Our bolt-on design streamlines the installation and is compatible with 7, 8, 9, 0, and 1 Series round balers. Works with both 4 feet (1.22 m) and 5 ft. (1.52 m) wide models.

BE33145 - Net Lift Assist for non-factory installed 1 Series round balers

AT419929 - Net Lighting for 1 Series round balers (2x lights and net lift assist required)

BE33117 - Net Lift Assist for 0 Series round balers

BE33116 - Net Lift Assist for 7/8/9 Series round balers

BE33118 - Net Lighting Kit for 7/8/9/0 Series round balers Net Lift Assist and Net Lighting

Moisture Sensor Kit 2.

Preservative Application System

Use the integrated preservative system with John Deere Green-Gard™ preservative to produce high-quality hay. Bale sooner and worry less. This system also integrates with the baler display. For optimal performance, pair with the moisture sensor and bale scale kits.

BE33150 - 451R and 461R round balers

BE33151 - 451M and 461M round balers

BE33152 - 561R round balers

BE33153 - 551M and 561M round balers

BE32310 - Improves the tooth life and prevention of corn cobs lodging in the pickup.

BE33125 - For 1 series M and R spec machines.Note: Not compatible with E spec machines.

Round Baler Wear Liner 7.

- Bale scale kit for 1 Series M and R spec balers. Note: not compatible with E spec

- Improves the capacity in chopped (fluffy) cornstalks.

BE33142 - Replaceable wear liners made from abrasion resistant steel for 461M/R and 561M/R round balers. Intended for highly abrasive crops such as corn stalks and peanut hay. Includes liners and attaching hardware. Can be used to repair balers with already worn side-sheets

These larger tires absorb shock loads in rough terrain and improve flotation on soft ground, resulting in less soil compaction. They also perform well at increased speeds for increased productivity. Hi Flotation Tire and Spindle Kit 8.

BE32678 - Compatible with 1 series Round Balers M/R spec only

BE33153 - 551M and 561M round balers

External Buzzer for G5e

BE33191 - Increases the volume of notifications on G5e display.

Round Baler Wear Parts Box

BE32698 - 20 of the most common service parts for the 6 feet (1.83 meters) non precutter round balers - 7, 8, 9, 0, and 1 Series balers.

This is just a partial sampling of John Deere round baler attachments. Please see us for complete listings and specific applications.

Low Disturbance Ripper Points

• The 7 in. (17.78 cm) ripper point option is designed to revolutionize your tillage operations. This innovative tool offers less surface disruption compared to the LaserRip™ II*, making it ideal for maintaining soil structure and health.

• Engineered for shallow operation at depths of 6-8 in (15.24-20.32cm). and optimized for higher speeds, this ripper point ensures efficient and effective performance. Crafted from the same tough CADI material as the LaserRip II, it promises extended wear life and durability.

• Compatible with both the 2720 and 2730 Combination Rippers, why not upgrade your equipment and experience the difference in your field operations.

* Based on internal testing and observation completed at John Deere facilities

LaserRip™ II Ripper Points

Features and Benefits

• High performance for those operating in difficult conditions.

• Critical wear areas are thicker for increased wear life.

• Exclusive cast material ensures resistance to rock chipping.

• Patented enlarged mounting holes for bolt head protection and retention.

7” (17.78cm) Low Disturbance Ripper Point

Part Number: KK108926

Application: Deere

• Fits John Deere and many competitive machines with 1 1/4-in (3.18cm) parabolic standards.

2 ¾" (6.99cm) Wingless LaserRip II

Part Number: KK28539

Application: Deere

Fits: 1 ¼-in. (3.18cm) Parabolic Standard

5" (12.7cm) LaserRip II

Part Number: KK28540

Application: Deere

Fits: 1 ¼-in. (3.18cm) Parabolic Standard

7" (17.78cm) LaserRip II

Part Number: KK28541

Application: Deere

Fits: 1 ¼-in. (3.18cm) Parabolic Standard

LaserRip™ Ripper Points

2 ¾" (6.99cm) LaserRip

Part Number: N237223

Application: Sunflower Fits: 1 ¼-in. (3.18cm) Parabolic Standard

Part Number: N236412

Application: DMI

Fits: 1 ½-in. (3.81cm) Parabolic Standard

10" (25.4cm ) LaserRip II

Part Number: KK28542

Application: Deere

Fits: 1 ¼-in. (3.18cm) Parabolic Standard

7" (17.78cm) LaserRip

Part Number: N237224

Application: Sunflower Fits: 1 ¼-in. (3.18cm) Parabolic Standard

Part Number: N400739

Applications: DMI Fits: 1 ½-in. (3.81cm) Parabolic Standard

10" (25.4cm) LaserRip

Part Number: N400740

Applications: DMI

Fits: 1 ½-in. (3.81cm) Parabolic Standard

2680H High-Performance Disk

Ideal for customers looking to:

• Mix and bury residue up to 6 in. (15.24cm) deep

• Remove weeds or terminate cover crops in the spring vs chemical application

• Easily operate with less skilled labor

• Level ruts and warm soil before planting

• Cover large number of acres quickly with working speeds 10 mph (16.1 km/h) to 14 mph (22.53 km/h)

• Utilize TruSetTM and/or Rx-based tillage

TORSIONAL DAMPER

5NS90340004

2680H Wear Parts Guide

DISK BLADE HUB

5NS90340001 (S/N: -200544)

5NS90340028 (S/N: 200545-)

NOTCHED BLADE

5NS90340002 (20 inch X 0.26 inch (50.8 cm X 0.66 cm)

DISK HUB HARDWARE

5NS90109584

SCRAPER BLADE

5NS55401605 (STANDARD DUTY)

5NS55401716 (HEAVY DUTY)

PLAIN BLADE

5NS90340003 (20 inch X 0.26 inch) (50.8 cm X 0.66 cm)

DISK HUB NYLON NUT

5NS90139004 (FOR 5NS90340001) H113238 (FOR 5NS90340028)

5NS90340007 (18 inch X 0.26 inch)

5NS90340010 (BEARING)

NYLON BUSHING

5NS90340050

Replace hardware when replacing Bushings and torque to 500 ft./lbs or 678 newtons/meters

ALLOY BUSHING

5NS90340047

Replace when worn down past 15-20% of original size (17.6 inch to 18.7 inch) (44.70 cm X 47.50 cm)

5NS90340030 RUBBER ROLLER BEARING

SPRING TINES

5NS55401693 (SPACER) (4

5NS55401694 (SPACER) (2

2660VT Variable-Intensity Tillage

Ideal for customers looking to:

• Size/anchor residue without deep soil disturbance at up to 10 mph (16.09km/h)

• Mitigate top layer compaction (up to 3.5 in. (8.89cm))

• Achieve low- to mid-intensity vertical tillage

• Customize the field finish in varying conditions and goals

• Utilize TruSetTM and/or Rx-based tillage

SPRING CUSHION BEARING HANGER N243053

DISK GANG SPOOL AN400230

GANG BOLT

N243008 (RH

M50 x 2151)

N243005 (LH M50 x 1959)

2660VT Wear Parts Guide

22 INCH DISK BLADES

KK89792 (575 X 6.5 mm) (28 WAVE BLADE, INTERCHANGEABLE WITH KK48473)

KK48473 (560 X 6.5 mm) (32 WAVE BLADE, INTERCHANGEABLE WITH KK89792)

Replace when worn down past 15-20% of original size (17.6 inch (44.70 cm) to 18.7 inch (47.50 cm))

22 INCH MIDDLE BREAKER

KK43847 (6 BOLT HOLES MIDDLE BREAKER) (575 X 6.5 mm)

Replace when worn down past 15-20% of original size (17.6 inch (44.70 cm) to 18.7 inch (47.50 cm))

AN406125 (HUB, MIDDLE BREAKER

20 INCH DISK BLADES

KK50221 (2 inch ROUND HOLE DISK BLADE) (508X6.5 mm)

Replace when worn down past 15-20% of original size (16 inch (40.64 cm) to 17 inch (43.18 cm))

BEARING KIT

2 FINGER SCRAPER KK58761

3 FINGER SCRAPER KK60437

1 FINGER SCRAPER KK60441

KK37536 (PILLOW BLOCK BEARING HOUSING W/O BEARING)

KK53324 (BEARING LINER SLEEVE)

A36772 (BEARING FLANGE GASKET)

A39169 (BEARING HOUSING, HOLE SIZE 16 mm)

AA29784 (BEARING HOUSING, HOLE SIZE 13.5 mm)

AKK22197 (BEARING)

BKK11470 (BEARING KIT) (Contains 2 set of Bearing fully assembled in housing in sleeves)

Standard and Shin Retrofit Kit

• The new MT standard and shin retrofit for 2100 rippers is a game-changer in tillage equipment. This retrofit features tungsten-carbide welds on the heel of the standard, extending the component's life expectancy. The wear shin, made from the same tough CADI material as our ripper points, ensures extended wear life and durability.

• The redesigned clevis enhances retention, providing a more secure fit. This comprehensive bundle includes one each of the standard, shin, clevis, and all necessary attaching hardware, making installation straightforward.

• Compatible with both the 2100 and MT Series Minimum-Till Rippers. Upgrade your equipment and experience the enhanced performance and longevity in your tillage operations!

AKK58402 Standard and Shin Retrofit Kit

Tru-Width™ Chisel Plow Sweeps

The unique wing design of Tru-Width sweeps ensures that they maintain their original cutting width and a sharp point. These sweeps fit John Deere and most brands of chisel plows, mulch tillers, and air seeders.

Sweeps:

N182044 8-in. (20.32cm) Regular Wing51 Deg. N182045 10-in. (25.4cm) Regular Wing51 Deg.

N182046 12-in. (30.48cm) Regular Wing51 Deg.

N182035 12-in. (30.48cm) Wide Wing51 Deg.

N182036 14-in. (35.56cm) Wide Wing51 Deg. N182037 16-in. (40.64cm) Wide Wing51 Deg. N182038 18-in. (45.72cm) Wide Wing51 Deg.

• Designed to fit most minimum-till coulter chisels on the market today

• Made from 1/2-in. (1.27cm) x 4-in. (10.16cm) 1080 high-carbon steel for long life and superior performance

• Also available with hard-faced cutting edge for extended life Twisted Slash Points

NUMBER SIZE

N237720 1/2-in. x 4-in. x 26-in. (1.27cm x 10.16cm x 66.04cm), Right-hand N237721 1/2-in. x 4-in. x 26-in. (1.27cm x 10.16cm x 66.04cm), Left-hand N237722 1/2-in. x 4-in. x 26-in. (1.27cm x 10.16cm x 66.04cm), Hard-faced, Right-hand N237723 1/2-in. x 4-in. x 26-in. (1.27cm x 10.16cm x 66.04cm), Hard-faced, Left-hand

Min-Till Ripper Points

• Wingless points provide ultra-low, surface-soil disturbance

• Choose 7-in. (17.78cm) points for moderate soil disturbance

• 10-in. (25.4cm) points deliver low surface-soil disturbance

• Fits John Deere 913 and 915 Rippers and 2100 Min-Till Ripper

NUMBER WING WIDTH

John Deere LaserRip™ Min-Till 3/4-in. Straight Standard (ultra-low-to-moderate soil disturbance):

N262903 3/4" (1.91cm) Wingless

N262740 7-in.(17.78cm)

N262902 10-in.(25.4cm)

IMPROVED

PLUS SWEEPS

TUNGSTEN-CARBIDE BLEND

IMPACT-RESISTANT WELD MATRIX

PERMANENTLY-FUSED METALLURGICAL BOND

Swap out your sweeps less often – and cover far more acres – with improved PLUS Sweeps. Manufactured with a uniquely formulated tungsten-carbide blend that’s applied to the nose, wing and neck, PLUS Sweeps provide extraordinary wear resistance (lasting two to three times longer than uncoated sweeps 1). Now available on both Perma-Loc™ High-Productivity and Tru-Width™ sweeps, you’ll be able to cultivate consistent seedbeds acre after acre.

PLUS Sweeps Now Last Even Longer

The long wear life PLUS sweeps are available in both the Tru-Width™ and High Productivity version and attach to the John Deere Perma-Loc™ attaching system. This expands the offering of these longer wear life sweeps as the previous version was only available as High Productivity. A tungsten carbide blend is robotically applied to the nose, underneath the wing, and the neck of the PLUS sweep. Internal testing has shown the newest version lasts two to three times longer than an uncoated sweep. This helps growers spend less time changing worn sweeps and more time preparing the seedbed to hit the critical planting window. By holding their original shape throughout the tillage season, PLUS sweeps help to ensure a consistent, quality tillage job, from the first acre to the last.

KK79146

High Productivity Sweeps

These sweeps deliver the ultimate in performance, productivity, wear life, and shape retention. Available in bolt-on and Perma-Loc™ versions and four-wing widths.

• Designed for top performance at 7–10 mph (11.27-16.09 km/h)

• Low wing profile creates less draft, leaves a level finish

• Sharp edge effortlessly cuts through residue

N331103 7-in.(17.78cm)

N331104 9-in.(22.86cm)

N331105 10-in.(25.4cm)

N331106 12-in.(30.48cm)

N331099 7-in.(17.78cm)

N331100 9-in.(22.86cm)

N331101 10-in.(25.4cm)

KK26370 12-in.(30.48cm)

Tru-Width™ Sweeps

Available in both bolt-on and Perma-Loc™ styles, the Tru-Width sweeps help maintain cutting width throughout the life of the sweep. The wings are clipped for minimum soil side throw. With their wraparound design, Tru-Width sweeps provide even draft and maximum holding power. Compared to the conventional sweeps, Tru-Width sweeps are the choice for growers who require optimal scouring in sticky or wet soil.

N182039 7-in.(17.78cm)

N182040 9-in.(22.86cm)

N182041 10-in.(25.4cm)

N182042 11-in.(27.94cm)

N182043 12-in.(30.48cm)

N238333 7-in.(17.78cm)

N238334 9-in.(22.86cm)

N238335 10-in.(25.4cm)

N238336 12-in.(30.48cm)

Conventional Sweeps

These conventional wing sweeps provide excellent soil mixing and residue retention. The design provides for the lowest cost investment.

10-in.(25.4cm)

N973MN 12-in.(30.48cm)

Row Crop Cultivator Sweeps

These conventional wing sweeps provide excellent soil mixing and residue retention. The wing ends are clipped for minimum soil side throw. This sweep is a great choice for the lowest cost investment.

NUMBERSIZE

Narrow Wing, Medium Crown:

N239040 4-in.(10.16cm) 3/16-in.(0.48cm)

N239041 6-in.(15.24cm) 3/16-in.(0.48cm)

N239042 8-in.(20.32cm) 3/16-in.(0.48cm)

N239043 10-in.(25.4cm) 3/16-in.(0.48cm)

Field Cultivator Standards

John Deere TruPositionTM standards feature a spring-cushion design that delivers 91 kg (200 lb) of trip force. This strength enables producers to maintain a consistent sweep depth and even cut across the width of the field cultivator, while the standards also help protect against obstructions. The combination of spring pressure and pivot-casting geometry reduces side-to-side movement and helps create an ideal soil profile and seedbed.

NUMBERDESCRIPTION APPLICATION

0.0312in Shank – 150-lb. (68.04kg) Trip Force 980, 985, 2200, 2210

N237964 Shank – 200-lb. (90.72kg) Trip Force 980, 985, 2200, 2210, 2230

BN231513 Tru-Position c-Shank Bracket Kit 150-lb. (68.04kg)

BN231404 Tru-Position c-Shank Bracket Kit 200-lb. (90.72kg)2210, 2230, 2330

BN260701 Tru-Position c-Shank Hardware Kit 2210

N237810 S-Shank Tine 980, 2210, 2230

Perma-Loc™ Adapters and Springs

Heavy-duty cast adapter with stainless steel locking spring ensures a tight fit and easy installation. Optional removal tool available for quick change of the sweep.

NUMBER DESCRIPTION

Adapters:

N237614 47-Degree Curved Adapter

N237616 51-Degree Curved Adapter

N330001 47-Degree Flat for DMi

Locking Springs:

N237620 For 47-Degree Adapter

N237621 For 51-Degree Adapter

Removal Tool:

N237623 Optional Removal Tool

Poly Shank Protectors

Poly shank protectors are designed to improve material flow around the shank and eliminate large buildup of debris. Radius design helps shed roots and reduce horsepower needed to pull the tool through the field.

NUMBER DESCRIPTION

TY15990 1 3/4" x 9" (4.45cm x 22.86cm) Fits Field and Row Crop Cultivators with Mounting Hole Center 1 5/8" to 2" (4.13cm x 5.08cm)

TY15991 2" x 10" (5.08 x 25.4 cm) Fits Standards with Mounting Centers 1 3/4" (4.45cm) to2 1/2" (6.35cm)

KK51728 Sweep Extender for Field Cultivators (3 holes)

A-TY15990 A&I Poly Shank Protector (1 3/4" x 9"= 4.45cm x 22.86cm)

Soft Black Coating

Keep your tillage equipment corrosion-free throughout the dormant season with Soft Black protectant from John Deere. Our non-clog formula applies easier and lasts longer— until it’s time to get back into the soil.

Dry Nutrient Application Parts

Dry nutrient application timing and accuracy are critical to achieving optimal yields. Worn parts can cause inaccurate application or downtime. Upgrade your machine today!

KK38162

DESCRIPTION

Chain Kit, Belt-Over-Chain - #4 12F

KK38988 Sensor, Bin Level

KK38195

KK38986

KK38194

KK48414

KK44238

KK38719

Conveyor, Boc - 14’ #4K 30” BOC

Sender Kit, Encoder - 180 Count DJ

Conveyor, Belt

Jack, Spinner Frame 312975 Jack - A

Conveyor, Boc - 5’ #4X24” Mor 409 E

Motor Kit, RH Style II Assembly,

KK38718 Motor Kit, Motor - LH Style II Assembly

KK37917 Blade, Fin - RH

KK37918 Blade, Fin - LH

AKK35320 Sensor, 304SS Spinner Position New

KK44204 Blade, Fin - Kit

AKK44335 Sensor, Sensor - Assembly W/Block

KK38716 Motor, Spinner 3.19 CID (Post-2016

AKK54552

Valve Kit, Motorized to PWM Conversion Valve Kit

AKK47604 Spreader, DS35G4 Bin, Drybox Spreader, 7 ft

Airboom System

Dry Nutrient Application Attachments

Upgrade dry spinner spreader or airboom machines with these attachments.

BKK11799 Tiled High-Wear Fan Kit

AKK50283 Inner Wing Fold Cylinder

KK99141 Left Fan Housing

KK99140 Right Fan Housing

Dry Spinner Spreader

BKK10696 G4 End-Gate Single-Bin Conversion

BKK11623 G5 End-Gate Single-Bin Conversion

Nutrient Application – 2510H

Timely application and proper placement of nutrients help ensure plants thrive and reach their maximum yield potential while being environmentally responsible. Below are parts that you may need to replace after continuous use applying nutrients during the fall, spring, or sidedress.

NUMBER

Scrapers:

A89381 NH3 Scraper Boot – Right Hand

A89376 NH3 Scraper Boot – Left Hand

A89437 Beaver Tail Scraper – Right Hand

A89556 Beaver Tail Scraper – Left Hand

Tube Assembly:

AA73755 Liquid LH – Stainless Steel

AA73760 Liquid RH – Stainless Steel

AA73757 NH3 – Left Hand

AA73758 NH3 – Right Hand

AA79983 NH3 with Vent – Right Hand

Gauge Wheels:

A85104 2-in. x 12-in. (5.08 cm x 30.48 cm) Gauge Wheel

A85134 Wheel

A85133 3-in. x 16-in. (7.62 cm x 40.64 cm) Gauge Wheel Tire

AA66988 3-in. x 16-in. (7.62 cm x 40.64 cm) Gauge Wheel Assembly

Blades:

A84920 Flat Disc Opener Blade

A85568 14-in. (35.56 cm) Notched Sealer Blade

Rebuild Kits:

BKK11410 2510H Refurbish Kit – 11-row

BKK11411 2510H Refurbish Kit – 15-row

BKK11412

2510H Refurbish Kit – 16-row

BKK11413 2510H Refurbish Kit – 23-row

Nutrient Application – 2410C

Standards:

BKK11714 Conventional Blades:

N262329 Disk Coulter – 22" Straight

KK11744 Disk Blade, Concave Notched Bushings:

N184995 Pivot (ID .531", OD .875", L .402")

N184531 Pivot (ID .755", OD 1.125", L 3.620")

KK26470 True Depth Shank Pivot (ID .688", OD 1.117", L 4.646")

KK12437 Pivot (ID .812", OD 1.5", L 1.504")

Miscellaneous:

A87781 Hub

Keep rolling for spring and beyond

OEM and aftermarket bearings from your John Deere dealer

From Genuine John Deere OEM Parts to Cost-Effective Aftermarket Options — Your John Deere Dealer Has the Bearings to Match Your Needs and Budget.

Bearings play a critical role in gauge wheel performance, and John Deere offers a tiered portfolio designed to meet a variety of operational demands. These bearings are also compatible with most closing wheels, giving you flexibility across your equipment. Choose from our standard-duty replacement or upgrade to our heavy-duty bearing for enhanced durability and performance. Why choose heavy-duty bearings?

• Superior Protection: Enhanced sealing helps prevent dirt and debris from entering the bearing, extending its lifespan.

• Advanced Design: Features a labyrinth-style seal for better resistance compared to traditional lip seals.

• Built for Tough Conditions: Ideal for growers operating in challenging environments or using high-speed planting techniques.

• Easy Replacement: Designed as a direct drop-in replacement for part number AN212132.

Gauge Wheel Bearings, Marker Disk Bearings:

Ball Bearing Planters: MaxEmerge™, ExactEmerge™ & Pro-Series XP Planters

Bearing, Double Row

Heavy Duty

Drills: 750, 1520,1530, 1535,1560, 1590, 1850, 1860, 1890, & 1895

Planters: MaxEmerge, ExactEmerge, & Pro-Series XP Planters

Drills: 750, 1520,1530, 1535, 1560, 1590, 1850, 1860, 1890, & 1896

Planters: MaxEmerge™, ExactEmerge™ & Pro-Series XP Planters

Drills: 750, 1520,1530, 1535,1560, 1590, 1850, 1860, 1890, & 1895

Heavy Duty Double Row Ball Bearing Planters: MaxEmerge, ExactEmerge, & Pro-Series XP Planters

Row Cleaner Bearings:

Drills: 750, 1520,1530, 1535, 1560, 1590, 1850, 1860, 1890, & 1896

Ball Bearing Planters: MaxEmerge, ExactEmerge, & Pro-Series XP Planters

Ball Bearing Planters: MEXP & Pro-Series XP

Cast Closing Wheel Bearings:

Ball Bearing Planters: MaxEmerge, ExactEmerge, & Pro-Series XP Planters

Drills: 455, 750, & 1535

Ball Bearing Planters: MaxEmerge, ExactEmerge, & Pro-Series XP Planters

Drills: 455, 750, 1535, & 1850

Ball Bearing Planters: MaxEmerge, ExactEmerge, & Pro-Series XP Planters

AA34132 A-AA34132

AA61722

Drills: 455, 750, 1535, & 1851

Unit Mounted Coulter and Single Disk Fertilizer Bearings:

Bearing Cone Planters: MaxEmerge, ExactEmerge, & Pro-Series XP Planters

Drills: 730, 735, 737,770, 775, 780, 785, 1790, 1820, 1830, 1835, 1840, 1870, 1890, 1895, 1990

Bearing Planters: MaxEmerge, ExactEmerge, & Pro-Series XP Planters

Drills: 730, 735, 737,770, 775, 780, 785, 1790, 1820, 1830, 1835, 1840, 1870, 1890, 1895, 1992

Tru-Vee™ Opener Assemblies

Tru-Vee Openers and blades are designed to cut a trench precisely to the selected depth. These OEM Diamond Series blades’ special beveled edges make penetration easy, retain their sharp edge, and offer longer life compared to aftermarket alternatives.

NUMBER

AA53860 Tru-Vee Heavy-Duty, 3.5mm for ME+ and Pro-Series

AA55927 Tru-Vee Standard-Duty, 3mm for ME+ and Pro-Series

AA65457 Heavy-Duty, 3.5mm Double-Row Bearing for ME2 and ME+

*Requires new seed tube guard

Disk Openers and Coulter Blades

Our most popular openers and coulter blades, sold through parts, are the same original equipment that come on new John Deere Seeding Equipment.

25-wave 0.63 in (16 mm): Creates extremely fine tilth area about 7/8-in. (22.23 mm) wide. Works well on wet, spongy soil that can be tight and difficult for proper furrow closing.

13-wave 0.7 in (17.78 mm): Tills an area about 1-in. (25.4 mm) wide at speeds under 6 mph (9.65 km/h). Gives more aggressive soil disruption at slower speeds. Fractures the soil more, opening a wider slot of fine tilth.

8-wave 1.0 in. (25.4 mm): Offers less soil disturbance and a 1.25 in (31.75 mm). wide trench at speeds above 5.5 mph (8.85 km/h).

Bubble: Tills more aggressively as bubbles enter the seedbed zone. Opens a 1.0 in. (25.4 mm). wide slot. Penetrates soil and cuts through residue well.

AA105716 Redesigned TruVee Opener Blade* NUMBER

AA57466 Fertilizer Opener Assembly 13.5 in. (342.9 mm)

AA57467 Fertilizer Opener Assembly

A72358 Fertilizer Opener

in. (342.9 mm)

in. (342.9 mm)

A72359 Seed Opener 13.5 in. (342.9 mm)

A33066 Coulter, Rippled 20 in. (508 mm)

A73911 Fluted Coulter 8-wave

A73615 Fluted Coulter 8-wave

A73910 Rippled Coulter – 6-Bolt 36-ripple

A72360 Rippled Coulter – 5-Bolt 36-ripple

A72677 Fluted Coulter – 6-Bolt 13-wave

A72678 Coulter Disk, 13-Flute, 7-in. Diameter13-wave

A72679 Fluted Coulter – 6-Bolt 25-wave

A72680 Fluted Coulter – 5-Bolt 25-wave

A72361 Marker Blade, Notched 17 in.(431.8 mm)

A72404 Fertilizer Blade for Single-Disk Openers

Opener Blades Tech Tip:

Opener Blade Adjustment Recommended – adjustment of 1.5" to 2.25" (3.81 cm to 5.72 cm) of pinch point.

ExactEmerge™ Cell Corn Bowl A135462

Producers sometimes have issues achieving target singulation and population in corn when using small/medium flat seeds.

• ExactEmerge cell corn bowl features 32 4.5-mm (0.18-in.) cells

• Enables better singulation performance in small/medium flat corn (2400-1400 seeds/lb (5291-3086 seeds/kg))

• Allows for a wider range of vacuum settings in small/medium flat corn

• Similar performance to standard corn bowl in large seed sizes

• Drop-in replacement to standard corn bowl A92777 (requires hub height and double eliminator adjustment)

Residue Shield Kit

Cotton field residue in the seed meters can cause issues with singulation and spacing. This kit provides shielding around the opening of the ExactEmerge row-unit cartridge to prevent the BrushBelt™ system from being exposed to field residue. This helps to reduce uptake of residue into the meter, keeping the seed pool and BrushBelt system clean for improved meter performance.

AttachmentDescription

AA112155Cartridge residue shield kit

NOTE: Kit contains all parts necessary for one planter row. NOTE: Recommended for planters going into cotton residue only.

BrushBelt™ Tech Tip:

To prevent a BrushBelt malfunction, do not apply fertilizer directly in the seed furrow near the front of the BrushBelt. To dry the BrushBelts before planting in wet conditions, perform a meter runoff. (See the SeedStar Application Help for the Runoff procedure.) Periodically clean the seed sensor area inside the BrushBelt. Dusty conditions or heavily treated seeds cause an excessive buildup of dust and seed treatment inside the BrushBelt, which blocks the seed sensor. When the seed sensor becomes blocked, false low population counts or false low limit warnings appear.

Double Eliminator Tech Tip:

Degraded meter performance, like multiple seed placement, is an indicator of possible inner or outer double eliminator wear. Check the inner and outer double eliminators (A) for wear. Check the inner and outer tines for uniform length and diameter. If the length of the outer double eliminator measures less than 8mm (0.315 inches) from the base time or brush to the tip and the meter performance is degraded, replace it. If the diameters of inner adjustable double eliminator tines are worn to less than 1/2 the original diameter and the meter performance is degraded, replace it.

ExactEmerge™ Wear Parts

NUMBER

AA98668 Meter Housing

A107427 Ceramic Meter Wear Pads

A95817 Seed Guide

AA92875 Vibrational Strip

AA83215 Smooth Strip

A95875 Meter Housing Bearing

AA81457 5-Finger Brush Double Eliminator

AA86093 Inner Upper Double Eliminator

AA86138 Outer Double Eliminator

AA85925 Knockout Wheel – Black Corn, Soybean, Cotton, Popcorn, Sunflower, Sweet Corn

AA88629 Knockout Wheel – Yellow-Regular/Large Sugarbeets

AA89179 Knockout Wheel – Green-Mini Sugarbeets, Sorghum

AA94227 BrushBelt Gearbox

A98765 BrushBelt – Black Bristles and Textured Belt

A119678 BrushBelt – Green Bristles and Textured Belt

A104565 BrushBelt Wear Plates

A95833 BrushBelt Wear Plates

A95816 BrushBelt Wear Plates

A92777 Seed Bowl – Corn, Large Sweet Corn

A92778 Seed Bowl – Soybean, Edible Bean (non-scalloped)

A103836 Seed Bowl – Soybean (scalloped)

A95892 Seed Bowl – Cotton, Popcorn

A95896 Seed Bowl – Sweet Corn, Sunflowers

A43215 Seed Bowl – Small Corn

A50617 Seed Bowl – Standard Corn

A56251 Seed Bowl – Acid-Delinted Cotton

A65622 Seed Bowl – 4 Seed Hill-drop Cotton

A42586 Seed Bowl – Soybean

A52391 Seed Bowl – Corn, ProMax 40

A52390 Seed Bowl – Small Sweet Corn

A46670 Hub Seal

AA79523 Brushbelt Lower Pulley

Inspection Guidelines for ExactEmerge Wear Parts

Housing

Yetter Twister™ Poly or Cast Closing Wheel Row Kit.

Closing wheels help to achieve better closing of the seed trench and to break up sidewall compaction, resulting in better seed-to-soil contact and faster emergence. John Deere has partnered with Yetter for aftermarket kits of its popular Twister closing wheels for customers interested in upgrading from rubber tire closing wheels.

NUMBER DESCRIPTION

5YT6200005

5YT6200006

5YT6200009

Twister poly spike closing wheel row kit (1 row) – two assembled poly spike wheels and six washers

Twister poly spike insert kit (1 row) – two poly spike rings to install on existing plastic closing wheels and six washers

Twister cast spike closing wheel row kit (1 row) – two cast spike closing wheels, two spacers, and six washers

Color Coded Hose Grips

New color coded aluminum hose handles make it easy to match up the hydraulic hoses on your implement with the correct function on the tractor. They also feature anti-slip design to make it easier to grip the hose and connect/disconnect from the back of the tractor. The color coded parts are laser engraved with the John Deere logo and the extend-and-retract icons to ensure proper matching to the proper function. The three hose grips below are now available for your planter.

NUMBER DESCRIPTION

KK79550 Power Beyond Supply – Extend – Red per JDS-G241

KK79551 Power Beyond Return – Retract – Black per JDS-G241

KK79552 Load Sense – Orange per JDS-G241

One-piece Closing Wheel

Damage to closing wheel tires for producers planting in difficult conditions such as high residue or rocky fields is sometimes unavoidable. This one-piece closing wheel AA97549 is designed to significantly reduce component wear and allows for less soil disturbance and mud packing. Another significant benefit of maintenance is service is not required when changing out a tire.

Compatibility: MaxEmerge™ Plus, MaxEmerge™ XP, MaxEmerge™ 5, MaxEmerge™ 5E, ExactEmerge™

NUMBER DESCRIPTION

AA97549 One-piece Closing Wheel with Standard Bearing Gauge wheel arm kit - Includes parts for 1 row.

Gauge Wheel Arm Kit

Consistent seed depth is one of the main factors influencing uniform emergence. Worn out gauge wheel arm components can impact the operation of the gauge wheel leading to less consistent seed depth and, as a result, non-uniform emergence.

Advantages of the kit:

• Cost savings with a kit compared to individual parts

• Ease of ordering with a kit

• Longer life with heavier duty material

Compatibility: MaxEmerge™ XP, MaxEmerge™ 5, MaxEmerge™ 5E, and ExactEmerge™

NUMBER

DESCRIPTION

AA103998 Gauge Wheel Arm Kit

Gauge Wheel Scraper Kit

Gauge Wheel Scraper Kit works well in muddy conditions when needing to reduce mud build-up on gauge wheels, which can negatively affect planting depth.

Compatibility:

• MaxEmerge™ Plus and newer row units

• Scraper is compatible with the 4.5" (11.43 cm) wide gauge wheels only

• Not compatible with narrow and reduced inner profile (RIP) tires

• Not recommended in high residue (e.g. corn stalks)

NUMBER

DESCRIPTION

AA112505 Gauge Wheel Scraper Kit

(Contains two arms, two scrapers and hardware – all parts necessary for one planter row)

Notched Frame Mounted Fertilizer Opener Blade

In certain loose, sandy soil conditions, it is possible for the frame mounted fertilizer opener to plug with soil or pebbles between the scraper and the blade. Once this happens, the blade can no longer turn, causing it to bulldoze the soil, rather than to cut the furrow for the fertilizer to be placed. In this situation, a notched opener blade can help to overcome the issue. The notches in the blade help to create additional friction between the blade and soil, creating enough torque to keep the blade turning, even when soil or other debris has built up between the scraper and the blade.

Compatibility:

• Works with any planter with frame-mounted fertilizer openers currently using the A72358 blade

NUMBER

DESCRIPTION

A123932Notched Frame Mounted Fertilizer Opener Blade

Heavy Duty Seed Tube Guard

• Customer Challenge - Excess seed tube wear affects seed furrow formation and allows potential damage to the seed tube

• Solution - Heavy Duty Seed Tube Guard

• Tungsten-carbide tiles provide resistance to wear, prolonging service life

• Drop-in replacement for standard guard A131375

Compatibility

• MaxEmerge™ XP Row units

• MaxEmerge™ 5 and 5e Row Units

NUMBER

AA111854Heavy Duty Seed Tube Guard

Maintenance Free Gauge Wheel Arm Kit

• Customer Challenge - Daily maintenance during planting time, component wear leading to decrease in planting accuracy

• Solution - Maintenance Free Gauge Wheel Arm

• Eliminates two grease points per planter row, increasing uptime

• Internal testing suggests better durability and reliability than standard greaseable gauge wheel arms

• Does not use a bearing design, thus avoiding the need to use shims to adjust gauge wheel clearance

• Sold as a row kit, containing two arms and all hardware needed to upgrade one planter row

Compatibility

• MaxEmerge XP, 5 and 5e row units

• ExactEmerge row units

NUMBER

AA114871Maintenance Free Gauge Wheel Arm Kit

No-Till Opener Kits –

Continuing

to provide solutions for the life of your machine

New parts and kits available through parts:

• Depth Adjust Kit

• Main Opener Pivot Pin & Bushing Kit

• Quick Change Blade Kit

• Heavy Duty Gauge Wheel Tire – Narrow

• Heavy Duty Spoked Gauge Wheel Assembly – Narrow

• Greaseless Bushing Kit – 90-Series

Depth Adjust Kit

• Solves issues with wear on the cover and/or handle

• ProSeries™ components offer added strength and durability

• Contains handle, cover, and all necessary hardware for one row

• Allows 90-Series customers to easily upgrade to ProSeries components

Main Opener Pivot Pin and Bushing Kit

• Convenience kit contains pin, bushings, and all necessary hardware to service one row

• Lower price compared to ordering individual parts

Quick Change Blade Kit

• Helps reduce maintenance time for blade change

• Improvement made to ProSeries™ openers in Model Year 2022 – allows for faster blade changes, reducing planned downtime

• Kit allows customers of 90-Series and pre-MY22 ProSeries openers to upgrade to the quick change blade feature

AA110550 4-rows (2 left and 2 right)

or pre-MY22 ProSeries AA110551 16-rows (8 left and 8 right) 90-series or pre-MY22 ProSeries

NOTE: Must also upgrade to ProSeries™ seed boots

Heavy Duty Gauge Wheel Tire – Narrow

• Narrow profile version of the heavy-duty standard width gauge wheel tire A 113507

• Thicker material in the lip area

• Provides longer wear life, especially in high-residue conditions

• Helps ensure gauge wheel performance for consistent seed placement and depth

• Drop-in replacement for A85133 narrow tire

A134844 Heavy Duty Gauge Wheel Tire – Narrow Universal

Heavy-Duty Spoked Gauge Wheel Assembly – Narrow

• Narrow profile version of the heavy-duty spoked gauge wheel assembly M98188

• Helps ensure gauge wheel performance for consistent seed placement and depth

• Spoked gauge wheel assembly in narrow profile – similar to AA98188

• Spokes allow for increased material flow through the openers

• Contains heavy-duty tire (A134844) and heavy-duty bearing (AA97285) for increased durability and service life

• Provides longer wear life of gauge wheels, especially in high-residue conditions

Heavy-Duty Spoked Gauge Wheel Assembly – Narrow Universal

Greaseless Bushing Kit – 90-Series

• Eliminates daily grease points of closing and press wheel pivots

• Increases uptime by reducing planned maintenance

• Kits include all parts needed to retrofit one opener (closing wheel and press wheel pivots) to greaseless bushings

ProSeries™ Seed Opener Performance Upgrade Kits for 60- and 90-Series Openers

The ProSeries Opener offers agronomic advantages and extended wear life compared to the current 90-Series openers. For 60-Series openers to be compatible, seed tubes must also be upgraded to the 90-Series seed tubes.

FEATURES INCLUDE:

Seed Boot – A narrower, tighter fit to the disk results in less soil throw for better seed-to-soil contact and extended wear life

Press Wheel – Narrower and more flexible press wheel improves overall seed-to-soil contact for more even emergence; plus upgraded double-row ball bearing extends service life

Serrated Closing Wheel – Improved closing system when seeding in harder, drier conditions. Notches on the wheel break up the drier soil for better germination

Seed Tab – Improved material for longer wear life; angled and more flexibility in the seed trench results in less seed bounce for more consistent seed placement

Closing Spring – Easier adjustments

Upgrade your 90-Series Openers with ProSeries™ Parts

N282110 A105392

Serrated Closing Wheel

N219982 A105410 Seed Tab

N284025 A109344

N284024 A109343

Seed Boot, RH

Seed Boot, LH

AN282296 AA88056 Press Wheel

N283804 N283804 (did not change) Disk Blade

A118430 A110308

A118429 A110307

Closing Spring, RH

Closing Spring, LH

Separate Fertilizer Placement Openers for 90-Series

Features include:

Separate fertilizer placement (SFP) sealing wing allows for better sealing of NH3 in the ground. Sealing plates and scrapers improve the NH3 sealing capabilities of the SFP opener when compared with older components. 457.2mm (18-in) opener blades operate at a 5-degree angle, resulting in a narrow trench with less soil disturbance. Kit contents include: Scraper, sealing plate, disk opener, hardware, (smooth or serrated closing wheel is not included).

Air Seeder Hose—Low Pressure

Good:

• Standard Duty

• Application: Small to medium acreages with lighter fertilizer application

Better:

• Light Heavy Duty – 2 to 2.5 times standard PVC

• Application: Medium to large acreages with fertilizer applications

Best:

• Heavy Duty – 2.5 to 3 times standard PVC

• Application: Large acreages with fertilizer applications including potash

PM112BK100 1.00-in. (25.4mm)1.25-in.

Better

Best

Price shown is per foot. BK = Clear w/ Black Helix, GR = Clear w/ Green Helix. See dealer for other sizes and color combinations.

Meters, Rollers, and Tuning Rings for John Deere Air Seeders

Use the low meter roller for seeds such as flax, canola, and alfalfa. The medium roller is best when planting wheat, barley, canola, and small soybeans up to 1/4 inch in diameter and with medium rates of fertilizer. The high rate roller is for high rates of fertilizer and large soybeans bigger than 1/4 inch in diameter. The very high rate roller is best used when planting barley and oats with beards, large seeds such as garbanzo beans, and with very high fertilizer rates. Fine tuning rings reduce the amount of product available to meter for increased accuracy.

A70069

Augers and Conveyors from A&I Products

Durable, long lasting stainless steel assemblies give you durability and confidence over several seasons in the field. Conveyors include an improved self-belt cleaning system and neoprene rollers mounted on stainless shafts. Augers feature poly-cupped flighting with a stainless steel core. Both are equipped with greasable bearings with easy access for maintenance. See your John Deere dealer for more information today.

Stainless Steel Conveyors

A-CONV195 21 ft (6.4m) 1900 & 1910 Air Carts (195, 250, 270, 340 Bushel)

A-CONV200 24 ft (7.32m) 1900 & 1910 Air Carts (350, 430, 550 Bushel)

Stainless Steel Augers

A-AUGER195 21 ft (6.4m) 1900 & 1910 Air Carts (195, 250, 270, 340 Bushel)

A-AUGER200 24 ft (7.32m) 1900 & 1910 Air Carts (350, 430, 550 Bushel)

Seed Boot Stabilizer from A&I Products

The Pro-Stitch Stablilizer is machined to fit snug in between the two flanges where the seed boot mounts — and adds a precise mounting hole to take away the slack. No drilling is required for this simple installation.

For 1560, 1590, 1690, 1860, 1890, 1895, and 1995 Grain Drills

A-PSBOOT Seed Boot Stabilizer

Seed Firmer from A&I Products

The Bonilla Seed Firmer is designed to follow the seed furrow precisely so it will keep seed from blowing out of furrow and act as a seed firmer for better seed-to-soil contact.

A-PSSDFMLLH Bonilla Seed Firmer

A-PSSDFMRRH Bonilla Seed Firmer

Hagie Sprayer Attachments

Looking to upgrade the performance of your Hagie Sprayer? The attachment kits listed below are available from John Deere. Please contact your local dealer for more information.

Modular InjectionSide Fill

5HGAMK001 Rear Boom for STS, 15 in (381 mm)

5HGAMK015 Tall Crop Option for STS 10/12, model years 2014 to 2016

5HGAMK047 Tall Crop Option for STS 10/12, model years 2017 to 2018

5HGAMK056 Front Fill Option for STS 10/12/14/16, model years 2014 to 2018

5HGAMK011 STS Crop Divider, model years 2015 to 2017

5HGAMK007 STS Crop Divider, STS 10/12/14/16, model years 2014 to 2015, Standard LegUniversal

5HGAMK105 Intake Scoop for STS 10/12/14, model year 2017 – STS 10/12, model year 2018Universal

5HGAMK104 Night Spray Lights for STS 120' Hybrid Boom, model years 2017 to 2018Universal

Solution System Cleaning

Scan for information on Solution System Cleaning

Watch our YouTube® video on Solution System Cleaning to learn more.

Flowmeters are a critical part of the sprayer and require regular cleaning. Flowmeters that are not maintained and cleaned at regular intervals can give erratic readings, affecting the application rate.

To avoid damage to flowmeters and prevent possible chemical application rate issues:

• Flush the solution system daily as described in Operator’s Manual with clean water

• Remove flowmeters as required and clean the turbine and bearing area with TY26101 John Deere Brake and Parts Cleaner

• Properly clean and winterize solution system when preparing machine for storage (See the Storage section of the Operator’s Manual for procedure)

NUMBERDESCRIPTION APPLICATION

AN305056 Flowmeter Insert

AKK23982 Flowmeter Sensor

AN305055 Flowmeter Assembly (Housing , insert and sensor)

4700, 4710, 4720, 4920, 4730, 4830, 4930, 4940 , R4023–R4060, 408R–412R, 612R–616R

4700, 4710, 4720, 4920, 4730, 4830, 4930, 4940 , R4023–R4060, 408R–412R, 612R–616R

4700, 4710, 4720, 4920, 4730, 4830, 4930, 4940 , R4023–R4060, 408R–412R, 612R–616R

John Deere Nozzle Bodies

Our 5-way nozzle body enables quick spray nozzle changeover. Simply rotate the nozzle body until the desired nozzle is in the spraying position.

• Designed to deliver the highest flow rates across the spraying pressure range

• Reduces restrictions in the flow path through a unique Diaphragm Check Valve design

• Supports faster field speeds with the same coverage

SC-2 Sprayer Calibrator

• Automatically calculates and displays tip flow rate (in gpm, l/min, oz/min), tip wear (in percent), and application rate (in gpa, l/ha)

• Fast and simple operation with readings in about 10 seconds per tip

• Helps quickly identify worn spray nozzle tips (recommend tip replacement once flow rate exceeds that of new tip by 10%)

• Accurately measures true tip flow rate that is essential for calibrating today’s high-tech sprayers

• Replaces discontinued SC-1 Sprayer Calibrator (PM23890)

ForceField™ Wet-Seal Pump

Superior wet-seal protection for today’s most demanding spray conditions.

• Wet-seal technology protects the seals by using a barrier fluid to keep them cool and lubricated, even while the pump is running dry

• Actively maintains a positive pressure differential between the chamber barrier fluid and the pumping solution, which prevents chemical bonding of the seal faces, resulting in increased life and maintenance-free operation

• Protects seal against dry run failure

• Minimizes sprayer downtime and improves productivity

Ask us how the Forcefield pump provides worry-free sprayer operation.

NUMBER

AKK30367 High-Flow Cast-Iron ForceField PumpR4038, R4044, R4045, R4060, 410R, 412R, 612R, 616R

AKK30366 High Flow Cast Iron Forcefield Pump, less hydraulic motor R4038, R4044, R4045, R4060, 410R, 412R, 612R, 616R

AKK39831 Standard Flow ForceField PumpR4030 – R4060, 408R, 410R, 412R, 616R, 800R

Sprayer Strainers

NUMBERDESCRIPTION APPLICATION

PMLS350 50 Mesh Fill Strainer Universal

PMLST1530 Boom Solution Strainer 30 Mesh – PolyUniversal

PMLST1550 Boom Solution Strainer 50 Mesh – PolyUniversal

PMLST1580 Boom Solution Strainer 80 Mesh – PolyUniversal

PMLST230SS Boom Solution Strainer 30 Mesh – SteelUniversal

PMLST2100SS Boom Solution Strainer 100 Mesh – SteelUniversal N303557 Pressure Strainer 50

PMLST150 Center Frame Solution Strainer – PolyUniversal

Banjo Valves

John Deere dealers offer an extensive line of Banjo valves and replacement parts. These high-quality valves are used on John Deere sprayers and many other farm applications.

Bolted Ball Valves – 4 Bolt Valve:

Bolted Ball Valves – 6 Bolt Valve:

Manifold Bolted Ball Valves –

Nozzle Selection Made Easy

Want a quick and easy way to pick the right nozzle family? We have you covered with our nozzle selection guide. Follow the chart and discover which nozzle type is right for you in a snap.

Visit our Deere.com page to find out more.

SPRAY NOZZLE SELECTION GUIDE

What are you spraying?

When are you spraying?

Are you using a Pulse With Modulization system?** Is your chemical Contact or Systmenic?

Spray quality will vary with pressure. For details, see nozzle-specific spray quality charts. Always comply with the product label recommendations or latest manufacturer advice on application on spray quality.

†When using the 3D and Pulse With Modulization at less than 30 Hz you must install the nozzles facing the same direction.

** Use as indicated on approved label.

Improve Plant Health with spot-on coverage from every angle

Try the Nozzle Select Tool on the New EquipmentPlus App or see your John Deere Dealer

This Decision Tree is designed to be illustrative in providing guidance when selecting spray nozzles for different applications. Always follow the chemical manufacturers’ recommendations for application rates and sprayer configuration when selecting an application specific nozzle.

Drift Control Nozzles

John Deere offers multiple nozzle families providing effective drift reduction and regulatory label compliance. Approved for the application of Dicamba and 2,4-D, the nozzle families listed below provide applicators flexibility in a wide variety of weather conditions and application types.

In the picture, see an example of the spray pattern provided by the large air-inducted droplets from the Ultra low-drift Max nozzle.

Ultra Low-drift Max – Post-Emerge Systemic Herbicides

• 130° spray angle allows lower boom heights to reduce drift and to prevent pattern collapse when using drift reduction adjuvants

• Air-induction droplets to reduce drift

• Delivers Extremely Coarse and Ultra Coarse droplets for 90–95% drift reduction compared to standard flat fan nozzle

• ExactApply™ compatible with AutoSelect A/B and conventional spraying

Low-drift Max – Post-Emerge Systemic Applications

• 120° wide and 60° thick pattern provides optimum coverage while maintaining overlap at low boom heights

• Dual pre-orifice nozzle reduces drift with Coarse, Very Coarse and Extremely Coarse droplets

• ExactApply™ compatible with 15-Hz and 30-Hz PWM, AutoSelect A/B, and conventional spraying

• Industry exclusive from John Deere

Ultra Low-drift – Pre- and Post-Emerge Systemic Herbicides

• Ideal for use when drift reduction is paramount (included on Dicamba and 2,4-D chemical labels)

• Air-induced droplets provide precise droplet control to minimize drift potential without sacrificing coverage

• 60° thick spray pattern and 120° wide spray angle enables lower boom height

• ExactApply™ compatible with AutoSelect A/B and conventional spraying

Coverage Nozzles

John Deere offers a lineup of spray nozzles designed for maximizing coverage. Ideal for the applications of contact herbicides, fungicides, and insecticides, these nozzles can provide the highest levels of spray coverage while also providing moderate levels of drift reduction that may minimize off target drift and spray droplet evaporation. See an example of the coverage provided by the 3D nozzles shown on the image to the right.

3D – All-Purpose Coverage Nozzle

• Delivers up to 10% increase in weed control over conventional flat fans

• 50–75% less drift compared to flat fan nozzles

• Tight, inclined spray pattern is designed to be installed alternating forward and backward to provide 3-dimensional coverage on hard-to-hit targets

• High-velocity droplets provide excellent canopy penetrations

• ExactApply™ compatible with 30-Hz PWM, AutoSelect A/B, and conventional spraying

GuardianAIR™ Twin – Post-Emerge Plant Health, Complex Canopies, and Contact Herbicides

• High-coverage, forward- and rear-facing fans penetrate dense canopies

• Air-induced droplets for high-coverage applications where on-target delivery is important

• Perfect for low crops with complex canopies such as small grains and soybeans

• ExactApply™ compatible with AutoSelect A/B and conventional spraying

High Flow – Pre- and Post-Emerge Fertilizer

• Tapered wide-angle fan style promotes uniform nutrient application

• 140° pattern allows low boom height, minimizing corrosive effects on equipment

• Large droplets reduce drift compared to flood or deflect nozzles

• ExactApply™ compatible with 15-Hz and 30-Hz PWM, AutoSelect A/B, and conventional spraying

Straight Stream Ceramic – Pre- and Post-Emerge Fertilizer

• Six-stream pattern minimizes foliar contact and ensures uniform coverage

• Ceramic metering orifice provides wear resistance when spraying corrosive fertilizers

• Stable streams reduce atomization and prevents leaf burn, making it ideal for top dress use

• ExactApply™ compatible with 15-Hz and 30-Hz PWM, AutoSelect A/B, and conventional spraying

Cleaner Field & Better Yields - See & Spray™

Increasing input costs. Narrow application windows. Tighter margins. It’s never been more important to do more with less. See & Spray™ helps you do just that. It turns your sprayer into an in-season, targeted, weed-killing machine, only spraying where it’s needed. That helps you reduce herbicide usage, save water, and pull more value out of your application season. Choosing the right sprayer nozzle for your application is important to your overall success in the field. Use our comprehensive selection guide to figure out the best nozzle type to meet your needs.

See & Spray™ Premium and Ultimate – Nozzle Guide

John Deere

Targeted Spray LowDrift TSL60

John Deere Nozzles

John Deere

Targeted Spray LowDrift TSL80

John Deere

Extended Range ER80

John Deere 3D 3D100

John Deere Ultra LowDrift ULD120

John Deere

Low-Drift Max

John Deere Nozzles

Compatible with See & Spray™ Select, Premium and Ultimate

Incline Nozzles

Targeted Spray Low-Drift TSL60 & TSL80

Extended Range ER80

3D 3D100

Low-Drift Max LDM120-R4

Ultra Low-Drift ULD120 & ULD120-R4

See & Spray Select can also utilize straight tips for operating speeds of up to 19 km/h (12 mph).

Size Tips According to System Pressure

• See & Spray is a rate-based system but currently not compatible with PWM.

• Minimum Pressure should be set to 2.1 bar (30 psi). Spray Off Pressure should be set to 2 8 bar (40 psi).

• Targeted pressure based on application rate and ground speed should be between 2.1 and 3.5 bar (30 and 50 psi) for optimal nozzle performance.

Reference the nozzle tip calculation found on the following page for proper nozzle tip selection.

Optimal Boom Height

• Optimal boom height range for See & Spray Select is 66 cm-92 cm (26 in.-36 in.)

• For See & Spray Premium and See & Spray Ultimate, optimal boom height range is 51 cm (20 in.) above canopy with a minimum boom height of 66 cm (26 in.)

Your John Deere dealer can build hydraulic hoses in minutes.*

HOSES IN MINUTES*

We follow through to deliver uptime for you.

Stay up and running, and eliminate the worry about contaminants entering your hydraulic system. Trust your John Deere dealer to deliver complete solutions, like Ultra Clean, that ensure contaminants are completely removed from new hose assemblies.

Ask your dealer how Ultra Clean means uptime.

Hose Drip Plugs

John Deere hose assemblies built to OEM specifications. Ask your dealer about hoses for any brand of equipment.

Prevent messes and environmental contamination from residual fluids leaking out of hydraulic hoses and/or hydraulic ports during repairs. An essential component of any well-stocked toolbox on the farm!

NUMBER

DESCRIPTION

SW304-257 Mini Drip Plug (1–10mm), Package of 24

SW304-258 Standard Drip Plug (5–22mm), Package of 12

SW304-259 Large Drip Plug (12–42mm), Package of 4

SW304-260 X-Large Drip Plug (50–80mm), Package of 3

SW304-262 Drip Plug Kit, Package Contains 6 Mini, 4 Standard, and 2 Large

UPGRADE YOUR WORKHORSE

Modernize your tractor’s SCV connection with the ReNew2 HD™ Coupler Conversion DIY Kit.

Once installed on your 10, 20, 30, 40, 50, 55, 60, or 70 Series machine, you’ll be able to:

▪Solve hydraulic leaks

▪Connect under pressure

▪Eliminate use of lock lever

NUMBER

SW315-196

SW315-240

DESCRIPTION

10, 20, 30, 40 Series Tractors

50, 55, 60, 70 Series Tractors

Omni Hydraulic Multiplier Valves

The Omni hydraulic multiplier valve addresses the needs of the compact utility tractor owner. Take an existing single circuit and split it into two circuits with electric controls on any 12-volt electrical system. The Omni valve is designed to be used on open, closed, or PFC hydraulic systems.

Hydraulic Multiplier and Add-On Valves

Add additional hydraulic outlets to prime movers economically. Hydraulic multipliers are transparent to the hydraulic system and work safely on all makes of equipment. They’re easy to operate and provide a no-hassle solution to mobile equipment hydraulic shortages. These units are 100% final product-performance tested, and components are ISO-9002 certified.

SW700-1002

SW700-1510

SW700-1590

SW700-1513

SW700-1553

Economy Multiplier Valve with 2 Circuits. Works with Switchbox.

Standard Multiplier Valve with 2 Circuits. Works with Switchbox and ISO Couplers.

Standard Multiplier Valve with 2 Circuits. Works with John Deere Couplers.

Standard Multiplier Valve with 3 Circuits. Works with Switchbox.

Standard Multiplier Valve with 3 Circuits. Works with RCS Handle.

CLEAR THE AIR WITH

OUR PREMIUM CARBON FILTER FEATURES: PARTICLE FILTER LAYER ACTIVATED CARBON LAYER BIOFUNCTIONAL LAYER

Available for new and recent model tractors, combines, sprayers other machines, Carbon Filter Plus has three active layers o help keep out dust, dirt and other contaminants — and limits the growth of mold and bacteria on the filter. Contact us for more information.

Example: 8235R Tractor needs two cab filters

One (1) TY27783 (optional replacement for RE284091 fresh air filter)

One (1) TY27784 (optional replacement for RE291412 recirculating)

Keep other brands of equipment and trucks rolling with one-stop shopping.

Whether red, blue, or another color, you can find maintenance products for your competitive equipment and trucks at your John Deere dealer. With Plus-50™ II engine oil, Cool-Gard™ II coolant, and Fleetguard® filters, we have high-quality products available to keep your machines running. Contact your dealer today!

*Fleetguard is a registered trademark of Atmus Filtration Technologies.

One Engine Oil For All.

It takes a special breed of oil to keep engines running in off-road conditions. That’s why Plus-50™ II Oil is specially formulated to keep engines running smoothly and efficiently. Tractors, semitrucks, UVs, and gasoline engine vehicles - John Deere Plus50 II oil is made for it. Talk to your dealer today.

John Deere Plus-50™ II Oil. Keep Running.

JohnDeere.com/Oil

JohnDeere.ca/Oil

Cool-GardTM II Anitfreeze/Coolant

Cool-Gard II is a high-performance, long-life product formulated for heavy-duty engines.

• Provides up to 6 years/6,000 hours* in cooling systems of diesel and gas engines

• Supports advanced engine technology

• Helps protect against corrosion and deposits

• Adds to water pump life and helps prevent liner cavitation

• High thermal and oxidation protection

• Ready-to-use 50/50 premix formula for freeze protection down to -34°F (-37°C)

• Contains bittering agent to help discourage accidental ingestion

• Suitable for use around animals when used as directed.

*Rating applies when complete cooling system flush is performed prior to use.

Diesel Fuel Conditioner

Fuel protect conditioners help keep you going all season by preventing fuel system erosion caused by poor fuel quality. You’ll notice smoother starting and less exhaust smoke.

Please consult with your dealer or visit shop.deere.com for pricing information.

Fuel Protect Keep Clean Fuel System Cleaner

Keep Clean: Specifically formulated for high-pressure diesel fuel systems. Helps prevent and limit formation of deposits that cause injector sticking, misfire, rough idling, power loss, or hard starting conditions.

Microbiocide: Antimicrobial fuel preservation additive recommended for control of bacteria and fungi in fuel systems.

Please consult with your dealer or visit shop.deere.com for pricing information.

Plus-50™ II Premium Synthetic

Engine Oil: SAE 0W-40 and SAE 5W-40

Plus-50 II Premium Engine Oil offers two synthetic engine oil options to provide support on every farm, for every season. Our SAE 0W-40 option is a full synthetic PAO (Poly Alpha Olefin) based oil. Performing at a premium level in all climates, Plus-50 II SAE 0W-40 is specifically developed for those operating in extremely cold conditions.

Our newer Plus-50 II SAE 5W-40 option is an all-season full synthetic engine oil that provides excellent performance for customers who operate in extremely cold or hot conditions and want to maximize engine life performance in modern engines. SAE 5W-40 is also backwards compatible with our legacy machines as well.

Available for order

0W-40: 1-qt. (946ml) | 1-gal. (3.78L) | 5-gal. (18.9L) | 55-gal. (208L) | 275-gal. (1040L) Tote 5W-40: 1-gal. (3.78L) | 5-gal. (18.9L) | 55-gal. (208L)

Plus-50™ II 10W-30 and SAE 15W-40

Plus-50 II 10W-30 and SAE 15W-40 are made made with a unique additive system that offers premium protection from deposits and wear. Exceeding API service classification CK-4/SN and high-level performance under the John Deere Severe Off-Road Dyno test, this level of engine oil is excellent for diesel engines.

Available for order

10W-30: 1-qt. (946ml) | 1-gal. (3.78L) | 5-gal. (18.9L) | 55-gal. (208L) | 275-gal. (1040L) Tote 15W-40: 1-qt. (946ml) | 1-gal. (3.78L) | 2.5-gal. (9.46L) | 5-gal. (18.9L) | 30-gal. (113.6L) | 55-gal. (208L)

Plus-50™ II features and benefits:

• Full fleet solution

• Compatible with both current, legacy, and competitive machines

• Proven high-level performance in low-emission IT4 and FT4 engines

• Tested and developed for severe off-road applications

• Formula specifically created to stop engine wear, corrosion, sludge, soot, varnish, and oxidation

• Drain interval extension up to 500 hours in a John Deere engine, using a John Deere filter.

NUMBER

DESCRIPTION

100114 Plus-50™ II Premium Synthetic Engine Oil: SAE 0W-40 & SAE 5W-40 201854 Plus-50™ II 10W-30 & SAE 15W-40 100113 Break-In™ Plus Engine Oil

Torq-Gard™ II

Torq-Gard II engine oil provides up to 250 hours of performance and protection for diesel engines. It can be used in both on-road and off-road applications. This oil meets API service category CK-4 and is backwards compatible to meet previous categories as well. Torq-Gard II is formulated to provide excellent wear, oxidation, and deposit characteristics. Whether your machine is old or new, Torq-Gard II is for you!

Available for order

5W-30: 1-qt. (946ml) | 5-gal. (18.9L)

10W-30: 5-gal. (18.9L) | 55-gal. (208L)

15W-40: 1-qt. (946ml) | 1-gal (3.78L) | 5-gal. (18.9L) | 55-gal. (208L) | 275-gal. (1040L)

Bulk Oil: A New Opportunity

Is handling and storing your packaged oil a hassle? Are partially filled packages and boxes consuming your storage space?

If the answer is yes, it’s time to consider bulk oil. With Plus-50™ II, Hy-Gard™ – or any other bulk premium John Deere lubricant available – you have the opportunity to nearly eliminate the headache of disorganized packaged products in your shop. Plus, you'll have more product inventory control, eliminate unnecessary waste, and you'll reduce the risk of product contamination. Make the leap!

Contact your local dealer today about bulk oil availability.

Hy-Gard™ Transmission and Hydraulic Oil

Available for order

Hy-Gard™ oils are specifically developed to meet the exact requirements of transmissions, wet clutches, wet brakes, and hydraulic systems. Oils not meeting these exact specifications can compromise machine or component life.

Hy-Gard performance is tested in both lab and field. High-level performance meets high-standard approvals by John Deere engineers, allowing Hy-Gard to meet the increase in demand for performance and protection of transmission and hydraulic systems.

Hy-Gard: 1-gal. (3.78L) | 2.5-gal. (9.46L) | 5-gal. (18.9L) | 30-gal. (113.6L) | 55-gal. (208L) | 275-gal. (1040L) Tote

Low-Viscosity Hy-Gard: 1-qt. (946mL) | 1-gal. (3.78L) | 2.5-gal. (9.46L) | 5-gal. (18.9L) | 55-gal. (208L) | 275-gal. (1040L) Tote

Bio Hy-Gard II: 5-gal. (18.9L) | 55-gal. (208L)

Product features and benefits

Hy-Gard:

Recommended for equipment with common system reservoirs or separate transmission hydraulic systems

Exceeds JDM J20C specifications

Low-Viscosity Hy-Gard:

Hy-Gard oil alternative in cold weather; exceeds JDM J20C specifications

Bio Hy-Gard II:

Canola-based oil & 94% biodegradeable; use in place of mineral-based hydraulic oils

Grease

John Deere grease is precisely formulated to meet the demanding lubrication needs for tough off-road and on-road conditions. Choosing the right high-quality John Deere grease could show you cost savings, longer equipment life, reduced down time, and lower equipment operational cost.

BEST CHOICE: Multi-Purpose Severe-Duty (SD) Polyurea Grease and Extreme-Duty (ED)

Synthetic Grease

Cartridges available to order:

Multi-Purpose Grease:

Severe-Duty Polyurea Grease 14-oz. (397 g) | Extreme-Duty Synthetic Grease 14-oz. (397 g)

Heavy-Duty Lithium Complex Grease 14-oz. (397 g) | Multi-Purpose Lithium Grease 14-oz. (397 g)

Specialty-Purpose Grease:

Heavy-Duty Water-Resistant Grease 14-oz. (397 g) | Corn Head Grease 14-oz. (397 g)

Heavy-Duty Lithium Complex 3% Moly Grease 14-oz. (397 g) | Calcium Sulfonate Grease with 5% Moly 15-oz. (425 g)

GL-5 and Synthetic GL-5 Gear Lube

GL-5 and Synthetic GL-5 lubricants are designed for severe on- and off-highway applications. Superior thermal stability and oxidation resistance keep gears and seals clean, while thermal durability protects gears from physical damage by preventing heatinduced failure of anti-wear chemistry.

Synthetic GL-5 Gear Lube:

TY26372

TY26375 75W-90 1-qt. (0.946L)

TY26376 75W-90 5-gal. (18.9L)

TY26377 75W-90 16-gal. (60.6L)

GL-5 Gear Lube:

TY6296 80W-90 1-qt. (0.946L)

TY26817 80W-90 30-gal. (113.6L)

TY6345 85W-140 1-qt. (0.946L)

TY26812 85W-140 1-gal. (3.78L)

TY26813 85W-140 5-gal. (18.9L)

Synthetic Gear Lubricant for Combine Feederhouse Drives:

TY26408 HD460 1-qt. (0.946L)

Cool-Gard™ Antifreeze/Coolant

Product features and benefits

• Formulated for up to 6-years/6,000-hours* life in cooling systems of diesel and gas engines

• Supports advanced engine technology

• Protects against corrosion and deposits

• Extends water pump life and prevents liner cavitation

• High thermal and oxidation protection

• Ready-to-use 50/50 premix formula for freeze protection down to -34°F (-37°C)

• Contains bittering agent to help discourage accidental ingestion

• Less toxic propylene glycol available for use around animals

Available to order

Concentrate 1-gal. (3.78L), 55-gal. (208L)

Pre-mixed 1-gal. (3.78L), Pre-mixed 2 1/2-gal. (9.46L), 55-gal. (208L), 330-gal. Tote (1249L)

PG, Pre-mixed 1-gal. (3.78L), 55-gal. (208L), 330-gal. Tote (1249L)

*Rating applies when complete cooling system flush is performed prior to use.

New Improved Keep Clean Diesel Fuel System Cleaner

This diesel fuel system cleaner helps:

• Improve fuel economy

• Protect engines and injectors from the formation of harmful deposits

• Restore injector and combustion performance by removing harmful deposits

• Extend the life of the fuel system by preventing corrosion

• Prevent unscheduled maintenance, filter blocking, and DPF regeneration by keeping fuel systems clean

John Deere Fuel-Protect Gasoline Stabilizer

This valuable product helps:

• Prevent corrosion, gum, and varnish from clogging the fuel system

• Protect fresh gasoline in your stored vehicle for up to 12 months

• Ensure quick and easy starts

• Eliminate the need to drain and dispose of gasoline

• Designed for both two and four-cycle gasoline engines

STAY CHARGED ALL SEASON LONG

Start strong every time with John Deere StrongBox™ Original Equipment or Standard-Duty batteries. Dependable. Exceptional. Warrantied. We’ve got your turf and utility and heavy-duty commercial batteries covered.

Booster Cables

John Deere offers 2-gauge and 4-gauge booster cables in a variety of service options: extra heavy-duty professional, commercial, heavy-duty professional, and heavy-duty commercial.

NUMBERDESCRIPTION

2-Gauge and 4-Gauge 100% Copper Conduits:

TY26217Booster Cable, Extra Heavy-duty, 20-ft (6.10m)., 2-gauge

TY26215Booster Cable, Commercial Service, 16-ft (4.88m)., 4-gauge

TY26216Booster Cable, Commercial Service, 20-ft (6.10m)., 4-gauge

Strongbox™ AGM (Absorbed Glass Mat) Batteries*

Key features and benefits of AGM batteries:

• Offer greater vibration resistance and longer battery life for increased uptime

• More efficient design and added power which are beneficial in extremely cold temperatures

• Completely sealed to offer maintenance-free operations with little to no gassing (no need to add water)

• Longer shelf life due to a lower self-discharge rate

Deep Cycle Batteries*

Unlike starting batteries, deep cycle batteries are specifically engineered for sustained, low-amperage discharge over extended periods. Perfect for powering equipment such as lights, pumps, and other accessories.

Plate Design: Thicker plates to enhance durability and longevity in addition to fewer plates compared to starting batteries.

Enhanced Paste Material: Contains more paste material on both positive and negative plates, improving overall performance and lifespan.

NUMBERDESCRIPTION APPLICATION

TY27365B6 volt GCH2 type, 255Ah Utility Vehicles

TY27802B 12V Powersports Battery Motorsports, Utility Vehicle

TY27805BGroup 27, Marine Battery - 600CCAMarine Deep Cycle

WHY DO BATTERIES FAIL?

The top three reasons are:

1. Continuous use in extreme heat applications

2. Vibrations due to rough off-road conditions cause broken welds

3. Lack of seasonal maintenance such as storing a battery in the winter months without a maintainer

TO PROLONG BATTERY LIFE:

• Check batteries every spring and fall for leakages, state of charge, and loose or frayed wires in addition to ensuring terminals are clean of corrosion

• Always use the right battery type for the application at hand

• Disconnect the battery ground cable if equipment will not be used for a long time to reduce power drainage and help prolong battery life

• Use of a John Deere battery maintainer safely charges most batteries that require long storage periods

Tech Tip – When charging or testing a battery with threaded posts it’s important to use charging post adapters. These charging post adapters provide a solid point of contact for clamps or charging leads.

TY25918 – Group 31 charging post (qty 2)

FULLY AUTOMATIC

1.5-AMP BATTERY CHARGER/MAINTAINER

TY25866*

Battery Types:

• 6V/12V lead-acid only (Wet, Gel, MF, EFB, AGM)

Charging:

• 1.5A charge/maintain

Additional Features:

• Auto voltage detection 6V or 12V battery

• Float mode monitoring

• Reverse hook-up protection - helps prevent damage to battery and charger

Weight

• 1.50 lbs (0.68 kg) *Not for sale in California

Battery Accessories

Make John Deere your one-stop shop for battery accessories. Our wide selection of battery accessories includes terminals, terminal brushes, bolts, corrosion preventative, and terminal cleaner—everything you need! See us today for the complete battery accessories lineup.

JUMP STARTERS AND CHARGERS

3000A LITHIUM JUMP STARTER, 12V

• Jump start up to 9L gas and 7L diesel engines

• Up to 80 jumps per charge

• Voltmeter built into the unit

• Provides 12v accessory output to power air compressors, inverters, and others

• Charge phones, tablets, laptops, wearables, and more via USB-C

• Built-in 500-Lumen LED flashlight with various brightness modes, SOS, and emergency strobe

4250A LITHIUM JUMP STARTER, 12V

• Jump start up to 10L gas and 8L diesel engines

• Equipped with USB-C technology and power delivery to give you lightning-fast recharges

• Completely recharges in just 2.7-hours, or go from 0% to jump starting in just five-minutes of charge

• Start the vehicle within 60 seconds after pressing the power button on Boost

• Charge phones, tablets, laptops, wearables, and more via USB-C

• Built-in 500-Lumen LED flashlight with various brightness modes, SOS, and emergency strobe

ONBOARD BATTERY CHARGER, 2-BANK 20A

ONBOARD BATTERY CHARGER, 4-BANK 40A

• Independently charge and control each battery bank with selectable charging modesincluding 12V, 12V AGM, 12V Lithium, and 12V Repair Mode - for all types of lead-acid and lithium-ion batteries

• Thermal sensor detects the ambient temperature and alters the charge to eliminate overcharging in hot climates and undercharging in cold climates

• Automatically detects battery sulfation and acid stratification to restore lost battery performance

• Fully automatic, worry-free battery charger for everyday use - 24/7 - with zero overcharge

• Simple mounting system allows for quick and easy installations in any direction - with an integrated anti-vibration backing to isolate shock, vibration, and noise

• Fully-sealed and waterproof with an ingress protection rating of IP68 and integrated vibration protection

John Deere – your hardware headquarters

See your John Deere dealer for two easy, cost-saving ways to stock up on hardware for your farm and shop:

1) Grab what you need and pay by the pound.

■ Bolts ■ Fender washers

■ Plow bolts

■ Carriage bolts

■ Lock washers

■ Flat washers

■ Lag screws

■ Hex nuts

2) Customize your own hardware needs.

■ Wing nuts

■ Nylon nuts

■ And more!

Make us your one-stop shop. See us today for great savings and added accessibility.

D AM/FM/WXA/BT/PA Mic Jensen® Radio SWJHD22

Radios & Speaker

If your cab radio is dead, dying, or just plain dysfunctional, consider an auto upgrade. Tune in to local news, weather, and sports, or bring your own audio enjoyment via CD or MP3. Satellite news and music are also an option.

Pull in AM/FM and weather-brand signals. This new heavy-duty radio has a full seven channel NOAA Weatherband tuner and tells the time with new segmented high-visibilities display.It also comes with Aux in capabilities and is equipped with a two-wire hookup that prevents battery drain when the vehicle is off.

B Mini AM/FM/BT/WB Hands-free Jensen® Radio SWJHD962BT

This weatherproof radio brings news, weather, and Bluetooth® capabilities to Gator™ utility vehicles, skid steers, and open-station tractors. You get NOAA Weatherbrand with weather alert, AM/FM radio, Bluetooth playback, controls, and the ability for hands-free calling (external microphone SWJMICHFP sold separately), and an inputs to play iPod®, MP3 player, or portable CD player.

AM/FM Bluetooth Hands-free Jensen® Radio SWJHD62 New Universal Mount Jensen® Speaker SWJXHD30PS

This stereo is built tough for demanding environments. It features a water and UV resistant front panel and a USB connection in the rear for device charging. It has Bluetooth streaming audio, with hands-free calling, to give you the truly hands-free experience.

This new 3-in. (7.62 cm) universal mount two-way speaker includes two 60 watt speakers with improved sound and provides a great option for mounting areas exposed to the elements.

Key Features:

■ Two speakers

■ 60 Watts

■ Waterproof bridged woofer/tweeter

■ Corrosion resistant

Lights

Extend your day and get the job done with our headlight kits, which include one or two headlights, wiring harnesses, mounting hardware, and headlight switch.

NUMBER DESCRIPTIONAPPLICATION

BUC11567LED Light KitZ315, Z320, Z330, Z370, Z380

BUC10986Dual Headlight Kit Z335E, Z345M, Z345R, Z355E, Z355R, Z365R, Z375R, Z525E, Z535M, Z535R, Z540M, Z540R

BUC10986 LED Light KitZ515E , Z530 (M/R), Z545R

BUC10301Light KitBUC10301

Residential Z Bumpers

Offering durable construction, the rear bumper kit bolts securely to the frame and provides robust protection to the backside of your equipment.

NUMBERAPPLICATION

BUC11479 Z370R Electric, Z315E, Z320M, Z320R, Z325E, Z330M, Z330R

BUC10851 Z515E, Z530M, Z530R, Z545R

AUC12164 Z720E, Z730M, Z735M, Z740R, Z760R

Brush Guards and Bumpers

Keep your tractor free from scratches and scrapes with our front end brush guards and rear bumpers.

NUMBERAPPLICATION

BM23057 X300 and X500 Select Series Tractors

BM20880 X700, X720, X724, X728, X729, X740, X744, X748, X749

BM24375 X710, X730, X734, X738, X739, X750, X754, X758

BM23056 X300S, X500, X530, X534, X570

BUC11080 E100, E110< E120, E140

Weights and Weight Accessories

NUMBERDESCRIPTION

Tool Storage

Get more done with John Deere tool mounting solutions.

NUMBERDESCRIPTIONAPPLICATION

BUC10751 Toolbox Kit Z720E, Z735E, Z730M, Z735M, Z740R

BUC10775 String Trimmer MountZ720E, Z735E, Z730M, Z735M, Z740R

BUC10303 Trash Receptacle KitZ720E, Z735E, Z730M, Z735M, Z740R

BUC10826 Yard Tool KitMounts to side of engine shroud.

APPLICATION

BM25370 Weight Bracket, Front (X300, X500 M-T) / X330, X350, X354, X370, X380, X384, X390, X395, X570

BM24011 Rear Weight Bracket (Holds R66949 or UC13263 Weights) / X380, X384, X390, X394, X584

BM17978 Mounting Hardware, Front Wheel WeightX330, X350, X354, X370, X380, X384, X390, X395, UC13263 42 lb. (19.05 kg). Quik-Tatch Weight X330, X350, X354, X370, X380, X384, X390, X395, X570, X580, X584, X590

BM1796430 lb. (13.61 kg) Front Wheel WeightX330, X350, X354, X370, X380, X384, X390, X395, X570, X580, X584, X590

BM1797250 lb. (22.68 kg) Cast-Iron Wheel WeightX570, X580, X584, X590

BM1797650 lb. (22.68 kg) Plastic Wheel Weight (Includes Mounting Hardware) X570, X580, X584, X590

Home Maintenance Kits for Gator™ SUVs

Tune Up…Roll Out

Take advantage of that day off or tinkering time in the shop. Are you hands-on and work on your own machine? Keep it running top notch with a tune-up. Home Maintenance Kits make it easy to do the routine maintenance on your Gator SUV by providing almost everything you need in one convenient package:

■ Oil ■ Oil Filter ■ Air Filter ■ Fuel Filter ■ Spark Plug(s)

Find your kit below. If you don’t see your machine listed, don’t worry, we have all the maintenance parts you need to keep your machine in peak condition

NUMBER APPLICATION

AUC15083 Gator XUV 835E, XUV 835M, XUV 835R

AUC16614 Gator XUV 590i,XUV 590i S4, XUV 590E, XUV 590E S4, XUV 590M, XUV 590M S4

LG243 Gator HPX 4X4 – Diesel (S/N 000,001 -040,000), HPX 4X2 – Diesel, 6X4, ProGator 2030

LG248 Gator TS 4X2 (S/N -100,000), CS, CX, 4X2, Trail 4X2

LG249 Gator TS 4X2 (S/N 100,001-)

LG258 Gator TX (S/N -040,000; Engine FJ400D), TX 4X2 (S/N 000,001 -040,000), TX Turf 4X2

LG259 Gator TX (S/N 040,001-; Engine FH601D), TX 4X2 (S/N 040,001-), HPX 4X2, Gator HPX 4X4, Gator HPX Trail 4X4, HPX 615E, TH 6X4 – Gas

LG260 Gator TH 6X4 – Diesel, HPX 4X4 – Diesel (S/N 040001-), HPX 815E, XUV 850D – Diesel, XUV 855D – Diesel, XUV 855D S4, XUV 855D S4, XUV 855E, XUV 855M, XUV 855M S4

LG261 Gator XUV 620i, XUV 625i

LG270 Gator XUV 825i, XUV 825i S4, XUV 825E, XUV 825M, XUV 825M S4

LG273 Gator XUV 550 & XUV 550 S4 (S/N 010001-), XUV 560, XUV 560 S4, XUV 560E, XUV 560E S4

LG274 Gator XUV 865E, XUV 865M, XUV 865R, RSX 850i, RSX 850i Sport, RSX 850i Trail, RSX 860i, RSX 860E, RSX 860M

Power and Protection

Get your guard up with a full array of custom protection options that look great, too.

BUC10772 Cargo Box Power Lift

HPX, XUV 625/825/835/855/865

BUC10682 WARN® ProVantage 2041 (4,500-lb.) Winch HPX, XUV 625/825/835/855/865

BM21392 Winch Accessories Kit

BUC10679 Brush Guard

BM22841 Brush Guard

BM23365 Brush Guard

BM22767 Rear Bumper

BM23362 Rear Bumper

BUC10247 Front Fender Guard

BM23394 Front Fender Guard

BUC11320 Cargo Box Fender Guard

BM22811 Cargo Box Fender Guard

BUC10761 CV Guards – Front and Rear

XUV 835/865

HPX 615/815, XUV 825/855

XUV 550/560/590

TE/TH/TX, XUV 620/625/825/835/ 850/855/865

XUV 550/560/590, RSX

XUV 835/865

XUV 550/560/590

XUV 835/865

TE/TX, XUV 620/625/825/850/855

XUV 835/865

Gator Attachments for Planting Customers

NUMBER

BUC11333

BUC10281

BUC11814

BUC11293

BUC10679 & BUC10141

BM26216, BM26215 or BM26589

BUC11651

BUC11589

BUC11452

BUC11708

BUC10175

BRE10015

DESCRIPTION

Protect your cargo box and glass cabs from the heavy pallets of seed that are dropped into the cargo box

Turn spraying function on/off with switch on display mount

Safely tune and make hands-free calls when working

Drive through thick brush on the edge of fields to meet your planting or harvest equipment

Mount to the brush guard, front, or rear roof

Provides a spot to charge phones, tablets, computers, or small handheld batteries for tools

Provides protection from tall corn stalks/debris in fields

Protect your crops from being driven over or your tires from being punctured by debris; allows wheels to be farther than typical 762 mm / 0.762 m row crops

Allows you to signal to others around you

Mount your phone and tablet so you can focus on your fields

A Gator isn’t just a utility vehicle — it’s a planting partner.

It saves time, protects valuable inputs, keeps operators safe, and adapts to every planting challenge. For customers who want to maximize their yield and efficiency, a Gator with the right attachments is an essential part of the planting toolkit.

Utility Rack

NUMBERDESCRIPTION

LP87442

This modular utility rack allows tools to be kept close at hand and stored securely on the sides or above the cargo bed, without interfering with the bed’s storage area. The utility rack mounts to the cargo bed and allows multiple configurations of its accessories to best suit the task at hand. Accessories include tool baskets, toolboxes, a cooler holder, and more!

Radio Kit and Subwoofer

NUMBERDESCRIPTION

BUC11293

BUC11403

This kit includes radio head unit with AM, FM, and weather bands; four water-resistant speakers (two on dash and two on rear headliner); antenna, and Bluetooth® streaming audio.

The subwoofer speaker can be used on cab vehicles to upgrade the radio kit or a factory-installed radio.

Display and Receiver Integration Kit

NUMBERDESCRIPTION

BUC11814

MY25 vehicles have a BUC11814 display and receiver integration kit, which replaces BUC11510 AMS integration kit. BUC11814 includes a display-switch bracket with a power switch that can be used to turn off the display when not in use. The bracket also includes a location for the ISO implement-control switch that can be used to start and stop a sprayer. BUC11814 display and receiver integration kit can also be used on existing applications of BUC11510.

120-V Outlet

NUMBERDESCRIPTION

BUC11651

The outlet is under the seat and provides up to 300 watts to charge phones, tablets, laptops, and power-tool batteries while on the job.

Rear Bumper and Fender Guards

NUMBERDESCRIPTION

BUC11331

BUC11332

Rear bumper and rear fender guards match the MY25 vehicles larger cargo box. The loops were removed from the bumper for easier hitch access and designed to not interfere with a drawbar. The rear bumper and rear fender guards are part of the premium and ultimate protection packages. BM22767 rear bumper and BUC11320 rear fender guards remain for existing applications.

Stake Pocket Clamp

NUMBERDESCRIPTION

BUC11737

Model year 2025 vehicles are built with four stake pockets on each side of the cargo box that accept the stake pocket clamps. These clamps allow for quick and toolless attachment installation and removal. They combine the strength of the cargo box rails with the stake pockets. In the event of overload, the stake pocket clamp is designed to be the point of failure and prevent damage to the cargo box; do not use stake pockets without stake pocket clamp attachments.

Chain Saw Holder

NUMBERDESCRIPTION

5WS812460

Utilizing a stake pocket clamp, a chain saw can now be stored on and moved between a compact tractor rollover protection system rack/wall and utility vehicle without tools.

Tailgate Lettering

NUMBERDESCRIPTION

BUC11941

MY25 tailgates are embossed with a Gator wordmark, giving an automotive look. Tailgate lettering available to color the wordmark.

Tool Holder

NUMBERDESCRIPTION

BUC11750

Utilizing two stake pocket clamps, the tool holder enables the user to maximize the use of their cargo box by carrying long-handled tools (such as trimmers, shovels, and rakes) on the outside of the box. The tool holders are adjustable, allowing the user to load a wide array of items.

John Deere Cleaners

Fuel Scent Eliminator Wipes

TY27946

• Designed to help remove most gasoline and diesel odors instantly, with remaining scent typically dissipating within minutes

• Safe on skin, plastic, tools, chrome, and more

• Works on oil, smoke, and additional scents

• Contains 25 5.5 x 10.5-in. (14 x 26.7 cm) pre-moistened wipes

All-Purpose Degreaser

TY26633

• General-purpose cleaner and degreaser with a powerful blasting spray; nonchlorinated

• Extension tube for hard-to-reach places

• Use on machinery, power tools, farm equipment, brake parts, cutting tools, and construction equipment

Electronic Contact Cleaner

TY26632

• Helps prevent contact failure or malfunction by dissolving and rinsing away contaminants

• Quick-drying formula cleans and leaves no residue

• Will not harm plastics

• Instantly removes oil, grease, dirt, flux, and other contaminants

Classic Glass Cleaner

TY25684

• Cleans and brightens all glass

• Also works well on enamel surfaces, chrome, tile, and porcelain

• Will not streak

• Heavy-duty foam clings to vertical surfaces

• Leaves an invisible, dirt-resistant barrier

All-Purpose Cleaner

TY26352

• Premium foaming cleaner for the home and shop

• Excellent for cleaning greasy tools, dirty parts, and bench tops

• Safe to use on painted, porcelain, and tile surfaces

• Perfect for cleaning sinks, stoves, refrigerators, tubs, and toilet bowls

Gasket Remover

TY26362

• Formulated for use on automotive, marine, industrial, and agricultural machinery

• Allows easier removal of gasket material

• Leaves no film

• Safe to use on metal surfaces

Engine Cleaner

TY26357

• Removes oil, grease, and grime

• Leaves no filmy residue

• Fast, spray-on, hose-off application

• Ideal for auto and marine engines, lawn mowers, garage floors, driveways, tools, and others

Multi-Purpose Degreaser

TY26595

• Quickly penetrates to the surface, lifting up dirt and soils

• Can be used full strength for tough cleaning or diluted for everyday use

• Easily rinses, leaving a film-free surface

• Easy to use — simply spray on and rinse off

• Ideal for automobiles, lawn care equipment, ag equipment, ATVs, and around the house

Scan to Shop Now

Fleet & Vehicle Care Products

Performance Powder Wash

TY26593

• Heavy-duty for tough cleaning projects

• Non-caustic

• Use in both hot and cold pressure washers

• Rinses easily

• Use to clean up concrete surfaces in and around barns and on driveways

• Ideal for automobiles, lawn care equipment, ag equipment, ATVs, RVs, boats, and motorcycles

Ultra Guard Trim Restore

TY26240

• Reconditions and preserves vinyl, plastics, and rubber

• Easy application — just wipe on and wipe off using a clean towel

• No oily film — surface stays cleaner

• Protects against UV damage

Andy Clean High Performance Soap

PMH4300 - 3.78 Liter (1 gal.)

PMH4302 - 20 Liter (5gal.)

PMH4303 - 208 Liter (55 gal)

• Safe for the full fleet (tractors, combines, trucks, trailers, etc.)

Ultra Guard Windshield Treatment

TY26594

• Improves visibility during rain, sleet, and snowy conditions

• Ideal for automobiles, lawn care equipment, ag equipment, ATVs, RVs, and motorcycles

• Safe for most surfaces

• Helps limit ice, snow, and mud from sticking on vehicle windows, lights, and mirrors

All-Purpose Cloth

TY26535

• Lint-free, non-scratching

• Apply and remove polishes and waxes

• Optical grade so you can clean helmet visors, vehicle/home windows, mirrors, plastic hoods, and fenders, as well as eyewear

• Washable and reusable

• Superior protection against Mother Nature

• All ingredients sourced from US and Canada

New Pressure Washer Foam Cannon

AWJ-0018-0460

• Adjustable flow control

• 67.6 oz. (2.0L) bottle capacity

• Rugged construction

• Quick connect plug

Vehicle Care Products

Ultra Guard All-In-One Interior Protection

TY24834

• Cleans and protects vinyl, leather, and plastic, as well as upholstery and carpet

• Recommended for interiors of vehicles, farm machinery, RVs, and boats in addition to household fabrics, carpet, and stained clothing

• Removes stains and provides stain resistance

• Offers UV protection

• Reduces unwanted odors such as mildew, cigar/cigarette smoke, and pet odors

Quick Shine Detailer

TY24534

• Provides an instant, high-gloss shine

• Emulsion system produces an easier rub out with less streaking — especially at temperatures above 80o F (26.7o C)

• Non-abrasive — excellent for clear-coat finishes

• Removes wax buildup from crevices

• Can be applied in direct sunlight

• Easy to use — spray on/wipe off Not available in Canada.

Carpet Stain Remover

TY16403

• Great for hundreds of stains

• Formulated specifically for tough stains on automotive, home, lawn and garden, RV, boat, construction and agricultural equipment, upholstery, furniture, carpets, and more Not available in Canada.

Wheel and Tire Cleaner

TY27513

• Formulated to safely remove oil, brake dust, and road grime

• Commercial-strength product cleans white-letter and whitewall tires

• Special cleaning agent restores luster to chrome and aluminum wheels

• Safe on wheels including uncoated aluminum

Ultra Guard Tire and Rubber Protection

TY16369

• Rejuvenates old tires and rubber and protects new

• Contains no silicones that inhibit the natural elasticity of rubber

• Recommended for vinyl, rubber, vinyl trim, and synthetic rubber surfaces that are exposed to the environment

Ultra Guard Leather Care

TY26218

• Gentle cleaning

• Protection against UV damage

• Restores suppleness and luster

• Conditions leather to help reduce age creases

• No oily film — surface stays cleaner

• Pleasant almond fragrance

• Excellent for furniture, car seats, white tennis shoes, boots, saddles, coats, and any other leather

Scan to Shop Now

JOHN DEERE PAINT

You already know your equipment is a large investment. So get the most out of it today—and for seasons to come—by protecting it with a quality paint finish.

Our genuine John Deere paint gives you the long-lasting, high-gloss finish that better shields your equipment from UV fading, rust, and corrosion. Or whatever else Mother Nature may throw at you.

HIGH PERFORMANCE ENAMEL PAINT

John Deere High Performance enamel paint is well suited for both interior and exterior applications. Sets up in minutes, is tack-free in a few hours, and can be handled within a day. Fully cures to a hard, glossy finish that resists fading, cracking, and chipping within 3-4 weeks.

LOW-VOC ENAMEL PAINT

John Deere offers a solvent-based paint that meets VOC limits in Canada, California, and other required locations. Performance is very similar to the standard VOC versions.

AGRICULTURE & TURF

Classic Green

TY25644

Ag & Turf Green

TY26019

Ag & Turf Yellow

TY26020 12 mL (0.4 FL OZ) Pen

TY25641 340 g (12 OZ) Aerosol

TY25645 946 mL (1 QT)

TY25648 3.78 L (1 GAL)

Gloss

TY26021 12 mL (0.4 FL OZ) Pen

TY25638 340 g (12 OZ) Aerosol

TY25633 946 mL (1 QT)

TY25632 3.78 L (1 GAL)

LOW VOC

Blitz Black

TY25631

Muffler Black

TY25657 340 g (12 OZ) Aerosol

Black High Gloss

TY25609 340 g (12 OZ) Aerosol

TY25668 946 mL (1 QT)

Soft Black Coating

TY27332 340 g (12 OZ) Aerosol

TY25622 946 mL (1 QT)

Ag & Turf Green

TY25665 946 mL (1 QT)

TY25664 3.78 L (1 GAL)

Ag & Turf Yellow

TY25667 946 mL (1 QT)

TY25823 3.78 L (1 GAL)

RENEW Hardener

SWV70V411 473 mL(1 Pint)

Paint Thinner

TY25652 946 mL (1 QT)

TY25650 3.78 L (1 GAL)

Premium Series Generators

The PR Series features 3600-, 6000-, 8000-, and NEW 10000 generator. All available with a John Deere-branded OHV engine with low-oil shutdown. All are CSA listed and come standard with engine on/off switch, fuel shut-off valve, and a 1-year limited warranty.

All PR Series models feature

■ Total harmonic distortion (THD) less than 6%

■ Copper and aluminum windings

■ Easy-access and protected control panel with magnetic circuit breakers and GFCI-protected receptacles

■ Large low-tone mufflers

■ DC charging/battery charging

■ Heavy-duty industrial air cleaners for extreme conditions

■ 3600 RPM rated engine speed 3600-watt model features

■ 3000-watt continuous

■ 120V alternator

■ Recoil start engine

■ 4 gal. (15.14L)

■ 8.5-hour run time @ full load 6000-watt models feature

■ 5500-watt continuous

■ 120V/240V alternator

■ 6.6 gal. (24.98 L)

PR-G3600M

PR-G6000M

■ Recoil start engine

■ Automatic idle control

■ 6.5-hour run time @ full load

■ Wheel kit with tires and rubber gripped handles 8000-watt models feature

■ 7000-watt continuous

■ 120V/240V alternator

■ 6.6 gal. (24.98 L)

■ Electric start engine (battery included)

■ Automatic idle control

■ 6.0-hour run time @ full load

■ Wheel kit with tires and rubber gripped handles 10,000-watt models feature

■ 9000-watt continuous

■ 120V/240V alternator

■ 7.2 gal. (27.25 L)

PR-G8000M-E

■ Electric start engine (battery included)

■ Automatic idle control

■ 5.5-hour run time @ full load

■ Wheel kit with tires and rubber gripped handles

PR-G3600M 3,600 max watt portable generator; 212cc OHV engine; 4 gal. (15.14L); 8.5-hour run time @ full load

PR-G6000M 6,000 max watt portable generator; 389cc OHV engine; 6.6 gal. (24.98 L); 6.5-hour run time @ full load; idle control and wheel kit standard

PR-G8000M-E 8,000 max watt portable generator; 420cc OHV electric start engine; 6.6 gal. (24.98 L); 6.0-hour run time @ full load; idle control and wheel kit standard

PR-G10000M-E 10,000-watt max portable generator, 500cc OHV electric start engine; 7.2 gal. (27.25 L); 5.5-hour run time @ full load; idle control and wheel kit standard

Equipment Covers

• Heavy-duty, all-weather cover

• Made from 600 denier vinyl-backed polyester

• To keep your generator clean, dry, and looking like new

• Velcro® straps to secure cover

• Water-resistant

AJ-1000 Fits Model PR-G3600M AJ-1001 Fits Models PR-G6000M, PR-G8000M-E, PR-G10000M-E, AC-G6010H, AC-G6010H-E, AC-G6000KD, AC-G7510H, and AC-G7510H-E

PR-G10000M-E

Inverter Generators

2500-, 4000-, and 7300-watt inverter generators are now available. Inverter generators provide clean and quiet power for recreational activities, home, and/or business. They are equipped with carbon monoxide detection and auto shutdown. Inverter generators have the added benefit of being much quieter than standard portable generators. With a John Deere inverter generator, you can be sure you’re getting the power you need without worrying about excessive noise disturbing your neighbors, guests, or wildlife.

Compresserators™

■ Combination air compressor/generator

■ Ideal for contractors, service vehicles, and shops

■ Brushless 120V alternator

■ Power available from 1,600 to 4,000 watts

■ Options include electric start, stationary truck mounting kit, and 230V outlet

■ Gasoline and diesel engine options available

■ Models with “AC2” prefix include two-stage compressor pump

NUMBERDESCRIPTION

AC1-CG16H8 gal. (30.28 L), 196-cc Honda GX, 10.9 cfm @ 125 psi, 1,600 watts output, portable

AC2-CG35H8 gal. (30.28 L), 389-cc Honda GX, 15.7 cfm @ 175 psi, 3,500 watts output, stationary

AC2-CG35H-P8 gal. (30.28 L), 389-cc Honda GX, 15.7 cfm @ 175 psi, 3,500 watts output, portable

AC2-CG35H-3030 gal. (113.56 L), 389-cc Honda GX, 15.7 cfm @ 175 psi, 3,500 watts output, stationary

AC2-CG40M-3040 gal. (151.42 L), 420-cc John Deere branded engine, 15.7 cfm @ 175 psi, 7,000 watts output, stationary

AC2-CG35KD30 gal. (113.56 L), 9.1HP Kohler Diesel, 15.7 cfm @ 175 psi, 3,000 watts output, stationary

AC2-CG40M8 gal. (30.28 L), 420-cc John Deere Branded OHV, 15.7 cfm @ 175 psi, 3500 watts output, stationary

AC2-CG40M-P8 gal. (30.28 L), 420-cc John Deere Branded OHV, 15.7 cfm @ 175 psi, 3500 watts output, portable

Welderators

Three machines in one! Powered by an industrial-duty John Deere branded engine, the Welderator combines a 170 amp arc (stick) welder, a two-stage air compressor, and a 5,000 max watt generator in a convenient, compact platform.

Other features include:

■ Amperage selector switch

■ Cast iron compressor pump

■ Receptacles: (2) 120V, 20A GFCI duplex and 120V/240V 20A twist lock

NUMBERDESCRIPTION

AC2-CW5170M420cc John Deere branded engine, 4,500/3,000 rated watts, 15.7 cfm (7.41 L/s), 170A arc welder, 30 gal. (113.56 L) capacity air tank

AC2-CW5170M-B420cc John Deere branded engine, 4,500/3,000 rated watts, 15.7 cfm (7.41 L/s), 170A arc welder, base mount

AC2-CW5220H688cc Honda V-twin engine, 5,000/4,500 rated watts, 29.0 cfm (13.69 L/s), 220A arc welder, 20 gal. (75.71 L) capacity air tank

John Deere Jobsite Boxes

Jobsite boxes are perfect for storing your high dollar items/tools on your worksites securely. You can use them as a perfect spot for after hour parts pickup as they will keep items out of sight and out of elements. You can also use them for your parts on-site storage keeping your customers parts organized and ready to go. All boxes are constructed of heavy-duty, 16-guage steel covered with a durable powder coat finish. They also feature tamper-proof padlock protectors, recessed swing-out handles, changeable heavy-duty skid feet, and full-length concealed hinges.

Features:

• Heavy-duty steel construction – long lasting, rugged durability

• Powder coated – for durable scratch resistance

• Recessed, swinging handles – keeps the handle out of the way and protected

• Full-length concealed hinges – added strength for the lid and tamper proof

• Two heavy-duty gas shocks – lifts the lid with ease and keeps it in place

• Tamper-proof designed padlock protectors – keeps the items inside secured (Master Lock #5 recommended)

• Weather stripping – water- and dirt-resistant

• Changeable skid feet – can be mounted facing front or to the side to allow for side entry with a forklift

John Deere Parts On-Site™ Cabinets

AC-3618JB_061324_Open

AC-3618JB_061324_Closed

The value to these comes from keeping them full and the connection with the dealer. Can we update verbiage to align with what is being messaged on deere.com? : With PARTS OnSite™ you have the parts you want where you need them…in your very own shop, not miles away at the dealer. That means you spend less time on the highway and more time in the field – a proven formula for increasing production at your operation.

This convenient, cost-efficient program is available through John Deere dealers* who partner with you to develop a parts inventory strategy that makes the most sense for your machines.

We could link to this landing page to learn more: https://www.deere.com/en/parts-and-service/ parts/parts-onsite/

With PARTS OnSite you have the parts you want where you need them…in your very own shop, not miles away at the dealer. That means you spend less time on the highway and more time in the field – a proven formula for increasing production at your operation.

This convenient, cost-efficient program is available through John Deere dealers who partner with you to develop a parts inventory strategy that makes the most sense for your machines.

Cabinets feature:

• Heavy-duty steel construction – for long-lasting, rugged durability

• Powder coated – for durable scratch resistance

• Recessed, locking handle to reduce the chance of damage to the handle

• Four, 150 lbs. (68.04 kg) rated shelves offers more parts storage for multiple pieces of equipment

• Two grommets in the back to run chargers and other electronics in the cabinet while keeping everything locked safely inside.

HOME & WORKSHOP PRODUCTS

Pressure Washers

HR-Series (Homeowner/Residential)

• 1-year limited warranty with a 2-year limited warranty on the 212cc John Deere branded OHV engine

PR-Series (Premium Series)

• 2-year warranty

AC-Series (Hot-Water Series)

• 2-year limited warranty with a 3-year limited warranty on the coil and a 7-year limited warranty on the pump

Homeowner/Residential Series:

HR-1400E 1.5 HP (1.12 kW) Electric Motor, 120V/13.5A, 1,400 psi (96.53 bar / 9.65 MPa) @ 1.5 gpm (5.68 L/min)

HR-2620GMV 170 cc (0.170 L) Gas, OHV, Vertical Shaft, 2,600 psi (179.27 bar / 17.93 MPa) @ 2.3 gpm (8.71 L/min)

HR-2800GM 212 cc (0.212 L) Gas, OHV, 2,800 psi (193.06 bar / 19.31 MPa) @ 2.7 gpm (10.22 L/min) Premium Series:

PR-3200GH 196 cc (0.196 L) Gas, Honda GX, 3,200 psi (220.64 bar / 22.06 MPa) @ 2.7 gpm (10.22 L/min)

PR-3200GM 212 cc (0.212 L) Gas, OHV, 3,200 psi (220.64 bar / 22.06 MPa) @ 2.7 gpm (10.22 L/min)

PR-3200GHA 196 cc (0.196 L) Honda GX, 3,200 psi (220.64 bar / 22.06 MPa) @ 2.7 gpm (10.22 L/min), Aluminum Frame

PR-3200GMA 212 cc (0.212 L) OHV, 3,200 psi (220.64 bar / 22.06 MPa) @ 2.7 gpm (10.22 L/min), Aluminum Frame PR-3800GH

(0.270 L) Gas, Honda GX, 3,800 psi (262.01

/

MPa) @ 3.2

(12.11 L/min)

300 cc (0.300 L) Gas, OHV, 3,800 psi (262.01 bar / 26.20 MPa) @ 3.2 gpm (12.11 L/min)

PR-4200GH 389 cc (0.389 L) Gas, Honda GX, 4,200 psi (289.59 bar / 28.96 MPa) @ 4 gpm (15.14 L/min)

PR-4200GM 420 cc (0.420 L) Gas, OHV, 4,200 psi (289.59 bar / 28.96 MPa) @ 4 gpm (15.14 L/min)

PR-4200GHA 389 cc (0.389 L) Honda GX, 4,200 psi (289.59 bar / 28.96 MPa) @ 4 gpm (15.14 L/min), Aluminum Frame

PR-4200GMA 420 cc (0.420 L) OHV, 4,200 psi (289.59 bar / 28.96 MPa) @ 4 gpm (15.14 L/min), Aluminum Frame

Agricultural/Commercial Hot-Water Series:

AC-1500EH 2.0 HP (1.49 kW) Electric Motor, 120V/19.0A, 1,500 psi (103.43 bar / 10.34 MPa) @ 2 gpm (7.57 L/min)

AC-2000EH 4.0 HP (2.98 kW) Electric Motor, 230V/18.0A, 2,000 psi (137.90 bar / 13.79 MPa) @ 2.8 gpm (10.60 L/min)

AC-3000EH 8.0 HP (5.97 kW) Electric Motor, 230V/36.0A, 3,000 psi (206.85 bar / 20.69 MPa) @ 3.5 gpm (13.25 L/min)

AC-2500GHH 196 cc (0.196 L) Gas, Honda GX, 2,500 psi (172.38 bar / 17.24 MPa) @ 2.6 gpm (9.84 L/min)

AC-2500GMH 212 cc (0.212 L) Gas, John Deere branded OHV, 2,500 psi (172.38 bar / 17.24 MPa) @ 2.6 gpm (9.84 L/min)

AC-3500GHH 389 cc (0.389 L) Gas, Honda GX, 3,500 psi (241.33 bar / 24.13 MPa) @ 3.3 gpm (12.49 L/min)

AC-3500GMH 420 cc (0.420 L) Gas, John Deere branded OHV, 3,500 psi (241.33 bar / 24.13 MPa) @ 3.3 gpm (12.49 L/min)

Pressure Washer Accessory – Foamer

Combines high-pressure water mixed with detergent and air to produce longlasting, thick clinging foam. Can be used on farm equipment, windows, roofs, siding, and more.

NUMBER DESCRIPTION

AWJ-0018-0459 Pressure washer accessory - 37oz (1.05kg)

AWJ-0018-0460Pressure washer foamer - 67.6oz (1.92kg)

AWJ-0018-0459

Ratchet and Socket Sets

John Deere offers a wide variety of hand tools and workshop accessories to meet the needs of the do-it-yourselfer and professional contractor. The combination of a great price and professional quality makes John Deere hand tools a truly outstanding value.

• Limited lifetime warranty

• All socket sets meet or exceed ANSI standards and specifications.

NUMBERDESCRIPTION

TY25835 21-piece SAE 1/4-in. Socket Set with Case; 3/16-in.–1/2-in.

TY25836 21-piece Metric 1/4-in. Socket Set with Case; 5mm–13mm

TY25837 20-piece SAE 3/8-in. Socket Set with Case; 3/8-in.–13/16-in.

TY25838 22-piece Metric 3/8-in. Socket Set with Case; 10mm–21mm

TY25839 SAE 1/2-in. Drive, 6-pt & 12-pt Socket Set, 25-pc; 7/16-in.–1 1/4-in. regular; 1/2-in.– 15/16-in. deep

TY25840 Metric 1/2-in. Drive, 12-pt Socket Set, 25-pc; 12mm–32mm Regular; 15mm–22mm Deep

TY19926 SAE 3/4-in. Drive, 12-pt Socket Set, 15-pc; 7/8-in.–1 5/8-in.

TY19986 9-piece SAE 3/4-in. Socket Set with Case; 1 11/16-in.–2 3/8-in.

TY19985 11-piece Metric 3/4-in. Socket Set with Case; 22mm–41mm

Combination Wrenches

Fully polished or satin-finish nickel-chrome plated to resist rust and corrosion.

• A unique radius-corner design that allows contact with the flats, rather than with the points — providing additional torque strength and minimizing fastener rounding

• Stronger — providing less chance of slipping — ideal for frozen or rusted fasteners

• Hot-drop forged from chrome-vanadium alloy steel — ensuring maximum strength and toughness

• Lifetime warranty

NUMBERDESCRIPTION

TY27698 3-Piece Metric Combination Wrench Set, Full Polish

TY27696 4-Piece SAE Combination Wrench Set, Full Polish

TY27695 6-Piece SAE Combination Wrench Set, 1 5/16-in.–1 11/16-in., Full Polish

TY27697 6-Piece Metric Combination Wrench Set, Full Polish

TY19922 10-Piece Metric Combination Wrench Set, Satin Finish

TY19923 11-Piece Metric Combo Wrench Set, Satin Finish

TY19918 14-Piece SAE Combination Wrench Set, Satin Finish

TY19976 14-Piece SAE Combination Wrench Set, Full Polish

TY19977 20-Piece Metric Combination Wrench Set, Full Polish

TY25249 7-Piece SAE Combination Ratcheting Wrench Set, 3/8-in.– 3/4-in.

TY25250 7-Piece Metric Combination Ratcheting Wrench Set, 10mm–17mm

Bench Vise

Get a grip. Now go to work. If you can’t grip it, it can be mighty hard to work it. That’s why a John Deere vise belongs on your work bench.

NUMBERDESCRIPTION

BV5-J 5 in (12.7 cm) Heavy-Duty Bench Vise, 10-year Warranty

BV8-J 8 in (20.32 cm) Heavy-Duty Bench Vise, 10-year Warranty

Putting more control in your hands. From running diagnostics to enabling reprogramming,* Operations Center PRO Service delivers powerful capabilities through John Deere Operations Center.™ You have more control to manage your equipment your way, when you want. Learn more at JohnDeere.com/PROService

*Certain engine related tests and calibrations are not currently available. Reprogramming functionality may not be available for non-John Deere controllers; see JohnDeere.com/PROService for further details.
