Pmflex Catalogue 2026

We conduct your energy

≈FLEXWIREPRE-WIRED

Pre-wired conduits for faster and smarter installations.

30

≈WIRECABLE IN A BOX

For installers who want cables neatly organized.

6

COMPANY PRESENTATION

Pmflex is committed to delivering solutions that simplify installers’ daily work, enhance electrical system safety and respect the environment.

8

LOCATIONS

Production facilities and main sales offices located in Northern Italy and Sweden.

10

NUMBERS

Pmflex numbers.

≈FLEXPLIABLE CONDUITS

Freedom of choice without compromising on speed.

RIGID PIPES

We have several types of rigid installation pipes with different advantages to suit all types of installations.

14

SAFETY & ENVIRONMENT

Sustainability guides every stage of our value chain, from the selection of raw materials and product development to manufacturing, use and recycling.

16

UV-RESISTANT SOLUTIONS

18

≈SHIELD 2.0

The Pmflex UV-resistant range is specifically designed for outdoor installations and photovoltaic systems directly exposed to sunlight. Next generation of cable protection.

20

PACKAGING

We strive to offer solutions that are safe, user-friendly, and cost- and time-efficient.

22

SWEDISH PRODUCTION

Local production for Northern Europe.

50

≈UVUV-RESISTANT RANGE

56

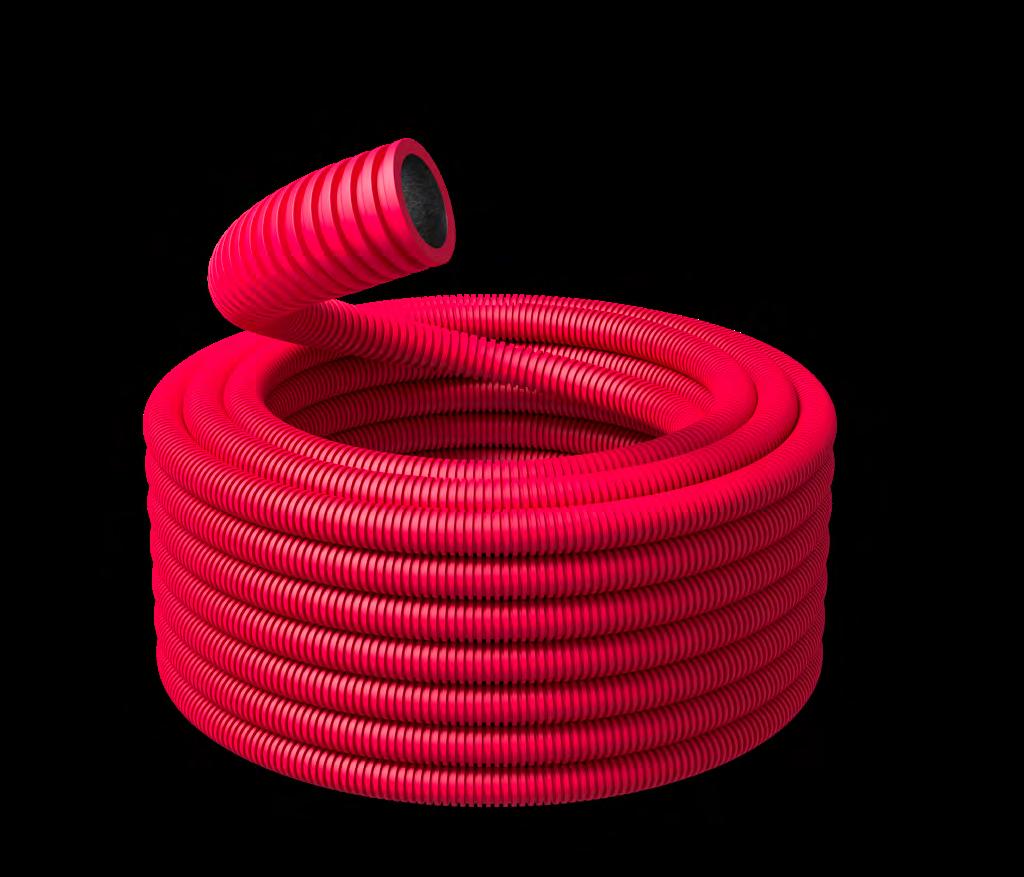

≈GROUNDUNDERGROUND LINE

UV-resistant conduits for outdoor and photovoltaic installations.

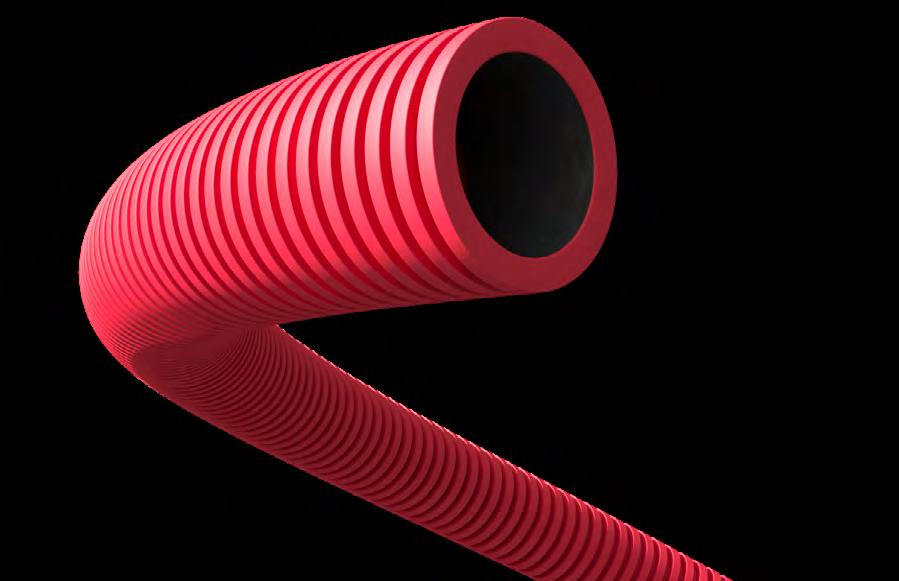

Conduits for underground electrical installations.

62

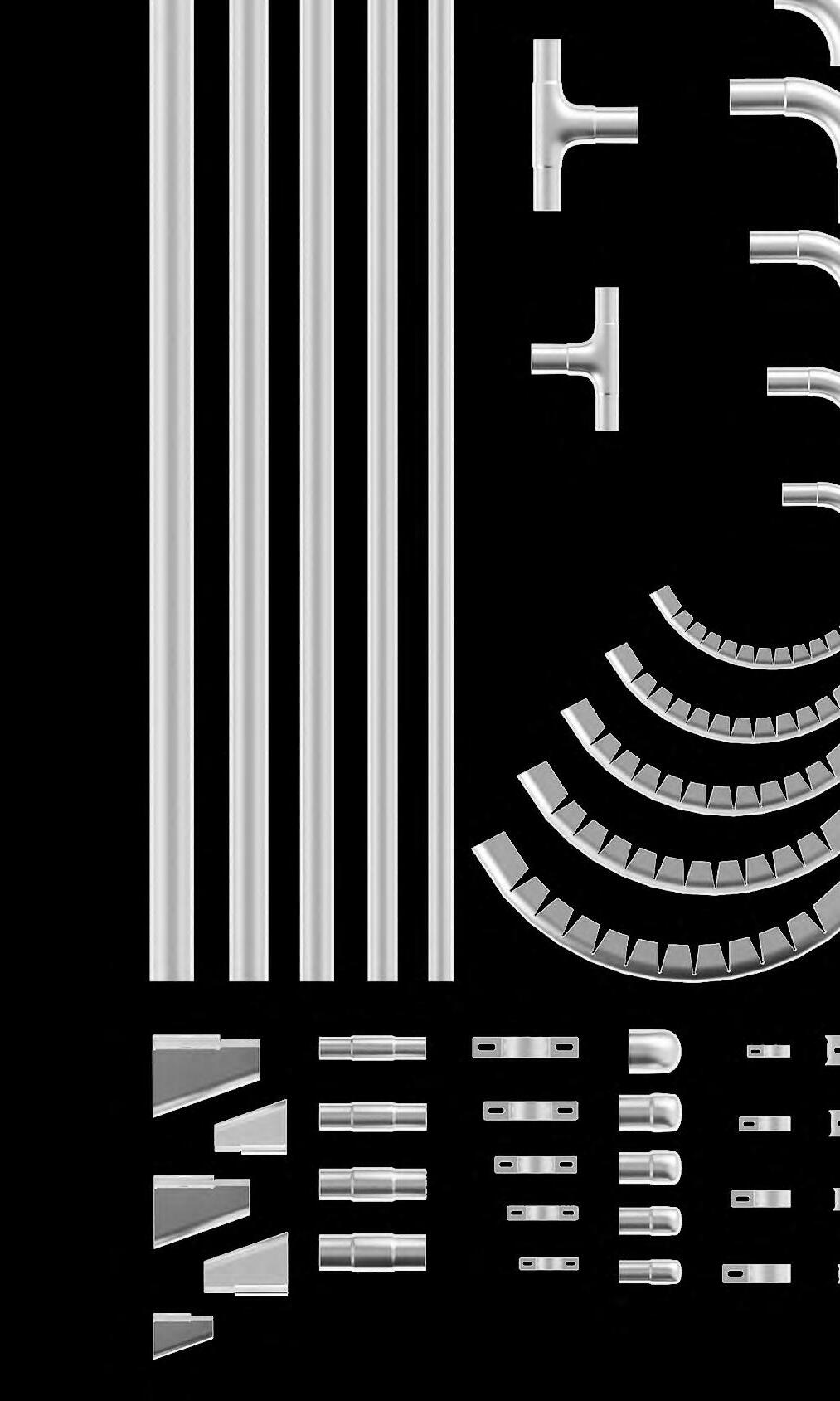

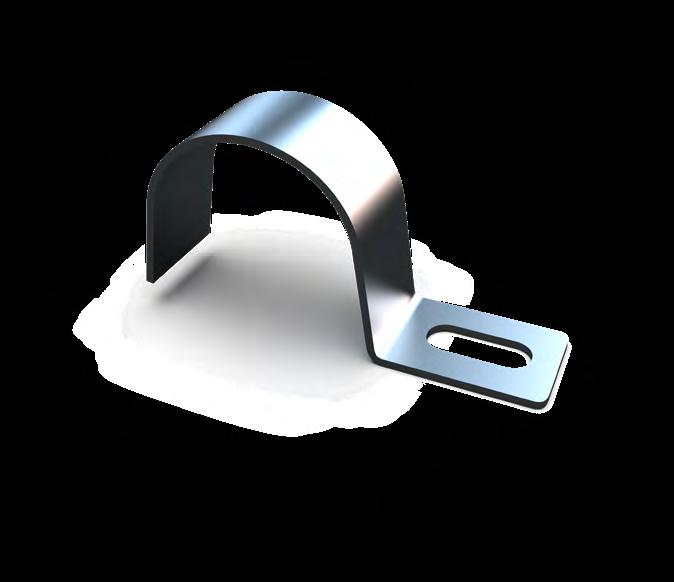

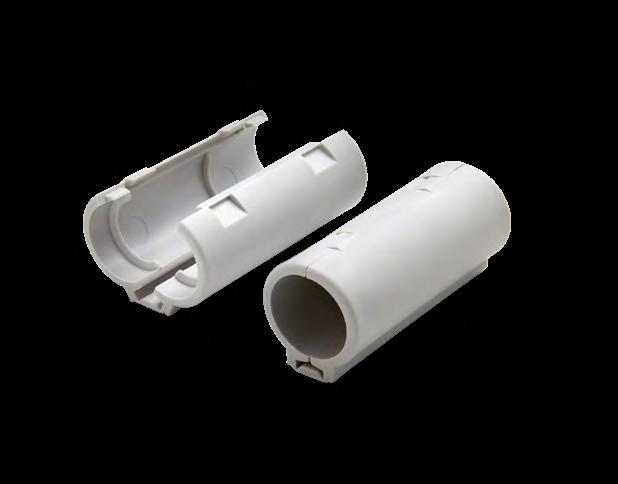

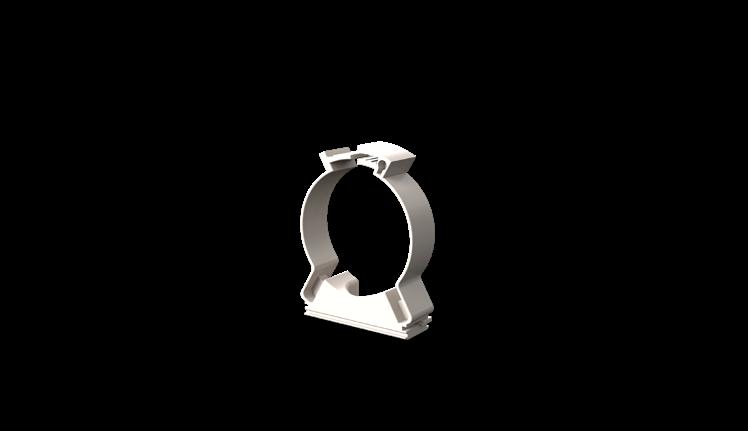

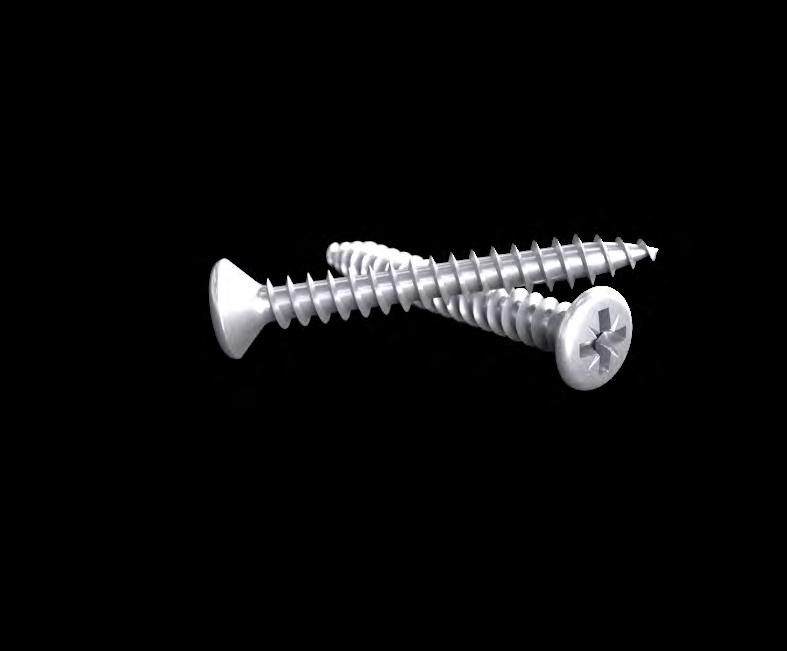

≈INSTALLACCESSORIES

Accessories for complete and efficient installations.

86

≈SHIELDCABLE PROTECTION

New and improved: xShield 2.0 - next generation.

Company presentation

PMFLEX IS A EUROPEAN MANUFACTURING GROUP WITH PRODUCTION FACILITIES AND MAIN SALES OFFICES LOCATED IN NORTHERN ITALY AND SWEDEN.

Fully specialized in the design and production of insulating conduit systems for electrical installations of all types and sizes, Pmflex is committed to delivering solutions that simplify installers’ daily work, enhance electrical system safety and respect the environment.

Through continuous innovation and forward-thinking, Pmflex creates added value for installers, partners, society and future generations, focusing on the development of smart and sustainable solutions.

Pmflex Norge AS

Sales company

Oslo, Norway

Pmflex Group

Northern Europe AB

Sales company and new production plant

Hisings Backa (Göteborg), Sweden

Pmflex Group

Headquarter and 2 production plants

Almenno San Bartolomeo (Bergamo), Italy

Locations

Since 1962, Pmflex has consistently delivered high-quality products designed to streamline and improve the efficiency of electricians’ work. Its comprehensive product range is engineered to ensure maximum ease of installation and outstanding flexibility in both design and performance.

Since 2023, Pmflex has been part of the Hager Group, further strengthening its industrial expertise and international presence.

In 2024, the company expanded its manufacturing footprint with the opening of a new production plant in Gothenburg, reinforcing its commitment to innovation sustainability and long-term growth.

1st ~

Leading manufacturer of electrical conduits in Europe

1st

Manufacturer of pre-wired conduits

60

Years of experience in conduit production (since 1962)

400.000

Kilometers of total conduits production per year

130.000

Kilometers of pre-wired conduits produced per year

Products with environmental performance certificates

Product quality marks

2.000 year 1994

Company certification ISO 9001:2015

Environment

At Pmflex, we are committed to developing advanced products and solutions that combine cutting-edge technology with the highest standards of safety, ease of use and environmental responsibility.

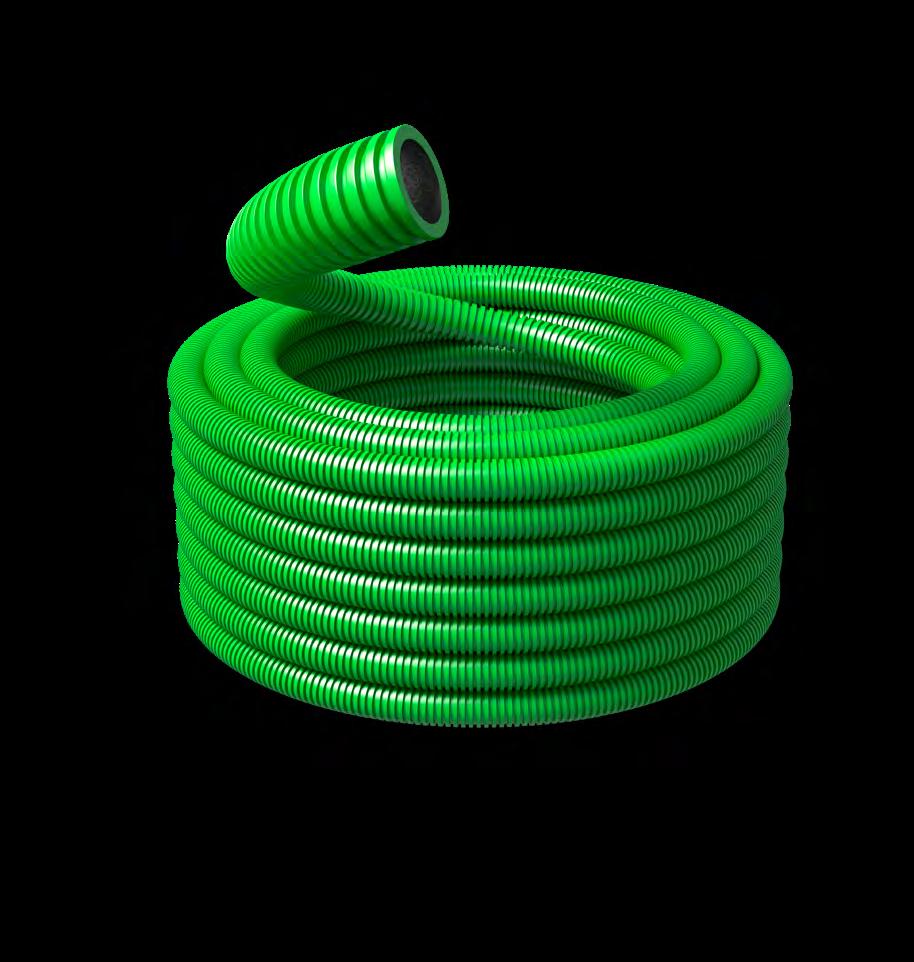

RECYCLED CONDUIT

The ecological pliable conduit at the forefront of eco-sustainability.

It is made with a percentage of postconsumer recycled material (PCR), contributing to a substantial reduction in CO 2 emissions compared to the use of fossil-based PP.

Both the conduits and the packaging film are fully recyclable.

Sustainability guides every stage of our value chain, from the selection of raw materials and product development to manufacturing, use and recycling.

Pmflex Halogen Free products provide the highest level of safety in case of fire. Fully compliant with EN 50642 - IEC 63355, their halogen content is well below the defined threshold limits, ensuring maximum protection of people and assets.

These products also meet the requirements of IEC 61034-2 (Low Smoke), guaranteeing smoke emission levels that allow visibility above 60% to facilitate the identification of emergency exits.

Thanks to these characteristics, Pmflex Halogen Free solutions are recommended for electrical installations in buildings intended to accommodate large numbers of people, such as schools, hospitals, offices, shopping malls and airports.

Pmflex products are designed to be recyclable, REACH compliant and free from substances that may be restricted in the future. Through continuous innovation and a strong environmental focus, Pmflex creates long-term value for installers, partners, customers and the wider community, contributing responsibly to a safer and more sustainable future.

Our next step in our journey is introducing a new generation of pliable conduits made from post- consumer recycled (PCR) materials. PCR stands for post- consumer recycled plastic, a material made from recycled products that have already been used by consumers. This gives new life to plastics such as food containers, water bottles, and packaging. It contributes to a circular economy that reduces emissions, lowers plastic production, and preserves the planet’s resources, without compromising on quality or safety. Recycled plastic (PCR) offers the same quality and performance as virgin plastic, providing a more sustainable alternative for all types of projects, from residential buildings to commercial properties.

UV-resistant solutions

UV-RESISTANT

The Pmflex UV-resistant range is specifically designed for outdoor installations and photovoltaic systems directly exposed to sunlight. Engineered to withstand the most demanding environmental conditions, such as intense UV radiation, rain and wind, UV-resistant products ensure long-lasting performance and maximum reliability. They offer a certified service life of up to 10 years and an operating temperature range from -25 °C to +105 °C.

The products are tested in climate chambers with UV lamps, in accordance with CEI EN 50289 and CEI EN 50618 (formerly CEI 20-91). These tests simulate real outdoor conditions through intense UV exposure combined with repeated rain and drying cycles.

The range includes pliable empty conduits, rigid pipes, pre-wired corrugated conduits with H1Z2Z2-K solar cables and couplings with clip. All Pmflex UV-resistant conduits are Halogen Free in compliance with EN 50642 - IEC 63355, ensuring safety, sustainability and high performance in photovoltaic and outdoor applications.

UV-RESISTANT

We have developed a full uv-resistant range that includes pliable empty conduits, rigid pipes, pre-wired conduits and couplings with clip.

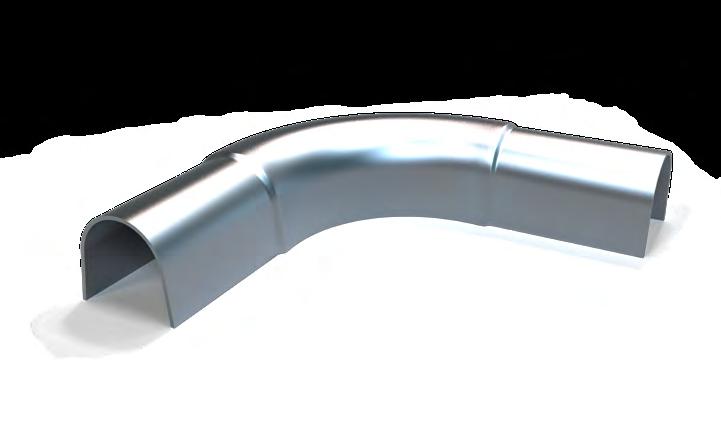

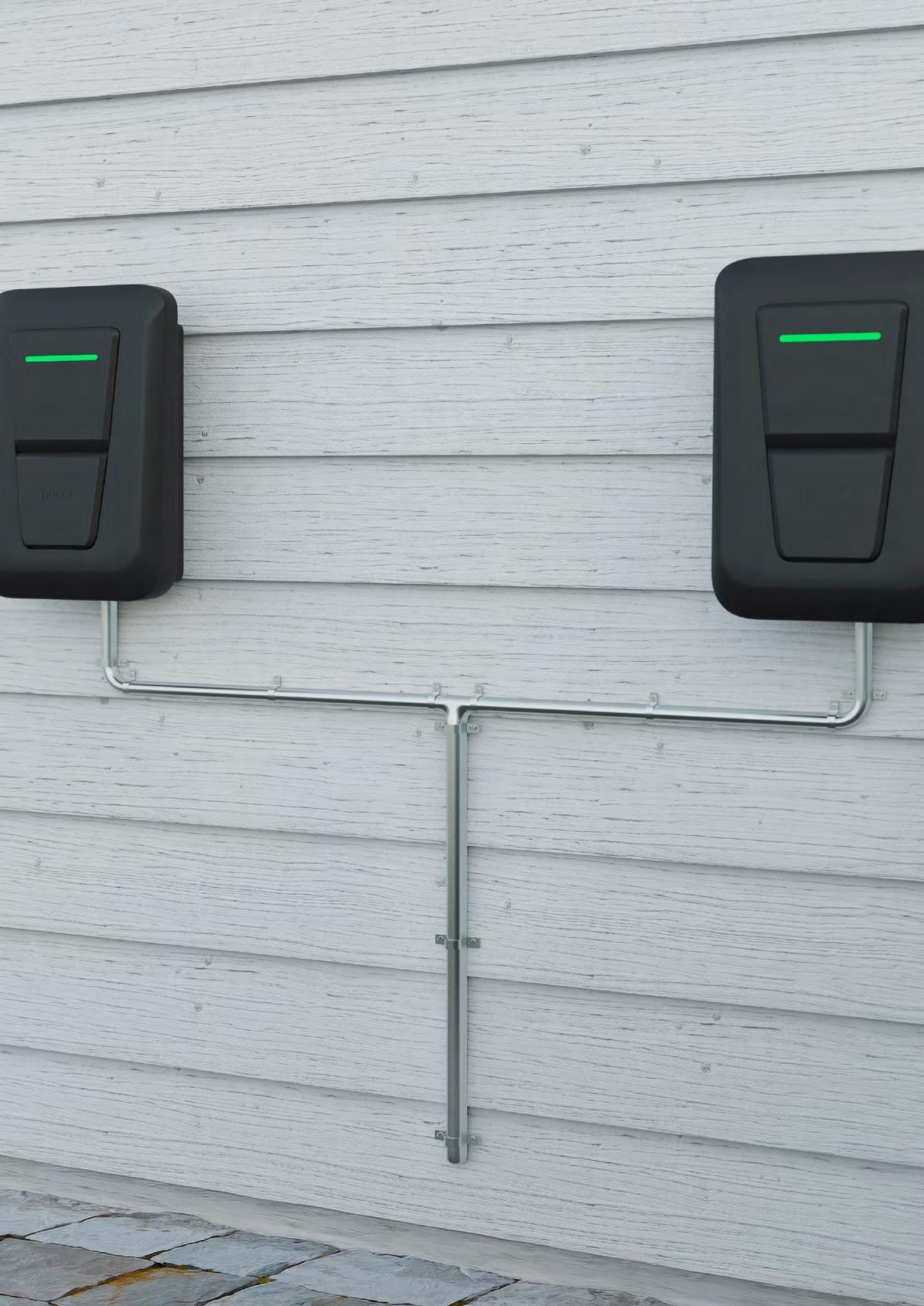

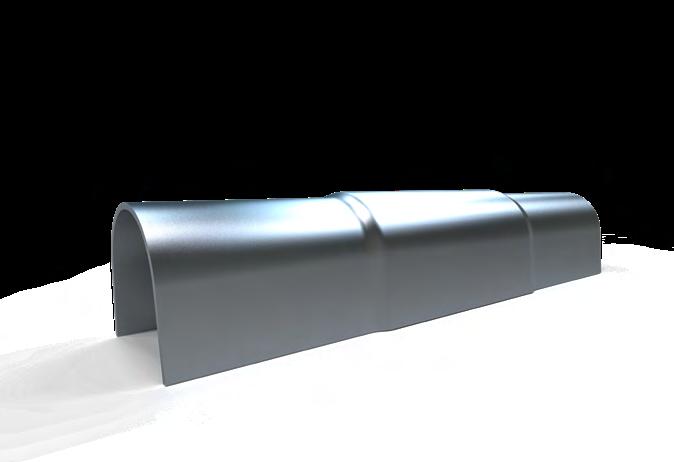

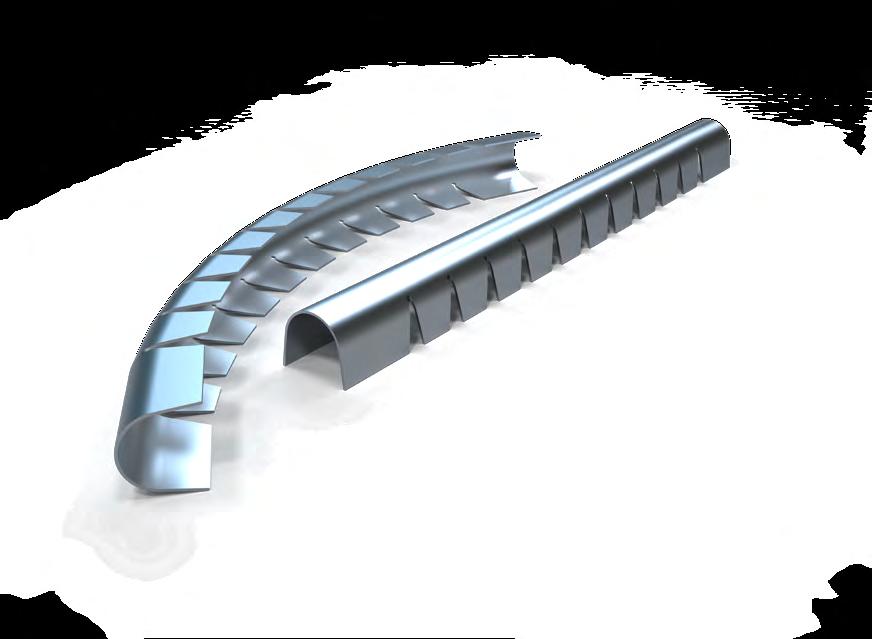

New & improved: xShield 2.0next generation of cable protection

Discover the next generation of cable protection systems. Our new and improved xShield 2.0 offers a complete range of cable protection designed for fast, easy and visually clean installations with seamless transitions. The next generation offers all strengths of the original xShield, now enhanced with even more smart solutions for a faster, smoother, and cleaner installation. Developed to simplify the installer’s everyday work. Smart new features such as recesses on the accessories, quick clamps, connectors, and T-crosses in sizes 16-22 and 22-28 mm. The range also includes feet, bends, clamps, ends, flexible bends, screws, and straight cable protections in lengths of 1200, 1700 and 2000 mm which together create a neat and consistent installation with seamless transitions.

BUILT FOR THE TOUGHEST ENVIRONMENTS

Our cable protection can withstand extreme conditions, adapted for all climate conditions. The quick clamp is made of spring steel while all other components are surface-treated with Magnelis® and approved according to corrosivity class C5 - ideal for Nordic climates and marine environments. Magnelis® also provides a unique ability to self-heal in drilled holes, weld seams and cut surfaces.

Save time with Pmflex packaging solutions

We strive to offer solutions that are safe, user-friendly, and cost- and time-efficient. Our mission is to simplify installers’ daily work and improve installation efficiency. For this reason, we continuously develop innovative solutions designed to make installation faster and easier.

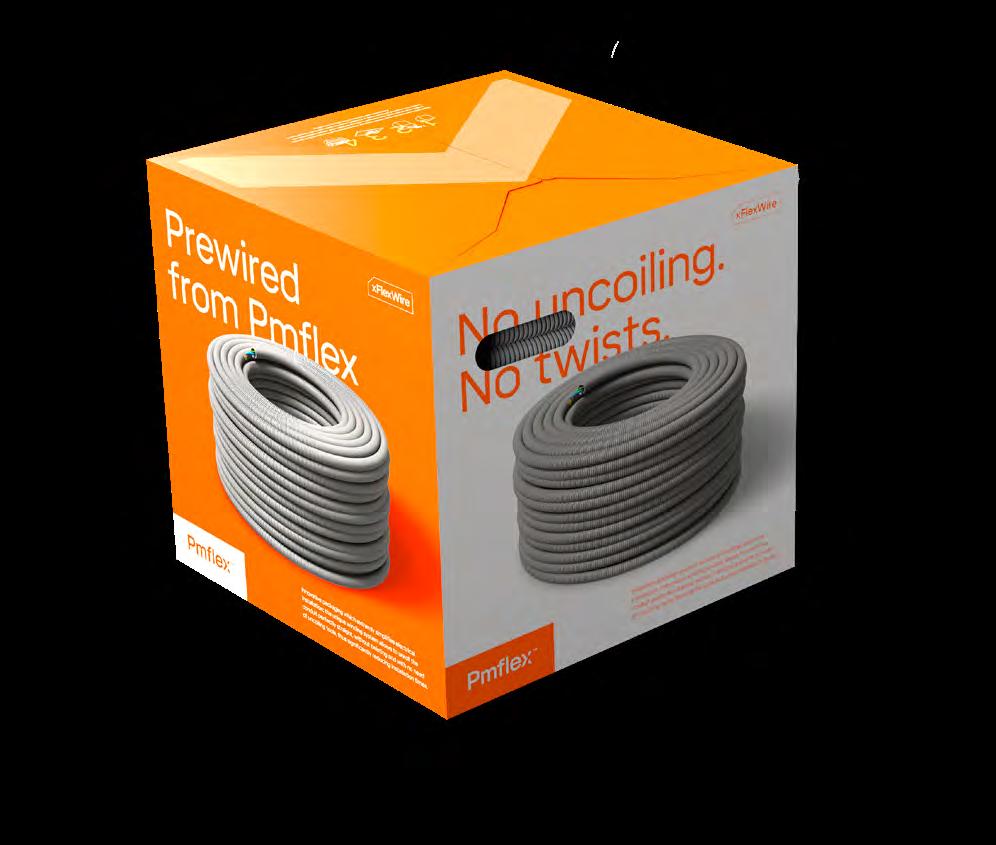

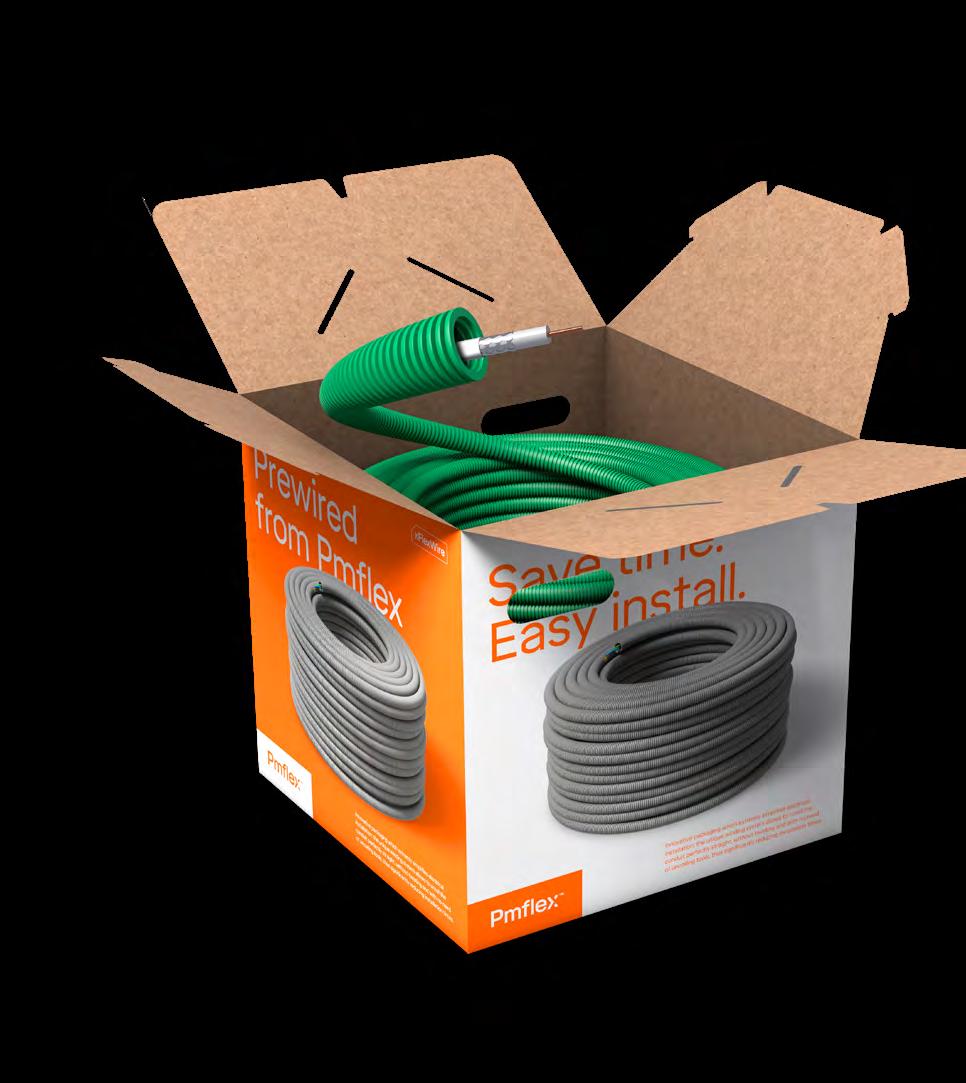

Our box is a smart packaging solution that simplifies and significantly streamlines electrical installations with pre-wired pliable conduits. The conduit unrolls straight without twists or knots, ensuring easy handling. The box is moisture-resistant, flexible and equipped with ergonomic handles for easy transport.

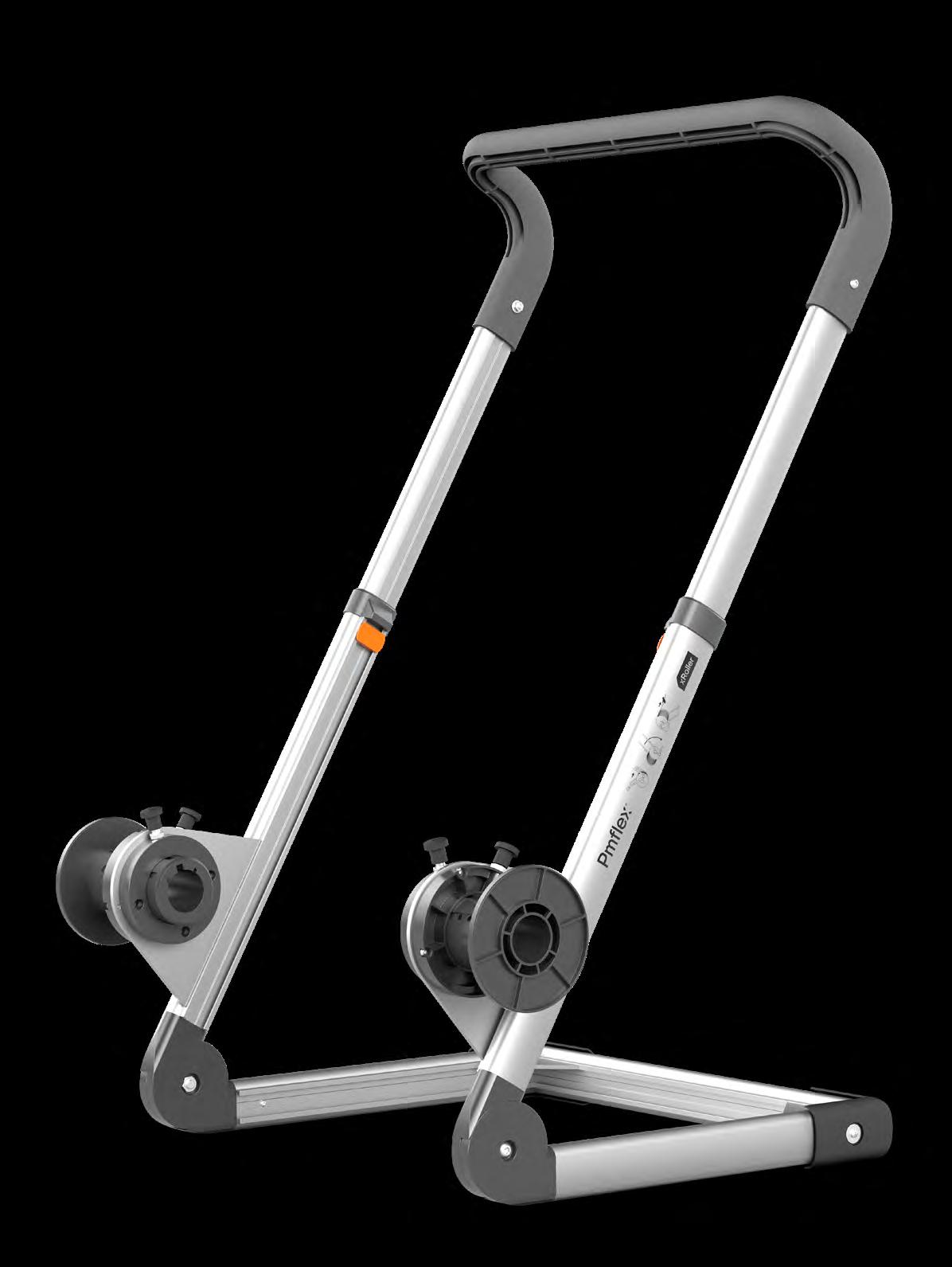

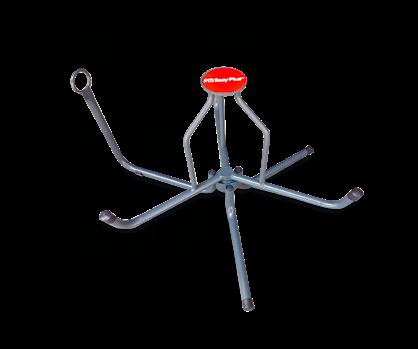

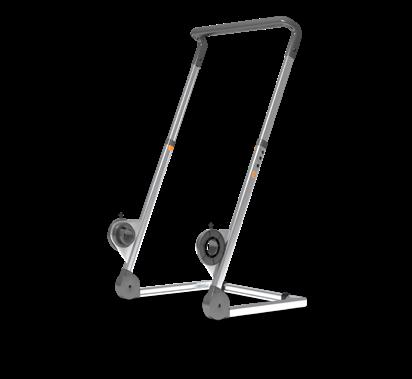

The xRoller allows installers to work with pliable conduits in lengths of up to 300 meters. It is easy to maneuver as it rolls directly on the bobbin, eliminating the need for additional wheels. Longer conduit lengths improve installation efficiency and reduce handling effort. The conduit unrolls smoothly, the bobbin is easy to replace and no lifting is required. The foldable design also simplifies transport. Compared to traditional coils, conduit waste is significantly reduced.

Our popular coils are easy to carry. Several articles are also available in shorter lengths than 100 meters, which are useful depending on the type of installation. This packaging solution has a low impact on the environment because of the light packing material.

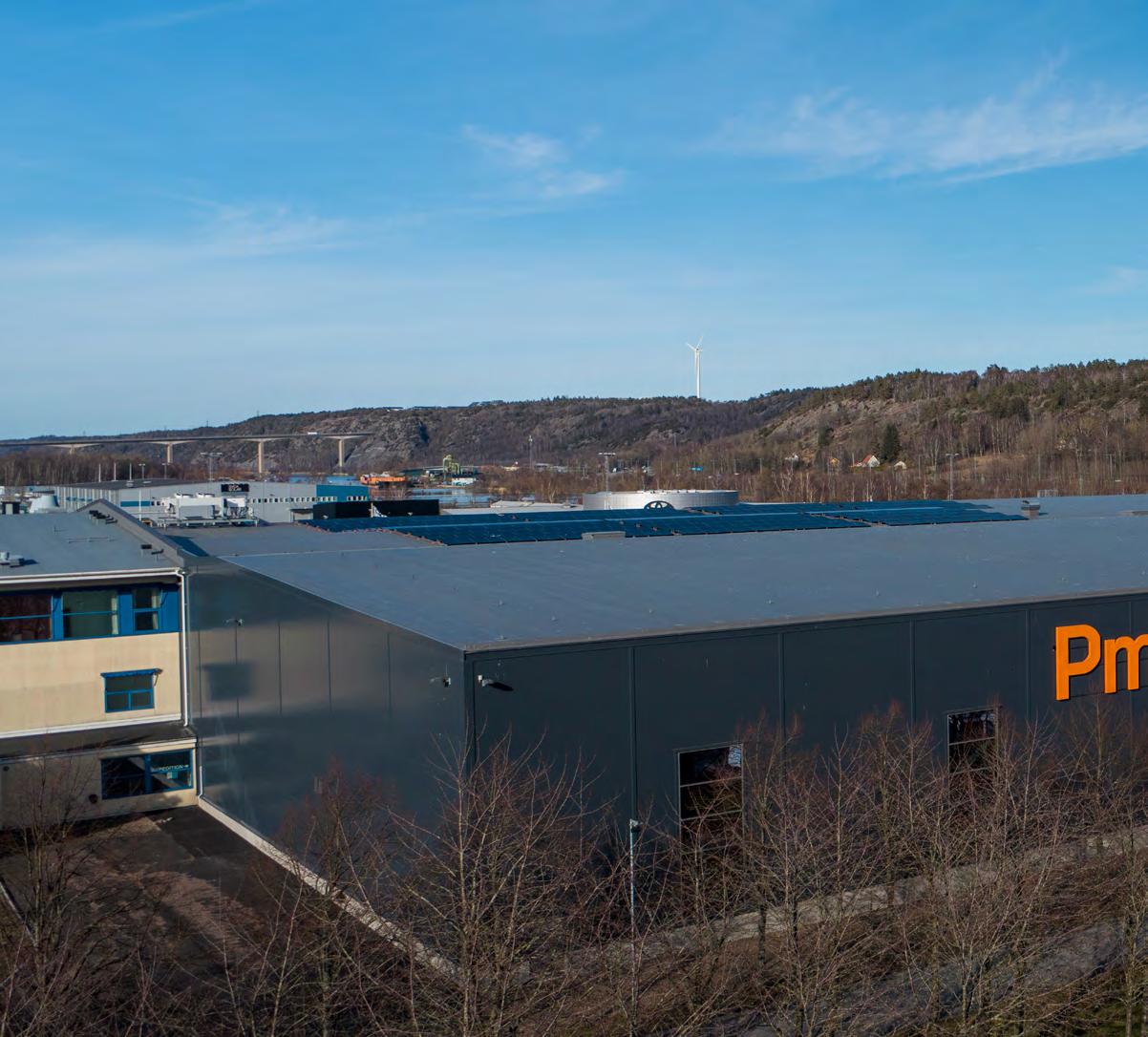

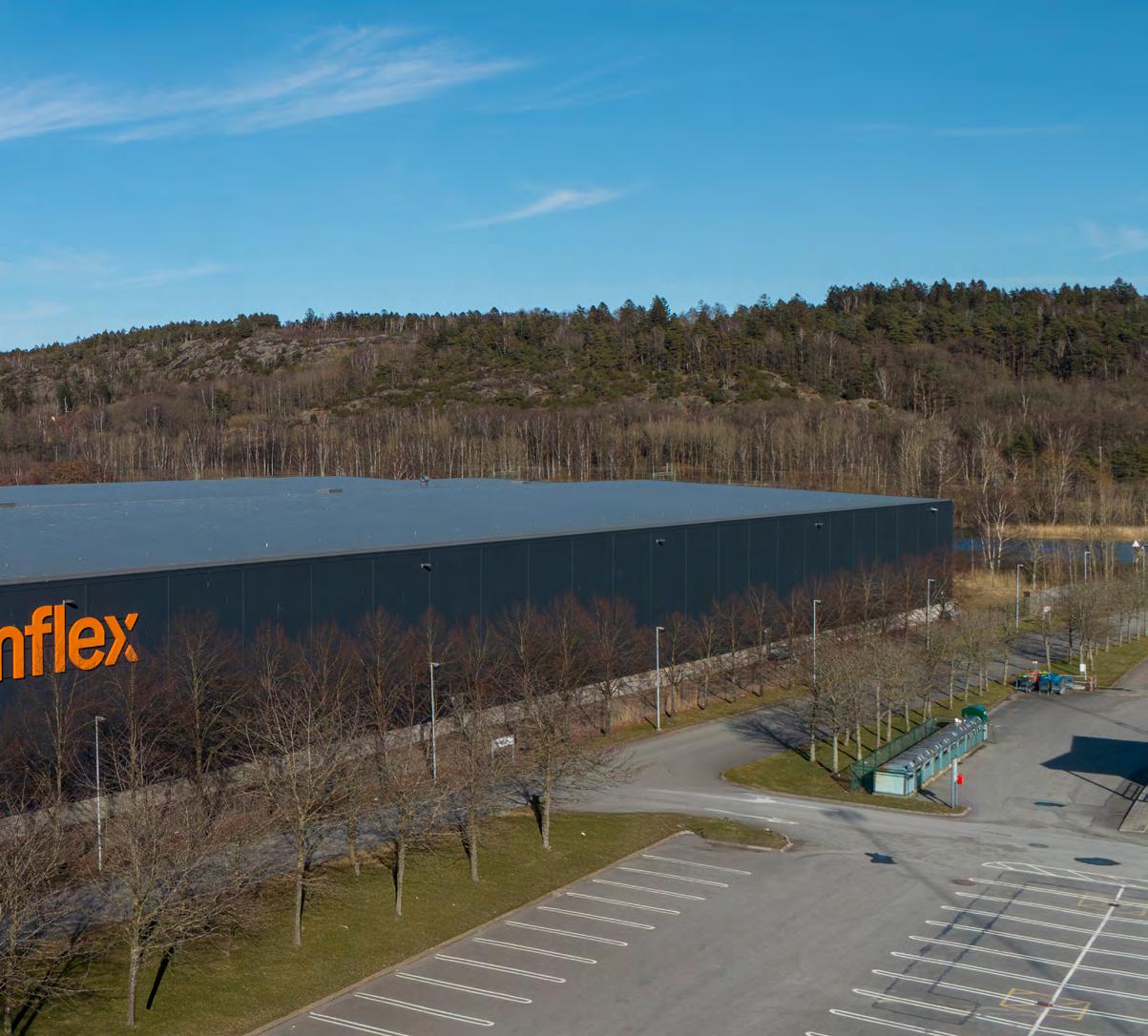

IN 2024, PMFLEX ESTABLISHED A NEW PRODUCTION AND DISTRIBUTION CENTER IN SWEDEN.

Local production for Northern Europe

The site, strategically located in northern Gothenburg, covers 19,000 square meters and houses manufacturing, warehousing, offices, and loading areas. With local production in Sweden, we are close to our customers in Northern Europe enabling increased capacity, shorter routes between production and customer, more reliable deliveries, greater flexibility and shorter lead times. The shorter transport distances also mean reduced carbon emissions and are part of our long-term sustainability efforts.

With a modern facility, we meet the increased demand for sustainable products and deliveries. Several initiatives have been implemented at the site to reduce our environmental impact and improve resource efficiency. The parking area is equipped with charging

stations for company cars, and the roof is fitted with solar panels. Any electricity not generated by the solar panels on the roof comes from renewable hydropower. Resource consumption is optimized through electricity monitoring systems and efficient ventilation.

Since the site is located in a water protection area, strict requirements apply. No environmentally harmful emissions from production or storage are released into the municipal water system or into the air.

Materials such as plastic, paper, and cable scrap are recycled or reused.

The production plant has been developed to meet the needs of the Nordic region and has capacity for 16 machines, which gives us the opportunity to grow together with the market.

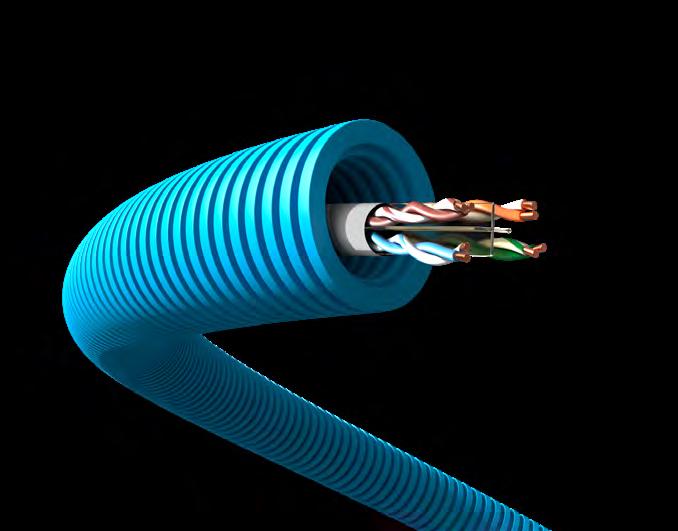

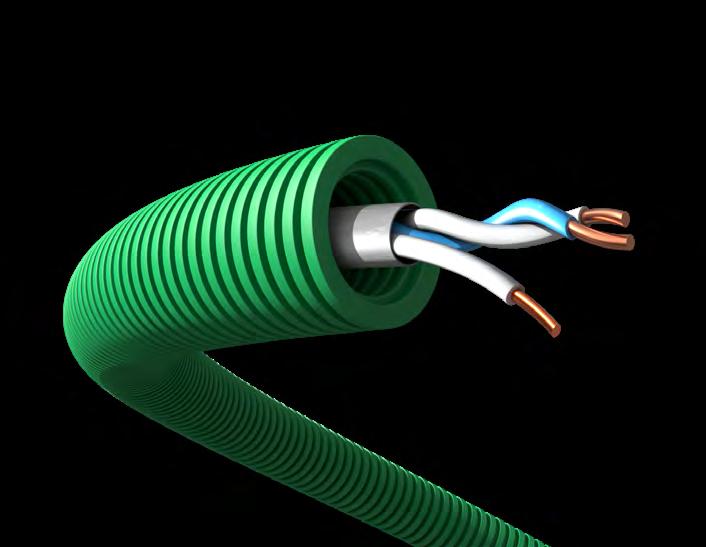

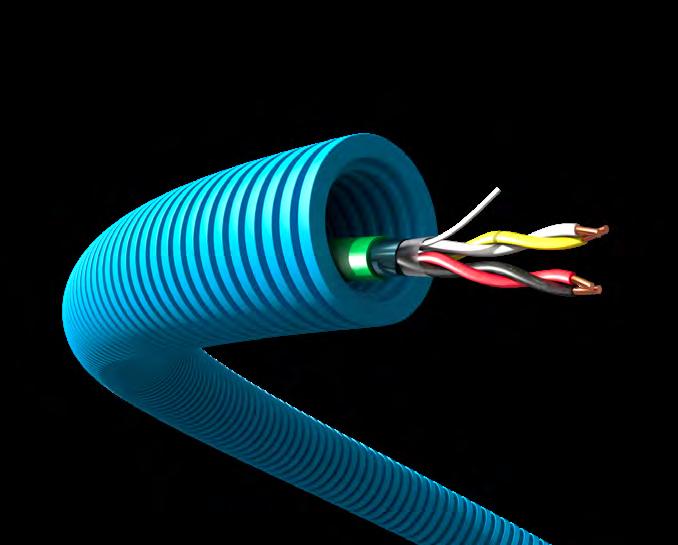

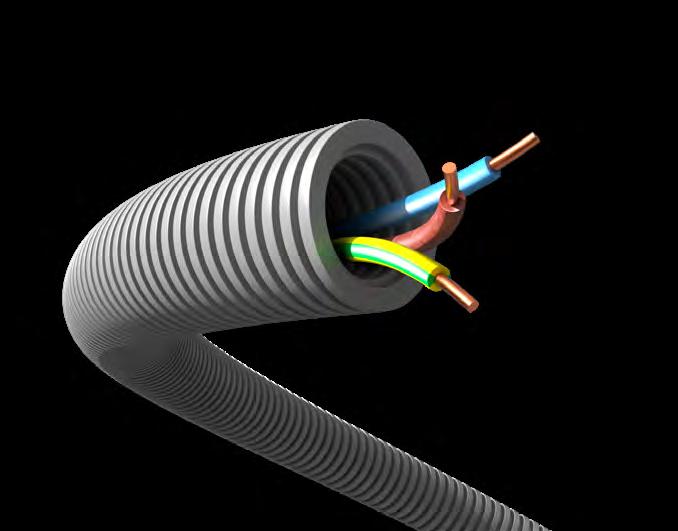

Pre-wired conduits for faster and smarter installations.

Our range of pre-wired conduits is designed to simplify electrical installations in all applications across Europe. Available with both energy and special cables, the products allow maximum flexibility to meet different installation requirements.

The conduits are supplied with a wide selection of cables and are prelubricated to facilitate the insertion of additional cables. All cables comply with the CPR standard (Regulation 305/2011/EU for construction products), ensuring limited flame propagation and reduced emission of toxic gases.

Pre-wired conduits significantly reduce installation time and labour costs, allowing faster installation and efficient handling, even by a single operator.

≈FlexWire - Pre-wired Energy cables page 26

cables page 28

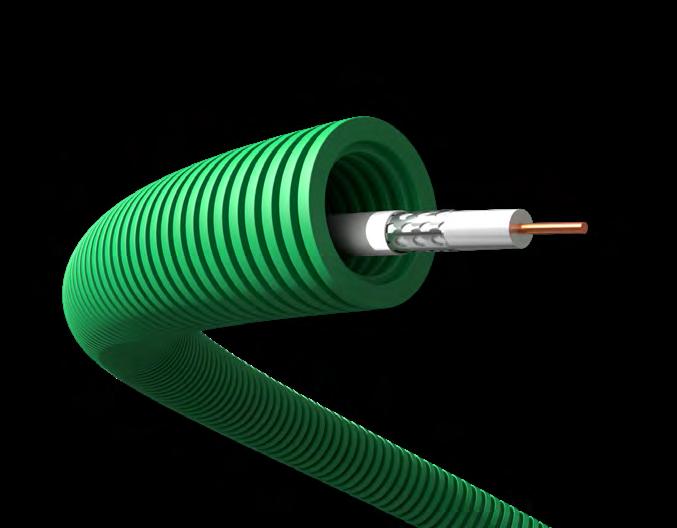

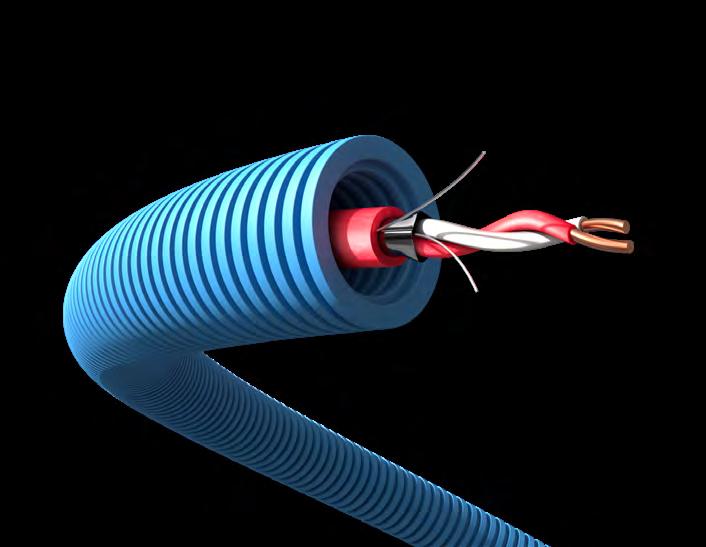

xFlexWire Coaxial cables

xFlexWire Domotic cables

xWire for installers who want cables neatly organized.

The cables are meter-marked and packaged in our popular xWire box. The products are ideal for service vehicles and construction sites where both the cable and the box need to be durable and weather-resistant. Due to the smart design, the cable can easily be pulled out and then fed back into the box, allowing to use every meter, from start to finish. The range includes options for both power and low-voltage installations. The box features a practical handle and a user-friendly design. It is made from 100% recyclable plastic, for a more sustainable workday.

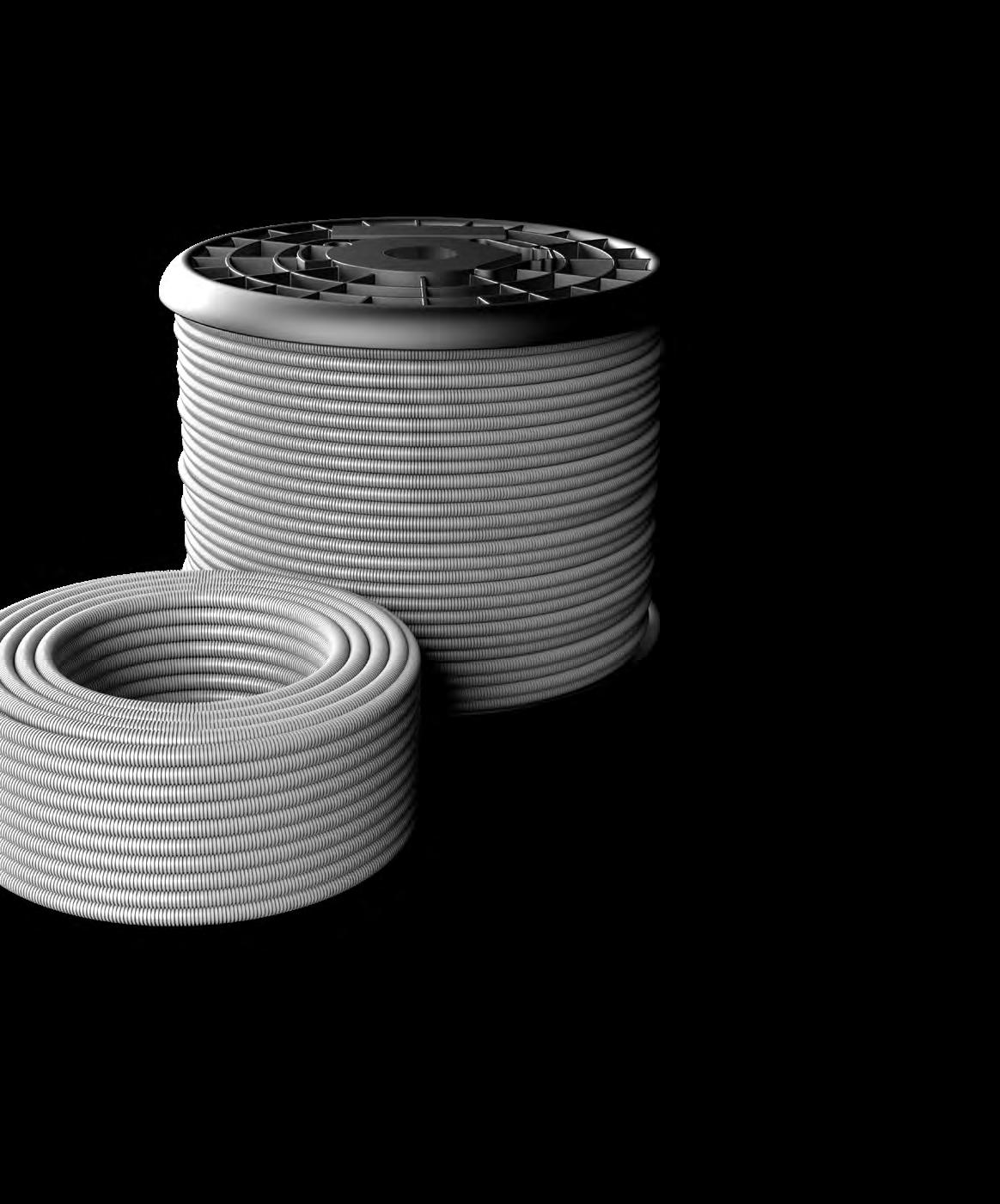

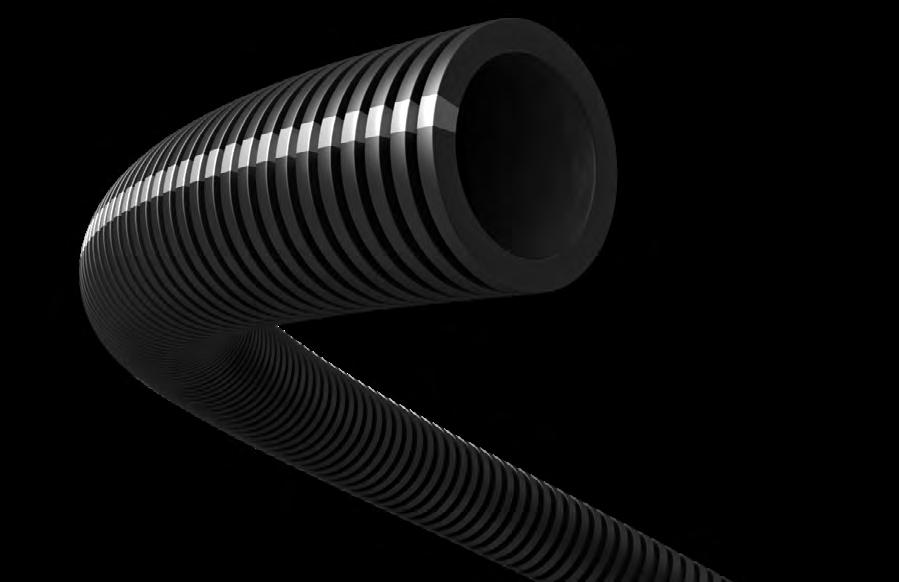

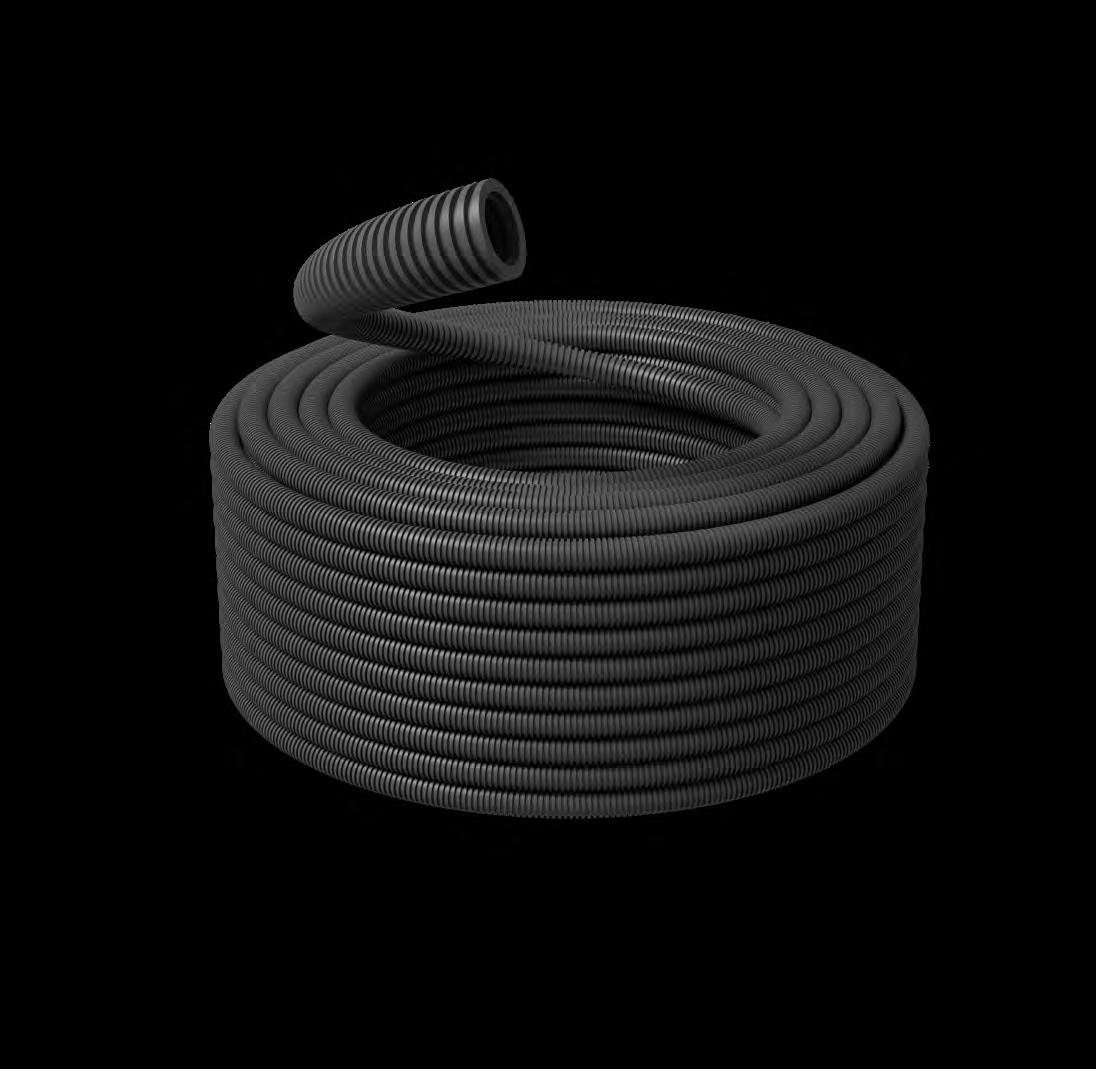

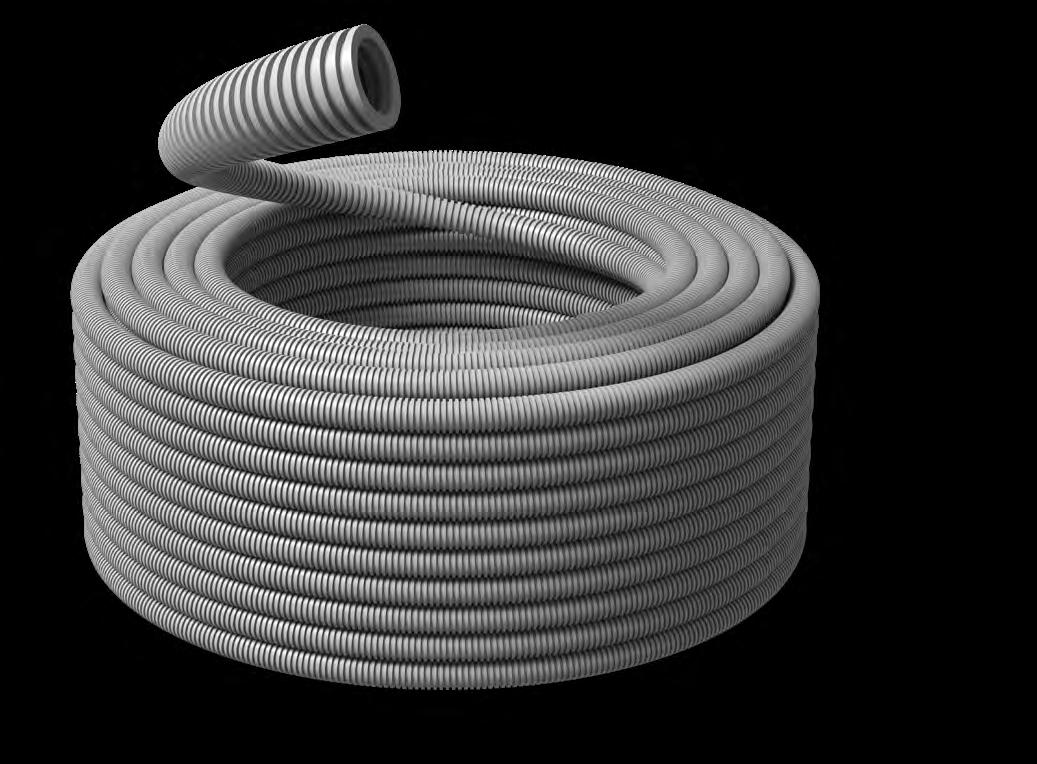

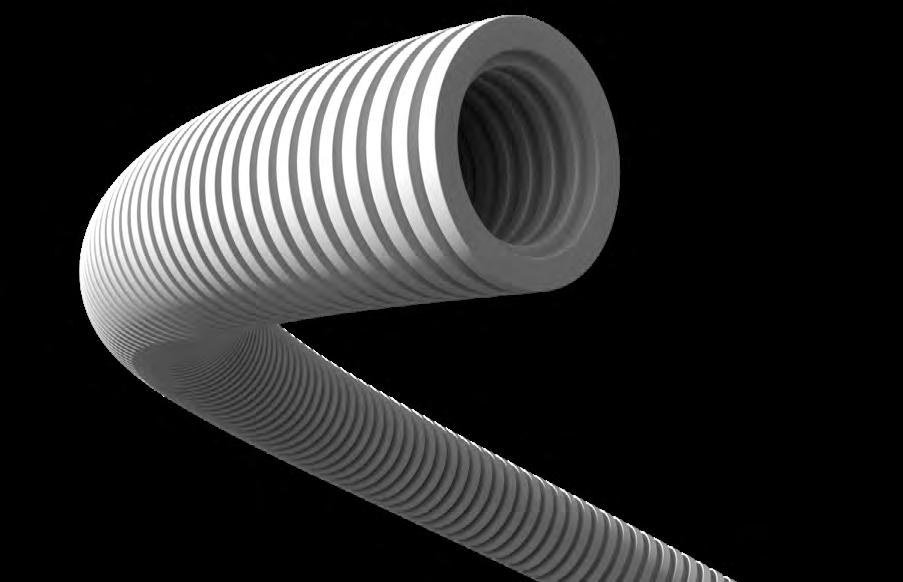

xFlex, freedom of choice without compromising on speed.

Our wide range of pliable conduits are designed to meet the diverse needs of our customers across all types of installations and environments. With features tailored for different applications, you can choose between Halogen Free conduits, conduits made of recycled material, UV-resistant conduits and PVC conduits.

All our pliable conduits ensure fast and efficient installations with a specially treated inner surface. This enables smoother cable pulling and reduced installation time, with xSpeed delivering fast performance and xHiSpeed offering the fastest. Our conduits are easy to bend and performs exceptionally well in dusty environments or when installing larger cable diameters. Thanks to the user-friendly design, additional cables can also be inserted afterwards. Complementary couplings are available within the xInstall range.

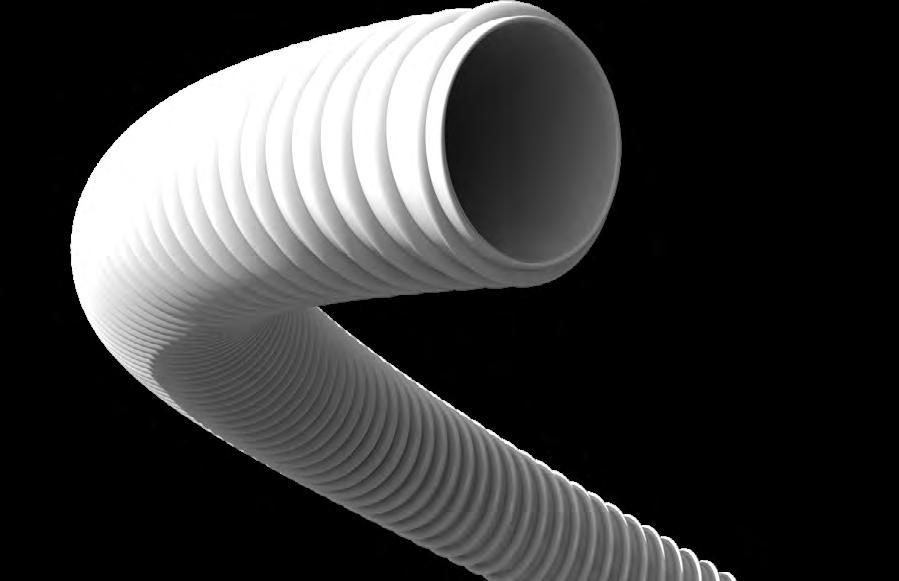

≈Flex - Pliable conduits

xSpeed page 34

xSpeed ECO GREEN page 35

xSpeed RE page 35

xHiSpeed page 36

xSpeed SuperBlu page 37

xSpeed SuperBlu Extra page 38

xSpeed PVC page 39

xSpeed PVC ICE -25 page 40

xSpeed PVC LIGHT page 41

Spirex GUS page 42

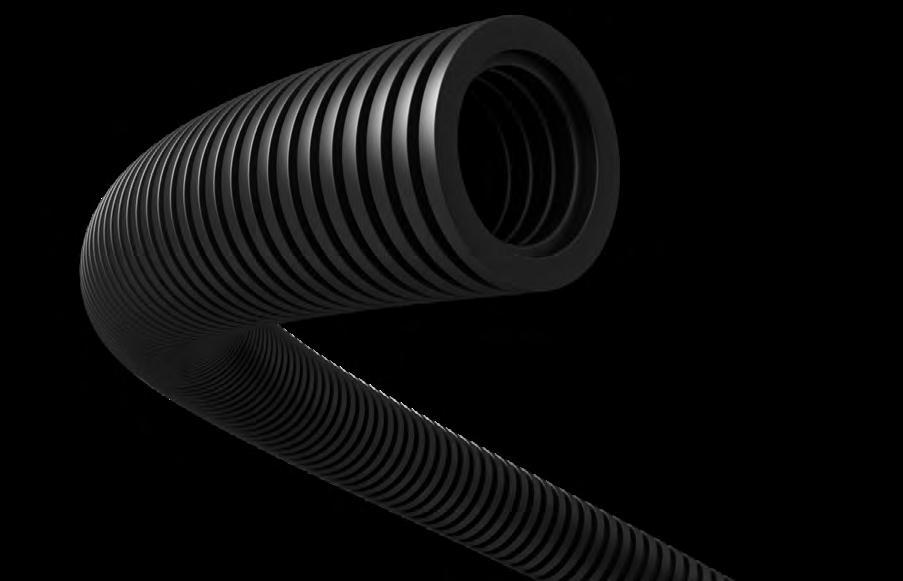

xSpeed

Self-recovering pliable conduit, totally free of micro-holes. It can be used with cement and concrete, it is internally lubricated (diameter 16, 20 and 25 mm) and self-protected: it doesn’t need concrete cover. The conduit is Halogen Free and made of environmentally friendly polypropylene.

APPLICATIONS

Outdoor

Indoor

Exposed Installation

Liquid screed and concrete

Chased wall - Plasterboard

Chased floor

False ceiling - Movable wall

Prefab - Wood panels

Scan or click for more

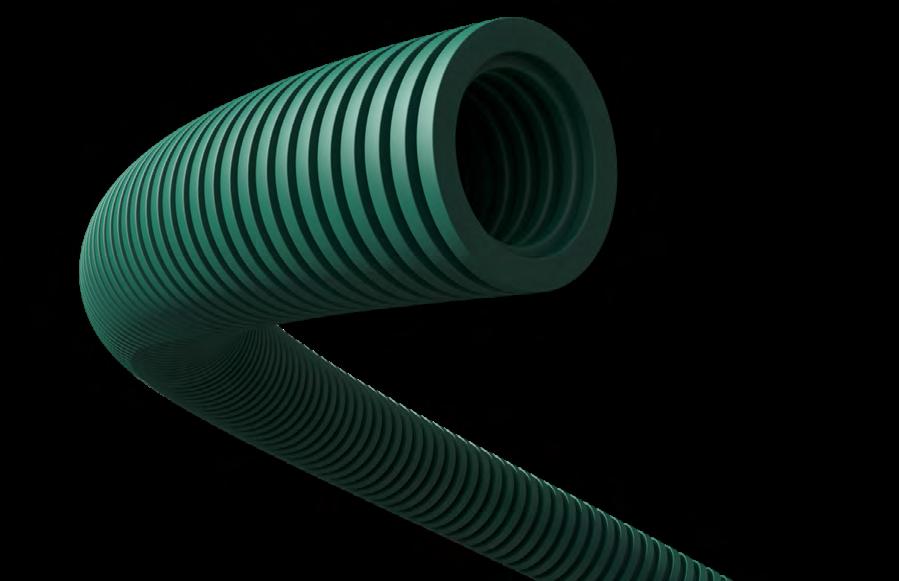

xSpeed ECO GREEN

xSpeed RE

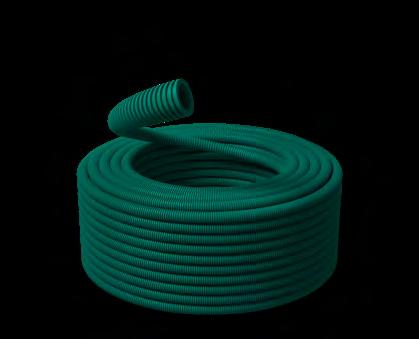

The ecological pliable conduit at the forefront of eco-sustainability. It is made with a percentage of post-consumer recycled material (PCR), contributing to a substantial reduction in CO 2 emissions compared to the use of fossil-based PP. Both the conduits and the packaging film are fully recyclable.

APPLICATIONS

Outdoor

Indoor

Exposed Installation

Chased wall - Plasterboard

Chased floor

False ceiling - Movable wall

Liquid screed and concrete Prefab - Wood panels

750N 34223 / 33433

DOUBLE-SKIN

COLOURS

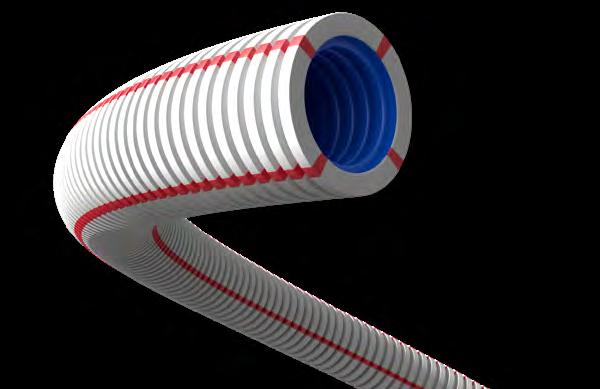

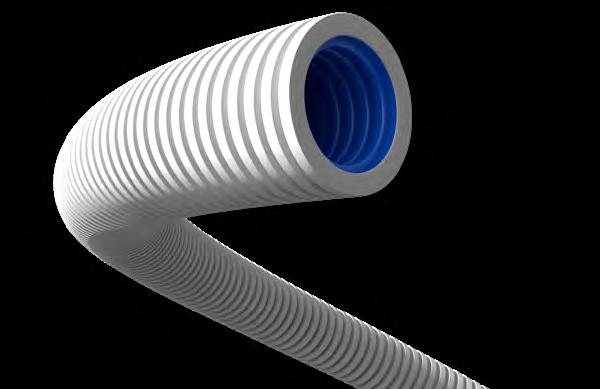

xHiSpeed

Double-skin conduit with extremely low friction performance: the blue inner skin, made of a polymer compound, reduces friction compared to a standard polypropylene conduit. Its coextruded double-skin design provides enhanced strength and durability. It is also self-recovering and totally free of micro holes, making it suitable for use in concrete and cement. The conduit is Halogen Free.

APPLICATIONS

Outdoor

Indoor

Exposed Installation

Liquid screed and concrete

Chased wall - Plasterboard

Chased floor

False ceiling - Movable wall

Prefab - Wood panels

Scan or click for more

1000N 34323

HALOGEN FREE

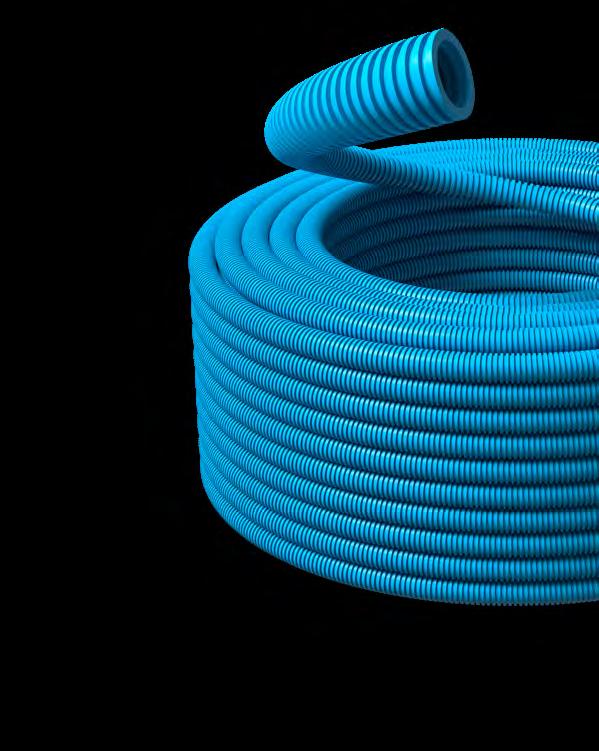

The SuperBlu conduit has high flexibility and very high compression resistance: it is tested at 1000N. The conduit is self-recovering and totally free of micro-holes, therefore it can be used with cement and concrete. It is also internally lubricated (diameters 16, 20, 25 mm), metrically marked (diameters 16, 20, 25 mm) and environmentally friendly (Halogen Free). SuperBlu is the only ESTI and IMQ certified conduit resistant to temperatures of -15°C and to shocks of 6 Joules.

APPLICATIONS

Outdoor Chased wall - Plasterboard

Indoor

Chased floor

Exposed Installation False ceiling - Movable wall

Liquid screed and concrete Prefab - Wood panels

1250N 43433

HALOGEN FREE

The Pmflex SuperBlu Extra conduit has an exceptional compression resistance: 1250 N. The conduit is self-recovering and totally free of microholes, therefore it can be used with cement and concrete. It is also internally lubricated (diameters 20 and 25 mm), metrically marked (diameters 20 and 25 mm) and environmentally friendly (Halogen Free). SuperBlu Extra is ideal for installation in summer, when outside temperatures become higher and the conduit is subject to greater stress.

APPLICATIONS

Outdoor

Indoor

Chased wall - Plasterboard

Chased floor

Exposed Installation False ceiling - Movable wall

Liquid screed and concrete Prefab - Wood panels

COLOURS

Conduit ideal for standard installations that do not require the use of HF materials; it is not suitable with liquid concrete and reinforced concrete. The conduit is made with ecological PVC.

APPLICATIONS

Outdoor

Indoor

Exposed Installation

Liquid screed and concrete

Chased wall - Plasterboard*

Chased floor*

False ceiling - Movable wall*

Prefab - Wood panels*

* Only for electrical installations that do not require HF conduit systems.

COLOURS

xSpeed PVC ICE-25

Conduit with a very high resistance at low temperatures: -25°C. It is made with ecological PVC.

APPLICATIONS

Outdoor

Indoor

Chased wall - Plasterboard*

Chased floor

Exposed Installation* False ceiling - Movable wall*

Liquid screed and concrete** Prefab - Wood panels*

*Check local regulations.

** Only for electrical installations that do not require HF conduit systems.

Scan or click for more

320N 22212

xSpeed PVC LIGHT

Light class conduit, ideal in standard installations that do not require the use of HF materials and it is not suitable with liquid concrete and reinforced concrete. Made with ecological PVC.

APPLICATIONS

Outdoor

Indoor

Exposed Installation

Liquid screed and concrete

Chased wall - Plasterboard*

Chased floor

False ceiling - Movable wall*

Prefab - Wood panels*

* Only for electrical installations that do not require HFconduit systems.

Spiralled flexible sheaths 2311. It is lead-free (ROHS compliant) and it has a watertight system: protection degree IP65 if used with fittings RAI-RAG-RAP and IP66 with fittings RK.

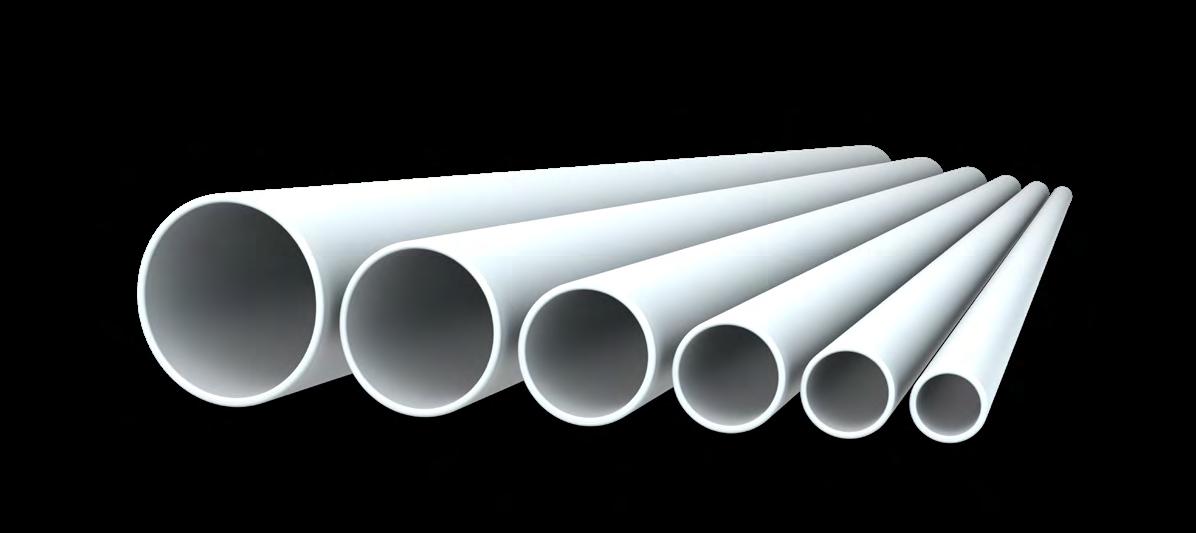

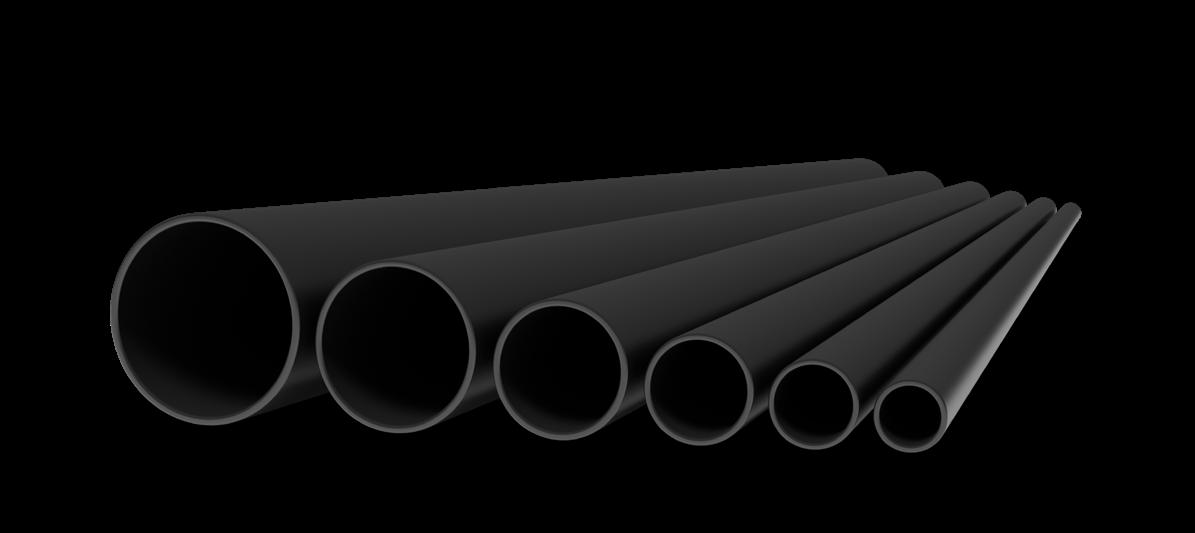

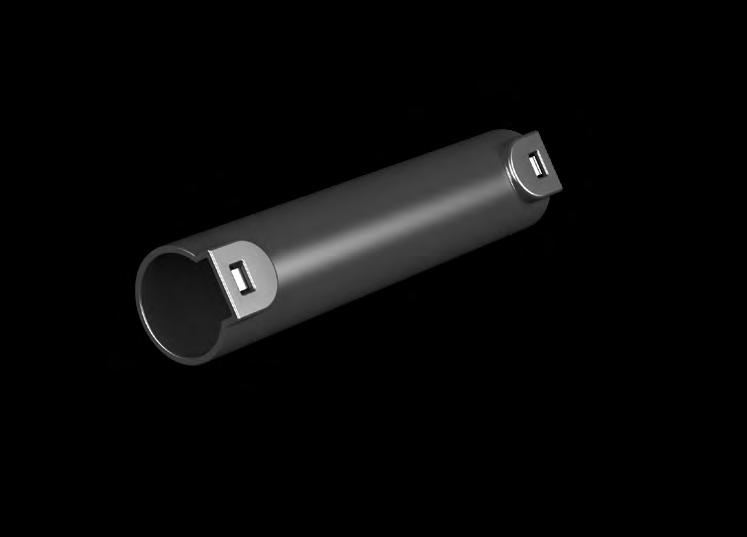

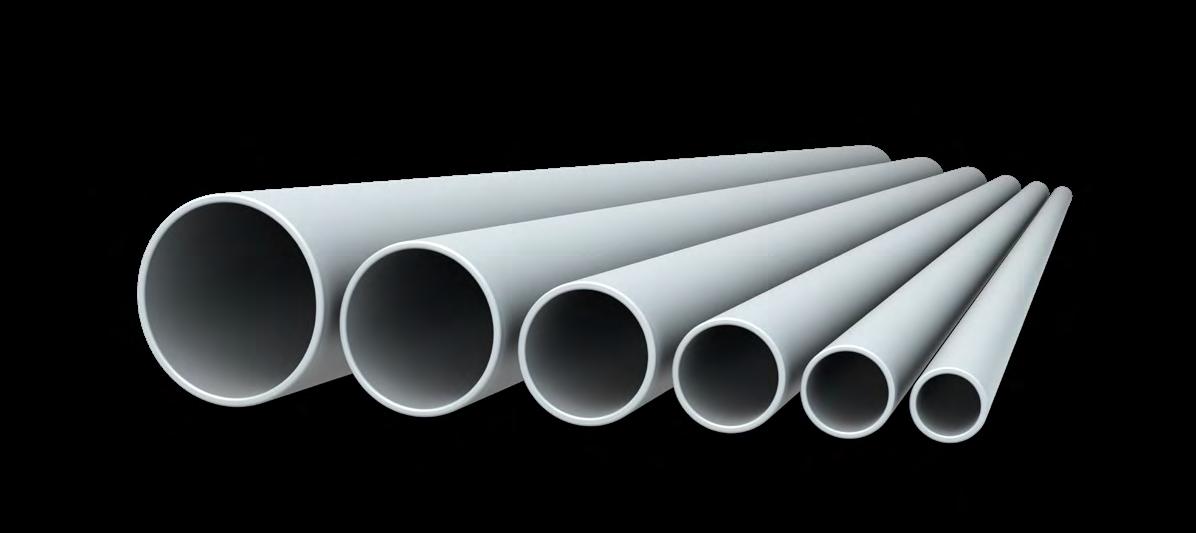

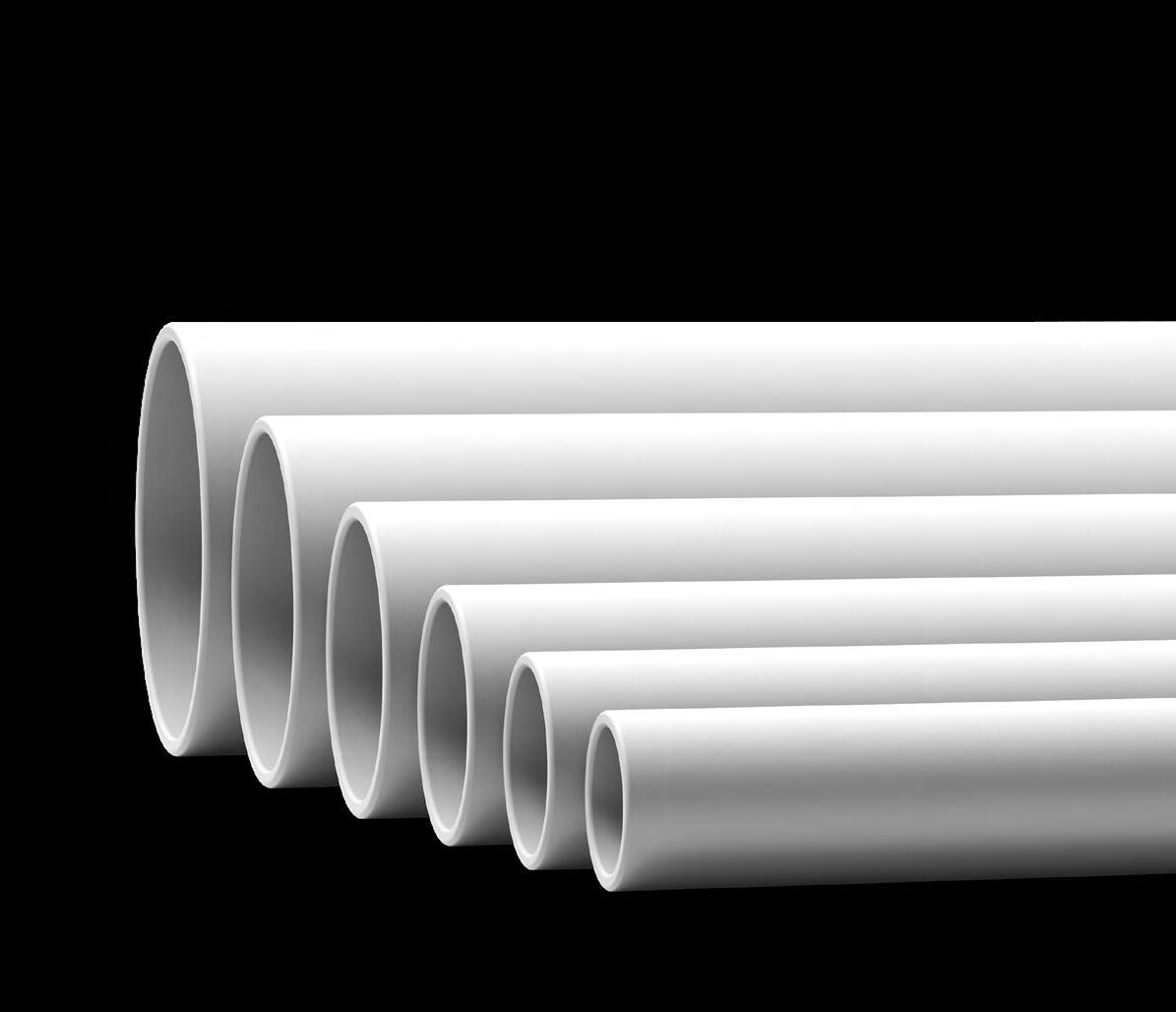

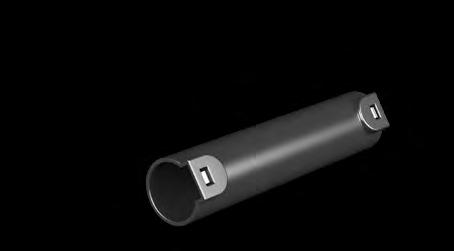

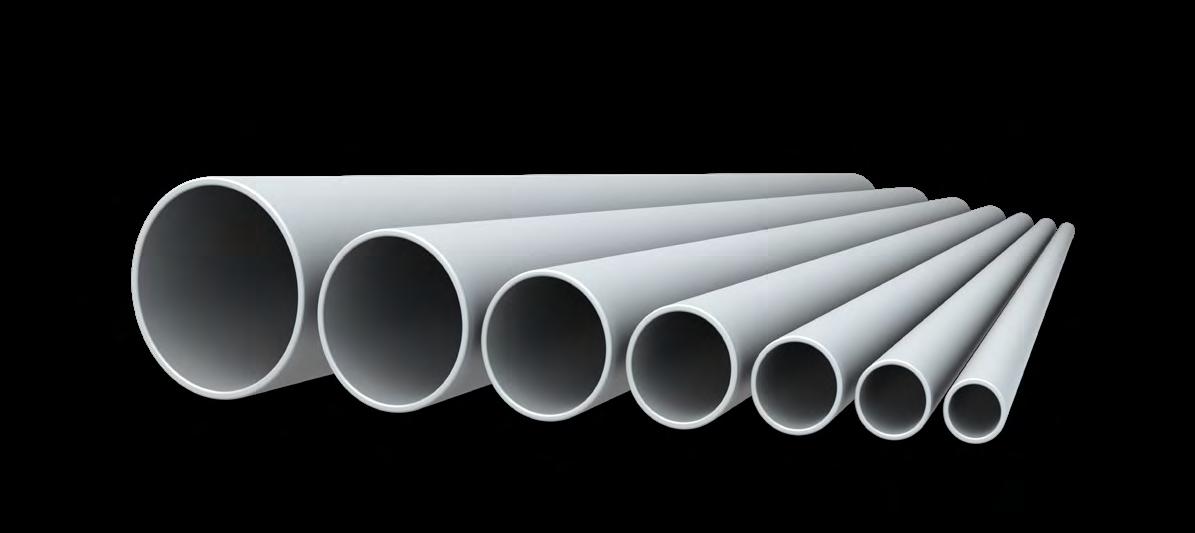

A complete range of rigid pipes for all installation needs.

The xRigid range includes a wide selection of rigid installation pipes with different strengths, designed to suit all types of electrical installations. The range covers Halogen Free pipes, light and medium classes, UV-resistant and PVC pipes.

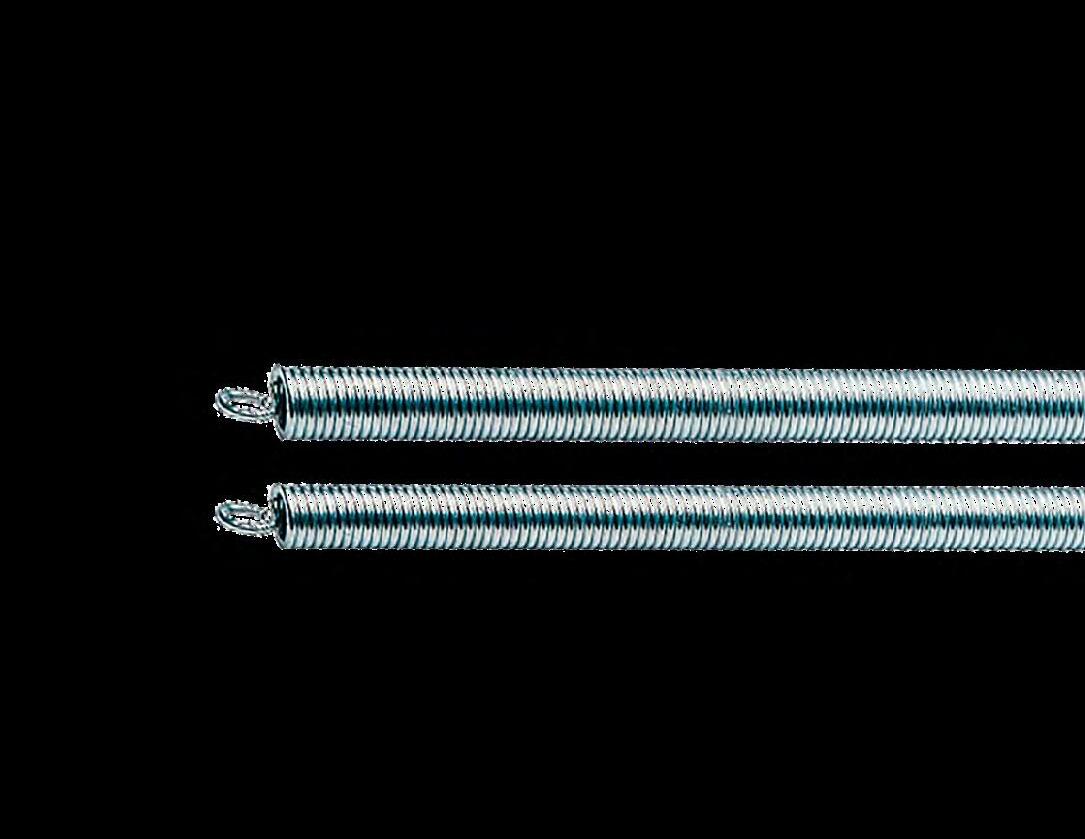

The pipes can be bent using standard bending springs, ensuring ease of installation on site. A full range of accessories for rigid pipes is available within the xInstall range, providing a consistent, reliable and complete installation system.

≈Rigid - Rigid Pipes

xRigid HF 750N

xRigid HF 320N

xRigid PVC 750N

xRigid PVC 320N

750N 33431 Medium Class HALOGEN FREE

Medium class rigid pipes made of selfextinguishing and eco-friendly polyolefin. They are Halogen Free and ideal for ecofriendly exposed installations (internal walls and ceilings).

APPLICATIONS

Outdoor

Indoor

Exposed Installation

Chased wall - Plasterboard

Chased floor

False ceiling - Movable wall

Liquid screed and concrete* Prefab - Wood panels

* To be used with IP67 connectors only (Pmflex “smart line”).

Scan or click for more

320N 23431 Light Class HALOGEN FREE

xRigid HF 320N

Light class rigid pipes made of selfextinguishing and eco-friendly polyolefin. They are Halogen Free and ideal for ecofriendly exposed installations (internal walls and ceilings).

APPLICATIONS

Outdoor

Indoor

Chased wall - Plasterboard

Chased floor

Exposed Installation False ceiling - Movable wall

Liquid screed and concrete Prefab - Wood panels

750N 33211 Medium Class PVC

PVC 750N

Medium class rigid pipes made of PVC. They are ideal for eco-friendly exposed installations (internal walls and ceilings).

APPLICATIONS

Outdoor

Indoor

Exposed Installation

Chased wall - Plasterboard

Chased floor

False ceiling - Movable wall

Liquid screed and concrete* Prefab - Wood panels

* To be used with IP67 connectors only (Pmflex “smart line”).

Scan or click for more

320N 22211 Light Class PVC

xRigid PVC 320N

Light class rigid pipes made of PVC. They are ideal for eco-friendly exposed installations (internal walls and ceilings).

APPLICATIONS

Outdoor

Indoor

Chased wall - Plasterboard

Chased floor

Exposed Installation* False ceiling - Movable wall

Liquid screed and concrete Prefab - Wood panels

* Check local regulations.

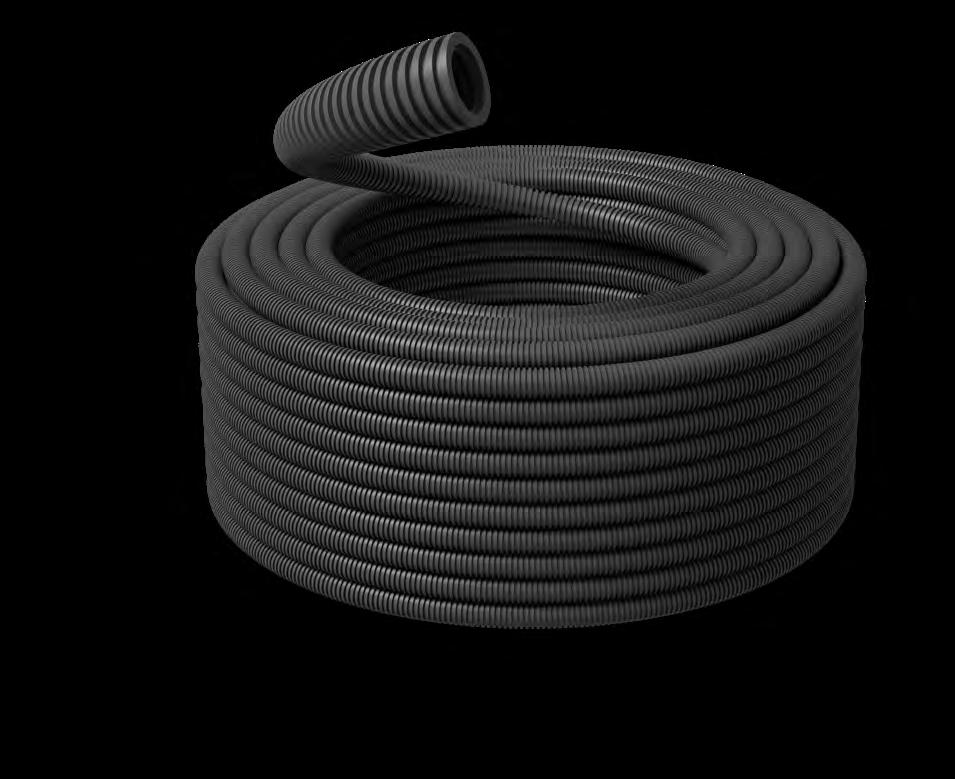

UV-resistant products for outdoor and photovoltaic installations.

The Pmflex UV-resistant range is designed for outdoor and photovoltaic installations exposed to sunlight and different environmental conditions. These products ensure long-lasting performance, with a certified service life of up to 10 years and an operating temperature range from -25 °C to +105 °C.

The range includes flexible and rigid conduits, empty and pre-wired corrugated conduits with H1Z2Z2-K solar cables, and couplings with clip. All products are Halogen Free in compliance with EN 50642 - IEC 63355, ensuring safety and reliability in outdoor applications.

≈UV - UV-resistant products

xSpeed UV page 52

xFlexWire H1Z2Z2-K Solar page 53

xRigid HF UV 750N page 54

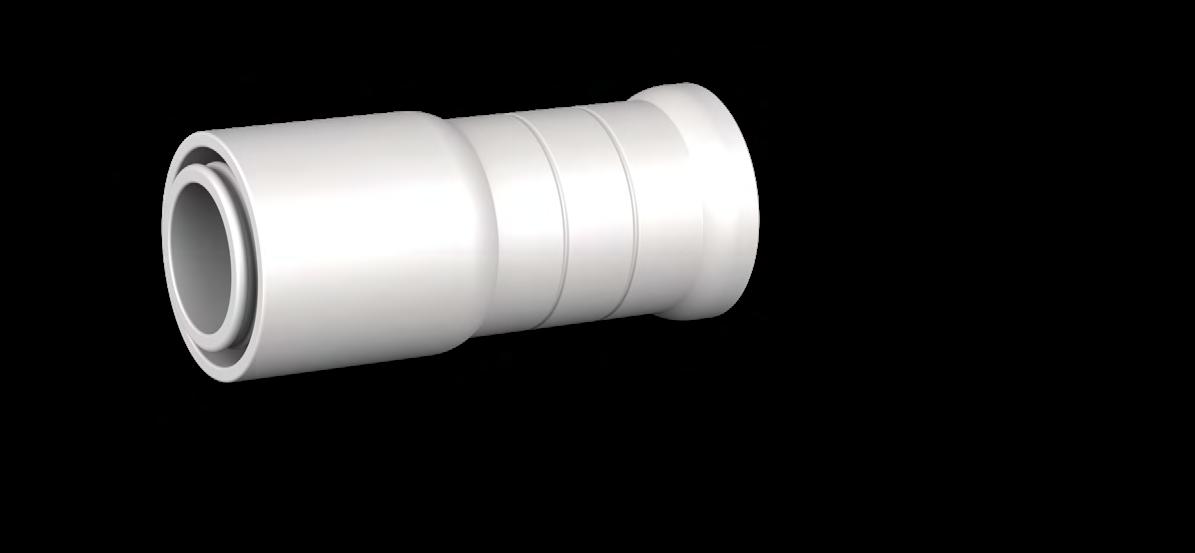

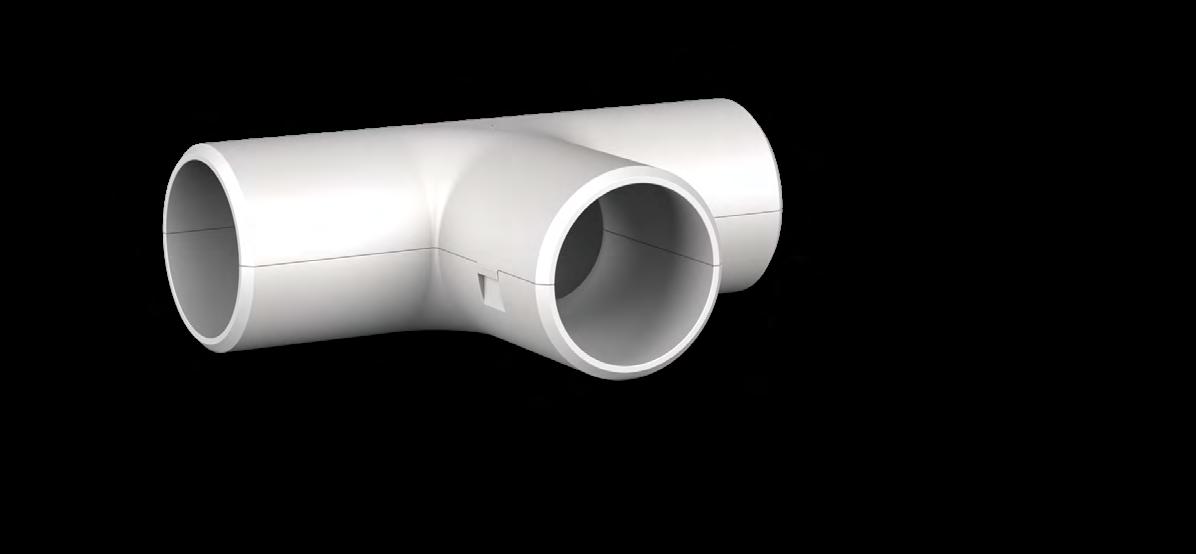

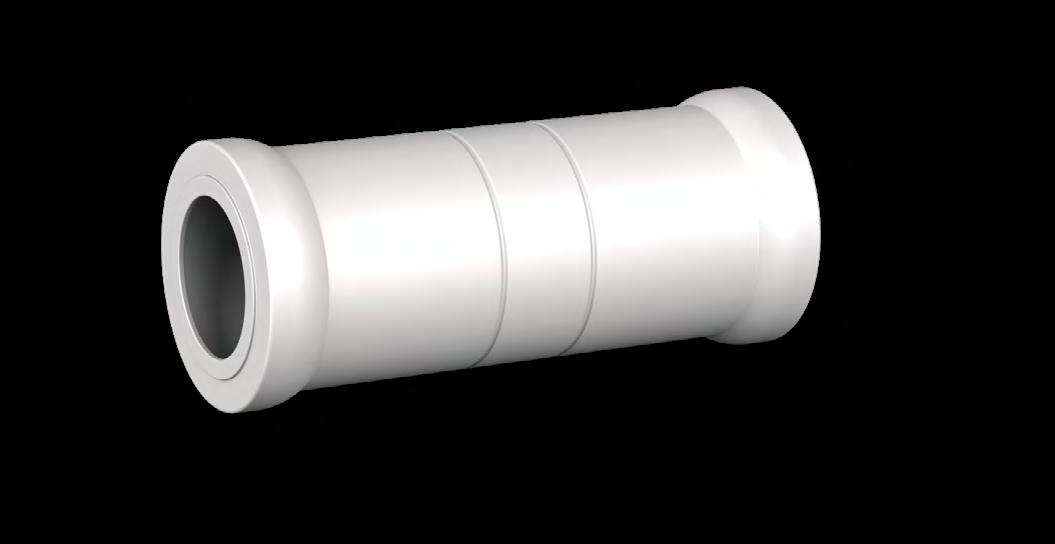

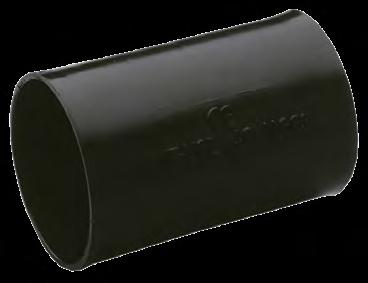

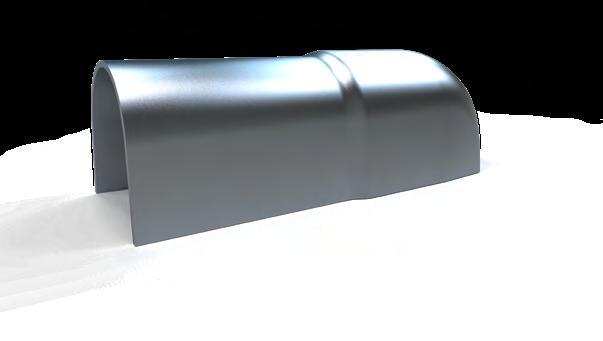

UV-RESISTANT COUPLING page 55

750N 34223 / 33433

UV-RESISTANT

COLOURS

Pliable conduit resistant to UV rays and atmospheric agents, suitable for outdoor installations and photovoltaic systems directly exposed to sunlight. The conduit is also Halogen Free.

APPLICATIONS

Outdoor

Indoor

Exposed Installation

Liquid screed and concrete

Chased wall - Plasterboard

Chased floor

False ceiling - Movable wall

Prefab - Wood panels

Scan or click for more

750N 34223 / 33433

UV-RESISTANT / SOLAR CABLES

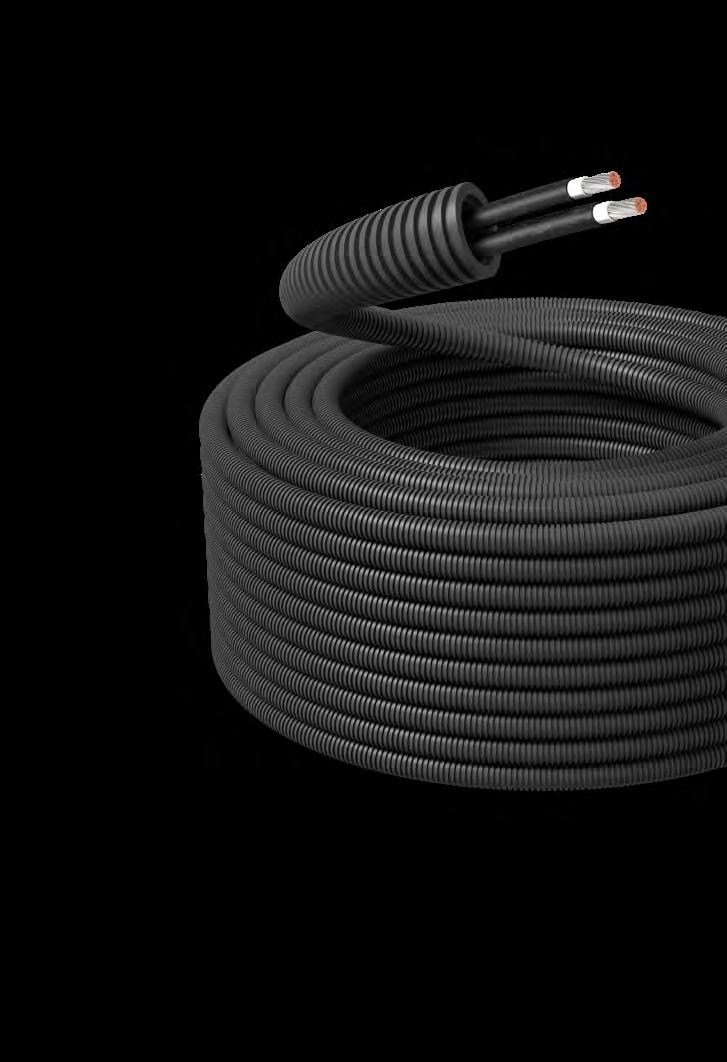

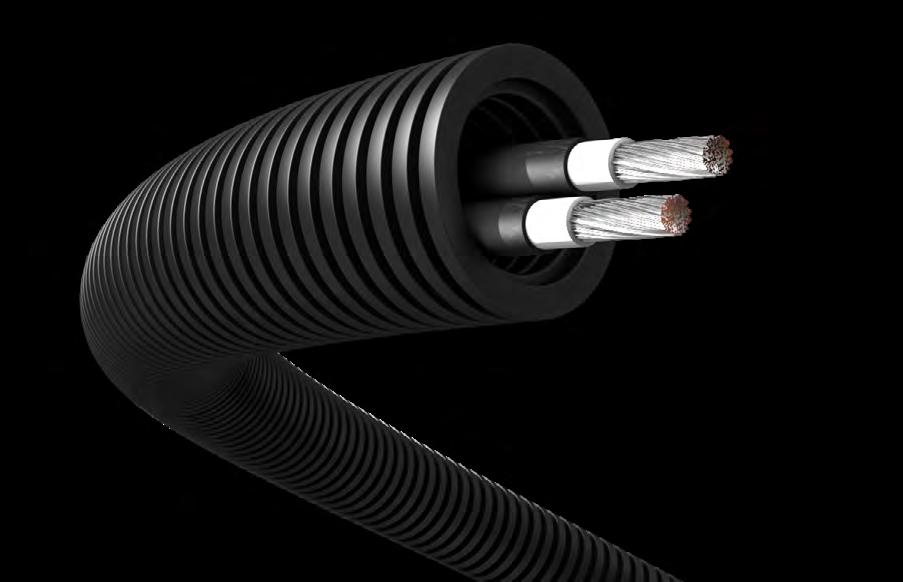

UV-resistant pliable conduit, pre-wired with H1Z2Z2-K Solar cables.

It is suitable for outdoor installations and photovoltaic systems directly exposed to sunlight. The conduit is also Halogen Free.

APPLICATIONS

Outdoor

Indoor

Exposed Installation

Liquid screed and concrete

Chased wall - Plasterboard

Chased floor

False ceiling - Movable wall

Prefab - Wood panels

750N 33431 Medium Class

UV-RESISTANT

Rigid pipes resistant to UV rays and atmospheric agents, suitable for outdoor installations and photovoltaic systems directly exposed to sunlight. The pipes are approved for installation within a temperature range of -25°C to 105°C and are also Halogen Free.

APPLICATIONS

Outdoor

Indoor

Exposed Installation

Chased wall - Plasterboard

Chased floor

False ceiling - Movable wall

Liquid screed and concrete* Prefab - Wood panels

* To be used with IP67 connectors only (Pmflex “smart line”).

Scan or click for more

UV-RESISTANT COUPLING

UV-resistant coupling with clip for the connection of pliable conduits and rigid pipes.

› UV-resistant and weather resistant

› IP65 for pliable conduits

› IP40 for rigid pipes

› LSZH

Ground

Conduits for underground electrical installations.

The xGround range includes double-wall conduits designed to protect electrical cables in underground installations. They ensure high resistance and reliable cable protection.

≈Ground - Underground Line

xGround NOV’IK10 page 58

xGround NR page 59

Double-wall underground conduit made of polyethylene, designed for the installation and protection of electrical cables in residential and building applications.

The conduit features a smooth inner wall for easy cable pulling and a corrugated outer wall for enhanced mechanical strength. Flame-retardant and suitable for both exposed installations and concealed applications.

Scan or click for more

COLOURS

Double-wall conduit manufactured from high-density polyethylene (HDPE) and specifically designed to protect electrical wires and telecommunication cables in underground installations. It offers excellent chemical resistance to acidic and basic substances, hydrocarbons, detergents, flammable agents, and water. The conduit consists of two integrated layers: a corrugated outer wall for high mechanical strength and a smooth inner wall to facilitate easy cable pulling.

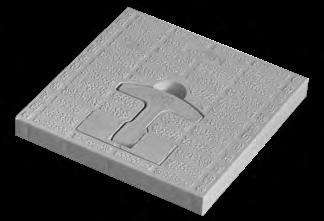

Polypropylene well for NR conduit, with wheel bearing cover equipped by removal handle to simplify opening and closing.

Coupling for NR Conduit.

Accessories for complete and efficient installations.

The xInstall range includes a comprehensive selection of accessories designed to facilitate and complete electrical installations. The range offers high-quality solutions for pre-wired conduits, flexible conduits and rigid pipes, ensuring compatibility, reliability and a consistent installation system.

≈Install - Accessories

Accessories for pliable conduits

Accessories for rigid pipes

Accessories

ACCESSORIES FOR PLIABLE CONDUITS

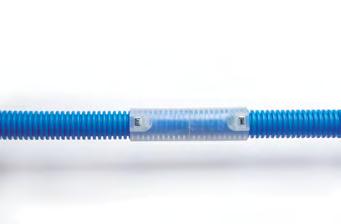

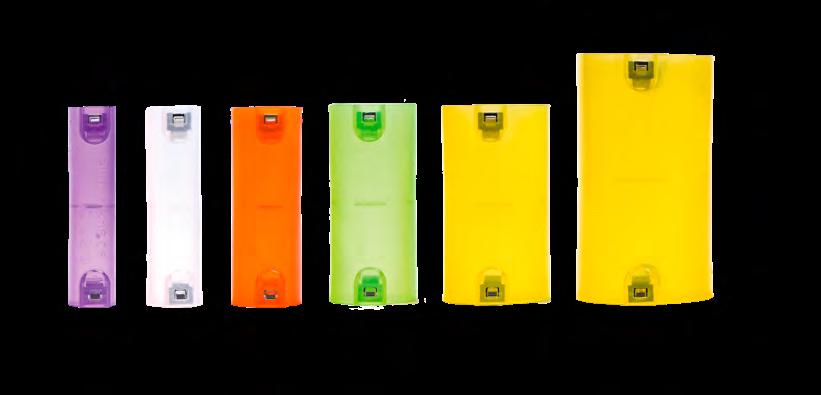

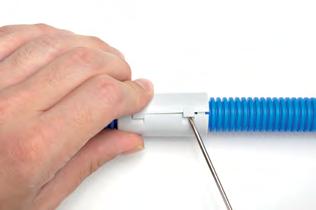

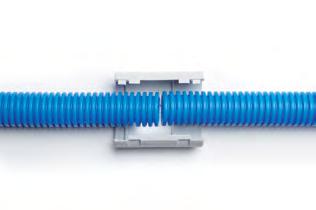

COUPLING WITH CLIP

Coupling with clip for the connection of pliable conduits: ideal for installations in cement and concrete and Low Smoke Zero Halogen (LSZH).

› LSZH

› Transparent

› Made of ecological PP

Available

Scan or click for more

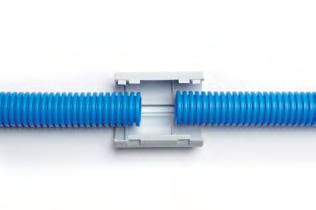

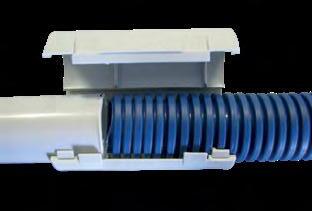

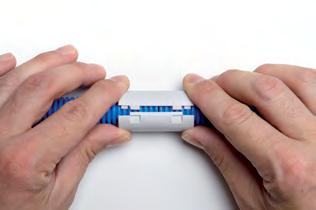

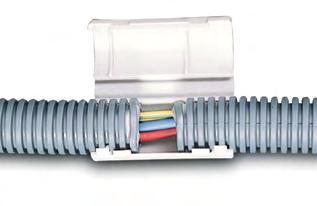

INSPECTABLE COUPLING

Inspectable coupling for the connection of pliable conduits: useful for protecting slightly damaged conduits and they Low Smoke Zero Halogen (LSZH).

› LSZH

› Made of ecological PP

› Inspectable: easy to close, easy to re-open

ACCESSORIES FOR PLIABLE CONDUITS

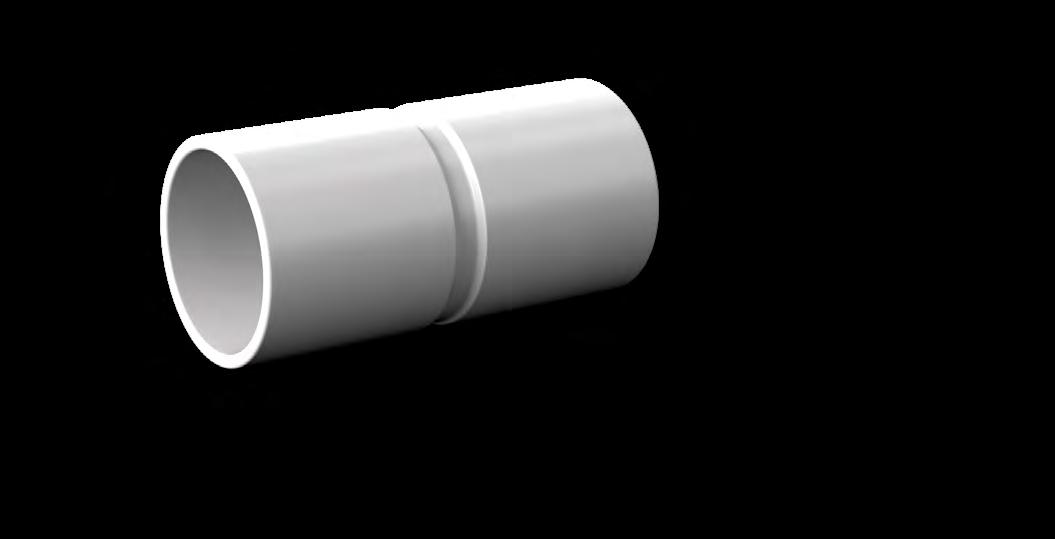

COUPLING

Coupling for the connection of pliable conduits. Made of ecological polypropylene and Halogen Free.

› Halogen Free

› Made of ecological PP

Scan or click for more

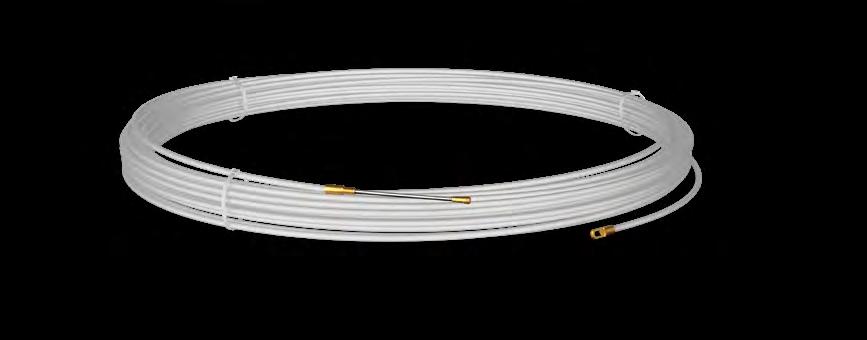

CABLE DRAWER

Nylon cable drawer for pliable conduits. Available in 3 mm and 4 mm diameters.

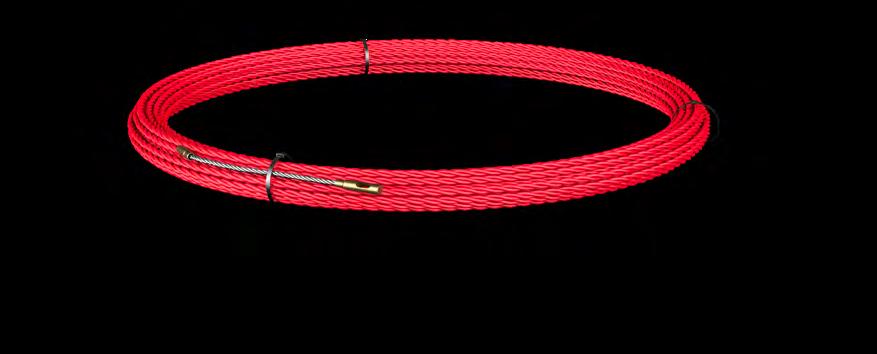

CABLE PULLER

Helical PET cable puller, 4 mm diameter. Features a flexible head with a rounded loop for easy sliding, a large traction hole at the opposite end, and a traction resistance above 1000 N (102 kgf). Flexible and durable, it passes the 4-curve circuit test.

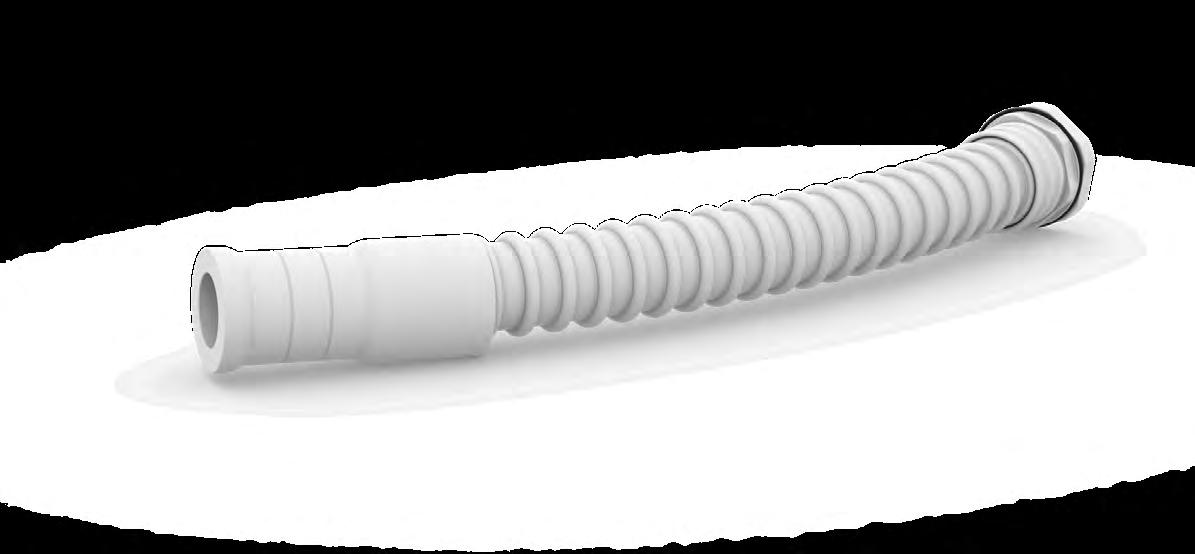

Spirex RAG/RAI/RAP

Fittings for Spirex 2311 and box connection, compliant with the European standards EN 61386.1 and EN 61386.23. They are grey (RAL 7035).

› IP65

› Grey (RAL 7035)

› Available also in black colour

Scan or click for more

ACCESSORIES FOR RIGID PIPES

PM SMART - MK

Tight coupling for connecting two rigid pipes. Dust-tight and protected against the effects of temporary immersion in water. Eco-friendly: Halogen Free.

› IP67

› Halogen Free

› Grey (RAL 7035)

Scan or click for more

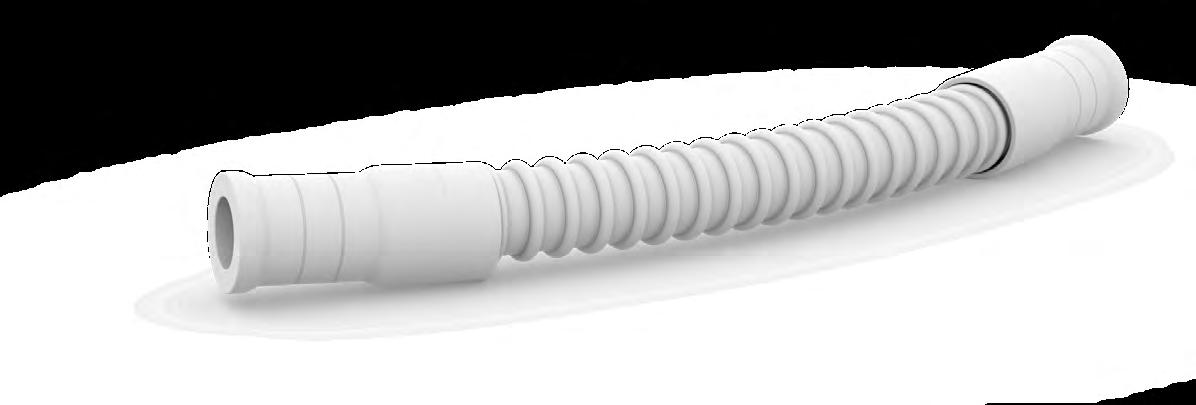

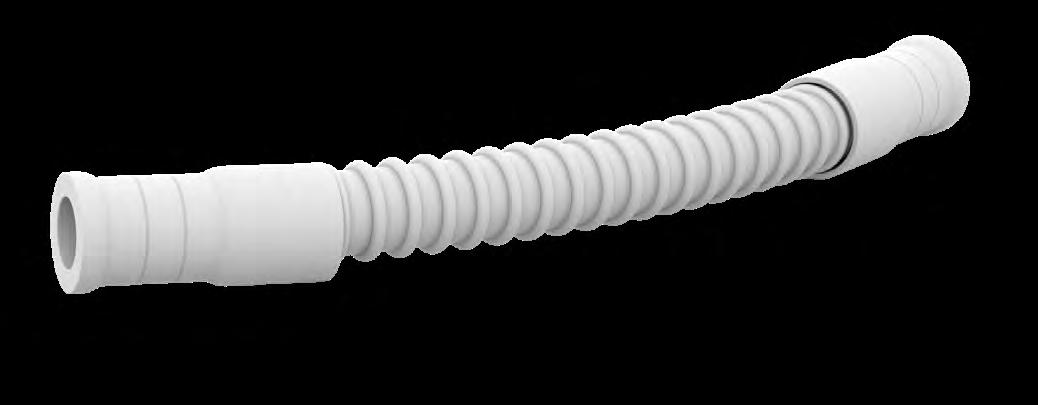

PM SMART - CK

90° tight bend for connecting two rigid pipes. Dust-tight and protected against the effects of temporary immersion in water. Eco-friendly: Halogen Free.

› IP67

› Halogen Free

› Grey (RAL 7035)

ACCESSORIES FOR RIGID PIPES

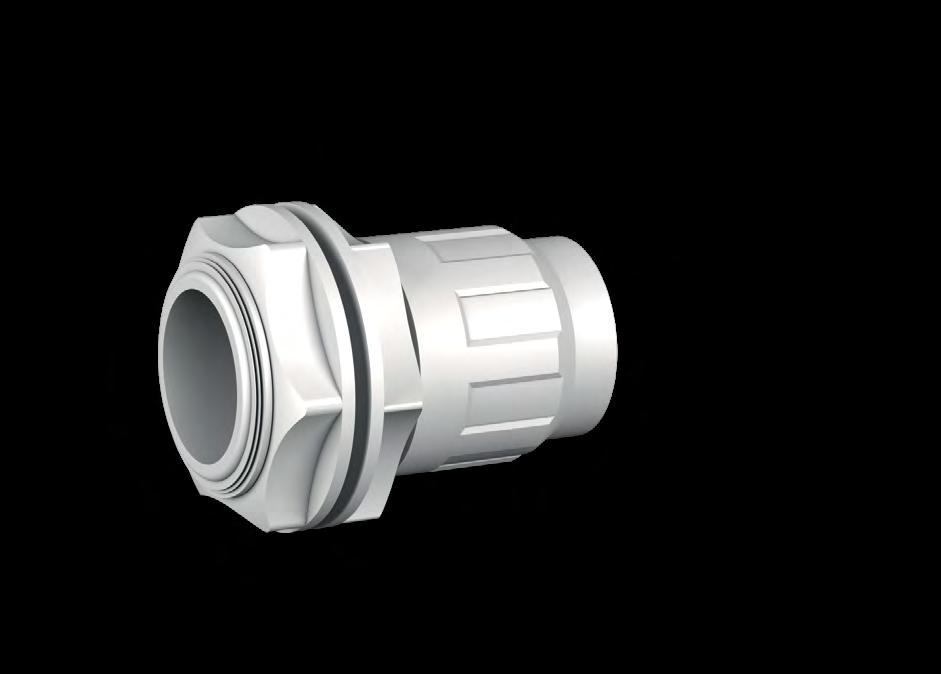

PM SMART - BK

Tight coupling for connecting the rigid pipe with junction box. Dust-tight and protected against the effects of temporary immersion in water. Eco-friendly: Halogen Free.

› IP67

› Halogen Free

› Grey (RAL 7035)

Scan or click for more

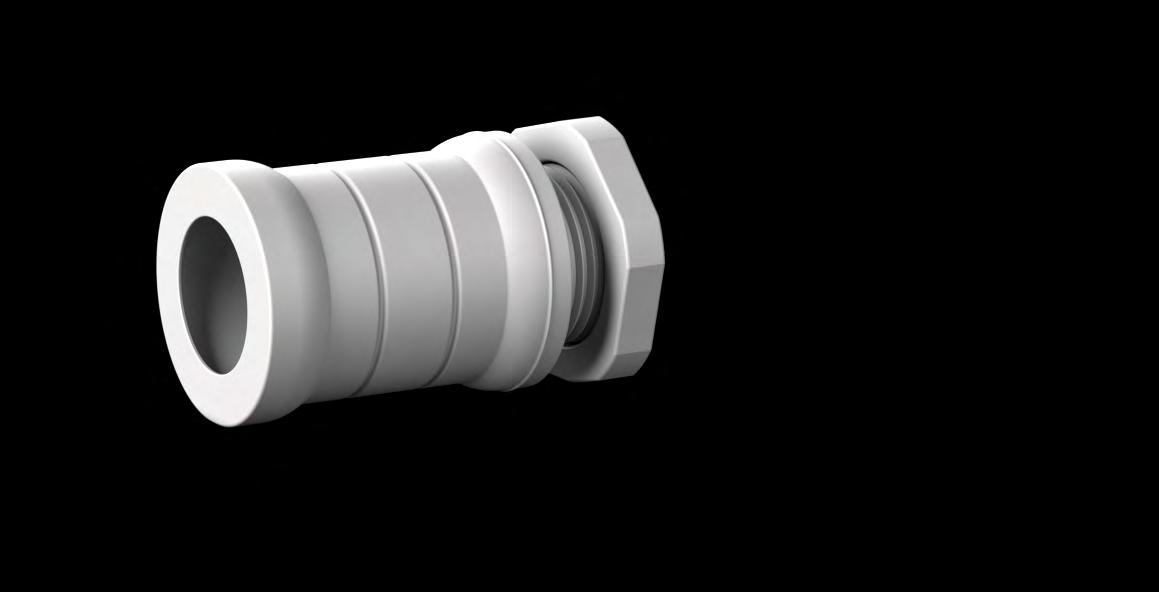

PM SMART - RK

Tight coupling for connecting the rigid pipe with spiralled sheath Spirex 2311. Dust-tight and protected against strong water jets. Ecofriendly: Halogen Free.

› IP66

› Halogen Free

› Grey (RAL 7035)

ACCESSORIES FOR RIGID PIPES

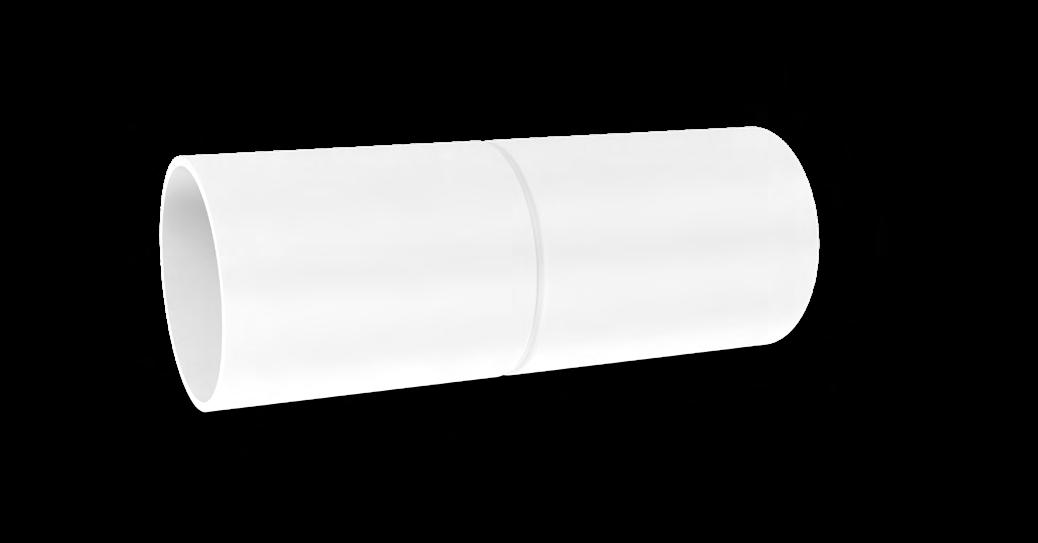

COUPLING

Coupling for the connection of rigid pipes.

Scan or click for more

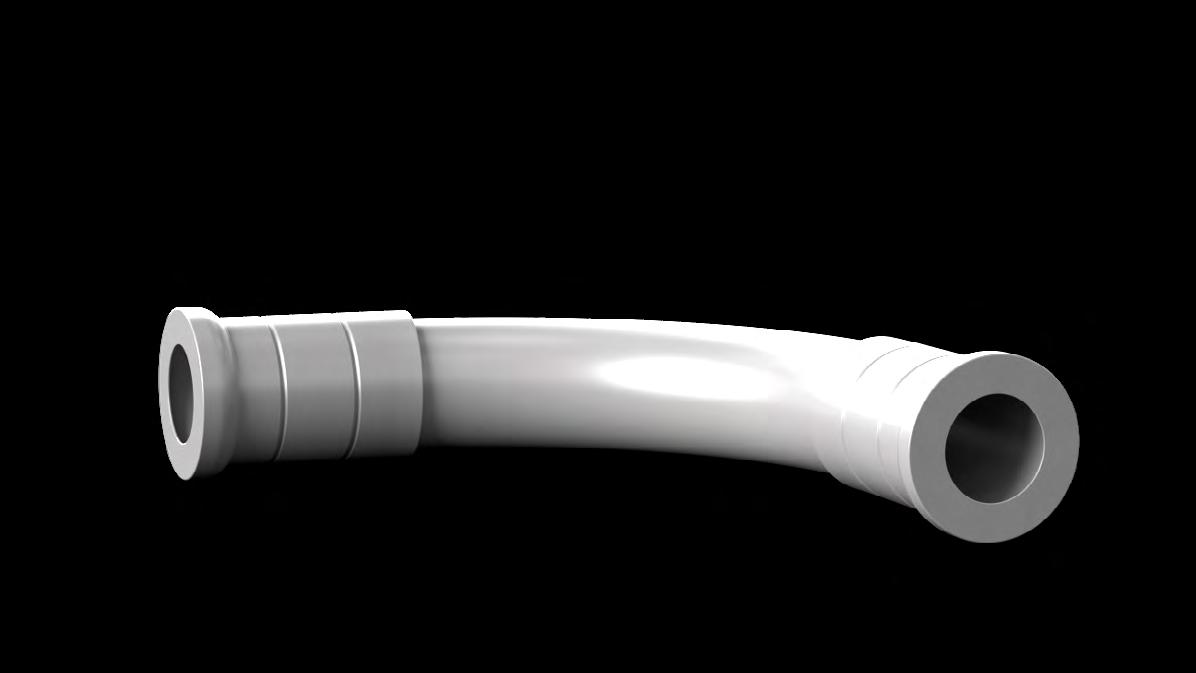

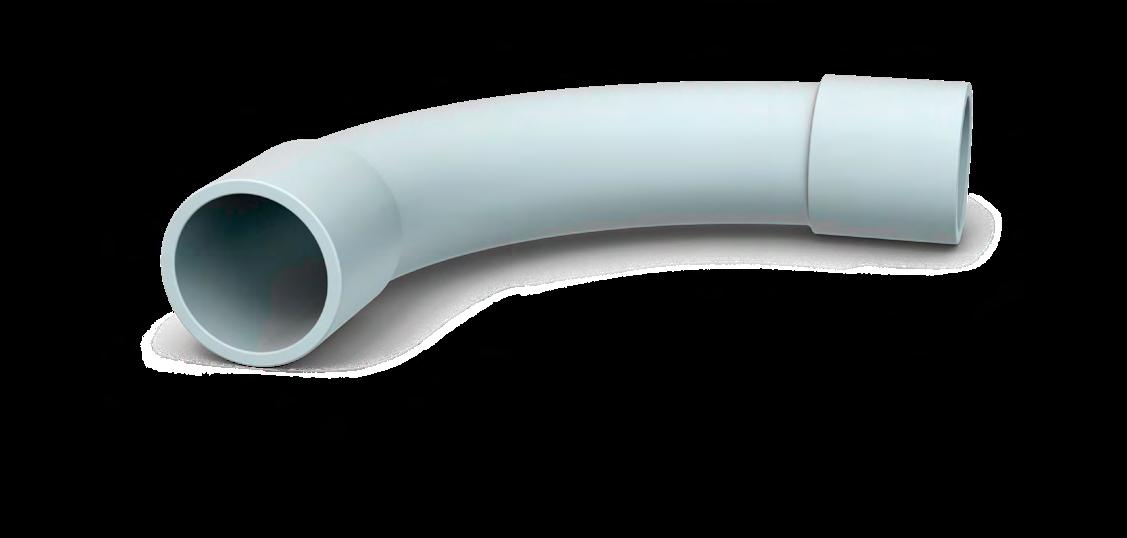

BEND

90° bend for the connection of rigid pipes.

ACCESSORIES FOR RIGID PIPES

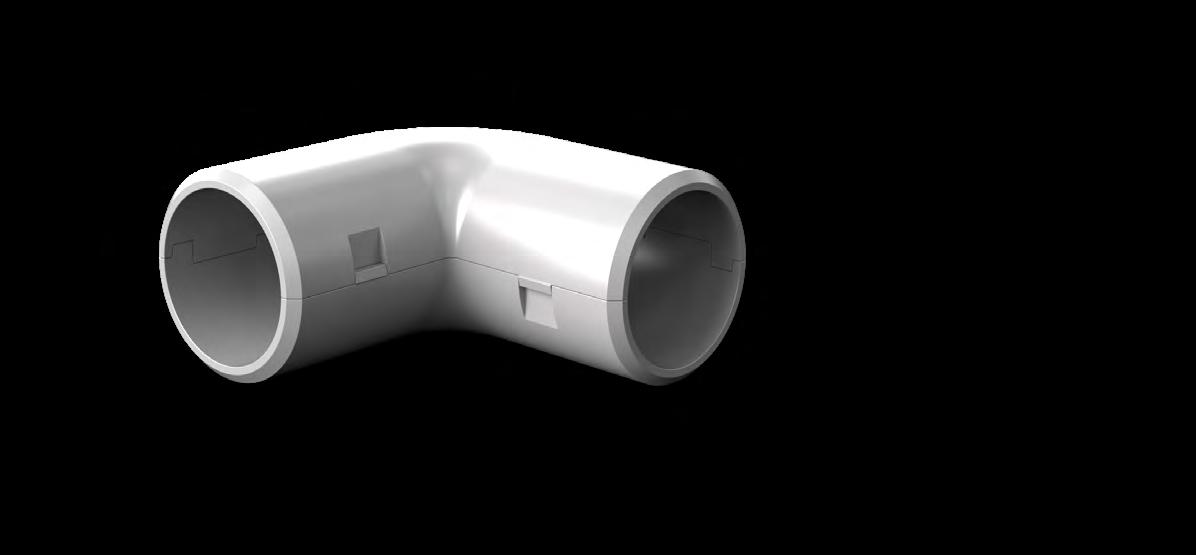

90° inspectionable bend for connecting rigid pipes.

Scan or click for more

Inspectionable T-joint for connecting rigid pipes.

ACCESSORIES FOR RIGID PIPES

Scan or click for more

CXS

›

› PVC

Scan or click for more

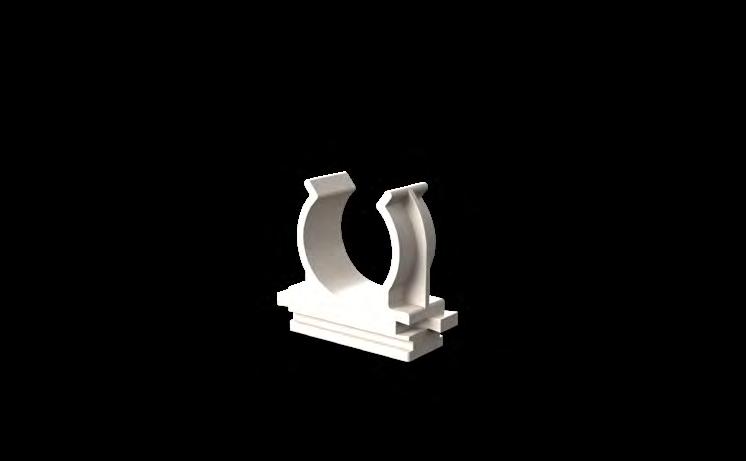

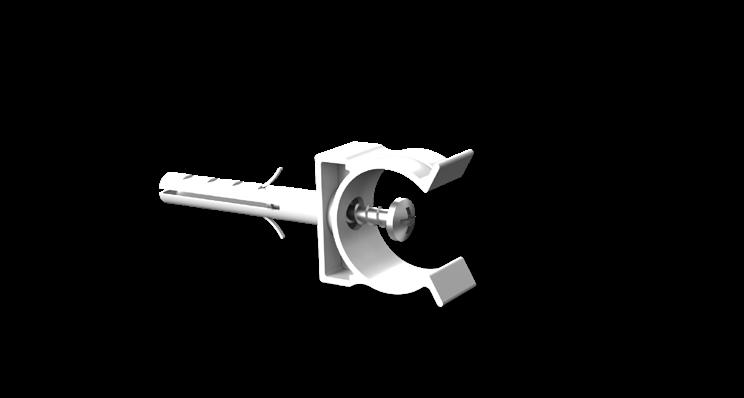

Click clip with plug and screw to fix rigid pipes. Made of thermoplastic material.

ACCESSORIES FOR

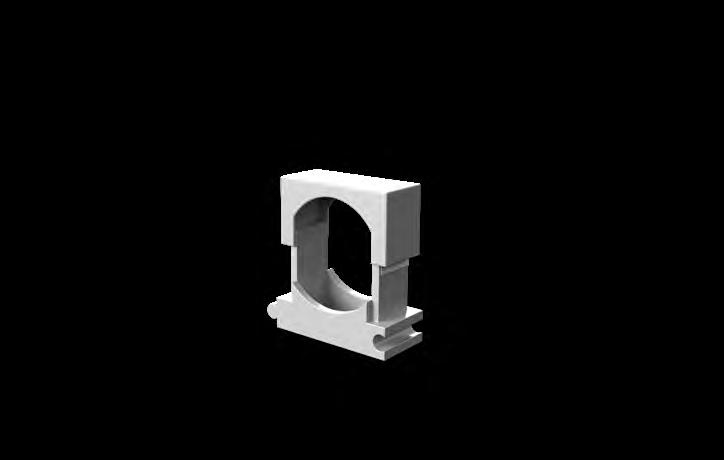

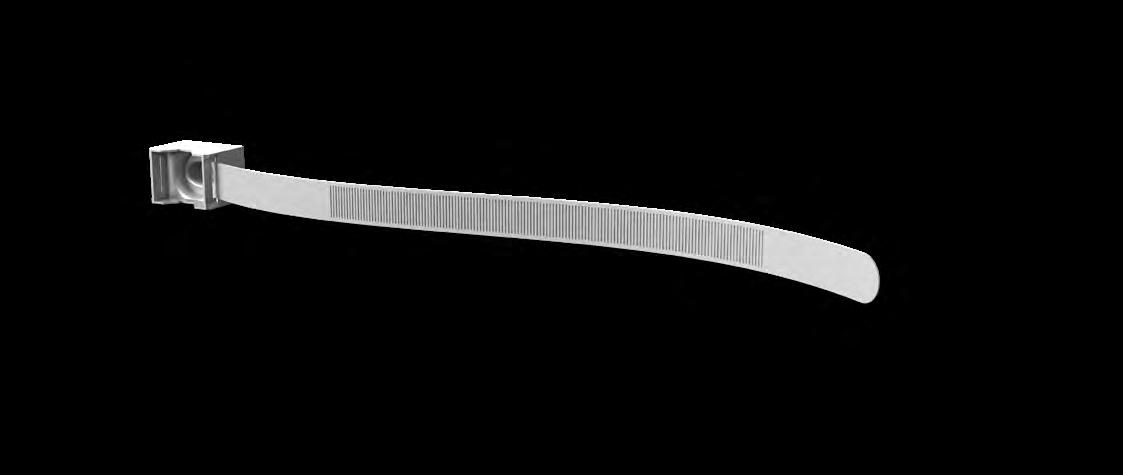

Fixing tie clip to fix rigid pipes. Made of thermoplastic material and Halogen Free.

Fixing click clip to fix rigid pipes. Made of polyamide and Halogen Free.

Scan or click for more

Scan or click for more

FIXING ACCESSORIES

ENGLISH

clip to fix rigid pipes. Made of ecological thermoplastic material and LSZH.

ACCESSORIES

Pmflex xRoller is a smart trolley for bobbins. Its unique design allows handling conduit lengths of up to 300 metres. It is easy to manoeuvre, as it rolls using the bobbin itself, with no additional wheels required. The product can be moved effortlessly and the unrolling process runs smoothly. There is no need to lift the bobbin, and replacement is quick and easy. xRoller is foldable, making transport significantly easier. Maximum load: 140 kg.

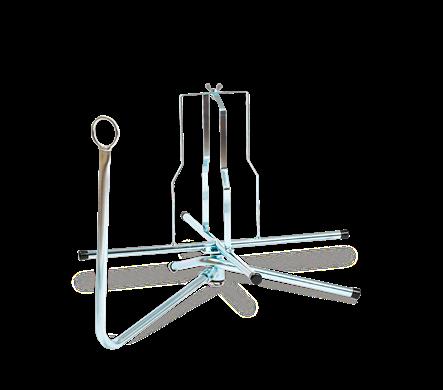

Go Easy

Unrolling Stand

› Ergonomic and no heavy lifting required

› Easy to replace with quick release

› Conduit waste is heavily reduced, compared to ordinary rolls

› Foldable in durable aluminium

Go Easy is the small and stable unrolling stand that allows to easily and quickly unroll any type of conduit that is wounded on normal coils, keeping intact the packaging of the roll. It is easy to carry and can be disassembled with simple handles when not in use. The stand is made of a galvanized pipe construction with double layers. Go Easy Plus is the reinforced version, designed for intensive use.

› A stable unrolling stand

Scan or click for more

› Flexible and easy to carry

› Durable galvanized pipe construction

Flexlist

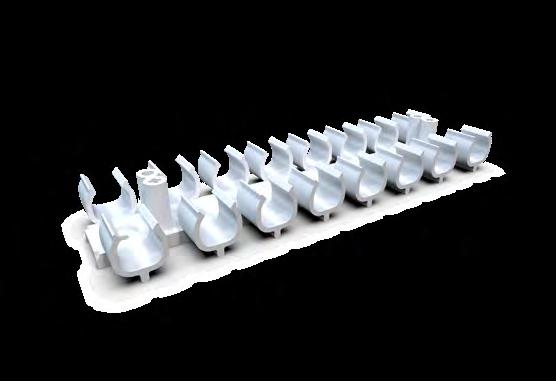

Conduit strip for flexible conduits and rigid pipes. It makes installation simple and efficient by enabling quick and smooth sorting of conduits in sizes 16-20 mm. The conduits are held in place with double clamps that are also lockable for flexible conduits. The Flexlist is halogen-free, suitable for casting into concrete, and recyclable. It can be easily cut to the desired length and mounted in up to three layers on top of each other. Countersunk screw holes, center markings, and pre-marked screw towers ensure fast and precise installation.

Clamp for securing conduits and rigid pipes to reinforcement mesh in

› 200 pieces per package

› For conduits and rigid pipes in 16-25 mm

› 100 pieces per package

› Available in 16 and 20 mm

New and improved: xShield 2.0next generation.

We have developed the new and improved xShield 2.0 - a complete nextgeneration cable protection range. Designed for fast, easy and visually clean installations, it builds on the strengths of the original xShield and introduces smart solutions that simplify the installer’s everyday work.

Our cable protection can withstand extreme conditions, adapted for all climate conditions. The quick clamp is made of spring steel while all other components are surface-treated with Magnelis® and approved according to corrosivity class C5 - ideal for Nordic climates and marine environments. Magnelis® also provides a unique ability to self-heal in drilled holes, weld seams and cut surfaces.

The range includes cable protections, solid and flexible bends, T-crosses, feet, connectors and end pieces that together create a neat, consistent and professional installation. Flexible mounting solutions such as quick clamps, clamps and single clamps allow easy and efficient installation, while optimized accessories ensure tighter bends, uniform connections and improved finishing details.

≈Shield - Cable protection system

Cable Protection Straight page 90

Flexible Bend page 91

Bend page 92

T-Cross page 93

Foot page 94

End page 95

Clamp page 96

Single clamp page 97

Quick clamp page 98

Coupling page 99

Screw page 100

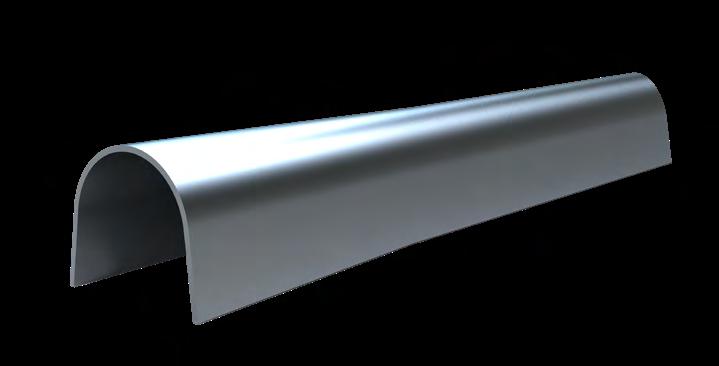

xShield Cable Protection

Robust cable protection for exposed environments! Our system ensures reliable protection for your cables even in the toughest conditions. Our straight cable protection is available in 1200-, 1700- and 2000 mm lengths, of which the 1200 mm version features the integrated central marking that greatly simplifies installation. Mount the cable protection according to your needs using Pmflex quick clamps, clamps or single clamps. All straight cable protection are surface-treated with Magnelis® and approved according to corrosivity class C5 - ideal for Nordic climates and marine environments. Magnelis® also provides a unique ability to self-heal in drilled holes, weld seams, and cut surfaces.

› Center marking on 1200 mm for easier clamping

› Surface treated with Magnelis ®

› Accessories available for complete installation

› 1200, 1700 and 2000 mm for easy handling

Scan or click for more

xShield Flexible Bend

A robust and flexible cable protection conduit that can be bent lengthwise up to 180 degrees! Compatible with Pmflex cable protection systems and easily installed using Pmflex clamps. Surface -treated with Magnelis® and approved according to corrosivity class C5 - perfect for Nordic climates and marine environments. Magnelis® also offers a unique self-healing ability on drilled holes, weld seams and cut edges.

› Perfect for uneven surfaces

› Good fit for cable protection

› Can be bent in the longitudinal direction up to 180°

› Superior corrosion protection

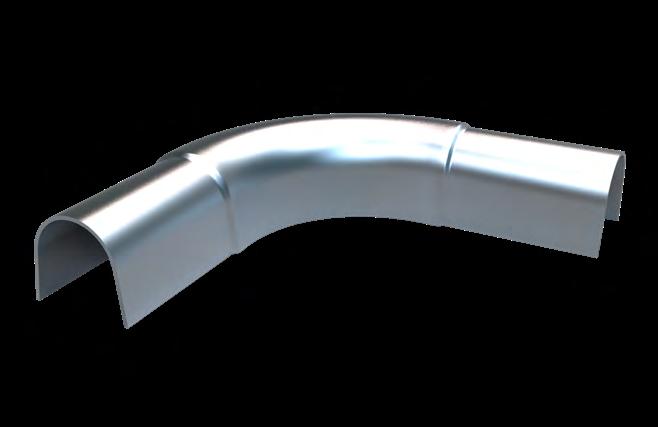

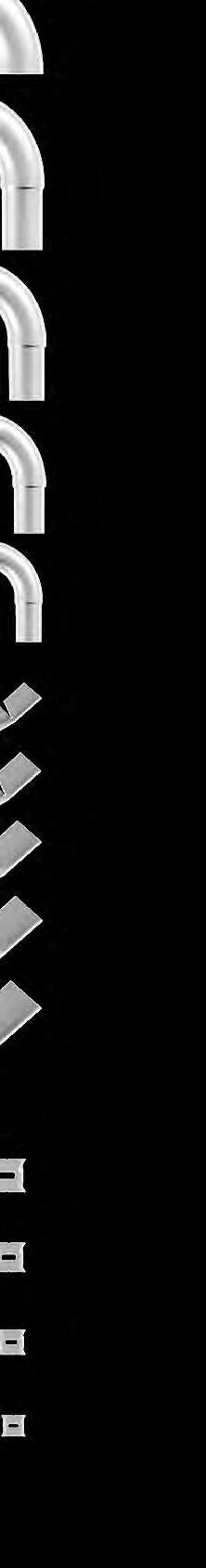

For installations that require clean, elegant bends! Our bends 16-34 mm are robust with a recessed design for a neat transition and seamless joints. Easily installed using Pmflex clamps or quick fasteners. Our bend 68 mm is compatible with Pmflex cable protection 68 mm and does not have a recessed design. Surface-treated with Magnelis® and approved according to corrosivity class C5 - perfect for Nordic climates and marine environments. Magnelis® also offers a unique self-healing ability on drilled holes, weld seams and cut edges.

› Superior corrosion protection

› Fixed bend for a nice and consistent installation

› Good fit for the straight cable covers

› Available in 16-68 mm

Scan or click for more

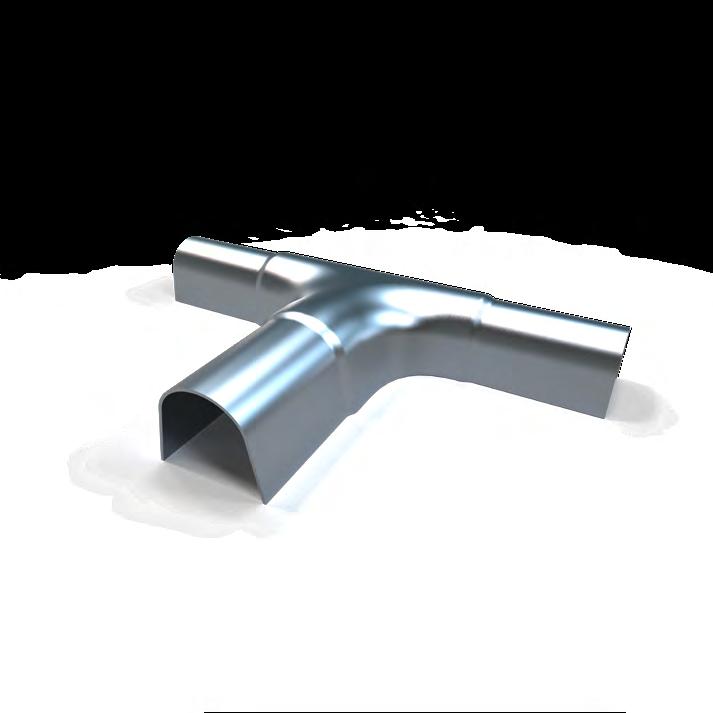

A robust T-cross that simplifies installation!

Available in two sizes covering the range of 16-28 mm. Designed with a recessed section for a neat transition and seamless joints. Surface-treated with Magnelis® and approved according to corrosivity class C5 - perfect for Nordic climates and marine environments. Magnelis® also offers a unique self-healing ability on drilled holes, weld seams and cut edges.

› Superior corrosion protection

› Fixed T-cross for a nice and consistent installation

› Optimized fit: 16-22 mm and 22-28 mm

› Mounted on the outside of the straight cable guards

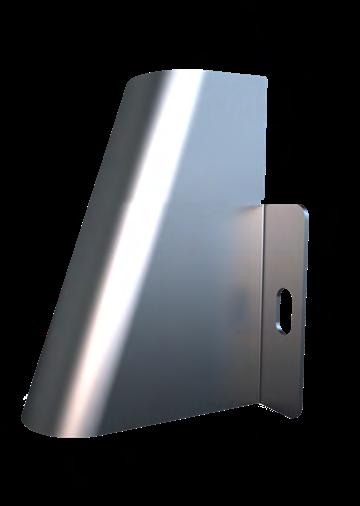

A robust cable protection foot, ideal for floor penetrations and similar installations. It is mounted directly onto Pmflex straight cable protection conduits, significantly simplifying the installation process. Surface-treated with Magnelis® and approved according to corrosivity class C5 - perfect for Nordic climates and marine environments. Magnelis® also offers a unique self-healing ability on drilled holes, weld seams and cut edges.

› Superior corrosion protection

› Hides pipes / cables e.g. floor penetrations

› Mounted on the outside of the straight cable guards

Scan or click for more

xShield End

A robust end cap that protects and completes your installation! 16-34 mm are designed with a recessed section for a neat transition and seamless joints. Easily installed using Pmflex quick fasteners or clamps. End 68 mm is compatible with Pmflex 68 mm cable protection and easily mounted using Pmflex clamps. Surface-treated with Magnelis® and approved according to corrosivity class C5 - ideal for Nordic climates and marine environments. Magnelis® also provides a unique ability to self-heal in drilled holes, weld seams, and cut surfaces.

› Superior corrosion protection

› The installer does not have to cut and bend

› Available in 16-68 mm

› Mounted with quick clamps, clamps or single clamps

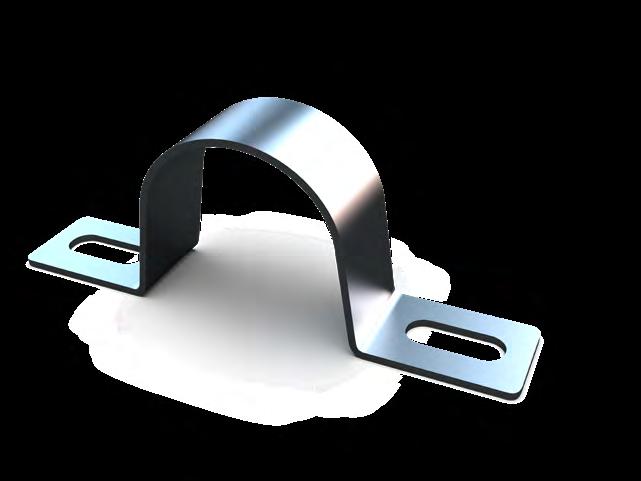

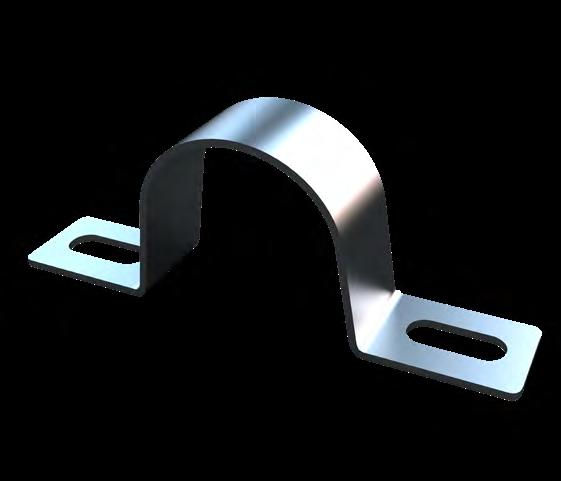

xShield Clamp

A robust clamp with oval holes designed to simplify the installation of Pmflex cable protection conduits!

Surface-treated with Magnelis® and approved according to corrosivity class C5 - perfect for Nordic climates and marine environments. Magnelis® also offers a unique self-healing ability on drilled holes, weld seams and cut edges.

› Superior corrosion protection

› Good fit

› Oval holes to facilitate assembly

Scan or click for more

xShield Single clamp

A robust single clamp with oval holes designed to simplify the installation of Pmflex cable protection conduits! Surface -treated with Magnelis® and approved according to corrosivity class C5 - perfect for Nordic climates and marine environments. Magnelis® also provides a unique self-healing ability on drilled holes, weld seams and cut edges.

› Superior corrosion protection

› Good fit

› Oval holes to facilitate assembly

› Clamp for lack of space i.e. installation against wall or edge

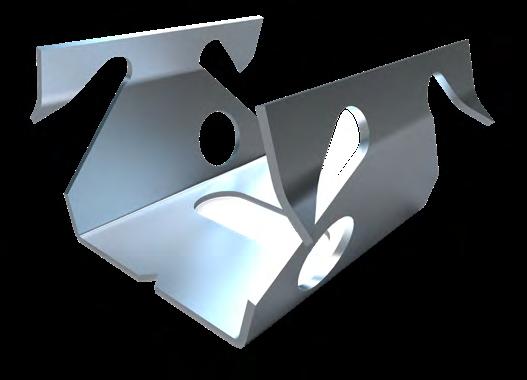

xShield Quick clamp

A quick clamp for simple, smooth and concealed installation! It is easily mounted with a single screw through the oval centre hole, providing maximum flexibility during installation. The side holes allow the use of cable ties for effective strain relief, and the centring marks significantly simplify alignment. The cable protection snaps securely into place, creating a neat, concealed installation with seamless joints. Compatible with Pmflex straight conduits, end caps, bends and couplings in sizes 16-34 mm.

› Simple, smooth and concealed installation

› Fast and efficient installation

› Made of spring steel

Scan or click for more

xShield Coupling

A robust connector with a recessed design for a neat transition and seamless joints!

Easily mounted using a Pmflex quick fastener positioned underneath the raised section.

Surface-treated with Magnelis® and approved according to corrosivity class C5 - perfect for Nordic climates and marine environments. Magnelis® also offers a unique self-healing ability on drilled holes, weld seams and cut edges.

› Superior corrosion protection

› For a neat transtition and seamless transitions

› Available in 16-34 mm

Wood screw for clamps used with cable protection!

The screw has a pan-head countersunk design with a cross recess and a self-tapping thread. The surface treatment is zinc-nickel, grey.

Scan or click for more

Technical info

Conduits, Pipes and Accessories

INTERNATIONAL STANDARD IEC EN 61386

EN 61386.1

General requirements. Applies to all conduit systems. It is to be used in conjunction with the appropriate part 2, providing specific requirements for each single type of conduit system.

EN 61386.21 Particular requirements - Rigid conduit systems.

EN 61386.22 Particular requirements - Pliable conduit systems.

EN 61386.23 Particular requirements - Flexible conduit systems.

EN 61386.24 Particular requirements - Conduit systems buried underground.

CLASSIFICATION CODE

The product classification code is made of 12 digits. The conduit must be marked with the first 4 digits, at least.

1st digit: Resistance to compression

1 - extra light (125 Newton)

2 - light (320 N)

3 - medium (750 N)

4 - heavy (1.250 N)

5 - extra heavy (4.000 N)

2nd digit: Resistance to impact

1 - extra light (0,5 Joules)

2 - light (1 Joule)

3 - medium (2 Joules)

4 - heavy (6 Joules)

5 - extra heavy (20,4 Joules)

3rd digit: minimum permanent application and installation temperature

1 - (+5°C)

2 - (-5°C)

3 - (-15°C)

4 - (-25°C)

5 - (-45°C)

4th digit: maximum permanent application and installation temperature

1 - (+60°C)

2 - (+90°C)

3 - (+105°C)

4 - (+120°C)

5 - (+150°C)

6 - (+250°C)

7 - (+400°C)

5th digit: bending resistance

1 - rigid: Can only be bent using mechanical tools

2 - pliable

3 - pliable/Self-recovering

4 - flexible

IP PROTECTION DEGREES

7th digit: resistance to the penetration of solid objects

3 - protected against the penetration of solid objects with diameter = /> 2,5 mm.

4 - protected against solid objects with diameter = /> 1,0 mm.

5 - dust protected

6 - dust-tight.

8th digit: resistance to water penetration

0 - no protection

1 - protected against vertically falling water drops

2 - protected against vertically falling water drops (system tilted up to 15°)

3 - protected against rain

4 - protected against water splashes

5 - protected against water jets

6 - protected against strong water jets

7 - protected against the effects of temporary immersion in water.

EUROPEAN INTERNATIONAL STANDARD EN 50642:2018

Test method for content of halogens in cable management systems. This European Standard specifies the method for the determination of the content of halogens in Cable Management System (CMS) components or products made of polymeric material(s). The determination is made by combustion and subsequent analysis of the combustion product by Ion Chromatography. This standard specifies how CMS components or products can be declared as halogen free.

EUROPEAN INTERNATIONAL STANDARD IEC 60754

Ordinary test methods for cables under fire conditions. Test on gases evolved during combustion of materials from cables.

Part 1 Determination of the amount of halogen acid gas.

Part 2 Determination of degree of acidity of gases for materials by measuring pH and conductivity.

EUROPEAN INTERNATIONAL STANDARD IEC 61034

Part 2 Measurement of smoke density of cables burning under defined conditions.

CONFORMITY DECLARATION

Pmflex declares that all the products *** listed in this catalogue, according to the Directive EC 2014/35 (LVD), comply with the minimum safety requirements of the Directive and are CE marked. Upon request, Pmflex can supply the copy of the EC Conformity Declaration for any single product.

*** The Following products are not included in the application field of LVD and are without CE mark: MOPI, MON, CT, C, CFC, CF, CFF

With reservation for changes.

We reserve the right that products presented in the catalogue may be discontinued.

We also reserve the right to any printing errors in the catalogue.

PM FLEX s.r.l. Via XXV aprile, 15 24030 Almenno San Bartolomeo BG - Italy
