For 30 years PMC Attachment has been developing integrated fork positioners with sideshift for forklift truck manufacturers. Our attachments have a wide range of capacities from 1-35 tons and are suitable for warehouse and counterbalance forklift trucks.
All design and production is made entirety in-house according to ISO9001, ISO14001, ISO 3834-2, ISO 2330. This is a great advantage to you as a forklift truck manufacturer. We stock all the component parts, and we can quickly build and supply new attachments to order, which means we can match your manufacturing requirements. We also stock spare parts and offer service.
We have also expanded our product portfolio by making electro mechanical solutions (For example the E-clamp). To read more about these products please visit www.pmcattachment.com.
Benefits of a fork positioner with side shift
• Fork positioning can be operated from the driver’s seat
• Quick and efficient - saves time
• No need to get in and out - improves safety and work environment
• Less risk of damaged goods - lower costs, higher productivity
Out attachments are suitable for both warehouse and counterbalance forklift and have a wide range of capacities from 1-35 tons.
PMC Attachment is one of northern europe’s leading manufacturers of integrated fork positioners with sideshift.
1–35 ton product range
Attachments for forklifts trucks from 1 to 35 tons, including new electric solutions.
Forklift attachments for all needs
Our attachments are designed for maximum opening range and free visibility, and performed for the best possible material handling.
Offerings:
In-house manufactured forklift attachments with good visibility and short lead times damaged goods - lower costs, higher productivity
Wide selection, customizations, and the right capacity
Certified production and hydraulic cleanliness (ISO 4406)
High performance & reliability
Designed for quality, performance and dependable delivery.
40+ years of experience
Over 40 years of expertise in attachment solutions.
40 years of experience and a high level of service
Key benefits:
Gives you faster and safer handling, lower costs, and a quick turnaround. It also helps you maintain a more efficient and reliable workflow.
Ensures flexibility, 1–35 ton options to suit your needs, and the right solution for the end user.
Provides safe function, long working life, and the reassurance of a field-tested product.
Direct deliveries to your factories, a smooth customer experience, and overall reliable performance.

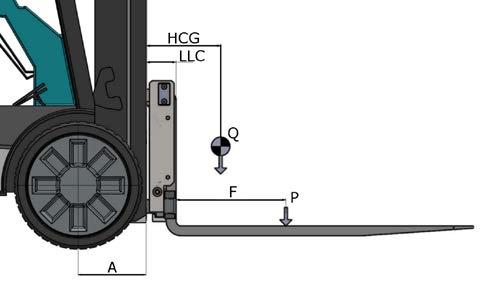

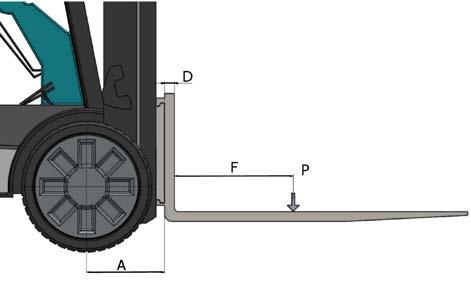

Residual capacity
Standard ISO mouting
PMC attachment

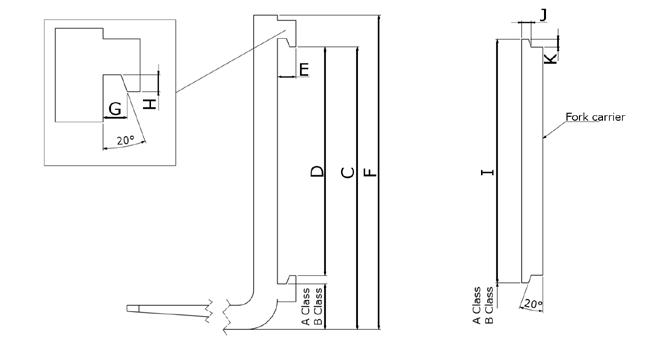

ISO 2328 Table
Note dimensions and weights are not fixed and can change with specification. The standard measures of carriage follows ISO 2328 table.
PMC Attachment is one of northern europe’s leading manufacturers of
PMC Attachments Product Models

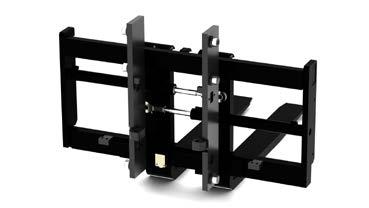

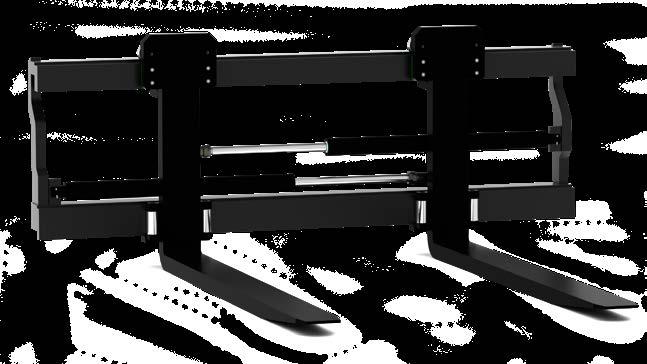

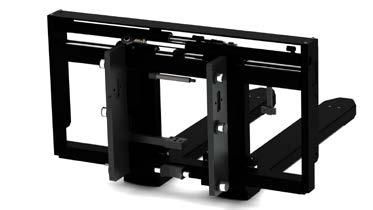

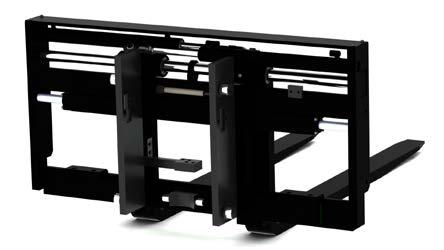

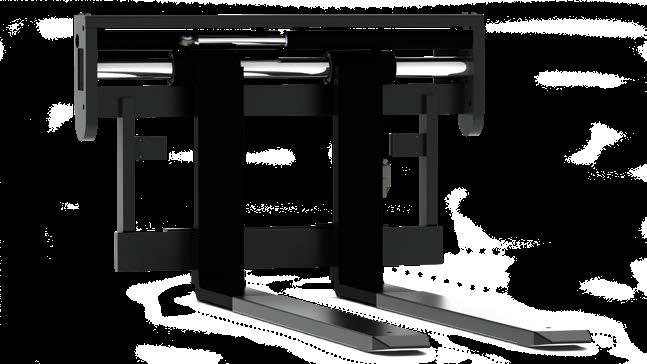

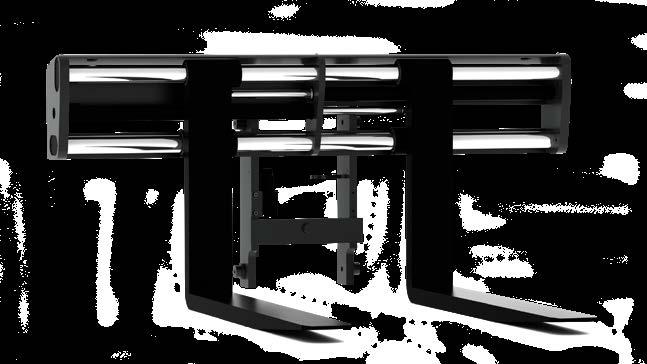

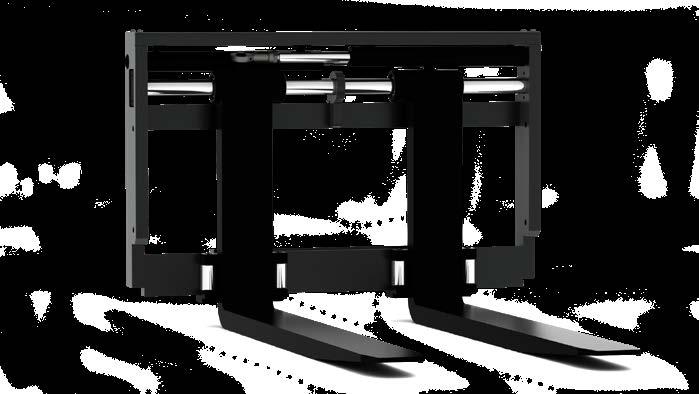

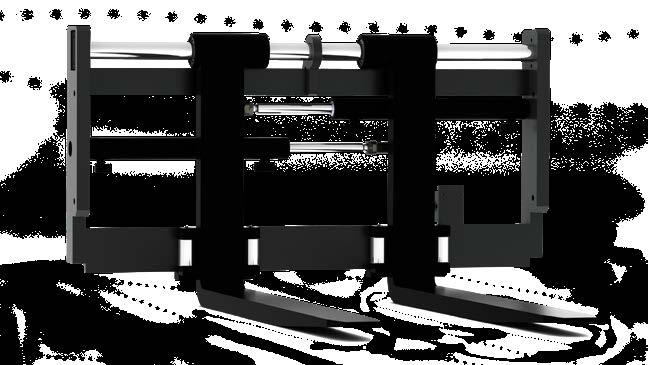

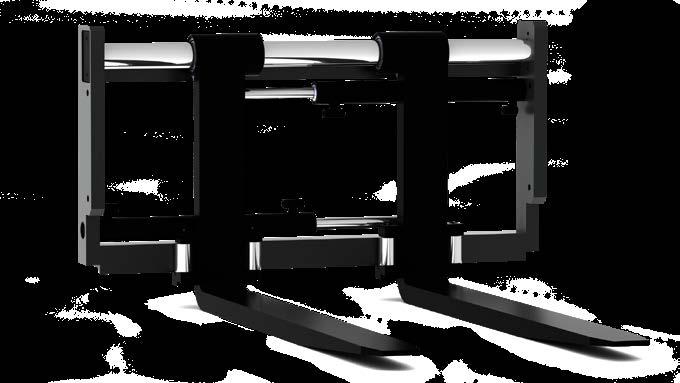

PMC1 - PMC11 integrated fork positioners with sideshift
Here we present our standard range of integrated fork positioners with sideshift. The tables are to help you decide what type of fork positioner, sideshift, forks etc you
PMC 1
kg • Integrated fork-positioning with sideshift • Cylinders on top for good visability
• Capacity, width, forks and opening ranges can change to customer request • Fits both warehouse and counterbalance forklift trucks Technical drawings
PMC 2
Capacity 1800-9000 kg
• Integrated fork-positioning with sideshift
• Good visability both through and over
• Pin-type with maximum opening range
• Capacity, width, forks and opening ranges can change to customer request
• Fits counterbalance forklift trucks
Technical drawings
PMC 3
Capacity 1800-3500 kg
• Integrated fork-positioning with sideshift
• Sideshift over center

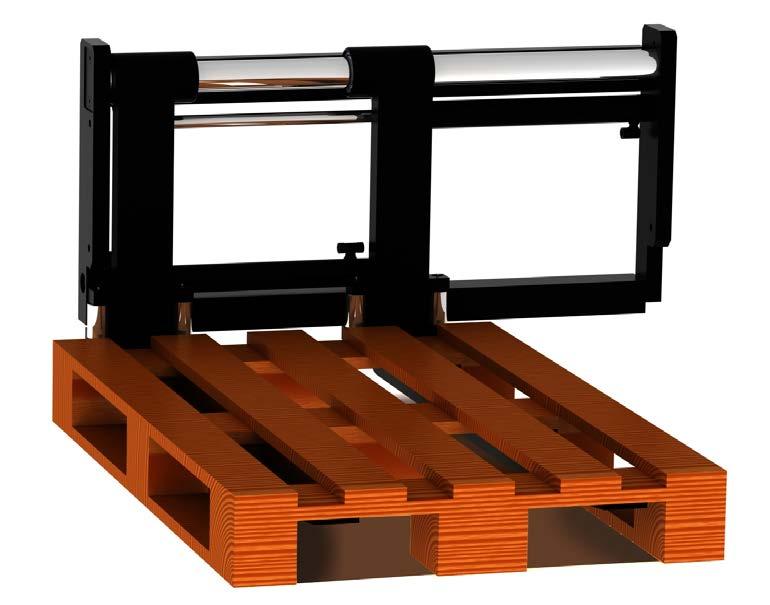

• See picture with pallet for advantage for side shift over center
• Capacity, width, forks and opening ranges can change to customer request
• Fits counterbalance forklift trucks
Technical drawings
PMC 4
Capacity 1800-5000 kg
• Integrated fork-positioning with sideshift
• Cylinder on top
• Very good hose routing for hydraulic extension forks
• Maximum opening range both spread and extension of forks
• Capacity, width, forks and opening ranges can be changed to customer request
• Fits counterbalance forklift trucks
Technical drawings
PMC 5
Capacity 5000 - 35000 kg
• PMC Attachments heavy duty integrated fork positioner with sideshift
• Fork with rollers for optimum power and weight distribution
• Good visability
• Capacity, width, forks and opening ranges can be changed to customer request
• Fits for heavy counterbalance forklift trucks
Technical drawings
PMC 6
Capacity 2500 kg
• Integrated fork-positioner with sideshift
• For long gods handling in storage with wide opening range
• Fits warehouse four-way reach trucks
• Capacity, width, forks and opening ranges can be changed to customer request
PMC 8
Capacity 2500-3000 kg
• Integrated fork positioning with sideshift
• With sideshift over centre
• For maximum opening range between support legs of forklift reach trucks
• Fits warehouse forklift trucks
• Capacity, width, forks and opening ranges can be changed to customer request
2500
Technical drawings Technical drawings
PMC 9
Capacity 1600-7000 kg
• Hook-on attachment with fork positioning with sideshift
• See ISO2328 table on pages 3 for best capacity
• Fits counterbalance forklift trucks
• Capacity, width, forks and opening ranges can be changed to customer request
Technical drawings
PMC 10
Capacity 4500-8000 kg
• Integrated fork-positioning with sideshift
• Also as Hook on attachment available
• Fits for clamping goods because of the low pin type mount
• Suitable with ISO Adapters
• For heavy loads
• Fits counterbalance forklift trucks
• Capacity, width, forks and opening ranges can be changed to customer request
PMC 11
Capacity 1800-7000 kg
• Advantage to have forks in maximum opening range and still side shift
• Frame with seperate side shift control movement
• Fits counterbalance forklift trucks
• Capacity, width, forks and opening ranges can be changed to customer request
Technical drawings

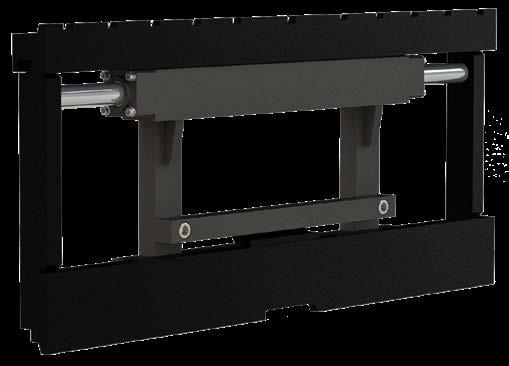

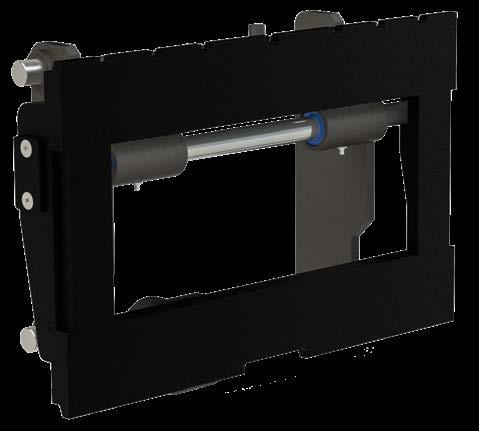

PMC 20
• ISO Class: ISO1-3
• ISO frame with integrated shide shift
• According to ISO 2328
• Integrated tilt as option
• Width and side shift stroke can be changed to customer request
• Hook on or integrated version

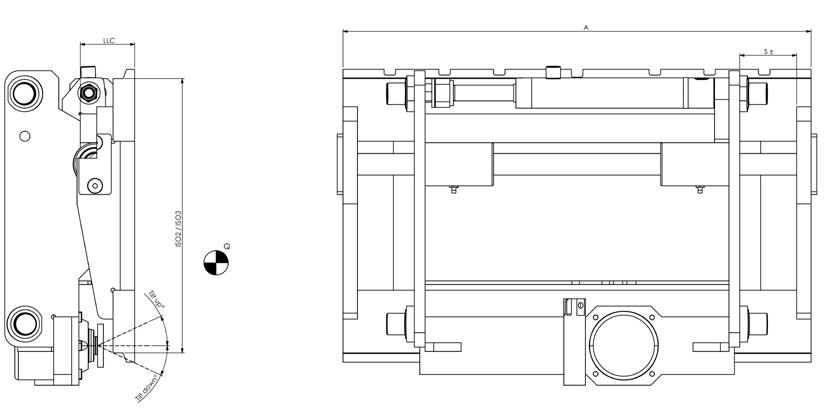

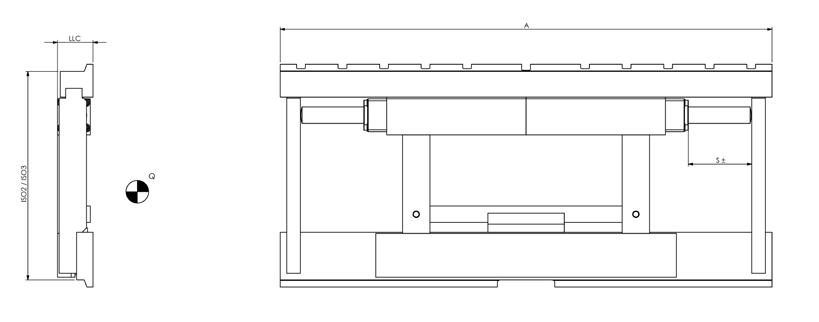

Standard version
Option - integrated tilt version:
Customised attachments
developed in collaboration with your technicians
With our long experience of the industry, we have come into contact with a wide and varying range of customer requirements. All that experience is of benefit in finding the best solutions and in optimising the unit for different individual needs. Here are a few examples of integrations from all the hundreds that we have produced.

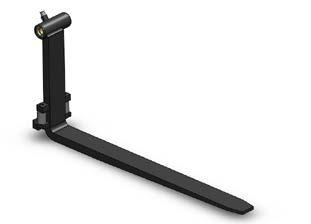

A full range of top quality forks manufactured according to PMC design

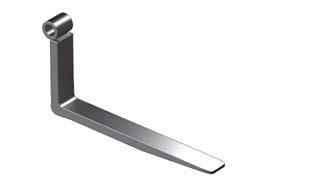

Standard forks
• Wide range
• Short lead times
• Suitable for all PMC models
Adapter plates
• Based on ISO standard
• Flexible areas of use
• Suitable for all PMC models
Hydraulic extension forks
• Increase the unit’s reach
• Handle standard and long pallets
• “Let the hydraulics do the work”
• Suitsable for PMC 1,4, 7, 8, 11
Fully tapered forks
• Facilitates handling of goods in cramped spaces
• Wide range
• Suitable for all PMC models

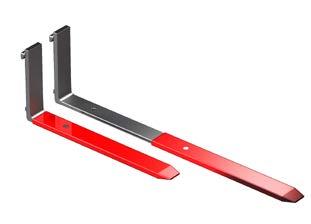

Manual extension forks
• Increase the unit’s reach
• Handle standard and long palletes
• Suitable for all PMC models
Height adjustment forks
• Handle unstable goods
• Good when ground is uneven
• Adjustment of goods’ vertical position
• Suitable for all PMC models

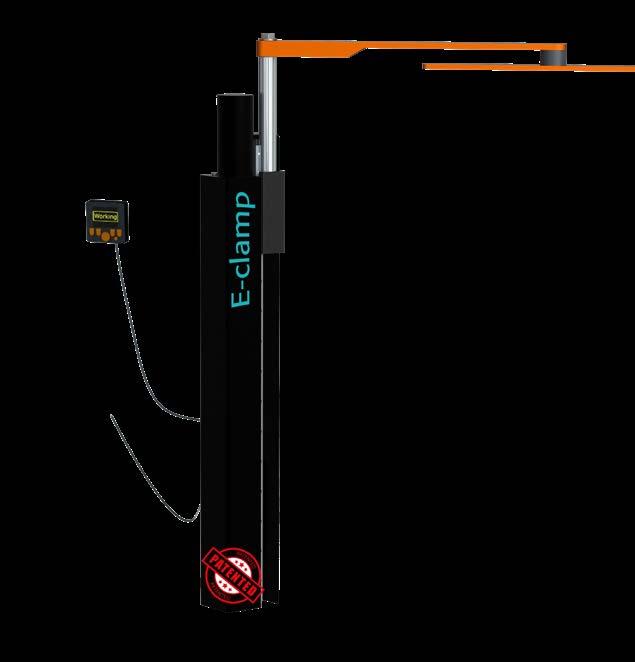

E-clamp E-spreader
Electric load stabilizer
The E-clamp is electrically powered (12–48V) and equipped with its own built-in PLC control system. This advanced system can be fully programmed to meet specific customer requirements, ensuring precise and reliable operation. Designed for modern material handling, the E-clamp delivers safer, faster, and more stable goods handling while reducing maintenance and improving overall efficiency.
Benefits with E-clamp
• Safer, faster and more stable material handling
• Rapid in all movements and good visability for driver
• PLC programmable with a compact and unique solution
• Pressure plate does not press on the edges, minimizing damage to the goods
• Truck driver can monitor the E-clamp on the display in the cabin
• Easy to operate
• Only one tap on “Grab” or “Release” button
Read more about our e-products here!

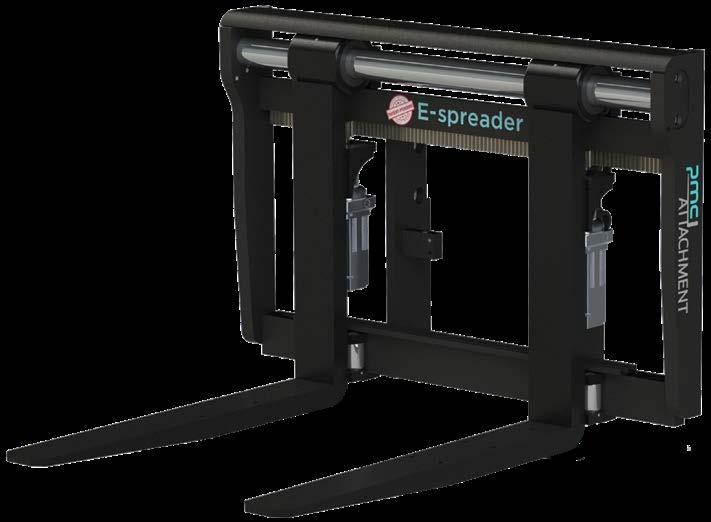

Electric fork positioner with side shift
PMC Attachment’s new electric fork positioner. The E-spreader is powered by two electric motors and offers precise, smooth, and energy-efficient operation. It can be programmed to meet customer demands for side shift, positioning, and clamping, allowing full customization for different handling tasks. With reduced maintenance and improved control accuracy, the E-spreader enhances productivity, reliability, and operator comfort.
Benefits with E-spreader
• Electric - side shift / fork position / clamping
• Outstanding visability
• Programmable to forklift interface
• High precision on all movements
• Exact performance and repeatability
• Safer material handling

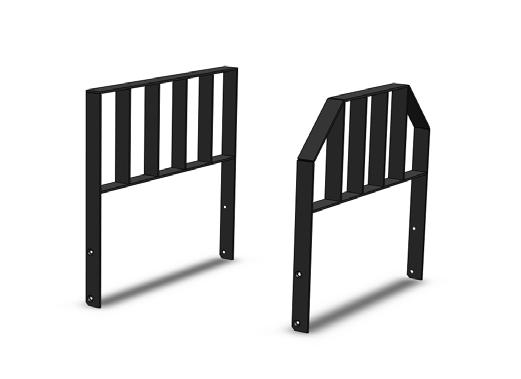

Our accessories

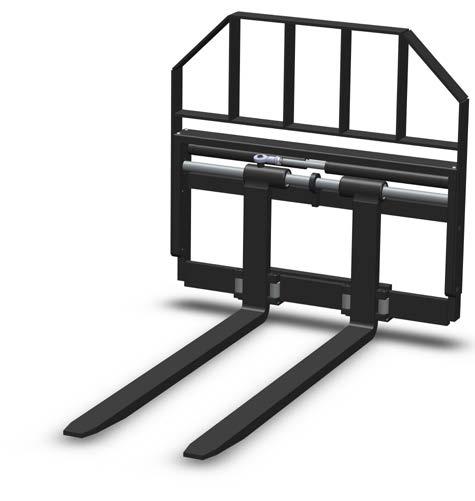

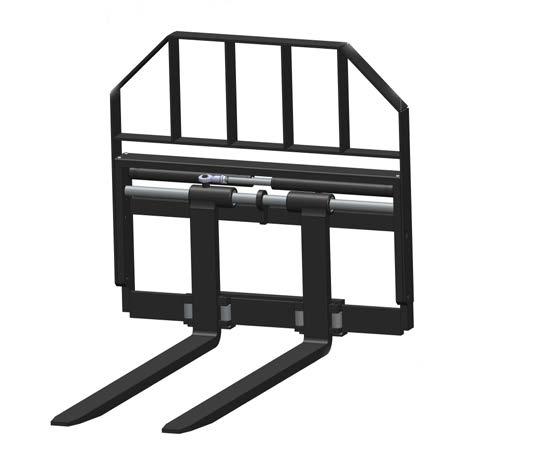

We offer load support individually adapted to each model. Available for PMC 1-11.
Load supports
PMC Art. No - Unit width - Height from ground to top of load support
Example: 45024-1220-1200
For a load support for PMC 4 with a capacity of 3000 kg and a unit width of 1220 mm and a height of 1200 mm from the ground to the top of the load support.
A
Reliable Spare Parts Management and full Machinery Directive Compliance
Efficient Spare Parts Support

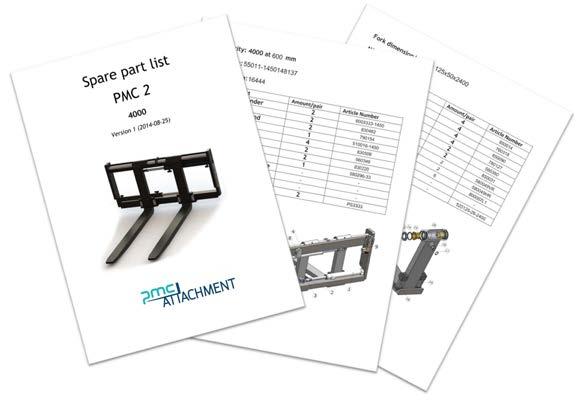

Spare parts/after market details are handled with the help of PMC’s spare parts sheet. Having our own production means that lead times for spare parts can be minimised. This gives you a high level of service when a breakdown is ongoing.
It is also possible to change original accessories supplied for the unit, such as fork dimensions.
Efficient

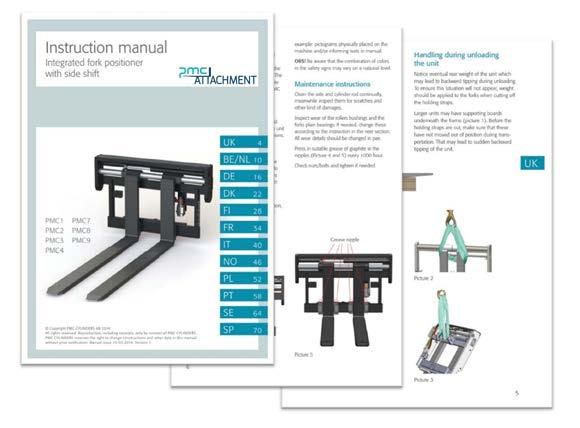

The units fulfill the requirements of the Machinery Directive regarding partly completed machinery. The assembly directions that accompany every unit confirm that the requirements have been met. Machinery Directive Compliance
PMC Attachment is one of Northern Europe’s leading manufacturers of integrated fork positioners with side shift, ranging from 1 to 35 tons. The company is part of Dacke Industri AB, which invests in innovative technology companies with a focus on customized system solutions and components based on hydraulic, pneumatic, electrical, mechanical, and software technologies. Sales at 450 MEUR and 1,700 employees.
