Geosynthetic Catalog-Planetliner

Page 1


Web:www.planetliner.com

COMPANY

PROFILE | 公司概况

山东泰丰商业集团有限公司于2002年2月在济南市莱芜区口镇太平村成立,注册资本5000万 元。是一家从事生产加工、出口、进口、转口于一体的国际贸易集团公司,目前主营产品包括地 毯、土工材料、建筑装饰材料、建筑五金、纺织制品等100多个品种。

集团公司先后获得 “海关AEO高级认证企业”、“山东省扶贫龙头企业”、 2022年获“好品山东

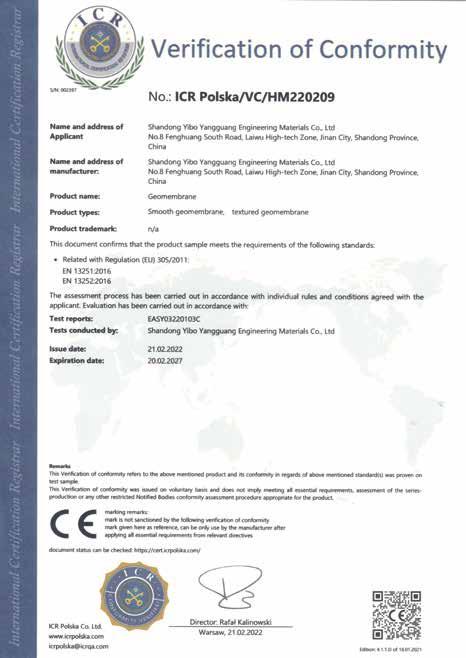

区域品牌”、济南市民营企业100强。出口产品连续多年通过“CE”、“SEDEX”、“ROHS”、 “ISO9001”等国际质量体系资质认证,同时公司内部设有品控部,产品质量实现了可控、可追 溯,销售网络覆盖欧美、中东、东南亚等100多个国家和地区,跻身山东省出口企业100强榜单。

Shandong Taifeng Commercial Group Co., Ltd. was established in Taiping Village, Kou Town, Laiwu District, Jinan City in February 2002 with a registered capital of 50 million yuan. It is an international trade group company engaged in production, processing, export, import and re-export. Its main products include carpets, geotechnical materials, building decoration materials, building hardware, textile products and more than 100 varieties.

The group company has successively obtained the "Customs AEO Advanced Certification Enterprise", “Shandong Province Poverty Alleviation Leading Enterprise”, “Good Products Shandong Regional Brand" in 2022, and Jinan City Top 100 Private Enterprises. Export products have passed international quality system qualification certifications such as “CE”, “Sedex”、“ROHS”, and “ISO9001” for many years. At the same time, the company has a quality control department, and the product quality has been controllable and traceable. The sales network covers more than 100 countries and regions such as Europe, America, the Middle East, and Southeast Asia, and has ranked among the top 1 00 export enterprises in Shandong Province.

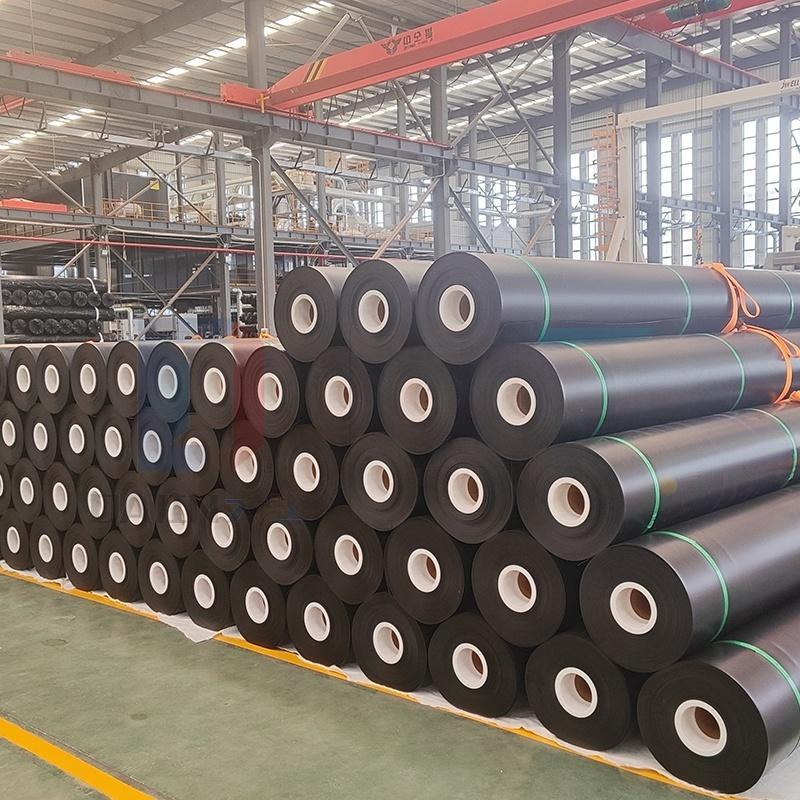

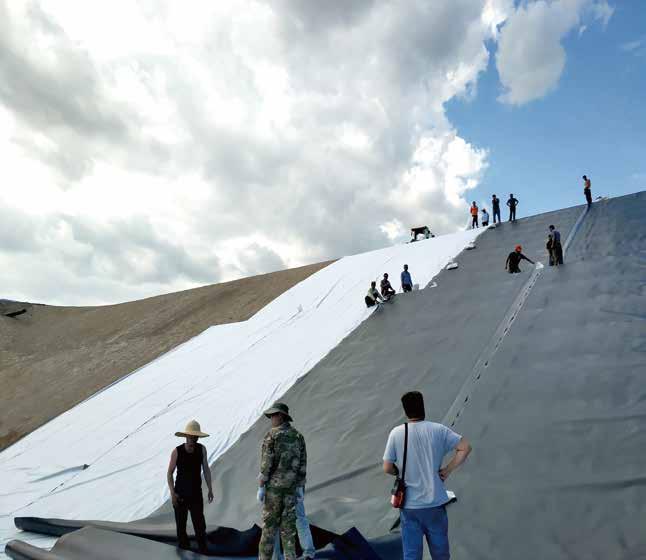

GEOMEMBRANE

土工膜

GEOMEMBRANE

●技术指标 / Technical indicators

●产品介绍

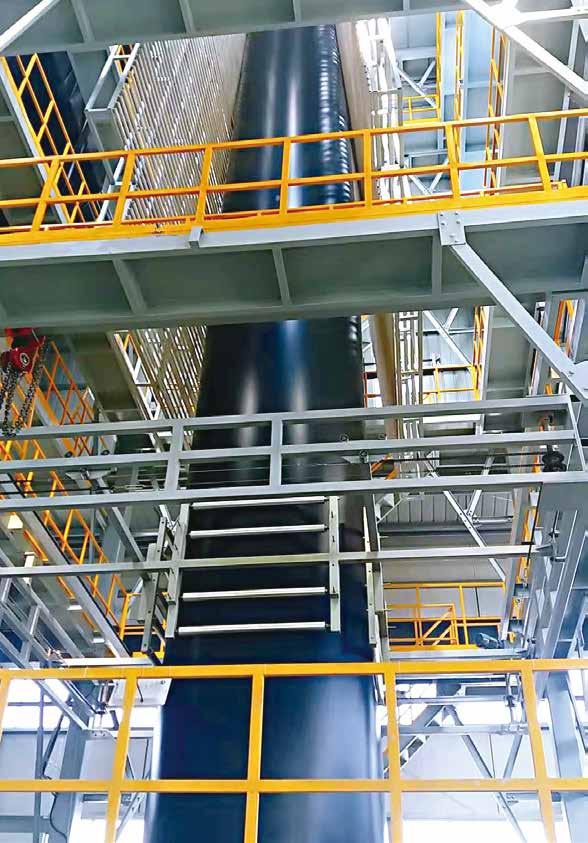

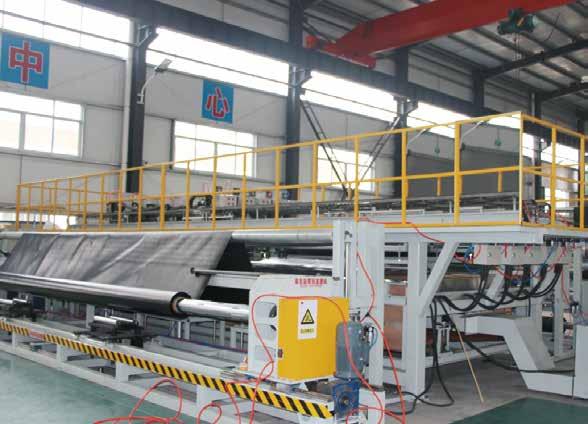

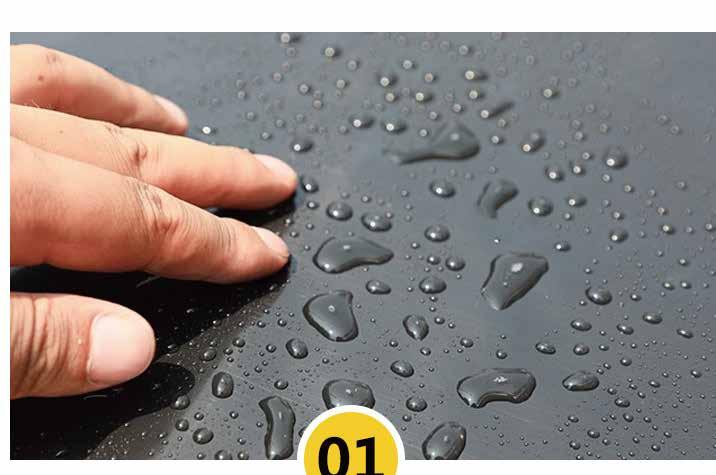

光面土工膜选用优质的聚乙烯原生树脂为原 料,加入碳黑、抗老化剂、抗氧剂、紫外线吸 收剂、稳定剂等辅料,用目前世界一流的全自 动化土工膜生产设备,经三层共挤吹塑技术制 成。所有产品均依据国标标准、美国GRI标准 和ASTM测试标准执行生产。

●产品规格

厚度: 0.2mm-3.0mm

宽幅: 2m-12m

颜色: 黑色,绿色,蓝色,白色

材质: HDPE LDPE LLDPE

●应用范围

环保环卫、水利、市政工程、园林、景观、石 化、矿业、盐业、农业、水产养殖业。 光面土工膜

●Product introduction

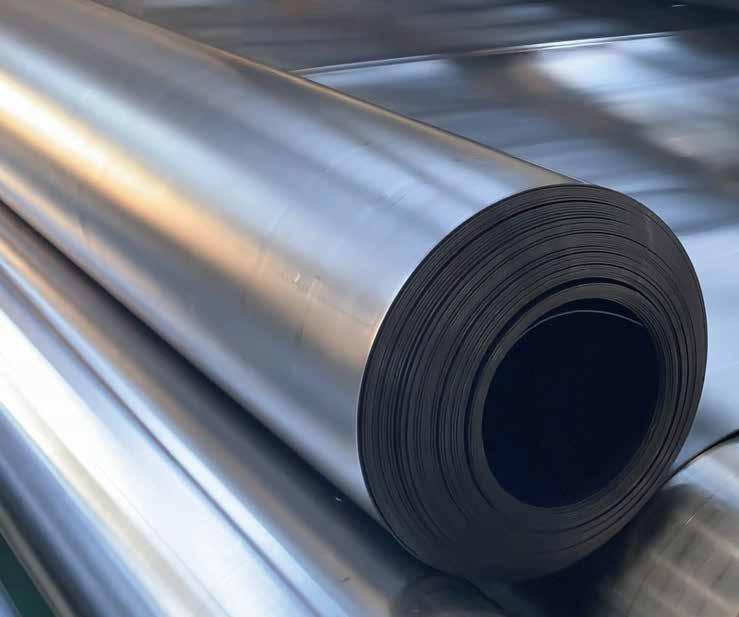

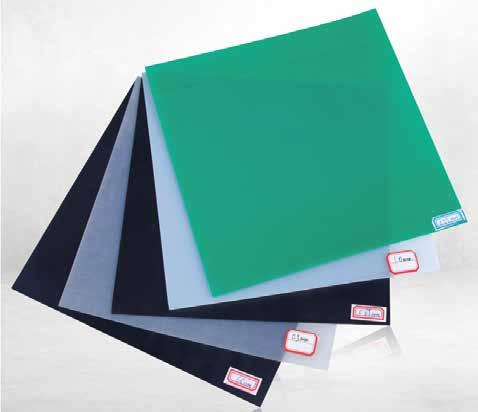

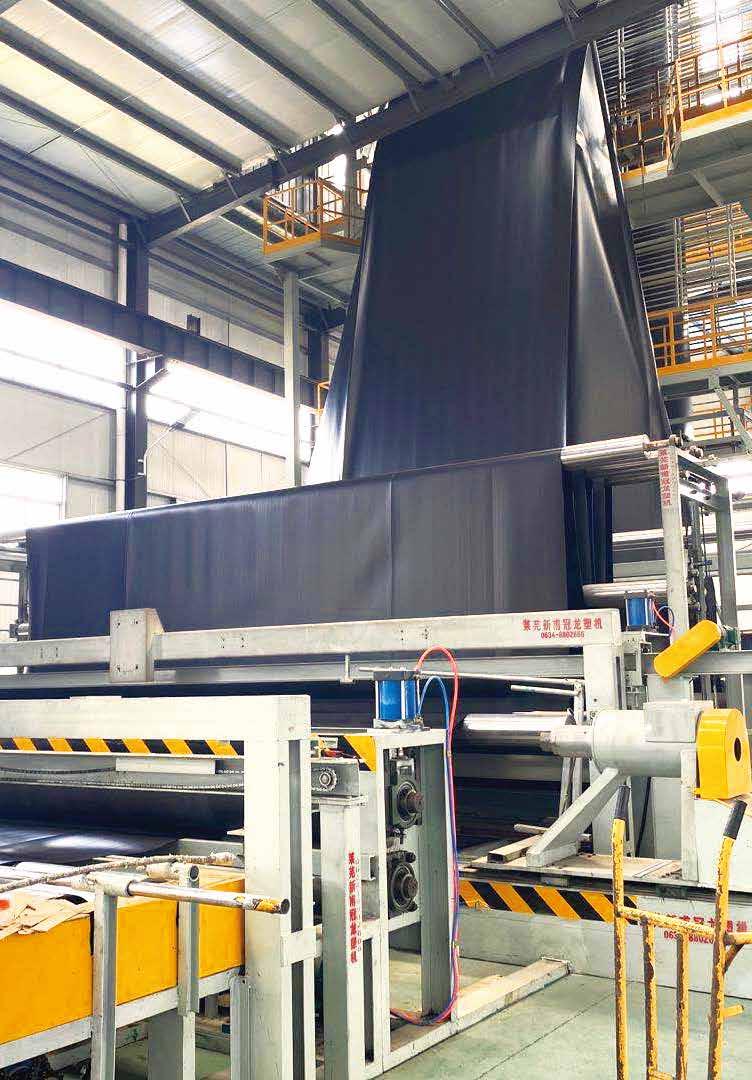

Smooth geomembrane is made of high-quality polyethylene virgin resin, with carbon black, anti-aging agent, antioxidant, UV absorber, stabilizer and other auxiliary materials added, and is made by three-layer co-extrusion blow molding technology using the world's first-class fully automated geomembrane production equipment. All products are produced in accordance with national standards, American GRI standards and ASTM test standards.

●Product specifications

Thickness: 0.2mm-3.0mm

Width: 2m-12m

Color: black, green, blue, white Material: HDPE LDPE LLDPE

●Application range

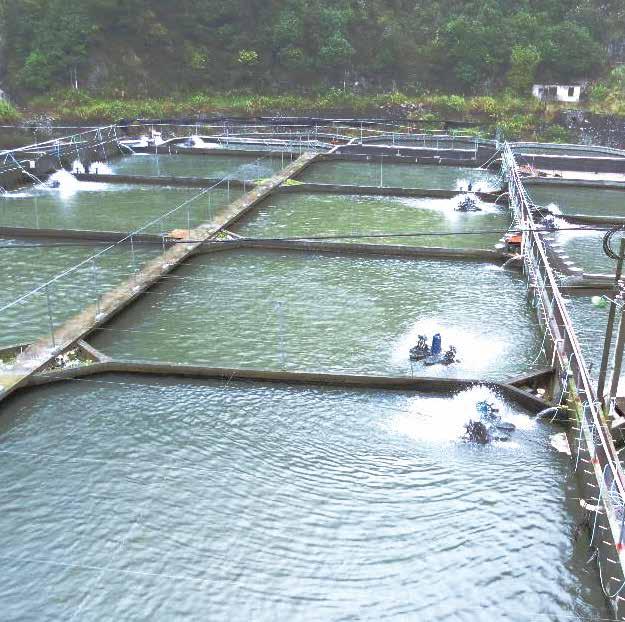

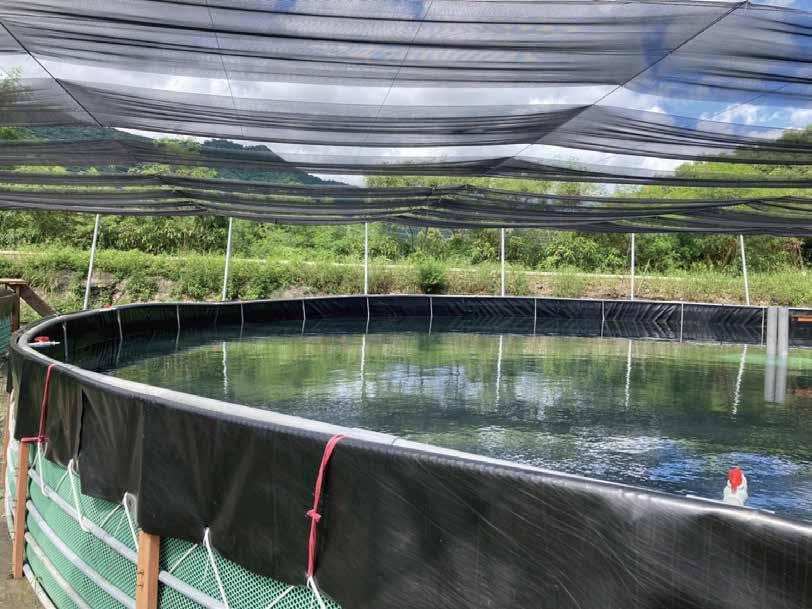

Environmental protection and sanitation, water conservancy, municipal engineering, gardening, landscape, petrochemical, mining, salt industry, agriculture, and aquaculture.

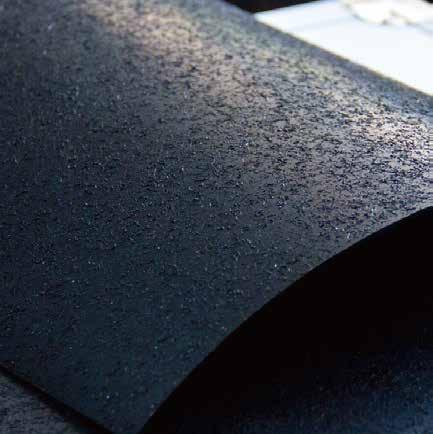

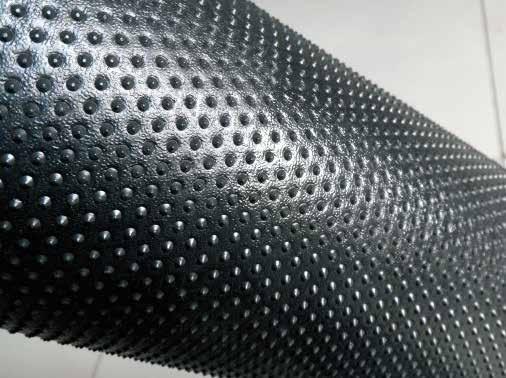

糙面土工膜

●产品介绍

单、双糙面聚乙烯土工膜表面形成一种颗粒状

粗糙面,提高了土工膜的摩擦系数,更加适用 于陡坡及垂直防渗,从而最终使土工膜所能承 载的可用容积达到最大化。与光面土工膜相

比,还具有更高的抗紫外线和抗穿刺力。

●产品规格

厚度: 0.75mm-3.0mm

宽幅: 2m-8m

颜色: 黑色

材质: HDPELDPE LLDPE

●应用范围

主要用于垃圾填埋场及矿山。

●Product introduction

The surface of single and double rough polyethylene geomembranes forms a granular rough surface, which improves the friction coefficient of the geomembrane and is more suitable for steep slopes and vertical anti-seepage, thereby ultimately maximizing the available volume that the geomembrane can carry. Compared with smooth geomembranes, it also has higher UV resistance and puncture resistance.

●Product specifications

Thickness: 0.75mm-3.0mm

Width: 2m-8m

Color: Black

Material: HDPELDPE LLDPE

●Application range

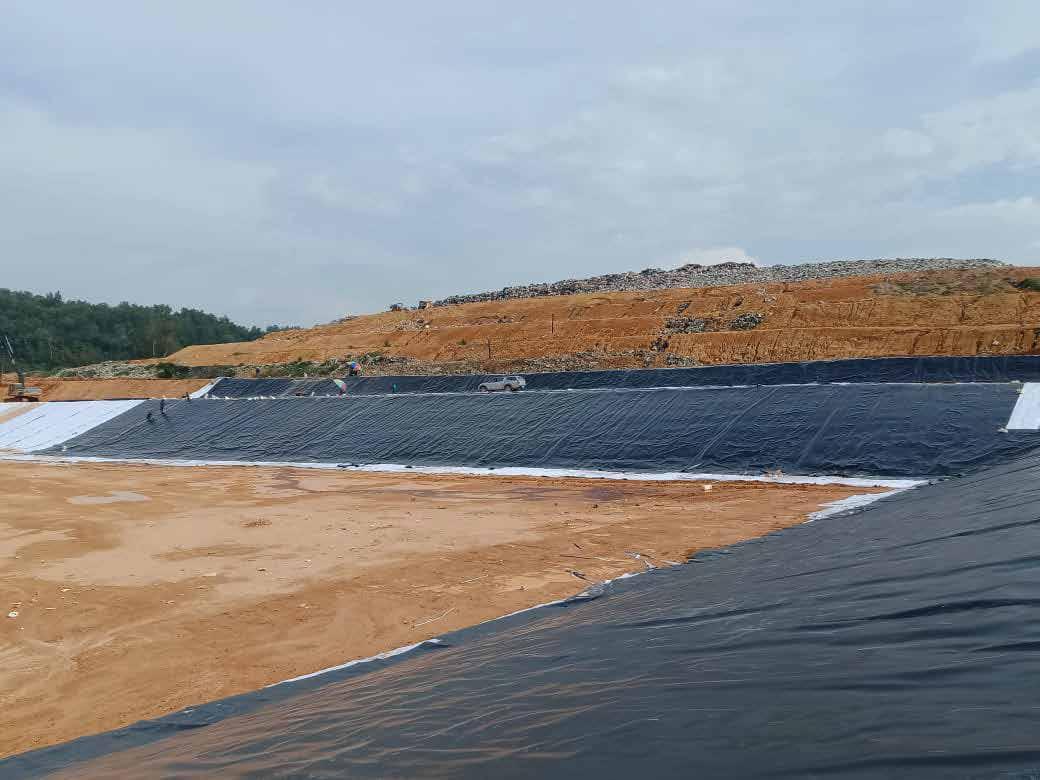

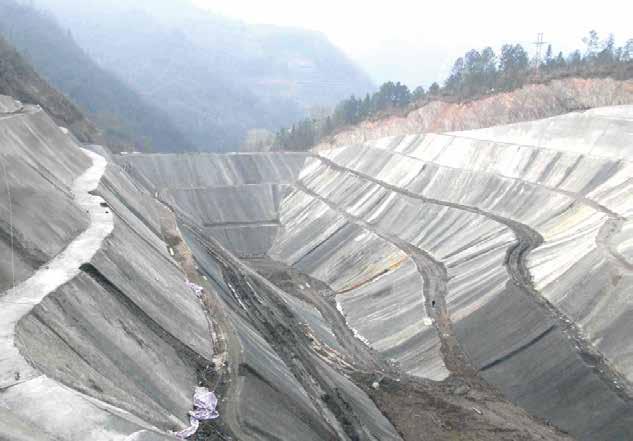

Mainly used in landfills and mines.

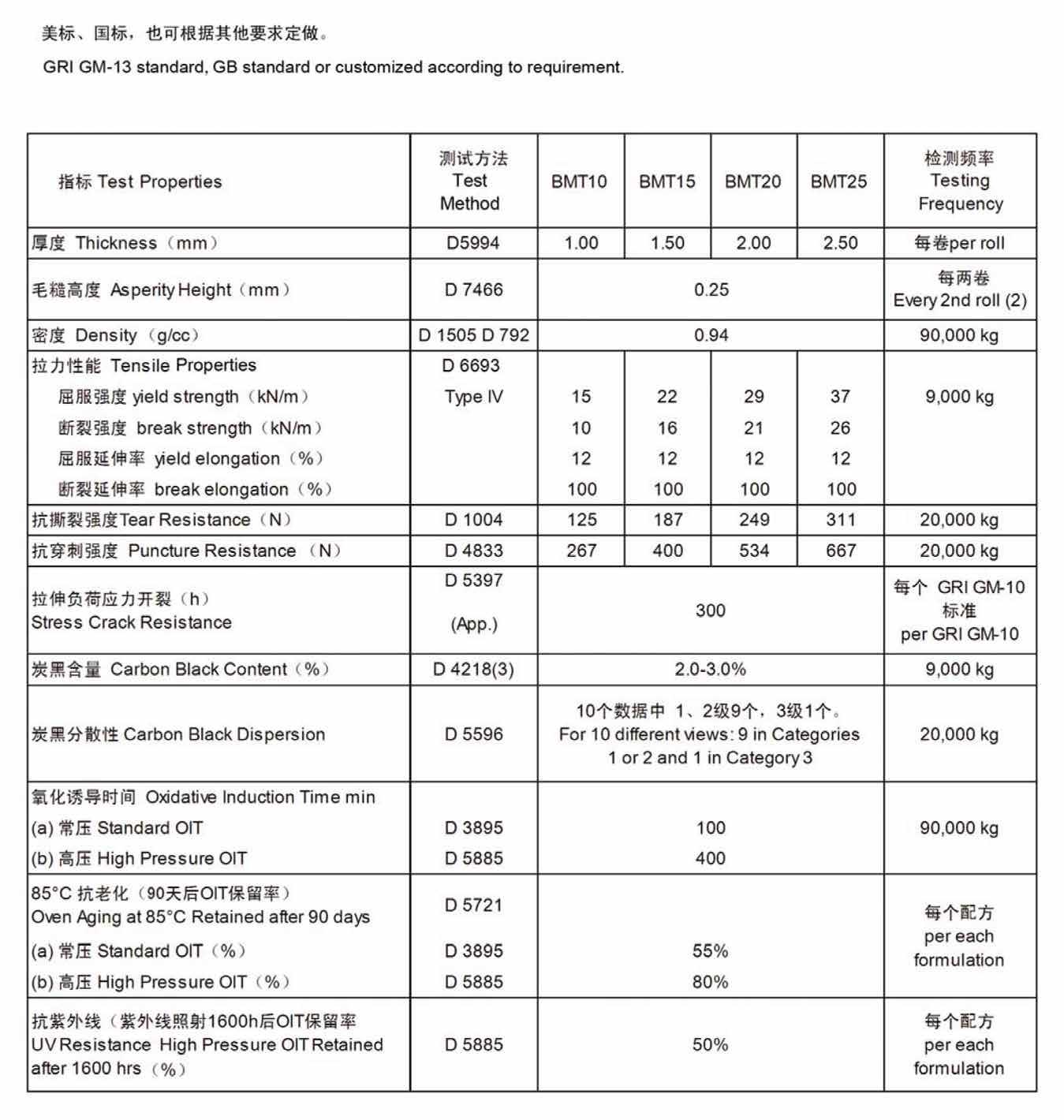

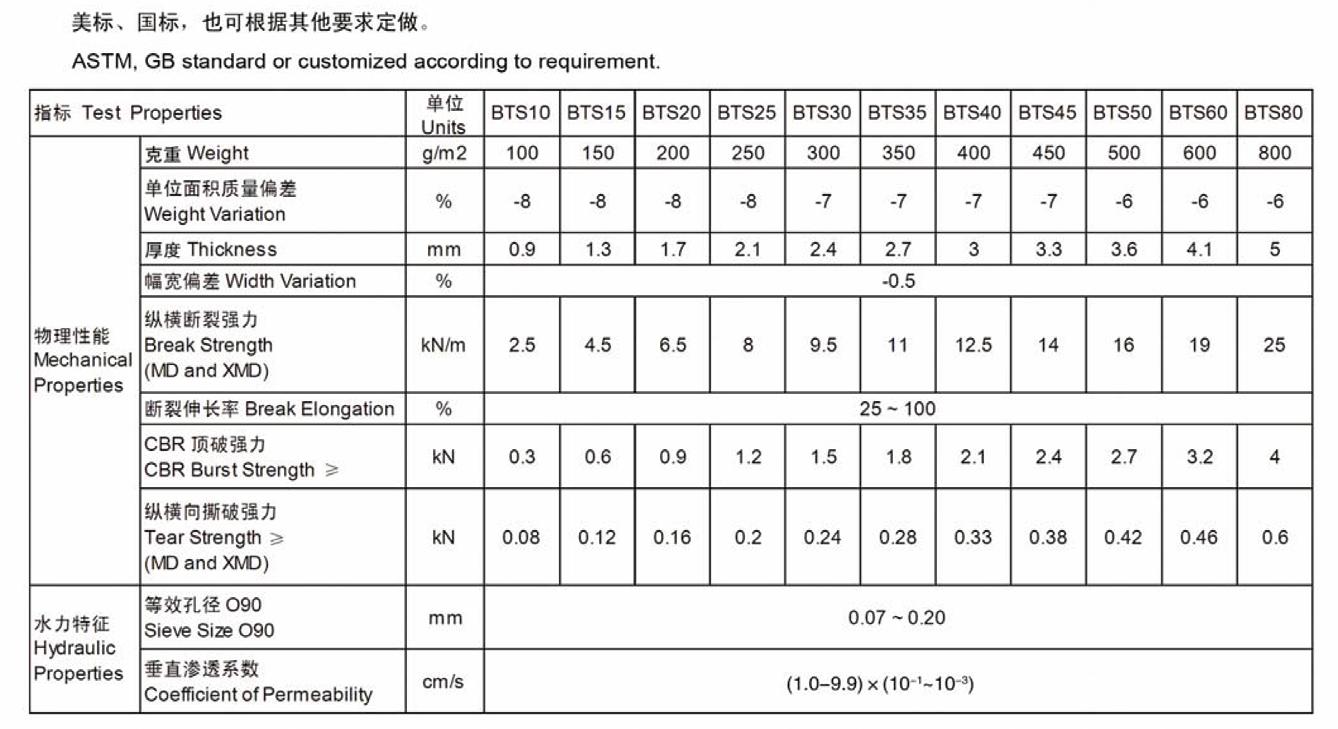

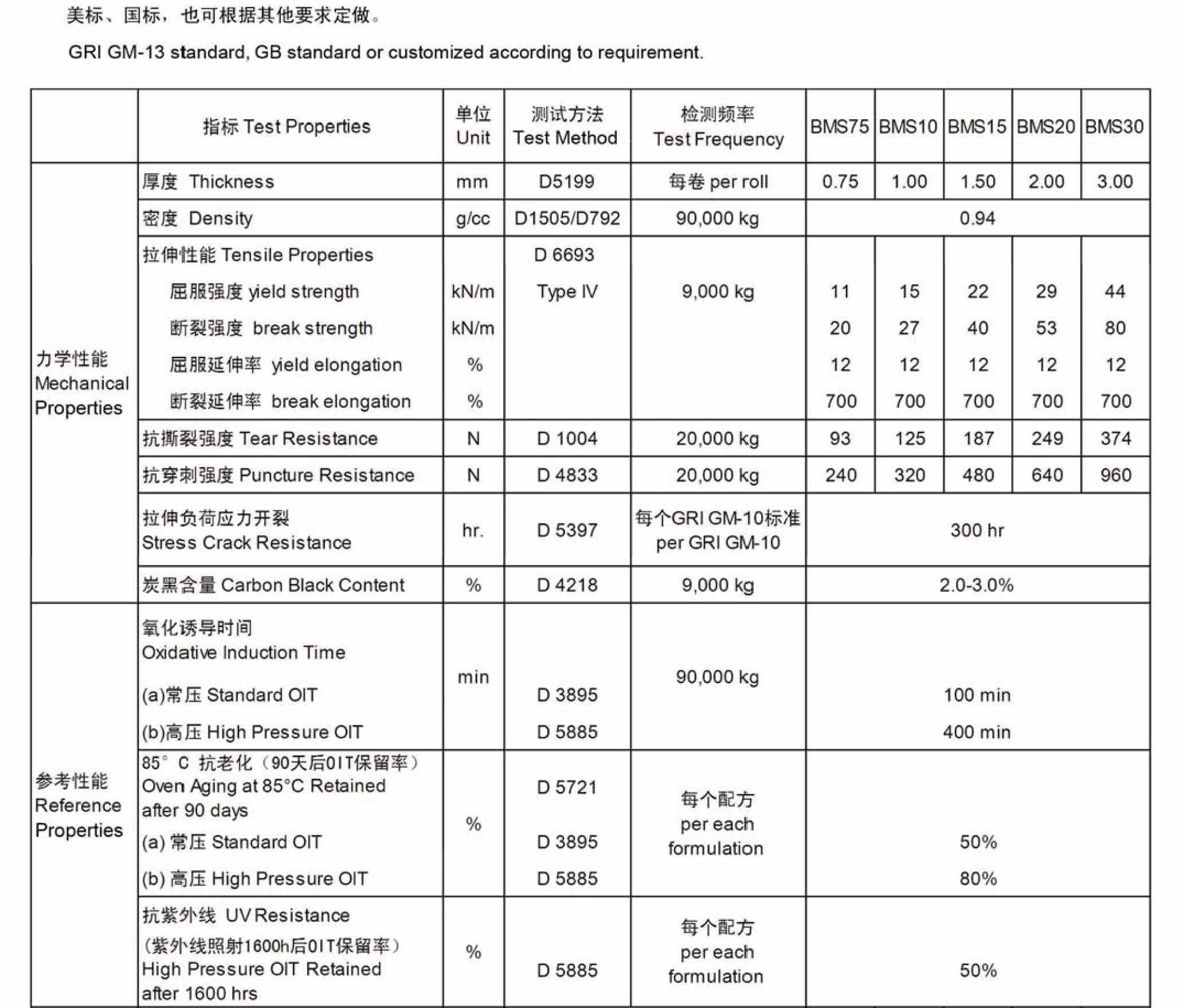

●技术指标 / Technical indicators

GEOTEXTILE

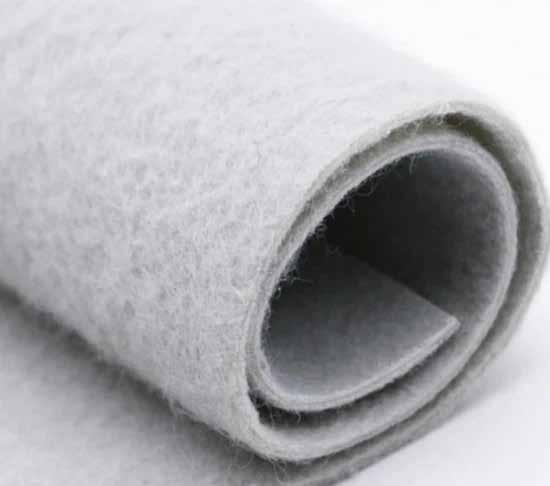

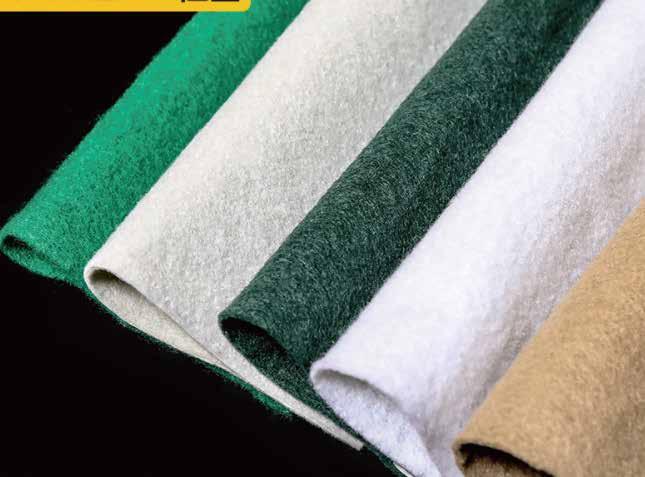

短纤针刺土工布

●产品介绍

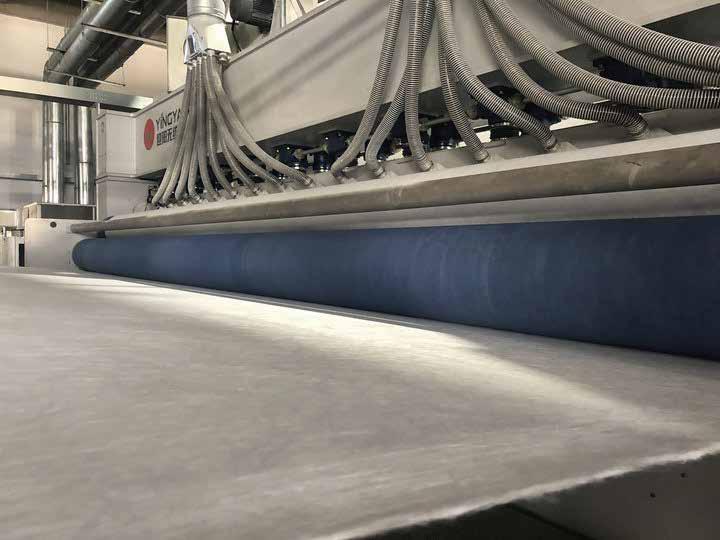

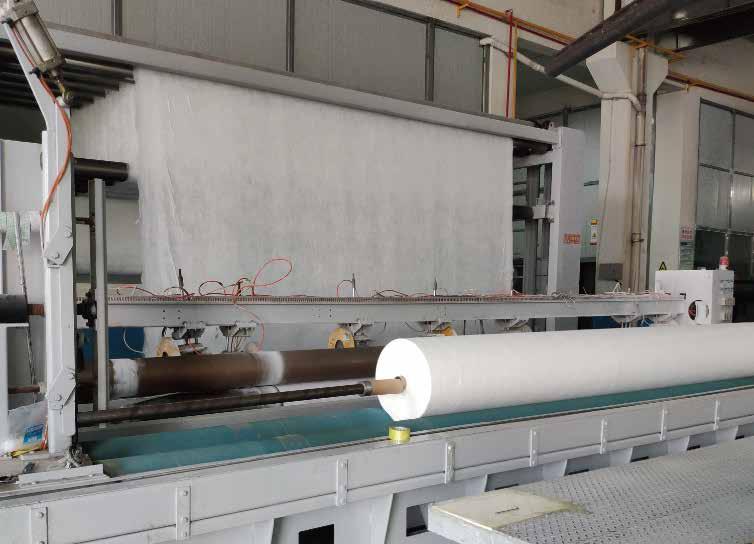

针刺无纺土工布是由涤纶或丙纶短纤维经过不 同的设备和工艺铺排成网状,再经过针刺等工

艺加工而成,以达到不同的厚度满足使用要 求,主要作用是:反滤、滤水、加固,具有优越 的透水性、过滤性、耐用性变形适应能力,同

时具有很好的平面排水能力。

●产品规格

宽度: 0.6m-8m

重量: 100g-800g/㎡

材质: 丙纶、涤纶

●应用范围

1.作挡土墙回填中的加筋。

2.加固柔性路面,修补道路上的裂缝,防止路面 反射裂缝。

3.增加碎石边坡及加筋土的稳定性,防止水土流 失和低温时土体的冻害。

4.人工填土、堆石或材料场与地基的隔离层,不 同冻土层之间的隔离,反滤和加固作用5.排水暗 管周边或碎石排水暗沟周边的滤层。

6.土坝内部垂直或水平排水,埋入土体中消散空 隙水压力。

7.公路(包括临时道路)铁路、堤岸、机场等工程 中用以加强软弱地基。

●Product introduction

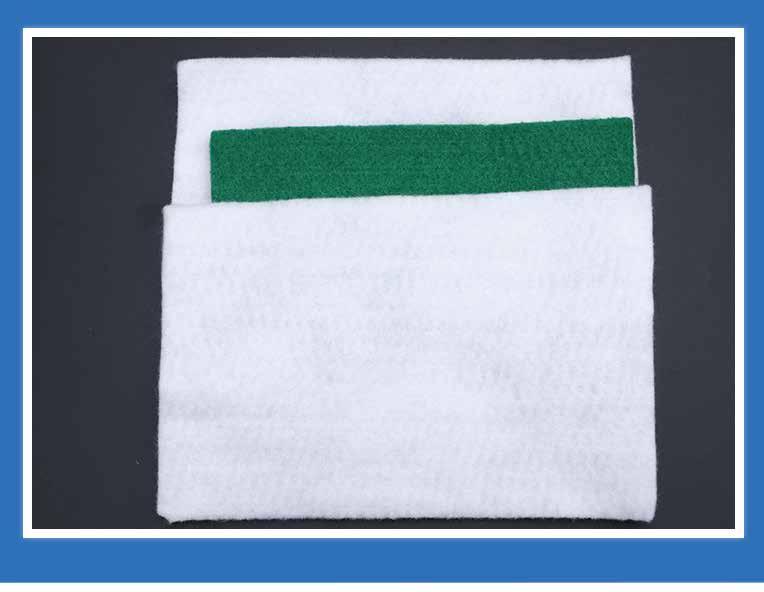

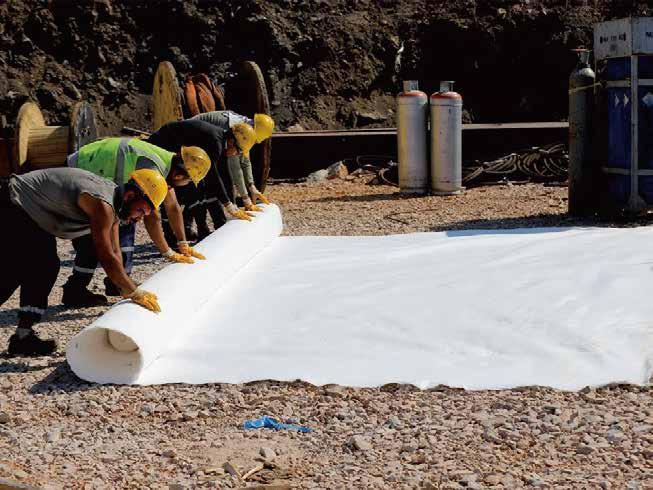

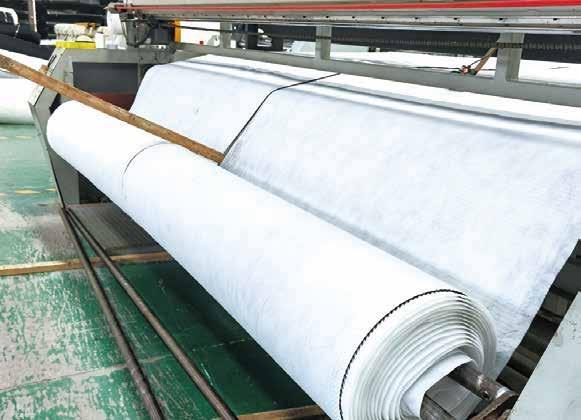

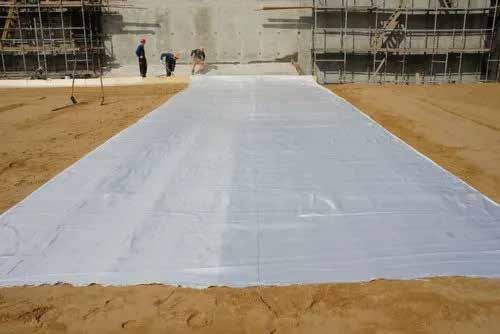

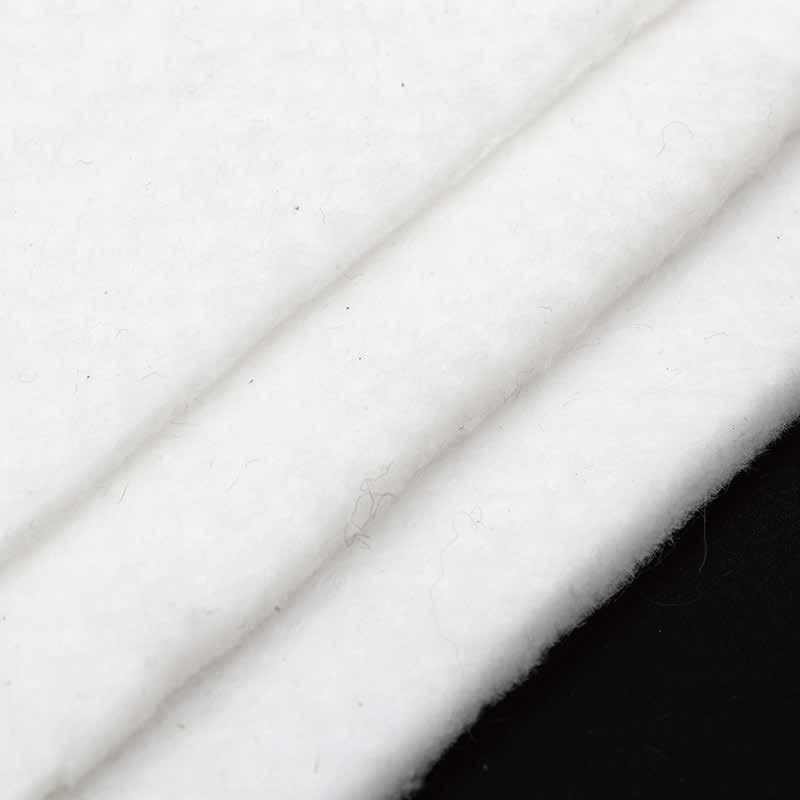

Needle-punched non-woven geotextile is made of polyester or polypropylene staple fibers laid into a mesh through different equipment and processes, and then processed through processes such as needle punching to achieve different thicknesses to meet the requirements of use. Its main functions are: back filtration, water filtration, and reinforcement. It has excellent permeability, filterability, durability, deformation adaptability, and good plane drainage capacity.

●Product specifications

Width: 0.6m-8m

Weight: 100g-800g/m

Material: Polypropylene, Polyester

●Application range

1. Reinforcement in retaining wall backfill.

2. Reinforce flexible pavement, repair cracks on the road, and prevent pavement from reflecting cracks.

3. Increase the stability of gravel slopes and reinforced soil to prevent soil erosion and freezing damage to soil at low temperatures.

4. Isolation layer between artificial fill, rock pile or material field and foundation, isolation between different frozen soil layers, anti-filtration and reinforcement 5. Filter layer around drainage pipes or gravel drainage trenches.

6. Vertical or horizontal drainage inside earth dams, buried in soil to dissipate pore water pressure.

7. Used to strengthen weak foundations in highways (including temporary roads), railways, embankments, airports and other projects.

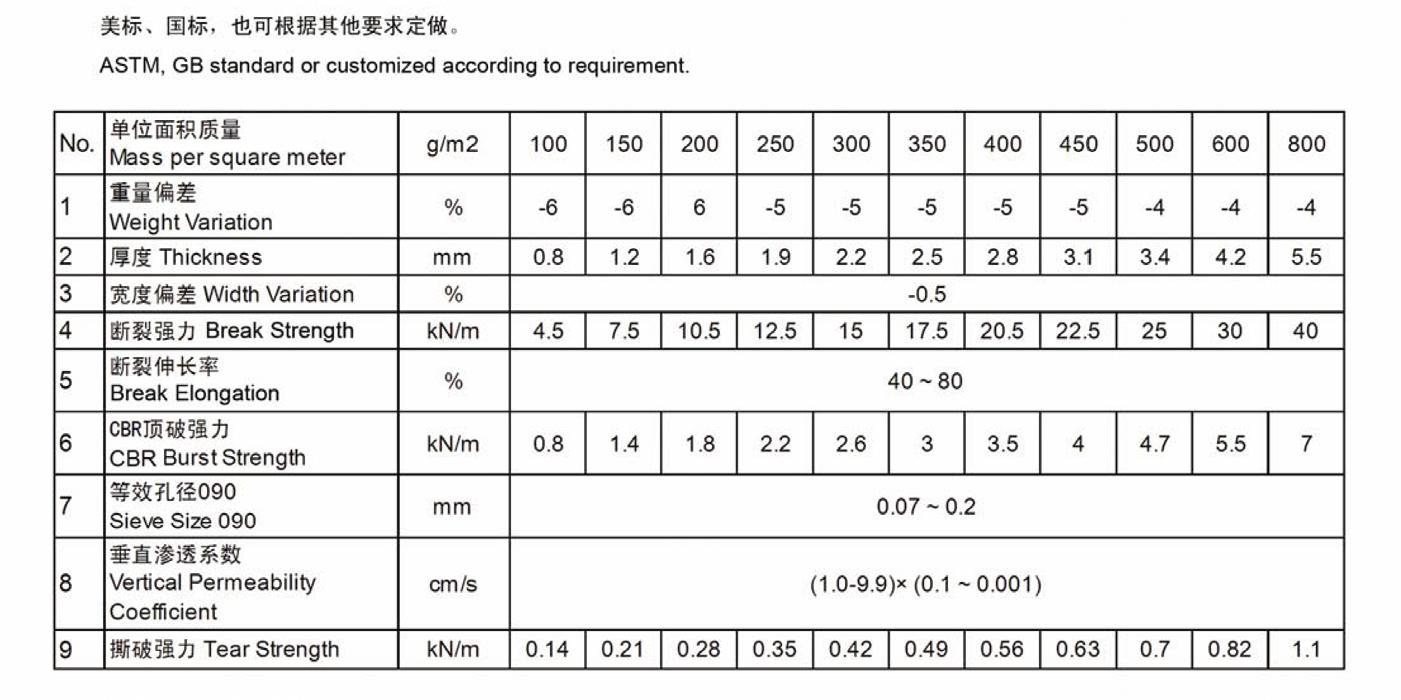

●技术指标 / Technical indicators

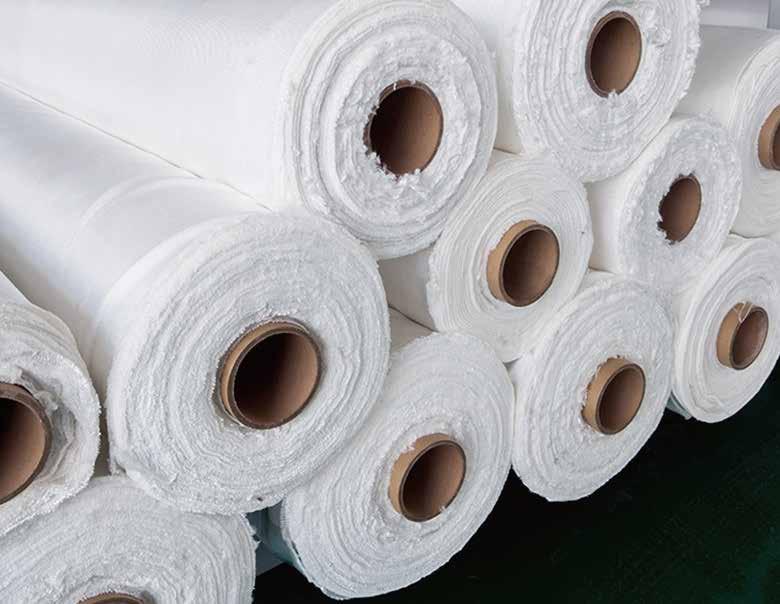

聚酯长丝土工布

●产品介绍

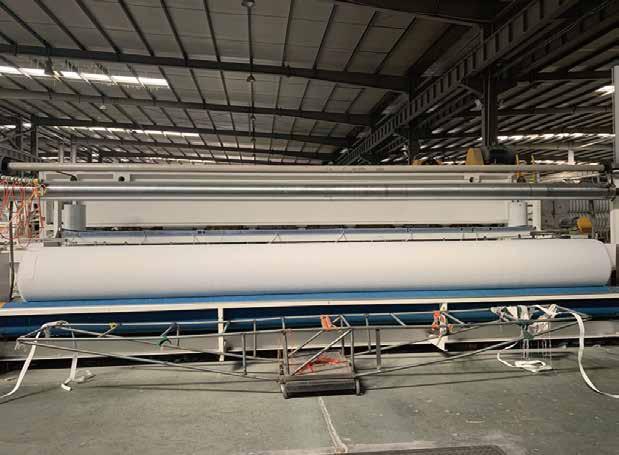

聚酯长丝土工布是通过涤纶长丝成网和固结的 方法制成,其纤维排列成三维结构,是岩土工 程和土木工程应用中的新型建筑材料,除了具 有良好的抗拉伸、抗穿刺等力学强度上的特点 外,还具有良好的纵横向排水性能和良好的延 伸性能及较高的耐生物、耐酸碱、耐老化等良 好的化学功能。聚酯长丝土工布同时还具有较 宽的孔径范围、曲折的空隙分布、良好的渗透 性能和过滤性能。

●产品规格

宽度: 2m-8m

重量: 100g-800g/㎡

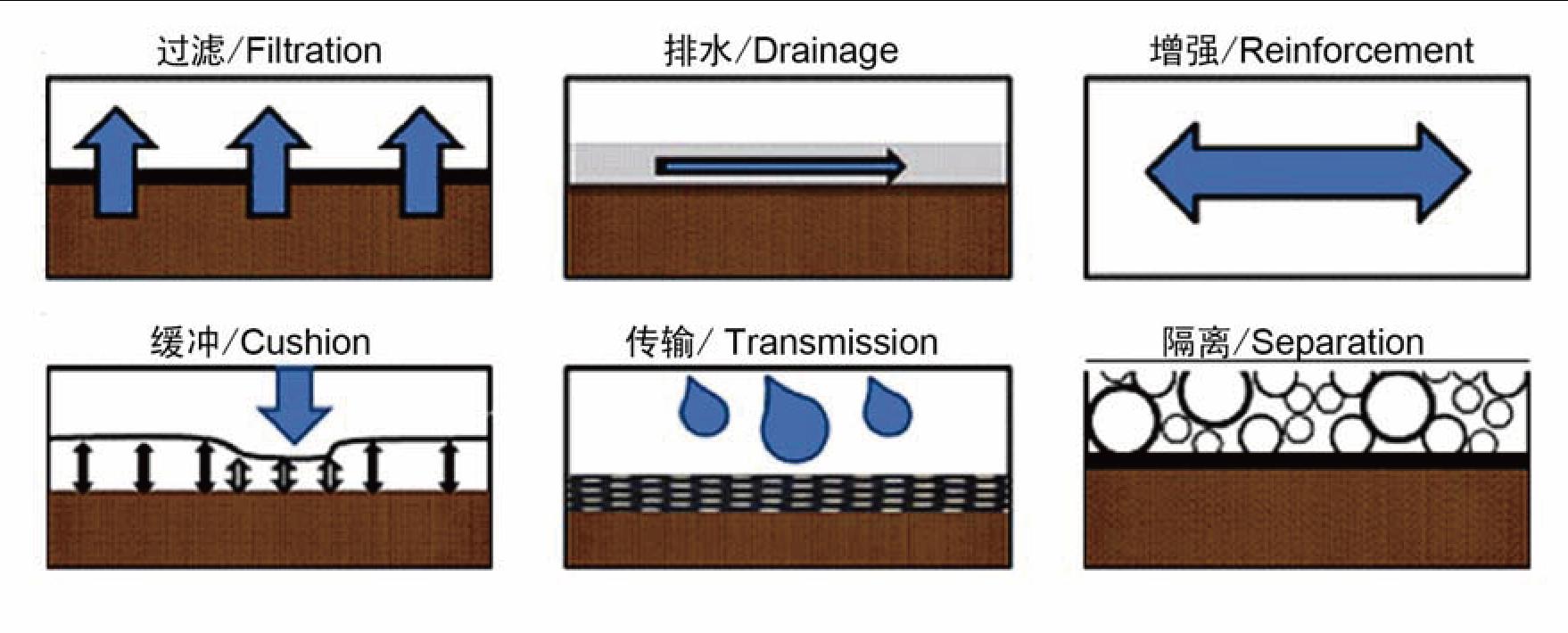

●主要功能

●Product introduction

Needle-punched non-woven geotextile is made of polyester or polypropylene staple fibers laid into a mesh through different equipment and processes, and then processed through processes such as needle punching to achieve different thicknesses to meet the requirements of use. Its main functions are: back filtration, water filtration, and reinforcement. It has excellent permeability, filterability, durability, deformation adaptability, and good plane drainage capacity.

●Product specifications

Width: 0.6m-8m

Weight: 100g-800g/m

Material: Polypropylene, Polyester

●技术指标 / Technical indicators

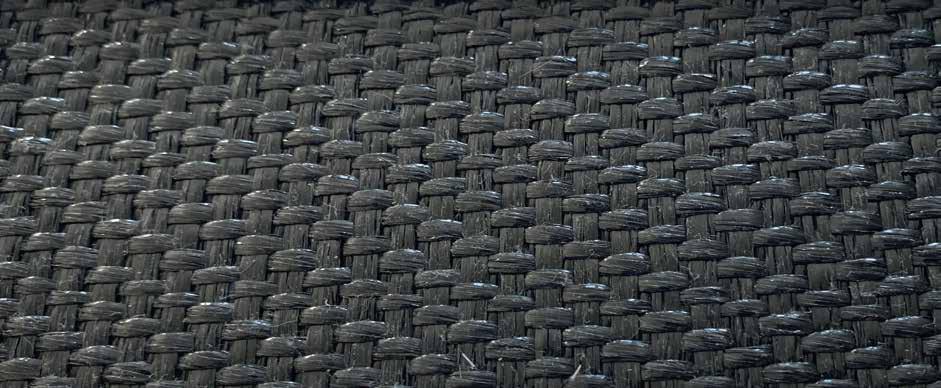

WOVEN GEOTEXTILE

机织布

●产品介绍

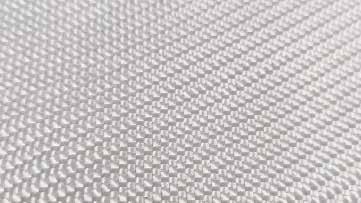

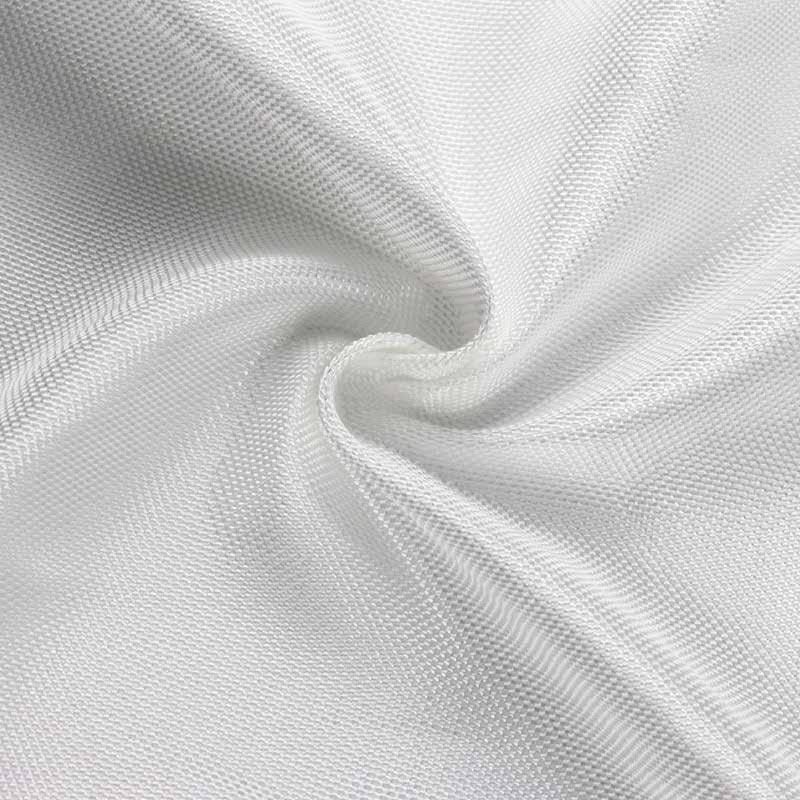

机织布选用高强度、低延伸的涤纶丙纶等合成 纤维长丝做原料,经织造工艺具有优越的透水 性、过滤性、耐用性耐久性,耐腐蚀,抗拉强 度高,适用于海岸河道、边坡护坡、护滩及软 土基础处理,是现代基础工程比较实用的新材 料。

●产品规格

宽度:2m-5.4m

重量: 200gsm-2000gsm

●应用范围

1.海岸海堤集水区、港湾的护坡

2.护滩及软土基础处理

3.铁路、公路

4.堤坝、隧道、沿海滩涂

5.围垦、环保

●Product introduction

Woven fabrics are made of high-strength, low-elongation synthetic fiber filaments such as polyester and polypropylene. After weaving technology, they have excellent water permeability, filterability, durability, corrosion resistance, and high tensile strength. They are suitable for coastal rivers, slope protection, beach protection, and soft soil foundation treatment. They are relatively practical new materials for modern foundation engineering.

●Product specifications

Width: 2m-5.4m

Weight: 200gsm-2000gsm

●Application range

1. Coastal seawall catchment area, harbor slope protection

2. Beach protection and soft soil foundation treatment

3. Railways, highways

4. Dams, tunnels, coastal beaches

5. Reclamation, environmental protection

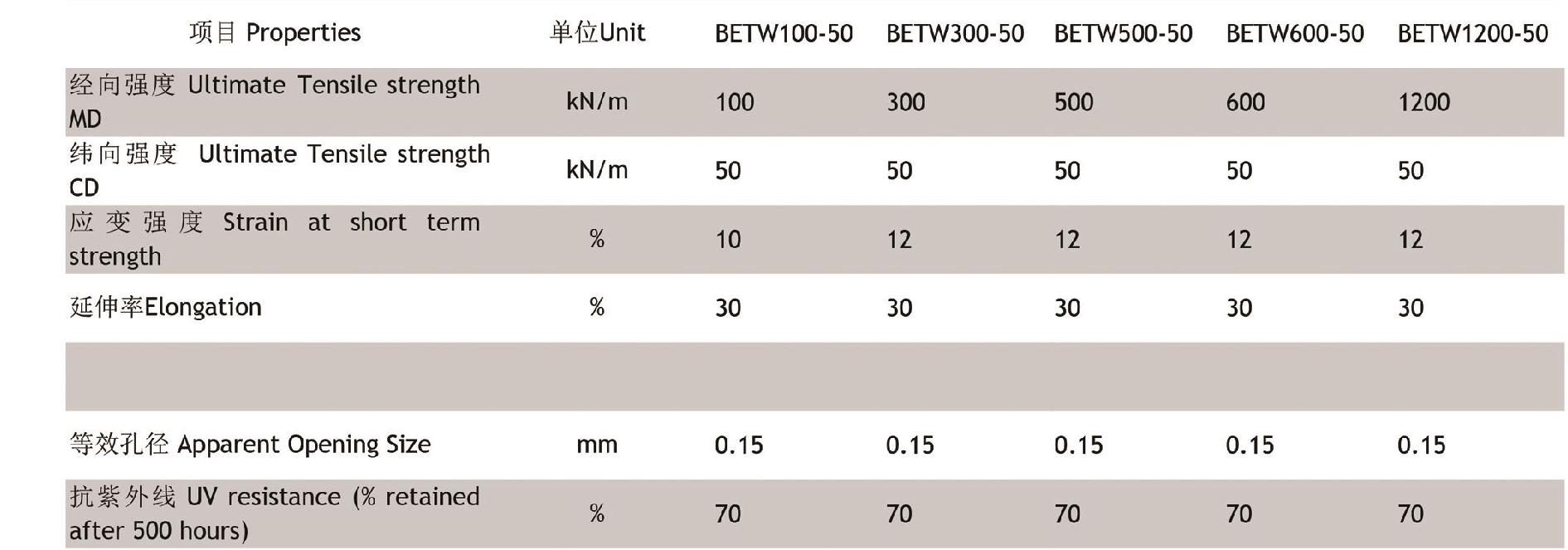

●技术指标 / Technical indicators

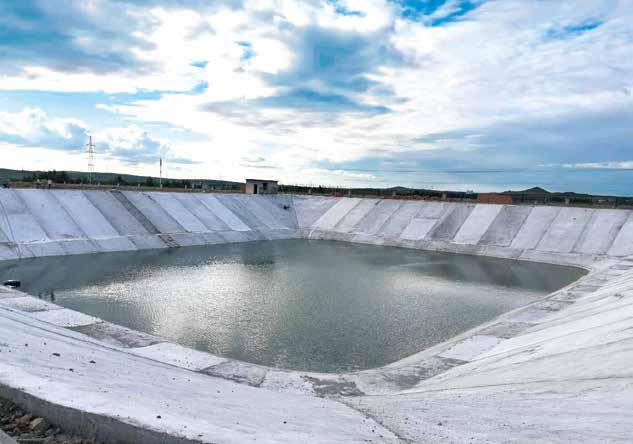

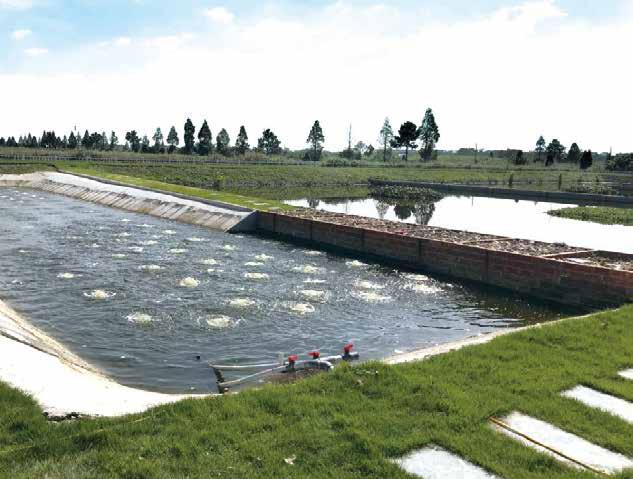

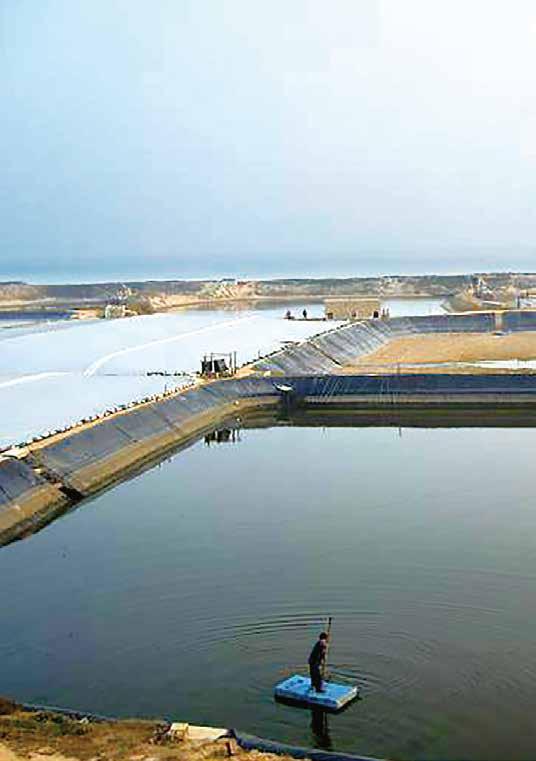

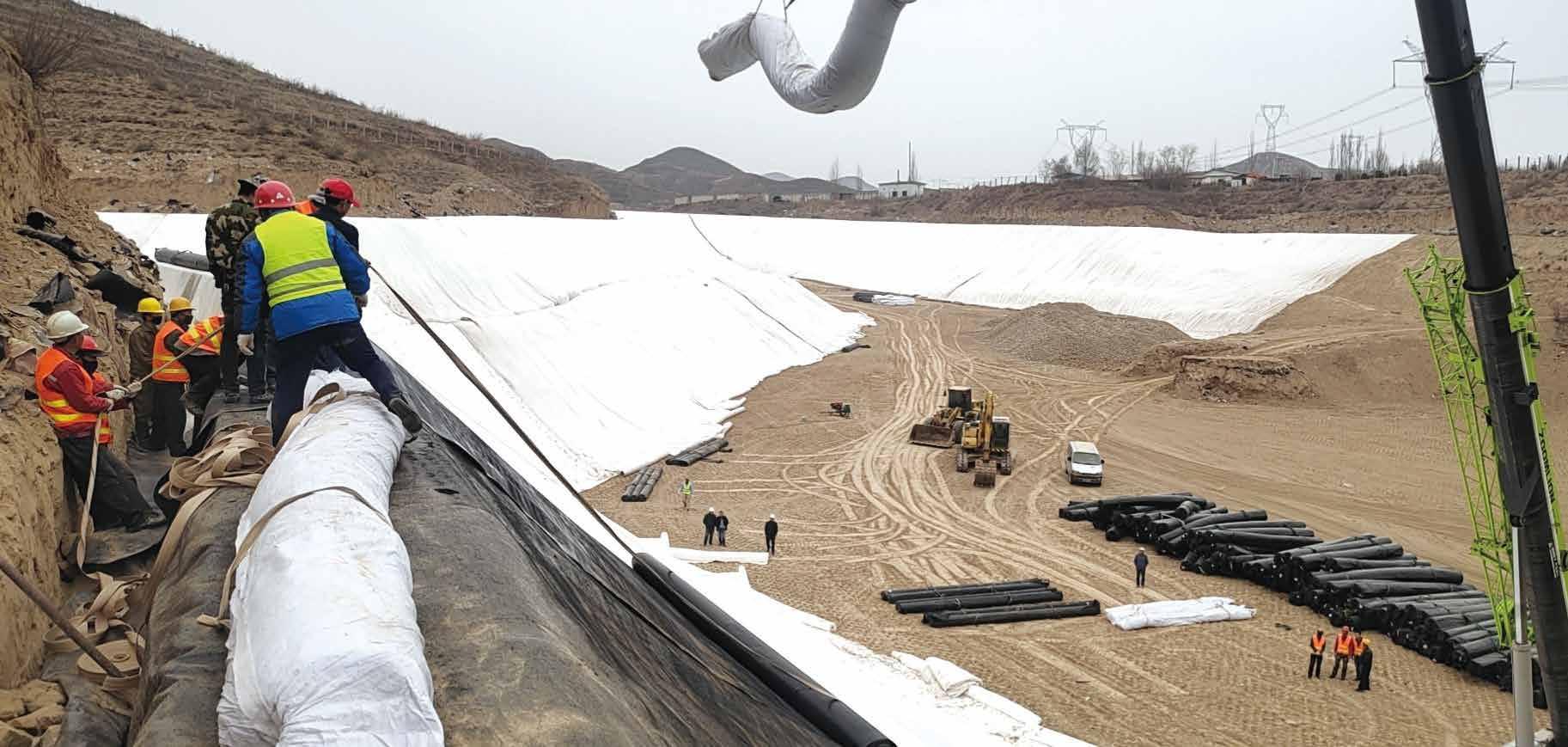

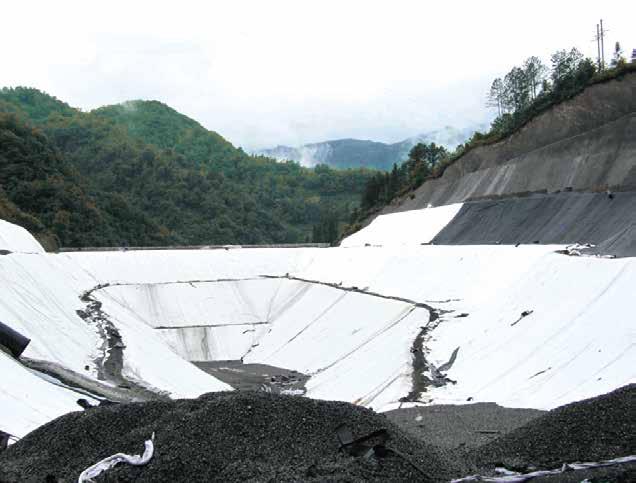

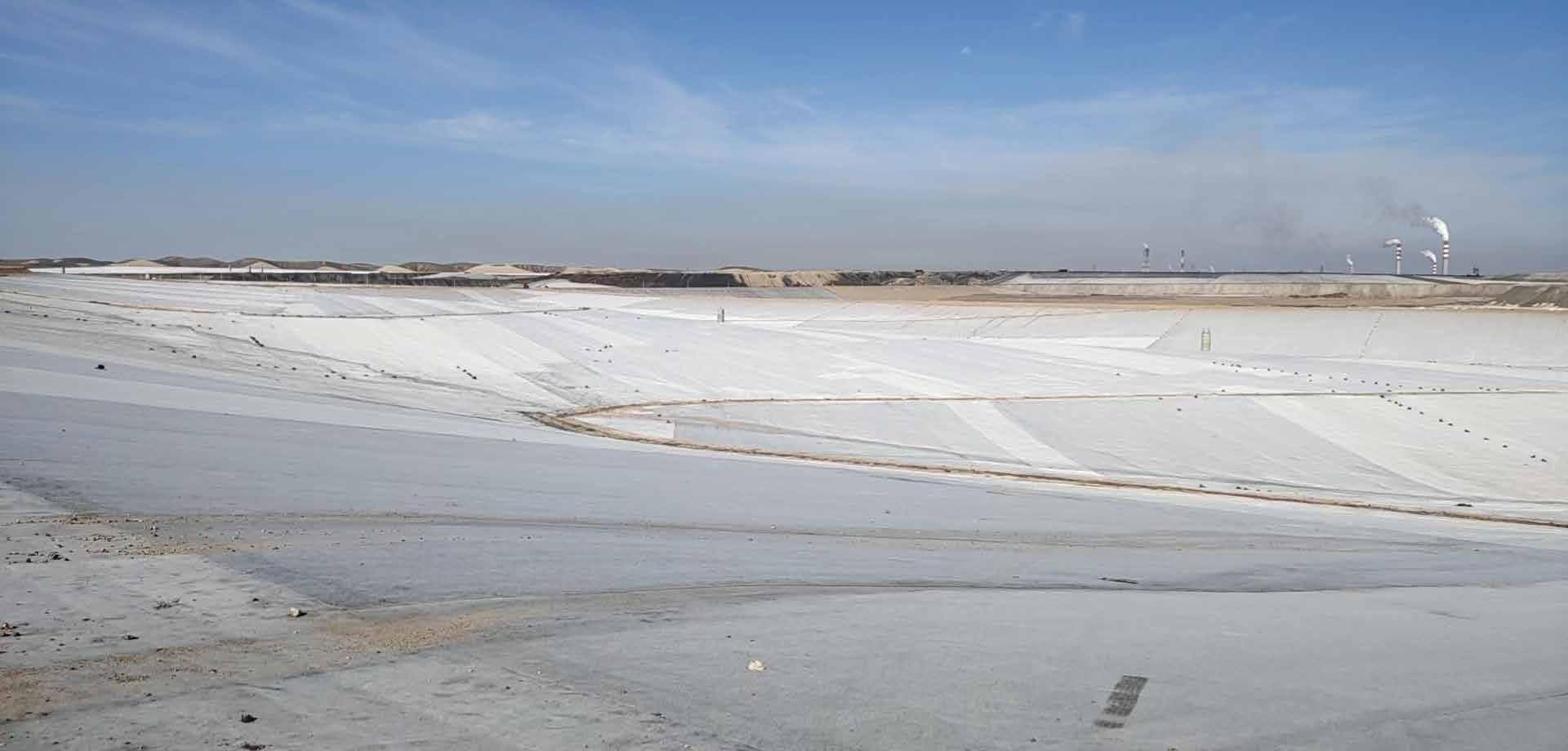

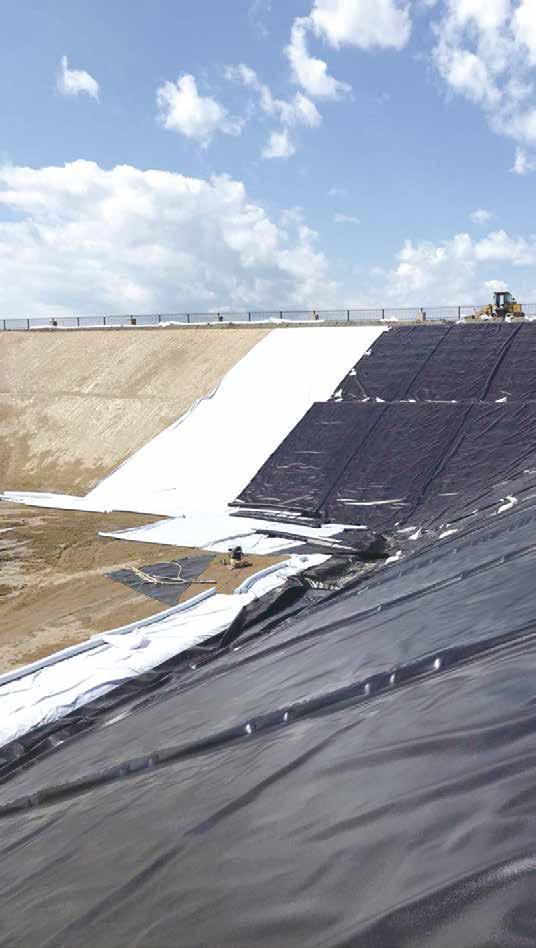

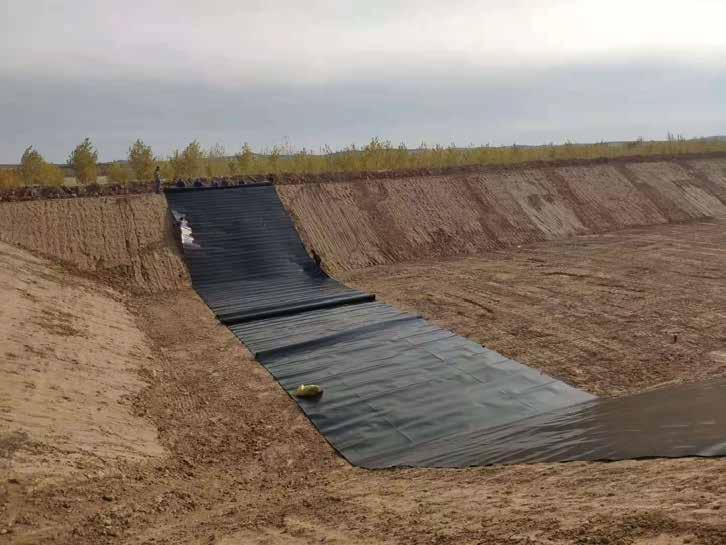

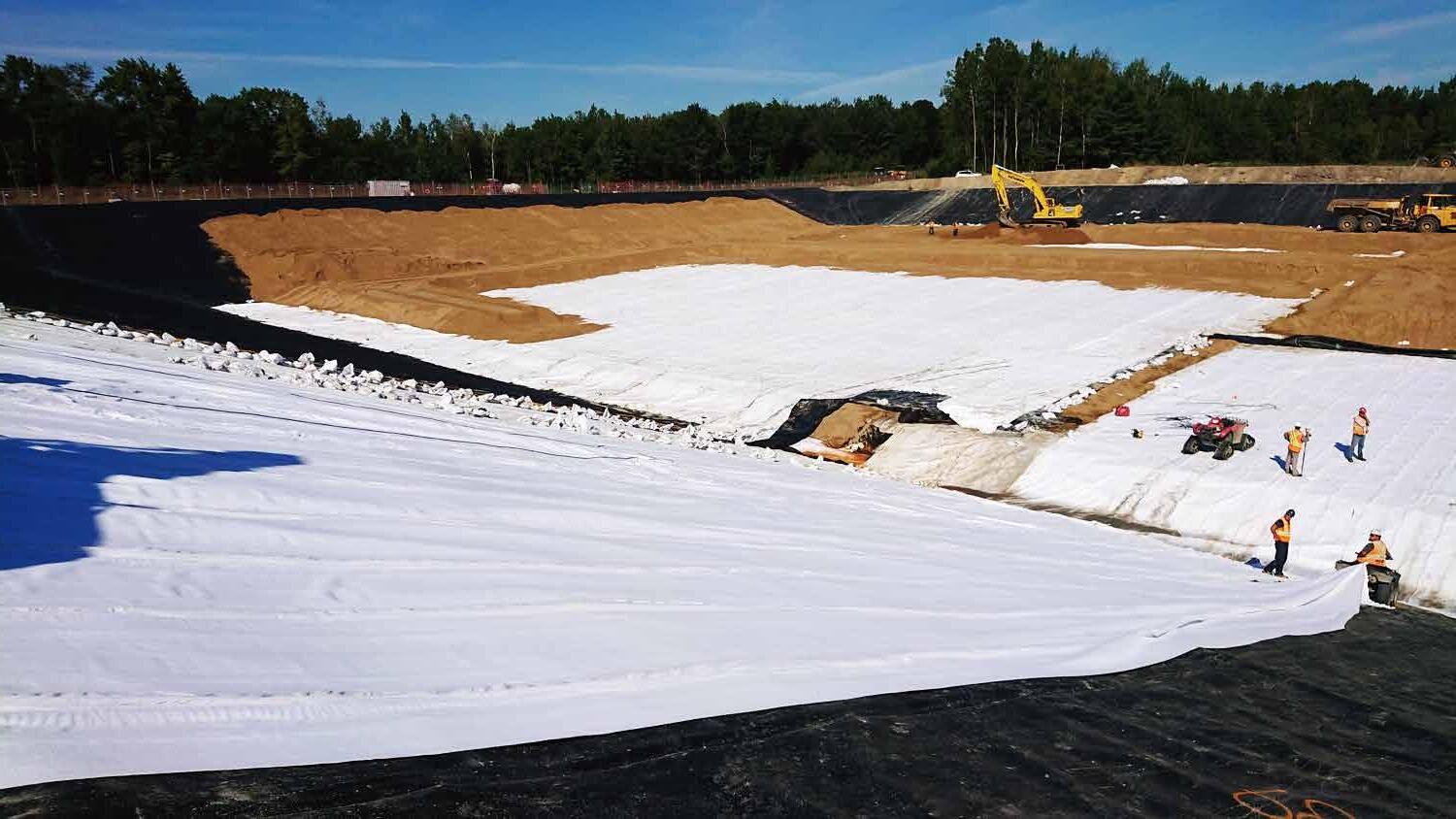

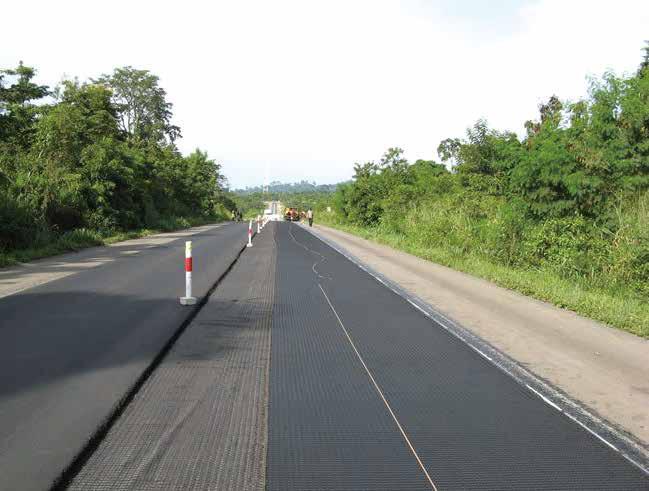

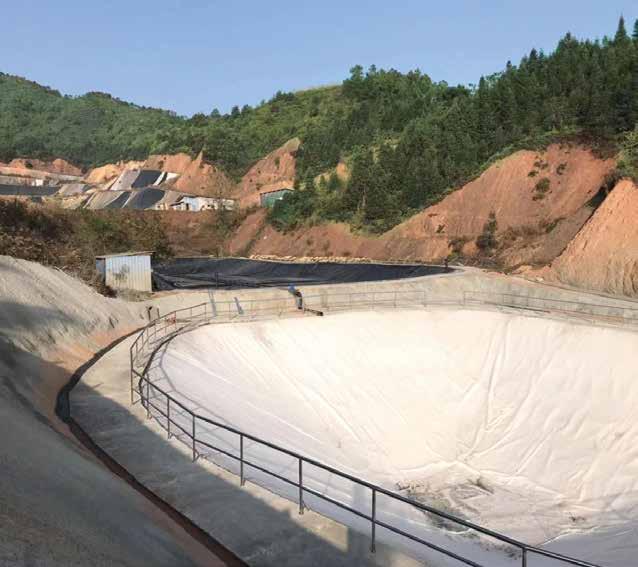

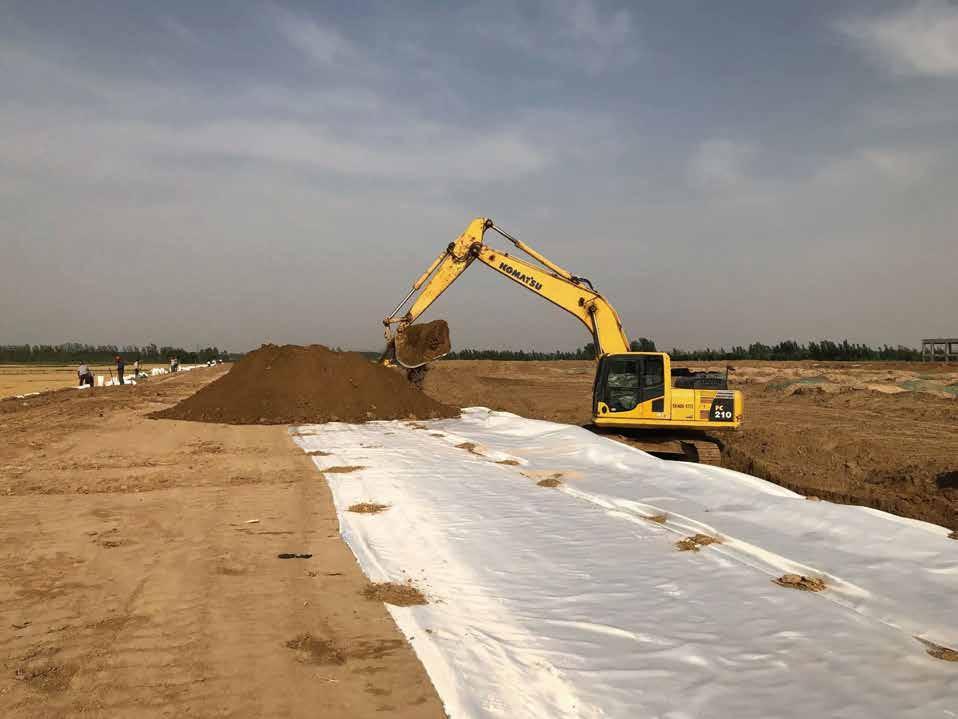

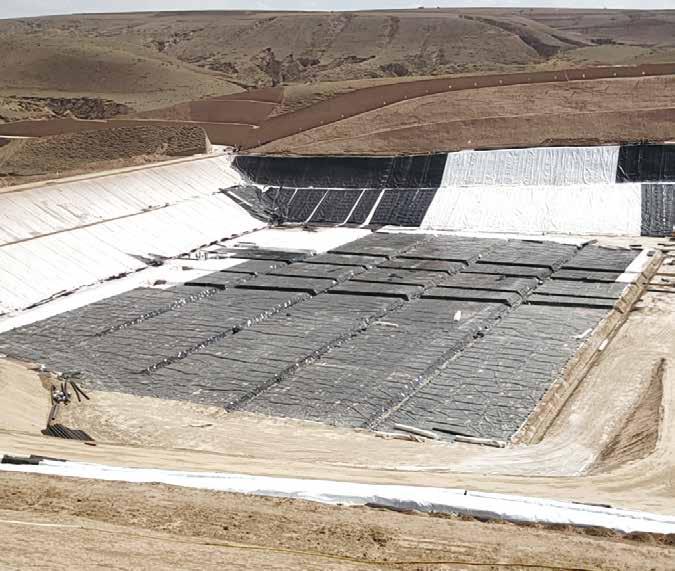

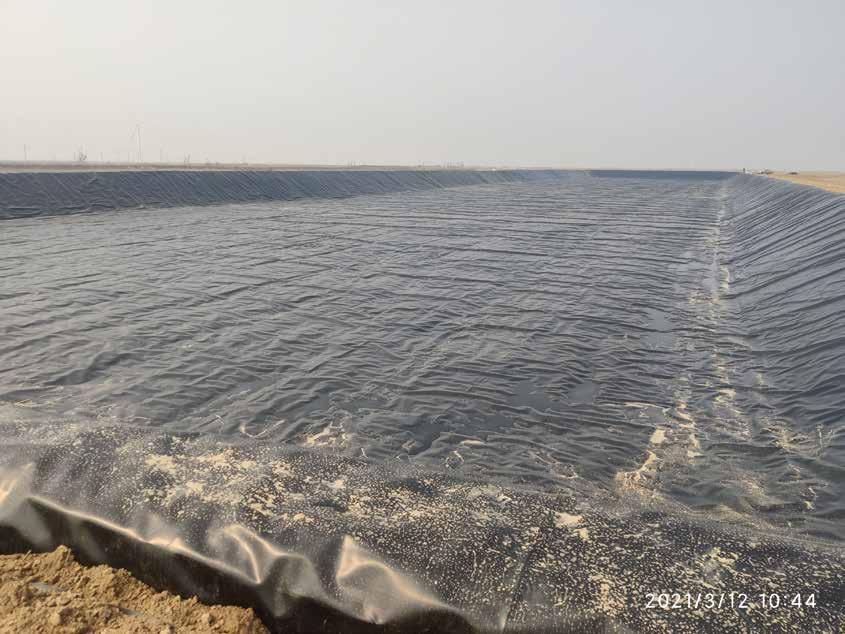

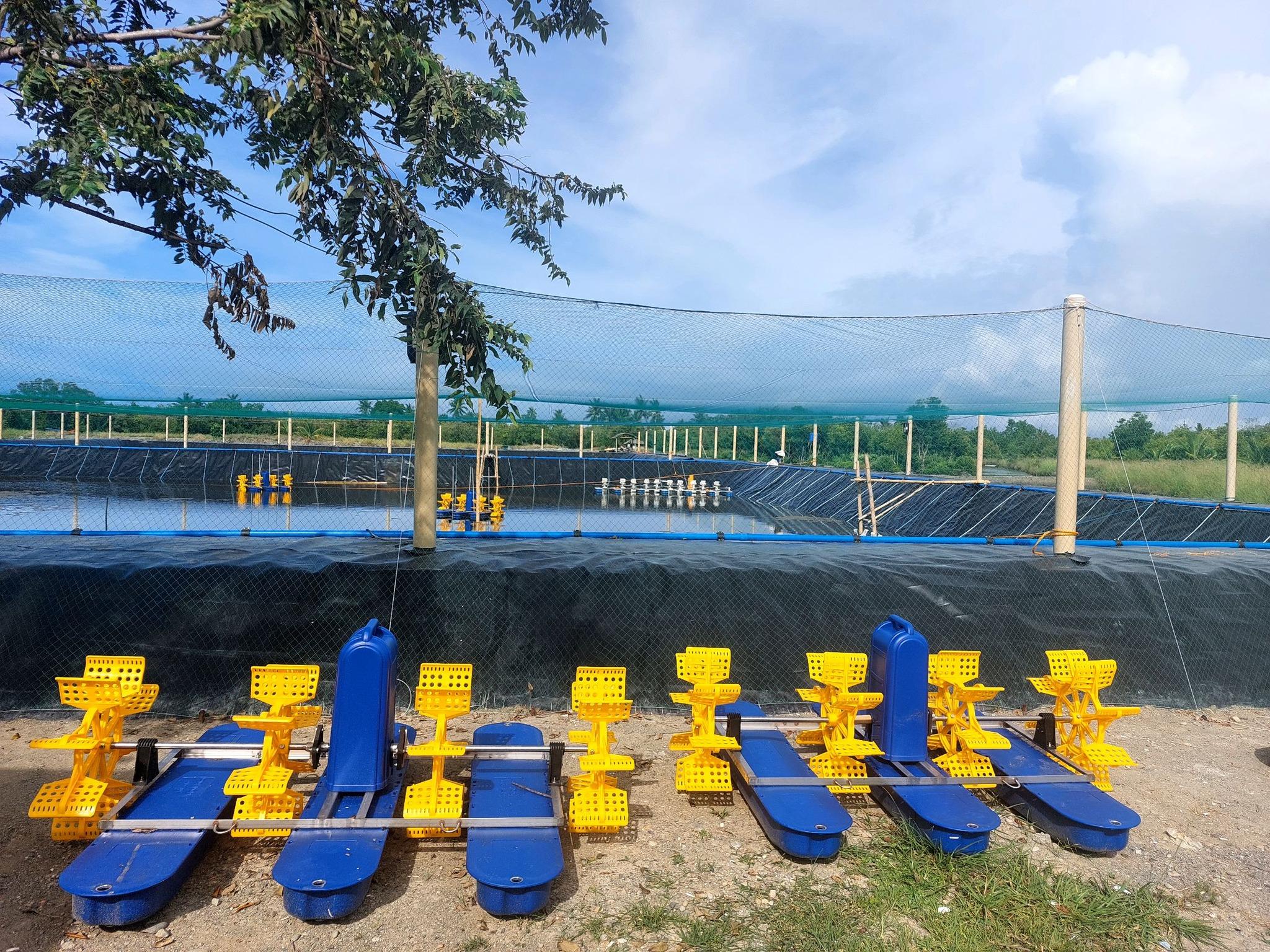

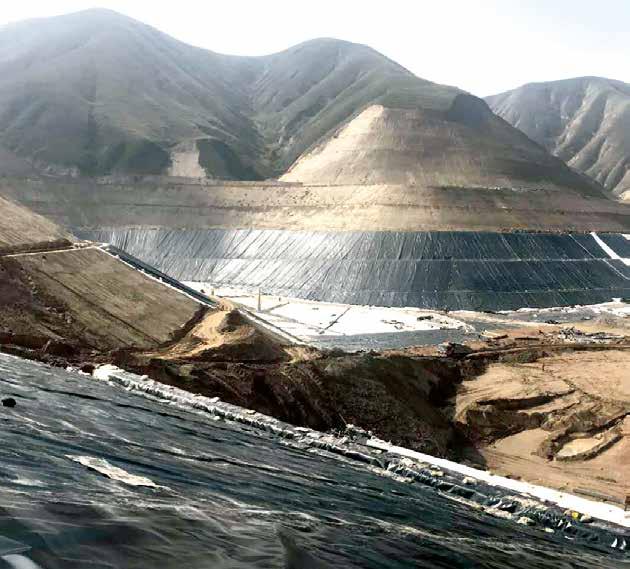

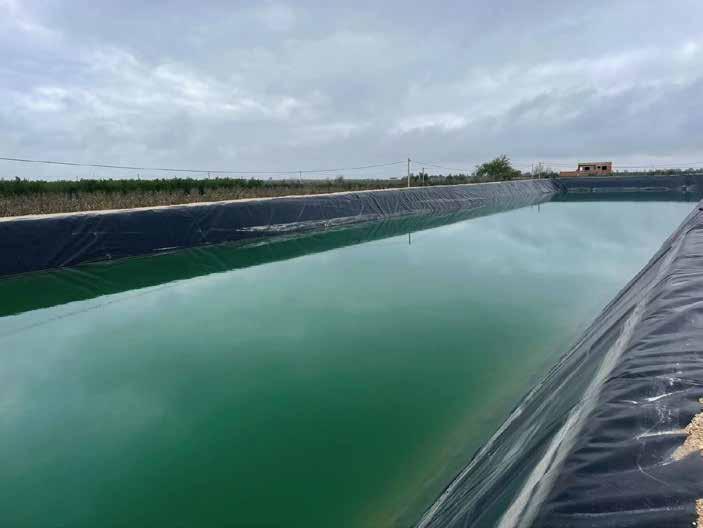

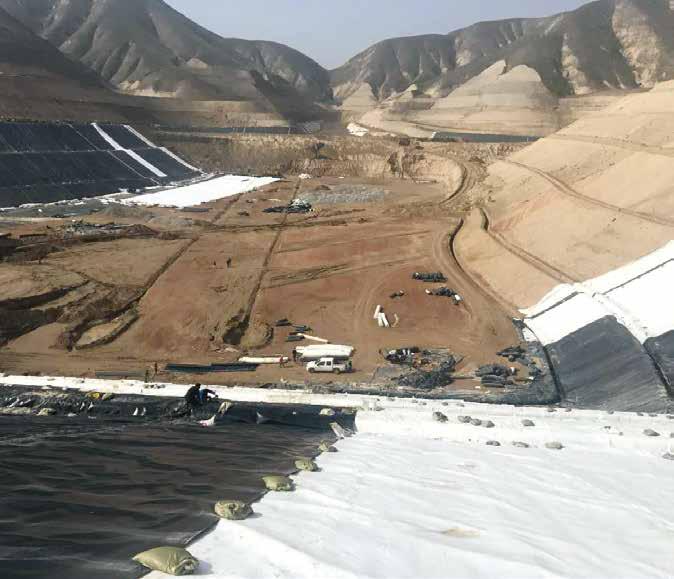

PROJECT CASES
