pewag levo hooks Automated safety
1
Automated safety
English
EN

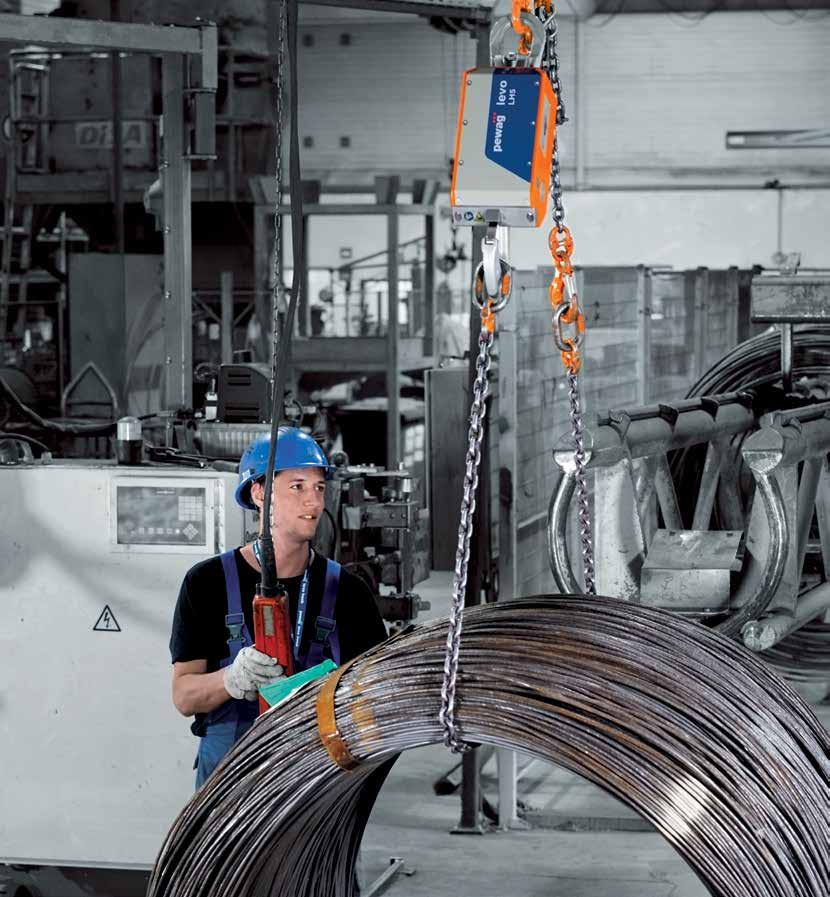

Lifting with less manual effort Safer handling. Greater efficiency. With conventional lifting methods, operators often need to enter the danger zone around or even on the load to attach and release the hook. Manual unhooking adds extra movement and handling steps, while working in close proximity to suspended loads can increase safety risks. During repetitive lifting operations, these manual steps have to be performed again and again. The pewag levo hook provides a smarter solution: the hook can be opened and closed remotely, reducing the need for manual intervention directly at the load. This helps make repetitive lifting processes more efficient while keeping operators further away from the immediate load area.
Safety Keep a safe distance from the hazard zone
Efficiency Fewer manual interventions
Control Remote opening and closing
Flexibility Suitable for a variety of lifting processes
1
2
3
4
Attach the load
Lift and transport
Safely set down the load
Open the hook remotely
The lifting equipment or load is securely positioned in the levo hook, and the hook is closed – manually or using the magnet.
The load is lifted and moved as usual using the crane.
The load is fully and safely placed at the designated position.
The levo hook is opened by remote control, allowing the lifting equipment to be released from a safe distance.
2
pewag levo hooks
3
Automated safety

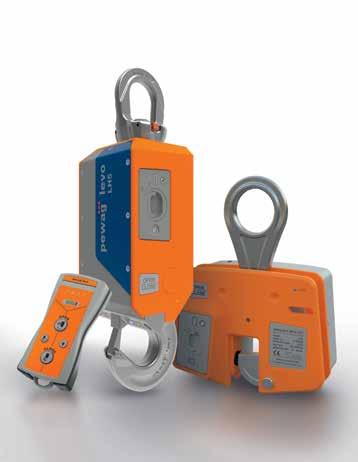

Comparison of pewag levo hooks
Equipment
levo hook LH5
levo hook LH8
levo hook LH16
levo hook LH32
Remote control
Battery
Charger
Light Module
–
–
Magnet Unit
levo Heat Protection
levo Bumper
Heavy Duty Frontcover
–
–
5t
8t
16t
32t
4:1 (opt. 5:1)
4:1
4:1
4:1
19kg
19kg
59kg
79kg
up to 100m
up to 100m
up to 100m
up to 100m
Multiple hook control
up to 20 hooks
up to 20 hooks
up to 20 hooks
up to 20 hooks
Rotatable under load
10-20kg
10-20kg
25-30kg
25-30kg
Battery runtime
up to 8.000 Movements
up to 8.000 Movements
up to 2.000 Movements
up to 2.000 Movements
Protection rating
IP65
IP65
IP65
IP65
TÜV certified
Technical Specifications Working load limit Safety factor Weight Remote operating range
Max. load release weight
included optional – not available
4
pewag levo hooks

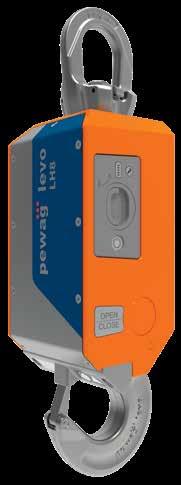

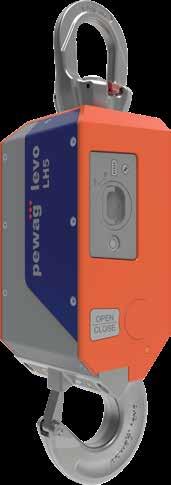

levo hook LH5 & LH8
• Versatile solution for a wide range of lifting applications • Available in 5 t (LH5) and 8 t (LH8) capacities • Ideal for steel, port, and logistics operations • Remote-controlled opening and closing • Increases efficiency in repetitive lifting processes • Safety mechanism prevents opening under load
Available accessories - Magnet Unit - Light Module - Bumper - Heat Protection
Product Specifications
LH5
LH8
Working load limit [kg]
5.000 kg
8.000 kg
e [mm]
460 mm
460 mm
a [mm]
32 mm
32 mm
b1 [mm]
156 mm
156 mm
b2 [mm]
220 mm
220 mm
d [mm]
35 mm
35 mm
d1 [mm]
54 mm
54 mm
d2 [mm]
61 mm
61 mm
g [mm]
22 mm
22 mm
h [mm]
528 mm
528 mm
h1 [mm]
46 mm
46 mm
w [mm]
142 mm
142 mm
Weight [kg]
20,00 kg
20,00 kg
d2
d2
d
d
g
e g
he
h
d1 d1
b1 b1 b2 b2
a
a
w
w
5
Automated safety
levo hook LH16
• For heavy-duty lifting applications up to 16 t • Ideal for steel, concrete, and injection molding industries • Enlarged hook and lifting point geometry for easier load handling • Safety latch retracts from the opening area for additional clearance • Customizable with application-specific accessories • Prevents opening under load and enables remote release up to 30 kg
Available accessories - Magnet Unit - Bumper - Heat Protection - Heavy Duty Frontcover
Product Specifications
LH16
Working load limit [kg]
16.000 kg
e [mm]
609 mm
a [mm]
49 mm
b1 [mm]
227 mm
b2 [mm]
356 mm
d [mm]
41 mm
d1 [mm]
86 mm
d2 [mm]
103 mm
m [mm]
35/15 mm (with magnet unit)
h [mm]
709 mm
h1 [mm]
64 mm
w [mm]
214 mm
Weight [kg]
59 kg
h1
m
h
e
d2
d1
d a
b1 b2
6
pewag levo hooks
w

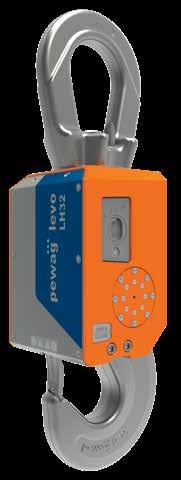

levo hook LH32

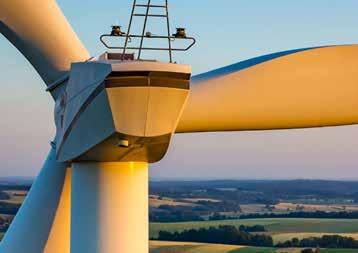

• For heavy-duty lifting applications up to 32 t • Ideal for injection molding and wind industry applications • Enlarged hook and lifting point geometry for easier load handling • Safety latch retracts from the opening area for additional clearance • Integrated brake allows the hook to stop in any position • Customizable with application-specific accessories • Prevents opening under load and enables remote release up to 30 kg
Available accessories - Magnet Unit - Bumper - Heat Protection - Heavy Duty Frontcover
Product Specifications
LH32
Working load limit [kg]
32.000 kg
e [mm]
666 mm
a [mm]
62 mm
b1 [mm]
259 mm
b2 [mm]
411 mm
d [mm]
41 mm
d1 [mm]
118 mm
d2 [mm]
159 mm
m [mm]
25/15 mm (with magnet unit)
h [mm]
813 mm
h1 [mm]
91 mm
w [mm]
214 mm
Weight [kg]
79,00 kg
h
e
d2
d1
m
h1
d
ito
a
b1 b2
w
7
Automated safety
Heat Protection Function and Application • Thermal protection for applications with elevated ambient temperatures and radiant heat • Slows down the heating of temperature-sensitive components, especially the battery • Extends the allowable exposure time in hot environments
Key Customer Benefits - Longer operating time in high-temperature environments - Reduced thermal stress on battery and electronic components - Remote load release keeps operators away from hot working areas - Easy retrofit for existing hooks
Bumper Function and Application • Highly durable protective cover for demanding lifting operations • Protects the hook from accidental impacts and contact
Key Customer Benefits - Increased durability in demanding day-to-day operations - Reduced risk of damage to the hook, load, and surrounding structures - Lower maintenance and repair requirements - Easy retrofit for existing hooks in applications with an increased risk of contact
8
pewag levo hooks
levo hook accessories
Magnet Unit
Usage Example
The integrated magnet supports the handling and positioning of ferromagnetic lifting points or equipment, enabling easier pickup and alignment while reducing the need for manual intervention in the immediate working area.
Light Module
Remote attachment and detachment when loading injection moulds into injection moulding machines, reducing the need for personnel to enter difficult-to-access machine areas.
Usage Example
The integrated LED illuminates the working area around the hook, improving visibility of the load and connection points in dark or difficult-to-access environments.

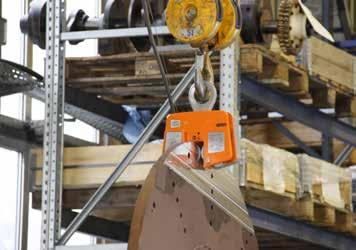

Connecting lifting gear to a load in dark storage racks or machine areas where attachment points are difficult to identify from the crane operator‘s position.
Heat Protection
Usage Example
Helps protect temperature-sensitive components of the hook, particularly the battery, from excessive heat buildup, enabling longer operating times in high-temperature environments.
Bumper

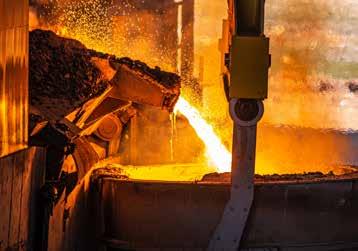

Placing a component into a furnace and releasing the lifting gear remotely, so personnel do not have to enter the hot zone.
Usage Example
A highly durable protective cover provides additional protection for the hook housing and internal components against impacts, wear, and accidental contact.
Heavy Duty Frontcover The reinforced 5 mm cover plate provides enhanced protection for the hook and its components, making it ideal for demanding applications with increased risk of impact.
Loading and unloading operations where occasional contact between the hook, the load, or surrounding structures is unavoidable.

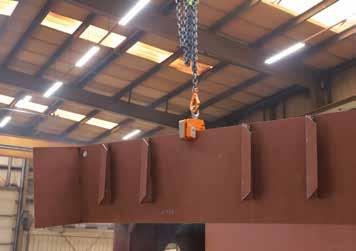

Usage Example Handling large components where occasional contact between the hook and the load is unavoidable, providing increased protection against wear.
9
Automated safety

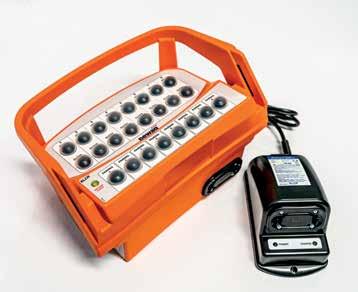

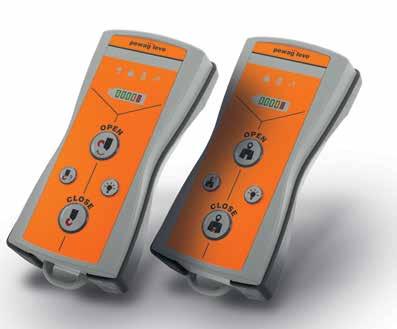

Remote control & Multi-Hook control
Pre Paired on Delivery
Opening of the hook
Hook and remote control are supplied already paired.
Hook and battery status display Status check Control of the optional light module Closing of the hook
Opening Protection The hook will not open if the opening button is pressed for too long or too briefly.
Up to
20
Single Hook Control
Multi Hook Control
1 remote control for 1 levo hook.
Multiple connected hooks form a hook group. Commands such as opening and closing are executed simultaneously.
hooks
Range
Hook Capacity
Protection Rating
Operating Temperature
Radio Frequencies
Power Supply
up to 100m
up to 20 Hooks
IP65
–20 °C to +60 °C
869,75MHz; 915,5MHz and 916,2MHz
3 × 1.5 V AA batteries
10
pewag levo hooks
Versatile lifting solutions From standard to custom pewag levo supports a wide range of lifting operations across diverse applications – from recurring standard processes to individual lifting tasks. Together with our customers, we develop solutions tailored to their specific processes and requirements. Users benefit not only from levo technology, but also from pewag’s extensive lifting expertise and comprehensive know-how in load handling equipment and lifting solutions.
Lifting injection moulding tools Loading and unloading moulds without requiring personnel to enter the machine area.

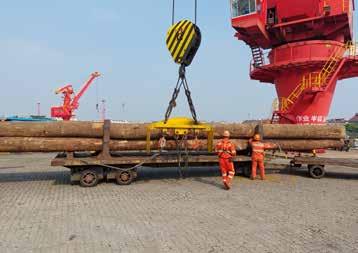

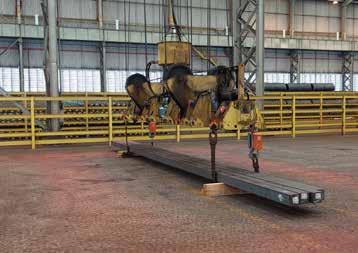

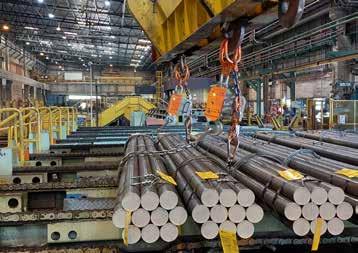

Loading steel bars onto trailers Loading steel bars without personnel having to climb onto the trailer to detach the load.
Lifting bags with a spreader beam Lifting and positioning big bags with remote release of the load.
Installing a chimney top platform Positioning the platform at height with remote release of the load, reducing the need for manual work in exposed areas.

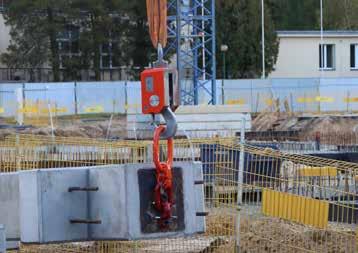

Placing precasted concrete elements Automatic attachment and release of load, reducing the need for manual work at dangerous heights.
Setting utility poles Remote detachment of the lifting gear once the pole is in position, keeping personnel outside the potential fall zone.
Together we will find the right solution levo@pewag.com | +43 50 50 11
11
Automated safety
FO/26/00535
pewag austria GmbH A-8041 Graz, Gaslaternenweg 4, Phone: +43 (0) 50 50 11-0, Fax: +43 (0) 50 50 11-100, saleinfo@pewag.com, www.pewag.com
Have a lifting task? Contact us: levo@pewag.com Phone:+43 50 50 11 In accordance with • EU Machinery Directive 2006/42/EC • Directive 2014/53/EU on the making available of radio equipment (RED) The following harmonized standards were applied: Norm • EN ISO 12100:2010 • EN 1677-1:2000 + A1 • EN 1677-2:2000 + A1 (Note 1) • EN ISO 13849-1:2015 (Note 1) • EN ISO 13849-2:2012 • EN 301 489-3 V2.1.1 • EN 300 220-2 V3.1.1 (Note 2) Note 1:
lndependently tested by TÜV Süd (Atlestation of Conformity M8A004105 0005 and M8AUK004105 0006)
