pewag Container Lifting Sling
Flexible. Modular. Safe.

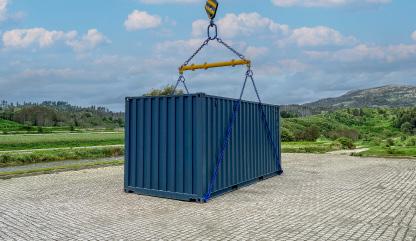

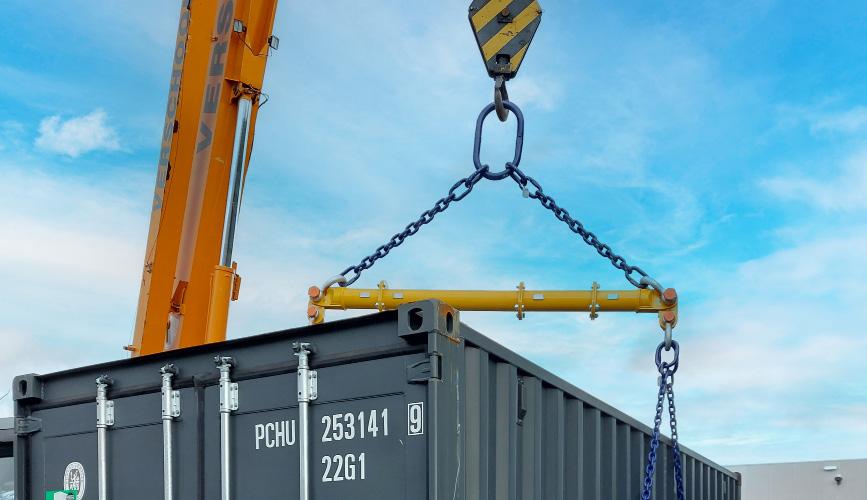

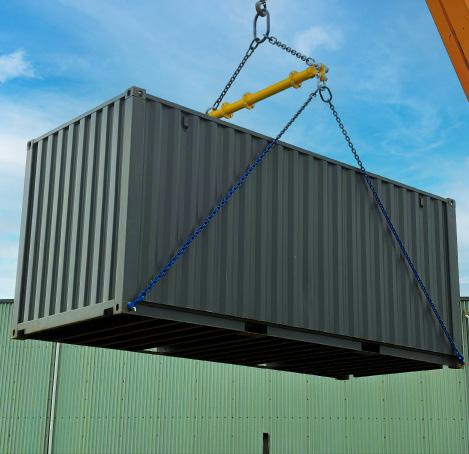

A modular lifting solution combining chains and a spreader beam, designed specifically for standardized 20-ft and 40-ft containers. This “out-of-the-box” chain sling system for standard ISO containers is easy to handle during daily operations.
Key Benefits
• WLL-adapted for ISO containers
• High flexibility (suitable for 20 ft and 40 ft containers)
• Robust pewag G10 chain slings with adjustable length
• Fast load imbalance compensation with shortening hooks
• Easy and intuitive handling
• Delivered fully assembled
Technical Data & Safety
• Standards & Regulations
o EN 818-4
o Container hooks for container corners acc. to ISO 1161
• Safety Instructions
o Use only by trained personnel
o Perform a visual inspection before each use
o Never lift loads over people
Application & Operating Instructions
1. Pick the master link out of the packaging and attach it to the crane hook (Image 1).
2. Lift the already assembled system to your container.

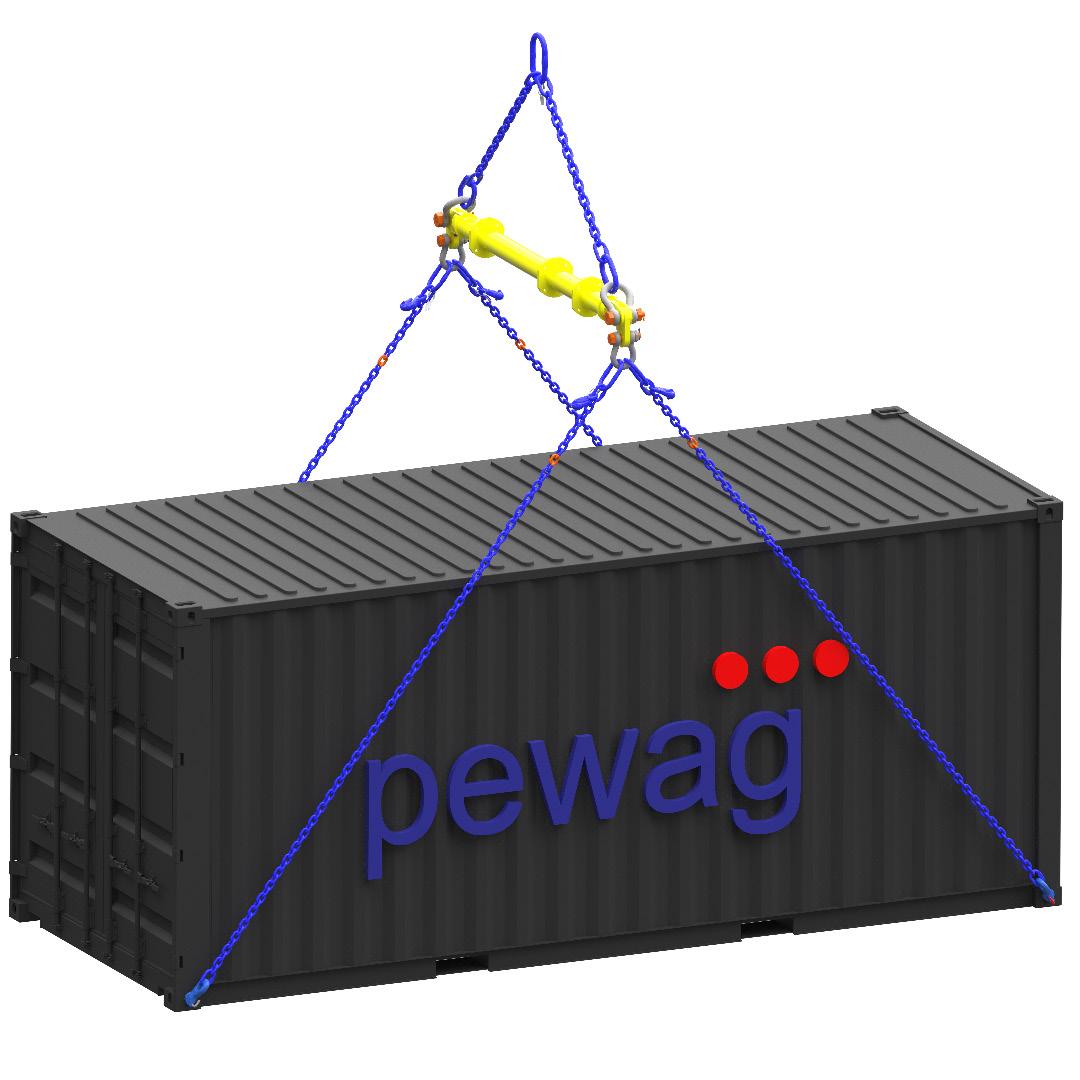

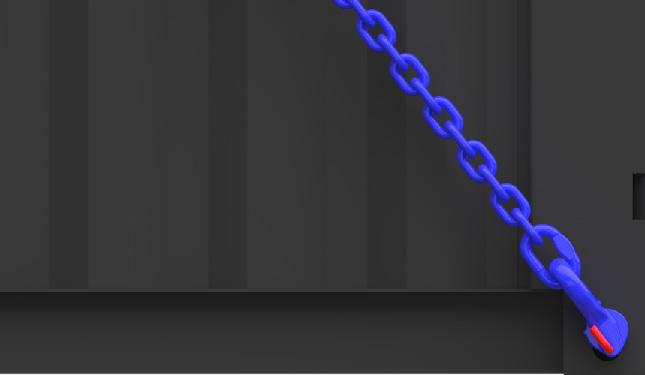

3. Connect all the CHWPs to the container. Ensure that the LH CHWP (Image 2) is on the left and the RH CHWP (Image 3) is on the right, as shown in the illustration below.

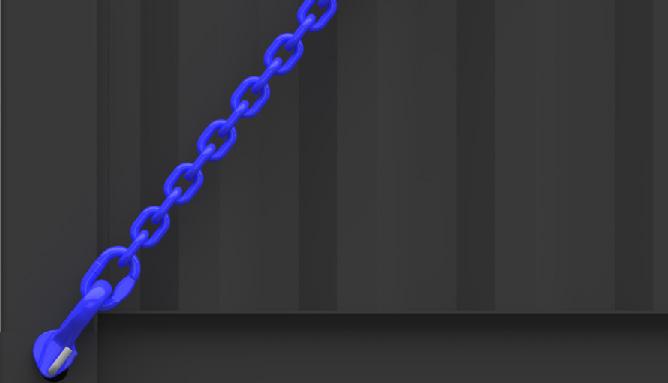

4. Once you have inserted the CHWP into the container corner, you must ensure that the safety lever is locked into place in the container corner so that the CHWP can no longer be rotated fully.

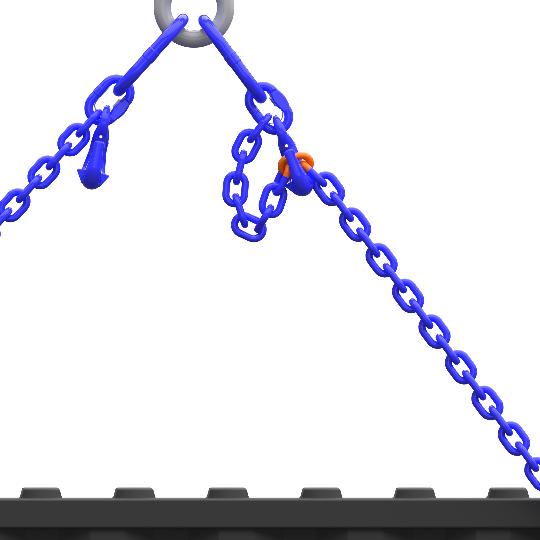

5. To level the container, the lengths of all chain legs can be adjusted using shortening hooks.
TIP: Balancing empty container
Spare Parts & Components
Code Spare Parts
CLS 20ft-20t WIN 16 200 I AW-CHWP16 LH-PW 4717
WIN 16 200 I AW-CHWP16 RH-PW 4717
WIN 19 200 II AW-AW 2003
Spreader Beam MOD 34
Shackle P215 25t
Shackle P215 17t
CLS 40ft-20t WIN 16 200 I AW-CHWP16 LH-PW 7693
WIN 16 200 I AW-CHWP16 RH-PW 7693
WIN 19 200 II AW-AW 2003
Spreader Beam MOD 34
Shackle P215 25t
Shackle P215 17t
Code Spare Parts
CLST 20ft-32t WIN 19 200 I AW-CHWP16 LH-PW 4686
WIN 19 200 I AW-CHWP16 RH-PW 4686
WIN 26 200 II AW-BW 1742
Spreader Beam MOD 50
Shackle P215 35t
Shackle P215 25t
CLST 40ft-32t WIN 19 200 I AW-CHWP16 LH-PW 7764
WIN 19 200 I AW-CHWP16 RH-PW 7764
WIN 26 200 II AW-BW 1742
Spreader Beam MOD 50
Shackle P215 35t
Shackle P215 25t
Note: This quick reference guide gives an overview of the most important principles when using this container lifting system. However it does not replace the original operating instructions for pewag chain slings under any circumstances. You can find the operating instructions for each component on our website.
Image 1: Masterlink
Image 2: LH CHWP
Image 3: RH CHWP
