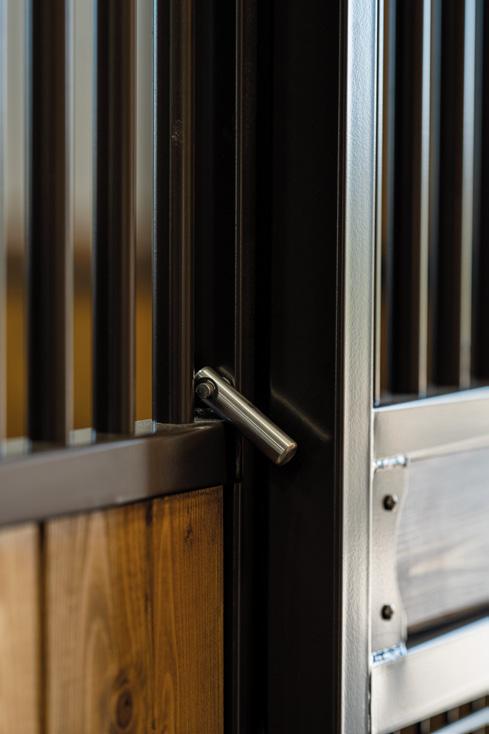

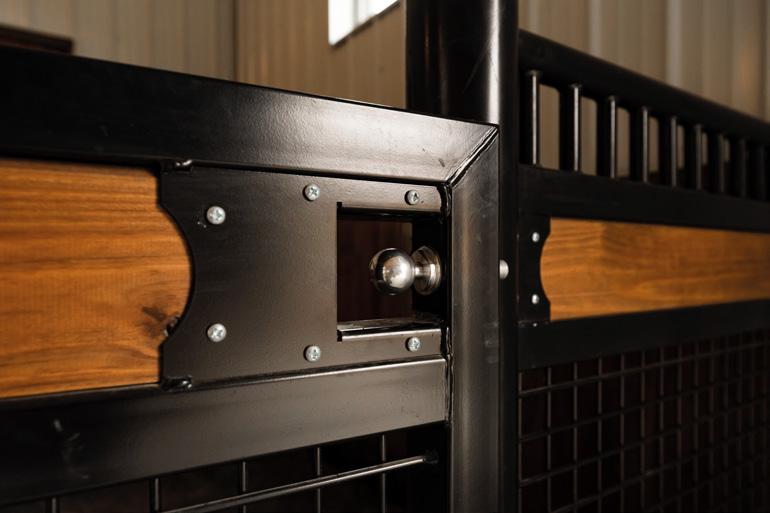

2 Latching Options are available for our Sliding Stall Fronts. Both options are machined from 304 stainless steel. Our latch options offer easy one-hand latching – while providing durable design:

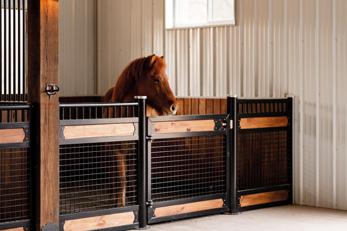

Many clients choose to only add stall doors – instead of fully welded stall fronts. At American Stalls, we understand that each barn is unique. Stall doors are always a very personal choice since they are used dozens of times each day. That is why every single stall door is custom built to order.
Custom options include door bottom designs, shavings guards, different yokes, and so much more. Rest assured, your stall doors will be made to your design goals and lifestyle needs.
Options include, but are not limited to:

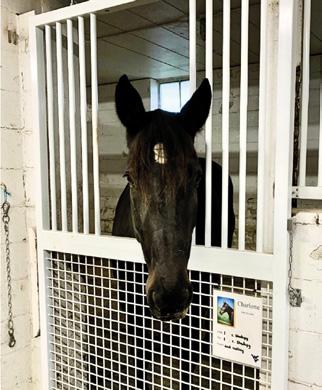

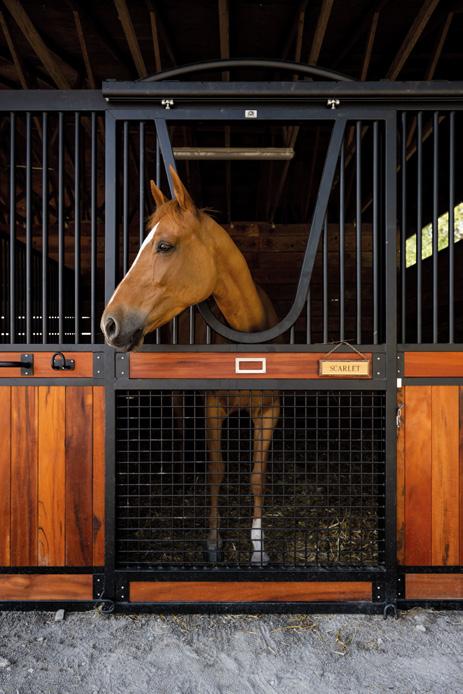

Mesh – 90º vented mesh

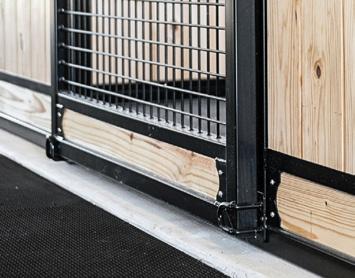

Round Bars – 1" round bars at door bottom
Bedding Guards Available: 4", 6", and 8"

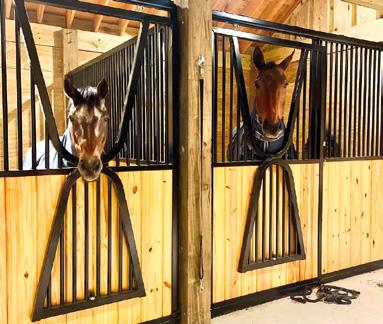

15+ Yoke Options – Including removable yokes, hinged yokes, french yoke, and open yokes
Door Center & Bottom – Wood or steel center and bottom rails

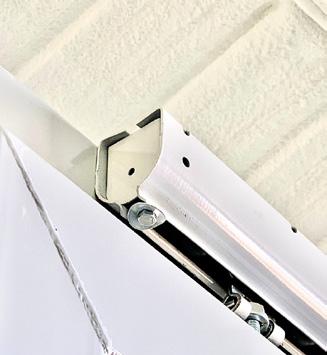

* Track system not drawn to scale.
Rectangular Yoke (Open)

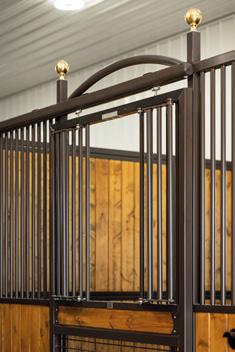

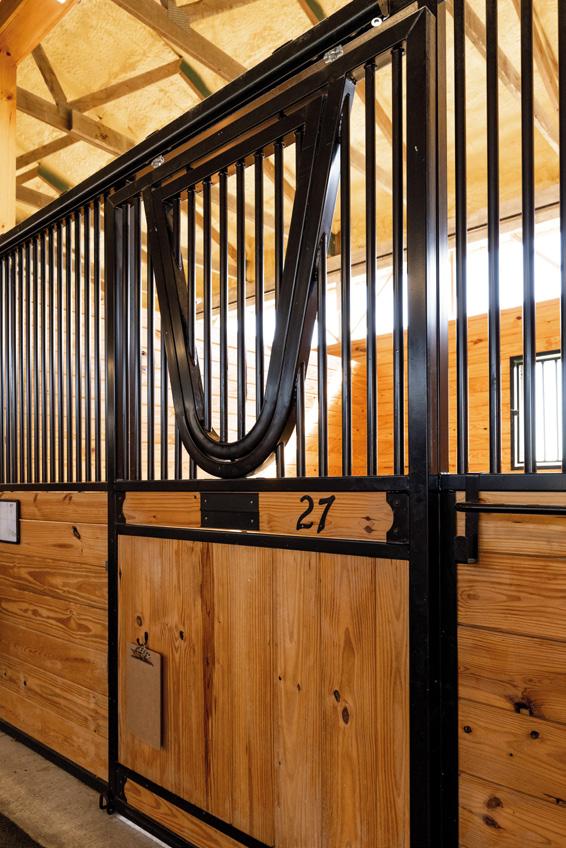

Hinged, Fold-Down V-Shaped Yoke (Bent)
Removable Rectangular Yoke
HINGED STYLE

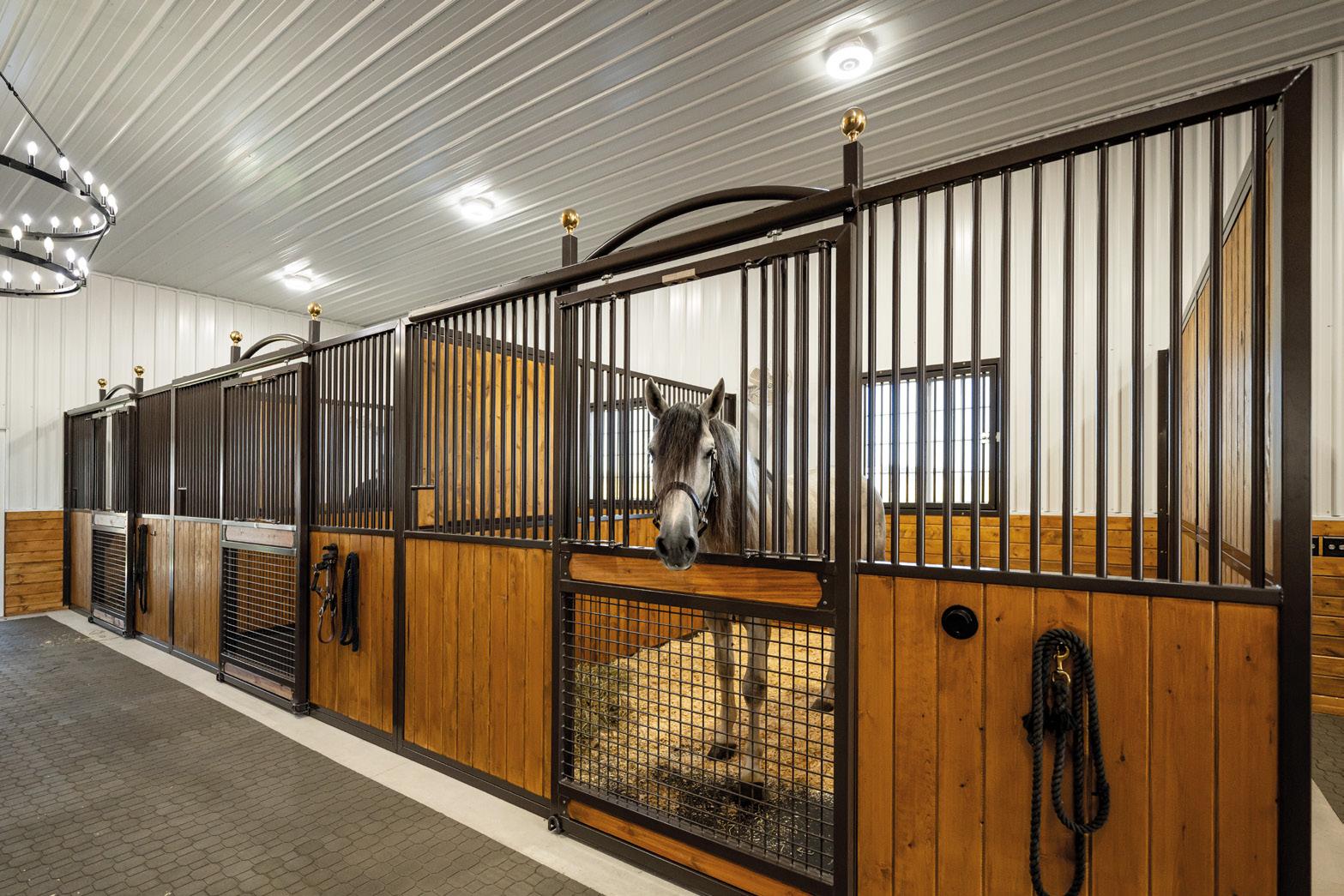

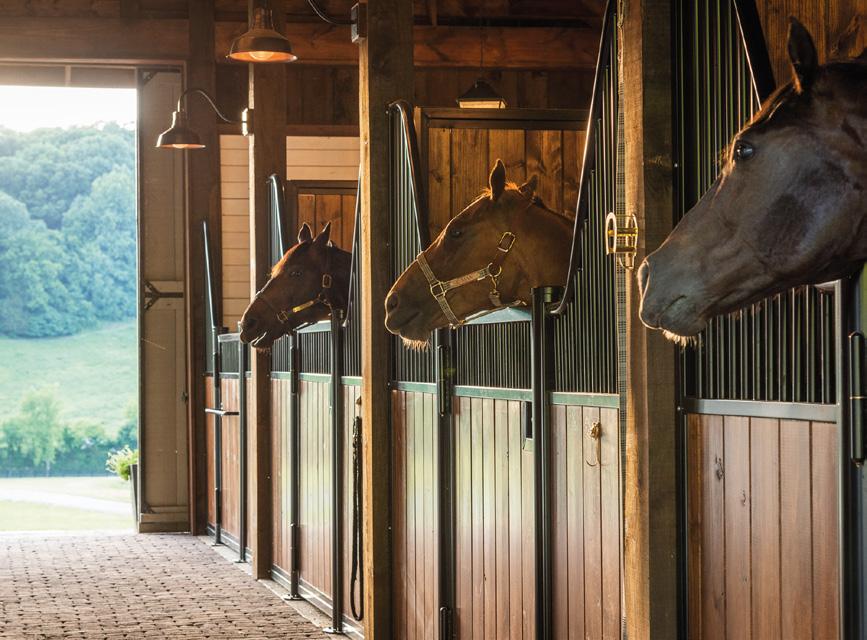

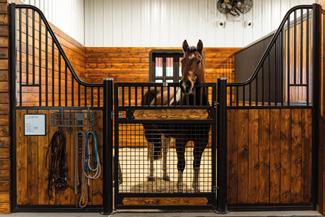

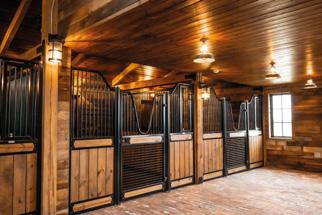

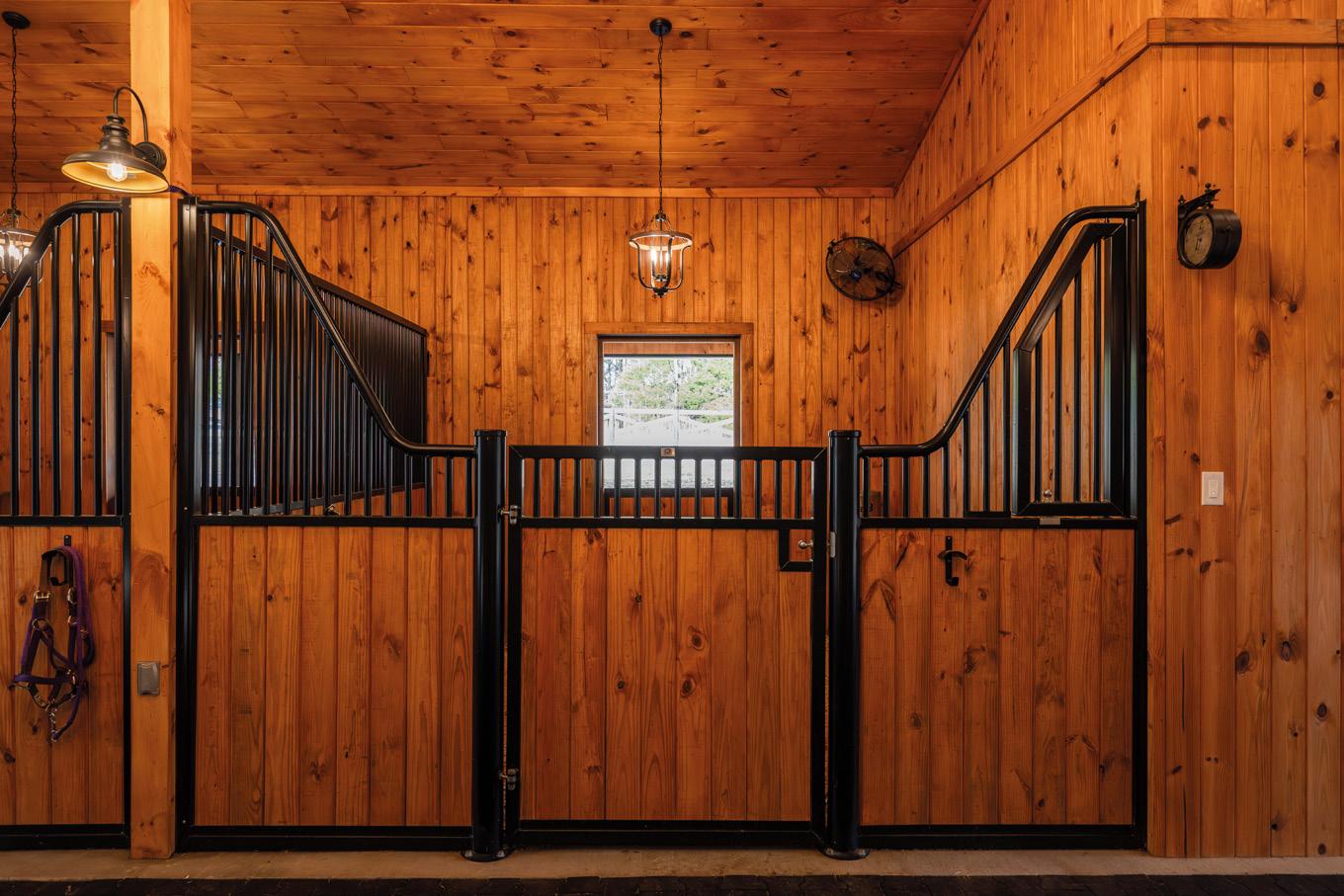

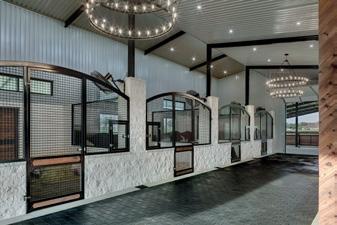

Swooping curves, graceful design, and heavy-duty hardware define our European stall fronts. These stall fronts are functional as they offer your horses maximum socialization and ventilation. They also provide your barn a sophisticated, old-age look and feel.
Our hinged stall fronts are equipped with heavy-duty stainless steel rod hinges that are fully adjustable serviceable. Our easy-to-use plunger latch prevents pinched fingers or doors stuck in a closed position. The sky is the limit when it comes to designing your European-styled stall fronts.
Steel: 100% United States made, 50ksi high tensile strength steel
Frame: 14GA 2”x2” square tube
Posts: 7GA 4-1/2" Round Posts
Euro Wings & Yoke: 1.9" round tube
Upper Bars: 1 round tube on 3 centers (2 between bars) on upper bars
Lower Bars (Optional): 1" round tube placed on 2.5" centers
1.5" punched u-channel
Steel Treatment: Pre-galvanized steel
Powder Coat: Custom TGIC polyester powder coat
Our zinc flow-coat galvanization has 30% more galvanization inside and out. All powder coating done in-house using rigorous quality control process.

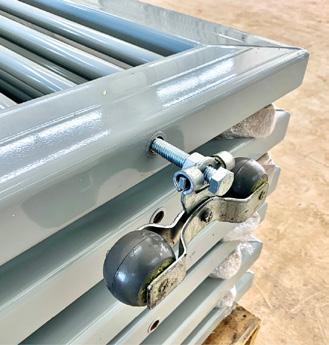

Hinges: Rod-end hinges that are fully adjustable (304 stainless steel)

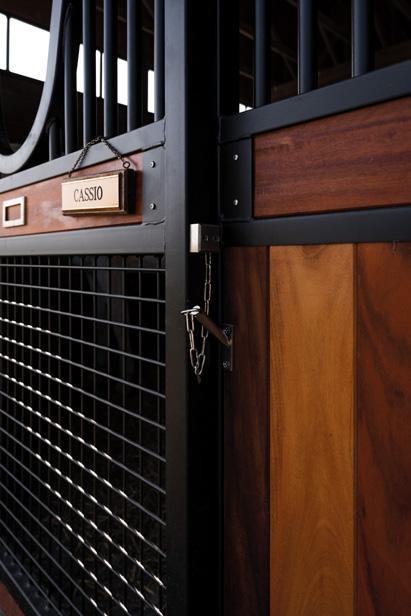

Latch: Spring loaded plunger latch (304 stainless steel)
HINGED STYLE
Swooping curves, graceful design, and heavy-duty hardware define our European stall fronts. These stall fronts are functional as they offer your horses maximum socialization and ventilation. They also provide your barn a sophisticated, old-age look and feel.
Our hinged stall fronts are equipped with heavy-duty stainless steel rod hinges that are fully adjustable serviceable. Our easy-to-use plunger latch prevents pinched fingers or doors stuck in a closed position. The sky is the limit when it comes to designing your European-styled stall fronts.
Steel: 100% United States made, 50ksi high tensile strength steel
Frame: 14GA 2”x2” square tube
Posts: 7GA 4-1/2" Round Posts
Euro Wings & Yoke: 1.9" round tube
Upper Bars: 1 round tube on 3 centers (2 between bars) on upper bars
Lower Bars (Optional): 1" round tube placed on 2.5" centers
1.5" punched u-channel
Steel Treatment: Pre-galvanized steel
Powder Coat: Custom TGIC polyester powder coat
Our zinc flow-coat galvanization has 30% more galvanization inside and out. All powder coating done in-house using rigorous quality control process.
Hinges: Rod-end hinges that are fully adjustable (304 stainless steel)
Latch: Spring loaded plunger latch (304 stainless steel)
Need More Design Options?
Scan the QR code to view more
