Latch Systems

PIN LATCH & PLUNGER SYSTEMS

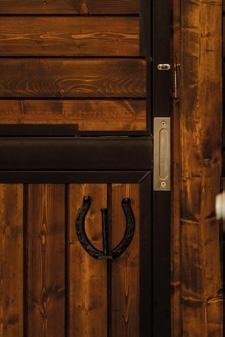

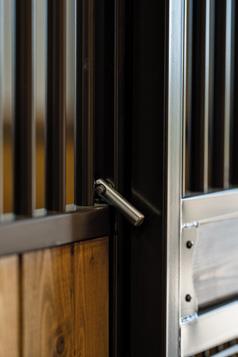

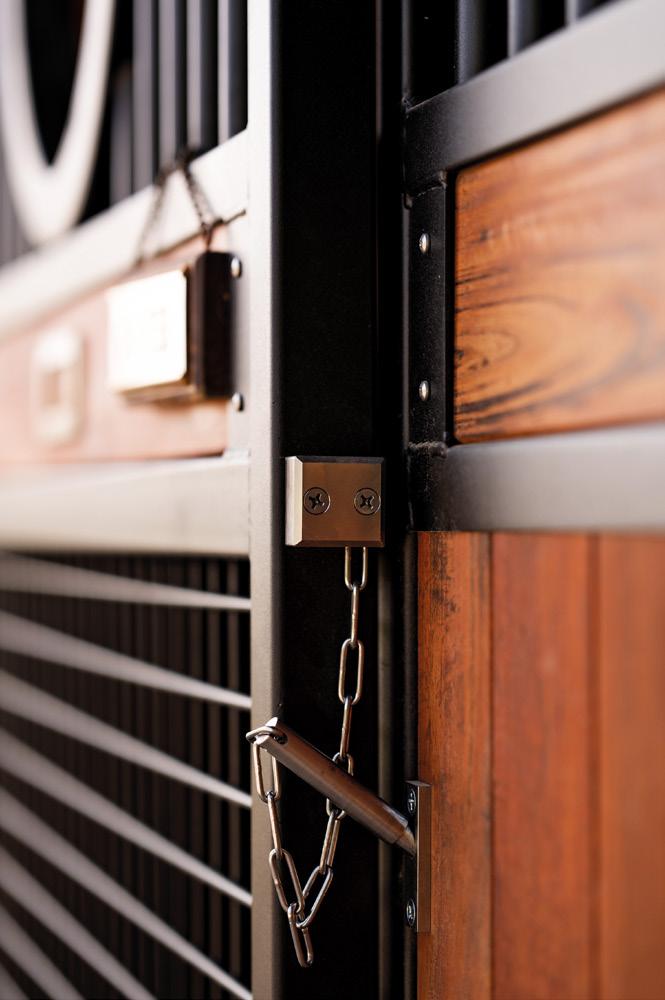

Pin Latch – Sliding horse stalls include our pin latch made of ½” thick stainless steel. When the door is closed, the pin latch is stored at a 45º angle inside a wall sheath that is bolted either on the stall front or tongue and groove. When the door is in use, the pin latch is safely secured inside the pin provided pin receptacle.

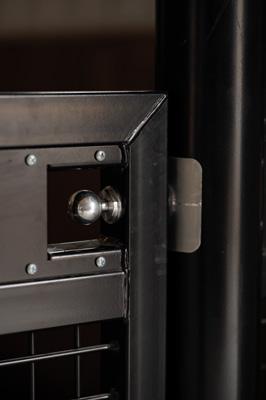

– European (hinged) stall fronts use our spring loaded plunger latch. This plunger comes with a striker plate to accept plunger

Feed Systems

STALL FRONTS

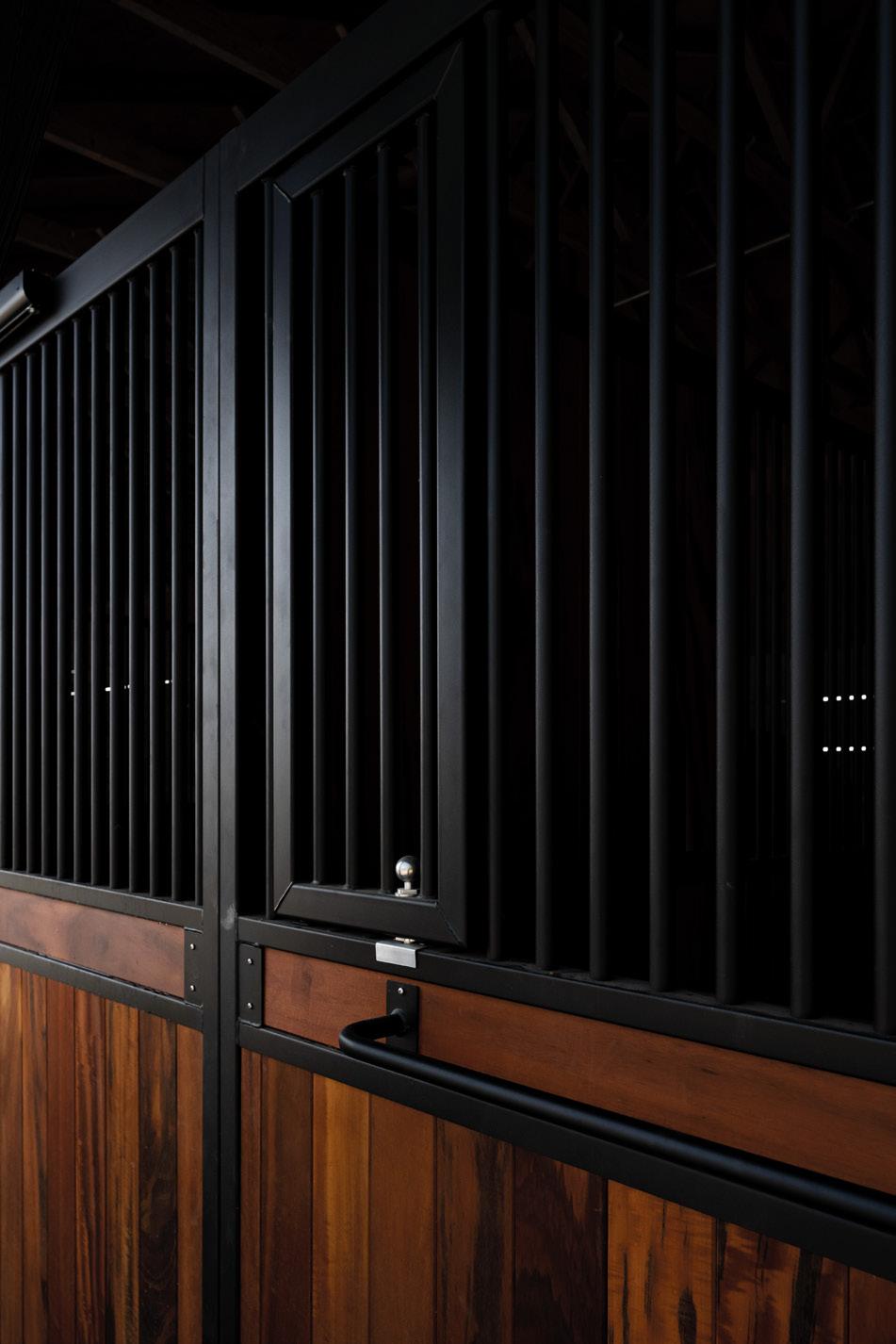

Grilled Feed Door – This feed option blends into your Stall Front design to allow you to feed your horses from the comfort of your aisle. Simply open the door using our Stainless Steel Plunger Latch to place hay and other feed into your horse's stall.

Swivel Feeder & Feed Bowl – Our Swivel Feeder is a steel-framed door with lumber-fill. On the back is a Stainless Steel feed bowl. This options

Water Systems

STALL FRONTS

Integrated Water Lines

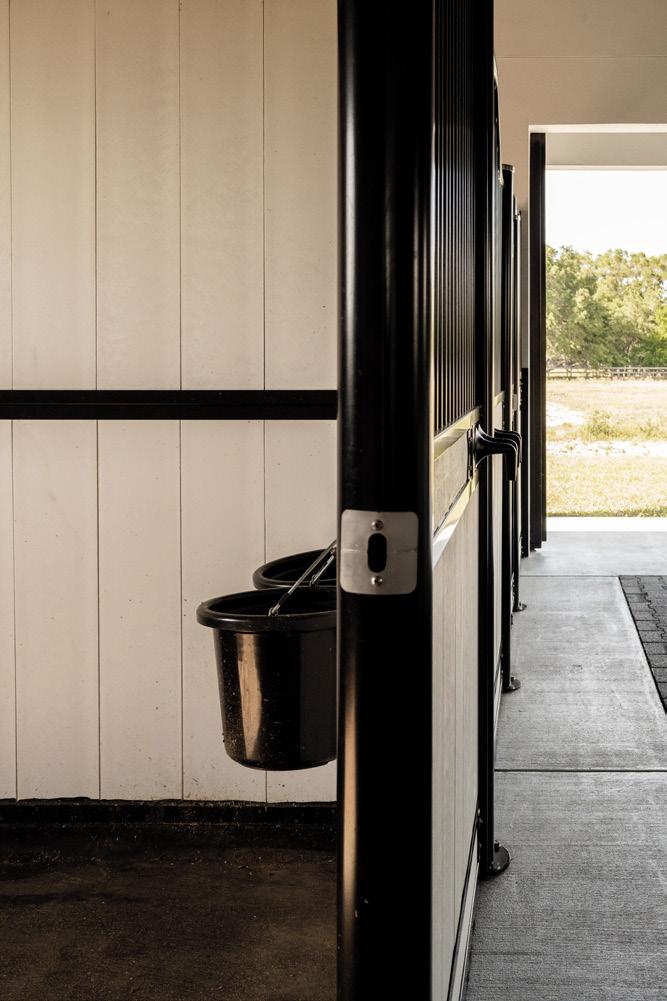

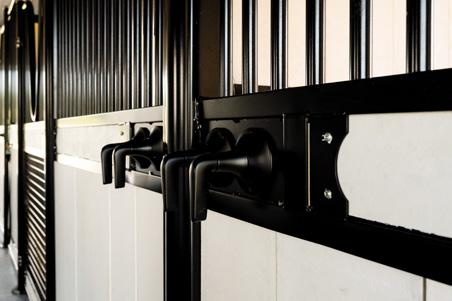

This water system allows you to integrate your water lines into your stall front's interior steel channels – allowing you to fill water buckets from the aisle. Pre-drilled holes allow you to install water switches on the stall exterior while spouts are placed on the stall interior.

Water Systems

STALL FRONTS

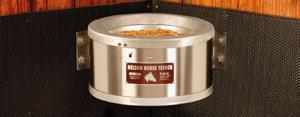

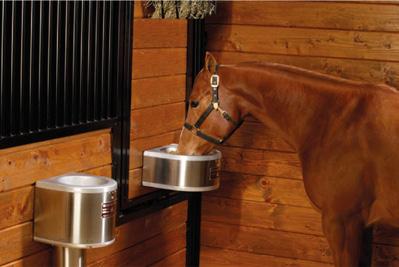

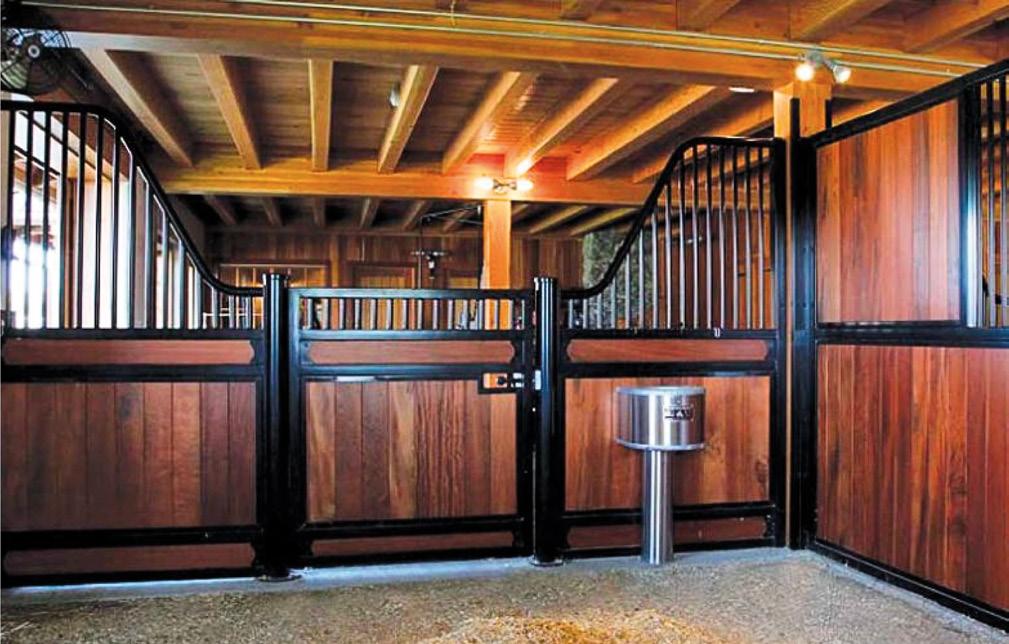

American Stalls offers the industry-leading Nelson Automatic Waterers – a must for both the stall and pasture. Each waterer features durable construction – including stainless steel and aluminum. It features mindful design such as a removable drinking bowl for easy cleaning.

Available in various mounting options – including wall mounts and free-standing options. Contact your American Stalls Project Manager to determine which is the best waterer for your barn. All waterer systems include a limited 3 year manufacturer's warranty.

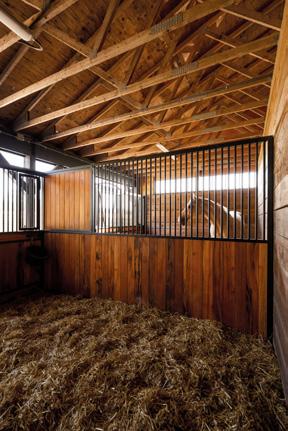

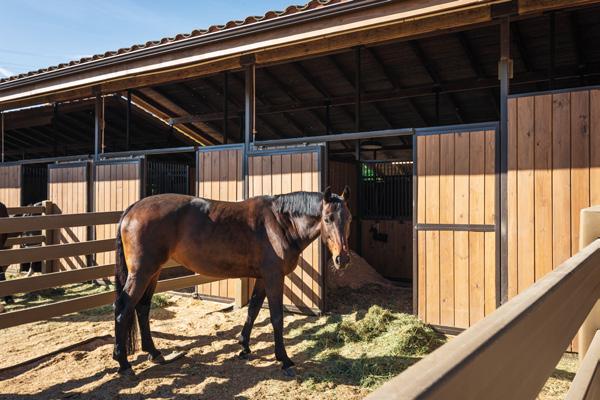

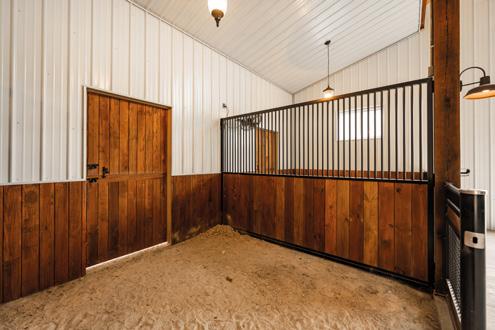

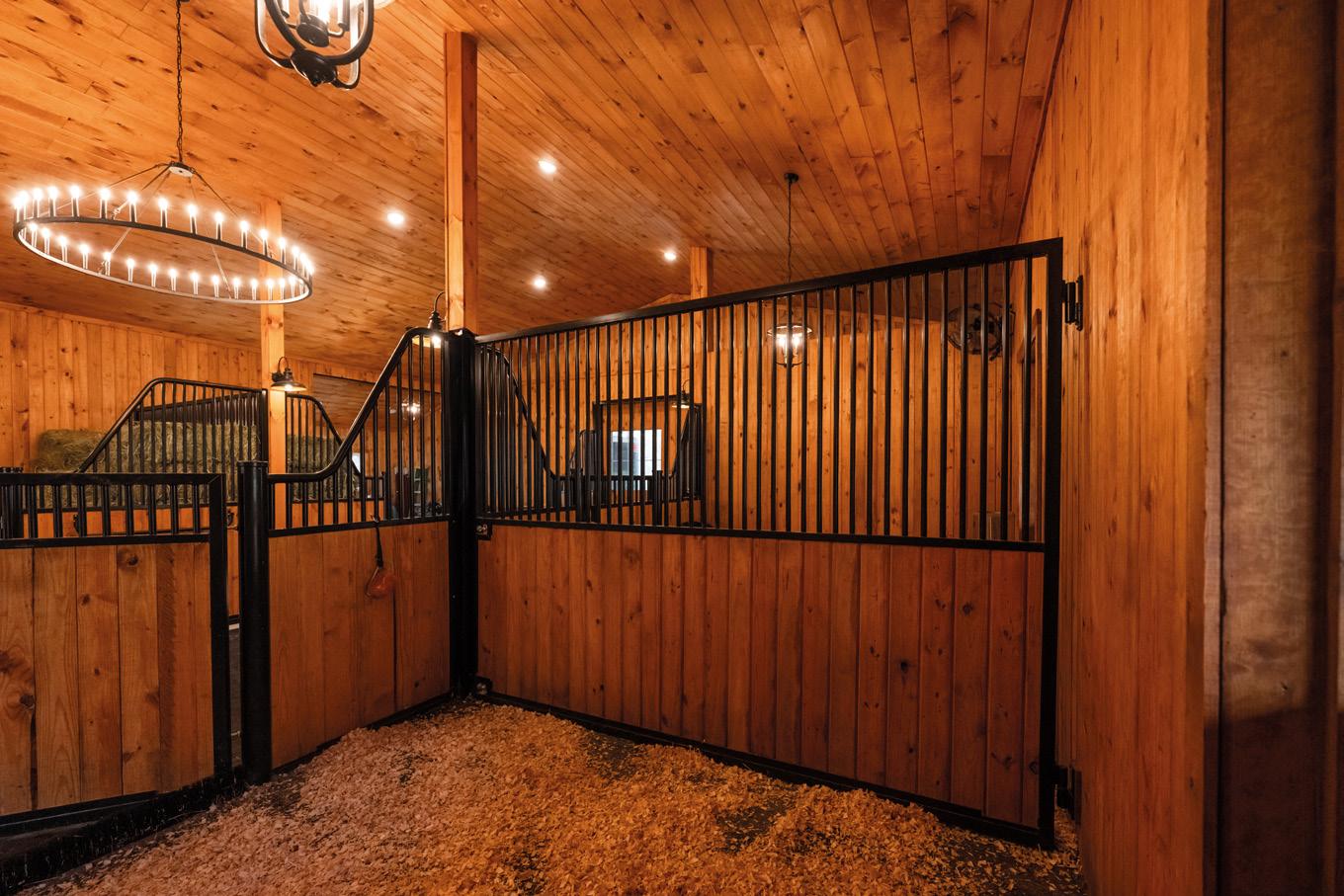

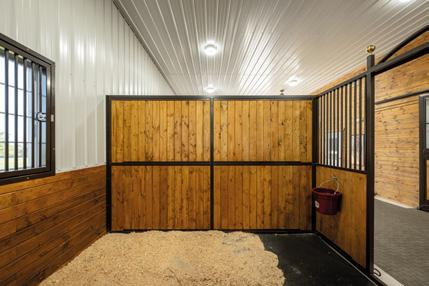

Stall Partition Examples

Stall Partitions

Our horse stall partitions are built in various styles to meet your design and function needs. When making your decision on the design, you should factor in the following elements:

1. The climate in your area

2. The temperament of your horses

3. The operational style of your facility

4. The primary use of the stalls

STEEL FABRICATION

Gauge: 14GA United States steel

Frame: 2”x2” square tube

Upper Bars: 1 round tubes on 3 centers (2 between bars)

1.5" punched u-channel

Hinged partition available to make foaling stalls (i.e. 12'x24')

THE FINISH

Steel Treatment: Pre-galvanized steel

Powder Coat: Custom TGIC polyester powder coat

Superior Protection: Our zinc flow-coat galvanization has 30% more galvanization on tubing, both inside and out. All powder coating is then done in-house using rigorous quality control process.

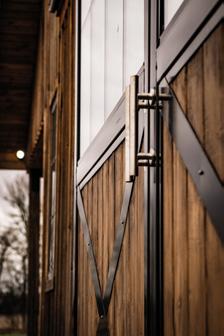

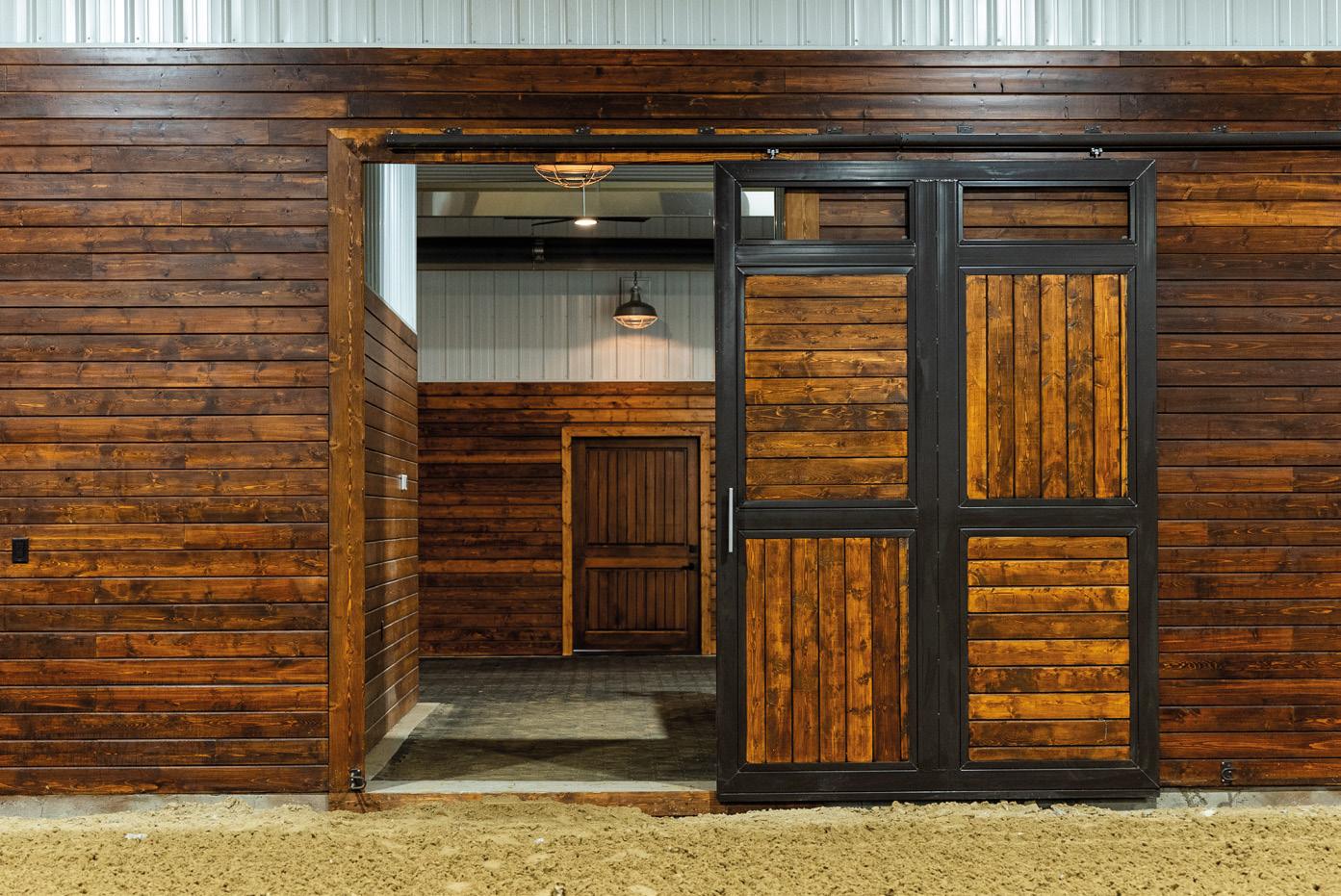

Barn Entry Doors

HINGED / SLIDING

Your Barn Entry Doors are the first thing you see when entering a barn. They also welcome your horses home. This is why your Barn Doors should operate with ease – all while making a statement.

Our Barn Entry Doors use our high-quality steel and industry-leading track system. This combination ensures durability and outstanding protection.

We guarantee that our Barn Entry Doors will glide with easy for years to come – no matter how large your Barn Doors are.

Choose from dozen of custom options to make your Barn Doors unique to your barn. Choose from glass designs, welded cross bucks, and different fills.

Make a statement with a stunning custom barn door from American Stalls.

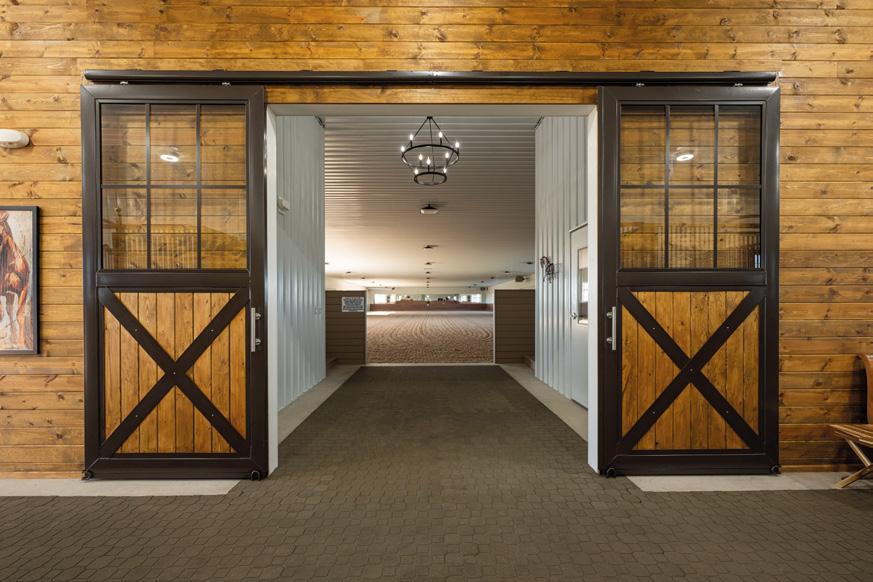

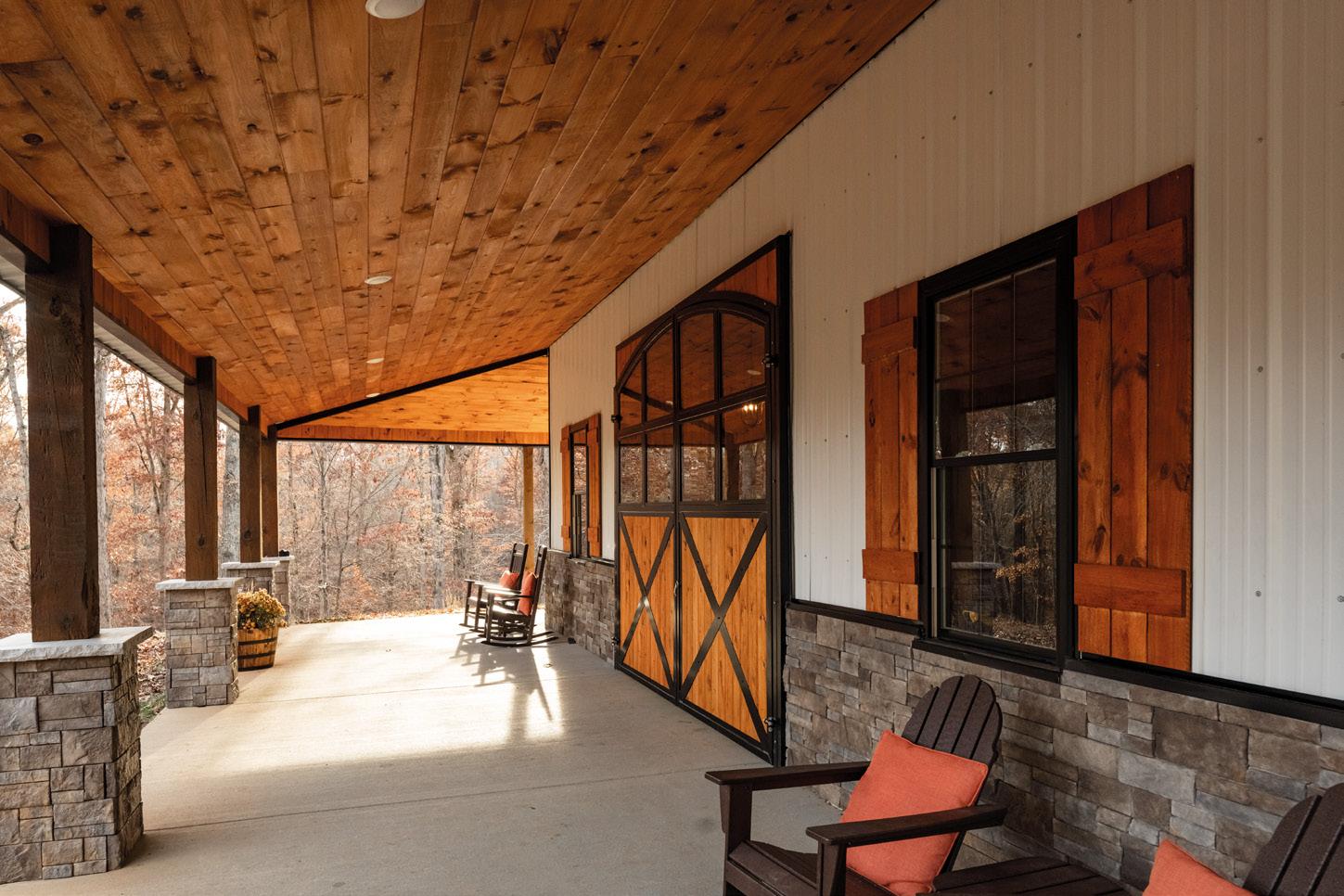

Barn Entry Doors

Make a statement for your barn’s entrance with our Barn Entry Doors. We customize barn doors to look and feel how you would like. Choose from endless finishes, designs, and the ability to embed your logo into our doors. Each Barn Entry Door is tailored to meet your design and function needs.

STEEL FABRICATION

Steel: 100% United States made, 50ksi high tensile strength steel

Frame: 14GA 2”x2” square tube

(2"x3" and 2"x4" available upon request)

1.5" punched u-channel

U-channel accepts standard grade construction kiln-dried lumber size (2'x6' or 2'x8')

U-channel built with 14GA steel

THE FINISH & DESIGN OPTIONS

Steel Treatment: Pre-galvanized steel

Powder Coat: Custom TGIC polyester powder coat

Our zinc flow-coat galvanization has 30% more galvanization inside and out. All powder coating is done in-house with rigorous quality control.

Cross Bucks: 4" welded cross bucks available

Glass Upgrade: Installed, tempered glass available

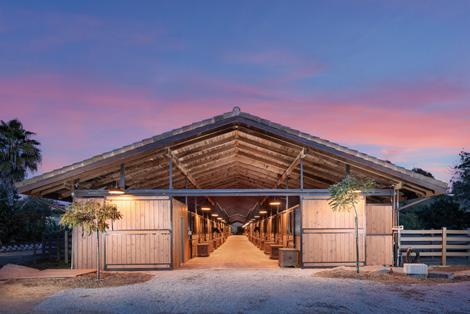

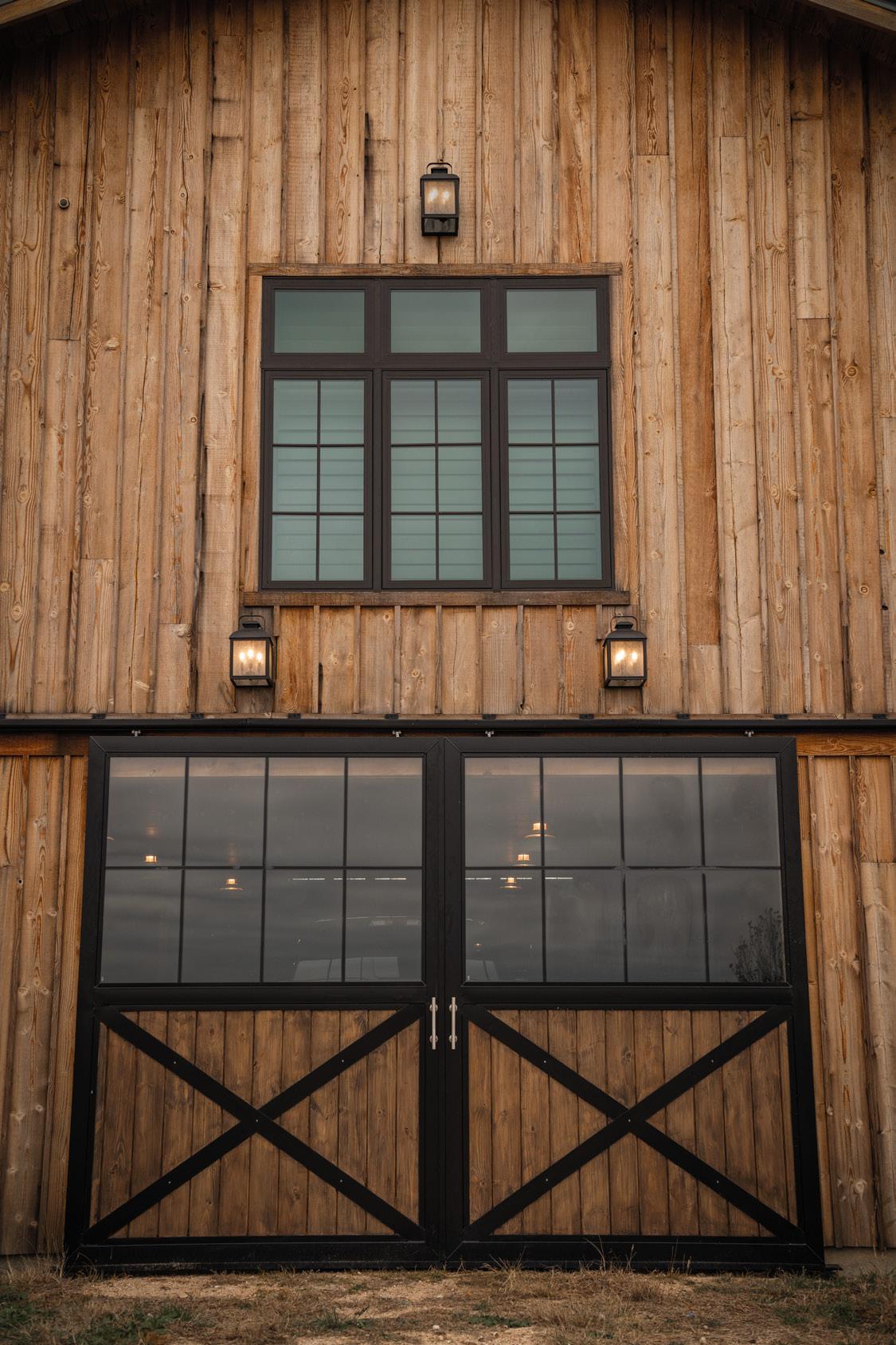

Barn End Door Examples

Exterior Barn Doors

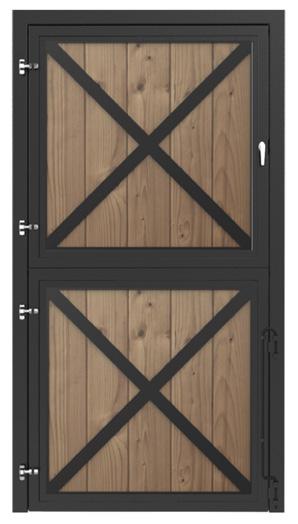

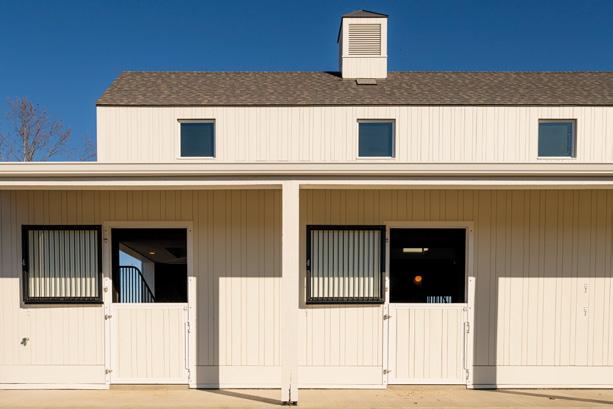

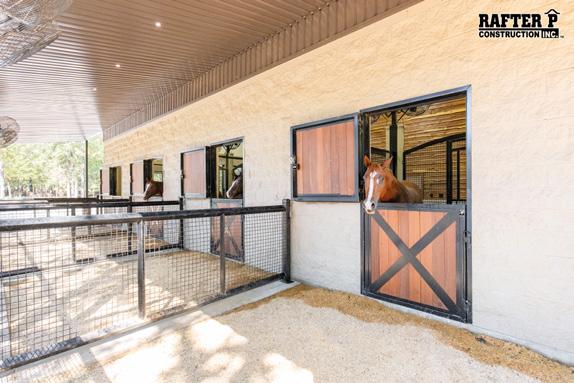

DUTCH DOORS / PADDOCK DOORS

Dutch doors are the one of the most versatile options to add to any barn. Dutch Doors add style, ventilation, and sunlight to your barn.

Our doors are solid welded and come pre-hung for easy installation. Our latch systems are made from galvanized steel. They are fully manufactured for maximum durability to the elements and rigors of any working barn.

Doors can be opened from either the inside or outside. We also build single-hinged doors that can be used as entry doors. Lastly, we also manufacture sliding paddock doors – using the same high-quality track systems as our barn end doors.

Rest assured, our steel-based, exterior doors are built to last.

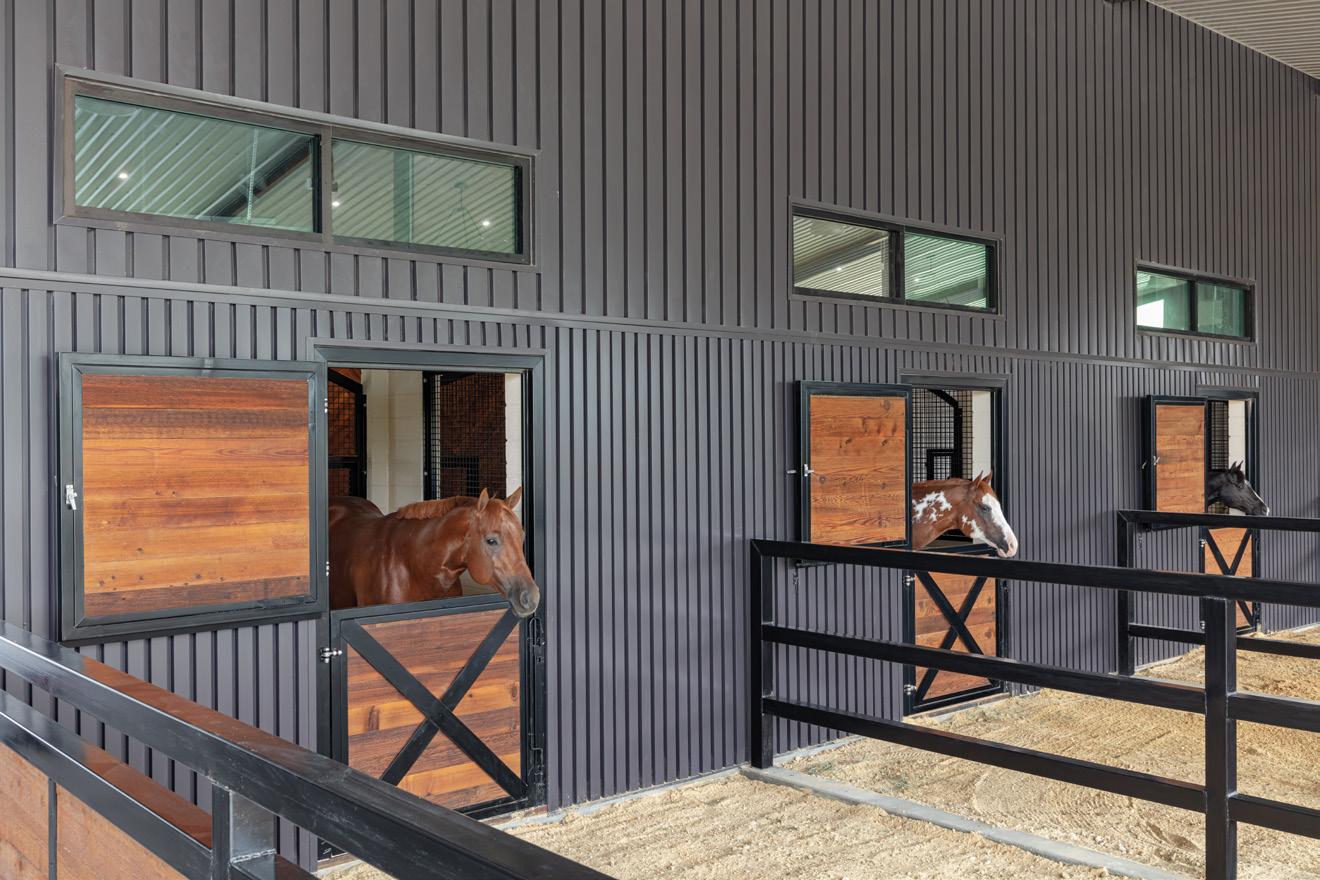

Dutch Doors & Paddock Doors

Dutch doors (and sliding paddock doors) are the one of the most versatile options to add to any barn. They add key functions including:

Elegance. Provide your barn that classic American look and feel. Ventilation. Gives the opportunity for more cross ventilation in each horse stall unit.

Safety. Allows for direct exit from each stall in the case of an emergency.

STEEL FABRICATION

Steel: 100% United States, 50ksi high tensile strength steel

Frame: 14GA 2”x2” square tube

1.5" punched u-channel

U-channel accepts standard grade kiln-dried lumber size (2'x6' or 2'x8')

U-channel built with 14GA steel

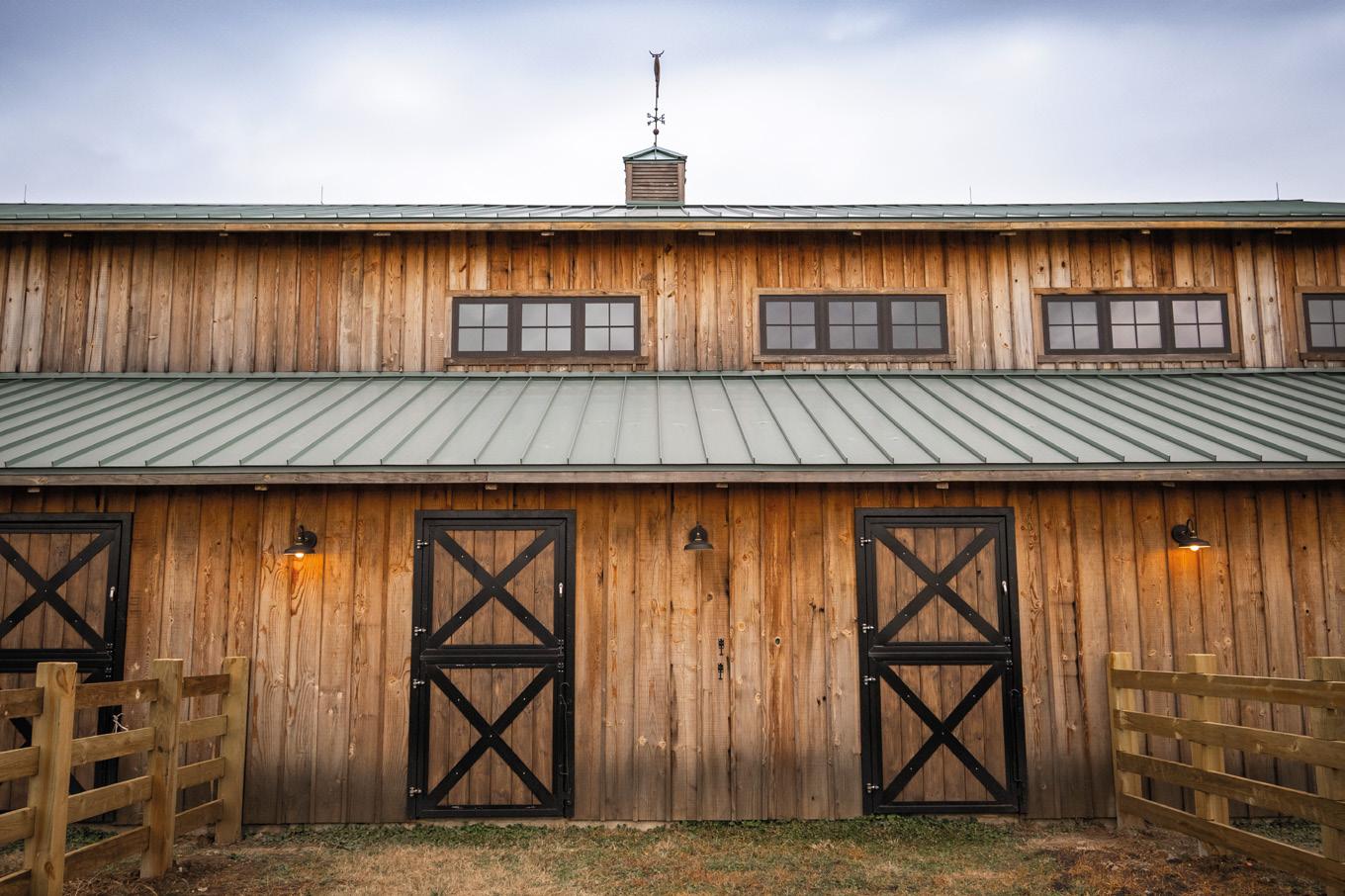

Exterior Barn Door Examples

Note: All Dutch Doors with Glass-Tops include Protective Grill Guards behind Tempered Glass
