AmStCap2-3Nov1/2025

Sliding Front Hardware & Components

Gravity Latch System

3 Latching Options are available for our Sliding Stall Fronts. Both options are machined from 304 stainless steel. Our latch options offer easy one-hand latching – while providing durable design:

Pin Lock Latch – Includes Pin Latch, Holder, and Receptacle

Flip Latch – Includes Flip Latch and Safety. Gravity Latch System – xxxxxxxxxx

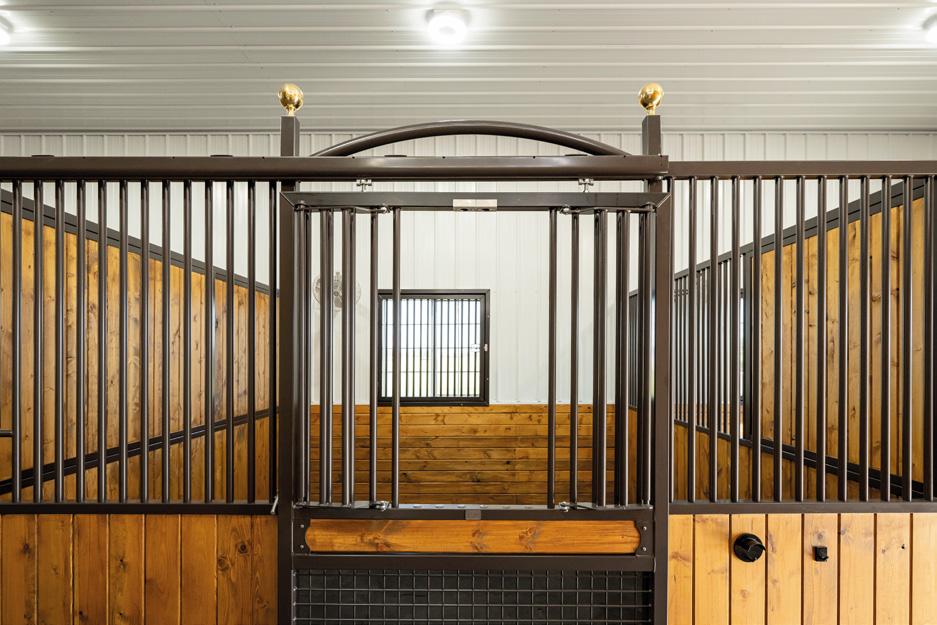

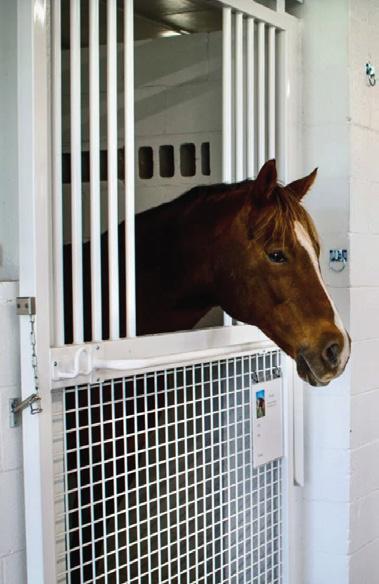

Stall Doors

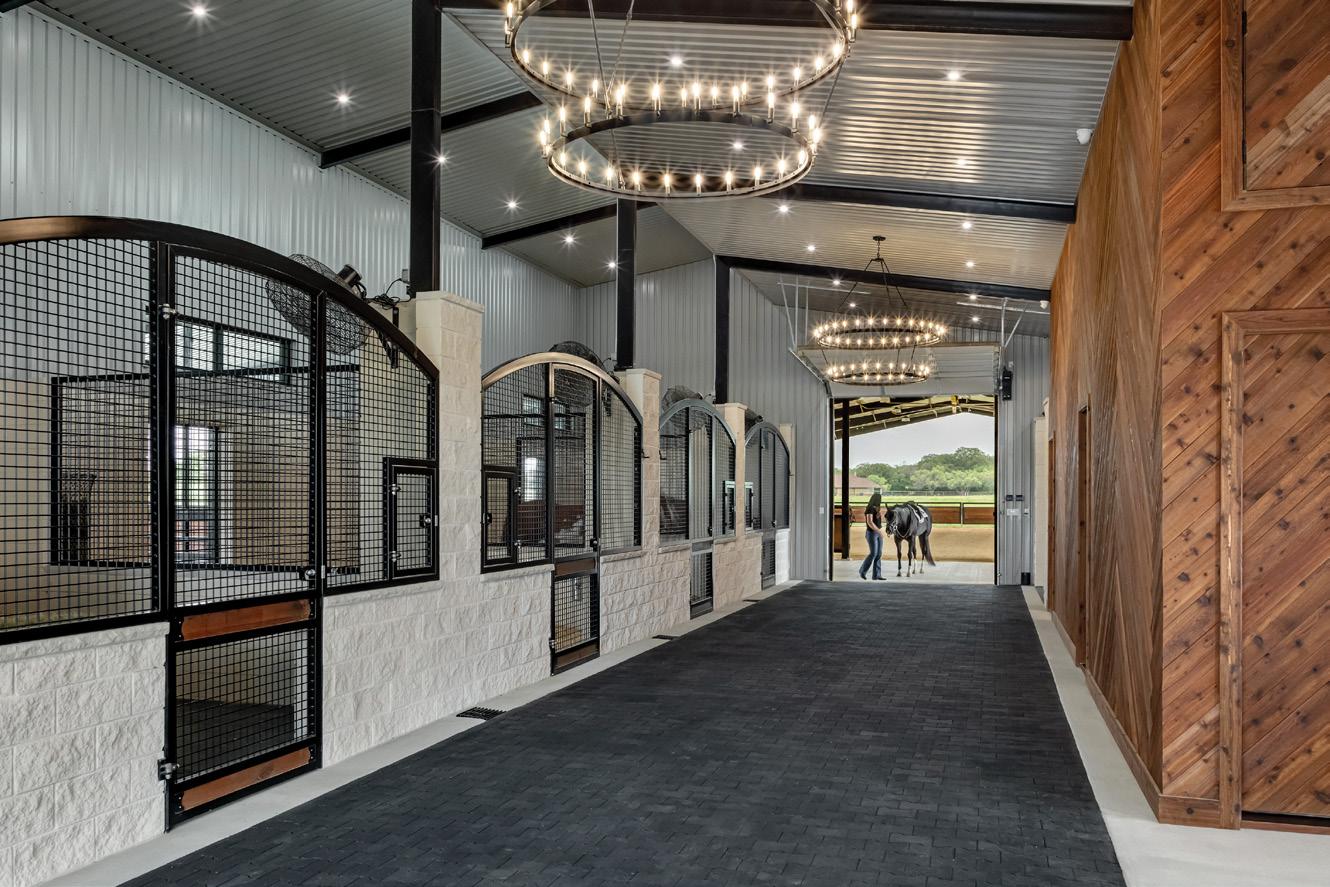

Many clients choose to only add stall doors – instead of fully welded stall fronts. At American Stalls, we understand that each barn is unique. Stall doors are always a very personal choice since they are used dozens of times each day. That is why every single stall door is custom built to order.

Custom options include door bottom designs, shavings guards, different yokes, and so much more. Rest assured, your stall doors will be made to your design goals and lifestyle needs.

Our stall doors are designed to seamlessly integrate into your existing barn framework. Built with precision and durability in mind, each door is engineered to complement your barn’s unique architecture while ensuring the safety and comfort of your horses.

FEATURES:

Custom Fit: Designed to be installed within your existing columns and framework.

Durable Construction: Heavy-duty steel frames with powder-coated finishes for long-lasting performance.

Design Options: Choose from grilled, mesh, or solid bottoms to match your barn’s style and functionality.

Easy Integration: Built to be assembled and installed on-site by your builder.

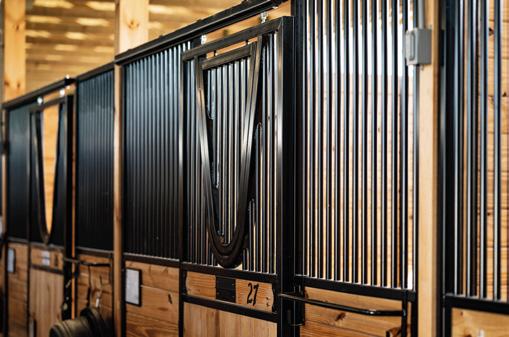

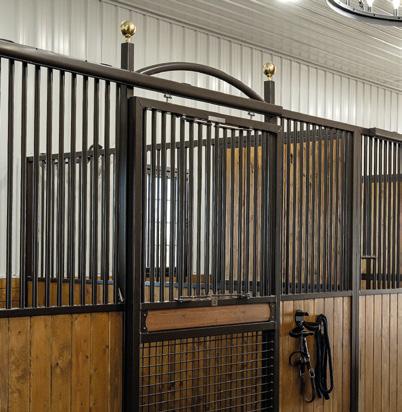

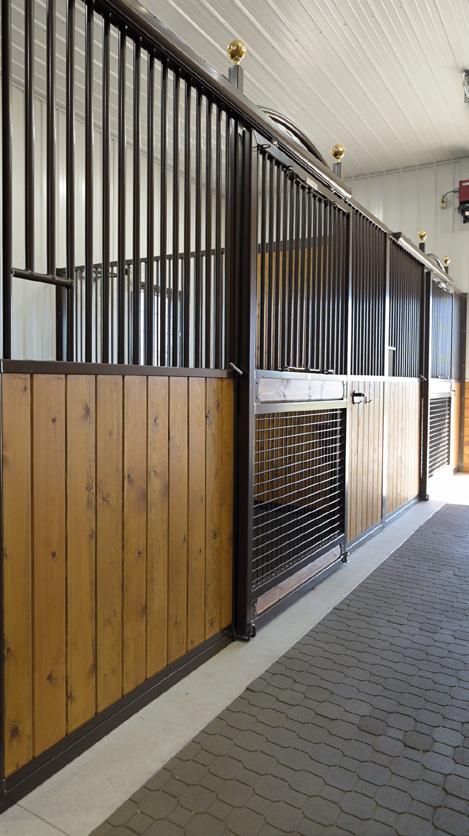

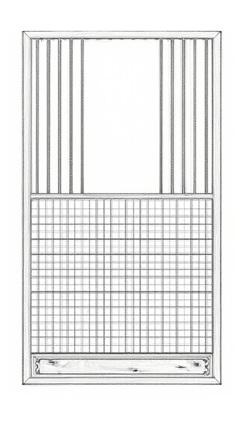

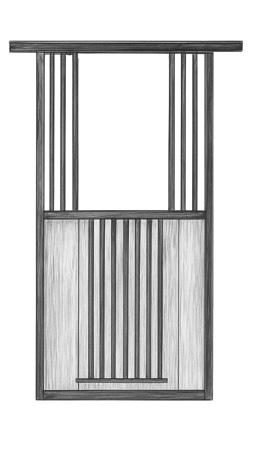

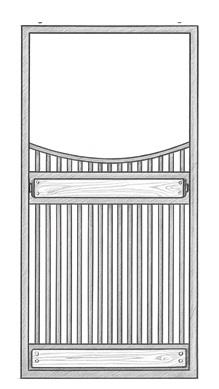

Sliding Stall Door Examples*

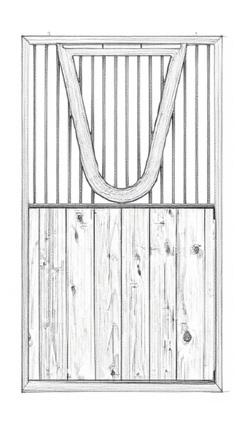

1K-E Sliding Stall Door V-Yoke Top with Removable Fill Piece. Vertical Lumber In-Fill Bottom.

1K-J Sliding Stall Door Hinged Fold-Down Rectangular Yoke. HGH Bottom (Center Name Plate, 1" Grills, & Shavings Guard).

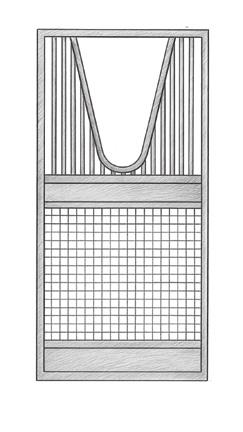

1K-L Sliding Stall Door Rectangular Yoke Opening. Welded Mesh Bottom with Shavings Guard.

* Track system not drawn to scale.

1K-G

1K-M

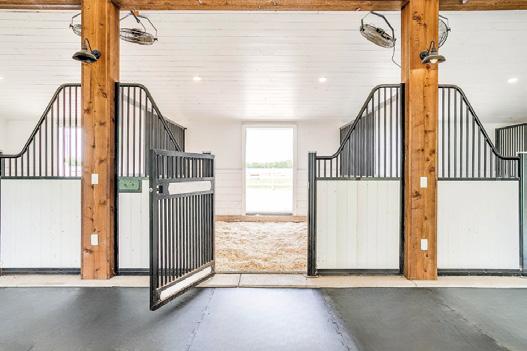

Hinged Stall Doors Examples*

Our Hinged Horse Stall Doors are designed as a versatile solution to complement your existing barn structure. Built to fit seamlessly into your columns, these doors are custom-crafted for durability, safety, and elegance. Each door is assembled and installed on-site by your builder, ensuring a perfect fit and a polished finish that enhances both function and style in your barn.

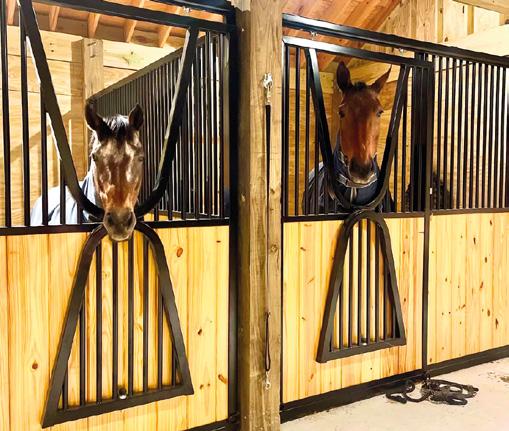

Yoke Options

OPEN YOKES

Yoke Options

CLOSABLE YOKES

Removable Yoke

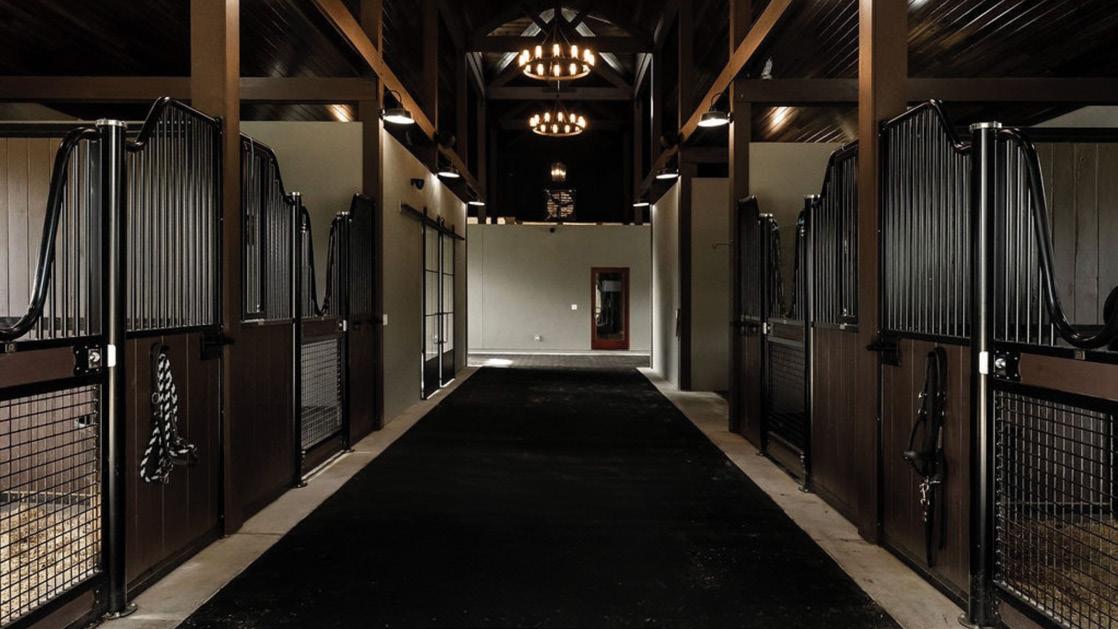

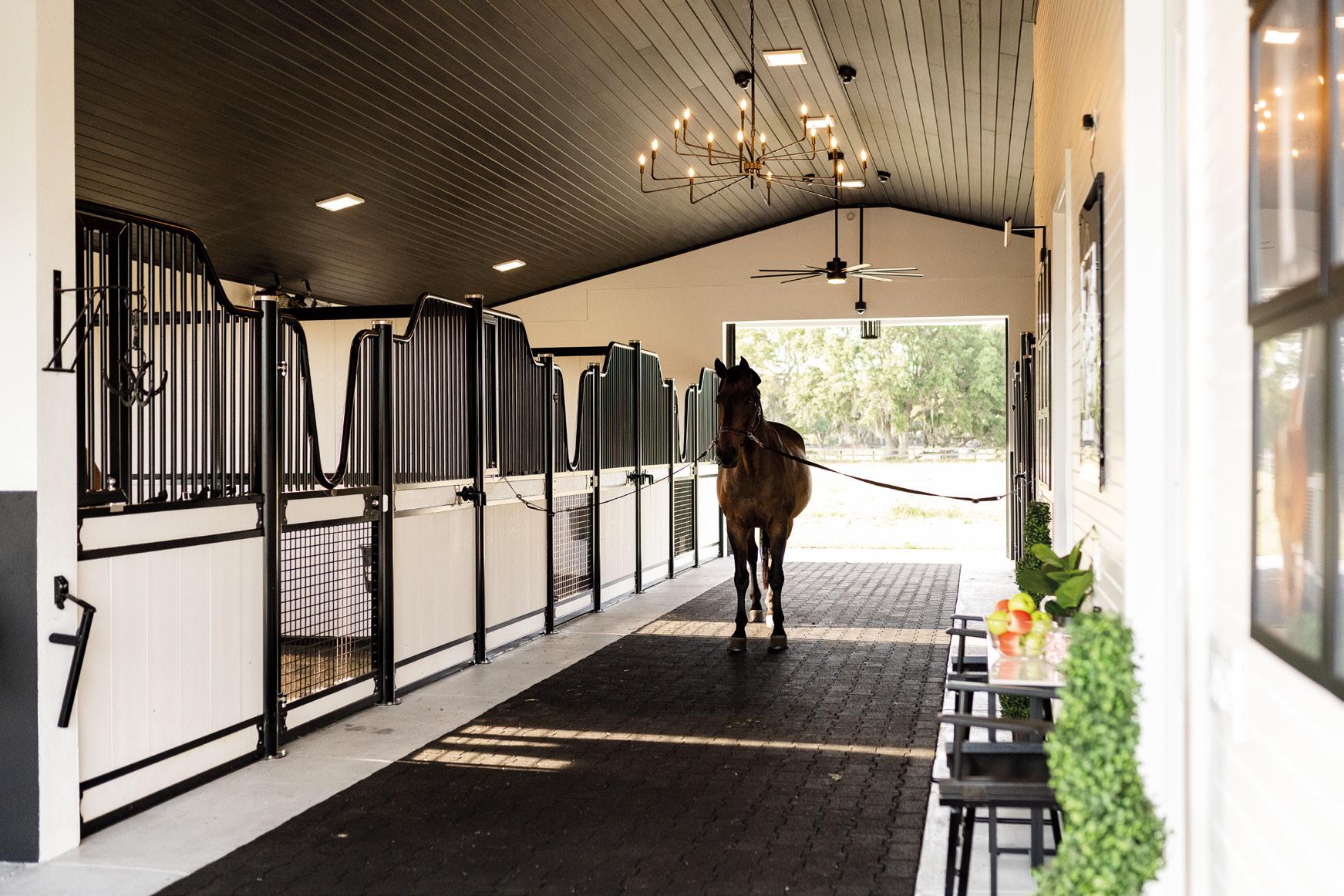

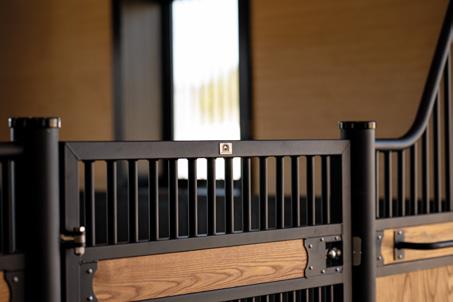

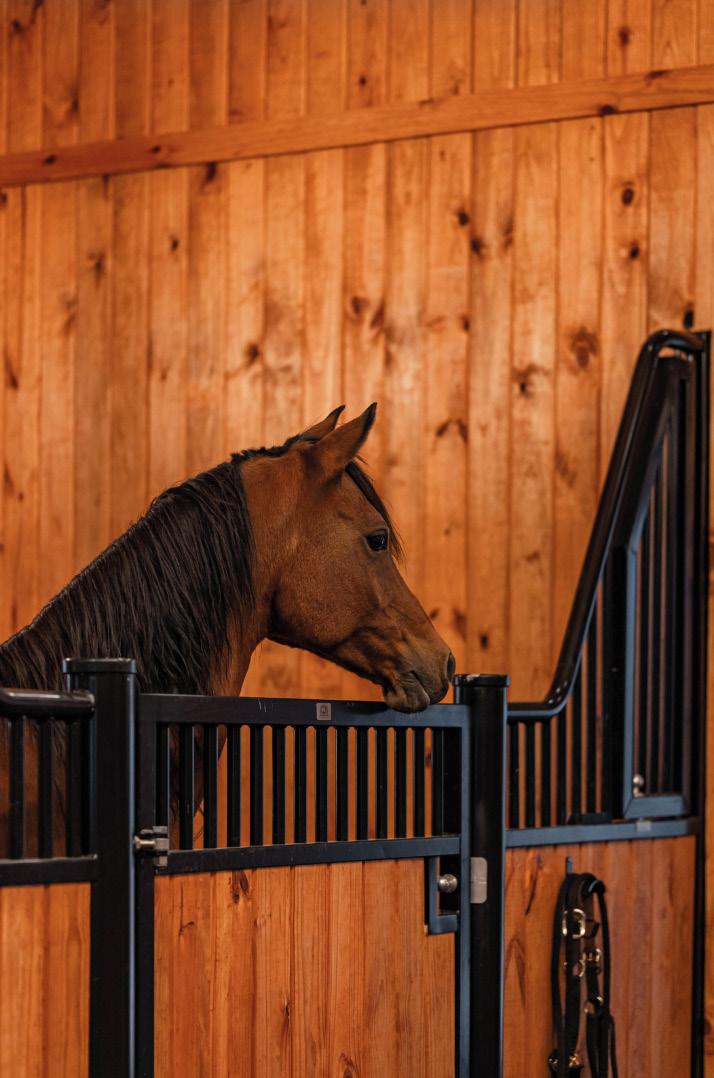

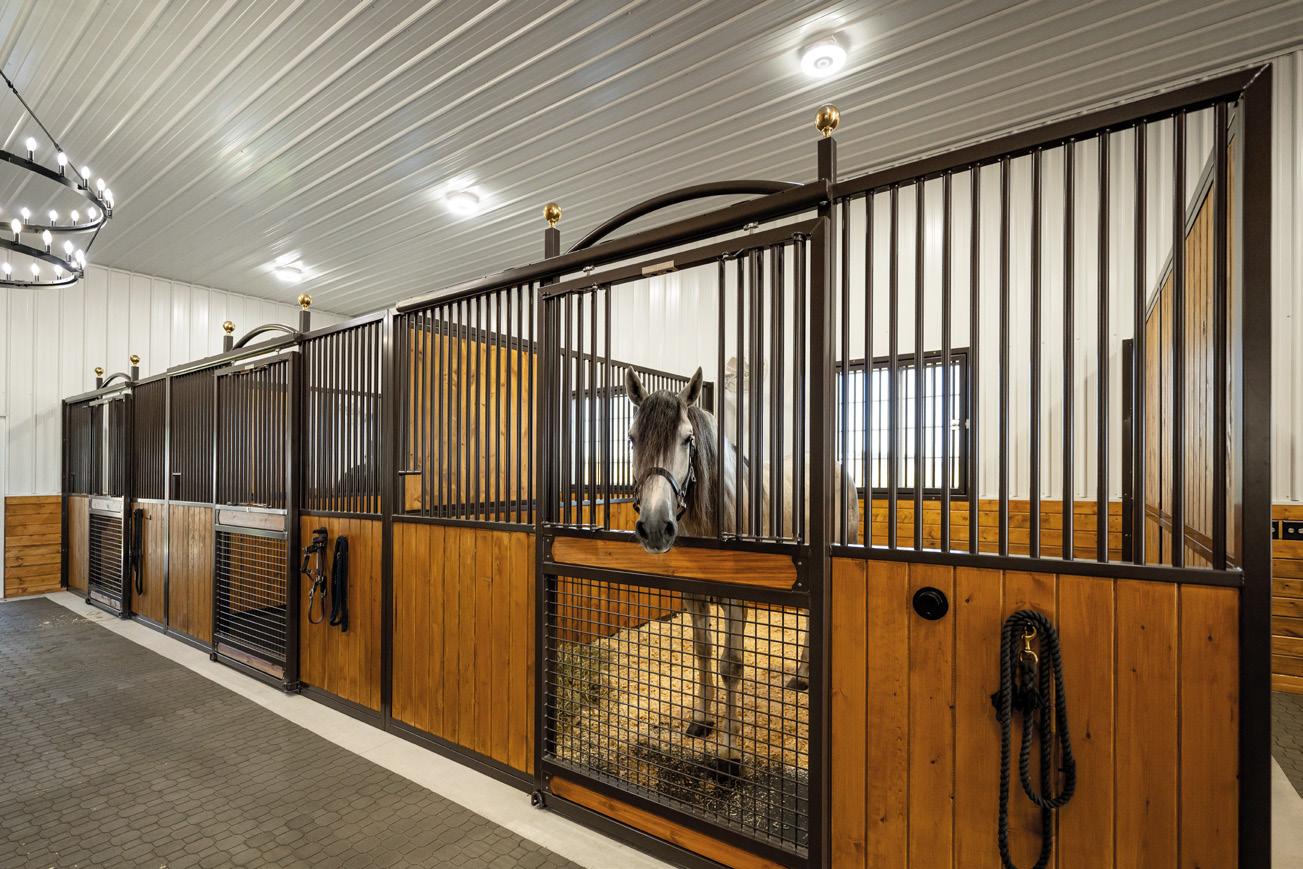

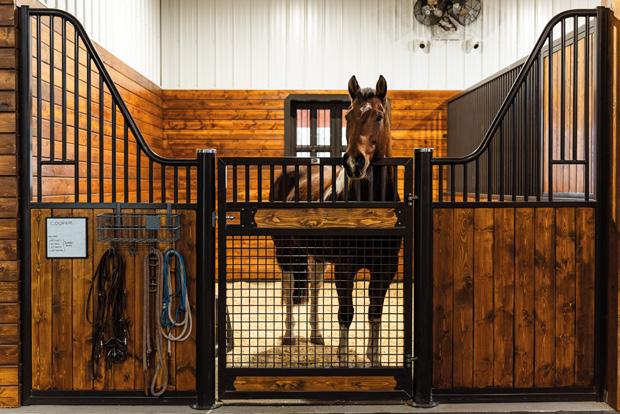

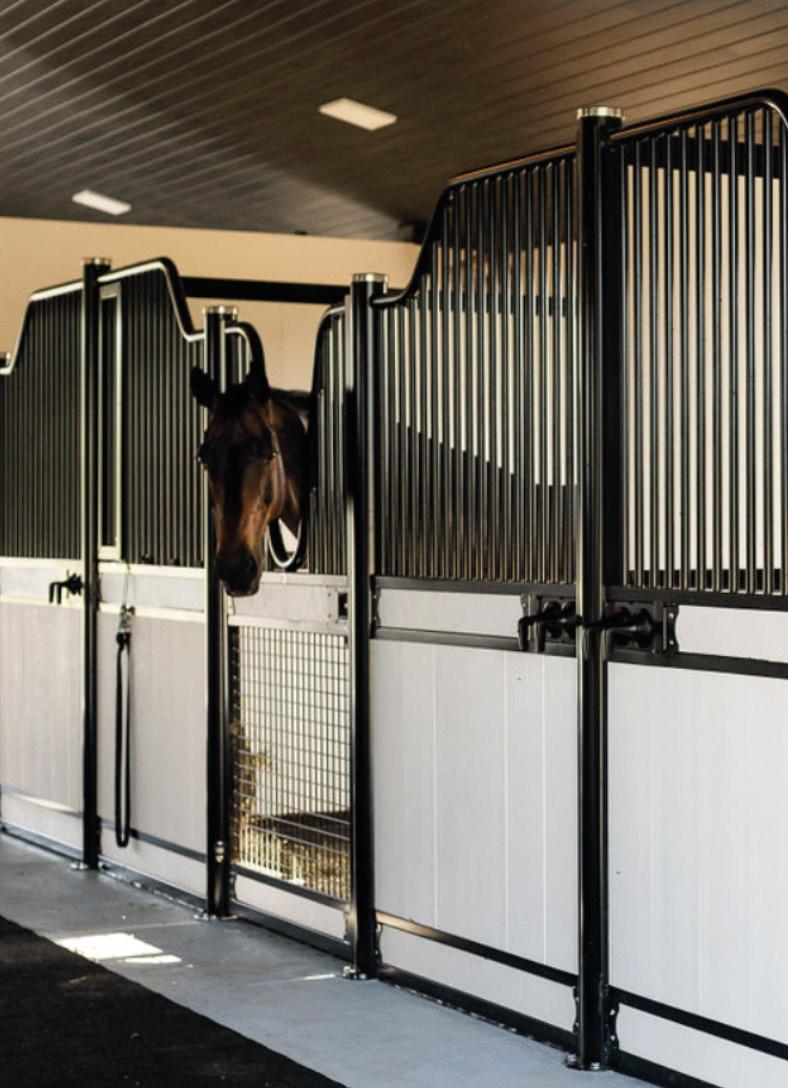

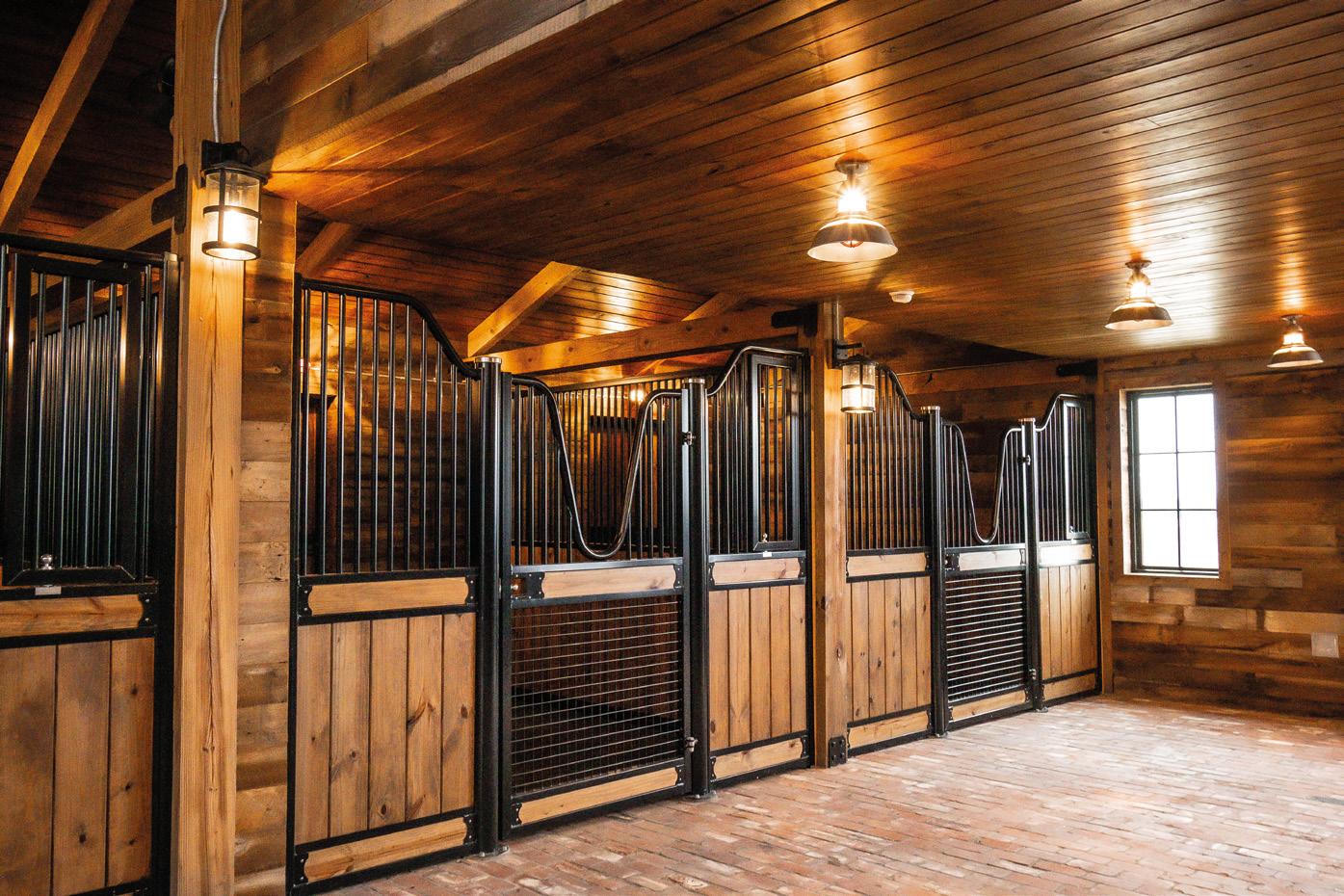

European Stall Fronts

HINGED STYLE

Swooping curves, graceful design, and heavy-duty hardware define our European stall fronts. These stall fronts are functional as they offer your horses maximum socialization and ventilation. They also provide your barn a sophisticated, old-age look and feel.

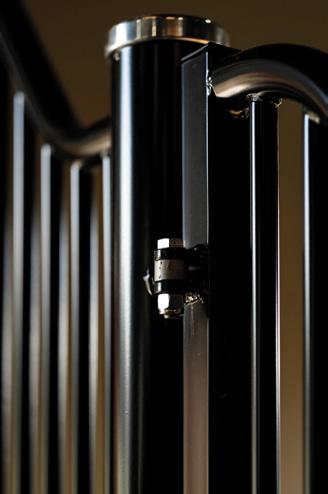

Our hinged stall fronts are equipped with heavy-duty stainless steel rod hinges that are fully adjustable serviceable. Our easy-to-use plunger latch prevents pinched fingers or doors stuck in a closed position. The sky is the limit when it comes to designing your European-styled stall fronts.

FEATURES

Premium American Steel: Built from heavy-duty, 100% American galvanized steel for strength, beauty, and superior corrosion resistance.

Custom Built to Order: Endless options to personalize—choose from arched, diagonal, bent, or straight swoops, plus mesh, nameplates, shavings guards, watering systems, and more.

Engineered for Safety: Narrow bar spacing, smooth edges, and secure plunger latches prevent snags and protect horses.

Effortless Operation: Heavy-duty, precision hinges and ergonomic hardware ensure smooth, reliable use every day.

Lasting Craftsmanship: Fully-welded construction, meticulous finishing, and over a decade of expertise create stalls built to stand the test of time.

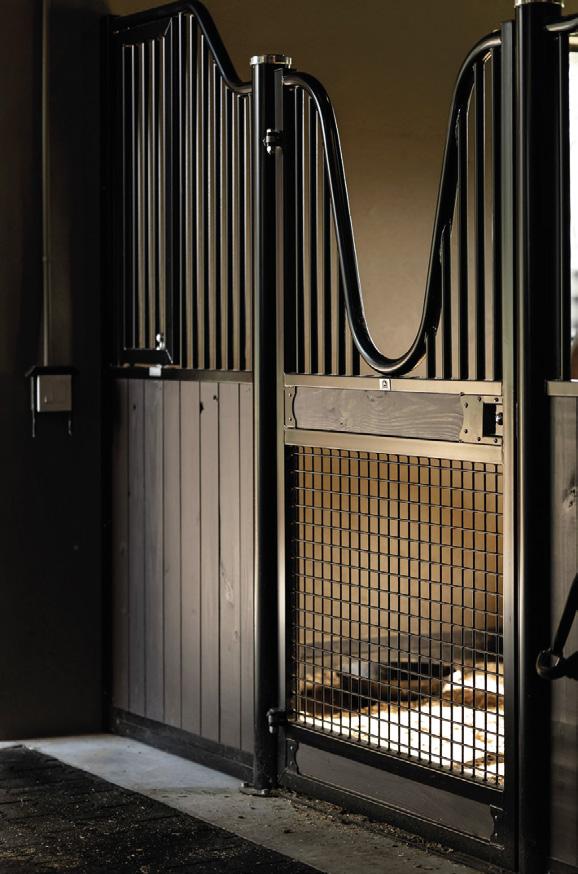

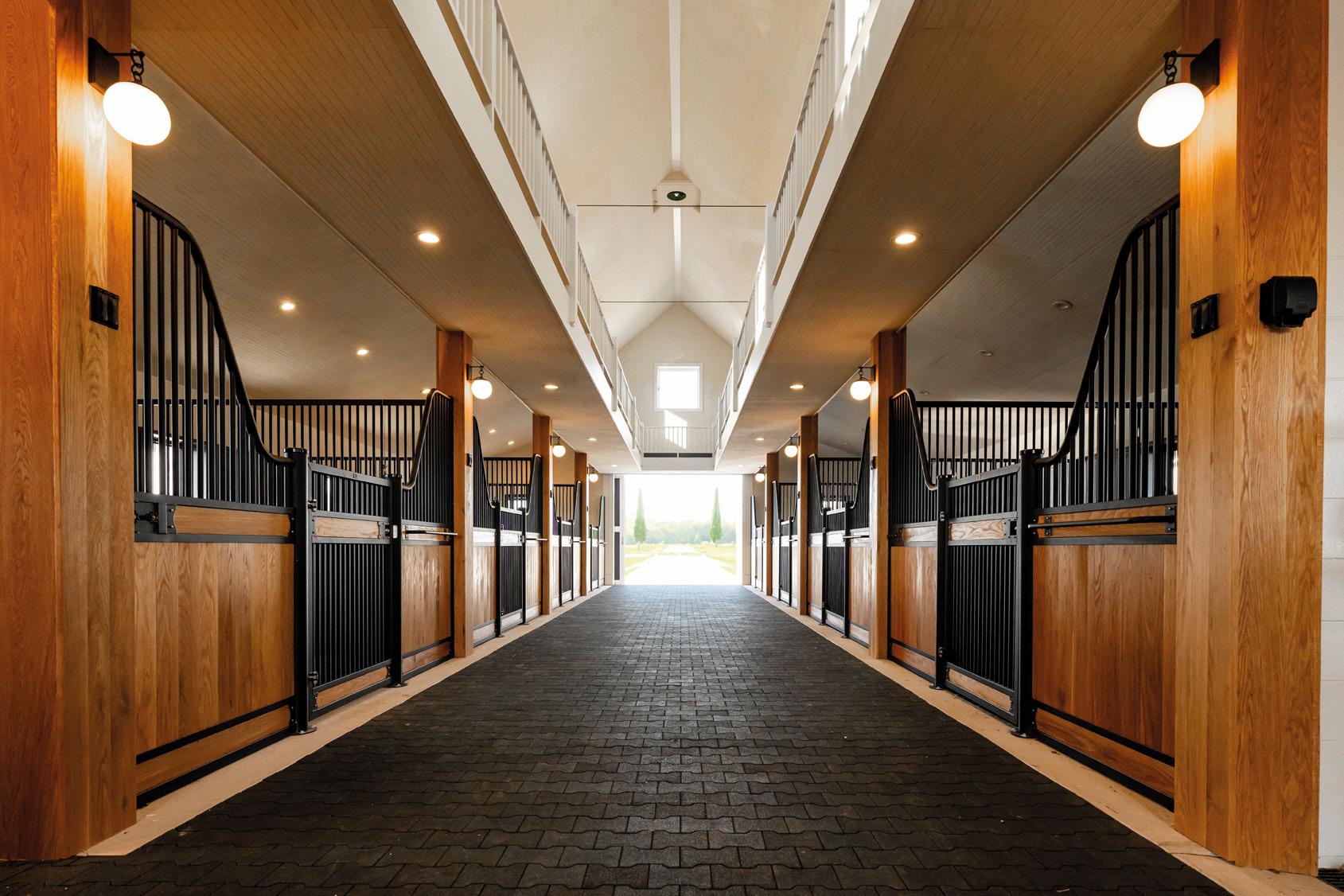

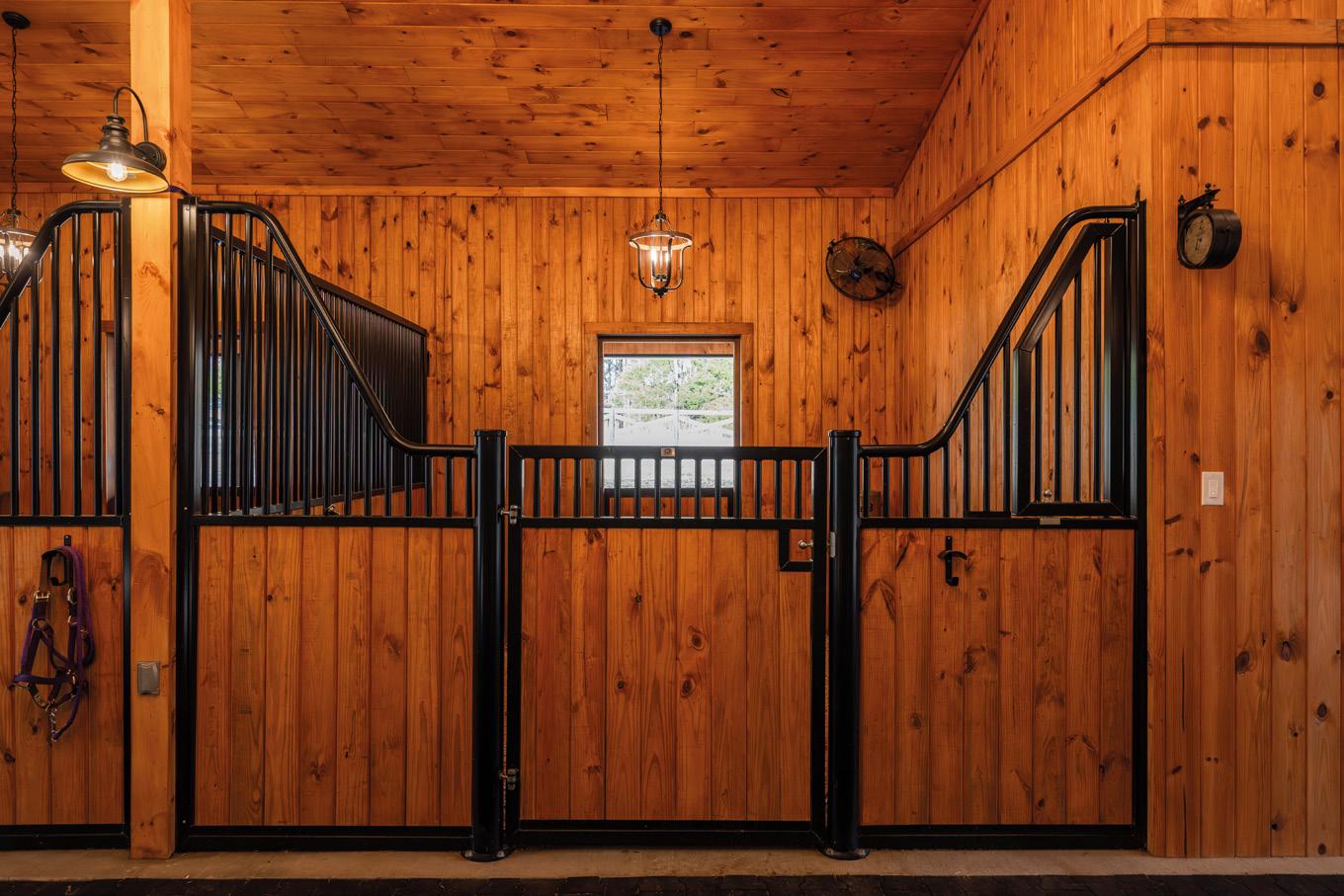

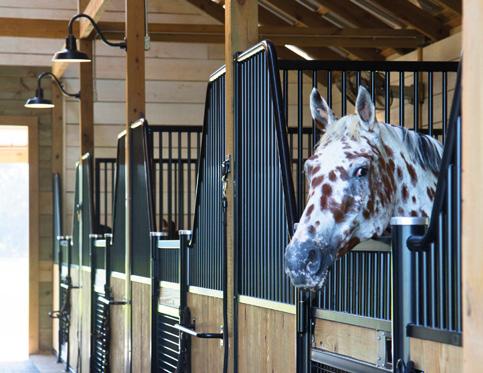

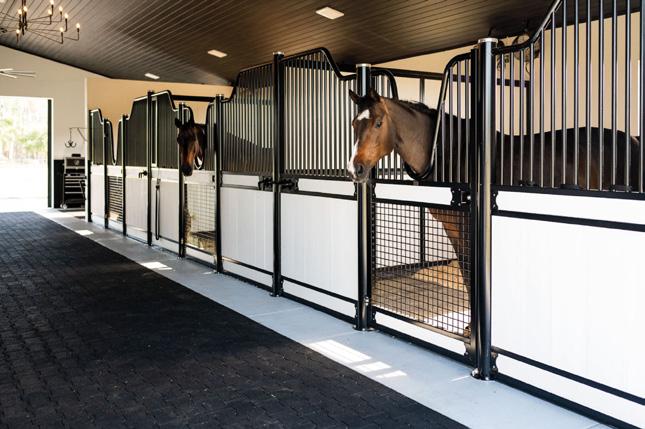

European Stall Front Examples

European Stall Front Examples

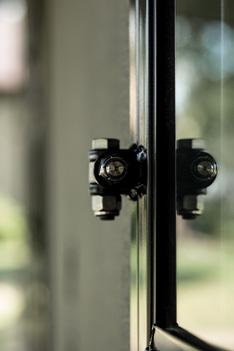

European Front Hardware Components

“I built two custom stalls for my horses. The stall doors made by American Stalls were the only ones I could find that fit the custom look I was going for and the only ones that looked well built and sturdy. I would highly recommend these stalls”

Heath Wells | Wisconsin

Feed Systems

STALL FRONTS

Feed Hole – The Feed Hole is our simplest and most streamlined feeding option, included complimentary with all of our stall systems. This clean, square cut-out is welded directly into the grill portion of the stall front, allowing you to pour grain directly into your horse’s feeder. With no doors or moving parts, it’s a no-fuss solution that blends seamlessly into your stall design.

Benefits:

• Complimentary with all stall fronts

• Welded directly into grill section for durability and simplicity

• Allows quick, no-hassle feeding directly into the stall

• Clean, minimalist design integrates with your stall front

• Ideal for private barns or straightforward daily routines

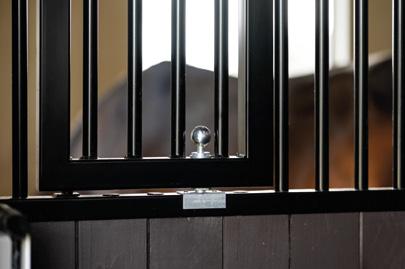

Grilled Feed Door – This feed option is seamlessly integrated into your stall front, allowing you to feed your horses conveniently from the aisle. A clean, square cut-out in the grill section makes feeding quick and efficient, while our durable Stainless Steel Plunger Latch ensures safety and ease of use.

Benefits:

• Blends seamlessly into stall front design for a clean, minimalist look.

• Allows feeding from the aisle—no extra parts or moving pieces.

• Welded into the grill section for durability and long-term use.

• Stainless Steel Plunger Latch provides secure, smooth operation.

• Ideal for private barns and straightforward daily routines.

Swivel Feeder & Feed Bowl – Our Swivel Feeder is designed for both convenience and efficiency. The steel-framed, lumber-filled front panel blends seamlessly with your stall front, while the rear features a durable aluminum feed pan. With a quick swivel motion, you can fill grain from the aisle and rotate the pan into the stall—no need to open doors or step inside.

Benefits:

• Seamlessly integrates into stall front for a clean, consistent look.

• Allows feeding directly from the aisle—saves time and increases safety.

• Rear-facing aluminum pan is durable, lightweight, and easy to clean.

• Operates smoothly with our signature Stainless Steel Plunger Latch and swivel hinges.

• Ideal for busy barns feeding multiple horses quickly and efficiently.

Water Systems

STALL FRONTS

Integrated Water Lines

Prefer to monitor your horses’ water intake? Our Integrated Water Line System allows for exterior spigots and interior spouts, making it easier to fill water buckets without crossing the aisle. The heavy-duty steel casing protects plumbing while giving you full control of water volumes.

• Allows water tracking per horse

• Great for barns using buckets

• Seamless integration into your stall fronts

Water Systems

STALL FRONTS

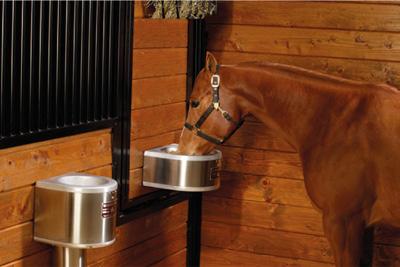

American Stalls offers industry-leading Nelson Automatic Waterers, a must-have solution for both stalls and pastures. These waterers are built from durable stainless steel or aircraft-grade aluminum, ensuring strength and longevity in any barn environment. Each unit features a thoughtfully designed, removable drinking bowl for easy cleaning and maintenance.

With a variety of models and mounting options—including wall-mounted or free-standing, you can select the best fit for your stall layout. For colder climates, an optional thermostatically controlled heater provides reliable freeze protection. All Nelson systems are backed by a limited 3-year manufacturer’s warranty, giving you peace of mind in your investment.

Benefits:

• Continuous supply of fresh water for horses.

• Removable drinking bowl for quick, easy cleaning

• Available in wall-mount or free-standing options..

• Optional heater for freeze protection in winter.

Water Systems

STALL FRONTS

Cascada Automatic Watering System

Our most advanced option yet, the Cascada Automatic Waterer features contactless sensor technology and app-connected smart monitoring. It learns your horse’s drinking habits, automatically fills buckets to the ideal level, and alerts you to any changes in consumption.

• Contactless & hygienic

• App-connected with smart alerts

• Ideal for luxury barns & performance horses

We need to put a photo here

Any suggestions?

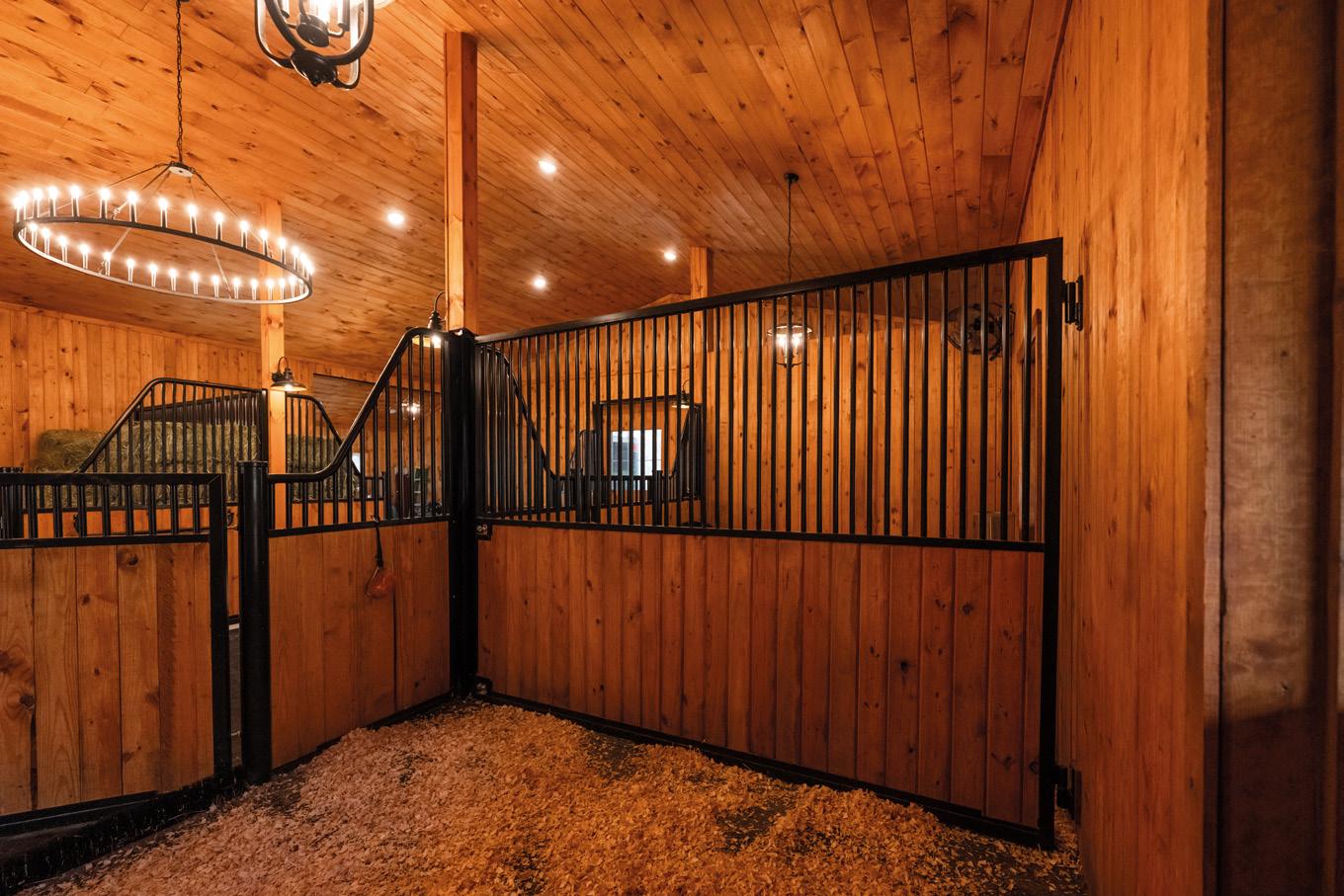

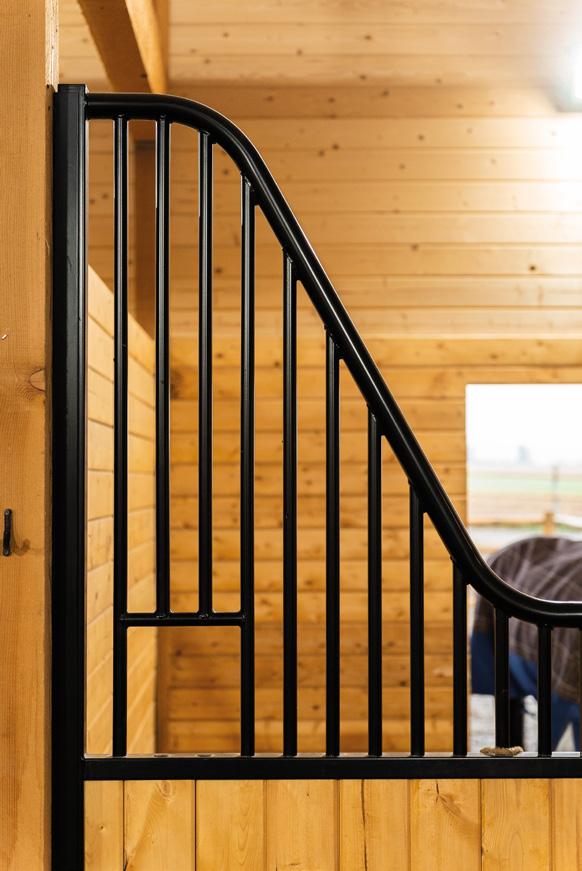

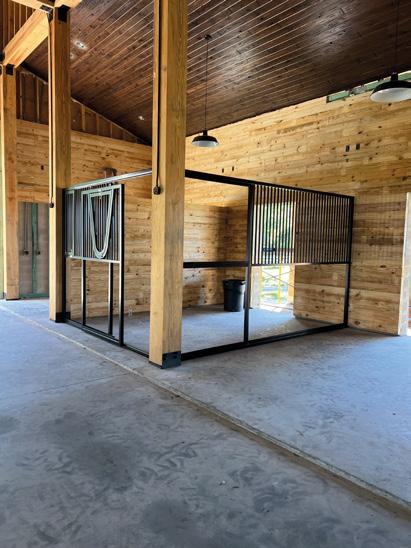

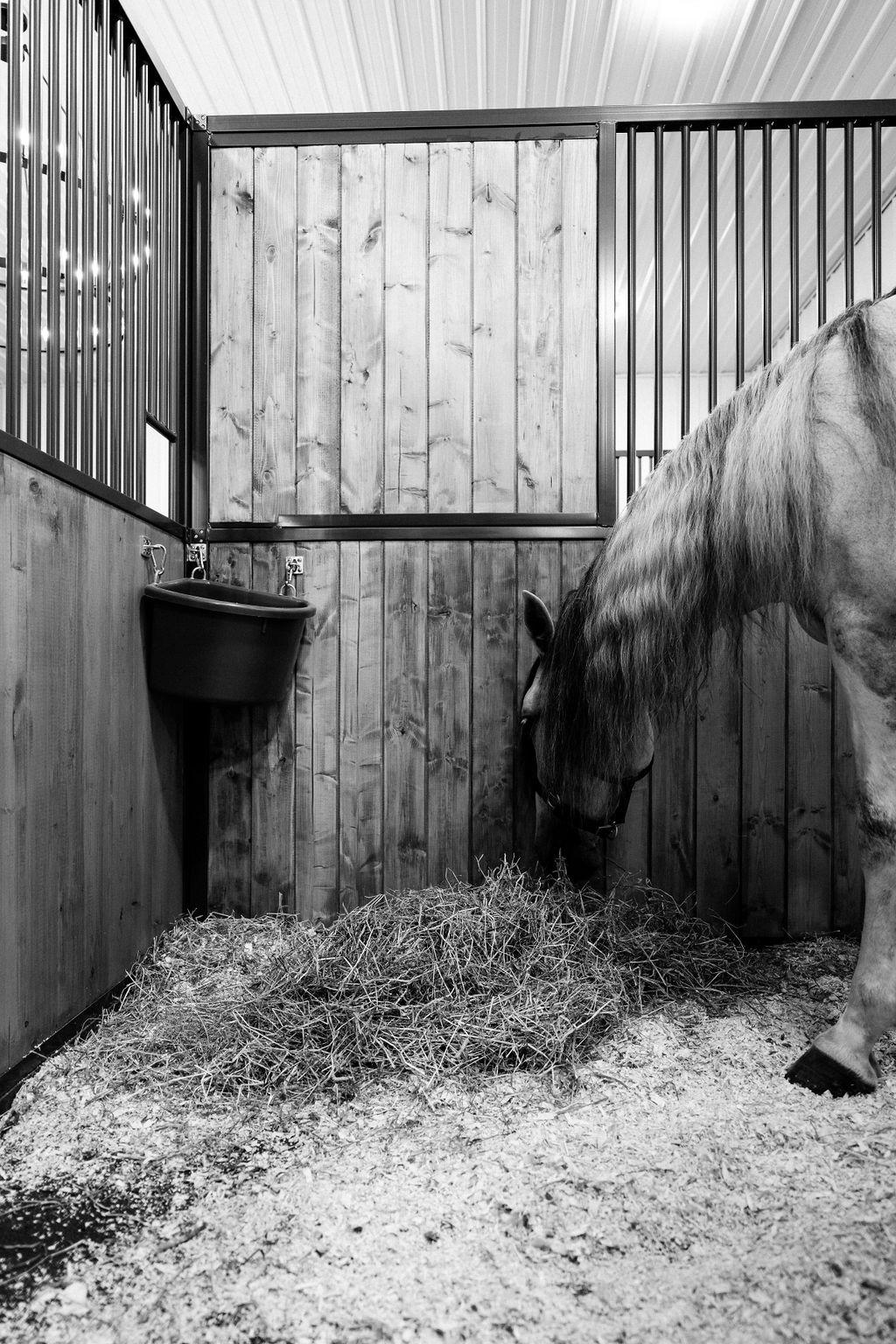

Stall Partitions

Our collection of premium horse stall partitions is available in multiple styles and configurations and is built to your exact specifications and measurements. When evaluating the best partition design for your horse barn, consider the following elements:

The climate in your area

The temperament of your horses

The operational style of your facility

The primary use of the stalls

FEATURES

Custom-Built to Order – Designed to your barn’s exact dimensions and needs.

Premium Materials – Solid steel framing with hot-dip galvanization and powder-coating.

Durable Lumber Options – Marine-grade oak, southern yellow pine, or HDPE tongue-and-groove.

Safe Engineering – 1” round bars with 3” spacing or less, smooth edges, and kick-resistant design.

Ventilation & Comfort – Multiple grill and solid panel configurations for airflow and socialization.

Height Options – Standard 8’ tall partitions (7’6” available for retrofitted barns).

HOW TO SELECT THE RIGHT PARTITION

Choosing the right partition depends on your climate, horses, and facility style.

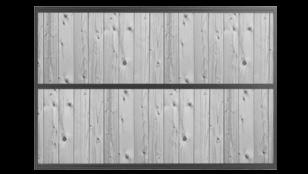

Full Privacy Partitions (Solid Wood/HDPE)

• Best for boarding, training, or anxious/aggressive horses.

• Prevents conflict by providing complete separation.

Partial Privacy (Solid Bottom + Grilled Top)

• Best for mixed-use barns or warm, humid climates.

• Combines safety with airflow and visibility.

Half-Grilled (Grill Top to Midpoint)

• Best for private barns or social horses.

• Encourages interaction and shared airflow in temperate climates.

QUICK TIPS

12’ x 12’ stall size is ideal for most adult horses (larger for Warmbloods/Drafts).

Ventilation is critical in warm, humid regions to reduce ammonia and improve air quality.

Durability matters – invest in partitions that withstand kicks, daily use, and environmental wear.

Full-Grilled Stall Partition

Full Privacy Stall Partition

Full Privacy Stall Partition

All Fully Welded Partitions can also be built as Kit Partition.

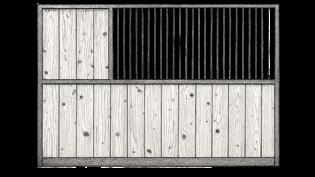

Partial Privacy Stall Partition (2/3 Grilled) 5C (KIT)

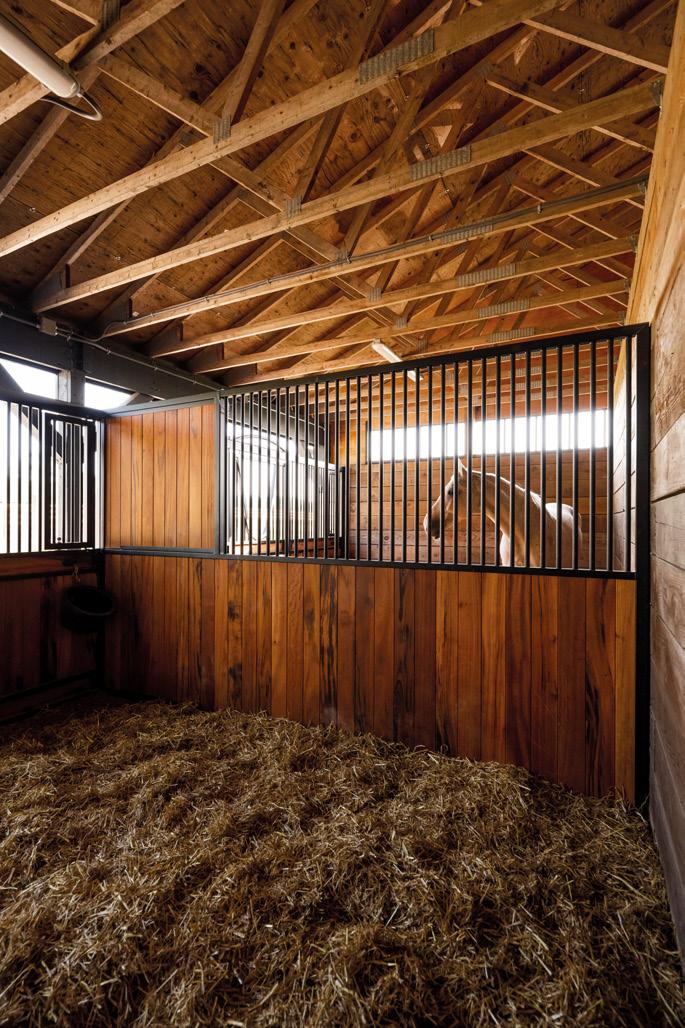

Stall Partition Examples

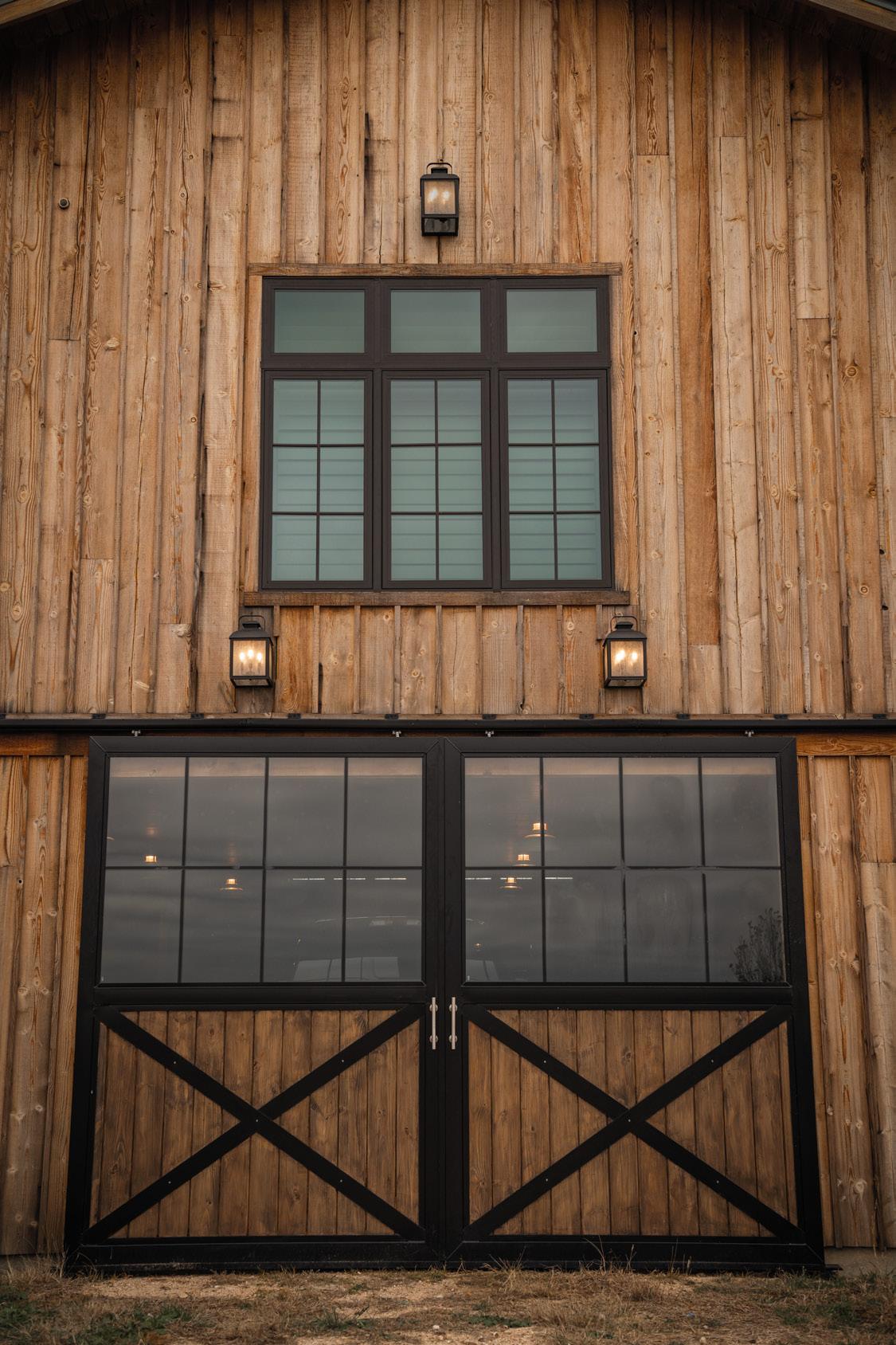

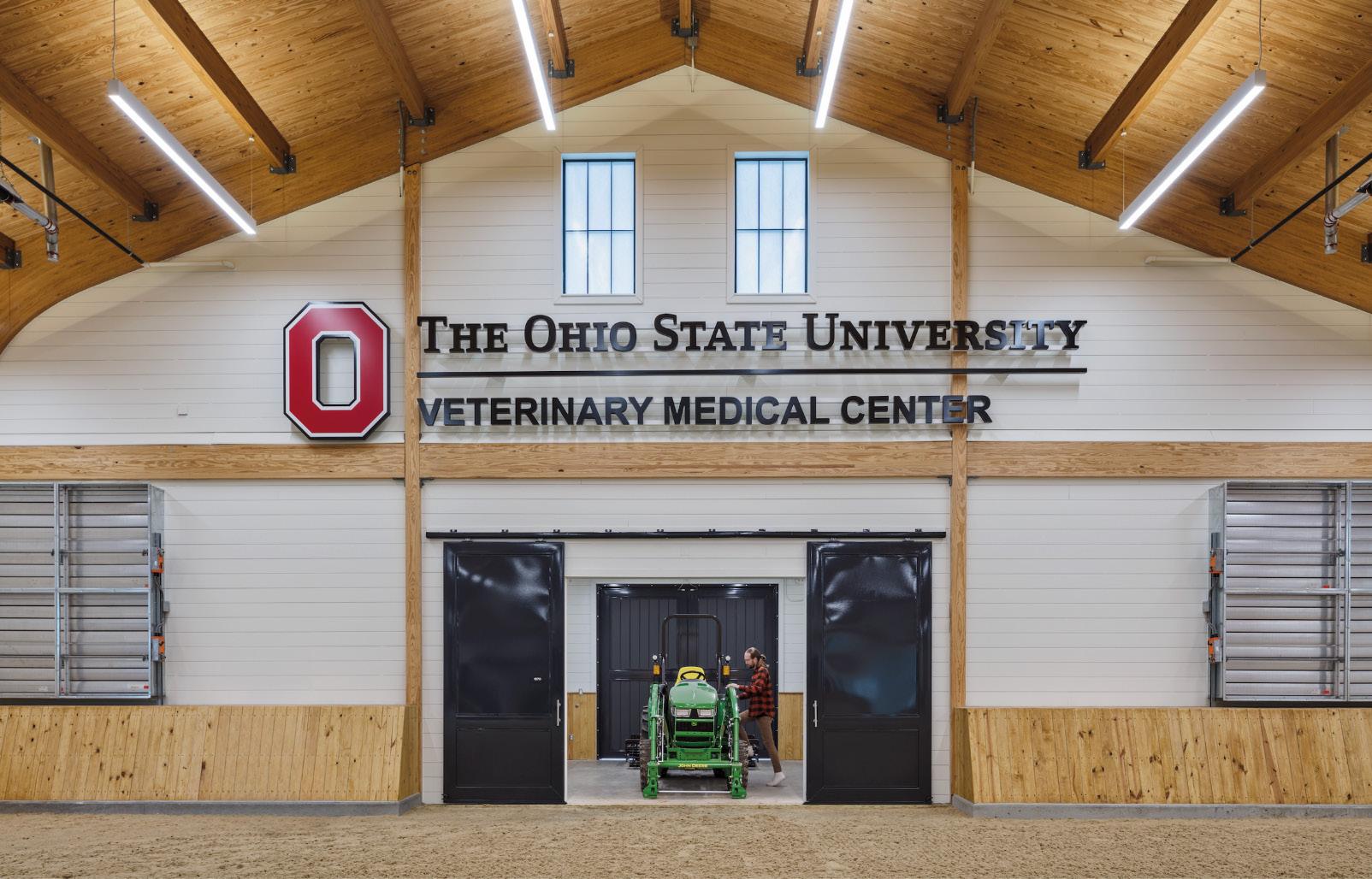

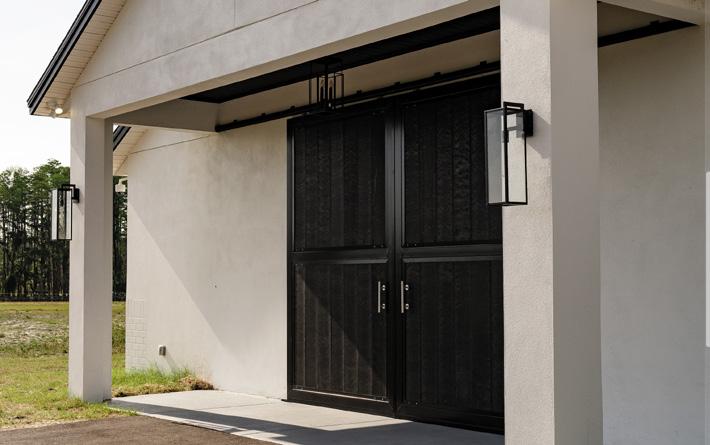

Barn Entry Doors

HINGED / SLIDING

Your Barn Entry Doors are the first thing you see when entering a barn. They also welcome your horses home. This is why your Barn Doors should operate with ease – all while making a statement.

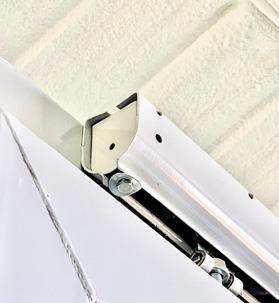

Our Barn Entry Doors use our high-quality steel and industry-leading track system. This combination ensures durability and outstanding protection.

We guarantee that our Barn Entry Doors will glide with easy for years to come – no matter how large your Barn Doors are.

Choose from dozen of custom options to make your Barn Doors unique to your barn. Choose from glass designs, welded cross bucks, and different fills.

Make a statement with a stunning custom barn door from American Stalls.

Barn Entry Doors

Make a statement for your barn’s entrance with our Barn Entry Doors. We customize barn doors to look and feel how you would like. Choose from endless finishes, designs, and the ability to embed your logo into our doors. Each Barn Entry Door is tailored to meet your design and function needs.

STEEL FABRICATION

Steel: 100% United States made, 50ksi high tensile strength steel

Frame: 14GA 2”x2” square tube

(2"x3" and 2"x4" available upon request)

1.5" punched u-channel

U-channel accepts standard grade construction kiln-dried lumber size (2'x6' or 2'x8')

U-channel built with 14GA steel

THE FINISH & DESIGN OPTIONS

Steel Treatment: Pre-galvanized steel

Powder Coat: Custom TGIC polyester powder coat

Our zinc flow-coat galvanization has 30% more galvanization inside and out. All powder coating is done in-house with rigorous quality control.

4" welded cross bucks available

Installed, tempered glass available

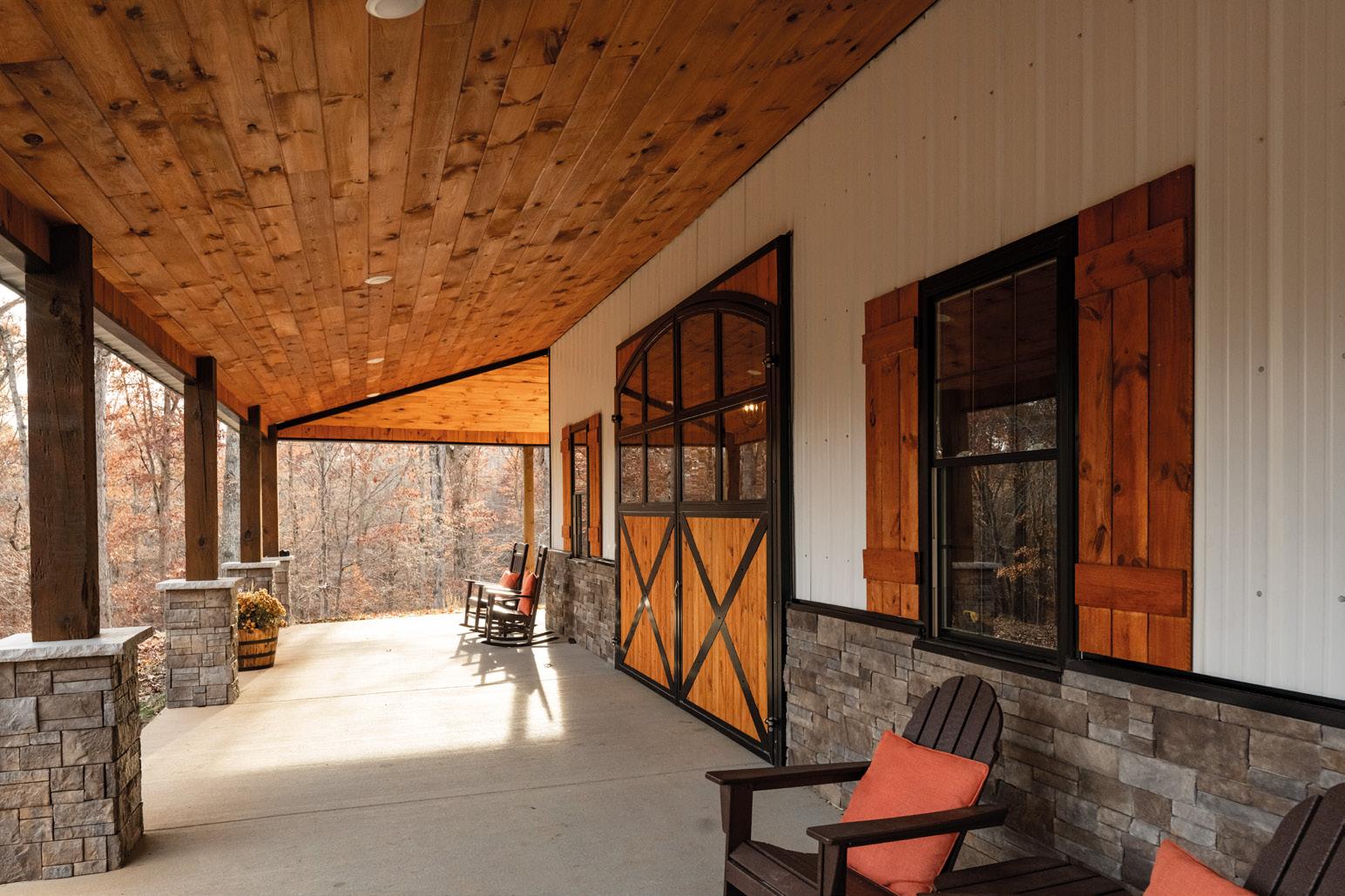

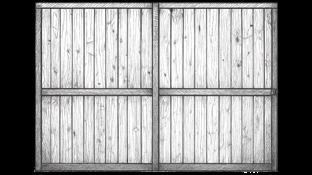

Barn Entry Door Examples

HINGED DOORS

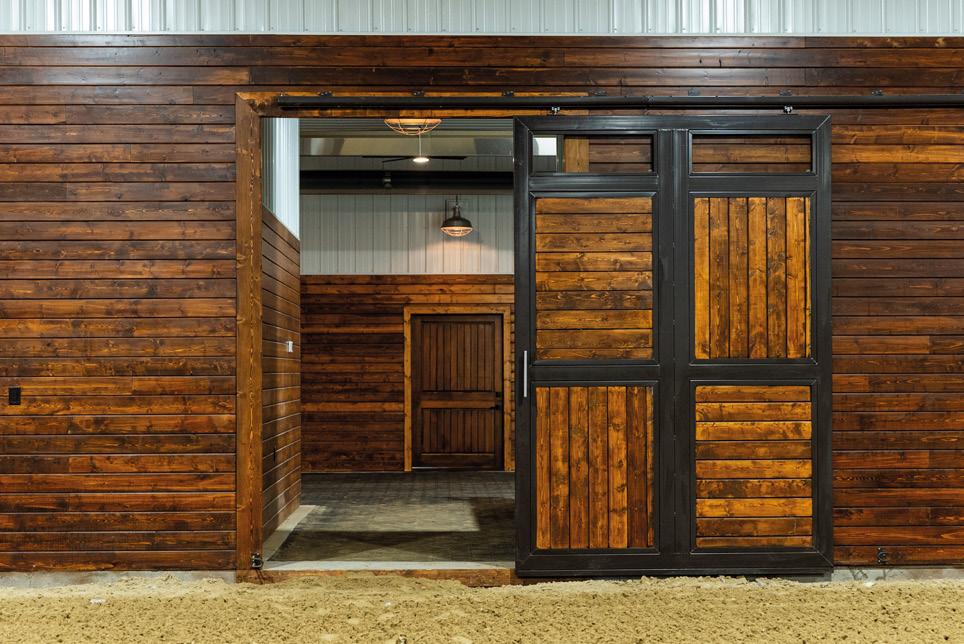

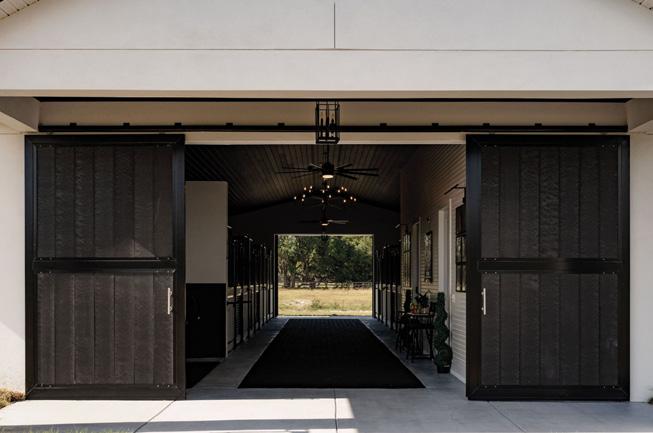

Barn Entry Door Examples

SLIDING DOORS

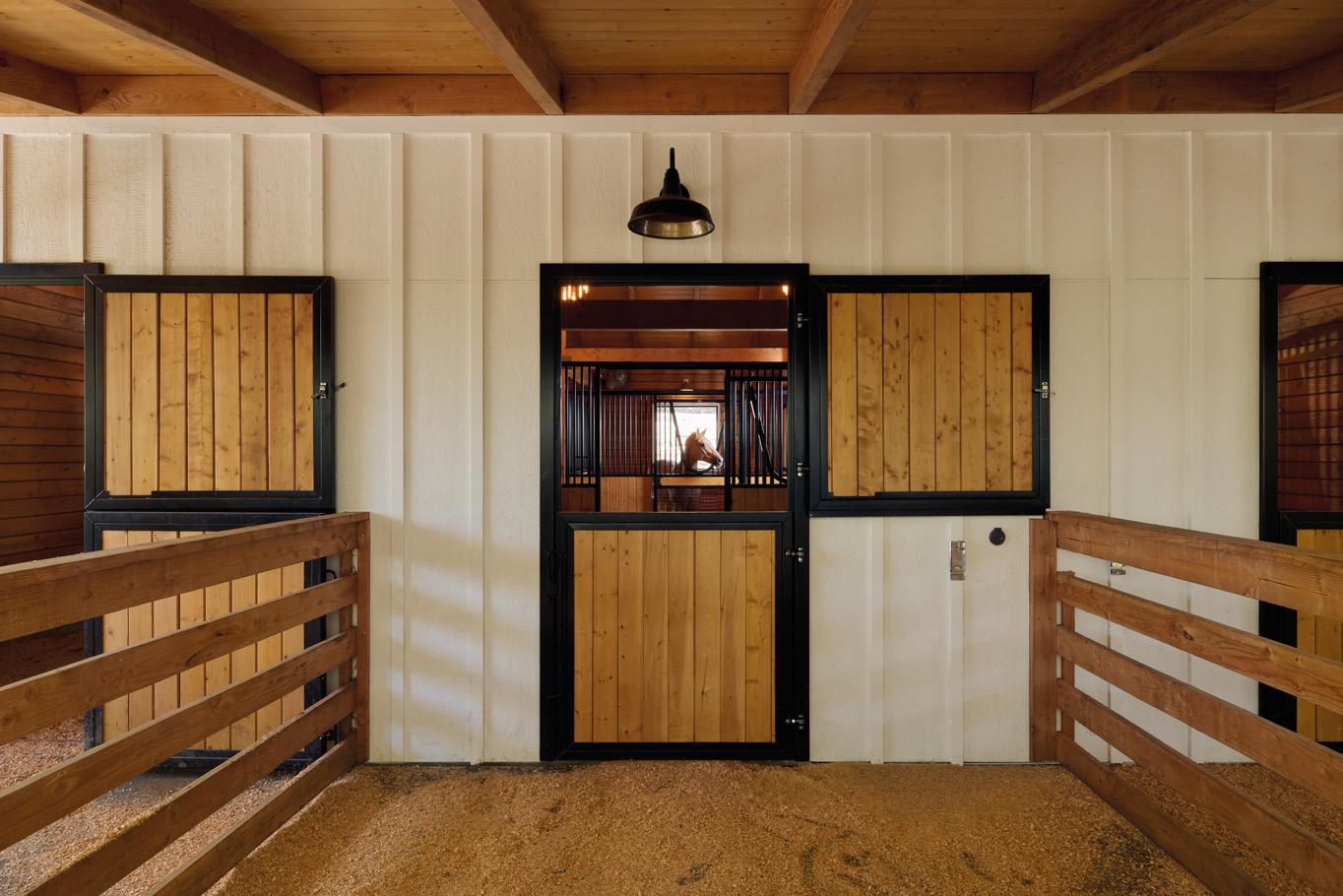

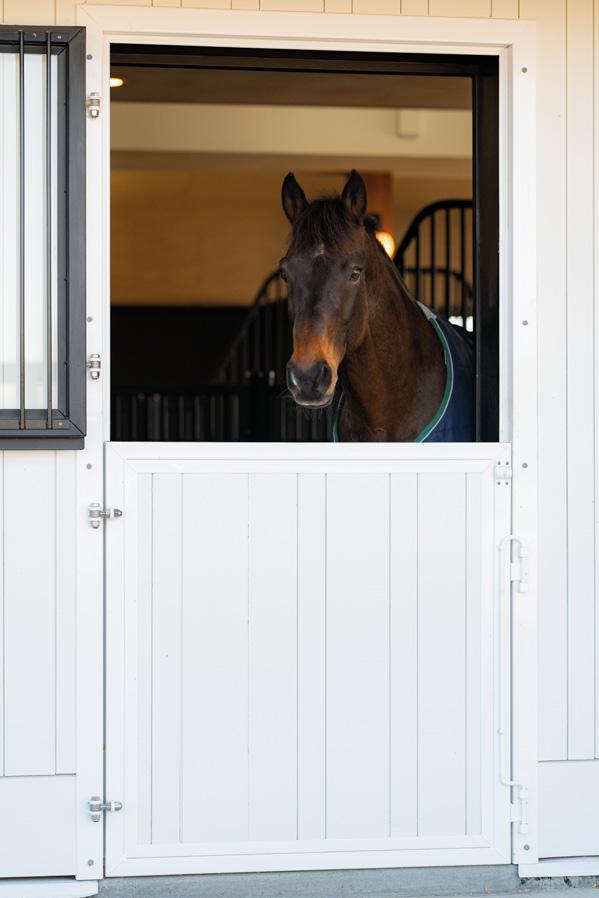

Exterior Barn Doors

DUTCH DOORS / PADDOCK DOORS

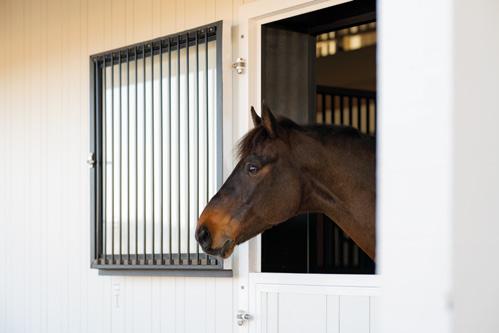

Dutch doors are the one of the most versatile options to add to any barn. Dutch Doors add style, ventilation, and sunlight to your barn.

Our doors are solid welded and come pre-hung for easy installation. Our latch systems are made from galvanized steel. They are fully manufactured for maximum durability to the elements and rigors of any working barn.

Doors can be opened from either the inside or outside. We also build single-hinged doors that can be used as entry doors. Lastly, we also manufacture sliding paddock doors – using the same high-quality track systems as our barn end doors.

Rest assured, our steel-based, exterior doors are built to last.

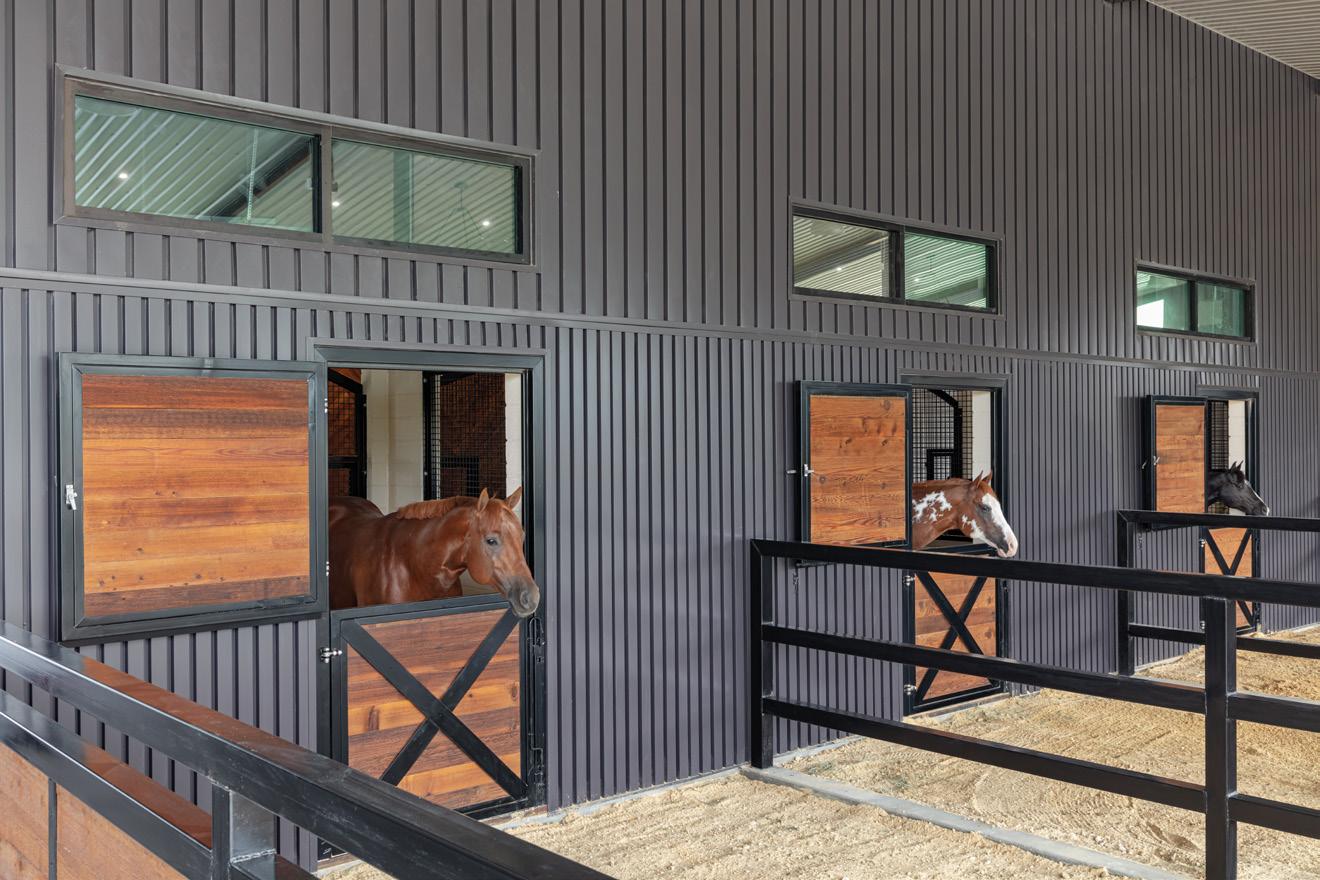

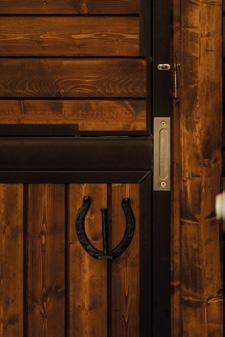

Dutch Doors & Paddock Doors

Dutch doors (and sliding paddock doors) are the one of the most versatile options to add to any barn. They add key functions including:

Elegance. Provide your barn that classic American look and feel.

Ventilation. Gives the opportunity for more cross ventilation in each horse stall unit.

Safety. Allows for direct exit from each stall in the case of an emergency.

FEATURES

Versatility – Top and bottom halves operate independently for ventilation, sunlight, and socialization.

Safe Design – No protruding parts, smooth edges, and horse-safe latches.

Solid Construction – Fully welded steel frames for strength and longevity.

Easy Installation – Doors arrive pre-hung in steel frames.

Premium Hardware – Pre-galvanized and stainless-steel latch systems for maximum durability.

Dual Functionality – Can be opened from inside or outside; single-hinged doors double as entry doors.

Flexible Options – Available as swinging or sliding doors using the same high-quality track systems as our Barn Entry Doors.

Paddock Door Examples

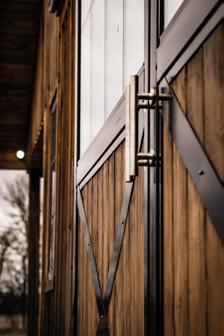

Paddock Door Hardware

Note: All Dutch Doors with Glass-Tops include Protective Grill Guards behind Tempered Glass

Note: All hinged Doors can be built as Sliding Paddock Doors (as shown here).

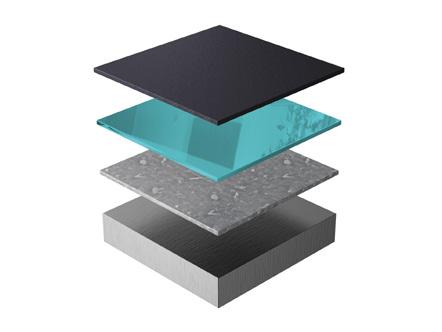

Crafted Foundations

LASTING PROTECTION, ELEGANT FINISH

Our equipment is engineered to endure the test of time in function and finish. We start with 14-gauge steel as the foundation for strength and structural integrity. This base is then galvanized to prevent rust and corrosion. For enhanced protection, we offer an optional zinc primer layer before applying our durable powder coating, available in a variety of elegant colors.

Each layer is designed to protect your investment and maintain the beauty and performance of your barn for years to come.

Color Options

Our TGIC powder coat finishes not only elevate aesthetics but also offer exceptional durability against the elements.

Choose from a curated palette of timeless shades, or let us match a custom color to complement your barn’s unique character.

Mineral Black

Storm Grey

Electric Grey

Sandalwood

Signal White

Statutory Bronze

Pine Green

Moss Green

Cabernet Red

Chestnut Brown

Looking for something different? We can closely match any custom color to help you achieve your ideal look.

Filler Options

The filler you choose defines not only the look of your stall fronts but also their functionality, strength, and longevity.

At American Stalls, we offer a range of premium infill options, each selected for its durability, safety, and aesthetic appeal.

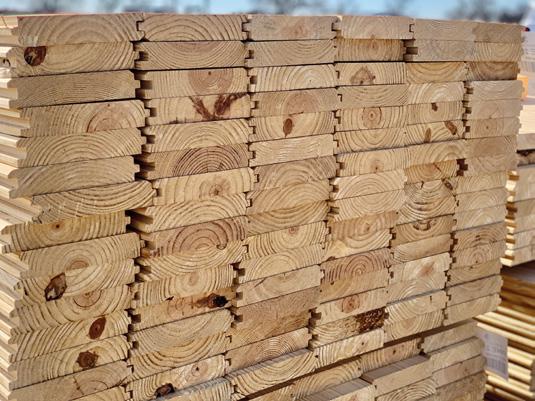

DOMESTIC LUMBER

Our Southern Yellow Pine is sourced responsibly and selected for its strength, natural beauty, and ability to accept a stain of your choice. A classic choice that complements both traditional and modern barns.

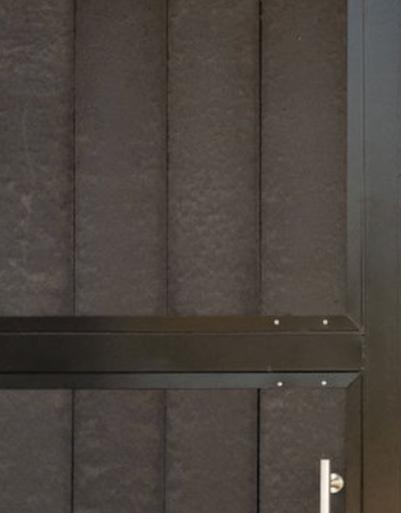

HDPE LUMBER FILL

Ideal for high-use facilities, HDPE is a low-maintenance, non-porous alternative to traditional lumber. This tongue & groove fill offers excellent durability, biosecurity, and a clean, sleek appearance, perfect for training and breeding barns.

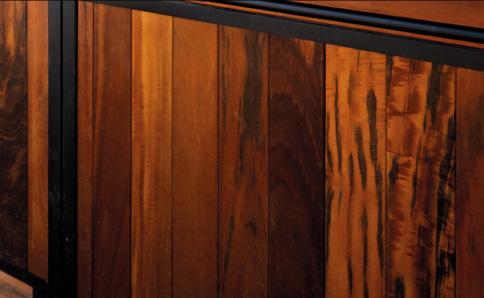

EXOTIC HARDWOODS

For clients seeking a sophisticated finish with unmatched durability, our Brazilian Hardwood is the premier choice. Known for its rich, natural tone, it also boasts exceptional fire resistance and insect deterrence.

Each option is thoughtfully selected to meet the diverse needs of high-end equestrian facilities—balancing beauty, function, and long-term performance.

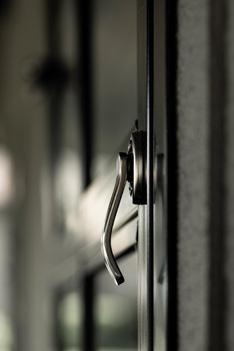

Latch Systems

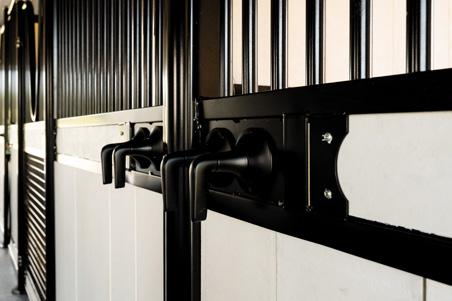

FLIP LATCH

Our Flip Latch is designed with simplicity and reliability in mind. The mechanism works by flipping the latch arm down over the stall door frame, securing the sliding door firmly in place. To open, simply lift the latch upward in one smooth motion. This straightforward design eliminates unnecessary complexity, making it both secure and easy to operate, even in high-stress situations.

FEATURES

Heavy-Duty Construction – Crafted from galvanized steel and finished with a durable powder coat to match your Sliding Horse Stall Door. Built to withstand daily wear, equine impact, and the moisture-rich barn environment.

Powder-Coated Finish – Enhances rust resistance while seamlessly blending with the overall stall design for a clean, professional look.

Safe, Flush Placement – Designed to sit tucked away and out of reach, preventing curious or clever horses from tampering with the latch.

Fast & Reliable Operation – Engineered for quick use in emergencies, ensuring immediate access to horses when every second matters.

Bolt-On Assembly – Installed with bolts instead of welds for ease of maintenance. If replacement is ever needed, the latch can be swapped

• •

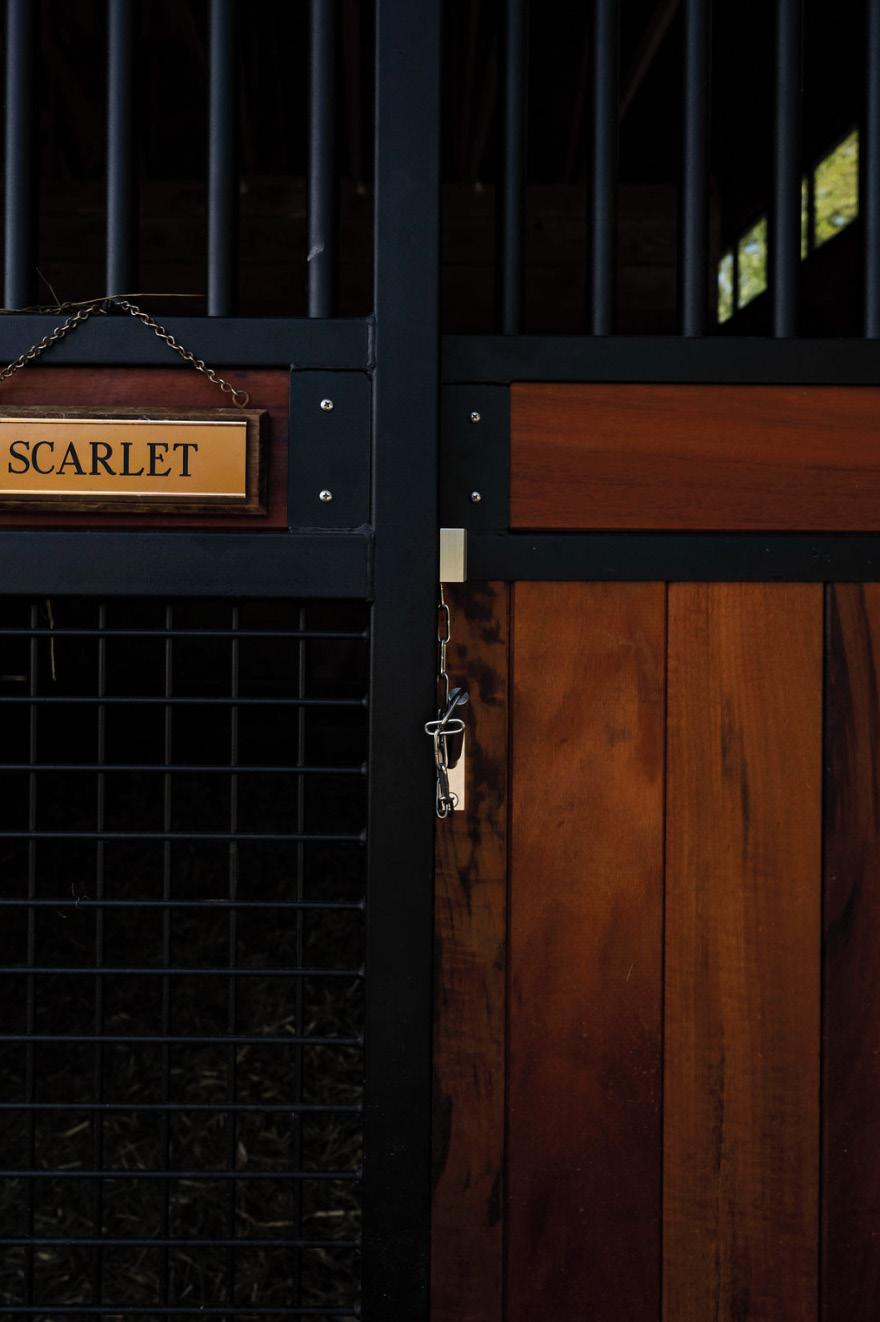

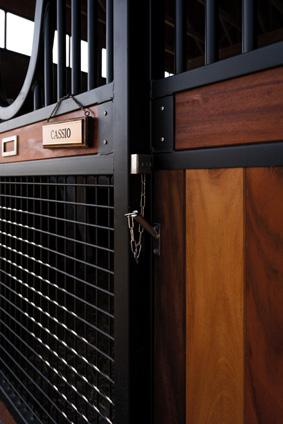

PIN LOCK LATCH FOR SLIDING STALL FRONTS

The Pin Lock Latch provides one of the most secure and straightforward locking mechanisms for sliding stall doors. The system works by dropping a stainless steel pin into a heavy-duty receptacle, firmly locking the door in place. An aluminum wall sheath protects the stall wall from wear, while a galvanized steel chain keeps the pin conveniently tethered for quick access. The result is a simple, reliable, and durable latch system designed for daily use in busy barns.

• • •

nized steel, and aluminum for unmatched strength, rust resistance, and

– The stainless steel pin drops into a reinforced

– Protects stall walls from repeated pin

– Keeps the pin tethered, preventing loss and

– Flush, low-profile design prevents horses

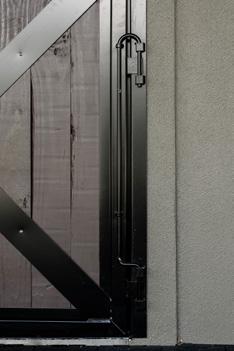

GRAVITY LATCH SYSTEM FOR SLIDING STALL DOORS

The Gravity Latch is a simple yet highly effective system designed specifically for sliding stall doors. It uses the force of gravity to secure the latch automatically when the door is closed, no need to fuss with additional hardware. This ensures smooth daily operation, reliability, and enhanced safety for both horse and handler. Built with durable materials, the Gravity Latch is a low-maintenance solution that blends seamlessly with your stall design.

FEATURES

Automatic Locking Mechanism – Uses gravity to drop into place, securing the door instantly and reducing the chance of doors being left open.

Hands-Free Safety – Eliminates the need to manually align or lock the latch each time, making chores faster and safer.

Low Maintenance – Fewer moving parts means reduced wear and easy upkeep.

Horse-Safe Design – Smooth edges and recessed fit minimize the risk of injury or snagging.

Long-Term Reliability – Built for years of dependable use in demanding equestrian environments.

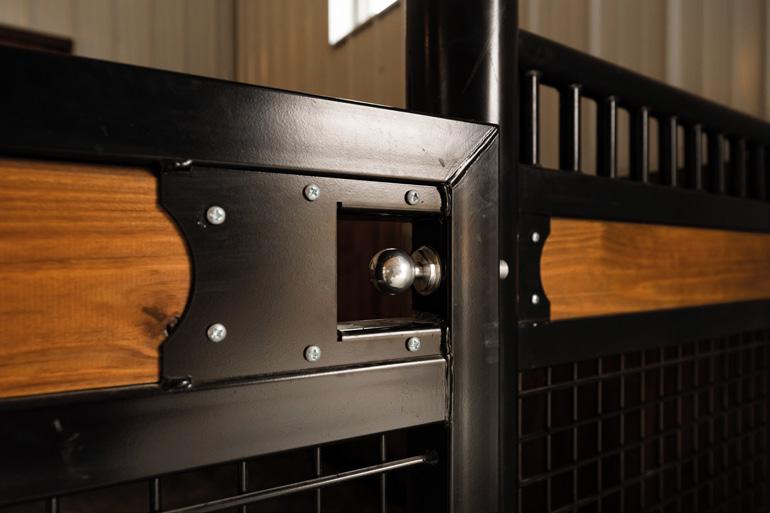

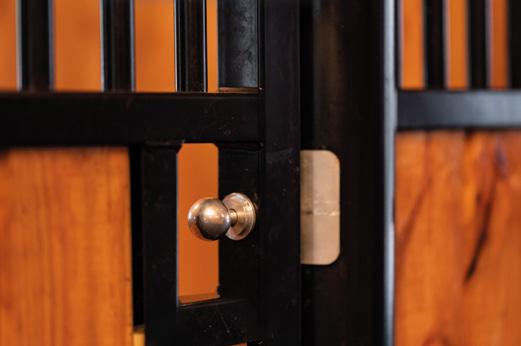

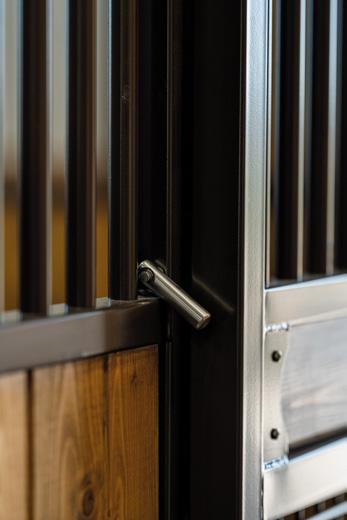

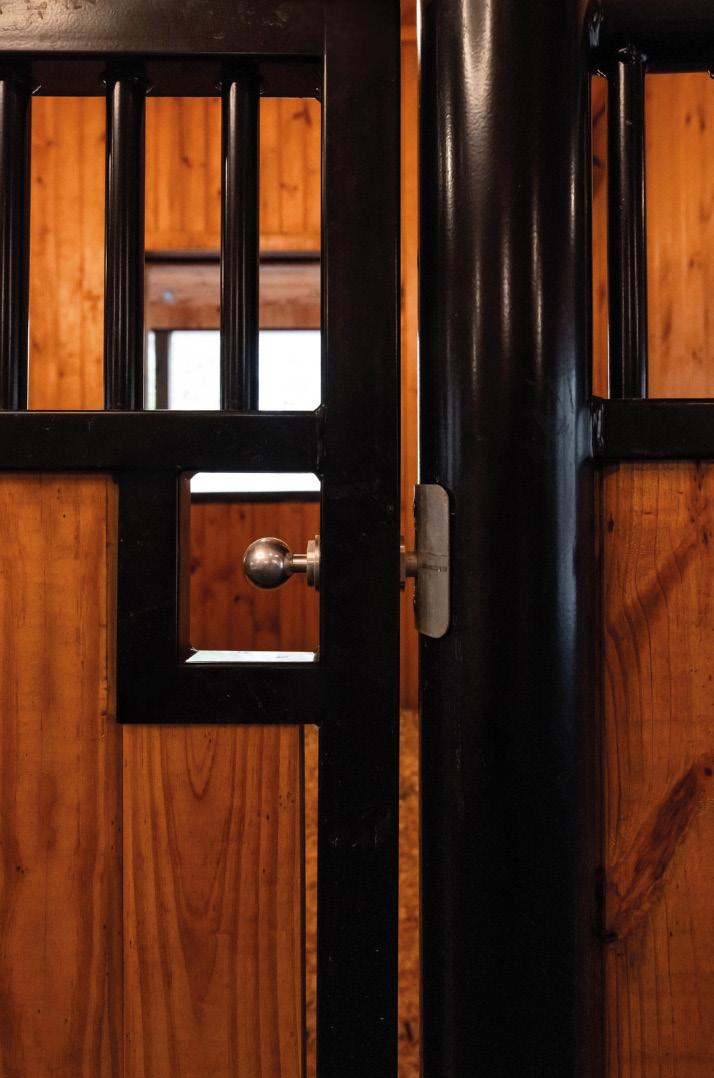

PLUNGER LATCH FOR HINGED STALL FRONTS

The Plunger Latch offers a smooth, reliable locking system for hinged stall doors. Its design uses a spring-loaded plunger mechanism that secures into a matching stainless steel striker plate, keeping doors firmly closed while remaining easy to operate. Built for long-term durability and easy maintenance, this latch system is ideal for barns that value strength, safety, and convenience.

FEATURES

•

All Stainless Steel Construction – Provides superior durability, corrosion resistance, and strength for daily barn use.

Stainless Steel Striker Plate – Protects the steel post from wear, impact, and scratching, ensuring long-lasting performance.

Bolt-On Design – Unlike welded latches, the bolt-on construction allows for seamless replacement or upgrades years down the line.

Easy Maintenance – Simple design with fewer weld points reduces upkeep and makes servicing straightforward.

Horse-Safe & Functional – Flush fit reduces snagging hazards while maintaining secure door closure.

Built for Longevity – Designed to withstand years of use in demanding equestrian environments
