Sliding Front Hardware & Components
2 Latching Options are available for our Sliding Stall Fronts. Both options are machined from 304 stainless steel. Our latch options offer easy one-hand latching – while providing durable design:

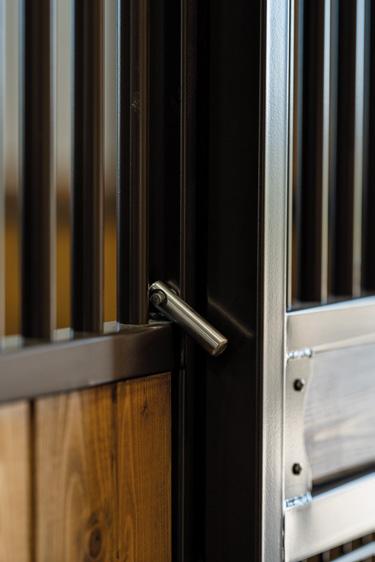

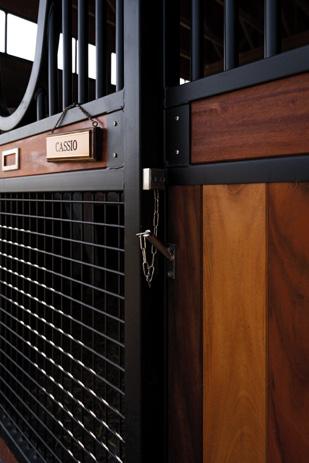

Lock Latch – Includes Pin Latch, Holder, and Receptacle Flip Latch – Includes Flip Latch and Safety.
Pin

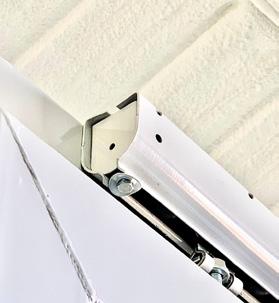

Sliding Track Package – Including Track and Trolleys Door Stop

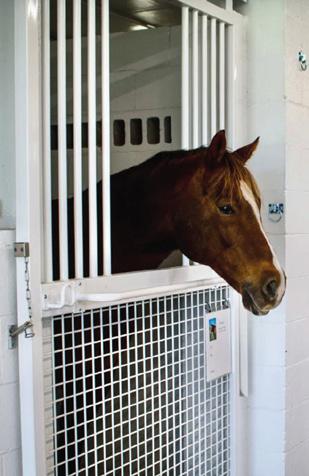

Stall Doors
Many clients choose to only add stall doors – instead of fully welded stall fronts. At American Stalls, we understand that each barn is unique. Stall doors are always a very personal choice since they are used dozens of times each day. That is why every single stall door is custom built to order.
Custom options include door bottom designs, shavings guards, different yokes, and so much more. Rest assured, your stall doors will be made to your design goals and lifestyle needs.
Options include, but are not limited to:

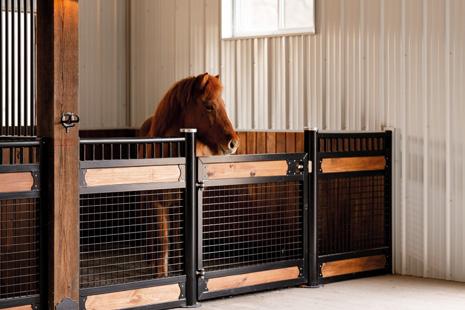

Mesh – 90º vented mesh
Round Bars – 1" round bars at door bottom
Bedding Guards Available: 4", 6", and 8"
15+ Yoke Options – Including removable yokes, hinged yokes, french yoke, and open yokes
Door Center & Bottom – Wood or steel center and bottom rails
Sliding Stall Door Examples*
* Track system not drawn to scale.
* Track system not drawn to scale.
3G
3H
3I
3J
3K
3L

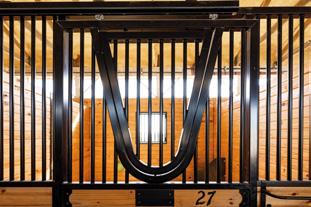

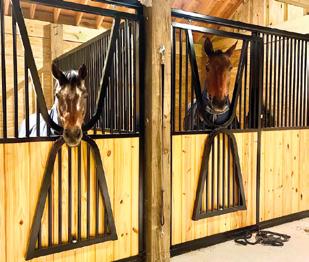

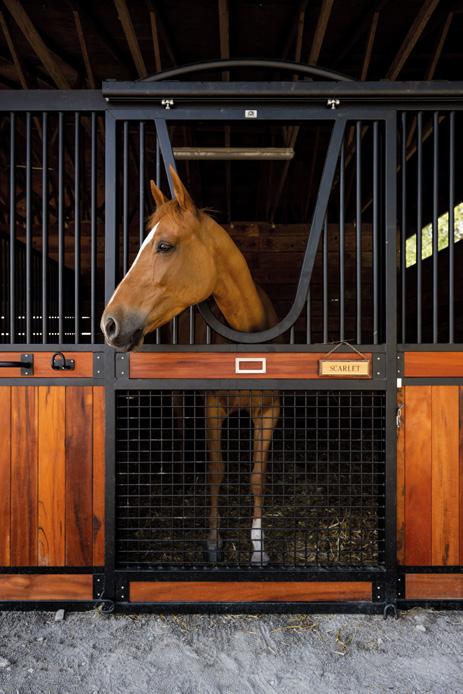

Yoke Options

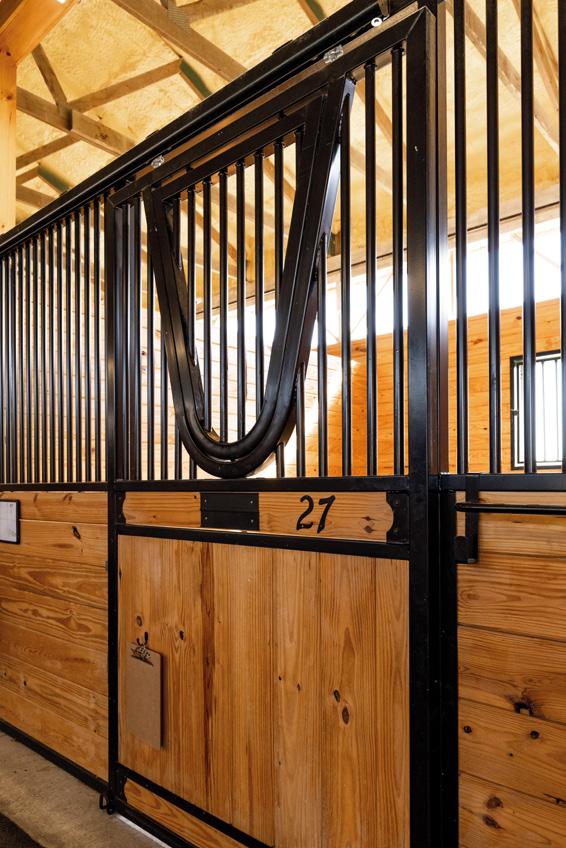

Bent V-Shaped Yoke (Open) Removable
Bent V-Yoke
Rectangular Yoke (Open)
Hinged, Fold-Down V-Shaped Yoke (Bent)
French Yoke
Removable Yoke

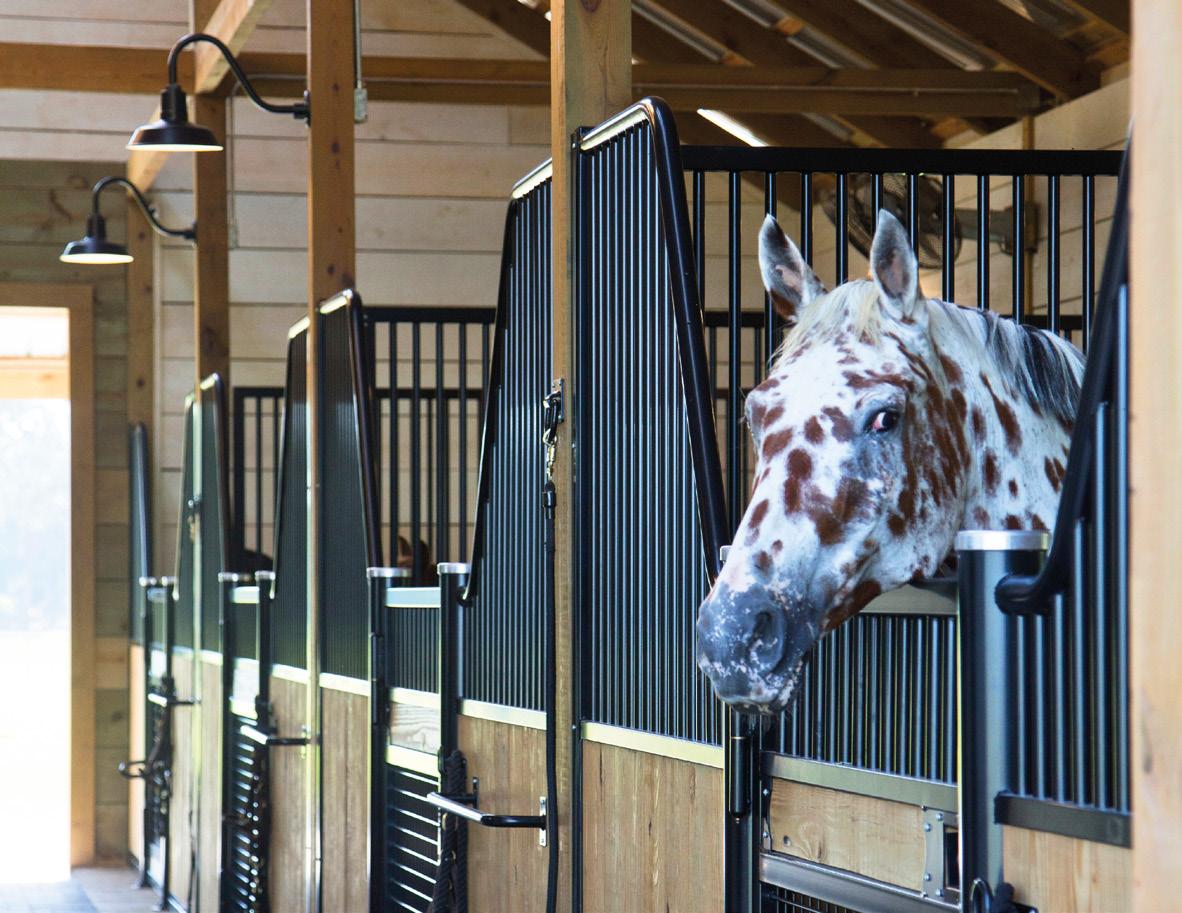

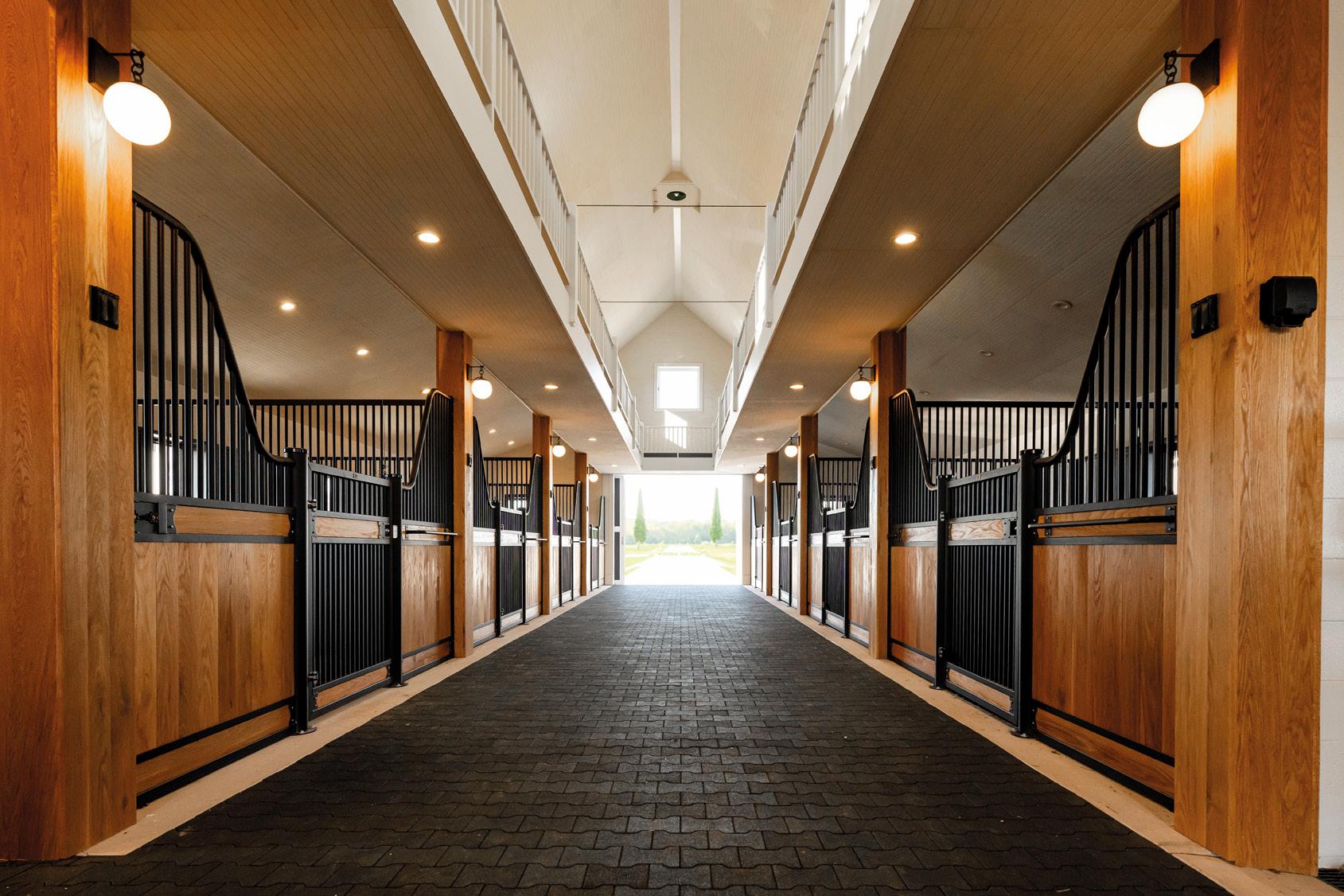

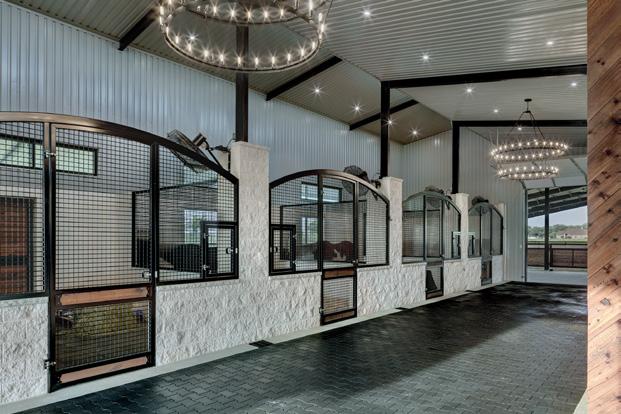

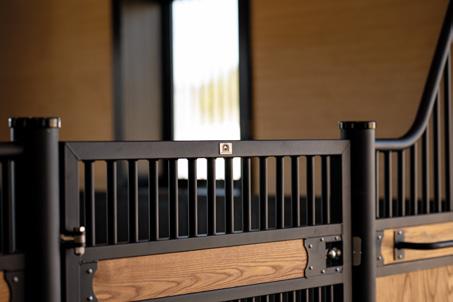

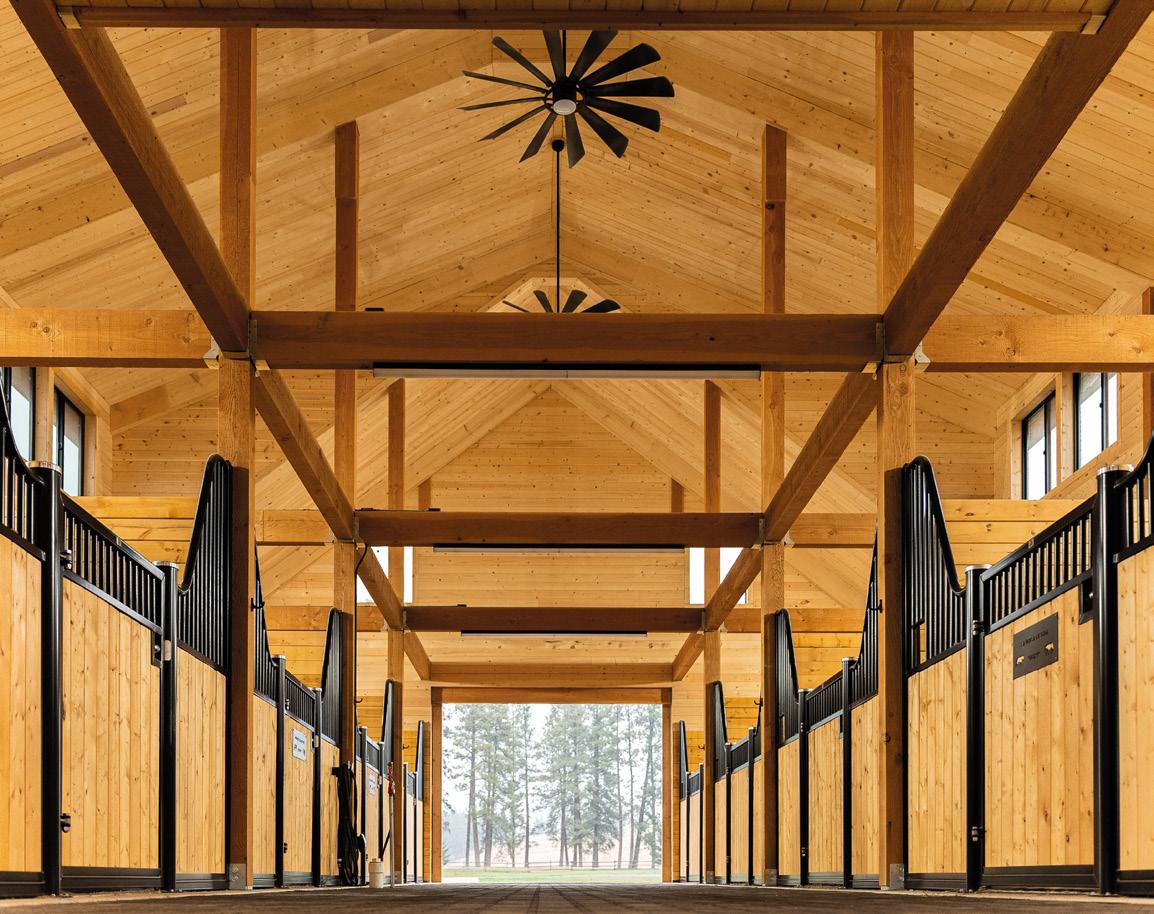

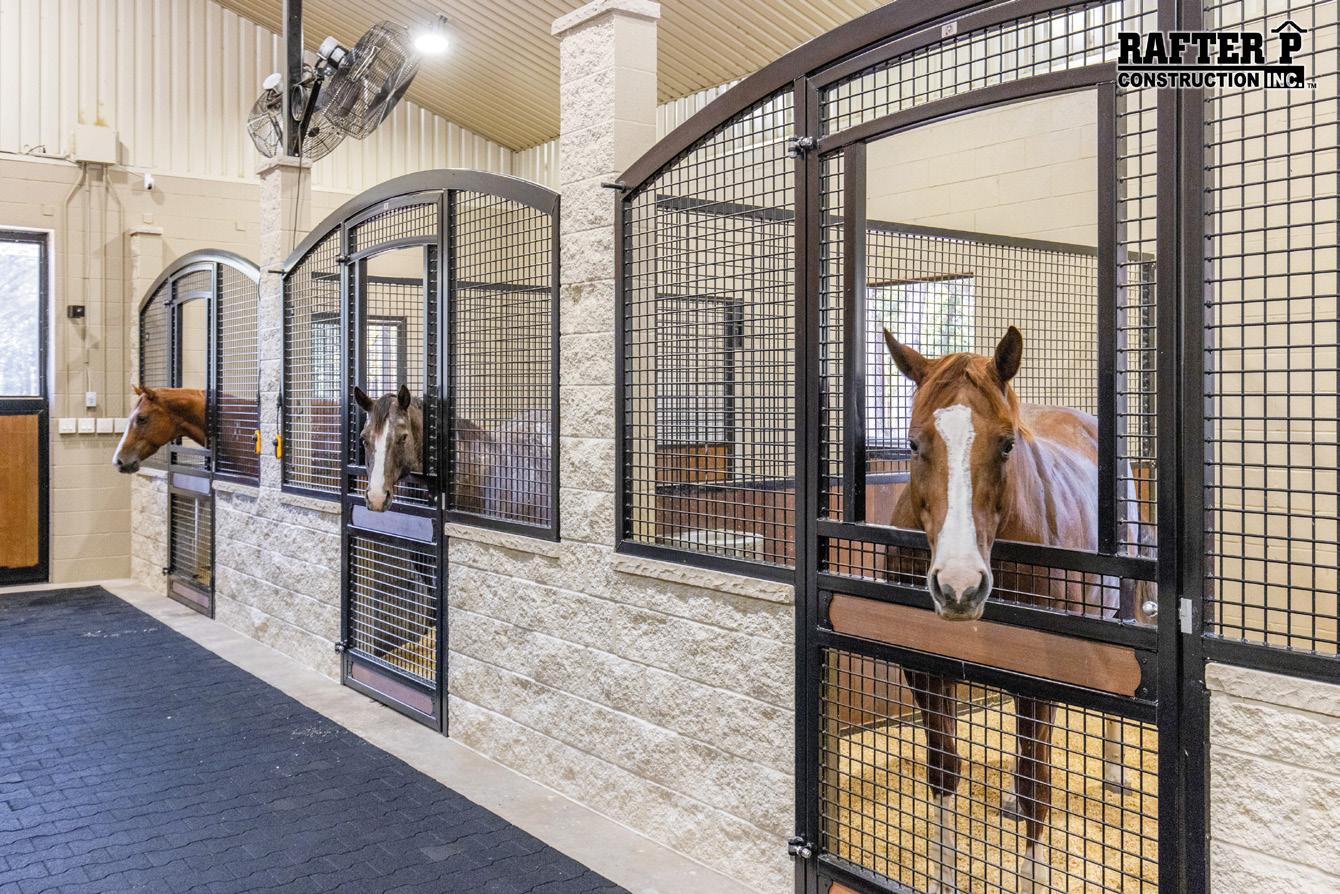

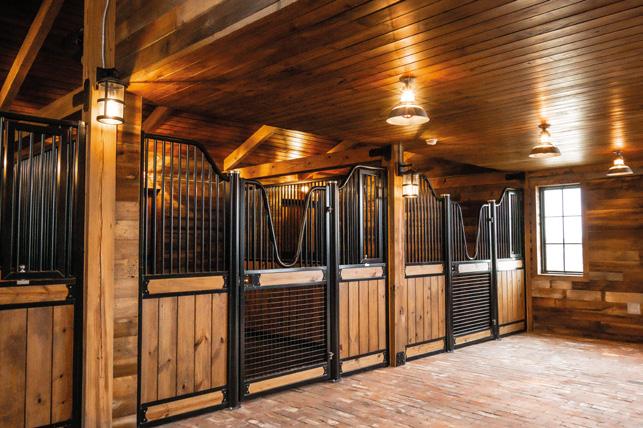

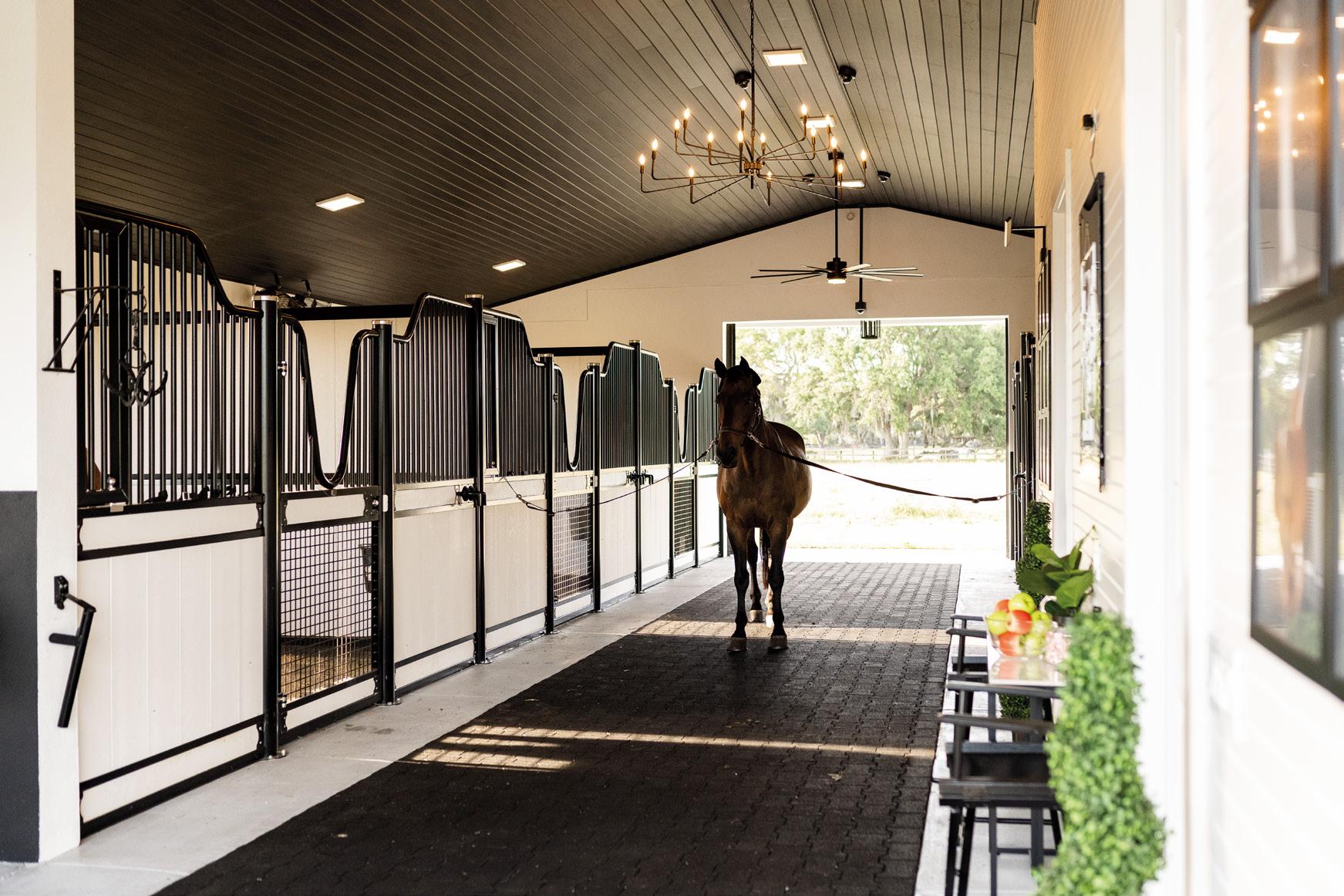

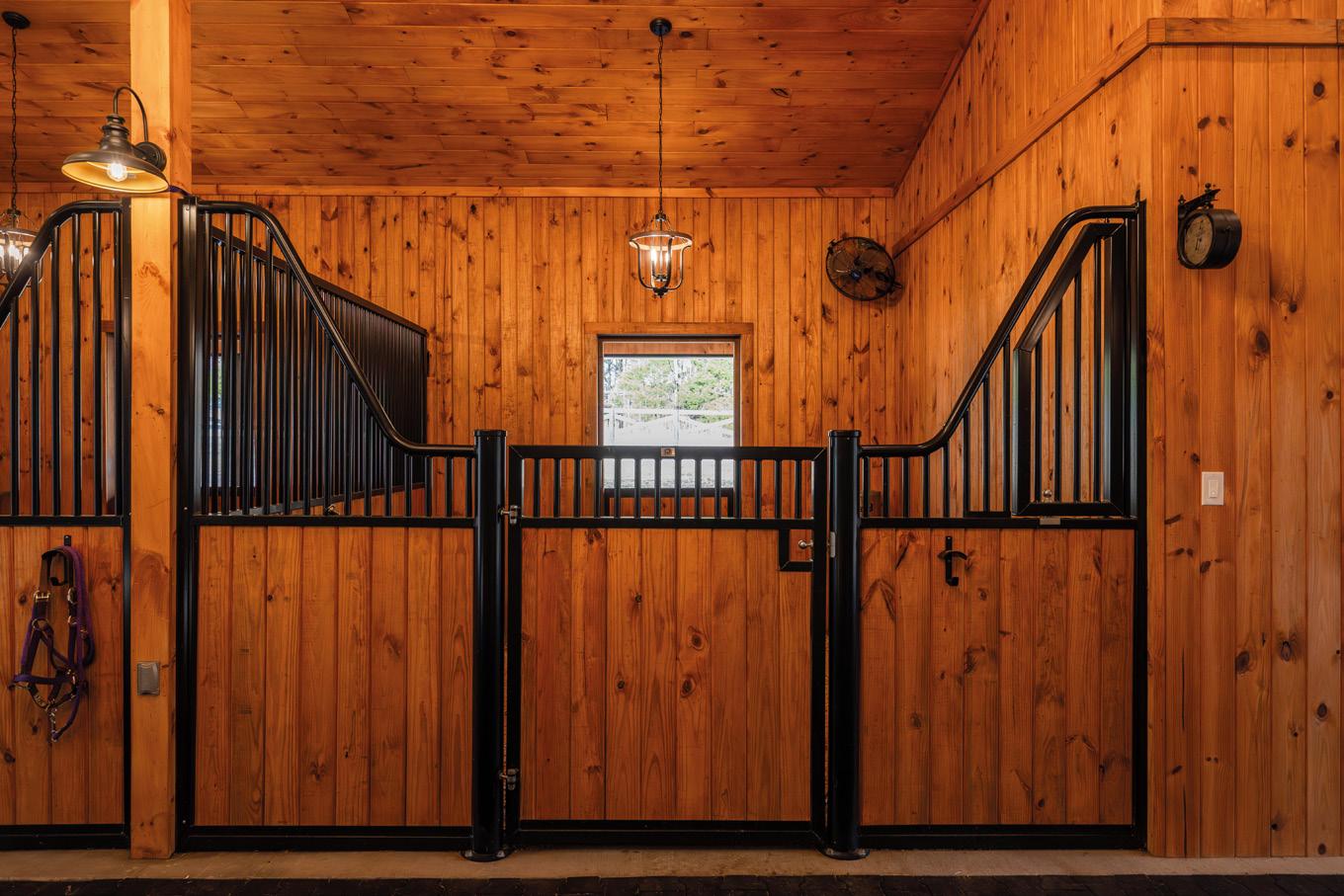

European Stall Fronts
HINGED STYLE
Swooping curves, graceful design, and heavy-duty hardware define our European stall fronts. These stall fronts are functional as they offer your horses maximum socialization and ventilation. They also provide your barn a sophisticated, old-age look and feel.
Our hinged stall fronts are equipped with heavy-duty stainless steel rod hinges that are fully adjustable serviceable. Our easy-to-use plunger latch prevents pinched fingers or doors stuck in a closed position. The sky is the limit when it comes to designing your European-styled stall fronts.
STEEL FABRICATION
Steel: 100% United States made, 50ksi high tensile strength steel
Frame: 14GA 2”x2” square tube
Posts: 7GA 4-1/2" Round Posts
Euro Wings & Yoke: 1.9" round tube
Upper Bars: 1 round tube on 3 centers (2 between bars) on upper bars
Lower Bars (Optional): 1" round tube placed on 2.5" centers
1.5" punched u-channel
THE FINISH
Steel Treatment: Pre-galvanized steel
Powder Coat: Custom TGIC polyester powder coat
Our zinc flow-coat galvanization has 30% more galvanization inside and out. All powder coating done in-house using rigorous quality control process.
HINGES & LATCH
Hinges: Rod-end hinges that are fully adjustable (304 stainless steel)
Latch: Spring loaded plunger latch (304 stainless steel)

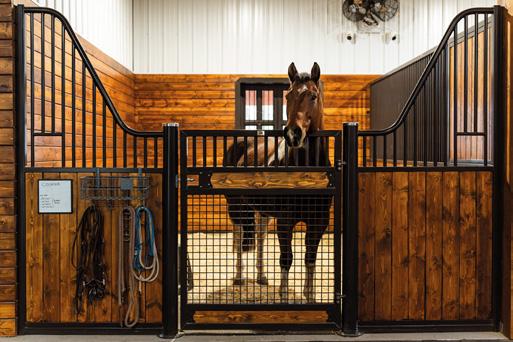

European Stall Front Examples
2A. Diagonal Low Euro with Wood Bottom
2B. Diagonal Low Euro with HMH Door and Wood Fill
2C. Diagonal Low Euro all Mesh, HMH Door and Fill
2D. Bent Low Euro with Wood Bottom
2E. Bent Low Euro with HVH Wood Door and Fill
2F. Bent Low Euro with HMH Door and Wood Fill
2G. Bent Low Euro with Grilled Door Bottom and Wood Fill Bent Low Euro
Diagonal
Euro
2H. Bent Low Euro with HMH Door and HVH Wood Fill
2K. Bent Low Euro with all Mesh, HMH Door and Wood Fill
European Stall Front Examples
2P. Straight Low Euro with Wood Bottom
2Q - Arched Low Euro with Grilled Door Bottom and HVH Wood Fill
2R. Arched Low Euro with Mesh Door and Wood Fill

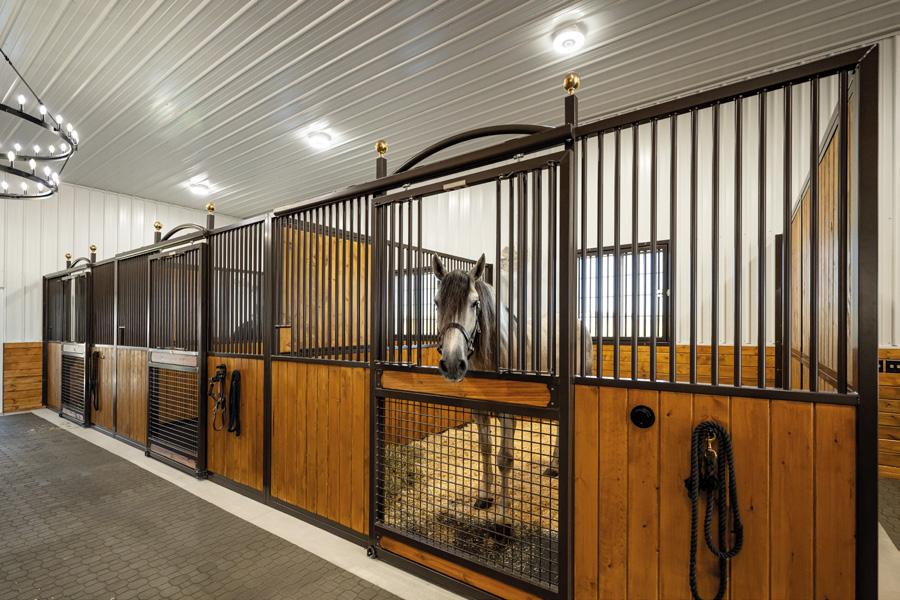

2S. High Euro with HMH door and HVH Wood Fill, Finials and Feed Door
2T. High Euro with HMH door, HMH Fill, Finials and Feed Door
2U. High Euro with Grilled Door Bottom, HVH Wood Fill, Finials and Feed Door
2V - High Euro with Wood Door and Fill High Euro Straight Low Euro
Arched Low Euro
2W - High Euro with Arched Top, Grilled Door Bottom and HVH Wood Fill
2Y - High Euro with Arched Top, HMH door and HVH Wood Fill
Need More Design Options?
Anatomy of Excellence: European Front Hardware & Components

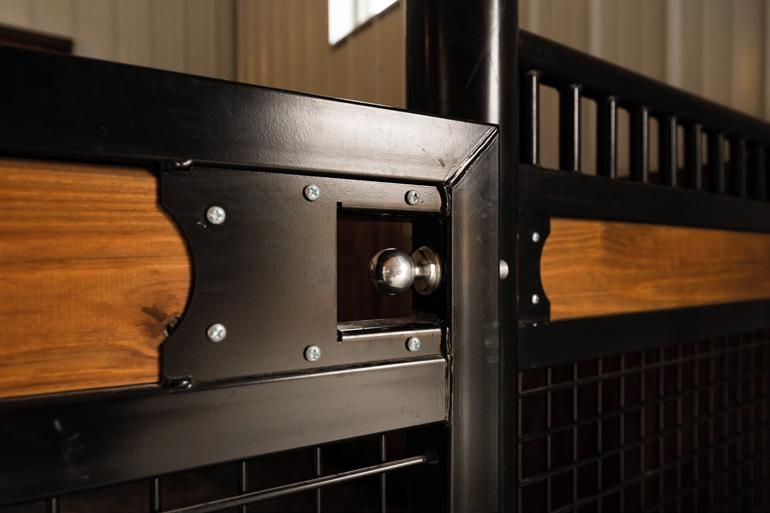

Spring Loaded Plunger & Striker Plate

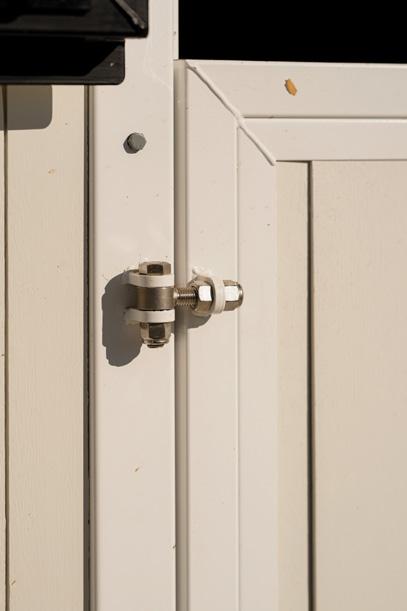

Adjustable 304-Stainless Steel Barrel Hinges

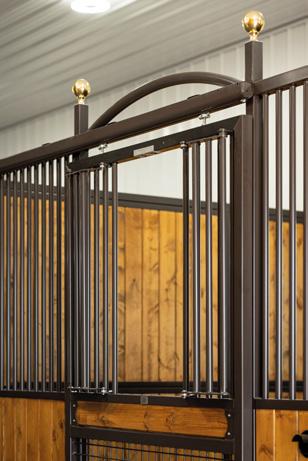

Decorative Post End Caps & Finials (Available in Aluminum, Brass, and Powder Coat)
