Our barn windows are built to bring ventilation and natural light to your barn. Each Window is made to order to seamlessly ļ¬t into your openings. Barn windows are often paired with yokes to promote socialization. Our barn windows give your horse the ability to hang his head to enjoy fresh air. Lastly, All windows are solid welded and arrive pre-hung, ready to install. Key features include:
1. Can open 180-degrees to allow for maximum airļ¬ow and socialization.
2. Allow natural light to enter each stall ā making for a healthier barn environment.
3. Depending on the climate, our barn windows can be prepared for glass in-ļ¬ll or no glass in-ļ¬ll.
STEEL FABRICATION
Steel: 100% United States made, 50ksi high tensile strength steel.
Our zinc ļ¬ow-coat galvanization has 30% more galvanization inside and out. All powder coating done in-house using rigorous quality control process.
HARDWARE & HINGES
Includes 304 stainless steel barrel hinges. Includes hold back latch and non-locking handle. Hinged window grills include integrated thumb-tab hinge.

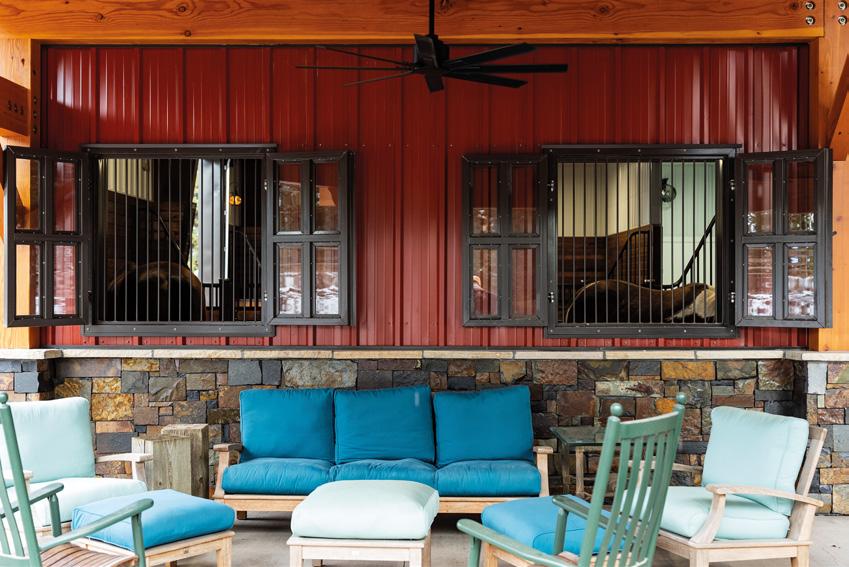

Barn Window Examples

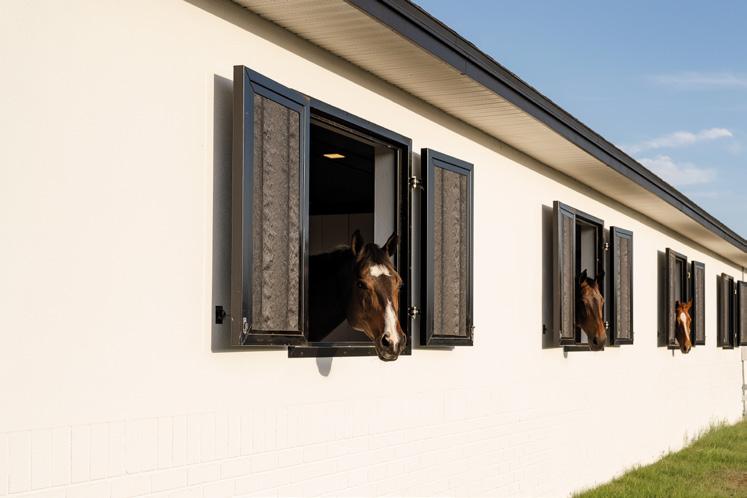

8E - Shutter

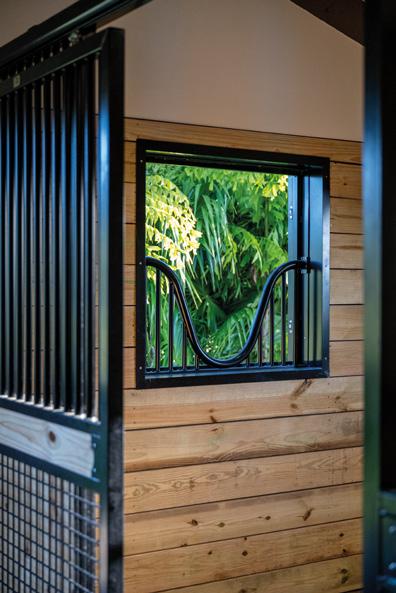

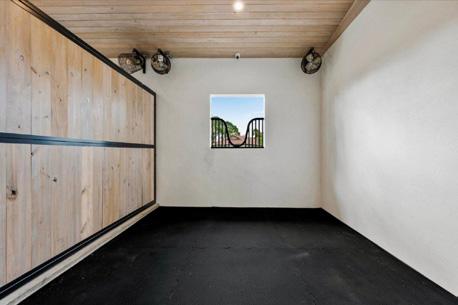

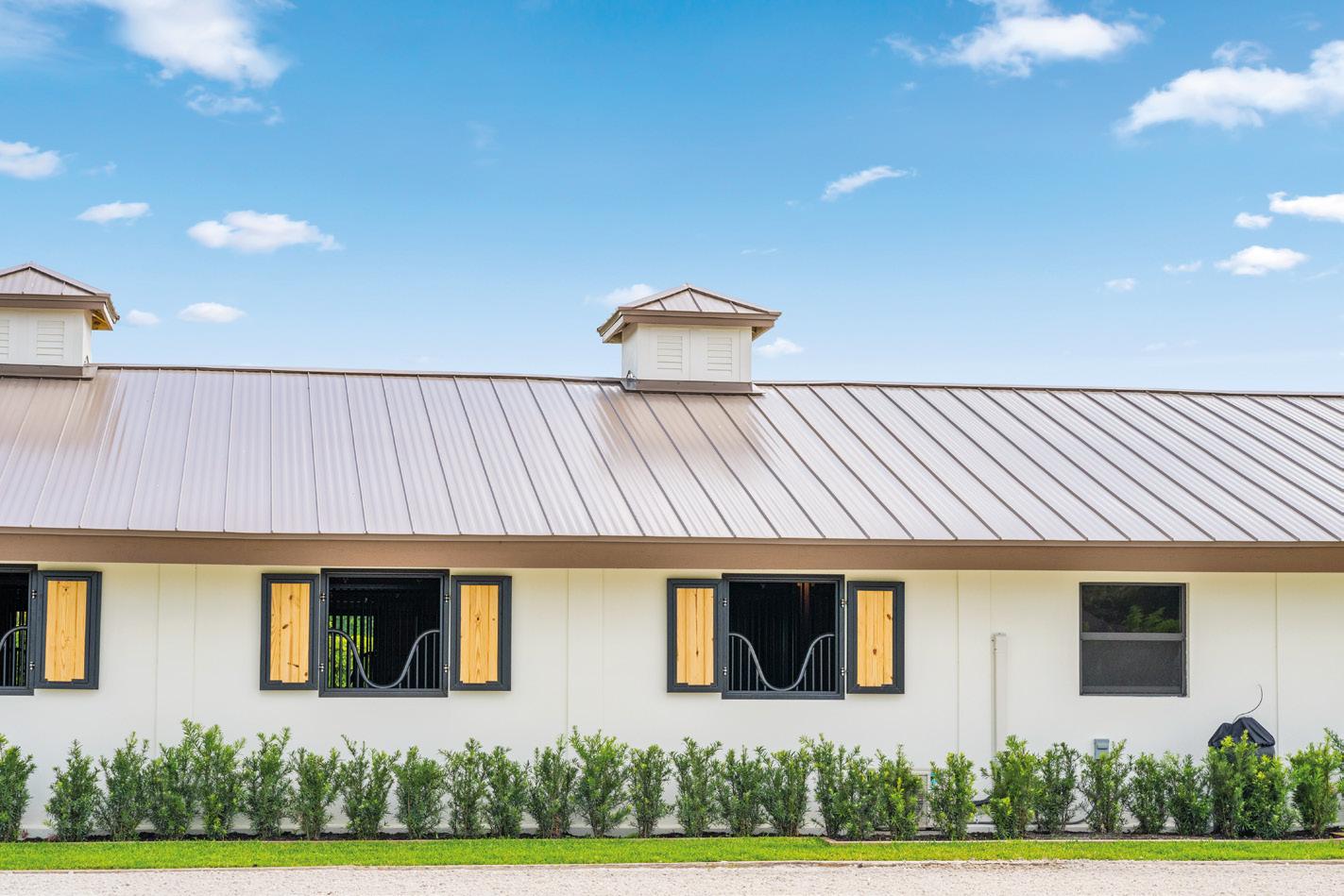

Hinged Dutch Window (Lumber) paired with Window Yoke
Hinged Dutch Window (Glass) paired with Window Grill

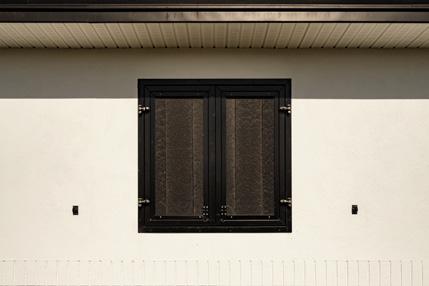

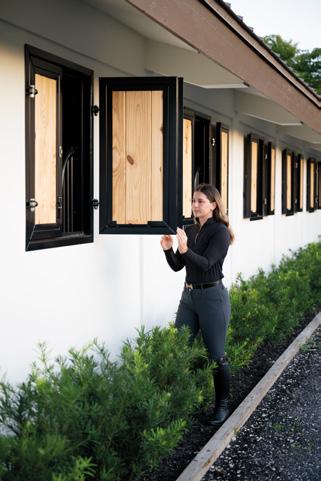

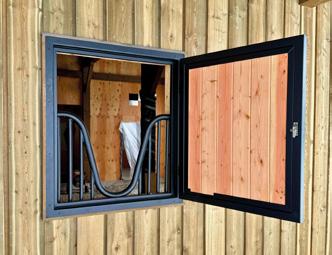

Hinged Shutter (Lumber)

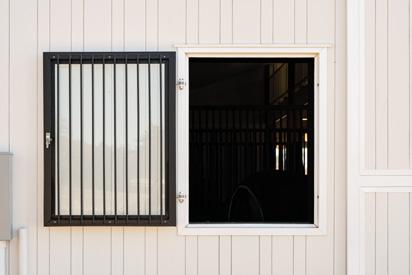

Hinged Shutter (Glass) with Fixed Grill Guard

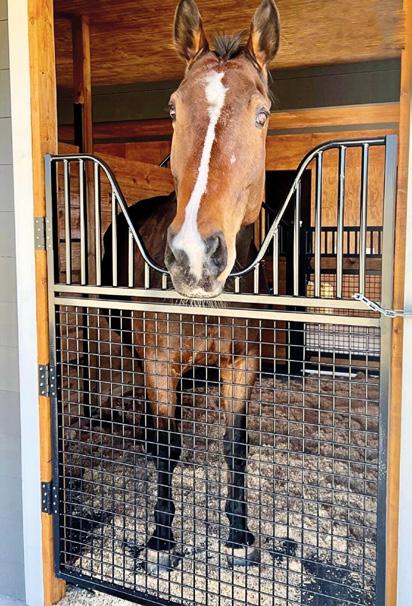

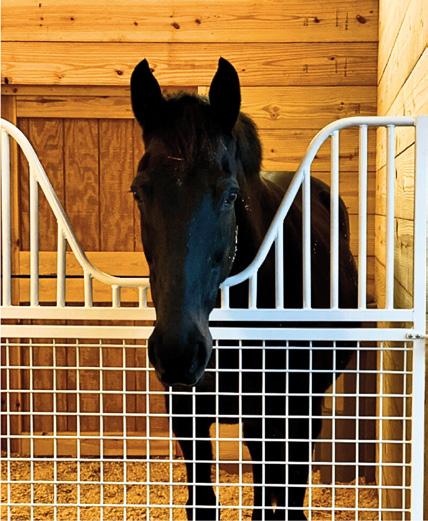

Stall Gates
STALL SCREENS
As horse people, we used almost every stall gate in the market and we never quite found one that met our high standards. For that reason, we decided to build our own stall gates in 2011. Ever since, our stall gates have built a reputation for their elegance and strength.
When you purchase our stall gates, you can expect premium steel components, safe design, and a stunning ļ¬nish. Whether you are remodeling your existing barn, redoing an existing show barn, or simply building your ļ¬rst new barn, our stall gates are the perfect ļ¬nishing touch.
Our stall gates are extremely versatile as you can also place them behind your existing Dutch door or paddock door. Regardless of the application, our stall gates are bound to add elegance, ventilation, and safety.

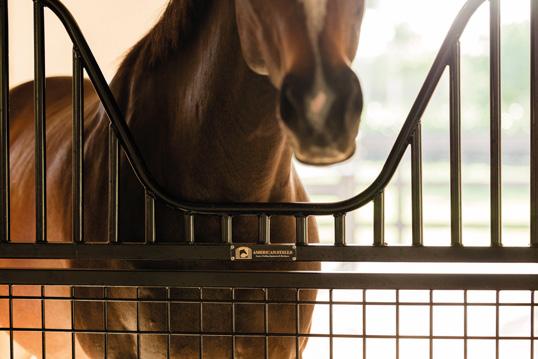

Our Stall Gates (European Style) are guaranteed to be a hit in your barn.
American Stallsā Stall Gates are the perfect addition to any existing barn or for a new barn project. Our Stall Gates are available in two sizes:
HALF-SIZE: 51" W x 42" H ā Perfect for large breeds, ponies, and miniature breeds
FULL-SIZE: 51" W x 65" H ā Perfect for larger horse breeds
GRILLED: 51" W x 58" H ā Perfect for all horse breeds
BENEFITS
ā¢ Mesh promotes airļ¬ow and odor management
ā¢ Yoke allows for increased socialization
ā¢ Bar & Mesh design allows for clear visibility
STEEL FABRICATION
Gauge: 15-GA frame | 16-GA bars
Frame 1.25" square tube
European Yoke: 1.10" round tube
Bars: 7/8" round tubes placed on 2.5" centers
Mesh: 2"x2" vented openings
THE FINISH & MISCELLANEOUS
Steel Treatment: Pre-galvanized steel
Powder Coat: Black
Installation hardware is included with each stall gate (including hinges, gate chain, and screws)

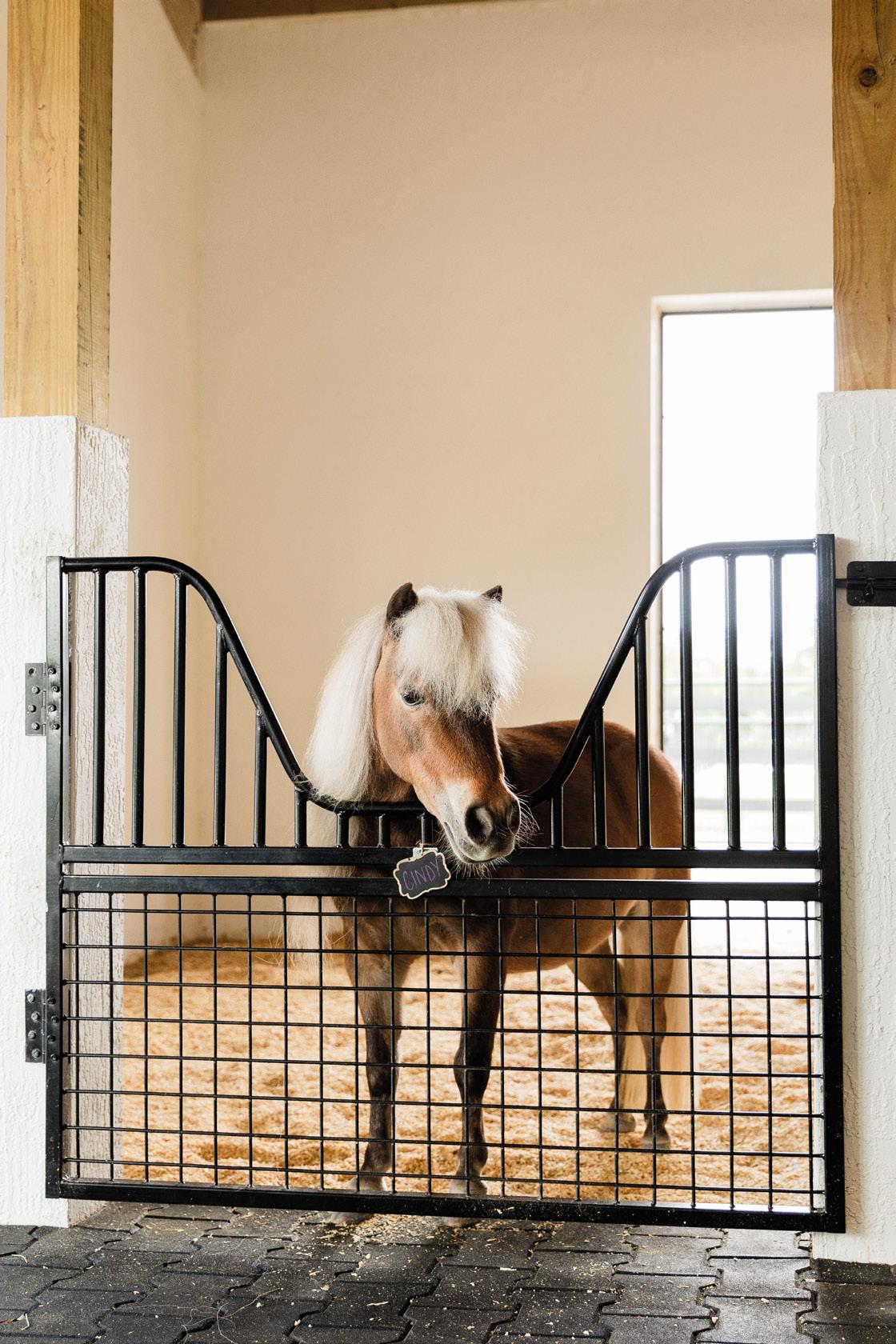

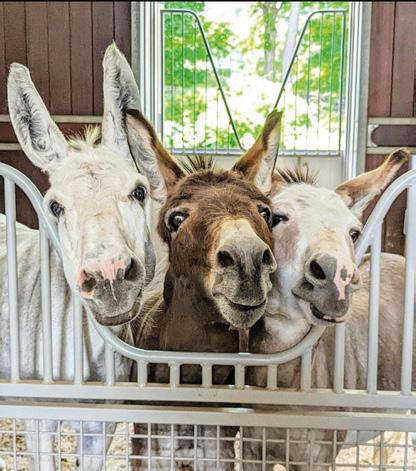

STALL GATE
Half-Sized Stall Gate
Full-Sized Stall Gate
Grilled Stall Gate
Full-sized Stall Gate (65"h)
Half-sized Stall Gate (42"h)
Grilled Stall Gate (58"h)
Half-Sized Stall Gate (42" H)
As seen in Martha Stewart's barn renovation
Full-sized Stall Gate (65" H)
Idea: Our Stall Gates can be custom powder coated to a ļ¬nish of your preferance at a surcharge.
THE BARN IS THE SETTING FOR LIFEāS MOST PRECIOUS MEMORIES

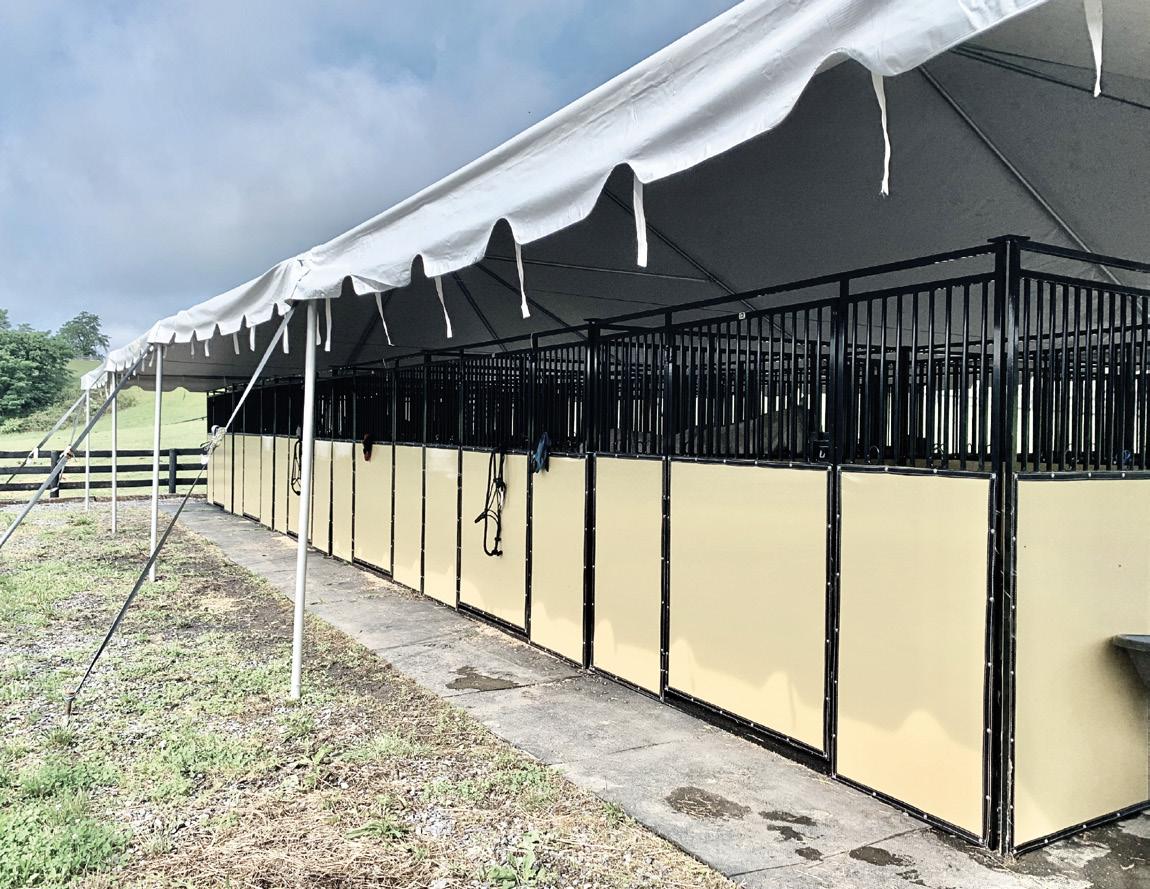

Portable Horse Stalls
PREMIUM TEMPORARY HORSE STALLS
American Stallsā portable horse stalls can be found at the best equestrian facilities worldwide ā including the best Showgrounds, premier US fairgrounds, and many Grand Prix-level training facilities.
Our portable horse stalls lead the industry because of our commitment to design, durability, and safety. The Show Series horse stalls feature heavy-duty steel components, premium craftsmanship, and mindful design that promotes safety.
Although āportableā and ātemporary,ā our Show Series horse stalls are built to last and safely house your horses. Rest assured, your American Stalls portable horse stalls will serve your horse and facility for years.

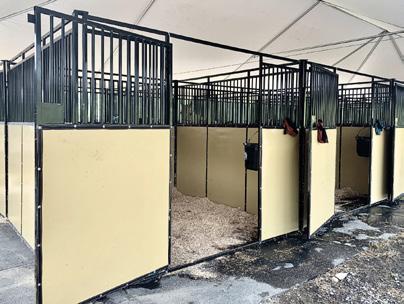

The classic Series
PORTABLE HORSE STALLS
The Classic Show Series horse stalls are premium portable horse stalls that can be found at some of the best facilities across the world. They feature:
ā¢ Galvanized steel and a powder coat ļ¬nish provide superior rust protection for 15+ years.
ā¢ All steel bars mindfully spaced 3 apart for optimal safety and ventilation.
ā¢ Heavy-duty steel that withstands any impact from horses and heavy machinery
ā¢ 40oz vinyl that withstands kicks and other impact
ā¢ Vinyl is UV-stabilized so you can set up your stalls indoors or outdoors.
STEEL FABRICATION
Gauge: 14GA frame | 16GA bars
Frame: 1.25" square tube
Bars: 1.00" round tubes placed on 3" centers
Steel Treatment: Pre-galvanized steel

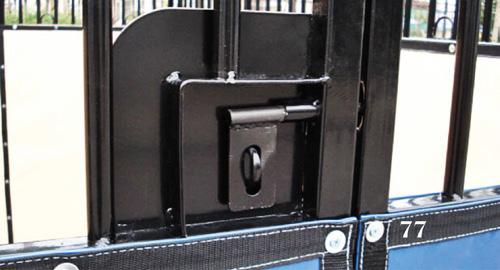

Pre-welded door (48") that swings out a complete 180Āŗ
THE FILLER & FINISH
Powder Coat: Black is standard (other colors available)
Vinyl: Tan vinyl is standard (other colors available)
40oz vinyl (2 sheets per panel)
4-layered polyethylene foam placed between vinyl
Alternative Fill: HDPE in-ļ¬ll available
STALL PANEL
9' Front Panel
9' Divider Panel 12' Front Panel
12' Divider Panel

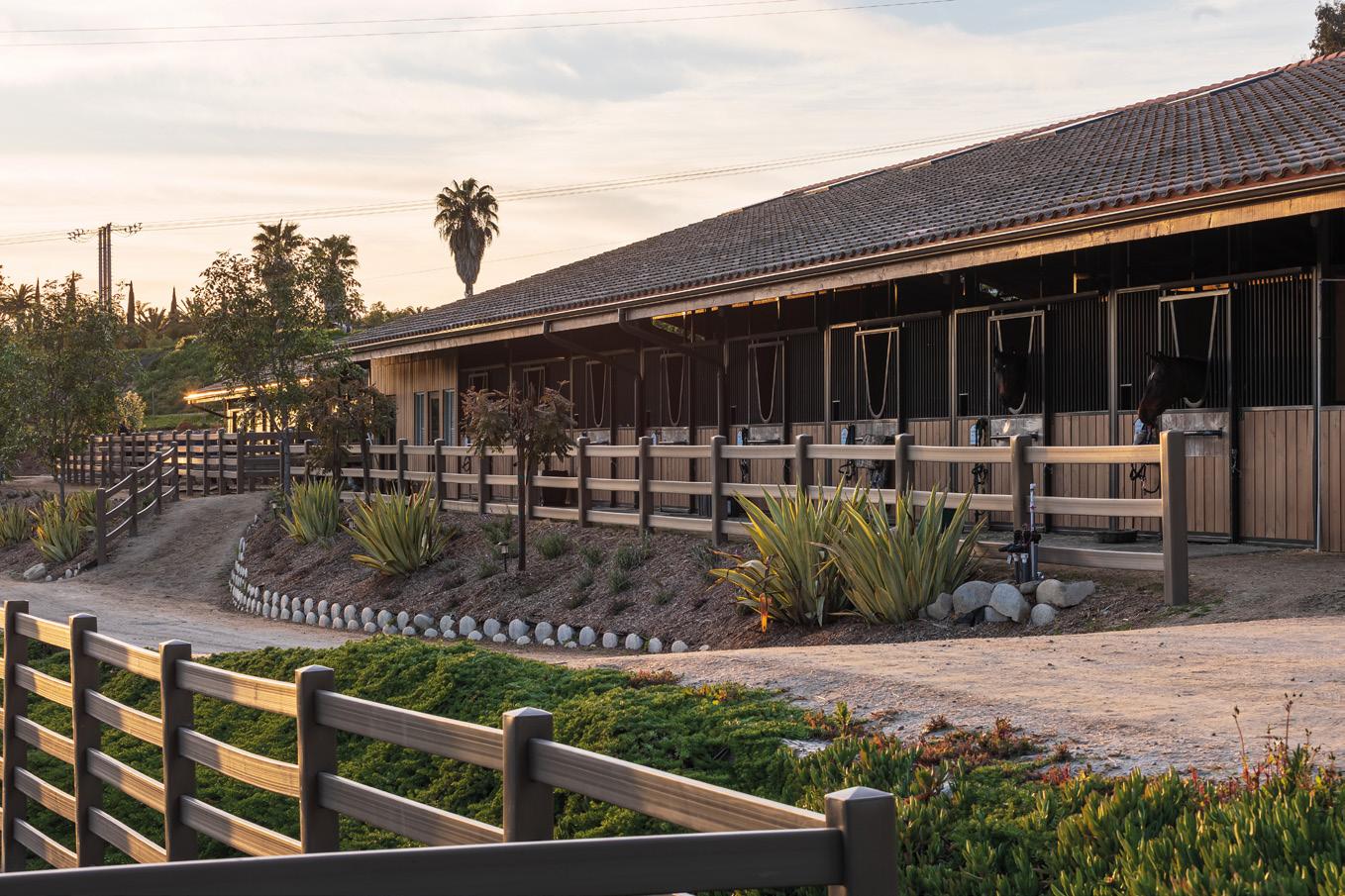

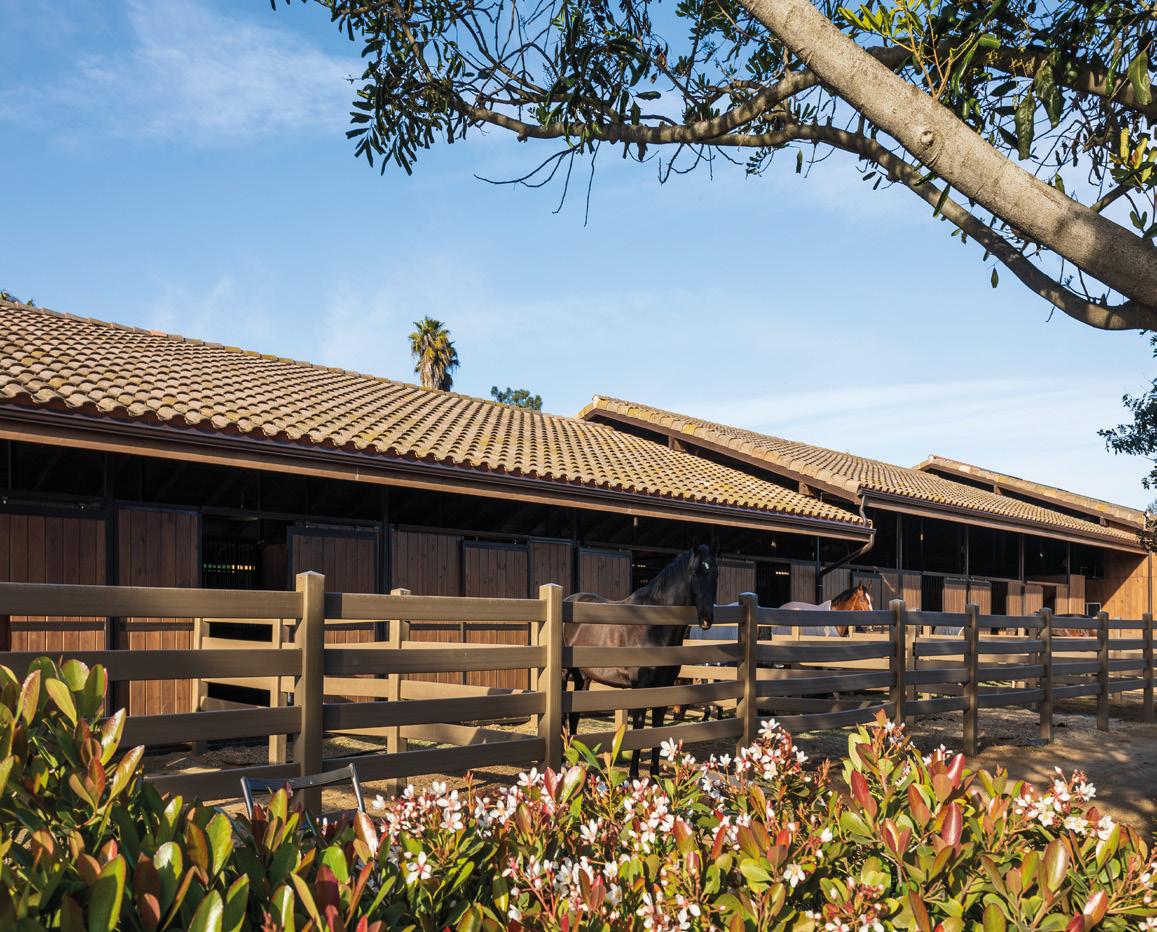

American HDPE Fencing
100% AMERICAN MADE FENCING SOLUTIONS
Our American HDPE Fencing is safest, most durable, and long lasting fencing for your horse farm and barn.
We oļ¬er our fencing in 8 beautiful colors to compliment the look you are trying to achieve in your property. All ļ¬nishes are protected by a special UV protection package to ensure your fencing will retain its beauty for many maintenance free years. Since our Fencing is manufactured from 100% HDPE, it will not crack or become brittle even in extremely cold weather.
Our Fencing is available in 2,3,4,5, and even 6 rail conļ¬gurations to provide you with ļ¬exibility. Perfect for everything from your farm's perimeter to your paddocks to stall runs.
HDPE Fencing
FENCING FOR THE FARM & BARN
SPECIFICATIONS & MATERIALS
ā¢ Rails measure 2'x6' ā supported and stiļ¬ened by 2 internal reinforcing ribs. Rail lock into the 6"x6" posts
ā¢ Available with 2, 3, or 4 rails, and 7 , 7.5 or 8 posts
ā¢ 100% American Made
BENEFITS
Strength ā Wall thickness is ~2x of comparable fencing
Easy Installation ā No pre-drilling needed
Environmentally sound and non-toxic
Impact Resilient ā Higher ļ¬exural strength than most fencing products
Performs well in extreme temperatures
White Black
Brown Cedar Grey Hunter Green
Redwood Weathered Wood
Equine Flooring
RUBBER PAVERS / RUBBER EQUINE MATS / STALL MATTRESS SYSTEMS
Stall ļ¬ooring is essential to the performance and safety of any horse barn. That is why our American Stalls team has partnered with the best ļ¬ooring suppliers in the industry to supply superior ļ¬ooring solutions
Our ļ¬ooring options include aisle pavers, stall mattress systems, and
Promote a safe barn that provides traction through anti-slip properties
Stall Mattress
STABLE COMFORT
Our stall mattress system is a wall-to-wall waterproof stall mat system. The StableComfortā¢ stall mat system provides unsurpassed comfort through a resilient stall surface that simulates natural turf. While standing, this stall ļ¬ooring system provides a supportive, even surface. While lying down, the StableComfort stall ļ¬ooring decreases the timeline of injury rehabilitation and aids in loosening stiļ¬ joints.
The system ultimately helps reproduce the characteristics of natural pasture by providing a comfortable surface for your horse to rest upon.
GENERAL INFORMATION
Available for any stall size
Standard version: Includes rubber-ļ¬lled mattress, rubber crumb, top cover, and plastic strip fasteners
Premium version: Includes all of the above and an additional 3/4" thick foam pad
BENEFITS
Easy to clean
Proven to be equivalent to 4-6" of bedding
Decreases the timeline of injury rehabilitation and aids in loosening stiļ¬ joints
Rubber-Coated Waterproof Top Cover
Multi-Celled, Rubber Crumb Filled Mattres
Uniformly Sized Rubber Crumb
Heavy-Duty Plastic Fastening Strips
Starting at $1,200 Per 12x12 Stall

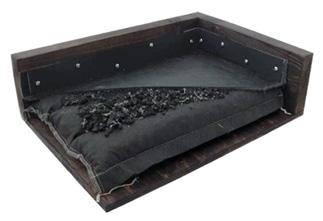

StableComfort Mattress shown

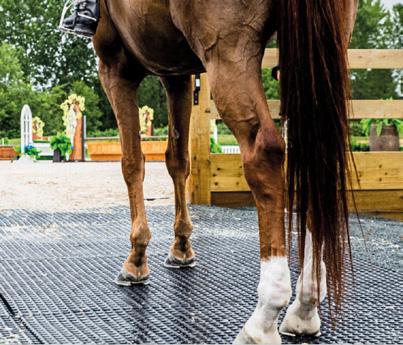

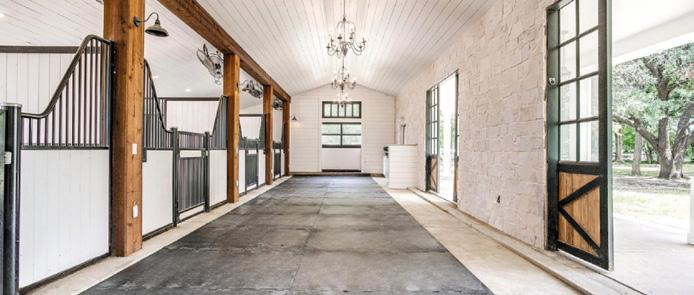

Rubber Mats
INTERLOCKING & STRAIGHT EDGE
Comfort, traction, and urine/odor management are of utmost importance in your horse stalls. That is why our American Stalls mats are engineered to provide the best in all areas.
Our interlocking mats are backed by a 5-year warranty that is guaranteed never to curl or buckle. Made from 100% vulcanized rubber, our mats are designed to maintain shape under extreme machinery from even heavy machinery.
RUBBER MAT (3/4")
100% Recycled, Vulcanized Rubber Thickness: 3/4"
Surface Texture: Flat top, button bottom
Size: 4' x 6'
Weight: 94 lbs
Formats: Interlocking, Straight Edge, or Custom Cut
FEATURES & BENEFITS
ā¢ Completely non-absorbent
ā¢ Dual surface ā button down for drainage/cushioning, buttons up for maximum traction
ā¢ Ultra durable
Interlocking Stall Mats
Available in most common stall sizes. Our stall mat kits feature our tight-ļ¬tting dovetail interlocking tabs to minimize movement and urine seepage. Stall mat kits have interlocking seams and square cut outside edges. 100% Recycled Vulcanized Rubber.
SPECIFICATIONS
100% Recycled, Vulcanized Rubber Thickness: 3/4"
Surface Texture: Flat
Stall Sizes: 12'x12', 10'x12', and Custom
Size:Ā 4' x 6'
FEATURES & BENEFITS
ā¢ Minimizes urine accumulation in horse stalls and horse barn aisles
ā¢ Improved comfort
ā¢ 5 year limited warranty.
ā¢ Recommended installation on concrete, asphalt, or properly prepared surfaces.

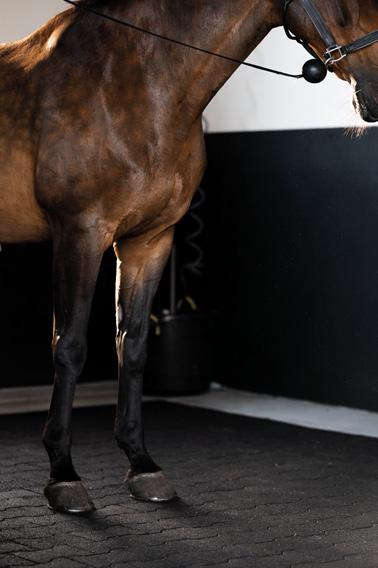

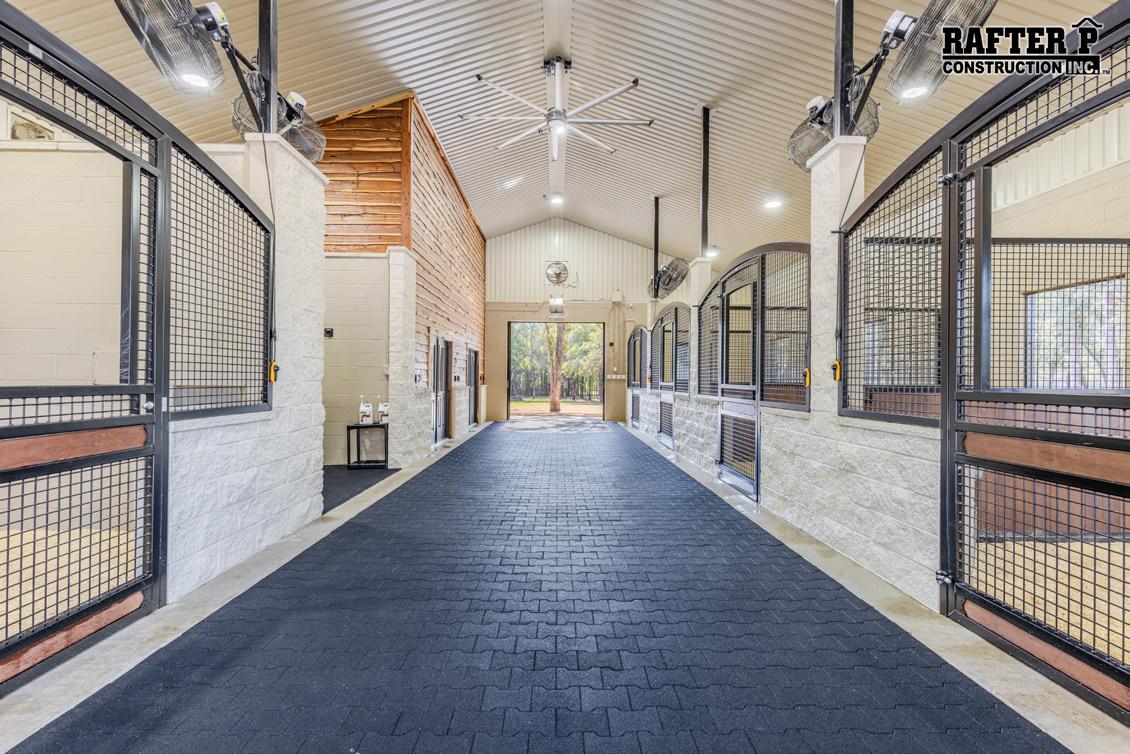

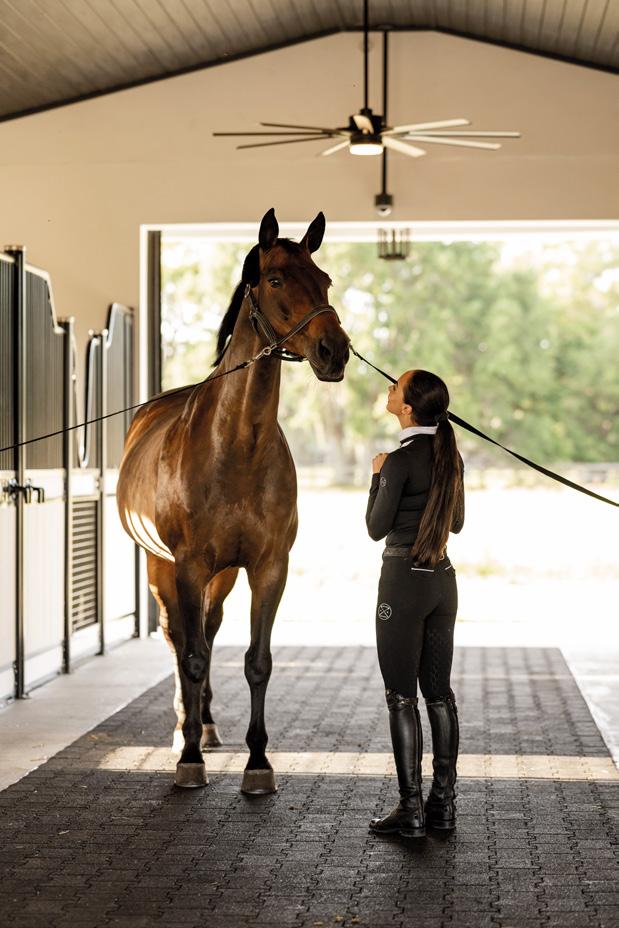

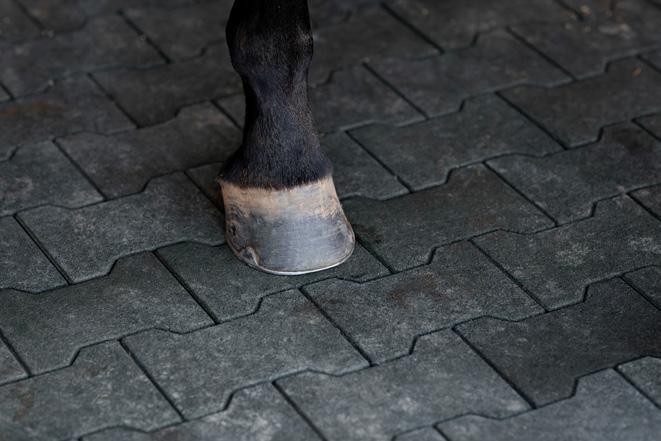

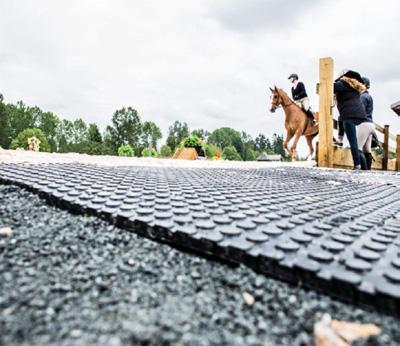

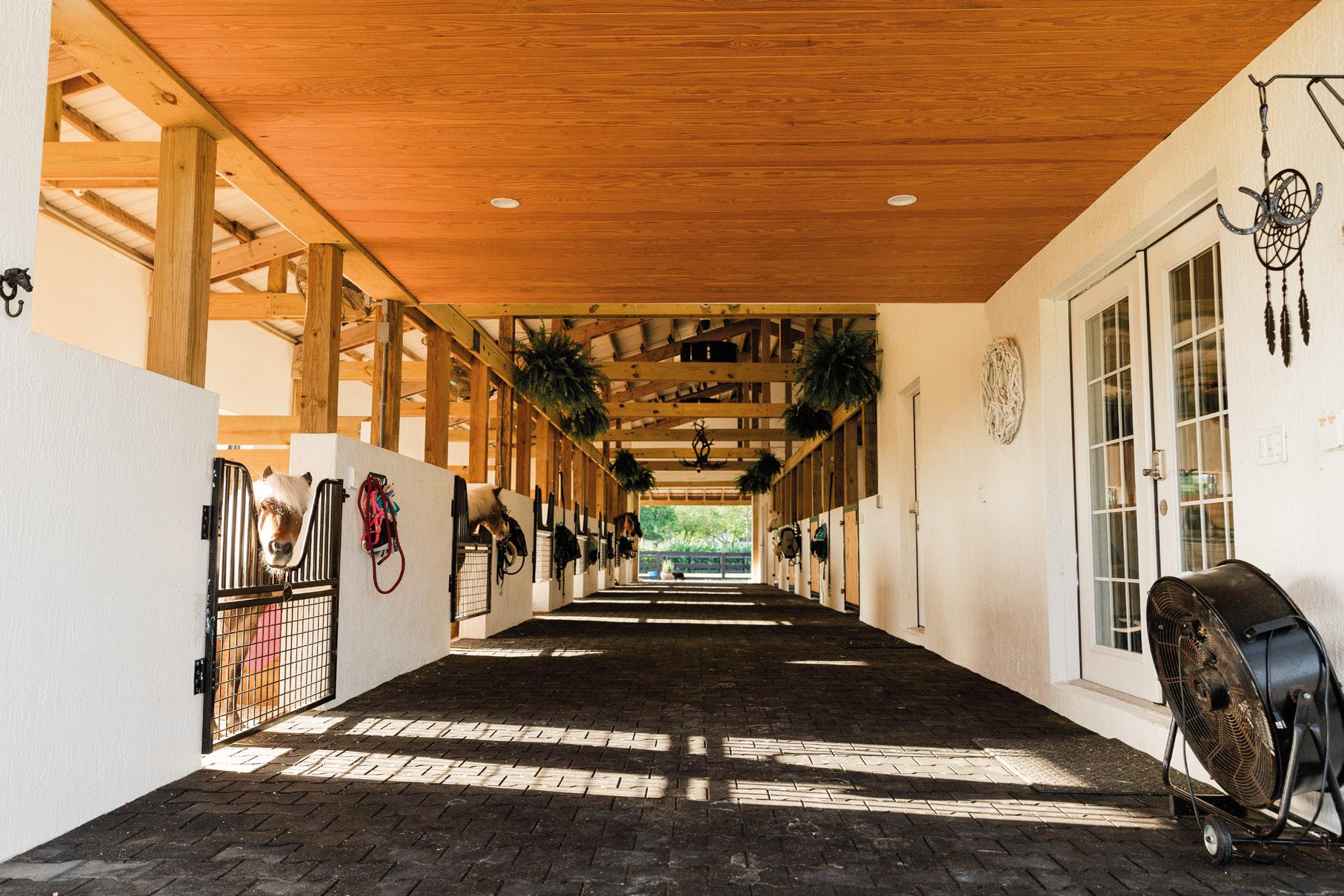

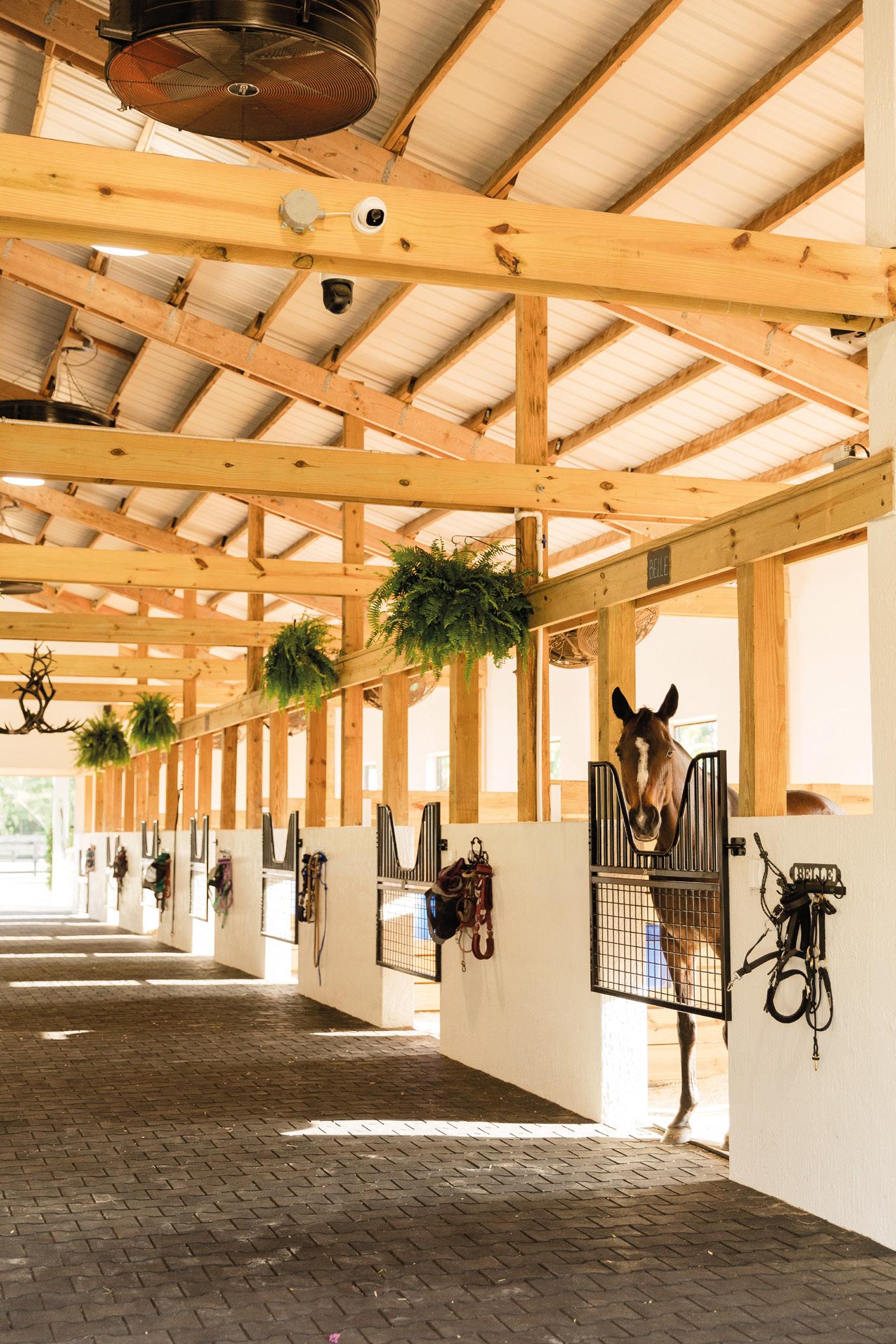

Rubber Pavers
INDIVIDUAL RUBBER PAVERS
Our Rubber Pavers are attractive ļ¬ooring, perfect for aisles and grooming areas. They are easy to install on sand, gravel, crushed stone, and concrete. Built from premium rubber, they oļ¬er durability and slip-resistant properties in all weather seasons while providing ample cushion for your horses' hooves.
SPECIFICATIONS
100% Recycled, Vulcanized Rubber
Paver Size: 7 3/4" x 6 1/4"
2 Thicknesses:Ā 7/8" & 1-3/4"
FEATURES & BENEFITS
ā¢ Excellent shock absorption and protection
ā¢ Resistant to bacterial growth and mold
ā¢ Slip-resistant even when wet
ā¢ Controls bacteria and dust
ā¢ Easy to install and maintain
ā¢ Recommend to installing it over a compact gravel base or concrete.
