AM-ES2-3

Sliding Front Hardware & Components

2 Latching Options are available for our Sliding Stall Fronts. Both options are machined from 304 stainless steel. Our latch options offer easy one-hand latching – while providing durable design:

Lock Latch – Includes Pin Latch, Holder, and Receptacle Flip Latch – Includes Flip Latch and Safety.

Stall Doors

Many clients choose to only add stall doors – instead of fully welded stall fronts. At American Stalls, we understand that each barn is unique. Stall doors are always a very personal choice since they are used dozens of times each day. That is why every single stall door is custom built to order.

Custom options include door bottom designs, shavings guards, different yokes, and so much more. Rest assured, your stall doors will be made to your design goals and lifestyle needs.

Options include, but are not limited to:

Mesh – 90º vented mesh

Round Bars – 1" round bars at door bottom

Bedding Guards Available: 4", 6", and 8"

15+ Yoke Options – Including removable yokes, hinged yokes, french yoke, and open yokes

Door Center & Bottom – Wood or steel center and bottom rails

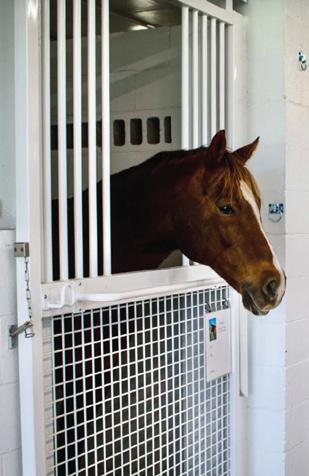

Sliding Stall Door Examples*

* Track system not drawn to scale.

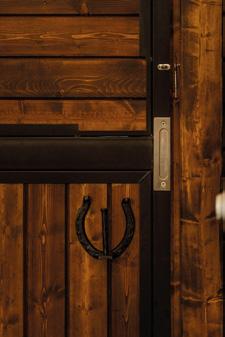

1K-H Sliding Stall Door Euro Arched Yoke. HGH Bottom (Center Name Plate, 1" Grills, & Shavings Guard).

1K-J Sliding Stall Door Hinged Fold-Down Rectangular Yoke. HGH Bottom (Center Name Plate, 1" Grills, & Shavings Guard).

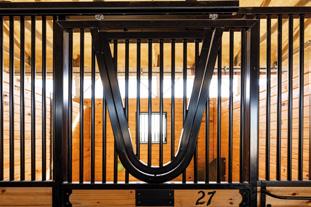

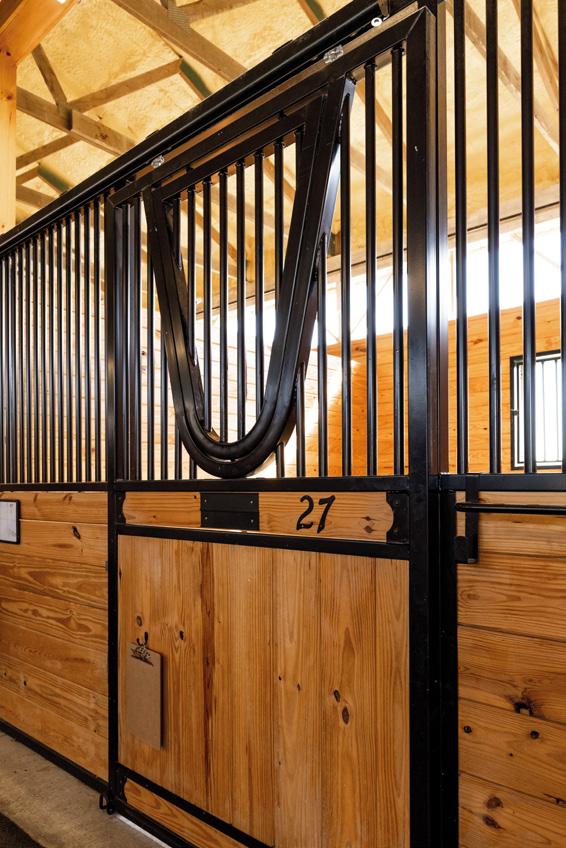

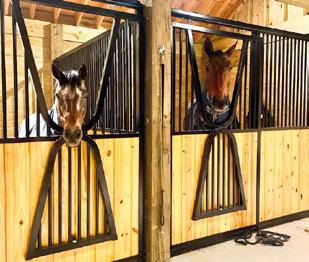

V-Yoke

1K-K Sliding Stall Door Grill Top. HVH Bottom (Center Name Plate, Vertical Lumber In-Fill, and Shavings Guard).

* Track system not drawn to scale.

Yoke Options

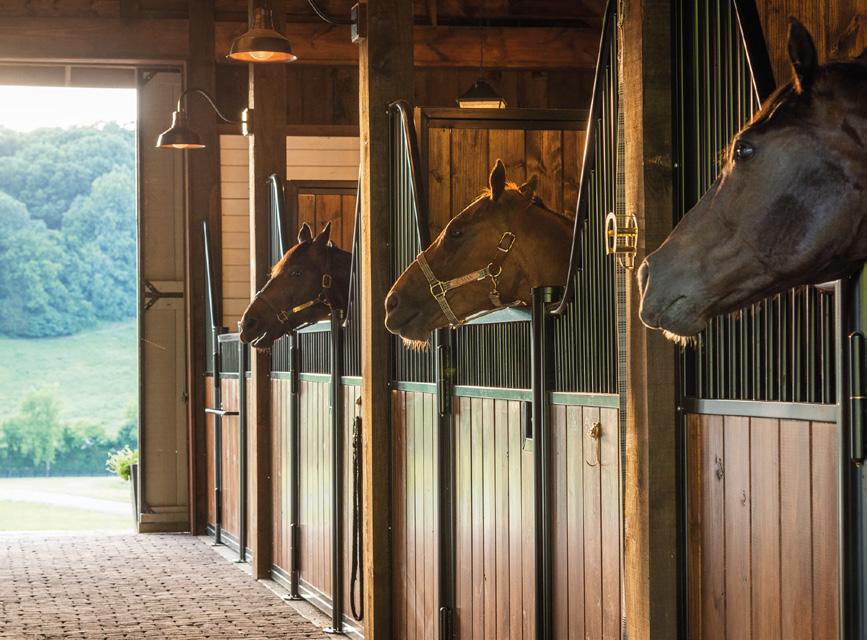

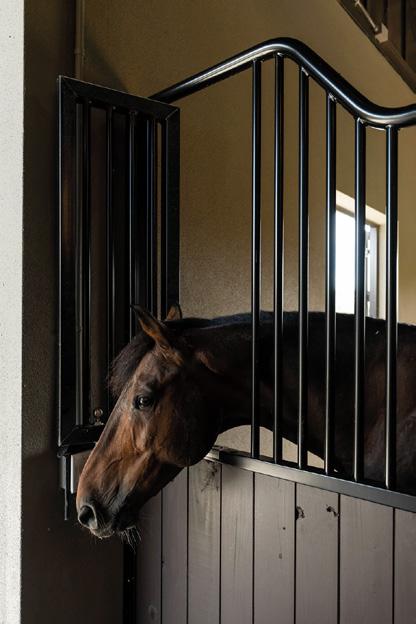

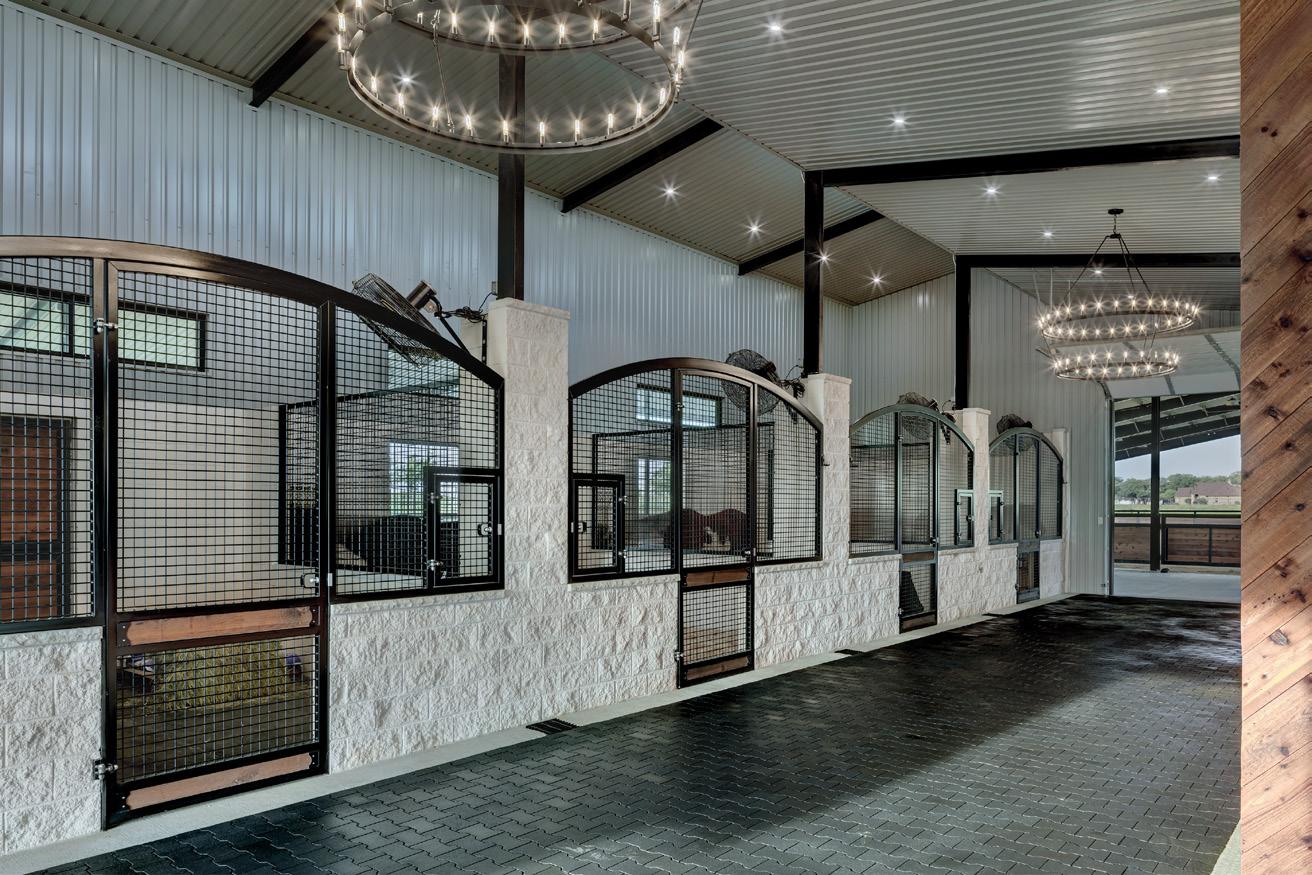

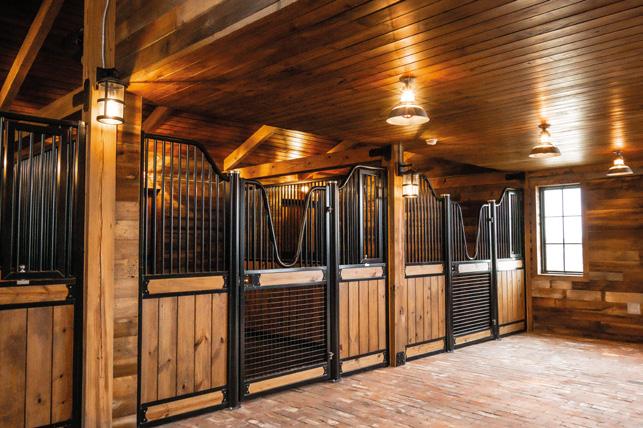

European Stall Fronts

HINGED STYLE

Swooping curves, graceful design, and heavy-duty hardware define our European stall fronts. These stall fronts are functional as they offer your horses maximum socialization and ventilation. They also provide your barn a sophisticated, old-age look and feel.

Our hinged stall fronts are equipped with heavy-duty stainless steel rod hinges that are fully adjustable serviceable. Our easy-to-use plunger latch prevents pinched fingers or doors stuck in a closed position. The sky is the limit when it comes to designing your European-styled stall fronts.

STEEL FABRICATION

Steel: 100% United States made, 50ksi high tensile strength steel

Frame: 14GA 2”x2” square tube

Posts: 7GA 4-1/2" Round Posts

Euro Wings & Yoke: 1.9" round tube

Upper Bars: 1 round tube on 3 centers (2 between bars) on upper bars

Lower Bars (Optional): 1" round tube placed on 2.5" centers

1.5" punched u-channel

THE FINISH

Steel Treatment: Pre-galvanized steel

Powder Coat: Custom TGIC polyester powder coat

Our zinc flow-coat galvanization has 30% more galvanization inside and out. All powder coating done in-house using rigorous quality control process.

HINGES & LATCH

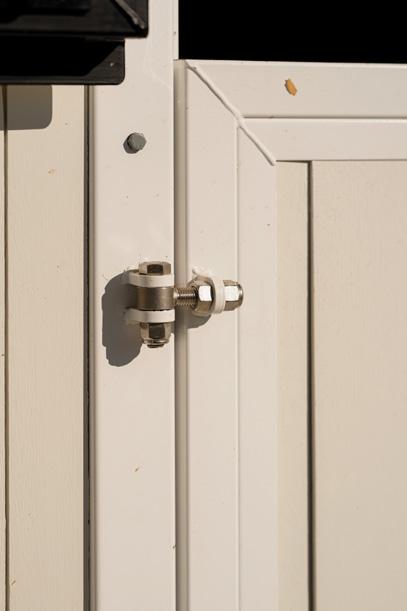

Hinges: Rod-end hinges that are fully adjustable (304 stainless steel)

Latch: Spring loaded plunger latch (304 stainless steel)

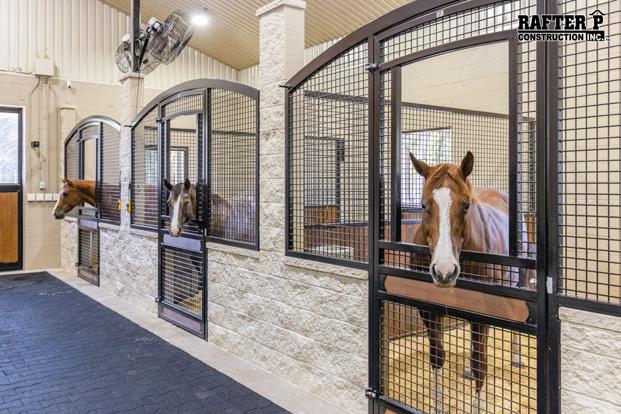

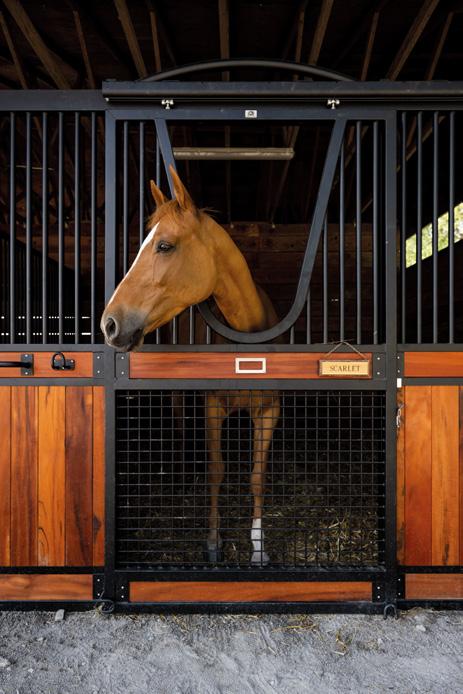

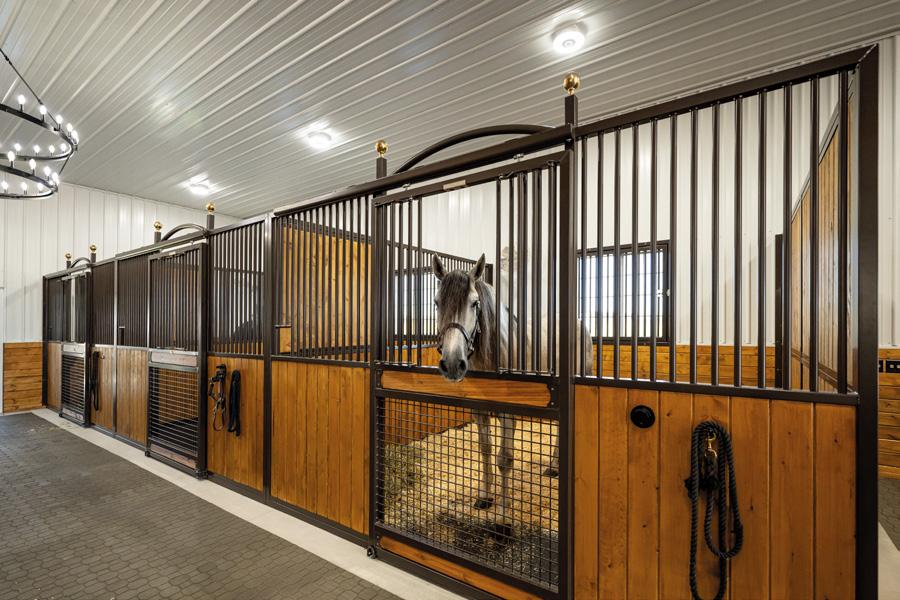

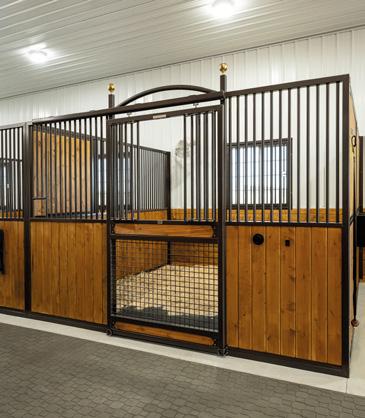

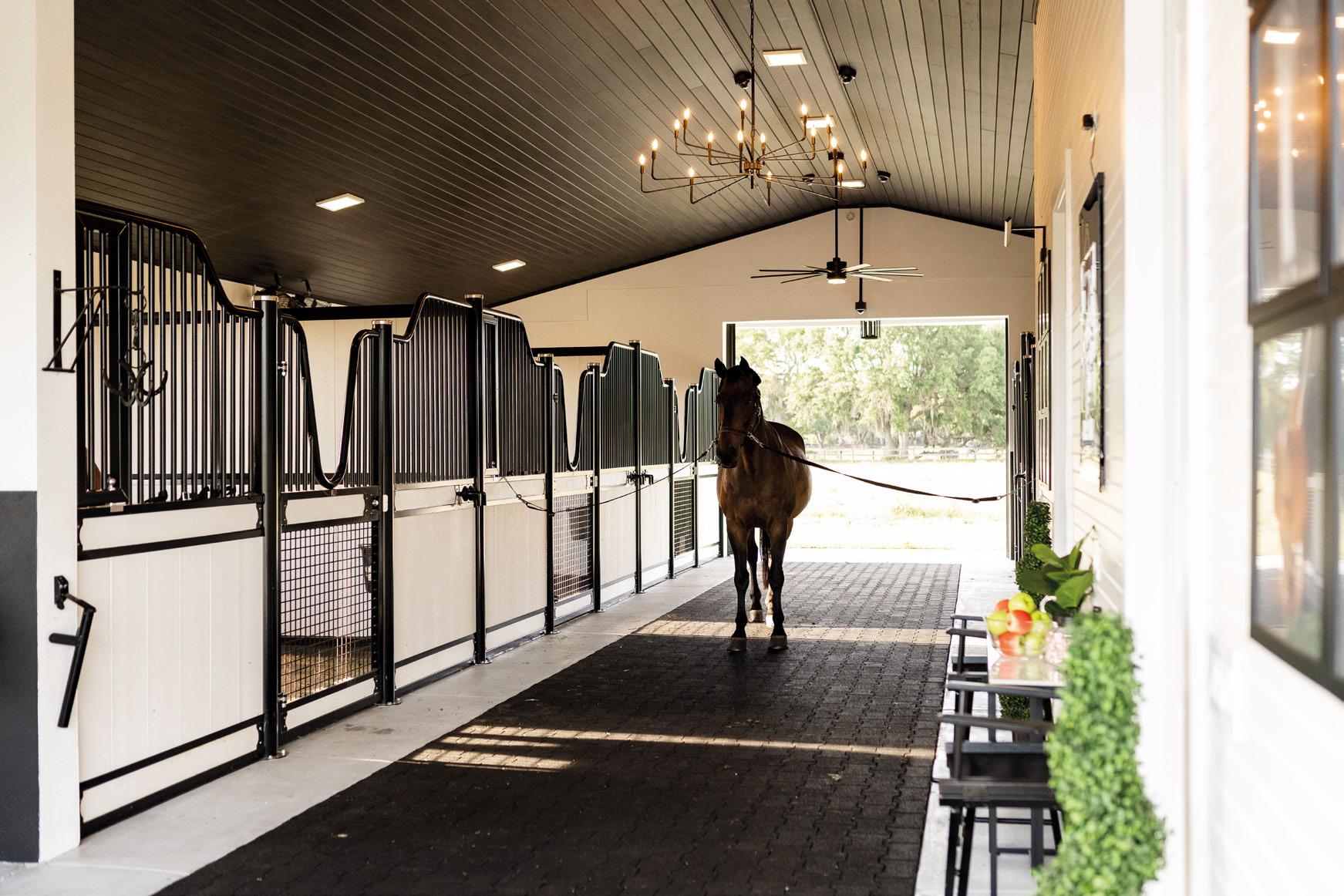

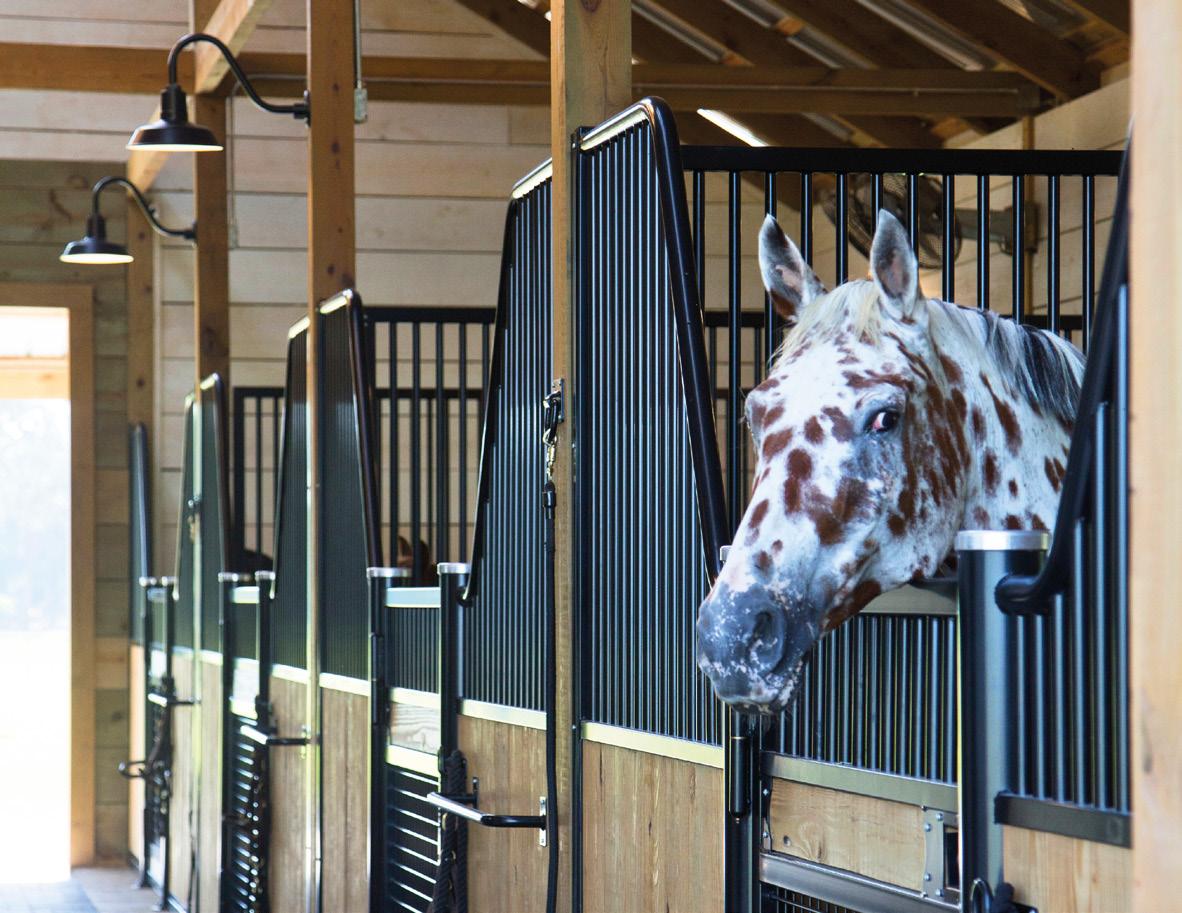

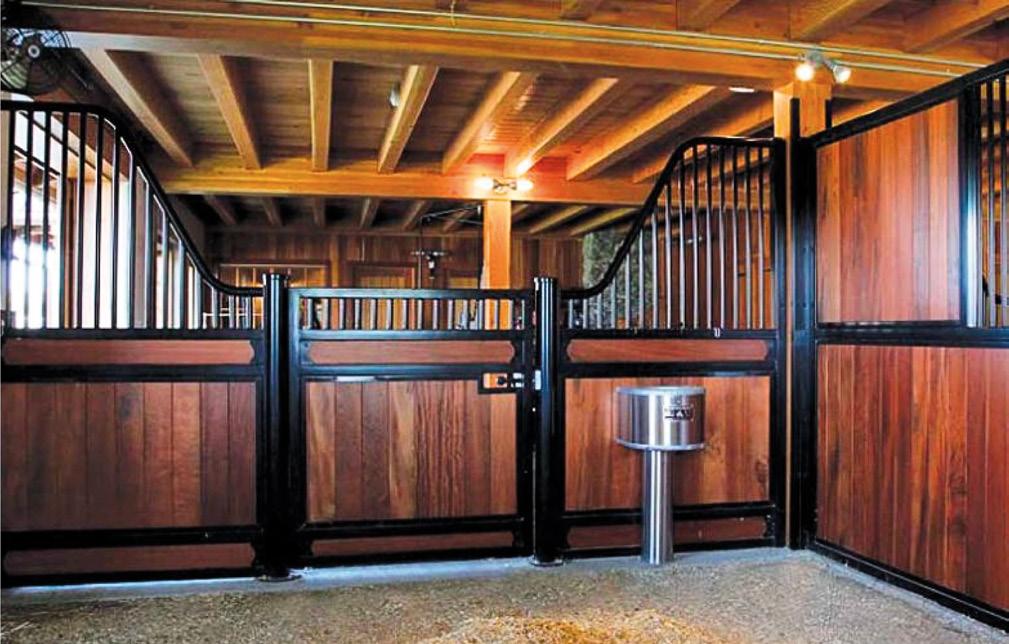

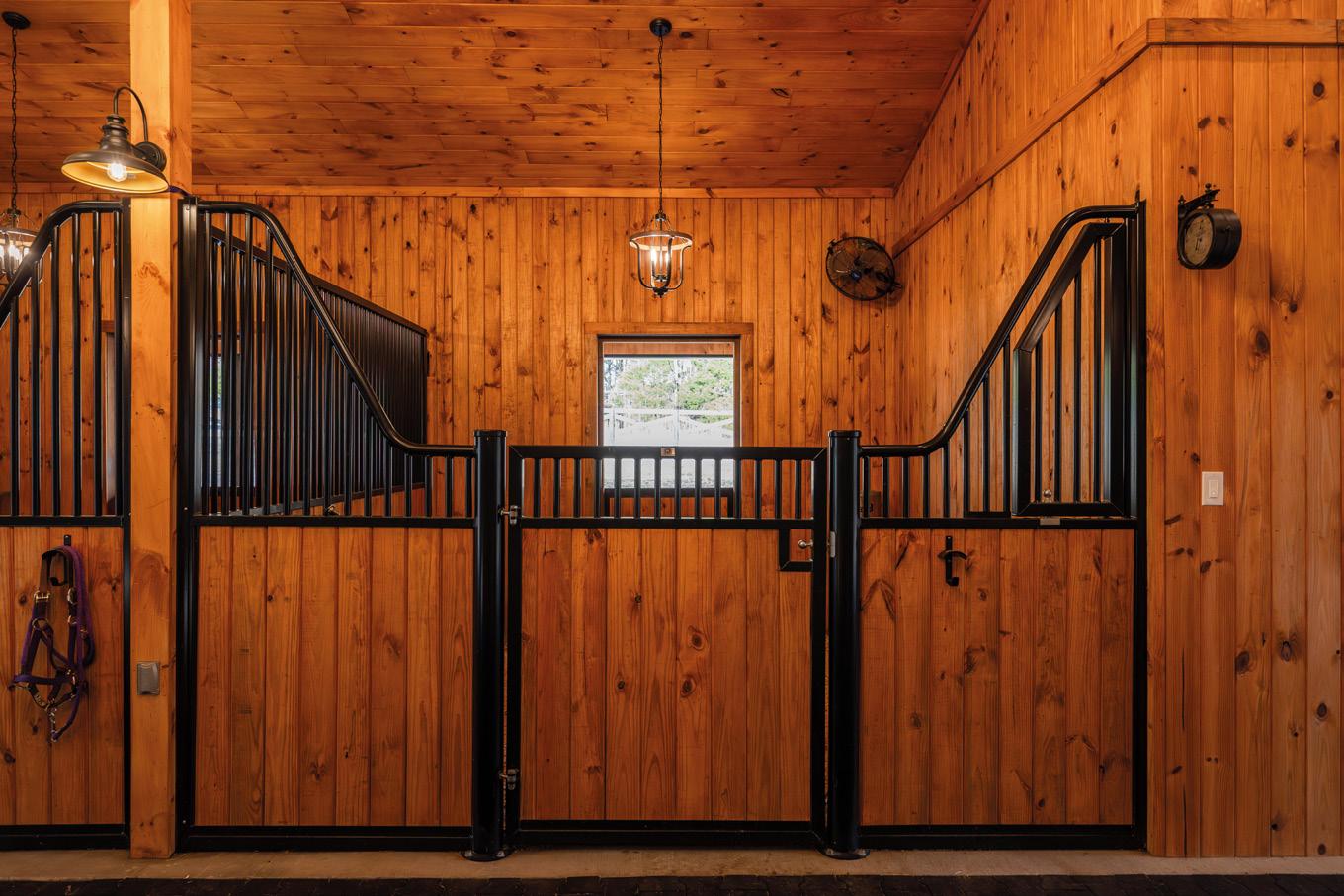

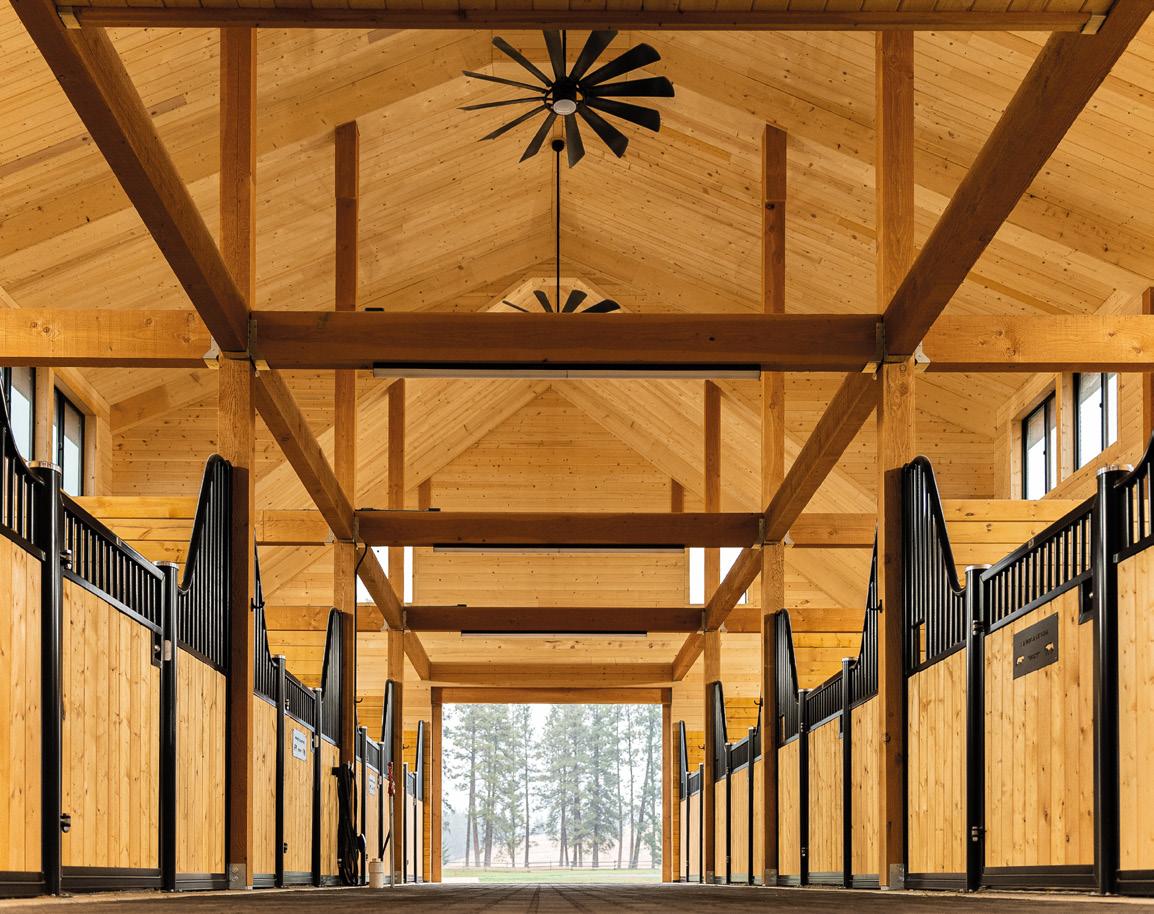

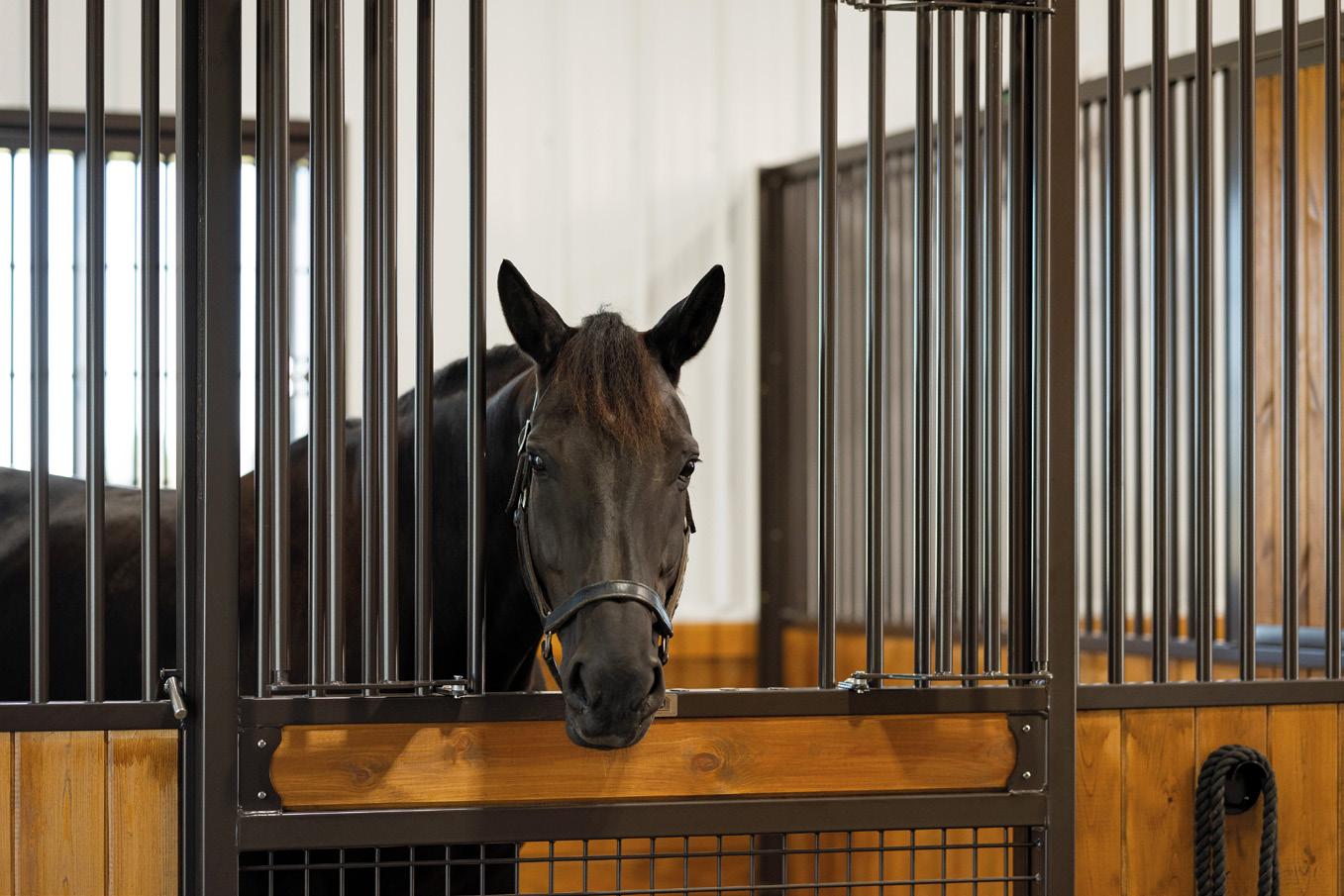

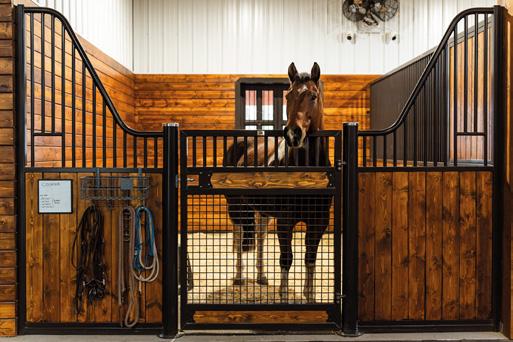

European Stall Front Examples

European Stall Front Examples

Need More Design Options?

European Front Hardware Components

Design Options for Stall

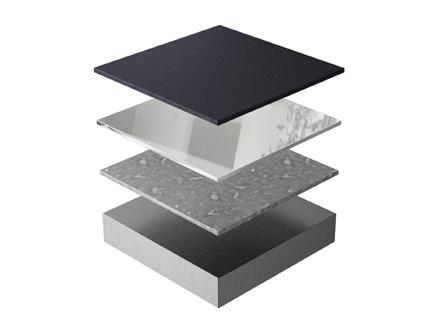

Crafted Foundations & Finishing Touches

LASTING PROTECTION, ELEGANT FINISH

Our equipment is engineered to endure the test of time in function and finish. We start with 14-gauge steel as the foundation for strength and structural integrity. This base is then galvanized to prevent rust and corrosion. For enhanced protection, we offer an optional zinc primer layer before applying our durable powder coating, available in a variety of elegant colors.

Each layer is designed to protect your investment and maintain the beauty and performance of your barn for years to come.

Color Options

Our TGIC powder coat finishes not only elevate aesthetics but also offer exceptional durability against the elements.

Choose from a curated palette of timeless shades, or let us match a custom color to complement your barn’s unique character.

Mineral Black

Storm Grey

Electric Grey

Sandalwood

Signal White

Statutory Bronze

Pine Green

Moss Green

Cabernet Red

Chestnut Brown

Looking for something different? We can closely match any custom color to help you achieve your ideal look.

Filler Options

The filler you choose defines not only the look of your stall fronts but also their functionality, strength, and longevity.

At American Stalls, we offer a range of premium infill options, each selected for its durability, safety, and aesthetic appeal.

DOMESTIC LUMBER

Our Southern Yellow Pine is sourced responsibly and selected for its strength, natural beauty, and ability to accept a stain of your choice. A classic choice that complements both traditional and modern barns.

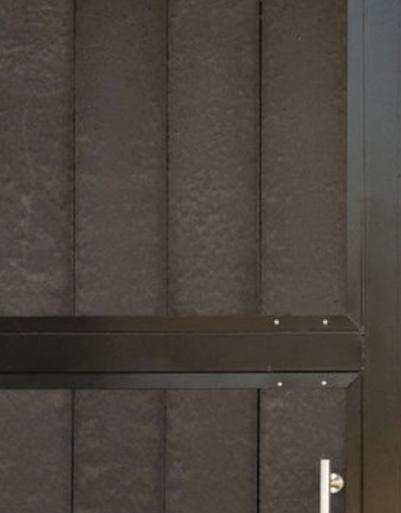

HDPE LUMBER FILL

Ideal for high-use facilities, HDPE is a low-maintenance, non-porous alternative to traditional lumber. This tongue & groove fill offers excellent durability, biosecurity, and a clean, sleek appearance, perfect for training and breeding barns.

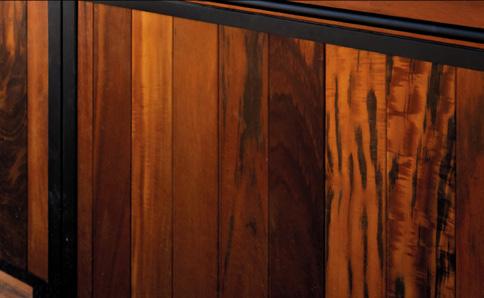

EXOTIC HARDWOODS

For clients seeking a sophisticated finish with unmatched durability, our Brazilian Hardwood is the premier choice. Known for its rich, natural tone, it also boasts exceptional fire resistance and insect deterrence.

Each option is thoughtfully selected to meet the diverse needs of high-end equestrian facilities—balancing beauty, function, and long-term performance.

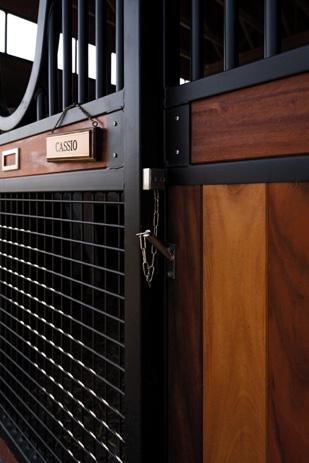

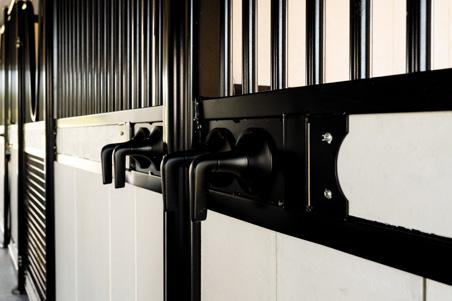

Latch Systems

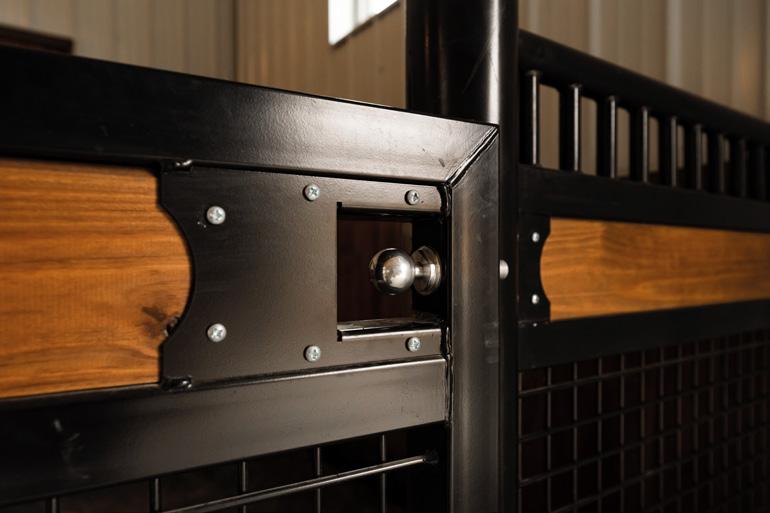

PIN LATCH & PLUNGER SYSTEMS

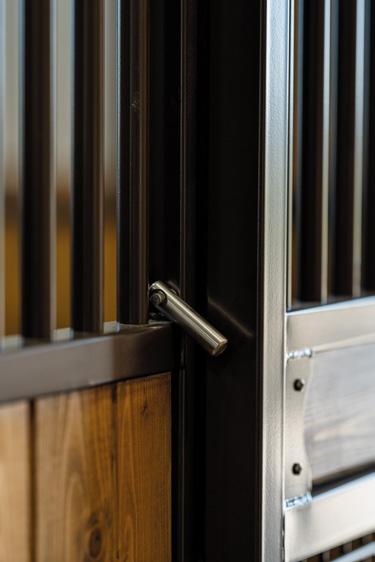

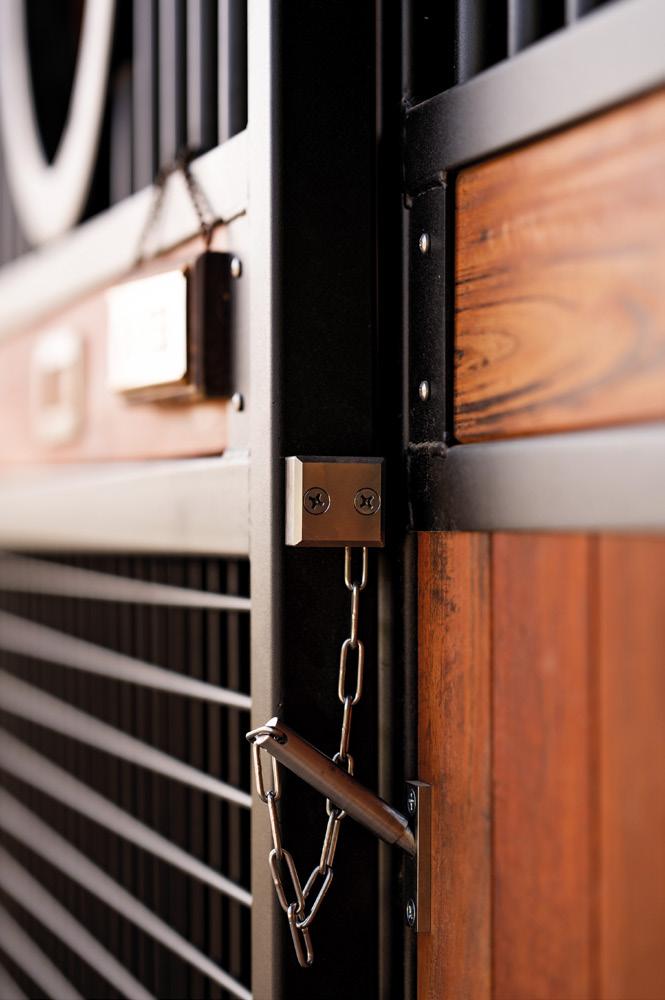

Pin Latch – Sliding horse stalls include our pin latch made of ½” thick stainless steel. When the door is closed, the pin latch is stored at a 45º angle inside a wall sheath that is bolted either on the stall front or tongue and groove. When the door is in use, the pin latch is safely secured inside the pin provided pin receptacle.

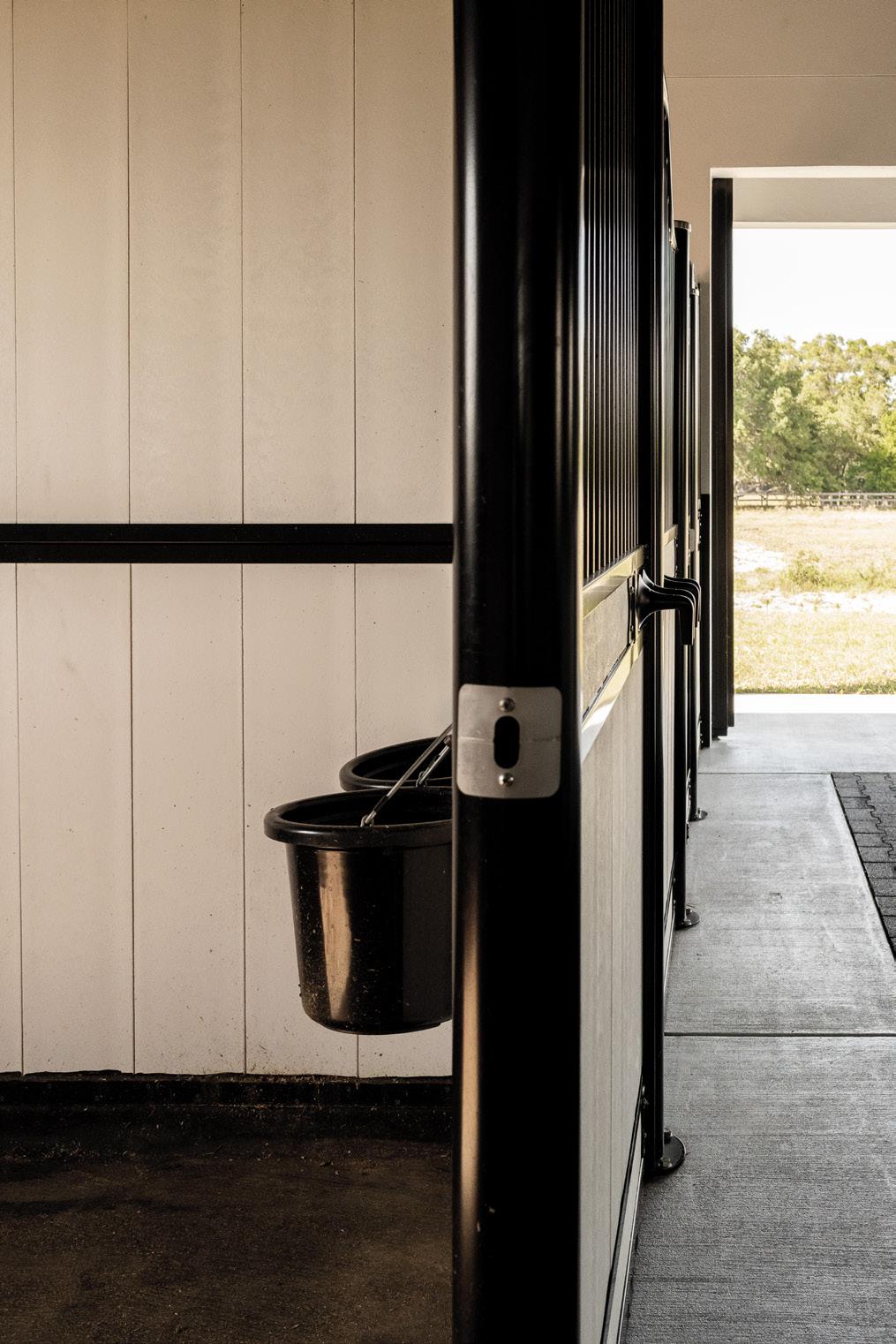

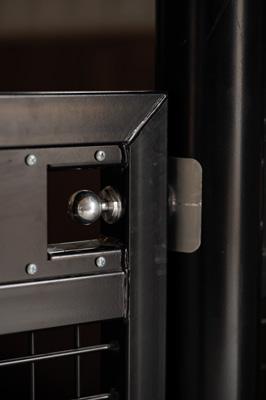

Plunger Latch – European (hinged) stall fronts use our spring loaded plunger latch. This plunger comes with a striker plate to accept plunger latch when door is closed.

Flip Latch – Our Flip Latch is a streamlined, heavy-duty solution designed for Sliding Horse Stall Doors. Constructed from galvanized steel for superior resistance to rust and corrosion, each latch is then powder-coated to match your stall door finish, ensuring a cohesive, polished look across your barn. Its simple flip mechanism allows for quick, secure locking and unlocking, even with gloved hands. Designed to withstand daily use in high-traffic barns, it maintains a tight hold while preventing accidental opening by horses.

Gravity Latch – The Gravity Latch is a sleek, automatic locking solution designed with your horse’s safety in mind. Our Gravity Latch utilizes the force of gravity to secure the stall door as it closes, eliminating the need for extra steps. Built from heavy-duty steel, it prevents horses from pushing doors open, offering peace of mind and effortless function in every stall. (no image yet)

Feed Systems

STALL FRONTS

Grilled Feed Door – This feed option blends into your Stall Front design to allow you to feed your horses from the comfort of your aisle. Simply open the door using our Stainless Steel Plunger Latch to place hay and other feed into your horse's stall.

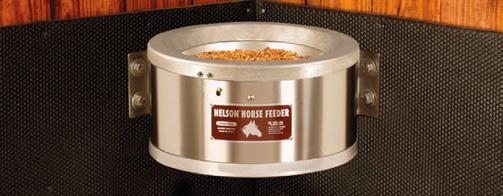

Swivel Feeder & Feed Bowl – Our Swivel Feeder is a steel-framed door with lumber-fill. On the back is a Stainless Steel feed bowl. This options allows you to seamlessly provide grain and feed from the comfort of the aisle.

Feed Hole – This option is complimentary on all of our horse stall systems. It is simply a welded hole opening in the grill portion of your stall front. It allows you to seamlessly add grain through the opening and into the horse stall.

Water Systems

STALL FRONTS

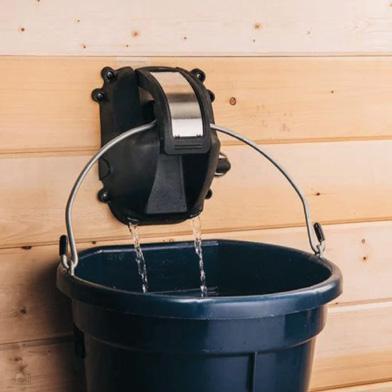

Cascada Automatic Watering System

Our Cascada Automatic Watering system utilizes a contactless sensor, rather than a float or lever, to fill your water buckets perfectly every time with unrivaled reliability and convenience. It can track and learn your horses’ normal drinking behavior, then analyze and display it to you anywhere in the world via the App on your phone.

Water Systems

STALL FRONTS

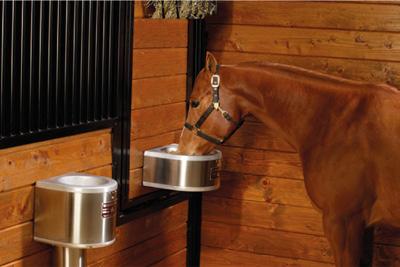

American Stalls offers the industry-leading Nelson Automatic Waterers – a must for both the stall and pasture. Each waterer features durable construction – including stainless steel and aluminum. It features mindful design such as a removable drinking bowl for easy cleaning.

Available in various mounting options – including wall mounts and free-standing options. Contact your American Stalls Project Manager to determine which is the best waterer for your barn. All waterer systems include a limited 3 year manufacturer's warranty.

Water Systems

STALL FRONTS

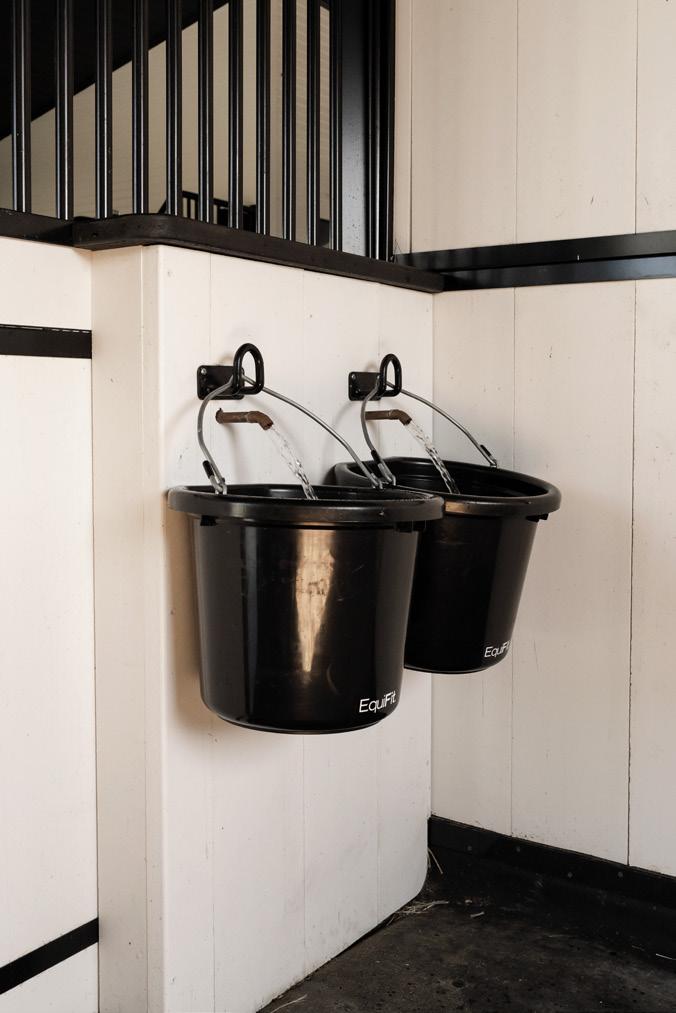

Integrated Water Lines

This water system allows you to integrate your water lines into your stall front's interior steel channels – allowing you to fill water buckets from the aisle. Pre-drilled holes allow you to install water switches on the stall exterior while spouts are placed on the stall interior.

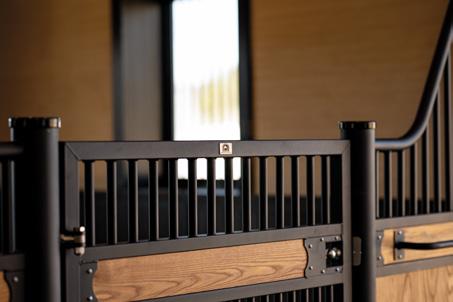

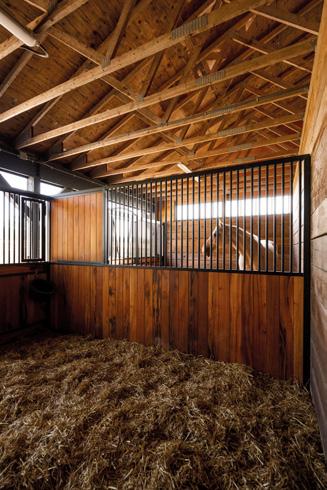

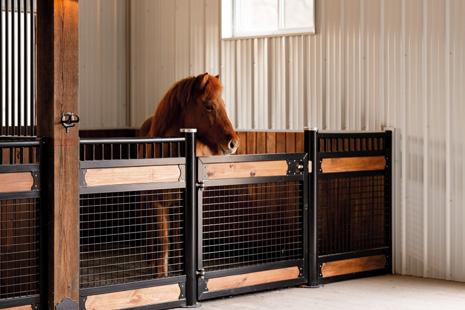

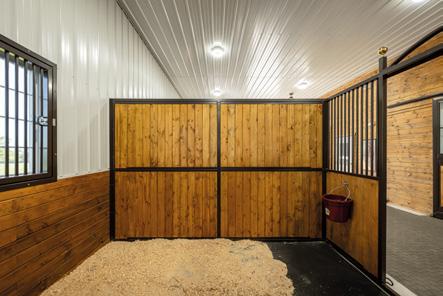

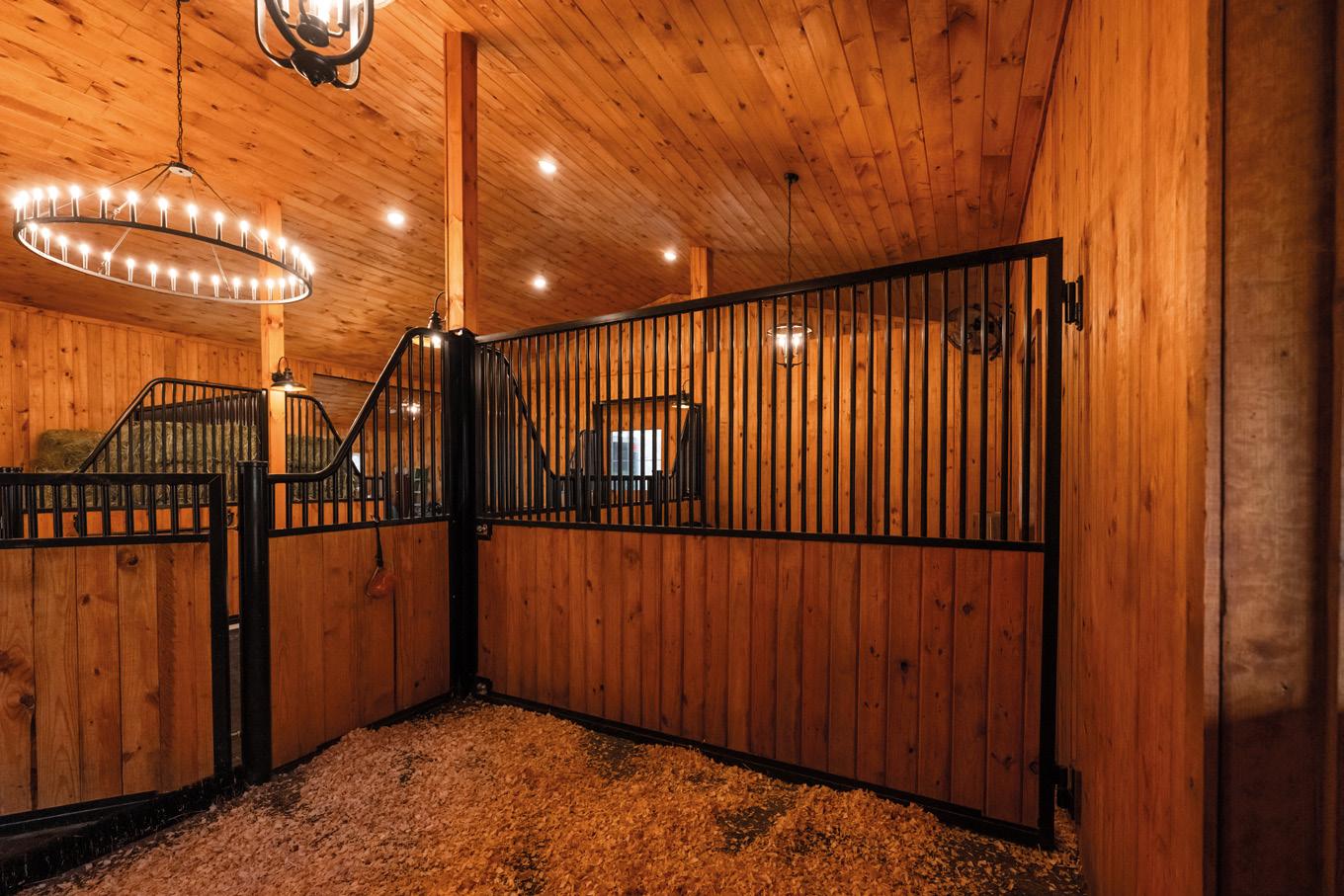

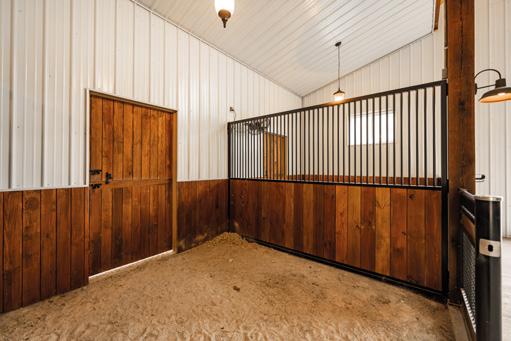

Stall Partition Examples

Stall Partitions

Our horse stall partitions are built in various styles to meet your design and function needs. When making your decision on the design, you should factor in the following elements:

1. The climate in your area

2. The temperament of your horses

3. The operational style of your facility

4. The primary use of the stalls

STEEL FABRICATION

Gauge: 14GA United States steel

Frame: 2”x2” square tube

Upper Bars: 1” round tubes on 3” centers (2” between bars) 1.5" punched u-channel

Hinged partition available to make foaling stalls (i.e. 12'x24')

THE FINISH

Steel Treatment: Pre-galvanized steel

Powder Coat: Custom TGIC polyester powder coat

Superior Protection: Our zinc flow-coat galvanization has 30% more galvanization on tubing, both inside and out. All powder coating is then done in-house using rigorous quality control process.

All Fully Welded Partitions can also be built as Kit Partition.

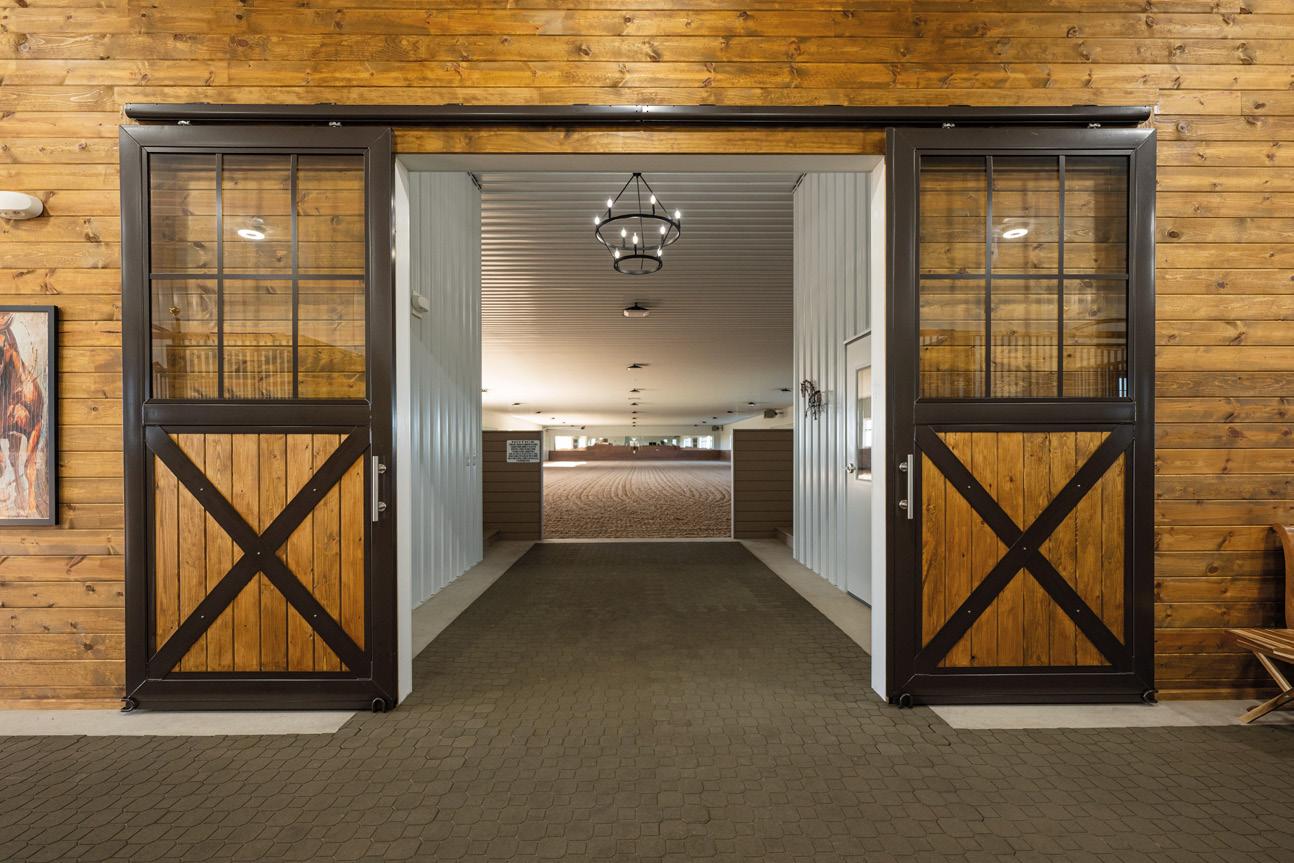

Barn Entry Doors

HINGED / SLIDING

Your Barn Entry Doors are the first thing you see when entering a barn. They also welcome your horses home. This is why your Barn Doors should operate with ease – all while making a statement.

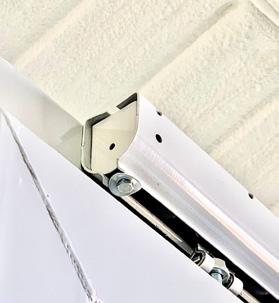

Our Barn Entry Doors use our high-quality steel and industry-leading track system. This combination ensures durability and outstanding protection.

We guarantee that our Barn Entry Doors will glide with easy for years to come – no matter how large your Barn Doors are.

Choose from dozen of custom options to make your Barn Doors unique to your barn. Choose from glass designs, welded cross bucks, and different fills.

Make a statement with a stunning custom barn door from American Stalls.

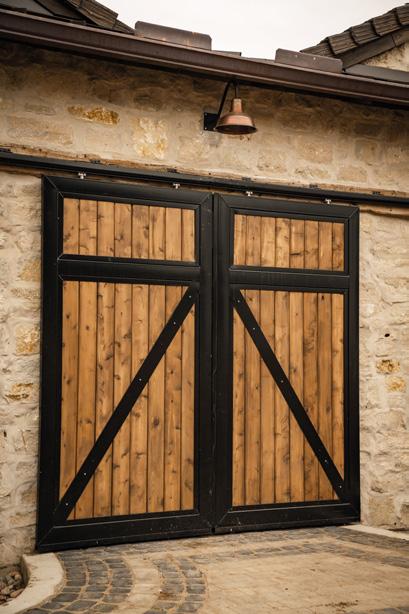

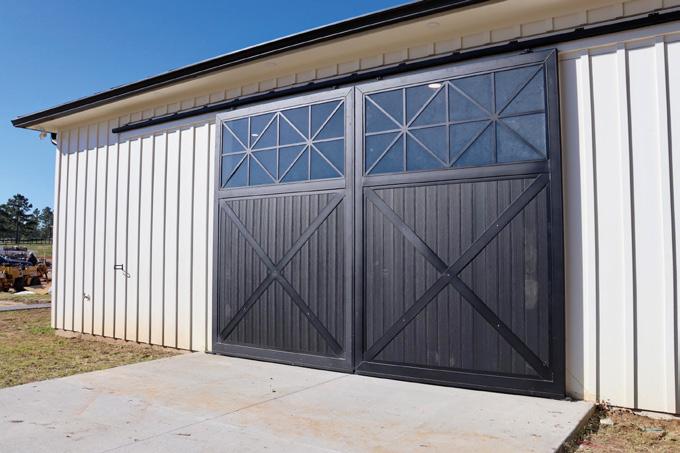

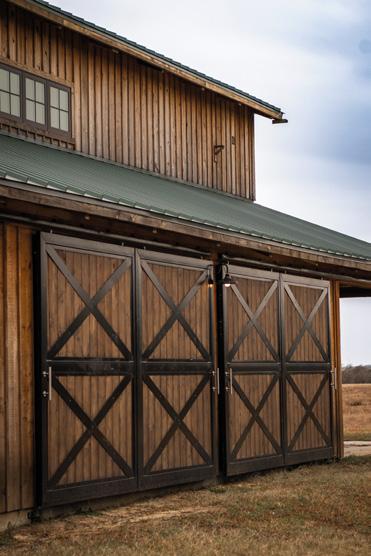

Barn Entry Doors

Make a statement for your barn’s entrance with our Barn Entry Doors. We customize barn doors to look and feel how you would like. Choose from endless finishes, designs, and the ability to embed your logo into our doors. Each Barn Entry Door is tailored to meet your design and function needs.

STEEL FABRICATION

Steel: 100% United States made, 50ksi high tensile strength steel

Frame: 14GA 2”x2” square tube

(2"x3" and 2"x4" available upon request)

1.5" punched u-channel

U-channel accepts standard grade construction kiln-dried lumber size (2'x6' or 2'x8')

U-channel built with 14GA steel

THE FINISH & DESIGN OPTIONS

Steel Treatment: Pre-galvanized steel

Powder Coat: Custom TGIC polyester powder coat

Our zinc flow-coat galvanization has 30% more galvanization inside and out. All powder coating is done in-house with rigorous quality control.

4" welded cross bucks available

Installed, tempered glass available

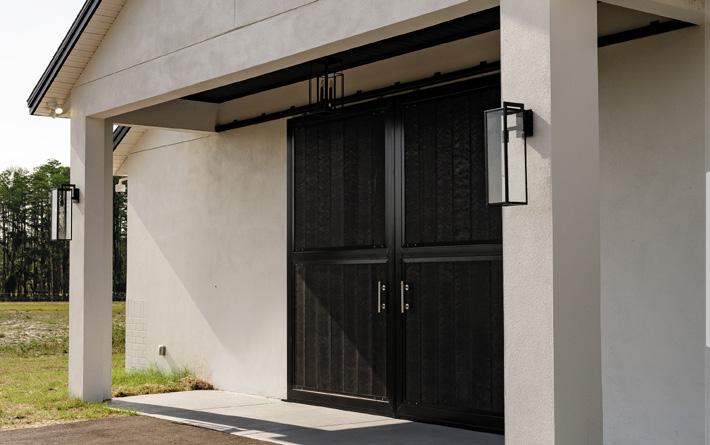

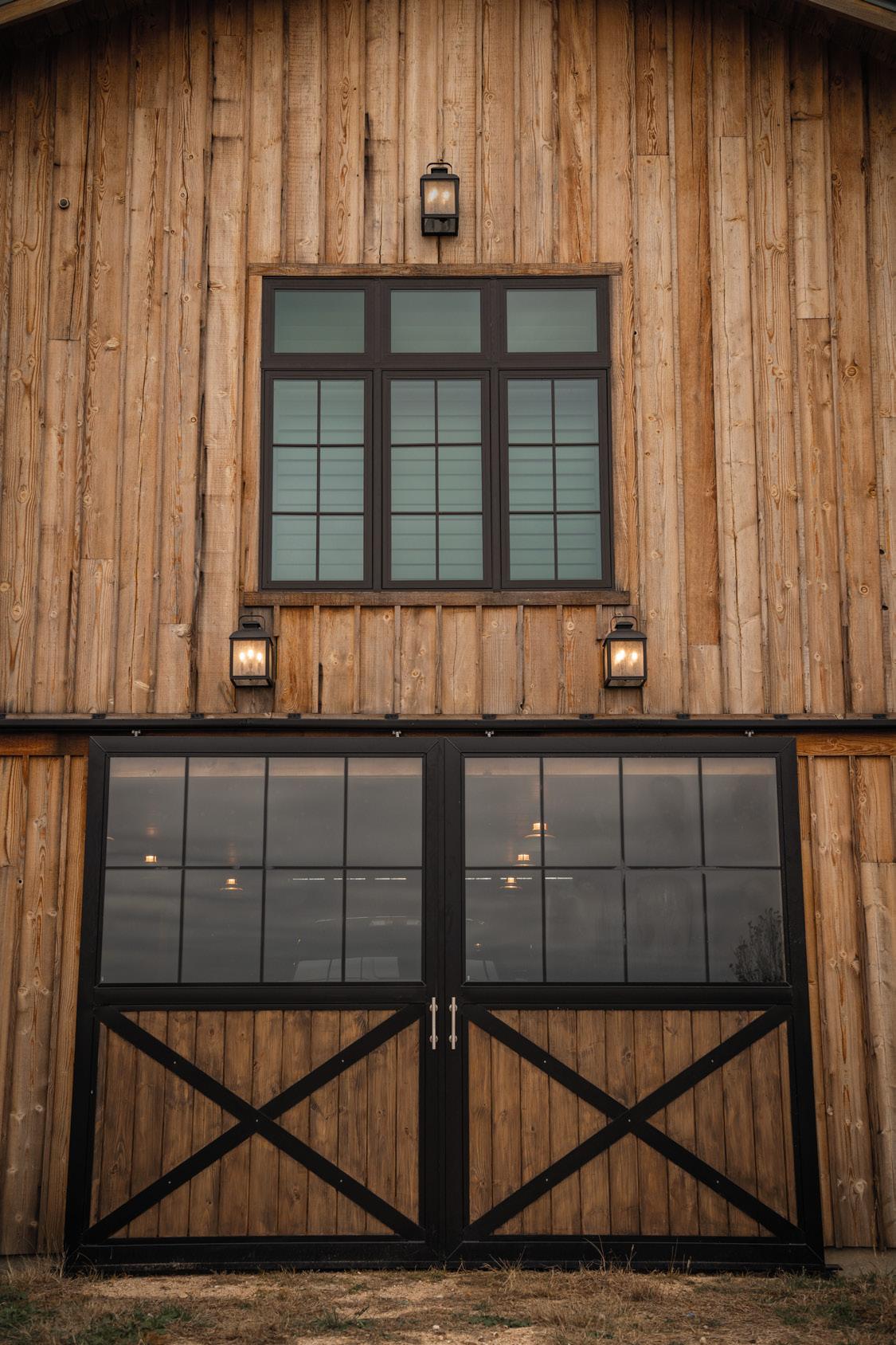

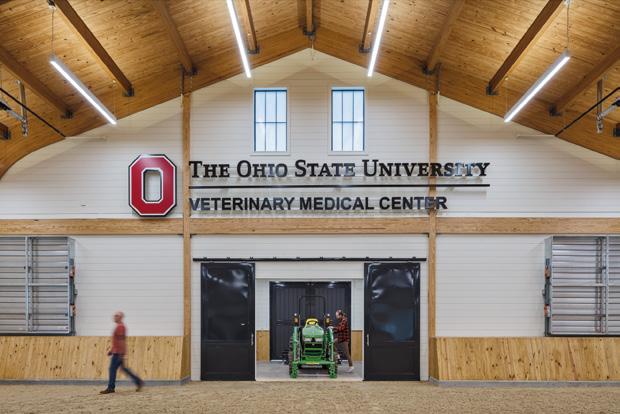

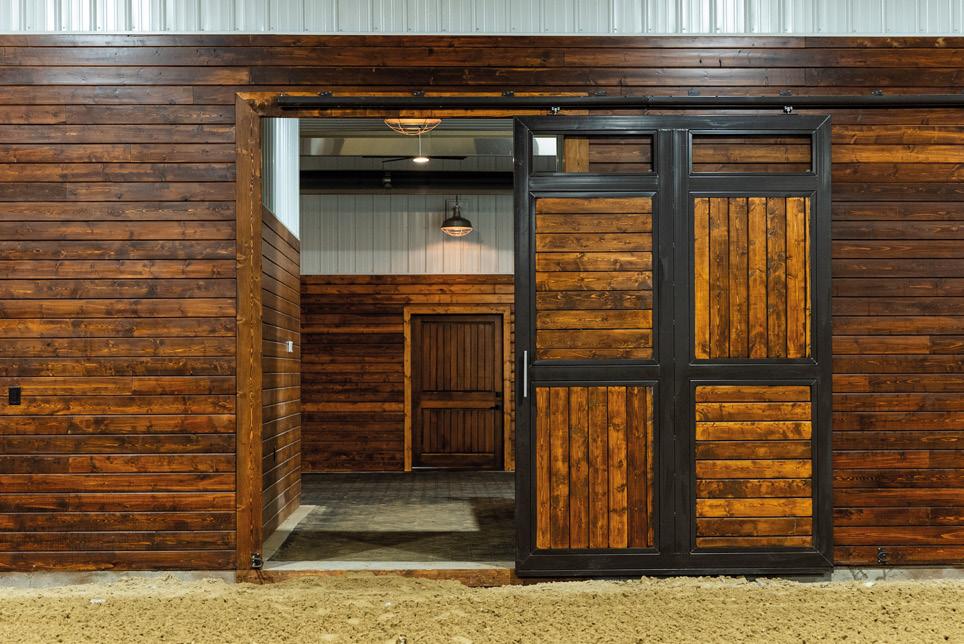

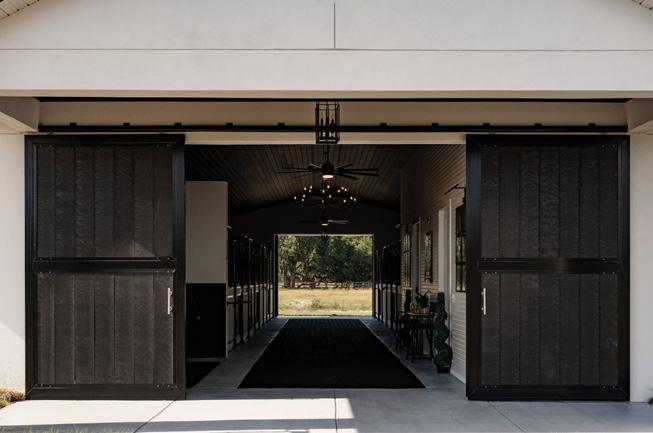

Barn Entry Door Examples

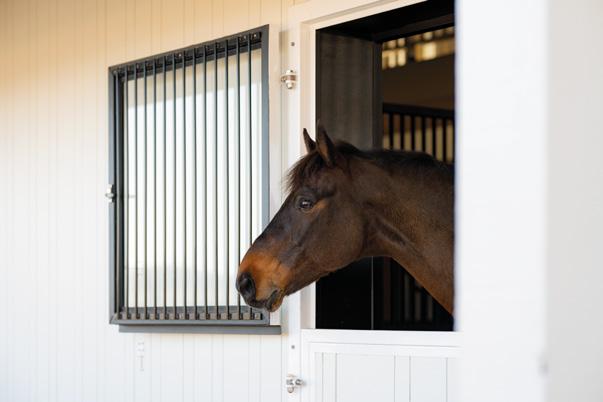

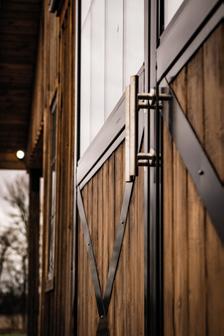

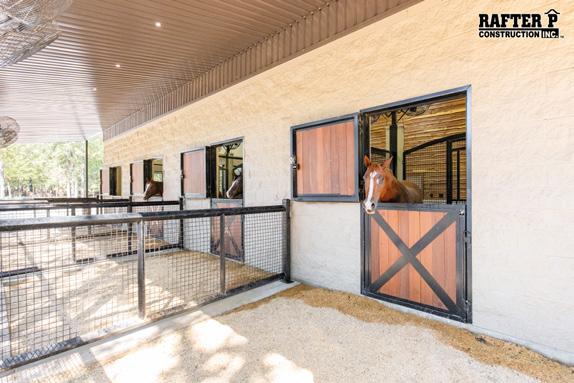

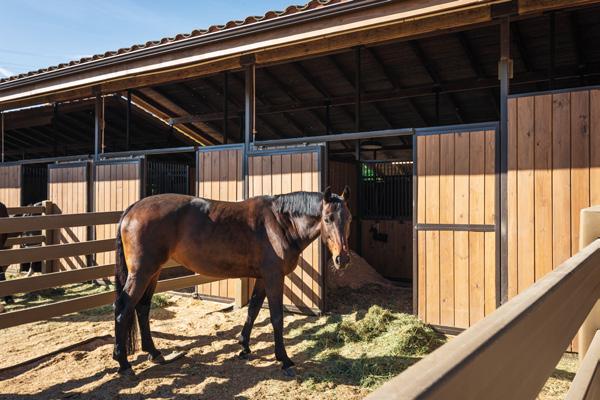

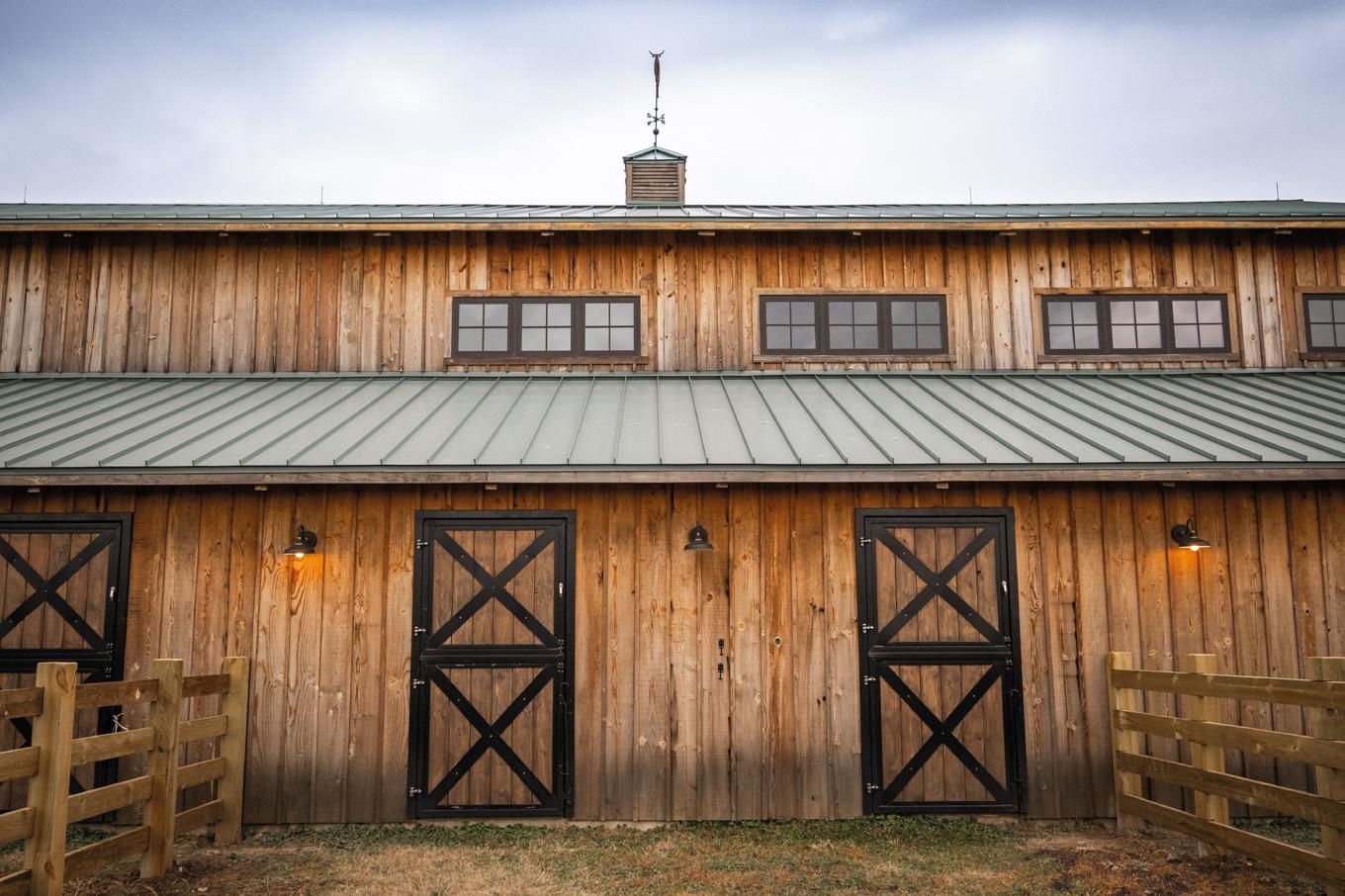

Exterior Barn Doors

DUTCH DOORS / PADDOCK DOORS

Dutch doors are the one of the most versatile options to add to any barn. Dutch Doors add style, ventilation, and sunlight to your barn.

Our doors are solid welded and come pre-hung for easy installation. Our latch systems are made from galvanized steel. They are fully manufactured for maximum durability to the elements and rigors of any working barn.

Doors can be opened from either the inside or outside. We also build single-hinged doors that can be used as entry doors. Lastly, we also manufacture sliding paddock doors – using the same high-quality track systems as our barn end doors.

Rest assured, our steel-based, exterior doors are built to last.

Dutch Doors & Paddock Doors

Dutch doors (and sliding paddock doors) are the one of the most versatile options to add to any barn. They add key functions including:

Elegance. Provide your barn that classic American look and feel. Ventilation. Gives the opportunity for more cross ventilation in each horse stall unit.

Safety. Allows for direct exit from each stall in the case of an emergency.

STEEL FABRICATION

Steel: 100% United States, 50ksi high tensile strength steel

Frame: 14GA 2”x2” square tube

1.5" punched u-channel

U-channel accepts standard grade kiln-dried lumber size (2'x6' or 2'x8')

U-channel built with 14GA steel

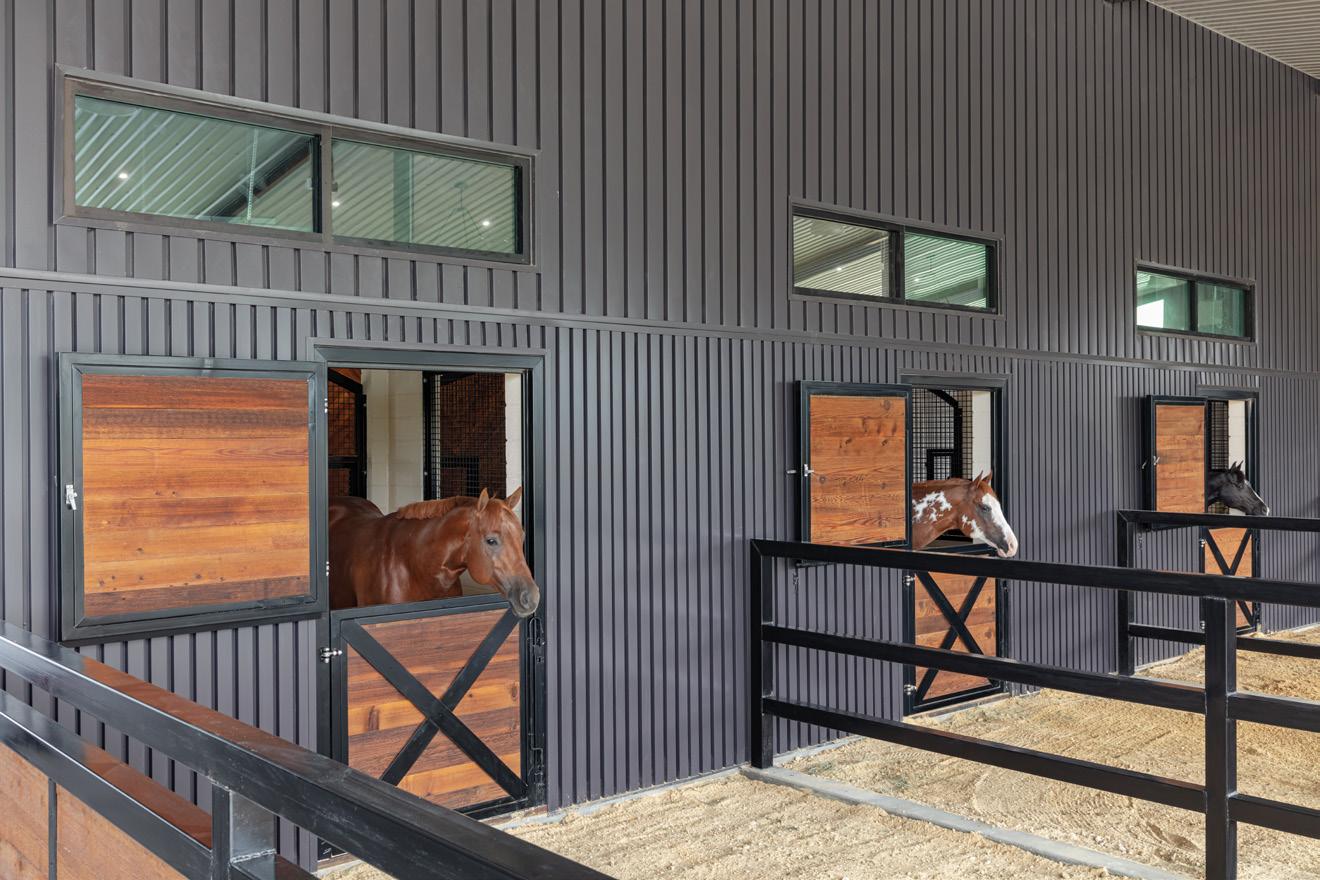

Exterior Barn Door Examples

Note: All Dutch Doors with Glass-Tops include Protective Grill Guards behind Tempered Glass
