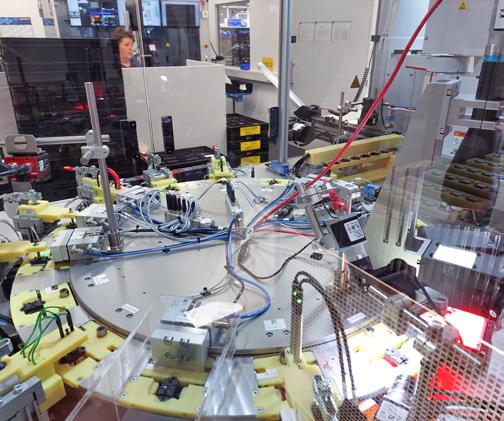

State-of-the-art production lines
Miba produces resistors using state-of-the-art standards at its facilities in Kirchbach-Zerlach (Austria) and Dongguan (China). Both locations feature advanced automated manufacturing machines to ensure a seamless and efficient production process.
Our high level of automation and stable, standardized production processes are a decisive quality factor, especially in the production of resistors for the automotive industry. From the receipt of raw materials to the final product coming off the production line, automation is seamlessly integrated into every step of the process. Our state-of-theart facilities feature automated material printers, soldering machines, wire bending machines and much more - all carefully linked together in a flawless clean room environment to ensure the highest level of quality.
We ensure the highest quality
We strive for excellence in quality. After our products are manufactured fully automatic in a clean room environment, each one is thoroughly tested in our automated end-of-line tester. Weight, size, ohmic value, load, insulation and much more are checked to ensure that we always deliver first-class quality. Following this, the resistor is printed on the underside with a thermal paste, enabling easy and swift integration for the customer.
Miba products are built to last
Our resistors are designed for up to 300000 precharge or discharge cycles. Our high quality standards are also confirmed by numerous certifications: Miba is ISO 9001, ISO 14001, IATF 16949 and TISAX certified. Our products are designed to meet the high requirements of AEC-Q200 and are ideally suited for the automotive industry.
Highly reliable PREcharge and DIScharge components for safe and secure operation
Electrically powered vehicles have various electrical energy sources. In addition to the HV-drive battery, capacitors are installed in different modules such as drive inverter, DC-DC converter and much more. The largest capacitor is located in the drive control unit, also known as the drive inverter.
PREcharge Resistors
DIScharge Resistors
Customized Resistor Solution
We develop the optimal resistor solution for you
Throughout the entire development process, from concept development to final implementation, we work closely and transparently with our customers. This allows us to respond flexibly to customer
Electrical connection
Electrical connection of the power resistor is important and differs for every customer requirement. Thus, our power resistors are designed for maximum flexibility. FAST-ON, wires, solder pins, screws, press-fit or any other are possible.
requirements and offer customized solutions. Regardless of whether it is a more compact design or specific material requirements. We will be happy to advise you!
Press-fit
Ceramic plate
Pre-applied thermal paste
Heat sink
Our DIScharge resistors require a heat sink connection to ensure the optimal heat dissipation. This is crucial to provide the promised resistor power. We offer power resistors with or without a copper
More than one power resistor
Most of our resistor housing capabilities offer plenty of room to add more functions. We are happy to fulfill your specific requirements for the product. In addition to the active DIScharge resistor, we are also prepared to implement the passive DIScharge resistor. Furthermore,
baseplate for maximum robustness and are able to prefabricate the thermal paste on the product for a fast final assembly process.
we can integrate a thermal sensor as an additional safety function. Simply let us know your requirements and we will incorporate them into the overall package while optimizing your costs.
More than one resistor inside
Screw connection
Wires
Solder pins
Cutting-edge technology for your function-critical applications to enhance performance and improve safety
PREcharge Resistors
High voltage systems often use PREcharge circuits to limit the inrush current. If this current is not limited and controlled, it can cause significant stress or damage to other components in the system.
A PREcharge circuit allows the current to flow in a controlled manner until the voltage level rises to a value close to the source voltage before the main contactors close. This precharging normally takes place within one second by limiting the inrush current. To limit the inrush current, power resistors are used in combination with a relay. As soon as the capacitors have reached the operating voltage, the pre-charging relay opens and interrupts the process. The driver can now drive the vehicle safely.
PREcharge resistors thus protect the system from damage, extend the service life and increase reliability.
DIScharge Resistors
DIScharge resistors are used to discharge the DC link capacitors after an electric car has been switched off.
According to IEC 60204-1:2015 and other various EN standards, all capacitors and DC links must be below 60 volts within five seconds of use. To achieve this voltage level, it is possible to short-circuit the IGBTs of the inverter, transfer energy to the electric motor or use power resistors. Power resistors are the safest way to discharge, especially after a crash event. The important
IGBTs are not additionally stressed by the discharge. When discharging, a distinction is made between active and passive discharging. With active discharging, there is an actively connected power resistor to bring the voltage below 60 volts. Passive discharging is carried out with power resistors, that are permanently connected to HV+ and HV-.
Fast DIScharge Resistors
The approach of various vehicle manufacturers is to discharge the vehicle within milli seconds in case of a crash to ensure electrically safe conditions.
In the event of an accident, the vehicle manufacturer must be sure that all the energy is discharged, even if the vehicle is severely deformed. Fast DIScharge resistors are designed for such a case in order to quickly bring the vehicle into an electrically safe state.

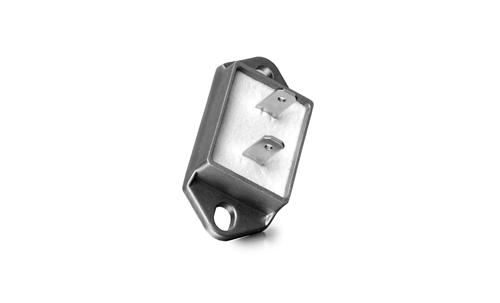

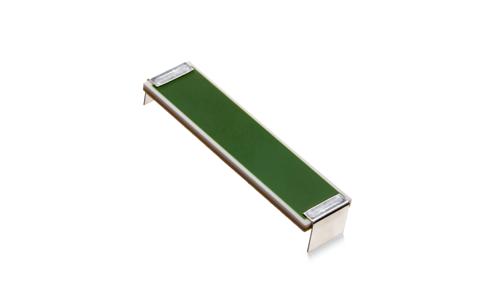

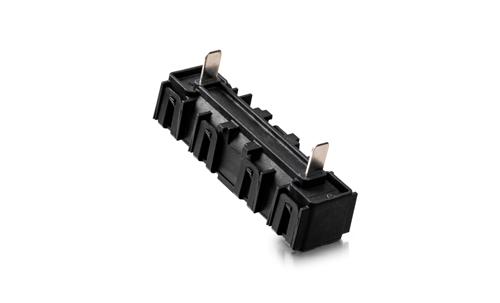

Series CWR
The high power resistors from Miba ensure safe and reliable operation for PREcharge applications in battery distribution units and inverters.
Features
Slim shape
Robust design
FAST-on connection
Mounting clips as an option available (ask for details)
Technical Specifications
Items Requirements

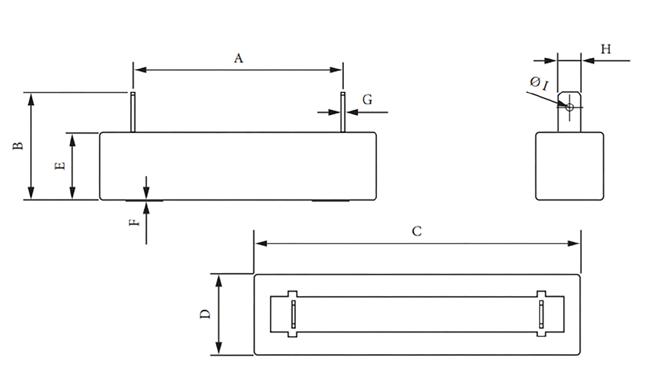

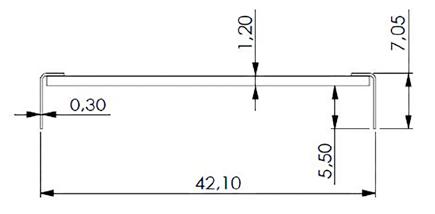

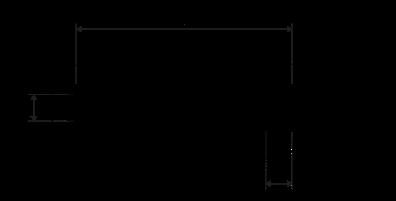

Dimensions in mm
Typical Pulse Load (initial resistor temperatur ≤ 85 °C)
CWR 30
360 J for τ = 0.1 s
Derating Curve
CWR 50

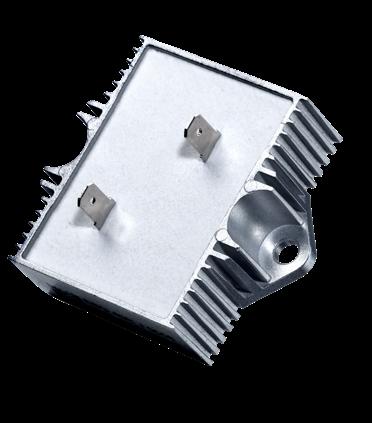

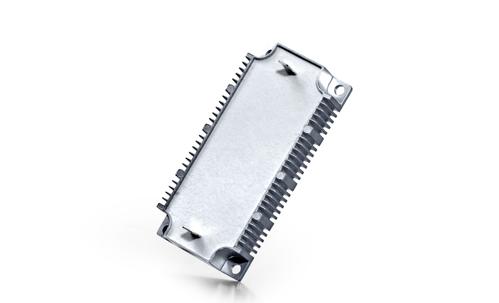

Series RST 100
Absorbes high pulse energy within a very short period. Has high thermal capacity. Used in dumping, circuit breaking etc.
Features
Aluminum housing for better heat dissipation
Different connection possible (FAST-ON, wires)
Huge short time overload capability
Technical Specifications
Resistance value range 10 Ω to 200 Ω
Resistance tolerance ± 5 % to ± 10 %
Temperature coefficient ± 500 ppm/°C (referenced to 25 °C, ΔR taken at ~ 105 °C)
Power rating 100 W at 70 °C Ta (90 s continuous operation)
Operating voltage ≤ 1000 V DC (pre-charge voltage)
Insulation resistance 1000 V DC min. 500 MΩ
Short time overload 2800 W, 70 °C 3 s
Dielectric strength 3 kV rms, 50 Hz, 1 min.
Operating temperature - 55 °C to + 225 °C
Mounting M5 screw
Weight ~ 149 g

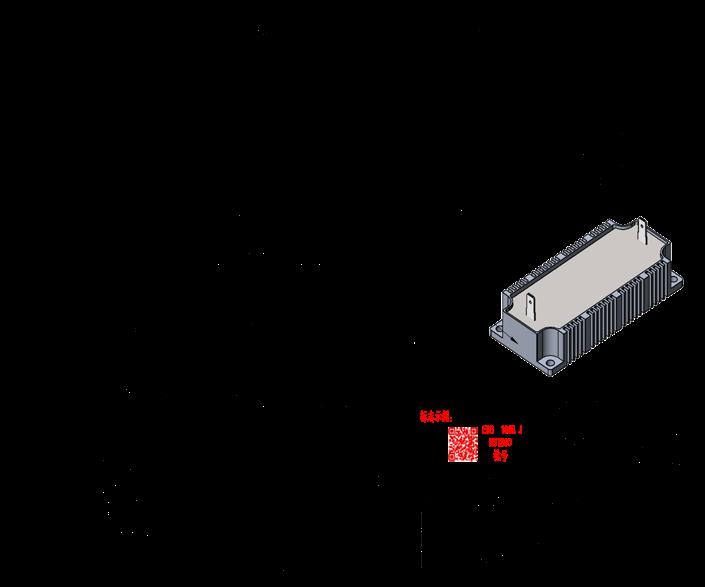

Dimensions in mm
Typical Pulse Load (initial resistor temperatur ≤ 85 °C)
950 J for τ = 0.1 s
J for τ = 0.2 s 2500 J for τ = 0.5 s

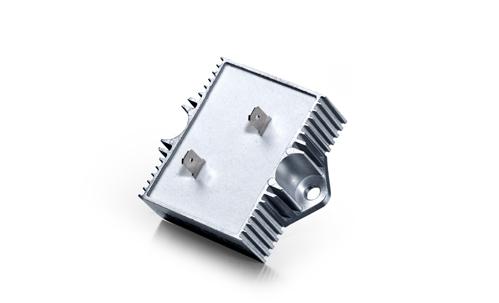

Series RST 150
Absorbes high pulse energy within a very short period. Has high thermal capacity. Used in dumping, circuit breaking etc.
Features
Aluminum housing for better heat dissipation
Different connection possible (FAST-ON, wires)
Technical Specifications
Dimensions in mm
Typical Pulse Load (initial resistor temperatur ≤ 85 °C) 1550 J
s
Series RST 200
Absorbes high pulse energy within a very short period. Has high thermal capacity. Used in dumping, circuit breaking etc.
Features
Aluminum housing for better heat dissipation
Different connection possible (FAST-ON, wires)
Technical Specifications
Resistance value 10 Ω to 300 Ω
Resistance tolerance ± 5 % to ± 10 %
Temperature coefficient ± 500 ppm/°C (referenced to 25 °C, ΔR taken at ~ 105 °C)
Power rating 200 W at 70 °C Ta (120 s continuous operation)
Operating voltage ≤ 1000 V DC (pre-charge voltage)
Insulation resistance 1000 V DC, min. 500 MΩ
Short time overload 3000 W, 70 °C 3 s
Insulation layer withstand voltage 3.5 kV rms, 50 Hz, 1 min.
Operating temperature - 55 °C to + 225 °C
Mounting M5 screw Weight ~ 285 g
Dimensions in mm
Typical Pulse Load (initial resistor temperatur ≤ 85 °C)
2300 J for τ = 0.1 s 3150 J for τ = 0.2 s 4000 J for τ = 0.5 s Derating Curve

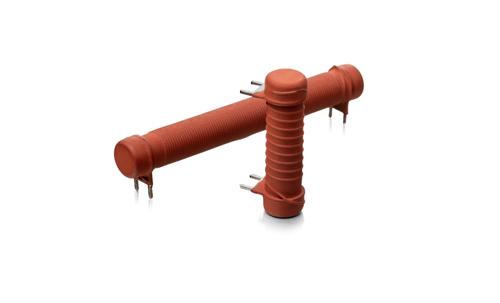

Series NWR
High short-time overload pulse application resistor, perfect for PCB mount. Can be used as DIScharge or PREcharge Resistor.
Features
High pulse proof
No flammable materials
Technical Specifications
Resistance value NWR 38: 10 Ω to 250 Ω NWR 50: 10 Ω to 400 Ω
Resistance tolerance ± 5 % to ± 10 %
Temperature coefficient ± 550 ppm/°C (referenced to 25 °C, dR taken at ~ 85 °C)
Power rating NWR 38: 7 W at 25 °C Ta NWR 50: 11 W at 25 °C Ta
Operating voltage 600 V
Dielectric strengh voltage 1800 V AC
Operating temperature - 40 °C to + 175 °C
Storage temperature - 40 °C to + 125 °C
Weight NWR 38: ~ 13 g NWR 50: ~ 25 g
Dimensions in mm
Derating Curve

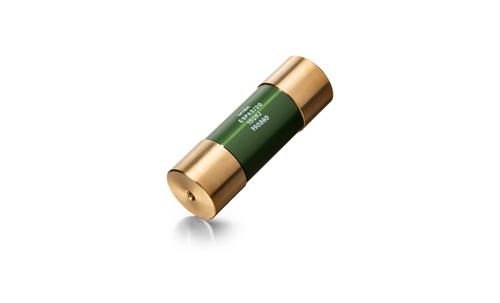

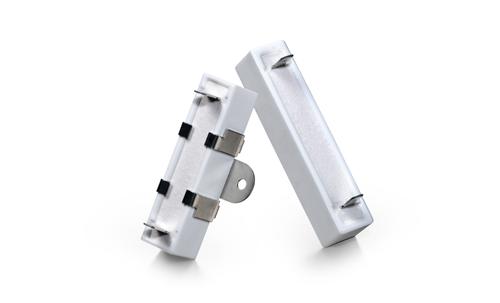

Series ESP 60/20
The ESP thick-film resistor series is designed for PREcharge applications where space is limited. Its shape is similar to conventional fuses. It can be mounted using screws or fuse holders.
Features
Robust power resistor without heat sink requirement
Shape of a fuse for easy integration
Screw or snap-in in connection
Technical Specifications
Resistance value 1 Ω to 1 kΩ
Resistance tolerance ± 5 % to ± 10 %
Temperature coefficient ± 250 ppm/°C (referenced to 25 °C, dR taken at ~ 85 °C)
Operating voltage 1000 V (higher on request)
Mounting M4 scews, max. torque 3 Nm (static)
Typical Pulse Load (initial resistor temperatur ≤ 85 °C)
440 J for τ = 0.1 s
750 J for τ = 0.2 s
1700 J for τ = 0.5 s
2300 J for τ = 0.7 s
3300 J for τ = 1 s
4500 J for τ = 1.4 s

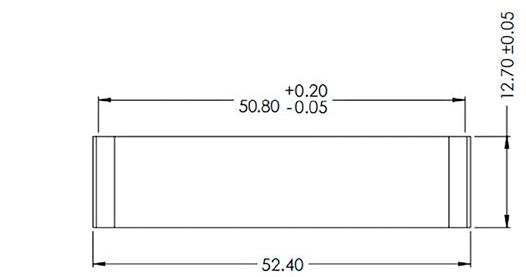

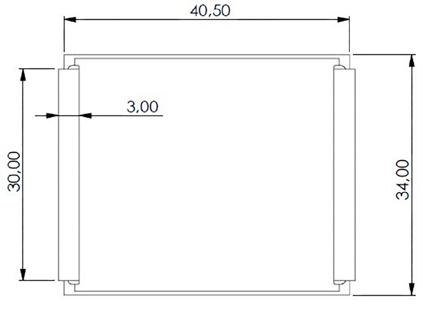

Dimensions in mm

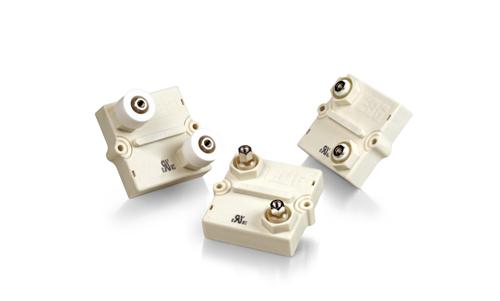

Series TRM 26
The TRM 26 is the perfect passive discharge solution. Robust housing, strong heat-sink connection, and perfect for passive DIScharge applications.
Features
25 W rated power
Cement filling
Technical Specifications
Resistance value 0.1 Ω to 1 MΩ
Resistance tolerance ± 5 % to ± 10 %
Temperature coefficient ± 150 ppm/°C (referenced to 25 °C, ΔR taken at ~ 105 °C)
Power rating 25 W at 25 °C bottom case temperature
Operating voltage 1000 V DC
Dielectric strength 3000 V AC, 60 s
Insulation resistance >500 MΩ at 1000 V DC
Short time overload
Load life
Humidity
Thermal shock
Terminal strength
Vibration high frequency
2x rated power with applied voltage not to exceed 1.5x maximum continuous operating voltage for 5 s ΔR≤±(0.3 % R + 0.001 Ω) max.
MIL–R–39009D , 2000 h at rated power, ΔR≤±(1.0 % R + 0.001 Ω)
MIL–Std–202, method 106, ΔR≤±(0.5 %R+0.001 Ω) max.
MIL–Std–202, method 107, Cond F, ΔR≤±(0.3 %R+0.001 Ω) max.
MIL–Std–202,method 211,Cond A (Pull Test) 2.4 N, ΔR≤ ±(0.2 %R+0.001 Ω) max.
MIL–Std–202, method 204, Cond D, ΔR ≤±(0.2 %R+0.001 Ω) max.
Operating temperature range - 55 °C to + 225 °C
Mounting M5 screw, 3 Nm
Weight ~ 12 g
Dimensions in mm
Typical Pulse Load (initial resistor temperatur ≤ 85 °C)
30 J for τ = 0.1 s
45 J for τ = 0.2 s
65 J for τ = 0.5 s
Derating Curve

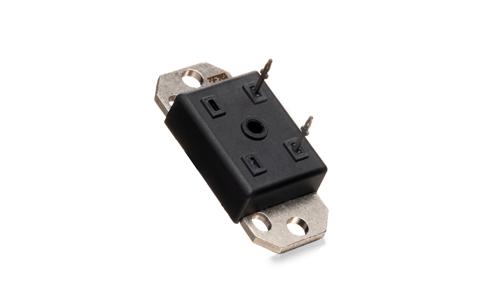

Series EVR 150
Robust Power Resistor for direct mounting on a heat sink. The separate baseplate ensures a robust, excellent thermal interface to the heat sink. Fast-ON or press-fit terminals enable easy PCB connection. Typically used as a DIScharge resistor in inverter applications.
Features
Baseplate for robust heat sink connection
Different PCB connection (FAST-ON, wire, press-fit, solder pins)
Great heat dissipation
Technical Specifications
Typical Pulse Load (initial resistor temperatur ≤ 85 °C)
50
Dimensions
Derating Curve
Series EVR 250
The housing allows integration of two resistors. Ideal for active and passive DIScharge applications in automotive inverters.
Features
Different PCB connection (FAST-ON, wire, press-fit, solder pins)
Optional: active resistor, passive resistor, temperature sensor
Technical Specifications
Resistance value 0.1 Ω to 1 MΩ
Resistance tolerance ± 1 % to ± 10 %
Temperature coefficient ± 250 ppm/°C (referenced to 25 °C, ΔR taken at ~ 85 °C)
Power rating 250 W at 85 °C bottom case temperature
Short time overload 1.25x rated power at 85 °C bottom case temperature for 10 s, ΔR = 0.4 % max.
Operating voltage 1000 V DC
Partial discharge up to 2000 Vrms / 80 pC
Dielectric strength 4000 V DC
Insulation resistance > 10 GΩ at 1000 V DC
Isolation voltage betweeen R1 & R2 & R3 500 V DC (1000 V DC on special request)
Thermal resistance < 0.35 K/W
Serial inductivity typical 40 nH, measuring frequency 10 kHz
Operating temperature - 55 °C to + 155 °C
Mounting 1.3 Nm to 1.5 Nm M4 screws
Weight ~ 23 g
Dimensions in mm
Marking
Grouting
Derating Curve
Typical Pulse Load (initial resistor temperatur ≤ 85 °C)
110 J for τ = 0.1 s
150 J for τ = 0.2 s
240 J for τ = 0.5 s

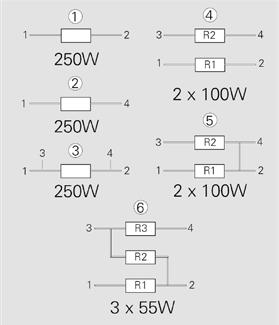

Configurations (P / package)
2 and 4 aprox. 3mΩ

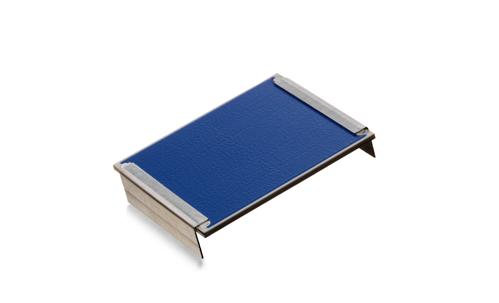

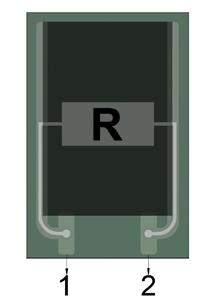

Series EVR V50
PCB soldered Power Resistor for continuous discharge applications such as passive discharge.
Features
Low profile SMD thick film resistor
Best in class pulse energy performance
Small size, surge capable film resistor
TO-263 footprint
Technical Specifications
Resistance value 0.5 Ω to 1 kΩ
Resistance tolerance ± 0.5 % to ± 10 %
Temperature coefficient
Derating Curve
(other values on special request)
(measured at + 25 °C ± 3 °C)
<2 Ω: ±500 ppm/°C
2 Ω to 10 Ω: ± 250 ppm/°C
>10 Ω: ± 100 ppm/°C
Power rating 55 W at 25 °C bottom ceramic temperature
Operating temperature - 55 °C to +175 °C
Thermal resistance < 3.0 K/W resistor to bottom solder pad
Operating voltage 900 V (not exceeding max. power)
Maximum operating current 10 A
Dielectric strength 1500 V AC
(method: terminal and heat sink, 60 s 1 mA)
Capacity 13 pF, typical parallel capacity
Inductivity 50 nH, typical series inductivity
Load life ± 1 %
(method: 25 °C, 90 min. ON, 30 min. OFF, 1000 h)
Humidity ± 1 % (method: 85 °C, 85 % RH, DC 0.25 W, 1000 h)
Temp. cycle ± 0.5 % (method: - 55 °C, 30 min.,+125 °C, 30 min., 1000 cycle)
Solder heat ± 0.1 % (method: 260 °C ± 5 °C, 10 ± 1 s)
Lead solderability over 95 % of surface (250 °C ± 5 °C, 3 s)
Insulation resistance over 1000 MΩ (between terminals and heat sink)
Vibration ± 0.25 % (MIL-STD-202, Method 204)
Storage conditions 15-60 % rel. humidity (- 30 °C to + 70 °C)
Weight < 0.4 g

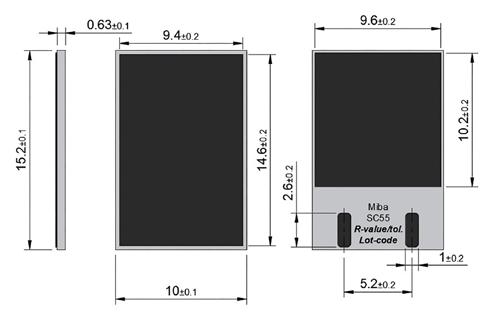

Dimensions in mm
Typical Pulse Load (initial resistor temperatur ≤ 85 °C) 20 J for
s
Circuit Diagram

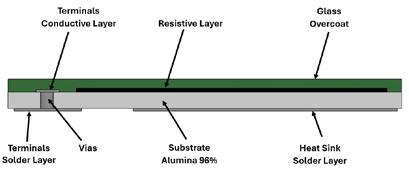

Construction

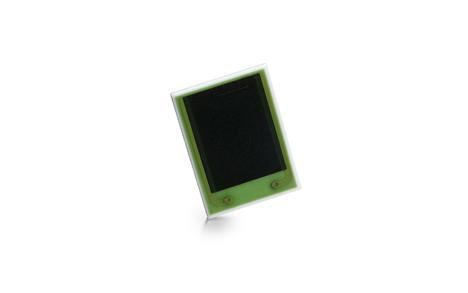

Series EVR S300
PCB Power Resistor for easy soldering and mounting. Compatible with SMT manufacturing lines for cost saving installation. Very low weight for good vibration behavior.
Features
Reflow solderable
Scalable to customer applications
Almost no heat impact into PCB
Additional usable space under the component
Technical Specifications
Resistance value 0.5 Ω to 1 MΩ
Resistance tolerance ± 0.5 % to ± 10 %
Temperature coefficient ± 150 ppm/°C (referenced to 25 °C, ΔR taken at ~ 105 °C)
Power rating 15 W at 25 °C Ta (120 s continuous operation)
Operating voltage 1000 V
Operating temperature - 55 °C to + 200 °C Weight ~ 6 g
Dimensions in mm
Typical Pulse Load (initial resistor temperatur ≤ 85 °C)
160 J for τ = 0.1 s
230 J for τ = 0.2 s
380 J for τ = 0.5 s Derating Curve
Series EVR S1000
PCB Power Resistor for easy soldering and mounting. Compatible with SMT manufacturing lines for cost saving installation. Very low weight for good vibration behavior.
Features
Reflow solderable
Scalable to customer applications
Almost no heat impact into PCB
Additional usable space under the component
Technical Specifications
Resistance value 0.5 Ω to 1 MΩ
Resistance tolerance ± 0.5 % to ± 10 %
Temperature coefficient ± 150 ppm/°C (referenced to 25 °C, ΔR taken at ~ 105 °C)
Power rating 20 W at 25 °C Ta (150 s continuous operation)
Operating voltage 1000 V
Operating temperature range - 55 °C to + 200 °C Weight ~ 8 g
Dimensions in mm
Derating Curve
Typical Pulse Load (initial resistor temperatur ≤ 85 °C)
250 J for τ = 0.1 s
370 J for τ = 0.2 s
600 J for τ = 0.5 s

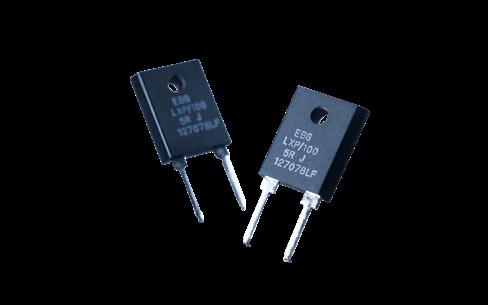

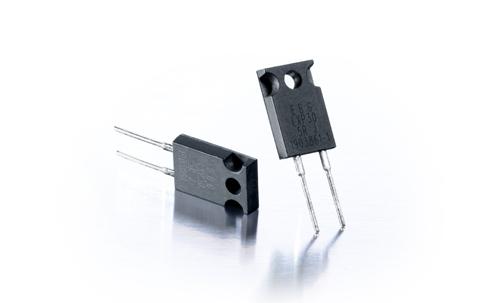

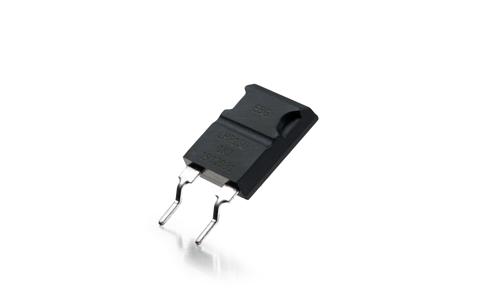

Series LXP 30
Miba offers the totally encapsulated and insulated TO-220 package for low ohmic value and non-inductive design for high-frequency and pulse-unloading applications. The LXP 30 series is rated at 30 W mounted to a heat sink.
Features
30 W operating power
TO-220 package configuration
Single-screw mounting simplifies attachment to heat sink
Fully isolated heat sink
Technical Specifications
Resistance value 0.05 Ω to 1 MΩ
Derating Curve
Resistance tolerance ± 1 % to ± 10 % ± 0.5 % on special request for limited ohmic values
Temperature coefficient > 10 Ω ± 50 ppm/°C
1 Ω to 10 Ω ± 100 ppm/°C + 0.002 Ω
(referenced to 25 °C, ΔR taken at ~ 105 °C)
Power rating 30 W at 25 °C bottom case temperature
Operation voltage 420 V
Dielectric strength 1800 V AC
Insulation resistance > 10 GΩ at 1000 V DC
Short time overload
Load life
Moisture resistance
Thermal shock
Terminal strength
Vibration, high frequency
2x rated power with applied voltage not to exceed 1.5x maximum continuous operating voltage for 5 s ΔR ±(0.3 % + 0.001 Ω) max.
MIL -R-39009D, 2000 h at rated power,
ΔR ±(1.0 % + 0.001 Ω) max.
MIL -STD-202, method 106
ΔR ±(0.5 % + 0.001 Ω) max.
MIL -STD-202, method 107, Cond. F, ΔR ±(0.3 % + 0.001 Ω) max.
MIL -STD-202, method 211, Cond. A (Pull Test)
2.4 N, ΔR ±(0.2 % + 0.001 Ω) max.
MIL -STD-202, method 204, Cond. D, ΔR ±(0.2 % + 0.001 Ω) max.
Lead material anti-oxidation tinned copper wire
Mounting M3 screw, max. torque 0.9 Nm
Operating temperature - 55 °C to + 155 °C
Dimension in mm [inches]
Dimensions in mm [inches]
Typical Pulse Load (initial resistor temperatur ≤ 85 °C) 12 J for
s

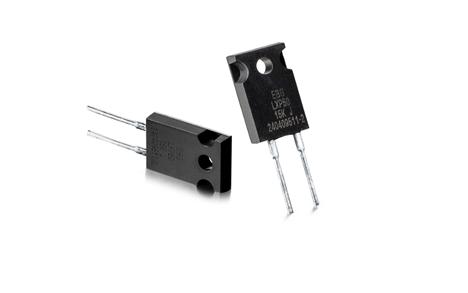

Series LXP 50
Miba offers the totally encapsulated and insulated TO-220 package for low ohmic value and non-inductive design for high-frequency and pulse-unloading applications. The LXP 50 series is rated at 50 W mounted to a heat sink.
Features
50 W operating power
TO-220 package configuration
Single-screw mounting simplifies attachment to heat sink
Fully isolated heat sink
Technical Specifications
Resistance value 0.05 Ω to 1 MΩ
Derating Curve
Resistance tolerance ± 1 % to ± 10 % ± 0.5 % on special request for limited ohmic values
Temperature coefficient ± 50 ppm/°C (referenced to 25 °C, ΔR taken at ~ 105 °C)
Power rating 50 W at 25 °C bottom case temperature
Operation voltage 420 V
Dielectric strength voltage 1800 V AC
Insulation resistance > 10 GΩ at 1000 V DC
Short time overload 2x rated power with applied voltage not to exceed 1.5x maximum continuous operating voltage for 5 s ΔR ±(0.3 % + 0.001 Ω) max.
Load life
Moisture resistance
Thermal shock
Terminal strength
Vibration, high frequency
MIL -R-39009D, 2000 h at rated power, ΔR ±(1.0 % + 0.001 Ω) max.
MIL -STD-202, method 106 ΔR ±(0.5 % + 0.001 Ω) max.
MIL -STD-202, method 107, Cond. F, ΔR ±(0.3 % + 0.001 Ω) max.
MIL -STD-202, method 211, Cond. A (Pull Test) 2.4 N, ΔR ±(0.2 % + 0.001 Ω) max.
MIL -STD-202, method 204, Cond. D, ΔR ±(0.2 % + 0.001 Ω) max.
Lead material tinned copper
Mounting M3 screws, max. torque 0.9 Nm
Operating temperature - 55 °C to + 155 °C
Typical Pulse Load (initial resistor temperatur ≤ 85 °C)
[
[ ] : Dimensions in inches
Dimensions in mm [inches]
Series LXP 100
Miba offers the completely encapsulated and insulated TO-247 package for low ohmic value and non-inductive design for high-frequency and pulse-unloading applications. The LXP 100 series is rated at 100 W mounted to a heat sink.
Features
Small and lightweight
Easy PCB mount with solder pins possible
Fast heat sink connection with clip or screw
Technical Specifications
Resistance value 0.05 Ω to 1 MΩ
Resistance tolerance ± 1 % to ± 10 %
Temperature coefficient > 10 Ω: ± 50 ppm/°C (referenced to 25 °C, ΔR taken at + 105 °C)
Power rating 100 W at 25 °C bottom case temperature
Short time overload
1.5x rated power with applied voltage not to exceed 1.5x V max. for 5 s, ΔR < ±(0.50 % + 0.0005 Ω)
Operation voltage 350 V, max. 500 V on special request
Insulation resistance > 10 GΩ at 1000 V DC
Dielectric strength voltage 1800 V AC
Load life
MIL -R-39009D 4.8.13, 2000 h at rated power, ΔR < ±(1.0 % + 0.0005 Ω)
Moisture resistance -10 °C to +65 °C, RH > 90 % cycle 240 h, ΔR < ±(0.50 % + 0.0005 Ω)
Thermal shock
Terminal strength
Vibration, high frequency
MIL -STD-202, method 107, Cond. F, ΔR < ±(0.50 % + 0.0005 Ω)
MIL -STD-202, method 211, Cond. A (Pull Test)
2.4 N ΔR < ±(0.20 % + 0.0005 Ω)
MIL -STD-202, method 204, Cond. D, ΔR < ±(0.40 % + 0.0005 Ω)
Inductance (serial) typical 20 nH, measuring frequency 10 kHz
Lead material tinned copper
Mounting 0.7 Nm to 0.9 Nm M4 using a M3 screw and a compression wahser mounting technique
Dimensions in mm [inches]
Weight ~ 4 g
Derating Curve
Typical Pulse Load (initial resistor temperatur ≤ 85 °C)
30 J for τ = 0.1 s
40 J for τ = 0.2 s
60 J for τ = 0.5 s

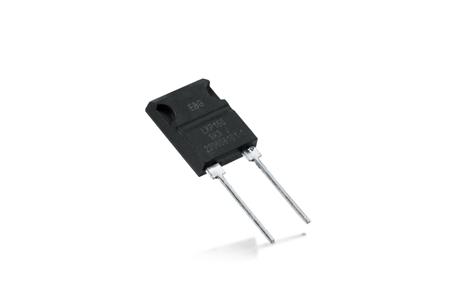

Series LXP 150
Miba offers the completely encapsulated and insulated TO-247 package for low ohmic value and non-Inductive design for high-frequency and pulse-unloading applications. The LXP 150 series is rated at 150 W mounted to a heat sink.
Features
150 W operating power
TO-247 package configuration
Clip mounting simplifies attachment to heat sink
Technical Specifications
Resistance value 0.05 Ω to 1 MΩ
Derating Curve
Resistance tolerance ± 1 % to ± 10 % ± 0.5 % on special request for limited ohmic values
Temperature coefficient > 10 Ω: ± 50 ppm/°C refenced to 25 °C, ΔR taken at + 105 °C (other TCR on special request for limited ohmic values)
Power rating 150 W at 25 °C bottom case temperature
Operation voltage 700 V DC
Dielectric strength 1800 V AC
Insulation resistance min. 10 GΩ
Short time overload
Load life
Moisture resistance
Thermal schock
Terminal strength
Vibration, high frequency
2 times rated power, but no more than 1.5 time max. continuous operating voltage, last 5 s, ΔR ≤ ±(0.3 %R + 0.001Ω)
2000 h at rated power, MIL-R-39009D
ΔR ≤ ±(1.0 %R + 0.001Ω)
MIL-Std.-202, method 106, ΔR ≤ ±(0.5 %R + 0.001Ω)
MIL-Std.-202, method 107, Cond. F ΔR ≤ ±(0.3 %R + 0.001Ω)
MIL-Std.-202, method 211, Cond. A (pull test) 2.4 N ΔR ≤ ±(0.2 %R + 0.001Ω)
MIL-Std.-202, method 204, Cond. D ΔR ≤ ±(0.2 %R + 0.001Ω)
Operating temperature - 55 °C to + 155 °C
Lead material tinned copper
Weight ~ 4,2 g
Dimensions in mm [inches]
Typical Pulse Load (initial resistor temperatur ≤ 85 °C)
30 J for τ = 0.1 s
45 J for τ = 0.2 s
65 J for τ = 0.5 s
Series LHP 150
Miba offers the completely encapsulated and insulated TO247 package for low ohmic value and non-inductive design for high-frequency and pulse-unloading applications. The LHP 150 series is rated at 150 W mounted to a heat sink.
Features
150 W operating power
TO-247 package configuration
Resistor package completely insulated from heat sink
Technical Specifications
Resistance value 0.05 Ω to 1 MΩ
Resistance tolerance ± 5 % to ± 10 %
± 0.5 % on special request for limited ohmic values
Temperature coefficient ± 150 ppm/°C (referenced to 25 °C, ΔR taken at ~ 105 °C)
Power rating 150 W at 25 °C bottom case temperature
Operation voltage 700 V
Dielectric strength 1800 V AC
Insulation resistance min. 10 GΩ
Short time overload
Load life
Moisture resistance
Thermal schock
Terminal strength
Vibration, high frequency
2 times rated power, but no more than 1.5 time max. continuous operating voltage, last 5 s, ΔR ≤ ±(0.5 %R + 0.001 Ω)
2000 h at rated power, MIL-R-39009D ΔR ≤ ±(1.0 %R + 0.001 Ω)
MIL-Std.-202, method 106, ΔR ≤ ±(0.5 %R + 0.001 Ω)
MIL-Std.-202, method 107, Cond. F ΔR ≤ ±(0.3 %R + 0.001 Ω)
MIL-Std.-202, method 211, Cond. A (pull test) 2.4 N ΔR ≤ ±(0.2 %R + 0.001 Ω)
MIL-Std.-202, method 204, Cond. D
ΔR ≤ ±(0.2 %R + 0.001 Ω)
Operating temperature -55 °C to + 155 °C
Lead material tinned copper Weight ~ 4 g
Typical Pulse Load (initial resistor temperatur ≤ 85 °C)

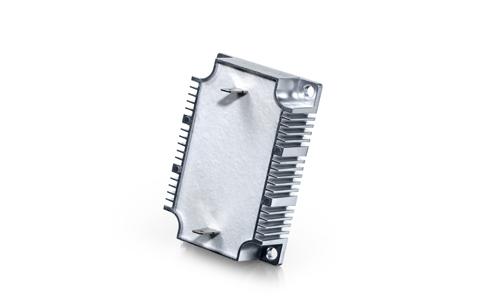

Series PXP 200
Robust power resistor for pulse power as well as continuous-load applications. Wire leads or solder pin connections provide high flexibility for system integration.
Features
All-round 200 W power resistor
Different PCB connection (FAST-ON, wire, press-fit, solder pins, screws)
Optional: active resistor, passive resistor, temperature sensor
Technical Specifications
Resistance value 0.1 Ω to 1 MΩ
Resistance tolerance ± 1 % to ± 10 %
Temperature coefficient > 1 Ω: ±250 ppm/°C (referenced to 25 °C, ΔR taken at ~ 105 °C)
Power rating 200 W at 85 °C bottom case temperature
Short time overload 1.25x rated power at 85 °C bottom case temperature for 10 s, ΔR = 0.4 % max. (for conf. 1, 2 and 3)
Operating voltage
Derating Curve
500 V DC up to 1500 V = "S"-version up to 1500 V + higher pulse capability = "U"-version on special request
Partial discharge up to 2000 Vrms / 80 pC
Dielectric strength 4000 V DC
Insulation resistance > 10 GΩ at 1000 V DC
Isolation voltage betweeen R1 & R2 & R3 500 V DC (1000 V DC on special request)
Thermal resistance < 0.35 K/W
Capacitance/mass 45 pF (typical), measuring frequency 10 kHz
Serial inductivity PXP-1 typical 40 nH, measuring frequency 10 kHz
Operating temperature - 55 °C to + 155 °C
Mounting 1.3 Nm to 1.5 Nm M4 screws
Weight ~ 20 g
Dimensions in mm
1 2 3 4
Typical Pulse Load (initial resistor temperatur ≤ 85 °C)
60 J for τ = 0.1 s
80 J for τ = 0.2 s 140 J for τ = 0.5 s
Version 5: ohmic value between contact 2 and 4 aprox. 3mΩ

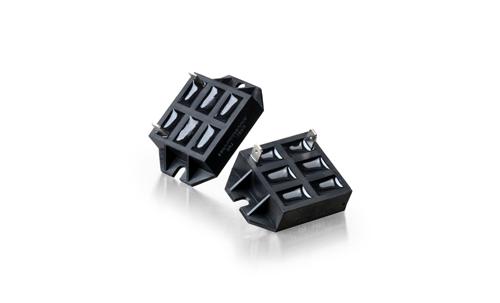

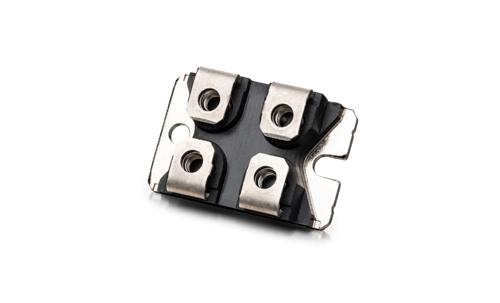

Series HXP 200
Robust power resistor with screw terminal PCB. The connection remains secure regardless of vibration profile. Ideal for harsh commercial or automotive inverter and on-board charger applications.
Features
All-round 200 W continuous power resistor
Optional: active resistor, passive resistor, temperature sensor
Technical Specifications
Resistance value 0.1 Ω to 1 MΩ
Resistance tolerance ± 1 % to ± 10 %
Derating Curve
Temperature coefficient > 1 Ω: ± 250 ppm/°C (referenced to 25 °C, ΔR taken at ~ 105 °C)
Power rating 200 W at 85 °C bottom case temperature
Short time overload
Operating voltage
1.25x rated power at 85 °C bottom case temperature for 10 s, ΔR = 0.4 % max. (for conf. 1, 2 and 3)
500 V up to 1500 V = "S"-version up to 1500 V + higher pulse capability = "U"-version on special request
Partial discharge up to 2000 Vrms / 80 pC (Tests only on special request)
Dielectric strength 4000 V DC
Insulation resistance > 10 GΩ at 1000 V DC
Isolation voltage betweeen R1 & R2 & R3 500 V DC (1000 V DC on special request)
Protection class acc. to IEC 950/CSA22.2 950/M-89 and EN 60950.88:2
Comparative Tracking Index (CTI) standard > 200 V (> 600 V on special request = "H"-version)
Thermal resistance < 0.35 K/W
Capacitance/mass 45 pF (typical), measuring frequency 10 kHz
Serial inductivity HXP-1 typical 40 nH, measuring frequency 10 kHz
Operating temperature - 55 °C to + 155 °C
Mounting - torque for base plate (static) 1.3 Nm to 1.5 Nm M4 screws
Mounting - torque for contacts (static) 1.1 Nm to 1.3 Nm M4 screws, screw-in depth max. 5 mm
Weight ~ 26 g
Dimensions in mm [inches]
Typical Pulse Load (initial resistor temperatur ≤ 85 °C)
60 J for τ = 0.1 s 80 J for τ = 0.2 s 140 J for τ = 0.5 s
Configurations (P / package)
Series UXC 800
The UXC 800 is the most powerful discharge resistor. The easy mounting concept secures an auto-calibrated pressure to the heat sink for the highest performance.
Features
800 W operating power
Non-Inductive design
ROHS complaint
High insulation & partial discharge performance
Materials in accordance with UL 94 V-0
Thermal interface management available (ask for details)
Technical Specifications
Resistance value 0.03 Ω to 1 MΩ
Resistance tolerance ± 5 % to ± 10 % ± 1 % to ± 2 % on special request for limited ohmic values with the reduction of the max. power / pulse rating (ask for details)
Temperature coefficient
± 500 ppm/°C (0.1 Ω to 0.25 Ω) standard ± 150 ppm/°C (> 0.25 Ω to 1 MΩ) standard (referenced to 25 °C, ΔR taken at ~ 105 °C)
Power rating 800 W at 85 °C bottom case temperature
Short time overload 1000 W at 70 °C for 10 s, ΔR = 0.4 % max.
Operating working voltage 5000 V DC = 3500 V AC RMS (50 Hz) higher voltage on request, not exceeding max. power
Maximum continuous current 150 A (HC or UHC version)
Dielectric strength
Partial discharge
7 kVrms / 50 Hz / 500 VA, test time 1 min. between terminal und case (up to 12 kVrms on request) voltages above 10 kVrms are tested at DC equivalent to avoid pre damage of component
4 kVrms < 10 pC
(up to 7 kVrms < 10 pC on request) acc. to IEC 60270
Peak current up to 1500 A depending on pulse width and frequency (ask for details)
Insulation resistance > 10 GΩ at 1000 V
Single shot voltage up to 12 kV norm wave (1.5/50 μs)
Creeping distance > 42 mm (standard, higher on request)
Air distance > 14 mm (standard, higher on request)
Inductance ≤ 80 nH (typical), measuring frequency 10 kHz
Capacity/mass ≤ 140 pF (typical), measuring frequency 10 kHz
Capacity/parallel ≤ 40 pF (typical), measuring frequency 10 kHz
Operating temperature - 55 °C to + 155 °C
Mounting - torque for contacts
Mounting - torque
1.8 Nm to 2 Nm
1.6 Nm to 1.8 Nm M4 screws
Internal temperature sensor available on request PT-1000 / PT-100 / Type K / Type J (ask for details)
Cable variation available on request
HV-cable / Flying leads (ask for details)
Standard cable type H&S Radox 9 GKW AX 1.5 mm2 (other cable types on special request)
Weight ~ 120 g
Typical Pulse Load
(initial resistor temperatur ≤ 85 °C)
450 J for τ = 0.1 s
660 J for τ = 0.2 s
1100 J for τ = 0.5 s
General Specifications
Electric support
Alumina metalized with Miba ALTOX film on the bottom for improved heat transfer and optimum discharge.
Encapsulation
Resin-filled epoxy casing with large creeping distance to mass, large air distance between the terminals and high insulation resistance (CTI 600).
Resistance element
Special design for low inductance and capacitance values. The element employs our special METOXFILM, which demonstrates stability while covering high wattage and pulse loading.
Housing
Housings are made without color additives. The color definition is natural and can vary in different pigmentation.
Contacts
Easy load connection with M4 and M5 screws (inch thread terminals on request)
Connector height available from 25 mm to 42 mm.
Various sleeves for increasing creeping distance up to 85 mm or potted cable connections are available on request
Contacts standard M5 (M4 on special request - connection screw thread max. 7 mm.)
Series UXC 800
Dimensions in mm [inches]
Standard Terminals
Air distance: 14 mm [0.5512] min.
Creeping distance: 42 mm [1.6535] min.
Terminal height 30/32
Standard
Terminal height 25/25
Optional
Terminal Options (for increased air & creeping distances)
Other terminal dimensions available, contact for more information
]
UXC 800-9
Air distance: 25 mm [0.984] min. Creeping distance: 83 mm [3.267] min.
UXC 800-7
Air distance: 26.7 mm [1.0512] min. Creeping distance: 50 mm [1.968] min.
UXC 800-16
Air and creeping distance depends on length of HV-cable
Test Specifications*
* The test methods are according to IEC 60068-2.
** The resistance drift is the possible change of the resistance value because of the certain test.
Series FDR
Fast DIScharge Resistor with a low-ohmic value ensures discharge of all capacities in a crash event. The unique functionality of this resistor provides safe disconnection after full discharge in the beginning of a possible new pulse.
Features
Safe opening functionality
Low resistance
Fast opening time
Technical Specifications
Dimensions in mm
We develop and produce close to you
Miba is a strong partner of the automotive business. We work closely together with our automotive customers around the world. Our international network with 30 production sites and many sales offices in Europe, the Americans and Asia offers direct support. Miba is ISO 9001 and IATF 16949 certified. Our products are AEC-Q200 ready and meet the automotive standards. Industry standard documentation such as PPAP is
Miba Resistors Austria Kirchbach, Austria
Miba Cooling Austria Ligist, Austria
Miba Electronics Slovenia Šentjernej, Slovenia
Miba Resistors US Middletown, PA, USA
EBG China Shenzhen Area, China
available on request. Our experienced sales team is more than happy to get in touch with you and speak about our EV-product portfolio.
Contact us! www.miba.com
Miba Power Electronics Group
Disclaimer
The given statements and information herein are recommendations for the use of our products and are based on our experience in combination with applicable technical standards. They are for guidance only and do not represent any assurance of characteristics or warranty commitments for the products or their suitability for specific applications. The suitability of the products for the intended use by the user depends on different boundary conditions and influencing factors and is to be assessed exclusively by the user.
NO WARRANTY OR GUARANTEE, EXPRESS OR IMPLIED, IS MADE WITH RESPECT TO THE PRODUCTS, DESIGNS, DATA, INFORMATION DESCRIBED OR ANY INTELLECTUAL PROPERTY CONTAINED THEREIN. ANY WARRANTY OR GUARANTEE OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE IS ALSO EXCLUDED.
The given statements and information herein reflect the current status at the time of publication. Typing or printing errors cannot be excluded. This publication shall not be reprinted or reproduced in whole or in part in any form or by any means without the express written permission of Miba.
