SMART ENERGY
Control and energy-saving systems.
HOTELS
OFFICES
RESTAURANTS BUILDINGS
Motion detectors
FOR WALL INSTALLATION
NEOMAT - OB131512
Its elegant design and compact dimensions (10 × 10 cm) give it a discreet appearance, ideal for installation in hotels, offices and residential buildings.
Wall or corner installation using the included accessory. 230V motion detector – IP54:
· Time delay: 10 s to 15 min.
· Light sensitivity: 3 to 2000 Lux.
· Up to 500 VA LED load.
EVOMAT, ISIMAT, and ISIMAT+
With a high protection rating of IP65 against external agents such as water or dust, this is the ideal solution for corridors, entrances and arcades in residential complexes or office buildings.
Robust design for wall installation using a mounting base. The front and vertical detection lens ensures reliable detection. 230V motion detector.
EVOMAT - OB137912
Detection angle: 240°
Detection lens beneath the detector.
· Time delay: 10 s to 15 min.
· Light sensitivity: 3 to 2000 Lux.
· Up to 500 VA LED load.
· IP65
ISIMAT - OB134312
Detection angle: 140°
ISIMAT + - OB134112
Detection angle: 200°
Time delay: 3 s to 30 min.
· Light sensitivity: 5 to 2000 Lux.
· Up to 400 VA LED load.
· IP55
SURFACE-MOUNTED CEILING DETECTOR
CIRCUMAT + - OB137112
Extra-flat design with a smooth white front and compact size: only 2.4 cm thick.
Surface-mounted 360° motion detector – IP20. Equipped with an external temperature compensator for more accurate detection.
· Time delay: 10 s to 30 min (1 s pulse function).
· Light sensitivity: 3 to 2000 Lux.
· Up to 500 VA LED load.
Motion detectors
RECESSED CEILING DETECTOR
DICROMAT + - OB136112
Discreet white design with a flat lens and a high detection range of 10 m diameter.
Extra-flat recessed 360° motion detector – IP20.
Sensor diameter: 76 mm (recess cut-out: 65 mm). Equipped with a temperature compensator for improved accuracy.
· Time delay: 10 s to 15 min.
· Light sensitivity: 3 to 2000 Lux.
· Up to 500 VA LED load.
MULTI-MOUNT DETECTORS

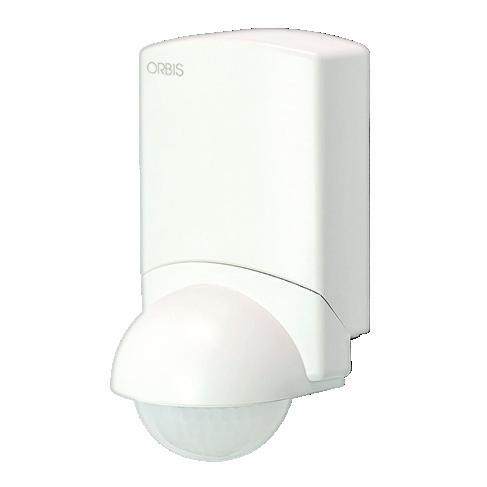

MULTIMAT - OB134212
The most versatile model in the range, as it can be installed using a plug-in surface-mount base: wall-mounted, ceiling-mounted or corner installation.
180° horizontal rotation of the detection head and 45° vertical rotation – IP55.
· Time delay: 3 s to 30 min.
· Light sensitivity: 5 to 2000 Lux.
· Up to 400 VA LED load.
Rotate the sensor head for ceiling installation:
Corner installation:
PROXIMAT PRO CR - OB134812
It stands out for its high detection capacity:
· 10 m diameter when installed at 7 m height.
· 30 m diameter when installed at 3.5 m height.
Surface mounting: wall, ceiling or corner – IP55.
· Time delay: 10 s to 10 min (plus 1 s pulse function).
· Light sensitivity: 10 to 1000 Lux.
· Compatible with the MANDO CR remote control.
· Up to 500 VA LED load.
Rotate the sensor head for ceiling installation:
Corner installation:
Motion detectos
DISCREET MODEL
DICROMAT MICRO -
OB133612
Thanks to its small sensor (20 mm) and 4 m detection range, it is ideal for small spaces such as entrances, cupboards, lifts, bathroom cabins, etc.
Motion detector – IP20.
Sensor diameter: 20 mm (recess cut-out: 16 mm).
· Time delay: 6 s to 12 min.
· Light sensitivity: 5 to 3000 Lux.
· Up to 50 VA LED load.
HIDDEN DETECTOR
ECOMAT MINI - OB135012
Microwave motion detector (5.8 MHz).
Highly sensitive to the slightest movement, it can be concealed in ceilings, luminaires or junction boxes.
Its detection performance does not depend on ambient temperature, maintaining accuracy in hot or humid environments such as kitchens or showers – IP20.
· Time delay: 5 s to 30 min.
· Up to 200 VA LED load.
WALL DETECTOR (REPLACES A PUSH BUTTON)
ORBIMAT - OB132612
This motion detector replaces an existing switch.
It supports additional push buttons, allowing it to operate as a stairwell timer.
A neutral wire is required at the switch.
Mounting in a 65 × 65 mm recessed box – IP20.
· Manual control hidden behind the sensor.
· 3 positions: automatic, ON or OFF.
· Time delay: 30 s to 20 min (plus 1 s pulse function).
· Light sensitivity: 5 to 2000 Lux.
· Up to 500 VA LED load.
Presence detectors
RECESSED CEILING DETECTORS
DICROMAT + CR - OB134512 and DICROMAT 2 + CR - OB134612
Ideal for long corridors, as they allow additional DICROMAT SENSOR+ units to be added.
These models simplify and streamline installation by avoiding the need to wire multiple detectors.
Compatible with the MANDO CR remote control.
Light sensitivity: 2 to 2000 Lux. Up to 500 VA LED load.
DICROMAT+ CR has one output contact and supports up to 4 additional DICROMAT SENSOR+ units.
DICROMAT 2+ CR has two output contacts and supports up to 15 additional DICROMAT SENSOR+ units.
DICROMAT SENSOR + - OB133412
Additional sensors for DICROMAT+ CR and DICROMAT 2+ CR.
Supplied with the connector and a 7 m extension cable.
ACCESSORY FOR DETECTORS

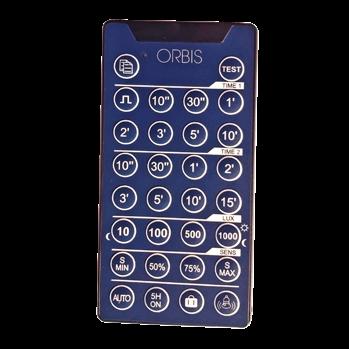

MANDO CR - OB134712
Remote control for adjusting parameters on compatible CR models.
It simplifies installation and maintenance, as no tools, ladders or dismantling are required for adjustments.
Also enables forced ON operation.
A single MANDO CR remote control can manage all detectors in the installation.
Compatible with: DICROMAT+ CR, DICROMAT 2+ CR and PROXIMAT PRO CR.
New products
RECESSED / SURFACE-MOUNTED CEILING
DETECTORS: HIGH CAPACITY
SEVERAL MODELS IN THE RANGE SHARE THE FOLLOWING COMMON FEATURES:
· Supplied with a detection field limiter.
Supplied with an accessory for installation in a 65 × 65 box.
Integrated “auto-learning of the required brightness” function
Time delay: 30 s to 30 min and pulse function (1 s ON / 9 s OFF).
Light sensitivity: 10 to 2000 Lux.
· Up to 300 VA LED switching capacity.
COMBIMAT - OB137812
Up to 24 m detection diameter and an input for timed activation via additional external push buttons, ideal for entrance halls or arcades.
Includes a pulse function for activating acoustic or visual signals indicating the presence of people or vehicles.
COMBIMAT 40.5 - OB137840
Rectangular detection area of 40 × 5 m.
Perfect for long corridors in hotels, offices or residential buildings.
Includes an input to activate timed lighting via push buttons. The detection cell includes an installation alignment mark.
COMBIMAT COMBIMAT 12M
COMBIMAT KNX
COMBIMAT 40.5
New products
COMBIMAT 12M - OB137820
Up to 20 m detection diameter for installation at a height of 12 m.
Ideal for warehouses or entrances with high ceilings.
Includes a pulse function for activating acoustic or visual signals.
REFERENCE
OB137812
OB137820
OB137850
OB137840
DIAMETER
24 m. 20 m.
24 m. 40 x 5 m. (rectangular)

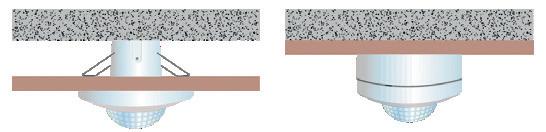

ACCESSORY FOR SURFACE MOUNTING
COMBIMAT SURFACE - OB137860
Allows any COMBIMAT model to be surface-mounted on the ceiling.
Easy installation using screws, cable entry with a silicone gasket, and a terminal for protective earth connection. When surface-mounted, the product has IP54 protection.
Time switches
ASTRONOMICAL TIME SWITCHES
Allow lighting operations to be set at fixed times or according to sunrise and sunset times. This makes them ideal for controlling lighting circuits, as they adapt to seasonal night-time variations throughout the year.
General features:
· Protective cover, large backlit display with adjustable contrast.
· Automatic daylight saving time change.
· 4-year reserve (battery replacement from the front).
· Keypad lock via password.
· 40 programmes (daily or weekly) and 4 holiday periods.
· Contact operating hour counter.
Models with manual programming:

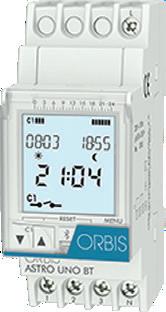

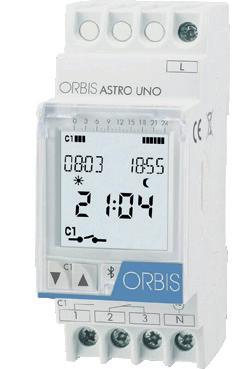

ASTRO UNO 230V* - OB178112
Version: 1 contact: manual programming. Bluetooth integrated into the time switch.
*Available in different voltages.
ASTRO NOVA CITY 230V* - OB178012
Version: 2 contacts: manual programming. Bluetooth integrated into the time switch.
Models with manual programming and Smartphone App:
ASTRO UNO + -
OB179112
Version: 1 contact:
Programming: manual or via the “ORBIS Smart Data App”. Bluetooth and Wi-Fi integrated into the time switch.
ASTRO NOVA CITY + - OB179012
Version: 2 contacts:
Programming: manual or via the “ORBIS Smart Data App”. Bluetooth and Wi-Fi integrated into the time switch.
Import an existing programme.
Send your programme to a third party.
Save / store all your programmes.

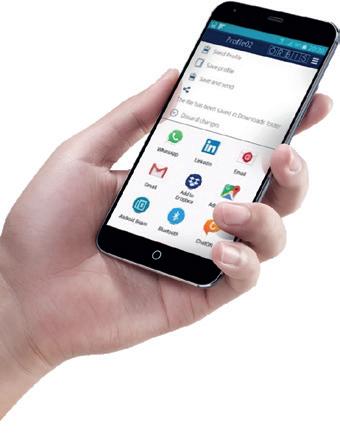

ORBIS Smart Data App
Time switches
DIGITAL TIME SWITCHES
Digital time switches allow the operation of any electrical circuit to be programmed by second, by day or by week.
DATA LOG - OB174012
Version: 1 contact. Bluetooth integrated.
DATA LOG 2 - OB175012
Version: 2 contacts. Bluetooth integrated.
DATA LOG + - OB172612
Version: 1 contact. Bluetooth and Wi-Fi integrated.

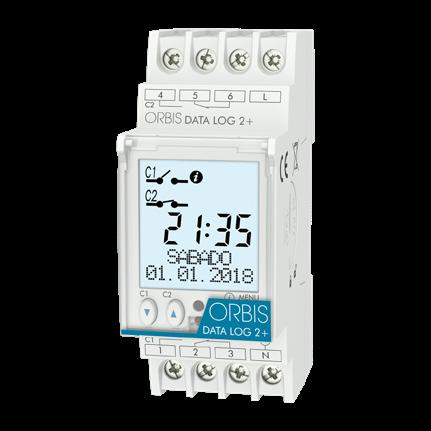

DATA LOG 2 + - OB172512
Version: 2 contact. Bluetooth and Wi-Fi integrated.
Its main feature is ease of programming through a text-based menu that simplifies the creation of ON/OFF programmes.
· Modular digital time switch with protective cover.
· Large backlit display with adjustable contrast.
· Automatic daylight saving time change.
· 4-year reserve (battery replacement from the front).
· 40 programmes per second, daily or weekly.
*Available in different voltages.

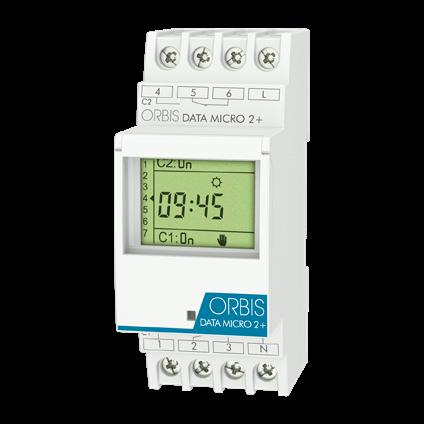

DATA MICRO + - OB172012N
Version: 1 contact.
DATA MICRO 2 + - OB171912N
Version: 2 contacts.
Features an icon-based menu that guides the user throughout the programming process.
· Modular digital time switch with protective cover.
· DIN rail mounting (2 DIN).
· 4-year reserve – 32 programmes.
· Automatic daylight saving time change.
· Programming by second, daily or weekly.
*Available in different voltages.
STAIRCASE TIMER

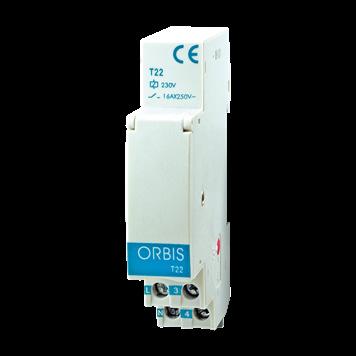

T-22 - OB063031
Front time selector with protective cover against dust and dirt ingress.
· Time delay: 45 s to 7 min – resettable.
· Control: automatic or permanent ON.
· 3- or 4-wire wiring, selectable.
Time switches
MECHANICAL TIME SWITCHES

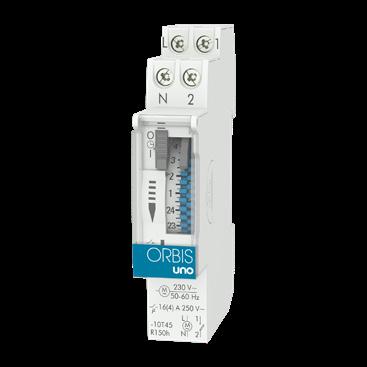

UNO
Its compact size allows installation in control panels with limited available space.
· Analogue modular time switch with protective cover. · 1 DIN – side dial.
· Manual switch: automatic, OFF and forced ON.
· 230/120 V.
UNO D - OB400132
Daily: 15 min segments, no reserve.
UNO QRD - OB400232
Daily: 15 min segments, 150 h reserve.
UNO QRS - OB400432
Weekly: 2 h segments, 150 h reserve.
*Available in different voltages.
SUPRA
Front dial for easy reading of programmed operating times.
· Analogue modular time switch with protective cover.
· 2.5 DIN – front dial.
· Manual switch: automatic, OFF and forced ON.
· 230 V.
SUPRA D - OB290132N
Daily: 15 min segments, no reserve.

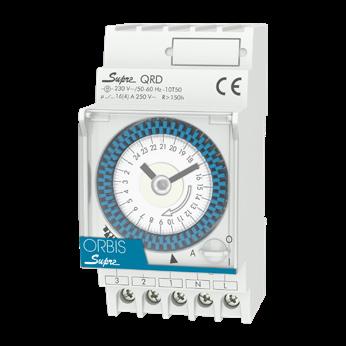

SUPRA QRD - OB290232N
Daily: 15 min segments, 150 h reserve.
SUPRA QRS - OB290332N
Weekly: 2 h segments, 150 h reserve.
*Available in different voltages.
Time switches
MECHANICAL TIME SWITCHES
ALPHA
Installation recessed in the panel door, on a DIN rail or directly on a flat surface.
· Analogue modular time switch with protective cover.
· Clock dimensions: 72 × 72 mm with front dial.
· Manual switch: automatic, OFF and forced ON.
· 230 V.
ALPHA D - OB270023
Daily: 15 min segments, no reserve.
ALPHA QRD - OB270123
Daily: 15 min segments, 100 h reserve.
ALPHA QRS - OB270323
Weekly: 2 h segments, 100 h reserve.
*Available in different voltages.
MINI T
Versatile design allowing wall mounting, recessed installation via a 66 × 66 mm opening, or DIN rail mounting.
· Analogue modular time switch with protective cover.
· DIN rail, recessed or surface mounting.
· Large front dial.
· Manual switch: automatic, OFF and forced ON.
· 230 V.
MINI T D - OB251032
Daily: 15 min segments, no reserve.
MINI T QRD - OB251232
Daily: 15 min segments, 100 h reserve.
MINI T QRS - OB252332
Weekly: 2 h segments, 100 h reserve.
*Available in different voltages.
Time switches
TWILIGHT SWITCH
CITYLUX - OB131412
Ensures a high level of protection against water and dust ingress (IP65), guaranteeing operation under demanding environmental conditions.
· Discreet, design-led twilight switch.
· Includes PG9 cable glands to ensure watertight connection terminals.
· Operating temperature: –20°C to +40°C.
· Brightness adjustment: 3 to 200 Lux.
· Accepted LED load: 500 VA.
TIMER AND DIMMER FOR INSTALLATION IN RECESSED / JUNCTION BOX
DIM LED - OB200009
Compact dimmer, ideal for concealed installation in a recessed box and control via a push button.
·Light dimming from 10% to 100%.
· Concealed installation behind the push button.
·ON/OFF by short press, dimming by long press.
+ Plus: memory function.
TEMPO LED 2N - OB200008
Compact timer, ideal for concealed installation in a recessed box and control via a push button.
· Time 1: at 100%.
· Time 2: reduced to 25%.
+ Plus: operates as a timer with switch-off warning.
COMMON FEATURES OF DIM LED AND TEMPO LED 2N:
· Operate with dimmable lamps from 3 to 100 VA.
· 2- or 3-wire wiring, neutral not required.
· Very quick installation behind a standard push button.
Time switches
TIME PROGRAMER OPERATED BY COINS OR TOKENS
CTM ELECTROC BASIC -
OB120130
· Programmable time delay: from 1 minute to 150 hours.
· Operates with two-groove tokens.
· End-of-time alarm via a flashing display, 1 minute before the end.
· 230 V.
CTM TOKEN 2 SLOTS - OB120800
Two-groove token.
The timer is also available in a programmable time-delay version operating with coins. (Coin type to be defined at the time of order.)
LIQUID LEVEL CONTROLLERS

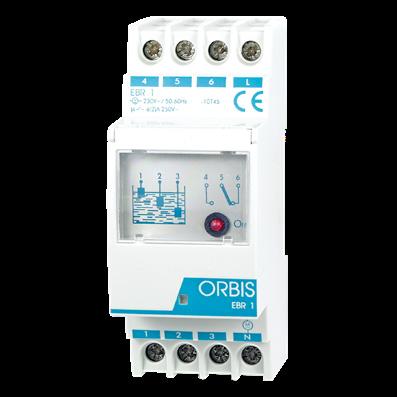

EBR-1 - OB230130
Liquid level controller for monitoring the filling or emptying of wells, tanks or reservoirs.
Adjustable sensitivity depending on water conductivity. Enhanced protection against disturbances caused by storms through varistors on the power supply input and probes. LED indicator showing relay status.
Version available EBR-2 - OB230230
Controls filling and emptying of two elements (well and tank) with a single device, thanks to its two circuits. Can manage up to 6 probes.
EBR KIT 3 SENSORS - OB230300
3-probe kit for EBR.
