ORABOND Industrial Tapes

ENGINEERED FOR EXCELLENCE

Adhesive Tape Systems for Industry

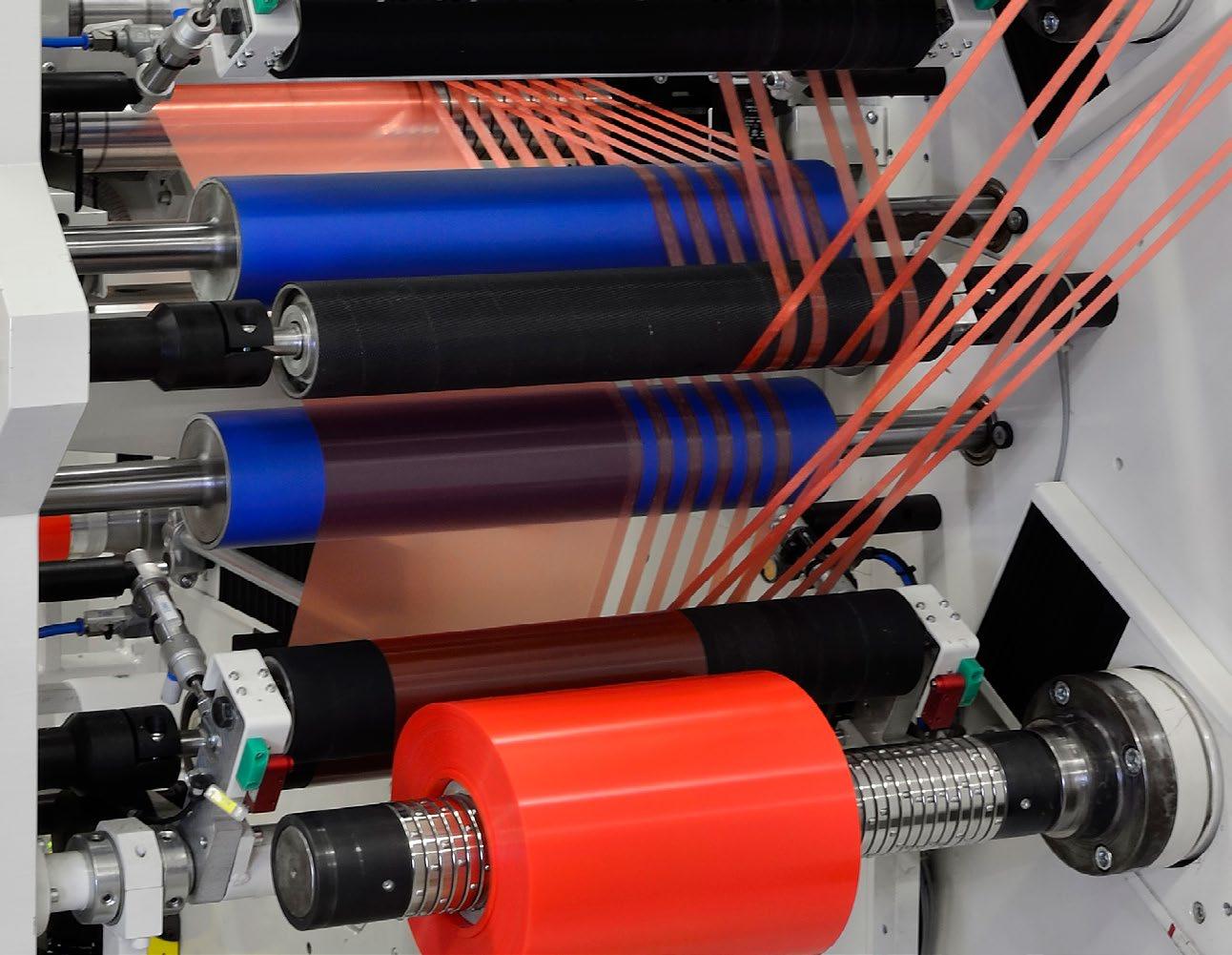

ORAFOL manufactures pressure-sensitive adhesive tapes developed for bonding and mounting in demanding industrial applications. Our portfolio includes a wide range of high-performance adhesives that ensure reliable adhesion and outstanding functionality on diverse surfaces – from premium transfer and double-sided tapes to advanced foam tapes.

Customized Tape Solutions for Every Industry

ORAFOL develops tailor-made adhesive tapes engineered to meet specific customer requirements while upholding the highest quality standards. With a comprehensive selection of carrier materials, liner options, and adhesive systems, we deliver customized solutions optimized for precise performance characteristics such as temperature resistance, shear strength, removability, or thermal and electrical conductivity.

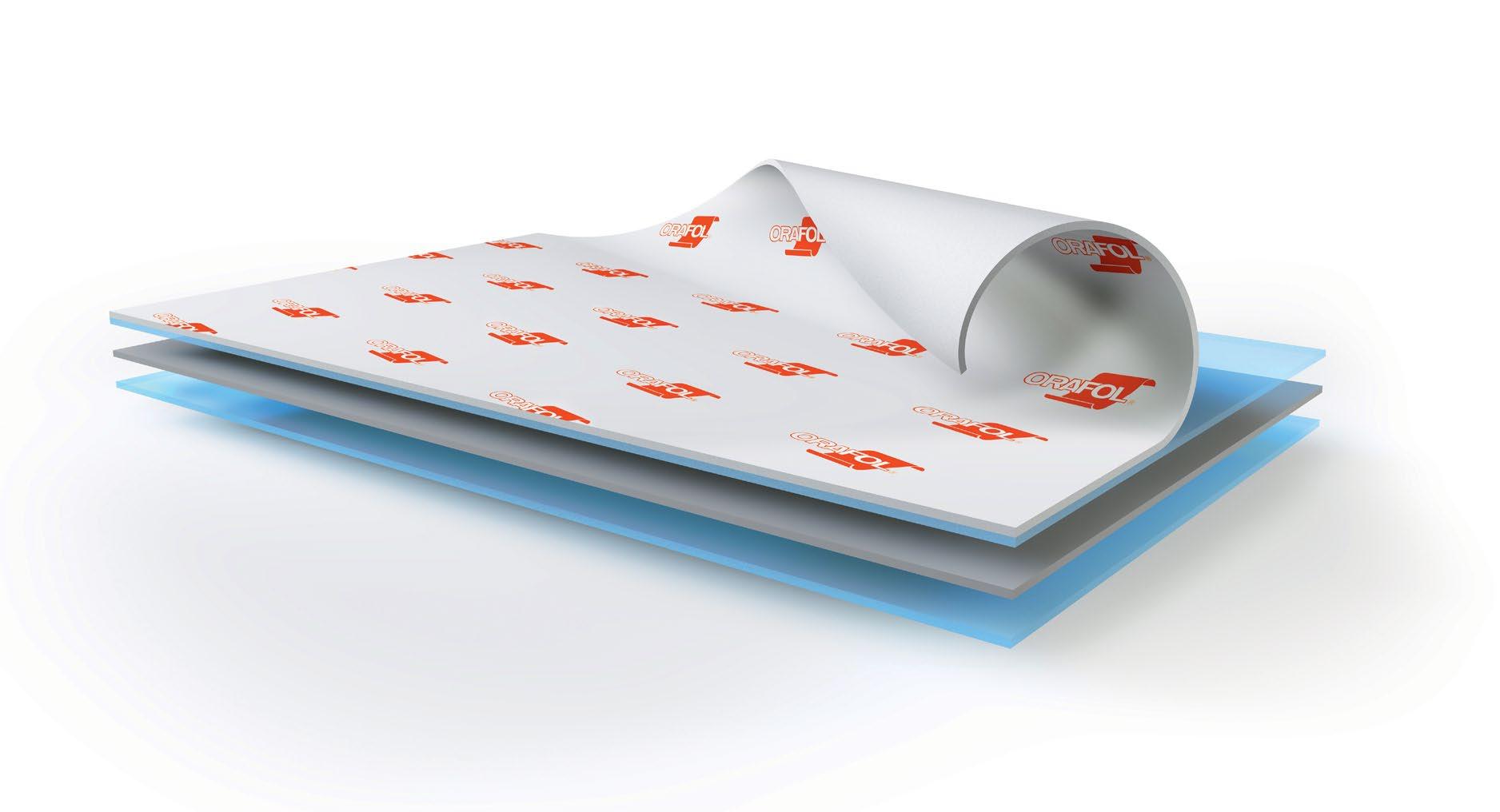

Release Liner

Siliconized Paper

Siliconized PE Paper

Filmic Liner (PE & PP)

Carrier

Filmic (PET, PP, PVC)

Textile

Non-Woven Fabric

Scrims, PE Foams

Acrylic Foam Transfer

Adhesive Tapes

Waterbased Pure Acrylics

Waterbased Modified Acrylics

UV Acrylics

Synthetic Rubber

Silicones

Technical Specification at a glance

Discover the detailed overview of available carrier materials, adhesive systems, and liner options designed to help you to identify the ideal tape solution for your industrial application.

• High shear adhesive with excellent resistance to high temperatures, solvents, humidity and outdoor exposure.

• High shear adhesive with excellent resistance to outdoor conditions, high temperatures and plasticizers

• High clarity grade with excellent polycarbonate and acrylic adhesion.

• High shear adhesive with excellent high tack, excellent adhesion on all high-energy surfaces.

• High shear, high tack adhesive with excellent balance of properties for use in high performance bonding applications. This product features good adhesion to low surface energy plastics.

• Ultra removable adhesive with excellent no-build adhesion to most surfaces.

• Version of AM5 with increased adhesion and good removability.

• High shear and high tack adhesive with good temperature performance for paper and board splicing. The adhesive is colored red for visual splicing applications.

• Higher shear version of AM2 for high temperature and electronics applications.

• Excellent high tack and outstanding adhesion on high-energy and especially on low-energy surfaces.

AD7

AD11

AD17

AD1

AD4

AD14

AD16

pure acrylic pure acrylic pure acrylic pure acrylic

AD18 modified acrylic modified acrylic modified acrylic modified acrylic modified acrylic

RL2 synthetic rubber

SR1

SR5

SR6

SR7

SR10

SR14

SR17 synthetic rubber synthetic rubber synthetic rubber synthetic rubber synthetic rubber synthetic rubber synthetic rubber

• Low fogging version of AD7

• Aggressive tack for most foam bonding applications where good resistance to ageing and solvents is required.

• Good adhesion to rough and low energy surfaces with very aggressive tack and high aging resistance

• High tack on various substrates even on LSE e.g. HDPE, PP, EPDM, foams and textiles. The adhesive offers excellent plasticizer resistance, high water resistance, moderate cohesion and low VOC and fogging emissions.

• General purpose adhesive with medium tack and a good initial and final adhesion

• High performance acrylic adhesive, specially designed for bonding applications and white goods.

• High performance, flame retardant adhesive

• High performance adhesive with good balance of properties, a universal solution for most bonding applications

• Very aggressive tack even on LSE such as HDPE, PP, EPDM as well as various foams and textiles, enables immediate high adhesion to various substrates even with low grammage with moderate cohesion. The adhesive offers high water resistance, great repulsion resistance and low VOC and fogging emissions.

• High shear solvent rubber with good adhesion to low surface energy plastics.

• High tack adhesive with good adhesion to EPDM foams.

• General purpose high tack adhesive for splicing and lamination applications.

• Economy adhesive for general purpose bonding.

• High tack adhesive with good adhesion to cellular polyolefin foams.

• General purpose adhesive with good balance of adhesion and tack for foam and felt lamination.

• High tack adhesive with good resistance against plasticizers, particularly suitable for EPDM foam profiles.

• Extremely aggressive pressure-sensitive adhesive specially designed for use on open-cell EPDM/rubber substrates.

Transfer Tapes - Acrylic Adhesives

Application-specific characteristics

(4 = highly recommended, 0 = not recommended)

4 4 4 4 1

4 3 3 3 4

For the production of metal, polycarbonate and other plastic fascias, nameplates and decals; used for lamination of membrane switch assemblies and other electronic components mounting in mobile telephones and for other applications that require an extremely high shear strength and temperature resistance. UL 969 listed.

For the production of metal, polycarbonate and other plastic fascias, signs, nameplates and decals; used for lamination of membrane switch assemblies and other electronic components mounting in notebooks, mobile telephones and for other applications that require an extremely high shear strength and temperature resistance. UL 969 listed.

Self-adhesive finish for all types of signs, decorations, front panels and displays where very high shear and adhesion strength as well as temperature resistance are required.

For low energy surface lamination: for foams and materials that require an extremely high shear, adhesive strength and temperature resistance, excellent resistance to UV radiation, extreme temperatures, chemicals, solvents and humidity. UL 969 listed.

Suitable for bonding foams and materials with rough and slightly structured or stamped surfaces, in industrial and commercial applications requiring a very high adhesive strength and high initial adhesion. It is especially recommended for low energy plastic surfaces. UL 969 listed.

4 3 3 3 4 The ideal bonding solution for low surface energy coatings and plastics. It offers a high initial adhesion, and works well also on rough, structured or stamped surfaces. It is the product of choice when working with polypropylene sheets, polycarbonate sheets and filled polypropylene. UL 969 listed.

4 3 3 3 3 PVC & polyolefin foam lamination, leaded windows, metal and plastic nameplates and fascia panels, production of special labels and decals in electronic industries; for low energy surfaces.

4 3 3 3 4 Foam lamination, metal and plastic nameplates, security glazing tapes, decals in electronic industries; for rough surfaces.

4 2 2 3 4

Suitable for commercial and industrial bonding of textiles, wood, open-pore and impregnated foams, cellular polyethylene, soft PVC and other rough, open surfaces.

4 3 2 4 2 Suitable for commercial and industrial bonding of textiles, wood, open-pore and impregnated foams, cellular polyethylene, soft PVC and other rough, open surfaces.

4 2 3 3 2

Extremely flexible and especially suited for the adhesion to many substrates used in the automotive industry. Bonds effectively to wood, open-pore and impregnated foams, various LSE surfaces, soft PVC and other rough, open surfaces. Due to its low fogging properties and low VOC content, the product is suitable for bonding applications in the interior of passenger cabins.

4 3 3 2 3 Extremely flexible and especially suitable for bonding felts, cellular rubber and EPDM. Because of its aggressive adhesive it is also appropriate for the adhesion of textiles, wood, small-pore and impregnated foams, cellular polyethylene, soft PVC and other smooth and rough surfaces.

4 3 3 2 3 Extremely flexible and especially suitable bonding felts, cellular rubber and EPDM. Thanks to its aggressive adhesive it is also appropriate for the adhesion of textiles, wood, small-pore and impregnated foams, cellular polyethylene, soft PVC and other smooth and rough surfaces.

4 3 3 2 4

4 2 3 3 4

Extremely flexible and excellent repulsion resistance. Particularly suitable for insulating and damping materials such as foams, nonwovens and textiles. Due to its very aggressive adhesive, suitable for bonding various materials from slightly rough to smooth surfaces with high to low surface energy (e.g. textiles, wood, small-pored and impregnated foams, nonwovens, cellular polyethylene, soft PVC or polypropylene). Designed to offer low fogging and low VOC emissions.

Extremely flexible and with an excellent repulsion resistance. Suitable for insulating and damping materials such as foams, nonwovens and textiles. Good for bonding various materials from slightly rough to smooth surfaces with high to low surface energy (e.g. textiles, wood, small-pored and impregnated foams, nonwovens, cellular polyethylene, soft PVC or polypropylene). Due to its low fogging properties and low VOC content, the product is suitable for applications in the interior of passenger cabins. * 914 x 610 mm, 610 x 457 mm, 457 x 305 mm

Double-sided Tapes - Acrylic Adhesives

Application-specific characteristics (4 = highly recommended, 0 = not recommended)

4 3 4 3 3 Cable trunking, furniture trim, general plastic component bonding and mounting, lamination of automotive mirrors,

4 4 4 3 3 Electronic applications, stamped parts, lamination of signs, covers, scales, metal and plastic films; recommended for lightly structured surfaces.

4 4 4 3 3 Electronics, mobile telephone gaskets.

4 4 4 3 3 Electronics, mobile telephone gaskets, high temperature splicing. 4 4 4 3 3 Electronics, mobile telephone gaskets, high temperature splicing.

4 4 4 3 4 PVC extrusions, furniture trims, splicing for high temperature operations, splicing of difficult materials, intermediate thickness version of 1397PP.

4 2 4 3 4 Sign making, digital graphics mounting, extrusion applications, lamination of automotive mirrors and white goods components; for rough surfaces. 4 2 4 3 4 Furniture trims, cable trunking, lamination of automotive mirrors; for rough surfaces.

Double-sided Tapes - Acrylic Adhesives

Application-specific characteristics (4 = highly recommended, 0 = not recommended)

4 4 4 3 4 Sign boards, general fixing, sail making tapes, electronic component mounting, special labels; thinner version of 1397.

4 3 3 3 4 Foam lamination, sign boards, general fixing; for smooth or lightly porous surfaces, thinner version of ORABOND® 1399.

4 4 4 3 4 PVC extrusions, furniture trims, splicing for high temperature operations, splicing of difficult materials, lamination of automotive mirrors. PP version also for production of sails for sailboards.

4 4 4 3 3 Lamination of signs, covers, metal and plastic films, white goods component fixing, electronic products; for even surfaces.

4 4 4 3 3

Developed for demanding commercial and industrial applications where high shear strength, high adhesion and temperature resistance is required. Used for the adhesion of foams in the battery construction of e-vehicles and bonding of electronic components. Highly shear resistant adhesive with excellent durability when attached to metal, varnish and high energy surfaces, and good durability when attached to low energy surfaces.

4 4 4 3 3 Developed for demanding commercial and industrial applications where high shear strength, high adhesion and temperature resistance is required. Used for the adhesion of foams in the battery construction of e-vehicles and bonding of electronic components. Highly shear resistant adhesive with excellent durability when attached to metal, varnish and high energy surfaces, and good durability when attached to low energy surfaces.

4 4 4 3 3

Single-sided tape developed for demanding commercial and industrial applications where high shear strength, high adhesion and temperature resistance is required. It is used in the battery construction of e-vehicles and bonding of electronic components. Highly shear resistant adhesive with excellent durability when attached to metal, varnish and high energy surfaces, and good durability when attached to low energy surfaces.

4 3 3 3 4 High performance fixing, mounting of roller blinds, point of sale, foam lamination, splicing of difficult materials; for rough surfaces.

4 4 4 3 4

Bonding of all types of signs, decorations, front plates, displays, cloth and metals where high shear strength, strong adhesion and extreme temperature resistance is required. It has a high initial adhesion when attached to smooth surfaces.

Especially suitable as self-adhesive medium for different materials. Ideal for situations where easy and residue-less removal is required.

4 4 3 4 3 For splicing of paper and boards where there is a requirement for a visible splice or automatic splice detection using optical devices.

Double-sided Tapes - Acrylic Adhesives

Application-specific characteristics

(4 = highly recommended, 0 = not recommended)

and

4 3 3 3 3 For high performance foam lamination, lamination of paper or wood veneers to wood and MDF boards.

4 2 2 3 2 Recommended for use where a permanent bond to the primary substrate is required, with a “post-note” low tack bond to the other substrate (open side permanent bonding): for window protection pads and removable splicing; easy and residueless removal from covered side.

4 2 4 4 1 Recommended for use where a permanent bond to the primary substrate is required, with a medium tack temporary bond to the other substrate (open side permanent bonding); residueless removal from covered side.

4 2 2 3 2 Especially suitable as a self-adhesive medium for different materials. Ideal for situations where residueless removal is required.

4 2 2 3 2 Special version of ORABOND® 1331. Intended use in label conversion of smart card and credit card applications. Easy and residueless removal from covered side.

4 4 4 4 1 Lamination of digital printed signs, window roller blind attachment. Recommended for thin materials with even surfaces.

4 2 2 2 1 Mounting of blankets in offset printing, fixing of dry sand paper to grindstones, synthetic profiles and rubber mouldings; for rough and structured surfaces.

4 2 2 2 2 Good APEO-free distributor grade used for multiple end applications, rubber, leather, textile and foam lamination, splicing of paper, cardboard and film.

4 2 2 2 2 APEO-free economy foam lamination product: for lamination of cellular rubber, small pore and impregnated foams, felt fabrics and other smooth and slightly rough surfaces; highly resistant against ageing and plasticizers.

4 2 2 2 3 APEO free, for lamination of cellular rubber, open-pore and impregnated foams, felt-fabrics and other rough, open surfaces; highly resistant against ageing and plasticizers.

4 2 2 2 3 Extremely flexible APEO free tape for lamination of cellular rubber and EPDM; also for textiles and wood, open-pore and impregnated foams, cellular PE, soft PVC and other rough, open surfaces. Suitable for applications where resistance to high temperatures, ageing and plasticizers are needed.

Double-sided Tapes - Acrylic Adhesives

Application-specific characteristics (4 = highly recommended, 0 = not recommended)

4 2 3 3 3 Foam lamination in refrigeration evaporator mounting; application in a broad temperature range.

4 2 2 2 4 Adhesion of cellular rubber, textiles, wood, open-pore and impregnated foams, cellular polyethylene, soft PVC and other rough, open surfaces.

4 2 2 2 2 For bonding of cellular rubber, textiles, wood, open-pore and impregnated foam, cellular PE, soft PVC and other rough and open surfaces.

4 1 3 3 3

Extremely flexible tape for the construction industry: bonding of cellular rubber and EPDM as well as textiles, wood, open-pore and impregnated foams, cellular polyethylene, soft PVC and other rough, open surfaces.

4 1 3 3 3 For the construction industry: bonding of concrete, wood, small-pore and impregnated foams, cellular polyethylene, soft PVC, other plastics, as well as smooth and slightly rough surfaces. The polyester carrier offers an additional barrier for plasticizers.

4 4 3 3 3 Extremely flexible and especially suited for the adhesion to many substrates used in the automotive industry. Bonds effectively to wood, open-pore and impregnated foams, various LSE surfaces, soft PVC and other rough, open surfaces. Due to its low fogging properties and low VOC content, the product is suitable for applications in the interior of passenger cabins.

4 2 3 3 4

Double-sided Tapes - Rubber Adhesives

Application-specific characteristics (4 = highly recommended, 0 = not recommended)

1 1 4

Lamination of foams, boards, profiles, metal, paper and hard PVC, high tack and immediate bonding.

For general bonding and point of sale applications; for closed cellular foams and rubber for even surfaces, economy version of ORABOND® 1453. PP version also recommended for extruded magnets, furniture trim and security bag seals.

1 1 4 1 4 Lamination of closed cell foams, PE and hard PVC, general fixing of wood, metal and glass in internal applications; for rough and even surfaces.

1 2 4 1 4 Adhesive medium for smooth surfaced materials (e.g. metal, polystyrene, glass) as well as for hard PVC and cellular polyethylene. Also used for lamination and sealing of mineral fiber insulation. 1

For general fixing of wood, metal and glass in internal applications.

For

For bonding on smooth surfaces like metal, polystyrene, glass and hard PVC; used extensively in refrigeration market for mounting of evaporator plate panels.

EPDM extrusions, impregnated foams, lamination of cellular rubber, filter mounting; high rip-resistance and low elongation.

Suitable for self-adhesive finish of products with smooth surfaces (e.g. metal, polystyrene, LSE surfaces) as well as for bonding with (foamed) EPDM and plastics for seals and weather seals. High resistance to plasticizers and other migrating chemicals.

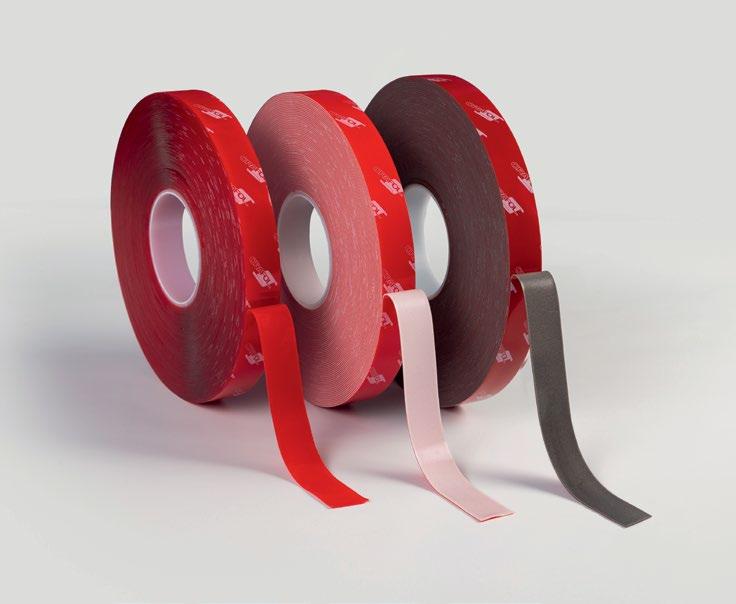

Double-sided Foam Tapes

1 1 4 1 4

Mounting of window bars, signs, extrusion profiles and mirrors, for solar panel production; complies with FIRA requirements. UL 746C listed. Certificate: Mirror mounting according to TÜV/Rheinland/LGA guideline

Mounting of mirrors, window bars (muntin bars), trims, panels and handles in furniture production as well as signs, displays and product prototypes in the advertising industry; for lamination of aluminium, steel and GRP outer skins during the construction of

General purpose fixing and high shear application, plastic hooks and hangers, mirror mounting; complies with FIRA requirements, for rough surfaces.

Certificate: Mirror mounting according to FIRA

General purpose fixing and high shear application, plastic hooks and hangers; for apolar surfaces.

General purpose fixing and high shear application, plastic hooks and hangers, mirror mounting; complies with FIRA requirements; for apolar surfaces.

4 3 4 3 3 For installation of even surfaced spray cast and extruded plastic parts such as panels, bars and signs, as well as plexiglass mirrors for interior fit-outs and displays. For use as an adhesive medium for hooks, handles and dispensers on even surfaces.

4 3 4 3 3 For fixing of trims, badges, panels, letters, emblems and other external fixings in the automotive aftermarket industry.

4 3 4 3 3

General mounting applications, lamination of plastic hooks, plastic hangers, cable trunking and furniture profiles; for interior application. UL 746C listed.

4 3 4 3 3

Point of sale, general fixing and mounting, e.g. cable trunking, displays, signs; for interior application.

Certificate: Mirror mounting according to TÜV/Rheinland/LGA guideline

Double-sided Foam Tapes

Application-specific characteristics (4 = highly recommended, 0 = not recommended)

4 3 4 3 3 For bonding of smooth spray cast and extruded plastic parts (e.g. panels, bars, signs, plexiglass mirrors for interior fit-outs and displays). For even surfaces. Economic version of 1812.

4 3 4 3 3 Sister product to ORABOND® 1812 with yellow PP film liner, for bonding of plastic and metal extrusion profiles and plastic parts, e.g. panels, bars, signs, plexiglass mirrors and displays; high initial adhesion and shear strength. UL 746C listed.

4 3 4 3 3 Metal pins, plastic hooks and hangers, cable trunking, furniture profiles, exhibition and point of sale.

4 2 4 3 3 For bonding and installation of a variety of materials such as metals, plastics, glass and ceramics. For durable adhesion of plastic mouldings.

4 2 4 3 3 Furniture profiles, window seals, window bars, displays; for even surfaces.

4 3 4 3 3 Automotive after market trim and badge attachment, window bars, lamination of metal, plastics, glass and ceramics.

4 3 4 3 3 Mounting of mirrors, signs, window bars, and general purpose mounting.

4 2 4 3 3 For mounting and fixing of window profiles and seals where the 3 mm product is required, for fixing of materials such as metal, plastics, glass, ceramics; good adhesion on difficult surfaces.

4 3 4 3 3 For use in applications where the foam is used as a temporary fixing or gasket. The adhesive on the liner side of this product is clean removable from most surfaces. * Possible roll widths from 3 mm depending on series. Contact ORAFOL for further information.

Ultra High Bond Tapes

Suitable

Suitable for a wide

and

including in automotive,

electronic, sign and display industries. Developed originally for the automotive industry, it offers excellent adhesion to plastics and painted steel.

Suitable for a wide range of commercial and industrial applications, including in automotive, solar, electronic, sign and display industries. It has very good adhesion to plastics and different metals, particularly aluminium and stainless steel, and excellent adhesion to painted and powder-coated surfaces.

Suitable for a wide range of commercial and industrial applications, including in automotive, solar, electronic, sign and display industries. Developed originally for the automotive industry, it offers excellent adhesion to plastics and painted steel.

Suitable for a wide range of commercial and industrial applications. It bonds well to a wide range of metals, plastics, ceramics and composites and is ideal for structural and general bonding of body panels, emblems, illuminated displays and signage.

Ultra High Bond Tapes

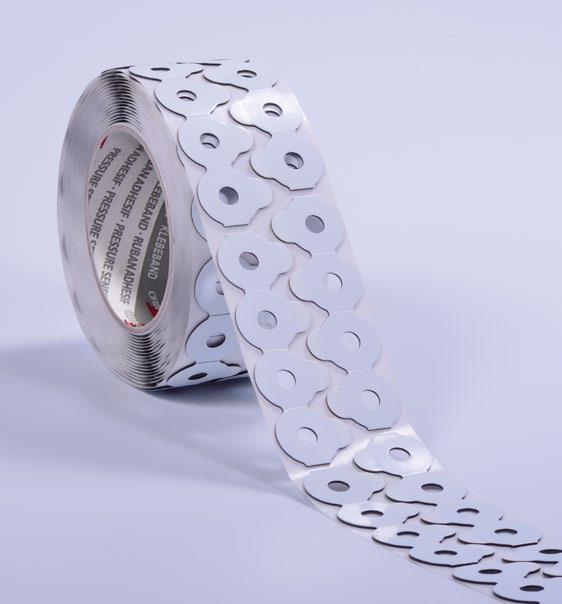

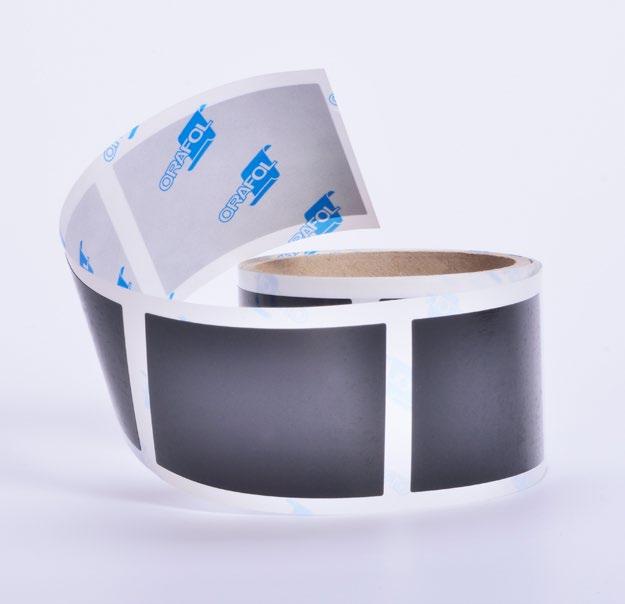

The rolls are available also as logs, sheets and die cuts.

Suitable

ORAFOL’s Worldwide Locations

ORAFOL Europe GmbH

ORAFOL is one of the world’s leading manufacturers of adhesive tape systems, innovative self-adhesive graphic films and reflective materials.

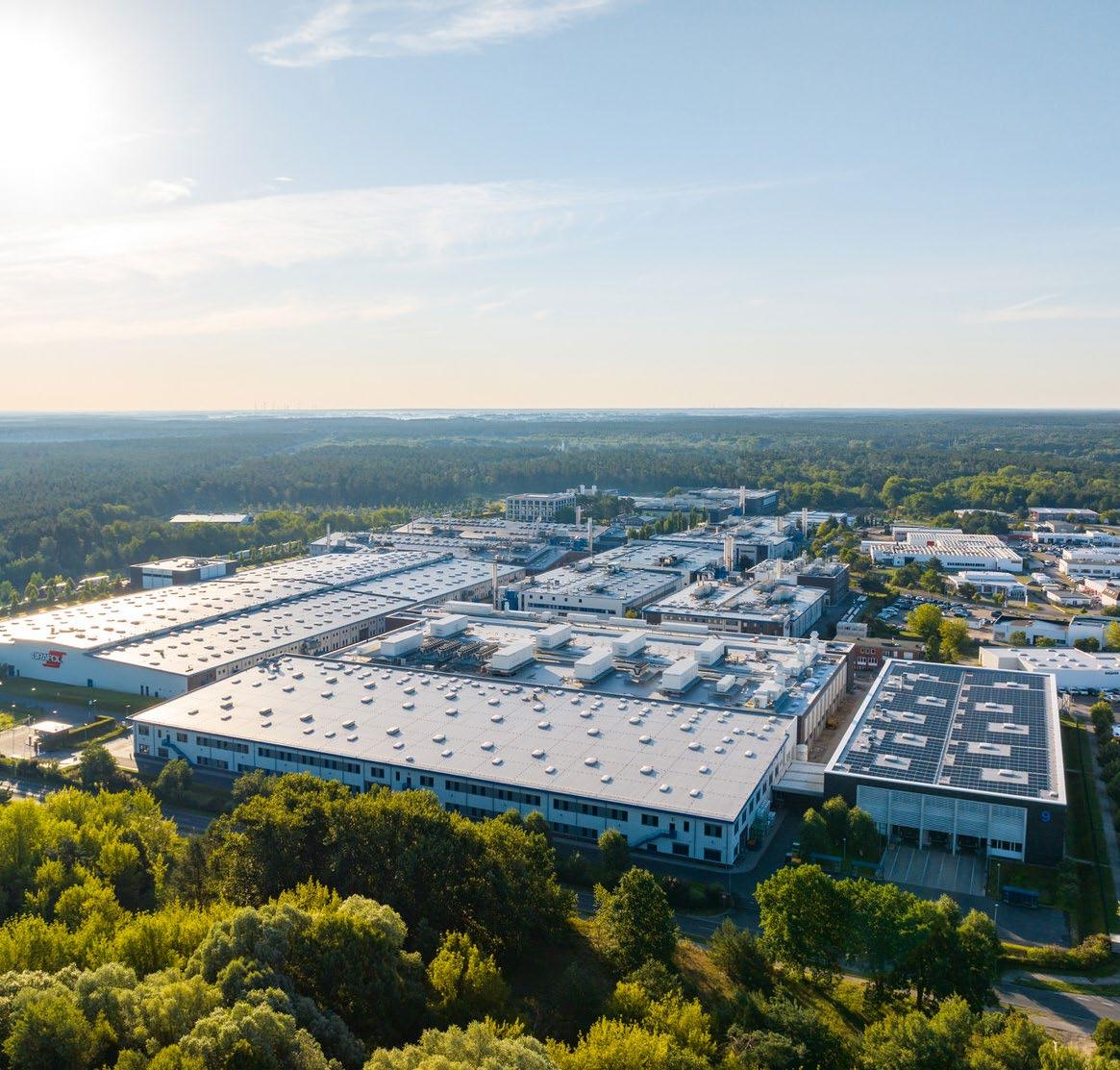

The international ORAFOL GROUP is headquartered just outside the city gates of Berlin, in Oranienburg.
