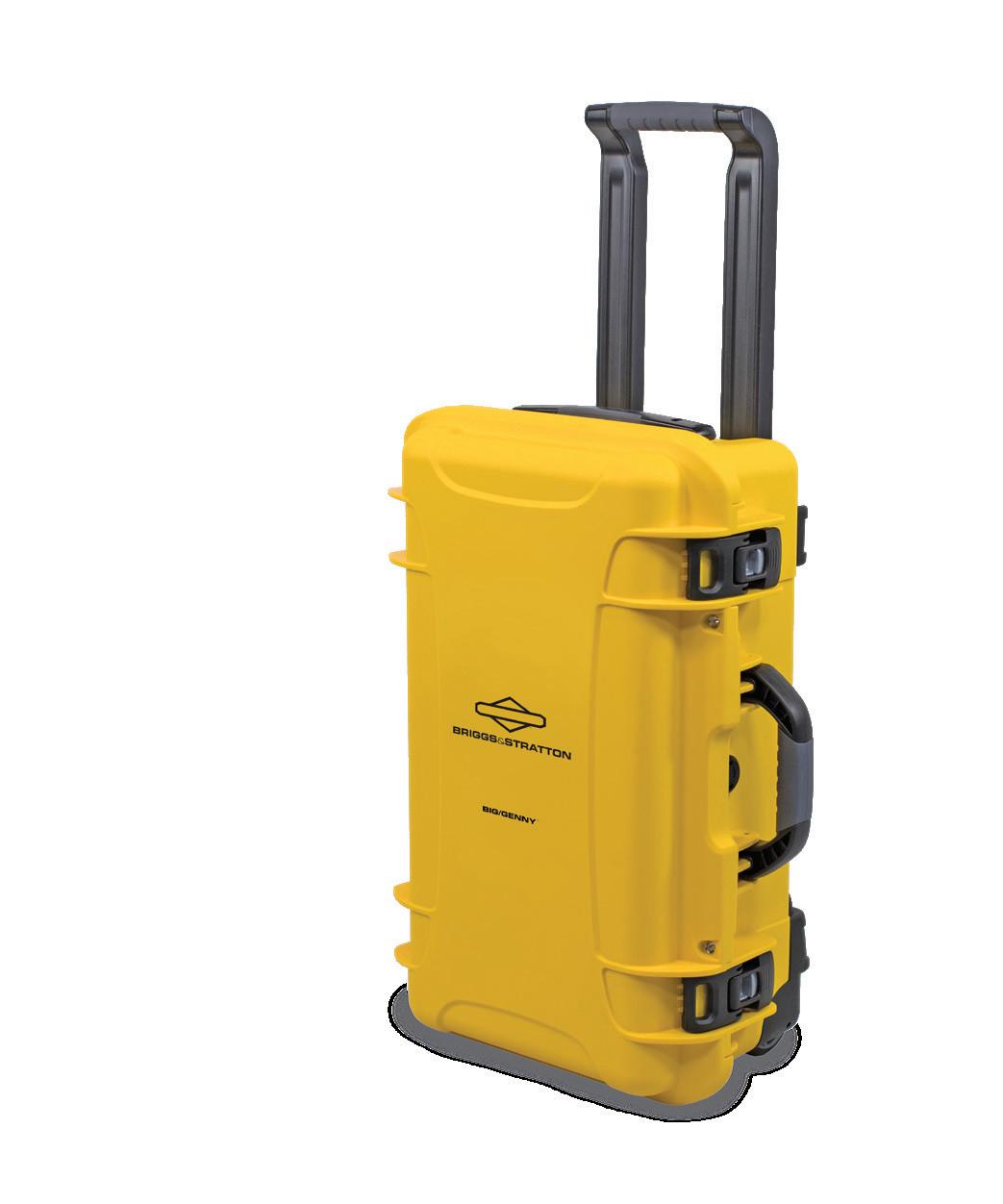

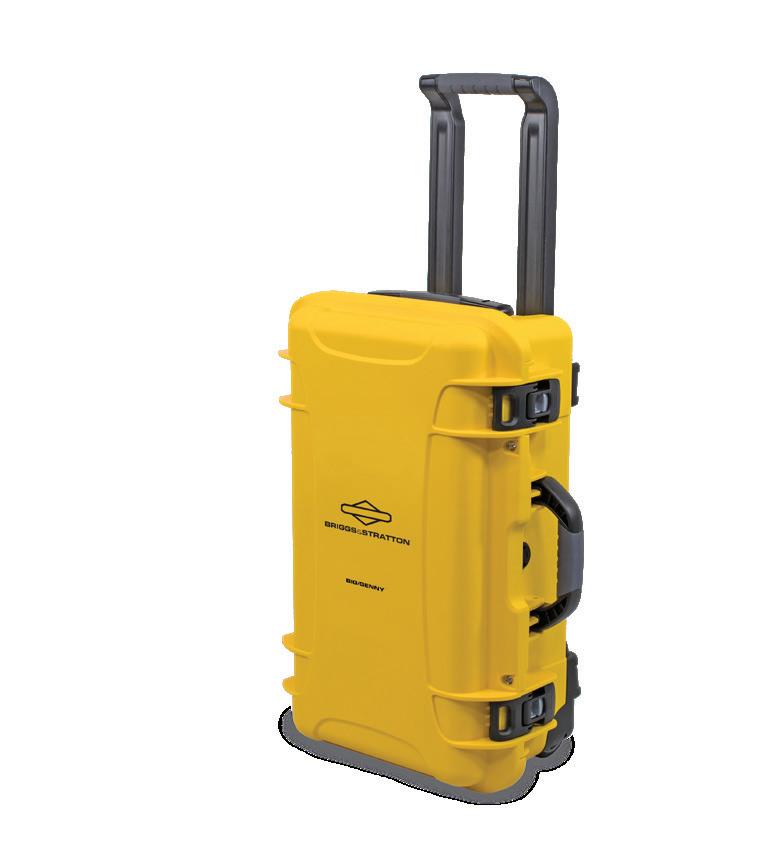

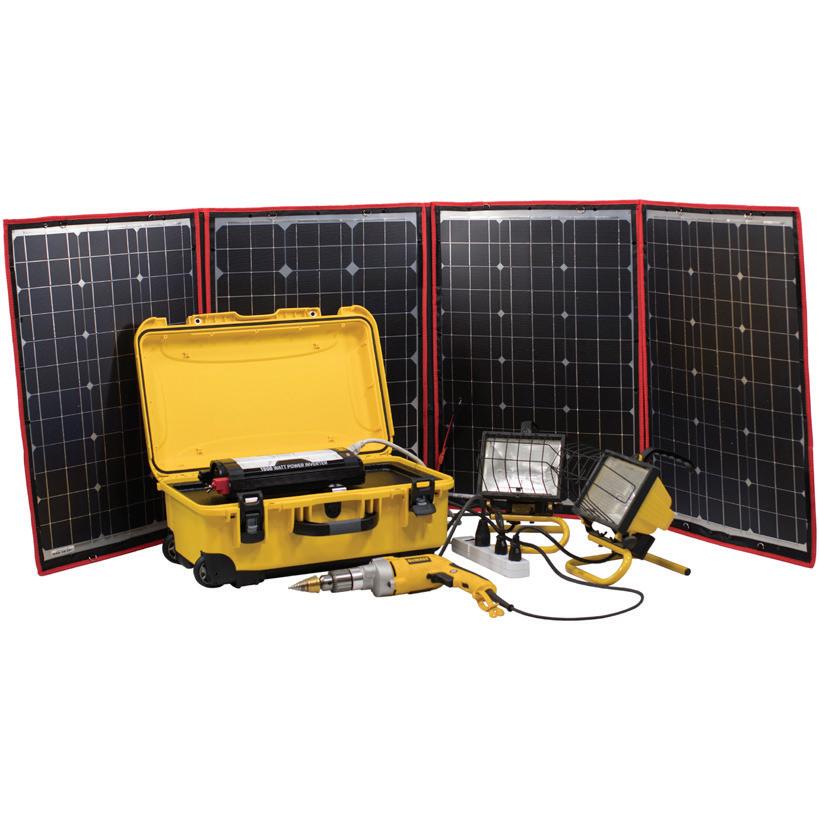

BIG GENNY and Big Genny Emergency Power Kit (EK)
SPECIFICATIONS Inverter Continuous Output Rating
1,000 Watts
AC Output Rating
115 Volts AC +/- 5% / 12.5 Amps AC +/- 5%
Frequency Rating
60Hz ±1
Output Wave Form
Pure Sine Wave
DC Input Rating
12 Volts DC
Input Voltage Range
10.5 to 15.5 Volts DC
Low Battery Alarm
10.5 Volts DC ± 0.5 VDC
Low Battery Shutdown
10.0 Volts DC ± 0.5 VDC
Over Voltage Shutdown
16.5 Volts DC ± 0.5 VDC
No Load Current Draw
<1.0 Amp DC
Optimum Efficiency
>90%
USB Output Rating
5 Volts DC MAX / 2.1 Amps DC
AC Output Sockets
2 x North American Standard Outlets
Fuse Type
100 Amp DC Auto-Reset Circuit Breaker
Operating / Storage Humidity RH
5 to 95%
Cooling System
Thermo Fan
