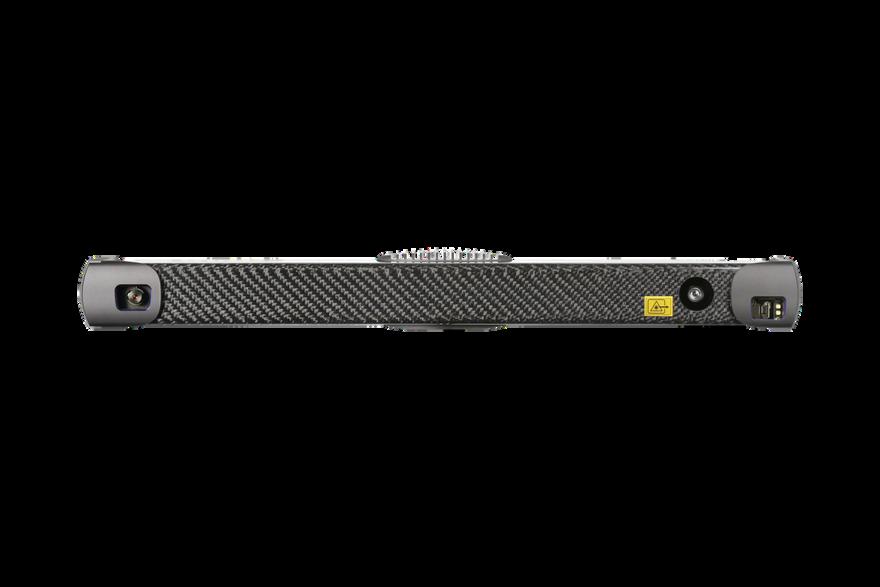

MotionCam
Altiz
Stereo Visard

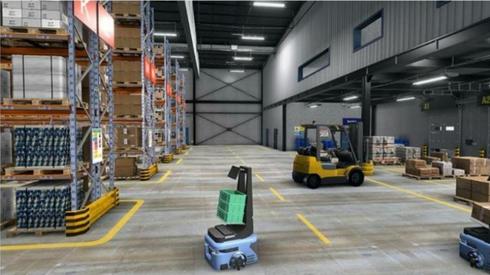

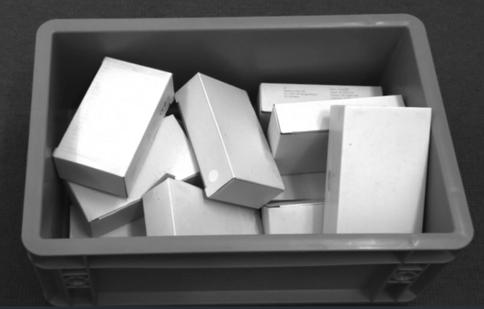

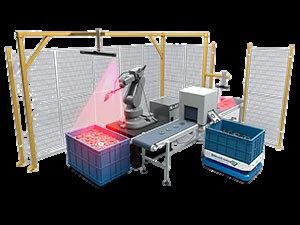

Objectmanipulation&robotguidance Engineering SLAM
3D Technologies
VENDOR PRODUCT TECHNOLOGY ACCURACY
3DMotionCam ParallelStructuredLight 0150mm-15mm
LaserProfiler 4µm-89µm
0100mm-18mm
004mm-22mm

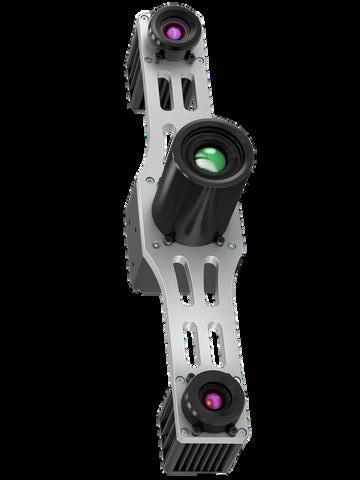

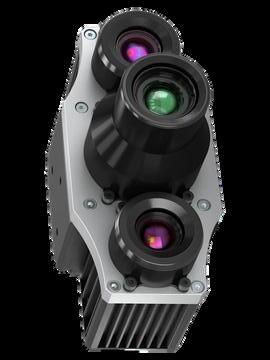

3DMotionCam
upto20fps PoEGigE
11000line/second PoEGigE
upto25fps GigE
30fps GigE

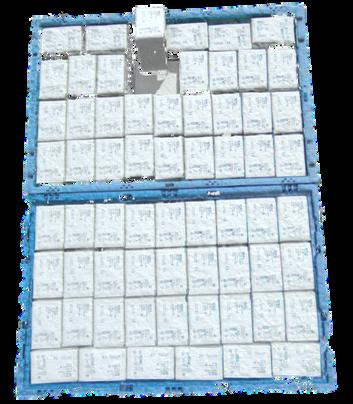

Clear&completescans.
Anew3Dscanningmethodenablessignificantlyimprovedsignal-readoutfromtransparent, translucent,andglossyobjects,providinggreatercompletenessandqualityof3Dscans,even withouttheneedforcoatingandscanningsprays.
Resistanttovibrations&ambientlight Withoutproducingdistortionorbrokenacquisitions
Highresolution Pointcloudwitharesolutionof20mpfordynamicscenes Industryreadydevice
Sharpedges forobjectsmovingupto40m/s

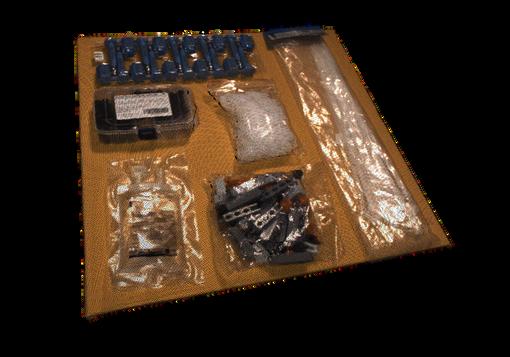

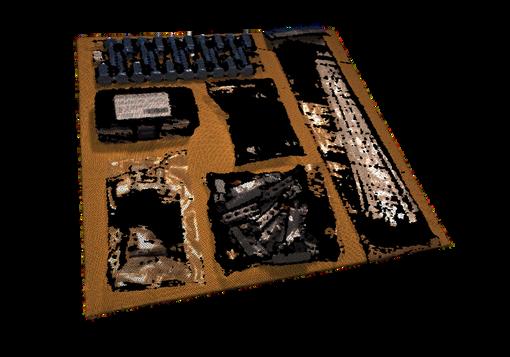

Before After

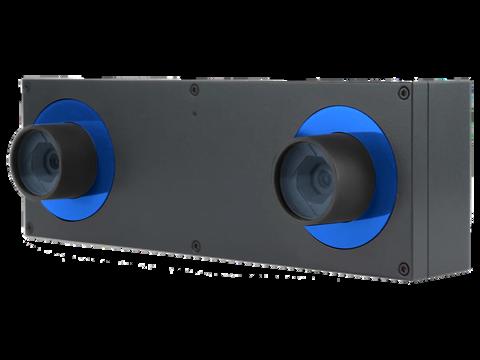

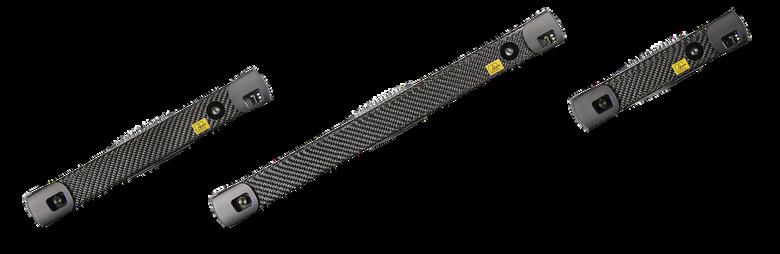

Stereo Ace: High resolution and outstanding image quality are achieved through factory pre-calibration and the integrated pattern projector.
Customisation
Flexiblecustomisationtailoredtoyourspecificrequirements
Performancecharacteristics

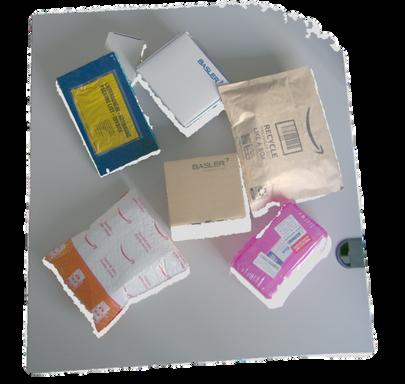

High-resolution3Ddata,eveninsceneswithobjectsthathave littleornostructure
ComprehensiveSDK
SDKpackageforpylonenableseffortlessinstallationandintuitiveoperationofthecamera
Basler’sStereoAceoffersdirectsupportfortheopensourcelibraryAravisandthus ensuresahighlevelofcompatibility

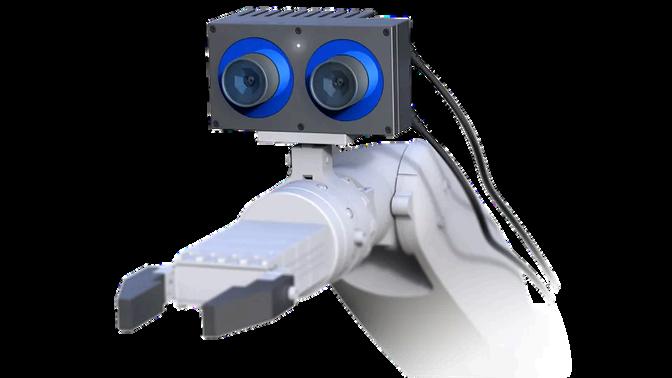

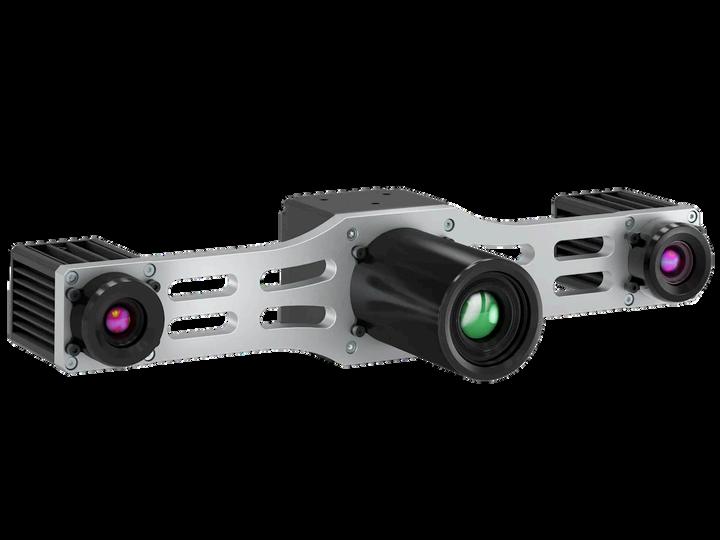

Stereo Visard: Maximum compatibility industrycompliant interface standards GenICam, GigE Vision,
Rest API and ROS

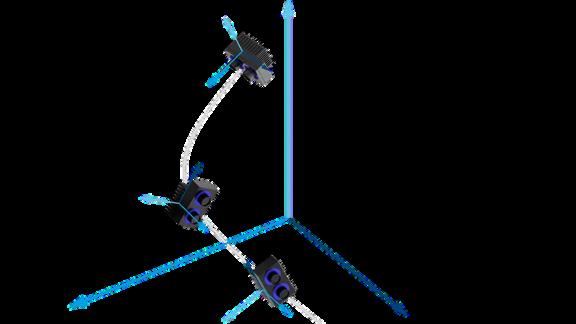

Visualodometry
State-of-the-artvisualinertialodometryalgorithms,captures itscurrentpositionandorientationwiththehighestprecision
Onboardimageprocessing
Integratedgraphicscard,thedepthimagesaregenerated directlyonthecameraanddonotrequireanyexternal computingpower-anidealrequirementformobilesystems

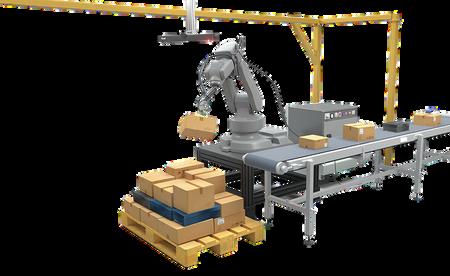

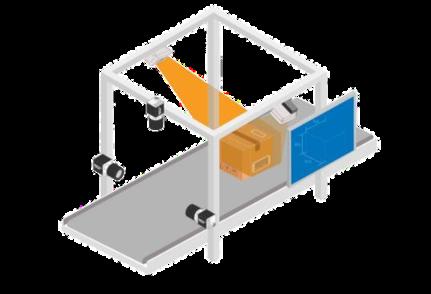

3D Blaze: IP67 rated three dimensional imaging for industrial applications and logistics

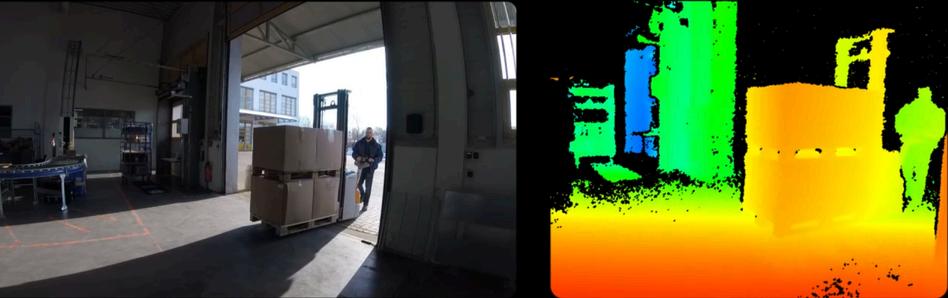

Daylight robustness

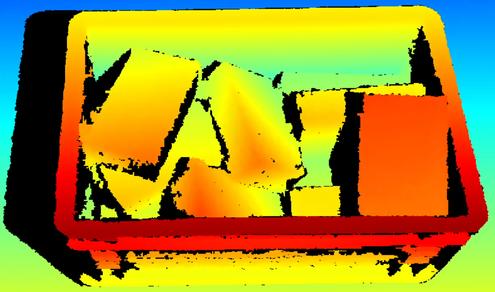

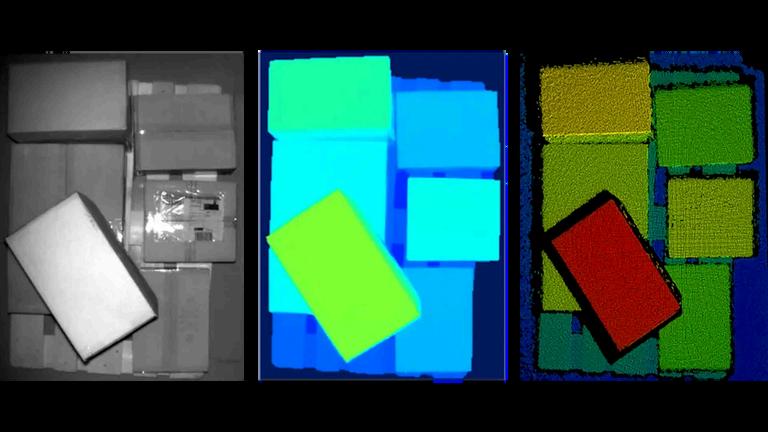

2Dand3Ddatainoneshotwithamultipartimagethatincludesdistance,intensity andconfidencemaps

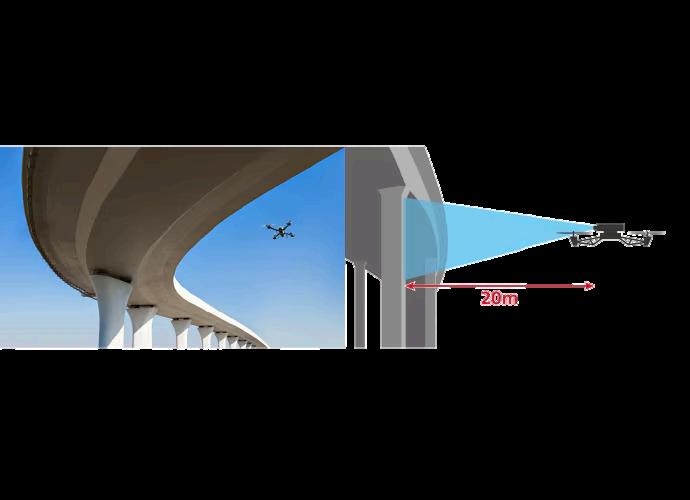

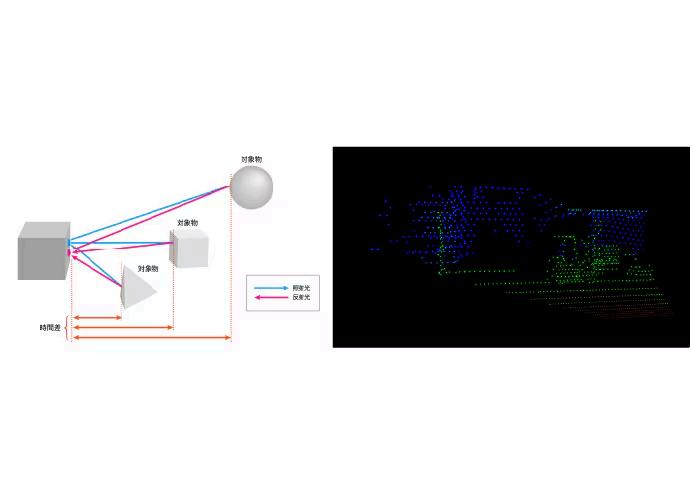

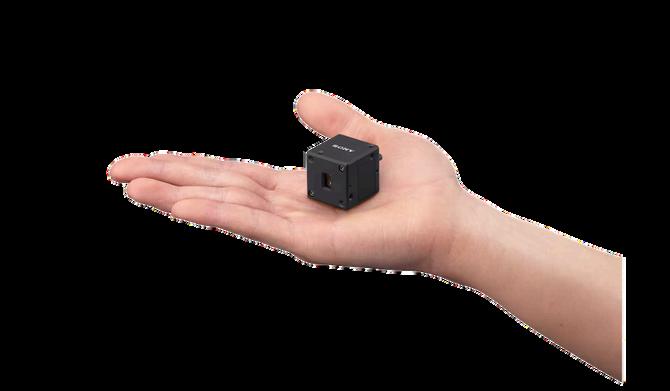

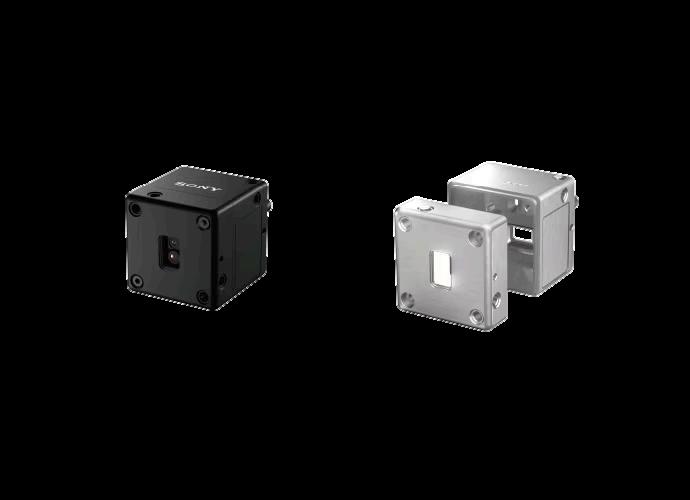

AS-DT1: Miniature precision depth Sensor for drones, mobile robots and embedded systems
Itsrangingmeasurementishighlyaccurate;evenfromalongdistanceof40metres indoorsand20meters*4outdoorsonaclearsummerday(assuming100,000lux)

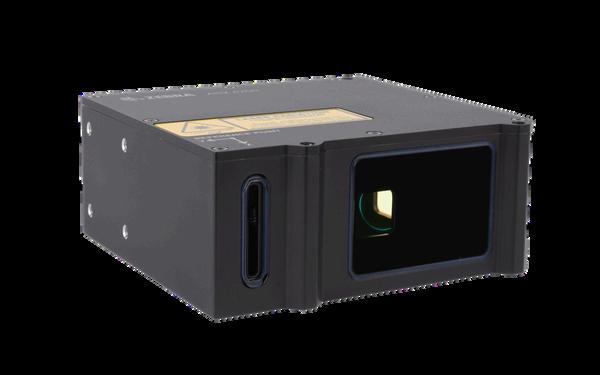

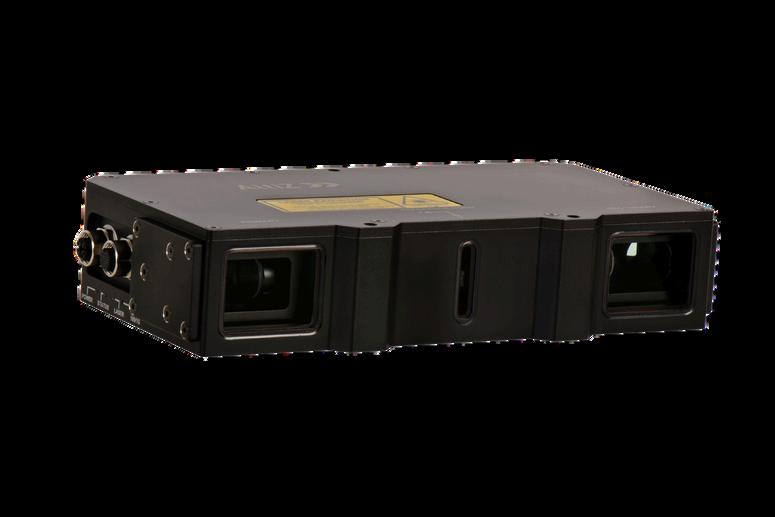

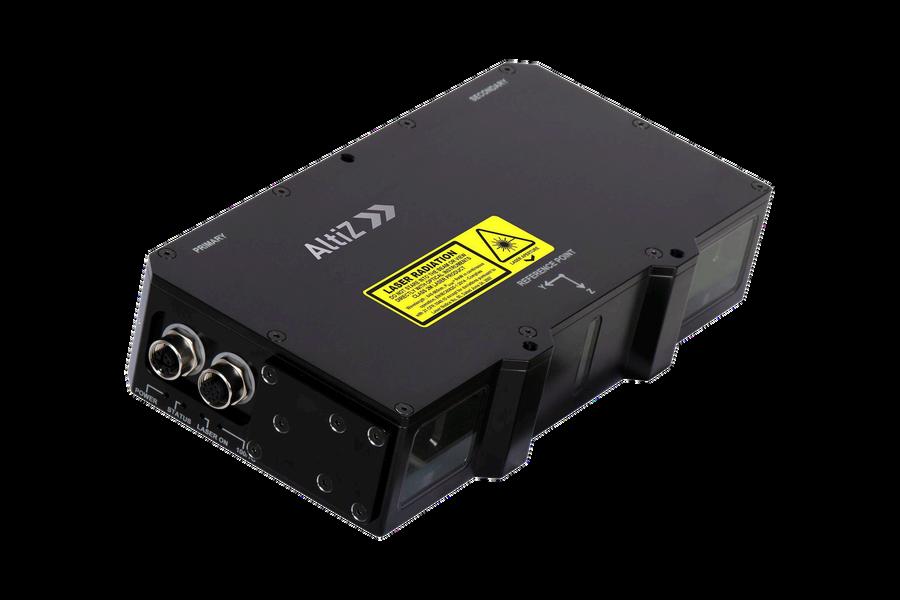

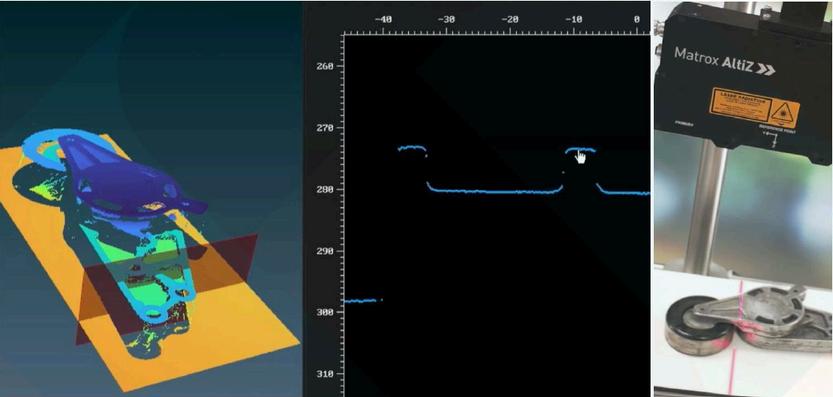

Altiz: High-fidelity 3D profile sensors
High-fidelity3Dscanning
3Dprofilesensorsfeatureadual-camerasingle-laser designtoreducescanninggapsandvoids Generate reliable3Ddataintheformofprofiles,depthmaps, orpointcloudstosuitanyapplicationrequirement
Intuitiveoperationandsetup
Twocamerasoperateintandemoralternation: Oneaffordmaximumreproductionquality,theother 2xthescanningrate
Aninteractivesetuputility-includedinsupported software-letsusersconfigureandtestacquisition fromanAltiZ
3D Products Comparative Positioning
Product Strength Focus Main Limitation
MotionCam
StereoAce
StereoVisard
Blaze
AS-DT1
Handlesdifficultmaterials,motion extremelywellandlesscomplex
Cost-effectivestereowithgood imagequality
Strongformobilesystemsand onboardintelligence
Robust,fast,industrial3Dsensing, verycosteffective
Ultra-compactlong-rangedepth sensing
Highercost
Lowerperformancein low-texturescenes
Notoptimizedfor extremeprecision
Lowfine-detail resolution
Notdesignedfordense 3Dreconstruction
OEM Automatic Ltd is the official distribution partner for Sony, Basler and Zebra in the UK and Ireland.
Pleasecontactustodiscussyourmachinevisionrequirements
Email:Vision@oemcouk
Tel.+44(0)1162849900
Web:wwwoemcouk/products/machine-vision
