CAFETERIA & CAFE
TABLETOP GUIDE MDF
www.nationalpublicseating.com

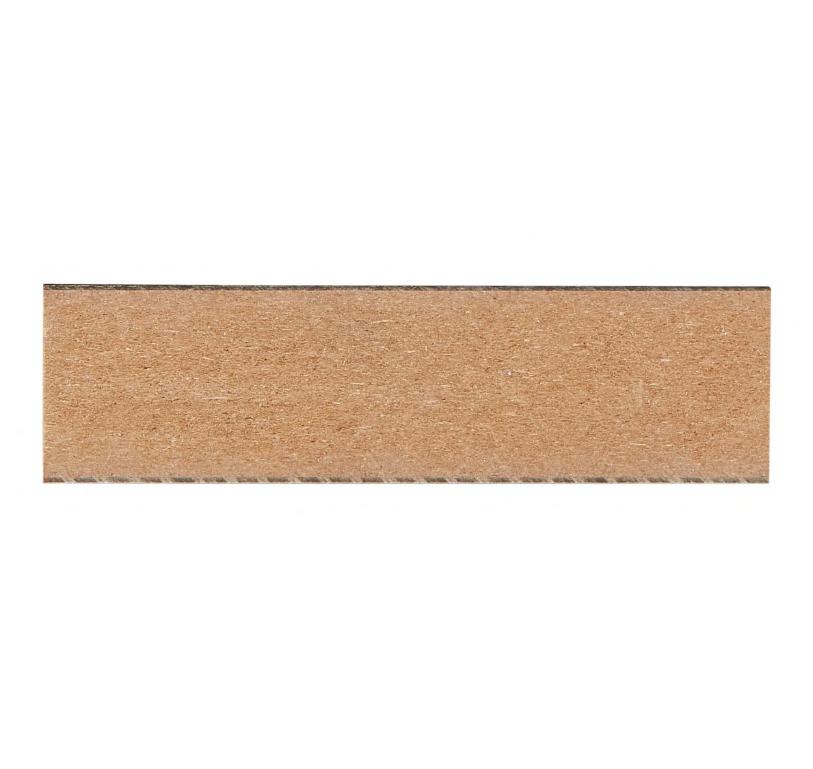

MDF is an engineered product comprised essentially of recycled wood particles and wood fibers held together by a resin binder or wax and compressed to form flat panels under extremely high temperatures. COMPATIBLE EDGE Protect Edge
Sealed Edge
Protect Edge
C O R E
PARTICLEBOARD
$$$
Phenolic Backer
Particleboard is a composite wood made from sawmill shavings, wood chips, and resin, which are heat pressed together. COMPATIBLE EDGE Vinyl T-Mold Edge
3MM PVC Edge Banding
Sealed Edge
3MM PVC Edge Banding
PLYWOOD
Poly Backer
$$$
Poly Backer
$$$

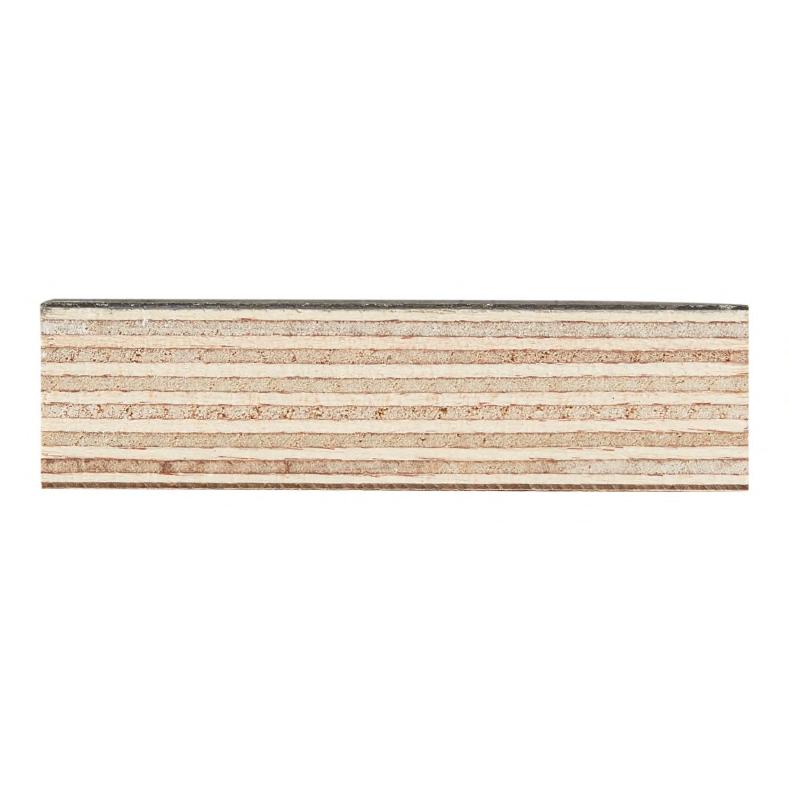

Plywood is constructed from multiple layers of very thin sheets of wood, which are bonded to each other with resin adhesive and cured with heat and pressure. COMPATIBLE EDGE Vinyl T-Mold Edge
3MM PVC Edge Banding
Protect Edge
Sealed Edge
3MM PVC Edge Banding
E D G E
Protect Edge
Poly Backer
$$$
Poly Backer
$$$
Phenolic Backer
$$$$
3MM PVC EDGE BANDING
VINYL T-MOLD EDGE
PROTECT EDGE

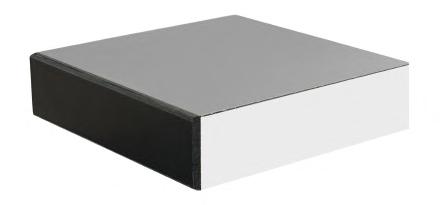

3MM PVC Edge Banding is applied to the edge of the wood with a process that involves heating EVA pellets to create a strong and durable bond, forming a liquid-tight seal between the tabletop and the edge banding. The adhesive used can withstand high temperatures up to 170 degrees Fahrenheit.

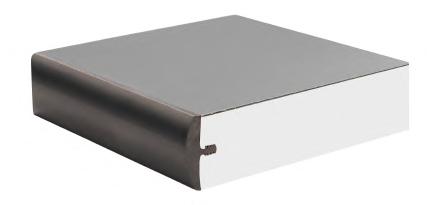

T-Mold Edge is characterized by a T-shaped molding that is inserted into a groove along the edge of the tabletop. The T-Mold is made of a durable and flexible material, that is able to withstand wear and tear and is stapled to the underside of the tabletop for added resilience.

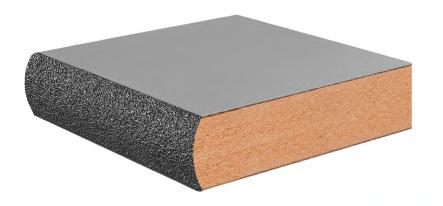

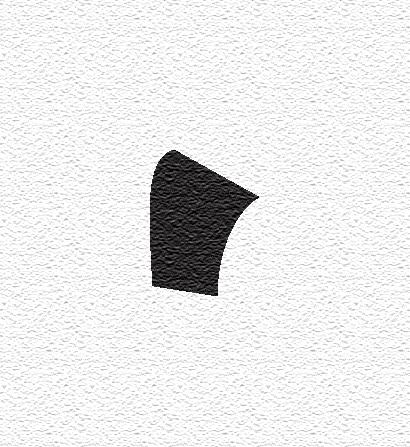

Protect Edge is a tough and durable polyurethane sprayed-on edge with a textured finish that helps to prevent scratches and damage to the tabletop. The edge is sprayed onto the wood, creating a uniquely strong bond, which creates a liquid-tight seal between the tabletop and the substrate.
