LANDBASED FISH FARMING
CONCEPTS
North AquaCulture Deliverables
North Aquaculture offers comprehensive consulting and support services to clients and investors involved in new or ongoing land-based aquaculture projects. We proudly serve as a client representative throughout the lifecycle of each project. We specialize in the design, prefabrication, installation, and biological maintenance of your facility. Our team provides guidance during all project phases, from concept and design to installation and commissioning.
Our site management services, which include pipe installation and the assembly of mechanical equipment, are carried out by some of the industry’s most experienced installation teams. We also provide prefabrication and delivery of custom-made products for various systems. Our products are tailored to meet performance re quirements and customer needs.
North AquaCulture Team
North AquaCulture was founded in 2021 and has 55 employees
The company was established by a team with over 10 years of experience in designing and construction of landbased fish farms. The team has participated in several of the I argest RAS projects in Norway over the past 10 years, covering different phases such as hatcheries, smolt, postsmolt and grow-out facilities.
Our team consists of project engineers, biologists, project managers, technical designers, site managers, installers, and other professionals with extensive expertise in land-based aquaculture technology and several years of experience in their respective fields. Their backgrounds enable us to customize our deliveries and solutions to your specific needs, ensuring performance requirements and project goals are achieved through close collaboration du ring the design, construction and operational phase of each project.
Ongoing and completed projects:

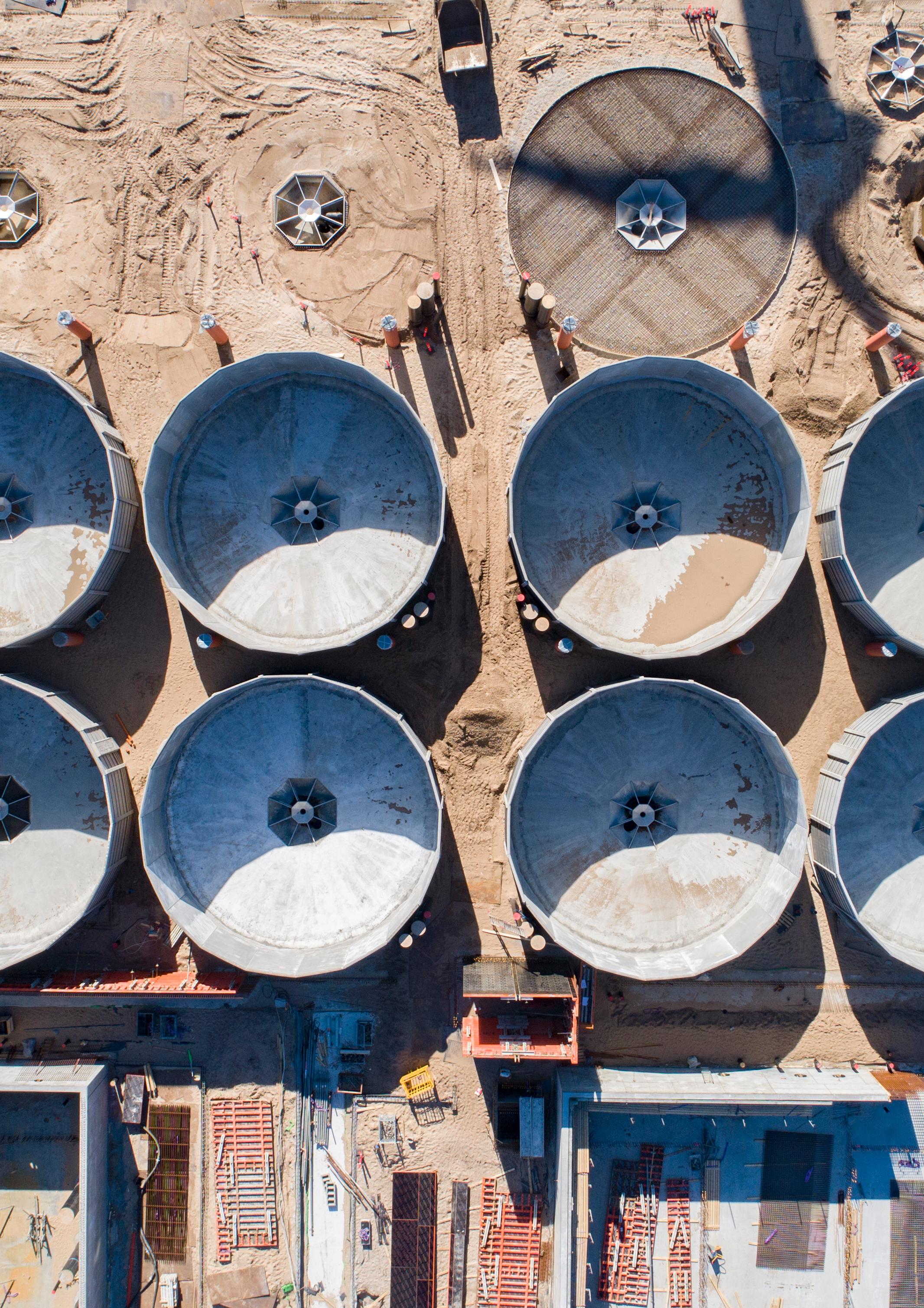

• 3600-ton grow-out RAS facility (Skagen salmon, North Denmark)
• Biofilter Module for existing post-smolt facility (Lerøy, West Norway)
• lncubation facility (SSF, Scotland)
• Hatchery facility (North, Norway)
• Incubation Contianer Solution (AquaGen, Scotland)
• Research & Investigation RAS facility (University of Stirling, Scotland)
• lnvestigation and study (Biomar, Denmark)
• RAS Unit Container (Greig NL, Canada)
• Biofilter og RAS Module (Lerøy Nord, Norway)

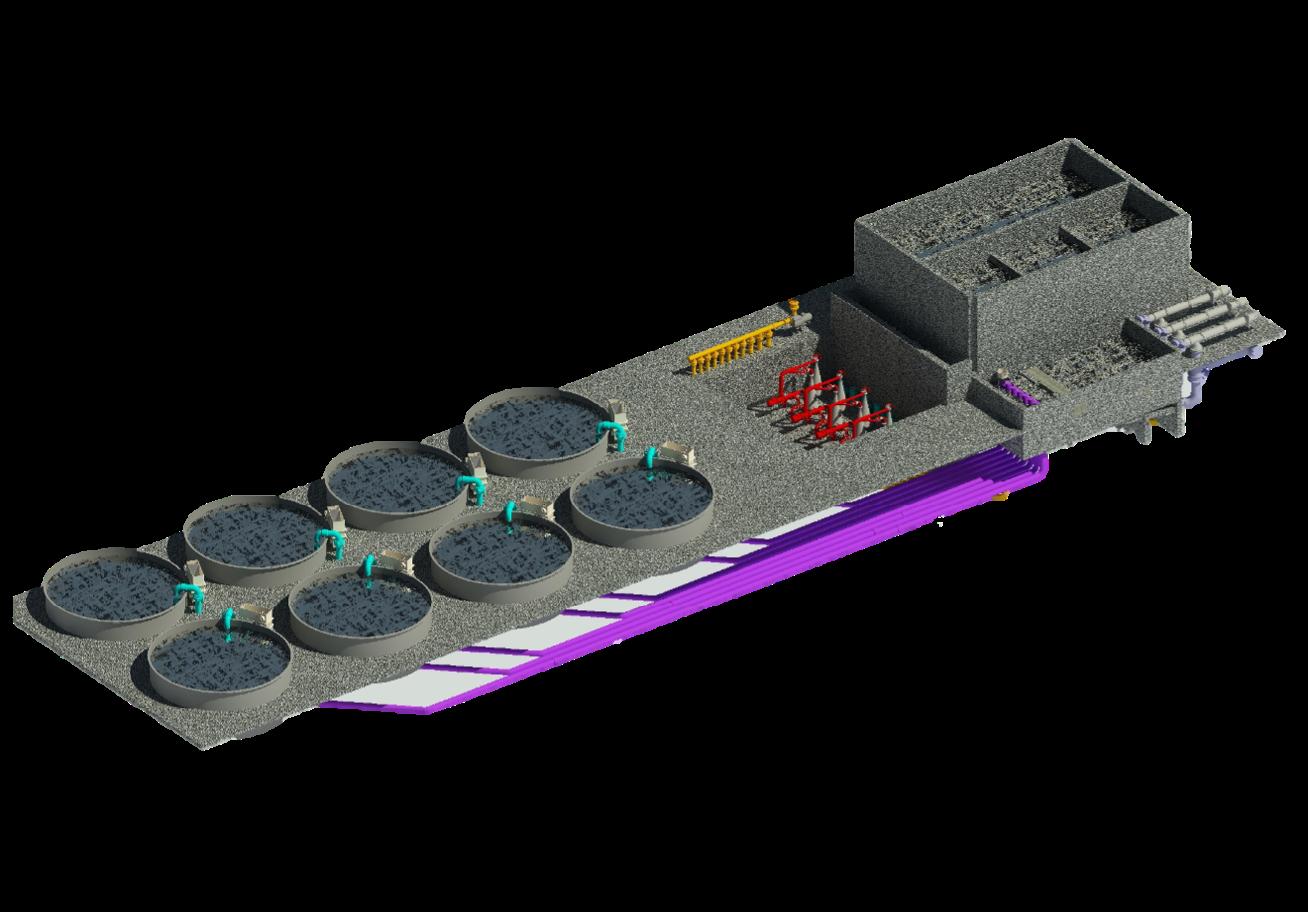

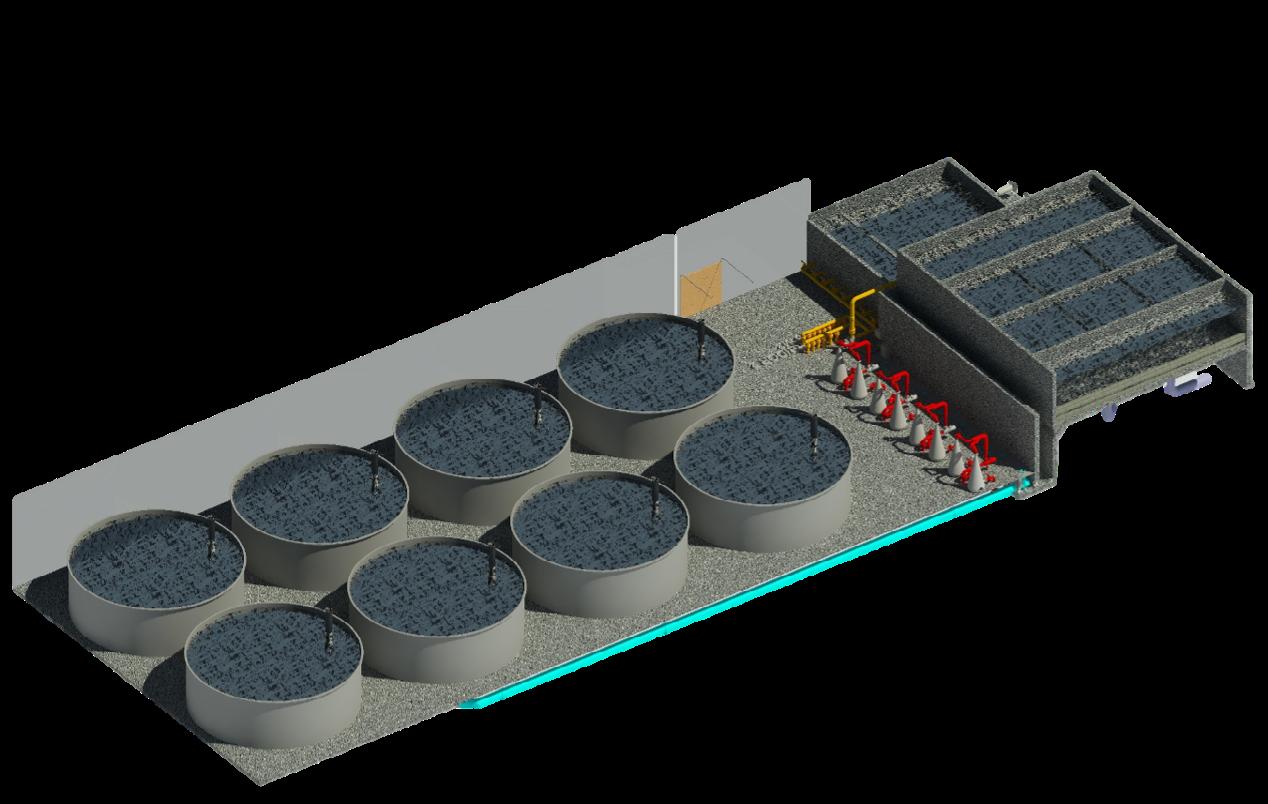

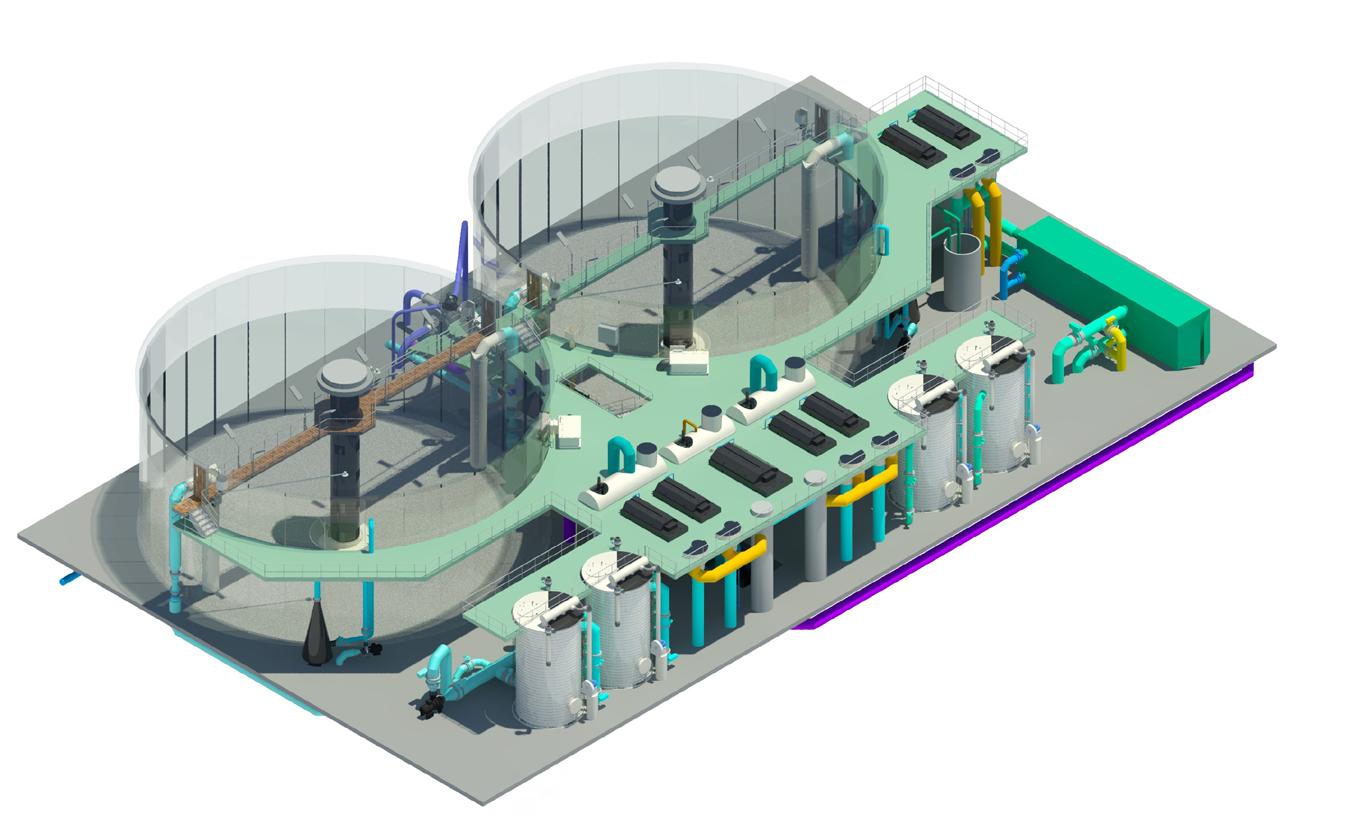

NAC - GROW-OUT CONCEPT
Full RAS setup followed by mechanical filtration, biologic filtration, oxygenation, CO2 stripping through vacuum degassing and main circulation pumps. Scalable and adjustable.
• Cooling system 1 MW capacity.
• Ozon generation and diffusion system 10 g. a kg feed.
• pH regulation system.
• Sludge pump system.
• Oxygenating injection and control system.
• Fish grading system, in and out for the system.
• Feeding system.
• Emergency oxygen system
Description

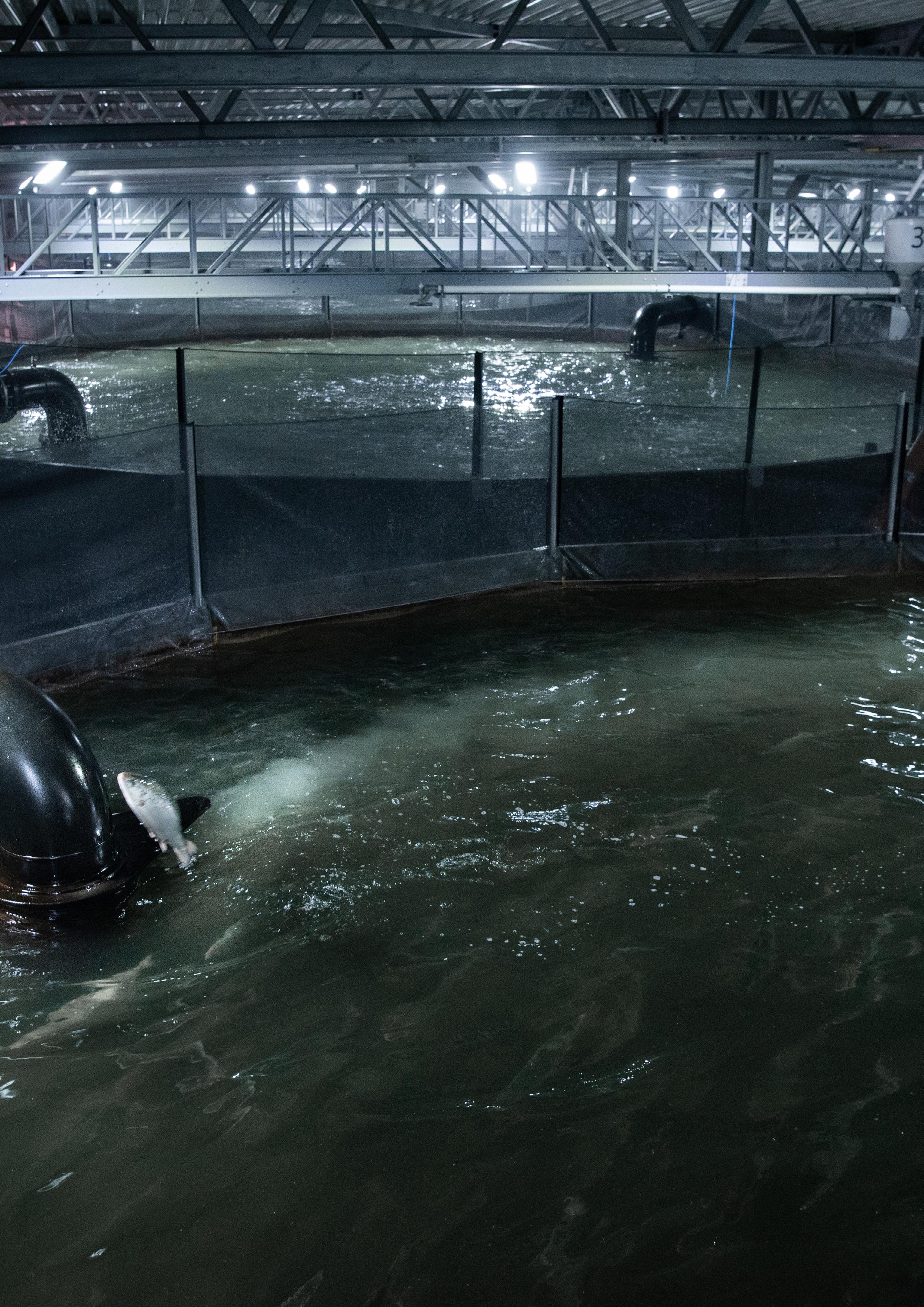

The technology has undergone successful testing over the past five years. The initial batch was implemented in a large post-smolt system in Norway, which, for the past two years, has been producing, harvesting, and selling fresh Atlantic salmon.
The system operates with a salinity level of 2535% and achieves a 98% water recycling rate. Biofiltration is fully integrated with the SCADA system for automated control, with backwashing scheduled every four weeks.

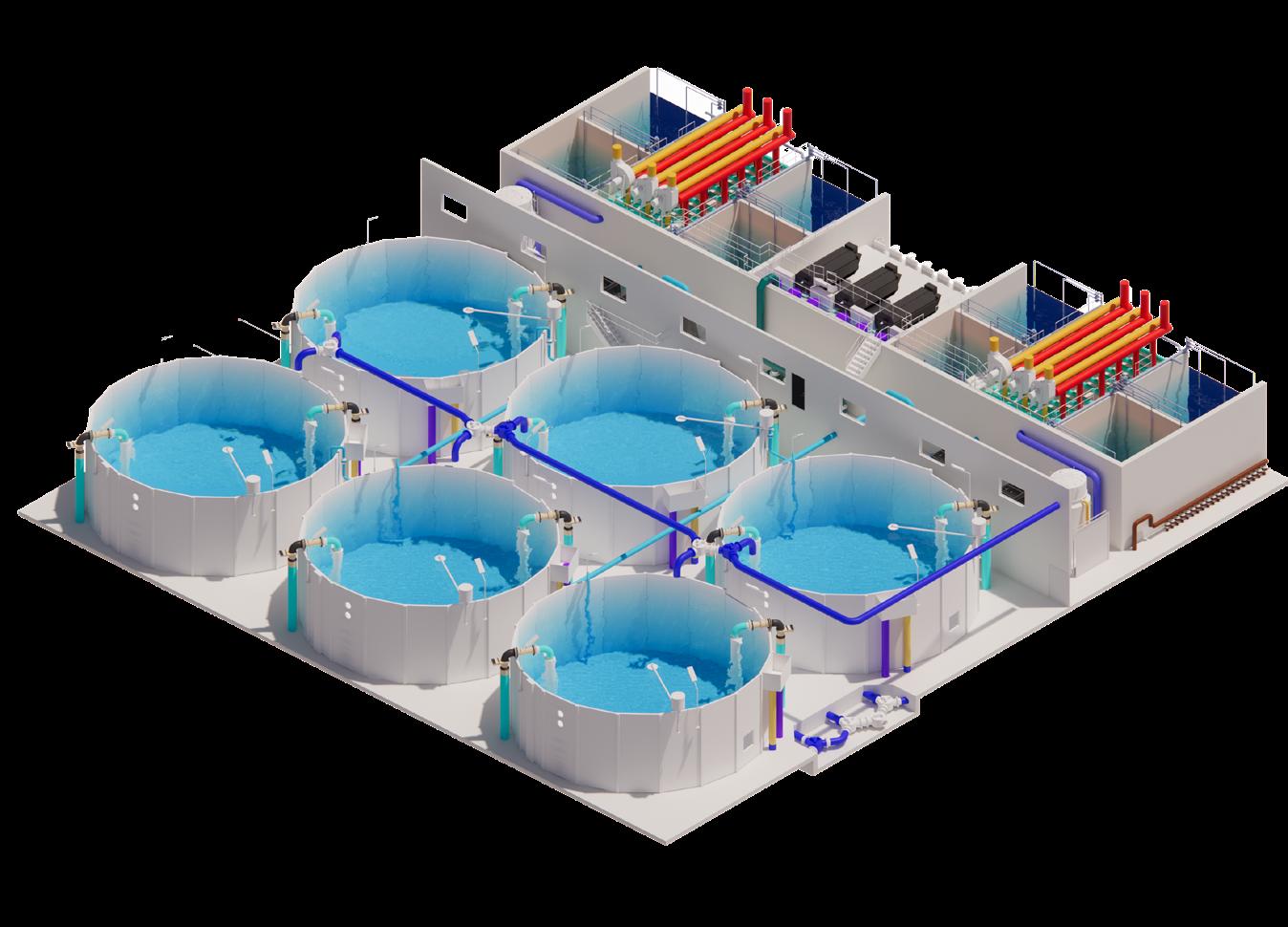

NAC - Postsmolt CONCEPT
Full RAS setup, optimal for postmolt rearing. Scalable and adjustable
• Cooling system.
• pH regulation system.
• Sludge pump system.
• Oxygenating injection and control system.
• Biological filtration.
• UV treatment.
• Feeding system.
• Emergency oxygen system
Description
The technology has undergone successful testing over the past five years. The initial batch was implemented in a large post-smolt system in Norway, which, for the past two years, has been preparing Atlantic salmon for grow-out.
The system operates with a salinity level of 12-32% and a range of 7-14 °C achieving a 98% water recycling rate.
Biofiltration is fully integrated with the SCADA system for automated control, with backwashing scheduled every four weeks.
NAC - Smolt Hybrid CONCEPT
60/40 Hybrid Flowthrough-RAS setup, optimal for smolt rearing. Scalable and adjustable
• Grading and fish transport system.
• Sludge pump system.
• Oxygenating injection and control system.
• Mechanical bio-filtration
• Degassing system.
• UV treatment.
• Feeding system.
• Emergency oxygen system.
Description
Partial reuse systems enable rapid installation in under one year, significantly reducing CapEx and accelerating ROI for salmon smolt production.
Proven for stable water quality, lower infrastructure costs, and flexible siting, ideal for land-based salmon farms.
Infrastructure stays simple no complex fullRAS biofilters or degassers required, our pre-assembled PE equipment enables faster, easier on-site installation.
NAC - Parr/Smolt CONCEPT
Full RAS setup, optimal for parr/smolt rearing. Scalable and adjustable.
• Cooling system.
• pH regulation system.
• Sludge pump system.
• Oxygenating injection and control system.
• Biological filtration.
• UV treatment.
• Feeding system.
• Emergency oxygen system.
Description
The technology has undergone successful testing over the past five years. The initial batch was implemented in a large post-smolt system in Norway, which, for the past two years, has been preparing smolts for smoltification.
The system operates with a salinity level of 0-5% and a range of 11-14 °C achieving a 98% water recycling rate.
Biofiltration is fully integrated with the SCADA system for automated control, with backwashing scheduled every four weeks.

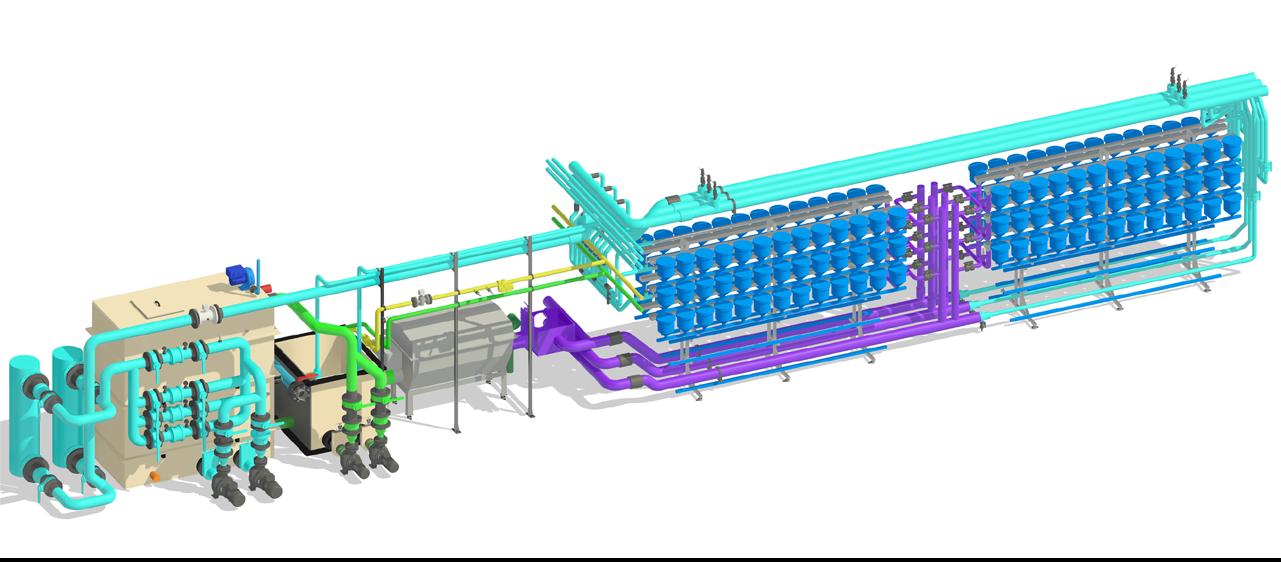

NAC – First-feeding CONCEPT
Full RAS setup, optimal for fistfeeding / weaning period. Scalable and adjustable.
• Cooling system.
• pH regulation system.
• Sludge pump system.
• Oxygenating injection and control system.
• Biological filtration.
• UV treatment.
• Feeding system.
• Emergency oxygen system.
Description
The technology has undergone successful testing over the past five years. The initial batch was implemented in a large post-smolt system in Norway, which, for the past two years, has been producing Atlantic salmon fry.
The system operates with a salinity level of 0,5% and a range of 11-14 °C achieving a 98% water recycling rate.
Biofiltration is fully integrated with the SCADA system for automated control, with backwashing scheduled every four weeks. PARAMETER
NAC - Hatchery CONCEPT
RAS/flow-through setup followed by mechanical filtration, biological filtration, oxygenation, UV treatment, and main circulation pumps. Scalable and adjustable.
• Cooling system.
• pH regulation system.
• Oxygenating injection and control system.
• Emergency oxygen system.
• Mechanical filtration
• UV treatment
Description
The technology has been successfully implemented for the optimization of conditions during hatchery. The eggs are received in the hatch batch units and incubated through the best water quality until hatching.
The system operates with a range of temperature of 2-8 °C at 0% of salinity. It can be designed for fully RAS, fully flow-through or combined.
Water parameters fluctuate throughout the year due to seasonal changes. Closed recirculation system helps maintain constant factors, such as temperature, to ensure optimal egg development and hatching
MECHANICAL FILTRATION AND OXYGENATION ARE ACHIEVED THROUGH OUR LATEST RAS MODULE TECHNOLOGY

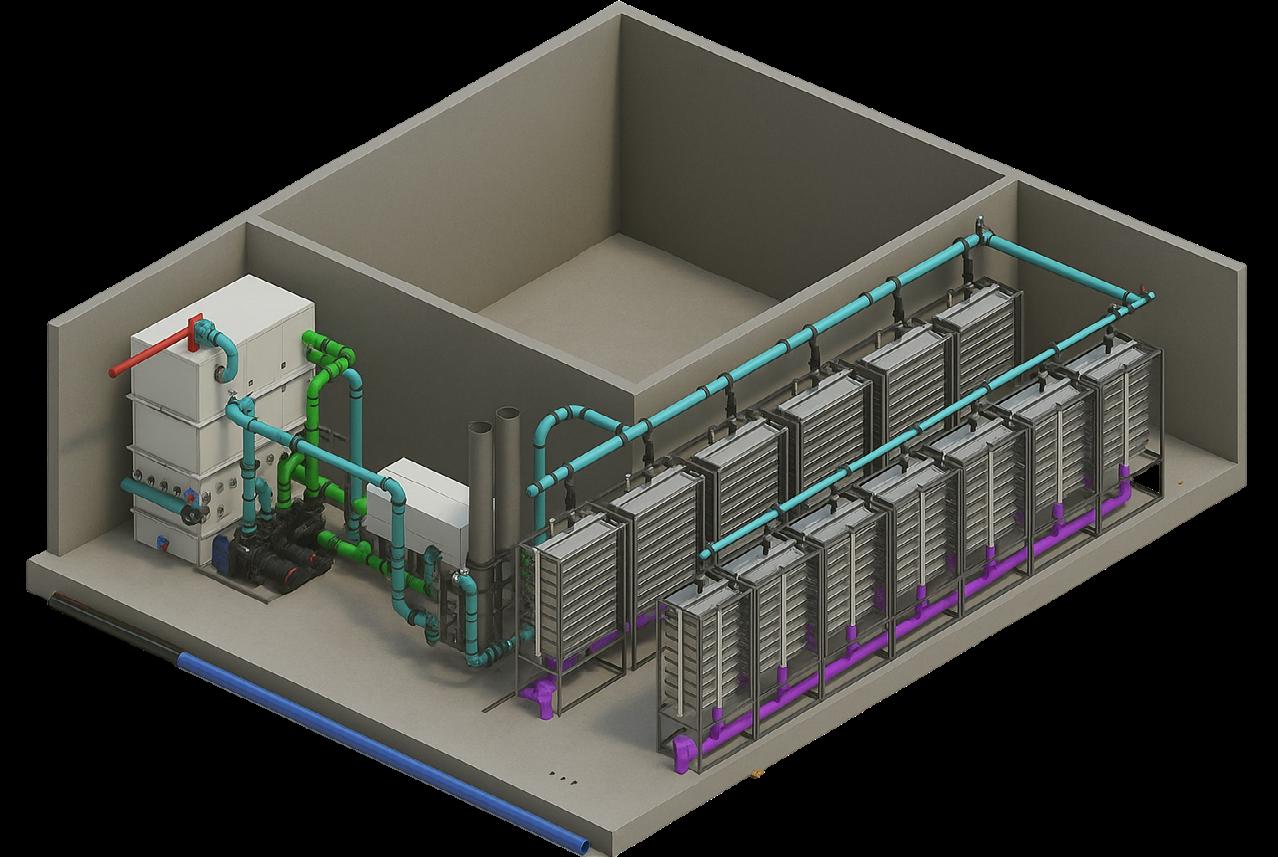

NAC - Incubation CONCEPT
RAS/flow-through setup followed by mechanical filtration, biological filtration, oxygenation, UV treatment, and main circulation pumps. Scalable and adjustable.
• Cooling system.
• pH regulation system.
• Oxygenating injection and control system.
• Emergency oxygen system.
• Mechanical filtration
• UV treatment
Description
The technology has been successfully implemented for the optimization of conditions during incubation. The eggs are received and incubated through the best water quality until they are transferred to the hatchery department.
The system operates with a range of temperature of 2-8 °C at 0% of salinity. It can be designed for fully RAS, fully flow-through or combined.
This system increases the capacity of eggs backstock for production purposes.
MECHANICAL FILTRATION AND OXYGENATION ARE ACHIEVED THROUGH OUR LATEST RAS MODULE TECHNOLOGY

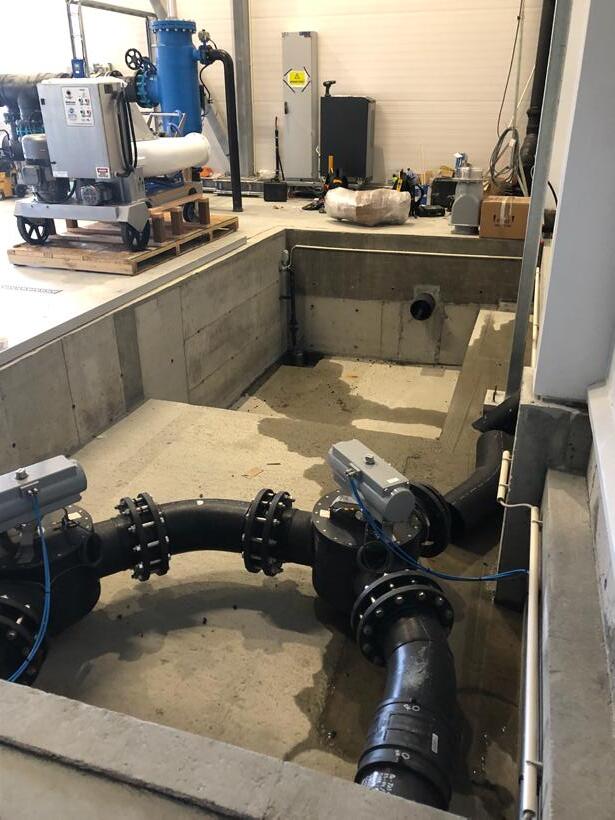

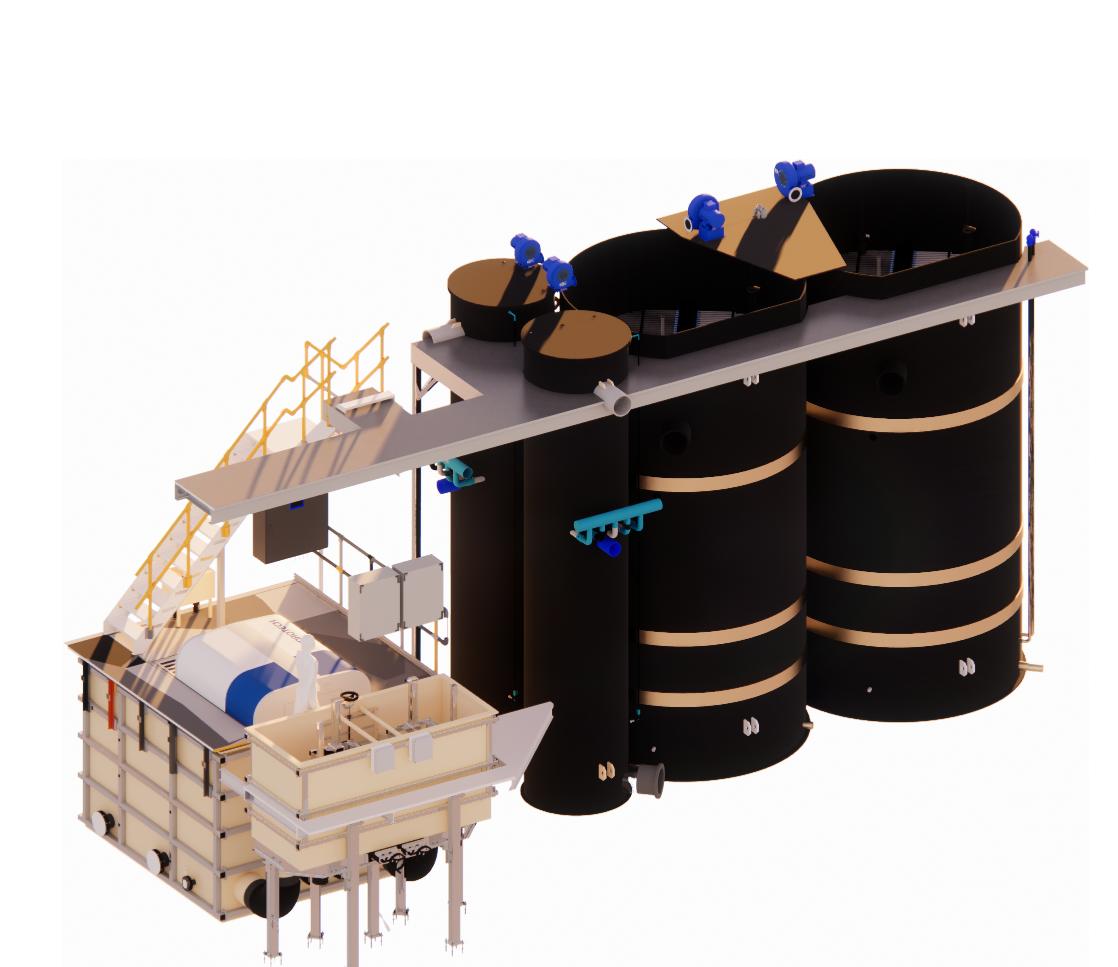

NAC - PE water treatment setup
Converting from flow-through to RAS drastically reduces water use, improves biosecurity and water quality control, and creates a more sustainable, efficient production system.
• Collection lower sump
• Mechanical filtration unit
• Automatic backwashed fixed bed units
• Double degassing system
Description
Converting from flow-through to RAS drastically reduces water use, improves biosecurity and water quality control, and creates a more sustainable, efficient production system. At North Aquaculture, with our expertise, we can transform existing flow-through systems into modern RAS solutions, enhancing efficiency and sustainability.
Our RAS conversion setup includes a collecting lower sump that gathers water from the fish tanks, ensuring steady flow and efficient circulation. The water then passes through a mechanical filtration unit that removes suspended solids, protecting downstream components. Next, it enters an automatic backwash fixed-bed biofilter equipped with our innovative double degassing system, which efficiently removes excess gases and maintains optimal biological conditions continued by UV treatment in order to reduce microbial load. Together, these elements deliver exceptional water quality, supporting healthy fish growth and stable system performance.

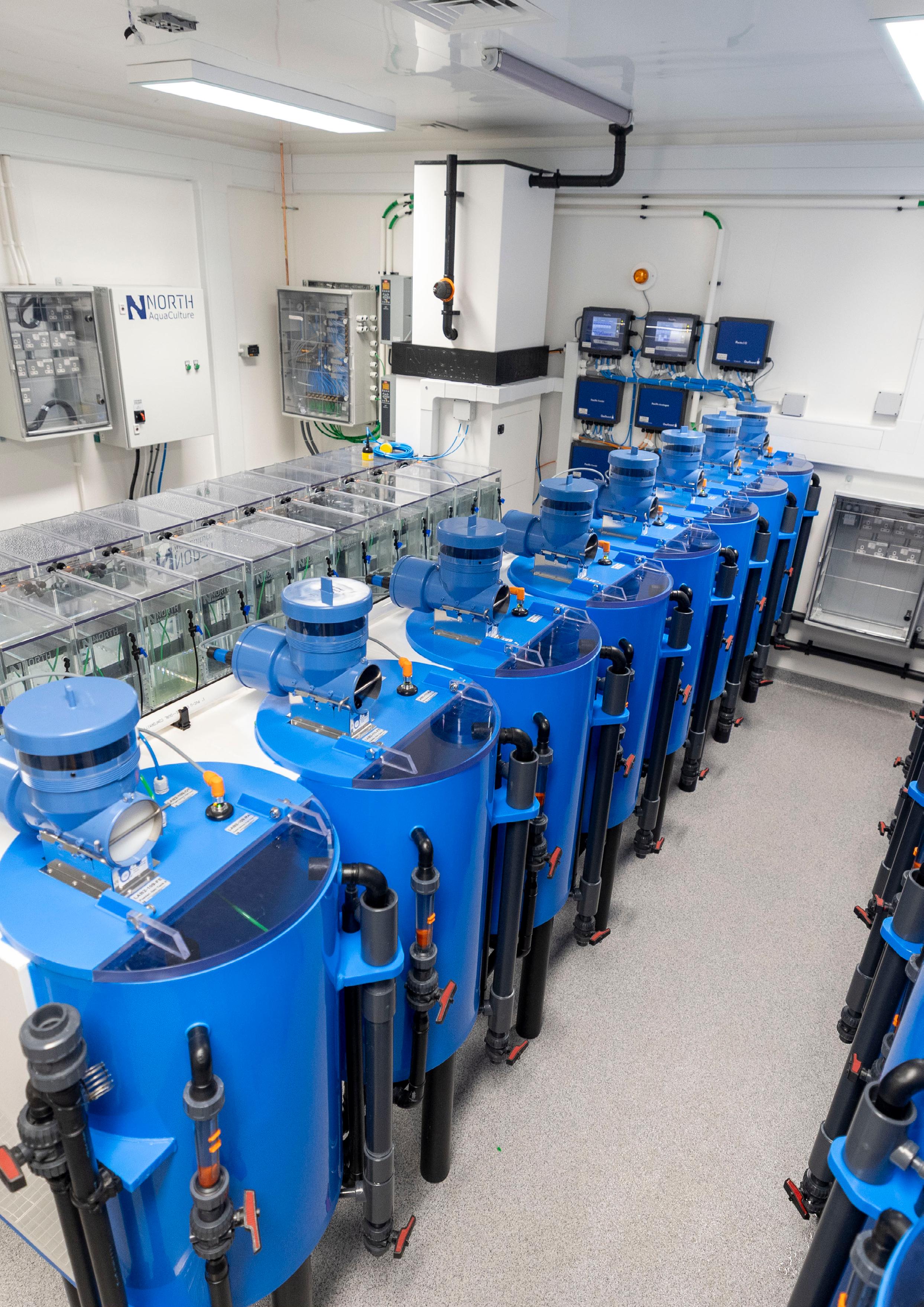

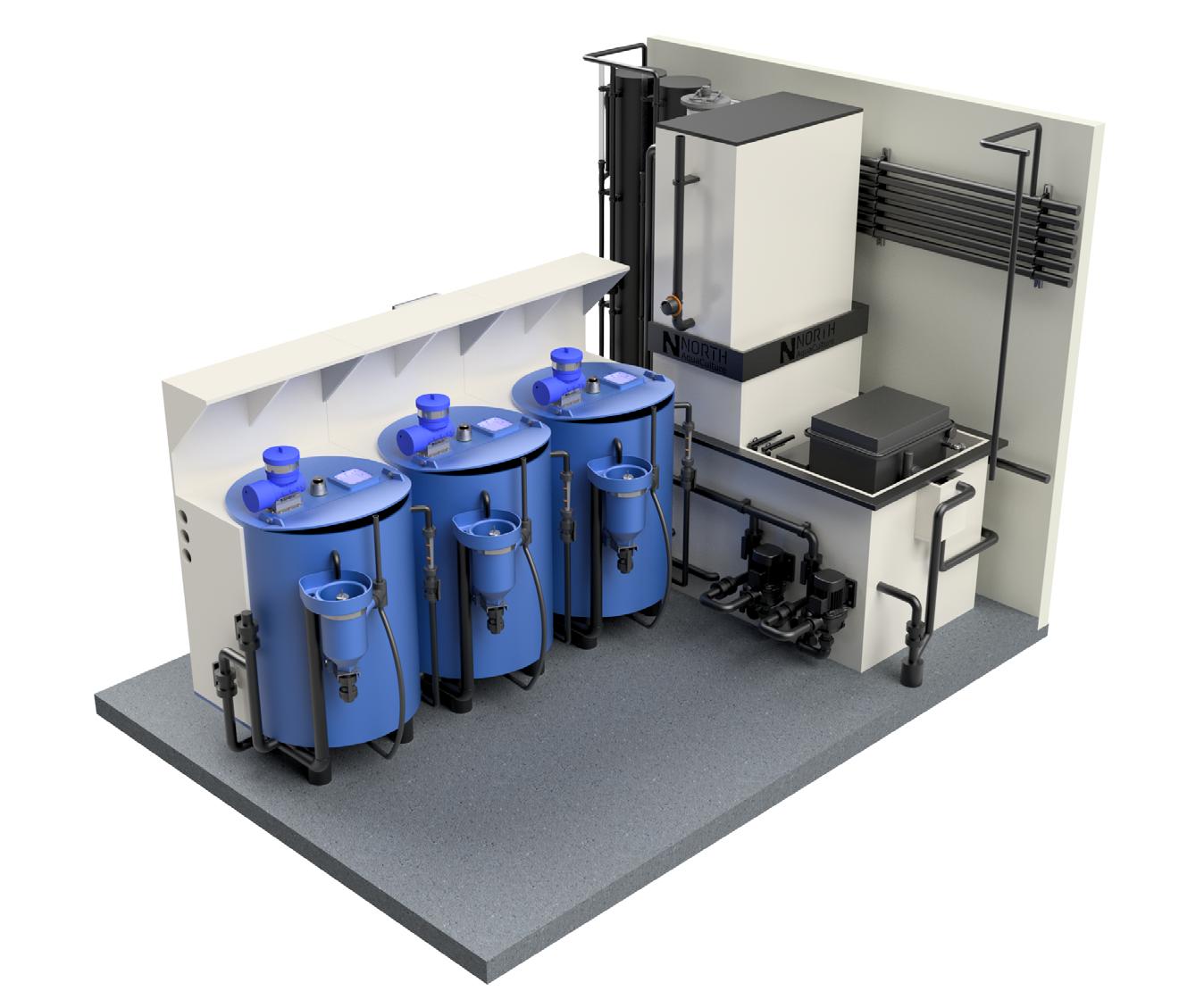

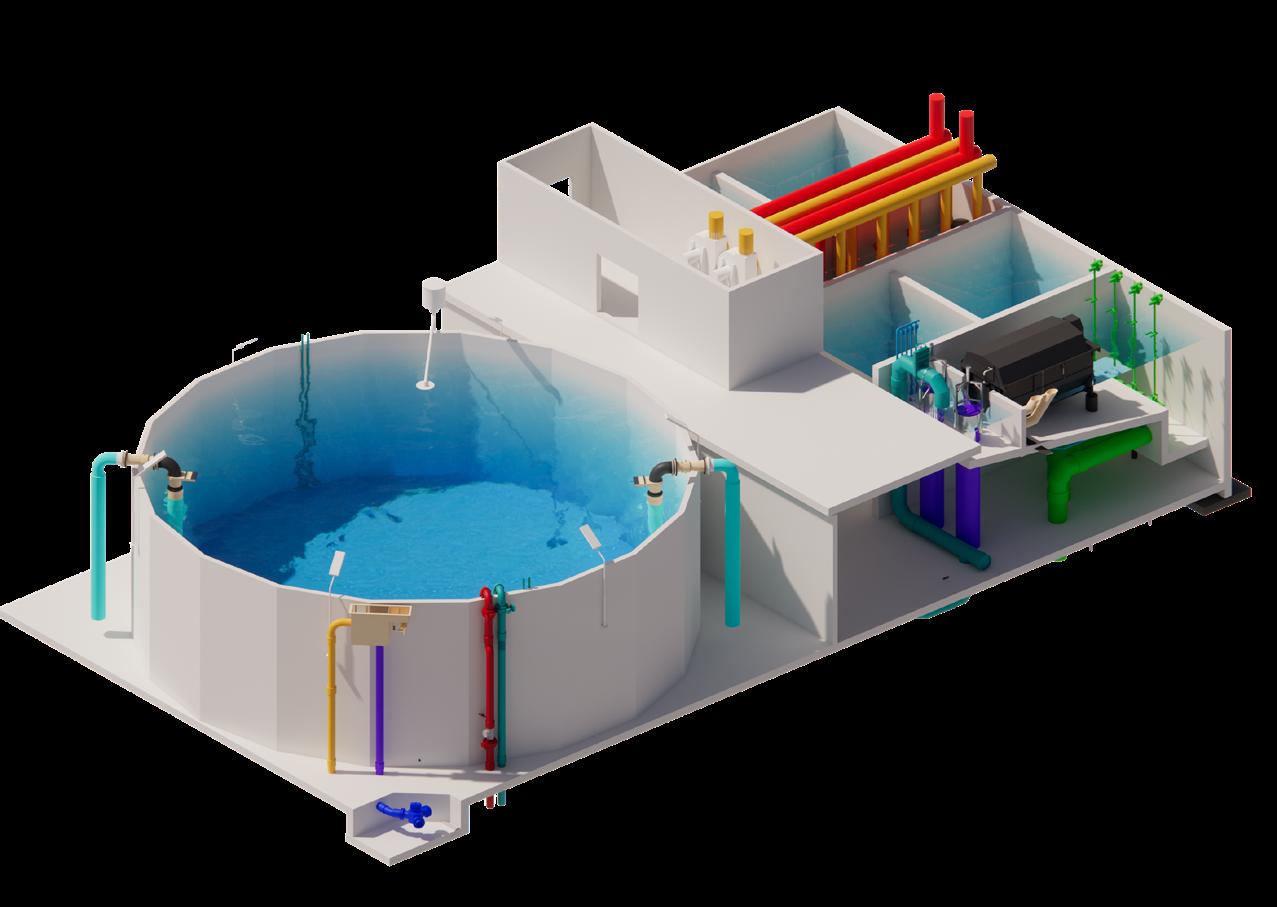

NAC - Investigation & study CONCEPT
RAS/flow-through setup, optimal for aquaculture investigation and study.
• Cooling system
• pH regulation system
• Oxygenating injection and control system
• Emergency oxygen system
• Mechanical and biological filtration
• UV treatment
• Investigation tank
• Belt feeder
Description
The Investigation & study concept is a module- based design which optimizes the space for study purposes counting with the highest quality aquaculture technology. The closed recirculating aquaculture system (RAS) maintains stable water parameters by continuously monitoring and enabling real-time adjustments.
The system operates with a range of temperature of 2-30 °C at 0-35% of salinity. It can be designed for fully RAS, fully flow-through or combined.
This system has already been proven successful in various companies focusing on investigation goals, demonstrating its reliability and efficiency in achieving consistent and reproducible outcomes.
MECHANICAL
