The horizon is not just a line where wind meets water, but a symbol of limitless possibilities, reminding us that there is always more to explore. When we look to the horizon, it ignites our desire to progress and a thirst to overcome challenges – it awakens the voyager within. It Calls.
In 2025, foiling called us into bold new territories. Parawinging. Electric-assist. Riders chasing speed, freedom, and glide in ways we’ve never seen before.
The North 2026 Collection led the charge with the Ranger, a downwind parawing developed with the expertise of our kite design team. Stable, intuitive, and fast to master, it’s your ticket to more handsfree time on foil. Pair it with a Midi Crossover and Downwind or Surf Foil setup to unlock the horizon. And when you’re out wingfoiling, paddling, or foil driving downwind, the new Stash Belt Wing Harness turns the Ranger into a compact safety wing for those just-in-case moments offshore.

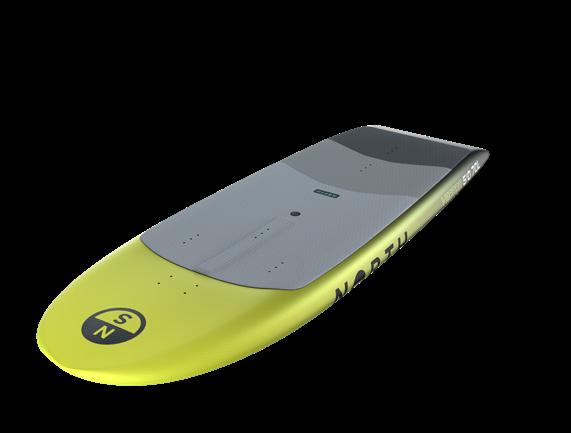

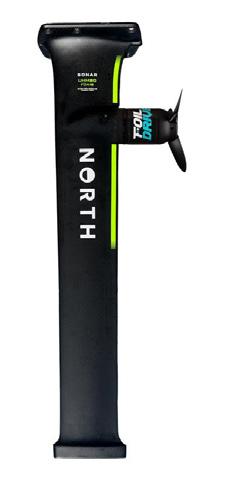

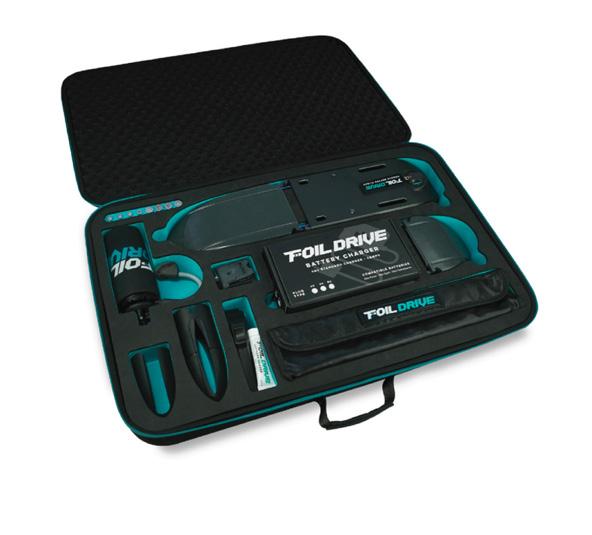

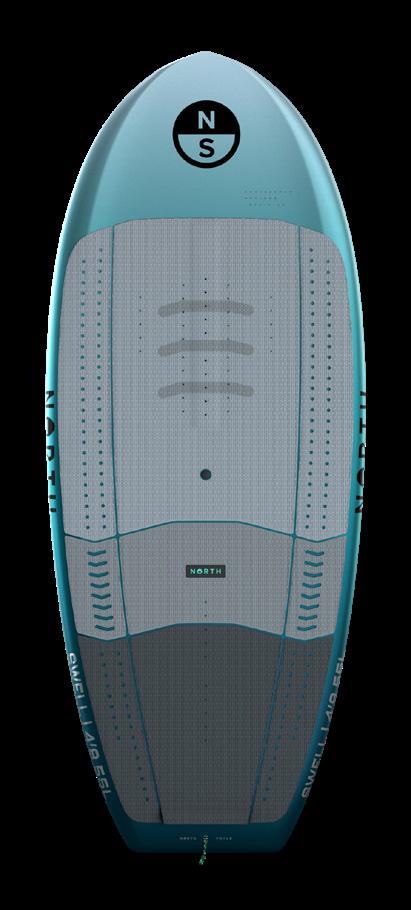

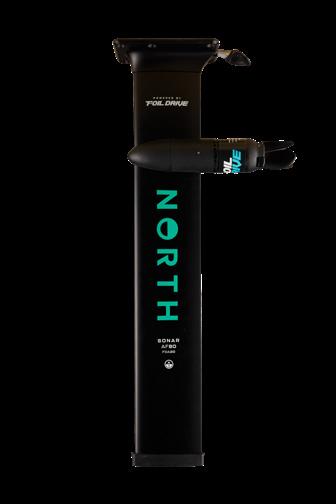

For the in-between days, the Boost Foil Drive Board is purpose-built for electric-assist freedom. Designed to integrate seamlessly with your Foil Drive, for perfect trims, effortless starts and exceptional range. Match it with the new Ultra UHM80 Carbon Integrated Mast for the lightest, most direct connection to powered lift, no energy wasted.
And for those who live overpowered — meet the Mode Pro 2026. Precision-engineered for heavier riders and high-wind control, it thrives when conditions turn brutal.
North Foils 2026 Collection. Where engineering meets instinct.
CONTENTS
WINGS
PARAWINGS
KITE FOIL

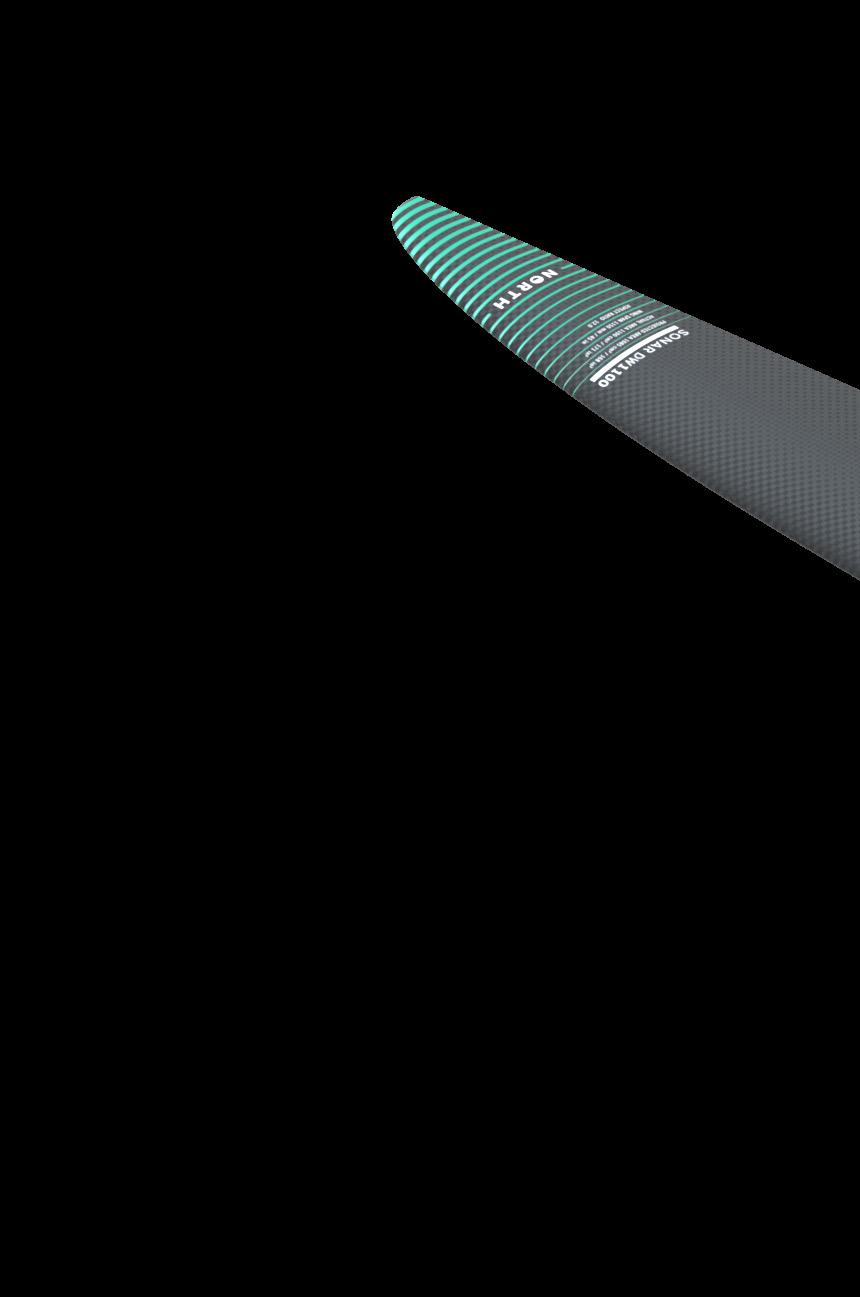

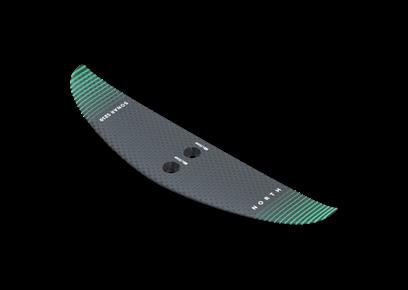

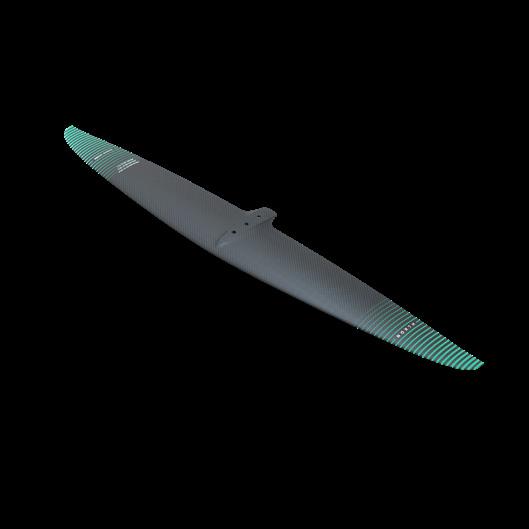

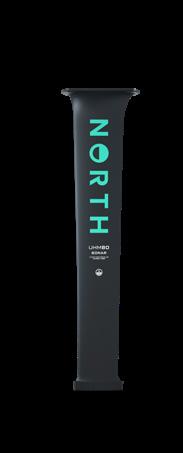

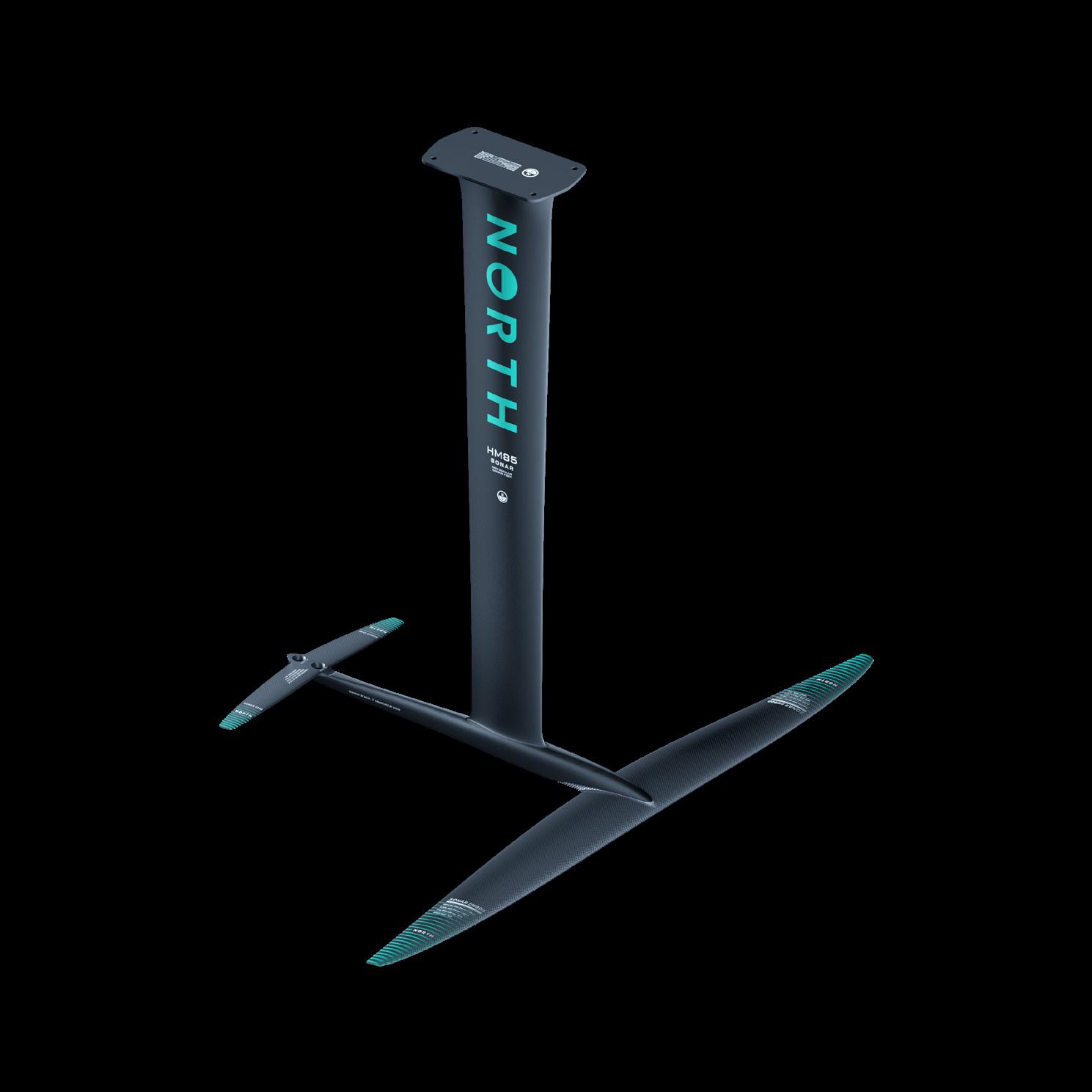

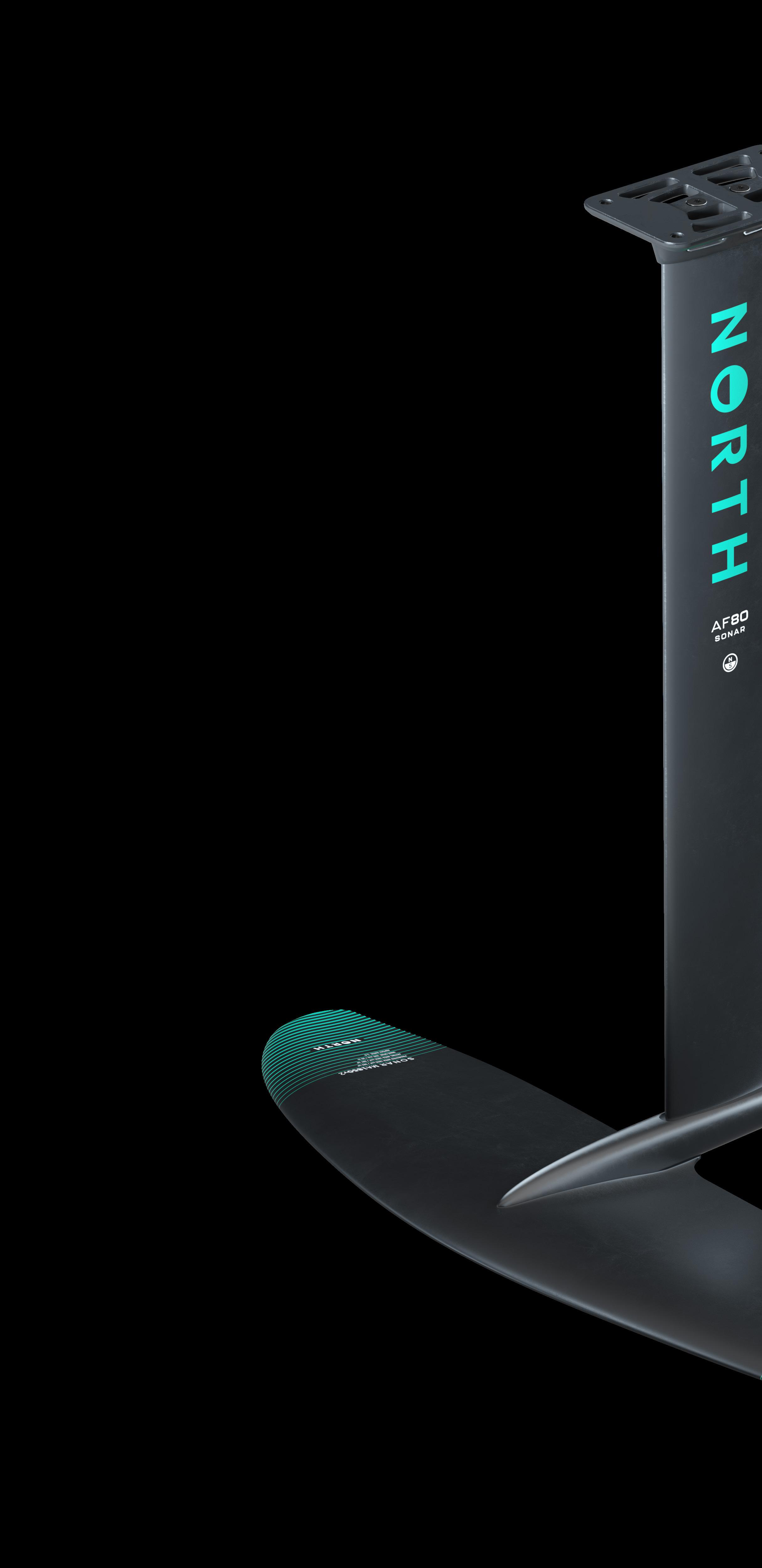

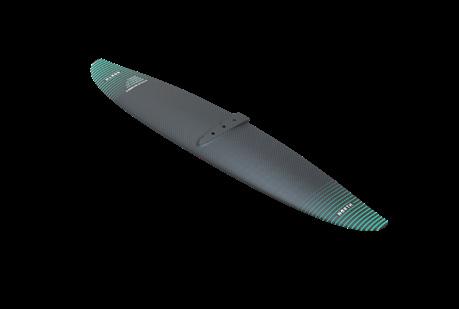

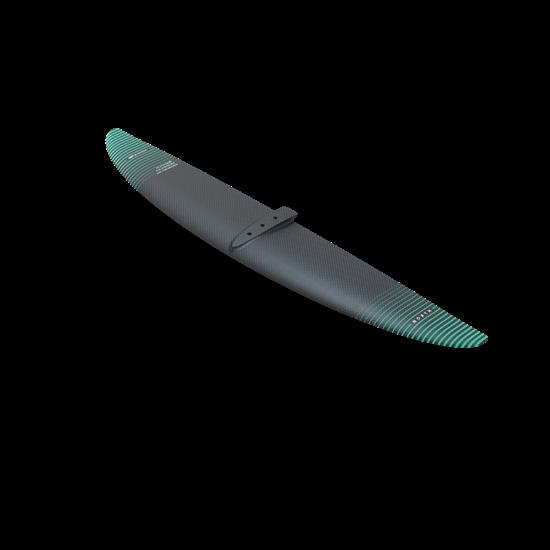

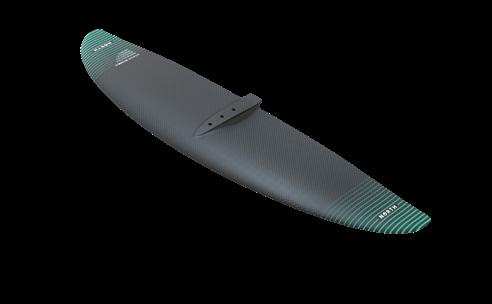

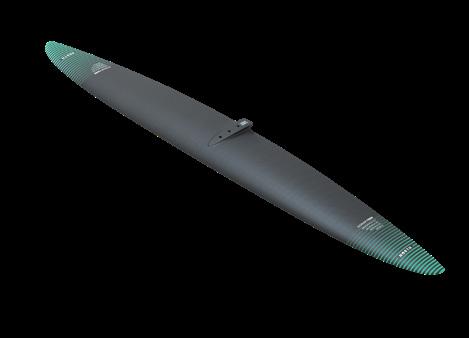

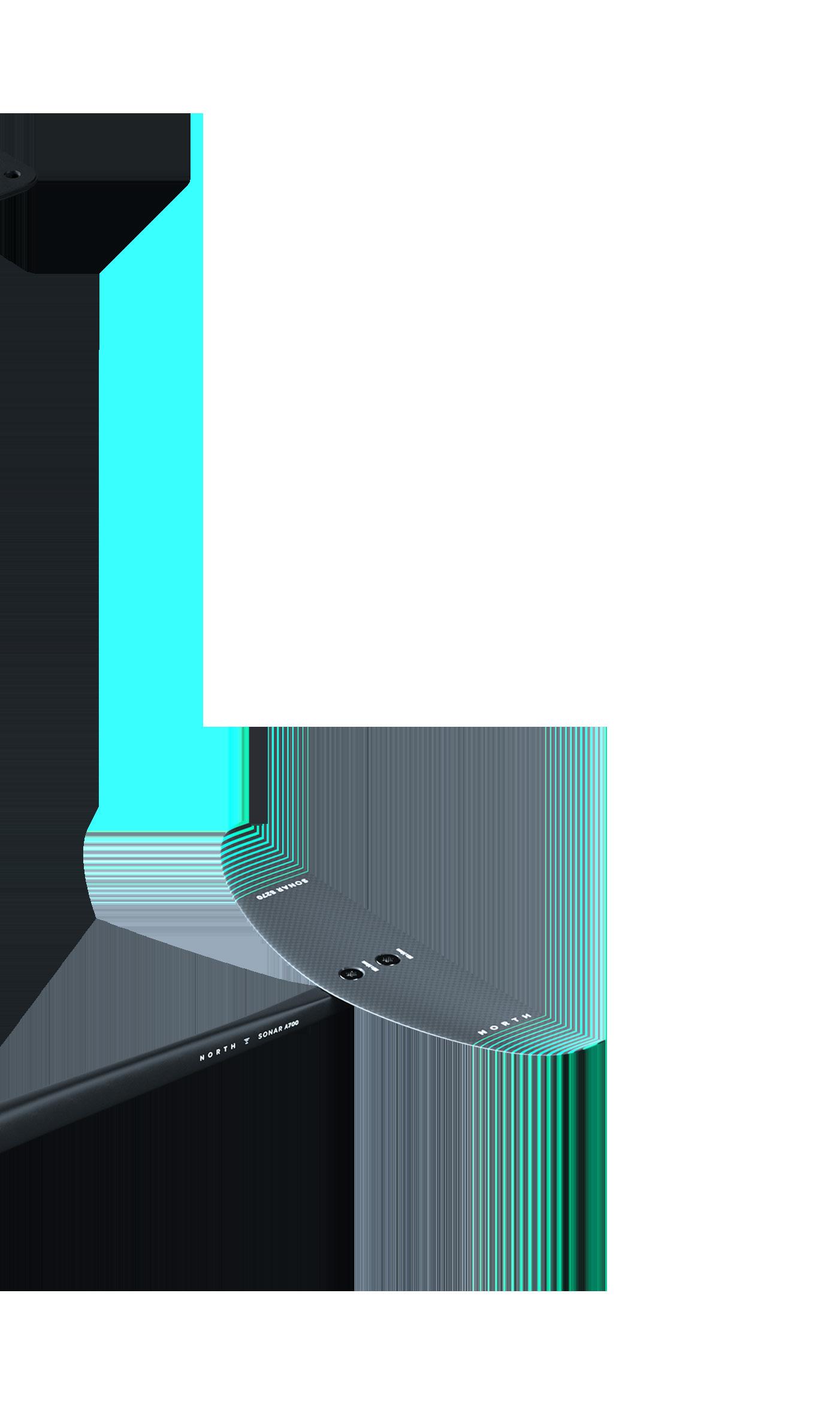

SONAR FOILS

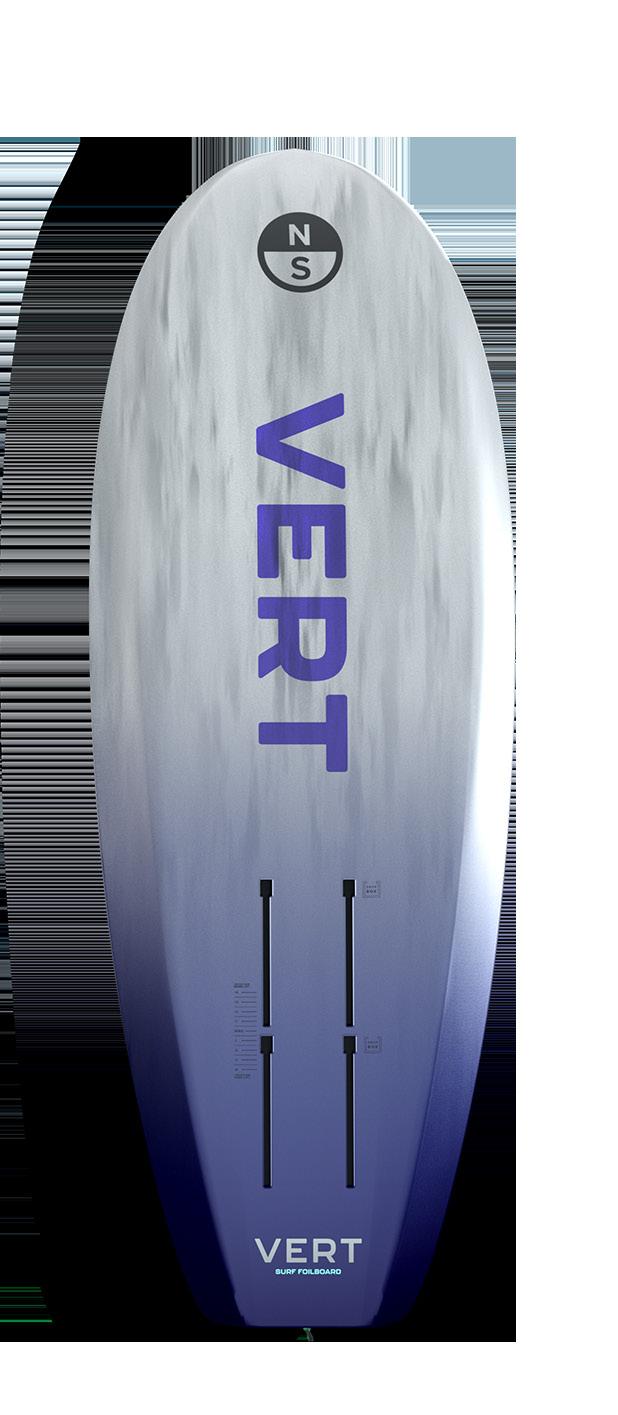

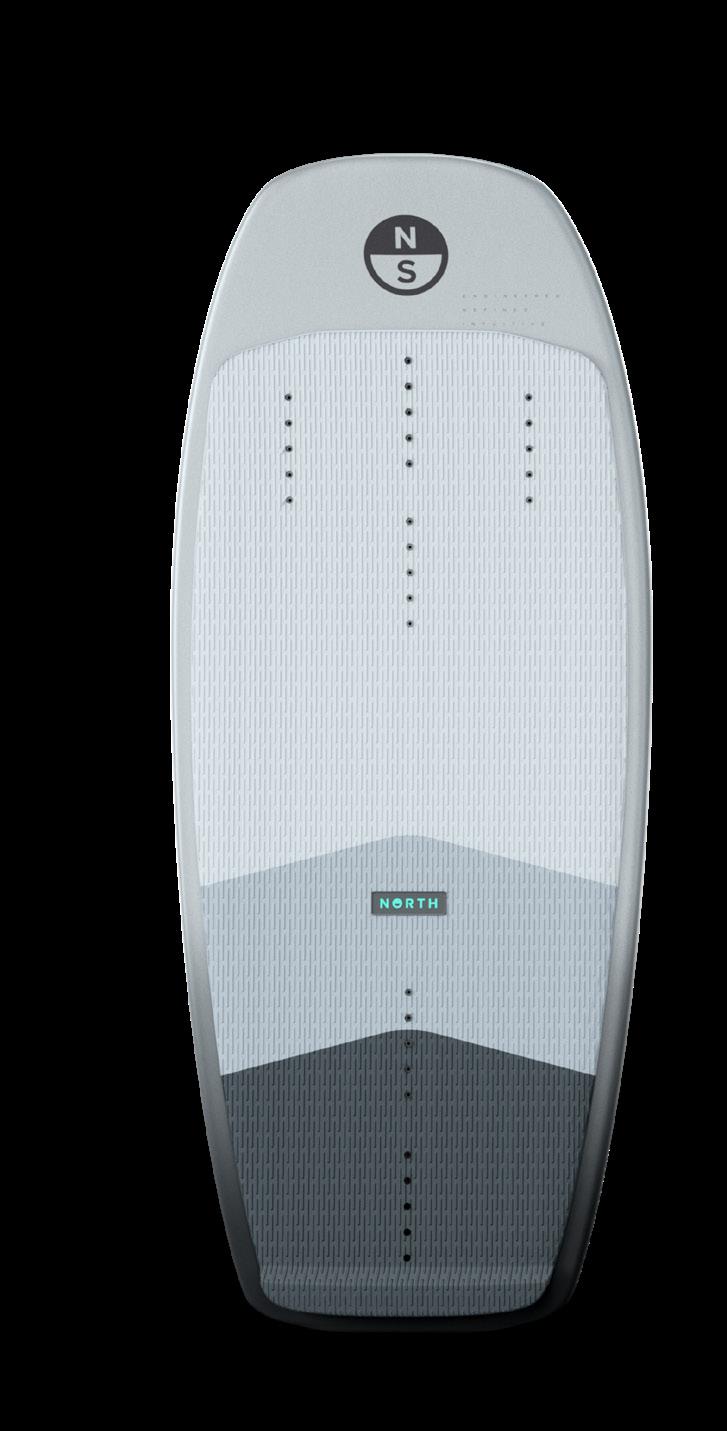

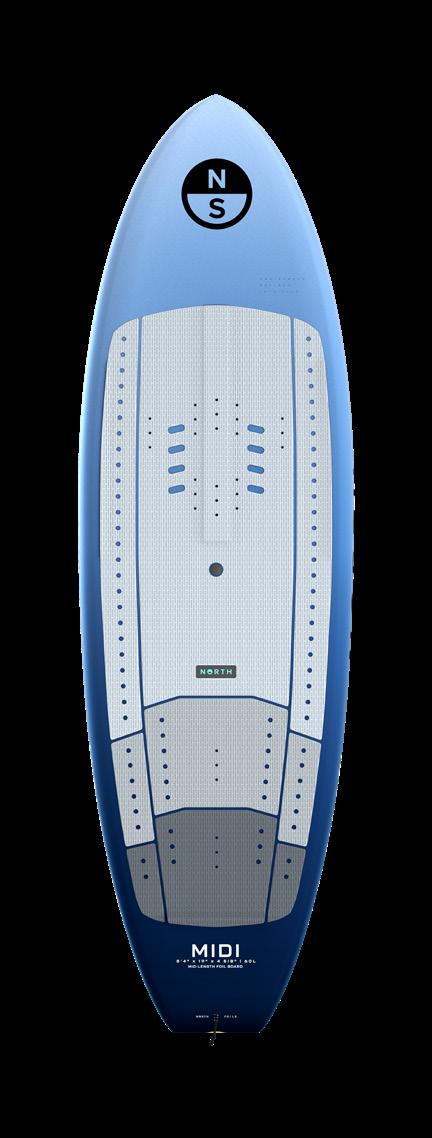

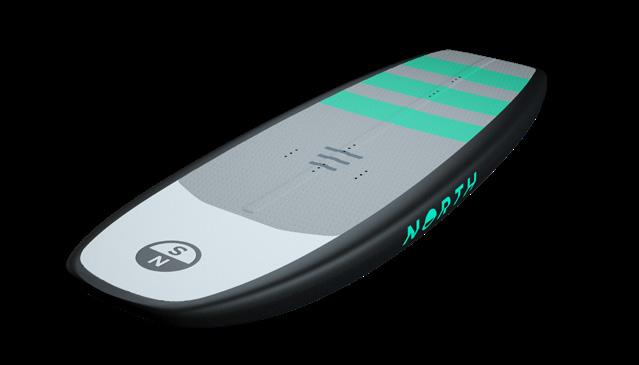

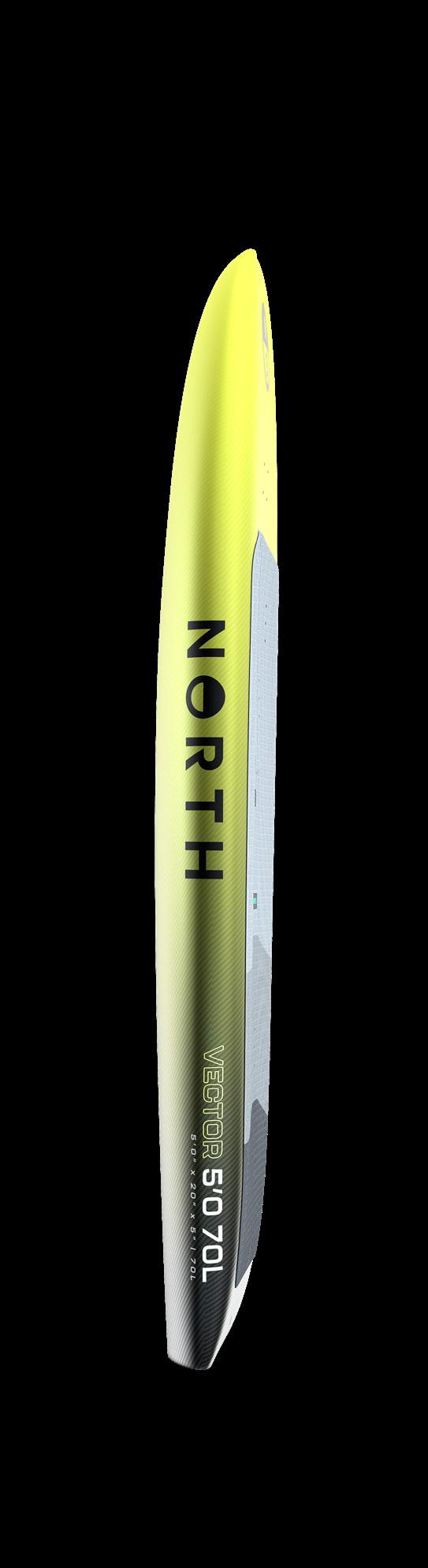

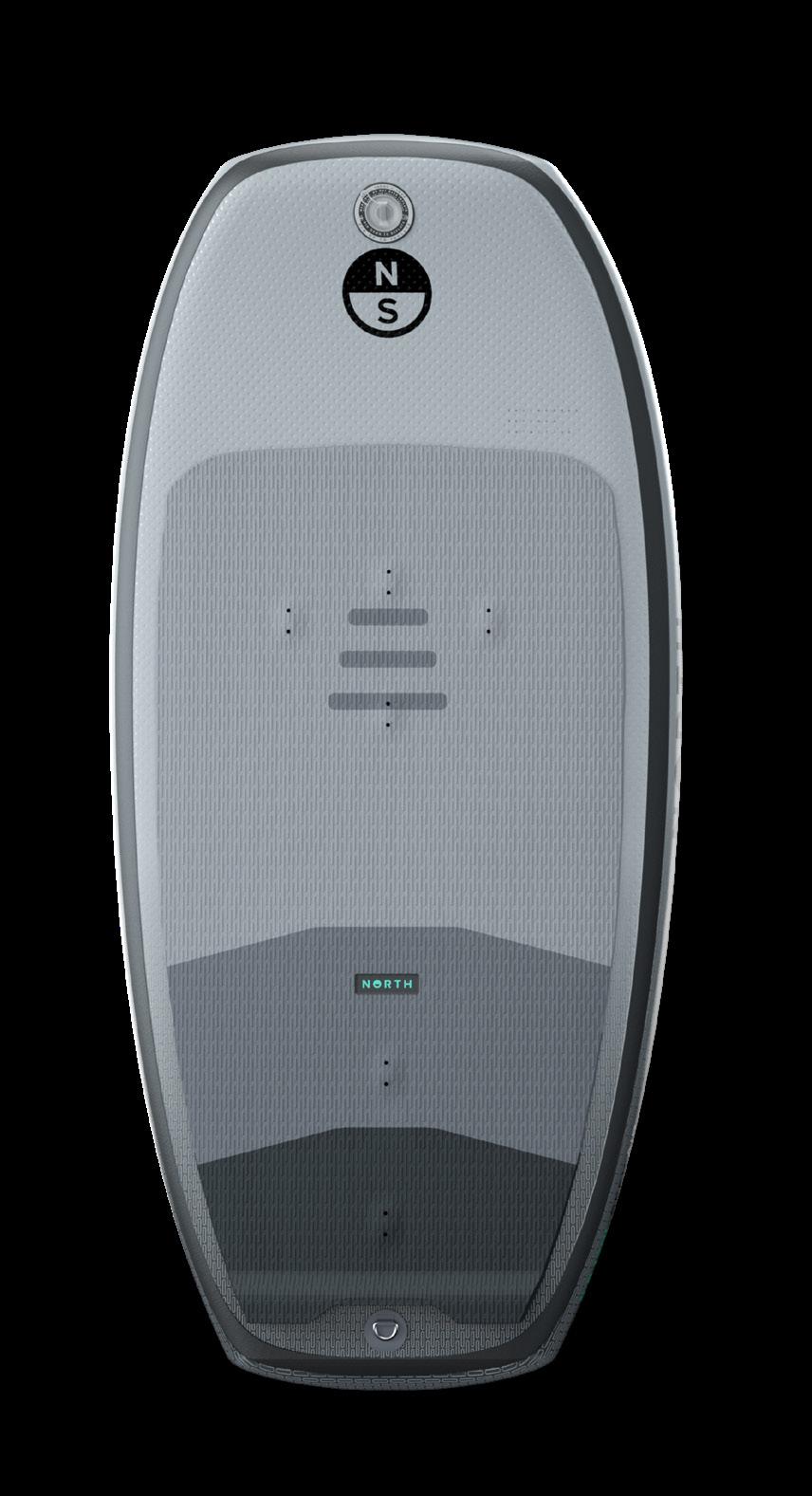

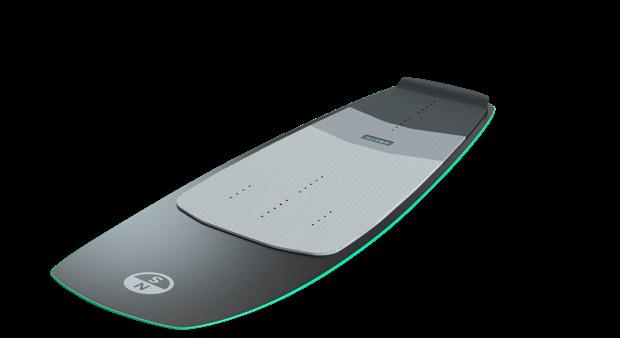

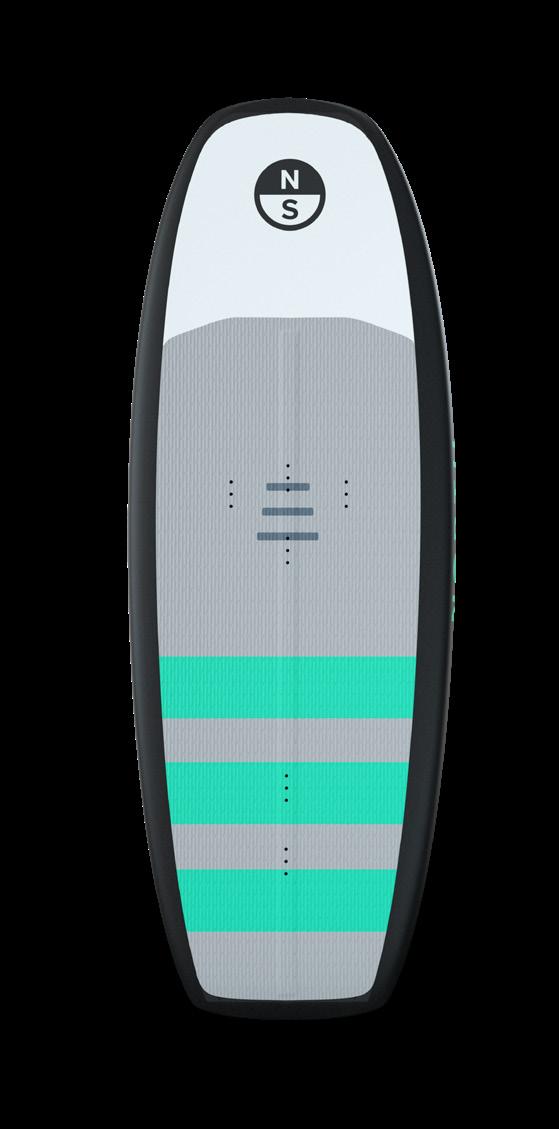

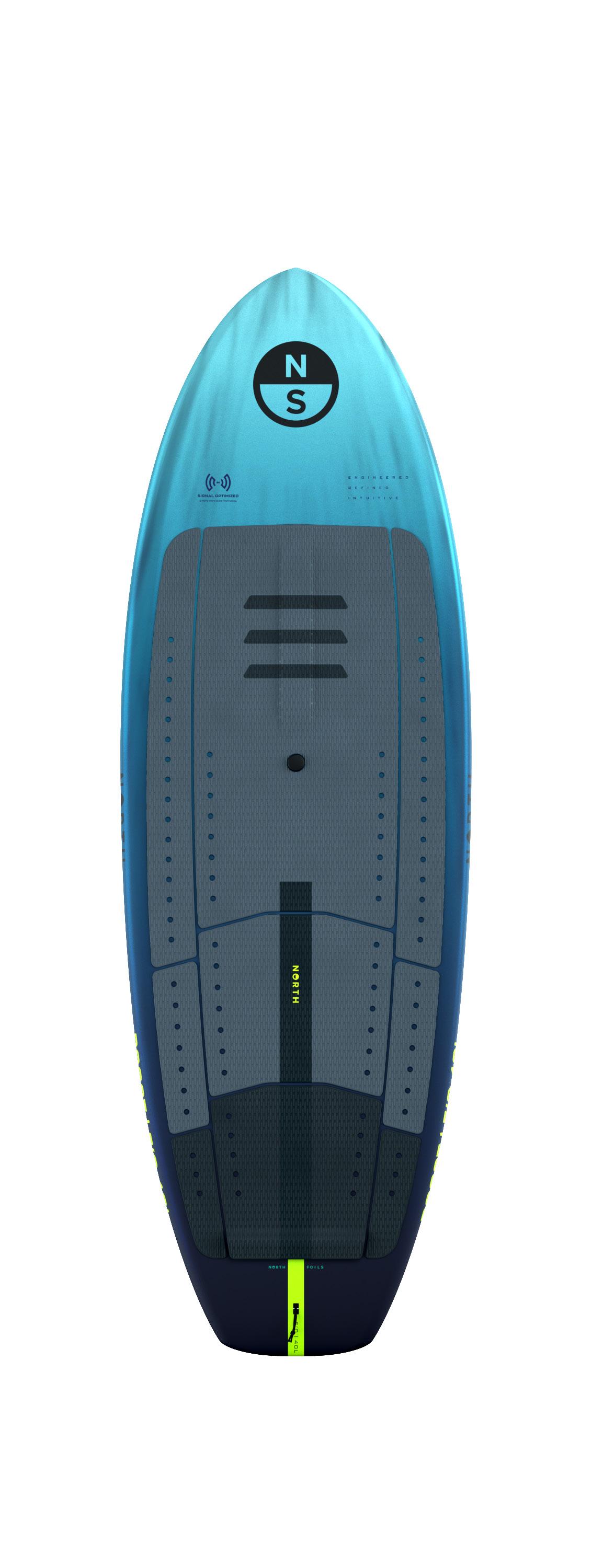

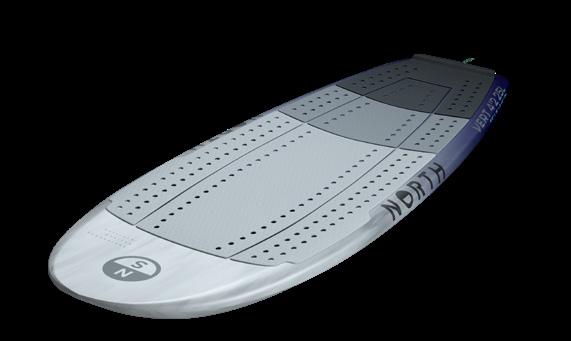

FOILBOARDS

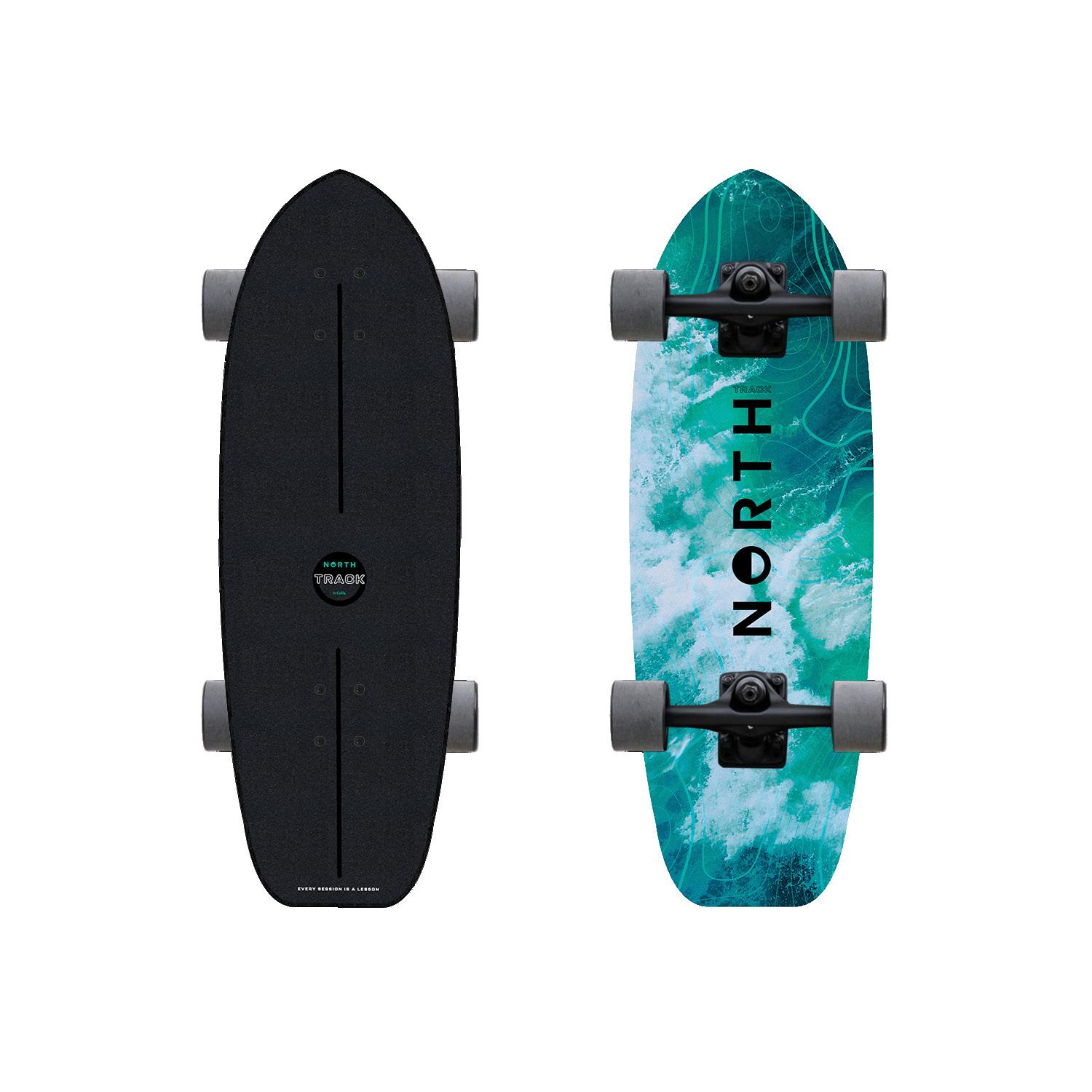

LANDBOARDS
ACCESSORIES

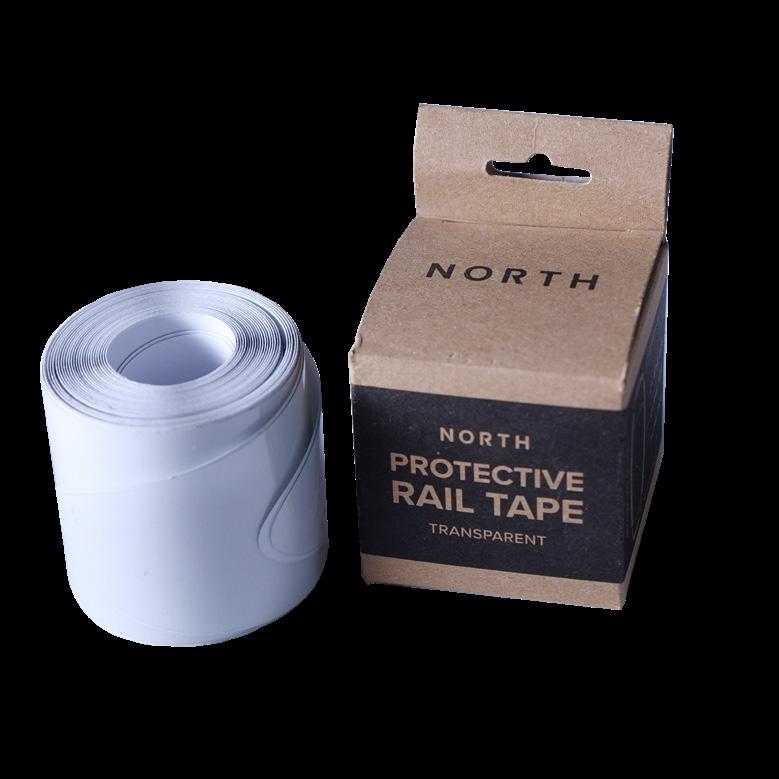

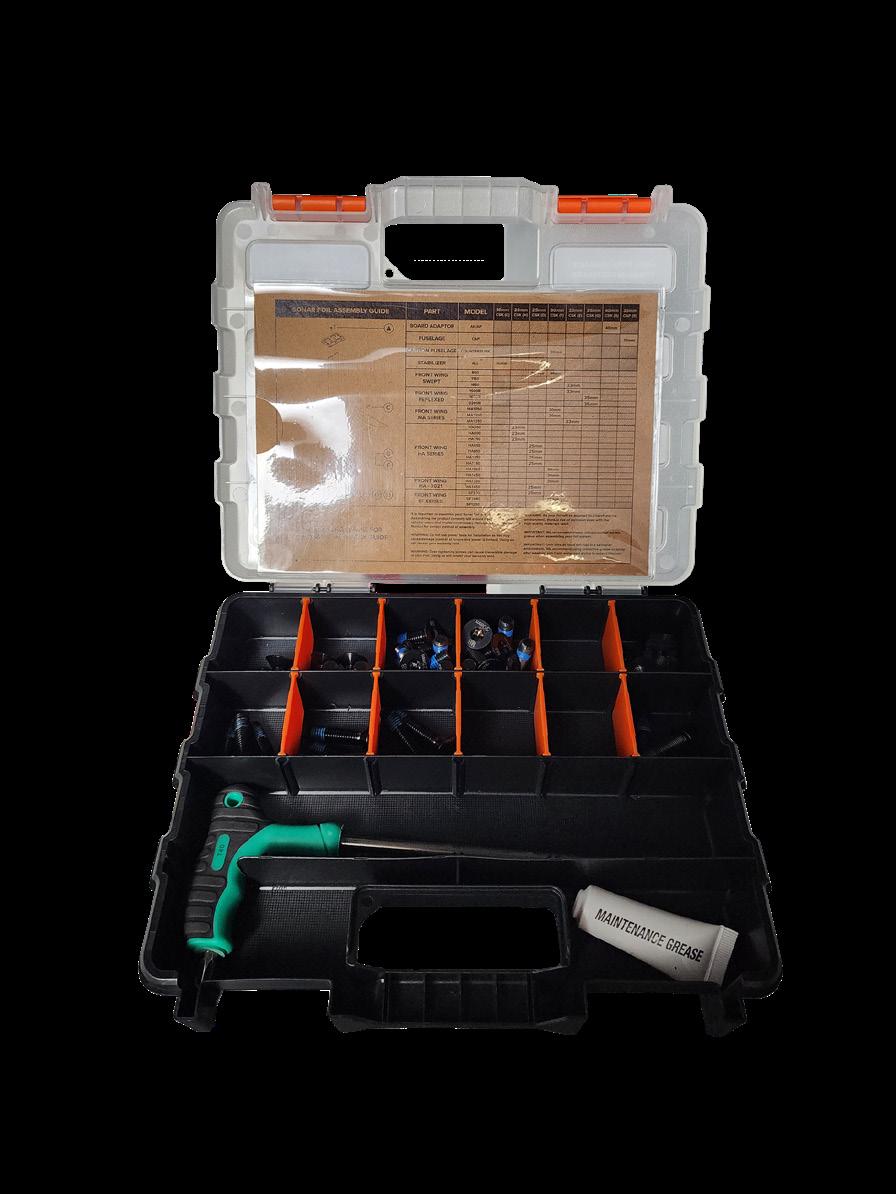

TOOLS & MAINTENANCE

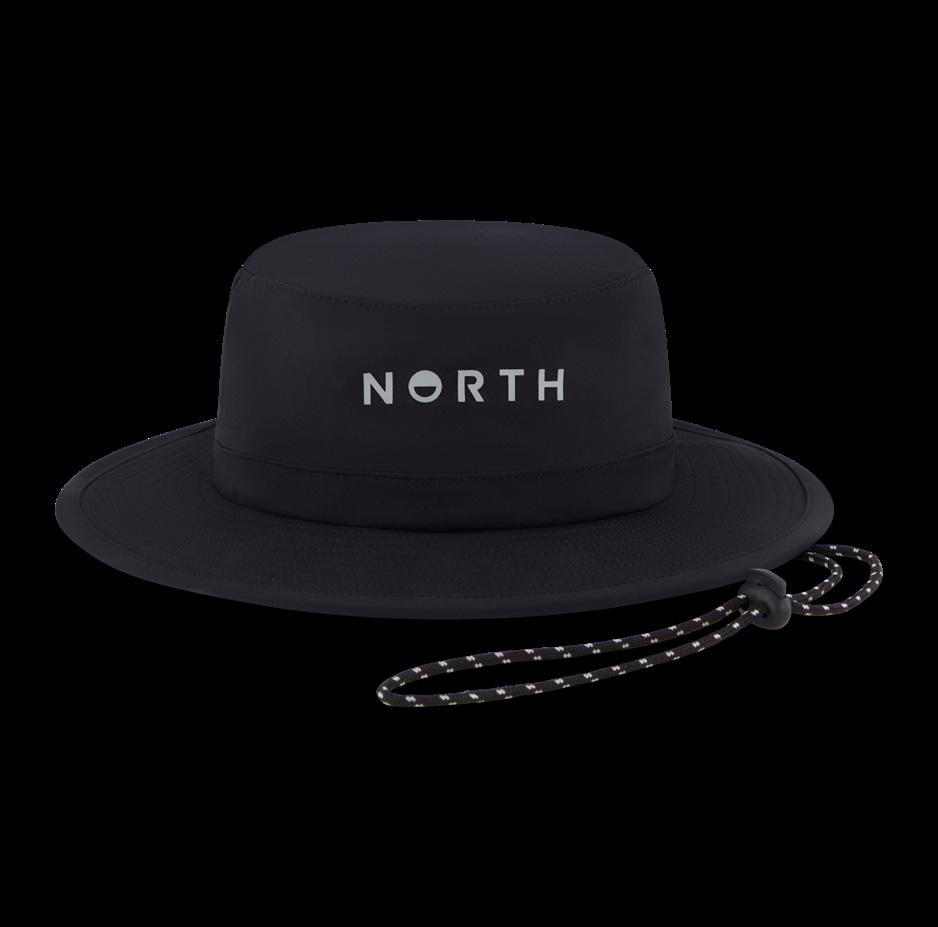

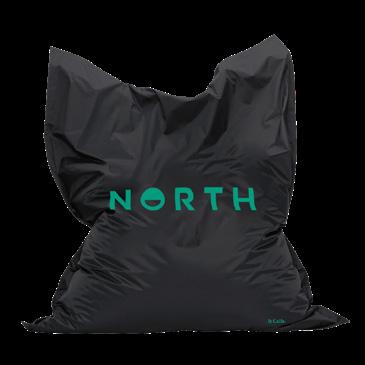

LIFESTYLE

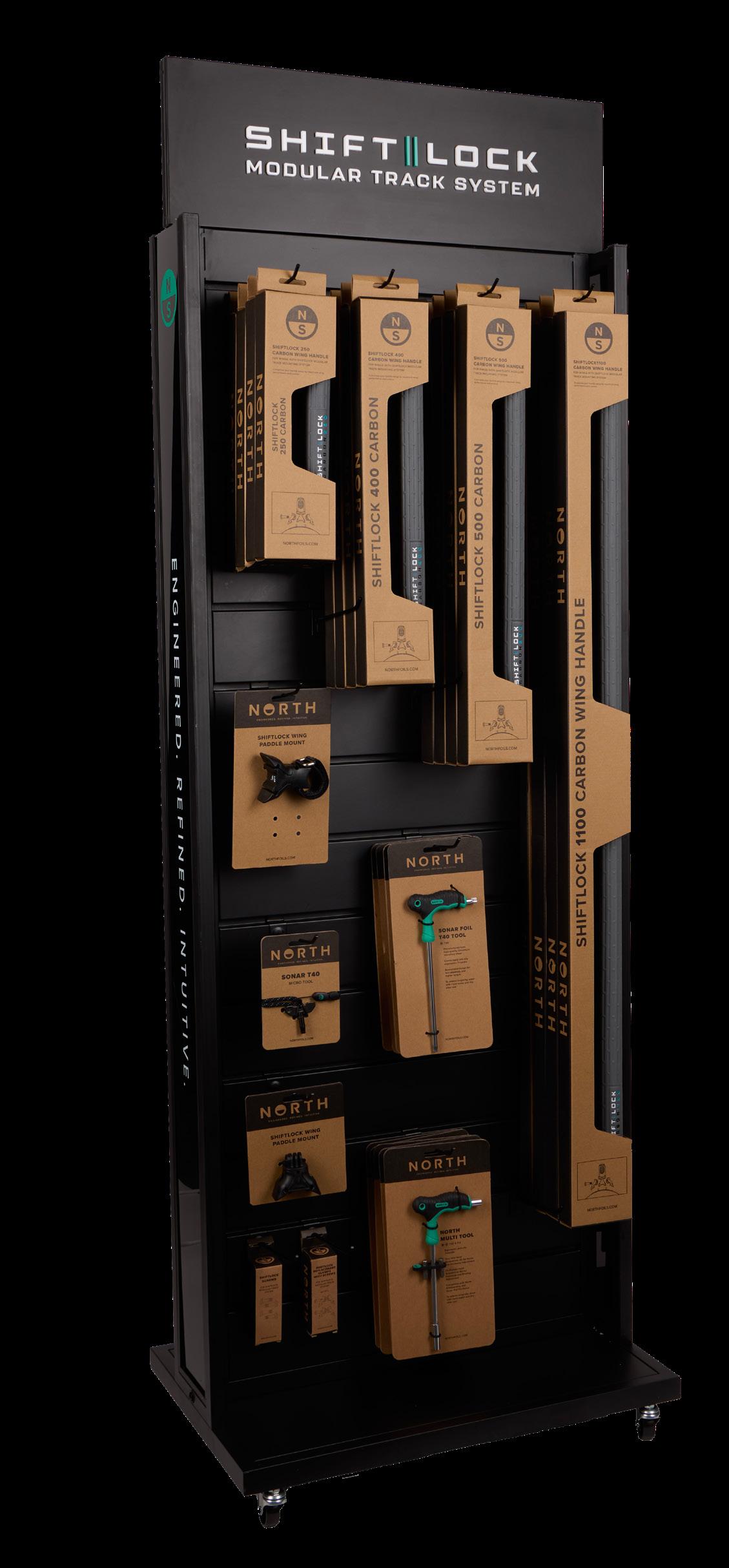

POS/DEMO/EVENTS

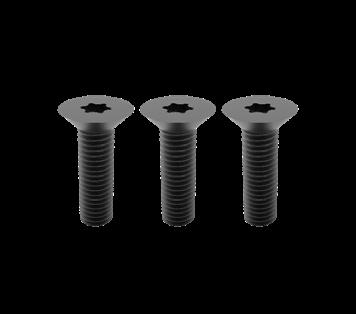

SPARE PARTS
2026 RANGE OVERVIEW

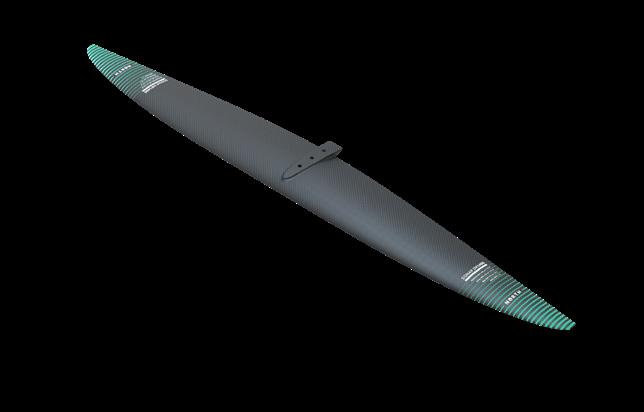

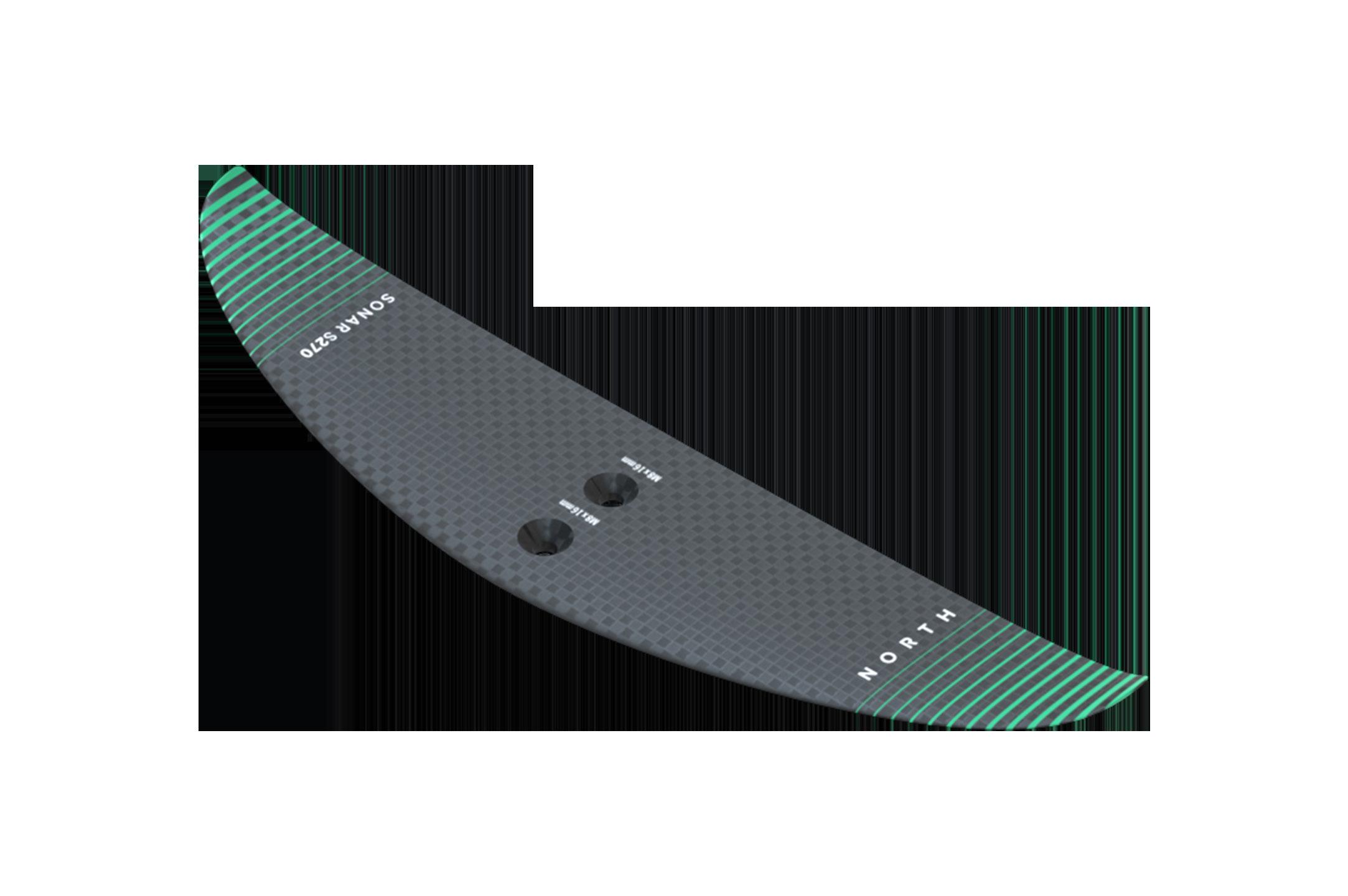

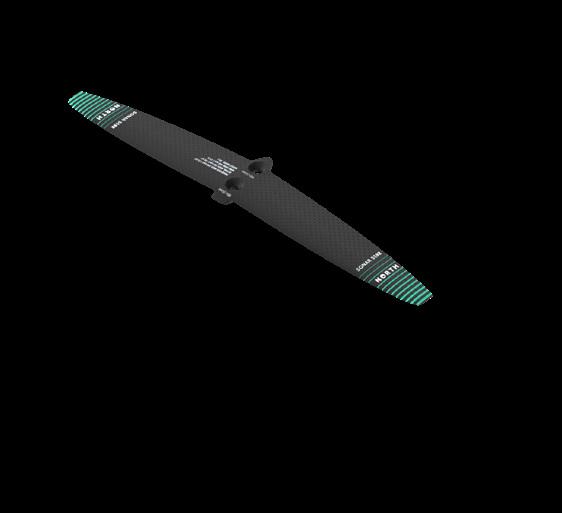

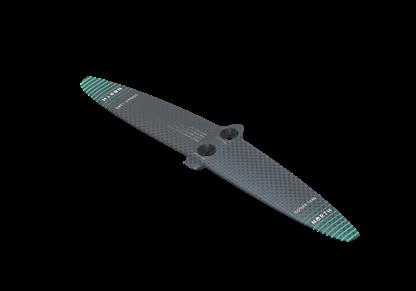

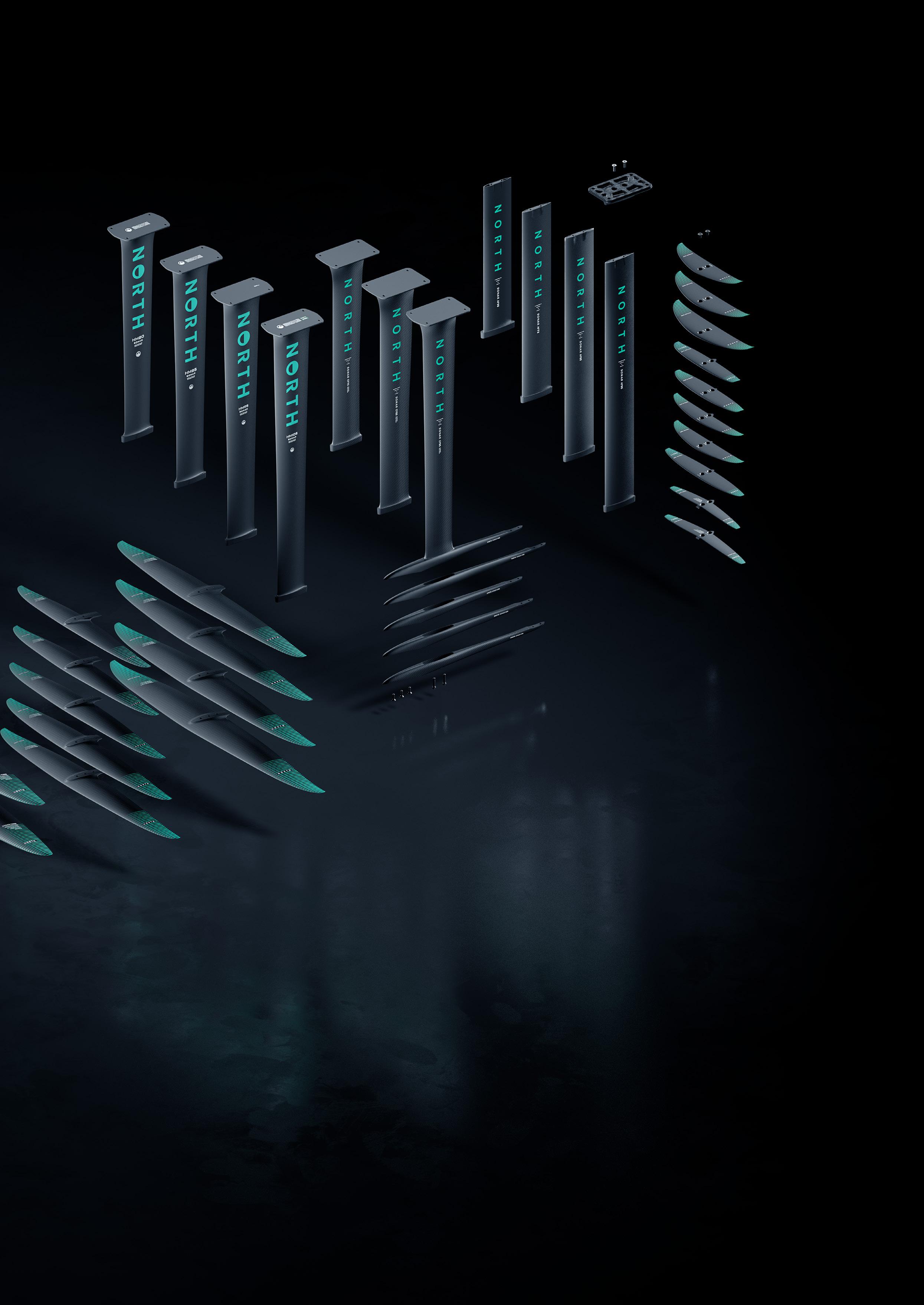

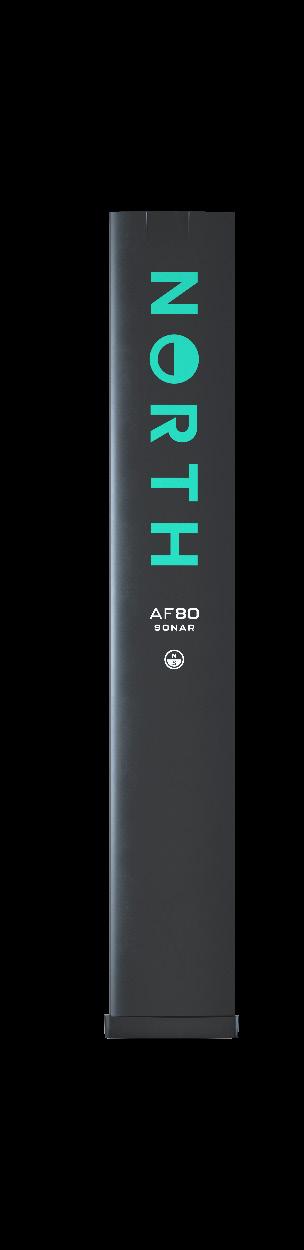

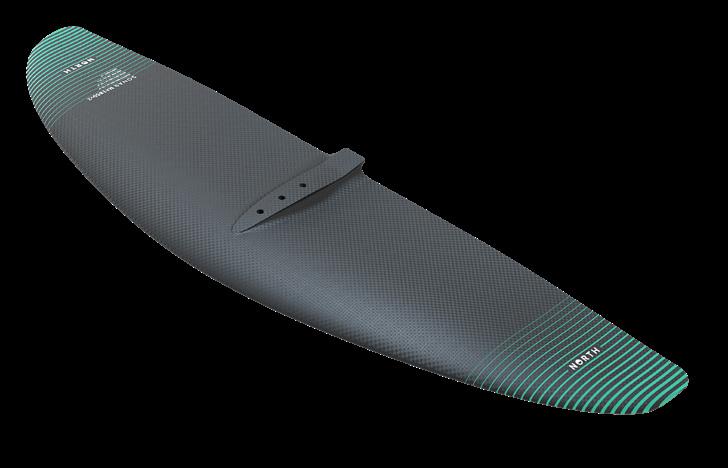

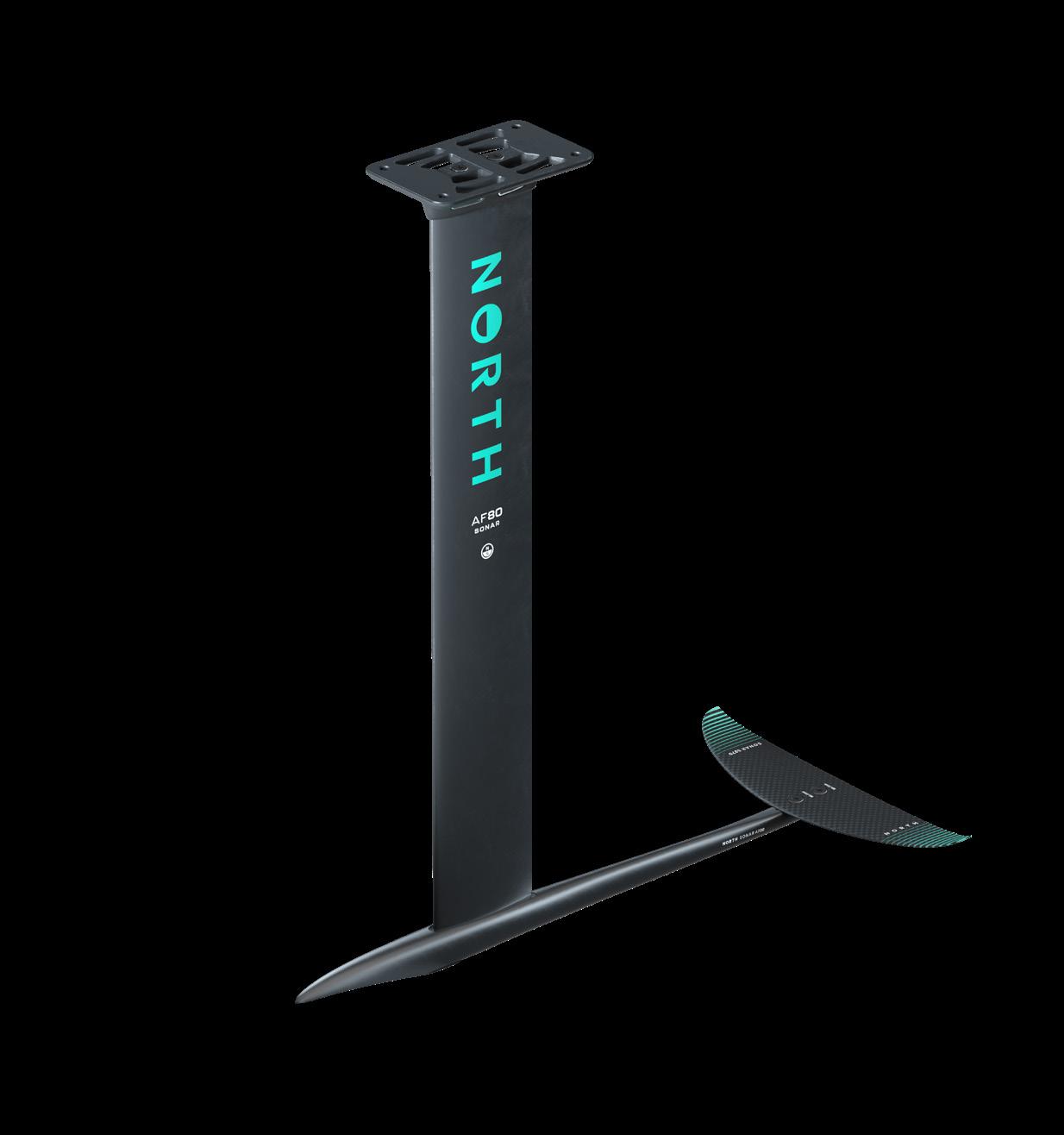

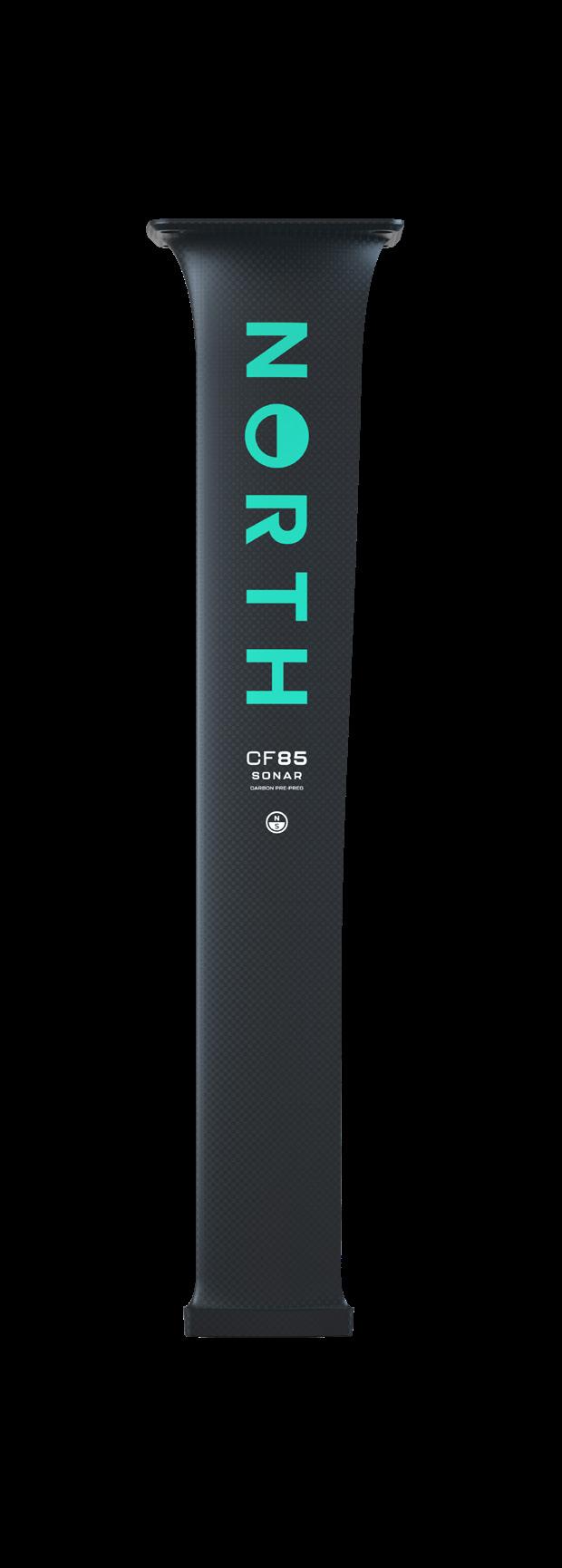

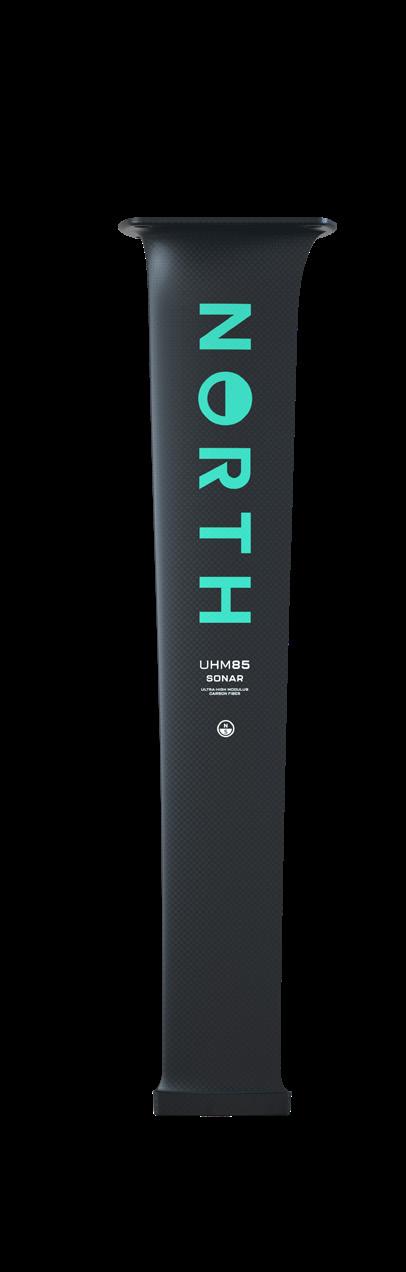

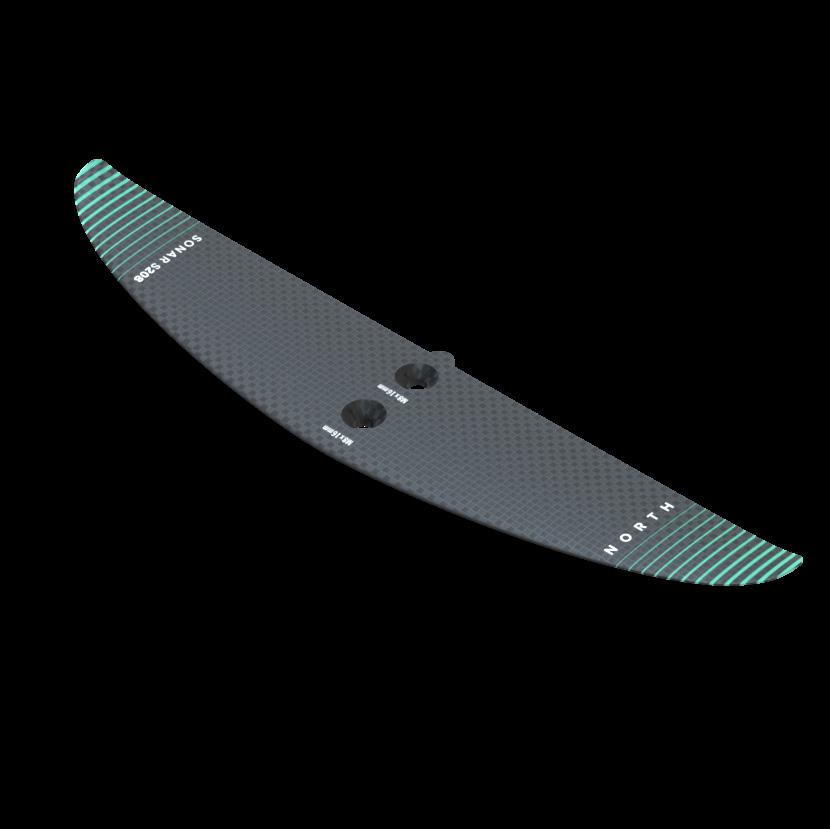

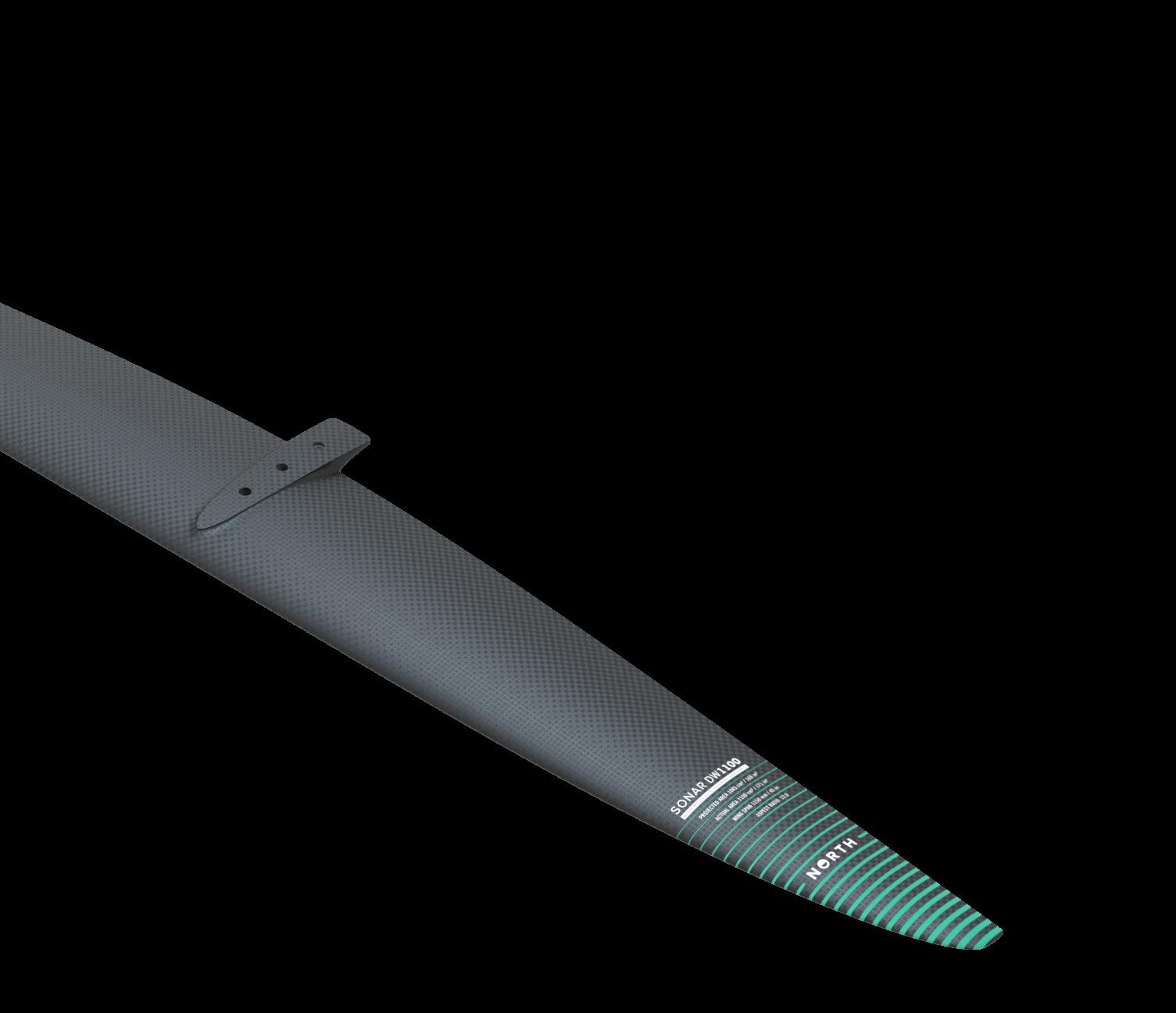

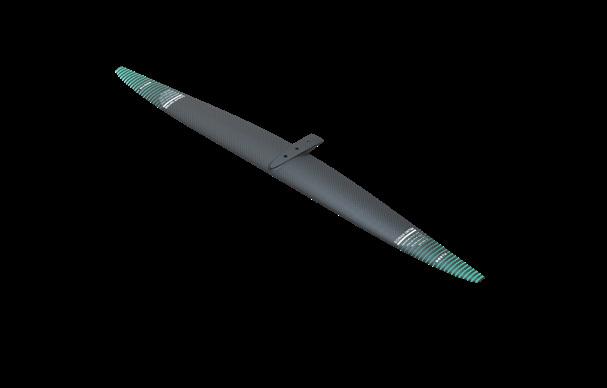

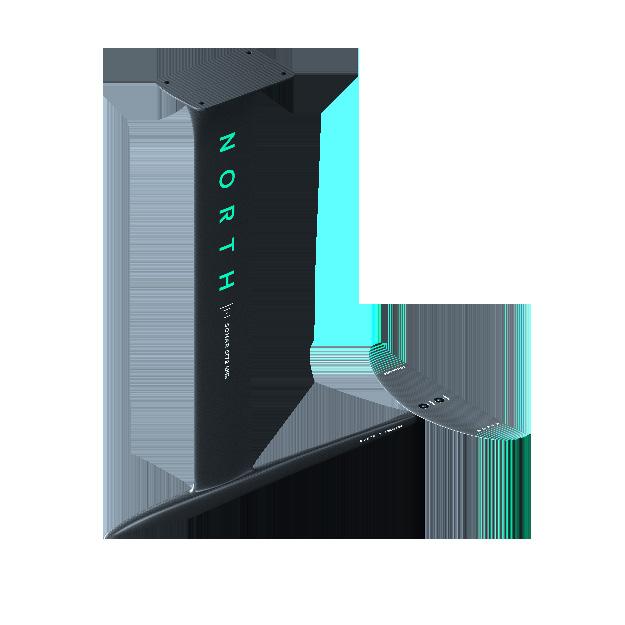

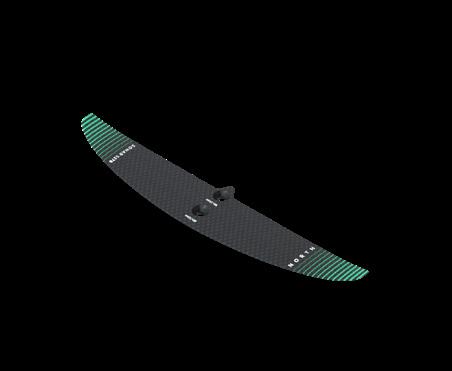

SONAR FOILS OVERVIEW
Technology Tiers
ICONIC
North differentiates each tier through a range of technological innovations that enhance efficiency, control, and user experience. Our collection is defined by a clear progression in both technology and performance, from efficient, comfort-focused features in iconic models to advanced materials and cutting-edge technology in the more refined Ultra models.
TECHNOLOGY
ICONIC
Engineered. Refined. Intuitive.
Performance Driven. Advanced Features.
Ultimate Precision. Highest Performance.
TARGET AUDIENCE
• Refined for simplicity and ease of use
• High-quality construction
Durable, long-lasting and wear-resistant
• Proven capability
• Champions more advanced materials and technological innovation
• Enhanced performance
• Lighter construction and more direct response
PRICE
Iconic models are targeted at those who want an effortless riding experience with essential features at a lower price point.
$$$ +++ $$ ++ $ +
• The pinnacle of material innovation and technology
• Most innovative, efficient and refined
• Fastest, lightest, most direct response
Pro is the choice for riders seeking advanced technology, superior capabilities, premium materials, and higher performance.
Bold. Exclusive. Unmistakable. Ultra is our most refined technology, for those who demand cutting edge performance.

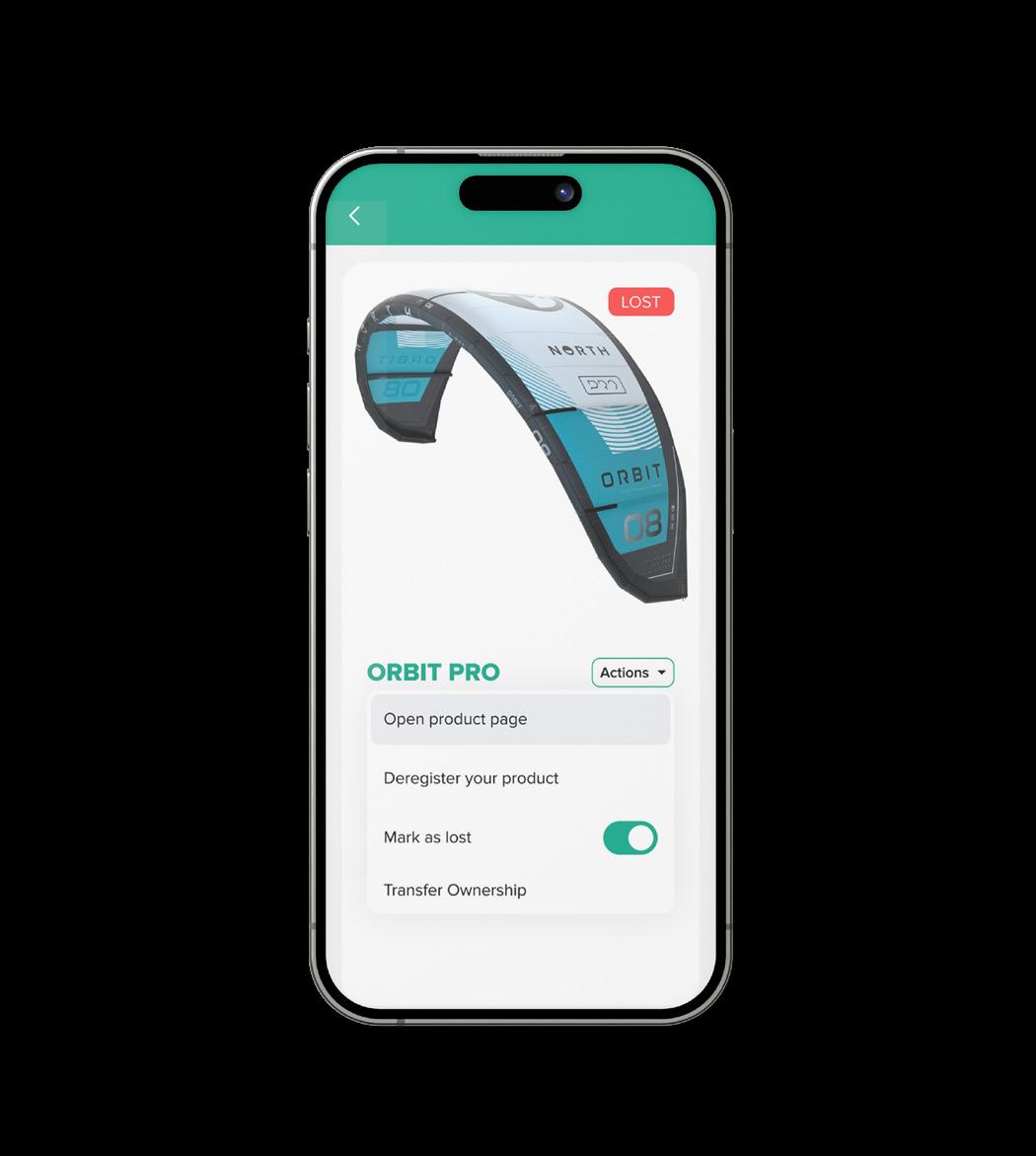

The North Digital Product Passport is a unique QR code on your North product that is linked to the product’s serial number. Customers scan this QR to register the product and add to a personal ‘Locker Room’ - the digital hub for all their North gear.
Lost and Found: Allows found equipment to be reunited with its owner.
Theft Protection: Makes it harder to sell gear reported missing.
Product Information: Easy access to product specific guides, manuals and videos, links to spare parts.
Club North Membership:
- Personal and equipment travel insurance
- Extended Warranty
- Free PredictWind Pro
- Exclusive updates and news
- Free shipping on North online purchases
SCAN TO LEARN MORE
Step 1: Scan QR Code
Each product has a unique QR code linked to its serial number. Use your phone to scan it, which will direct you to the North Digital Product Passport platform.
Step 2: Create Your Account & Register Your Products
Register your products to activate your account and digital lockers room. Fill in your details and sign up for free.
Step 3: Enjoy Benefits
Unlock the full potential of your gear with features like Lost & Found Services, Theft Protection and more.

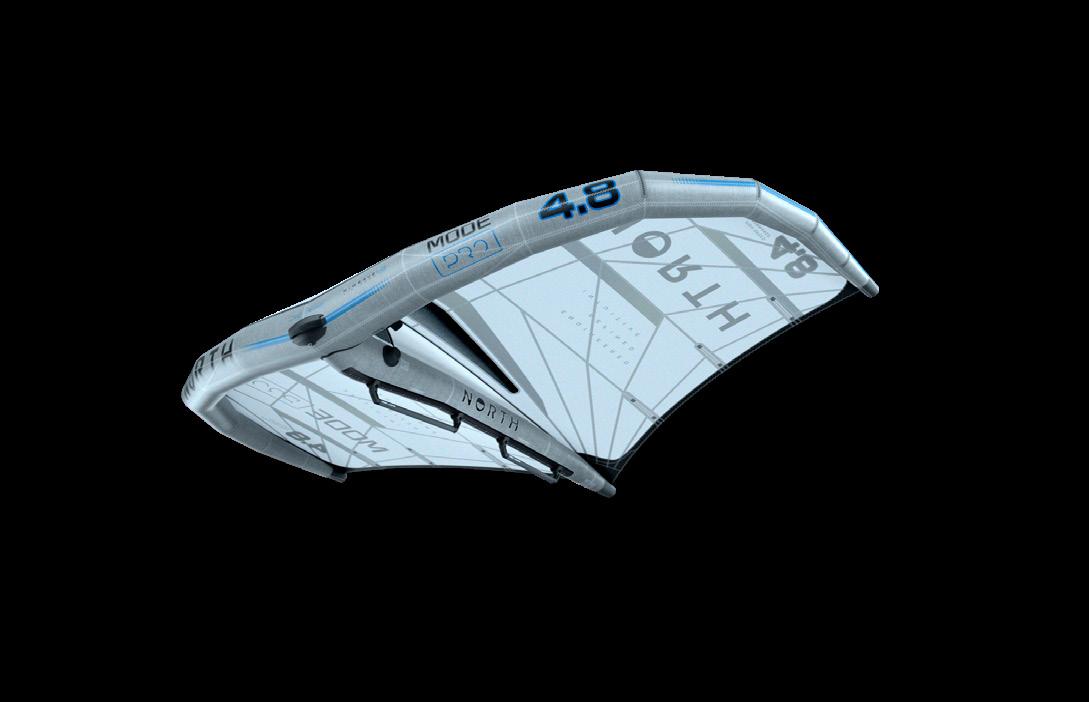

WING LINEUP

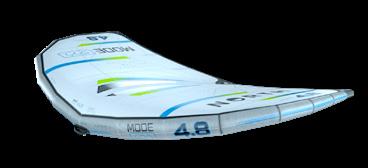

Loft
UNBELIEVABLY POWERFUL. IMPOSSIBLY FAST.
Pinch even higher and reach even deeper at pace. Engineered with a VMGoptimised partial double skin for improved aerodynamic efficiency, lower drag and precise manoeuvres at higher speeds, the 2025 Mode Ultra delivers a faster and more controlled ride, giving you a clear performance advantage on the water. World Sailing approved for use in the 2025 IWSA Formula Wingfoil Racing Class Events.
Like the full wing section profile of a Sail GP F50 race sail or the double skin found in the AC75, the partial double skin canopy provides a significant improvement of the flow and, with that, increased lift. The reduction in drag results in greater top speed, and makes it slippery through lulls.
The partial double skin is constructed from a lightweight canopy layer, positioned on the underside of the leading edge to reduce turbulent flow under the wing. The gains in efficiency result in greater upwind angles and speed, while the profile shape is optimised for downwind performance, allowing you to go deeper and faster downwind.
SPEED MODE. SEND MODE. YOUR MODE.
For riders demanding powerful Freeride performance with greater speed, explosive boost, and hangtime. The Mode Pro is engineered for efficient power delivery and high-end stability. For 2026, we’ve refined the strut shape, panel layout, and wingtip seam technology and increased the stiffness. These updates combine with the UDi Carbon-reinforced LE to deliver an even faster, more direct response.
ShiftLock 1100 or 950 Boom, 500, 400 and 250mm Handles, Paddle Mount, Action Camera Mount, Kite/Wing Pump, Waist Belt with Wing Leash, Wing Harness Loop
High Speed Performance
FEATURES:
• Fast response Carbon UDi stiffening inside LE

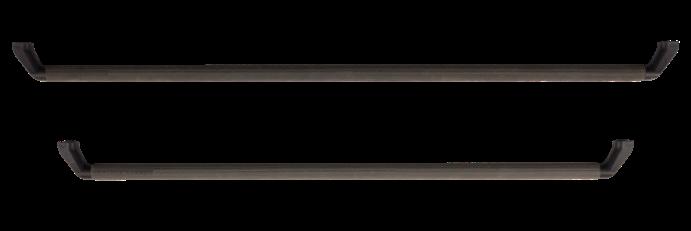

• Carbon ShiftLock Handles or Boom (sold separately)
• Stiffer LE & XLT-Joint for efficient direct power transfer
• Ergonomic Strut Geometry relieves elbow strain
• Refined Profile for fast acceleration and sustained speed
MATERIALS:
• N-Weave45 airframe
• Matrix canopy
FIRST UP. STAY UP.
The power to unlock borderline sessions, lift you up instantly in the lightest wind and keep you on the foil for longer. Balanced load distribution and lift for easier gybes, tacks and low-speed transitions. Powered by N-Weave45 High Tensile Strength woven fibre with cross-ply reinforcement.
• Carbon ShiftLock Handles or Boom (sold separately)
• Radiate Geometric Panel Layout and Load Diffuser
• N-Weave45 high-tensile airframe
• Fast response UDi-Carbon stiffening inside LE
• Highly efficient power delivery
• Refined weight-saving design
• Compact outline with rounded wingtips to reduce tip-strike

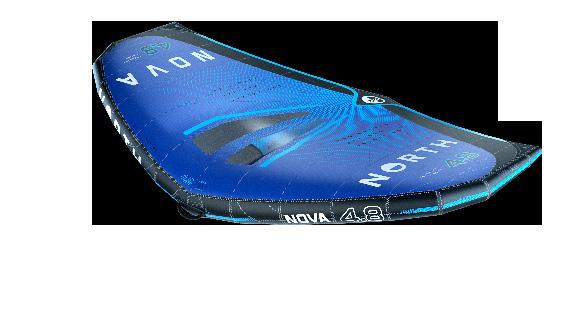

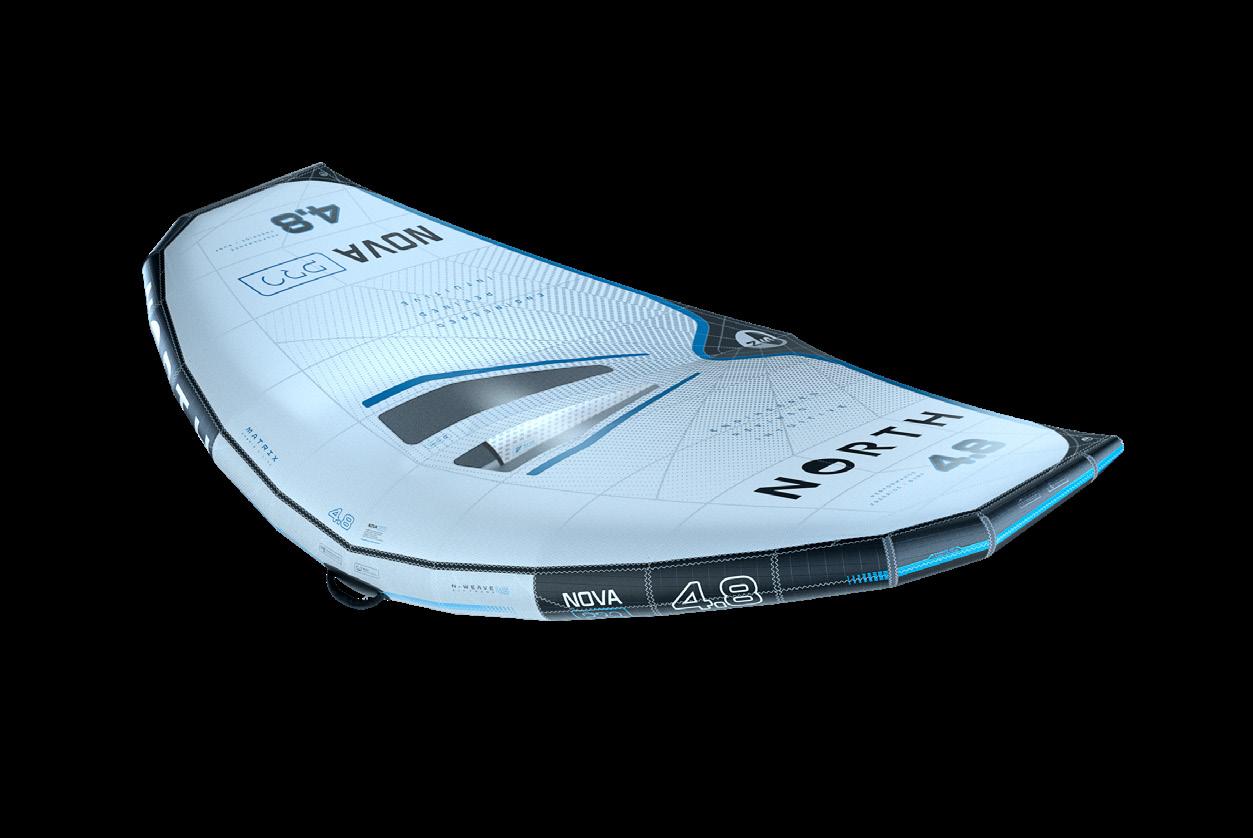

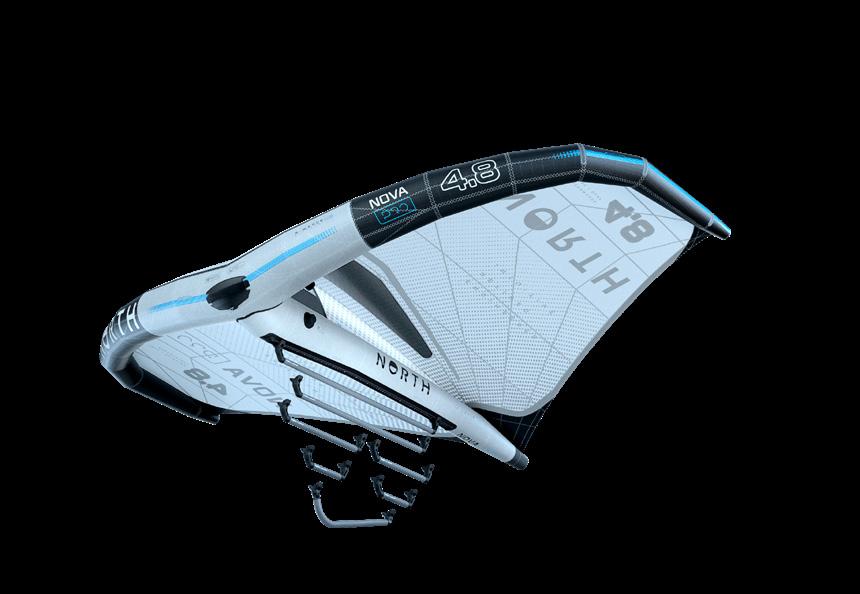

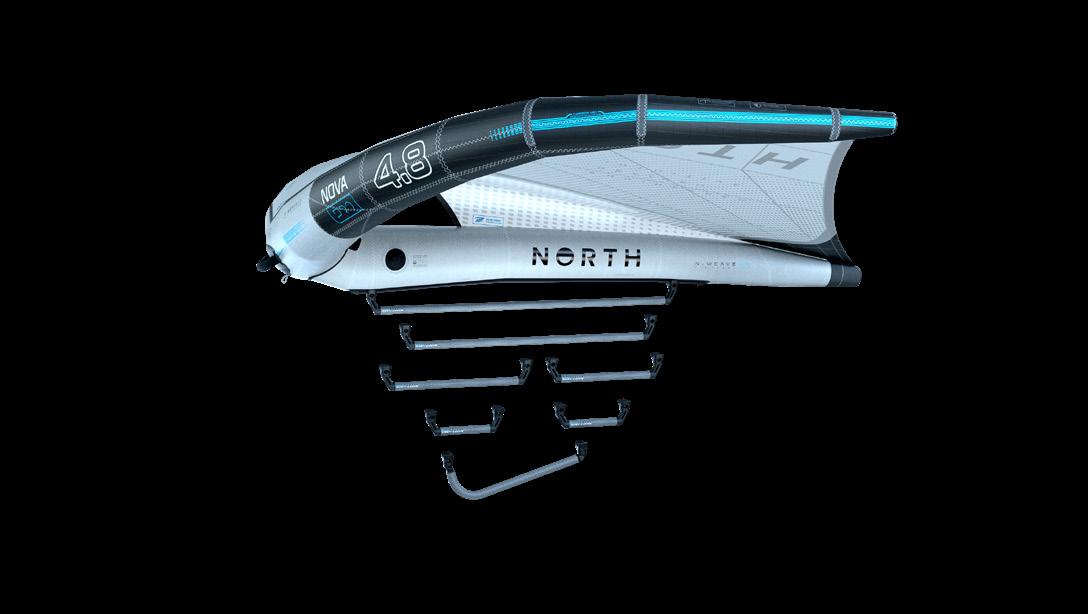

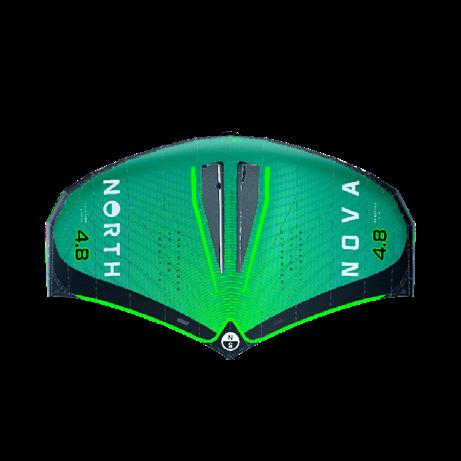

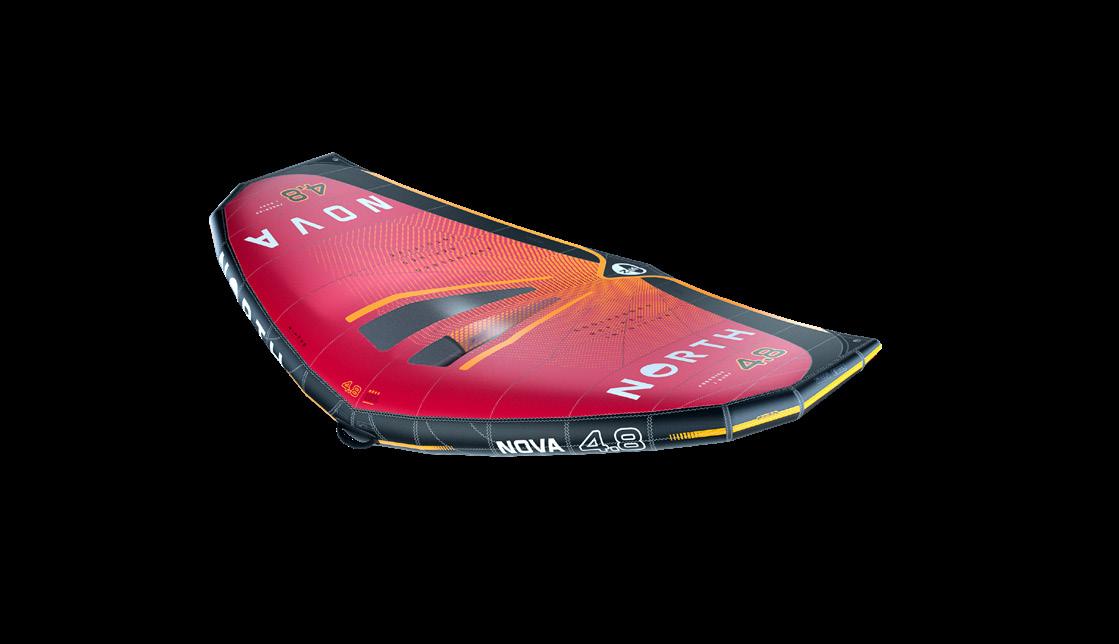

PERFORMANCE, MEET SIMPLICITY.
Light in your hands and efficient upwind, we’ve engineered the Nova Pro with advanced materials and balanced tensioning for a precise response in all conditions - carving ocean swells, boosting or freestyling.
• UDi Carbon stiffening inside entire length of LE
• More refined sizes
• Effortless upwind performance
• Easy gybes, tacks and transitions
• Stable trailering for riding swell
• Radiate Geometric Panel Layout and Load Diffuser for even canopy tension
• N-X6 Trailing Edge for shape hold and longevity
Wing Technology Glossary
ACTIVE TWIST WINGTIPS
Tapering the LE diameter allows the tips to deflect and dump any excess power in overpowered conditions, while reducing the wing’s swing weight and drag for improved speed and control.
CONTOURED STRUT GEOMETRY
The segmented strut allows you to hold your wing in a more comfortable riding position with two handles, relieving arm fatigue and elbow strain. Try with ShiftLock J-Handle for max effect.
CARBON REINFORCED
The Mode Ultra’s N-Weave45 strut is shaped for stiffness with ultra-reinforced Carbon UDi for lightweight strength to minimise deflection and maintain the true-designed canopy shape.
BALANCED LOAD DISTRIBUTION
The entry profile has been refined for more positive nose-lift through manoeuvres. Weight is concentrated in the wing’s centre, keeping the tips and canopy light with a low swing weight.
BALANCED TRAILERING
Improved stability is instantly noticeable when trailering, riding downwind swells, surfing, or walking, as reduced tip lift makes the wing less sensitive to oscillation and more stable.
CARBON UDI TECHNOLOGY
Patent-pending technology born from North Sails 3Di for added bend resistance, greater snapback, and more efficient pumping. Lightweight anti-deflection UD Carbon tapes run the length of the leading edge. Carbon UDi also reinforces the Mode Ultra strut.

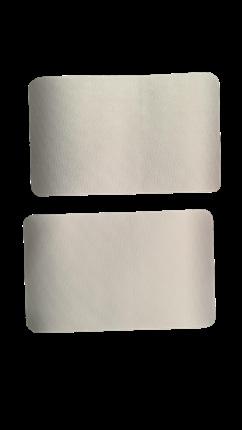

DURALITE SEAM PROTECTION
Lightweight Duralite reinforcement patches create a durable buffer along the LE seams and tips, protecting the stitching from chafing and abrasion.
EXCELS AT THE TOP OF ITS RANGE
High Aspect Ratio Design generates lift earlier and more efficiently at higher speeds. The new condensed size range offers an ideal wing size for every rider’s weight in key race conditions.
THIN PROFILE AND FLATTER DIHEDRAL
Thin low-drag profile sections and flatter dihedral generate forward thrust, lift and stability at higher apparent wind speeds. The faster you go, the steadier the wing feels.

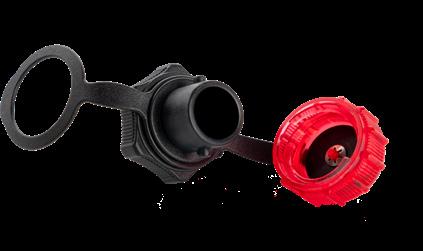

DUAL HYPERFLOW INFLATION VALVES

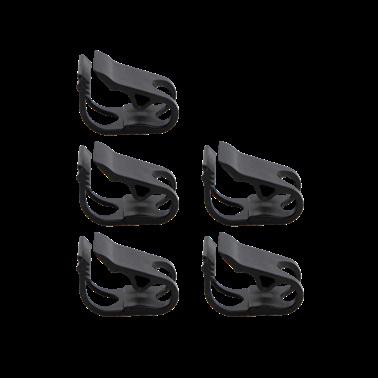

Separate LE and Strut valves, with interlinking hose and clip (positioned outside the Dualskin on the Mode Ultra), let you inflate the strut to a higher pressure than the leading edge.
KEVLAR STRUT CONNECTION
A biaxial kevlar layer provides internal strength and reinforcement to the XL-T joint connection. It is bias-cut to flex around the curvature of the strut, with a tight and accurate fit.
COMFORT KNUCKLE GUARD
Larger, water-resistant, moulded-EVA knuckle guard under the more rigid front tow handle protects your fingers from abrasion when depowering. Features integrated wrist leash attachment point.
LIGHTER AND MORE PRECISE HANDLING
Refined outline and profile section, reduced tip-to-tip span, less swept LE, and reduced radius toward the tips for easier handling and stability, especially in lighter wind.

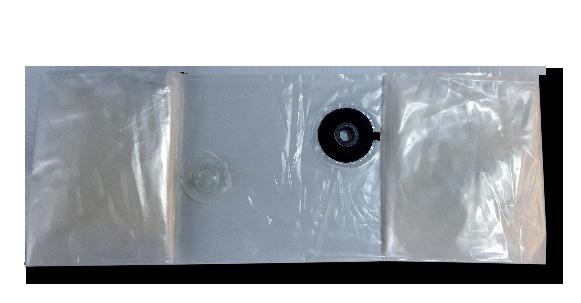

LIGHTWEIGHT BLADDERS
We’ve chosen a lightweight bladder material and strategically double-layered it in load-bearing areas such as handles, valves, nose, and wingtips for reinforcement.
STRATEGIC WINDOW LAYOUT
New longer, dual LiteVision windows improve safety on the water while keeping weight to a minimum. The Mode Ultra is World Sailing Approved for use in 2025 IWSA Formula Wingfoil Race Events.
MAXIMUM LOW-END POWER & EFFICIENCY
A refined profile section ensures smooth laminar flow attachment from the LE to the TE, for positive nose lift through all angle of attack changes, improved low-end power, loft and hangtime.
NEUTRAL LIFT
Optimised draft position and depth for user-friendly neutral lift through all angle of attack changes, fewer adjustments in hand positioning and a lighter feel for effortless transitions.
ADD ONE SIZE TO YOUR QUIVER
The Loft Pro span width is tailored to different riders - the 8m is suited to a heavier or taller rider, the 6m to a lighter or smaller rider. All sizes are optimised for maximum low-end ability.
PAIR WITH AN EFFICIENT HYDROFOIL
A low stall-speed foil helps you maintain lift through the lulls and enables easier transitions at slower speeds. The Surf, Downwind, or larger MA Series are ideal for light wind winging.
DEPOWER HANDLE FOR BALANCED TRAILERING
The depower handle on the LE has an ergonomic semi-rigid shape, for a balanced and comfortable one-handed grip when trailering the wing on a wave, or simply walking your gear to the water.
RIGID AND DIRECT
The stability and structure critical for deformation resistance translate into an extremely direct feel to help you maximize every micro-gust.
PROFILE STABILISING BATTENS
4mm rod battens run from the TE to the double skin to improve rebound reactivity – so the canopy can reform its shape faster when you pump, and maintain optimal tension under extreme load.
Wing Technology Glossary
VMG-OPTIMISED DESIGN
Pinch higher, reach deeper. Fast, VMG-optimized design sails even closer to the wind, on higher angles, reducing your need to tack or gybe, so you reach the mark as quickly as possible.

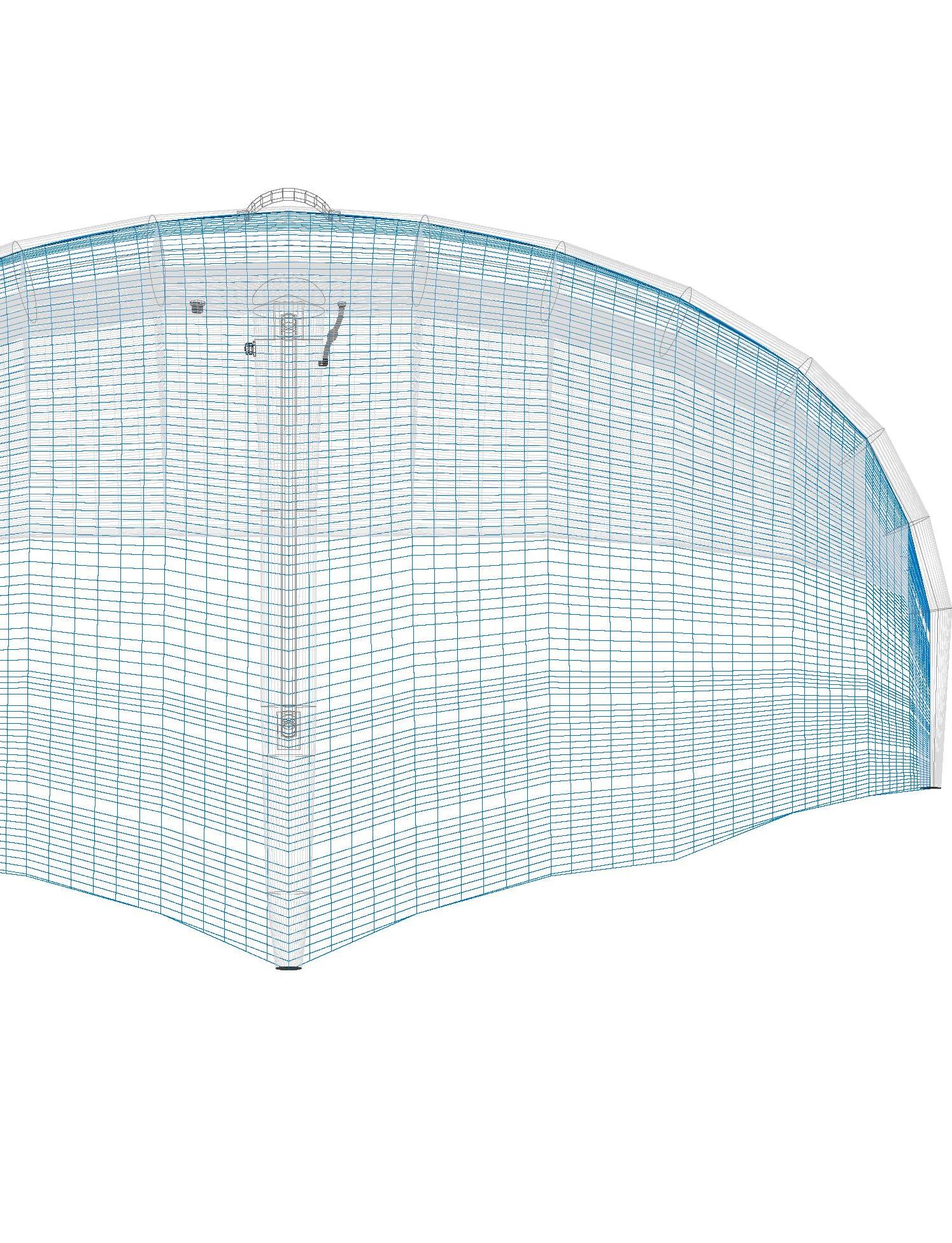

RADIAL GEOMETRIC PANEL LAYOUT
We’ve refined the panel layout to spread the direction of load evenly across the canopy. The radial layout helps to stabilize the wingtips and increases tension under load.
REDUCED TIP STRIKE
The lower span width means you’re less likely to catch a wingtip, while the wingtip curvature means if you do touch the water, there’s less drag and an improved chance of recovery.
REFINED, WEIGHT-SAVING DESIGN
Engineered to feel as light as possible with thinner LE, lightest bladders, fewer LE segments and seams, no scuff guards, and N-HTRS canopy material – it handles like a much smaller wing.
RADIAL LOAD DIFFUSION
Radial load diffusers reinforce the strut tail and wingtips, working in harmony with the radial panel layout to distribute tension more evenly in defined load directions for reduced drag.
RECYCLED POLYESTER WING BAG
Expands to fit an 1100mm Boom for convenient storage even when the boom is attached to the wing. We recommend removing your ShiftLock handles for longer haul travel.
SUPER-EFFICIENT LOW-END POWER
A deep profile and stiff frame enable efficient power delivery to get you up on foil without needing to pump. The Loft Pro’s framing is very stiff and reactive, for direct power and forward drive.

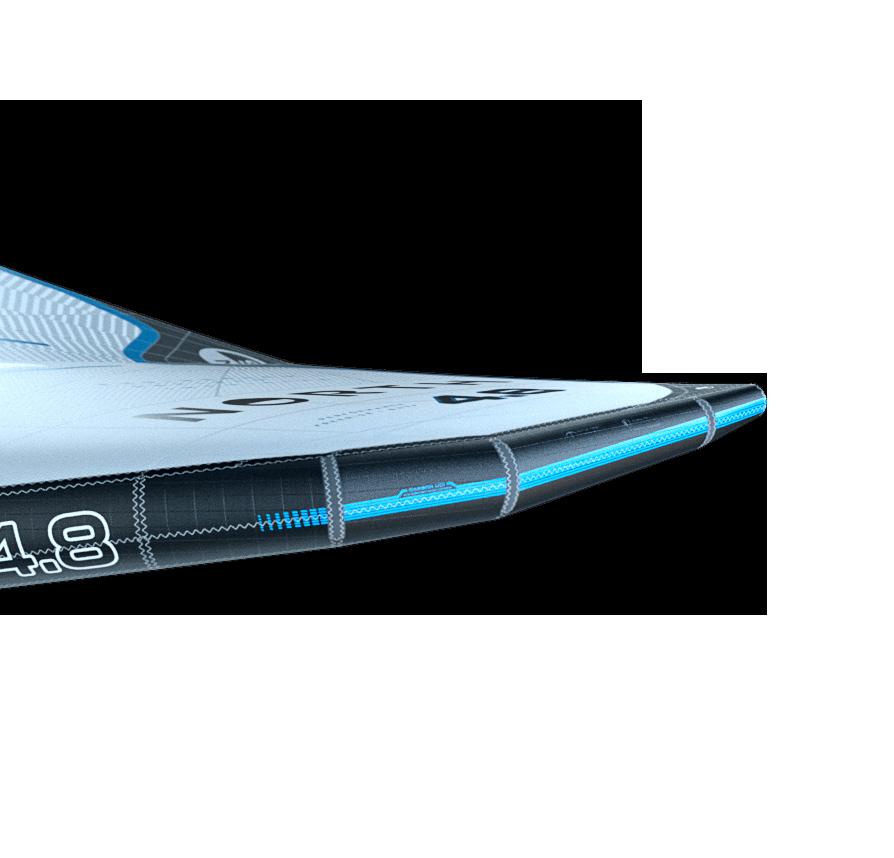

THINNER LEADING EDGE
Reduced LE diameter creates a lighter weight, more agile and streamlined wing, with a slimmer overall profile, for reduced drag and better upwind angles. Carbon UDi helps maintain stiffness.
DETACHABLE LOW DRAG TOW HANDLE
The lightweight and minimalist depower handle is aerodynamically optimised. The handle can be removed for additional drag reduction.
LIGHTWEIGHT INFILL PANEL
The infill panel between the strut and canopy helps the wing to maintain a better profile shape under load.
UNIQUELY SHAPED DIHEDRAL
The profile depth, outline and airframe stiffness are optimised for maximum power, and the dihedral helps stabilize the wing, for easy handling and user-friendliness across a wider wind range.
Uniquely Shaped Dihedral
PARTIAL DOUBLE SKIN
A lightweight dual canopy layer drastically increases the efficiency of the profile for greater top speed, lift, upwind angles and VMG with deeper and faster downwind.
NEUTRAL TRAILERING
Uniquely shaped dihedral helps you maintain a stable, neutral position when trailering, and slightly more wingtip profile helps the wing fly on more of a 45-degree angle, reducing tip-strike.
WINGTIP SEAM PROTECTION
To maximise protection against abrasion, the closing seam at the wingtip is rolled inward, shielding it from direct contact with rough surfaces and reducing the risk of wear.

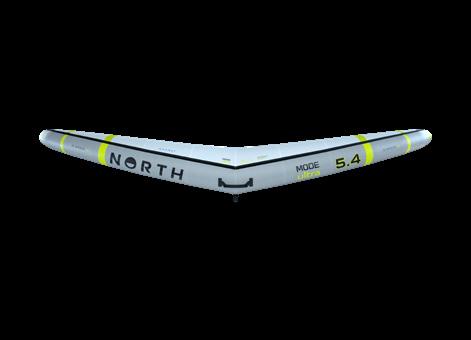

WORLD SAILING APPROVED
The Mode Ultra is World Sailing Approved for use in 2025 IWSA Formula Wingfoil Race Events.
SS316 SWIVEL WRIST LEASH
All North Wings are supplied with an elasticized webbing wrist wing leash with swivel, for fast, safe wing retrieval. A North Wing Waist Belt and QR Board Leash can be purchased separately.
XLT-JOINT STRUT CONNECTION
To keep the profile flying in its intended shape, the join between LE and strut has a larger diameter for a lightweight and direct connection to the canopy without deformation.
Wing Technology Glossary

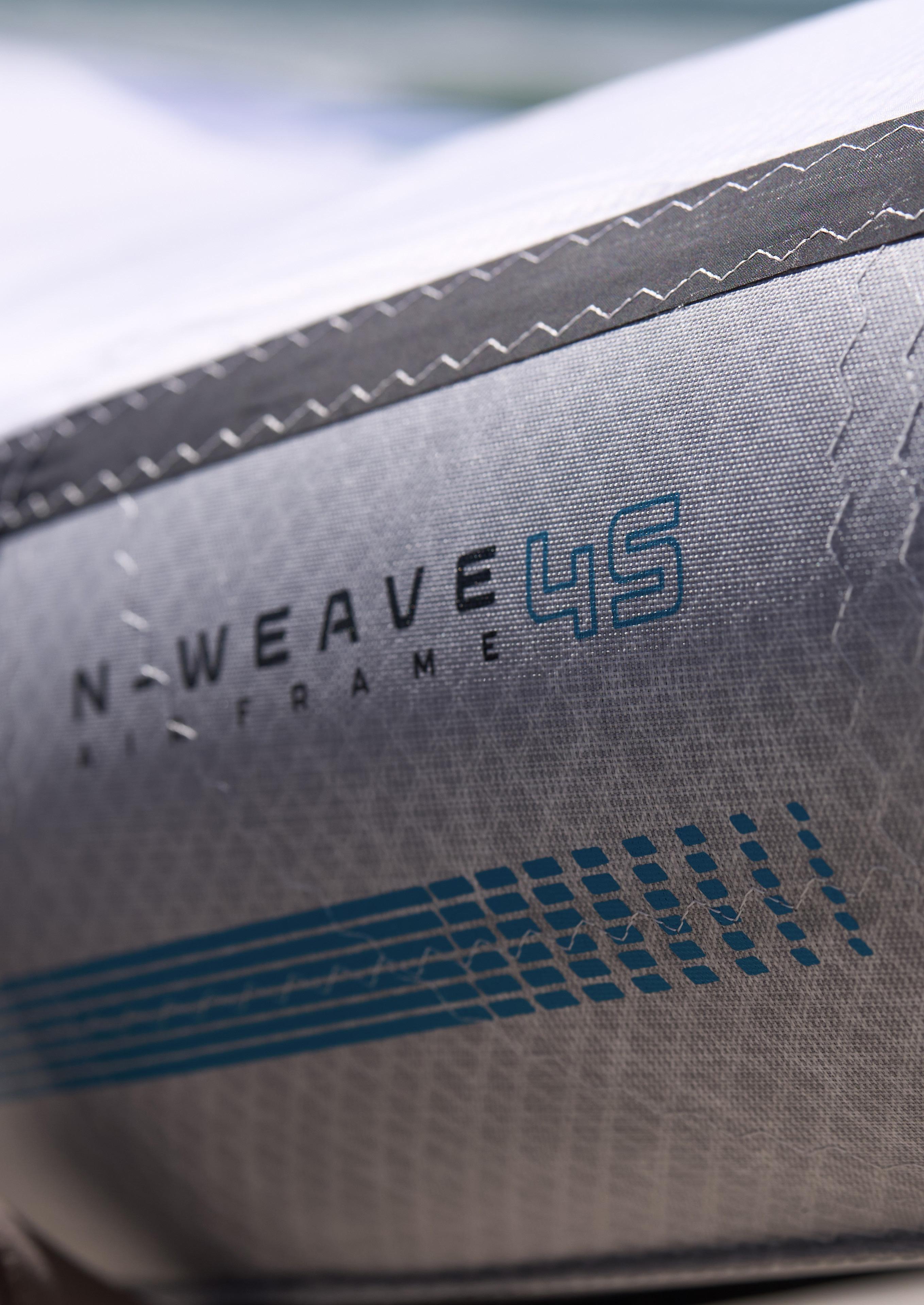

STIFF N-WEAVE45 AIRFRAME
N-Weave45 is a high-tensile woven fiber with a 45-deg laminate for biaxial and torsional control, creating a stiffer, lighter rig with highly efficient power delivery.
HYBRID N-WEAVE45 AIRFRAME
Lightweight high-tensile N-Weave45 material in the strut and the LE centre segment gives the wing a reactive and direct feel with a crisp input response, and more forgiving Dacron wing tips.
MATRIX CANOPY
High-performance stretch-resistant wing canopy material specifically designed to handle the higher loads of the N-Weave45 airframe, and provide greater structural integrity for longer.
HYBRID MATRIX N-HTRS CANOPY
Stiffer Matrix canopy (80%) for greater torsional strength and structural integrity, while boosting load capacity and wind range. Lighter N-HTRS up front for clean entry.
HIGH PERFORMANCE N-HTRS CANOPY
North High Tenacity Ripstop (N-HTRS) polyester yarn canopy material for lightness, high tear strength, low porosity and performance longevity.
DURABLE AIRFRAME MATERIAL
The LE, Strut and wingtip reinforcements are constructed from high-quality industry-proven Dacron, ensuring performance longevity and durability.
N-X6 TRAILING EDGE PANELS
Durable, lightweight, low-elongation N-X6 panels provide greater TE tension, dampen flutter and help to create a cleaner release with minimal drag

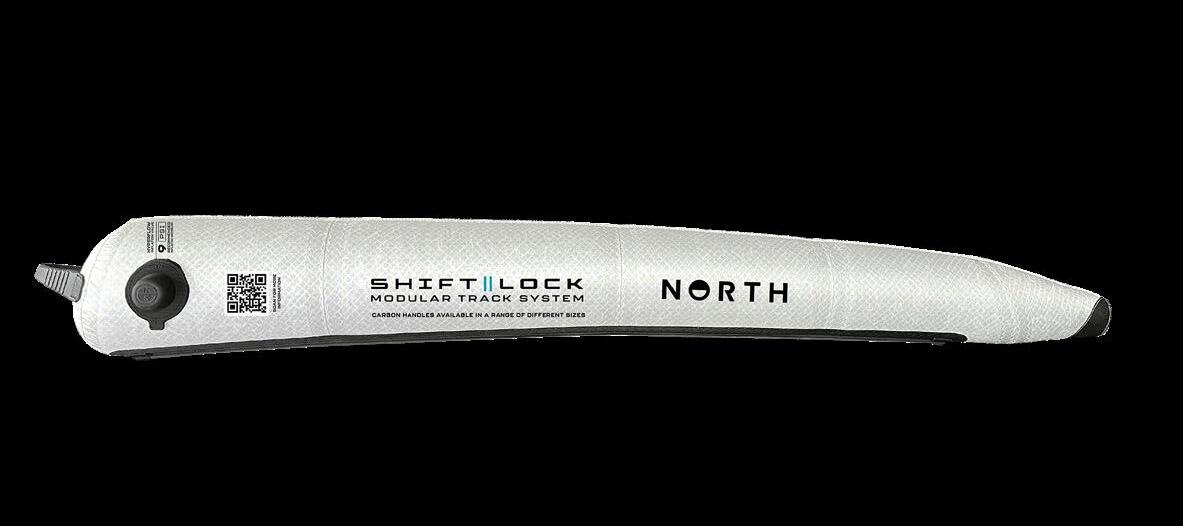

SHIFTLOCK MODULAR HANDLE MOUNTING
Our proven modular track system lets you slide and lock any handles (or boom) into any position. Choose from the single 1100 or 950 boom to the 500, 400, or 250 handles, or front 400 J-Handle.
SHIFTLOCK ACCESSORIES

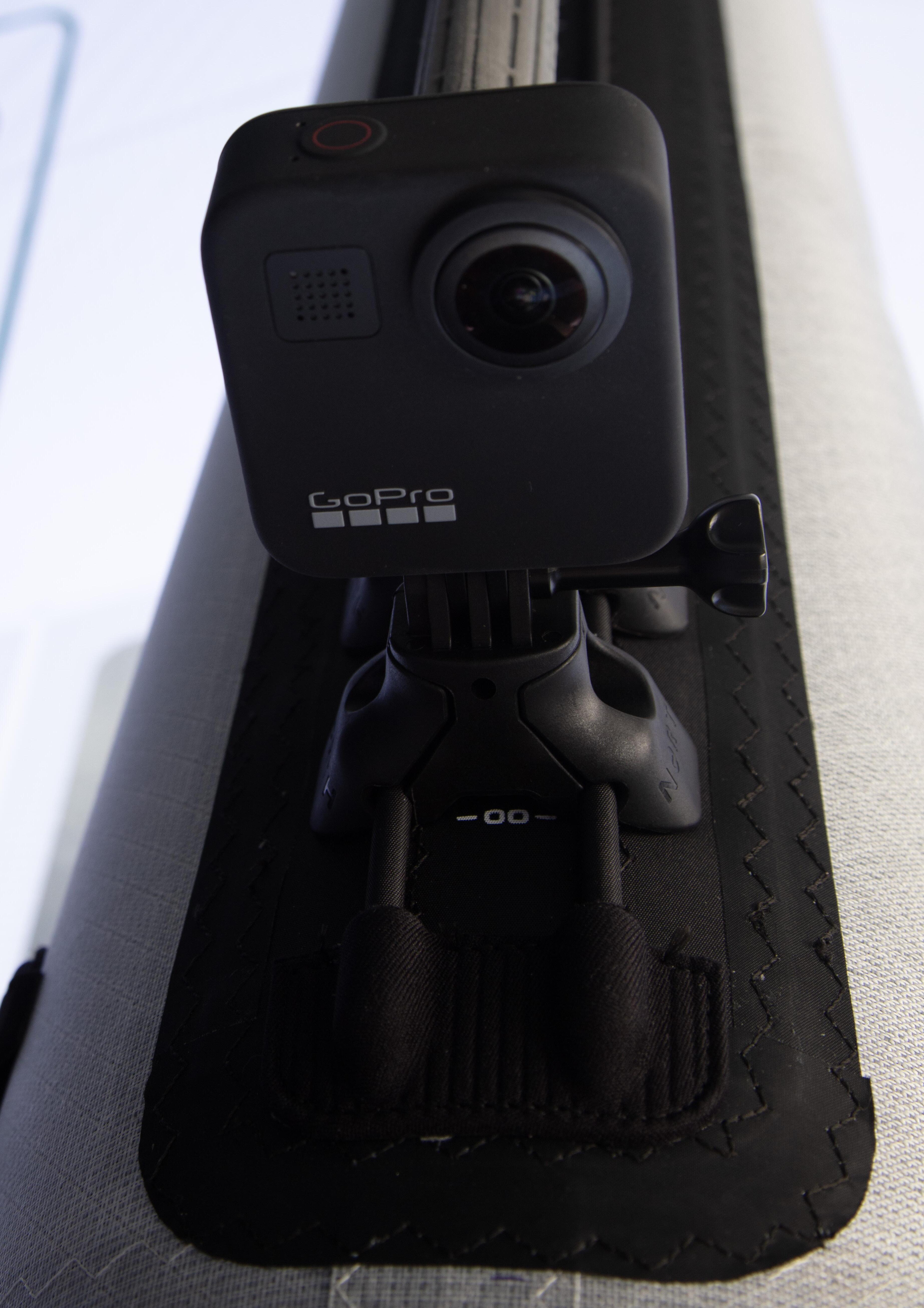

Add an Action Camera Mount or two ShiftLock Paddle Mounts, which can be used to mount a SUP paddle to your wing in place of a handle. The Paddle Mounts are ideal for downwind deflates.

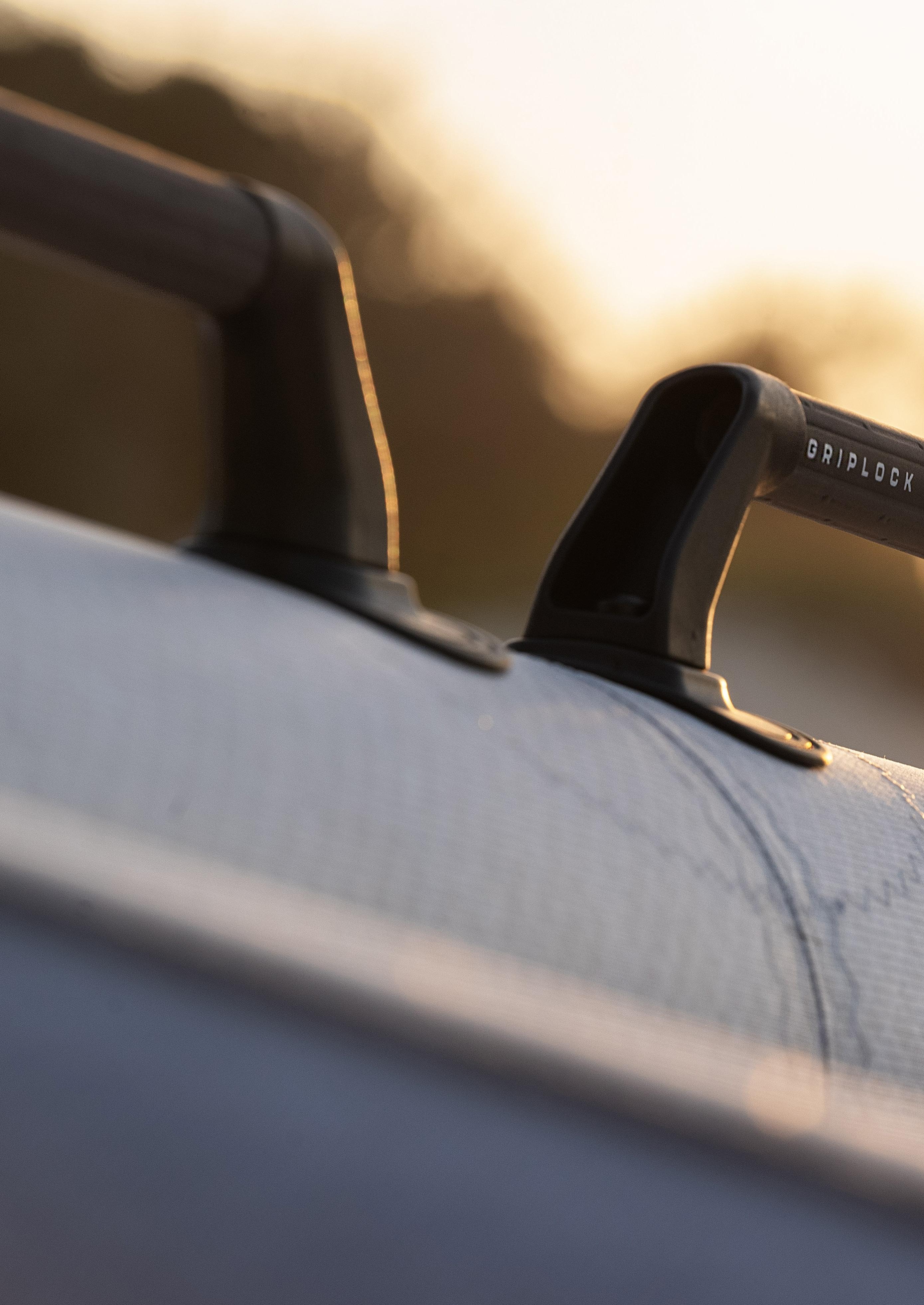

GRIPLOCK CARBON BOOM
We’ve pre-installed a lightweight, high-strength carbon boom handle with soft EVA grip for better control, less hand fatigue, and lower overall wing weight for faster, more reactive handling.
Wing Performance
2026 Wing Specifications
*Recommended wing size dependent on rider size, ability and foil setup. 1.9m Nova designed for lighter riders (under 50kg) or skateboard sessions. Choose Loft Pro according to your rider size. Wing weight includes wrist leash, Nova Pro, Mode Pro and Loft Pro weight does not include ShiftLock Carbon Wing Handles, these are sold separately. Nova and Mode Ultra weight include GripLock Carbon Boom. Up to 200g weight savings on the Nova when fitted with optional Carbon Wing Handles (sold separately). The 1100 Boom is not compatible with the Nova Pro 2.9m
PARAWING LINEUP

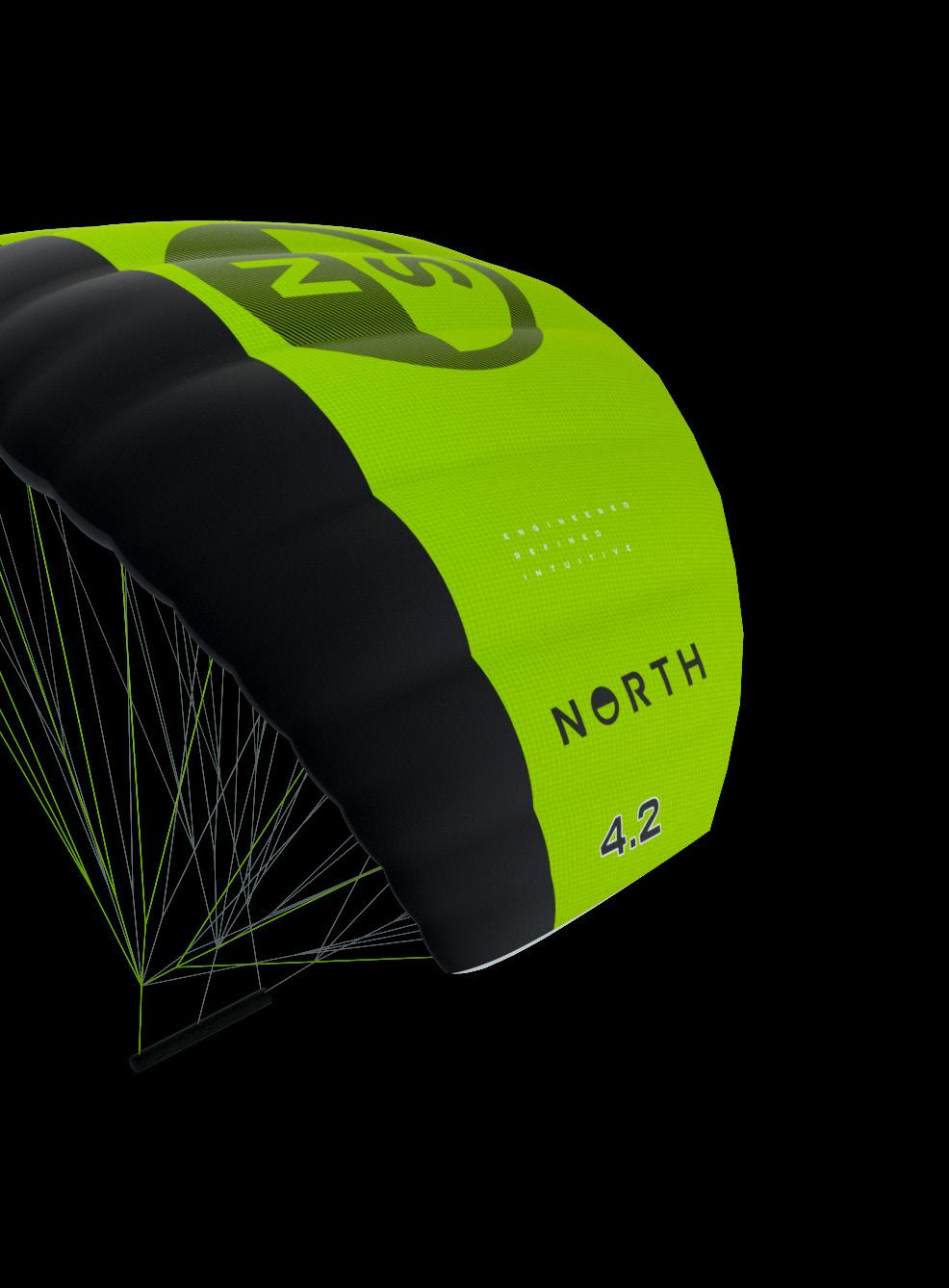

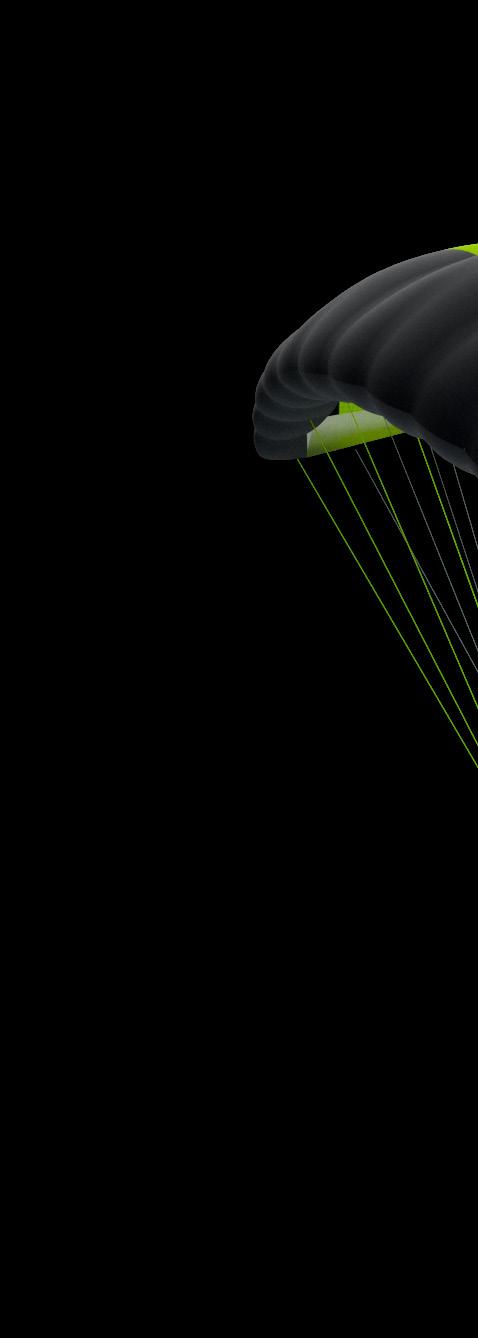

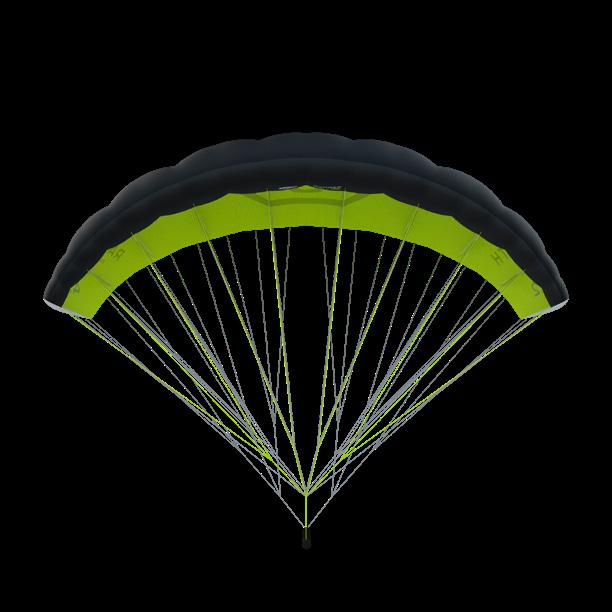

Downwind Parawing
FREEDOM TO FOIL OFF-LIMITS
A super short-bridled, single-skin parawing designed for handsfree downwind foiling. Harness the wind to get up on foil, then pack away and ride freely using ocean energy. The Ranger can also be used as a rescue chute on downwind or e-foil missions, or for surfing - especially point breaks with side shore breezewithout needing to pump or tow back out.
PHOTOGRAPHER:
@d_day_by_jenny

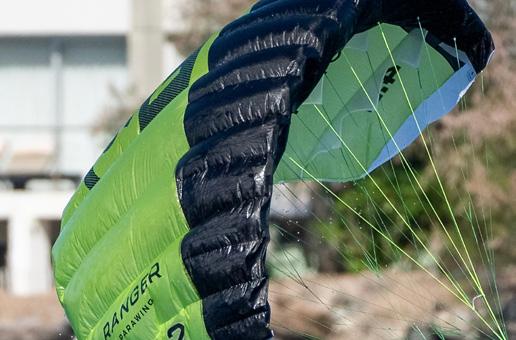

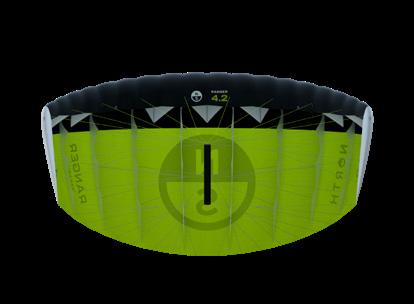

Ranger
Downwind Parawing
FEATURES:
• Easy to control, stable and responsive
• D-Ribs for canopy support and load distribution
• Depower Tab safely collapses the canopy when overpowered
• Colour-coded bridle lines and LE for faster deployment / retrieval

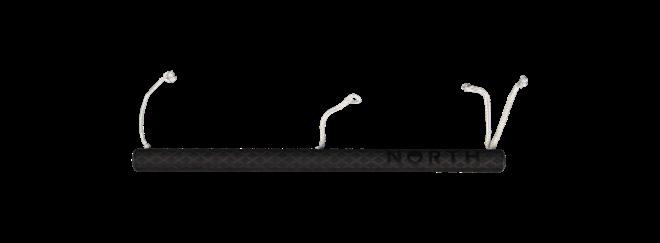

• Lightweight carbon bar for intuitive steering and power control
• Includes onwater backpack - buoyancy vest compatible
MATERIALS:
• Lightweight and durable 40gsm Canopy
• Braided Dyneema bridle lines
ORDER DETAILS
CODE: 85014.260030
SIZES: 650 Lime 2.2m, 3.2m, 4.2m, 5.2m
PRODUCT DETAILS
Parawing, Carbon Control Bar, Onwater Backpack
ACCESSORIES (SOLD SEPARATELY)
Stash Belt Harness, Wing Harness Loop, Wing Leash

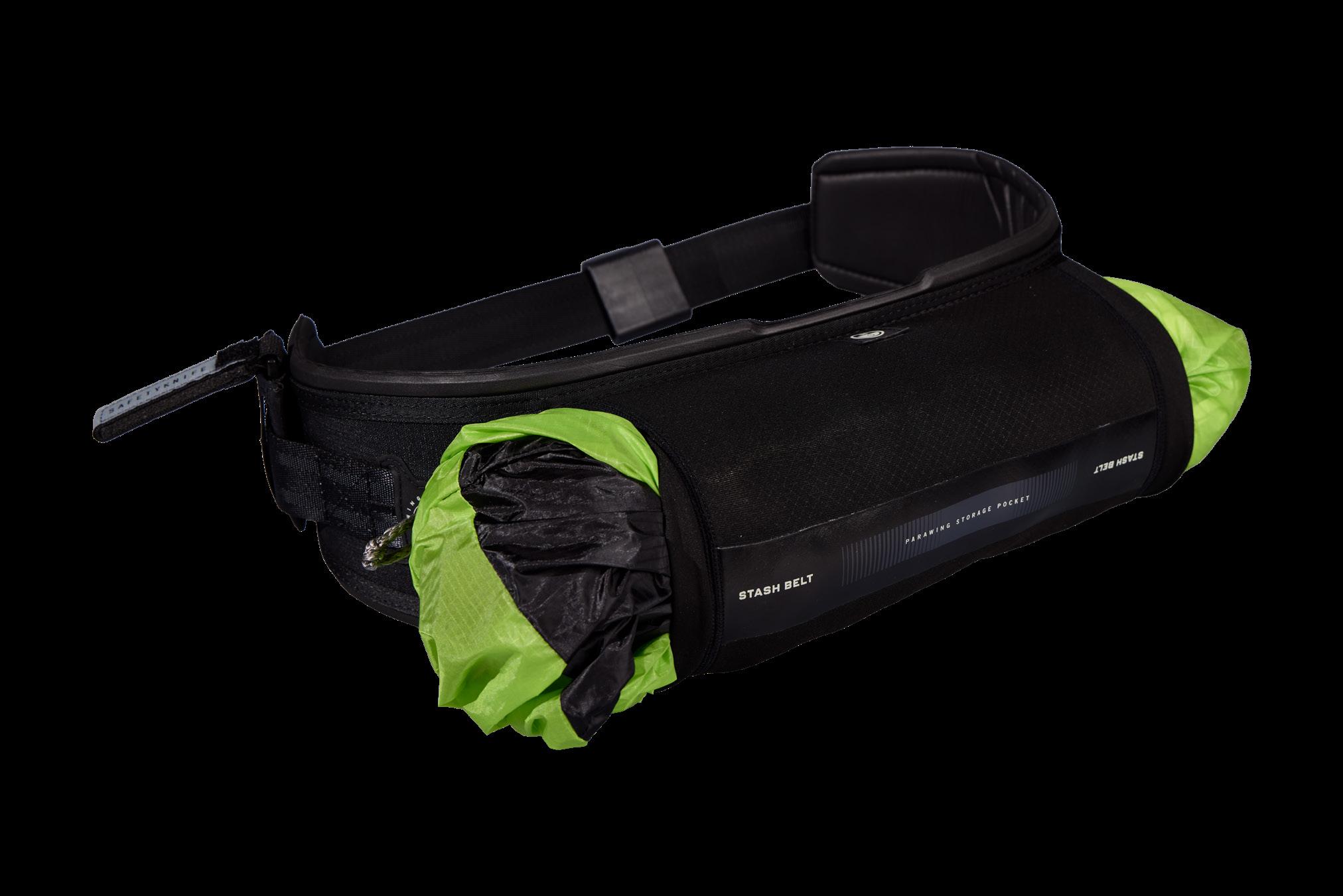

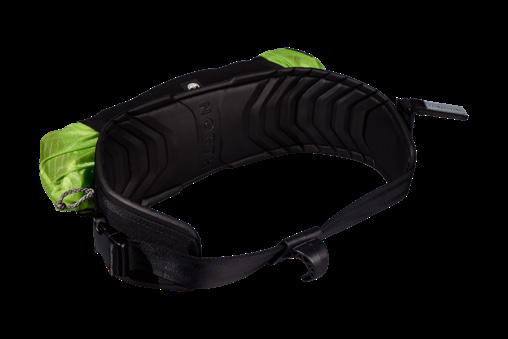

STASH BELT
Wing / Parawing Harness
• Firm 3D-formed frame with non-water absorbing EVA grip padding
Comfortable, lightweight belt with generous KnitFlex dual-sided pouch to stow your parawing for handsfree paddle-outs, surf and downwind foiling. Doubles as a harness with comfortable ergonomic back support to reduce arm fatigue on longer voyages
Parawing Technology
DEPOWER
Tab
COLOUR-CODED
DIAGONAL RIB TECHNOLOGY
D-Ribs diagonally support the canopy for optimal load distribution, and reduce the number of bridles required. The canopy remains stable when depowering the bar, and the parawing is responsive and reacts to subtle steering input.
DEPOWER TAB
An industry first. The Depower Tab acts as a handbrake, allowing the rider to dump power from the kite.
COLOUR CODED CANOPY
Colour-coded canopy and bridles allow faster visual reference when launching or running-out lines. The black LE makes it easy to navigate the parawing for faster deployment / redeployment.
RESCUE
The Ranger can be used as a rescue chute for downwind wingfoil deflates, paddling or offshore e-foil missions. The bag is sized to fit over wetsuits and life-vests.
VERSATILE
VERSATILE
Beyond just pulling you up onto foil then stashing, the Ranger can be used for Freestyle and Freeride parawing tricks, for surfing waves without pumping or jetski tow-ins, to launch when there is no space to set up a wing or kiting may be banned, on land with the Track skateboard or Dune Mountainboard, or with ice skates, skis or snowboard.
YOUR FOIL AND LIGHTWIND ESSENTIAL
A light, fast and reactive single-strut performer with effortless one-handed control and efficient light wind power delivery. The 2025 Code Zero Pro is powered by N-Max2 for a faster, smoother response, more direct steering and more dynamic recovery, with excellent drift and manoeuvrability. Ideal for Foil, Wave, Lightwind Freeride and teaching in lightwind.

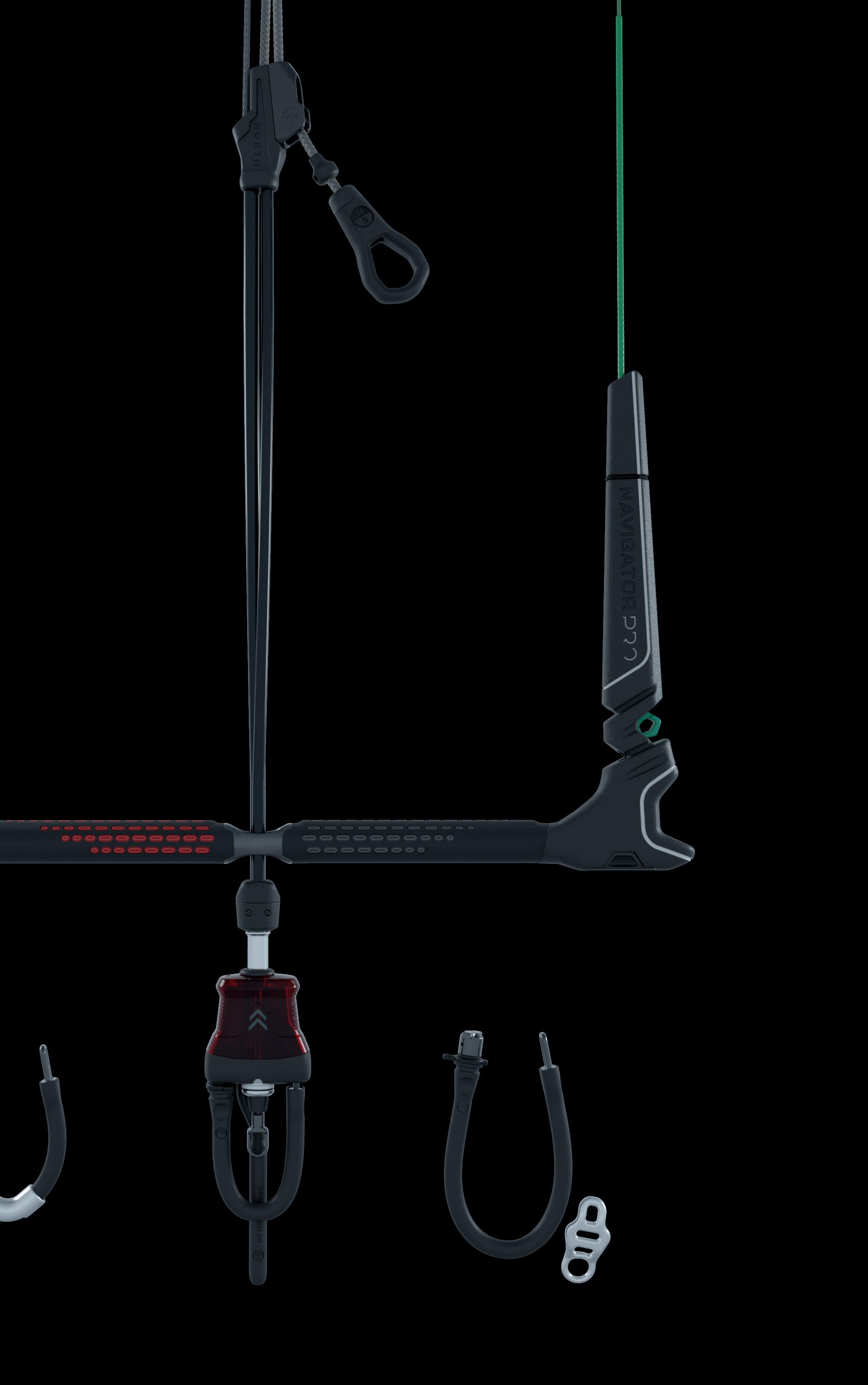

The safest, most universally compatible, highperformance control system ever. Now autounwinding, stronger and lighter, with unrivalled comfort and grip in all conditions.

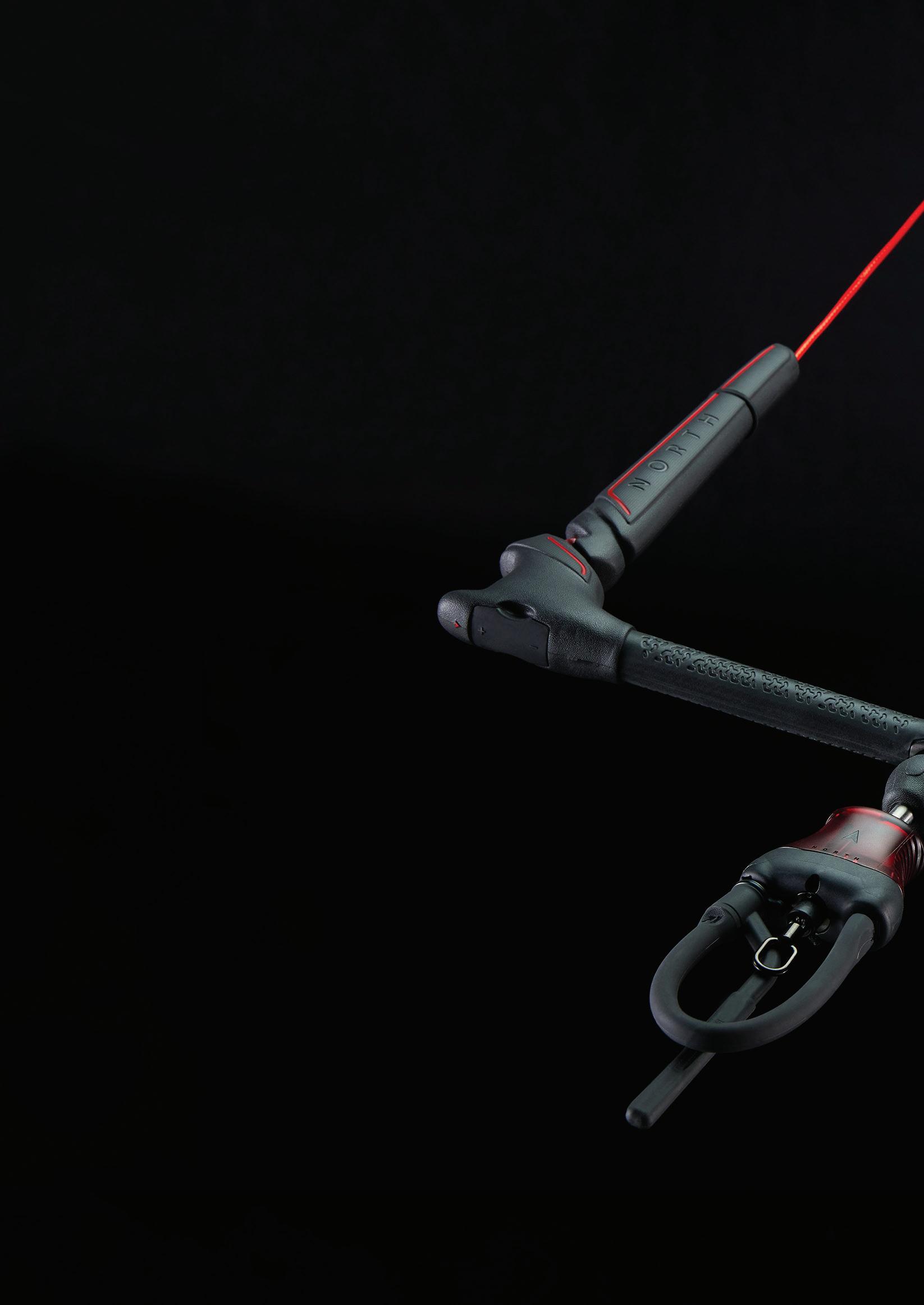

Navigator Pro
Control System
• Reduced risk of accidental unhooking or release
• Extra-secure single-action-reload Quick Release
• Ceramic bearing for smooth and reliable front-line auto-untwist
• 20% stronger and 20% lighter for faster bar spin
• New Pro Lines. Highest-quality Liros Dyneema SK99, made in Germany.
• Unique micro-textured compound grip for max-traction and comfort
• Change quickly between disciplines with the Modular Toolless Interloop System
• Instantly compatible with your Low-V-split kite, or use the High-V-split Kit to pair with High-V kites (Refer to User Manual)
ORDER DETAILS
CODE: 85001.240021
COLOUR: 999 Multiple Colour
SIZES: S 38-43cm | M 45-50cm | L 50-55cm
PRODUCT DETAILS
Control Bar, Quick Release with Security Finger, 12+10m Pro Lines (Ø1.55mm Front Lines, Ø1.33mm Rear Lines), Pro Freeride Loop, Standard Leash
ACCESSORIES (SOLD SEPARATELY)
Pro Surf Slider
85007.240025, Pro Freestyle Loop 85007.240026, Handle Pass Leash, Pro Line Sets*
*For Kite and Control System parts refer to the North Kite Catalogue.
Bar Size Kite Size*
38-43cm
45-50cm
50-55cm
*Recommended kite size for optimal Freeride performance. For Freestyle, we recommend the 38-43cm with all kite sizes.
THINK LESS. FEEL MORE.
Release and reload faster with the intuitive single-action reload Connect Quick Release, and switch effortlessly between disciplines with the Toolless Interloop, our no-tools required modular harness loop replacement system. The Navigator Control System has a durable and ergonomic design that connects you intuitively to your kite.
Navigator
Control System

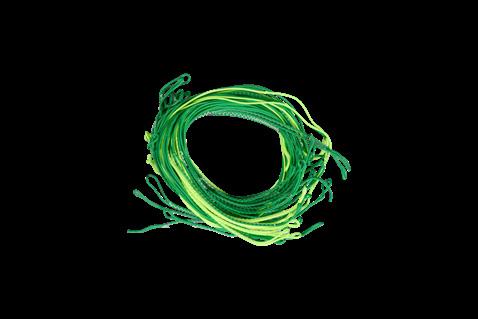

• Premium 100% Dyneema SK99 lines
• Omnidirectional grip and offset finger bar
• Colour coded components
• Soft EVA bar ends with retractable line winders
• Protective PU covered leader lines
• Adjustable cleated trim system
• Custom low-friction spinning handle
• Premium Quick Release Leash
ORDER DETAILS
CODE: 85001.220020
COLOUR: 999 Multiple Colour
SIZES: 38-43cm, 45-50cm, 50-55cm
PRODUCT DETAILS
Navigator Control Bar complete with Connect Quick Release, Flying Lines, Standard Freeride Loop with Finger, Standard Leash, Repair Kit
*For Kite and Control System parts refer to the North Kite Catalogue”
Navigator Short Throw
Control System
The Navigator Short Throw brings the Trim Handle 10cm closer, making it easier for riders with shorter arms to reach the bar after letting go. We recommend using it with 12m and smaller kites to achieve enough depower in high winds.
• Industry-leading 100% Dyneema SK99 flying lines
• Omnidirectional grip with offset finger bar
• Colour coded components
• Soft EVA bar ends with retractable line winders
• Protective PU covered leader lines
• Adjustable cleated trim system
• Custom low-friction spinning handle
• Premium Quick Release Leash
ORDER DETAILS
CODE: 85001.240025
COLOUR: 999 Multiple Colour
SIZES: 45-50cm
PRODUCT DETAILS
Control Bar, Flying Lines, Connect Quick Release, Short Freeride Loop with Finger, Standard Leash, Repair Kit
ACCESSORIES (SOLD SEPARATELY)
Navigator Slide Surf Loop, Line Sets
*For Kite and Control System parts refer to the North Kite Catalogue
SONAR FOILS LINEUP
UHM CARBON MASTS
PRO CARBON CF MASTS
PRO CARBON EDITION
Sonar Foil System

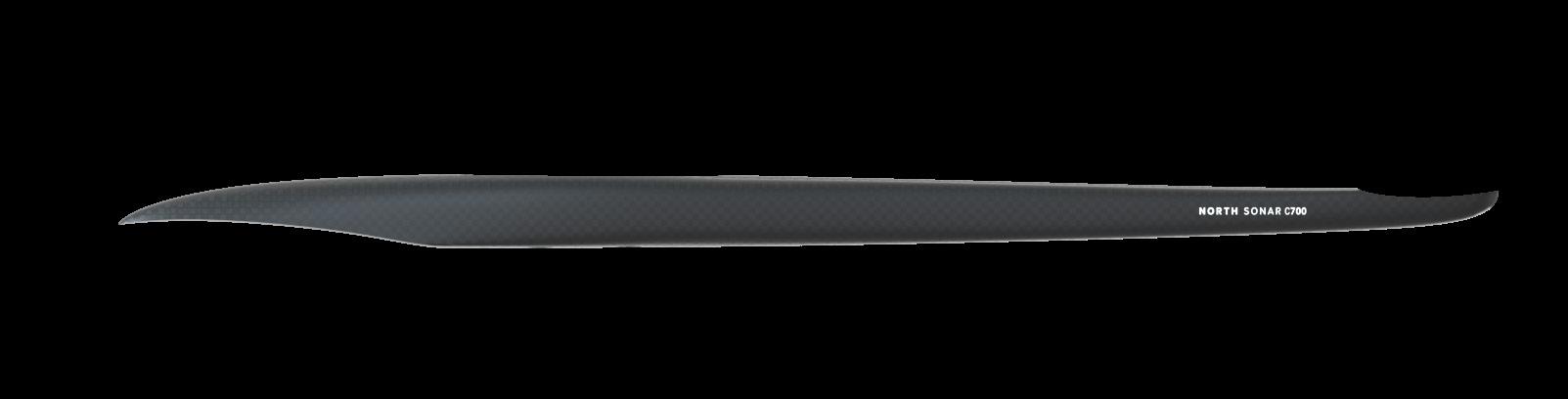

• CF Carbon Pre-preg Mast with 165x90mm mounting*
• C700 Carbon Pre-preg Fuselage with GeoLock

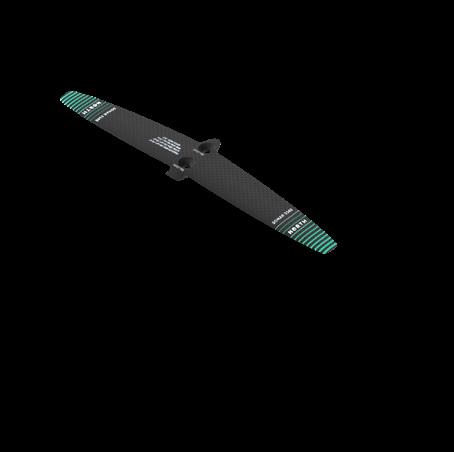

• S270 Carbon Pre-preg Freeride Stabilizer
• Titanium T40 Screws
• Sonar T40 Toolkit
• Sonar Marine Grease – apply prior to assembly

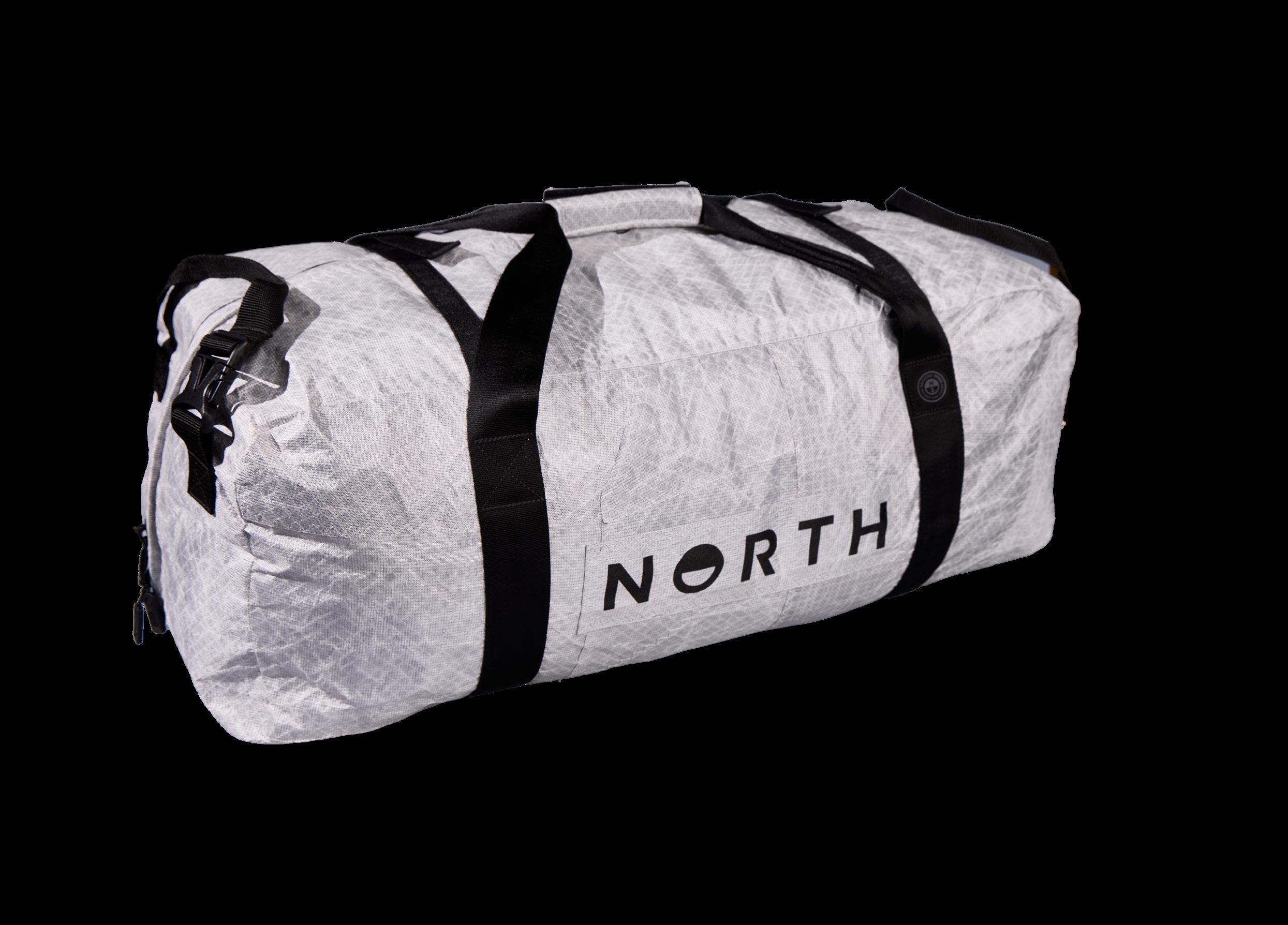

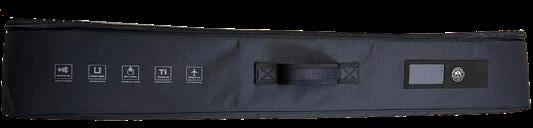

• Supplied in padded Sonar Travel Bag
• Compatible with all Sonar Front Wings (sold separately)
ORDER DETAILS
CODE: 85004.240070
COLOUR: 900 Black
SIZES: CF72, CF85
PRODUCT DETAILS
Carbon CF72 or CF85 Mast with cover, C700 Fuselage, S270 Stabilizer with cover, Tool Kit, Screw Packs B,C*, Sonar Travel Bag
*Foil to board mounting screws are included with North Foilboards
CRAFTED TO PERFECTION
Insane response. Incredible performance. Our highest quality pre-preg carbon modular foil edition provides a stiffer, more direct feel and more immediate feedback. Engineered with exceptional stiffness for all disciplines, the CF Edition is made from lightweight and durable carbon pre-preg components and has a reduced swing weight for an agile, dynamic and direct feel, and great pumpability. The refined one-piece mast design is tapered for optimal load transfer and lower surface friction. The longer CF85 mast increases overall ride performance in choppy conditions. The CF72 mast is ideal for shallower waters, prone surf foiling and towing. Stability, performance and efficiency is enhanced by the ultra-light Carbon 700mm Fuse and Carbon Pre-preg S270 Freeride Stabilizer.
ALUMINIUM AF EDITION
Sonar Foil System
• AF Aluminium Mast
• AF Board Adaptor with 165x90mm mounting*
• S270 Carbon Pre-preg Freeride Stabilizer
• A700 Fuselage with GeoLock
• Titanium Screws
• Sonar T40 Toolkit
• Sonar Marine Grease – apply prior to assembly
• Supplied in padded Sonar Travel Bag
• Compatible with all Sonar Front Wings (sold separately)
ORDER DETAILS
CODE: 85004.240066
COLOUR: 900 Black
SIZES: AF72, AF85
PRODUCT DETAILS
AF72 or AF85 Mast, AF Board Adaptor, A700 Fuselage, S270
Stabilizer with cover, Tool Kit, Screw Packs A,B,C, Sonar Travel Bag
FUTURE PROOF YOUR FOILING
Start building your modular quiver here. The new refined aluminium mast profile section delivers an optimal balance between light weight and exceptional strength, so you can kite, wing, surf and tow foil with confidence, making use of the fully interchangeable Sonar Foil System to extend your playtime on the water.
MAST
Choose your ride height:
Why shorter?
Choose the 72cm for shallower waters and prone surf and learning to foil.
Why taller?
Choose the taller 85cm mast when you need more height to clear waves or heel over for tighter turns.
PRIME EDITION
Sonar Foil System
• MAv2 Prime E-Glass Pre-preg Freeride Front Wing
• AF80 Aluminum Mast
• AF Board Adaptor with 165x90mm mounting*
• A700 Fuselage with GeoLock
• Carbon Pre-preg Freeride/0 Series Stabilizer
• SS316 T40 Screws
• Sonar T40 Toolkit
• Sonar Marine Grease– apply prior to assembly
• Supplied in a padded Sonar Travel Bag
• Compatible with all Sonar Front Wings
DETAILS CODE: 85004.250202
900 Black
to board mounting
DURABLE AND AFFORDABLE PERFORMANCE
We’ve assembled the Prime Edition with an MAv2 Freeride Front Wing to make your foiling journey easier, get you over the hump faster and shorten your learning curve. It’s the ideal starter kit for wingfoil progression - fully modular and compatible with all North Foiling gear. The MAv2 Prime Front Wings are pressed from the same mould as our Carbon Pre-preg front wings, delivering quality, durability and impact resistance at a more accessible price.

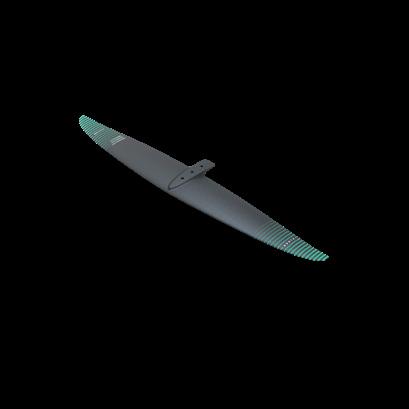

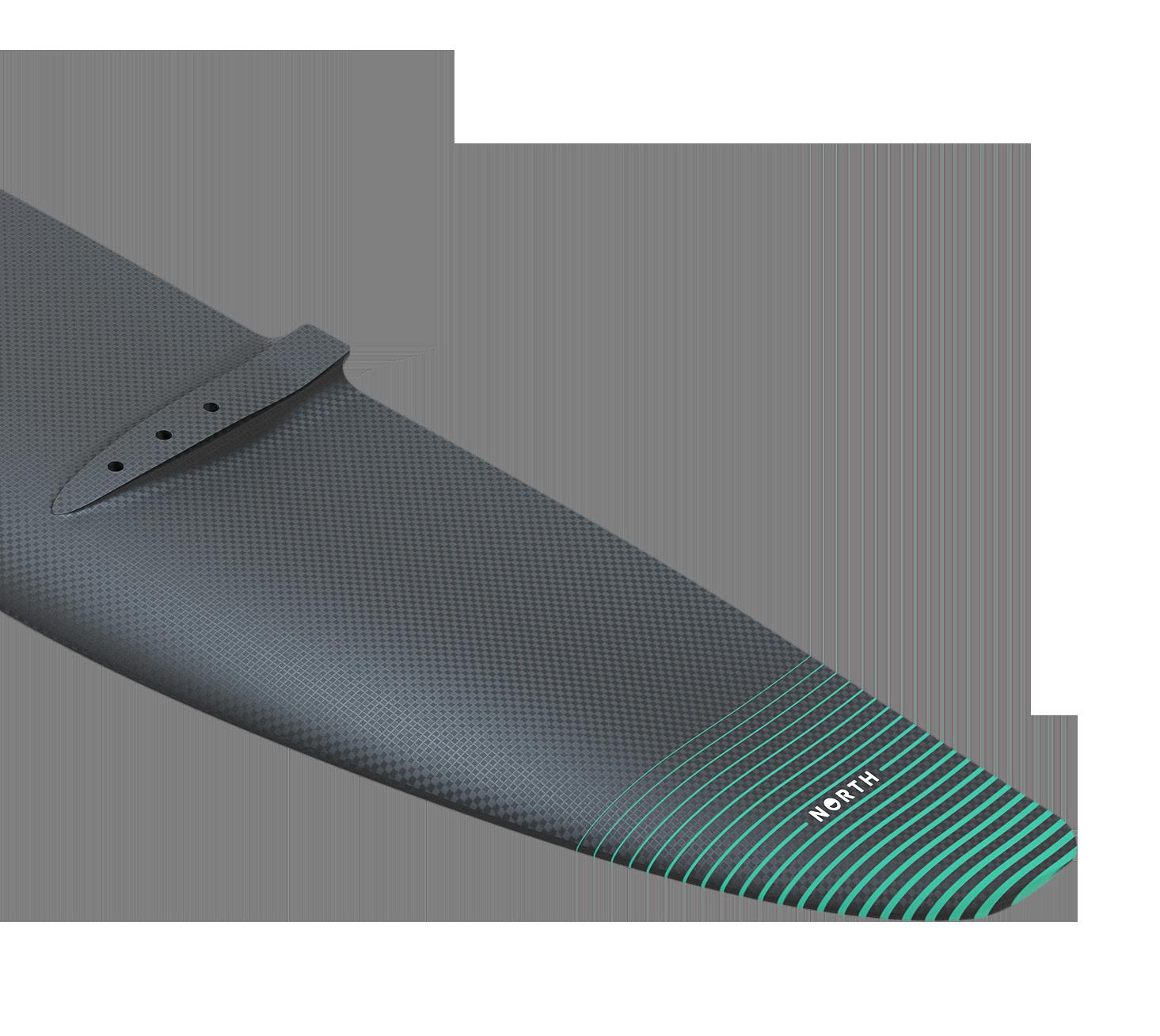

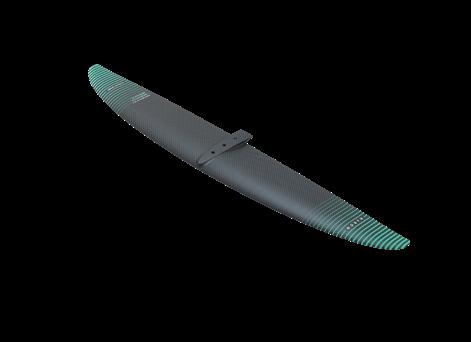

FRONT WING LINEUP
FREERIDE MAv2 SERIES
MID ASPECT FRONT WING
Learn to Foil
MA1500v2: 85004.240092
MA1850v2: 85004.240087
MA2100v2: 85004.240088
MA2400v2: 85004.240093
MAv2 Series Prime:
MA1500v2 PRIME: 85004.250200
MA1850v2 PRIME: 85004.240100
MA2100v2 PRIME: 85004.240101
MA2400v2 PRIME: 85004.240093
FREERIDE MAv2 SERIES
MID ASPECT FRONT WING SF SERIES
SURF FRONT WING Prone / Wing / Parawing / Foil
MA500v2: 85004.250130
MA600v2: 85004.250131
MA700v2: 85004.240089
MA850v2: 85004.240086
MA1050v2: 85004.240090
MA1200v2: 85004.240091
MA1200v2 PRIME: 85004.250201
SF530: 85004.250132
SF680: 85004.240095
SF830: 85004.240096
SF930: 85004.230091
SF1080: 85004.230092
SF1230: 85004.230093
DW SERIES
DOWNWIND FRONT WING
DW690: 85004.250135
DW820: 85004.250136
DW750: 85004.240069
DW900: 85004.240074
DW1100: 85004.240075
DW1400: 85004.240076
P1800: 85004.240072
P2050: 85004.240073
SPEED HA SERIES
HA550: 85004.230100
HA650: 85004.230101
HA750: 85004.230102
HA850: 85004.230103
HA950: 85004.230104
HA1050: 85004.230105
HA1150: 85004.230106
HA1250: 85004.230107
HA1450: 85004.230108
FREERIDE MAv2 SERIES

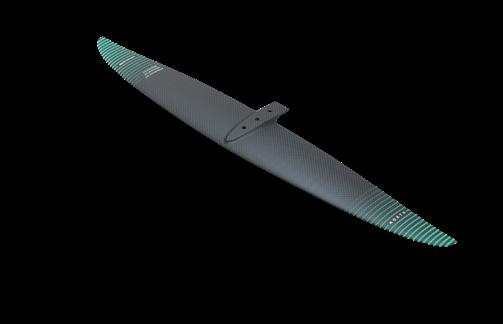

Sonar Front Wings
WING / BOAT / WAKE
Learn to foil
2400 / 2100 / 1850 / 1500
Ideal for progressing, the larger sizes provide a stable set-up for learning to wing foil or towing behind a boat. These wings easily generate a great amount of lift without the need to pump, and are super stable so you can focus more on your wing in your hands.
The foil section prioritises pitch stability, early takeoffs and low stall speed. More sweep in the TE than the smaller size helps to make these big wings more manoeuvrable and easier to turn. More anhedral provides directional stability.
All Front Wings (except the MA2400v2) are Carbon Prepreg. We’ve also engineered the MA2100v2 and MA1850v2 in an affordable Prime pre-preg e-glass construction, offering the same high performance, durability and impact resistance as the carbon pre-preg.
The MA2400v2 is available only in the Prime Construction.
MA1500v2
ORDER DETAILS
CODE: 85004.240092
COLOUR: 900 Black
SIZES: 1500cm2
PRODUCT DETAILS
Pre-preg Carbon Front Wing, Cover, Sonar Screw Pack E (M8x33)
MA1500v2 PRIME
ORDER DETAILS
CODE: 85004.250200
COLOUR: 900 Black
SIZES: 1500cm2
PRODUCT DETAILS
Pre-preg Carbon Front Wing, Cover, Sonar Screw Pack E (M8x33)
MA1850v2
ORDER DETAILS
CODE: 85004.240087
COLOUR: 900 Black
SIZES: 1850cm2
PRODUCT DETAILS
Pre-preg Carbon Front Wing, Cover, Screw Pack G Ti (M8x35)
Pre-preg Aluminium Front Wing, Cover, Screw Pack G Ti (M8x35)
NO BAD DAYS
For novice to pro riders, in all conditions. Every wing in the versatile MAv2 Series has an extremely wide speed range and early lift, is fast-turning, features ventilationfree tip-breaching, and works across multiple disciplines. The larger MA2400-1500v2 are designed to get you up on foil faster and shorten your learning curve.
MA2100v2
ORDER DETAILS
CODE: 85004.240088
COLOUR: 900 Black
SIZES: 2100cm2
PRODUCT DETAILS
Pre-preg Carbon Front Wing, Cover, Screw Pack G Ti (M8x35)
MA2100v2 PRIME
ORDER DETAILS
CODE: 85004.240101
COLOUR: 900 Black
SIZES: 2100cm2
PRODUCT DETAILS
Pre-preg Aluminium Front Wing, Cover, Screw Pack G Ti (M8x35)
MA2400v2 PRIME*
ORDER DETAILS
CODE: 85004.240093
COLOUR: 900 Black
SIZES: 2400cm2
PRODUCT DETAILS
Pre-preg Aluminium Front Wing, Cover, Sonar Screw Pack I (M8x40)
FREERIDE MAv2 SERIES
Sonar Front Wings
WING / KITE / BOAT / WAKE / SURF
Most-Versatile
1200 / 1050 / 850 / 700 / 600 / 500
As you step down in size, you’ll step up in speed. The smaller sizes are even faster, more agile and have a higher top-end speed. Ideal for freeride wingfoiling at speed, freestyle or in surf, and perfect for kite foiling or wake foiling in the 700, 850 and 1050 size. (1200 for the bigger riders).
The foil section is focused more on low drag when up on the foil, reasonable take-off and stall speeds. The outline balances efficiency and manoeuvrability. The flat centre-section with anhedral further along the span and flattened wing tips delivers predictable turning and improved ventilation resistance.
MA500v2
ORDER DETAILS
CODE: 85004.250130
COLOUR: 900 Black SIZES: 500cm2
PRODUCT DETAILS
Pre-preg Carbon Front Wing, Cover, Screw Pack H (M8x23)
MA600v2
ORDER DETAILS
CODE: 85004.250131
COLOUR: 900 Black SIZES: 600cm2
PRODUCT DETAILS
Pre-preg Carbon Front Wing, Cover, Screw Pack H (M8x23)
MA700v2
ORDER DETAILS
CODE: 85004.240089
COLOUR: 900 Black
SIZES: 700cm2
PRODUCT DETAILS
Pre-preg Carbon Front Wing, Cover, Screw Pack H (M8x23)
MA850v2
ORDER DETAILS
CODE: 85004.240086
COLOUR: 900 Black
SIZES: 850cm2
PRODUCT DETAILS
Pre-preg Carbon Front Wing, Cover, Screw Pack D Ti (M8x25)
STEP UP IN SPEED
For intermediate to pro riders, in all conditions. Every wing in the versatile MAv2 Series has an extremely wide speed range and early lift, is fast-turning, features ventilation-free tip-breaching, and works across multiple disciplines. As you progress into the smaller, playful and agile MA1200-500v2, you’ll discover true versatility, while retaining that familiar feel and ease of use.
MA1050v2
ORDER DETAILS
CODE: 85004.240090
COLOUR: 900 Black
SIZES: 1050cm2
PRODUCT DETAILS
Pre-preg Carbon
MA1200v2
ORDER DETAILS
CODE: 85004.240091
COLOUR: 900 Black
SIZES: 1200cm2
PRODUCT DETAILS
Pre-preg Carbon
MA1200v2 PRIME
ORDER DETAILS
CODE: 85004.250201
COLOUR: 900 Black
SIZES: 1200cm2
PRODUCT DETAILS
Pre-preg Carbon
Front Wing, Cover, Screw Pack D (M8x25)
Front Wing, Cover, Sonar Screw Pack F (M8x30)
Front Wing, Cover, Sonar Screw Pack F (M8x30)
SURF SF-SERIES
Sonar Front Wings
PRONE / WING / PARAWING / FOIL ASSIST
• Super low stall speeds
• Efficient glide and effortless pumping
• Fun surf-style carving, fast pivoting and banking turns
• Zero-ventilation tips
• Carbon Pre-preg construction
• Ideal for riders wanting more from all kinds of swell (with or without a wind-wing or parawing)
• Also great for light wind winging
• A favourite for Foil Assist with the Integrated Foil Drive Mast
• Pair with the lower stall speed Surf/5 Series Stabs
• For a looser feel, pair with the Glide/2 Series Stabs
SF530
ORDER DETAILS
CODE: 85004.250132
COLOUR: 900 Black
SIZES: 530cm2
PRODUCT DETAILS
Wing, Cover, Screw Pack H Ti (M8x23)
SF680
ORDER DETAILS
CODE: 85004.240095
COLOUR: 900 Black
SIZES: 680cm2
PRODUCT DETAILS
Wing, Cover, Screw Pack H Ti (M8x23)
SF830
ORDER DETAILS
CODE: 85004.240096
COLOUR: 900 Black
SIZES: 830cm2
PRODUCT DETAILS Wing, Cover, Screw Pack D Ti (M8x25)
SF930
ORDER DETAILS
CODE: 85004.230091
COLOUR: 900 Black SIZES: 930cm2
PRODUCT DETAILS
Wing, Cover, Sonar Wing
Titanium Screw Pack D (M8x25)
AT ONE WITH IT ALL
Offering a frictionless sensation of glide at slower speeds, the Surf Series Front Wings are responsive and agile, with intuitive recovery. A refined balance of roll stability and manoeuvrability gives you confidence during pumping and take-offs, and the ability to initiate smooth and powerful rail-to-rail carves, while the reduced distance between the mast and front wing makes for faster, tighter pivoting turns. The foil is highly forgiving to angle of attack change, which means you don’t need perfect pumping technique to stay on the foil. We’ve kept the span similar between the three larger sizes, to provide the same ride feel. The smaller sizes are fast, manoeuvrable and responsive with highly efficient glide at higher speeds or for lighter riders.
SF1080
ORDER DETAILS
CODE: 85004.230092
COLOUR: 900 Black
SIZES: 1080cm2
PRODUCT DETAILS
SF1230
ORDER DETAILS
CODE: 85004.230093
COLOUR: 900 Black
SIZES: 1230cm2
PRODUCT DETAILS
Wing, Cover, Sonar Wing
Wing, Cover, Sonar Wing
Titanium Screw Pack D (M8x25)
Titanium Screw Pack F (M8x30)
DOWNWIND DW-SERIES
Sonar Front Wings
DOWNWIND SUP / WING / PARAWING / FOIL ASSIST
• Highly efficient, for low drag and longer glide
• Intuitive turning with maximum ventilation resistance
• Stiff, lightweight Carbon Pre-preg construction
• Four sizes for different rider weights and conditions
• Smaller sizes for lighter riders or locations with strong wind and larger, fast-moving swell
• Pair with the Glide/2 Series or larger High Speed/8 Series Stabilizers for maximum glide and turning response
DW690
ORDER DETAILS
CODE: 85004.250135
COLOUR: 900 Black
SIZES: 690cm2
PRODUCT DETAILS
DW750
ORDER DETAILS
CODE: 85004.240069
COLOUR: 900 Black SIZES: 750cm2
PRODUCT DETAILS
Front Wing, Cover, Screw Pack H
DW820
ORDER DETAILS
DW900
ORDER DETAILS
CODE: 85004.250136
COLOUR: 900 Black SIZES: 820cm2
PRODUCT DETAILS
Front Wing, Cover, Screw Pack D
CODE: 85004.240074
COLOUR: 900 Black
SIZES: 900cm2
PRODUCT DETAILS
Front Wing, Cover, Screw Pack D
Front Wing, Cover, Screw Pack H
HARNESS THE ENERGY OF OCEAN SWELL
Designed for effortless take-offs at low speed, with high top-end speeds to keep up with faster swell. The Downwind Series wingspan is maximised for low drag and longer glide while retaining the manoeuvrability required to navigate downwind swell.
DW1100
ORDER DETAILS
DW1400
ORDER DETAILS
CODE: 85004.240075
COLOUR: 900 Black
SIZES: 1100cm2
PRODUCT DETAILS
Front Wing, Cover, Screw Pack D
CODE: 85004.240076
COLOUR: 900 Black
SIZES: 1400cm2
PRODUCT DETAILS
Front Wing, Cover, Screw Pack F
PUMP P-SERIES
Sonar Front Wings
PUMP / DOCKSTART
• High-efficiency, low-speed design for maximum pump duration
• Intuitive and manageable to manoeuvre
• Relaxed, endurance-focused, pumping cadence without fear of dropping off the foil
• Stiff Carbon Pre-Preg laminate layup for a predictable and responsive ride
• Pair with S142/S192 Glide or the S238 High Speed Stabilizer
To pump and glide for long durations, a wing must be able to maintain flight with very low power input from the rider. We’ve designed the new P-Series for flatwater pumping, dockstarts and SUP paddle-ups.

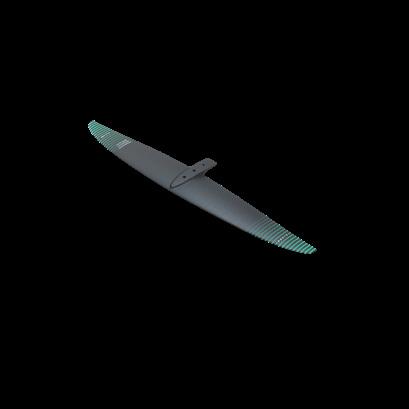

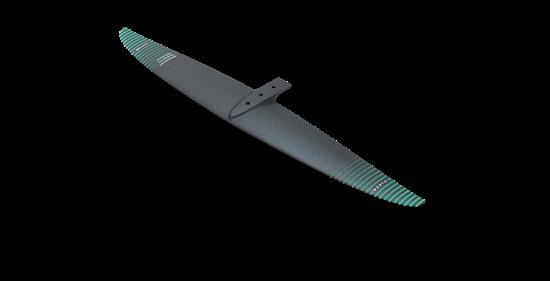

SPEED HA-SERIES
Sonar Front Wings
KITE / WING
• Incredibly efficient, high-speed design
• Direct and responsive
• Stiff Carbon Pre-preg laminate layup
• Pair with the High Speed/8 Series Stabilizers
• Your stand-out wing for intermediate to advanced wingfoilers
• Race, downwind, kite and surf foiling
Wing, Cover, Screw Pack H Wing, Cover, Screw Pack H Wing, Cover, Screw Pack H Wing, Cover, Screw Pack D Wing, Cover, Screw Pack D
HIGH SPEED PERFORMANCE
Our highest-performance front wings, ideal for intermediate to advanced riders. Incredibly efficient, fast and direct, the HA Series is ideally suited to highspeed winging, surfing bigger waves, and riding fastmoving downwind swells.
The wingtips are designed for zero ventilation when you tip-breach, allowing you to crank faster, tighter radius turns at higher speeds, without losing speed.
With excellent high-speed lift, the HA850 to HA1250 are your core wing-foiling and prone surf (overhead) sizes.
The larger HA1250-HA1450 are ideal for lighter winds, coastal runners or stealing wakes.
The smaller HA550-HA750 have less planing surface and higher stall speed. They are designed to generate maximum efficiency and lift for high-speed wing foiling, racing, and kite foiling.
Cover,
Pack
Wing, Cover, Screw Pack
Wing, Cover, Screw Pack F Wing, Cover, Screw Pack F
Front Wing Performance
FREERIDE MA1050v2
FREERIDE MA1200v2
FREERIDE MA1500v2
FREERIDE MA1850v2
FREERIDE MA2100v2
FREERIDE MA2400v2
NOVICE: New to foiling - has other board sports experience
INTERMEDIATE: Progressing on Foil - may cross over from another foil sport
ADVANCED: Pro/Semi-Pro, has mastered all manoeuvres
Front Wing and Stabilizer Construction
We’ve engineered our Front Wings and Stabilizers with a foam core fully wrapped around the leading edge with individual prepreg laminate layers in HM Carbon, Carbon or Prime E-Glass layups for optimal performance, stiffness, durability and weight across the different series.
High Modulus Carbon Construction
Carbon Construction
100% Carbon Prepreg layup for lighter weight and more direct response in the MAv2, SF, HA Front Wings, Freeride, Surf and High Speed Stabilizers.
High Modulus Carbon Prepreg provides maximum stiffness and efficiency in the Pump and Downwind Series Front Wings and Glide Stabilizers. Or Or
Prime Construction
Made out of the same moulds as the carbon pre-preg construction, the Prime pre-preg e-glass construction offers the same high performance, durability, and impact resistance as the carbon pre-preg, at a more accessible price. Available in MA1850-MA2400v2.
STABILIZER LINEUP
FREERIDE/0 SERIES
S210: 85004.220090
S270: 85004.220091
S320: 85004.220092
SURF/5 SERIES
S145v2: 85004.250139
S185: 85004.240097
S215: 85004.230096
Kite / Wing / Learn to Foil
Prone / Wing / Parawing / Foil Assist
GLIDE/2 SERIES
S122: 85004.250137
S142: 85004.240099
S192: 85004.240102
SPEED/8 SERIES
S158v2: 85004.250138
S178: 85004.230095
S208: 85004.230094
S238: 85004.240098
Downwind / Pump / Prone
Kite / Wing

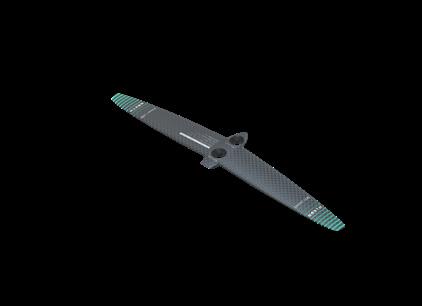

FREERIDE STABILIZERS
S210 / S270 / S320
Our thinner profile and higher aspect ratio freeride carbon stabilizers offer reduced resistance and a more efficient outline. The S270 is your go-to for all round kite, wing and surf performance, offering optimal balance, speed, efficiency and control. Pair the S210 with a smaller front wing for high-speed performance and a more agile feel. Pair the S320 with a larger front wing for early planing, greater balance and stability.
• Easy recovery from surface breaching
• Carbon pre-preg construction
• Thin profile and efficient outline
• Less surface friction for better glide
• Your go-to stabilizer
PERFORMANCE ACROSS THE RANGE
ORDER DETAILS
CODE: 85004.220090
COLOUR: 900 Black
SIZES: 210cm2
PRODUCT DETAILS
ORDER DETAILS
CODE: 85004.220091
COLOUR: 900 Black
SIZES: 270cm2
Stabilizer with cover, Stabilizer Screw Pack C (M8x16)
ORDER DETAILS
CODE: 85004.220092
COLOUR: 900 Black
SIZES: 320cm2
S210
S270
S320
SURF STABILIZERS
S145v2 / S185 / S215
The Surf Stabilizers have a low stall speed to complement that of the SF Series Front Wings. The minimal sweep outline improves low-speed performance and effectively reduces fuselage length compared to swept stabilizers. Tips curve upwards in the larger sizes to provide directional stability, inspiring confidence during take-offs and grip in turns. Advanced riders who are seeking a looser feel may choose to remove the wingtips on the S185, using the dashed guideline graphic, to create a completely flat stabilizer. The S145v2 has an andedral rondure which loosens up the Front Wing in the roll axis.
• Moderate span
• Medium-high aspect ratio for efficient pumping
• Compact outline for responsiveness in turns
• Minimal sweep outline for low-speed performance
• Pair the S215 with SF930-SF1230 Front Wings
• Pair the S185 with the SF680-SF860 Front Wings
• Pair the SF145v2 with smaller Front Wings for tighter, snappier turns
LOW SPEED CARVE AND PUMP
S145v2
ORDER DETAILS
CODE: 85004.250139
COLOUR: 900 Black
SIZES: 145cm2
PRODUCT DETAILS
S185
ORDER DETAILS
CODE: 85004.240097
COLOUR: 900 Black
SIZES: 185cm2
Stabilizer with cover, Stabilizer Screw Pack C (M8x16)
S215
ORDER DETAILS
CODE: 85004.230096
COLOUR: 900 Black
SIZES: 215cm2
GLIDE STABILIZERS
S122 / S142 / S192
S122
For lighter and intermediate to advanced riders to use in big, clean conditions where speed and glide are a priority. Its small size and high aspect ratio (11.2) unlock maximum speed and glide, and the anhedral rondure loosens up the roll axis, increasing the manoeuvrability of wider-span front wings. Recommended with our smaller DW690 to DW820, the S122 could also be used for prone foiling by advanced riders seeking speed and glide combined with a loose feel.
S192
Relaxed, speedy, flowy and effortless - an intermediate rider will find the S192 super stable and easy to pump when paired with the smaller Downwind Front Wings. The S192 also pumps efficiently with the Surf Series, is ideal for charging white wash and bigger surf and has so much glide you can pump around to connect waves with ease. For winging, pair the S192 with the bigger Downwind Foils - the glide is the stand-out factor.
S142
The S142 is higher performance, crazy fast and whippy. Your average rider may find it a little more advanced for pumping, but with enough grunt to dig out if you need to. Supercharge your setup for speed with the new High Modulus Mast and smaller Downwind foils. The S142 has enough holding power to take you right up to the DW1400, but we recommend the S192 for the larger Downwind Foils.
EFFORTLESS DOWNWIND, PUMP AND GLIDE
S142
ORDER DETAILS
CODE: 85004.250137
COLOUR: 900 Black
SIZES: 122cm2
PRODUCT DETAILS
ORDER DETAILS
CODE: 85004.240099
COLOUR: 900 Black
SIZES: 142cm2
Stabilizer with cover, 2x Stabilizer Ti Screw (M8x16 CSK)
S192
ORDER DETAILS
CODE: 85004.240102
COLOUR: 900 Black
SIZES: 192cm2
S122
Our Glide/2 Series Stabs are designed to cover insane distances with minimal work and engineered in HighModulus Carbon to ensure stiffness for precise, predictable turning and pumping. DOWNWIND. PUMP. SURF.
SPEED STABILIZERS
S158v2 / S178 / S208 / S238
Flat, loose and fast. The High-Speed Stabilizer Series are a high-performance upgrade to the Sonar Foil System for experienced riders.
S158v2
Crafted from High-modulus carbon for optimal stiffness and direct performance with thin profile sections to reduce drag, the new S158v2 are tuned for efficiency in the mid to high-speed range, with a more lockedin feel. Recommended for lighter riders pushing high speeds and upwind angles with small, fast front wings (HA550-750, MA500v2-850v2), the S158v2 deliver maximum speed and pitch stability for powered riding.
S178
Flat, loose and even Flat, loose and even faster than the S208. We recommend pairing the S178 with Front Wing Size HA950 or smaller. The S178 has a higher aspect ratio than the S208.
S208
The S208 has a higher aspect ratio than the S210, which means less drag, and the flatter rondure (front view) enables more manoeuvrability.
S238
The S238 is designed to match the larger HA front wings, and the new MA1200/MA1500, giving your setup a faster and more responsive feel.
S158v2
ORDER DETAILS
CODE: 85004.250138
COLOUR: 900 Black
SIZES: 158cm2
PRODUCT DETAILS
S178
ORDER DETAILS
CODE: 85004.230095
COLOUR: 900 Black
SIZES: 178cm2
Stabilizer with cover, Stabilizer Screw Pack C (M8x16)
S208
ORDER DETAILS
CODE: 85004.230094
COLOUR: 900 Black
SIZES: 208cm2
S238
ORDER DETAILS
CODE: 85004.240098
COLOUR: 900 Black
SIZES: 238cm2

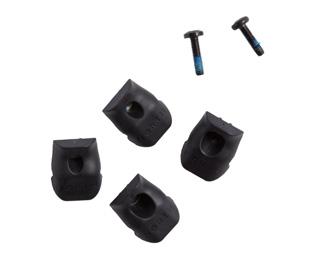

SONAR STABILIZER SHIM KIT
The rear Stabilizer’s main role is to maintain a level and stable flight path. However, conditions and user preference may change what stabilizer angle feels the best (aka the sweet spot).
The smallest tweak in the AOA can improve comfort, reduce fatigue, change the cadence of your pump or the turning radius of your carve, allowing you to increase/ decrease your front and rear foot pressure without changing your foot position.
With the Sonar Shim Kit you can stack multiple shims, from -0.5 to +2.5 degrees. Positive shimming will increase front foot pressure. Negative shimming will reduce front foot pressure. The full stack (+2.5deg) creates the maximum recommended AOA to ensure your stabilizer is still effective without creating drag.
ORDER DETAILS
CODE: 85004.220093
COLOUR: 999 Multiple
SIZES: O/S
PRODUCT DETAILS
1x -0.5 Deg Shim, 1x 0.5 Deg Shim, 2x 1 Deg Shim
Shimming changes the angle of attack (AOA) and controls the amount of downforce the Stabilizer creates on the overall foil system.
Stack multiple shims, from -0.5 to +2.5 degrees
SONAR MAST SHIM
To adjust your foil angle of attack and board trim
North boards and foils are designed to work together for their intended discipline without the need for shimming. However, the Sonar Mast shim can be useful when mixing different brands of board and foil, or using a given board or foil in conditions outside of those it was designed for.
• Stackable
• Fits industry standard foil mounts 165x90mm
• Outline shape designed to match Sonar HM Mast Baseplate
ORDER DETAILS
CODE: 85015.250145
COLOUR: 999 Multiple Colour
SIZES: O/S
PRODUCT DETAILS
1.0” Mast Shim
NOTE: With North boards, the Shim will work with existing M8x30mm or M8x25mm DropBox Screws. When stacking multiple Shims, use longer front or rear screws (M8x33mm Screw pack E)
Install from front
To trim the board more nose-up
If your board is trimmed too nose-down at speed when powered riding, add the shim with the thick edge under the leading edge of the mast. This will enable you to gain back a more comfortable stance and control over the board, preventing nose drops at higher speeds.
Install from back
To trim the board more nose-down
If the board is riding too nose-up at lower speeds (e.g. pump, dockstart or downwind) add the shim with the thick edge under the trailing edge of the mast to engage the foil sooner or trim the board more nose-down once foiling.
Front Wing X Stab Specs
Series
SF530
SF680
SF830
SF930
SF1080
SF1230
MA500v2
MA600v2
MA700v2
MA850v2
MA1050v2
MA1200v2
MA1500v2
MA1850v2
MA2100v2
MA2400v2
HA550
HA650
HA750
HA850
HA950
HA1050
Series

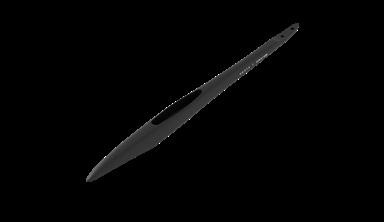

FUSELAGE
Pro Carbon
C600 / C650 / C700
Our high-strength pre-preg carbon fuselage is strong, durable and corrosion resistant. It weighs ~50% less than the alloy version, with equal strength and stiffness. Its lighter weight carbon monocoque sandwich construction improves the performance of you Sonar Foil System by reducing swing weight. Features GeoLock tapered geometry locking system.
C600
The shorter length C600 Fuselage has a fastresponse, sporty feel, earlier take-offs and a tighter turning radius. Fits all Sonar Masts.
Construction: Carbon Prepreg
C650
The agile C650 is not as pitch sensitive as the C600, but a step up in freedom in comparison to the 700. Fits all Sonar Masts.
Construction: Carbon Prepreg
C700
The forgiving C700 fuselage is ideal for learning to foil or foiling at higher speeds, it offers greater pitch stability and control, with a wider turning radius. Fits all Sonar Masts.
Precisely CNC-machined into a hydronamicallyoptimised shape, the aluminium Sonar Fuselage offers minimal resistance and features our GeoLock tapered geometry locking system.
A600
The shorter length A600 Fuselage is more pitch sensitive, has a sporty feel for earlier take-offs and a tighter turning radius. Fits all Sonar Masts.
Construction: 6000-Series Alloy
A700
The more forgiving A700 fuselage is ideal for learning to foil or foiling at higher speeds, it offers greater pitch stability and control, with a wider turning radius. Fits all Sonar Masts.
Construction: 6000-Series Alloy
ORDER DETAILS
CODE: 85010.210085
COLOUR: 900 Black
SIZES: A600, A700
PRODUCT DETAILS
Aluminium Fuselage,
*Compatible with all Sonar Masts and Front Wings.
**If pairing with an HM Mast, use Screw Pack B3 (M8x25mm TH CS Cap Screws + Washers) included with HM Mast

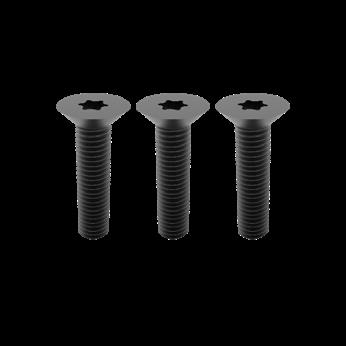

Screw Pack B (3x M8x25 TH CS Cap Screws + Washers)
IMPOSSIBLY THIN. IMPRESSIVELY FAST.
We’ve reduced the thickness of the submerged portion of our Ultra High Modulus Carbon masts by over 15% compared to our Carbon masts, while also increasing both bending and torsional stiffness.
ULTRA HIGH MODULUS CARBON MAST
UHM80 / UHM85 / UHM95 / UHM105
UHM80
The UHM80 favours disciplines without wind power - prone surf, pump and downwind. The shorter chord length over the entire mast length reduces drag and increases manoeuvrability. This delivers more glide, more efficient pumping, and quicker turns.
UHM85
The UHM85 covers all disciplines, with a focus on wingfoiling. Wind-powered disciplines require edging against the wind to create forward drive. Some of this drive comes from the front wing and some comes from the mast. To efficiently provide this drive, the chord length in the submerged part of the mast is slightly longer. It increases near the top of the mast to maximise stiffness with no drag penalty, as this part of the mast is clear of the water once on foil.
ORDER DETAILS
CODE: 85004.240071
COLOUR: 900 Black
SIZES: 80, 85, 95, 105cm
PRODUCT DETAILS
DESIGNED FOR SPEED, NOT FOR
DESIGNED FOR SPEED, NOT FOR JUMPING
UHM95
Our new Sonar UHM95 Ultra High-Modulus Carbon mast exceeds the bending and torsional stiffness of the CF95 Carbon Masts, while reducing thickness and, hence, drag.
UHM105
The UHM105 has been optimised for racing. The thickness of the submerged part of the mast is a further 1mm thinner than the UHM80 and UHM85, to provide maximum top-end speed. As a result this mast is not for jumping. Like the UHM85, the chord length in the submerged region has been tailored to provide good upwind drive, while the chord length increases above the waterline to maximise stiffness.
Mast (with gasket), Cover (HM95), 1 x Sonar Fuselage Screw Pack B3 (2x M8x25mm Cap screws)*
*Sonar Aluminium Fuselage or older model Carbon Fuselage require 25mm Cap screws when paired with a UHM Mast. Carbon Fuselage with tapered holes are supplied with M8x30mm Countersunk (CSK) screws, compatible with a UHM Mast.
**Mounting screws are included with North Foilboards and sold separately.
JUMPING
What is Ultra High Modulus?
Modulus of Elasticity (E) is a measurement of the stiffness of a material and is defined as the ratio of stress to strain when the material is deformed. The higher the modulus, the stiffer the material (i.e., the greater the stress necessary to cause deformation).
Ultra High Modulus carbon fibers are created through specialised heat treatment processes. The fiber will produce a part that is much stiffer but with lower tensile strength.
WEIGHT
THICKNESS MIN.
CHORD MIN.
BENDING STIFFNESS (CANTILEVER)
BENDING STIFFNESS (ECCENTRIC )
TORSIONAL STIFFNESS
Impossibly thin, impressively fast.
In the UHM Masts we use ultra-high modulus carbon to achieve our design target. Ultra-thin, ultra-stiff.
UHM85 Mast
CF85 Mast
Equal Weight of 1.9kg
COMPARED TO THE CF85, THE UHM85 HAS:
35% Greater
Eccentric Bend Resistance*
ECCENTRIC RESISTANCE
EXTERNAL FORCE
67% Greater
Cantilever Bend Resistance*
CANTILEVER RESISTANCE
EXTERNAL FORCE
25% Higher
Torsional Resistance*
TORSIONAL RESISTANCE
EXTERNAL FORCE
PRO CARBON CF MAST
CF72 / CF85
Our high quality pre-preg carbon mast delivers a stiffer, more direct feel and more immediate feedback. Tapered for optimal load transfer and lower surface friction, the refined one-piece design presents a strong, durable and corrosion-free choice across all disciplines. The CF72 mast is ideal for shallower waters, and prone surf foiling. The longer CF85 mast increases overall ride performance in choppy conditions.
• Exceptional strength-to-weight ratio for higher loads
• Longer chord at top of the mast increases stiffness
• Refined foil section to maximise laminar flow and minimise drag
• Optimised Carbon Pre-preg layup to provide the best balance between bending stiffness (flexural stiffness) and torsional stiffness with low weight
• GeoLock
• Industry-standard 165x90mm mounting pattern
• Excellent quality and value for money
• Foil to board mounting screws sold separately
ORDER DETAILS
CODE: 85010.210124
COLOUR: 900 Black
SIZES: CF72, CF85
PRODUCT DETAILS
Mast*, Cover
*Mounting screws are included with North Foilboards and sold separately
ALUMINIUM AF MAST
AF55 / AF72 / AF80 / AF85
Our new refined aluminium foil section gives the best balance between light weight and increased strength for higher loads. 30% stiffer than the AK mast yet only 13% heavier. The forgiving 55cm mast is suitable for skimming just above the water and its easy recovery makes it ideal for learning to foil or for shallower waters. The AF72 is also ideal for shallower waters, and prone surf foiling. The AF80 mast is the perfect beginner size for wing foiling. The AF85 increases overall ride performance in choppy conditions.
• Exceptional strength to weight ratio for higher loads
• GeoLock
• Requires AF Board Adaptor with Industry standard 165x90mm mounting pattern for use with DropBox or any board
• Supplied without screws
• 85cm is ideal for wing, kite, deep or choppy water
• 80cm is ideal for wing, surf, kite and all-around use
• 72cm is ideal for wing, surf and shallower water
• 55cm is ideal for wing, shallow water and teaching
ORDER DETAILS
CODE: 85010.210123
COLOUR: 900 Black
SIZES: AF55, AF72, AF80, AF85
PRODUCT DETAILS
Mast only*
*AF Board Adaptor and screws sold separately
AF BOARD ADAPTOR
Board Adaptor for the AF72 and AF85 masts. FEAnalysis allows us to optimise the structure, increase strength in the areas of highest stress concentration and reduce unecessary weight in lower stress areas. Incorporates a strong geometry locking connection for better energy transfer and a more direct feel. Fits all boards with a 165x90mm mounting pattern. Not compatible with AK Mast Series. Construction: 6000-Series Alloy
ORDER DETAILS
CODE: 85010.210090
COLOUR: 900 Black
SIZES: O/S
PRODUCT DETAILS
AF Board Adaptor, Screw Pack A (M8x40)
SCREWS SOLD SEPARATELY*
*Foil to Board mounting screws are included with all North Foilboards or available to purchase as an accessory.
Ride more and progress faster on your Sonar Foils with our new lightweight and accessible Foil Drivepowered technology.
North Foils has teamed up with Foil Drive, the inventors of the electric foil assist, in a new collaboration that merges Foil Drive’s leading innovation with North’s performance-focused design. Together, we’ve engineered the Sonar Integrated Foil Assist mast, combining our Sonar AF80 Masts and UHM80 Carbon Masts with Foil Drive technology for reduced drag, improved ride feel, and enhanced efficiency.
How to become a Foil Drive Dealer
Please send an email to support@foildrive.com
Include:
• Subject line: North | Foil Drive Collaboration EOI
• Your company name and location
• If you already have a Foil Drive Account OR you’re interested in creating a new one.
If you do not have a Foil Drive account, you’ll be sent a link to their “New Dealer EOI” page
“Challenging technologies such as batteries, wireless signals, and propellers require expertise outside our wheelhouse. Our partnership with the marketleading inventors of the electric foil assist maximizes both brands’ design and engineering experience. Paul Martin and his team at Foil Drive are as passionate about Assist as we are about foiling. It’s the perfect match for our customers to explore new horizons and awaken the voyager within.”
– Mike Raper, Chief Brand Officer
SONAR INTEGRATED FD MAST SETUP
Each Sonar AF80 FD Integrated Mast is supplied with a Foil Drive Motor Pre-installed, and the cable run internally. The motor is permanently fixed to the mast, and can be paired with your Sonar Foil System and North Foilboard. The UHM80 FDA18 Mast is supplied without the motor, so if you already own a Foil Drive and your existing motor has a V2 plug with removable cable, you’re good to go. The Integrated FD Masts do not include the Foil Drive Kit or battery. Fusion, MAX or Slim Kits are sold separately by Foil Drive.
AVAILABLE FROM FOIL DRIVE
AVAILABLE FROM NORTH
AVAILABLE FROM FOIL DRIVE
HOW MUCH ASSIST DO YOU NEED?
The Masts have a Motor Pod pre-installed at one of four positions. An FDE-FOIL Mast offers a complete E-Foil experience, while an FDA20, FDA18 and FDA15 Assist Masts will provide speed to lift up onto the foil, and then your foil takes over.
Sonar Front Wing / Fuse / Stab
RECOMMENDED FOIL ASSIST SETUPS
>85 UHM80 FDA18 AF80 FDA20 C650 SF1080 S215
-
FDA18 AF80 FDA15 AF80 FDA20
FDA18 AF80 FDA15 AF80 FDA20
FDA18 AF80 FDA15 AF80 FDA20
Life
doesn’t come
with a Rider Guide. But the Sonar Foil System does.
Angle of attack. Aspect Ratio. Stall Speed. When you’re new to Foiling, it can all seem a little complex. But like everything we design, the North Modular Foil System is engineered for the perfect ride, without overthinking. Our new Rider Guide takes the Sonar Foil System to pieces, so you can build it back together - step by step, then modify it your way. We’ve simplified the process, so wherever you are on your foiling journey, or whatever conditions are calling, you can be confident your gear will outperform the rest.
Sonar Foils. Ride your way.
FOILBOARDS LINEUP
SEEK PRIME Learn-to-Wing
CODE: 85013.240017
Downwind / SUP / LW Wing
CODE: 85013.240016
SEEK AIR Wing Inflatable
CODE: 85013.240015
SEEK Wing
CODE: 85013.250011
BOOST
Foil Drive Board
CODE: 85013.260165
VERT Performance Surf
CODE: 85013.240018
HORIZON
SWELL
Surf / Wing Crossover
CODE: 85013.250010
MIDI
Mid Length
CODE: 85013.250160
VECTOR
Wing Race
CODE: 85013.250170
SCOOP
Wake / Kite / Tow
CODE: 85013.240008
SCOOP MINI
Pump / Kite / Tow
CODE: 85013.240009
SENSE
Kite / Wake
CODE: 85013.240012
RISE AND SHINE
Early take-off, stable and responsive freeride wing foil board forgiving on touchdowns. The Seek design is slightly longer and narrower for more on-water efficiency – helping you to get up to speed faster so you can get up on foil earlier.
SEEK
Wing
Hybrid Technology
• Efficient tri-plane hull
• Longer waterline with lower entry rocker for speed and acceleration
• Concaved deck for direct foil control
• Max-traction non-abrasive deck grip with tactile and visual stance reference
Roller Bag with straps, Inflatable Board Pump, Repair Kit, DropBox 23mm Screw Pack, Seek Air Foot Strap Screw Pack (M6x16mm and M6x18mm)
ACCESSORIES (SOLD SEPARATELY)
DropBox Fin Adaptor (5’9/6’2), Calf Leash, Waist Belt and Quick Release Board Leash, Free Foil, Free-Lo, Free-V and Free-Lo V Straps
SMOOTH RIDER
Redefining the inflatable foilboard. The Seek Air delivers the feel and performance of it’s hybrid-carbon counterpart with all the lightweight convenience, portability, and durability of an inflatable.
Getting Started
Your learn-to-fly setup
1. NOVA 2. SEEK PRIME
WAIST BOARD LEASH
SONAR
PRIME FRONT WINGS
6. S320 STAB 7. DROPBOX FIN ADAPTOR 8. NORTH PONCHO 9. KITE/WING PUMP 10. TORX T40 TOOL 11. DETACHABLE STICK-ON FIN
SWELL
Wing Surf
Hybrid Technology
• Longer planing surface and chopped tail for faster lift to foil
• Efficient tri-plane hull design for effortless release and forgiving touchdowns
• Lightweight Hybrid Carbon Technology with dual composite stringers
• Max traction deckpad
• DropBox fast foil mounting (165x90mm)
• Centreline, offline and V-strap insert options (straps sold separately)
Surf-inspired, we’ve re-engineered the 2025 Swell foilboard for cranking turns and riding waves with a wing. The shape’s refined for a cleaner, faster lift to foil, with a curved surf-style outline for optimal wave fit and deeper carves. The Swell remains a crossover board for heavier riders for strapped prone, kite, wake, and tow-foiling in smaller sizes.
MIDI
Mid Length
Carbon Technology
• Full wrap carbon PVC sandwich construction
• Mid-length outline with medium rocker for easy pump to foil
• Foil Assist Compatible
• Ride a lighter, lower-volume board with a smaller wind wing or front wing
• Extend your light wind range
• Optimal length-to-width ratio for glide, stability and manoeuvrability
• Efficient displacement hull design for fast on-water speed
• Crossover board for prone surfing in smaller sizes*
• Centreline, offline and V-strap insert options (straps sold separately)
A slender, mid-length crossover board streamlined for on-water efficiency and fast transitions onto foil. The Midi’s versatility makes it ideal for wingfoiling and parawing sessions, downwind FoilDrive runs, prone foil surfing (in smaller sizes), and even SUP paddle-ups (in larger sizes). So, you can switch disciplines or adapt to changing elements without compromise.
LEAD THE WAY
A synergy of aero and hydrodynamics, this highspeed carbon wing foilboard is engineered to reduce windage for faster flying and leaderboarddominating performance.
VECTOR Wing Race
Carbon Technology
• Lightweight, long and narrow for early lift to foil
• Rounded rails prevent catching in chop and swell, allowing you to push harder
• Full wrap carbon PVC sandwich construction
• DropBox (165x90mm) and Tuttlebox Foil Mast Mount options
• Display mount inserts (76x39mm) for Sailmon Max and similar performance-trackers*
• Max-traction comfort deck pad
• V-Strap Inserts
ORDER DETAILS
CODE: 85013.250170
COLOUR: 250 Yellow
SIZES: 4’7 | 55L, 5’0 | 70L, 5’4 | 85L
PRODUCT DETAILS
DropBox Screw Pack (4x M8x30, 4x T-Nuts)
ACCESSORIES (SOLD SEPARATELY)
Sonar HM Masts, HA Series Foils, Mode Ultra Performance Race Wing
“Tuttlebox Mounting Hardware is not included. Requires 13mm washers with a min thickness of 1.5mm.
BOOST
Foil Drive Board
E-Glass / Full PVC Wrap
• Fast planing hull and bevelled rails for forgiving touchdowns and take-offs that conserve power
• 2.4GHz signal-optimised – no signal lost during duckdives
• Low-drag recessed Foil Drive trench in 4’9-5’3
• Trench dimensions enable quicker battery changes without removing your Foil Drive unit
• Balanced weight distribution for minimal stance adjustment between displacement and foil modes
• Wave fit - pulled-in nose and tail provides a smaller, more agile feel
ORDER DETAILS
CODE: 85013.260165
COLOUR: 621 Ocean Green
• Secure Reversed DropBox Mounting for fast battery changes
SIZES: 4’9 | 35L, 5’0 | 40L, 5’3 | 45L, 5’6 | 65L
PRODUCT DETAILS
Board with Deckpad.
Does not include Mounting Screws and T-Nuts. FoilDrive hardware is supplied with your FoilDrive System.
COMPATIBILITY (SOLD BY FOIL DRIVE)
UHM80 FD18 Carbon Mast and V2 Motor, AF80 Integrated Mast, Foil Drive Slim, Max or Fusion System
*Recommended size is also subject to ability level, foil & battery.
POWER UP WITH FOIL DRIVE
For electric-assisted foiling on flatwater, surf and open ocean, the Boost provides fast lift to foil with impressive stability and ensures you’ll always have power when you need it. In the smaller 4’9-5’3, the DropBox track is located within a recessed super trench for lower drag, better ride feel and smoother touchdowns.
HORIZON
Downwind / SUP / LW Wing
Carbon Technology
• Efficient displacement hull design for quick pump-to-foil
• Lightweight, strong and durable full-carbon construction
• Pulled-in tail for tracking and efficiency on takeoff and touchdown
• Forgiving forward rails, sharper behind the foil for fast-release
• Slightly concaved deck under the standing section for stability
• Comfortable EVA deck pad with raised rail edges and extended tail pad for wingfoiling
Board with EVA Deckpad and Leash Plug, DropBox Screw Pack (4x M8x30, 4x T-Nuts)
ACCESSORIES (SOLD SEPARATELY)
Sonar Downwind Series Front Wings, Glide Stabilizers, Waist Board Leash, Coiled Calf Leash, North Carbon Paddle (available from North Windsurfing)
AWAKEN THE VOYAGER WITHIN
An evolution of surfing, with downwinding, the entire ocean becomes our playground. No matter how far we go or how close we get, the horizon will always be just beyond our reach. But the journey gives us a direction. We chase it endlessly and never stop seeking.
VERT
Performance Surf
Carbon Technology
• New 3’8 | 24L ideal for surf, pump/dockstarting, kitefoiling and tow-foiling
• Fast and intuitive dedicated prone board for advanced foil surfers
• Light and efficient for extended pumping with smaller foils
• Slender teardrop shape for tighter carves
• Grabbable rails and balanced volume distribution
• Strong full carbon shell with structural reinforcement
• Comfortable max-traction deckpad - no strap inserts
• Also for wake foiling and tow-in foiling (big waves).
ORDER DETAILS
CODE: 85013.240018
COLOUR: 196 Titanium
SIZES: 3’8 | 24L, 4’2 | 25L, 4’5 | 30L
PRODUCT DETAILS
Board with EVA Deckpad and Leash Plug, DropBox Screw Pack (4x M8x30mm, 4x T-Nuts)
“I absolutely love this board! Its flat profile makes it easier for me to paddle into waves, while the pulled-in tail gives me more control and allows me to lean into turns without catching the rail. The lightweight carbon construction makes pumping more efficient and gives the board a lively, dynamic feel.”
— Sylvain Mithault, Foiling Australia Head Coach
THE MINIMALIST
A direct and responsive high-performance kite foilboard for more advanced riders. Featuring a compact, ultralight hybrid carbon construction with durable, high-density core. Less, but better.
SCOOP MINI
Kite Foilboard
Hybrid Technology
• Ultra-scooped nose rocker
• Ultra-lightweight Hybrid Carbon with durable high-density core
• Compact outline with flat deck
• Smooth rounded rails
• New non-abrasive deckpad
• Centrleine and V-strap inserts
• DropBox (165x90) Fast Foil Mount (screws and t-nuts pre-installed)
ORDER DETAILS
CODE: 85013.240009
COLOUR: 196 Titanium
SIZES: 110 x 45cm
PRODUCT DETAILS
DropBox 25mm Screw Pack (4x M8x25mm, 4x T-Nuts)
ACCESSORIES (SOLD SEPARATELY) Free, Free-V, Free Lo and Free-Lo V Foil Straps
SCOOP
Wake / Kite / Tow
Hybrid Technology
• Tri-plane hull design for earlier takeoffs and faster release
• Angled planing surfaces for smoother touchdowns on more variable angles
• Refined rocker for a more balanced, forgiving touchdown recovery
ORDER DETAILS
CODE: 85013.240008
COLOUR: 196 Titanium
SIZES: 120 x 46cm | 16.5L, 135 x 49cm | 19.5L
PRODUCT DETAILS
DropBox Screw Pack (4x M8x30mm, 4x T-Nuts)
ACCESSORIES (SOLD SEPARATELY)
Free, Free-V, Free Lo and Free-Lo V Foil Straps
• Finer bevelled rails to match the smooth rocker
• New non-abrasive max-traction deckpad
• DropBox (165x90) Fast Foil Mount (screws and t-nuts pre-installed)
• Lightweight Hybrid Carbon Technology
ANOTHER DIMENSION
SENSE
Kite / Wake
Composite Technology
Intuitive glide with roll to ride water starts. Modern technology, strength and performance in a userfriendly low-volume wood core foil board.
*18mm for Free-Lo and Free-Lo V Foil Straps; 20mm for the Free-V Foil and Free Foil. Over time as the foil strap compresses, you may want to change to a shorter screw
Foilboard Technology
Full Carbon | PVC Sandwich Technology
A strong, light and efficient 100% carbon outer shell sits over a layer of high-density closed-cell PVC foam top and bottom side, for extra strength and impact resistance. MIDI, VERT
Carbon Technology
The Horizon doesn’t have the same load case as a wingfoil board, it’s length, thickness and high volume gives the board a natural structural integrity, strength and durability, while keeping the weight low for a direct responsive feel. HORIZON
Hybrid Carbon Technology
Lighter weight construction for stiffness, manoeuvrability, and glide. The stiffer the board, the better it will pump and the more responsive it feels. A light yet durable epoxy composite laminate, with a balanced carbon and e-glass fibre layup is wrapped around an EPS core. Carbon double T-stringers run the length of the board, and a durable PVC reinforcement layer under the standing area adds greater impact resistance and rigidity. SWELL, SEEK
Scoop Hybrid Carbon Technology
Balanced carbon and e-glass layup wraps an EPS core. High-density PVC reinforces foil track and inserts for direct response. Double bamboo underfoot boosts impact resistance and rigidity. SCOOP
Hybrid Carbon | PVC Core Technology
Stiff and responsive, the Scoop Mini has a light yet durable epoxy composite laminate with a balanced carbon and e-glass fibre layup wrapped around a thin yet durable high-density PVC core. SCOOP MINI
Ecolite Softskin Technology
We’ve engineered the new EcoLite Seek Prime with a user-friendly soft skin for durable, lightweight strength and stiffness. Thin layers of bamboo veneer in the laminate improve global stiffness, rigidity and impact resistance while keeping the board weight as low as possible. A forgiving soft EVA skin wraps the entire deck and rails, together with a comfortable EVA deckpad. SEEK PRIME
Sense
Paulownia Wood Composite Construction
For more direct feel and control. New lighter weight composite construction with a durable Paulownia wood core provides stiffness for a more direct feel and powerful foil response. Ideal for landing freestyle tricks. SENSE
PVC Dropstitch Technology
Inflatable PVC dropstitch construction is durable, impact absorbing and ding resistant. This makes it ideal for the boat, and a forgiving surface to fall on when you’re learning to wing or foil. SEEK AIR
DropBox Adjustable Fast Foil Mounting Track
Speed-dial your foil setup. Simply drop your foil pre-assembled with screws and t-nuts into the track, slide it backwards, then tighten the screws to fasten. Our unique structurally-integrated DropBox has a longer track for a wider adjustment range, allowing you to precision-tune the foil set up for your rider weight. A measurement guide next to the track aids correct positioning. Industry-standard 90mm track spacing means North Foilboards are compatible with most foil systems.
SCOOP MINI, SCOOP, SWELL, SEEK, HORIZON, VERT
Refined Bevelled Rails
Bevelled rails help with touchdown recovery, creating a wider deck with a narrower footprint. The effect is like having a smaller board. You don’t stick when you touch the water, but you still have the standing area for comfort. The Vert also features grip-friendly concaved forward rails, to make duckdiving and pop-ups easier. While riding you can grab the rail for added stability and control of your foil. The concaved bevelled rail also allows your fingers to stay clear of the planing surface, eliminating drag during take-offs. SCOOP, SEEK, SWELL, VERT

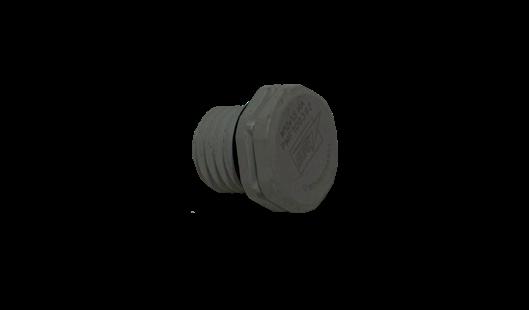

GORE™ waterproof 2-way vent
The EPS core of a high volume board is affected by extreme temperature changes. To prevent air pressure build-up we’ve installed a two-way GORE™ Protective Vent on the top deck. This allows air to pass in and out of the board, while preventing water from entering. The vent is factory-fitted and does not require any adjustment. SWELL, SEEK, HORIZON
Intuitive Concaved Deck
The highly concaved deck allows more intuitive foot positioning and also acts like a counterbalance, so you don’t feel like you are heeling over as far on the board.
SCOOP, SWELL, SEEK, VERT
Non-abrasive high traction deck grip with tactile and visual stance reference
For a more intuitive and direct connection to your foil, high traction non-abrasive heat-embossed deckpad with centre-line ridge allows fast, easy tactile foot placement. ALL BOARDS
Customisable strap insert positions
Multiple positioning options for each strap allow you to personalise your stance - or go strapless. Centreline, V-Strap and offline strap insert options accommodate both goofy or natural riding. (Straps sold separately – see Footstrap Installation Guide for more information) ALL BOARDS
CST Base – direct responsive foil connection
Our unique Carbon Sandwich Transfer (CST) base with DropBox fast foil mounting. The CST base is designed for the most direct and responsive connection to the foil. It is engineered with a slight curve to match the rocker of the board, for outstanding control and pumpability. The CST base plate runs the full length of your stance, transferring the load and your steering impulses directly to the foil. SEEK AIR
Sense Fast-mounting 165x90mm foil connection
The quick-setup four-point screw-in connection system provides a stable base for efficient load transfer. Industry standard bolt spacing 165 x 90mm SENSE
Includes foil to board mounting hardware
The DropBox M8 screws and t-nuts are supplied with your North Foilboard. You’ll find them installed into the mast tracks (so you don’t lose your nuts). North Foilboards are compatible with foils with an industry-standard 165x90mm connection. ALL BOARDS
Double Concave Centre-V Hull
The V-shaped forward hull reduces surface drag in displacement mode and minimises stickiness, helping the board release from the water more efficiently. BOOST
Efficient Displacement Hull
Shaped for speed, fast on the water and fast up onto the foil. The volume distribution allows us to reduce the wetted area, which lowers the drag – for minimum effort and maximum performance. HORIZON
Lo-Drag Semi-Displacement Hull
Faster through the water pre-take off, with a slight V-shaped bottom contour which gently breaks the water surface for progressive release and faster lift onto foil, with smooth touchdowns. MIDI
Race Bred Aero/Hydro Hull
Engineered aerodynamically to reduce windage, with rounded hull and rails to prevent catching in chop and swell, so you can push harder on the course. Faster speeds, with touchdown recovery. VECTOR
Tri-plane hull design
Designed for earlier takeoffs and faster release. The double V-shape in the bottom contour of the board is created by a single concave in the centre with an angled planing surface on each side. The water tracks from the central concave and side rails to the two longitudinal spines, allowing the board to lift and release quickly, without sticking. The angled-planing surfaces run right through to the tail, allowing you to touch down on more variable rail angles without catching. SCOOP, SWELL, SEEK, SEEK PRIME, VERT, SENSE
Foilboard Performance Chart
NOVICE: New to foilinghas other board sports experience
INTERMEDIATE: Progressing on Foilmay cross over from another foil sport ADVANCED: Pro/Semi-Pro, has mastered all manoeuvres
Hone your wing or kite skills without getting your feet wet. The North Dune combines the best elements of skate, snow and all-terrain mountainboarding (ATB) with the versatile windpower of a wing or kite. Ideal for use on sand, dirt, grass or pavement, our new off-road landboard’s long deck, wide trucks and large wheels provide stability on rough terrain. Strong oversized bearings withstand high side loads when cruising the flats or mastering airs and tricks, while 10.5” trucks ensure high speeds and excellent carving. PVD-coated stainless steel fasteners ensure longevity in salty environments.
• Strong 8-ply Canadian maple deck with responsive flex
• Deck size 965x200mm (38”x7.87”)
• Rachet bindings for secure, quick and easy connection
• Oversized 30mm OD ABEC 7 bearings for optimal side loading
• Aluminium hubs for powerful strength-to-weight
• Durable PVD-coated 316 Stainless Steel hardware
• Strategic deck grip positioning
ORDER DETAILS
CODE: 85011.242000
COLOUR: 900 Black
SIZES: O/S (965x200mm / 38x7.87”) Deck
PRODUCT DETAILS
Board, 2x 266mm
4x
trucks,
200mm wheels with 30mm bearings, 2x ratchet bindings
Urban Surf-Skate Board
• Carving surf-skate 160mm (6.25”) trucks
• 813x250mm (32x10”) Canadian Maple deck
• Soft smooth 78A 65mm diameter wheels
• Fast ABEC 7 bearings for effortless rolling
• Durable PVD coated 316 Stainless Steel hardware
• Full deck grip
ORDER DETAILS
CODE: 85011.242001
COLOUR: 900 Black
SIZES: O/S (813x250mm / 32x10”) Deck
PRODUCT DETAILS
Board, 2x 160mm trucks, 4x 65mm wheels with bearings
CHASE THAT FEELING. EVERYDAY.
Skate like you surf. We’ve designed our new Track urban surf-skate board to capture the feel of riding waves even when there are none. Forged aluminium surf-style trucks are designed to generate forward momentum when you pump the board laterally and to throw down deep rail-to-rail carving turns. The smooth, grippy 65mm wheels and ABEC 7 bearings deliver effortless speed, allowing you to lean into controlled carves and cutbacks with confidence. We recommend the Track for use on pavement, with or without a wind wing, for crosstraining and keeping up your fitness.
Balance Board
Surf / Kite / Foil
ANTI-SLIP DECK
DURABLE PLYWOOD CONSTRUCTION
NON-MARKING FELT FLOOR PROTECTORS
SECURED WOODEN SAFETY STOPS
No wind? No problem. This indoor training aid will keep your muscles toned and stabilisers honed for your next session (and provide endless hours of living room entertainment). Use it at home, at your standing desk, or in the gym.
ORDER DETAILS
CODE: 85011.242003
COLOUR: 999 Multiple Colour
SIZES: O/S (Board 74 x 28 x 1.5cm, Roller 40cm x Ø10cm)
PRODUCT DETAILS
1x Balance Board, 1x Cork Roller
CORK ROLLER
SHIFTLOCK CARBON WING HANDLES
Completely customise your wing connection
• NEW 950mm Boom to fit smaller wings
• Freedom to adjust handle positioning to maximize efficiency
• Patent pending ShiftLock Modular Track Mounting System for customised wing performance and control
• Fine-tune your ride with Carbon ShiftLock Handles or Boom (sold separately)
• Combine 250mm, 400mm, and 500mm handles or opt for the single Boom 1100mm handle
Rigid Carbon GripLock micro-trim control handles for immediate response and intuitive transitions. Radically transform the way you ride with increased control and reduced hand-fatigue. The lightweight carbon trim handles offer a more immediate, direct response and balance adjustment. The two handlebars are wrapped in a soft EVA comfort grip. Their generous length lets you slide your hands into optimum trimming positions so you can instantly control the wing’s pitch, yaw and roll, while keeping your body positioned perfectly over the foil. More freedom in your hand placement allows you to choose the best feel based on the conditions, your arm length and your body size, and makes transitions more intuitive.
TAKE THE LOAD OFF
WING HARNESS LOOP
Winging with a harness allows you to stay out for twice as long, enables one-handed riding and minimises the risk of repetitive strain injury. This lightweight, minimalist loop stays out of the way while pumping onto the plane. We recommended the longer size for use with ShiftLock 250mm Handles.
• Solid connection for effortless hooking in
• Lightweight high-quality TPU tubing
• Fast and intuitive Velcro ring-fastening system
• Compatible with wings or parawings
• For use with a wing harness or the new Stash Belt
ORDER DETAILS
CODE: 85015.230106
COLOUR: 999 Multiple Colour
SIZES: 22inch, 26inch, 30inch
ORDER DETAILS (SET OF 10)
CODE: 85015.260125
COLOUR: 999 Multiple Colour
SIZES: 22inch, 26inch, 30inch
Leashes
WAIST WING LEASH
For use with wind wing
Comfortable waist belt with elasticised webbing wing leash for easy grip and fast wing retrieval.
• Strong adjustable injection-Velcro belt with soft neoprene lining
• Three fixed loops for left or right leash attachment
• Includes high-quality bungy core wing leash with SS316 swivel (for wing use only)
• To secure your board, attach the Quick Release Board Leash (sold separately)
ORDER DETAILS
CODE: 85005.240081
COLOUR: 900 Black
SIZES: O/S
SPECIFICATIONS
Wing Leash length = 137cm (54”)
Cuff width = 5cm (2”)
Max Waist Circumference = 132cm (52”)
PRODUCT DETAILS
1x Adjustable Belt, 1x Wing Leash
WAIST BOARD LEASH
Adjustable Belt with Coiled Board Leash
Comfortable, neoprene-lined waist belt with coiled board leash. The leash cord stays above the water, minimizing drag or entanglement with your feet or foil.
• Adjustable waist size
• Non-slip fast-release clip
• Two fixed loops for left or right leash attachment (wing leash sold separately)
• Fixed PU Coiled Leash with double SS316 swivels
• Lightweight slimline railsaver
ORDER DETAILS
CODE: 85005.240082
COLOUR: 900 Black
SIZES: O/S
SPECIFICATIONS
Leash length = 183cm (6”)
Cord thickness = 5.5mm (1/5”)
Cuff width = 4.5cm (3/4”)
Max Circumference = 145cm (57”)
PRODUCT DETAILS
1x Adjustable Belt with coiled PU Leash
Leashes
QUICK RELEASE BOARD LEASH
For use with Waist Wing Leash
• Quick release mechanism for consistent, safe release and reload
• 7mm high-grade coiled PU cord
• Slimline rail saver for low-drag protection
• SS316 stainless steel swivel reduces tangles
ORDER DETAILS
CODE: 85010.210033
COLOUR: 900 Black
SIZES: O/S
CALF LEASH
Wing / Surf / SUP
• Coiled calf leash keeps cord above water to reduce drag
• Lightweight neoprene calf cuff with stretch resistant TPU top layer, comfort lining and silicon inner grip to reduce slipping
• Lightweight neoprene ankle cuff with stretch resistant TPU top layer and comfort lining with silicon inner grip to reduce slipping
• Easy grab finger tab for fast, safe release
• Strong injection-moulded velcro for light, sand-resistant hold
• 6mm high-grade polyurethane cord for all round surf and foil confidence
• Slimline rail saver for low-drag protection
LENGTH: 6’ / 180cm THICKNESS: 6mm
ORDER DETAILS
CODE: 85005.240031
COLOUR: 900 Black
SIZES: O/S
Foilboard Accessories
FREE-V FOIL STRAPS
Lightweight cushioned Foilboard Straps
Our full comfort V-shaped front straps allow you to ride offline on both tacks in a more natural stance, with less fatigue in your front knee compared to a centreline stance. The straps also provide a tactile reference for ideal foot positioning, easier takeoffs and fine-trimming of the foil. Fully customise your fit and stance.
• V-shaped double front strap ergonomically angled for easy entrance and a locked-in feel
• Seamless KnitFlex neoprene and dual-density foam comfort
• Angled centre washer for even load distribution
• Smooth screw hole reinforcement for added durability
• Highly adjustable foot-strap positioning
ORDER DETAILS
CODE: 85003.240035
COLOUR: 900 Black
SIZES: O/S
PRODUCT DETAILS
1x V-Shaped Foot Strap, 1x Standard Foot Strap, 5x 6.3x25mm Screw, 4x Single Strap Washer, 1x 45deg Strap Washer
COMPATIBILITY
Seek, Swell, Scoop Foilboard
Seek Air Foilboard (M6x16mm and M6x18mm screws included with board)
Sense Foilboard (M6x18mm and M6x20mm screws included with board)
FREE-LO V FOIL STRAPS
Lightweight low-profile Foilboard Straps
A comfortable low-profile, super lightweight strap set with a V-shaped double front strap. The Free-V Lo allow you to ride offline on both tacks in a more natural stance with less fatigue in your front knee compared to a centreline stance. They also provide a flexible tactile reference for easier foot positioning, take-offs and fine-trimming of the foil.
• Flexible low-profile lays flat against the deck
• Dual density soft/firm EVA for comfort and durability
• Lightweight watertight closed cell construction
• Internal composite structural reinforcement for effective load distribution
Seek Air Foilboard (M6x16mm and M6x18mm screws included with board)
Sense Foilboard (M6x18mm and M6x20mm screws included with board)
Foilboard Accessories
FREE FOIL STRAPS
Lightweight cushioned
Foilboard Straps
Complete connection. Full comfort. The Free Foil Straps provide a tactile reference for ideal foot positioning, easier take-offs and fine-trimming of the foil. Ideal for all foil disciplines and aerial manoeuvres, with a wide range of adjustments to customise your fit and stance. Both front and back straps have a parallel outline.
• Seamless KnitFlex neoprene and dual-density foam comfort
• Smooth screw hole reinforcement for added durability
• Highly adjustable foot-strap positioning
• Asymmetric strap washers for micro-fit adjustment
• Elasticized neoprene strap-end screw covers
ORDER DETAILS
CODE: 85003.240033
COLOUR: 900 Black
SIZES: O/S
PRODUCT DETAILS
2x Standard Foot Strap, 4x 6.3x25mm Screw s, 4x Single Strap Washer
COMPATIBILITY
Seek, Swell, Scoop, Scoop Mini Foilboard
Seek Air Foilboard (M6x16mm and M6x18mm screws included with board)
Sense Foilboard (M6x18mm and M6x20mm screws included with board)
FREE-LO FOIL STRAPS
Lightweight low-profile Foilboard Straps
A comfortable, low-profile, minimalist strap designed for strapped-in riding. Whether you’re boosting airs or maximising your pump efficiency to connect multiple waves, these super lightweight foot straps give you more leverage over the foil in freestyle manoeuvres, improved landing recovery and connection to the foil.
• Flexible low-profile lays flat against the deck
• Dual density soft/firm EVA for comfort and durability
• Lightweight, watertight closed-cell construction
• Composite structural reinforcement for effective load distribution
Seek Air Foilboard (M6x16mm and M6x18mm screws included with board) Sense Foilboard (M6x18mm and M6x20mm screws included with board)
Foilboard Accessories
DROPBOX FIN ADAPTOR
Recommended with 5’9 or 6’2 Seek Air or Seek Prime
• Provides lateral resistance for forward drive to stay upwind
• Always use in conjunction with two side fins
• Inserts into CST Base DropBox mast track
• Saves your mast from damage in shallow water
• Compatible with any 165x90mm foil mast track
ORDER DETAILS
CODE: 85009.230136
COLOUR: 900 Black SIZES: O/S
PRODUCT DETAILS
Dropbox Fin Adaptor, Seek Air Fin, Dropbox Screw Pack 4x T40 M8x23mm Screws, 4 x T-Nuts
DETACHABLE STICK-ON FIN
For use in combination with a rear fin or the DropBox Fin Adaptor
• Single or dual fin placement options
• Durable 8” fin detaches easily from fin base – no tools required
• For use on any larger Seek or Seek Prime Foilboard
• Strong, water-resistant self-adhesive secures fin base to board
• Ideal setup for boards being used by more than one rider
ORDER DETAILS
CODE: 85007.240065
COLOUR: 999 Multiple Color
SIZES: O/S
PRODUCT DETAILS
Self-adhesive Fin Box, 8” Fin
LEARN TO WING WITHOUT THE FOIL
Learn to wing on your Seek Air 5’9 or 6’2 without the foil attached. The DropBox Fin Adaptor can also be used on the Seek or Seek Prime in combination with the Detachable Stick-on Fin under your front foot, to help you stay upwind.
PREMIUM TOW ROPE
Premium Braided Floating Rope with Handle
• Ultra-low stretch braided PE floating rope
• Non-water absorbing closed-cell EVA foam core
• High-visibility safety colours
• Large diameter rope with non-slip braided knots
• Lightweight low-drag floating handle
• Comfortable ergonomic EVA bar grip
• Durable and safe moulded-EVA bar ends
• Handle sized to reduce chance of body entrapment
• Adjustable length – from 35’ (10.65m) to 20’ (6.1m)
• 15’ (4.55m) protective rigid PVC tubing section
• Nylon attachment point eyelet to reduce rope wear
Easy-grab, high-visibility floating rope with a comfortable ergonomic handle for tow-in foil and surf. Adjustable length, large diameter rope with non-slip braided knots for fast pickups in critical situations and towing multiple riders.
DOCKSTARTER
Launch Pad
• Buoyant inflatable drop stitch technology
• Deflates for convenient transportation and storage
• Holds any foil with mast length >65cm
• Can be attached/secured to a dock or boat transom
We’ve engineered the inflatable Dockstarter to hold your board and foil in the ideal position for stationary starts, then quickly release it when you jump on. The Dockstarter provides a secure floating platform between the dock and foil, ready for take-off.
SESSION SAVER BOX
FOIL & BINDINGS TOOLKIT
NORTH MULTI TOOL
SONAR TORX T40 TOOL
MARINE GREASE
RAIL TAPE
N-FIX CANOPY REPAIR TAPE
HYDRO THUMBSCREWS
DROPBOX THUMB SCREW SET
SONAR T40 MICRO TOOL
PUMPS
SONAR SESSION SAVER BOX
Never miss a session
A convenient toolbox full of Sonar Foil hardware, recommended for all foilers.
• All Titanium screws and T-nuts
• Torx T40 Tool included
• Convenient storage for all your parts
• Includes Sonar Foil Assembly Guide for checking screw sizes
ORDER DETAILS
CODE: 85009.230160
COLOUR: 999 Multiple Colour SIZES: O/S
PRODUCT DETAILS
2x M8x40 TH CSK T40 Ti Screws
2x M8x35 THCS T40 Ti Screws
4x M8x16 TH CSK T40 Ti Screws
3x M8x35 TH CSK T40 Ti Screws
3x M8x33 TH CSK T40 Ti Screws
9x M8x30 TH CSK T40 Ti Screws
8x M8x25 TH CSK T40 Ti Screws
4x M8x23 TH CSK T40 Ti Screws
6x M8 Ti T-nuts
1x Marine Grease Tube
1x Torx T40 Tool
1x Small Tool Box
FOIL & BINDINGS
TOOL KIT
Always ready, always prepared
Everything you need, in one box. Large Toolbox recommended for Retailers/ Schools/Agents/ Ambassadors. Contains all Sonar Foil, TwinTip, Surfboard and Bindings Hardware.
SIZES: O/S
• All Titanium Foil Screws and T-Nuts
• Double-sided Toolbox – one side Foil, the other Board & Bindings
• Future-proofed with empty compartments
• Restock and add product to suit your riders’ needs
• Recommended for use with PH3 Screwdriver (sold separately)
• Recommended for use with Torx T40 Tool (sold separately)
NORTH MULTI TOOL
For quick, effortless gear changes. The Multi-Tool comes with PH3 and T40 Driver Bits, compatible with all North Board, Binding and Foil Gear. Spare Driver Bits can be ordered separately.
• Torx T40 for Sonar Foil Hardware Adjustment
• P3 Phillips Head Screwdriver Tool for Footstrap and Binding Adjustment
• Compatible with North Kiteboarding and Sonar Foil Hardware
• Ergonomic anti-slip T-handle
• To extend longevity: wash with fresh water and dry after use
• Spare PH3 and T40 MultiTool Driver Bits sold separately (85009.240162)
ORDER DETAILS
CODE: 85009.230162
COLOUR: 999 Multiple Colour
SIZES: O/S
PRODUCT DETAILS
1x North Multi Tool, 1x PH3 bit, 1x Torx T40 bit, 1x Bit holder
ACCESSORIES (SOLD SEPARATELY):
85009.240162 North Multi Tool Driver Bits (set of 5) PH3 or T40
ORDER DETAILS (SET OF 10)
CODE: 85009.260120
COLOUR: 999 Multiple Colour
SIZES: O/S
SONAR T40 TOOL
Torx T40 tool compatible with all Sonar / ShiftLock screws
• Manufactured from high quality Chromium-vanadium steel
• Comfortable anti-slip ergonomic T-handle
• Dual-ended design for fast assembly and higher torque
• To extend longevity: wash with fresh water and dry after use*
IMPORTANT: Over time all tools will rust in a saltwater environment. We recommend using protective grease or spray after washing and drying to extend lifespan.
ORDER DETAILS
CODE: 85009.230161
COLOUR: 999 Multiple Colour
SIZES: O/S
ORDER DETAILS (SET OF 10)
CODE: 85009.260115
COLOUR: 999 Multiple Colour
SIZES: O/S
SONAR MARINE GREASE
Re-application recommended each time you assemble your Sonar Foil System.
• Prevent corrosion, screw seizure and jamming
• Extend the lifespan of your Sonar Foil System, tools and hardware
ORDER DETAILS
CODE: 85009.230163
COLOUR: 999 Multiple Colour
SIZES: O/S
FOILBOARD RAIL TAPE
Protect your foilboard from dings, scratches, leash and harness point contact in high wear areas with our durable, easy to install TPU tape with adhesive backing. Nose tape will also protect your board when rigging up on hard surfaces if the tape is placed all the way to the nose radius.
ORDER DETAILS
CODE: 85008.230074
COLOUR: 999 Multiple Colour
SIZES: O/S (60mm Wide)
PRODUCT DETAILS
2x rail, 1x nose and 1x tail tape
N-FIX CANOPY REPAIR TAPE
Temporary Canopy Repair
Keep a roll of this self-adhesive tape in your gear bag as a quick emergency fix for wing and kite canopy tears. Developed in collaboration with North Sails Advanced Textiles, the tape is a semi-transparent (off-white colour) to match all canopy colourways. Extra strong selfadhesive bond.
ORDER DETAILS
CODE: 85015.240111
COLOUR: 999 Multiple Colour
SIZES: O/S
PRODUCT DETAILS
1x Roll of tape (3m x 40mm)
Titanium screws with hydrodynamic alloy handle for fast foil-mounting and toolless adjustments on the go. Loosen the screws by hand to slide your mast forward or back in the DropBox track, then re-tighten by hand, lifting handle to orientate into flow direction of water.
• Micro-adjustable to align handle perfectly in the flow direction of the water
• Corrosion-resistant PVD-coated Titanium screws
• Compatible with any foilboard using M8x30mm foil mounting screws
ORDER DETAILS
CODE: 85009.250208
COLOUR: 900 Black
SIZES: O/S
PRODUCT DETAILS
4x M8x30 Ti Screws with Alloy Head
WARNING: Tighten by hand only. Do not use any tools, and do not over-tighten. Due to the reduced torque moment of the thumbscrews, they can loosen more easily. Check screw tightness before and during sessions.
LIFT HANDLE TO TURN
DROPBOX THUMB SCREW SET
Reposition your mast without leaving the water. These lightweight titanium screws are designed for fast foil mounting and adjustment –no tools required. Simply loosen the screws by hand to slide your mast forward or back in the DropBox track, then re-tighten by hand.
Compatible with all North DropBox Foilboards to replace 30mm DropBox Screws.
Not suitable for use with Seek Air (23mm) or Scoop Mini (25mm).
WARNING: Tighten by hand only. Do not use any tools, and do not over-tighten. When tight, screws may not align with your mast.
ORDER DETAILS
CODE: 85009.240137
COLOUR: 900 Black
SIZES: O/S
PRODUCT DETAILS
4x Ti M8x30mm Screws, 4x Ti T-Nuts
WARNING: Due to the reduced torque moment of the thumbscrews and the T40 Micro Tool, screws can loosen more easily. Check screw tightness before and during sessions.
SONAR T40 MICRO TOOL
Keep this Mini Torx T40 Screwdriver with lanyard in your pocket or on your key ring for fast foil or handle setup and changes. Compatible with the Sonar Foils and ShiftLock Modular Track System.
• High-quality SS316 with PVD-coating
• Corrosion resistant
• Ergonomic finger grip
• Compatible with Sonar Foil
• Compatible with ShiftLock
ORDER DETAILS
CODE: 85009.240170
COLOUR: 900 Black
SIZES: O/S
PRODUCT DETAILS
1x Tool on lanyard
KITE / WING PUMP
2.3L or 2.9L
Ergonomic double-action kite and wing pump with tall body and high-airflow piston for faster, easier inflation.
• Single/double action switch
• Anti-sand filter and seals
• Integrated pressure gauge
• Medium 2.3L / Large 2.9L
ORDER DETAILS
CODE: 85005.240079
COLOUR: 900 Black
SIZES: M, L
PRODUCT DETAILS
Pump, Hose, Adaptor, Pump leash
INFLATABLE BOARD PUMP
1.8L
Our two-way high pressure board inflation pump can also be used for wing or kite inflation. Each pump has an adaptor for multi-use, so you only need to carry one pump.
This durable and lightweight all-weather bag is made from upcycled N-Weave45 offcuts, which are resistant to water, moisture, UV, chemicals, and microorganisms.
• North Duffle Bag
• N-Weave45 Upcycled Material
• Recycled Polyester Webbing
• Cut and abrasion-resistant
• Padded soft grip carry handle
• Compression straps
• Folds down compact for storage
• Weave pattern and seam variations due to different offcut sizes
ORDER DETAILS
CODE: 85005.260100
COLOUR: 100 White
SIZES: S, L
UNIVERSAL DISPLAY STAND
UNIVERSAL DISPLAY STAND CODE: 85011.241083
UNIVERSAL DISPLAY STAND
Fixed
BRANDING PACK
NORTH CODE: 85011.241084 OR SHIFTLOCK CODE: 85011.241085
*The Universal Stand cannot be assembled without parts contained in the Branding Pack
ORDER DETAILS
CODE: 85011.241083
COLOUR: 999 Multiple Colour
SIZES: O/S
PRODUCT DETAILS
2000h x 1000w x 300d mm
1x Flatpack Metal Slat Rack Display Stand
1x Wooden Base Shelf
1x Left and Right Lower Side Frames
1x Light Box with Detachable Metal Plate
3x Downlights
1x Power Adaptor with Universal Converter
50x Unbranded 15cm Hooks
ACCESSORIES (SOLD SEPARATELY)
Spare Shelf, Branded Hook Pack
Fasten our single-sided slat rack display stand against a wall or double-up to create a freestanding shop-fitting solution for showcasing North Products, Accessories and Parts in your store*. These units come with a lightbox, downlights, and 50 unbranded hooks. The branding pack for the lightbox at the top is sold separately, giving you a choice between SHIFTLOCK or NORTH logos.**
Each unit is fitted with horizontal slat panels separated by a series of grooves 100mm apart, into which hooks or shelving brackets can be slotted. NS Logo branded display hooks and retail shelves are available separately. The attachments slide in and out of position, so you can change hangsell displays without using drills or screwdrivers. Panels are made from coated MDF.
Metal display stand with LED backlit top panel. Branding Pack Sold Separately
*WARNING: We recommend attaching the Display Stand to a solid construction/wall/floor to prevent tipping.
UNIVERSAL DISPLAY STAND BRANDING PACK
The NORTH and SHIFTLOCK branding packs are designed to sit on the top half of the Universal Display Stand when displaying a variety of North or ShiftLock Parts and Accessories. The acrylic logo panel is lit from behind.
IMPORTANT: The Universal Stand cannot be assembled without parts contained in the Branding Pack.
UNIVERSAL DISPLAY STAND BRANDING PACK NORTH
ORDER DETAILS
CODE: 85011.241084
COLOUR: 999 Multiple Colour
SIZES: 0/S
UNIVERSAL DISPLAY STAND BRANDING PACK SHIFTLOCK
ORDER DETAILS
CODE: 85011.241085
COLOUR: 900 Black
SIZES: O/S
UNIVERSAL DISPLAY STAND BRANDED HOOK PACK
ORDER DETAILS
CODE: 85011.241086
COLOUR: 999 Multiple Colour
SIZES: O/S
UNIVERSAL DISPLAY STAND SPARE SHELF
ORDER DETAILS
CODE: 85011.241088
COLOUR: 999 Multiple Colour
SIZES: O/S
*WARNING: We recommend attaching the Display
POS DISPLAY
ORDER DETAILS
CODE: 85011.241082
COLOUR: 900 Black SIZES: O/S
SHIFTLOCK DEMO STRUT
sold separately
ORDER DETAILS
CODE: 85011.240112
COLOUR: 900 Black
SIZES: O/S
This double-sided metal slat rack display stand is ideal for displaying the ShiftLock handles, accessories, and spare parts. It has usable display panels on both sides and a base on wheels that extends on either side. These units can be placed anywhere in the store and arranged next to each other to create aisles.
Each unit is fitted with horizontal slat panels separated by a series of grooves 100mm apart, into which hooks or shelving brackets can be slotted. (NS Logo branded display hooks and retail shelves are available separately). The attachments slide in and out of position, so you can change hangsell displays without using drills or screwdrivers.
PRODUCT DETAILS
1750 x 600w x 400d mm
1x Metal Double-sided Flatpack Slat Stand 4x Wheels
1x Acrylic Shiftlock Logo Panel 30x Unbranded 15cm Hooks
Introduce your customers to the new ShiftLock Modular Track Mounting System, HyperFlow inflation and N-Weave45. Highly portable and compact, this centre strut is designed for interactive demonstrations in-store and on the go without needing a complete wing.
Simply inflate and attach any combination of handles and accessories. Provides a sensory experience for customers and a feel for our North technologies, even without wind.
PRODUCT DETAILS
1x Inflatable N-Weave45 Wing Strut
*ShiftLock Handles Sold Separately
Handles
SONAR FOIL DISPLAY STAND
LARGE
* ideal for larger stores
North logo-branded double-sided plywood veneer display unit for the Sonar Foil System.
• Holds 10 Sonar Front Wings, 2 Masts, 2 Fuselage, 10 Stabilizers and 4x assembled Front Wing/Fuse/Stab setups*
• Designed to be used freestanding
• Supplied flat-packed
• Pre-drilled for fast assembly
• Dimensions H1870 x W1050 x D872mm
PRODUCT DETAILS
ORDER DETAILS
CODE: 85011.241087
COLOUR: 900 Black
SIZES: O/S
SMALL
* ideal for smaller stores
Smaller stand for displaying a range of Sonar Foils.
• Designed to be used freestanding or placed against a wall
• Supplied flat-packed
• Pre-drilled for fast assembly
• Dimensions H1850mm x W1040mm x D550mm
1870h x 1050w x 872d mm
1x Flatpack Plywood Veneer Stand
*All Sonar Foil parts sold separately.
ORDER DETAILS
CODE: 85011.251090
COLOUR: 900 Black
SIZES: O/S
PRODUCT DETAILS
for assembly
SHAPER STAND
Universal displaying stand / tuning workbench North Foilboards or Surfboards.
• Ideal for applying straps, rail tape, mounting foils,
• If not being used as a workbench, ideal for displaying boards.
• Rest any board, on any axis with stability and security.
• Helpful to run customers though key features and shape details
• Screwless flat-packed design.
• Portable for demo days, events and retail shops.
• Flat pack for easy storage.
• Dimensions: H880mm x W1000mm x D500mm
ORDER DETAILS
CODE: 85011.251091
COLOUR:
NORTH BEACH TENT
ORDER DETAILS
CODE: 85011.241001
COLOUR: 900 Black
SIZES: O/S
NORTH PARTY TENT
ORDER DETAILS
CODE: 85011.241002
COLOUR: 900 Black
SIZES: O/S
NORTH PARTY TENT (NO METAL FRAME)
ORDER DETAILS
CODE: 85011.241010
COLOUR: 900 Black
SIZES: O/S
NORTH BEACHFLAG
ORDER DETAILS
CODE: 85011.241004
COLOUR: 900 Black
SIZES: 4m
BEACHFLAG NO POLES
ORDER DETAILS
CODE: 85011.241005
COLOUR: 900 Black
SIZES: 4m
NORTH RECYCLED BEANBAG
ORDER DETAILS
CODE: 85011.241015
COLOUR: 900 Black
SIZES: O/S
NORTH RECYCLED BEACH CHAIR
ORDER DETAILS
CODE: 85011.241016
COLOUR: 900 Black
SIZES: O/S
NORTH SANDBAG
Designed to assist in anchoring your kite or wing securely. Made from recycled offcuts of our durable canopy material and recycled webbing, with a velcro closure system which prevents sand from spilling out. Ideal for on-the-beach marketing at schools and demos. The convenient handle and compact size makes use a breeze - wherever the wind takes you.
ORDER DETAILS
CODE: 85011.250600
COLOUR: 475 Pacific Blue
SIZES: O/S
NORTH LOGO FLAG
SMALL 70 x 100 cm
ORDER DETAILS CODE: 85011.241013
COLOUR: 900 Black
SIZES: O/S
LARGE 150 x 210 cm
ORDER DETAILS CODE: 85011.241014
COLOUR: 900 Black
NORTH WORDMARK FLAG
SIZES: O/S SMALL 75 X 95 CM
ORDER DETAILS CODE: 85011.241011
COLOUR: 900 Black
SIZES: O/S LARGE 100 X 200 CM
COLOUR: 900 Black
NORTH BANNER
NORTH WINDSOCK
ORDER DETAILS CODE: 85011.241003
COLOUR: 900 Black
SIZES: 120 cm
NORTH FESTIVAL CUPS
ORDER DETAILS
CODE: 85011.251045
COLOUR: 900 Black
SIZES: O/S
MIZU M8 WATER BOTTLE
ORDER DETAILS
CODE: 85011.241052
COLOUR: 900 Black / 100 White
SIZES: O/S
MIZU D7 FLASK
ORDER DETAILS
CODE: 85011.241050
COLOUR: 900 Black
MIZU COFFEE MUG
SIZES: O/S ORDER DETAILS
CODE: 85011.241051
COLOUR: 900 Black
SIZES: O/S Set of 8
NORTH BUFF
ORDER DETAILS
CODE: 85011.241060
COLOUR: 900 Black
SIZES: O/S
NORTH MAGNET
ORDER DETAILS
CODE: 85011.241055
COLOUR: 900 Black
SIZES: O/S Set of 10
NORTH CARABINER
ORDER DETAILS
CODE: 85011.241025
COLOUR: 900 Black
SIZES: O/S Set of 10
NORTH LANYARD
ORDER DETAILS
CODE: 85011.241029
COLOUR: 900 Black
SIZES: O/S
NORTH MY24 AIR FRESHENER PACK
ORDER DETAILS
CODE: 8501.251020
COLOUR: 999 Multiple Colour
SIZES: O/S
NORTH WORDMARK PROMO STICKER SMALL
ORDER DETAILS
CODE: 85011.241039
COLOUR: 900 Black
SIZES: O/S
NORTH WORDMARK PROMO STICKER LARGE
ORDER DETAILS
CODE: 85011.241040
COLOUR: 900 Black
SIZES: O/S
NORTH LOGO PROMO STICKER
ORDER DETAILS
CODE: 85011.241038
COLOUR: 900 Black
SIZES: O/S
NORTH DEALER STICKER
ORDER DETAILS
CODE: 85011.241070
COLOUR: 900 Black
SIZES: O/S
NORTH WORDMARK FLOOR STICKER
DETAILS CODE: 85011.241065
COLOUR: 900 Black
SIZES: O/S
NORTH MY24 STICKER PACK
ORDER DETAILS
CODE: 85011.241071
COLOUR: 999 Multiple Colour
NORTH LOGO CUT OUT STICKER
ORDER DETAILS
CODE: 85011.241074
COLOUR: 900 Black / 198 Silver
NORTH WORDMARK CUT OUT STICKER SMALL
ORDER DETAILS
CODE: 85011.241072
COLOUR: 900 Black / 198 Silver
SIZES: O/S
SIZES: O/S ORDER DETAILS
NORTH WORDMARK CUT OUT STICKER LARGE
CODE: 85011.241073
COLOUR: 900 Black / 198 Silver
SIZES: O/S
NORTH WORDMARK VEHICLE STICKER LARGE
CODE: 85011.241075
COLOUR: 900 Black / 198 Silver
SIZES: O/S
NORTH WORDMARK VEHICLE STICKER X-LARGE
SIZES: O/S ORDER DETAILS
CODE: 85011.241076
COLOUR:
SIZES: O/S
NORTH LOGO VEHICLE STICKER LARGE
NORTH LOGO VEHICLE STICKER X-LARGE
ORDER DETAILS
CODE: 85011.241078
COLOUR: 900 Black / 198 Silver
SIZES: O/S
NORTH DOORMAT
ORDER DETAILS
CODE: 85011.241017
COLOUR: 900 Black
SIZES: O/S
NORTH RETAILER PACK
ORDER DETAILS
CODE: 85011.241500
COLOUR: 999 Multiple Colour
NORTH SHELF LOGO
ORDER DETAILS
CODE: 85011.241035
COLOUR: 900 Black
SIZES: O/S
NORTH PERSPEX SHELF TALKER
Set of 2
ORDER DETAILS
CODE: 85011.241036
COLOUR: 999 Multiple Colour
SIZES: O/S *Shelf Talker cards available online for download
Accessory for Waist Board Belt, Spare Part for Waist Wing Belt
Includes Harness Hook
Compatible with all Wings and Parawings Recommended with North Stash Belt Harness
Includes complete Bridle Set (Left + right) 2020-2023 Bridle Sets available online
Includes 1x Replacement Bridle Set
ROUND BATTENS
ORDER DETAILS
CODE: 85015.230050
COLOUR: 100 White
SIZES: 25cm
HYPERFLOW INFLATION VALVE
ORDER DETAILS
CODE: 85006.220195 (SINGLE))
COLOUR: 900 Black SIZES: O/S
ORDER DETAILS
CODE: 85006.220095 (SET OF 10)
COLOUR: 900 Black SIZES: O/S
HYPERFLOW INFLATION VALVE RING SEAL PACK
Set of 25 Single / Set of 10 Set of 3
ORDER DETAILS
CODE: 85006.250270
COLOUR: 999 Multiple Colour
SIZES: O/S
HYPERFLOW INFLATION VALVE BASE
Set of 10
ORDER DETAILS
CODE: 85006.200016
COLOUR: 902 Black Sand SIZES: O/S
HYPERFLOW INFLATION VALVE COVER
ORDER DETAILS
CODE:
85006.240052
COLOUR: 900 Black SIZES: O/S
HYPERFLOW SNAP CLIPS
ORDER DETAILS
CODE: 85006.200099
COLOUR: 902 Black Sand
SIZES: O/S
HYPERFLOW PINCH CLAMP
Set of 10 Set of 5
ORDER DETAILS
CODE: 85006.240054
COLOUR: 900 Black
SIZES: O/S
HYPERFLOW PINCH CLAMP COVER
Set of 5
ORDER DETAILS
CODE: 85006.240055
COLOUR: 900 Black
SIZES: O/S
WING PARTS
SHIFTLOCK CARBON HANDLE / BOOM
ORDER DETAILS
CODE: 85015.240106
COLOUR: 900 Black
SIZES: 250mm, 400mm, 500mm, 950mm, 1100mm
SHIFTLOCK REPLACEMENT CLAMPS
ORDER DETAILS
CODE: 85015.240108
COLOUR: 900 Black
SIZES: M
GRIPLOCK CARBON WING HANDLE
ORDER DETAILS
CODE: 85015.230105
COLOUR: 900 Black
SIZES: 400mm, 500mm
GRIPLOCK WING HANDLE
ORDER DETAILS
CODE: 85015.220101
COLOUR: 900 Black
SIZES: 400mm, 500mm*
GRIPLOCK CARBON BOOM
ORDER DETAILS
CODE: 85015.250280
COLOUR: 999 Multiple Colour
SIZES: 950mm, 1100mm
WING HANDLE SCREW PACK
ORDER DETAILS
CODE: 85015.220102
COLOUR: 900 Black
SIZES: O/S
GRIPLOCK BRIDGE BOOM
ORDER DETAILS
CODE: 85015.240083
COLOUR: 900 Black
SHIFTLOCK REPLACEMENT SCREWS
SIZES: O/S ORDER DETAILS
GRIPLOCK HANDLE BUMPER
ORDER DETAILS
CODE: 85015.240110
COLOUR: 800 Grey
SIZES: O/S
RANGER PARAWING CONTROL BAR
ORDER DETAILS
CODE: 85006.260270
COLOUR: 999 Multiple Colour
SIZES: O/S
CODE: 85015.240109
COLOUR: 900 Black
DETAILS
Carbon Handle, 4x Clamps, 2x T40 M6x23mm Screws
to Wing Compatilbility
DETAILS
Carbon Wing Handle, Screws sold separately
to Wing Compatilbility
to Wing Compatilbility PRODUCT DETAILS
GripLock Wing Handle, Screws sold separately
DETAILS 1x GripLock Carbon Boom, Screws sold separately
DETAILS
Carbon Tube (cut to required length)
DETAILS
Replacement Control Bar
WING HANDLE COMPATIBILITY
SHIFTLOCK CARBON HANDLES / BOOM
NOTE: 250mm Handles can be used on any wing with any front/rear handle combination.
400mm J-Handles can be used in place of any front handle. A 3.5m wing is compatible with an 1100 Boom, however, only the 950 Boom can be combined with the ShiftLock Action Camera Mount. The 2.9m Nova Pro is compatible with only the 950 Boom or 2x Handles - the 1100 Boom will not fit on the Track. ShiftLock Handles are not compatible with GripLock.
GRIPLOCK HANDLES / CARBON BOOM
2025 NOVA / MODE ULTRA
N-WEAVE45 REPAIR MATERIAL
ORDER DETAILS CODE: 85015.240124
COLOUR: 100 White
SIZES: 2m x 1.42m
N-WEAVE REPAIR MATERIAL
ORDER DETAILS CODE: 85015.230124
COLOUR: 100 White
SIZES: 2m x 1.42m
WING DACRON REPAIR MATERIAL
ORDER DETAILS CODE: 85015.240125
COLOUR: 900 Black
SIZES: 2m x 1.42m
N-XI CANOPY REPAIR MATERIAL
ORDER DETAILS CODE: 85015.250130
COLOUR: 999 Multiple Colour SIZES: 3m x 1.5m
MATRIX CANOPY REPAIR MATERIAL
ORDER DETAILS CODE: 85015.240123
COLOUR: 100 White SIZES: 3m x 1.5m
N-X6 CANOPY MATERIAL
ORDER DETAILS CODE: 85015.240130
COLOUR: 900 Black
SIZES: 3m x 1.5m
CANOPY REPAIR MATERIAL
ORDER DETAILS CODE: 85006.230117
COLOUR: 100 White / 218 Sunset Yellow / 310 Rubine Red / 475 Pacific Blue
SIZES: 3m x 1.5m
CANOPY REPAIR MATERIAL
ORDER DETAILS CODE: 85006.220117
COLOUR: 306 Red Sea / 629 Marine Green / 475 Pacific Blue
SIZES: 3m x 1.5m
PARAWING CANOPY REPAIR MATERIAL
ORDER DETAILS CODE: 85006.260275
COLOUR: 999 Multiple Colour
SIZES: 1.9m x 2m
2020-2022 Repair Materials available online
MATERIALS
*Nova, 2023
To find the correct Bladder Size for your Wing, refer to the Bladder Compatibility Chart on Page 286-287
SIZES: O/S Compatible with Seek Air Compatible with the Scoop Mini
ORDER DETAILS
CODE: 85009.220134
COLOUR: 900 Black
SIZES: O/S
DROPBOX 30MM SCREW PACK
ORDER DETAILS
CODE:
85009.200133
COLOUR: 902 Black Sand
SIZES: O/S
SENSE FOILBOARD SCREW PACK
ORDER DETAILS
CODE: 85009.200088
COLOUR: 902 Black Sand
SIZES: O/S
SONAR BOARD ADAPTOR SCREW PACK A
ORDER DETAILS
CODE: 85009.200135
COLOUR: 902 Black Sand
SIZES: O/S
SONAR FUSELAGE SCREW PACK B
ORDER DETAILS
CODE: 85009.200136
COLOUR: 902 Black Sand SIZES: O/S
SONAR FUSELAGE SCREW PACK B2
ORDER DETAILS
CODE: 85009.240145
COLOUR: 900 Black
SIZES: O/S
COLOUR: 900 Black SIZES: O/S
FUSELAGE SCREW PACK B3
SONAR STABILIZER SCREW PACK C
ORDER DETAILS
CODE:
85009.200137
COLOUR: 902 Black Sand
SIZES: O/S
SONAR WING SCREW PACK D (M8X25)
ORDER DETAILS
CODE: 85009.200138
COLOUR: 902 Black Sand
SIZES: O/S
SONAR WING SCREW PACK E (M8X33)
ORDER DETAILS
CODE: 85009.200139
COLOUR: 902 Black Sand SIZES: O/S
SONAR WING SCREW PACK F (M8X30)
ORDER DETAILS
CODE: 85009.200141
COLOUR: 902 Black Sand
O/S
SONAR WING SCREW PACK G (M8X35)
ORDER DETAILS
CODE: 85009.210142
COLOUR: 900 Black
SIZES: O/S
SONAR SCREW PACK H (M8X23)
ORDER DETAILS
CODE: 85009.230143
COLOUR: 900 Black
SIZES: O/S
SONAR WING SCREW PACK I (M8X40)
ORDER DETAILS
CODE: 85009.240165
COLOUR: 900 Black
SIZES: O/S
SONAR T40 MICRO TOOL
ORDER DETAILS
CODE: 85009.240170
COLOUR: 900 Black
SIZES: O/S
NORTH MULTITOOL DRIVER BITS
ORDER DETAILS
CODE: 85009.240162
COLOUR: 909 Steel Grey
SIZES: PH3, T40 Set of 5
BOARD & BINDING PARTS
FREE STRAP SELF-TAPPING SCREWS
Set of 5
ORDER DETAILS
CODE:
85008.240112
COLOUR: 909 Steel Grey
SIZES: O/S
FREE STRAP M6 SCREWS (SENSE)
ORDER DETAILS
CODE:
85008.240110
COLOUR: 900 Black
SIZES: O/S
SEEK AIR STRAP SCREW PACK
ORDER DETAILS
CODE:
85008.230053
COLOUR: 900 Black
SIZES: O/S
FREE FOIL STRAP WASHERS
ORDER DETAILS
CODE:
85008.240115
COLOUR: 900 Black
SIZES: O/S
FREE-V FOIL STRAP WASHERS
ORDER DETAILS
CODE:
85008.240120
COLOUR: 900 Black
SIZES: O/S
FREE-LO STRAP WASHERS
ORDER DETAILS
CODE:
85008.230121
COLOUR: 900 Black
SIZES: O/S
FOILBOARD RAIL TAPE
ORDER DETAILS
CODE: 85008.230074
COLOUR: 999 Multiple Colour
SIZES: O/S
ORDER DETAILS
CODE: 85009.230136
COLOUR: 900 Black
SIZES: O/S
ORDER DETAILS
CODE: 85007.240065
COLOUR: 999 Multiple
SIZES: O/S
ORDER DETAILS
CODE: 85008.230050
COLOUR: 900 Black
SIZES: O/S
ORDER DETAILS
CODE: 85008.230051
COLOUR: 196 Titanium
SIZES: O/S
ORDER DETAILS
CODE:
85008.230052
COLOUR: 800 Grey
SIZES: O/S
ORDER DETAILS
CODE: 85008.210072
COLOUR: 800 Grey
SIZES: O/S
Goretex™ Valve for Seek and Swell Foilboards
2026 Range Overview
Sonar
UHM Carbon Mast
Nova
Scoop Mini
Vector Sense Boost
Midi
Seek Air
Sonar Foils Overview
Sonar MA1500v2
CODE: 85004.240092
Sonar MA1500v2 PRIME
CODE: 85004.250200
Sonar SF830
CODE: 85004.240096
Sonar DW820
CODE: 85004.250136
Sonar HA550
CODE: 85004.230100
Sonar HA1150
CODE: 85004.230106
Sonar S145
CODE: 85004.250139
Sonar S238
CODE: 85004.240098
Sonar MA1850v2
CODE: 85004.240087
Sonar MA1850v2 PRIME
CODE: 85004.240100
Sonar SF930
CODE: 85004.230091
Sonar DW900
CODE: 85004.240074
Sonar HA650
CODE: 85004.230101
Sonar HA1250
CODE: 85004.230107
Sonar S185
CODE: 85004.240097
Sonar MA2100v2
CODE: 85004.240088
Sonar MA2100v2 PRIME
CODE: 85004.240101
Sonar SF1080
CODE: 85004.230092
Sonar DW1100
CODE: 85004.240075
Sonar HA750
CODE: 85004.230102
Sonar HA1450
CODE: 85004.230108
Sonar S215
CODE: 85004.230096
Sonar S208
CODE: 85004.230094
Sonar S178
CODE: 85004.230095
Sonar MA2400v2 PRIME
CODE: 85004.240093
Sonar SF1230
CODE: 85004.230093
Sonar SF530
CODE: 85004.250132
Sonar DW1400
CODE: 85004.240076
Sonar HA850
CODE: 85004.230103
Sonar S210
CODE: 85004.220090
Sonar S122
CODE: 85004.250137
S158v2
CODE: 85004.250138
Sonar DW690
CODE: 85004.250135
Sonar P1800
CODE: 85004.240072
Sonar HA950
CODE: 85004.230104
Sonar S320
CODE: 85004.220092
Sonar S142
CODE: 85004.240099
CODE: 85010.210085
Sonar SF680
CODE: 85004.240095
Sonar DW750
CODE: 85004.240069
Sonar P2050
CODE: 85004.240073
Sonar HA1050
CODE: 85004.230105
Sonar S192
CODE: 85004.240102
CODE: 85010.210086
SIZES: A600, A700
SIZES: C600, C650, C700
Foiling Simplified
Need help choosing your Sonar Foil setup? Our Sonar Rider Guide makes it simple.
Your Sonar Foil set up comprises an Edition (Mast, Fuselage and Stabilizer) plus a Front Wing.
The system is fully modular - which means all the parts are compatible. So you can choose a different combination to suit your foil discipline and rider ability.
For help building your perfect foil quiver, view our Sonar Rider Guide here.
SONAR RIDER GUIDE
SCAN HERE FOR DOWNLOADABLE PDF
Credits
Production
North
Graphic
Monique
Copywriting
Victoria
Additional
All product specifications and appearances are subject to change. All artwork, styling and design by North Actionsports Group B.V. Published by North Actionsports. All rights reserved. No parts of this publication may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopy, recording or any information storage and retrieval system without permission in writing from North Actionsports Group, Lageweg 34, 2222AG Katwijk, The Netherlands. marketing@northasg.com
