Precision hardware solutions, engineered for performance and built to last.
Developed through a long-standing partnership, Nikpol’s DTC range combines refined design with dependable functionality. From drawer systems to sliding and hinge solutions, each product is engineered for smooth operation, durability and consistent performance, trusted across residential and commercial applications.
Every product in the DTC range is backed by a Limited Lifetime Warranty. Scan the QR code to learn more.
drawer systems
Drawer Systems

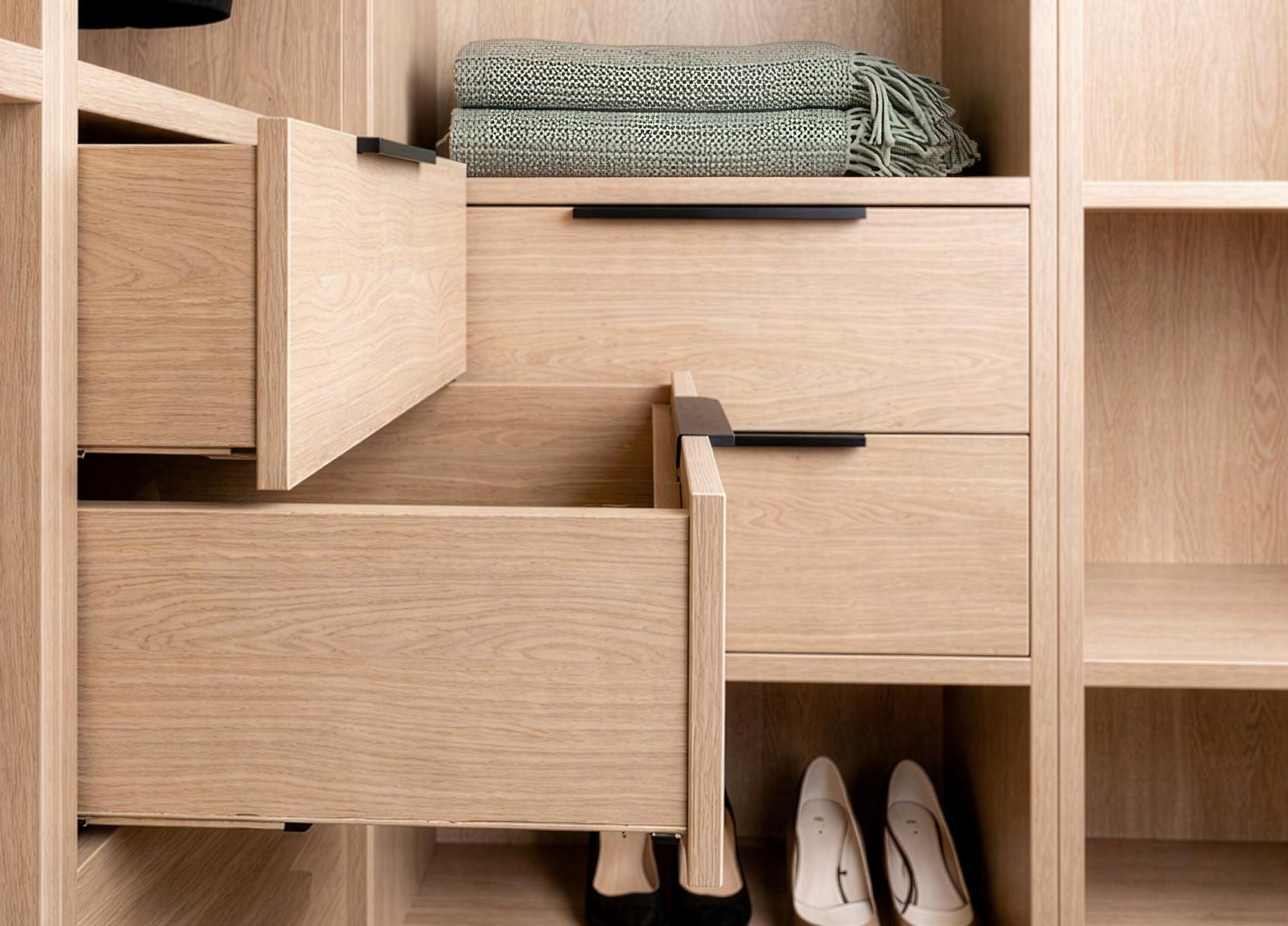

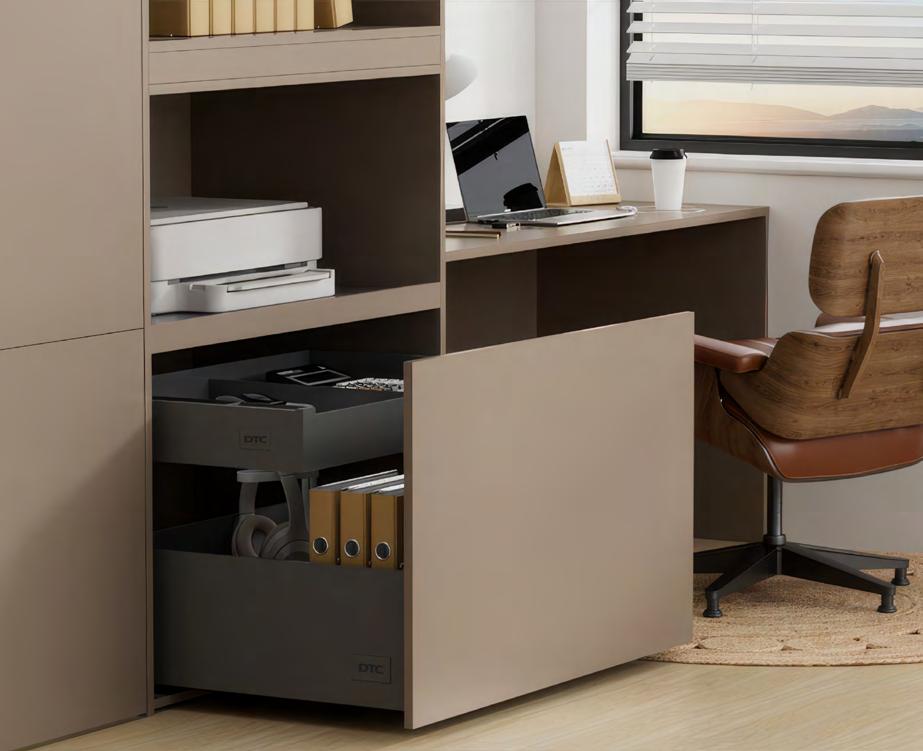

Transform your home or office spaces with our versatile drawer systems and runners, combining superior functionality with refined design for the perfect blend of quality and sophistication.
Drawer Systems:
Dragonpro
Titanium X
EE Smooth
Drawer Runners:
Drawer Systems & Runners Specifications

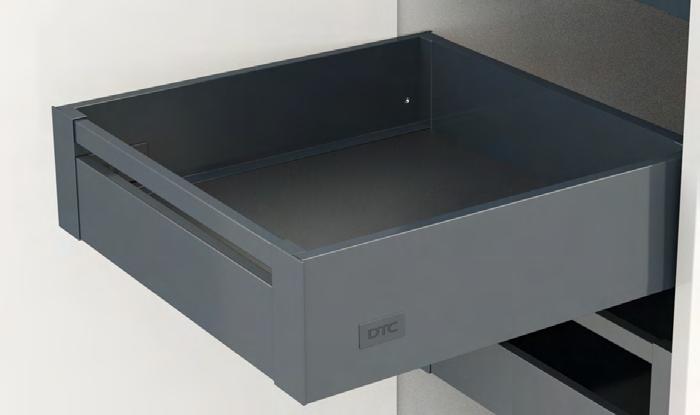

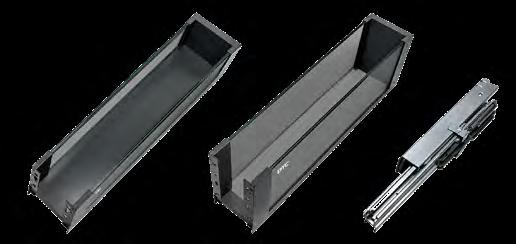

dragon pro

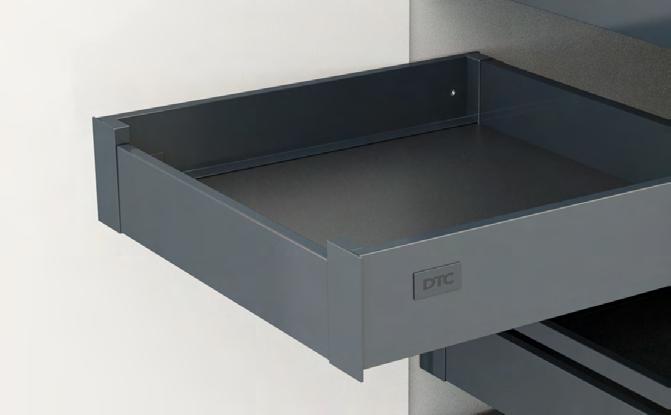

Dragon Pro

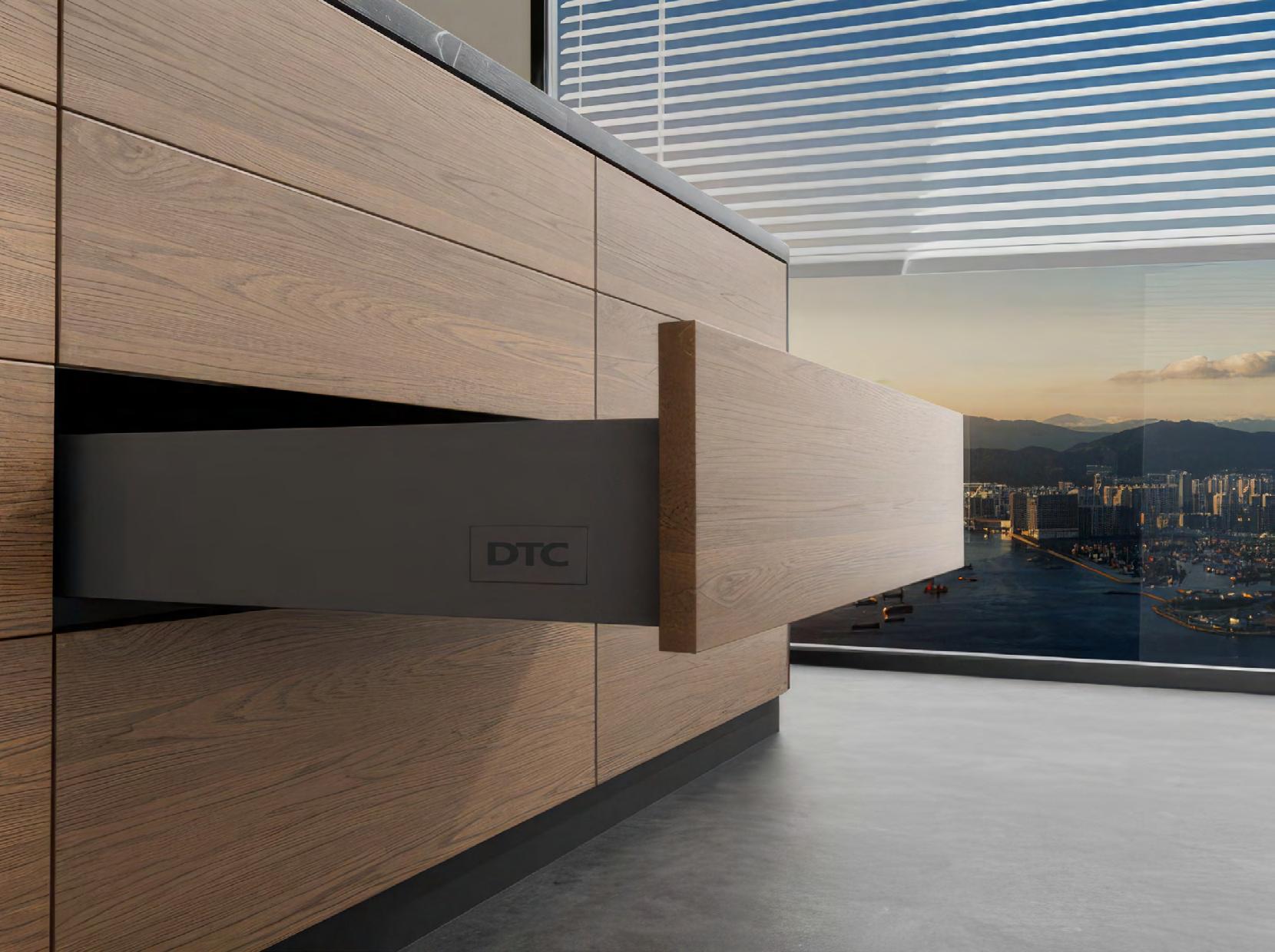

DTC Dragon Pro is a slimline drawer system offered in six heights and three finishes, whose clean double‑wall profile deliver space‑saving practicality and modern style.
Specifications:
Load capacity: 40kg
Colour: Silk White, Matt Black & Matt Grey
Extension: Full extension synchronised drawer
Close: Soft close drawer system
Adjustment (Up/Down): ± 2 mm
Adjustment (Left/Right): ± 1.5 mm
Adjustment (Tilt): 4 mm
Ease-of-use: Easy slide in and click back brackets
No gallery rail: Thin line 13mm profile looks modern and saves drawer space
Option: Push to open available with depth adjustment of ± 3 mm
*Synchronisation Rod HBGG0FH01 is recommended for Push to Open mechanism to work properly.
dragon pro accessories
Dragon Pro
A complete range of accessories and fixing components designed to support seamless installation, precise drawer alignment, and reliable long term performance. Engineered to integrate effortlessly with the system, ensuring consistency across every application.

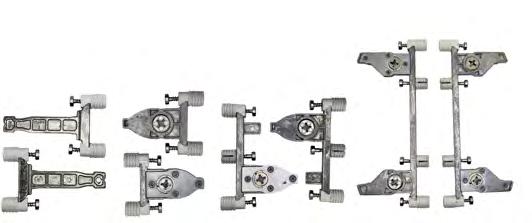

Front Marking Jigs & Brackets:
Front Fix Expanding Dowel Set
Code Size
B0101B 80mm high
HBE1101BX 95mm high
HBE1201BX 127mm high
HBE1301BX 178/209/238mm high
Marking Jig
Code Size
B0101A 80mm high
HBE1101AX 95mm high
HBE1201AX 127mm high
HBE1301AX 178/209/238mm high

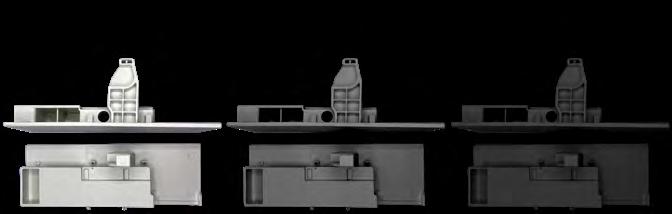

Inner Drawer Accessories:

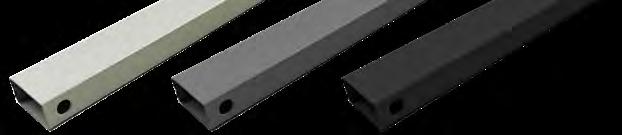

Inner Drawer Front Rail
Code Size Colour
M01078 1100mm White
M01078MB 1100mm Matt Black
M01078MG 1100mm Matt Grey
Front Panel 1100mm
Code Size Colour
B01021 1100mm White
B01021MB 1100mm Matt Black
B01021MG 1100mm Matt Grey

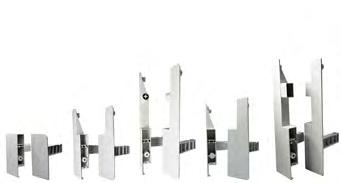

Inner Drawer Front Bracket Set
Code Size Colour
HB01012X 95mm White
HB02012X 127mm White
HB03012X 178mm White
HB05012X 209mm White
HB04012X 238mm White
HB01012XMB 95mm Matt Black
HB02012XMB 127mm Matt Black
HB03012XMB 178mm Matt Black
HB05012XMB 209mm Matt Black
HB04012XMB 238mm Matt Black
HB01012XMG 95mm Matt Grey
HB02012XMG 127mm Matt Grey
HB03012XMG 178mm Matt Grey
HB05012XMG 209mm Matt Grey
HB04012XMG 238mm Matt Grey
Other Accessories:
Code Colour
B01081 White
Code Specification

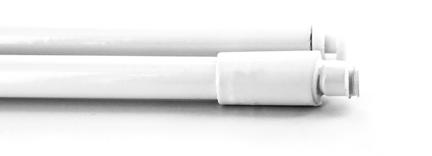

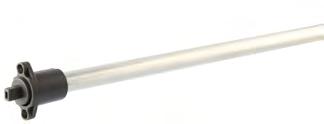

HBGG0FH01 PTO rod 1100mm w/ end pins
HBGGTB01 PTO rod end pin only
Extra Cover Caps
Code Size
HBEJS01X Inside all drawers white
HBJS02X Outside all drawers white
HBEJS01XMB Inside all drawers black
HBJS02XMB Outside all drawers black
HBEJS01XMG Inside all drawers matt grey
HBJS02XMG Outside all drawers matt grey
HBEJS02X BLANK Inside all drawers white no logo
HBJS04X BLANK Outside all drawers white no logo

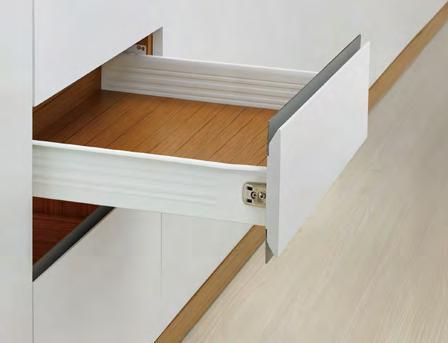

ee smooth drawer

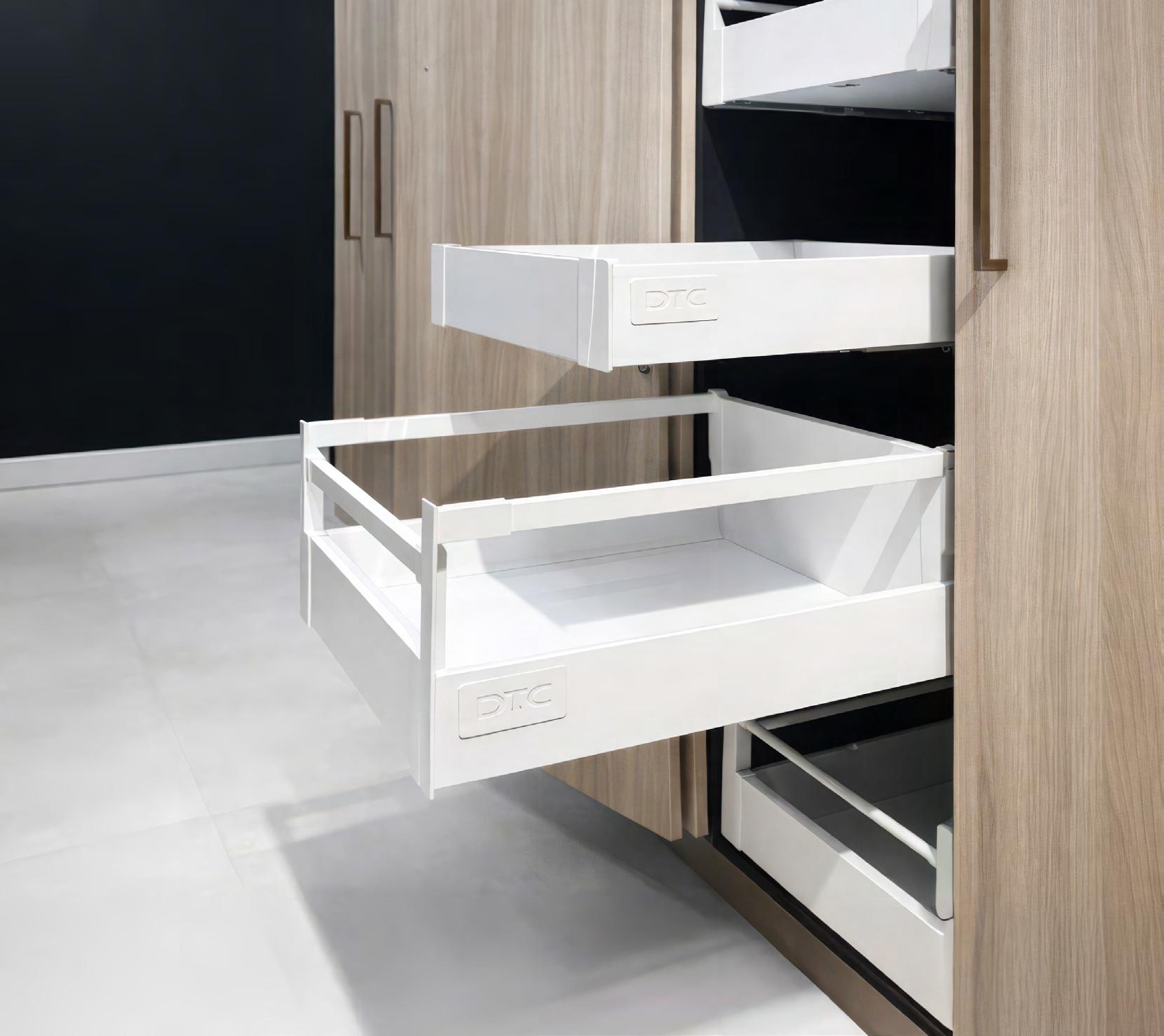

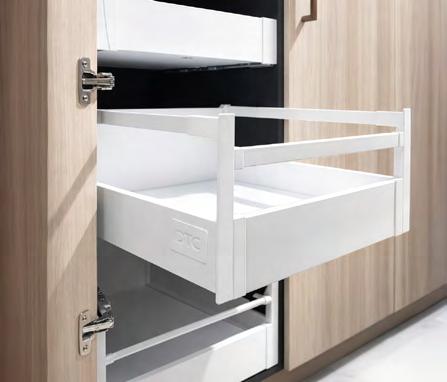

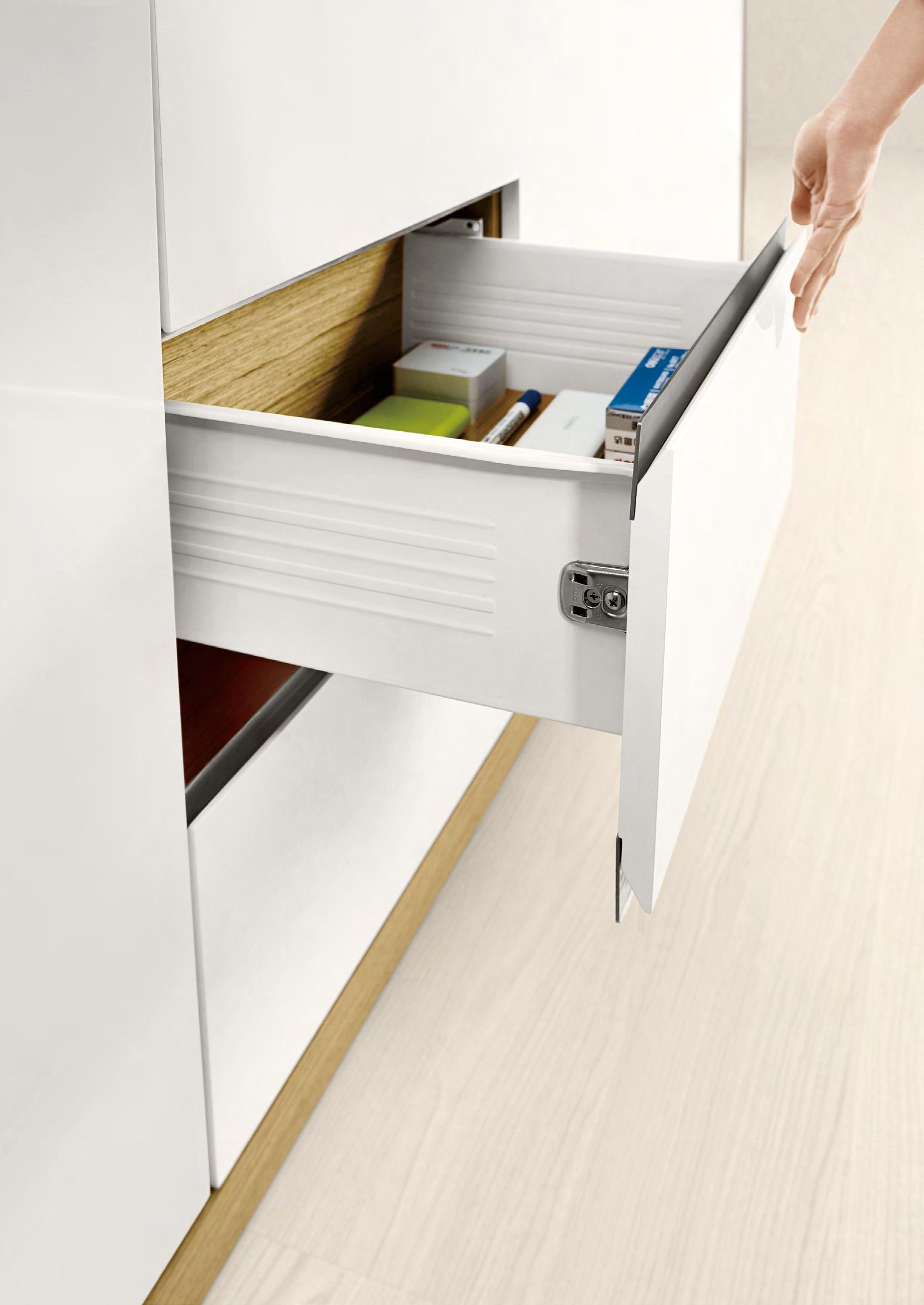

EE smooth drawer
Characterised by smooth movement, easy opening and a gentle closing action, the EE Smooth drawer system is reliable, high quality and value for money solution for soft close drawer applications.
Specifications:
Finish: White
Load capacity: 40kg
Benefit: Optimal soft closing operation
Extention: Full extension synchronised drawer
Ease-of-use: Tool free removal of drawer from the runner
Type: Double wall drawer
Adjustment (Up/Down): ± 2 mm
Adjustment (Left/Right): ± 1.5 mm
Option: Push to open available
EE Smooth Drawer:
Set A Comes complete drawer with expanding dowel front brackets.
Set B Set A (83mm) plus knock in square gallery rails & medium back brackets.
Set D Set A (83mm) plus knock in square gallery rails & high back brackets.
*Synchronisation Rod (M0FH02) is needed for Push to Open drawers with width of 600mm or wider for mechanism to work.
Accessories:
White Knock-In Round Gallery Rail Set
Code Size
EE01041350 350mm
EE01041400 400mm
EE01041450 450mm
EE01041500 500mm
EE01041550 550mm

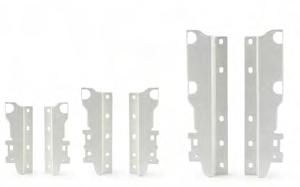

Rear Variable Brackets
White Knock-In Square Gallery Rail Set
Code Size
EE0104S350 350mm
EE0104S400 400mm
EE0104S450 450mm
EE0104S500 500mm
EE0104S550 550mm
Rear Bracket Set Code
Rail Fixing Bracket Set
Code Specification MGH08 Screw on fixing bracket. Suits knock in gallery rails only.
Inset Front Bracket Set
Code
Caps
Front Fixing Bracket Set
Code
Front Universal Marking Jig Code
Sinks/Vanity Drawer Wall Code
Rod
Inset Drawer Handle
Code
titanium x

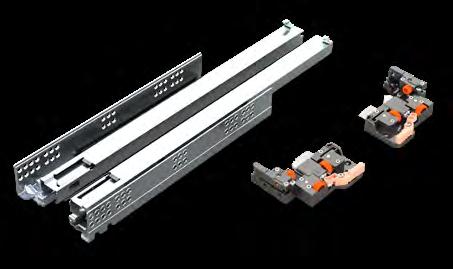

Titanium X

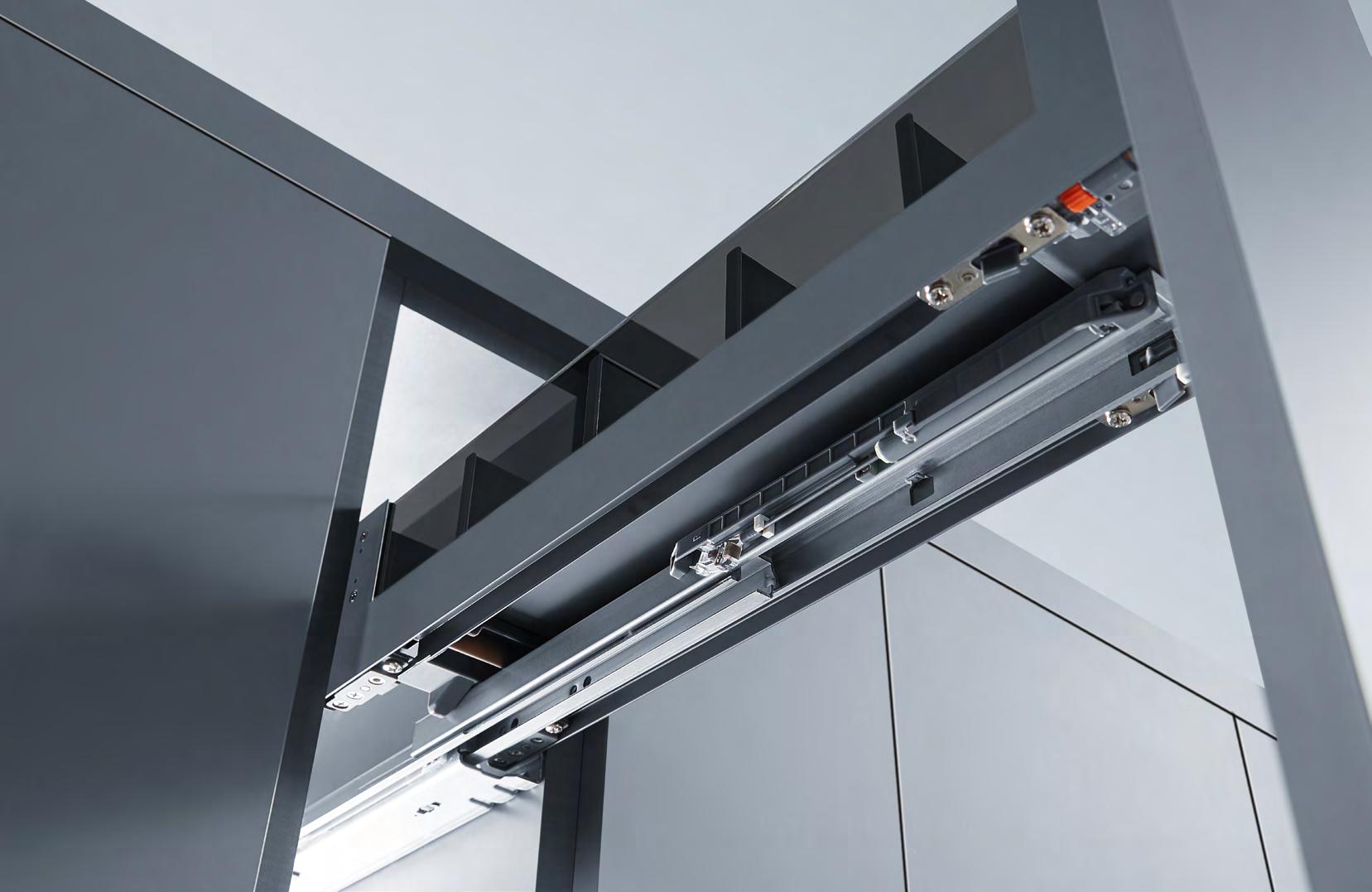

DTC’s TitaniumX drawer system simplifies assembly by eliminating construction of the drawer sides. Features a 30kg capacity, single extension, double stop positions, 2D adjustment, and self closing runners, with optional soft close.
Fully synchronised undermount system with 40kg capacity, delivering smooth, soft close operation. Featuring 3D adjustment for precise alignment and retrofitting, it enables custom drawer designs without rebates simplifying installation while maintaining a clean, seamless look.
Magic Move Systems:
Nominal Length
250mm
300mm
350mm
400mm
450mm
500mm
550mm
600mm
DTCTS10250H
DTCTS10300H
DTCTS10350H
DTCTS10400H
DTCTS10450H
DTCTS10500H
DTCTS10550H
DTCTS10600H
Magic Move Accessories:
Specifications:
Finish: Zinc plated Capacity: 40kg
Mounting: Bottom mounting Type: Full extension, fully synchronised runner, soft closing Benefit: Drawer system self locks once positioned on slide
Depth adjustment: ± 3mm
Includes: 3D front brackets with runners
Maximum drawer side thickness: 16mm
Magic Move Parts:
1. 2. 3.
drawer runners
Browse our range of DTC single extension, 7/8 extension and ball bearing full extension runners. Available in side mount and under mount, with built in soft close, non soft close or optional soft close adapter.
Economy Runners
An affordable and cost effective solution, economy runners can be enhanced with the optional DTCSYLENTR soft closing adapter for smoother, more controlled operation.

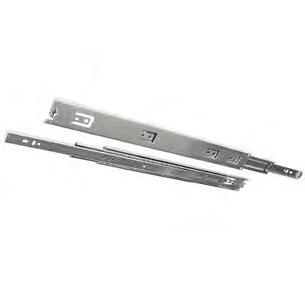

Ball Bearing B/M
High load capacity with easy runner removal, featuring steel ball bearing rollers for durability and smooth operation. Designed for System32 drilling for seamless cabinetry integration.
Ball Bearing S/M
High load capacity with easy runner removal, featuring steel ball bearing rollers for durability and smooth operation. Designed for System32 drilling for seamless cabinetry integration. Soft close and non soft close options.

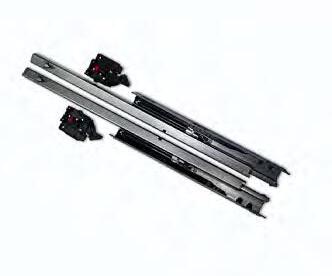

Soft close runners with 1D bracket, delivering smooth and consistent operation. The bracket enables the drawer system to self lock once positioned on the runner and enables height adjustment.

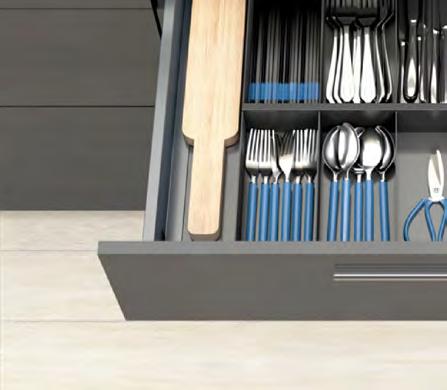

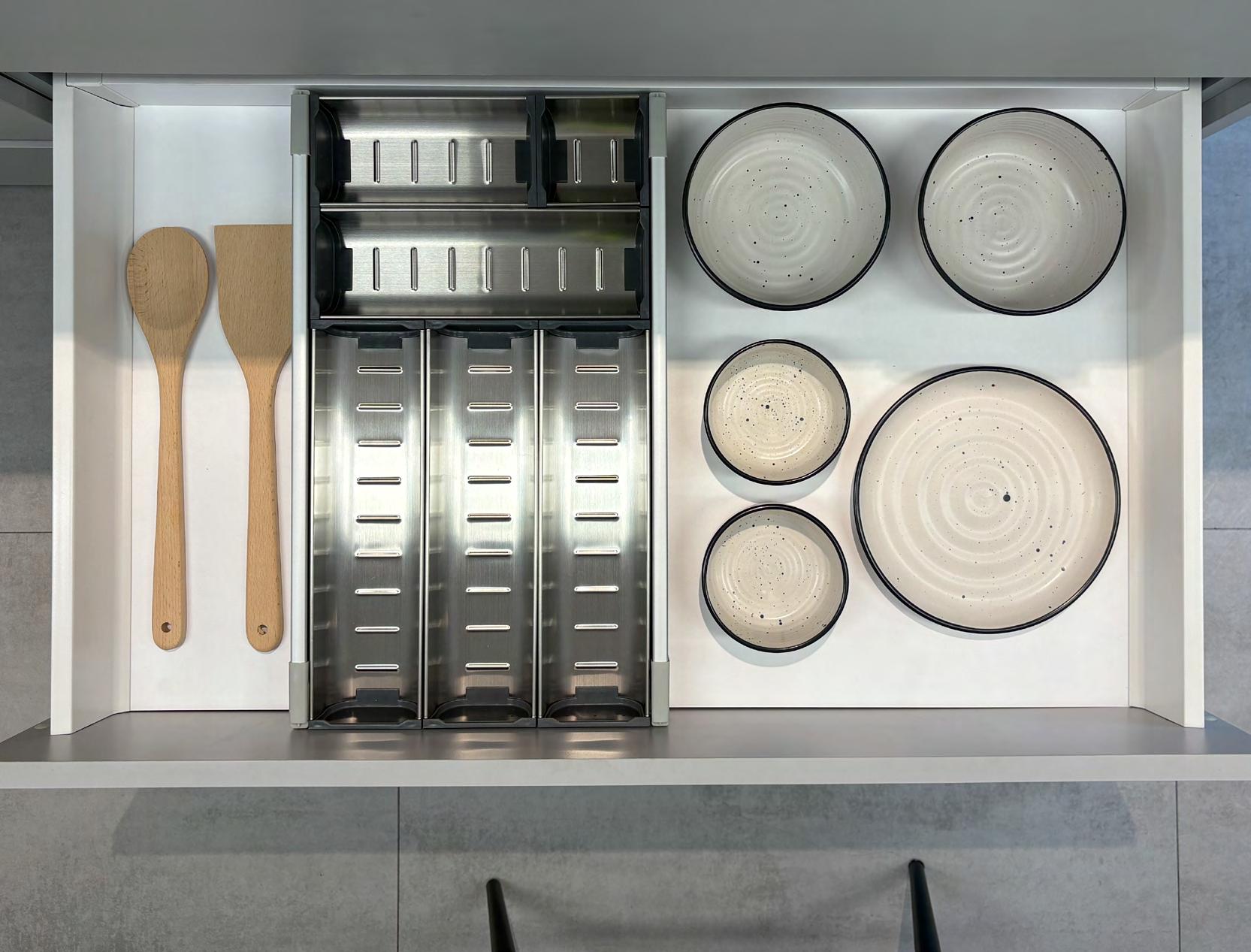

Our cutlery inserts provide a clean, practical solution for organising kitchen drawers, with modular configurations to suit a range of sizes. Designed for durability and flexibility, they maximise space while keeping utensils neatly arranged and easy to access.
Modular Cutlery Tray Set
Code Width Depth Height
DTCCUTLERY500 285mm 475mm 65mm
Configuration:
3 x (85 x 310mm), 1x (85 x 170mm), 1x (85 x 255mm), 1 x ( 85 x 85mm), 2 x spring loaded spacers*
Suits 500mm deep drawer.
*Keeps modules stable and adds another full length compartment where required.
Modular Cutlery Tray Set
Code Width Depth Height
DTCCUTLERY600 370mm 475mm 65mm
Configuration: 4 x (85 x 310mm), 2 x (85 x 255mm), 1 x (85 x 170mm), 2 x spring loaded spacers*
Suits 500mm deep drawer.
*Keeps modules stable and adds another full length compartment where required.
Modular Cutlery Tray Set
Code Width Depth Height
DTCCUTLERY700 460mm 475mm 65mm
Configuration: 5 x (85 x 310mm), 2 x (85 x 255mm), 2 x (85 x 170mm), 2 x spring loaded spacers*
Suits 500mm deep drawer.
*Keeps modules stable and adds another full length compartment where required.
Code Width Depth Height
DTCCUTDP500A01 356mm 473.5mm 55mm
7 Bay Cutlery Organiser
Code Width Depth Height
DTCCUTDP500A03 356mm 473.5mm 55mm

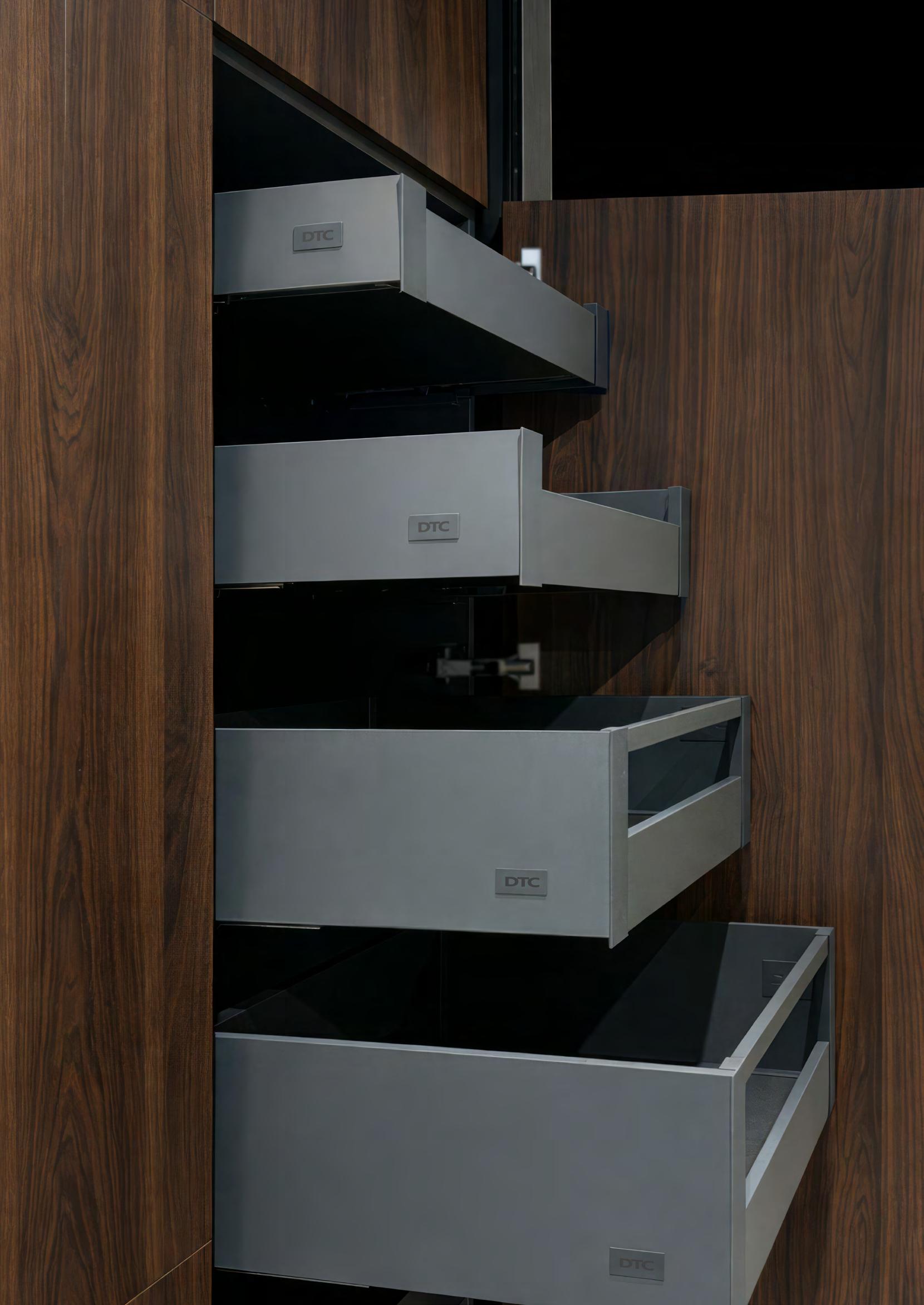

Featured: Dragon Pro 13mm thin line profile drawer in Matt Grey finish
Suits 500mm deep Dragon Pro drawer.
Suits 500mm deep Dragon Pro drawer.
4 Bay Cutlery Organiser
drawer dividers & insert

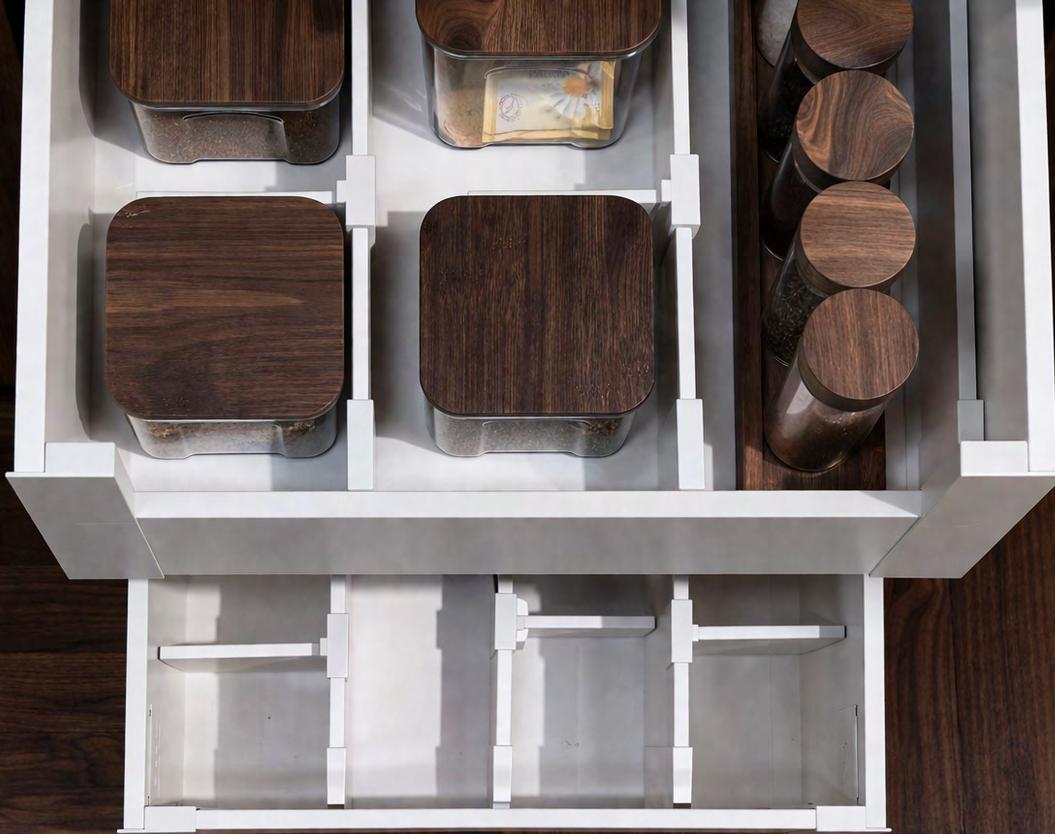

Our drawer dividers provides a flexible way to customise internal storage while the insert offers safe storage of valuable items. Designed to integrate seamlessly with drawer systems, they provide a clean, organised solution for both everyday and specialised storage needs.
Pro Low Cross Divider
Pro Low Cross Sectional Divider
Pro Low Cross Divider Connector
Pro High Cross Divider

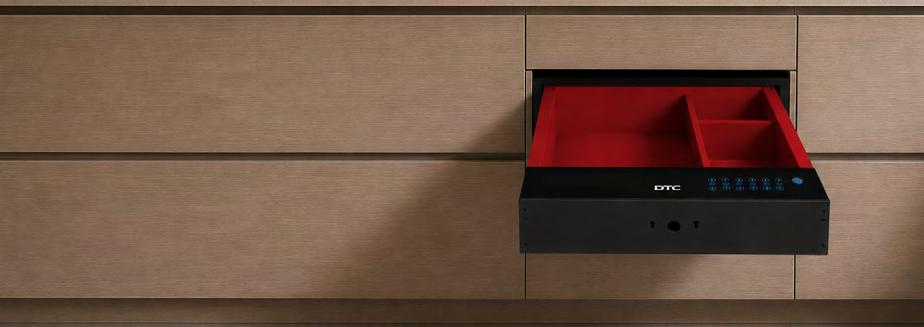

Drawer Safe
Code Suit DTCDRAWERSAFE
Featuring options for fingerprint or passcode unlock.
Pro High Cross Sectional Divider
Pro High Cross Divider Connector
Security
spice/bottle drawer

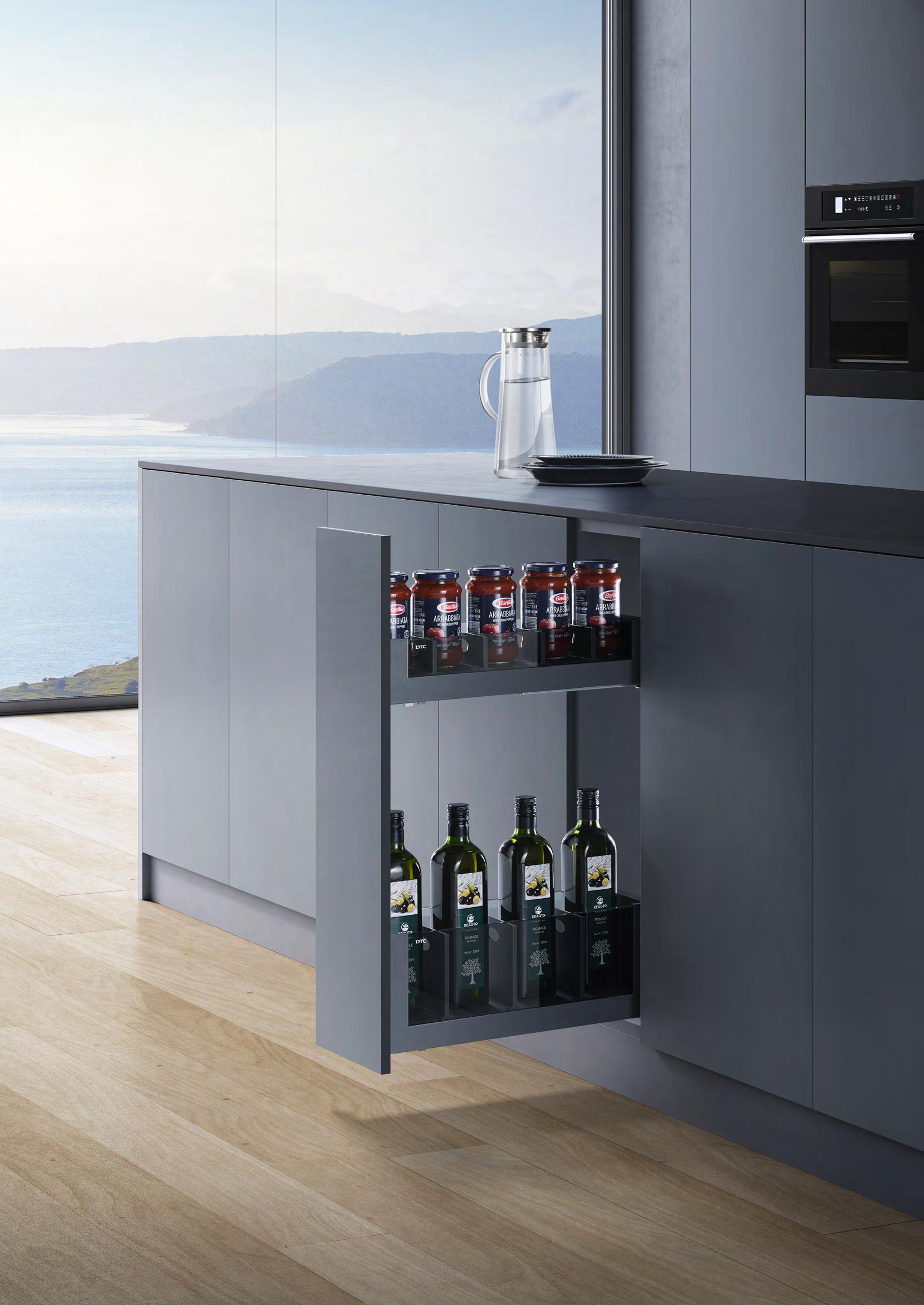

Spice/Bottle Drawer Specifications:
When a kitchen design requires a narrow cabinet to be placed, a narrow spice drawer configuration makes the most of the small space and optimises convenience and storage capacity.
Finish: Zinc plated runners
Capacity: 40kg
Type: Full extension, fully synchronised runner, soft closing Benefit: Drawer system self locks once positioned on slide.
Mounting: Bottom mounting
3-dimensional adjustment
Up/down adjustment: ± 2 mm
Left/right adjustment: ± 1.5 mm
Depth adjustment: + 1.5 mm to 2.5mm
Smooth, Silent Storage
Spice/Bottle drawer with concealed full extension runners, 40kg capacity and soft close for smooth, quiet operation. Features 3D adjustment (±2mm height, ±1.5mm side, +1.5/ 2.5mm tilt) in a sleek grey matt finish.
Pure Pro Spice / Bottle Drawer
Pure Pro Spice/Bottle Divider
* Set includes base and 4 dividers
pivot star hinge anyway snap‑on

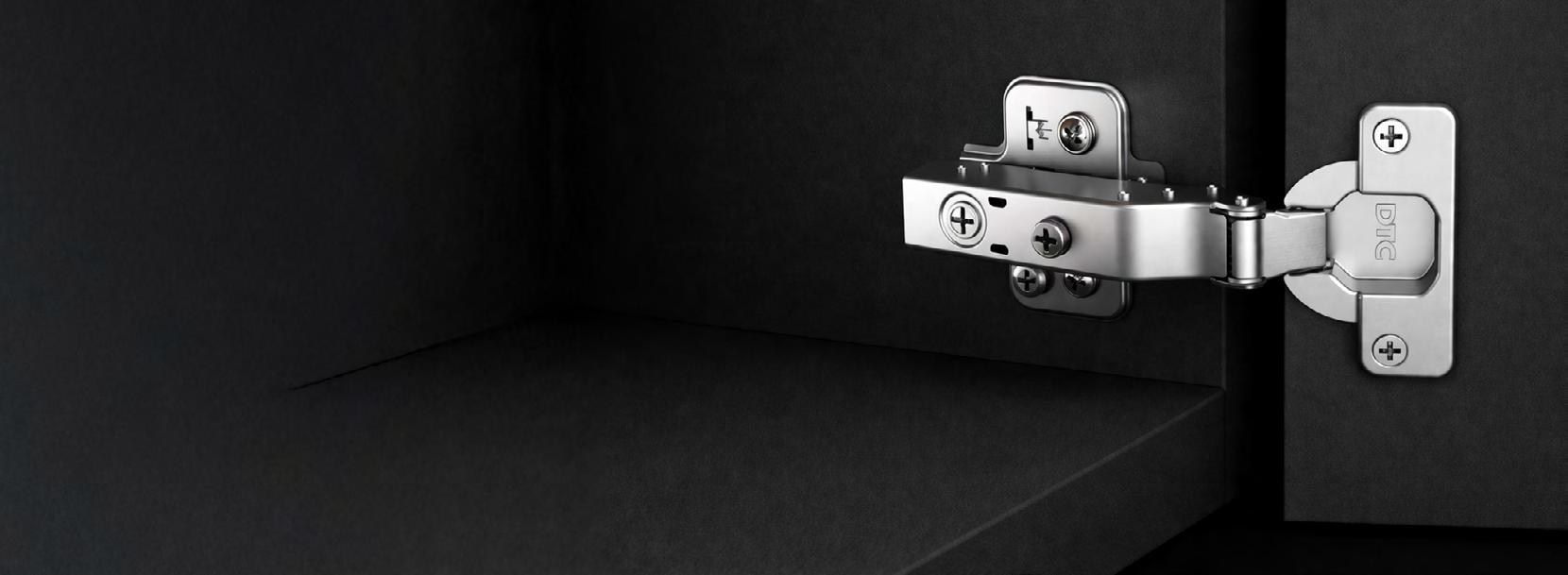

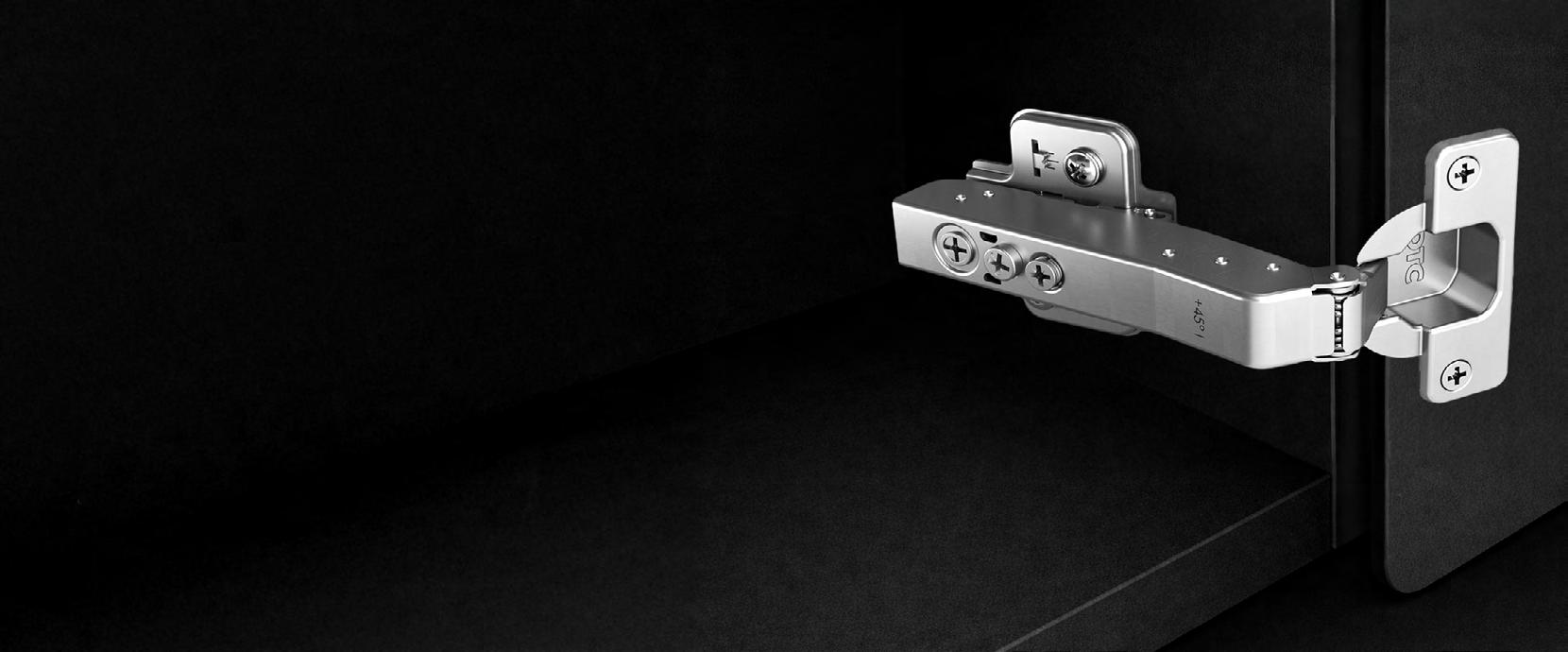

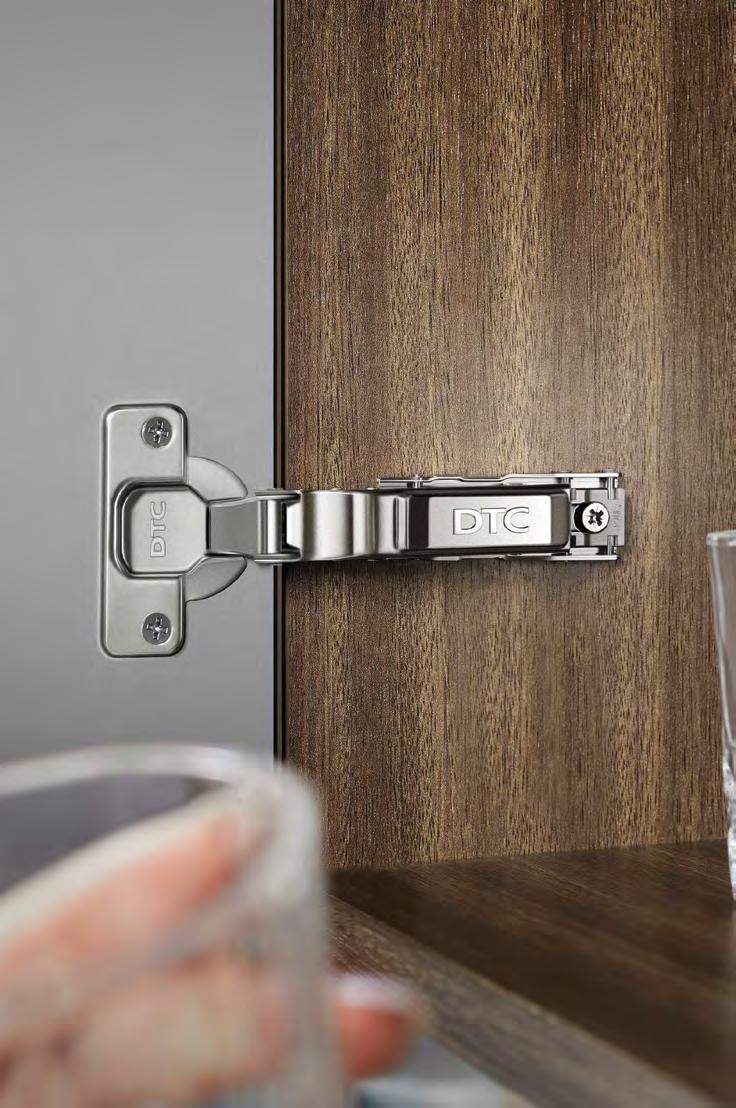

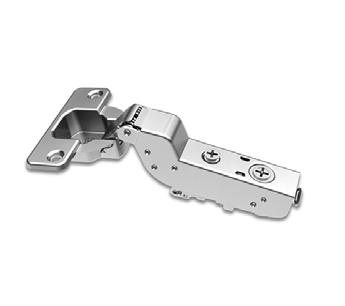

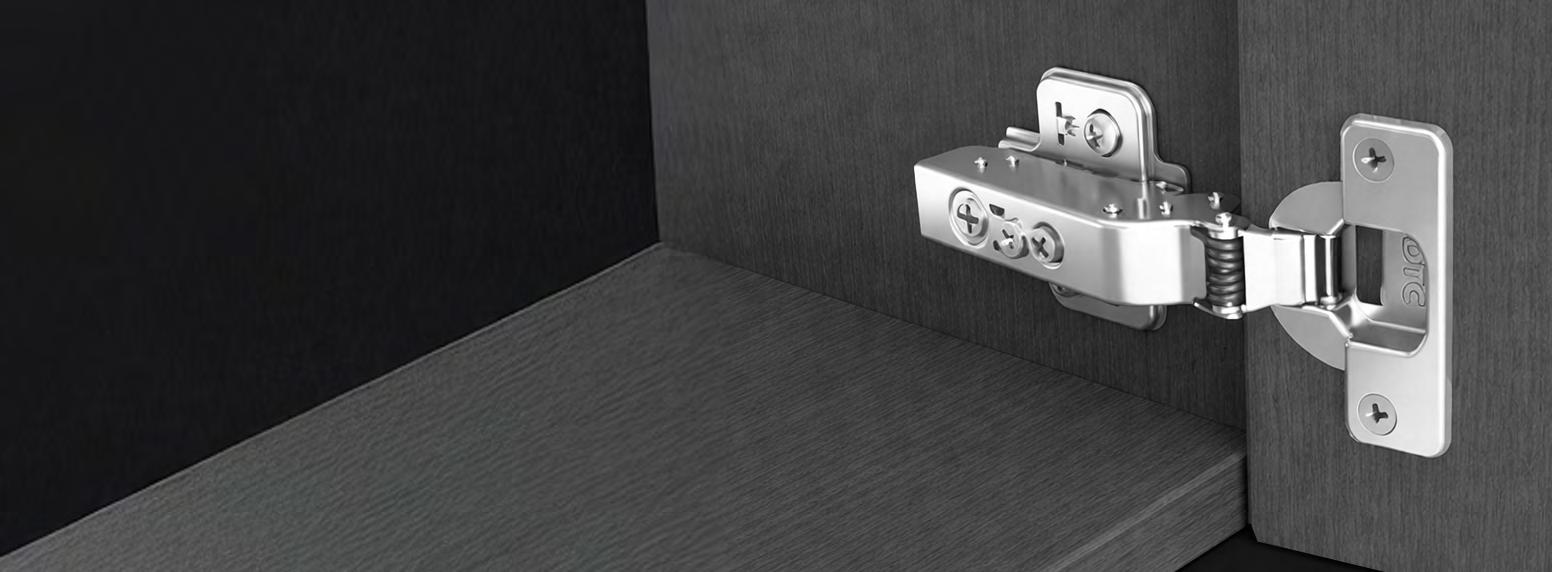

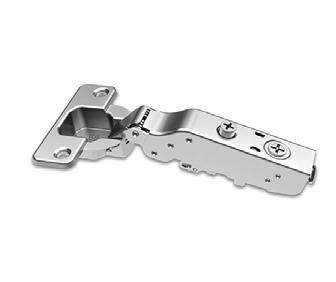

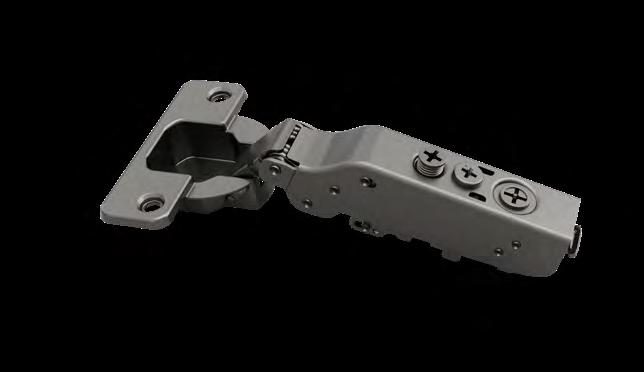

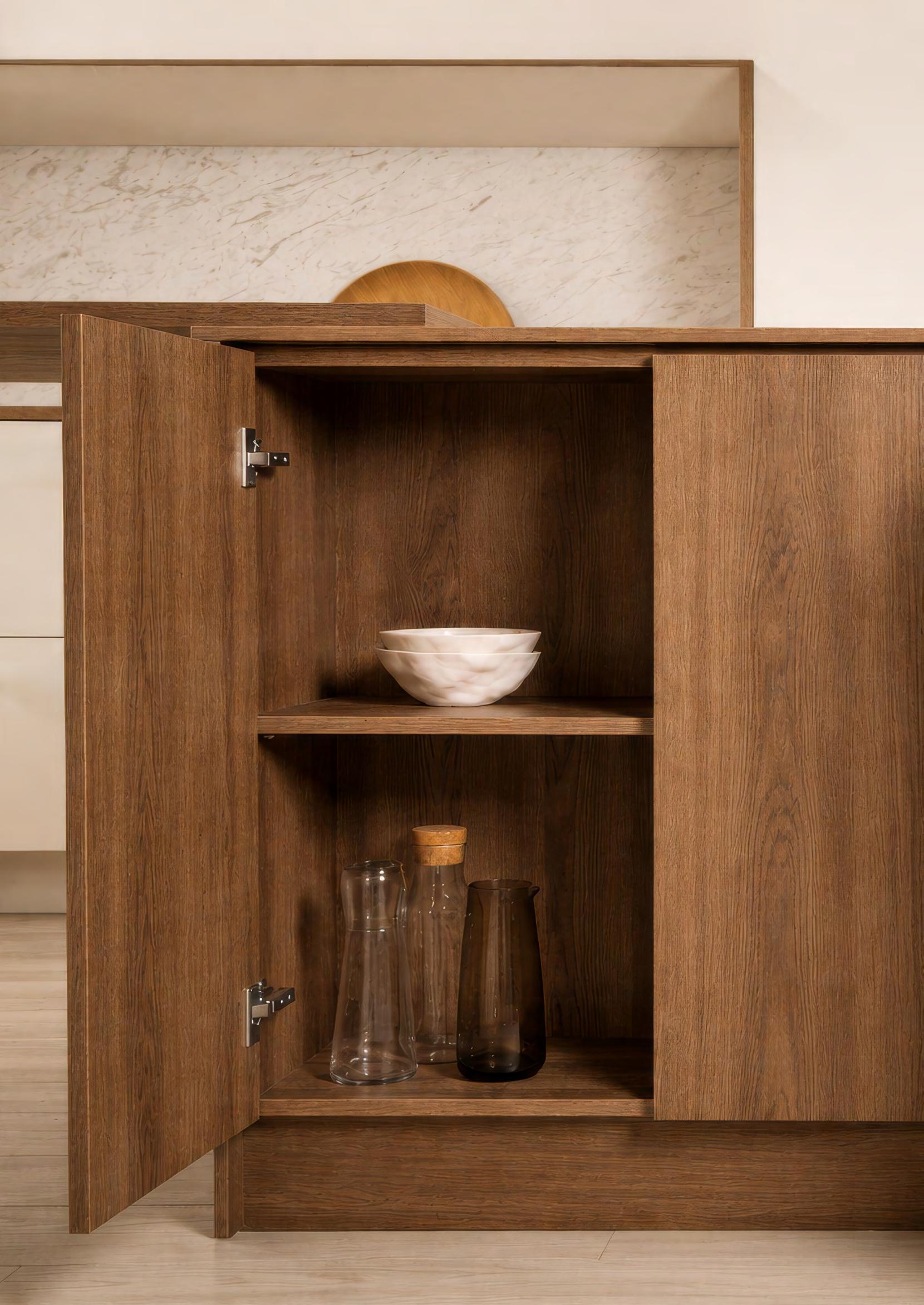

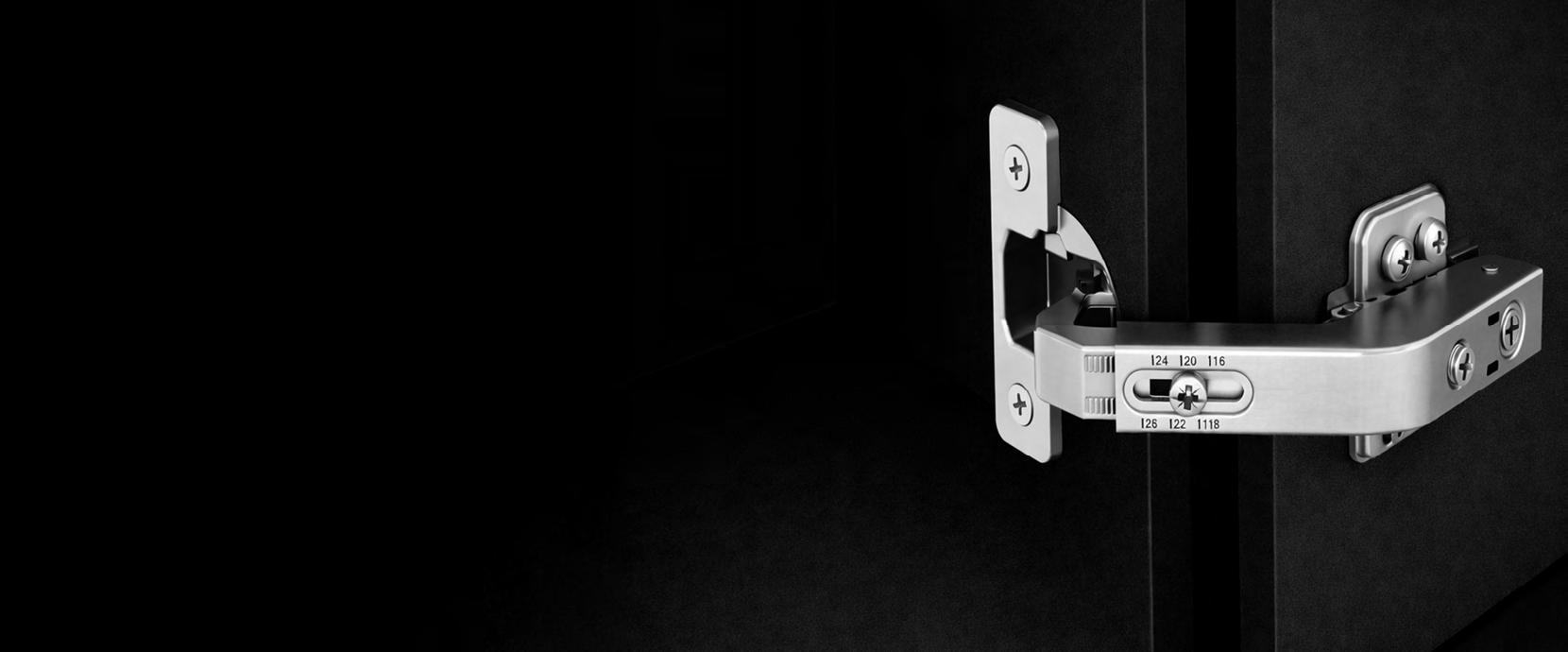

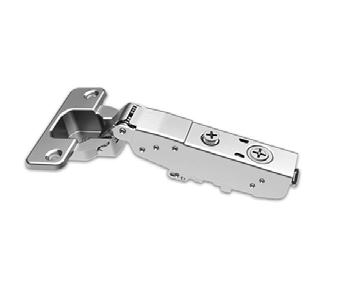

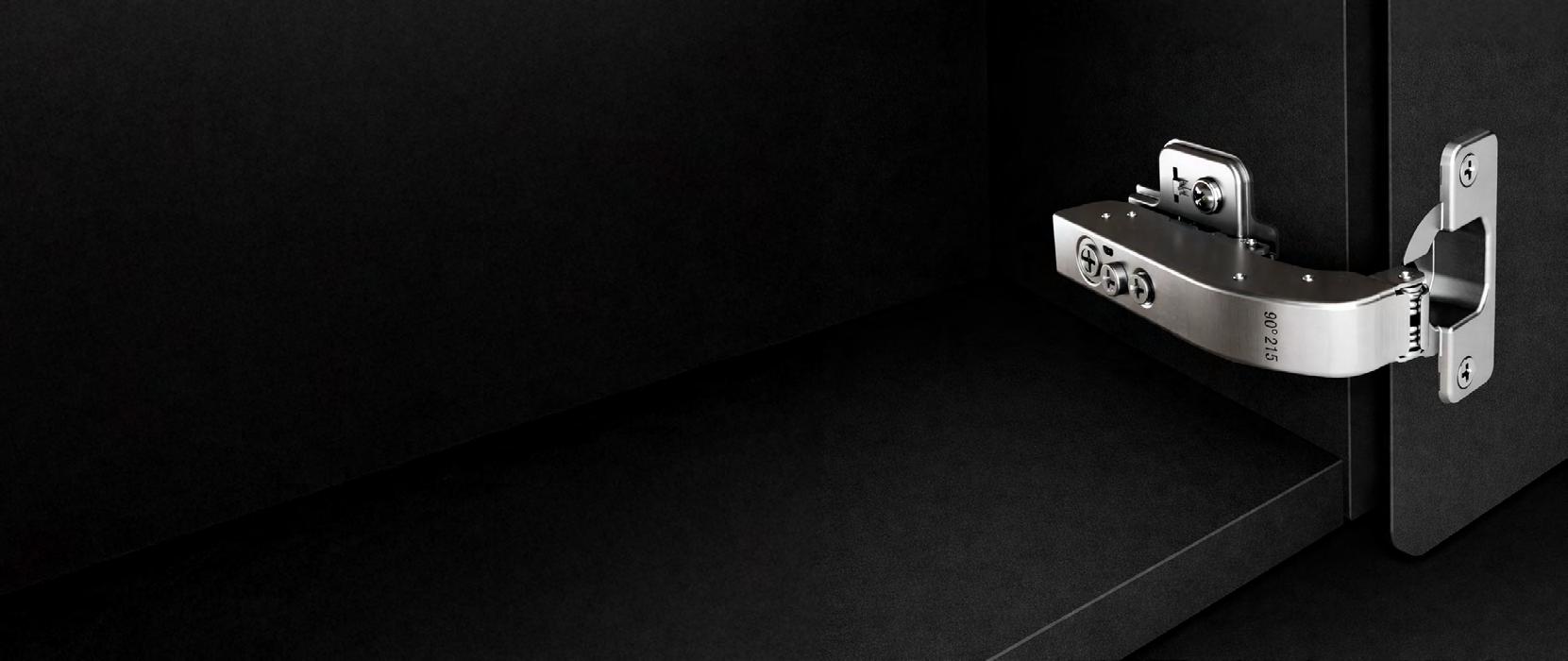

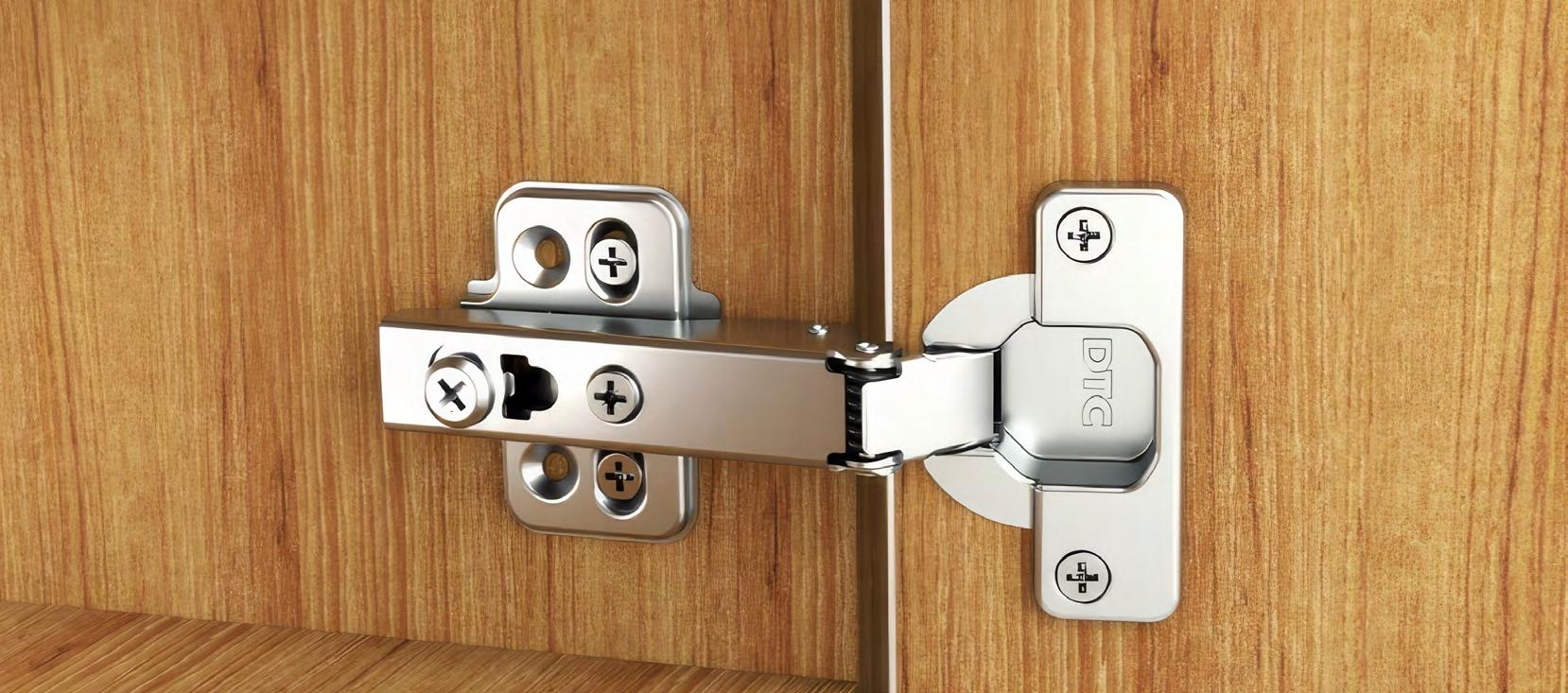

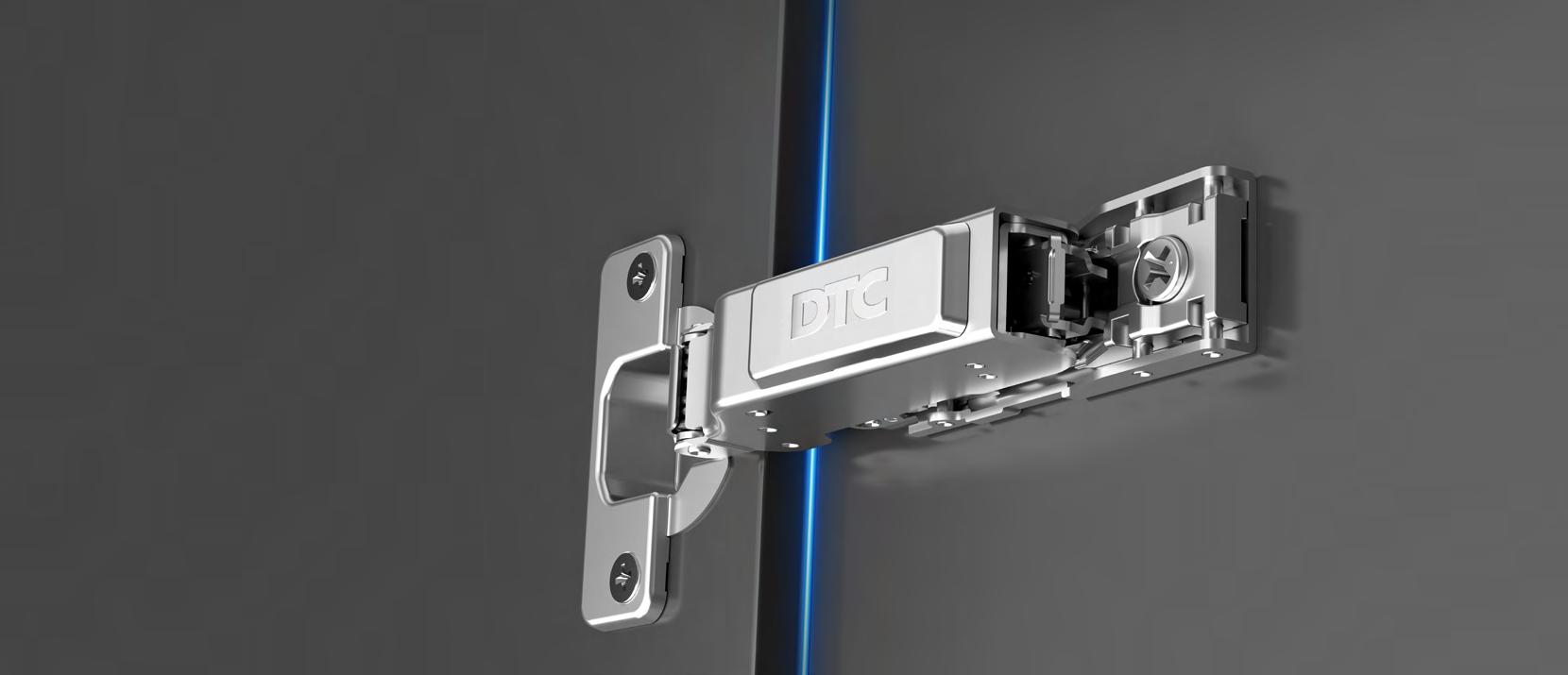

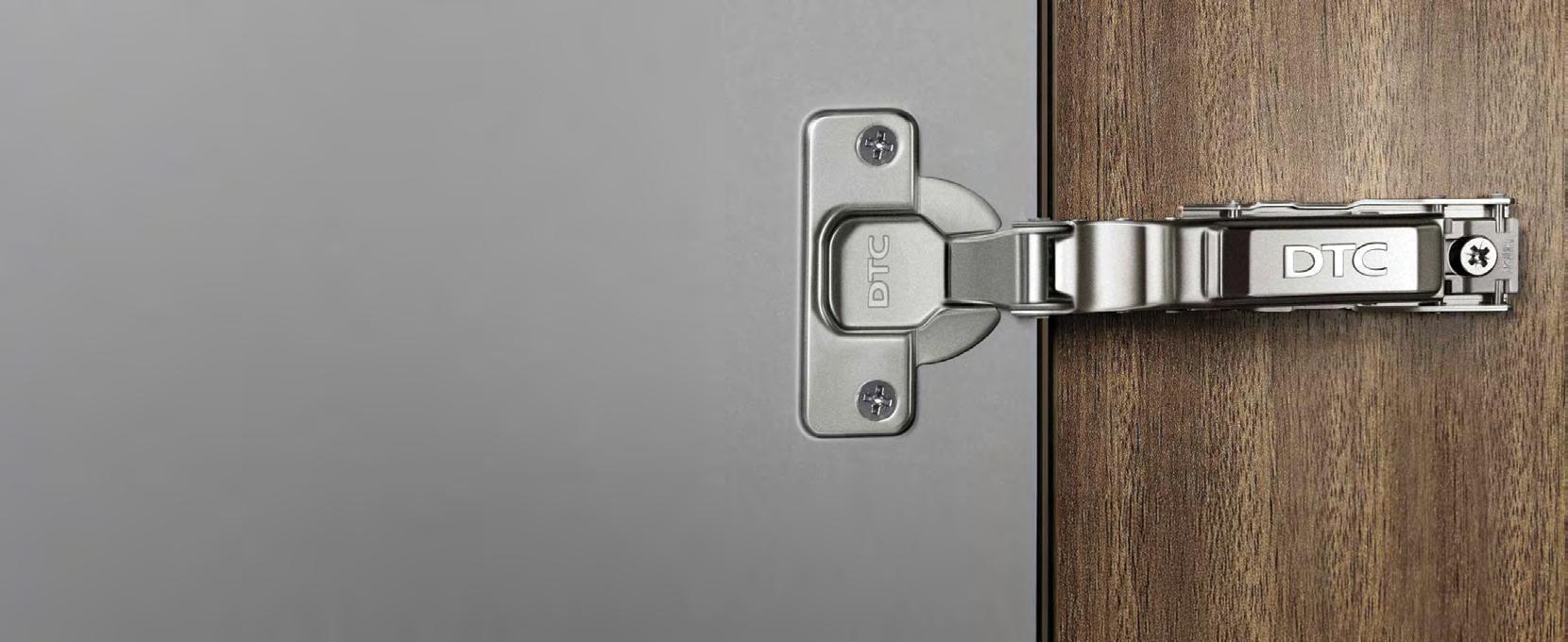

DTC Pivot-Star Hinges:
The DTC PIVOT STAR concealed hinges are the premier choice for function and style for top quality cabinets and furniture. Featuring the anyway snap on design between hinge and plate, the connection is faster and easier. Perfect motion for every single space.
Specifications:

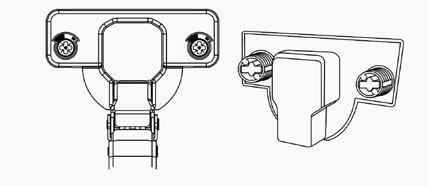

Mounting:

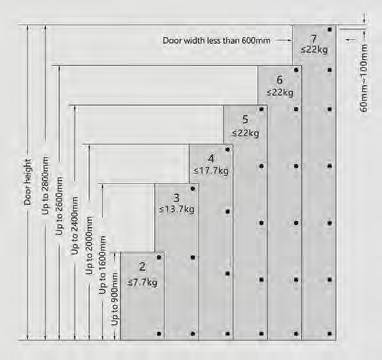

Number of Hinges For Each Door:
The number of hinges needed for each door depends on the width of the door, the height of the door, and the type of material the door is made of. It varies in particular practices. The hinge installation proposal listed here is only for your reference. An experiment is suggested in an uncertain situation. Performance is best when distance between hinges are as far apart as possible.
Rear Pivot Towards Front
pivot star ‑ 110° hinge
Featuring a 110° opening angle and an 11.5mm deep with 35mm diameter cup, this hinge suits 16–26mm thick doors, with a 3–6mm drilling distance to the door edge for versatile installation.
Projection of the door from the cabinet side at the max opening. The figures are based on a straight arm hinge, H = 0mm mounting plate and drilling distance (K) = 5mm.
Space Needed To Open The Door:
T= Door thickness K= Cup hole drilling distance from door edge
T=
The above values are calculated on the assumption that the doors have square edges. They are reduced if the doors have radiussed edges.
Ø 35mm Hinge Cup Types:
Use these formulas to determine the type of hinge arm, drilling distance (K = 5mm), and the height of the mounting plate (H = 2mm) for each door application.

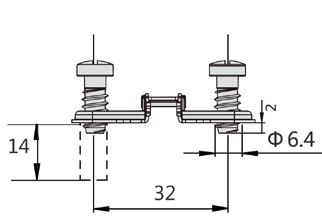

B Drill Pattern: 45/9.5
H Drill Pattern: 52/5.5

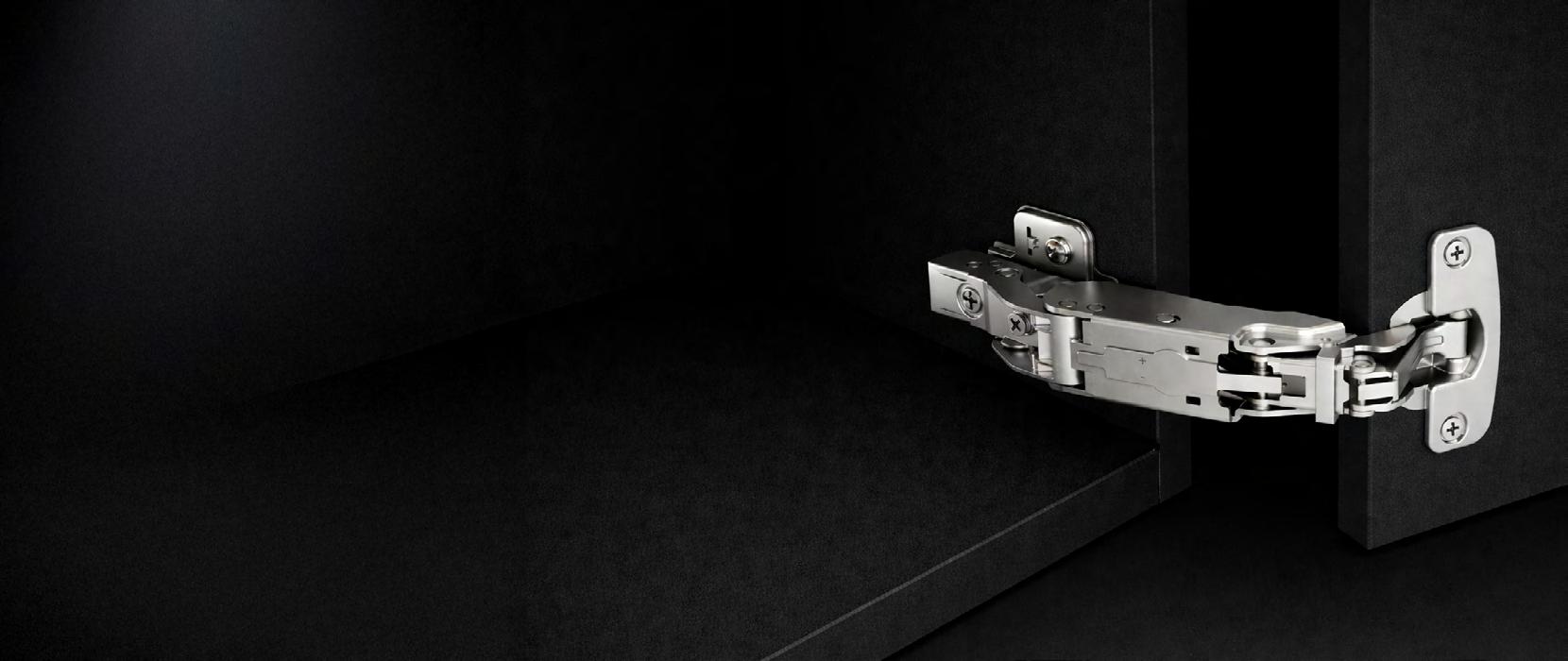

pivot star ‑ 160° hinge
This hinge offers a 160° opening angle, 12.4mm deep with 35mm diameter cup, suits 16–28mm thick doors, and allows a flexible 3–6mm drilling distance to the door edge.
Integrated Soft Close Hinges
Specifications: Ø 35mm Hinge Cup Types
The door combined with a mounting plate H = 2, opens at 90° with a 1.3mm protrusion allowing objects to move from inside of the cabinet.
Use these formulas to determine the type of hinge arm, drilling distance (K = 5mm), and the height of the mounting plate (H = 2mm) for each door application.
pivot star ‑ 90° blind panel hinge
This 90° blind panel hinge opens at a 110° angle, featuring an 11.5mm deep with 35mm diameter cup, it suits 16–26mm doors and allows a flexible 3–6mm drilling distance to the door edge.
Specifications:
T= Door thickness K= Cup hole drilling distance from door edge The
Ø 35mm Hinge Cup Types:
Use these formulas to determine the type of hinge arm, drilling distance (K = 5mm), and the height of the mounting plate (H = 2mm) for each door application.
pivot star ‑ 45° angle door hinge
This 45° angle door opens at a 110° angle, featuring an 11.5mm deep with 35mm diameter cup, it suits 16–26mm thick doors and allows a flexible 3–6mm drilling distance to the door edge.
Hinges:
Sprung
Integrated Soft Close Hinges
35mm Hinge Cup Types:
Use these formulas to determine the type of hinge arm, drilling distance (K = 5mm), and the height of the mounting plate (H = 2mm) for each door application.
B Drill Pattern: 45/9.5
H Drill Pattern: 52/5.5
Space Needed To Open The Door:
pivot star ‑ 135° bi‑fold corner hinge
This 135° bi‑fold corner hinge is designed to connect 2 doors, with the second door opening at a 55° angle. Featuring an 11.5mm deep with 35mm diameter cup, it suits 14–26mm thick doors.
Sprung Hinges
Ø 35mm Hinge Cup Types:
Use these formulas to determine the type of hinge arm, drilling distance (K) and the height of the mounting plate (H) for each door application.
B Drill Pattern: 45/9.5
Kitchen Bi-Fold Door Application:
H Drill Pattern: 52/5.5
pivot star ‑ 95° thick door hinge
95° hinge with 11.5mm deep and 35mm diameter cup, suits 19–35mm thick doors.
Integrated Soft Close Hinges:
Ø 35mm Hinge Cup Types:
Projection of the door from the cabinet side at the max opening. The figures are based on a straight arm hinge, H=0mm mounting plate and drilling distance (K)=5mm.
Space Needed To Open The Door:
Use these formulas to determine the type of hinge arm, drilling distance (K=5mm), and the height of the mounting plate (H=2mm) for each door application.
B Drill Pattern: 45/9.5
H Drill Pattern: 52/5.5
T= Door thickness K= Cup hole drilling distance from door edge The values are calculated on the assumption that the doors have square edges. They are reduced if the doors have radiussed edges.
pivot star ‑ 105° thin door hinge
105° hinge with 7.8mm deep and 35mm diameter cup, suits 10–20mm thick doors.
Integrated Soft Close Hinges:
Ø 35mm Hinge Cup Types:
Projection of the door from the cabinet side at the max opening. The figures are based on a straight arm hinge, H=0mm mounting plate and drilling distance (K)=5mm.
Space Needed To Open The Door:
Use these formulas to determine the type of hinge arm, drilling distance (K=5mm), and the height of the mounting plate (H=2mm) for each door application.
Drill Pattern: 48/6
T= Door thickness K= Cup hole drilling distance from door edge
The values are calculated on the assumption that the doors have square edges. They are reduced if the doors have radiussed edges.

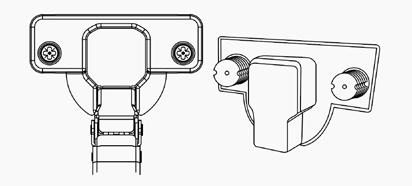

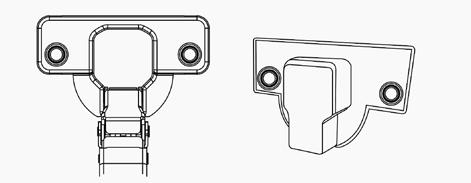

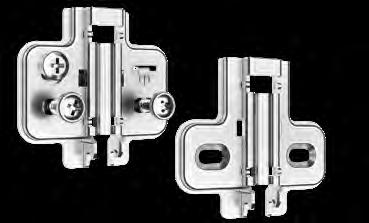

pivot star ‑ wing hinge plates
These plates enable height adjustment within a range of +2mm/‑2mm in cam and non cam adjustable options. Offered in three different fixings: Screw On, Euro Screw Fix, and Expanding Dowel. The plates come in standard sizes of 2mm and are also available in 0mm, 4mm, 9mm, and 18mm.
Plates:
Screw On Cam Hinge Plate
Expanding Dowel Cam Hinge Plate
DTC81T24TQA 2mm
DTC81T44TQA 4mm
Euro Screw Fix Cam Hinge Plate
DTC81T02TQA
Euro Screw Fix Non Cam Hinge Plate
DTC81H22AQA
DTC81H92AQA 9mm
DTC81H182AQA 18mm
Screw On Non Cam Hinge Plate
pivot star ‑ inline hinge plate
The inline cam plate offers height adjustment within a range of +2mm/‑2mm and available in knock in option. These plates are supplied in a standard size of 2mm and are also offered in 0mm.
With its elegant and slim design and miniature damper technology, DTC C82 hinge is the perfect solution for integrated fridges and projects. Assembly comfort is the new benchmark. The intuitive anyway snap on technique simplifies and speeds the process of mounting cabinet doors. Featuring an 11.5mm hinge cup depth and a 35mm diameter, it accommodate doors ranging from 16mm to 26mm in thickness.
Projection of the door from the cabinet side at the max opening. The figures are based on a straight arm hinge, H = 0mm mounting plate and drilling distance (K) = 5mm.
Space Needed To Open The Door:
T= Door thickness K= Cup hole drilling distance from door edge
The values are calculated on the assumption that the doors have square edges. They are reduced if the doors have radiussed edges.
Ø 35mm Hinge Cup Types:
Use these formulas to determine the type of hinge arm, drilling distance (K = 5mm), and the height of the mounting plate (H = 2mm) for each door application.
B Drill Pattern: 45/9.5
H Drill Pattern: 52/5.5

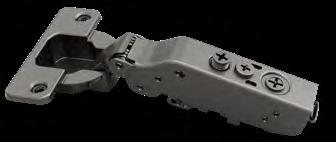

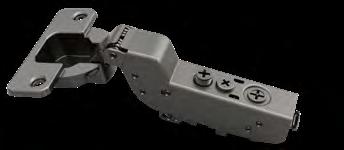

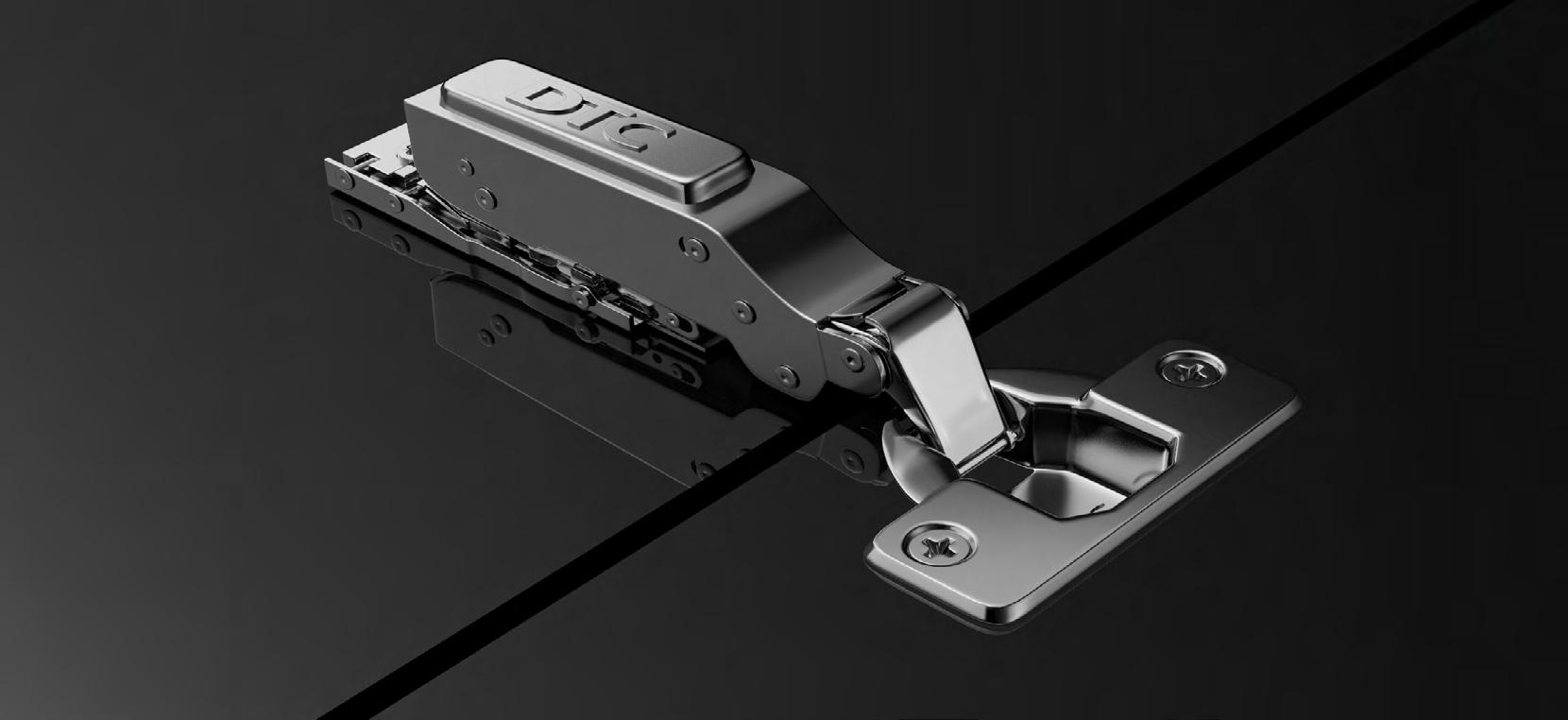

pivot star hinge tytanium black
The DTC Pivot Star titanium black hinge suits both concealed and statement applications. It features adjustable soft close speed for door thicknesses from 16mm to 26mm, with a 110° opening angle, 35mm cup diameter and 11.5mm cup depth.
Integrated Soft Close Hinges and Plates:
Types:
Full Overlay:
Other Hinges:

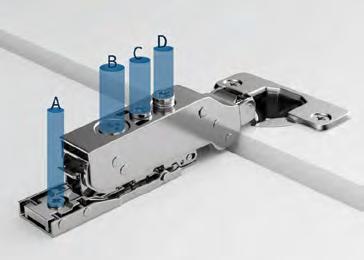

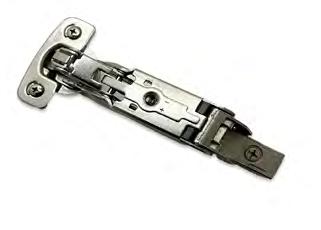

Pivot Star - 110° Stainless Steel Hinge
This screw on hinge is suitable for outdoor and alfresco settings, offers a 110° full overlay with soft closing functionality. Crafted from durable 304 grade stainless steel, it ensures longevity and resilience against outdoor elements. It has a small cup depth of 11.5mm and 35mm diameter.

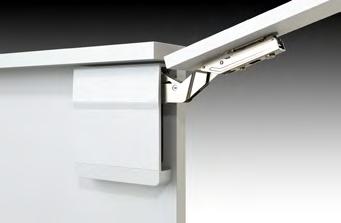

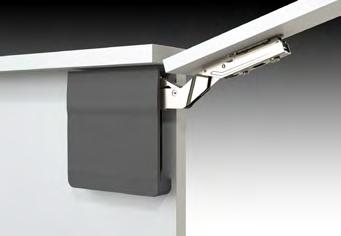

dtc top stays
Lift up mechanism for upper cabinets with a 107° opening angle, supporting 16–28mm thick doors. Suits cabinet heights 250–700mm and widths up to 1200mm. 3D adjustment of ±2mm on height, side, and depth for precise alignment. Features smooth opening, hover positioning, tool‑free assembly and removal of door from carcass, soft closing, and push‑to‑open kit option.
Top Stays:
White (standard)
Grey

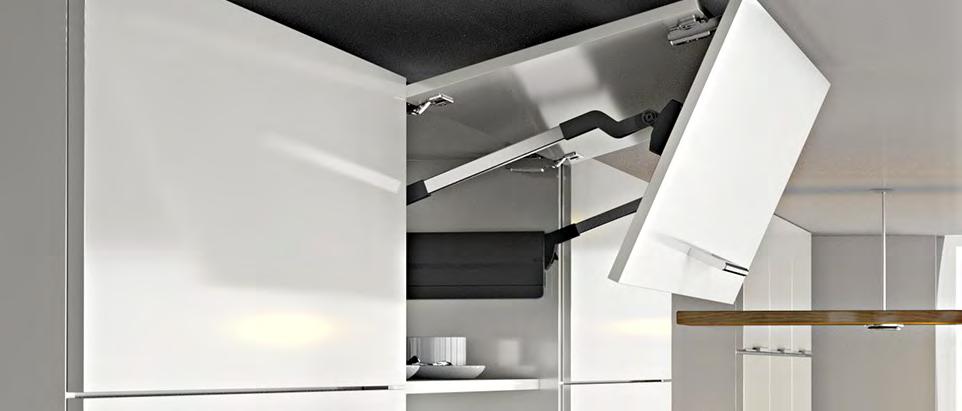

dtc bi‑fold top stays
Designed to allow simultaneous access to multiple upper cabinets, this mechanism suits 16 26mm thick doors, cabinet height of 650 1040mm and width of up to 1800mm. Featuring 3D adjustments for precise door alignment upper adjustments of ±2mm on height, side, and depth, lower adjustments of +2/−1mm on height and ±2mm on side and depth.
Bi-Fold Top Stays:
Push Latches:

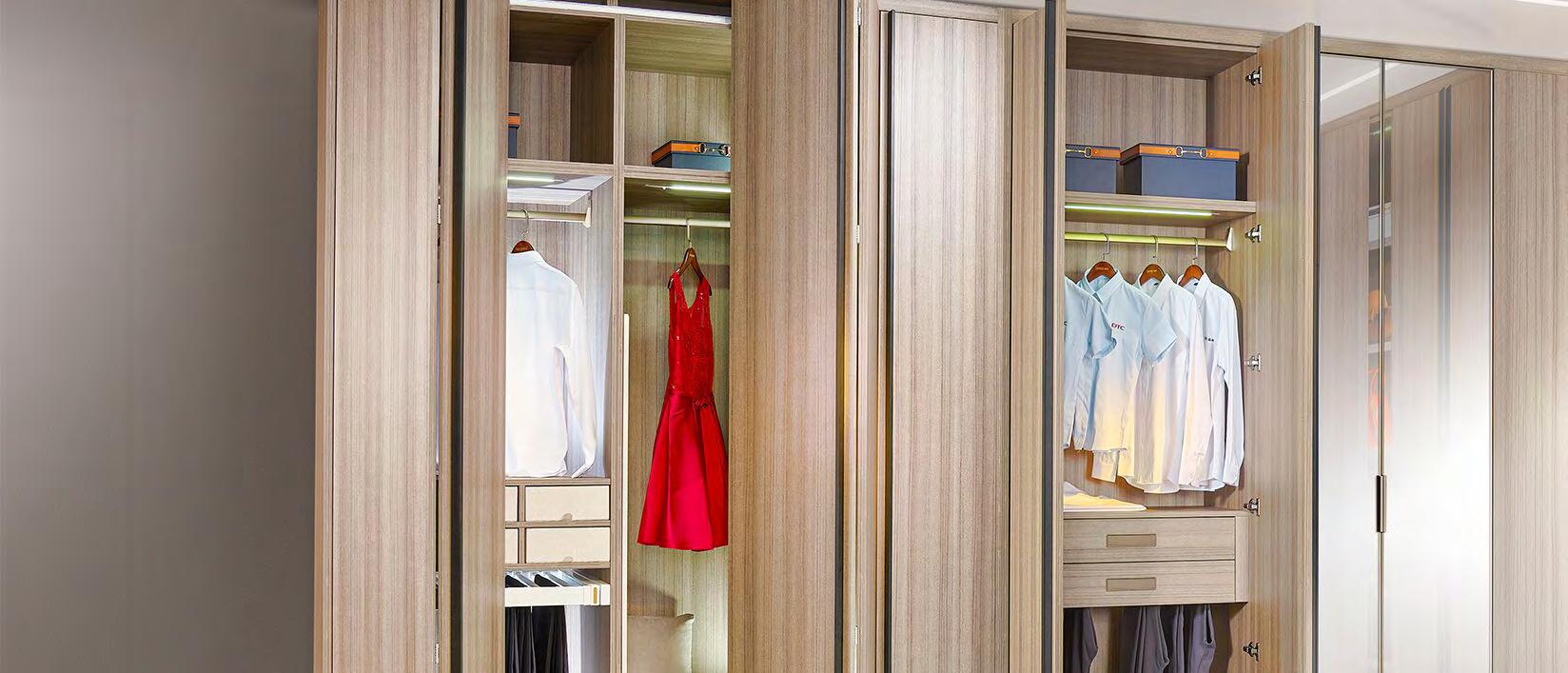

track pro cf series folding sliding door system
Designed for effortless opening with a folding mechanism, this system features height adjustment of ±2mm and depth adjustment of +3mm/−2mm. Suitable for 16–25mm thick doors and supports up to 600mm wide and up to 2800mm high doors.
CF Series Folding Sliding Door System:

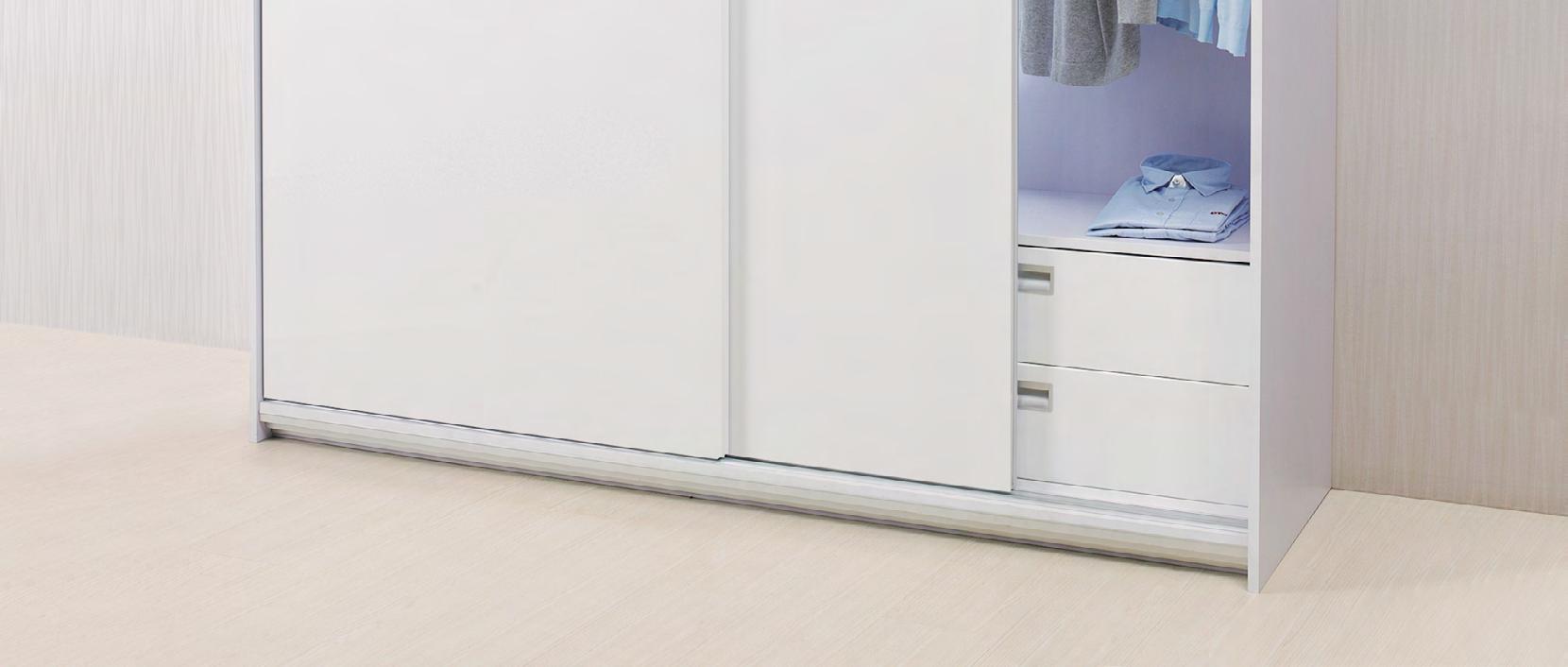

track‑pro css series sliding door system
CSS Series Soft-Close Sliding Door System:
Top/Bottom Tracks:

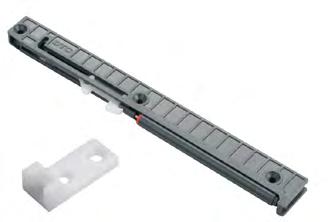

Patented damper design for smooth door operation. The catching mechanism and double roller device on damper trigger improves stability and prevent disengagement. The bottom roller provides a total of 13mm height adjustment (9mm sprung, 4mm eccentric). 3.
Top and Bottom Track
Colour: Silver
Code: DTCWCSSDG01C
Pcs/ctn: 20 Length: 3m
track‑pro cs series sliding door system
Patented damper design for smooth door operation. The catching mechanism and double roller device on damper trigger improves stability and prevent disengagement. With 20mm height adjustment, guiding rollers adjustable from 35–39mm, and damper trigger height adjustment up to 6mm.
