NGI Synchronous Drum Motors, American DriveTech Catalogue
Features
Special Features
See page 45 item descriptions Special Features
Features
Cable and Feedback systems
This
MTS Drum Motors
In the food industry, small changes can have a big impact.
Our drum motors help you design high-performing, compact, hygienic, and reliable machines with minimal maintenance - fully configurable to fit your application.
Synchronous technology delivers higher efficiency and lower power loss, while the fully enclosed design protects the technology inside the drum and saves space.
Our engineers support the right configuration based on real application requirements — not just headline specifications.
Power & Torque Upgrades
A reshaped drum motor range – now with power, torque, and combined upgrades.
As part of reshaping our DriveTech portfolio, we now offer targeted power, torque, and combined power & torque upgrades. These options are developed for applications with long cable runs, high voltages, heavy loads, and inclined conveyors.
Power upgrades (P) ensure stable output under peak voltages without the need for additional filters. Torque upgrades (T) deliver controlled starting force and consistent performance when handling heavy loads. Combined power & torque upgrades (PT) address both electrical and mechanical demands, enabling smooth start-up and reliable operation – even under high load and at inclines.

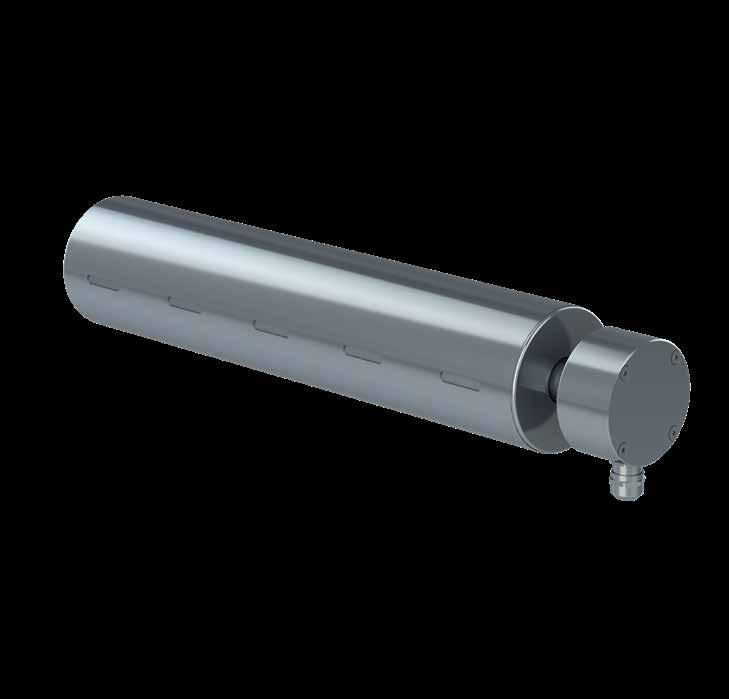

The World’s Smallest Oil-Free Drum Motor.

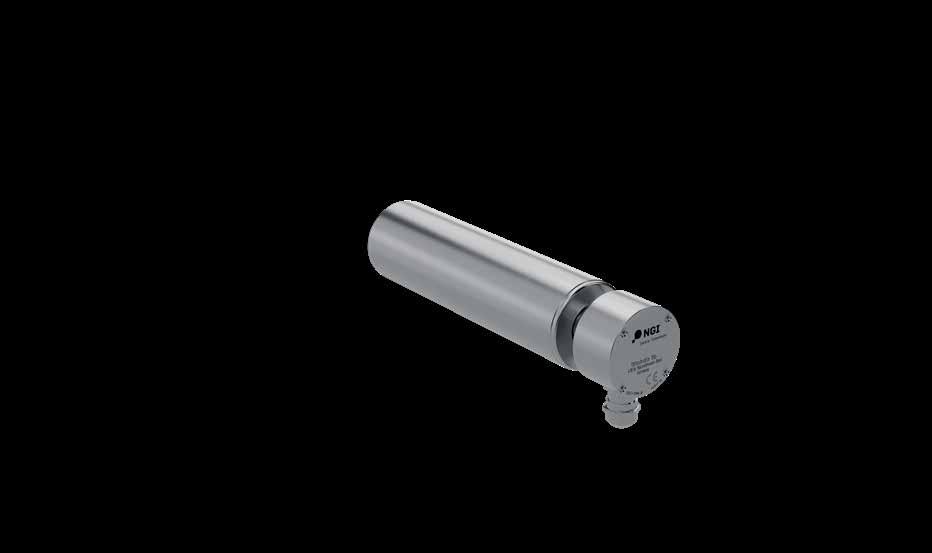

MTS62 Synchronous Drum motor
Small in size. Big on performance.
With a diameter of just 2.4 inches, the MTS62 is the most compact oil-free drum motor available todayengineered for hygiene, precision, and space-constrained applications where traditional drives fall short.
Its fully sealed, maintenance-free design integrates motor and transmission inside the drum, eliminating external components and contamination risks.
Despite its slim profile, the MTS62 delivers consistent torque across all speeds thanks to advanced synchronous technology. It’s ideal for tight transfers, packaging lines, and inspection systems, offering reliable performance without compromising on control or footprint.
Oil-free
Designed for low-load, high-precision applications, it also supports optional servo-level feedback for enhanced positioning accuracy.
Applications:
Food Processing Systems: Tight transfers for small or delicate items, minimizing gaps and ensuring product integrity.
Packaging Machines: Space-efficient solutions for narrow conveyors in automated packaging systems.
Rated values refer to the drum shell. Custom gear combinations on request.
Explanations:
Motor Data - Standard Variant (N)
Clean. Efficient. Oil-free.

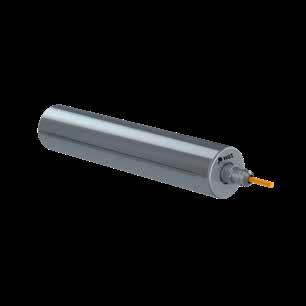

MTS82 Synchronous Drum motor
With a diameter of just 3.19 inches, the MTS82 is a compact, oil-free drum motor for hygienic environments and demanding conveyor applications. Its fully enclosed, maintenance-free design integrates motor and transmission inside the drum, eliminating external components and contamination risks.
Powered by synchronous motor technology, the MTS82 delivers high torque at low speeds with minimal energy consumption. It supports multi-speed dimensioning, sensorless precise positioning, and optional feedback systems for closed-loop control and indexing. Digital nameplate options enable plug-and-play installation.
Oil-free
The MTS82 is suitable for both standalone conveyors and high-precision machinery, reliably handling lowto mid-range loads in food production and automation systems.
MTS82 is also available in a Compact version: The Compact MTS82-0.25 is NGI’s shortest drum motor, optimized for short motor lengths and tight installations in space constrained conveyor systems.
Applications:
Food Production Lines: Hygienic conveyors for raw or packaged goods.
Automated Sorting Lines: Compact drives for high-speed sorting and inspection stations.
Check Weighing Systems: Precision-driven conveyors for compliance-critical operations.
Pharmaceutical Packaging: Compact drives for blister packs and precision filling systems.
Why choose MTS82:
Compact size with powerful performance
High torque at low speeds
Maintenance-free and oil-free for hygienic environments
Supports feedback and servo drive integration
Energy-efficient and easy to install
Power and torque upgrade variants available for demanding applications.
Lower energy consumption
Oil free - minimize the risk of oil leaks
Higher motor efficiency
Enhanced food safety
Oil-free
Drum motor - MTS82 Class Standard variants – MTS82
Rated values refer to the drum shell. Custom gear combinations on request for all models.
Explanations:
Power upgrade variants – MTS82
Rated values refer to the drum shell. Custom gear combinations on requests for all models.
You don’t need more options - you need the right one.
Our DriveTech Sales Team works account-based and cross-functionally to remove friction in your project: clear scope, clear configuration, clear next steps.
From early dialogue to final specification, we help you get it right the first time - so implementation is easier, and performance is predictable.
Drum motor - MTS82 Class Drum motor - MTS82 Class
Motor Data - Standard variants (N)
Motor Data - Power upgrade variants (P)
Compact. Clean. Efficient. Oil-free.
MTS113 Synchronous Drum motor
The MTS113 is a versatile, oil-free drum motor designed for hygienic environments and precision-driven conveyor systems. With a diameter of 4.41 inches and shell lengths starting from 9.69 inches, it fits seamlessly into setups where space, cleanliness, and performance are critical.
Its fully enclosed, maintenance-free design keeps all components protected inside the drum, eliminating contamination risks and simplifying cleaning.
Powered by synchronous motor technology, the MTS113 delivers high torque with minimal energy consumption - supporting both sustainability and operational efficiency. Covering a wide power range from 0.25 hp to 1.5 hp, the MTS113 is often used with rubber coatings or sprockets for various belt types. It’s suitable for standalone conveyors and precision machinery alike.
Bakery & Confectionery Lines: High flexibility for wide belts.
Quality Control Stations: Reliable performance for weight-sensitive operations.
Why choose MTS113:
Wide power range for versatile applications
Compact and hygienic design
High torque with low energy consumption
Maintenance-free and oil-free
Ideal for both standard and precision setups
Power and torque upgrade variants available for demanding applications.
Lower energy consumption
Oil free - minimize the risk of oil leaks
Higher motor efficiency
Enhanced food safety
Oil-free
Explanations:
Standard variants – MTS113
Rated values refer to the drum shell. Custom gear combinations on request for all models.
motor - MTS113 Class
Motor Data - Standard & torque variants (N / T)
Drum motor - MTS113 Class
Motor Data - Power upgrade variants (P / PT)
Compact. Clean. Efficient. Oil-free. MTS138 Synchronous Drum motor
The MTS138 is a robust, oil-free drum motor designed for hygienic environments and demanding conveyor applications. With a diameter of 5.35 inches and shell lengths starting from 11.18 inches, it combines strong performance with a compact footprint - ideal for heavy-duty operations where space and cleanliness matter.
Its fully enclosed, maintenance-free design eliminates external components and contamination risks, while synchronous technology ensures high torque with minimal energy consumption.
The MTS138 is a reliable choice for large conveyor systems and precision-driven processes in food production.
Oil-free
Applications:
Large Conveyor Systems: High-performance drives for heavy-duty food production lines.
Meat Processing Plants: Hygienic, oil-free motors for contamination-sensitive areas.
Automated Packaging Lines: Powerful yet space-saving for large-scale operations.
Why choose MTS138:
Compact size with powerful performance
Hygienic, oil-free design
High torque with energy efficiency
Maintenance-free and easy to integrate
Power and torque upgrade variants available for demanding applications.
Lower energy consumption
Oil free - minimize the risk of oil leaks
Higher motor efficiency
Enhanced food safety
Drum motor - MTS138 Class Standard variants – MTS138
Rated values refer to the drum shell. Custom gear combinations on requests for all models.
Power upgrade variants – MTS138
Rated values refer to the drum shell. Custom gear combinations on requests for all models.
Drum
motor - MTS138
Class Drum motor - MTS138 Class
Motor Data - Standard variants (N)
Motor Data - Power upgrade variants (P

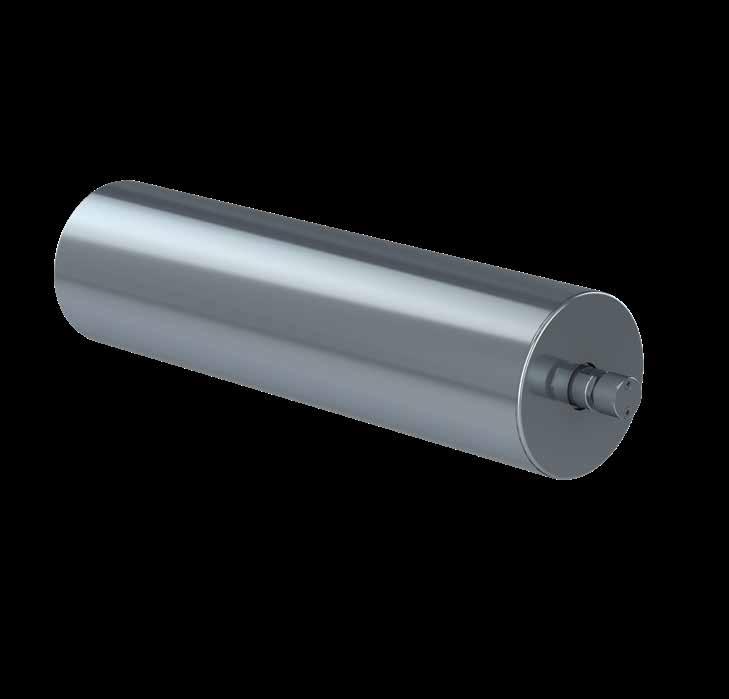

Drum Motor Shell and Surface

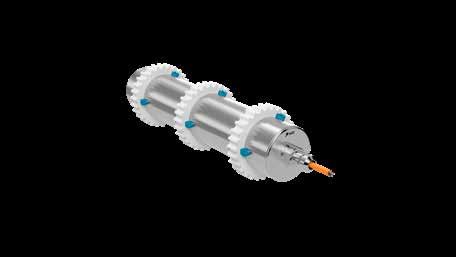

Our drum motors are available with a wide range of shell designs to meet functional, hygienic, and application-specific requirements. All drum shell profiles can be supplied with integrated sprockets as well as rubber lagging.
Available configurations include:
Cylindrical or crowned steel drum shells surfaces

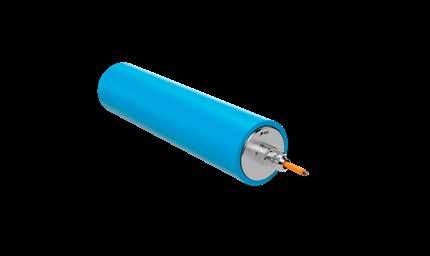

Rubber-lagged drum shells: cylindrical, crowned, or profiled

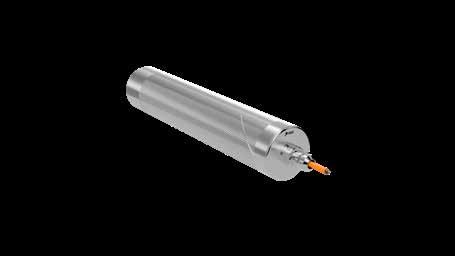

Knurled surfaces: cylindrical or crowned, for increased friction
Keyed drum shell designs, available as welded keys or snap-on keys
Stainless steel profiled drum shell surfaces for specialised applications
Additional designs and special configurations are available to support specific conveyor layouts, belt types, and performance requirements. Below are selected examples.
Support That Stands Out.
Our Application Engineering Team works with you to ensure the drum motor is configured for your exact machine, application, and production flow.
While others only ask for specs like power and width, we dig deeper—tension, load, usage patterns—because the right setup starts with the right understanding.
And we make the process easy. You’ll save time, prevent costly missteps, and get a tailored drive solution that just works.
Cable specifications Option - Feedback system
MTS
Cable specifications Resolver
Option - Feedback system Option - Feedback system
EKS36 / EDS35
Option - Feedback system
Thermal protection & material variants
Thermal protection
The MTS drum-motor is fitted with a PT1000 thermal sensor. If necessary, we can also offer a PTC thermal sensor. The temperature sensor must be monitored by an external circuit, such as a frequency converter which switches off the power supply to the motor, if the maximum temperature is exceeded.
Frequency converters and servo drives
MTS drum motors are synchronous permanent magnet motors and must be operated using a frequency converter or servo drive between the mains supply and the motor.
variants
Cable
NGI drum motors have been tested and verified with a wide range of frequency converters and servo drives
Application specific guidance is available on request.
Possible speed adjustment ranges:
Sensorlees operation with suitable frequency inverter 1 7 to 1 : 300 - (depending on Inverter type)
Servo drive and feedback up to 1 : 10.000
1 Actual performance depends on drive type, control mode, and application.
Contact your local NGI sales representative for detailed compatibility and application support.
Inverter
Item descriptions for Drum Motors
This decoder explains how NGI Drum Motor item descriptions are structured and how each element in the name corresponds to a specific technical attribute.
Optional elements are included only when applicable. If an option is not specified, it is omitted from the item description without placeholders.
Our extensive experience and technical understanding let us, and our customers, navigate complex challenges with clarity and wisdom.
We are always thinking ahead and investing in innovation to ensure that clients have access to the best and most forward-thinking technologies available. Contact us to learn how you can maximize space without sacrificing a thing!
