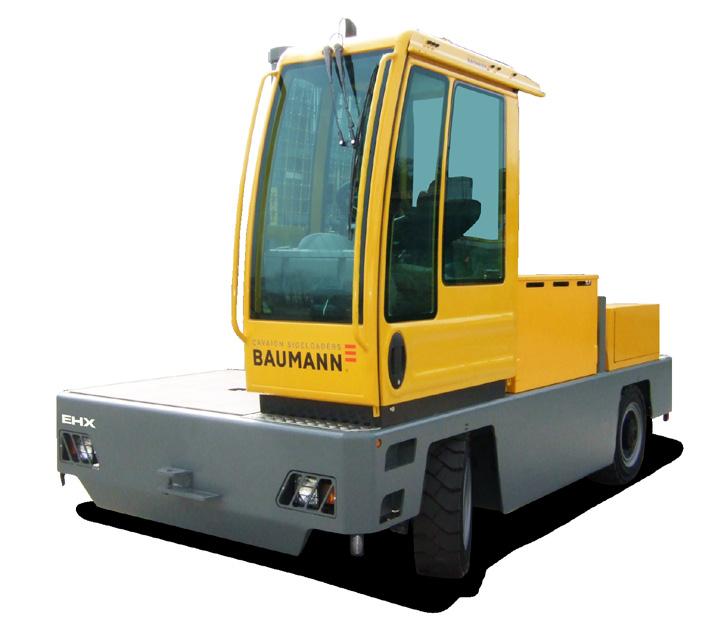

baumann EHX 30 - 50
Electro Drive
aC-Technology
3 - 5 t Load
Capacity
Type Serie eHX 30 Serie eHX 40 Serie eHX 50 Technical Data Lifting capacity Q Kg 3000 4000 5000 Load centre C mm 600/700 600/700 600/700 Fork length l mm 1200/1400 1200/1400 1200/1400 Fork width b mm 150 150 150/180 Fork thickness s mm 50 50 60/50 Drive Electro Electro Electro Type of steering Hydrostatic Type of tyres Pneumatic tyres Dimensions Total length L mm 4100 4100 4400 Total width B mm 1950/2150 1950/2150 1950/2150 Overall height mast lowered h1 mm 2850 2850 2850 Overall height mast extended h4 mm 4880 4880 4880 Cabine height H mm 2630 2630 2630 Lift height h3 mm 4000 4000 4000 Free lift h2 mm 600 600 600 T ilting up / down ° 1200+4.5-3.5/1400+3.5-3.0 1200±3.45/1400±2.83 Platform height P mm 830 830 850 Platform width N mm 1200/1400 1200/1400 1200/1400 Lateral movement F mm 1300/1500 1300/1500 1300/1500 Load spacing max. x mm 100 100 100 Framework cut E mm 1370 1370 1370 Fork spacing max. d mm 1300 1300 1300 Turning radius inner R mm 386 386 365 Turning radius outer W mm 1200=3892/1400=4016 1200=4156/1400=4272 Aisle width A mm 1200=2301/1400=2498 1200=2312/1400=2500 Aisle width for 90° Turning G mm 1200=3790/1400=3913 1200=4069/1400=4185 Performance Travel with / without load Km/h 15/18 15/18 15/18 Lifting with / without load m/s 0.34/0.45 0.34/0.45 0.32/0.43 Lowering with / without load m/s 0.39/0.35 0.39/0.35 0.38/0.34 Traverse with / without load m/s 0.28 0.28 0.25 Tractive power kN 17 17 22 Gradeability % 15 14 15 Weights Weight of truck Kg 6500 7500 8500 Axle load front Kg 4600 5500 6500 Axle load rear Kg 4950 6000 7050 Chassis Tyres front / rear 2/2 2/2 2/2 Tyres size front / rear Inch 27 x 10-12 27 x 10-12 250-15 Tyres outside diameter mm 690 690 735 Wheel base Y mm 2520 2520 2540 Track front Sp1 mm 1200=1615/1400=1815 1200=1625/1400=1825 Track rear Sp2 mm 1200=1635/1400=1835 1200=1645/1400=1845 Ground clearance mm 120 120 120 mm 200 200 200 Service brake hydraulic Front Parking brake hydraulic Drive Wheels Drive Battery type EPZS 80V 4EPzS 5EPzS 5EPzS 7EPzS 6EPzS 7EPzS Battery capacity A 460 575 690 805 690 840 Drive motor Number 2 x 7.5 kW 2 x 7.5 kW 2 x 10 kW Gearchanging Switch Hand Hand Hand Hand Gear levels Fw / Rv Direct Controller Mosfet Inverter AC AC AC Lift motor 17 kW 17 kW 22 kW S2 30min below rear axle below mast
eHX 30 - 50 Lift height h3 mm Lowered h1 mm extended h4 mm Free lift h2 mm Duplex-standardmast ST 3300 2500 4180 600 4000 2850 4880 600 4500 3100 5380 600 5000 3350 5880 600 5500 3600 6380 600 6000 3850 6880 600 Duplex-special free lift mast SFH 3300 2500 4180 1620 4000 2850 4880 1970 4500 3100 5380 2220 5000 3350 5880 2470 5500 3600 6380 2720 6000 3850 6880 2970 Triplex-free lift mast TR 4500 2350 5380 1470 5100 2550 5980 1670 5400 2650 6280 1770 5700 2750 6580 1870 6000 2850 6880 1970 6300 2950 7180 2070 6600 3050 7480 2170 6900 3150 7780 2270 7200 3250 8080 2370 y Z X F s C Q 100 100 E R h2 h4 h3 N P a a P H h1 b d B A G W 100 L 34 33 28 31 22 18 25 20 3 2 39 40 7 10 11 15 14 y Z X F s C Q 100 100 E R h2 h4 h3 N P a a P H h1 b d B A G W 100 L y Z X F s C Q 100 E R h2 h4 h3 N P a a P H h1 b d G W 100 L 34 33 28 31 22 25 20 3 2 38 37 17 12 1613 8 5
baumann EHX 30 - 50
n o emission, very low noise, an environmentfriendly alternative. Performace as a dieseltruck at less service costs.
baumann Si DE L oa DE r S – TH E o ri gina L S i DE L oa DE r fr om C avaion
for over 40 years, the baumann name has been synonymous with production of high quality, high specification sideloaders. The Company adopts a policy of continuous improvement and embraces new technology as and when it comes available to the benefit of our customers and distribution partners. The extended baumann network of distributors and service partners have been specifically selected for their professionalism and adoption of the consultative approach taken centrally by the b au mann Company.
