London

Page 1


catalogue

london

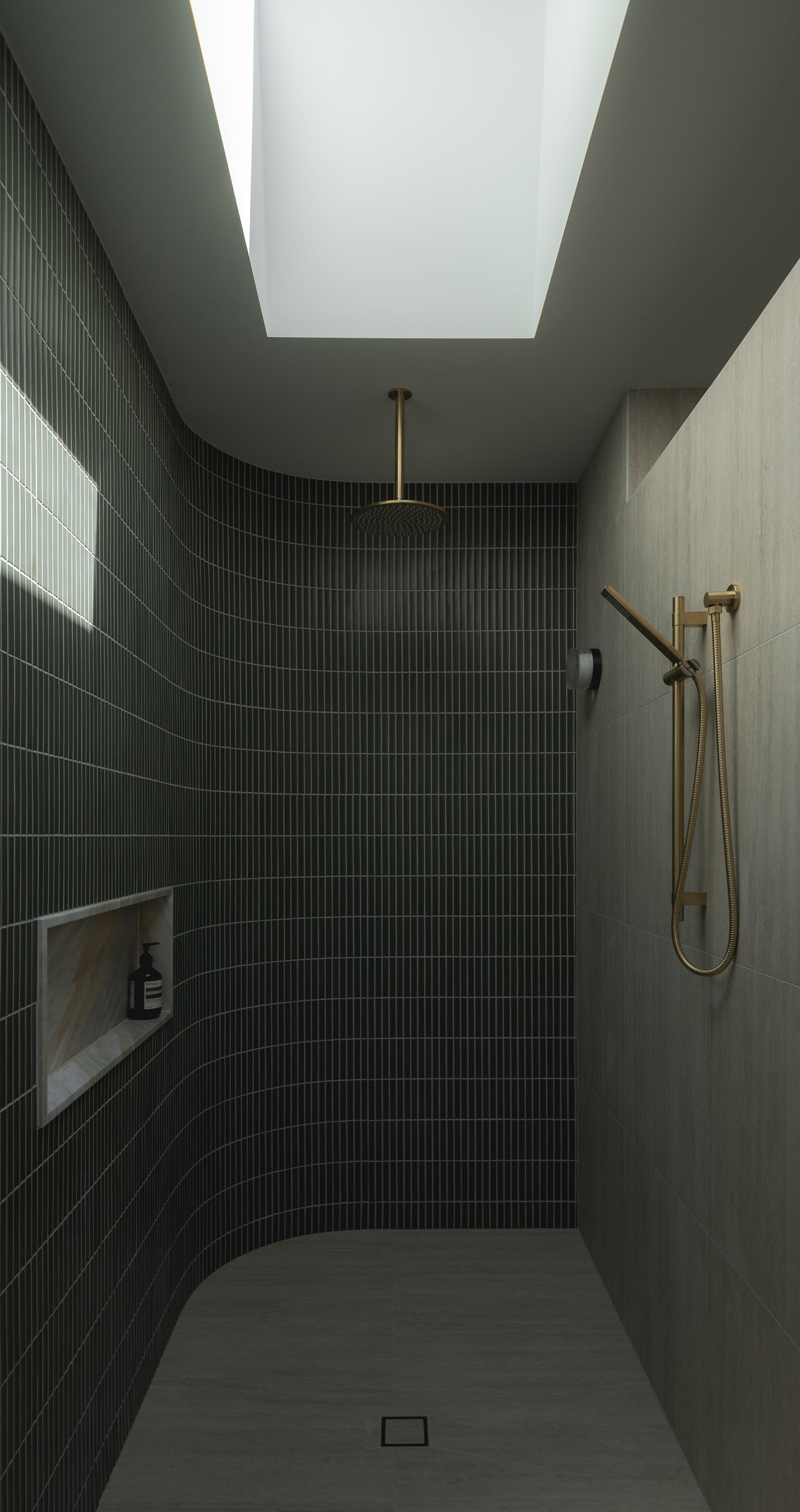

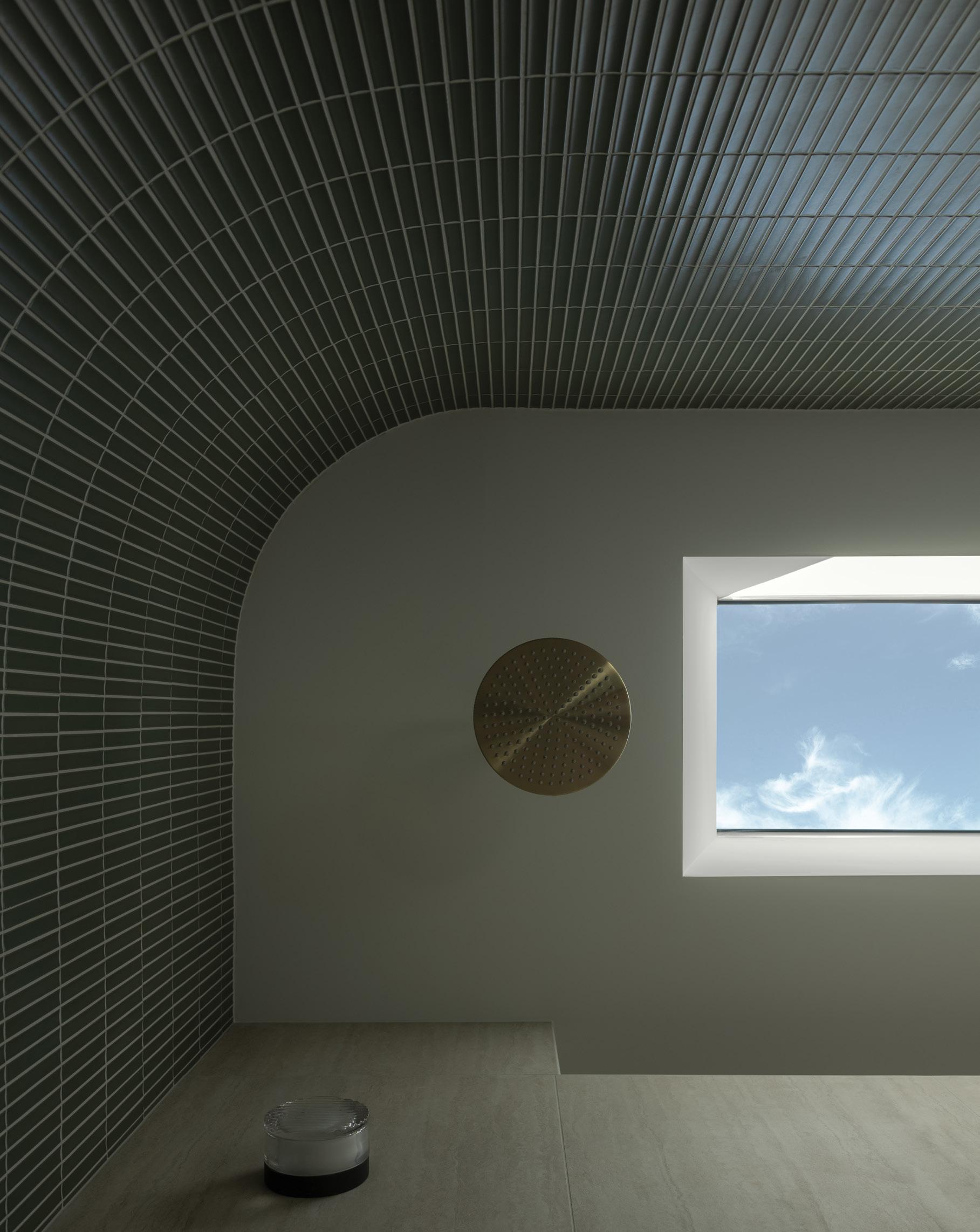

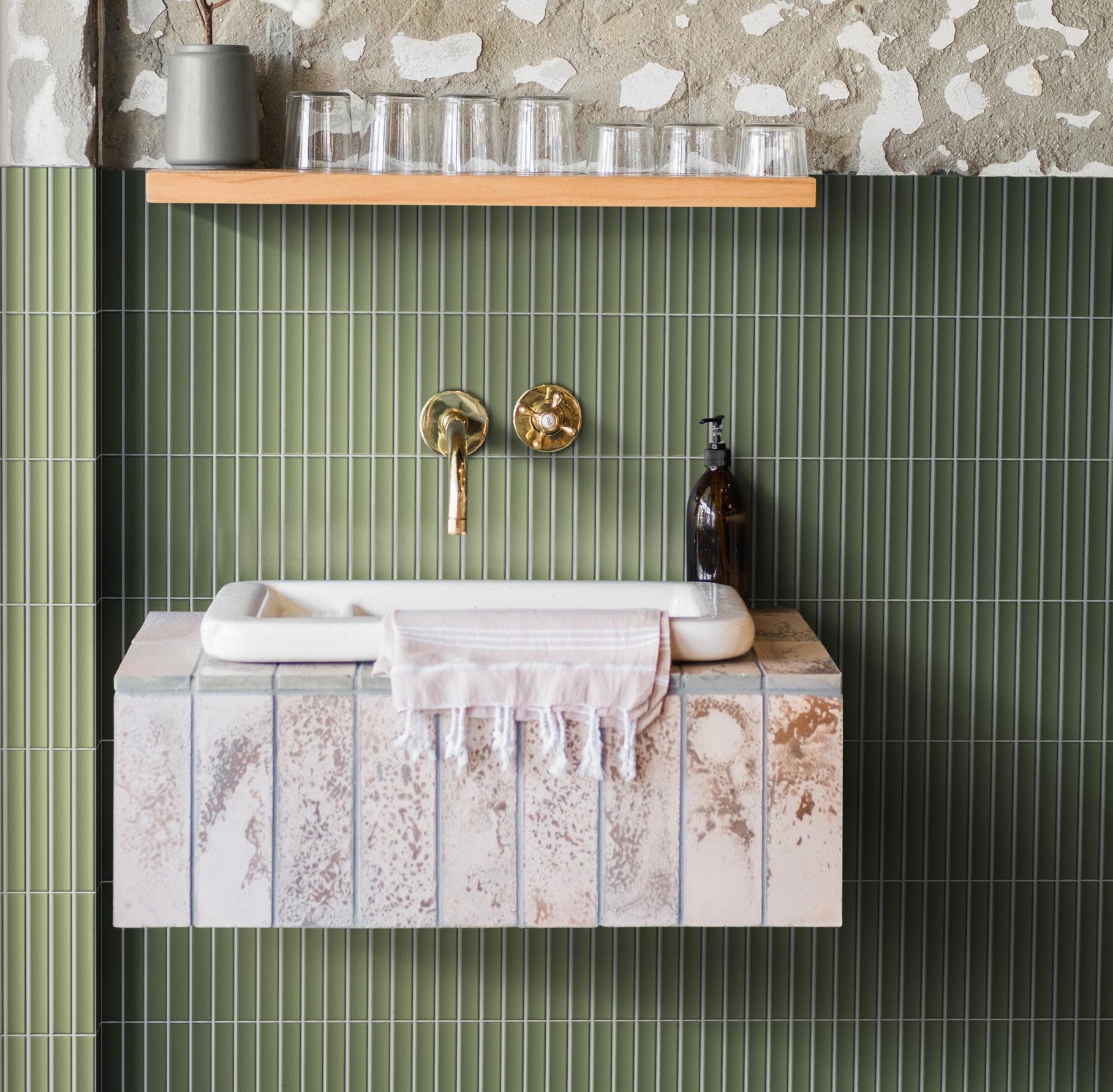

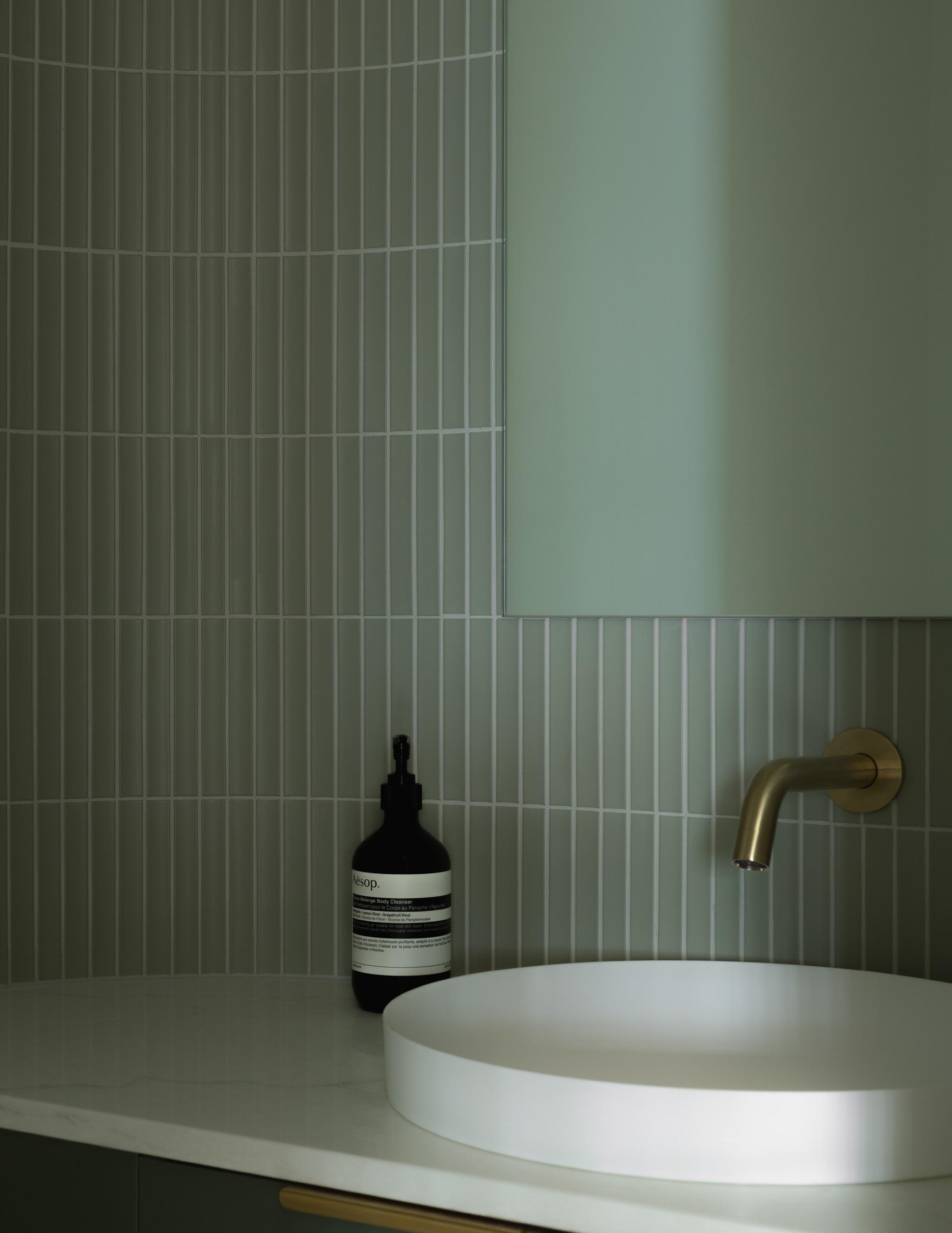

wall: london olive design and builder: happy_haus photography: koskphotography

wall: london olive design and builder: happy_haus photography: koskphotography

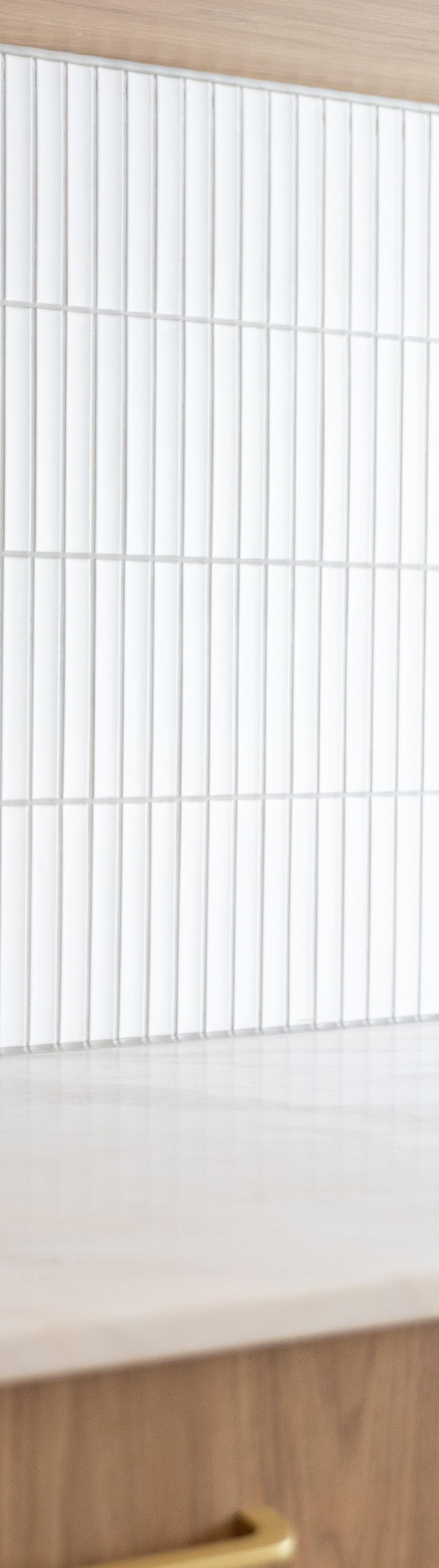

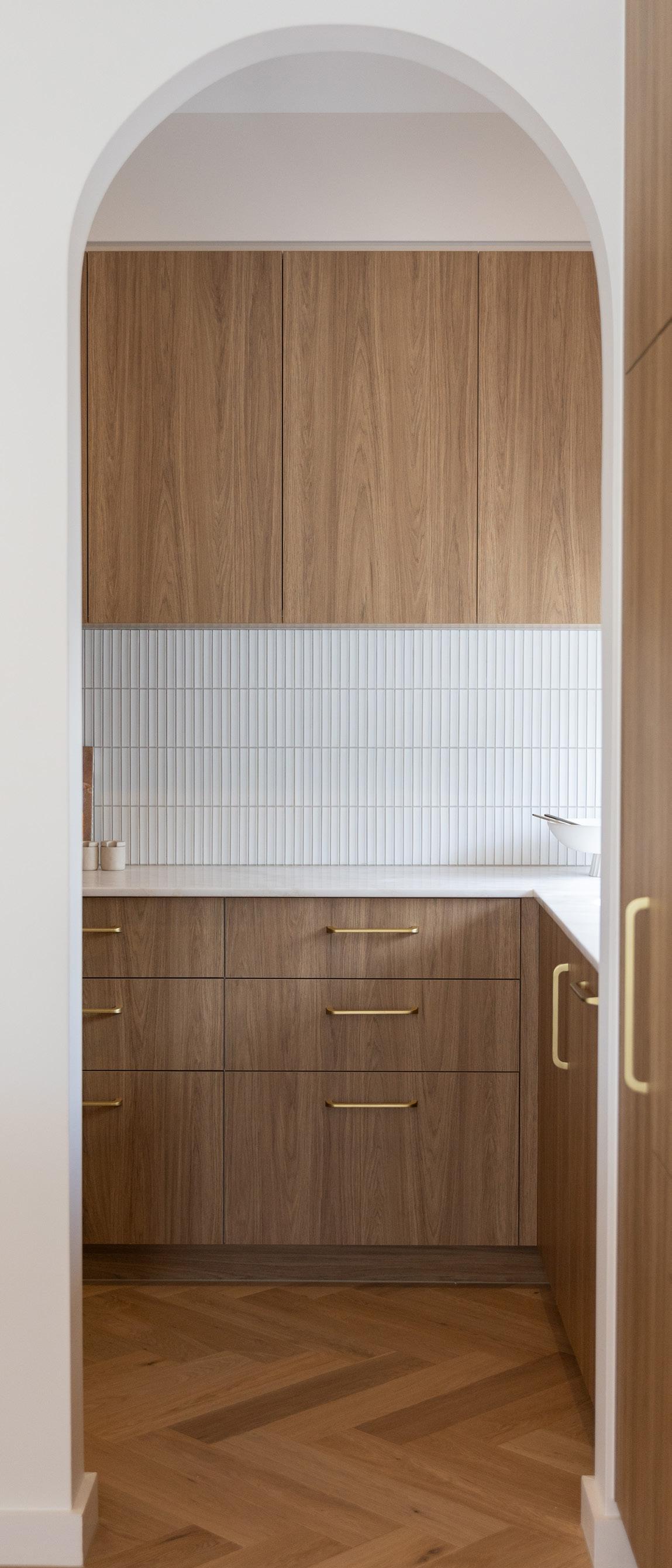

wall: london white builder: @___hnkn___

Product Specifications

Material: Porcelain

Edge: Pressed

Surface finish: Matt

Nominal sizes: 20x145mm on 296x299mm sheet

Application: Wall Only

Shade variation: V1

Important Notice

Not suitable for water submersion such as swimming pool use.

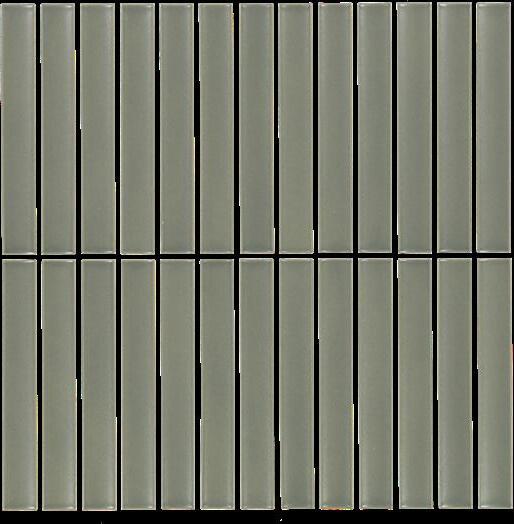

wall: london olive

available colours:

available format:

Colour disclaimer: Due to monitor settings, we cannot guarantee that the colour you see on your screen as an exact colour of the product. We strive to make our colours as accurate as possible, but screen images are intended as a guide only and should not be regarded as absolutely correct. All colours are approximations of actual colours. For more accurate consideration of your tile choices, we recommend taking advantage of our sample service.

20x145mm on 296x299mm
concave finger mosaic

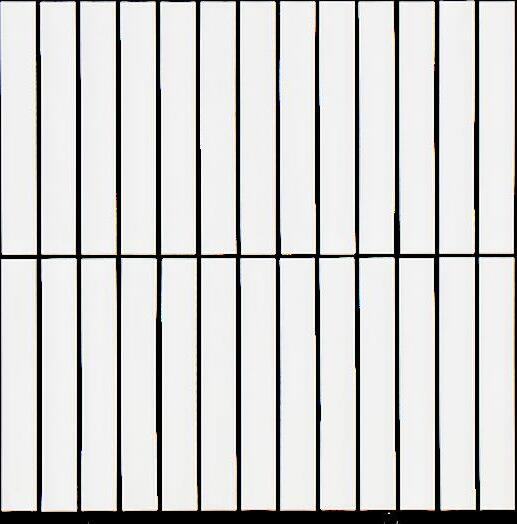

White

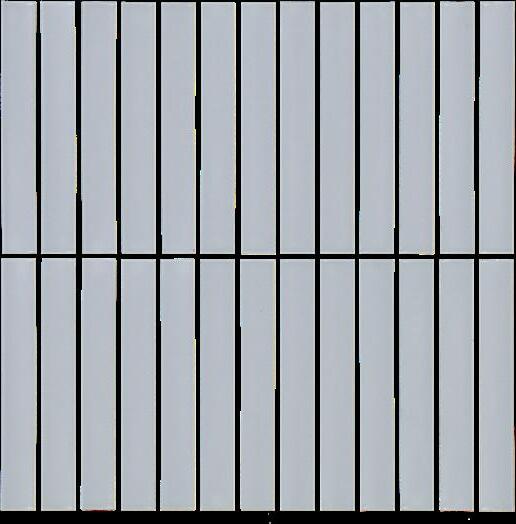

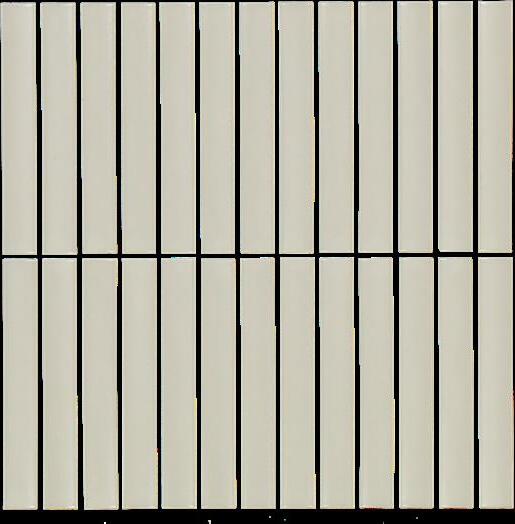

Sky Sage Sapphire

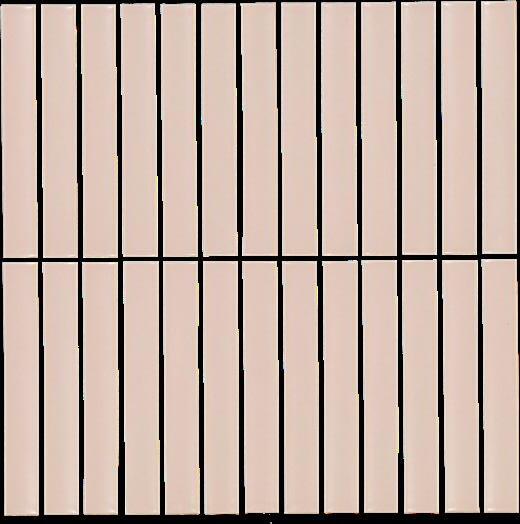

Olive Pink

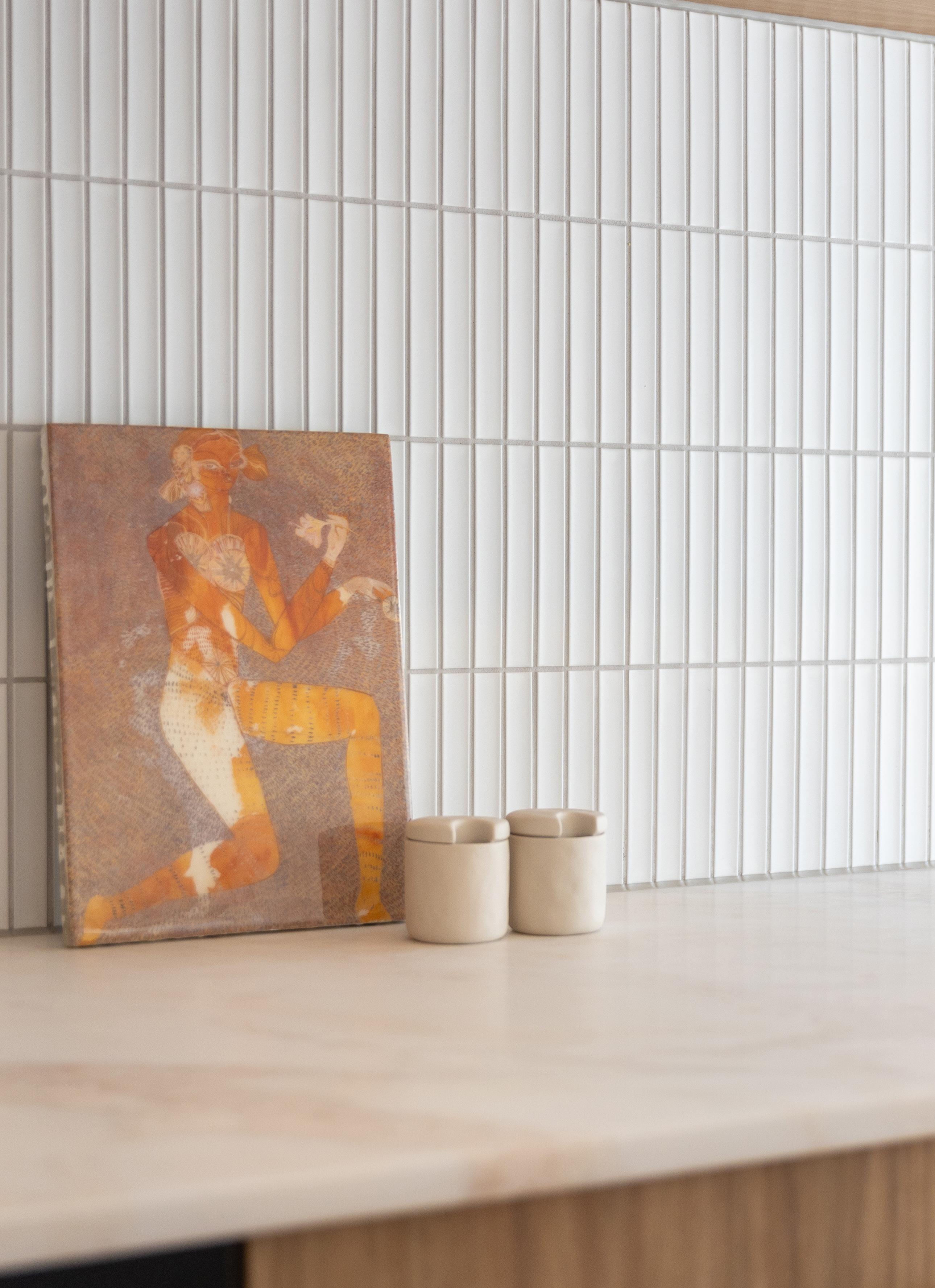

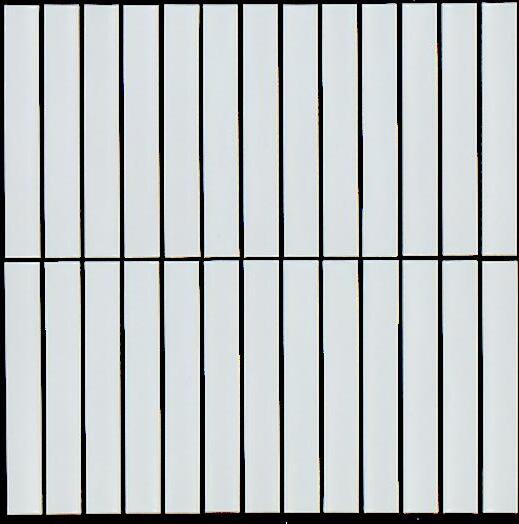

wall: london white

Porcelain Mosaic Installation Guide

General

Dry lay your mosaic tiles prior to installation. Any quality issues should be brought to our attention prior to fixing. Delivered product may vary from showroom samples; fixing of the product constitutes acceptance of the product. Please refer to National Tiles Customer Care Instructions.

Cutting

Cut mosaics with a wet saw using a diamond blade. Cut mosaics slowly using multiple passes, increasing the depth with each pass.

Grouting

• Apply a premium grade thin set mortar using a 4mm V-notch trowel for small mosaics and/or a 6–8mm square-notch trowel for larger mosaics.

• Set tiles, applying pressure or tapping the surface with a rubber grout float to ensure all tiles are bonded and aligned properly. Use a level periodically to check the grout joints.

• Mix and apply grout. For mosaic tiles with a metallic glaze finish, use unsanded grout to prevent surface abrasion.

• Clean all excess grout immediately with a damp sponge.

• After 12 hours, polish any remaining grout haze with a clean, dry cloth.

Cleaning and Maintenance

Please note: Not suitable for water submersion such as swimming pools.

• Do not use abrasive cleaners or harsh chemicals.

• Use an all-purpose cleaner recommended and safe for use on your mosaics.

Disclaimer

No claim will be accepted after installation of the product. All tiling must be undertaken in accordance with AS 3958.1: Guide to the Installation of Ceramic Tiles.
