Floor Tile: Orion Charcoal 600x600mm
Floor Tile: Orion Dark Grey Matt
Product Specifications Material: Ceramic
Edge: Pressed
Surface finish: Matt and External
Nominal sizes:
300x300mm, 300x600mm and 600x600mm
Application: Floor and Wall
Matt in 300x300, 300x600 Wet pendulum test: P3
Slip resistance:
External in 300x600, 600x600 Wet pendulum test: P5
Abrasion resistance: PEI 4
Shade variation: V2
300x300mm = 32 faces
Faces:
Lifetime Guarantee
300x600mm = 16 faces
600x600mm = 8 faces

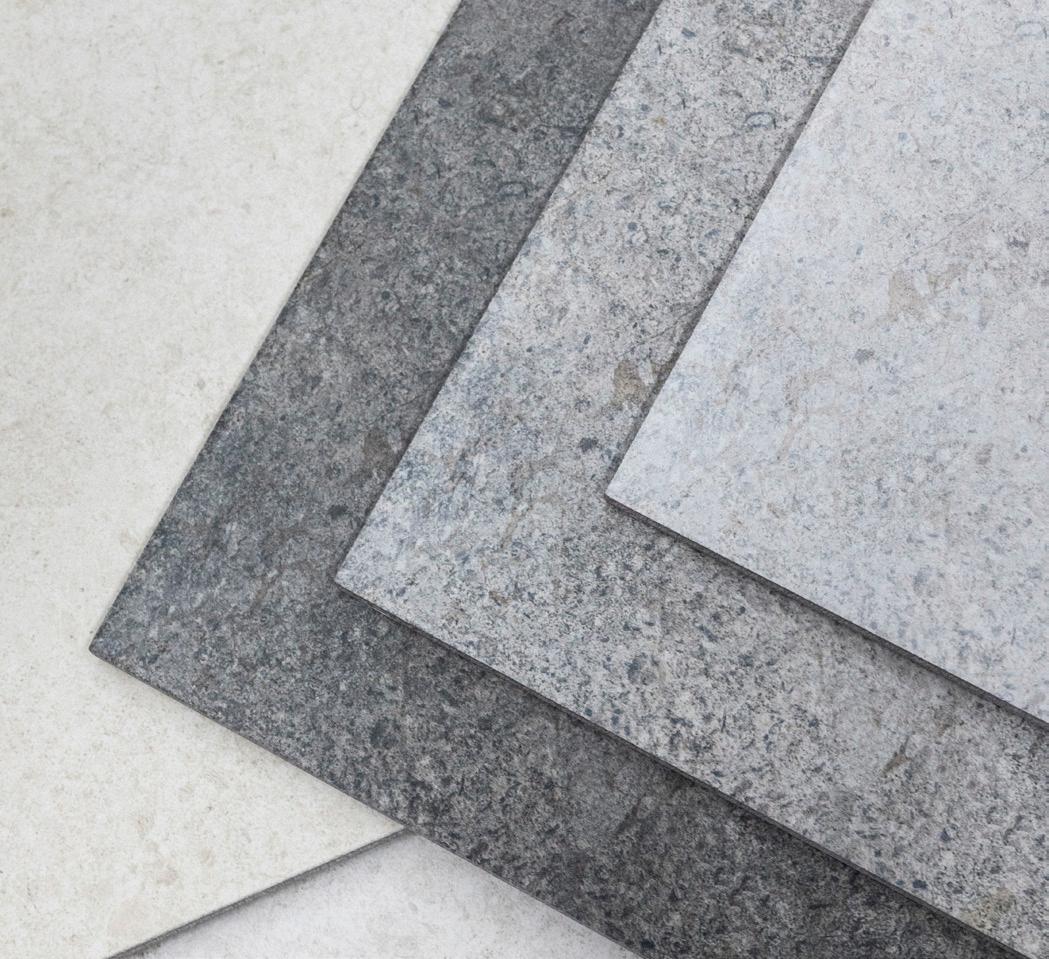

Orion Sand, Orion Charcoal, Orion Dark Grey, Orion Light Grey
With its subtle stone design and colour palette made up five neutrals, the Australian-made Orion range encapsulates the practicality and simplicity of contemporary living.
Available in matt and external finishes in three different sizes, this versatile series can be laid continuously from indoors to out for a seamless finish and a fully coordinated design scheme.
Wall Tile: Orion Light Grey 300x600mm Floor Tile: Orion Light Grey 300x600mm

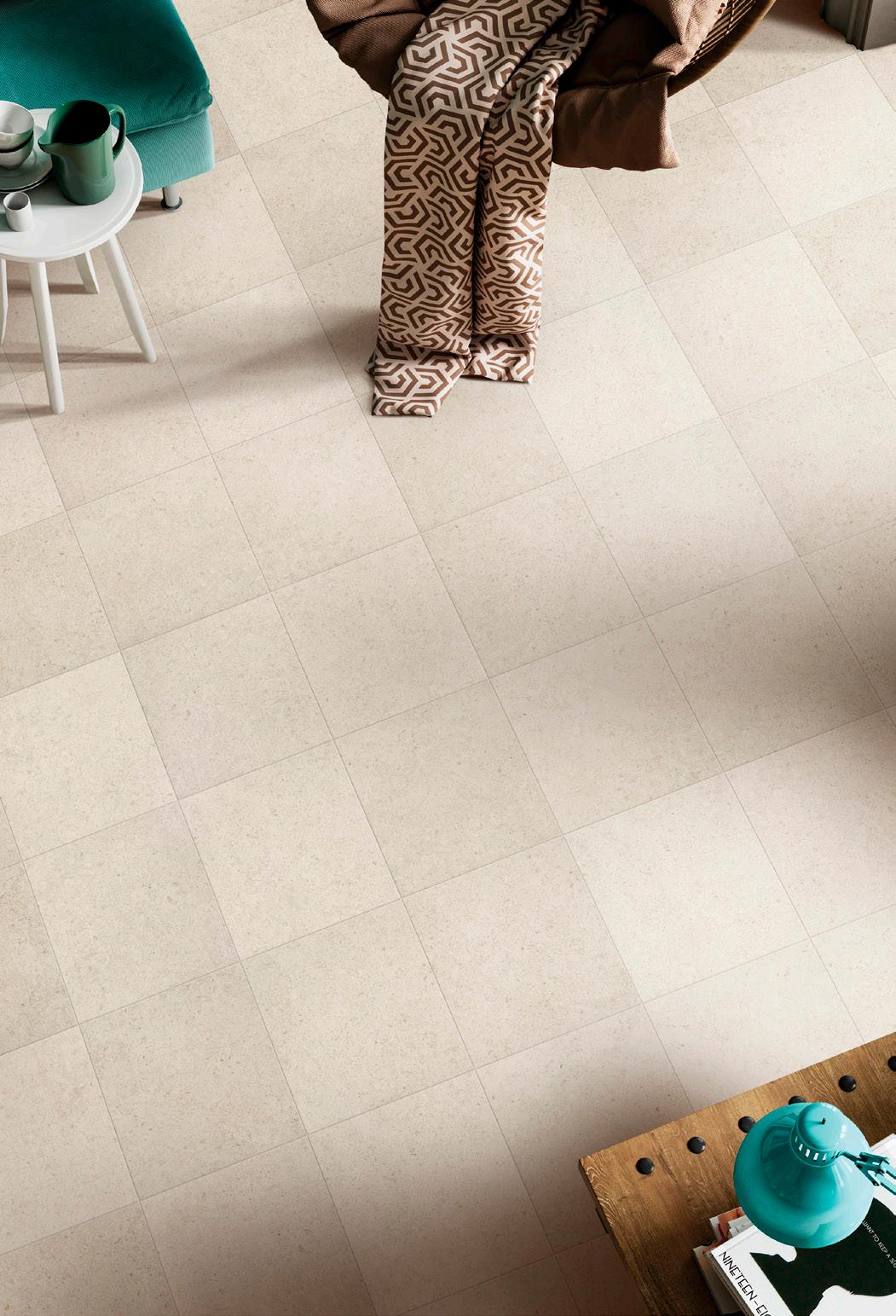

Floor: Orion Sand

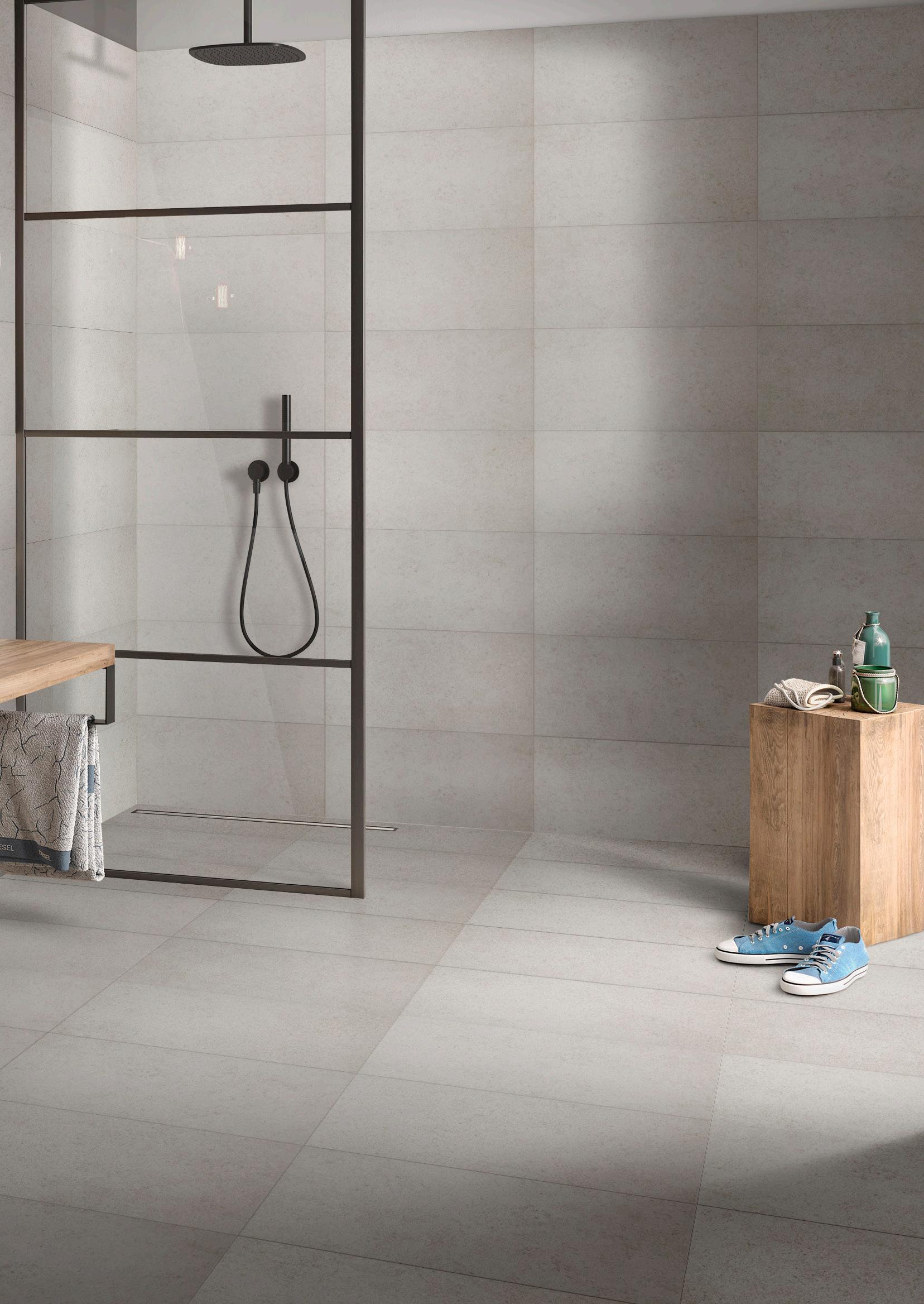

Floor and Wall Tile: Orion Chalk
stocked lines Colour
Sand
Matt
External
Matt
External
Matt
External
Matt
External
Matt
External
300x300mm, 300x600mm, 600x600mm
300x600mm and 600x600mm
300x300mm, 300x600mm, 600x600mm
300x600mm and 600x600mm
300x300mm, 300x600mm, 600x600mm
300x600mm and 600x600mm
300x300mm, 300x600mm, 600x600mm
300x600mm and 600x600mm
300x300mm, 300x600mm, 600x600mm
300x600mm and 600x600mm
Charcoal
Dark Grey
Light Grey
Chalk
product specifications NCIA products conform to Group B1b. NCIA tiles meet and exceed requirements under AU ISO 13006-2013
Category
Length and width
Thickness
Standards International / Australian Standards
+- 0.5mm(difference from work size)
+- 0.5mm(difference from work size)
Centre Curvature +- 0.5mm(difference from work size)
Straightness of Edge +- 0.5mm(difference from work size)
Edge Curvature +- 0.5mm(difference from work size)
Resistance to Surface Abrasion Minimum PEI 3
Stain Resistance
Minimum Class 4
Resistance to Chemicals Class A
Water Absorption
+-2.0mm (difference from work size)
+- 0.5mm(difference from work size)
+-2.0mm (difference from work size)
+-2.0mm (difference from work size)
+-2.0mm (difference from work size)
Minimum Class 3
Less than 3%
Resistance to Crazing No Crazing
Resistance to Frost Resistant
Resistance to Fire Non-Flammable
Gaseous Emissions when Exposed to Fire No Emission
VOC Emissions No Emission
Fading in UV/Sunlight Color Permanence
Moisture Expansion
Modulus of Rupture (N/mm2)
Surface Quality
Less than 0.01%
Minimum 30N/mm2
Minimum 98% Defect Free
Less than 0.06%
Minimum 30N/mm2
Minimum 95% Defect Free
