Yongfa machine tools catalog

Drilling machine Milling machine Lathe

Yongfa

SINCE 1994 & ISO 9001 accreditation

Professional machine tools manufactory

30,000 sqm factory 200+ employees 12,000+ machines produced a year 50+ serviced arcoss countries

Yongfa, a premier machine tool supplier based in Gaoyou, Jiangsu Province, China, boasts extensive production capabilities entirely from its own facilities. The company's mission is to excel in customer service by offering optimal price-performance ratios, empowering customers to achieve exceptional results.

For many years, Yongfa has been a trusted supplier to numerous prominent global enterprises, particularly in the European and American markets.

The company’s manufacturing arsenal includes over 250 sets of diverse metal mechanical cutting, inspection, and other related equipment, such as machines for drilling, milling, and grinding, complemented by sophisticated heat treatment facilities.

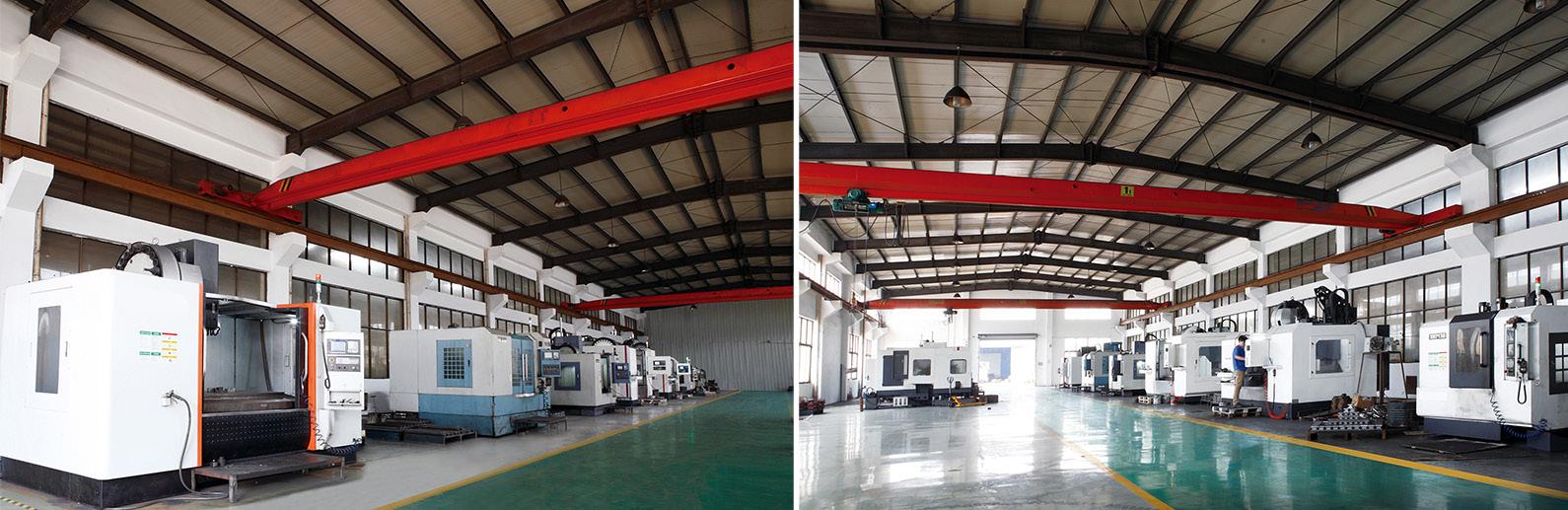

The plant houses over 50 advanced machine centers and CNC equipment, including lathes and milling machines, alongside more than 100 standard machine tools, ensuring robust production and innovation capabilities.

Drilling machines

Drilling machine

Features and standard configuration

• Compact and modern design

• Powerful drilling

Optional configuration

• Tapping

• Coolant system

• Automatic quill feed (quill stroke 106 mm)

• Spindle protection with microswitch and belt cover with microswitch

• Main power switch

• LED work light

Drilling machine

configuration

Features and standard configuration

• Large drill table features

• Gear head is height adjustable, tilts ±90° and rotates 360˚

• Clutch allows change from manual to fine feed

Optional configuration

• Tapping

• Coolant system

• Electronic depth display

• Automatic quill feed

• Dual speed motor(Only 3 PH available)

• Spindle protection with microswitch

• Main circuit protector

• Main power switch

• LED work light

configuration Coolant system

Drilling

Quill stroke 120

Spindle

Spindle tapper R8 or MT3

Spindle

Spindle

and weight

Distance spindle to base 1180 mm

Drilling capacity, iron 40 mm spindle travel 120 mm

Spindle tapper MT3 or MT4 or R8

Spindle speeds 50HZ 75-1600 rpm

mm x 760 mm x 1885mm

365 kg

Drilling machine

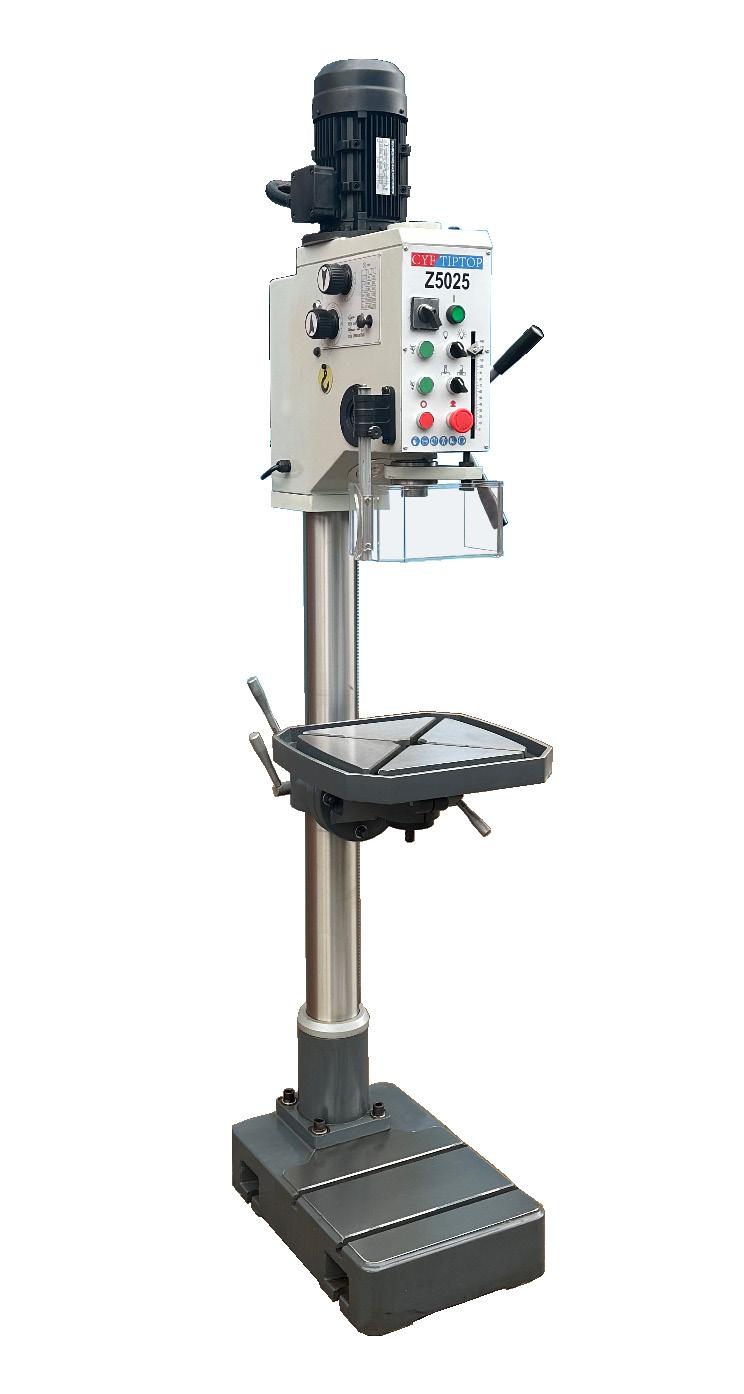

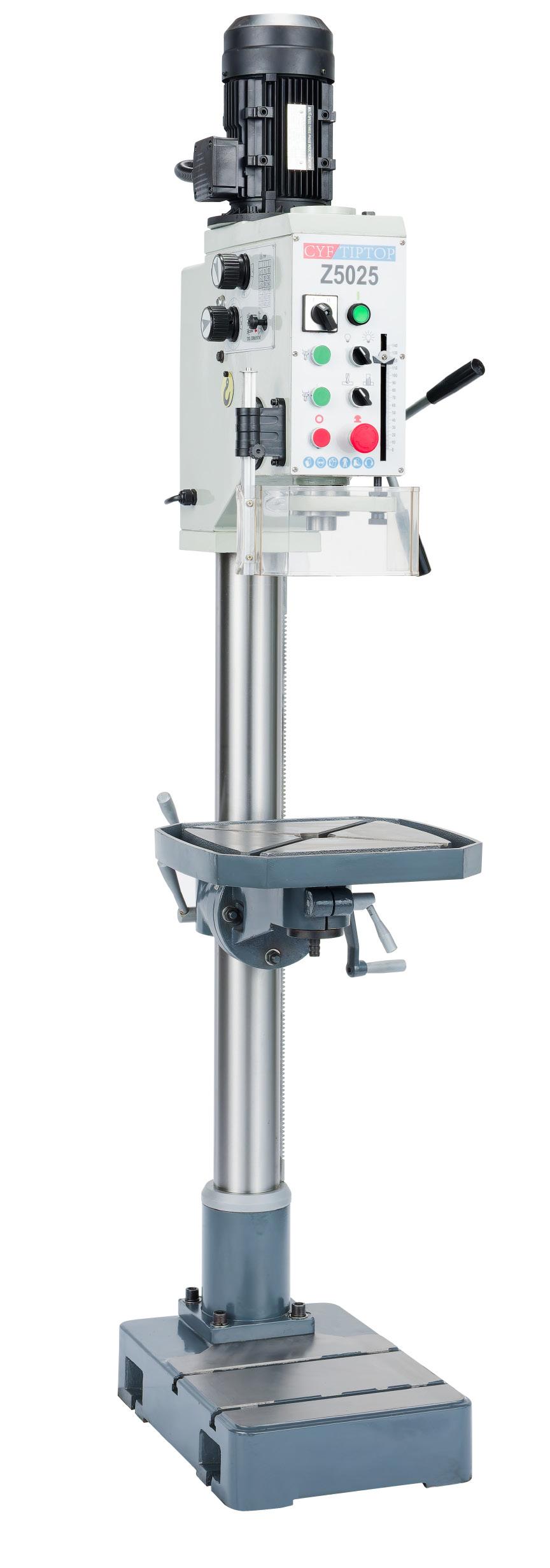

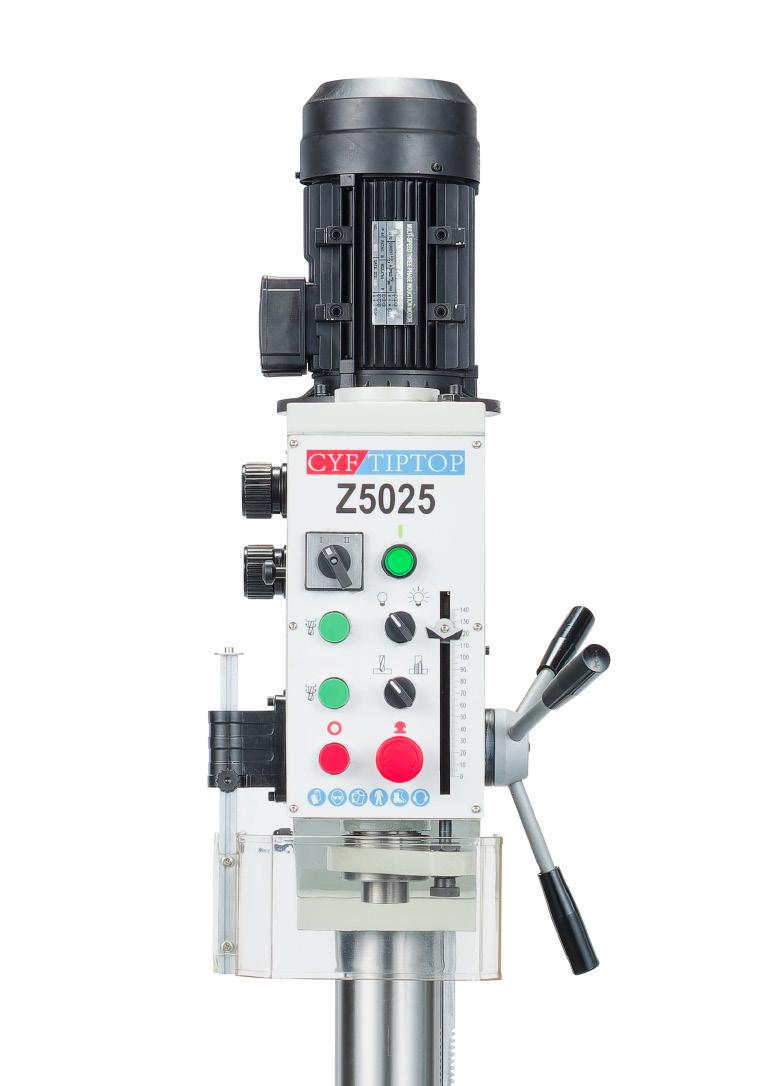

Z5025

Features and standard configuration

• 2-step drive motor allows for 12 different speed

• Solid work table (360° turnable), tiltable from -45° to +45°

• Rotation switch for right and left turning for thread cutting

• Protective cover with micro switch

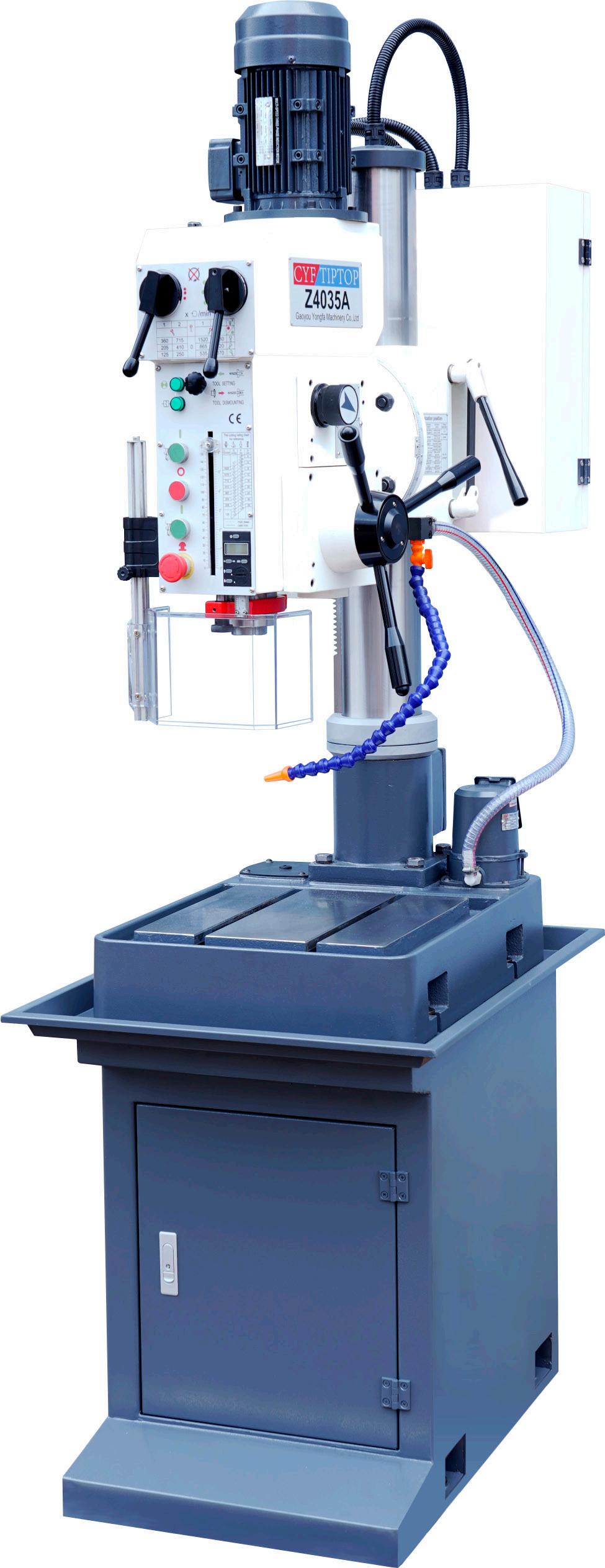

Z4035

Features and standard configuration

• Tapping

• Coolant system

• Dual speed motor

• Automatic quill feed

• Spindle protection with microswitch

Optional configuration

• Electronic depth display

• LED work light

• Steel stand

Drilling machine

Spindle

Electrical

Distance spindle center to column surface

Distance spindle nose to work table 810 mm

Distance spindle nose to base 1200 mm

Column diameter 100 mm

Max drilling and tapping capacity 28 mm / M20

Spindle travel 130 mm

Spindle tapper MT3

Spindle speeds range (12) 75 - 3200 rpm

Working

Spindle

Distance spindle to column

Column diameter 120 mm

Distance spindle to base 650 mm

Drilling capacity, steel 35 mm

Tapping capacity, steel M22

Quill stroke 160 mm

Quill feeds (3) 0,1; 0,2; 0,3 mm/R

Spindle tapper MT4

Spindle Speed (12) 125 - 3030 rpm

Spindle box tilts ± 45°

Spindle box travel 515 mm Electrical

Optional configuration Electronic depth display

Optional configuration Steel stand

Drilling machine

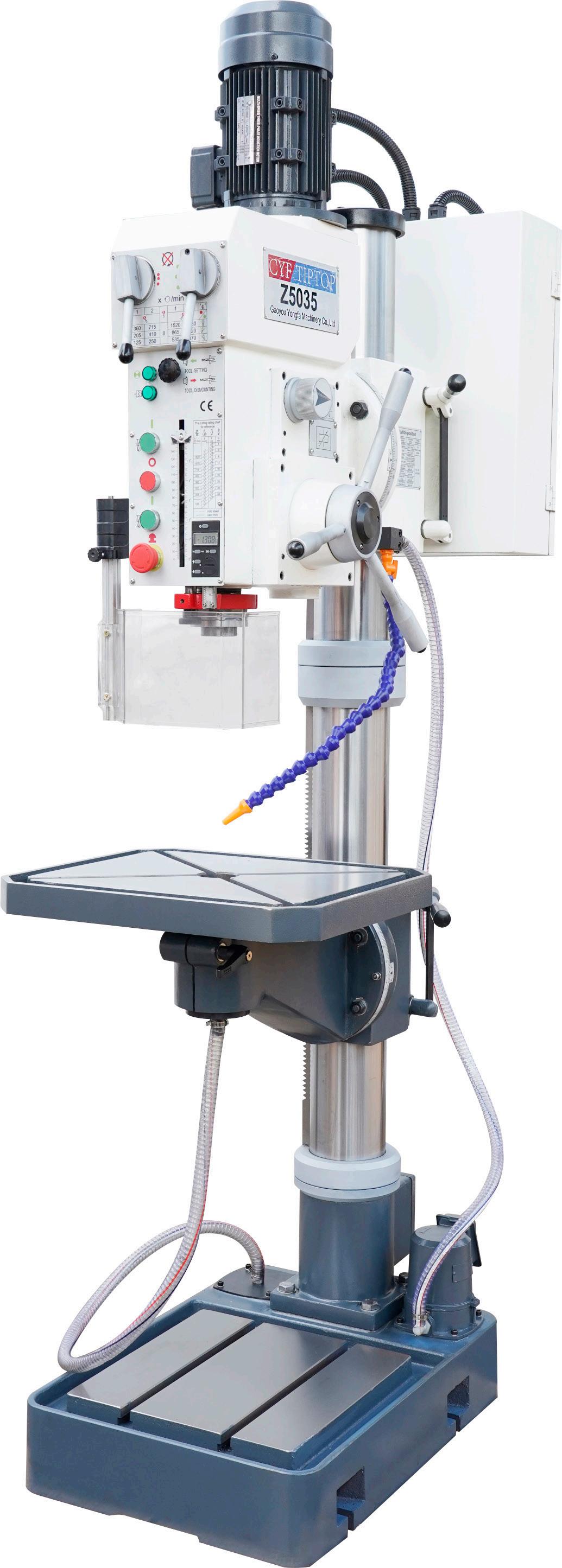

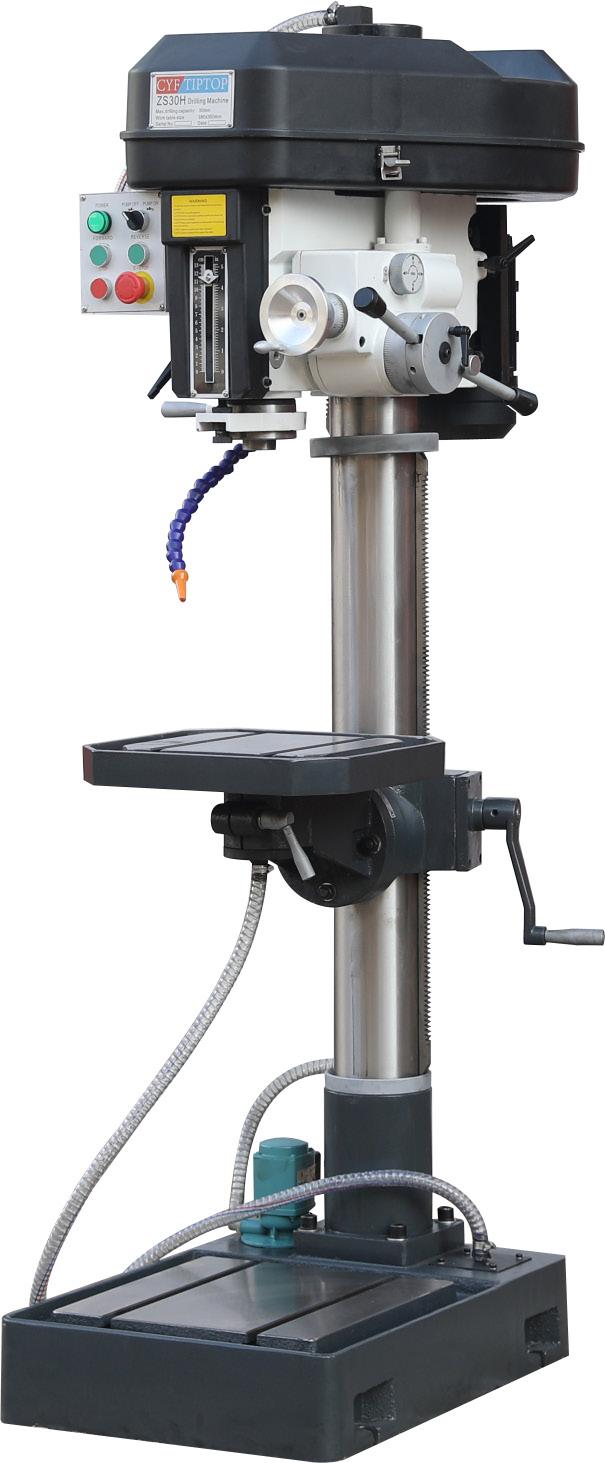

Z5035

Features and standard configuration

• Electromagnetic automatic feed

• 360˚ rotatable worktable

• Tiltable worktable

• Tapping

• Coolant system

• Dual speed motor

• Spindle protection with microswitch

Optional configuration

• Electronic depth display

• LED work light

Work

Tapping

Quill

Spindle

Quill

Spindle tapper MT4

Spindle box tilts ± 45°

Spindle box travel 325 mm

Spindle

Drilling machine

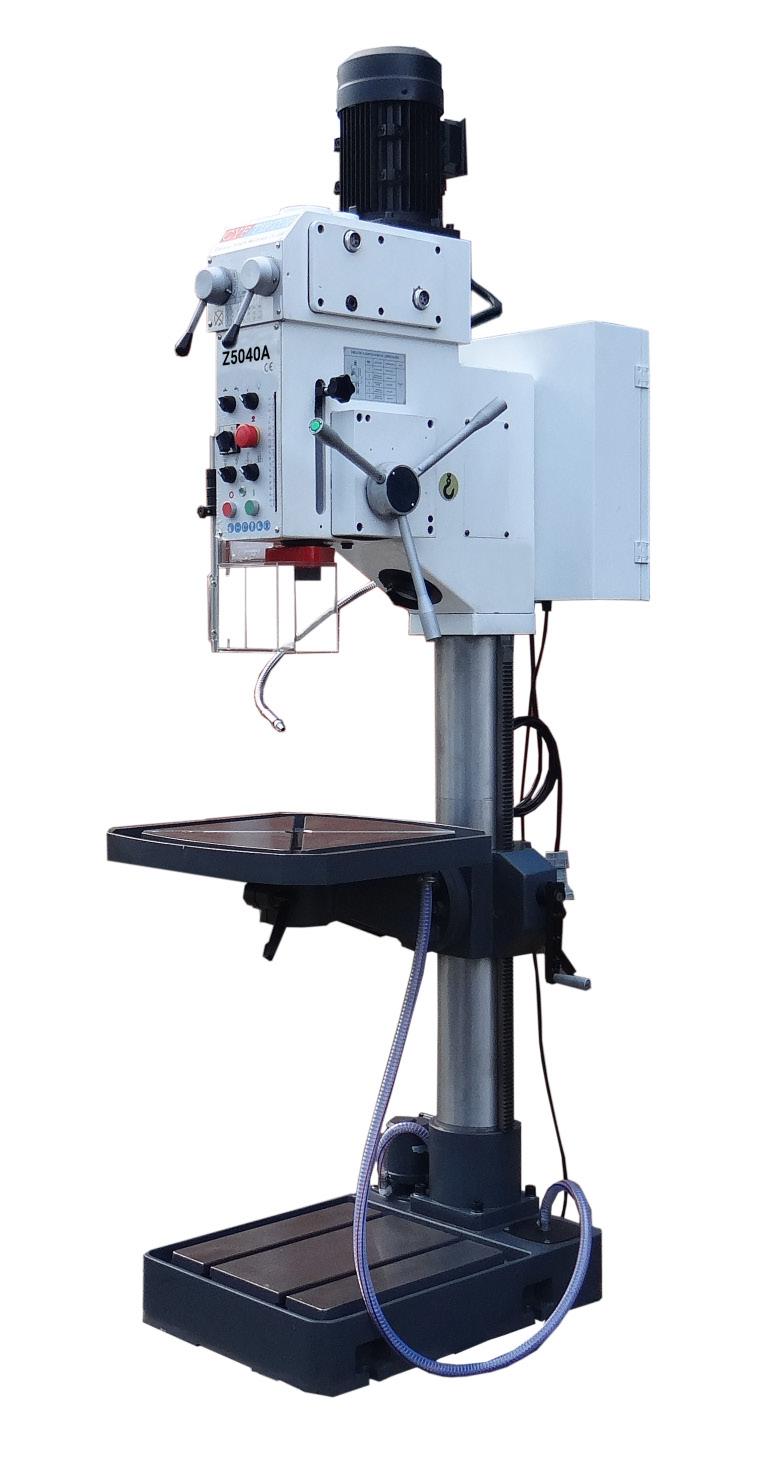

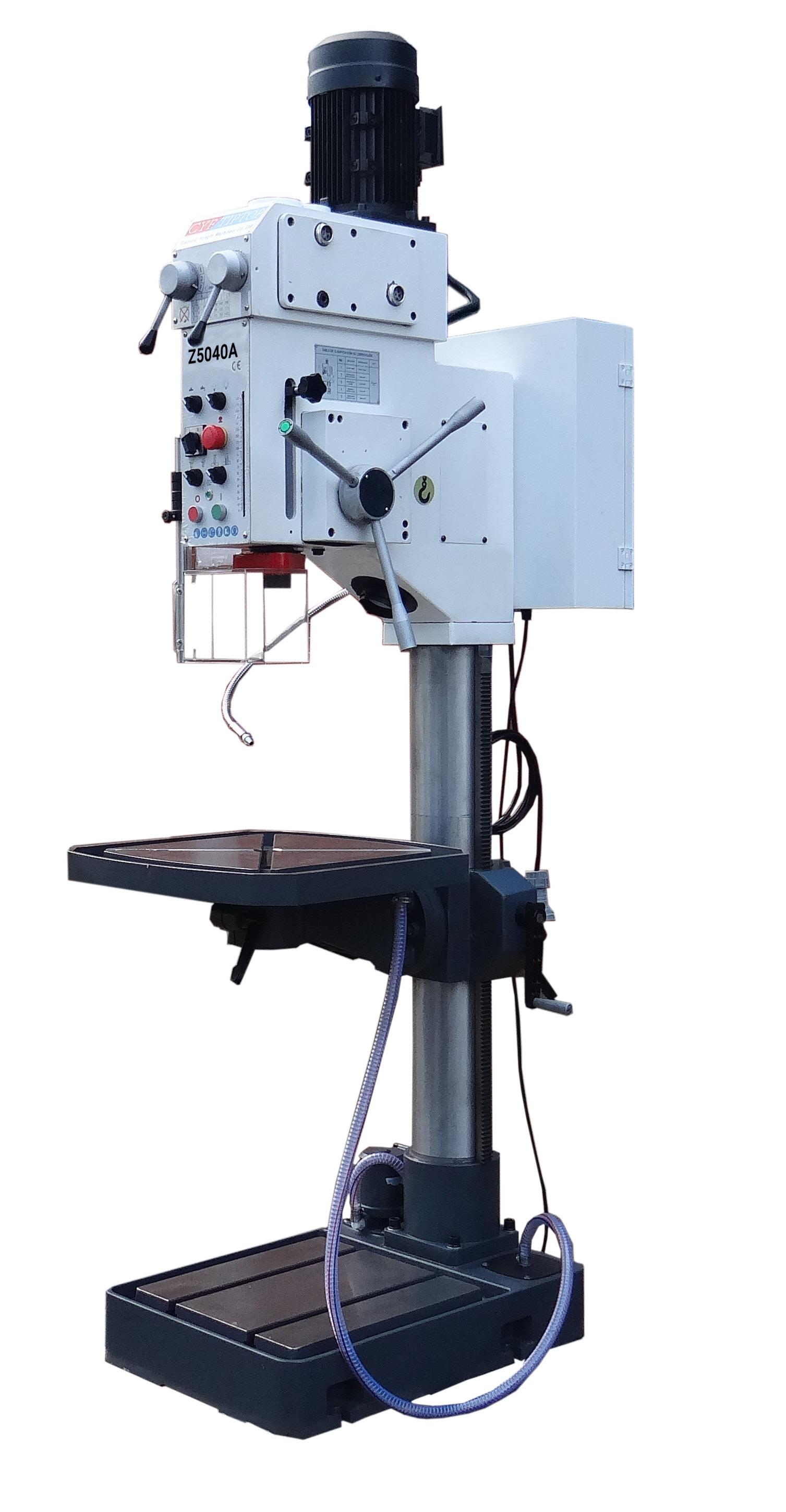

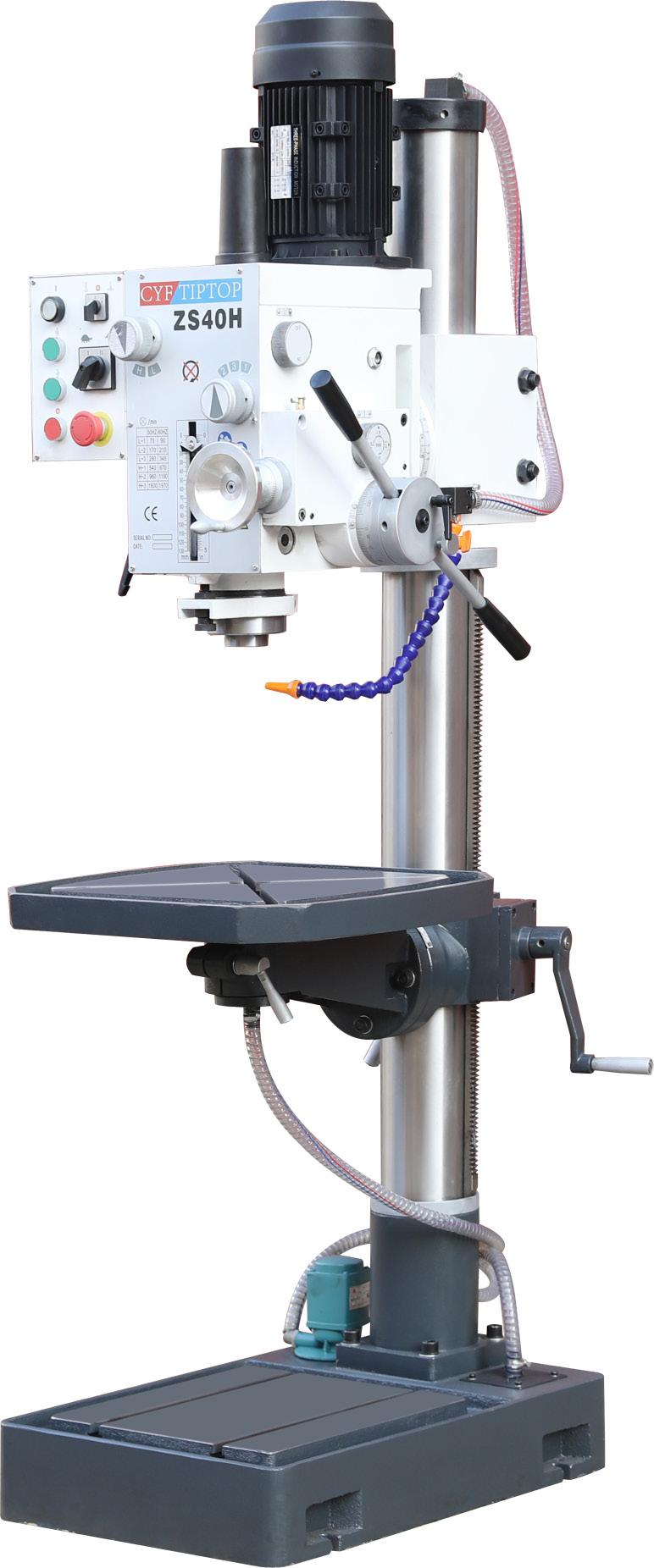

Z5040A

Features and standard configuration

• Electromagnetic automatic feed

• Tapping

• Two-speed motor

• Spindle protection with microswitch

• Coolant system

Optional configuration

• Tiltable workbench

• Electronic depth display

• LED work light

• Electronic control screen

• Halogens work Light Working area

Distance spindle to base 1320 mm

Drilling capacity, steel 40 mm

Quill stroke 180 mm

Spindle

Quill feeds (2) 0,1; 0,2

Spindle tapper MT4

Spindle Speed 50 - 1450 rpm Electrical

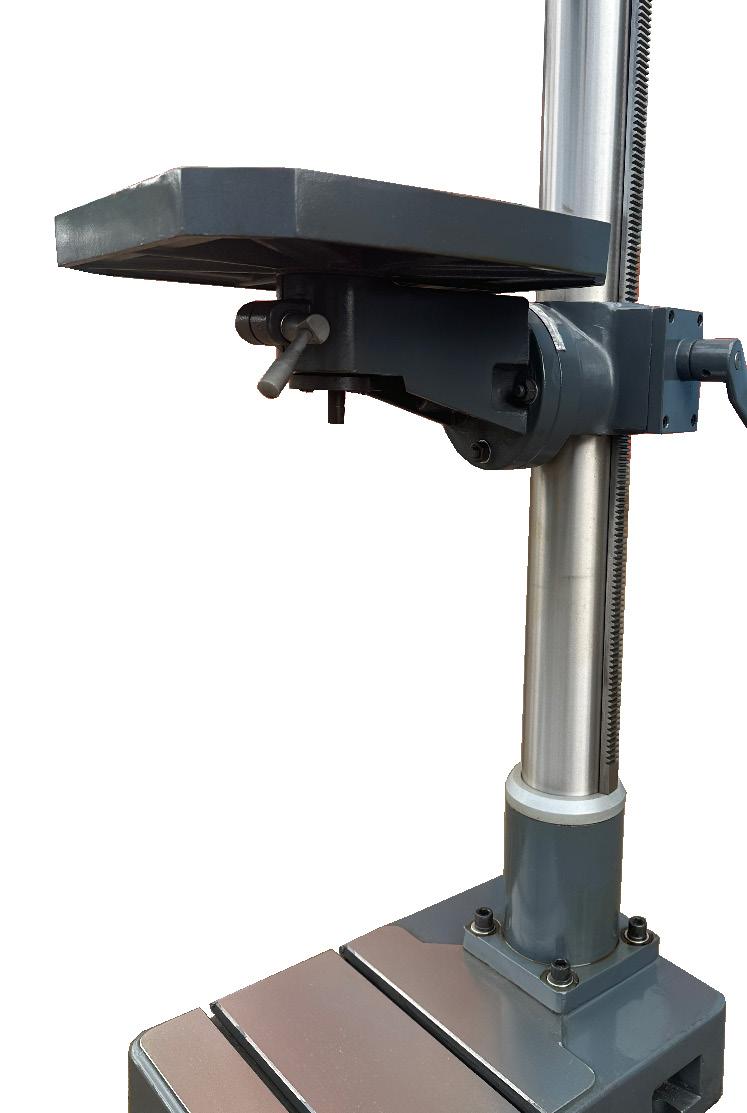

Optional configuration Tiltable workbench

Drilling machine

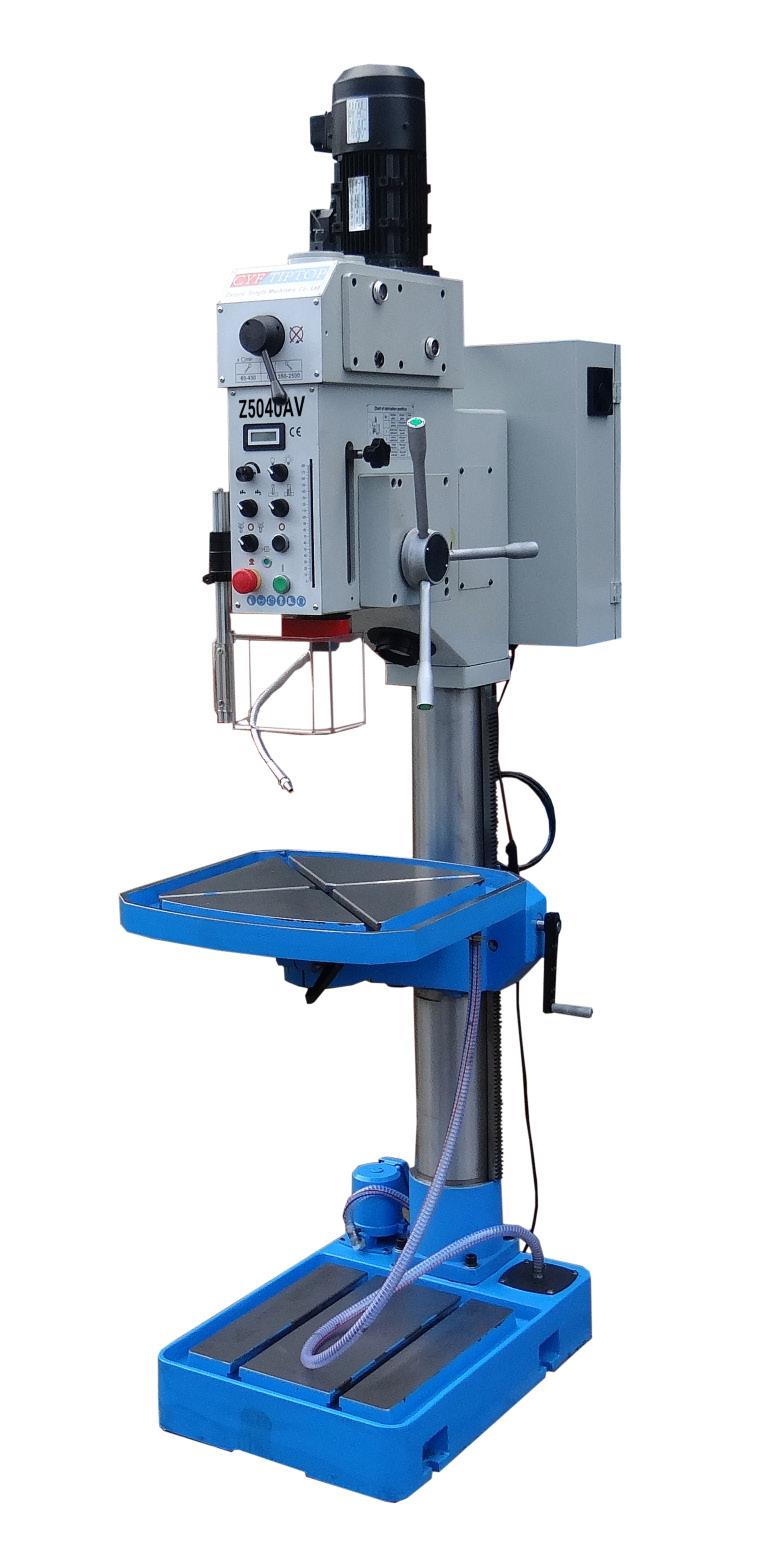

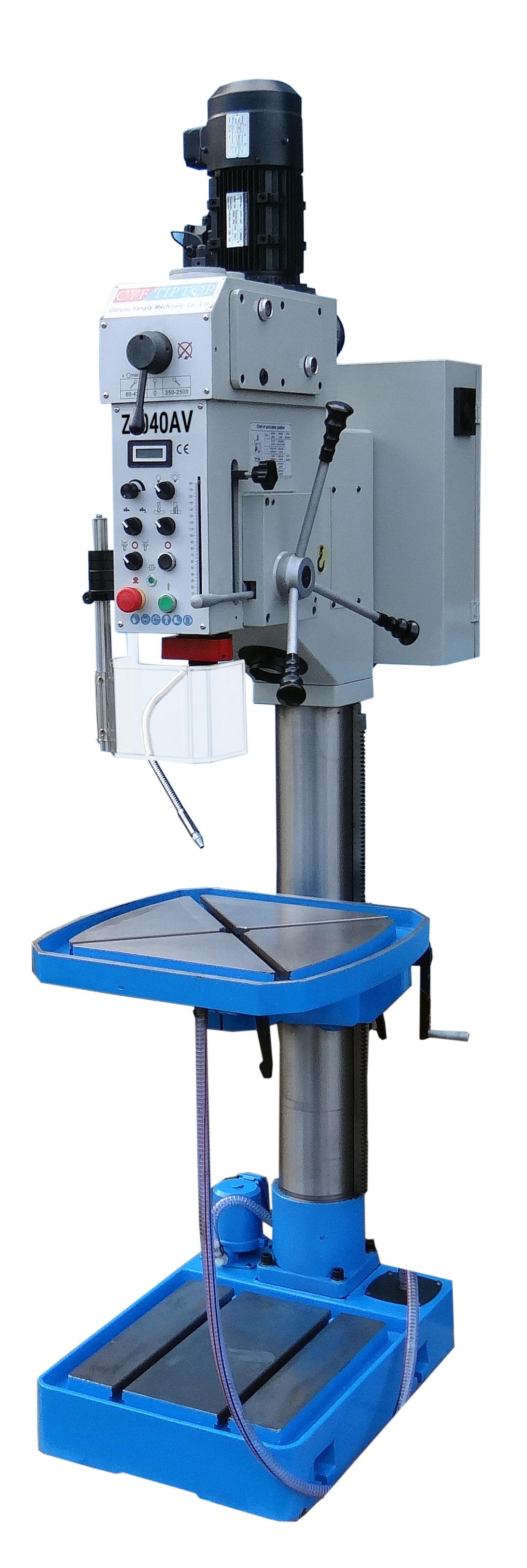

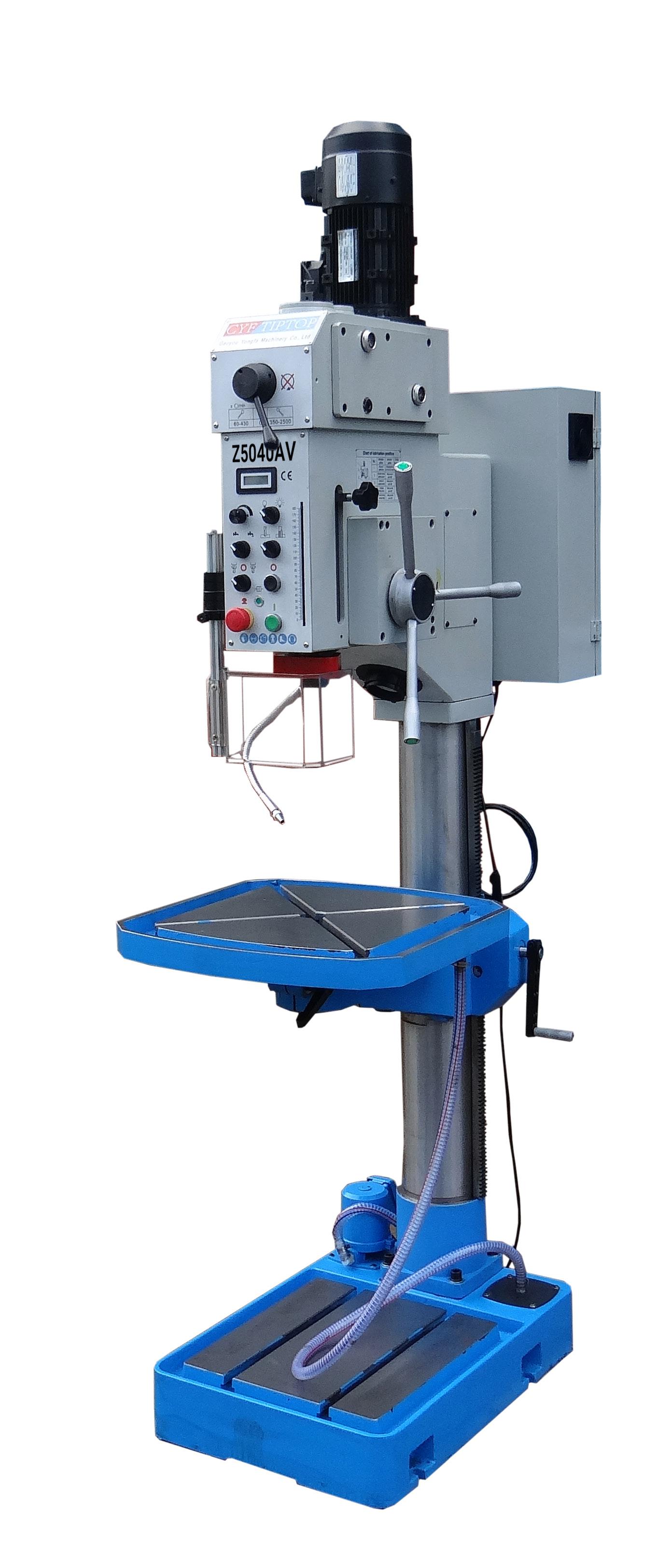

Z5040AV Mechanical feed

Standard configuration

• Frequency motor and Delta inventor

• Tapping

• Automatic quill feed

• Spindle protection with microswitch

• Coolant system

• Halogens work Light

Optional configuration

• Tiltable workbench

• Electronic depth display

• LED work light

• Electronic control screen

Z5040AV

Electromagnetism clutch transmission feed

Standard configuration

• Frequency motor and Delta inventor

• Tapping

• Automatic quill feed

• Spindle protection with microswitch

• Coolant system

• Halogens work Light

Optional configuration

• Tiltable workbench

• Electronic depth display

• LED work light

• Electronic control screen

Drilling machine

Drilling

Spindle

Spindle

Spindle

Drilling machine

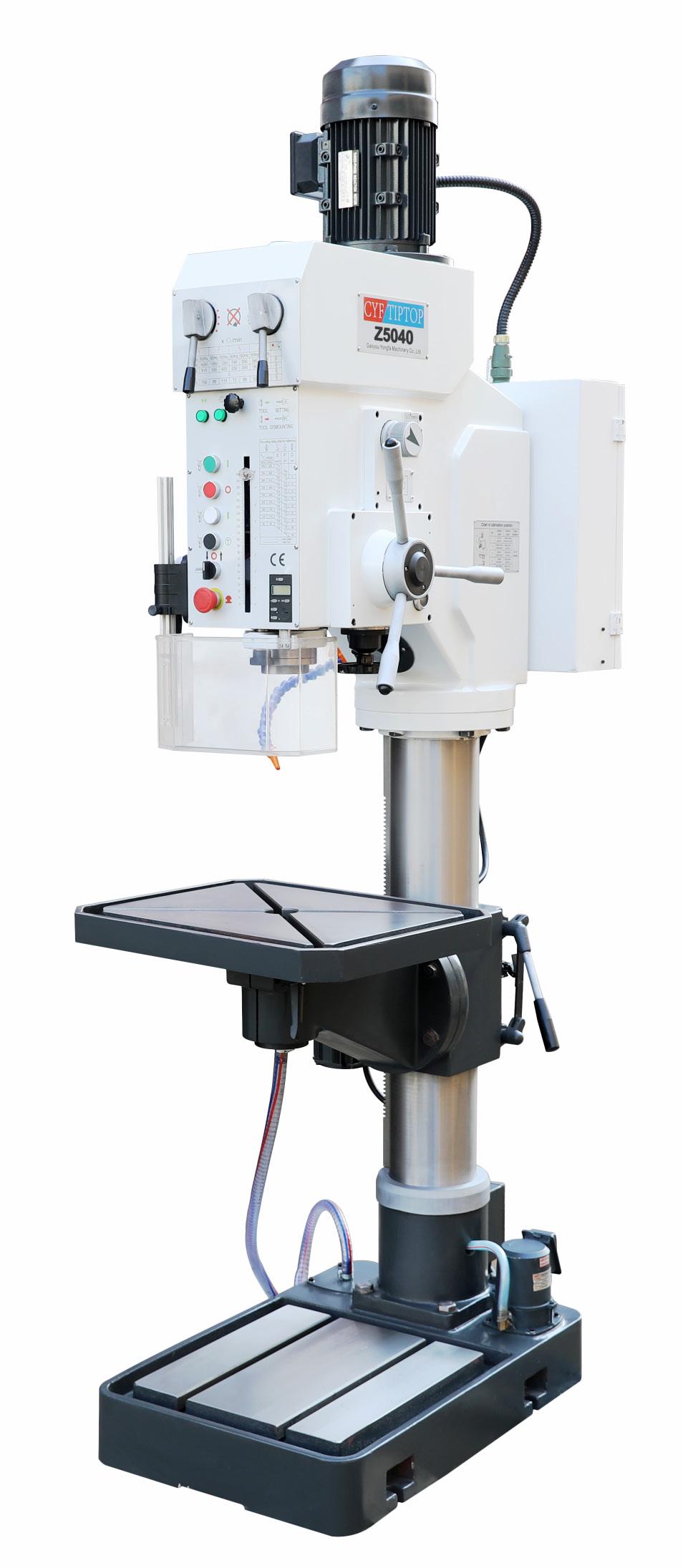

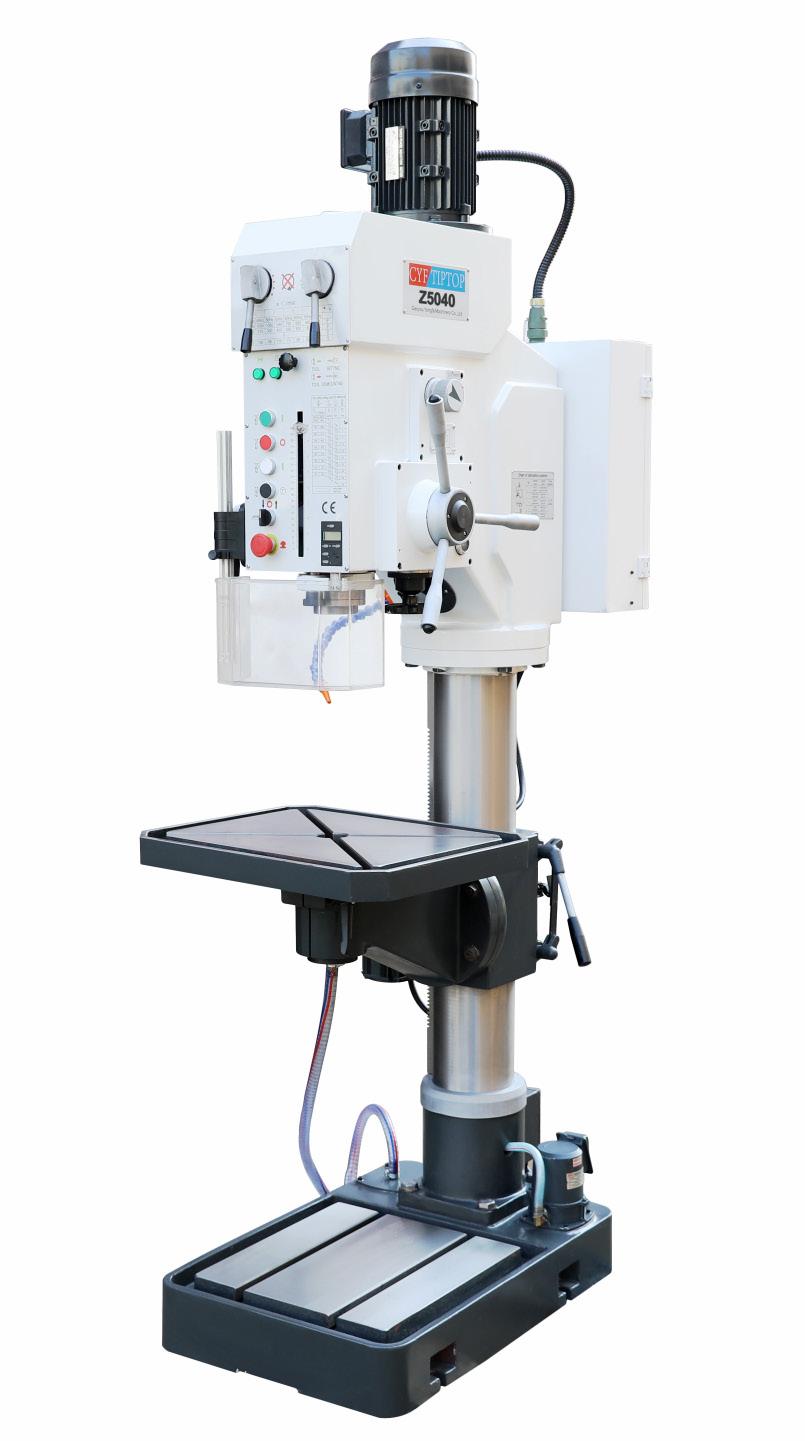

Z5040

Features and standard configuration

• Electromagnetic automatic feed

• Motorized adjustable workbench

• 360˚ rotatable worktable

• Tiltable worktable

• Spindle protection with microswitch

• Coolant system

• Tapping

Drilling machine

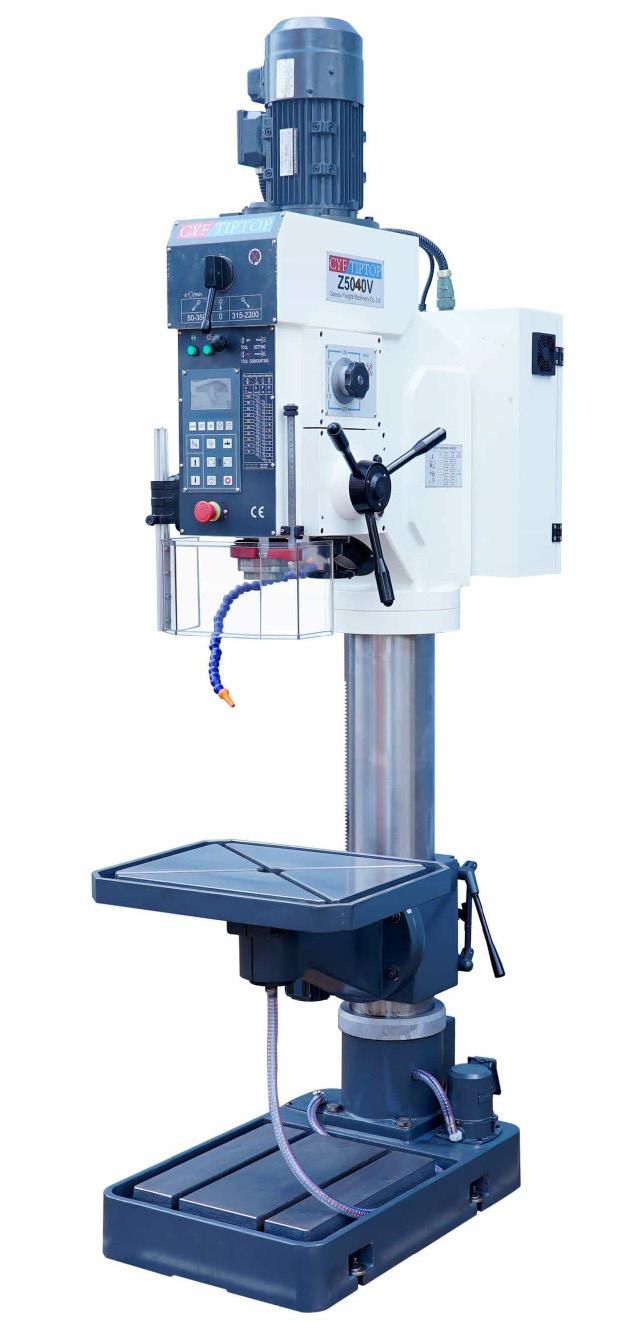

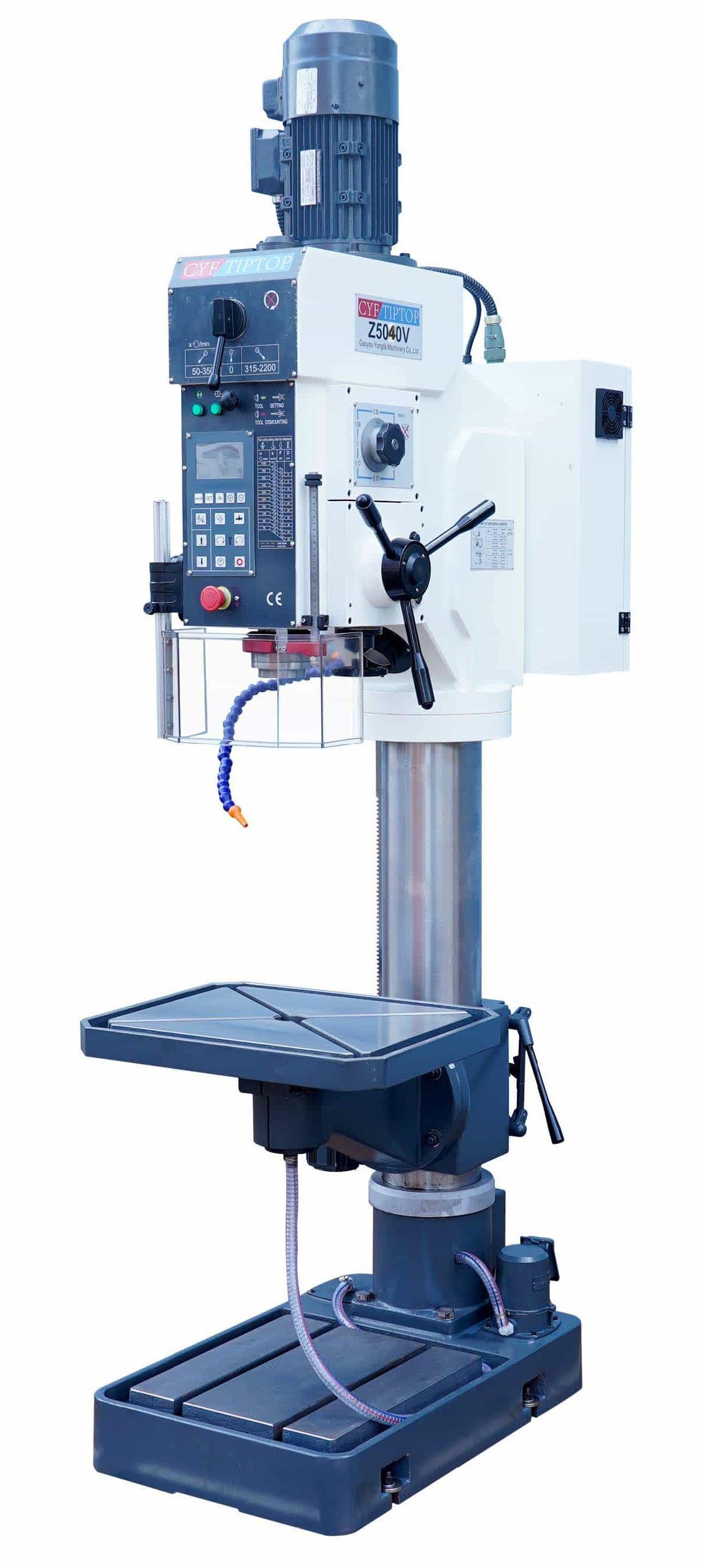

Z5040V

Features and standard configuration

• Frequency motor and Delta inventor

• Electromagnetic automatic feed

• Motorized adjustable workbench

• Spindle protection with microswitch

• Tapping

• Coolant system

•

Optional configuration

•

•

•

• Halogens work Light Working

Work

Work

Rotation

Tapping

Quill

Work

Spindle

Optional configuration

•

•

•

Spindle

Drilling

Tapping

Quill

Quill

Spindle

Head

Drilling machine

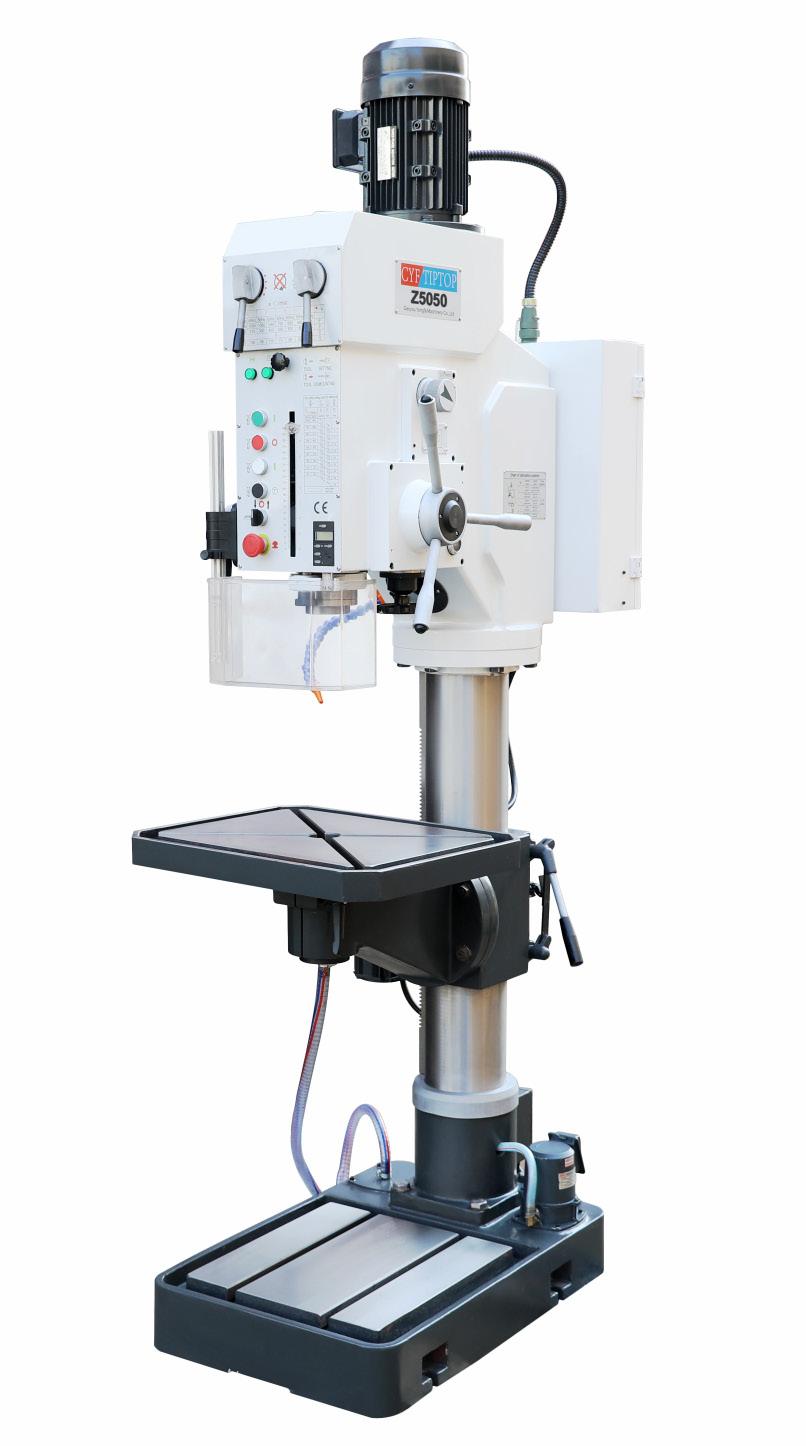

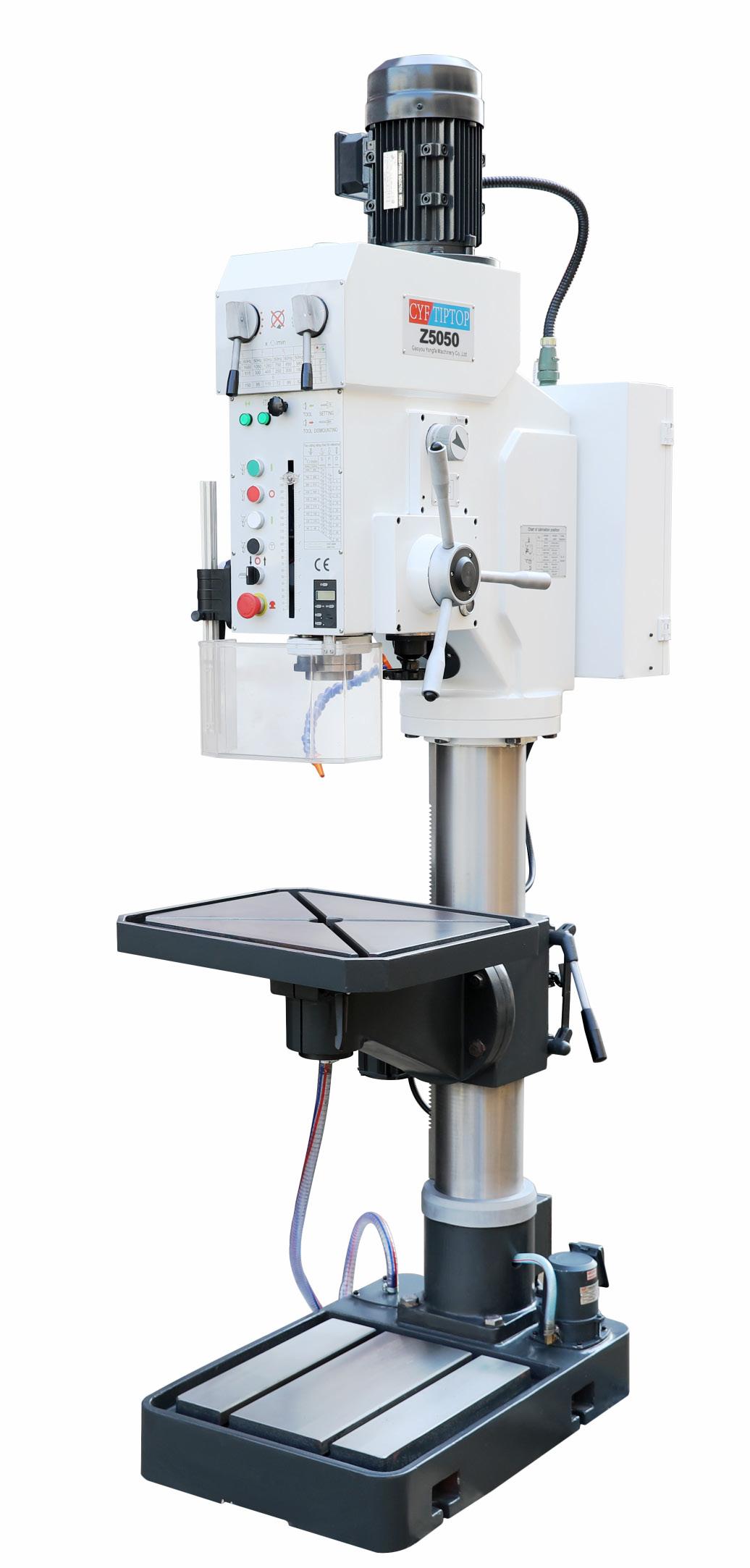

Z5050

Features and standard configuration

• Heavy, solid cast (heavy-duty) design

• 180 mm column diameter

• Electromagnetic automatic feed

• Motorized adjustable workbench

• Spindle protection with microswitch

• Tapping

• Coolant system

• Halogens work Light

Optional configuration

• Electronic depth display

• LED work light

• Electronic control screen

Work

Foot

T-slot

Working

Rotation of worktable ± 45°

Drilling

Tapping

Quill stroke 240 mm

Spindle

Quill

Spindle tapper MT4

Work

Spindle

Drilling machine

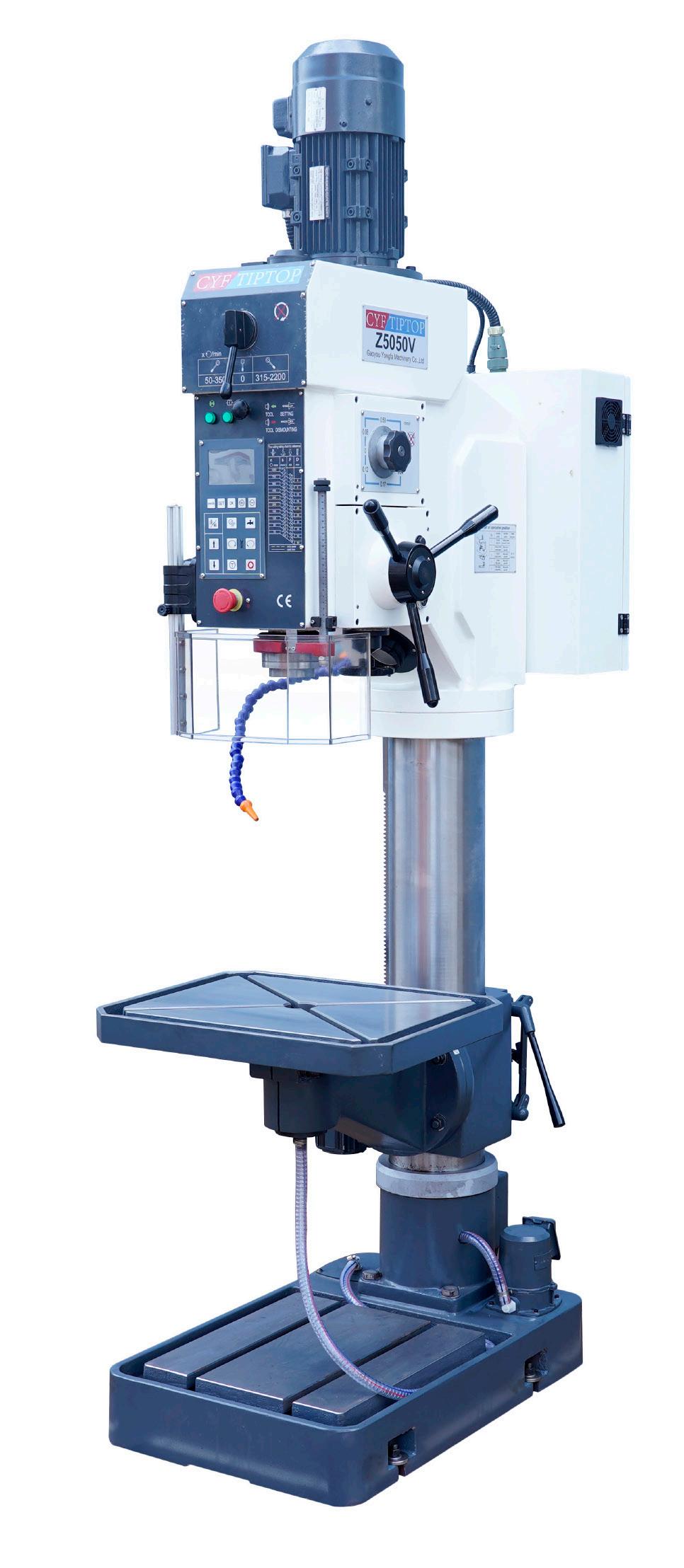

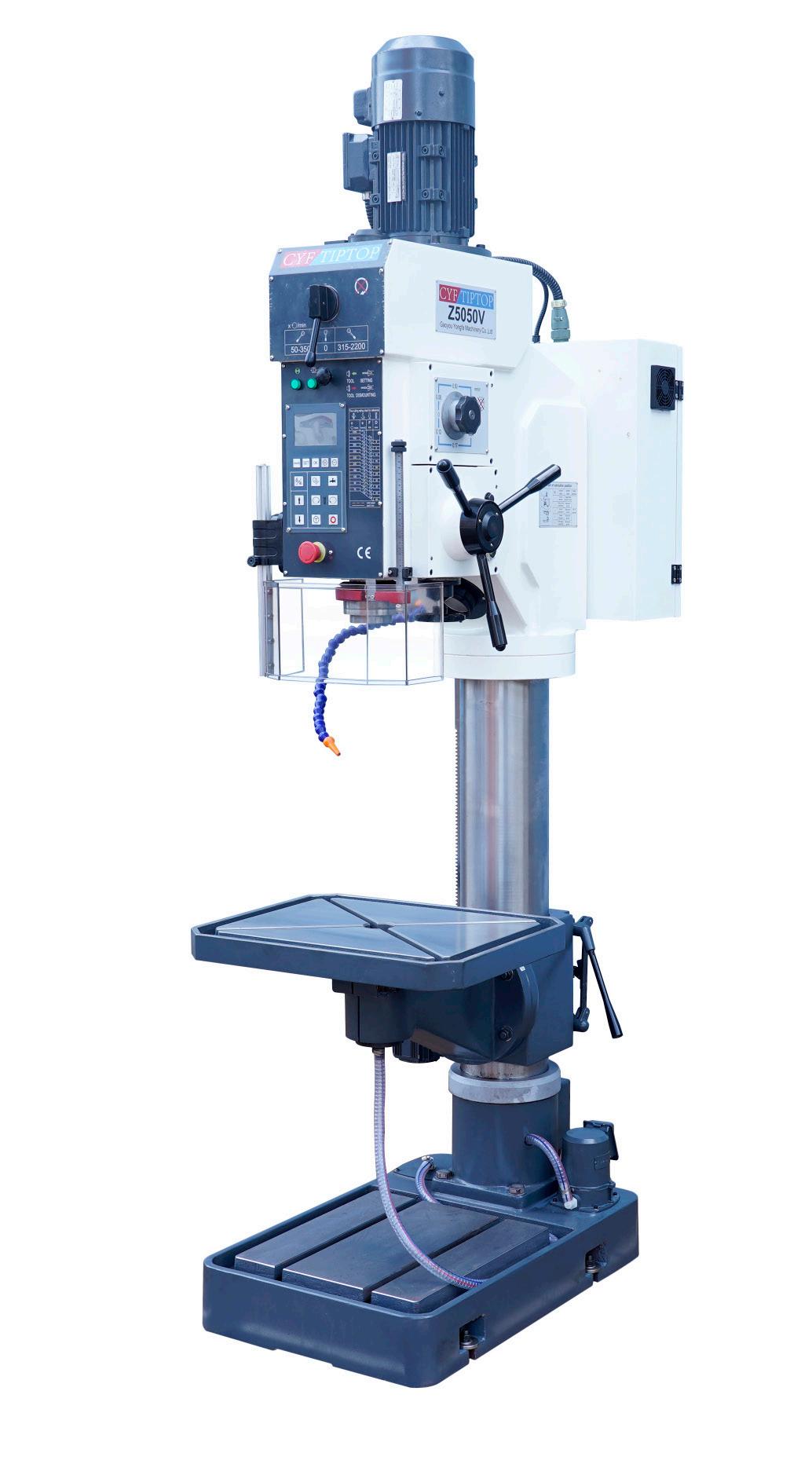

Z5050V

Features and standard configuration

• Frequency motor and Delta inventor

• Heavy, solid cast (heavy-duty) design

• 180 mm column diameter

• Electromagnetic automatic feed

• Automatic quill feed

• Motorized adjustable workbench

• Spindle protection with microswitch

• Tapping

• Coolant system

• Halogens work Light

• Electronic depth display

• LED work light

• Electronic control screen

Spindle

Work table size

T-slot

Optional configuration Working

Distance spindle to column 450 mm

Column diameter 180 mm

Distance spindle to work table 600 mm

Distance spindle to base 1170 mm

Drilling capacity, steel 50 mm

Tapping capacity, steel M30

Quill stroke 200 mm

Quill feeds (6) 0.08-0.5 mm/R

Spindle tapper MT4

Head tilts ± 45°

Work table travel(auto) 450 mm

Spindle Speed 50-350, 315-2200 rpm

Drilling and milling machines

Milling machine

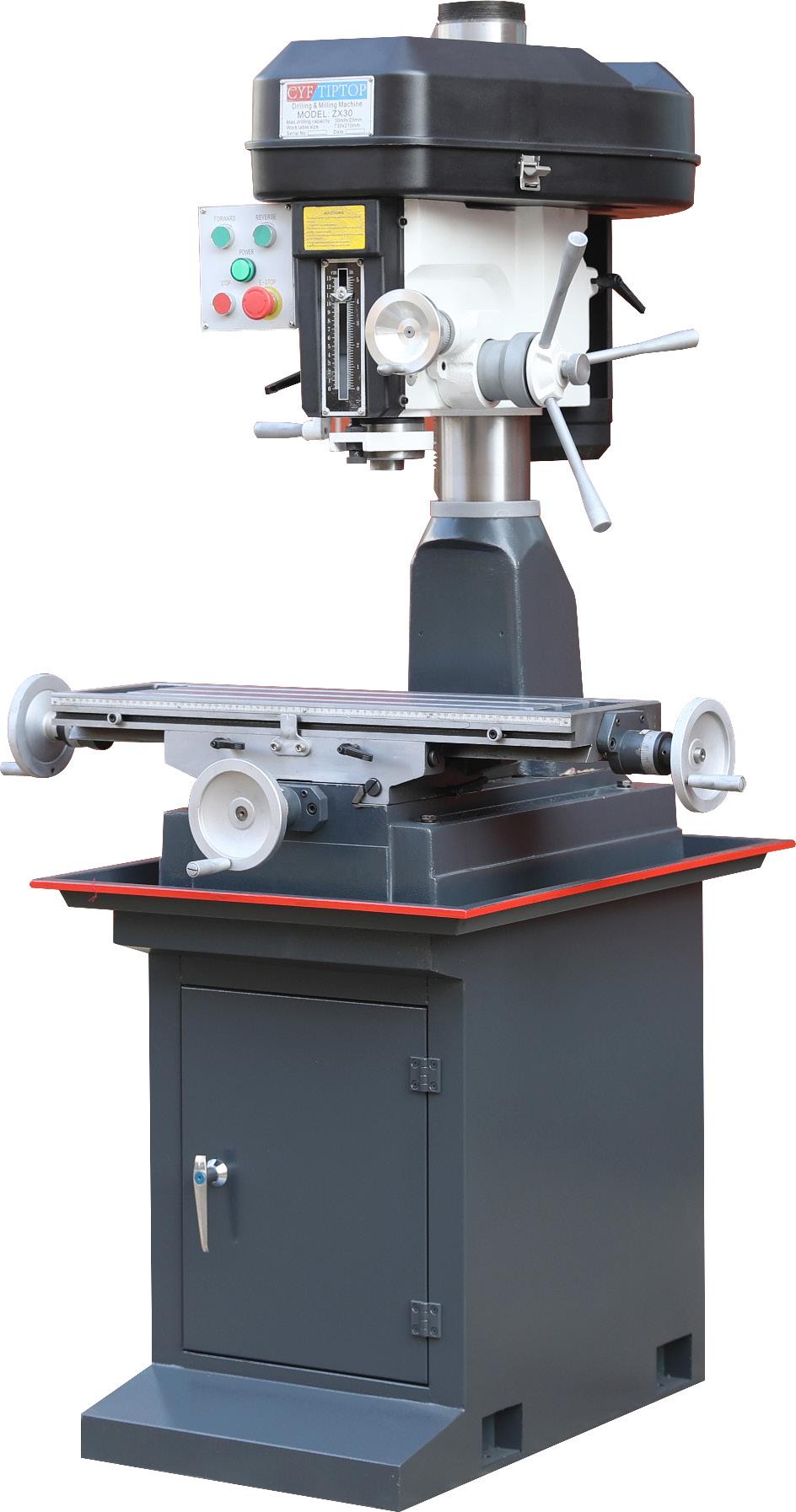

ZX5015

ZX5015V

Working

Table

Table

Distance spindle to work table 545 mm

Drilling capacity Iron 30 mm Steel 25 mm

Face milling capacity 76 mm

End milling capacity 20 mm

Spindle tapper MT3 or R8

Spindle

Quill stroke 80 mm

Spindle swivels 360°

50HZ (9)190 - 2100 rpm

Spindle Speed

60HZ (9)230 - 2520 rpm Electrical

Milling machine

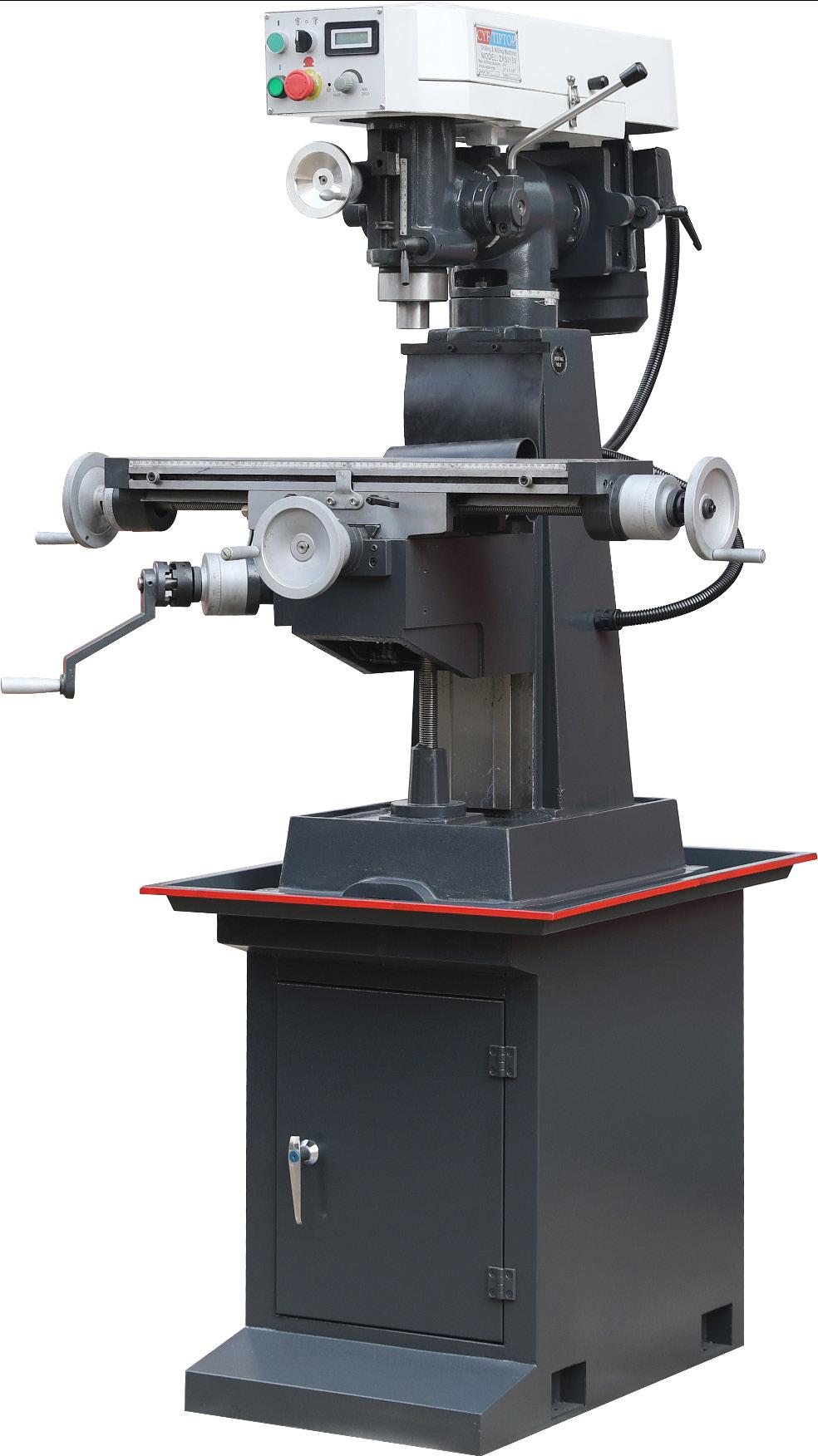

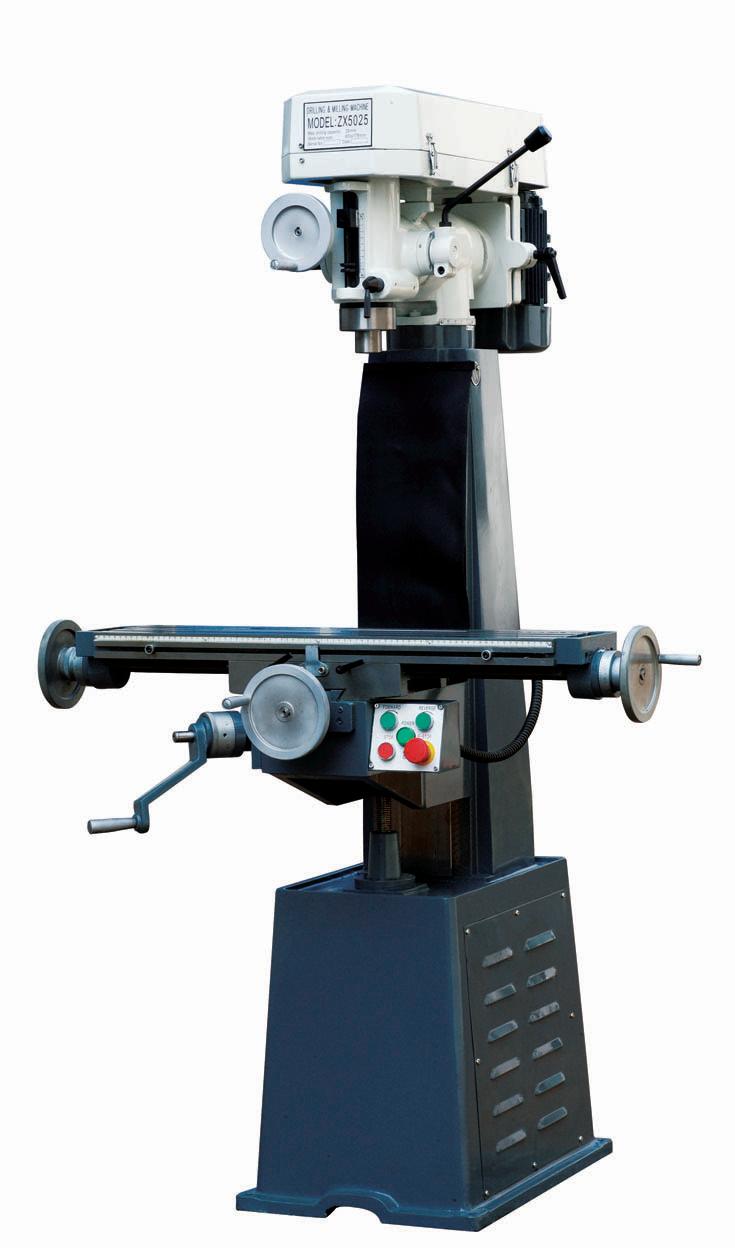

ZX5025

Features and standard configuration

• Dovetail sliding ways for accuracy

• Forward/Reverse switch

• Rotating turret-style column

• Head tilts side-to-side

• Precision-ground table

• Stand with chip tray

• Coarse and fine downfeed controls

Milling machine Milling machine

ZX30

Optional configuration

• Tapping

• X-axis power feed

• Automatic quill feed

• Spindle protection with microswitch and belt cover with microswitch

• Main power switch

• Stand with chip tray

• LED light

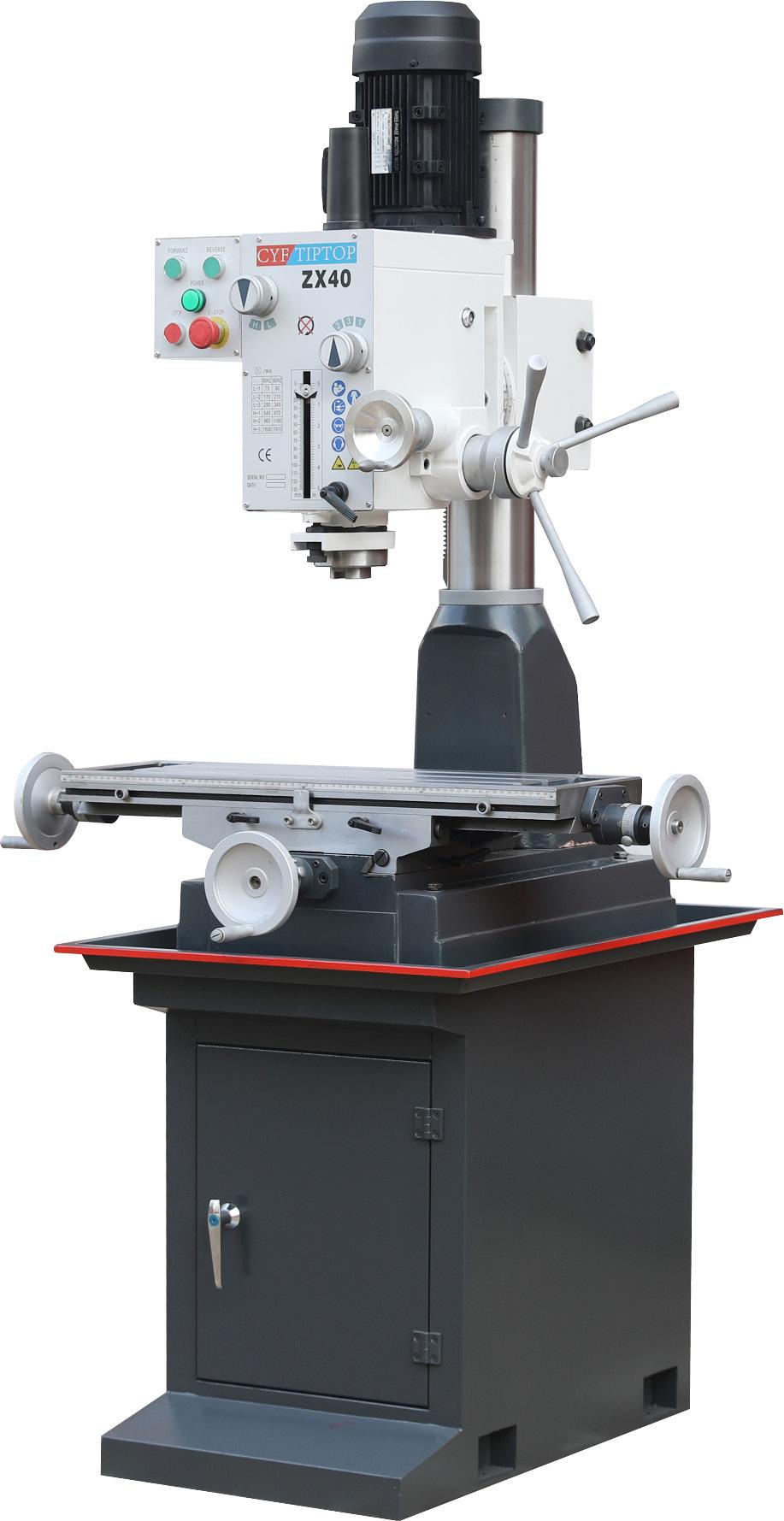

ZX40

Optional configuration

• Tapping

• X-axis power feed

• Coolant system

• Electronic depth display

• Automatic quill feed

• Two-speed motor (Only 3 PH available)

• Spindle protection with microswitch

• Main circuit protector

• Main power switch

•

• Stand with chip tray

Drilling

Spindle

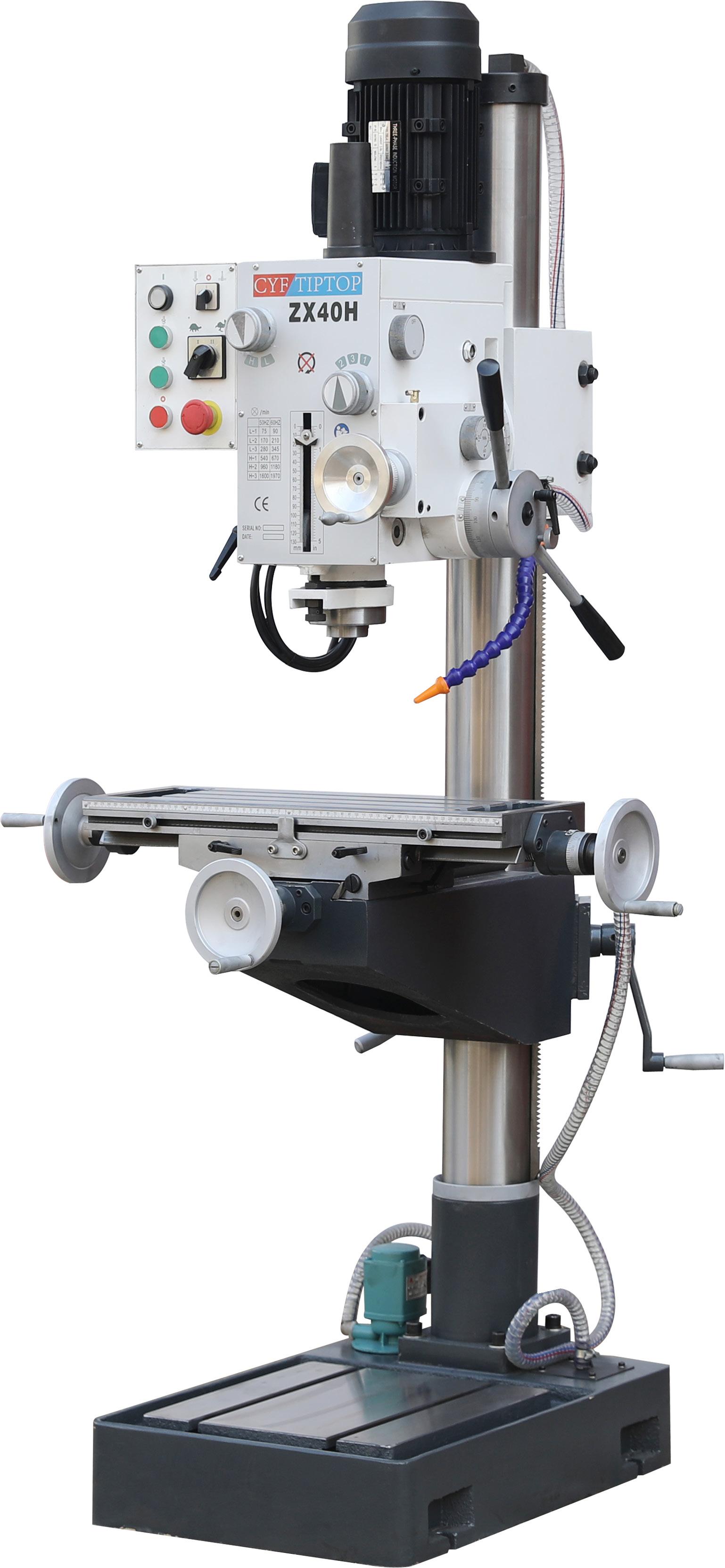

ZX40H

Optional configuration

• Bigger worktable 730 x 210

• Tapping

• X-axis power feed

• Coolant system

• Electronic depth display

• Automatic quill feed

• Two-speed motor (Only 3 PH available)

• Spindle protection with microswitch

• Main circuit protector

• Main power switch

• LED work light Optional configuration Tapping Automatic quill feed Two-speed motor

Working area

Spindle

Work table size 650 mm x 190 mm

Table travel (X-axis) 360 mm

Table travel (Y-axis) 180 mm

Distance spindle to work table 610 mm

Distance spindle to base 1180 mm

Column diameter 115 mm

Drilling capacity Iron 40 mm Steel 30 mm

Spindle tapper MT3 or MT4 or R8

Quill

Head

Spindle

Spindle

Milling machine Milling machine

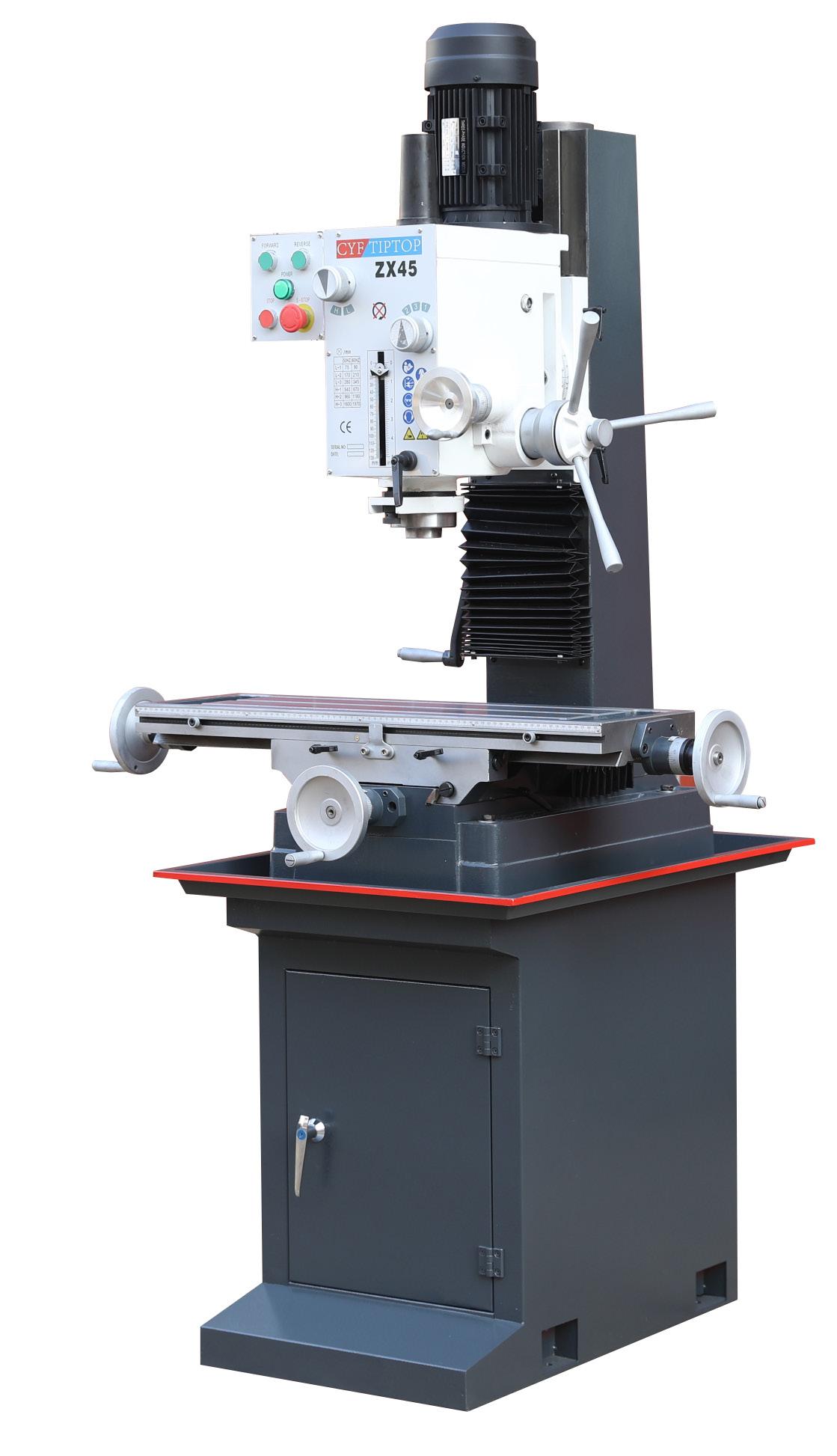

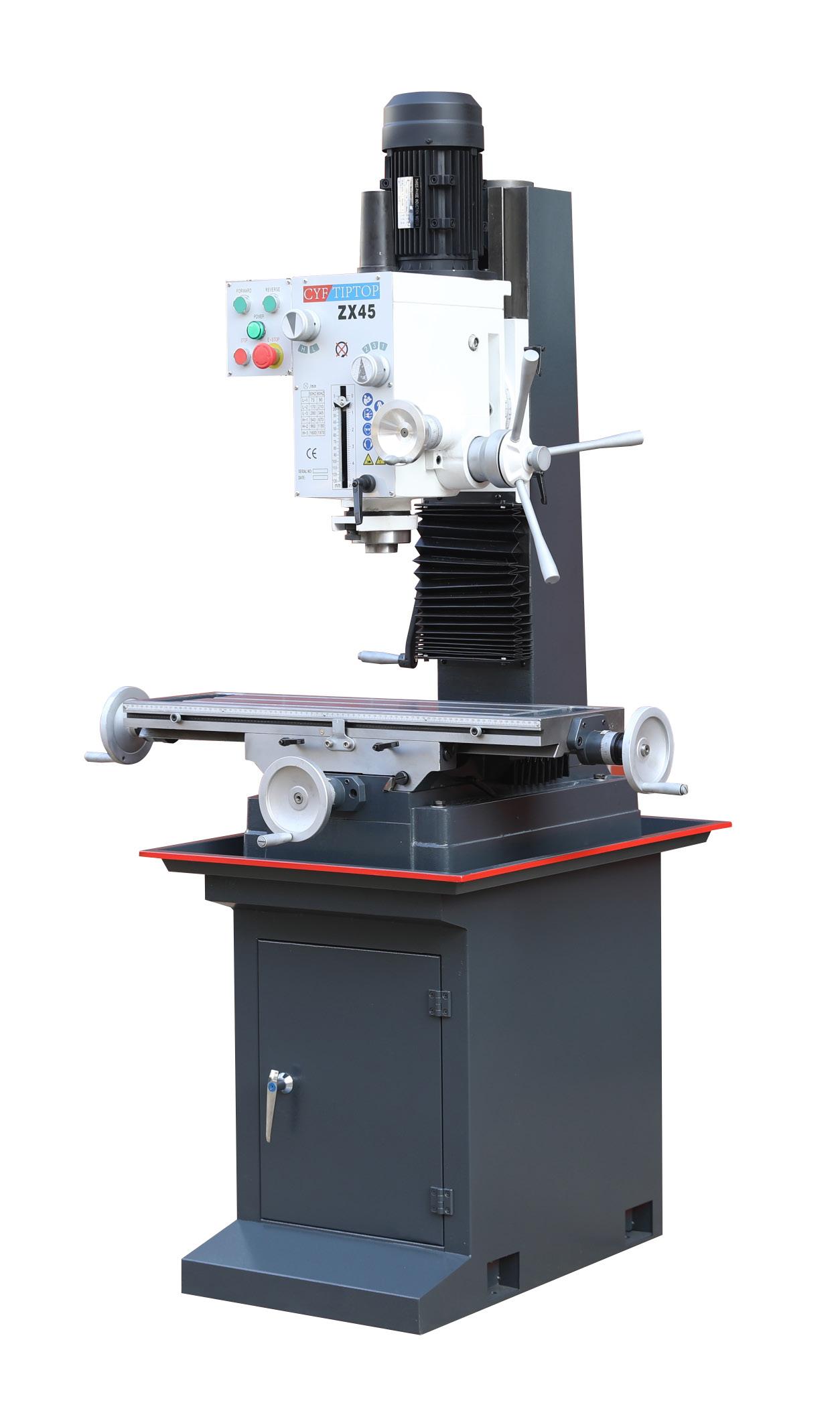

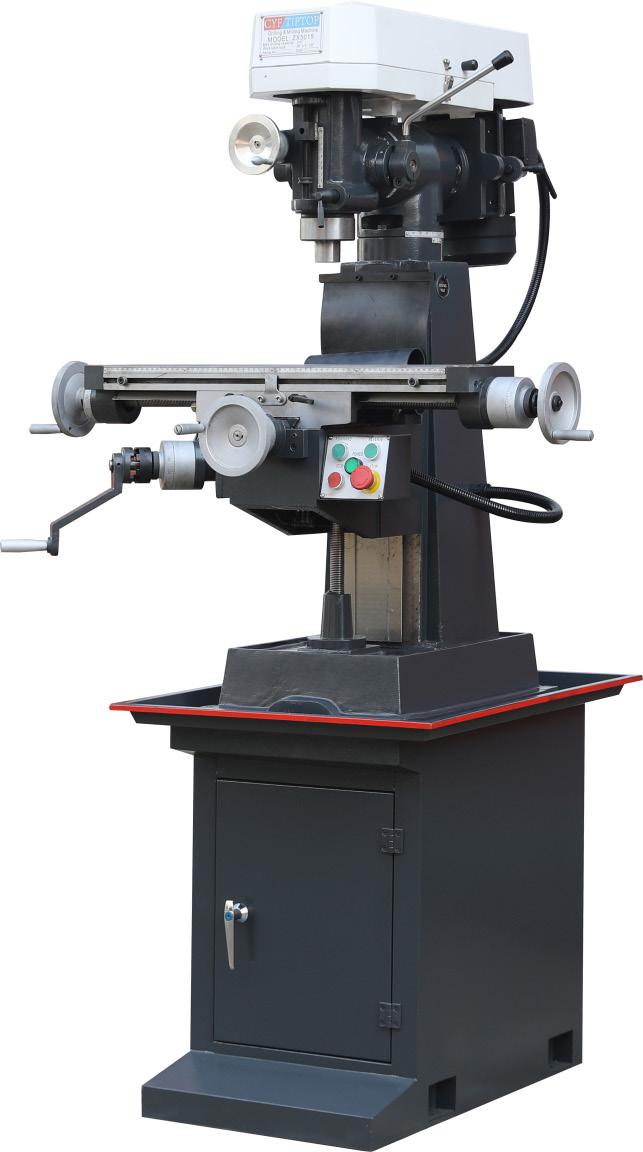

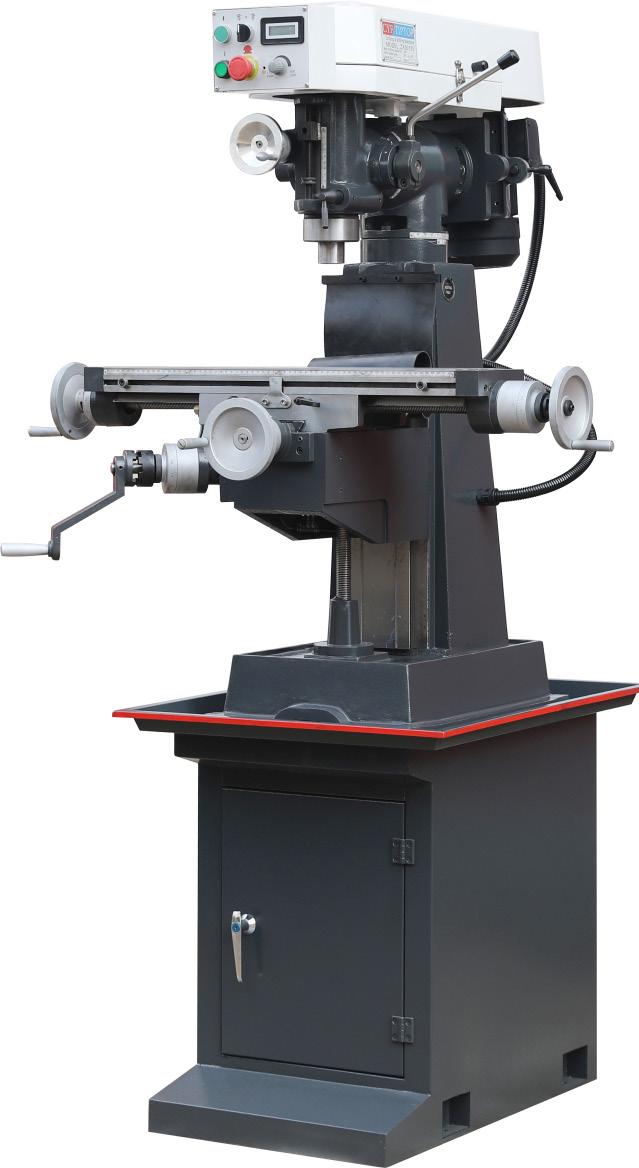

ZX45

Optional configuration

• Bigger worktable 1000 x 240 mm

• Tapping

• X-axis power feed

• Y-axis power feed

• Coolant system

• Electronic depth display

• Automatic quill feed

• ISO 30 tapper

• SINO three-axis digital readout

• Elevating spindle box

• Two-speed motor (Only 3 PH available)

• Spindle protection with microswitch

• Main circuit protector

• Main power switch

• LED work light

• Stand with chip tray

• Cast iron stand with chip tray

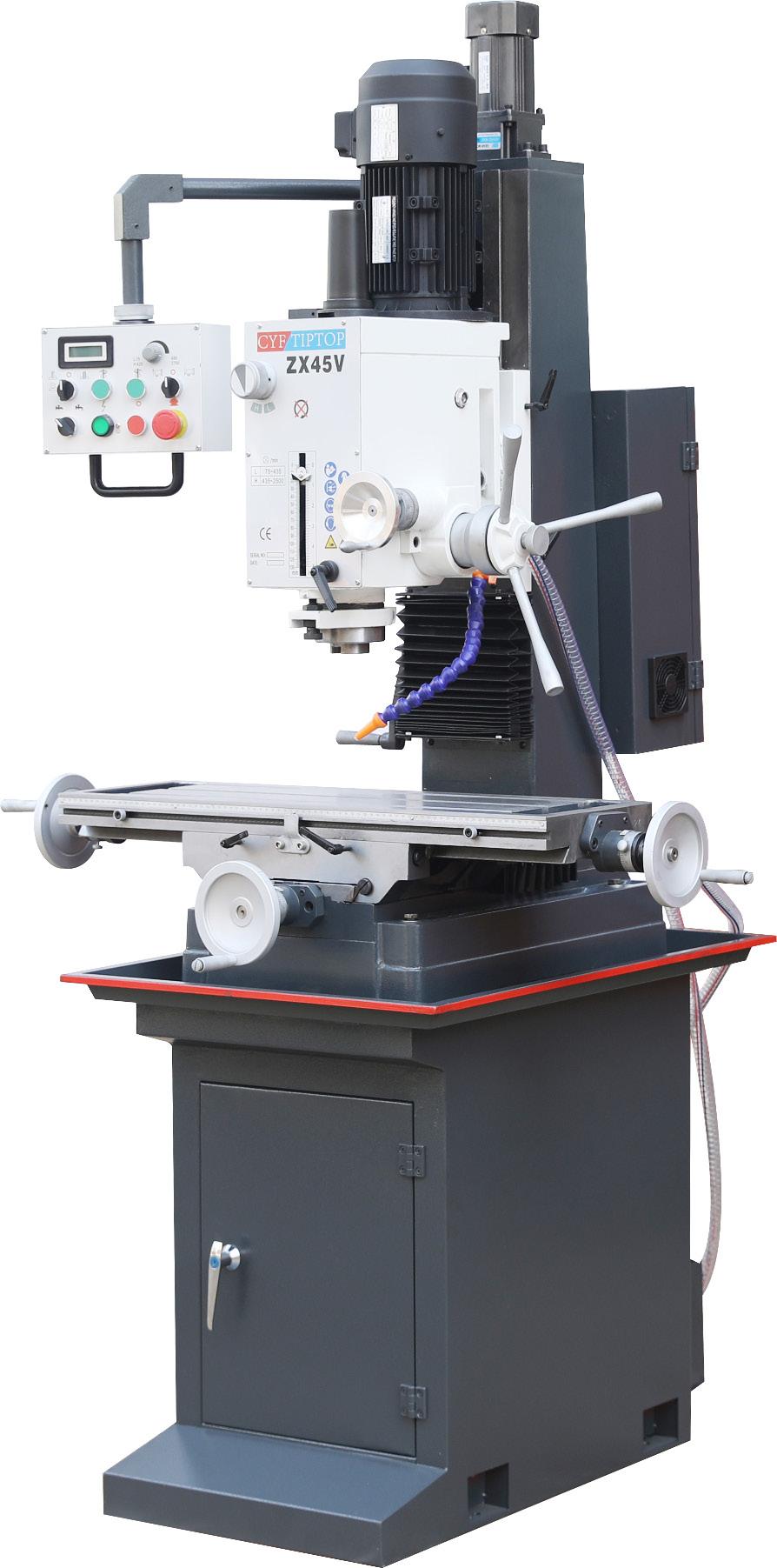

ZX45V

Frequency motor and Delta inventor

Table travel (X-axis)

ZX45

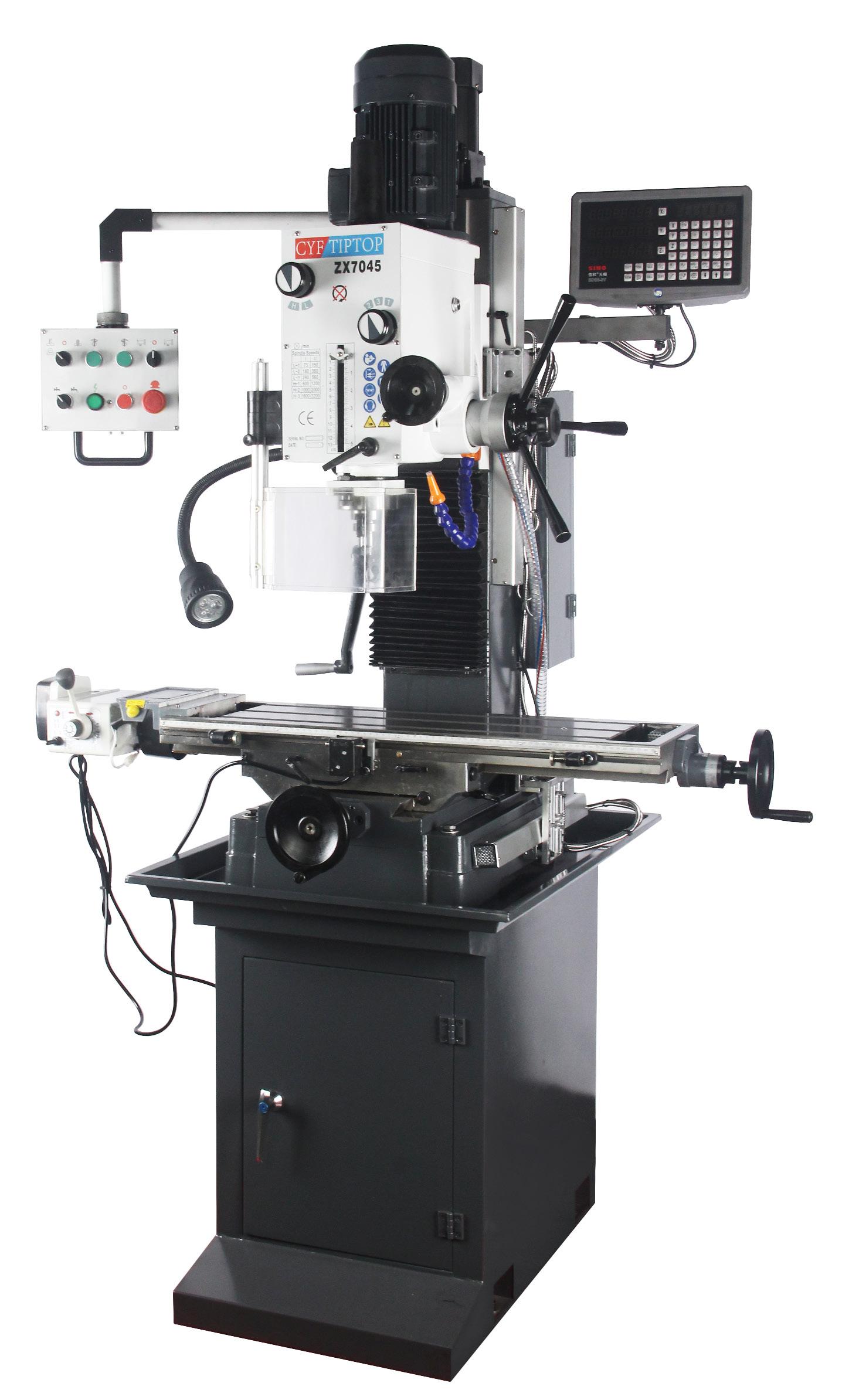

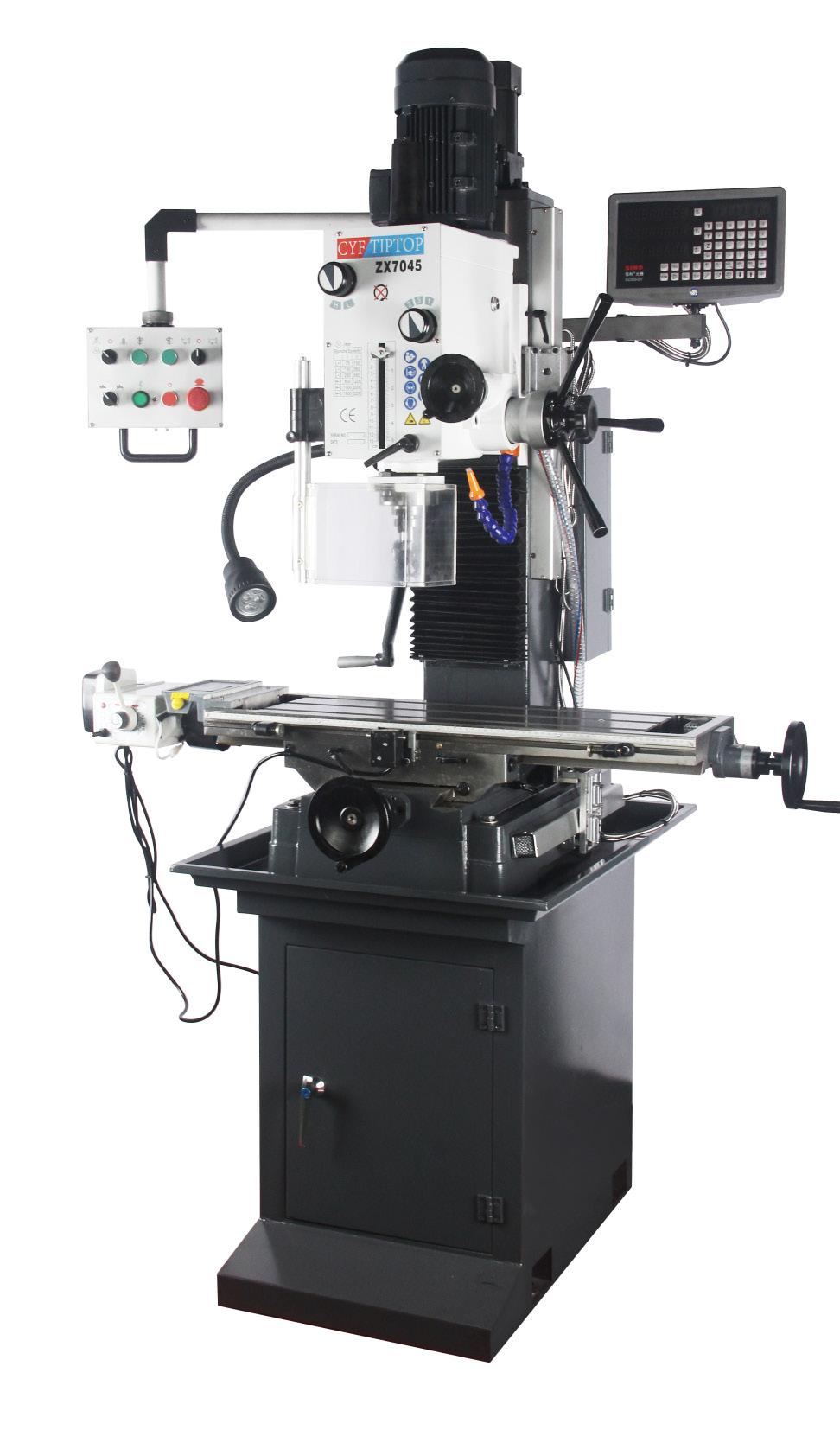

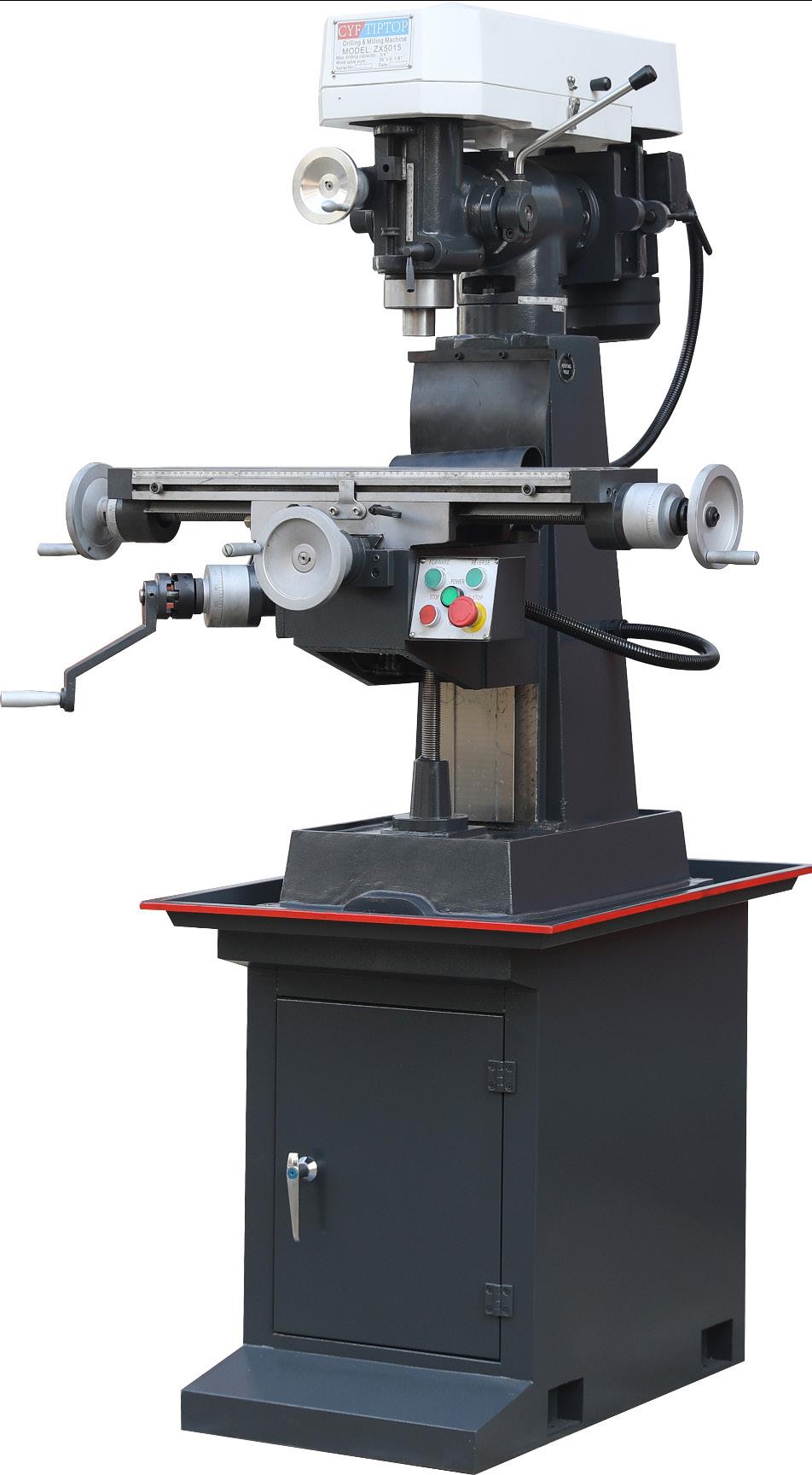

ZX7045

Standard configuration

• Elevating spindle box

• Suspended electric control cabinet and a backpack electrical box

Optional configuration

• Bigger worktable 1000 x 240 mm

• Tapping

• X-axis power feed

• Y-axis power feed

• Coolant system

• Electronic depth display

• Automatic quill feed

• ISO 30 tapper

• SINO three-axis digital readout

• Two-speed motor (Only 3 PH available)

• Spindle protection with microswitch

• Main circuit protector

• Main power switch

• LED work light

• Stand with chip tray

• Cast iron stand with chip tray

Working area

Spindle

Work table size

Table travel (X-axis) 560 mm

Table travel (Y-axis) 190 mm

Distance spindle to work table 460 mm

Drilling capacity Iron 45 mm Steel 32 mm

Face milling capacity 80 mm

End milling capacity 32 mm

Spindle tapper MT4 or R8

Quill stroke 120 mm

Spindle

Configuration Optional configuration Spindle protection with microswitch X-axis power feed

with chip trayT hree-axis digital readout

Universal milling machine

Universal milling machine Universal milling machine

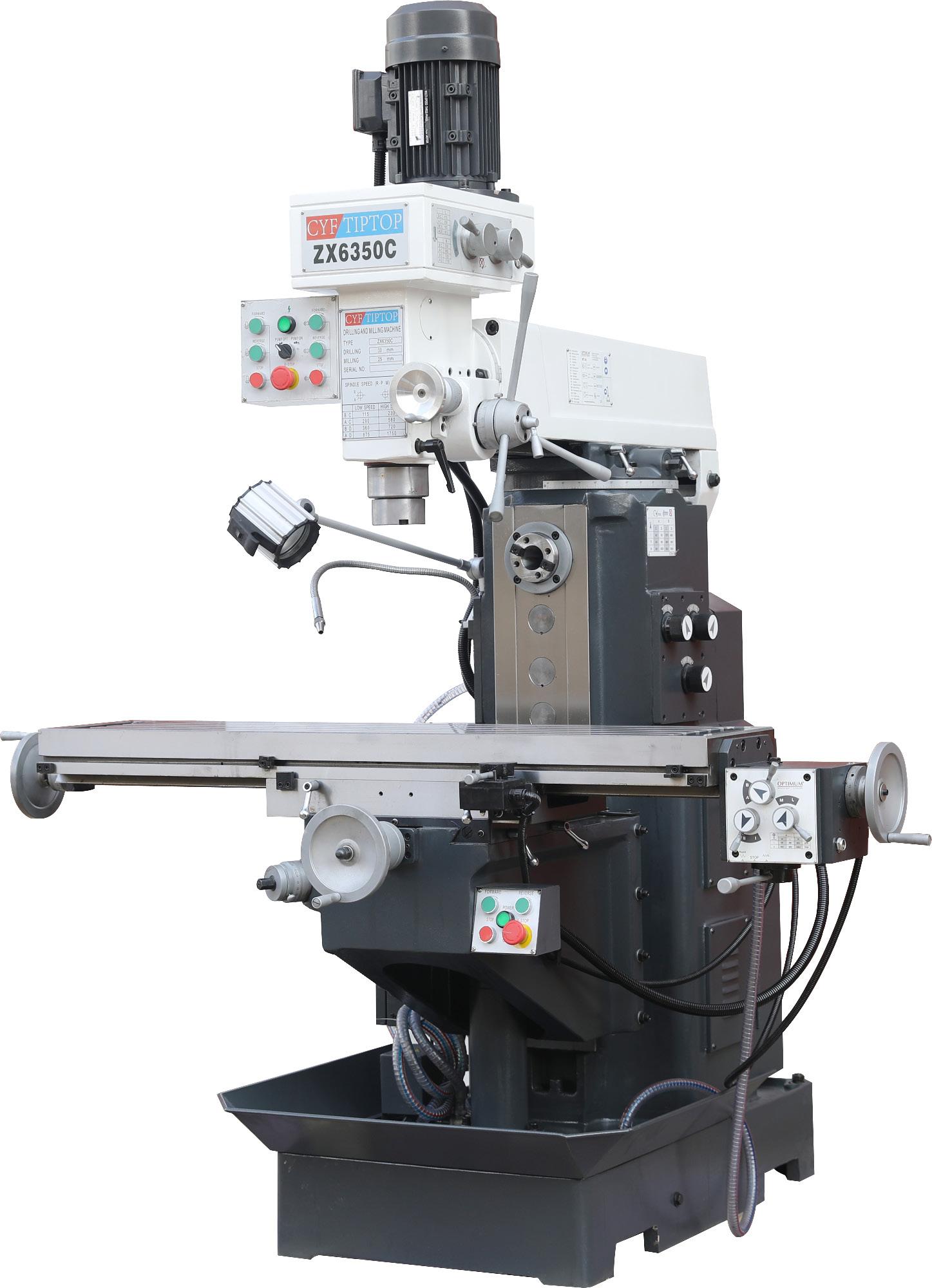

ZX6350C

Features and standard configuration

• Vertical and horizontal milling

• X-axis power feed

• Coolant system

• Chip tray

• Halogens work Light

Optional configuration

• Bigger worktable 1270 mm x 280 mm

• Motorized adjustable work table

• Y-axis power feed

• Rotary table

• Work table protector

• Automatic quill feed

• Cantilever electrical box, essential when select the motorized adjustable work table or automatic quill feed

• Suspended electric control cabinet with integrated SINO three-axis digital readout

• SINO three-axis digital readout

• Spindle protection with microswitch

• Replace with LED work light

Optional accessories

• Vices 160 mm

• Milling Collet Chuck Sets, 8/11 pcs 4-16 mm, 8/15/18 pcs MT4/ER32

• Clamp Kits 58 pcs

Work

T-slot

Table

Working

Table

Distance

Table

Head

Spindle

/ 40 - 1300(H)

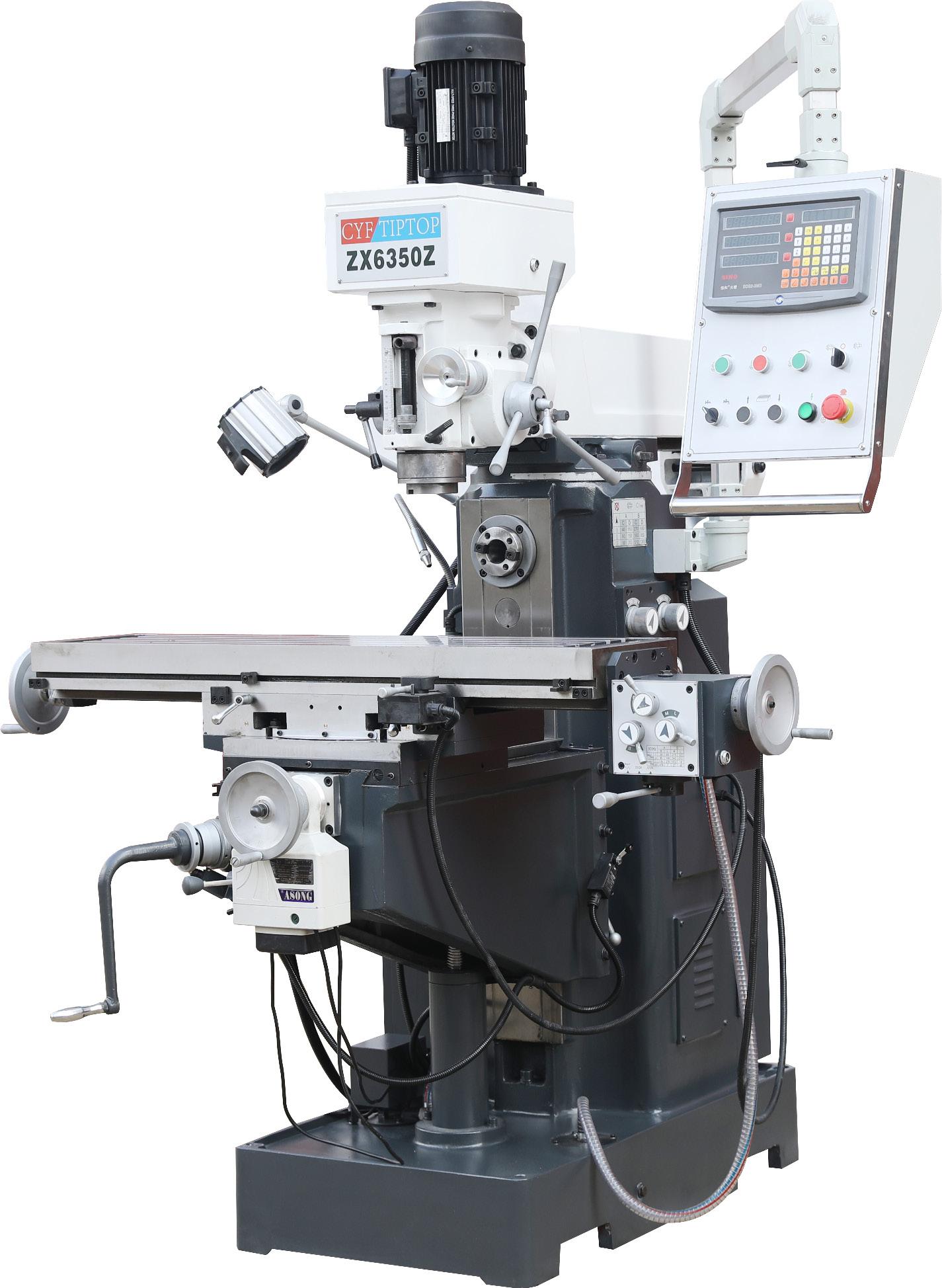

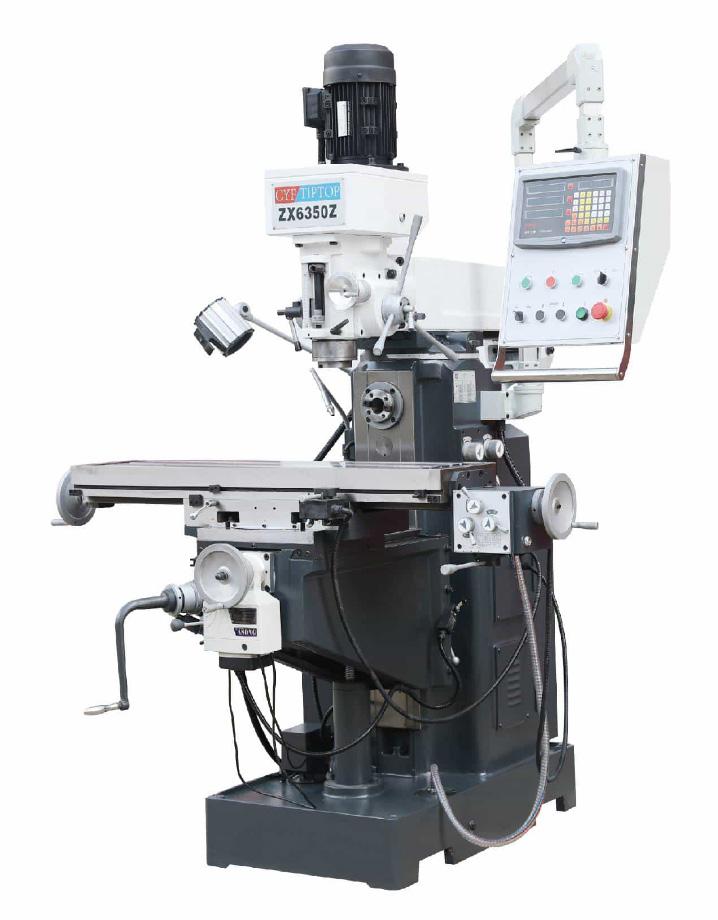

ZX6350Z

Features and standard configuration

• Vertical and horizontal milling

• X-axis power feed

• Coolant system

• Chip tray

• Halogens work Light

• Motorized adjustable work table

• Automatic quill feed

• Suspended electric control cabinet with SINO integrated three-axis digital readout

Optional configuration

• Bigger worktable 1270 mm x 280 mm

• Y-axis power feed

• Rotary table

• Work table protector

• Spindle protection with microswitch

• Replace with LED work light

Optional accessories

• Vices 160 mm

• Milling Collet Chuck Sets, 8/11 pcs 4-16 mm, 8/15/18 pcs MT4/ER32

• Clamp Kits 58 pcs

Work

Table

Working

(X-axis)

Table travel (Y-axis)

Spindle

Spindle

Universal milling machine Universal milling machine

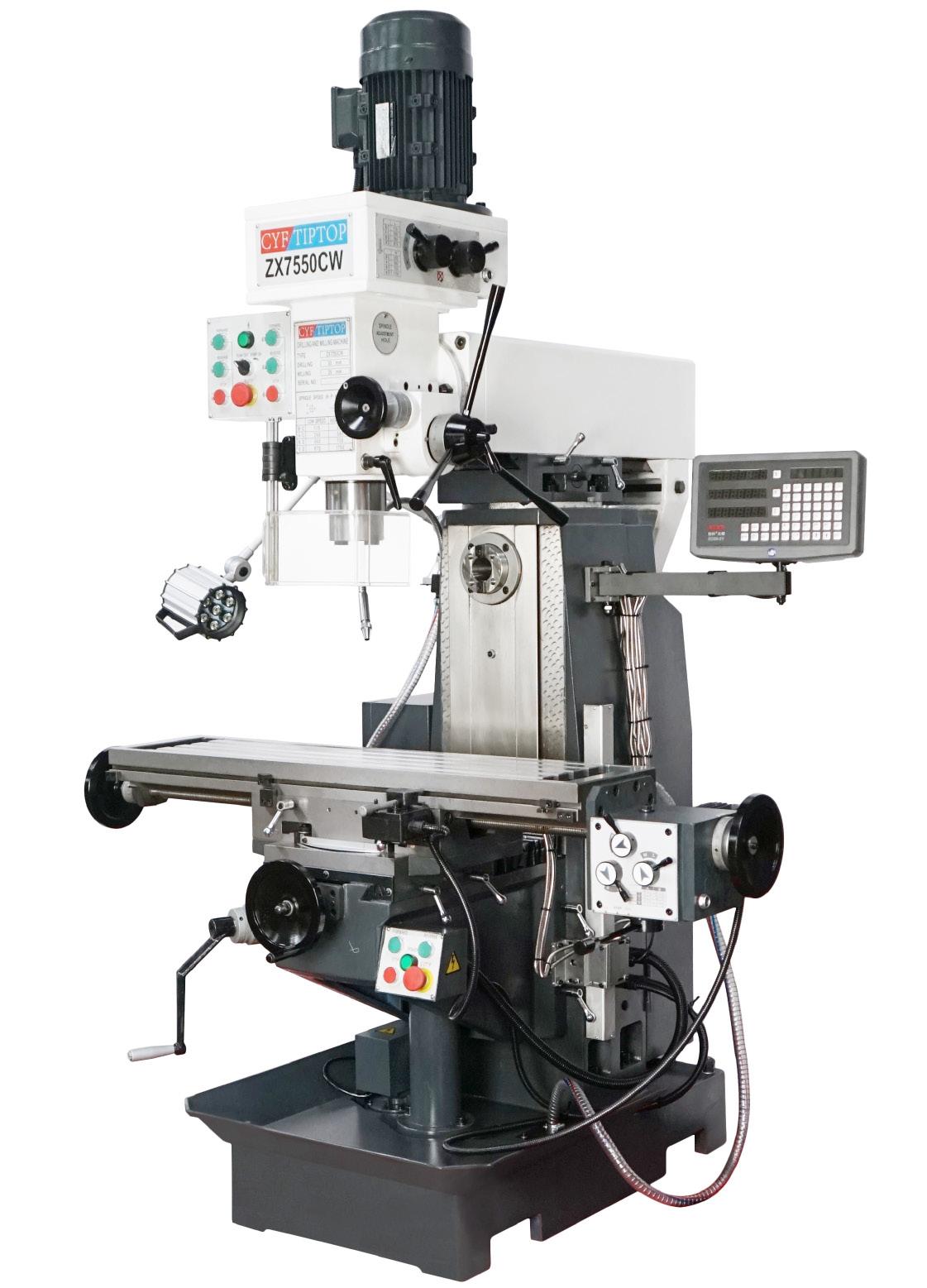

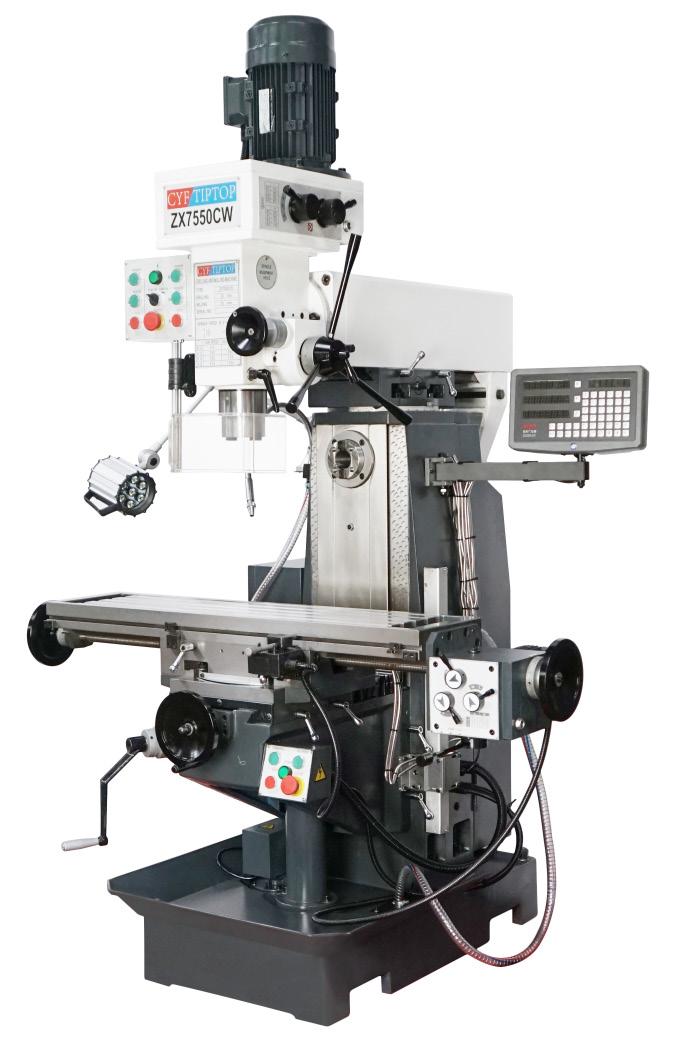

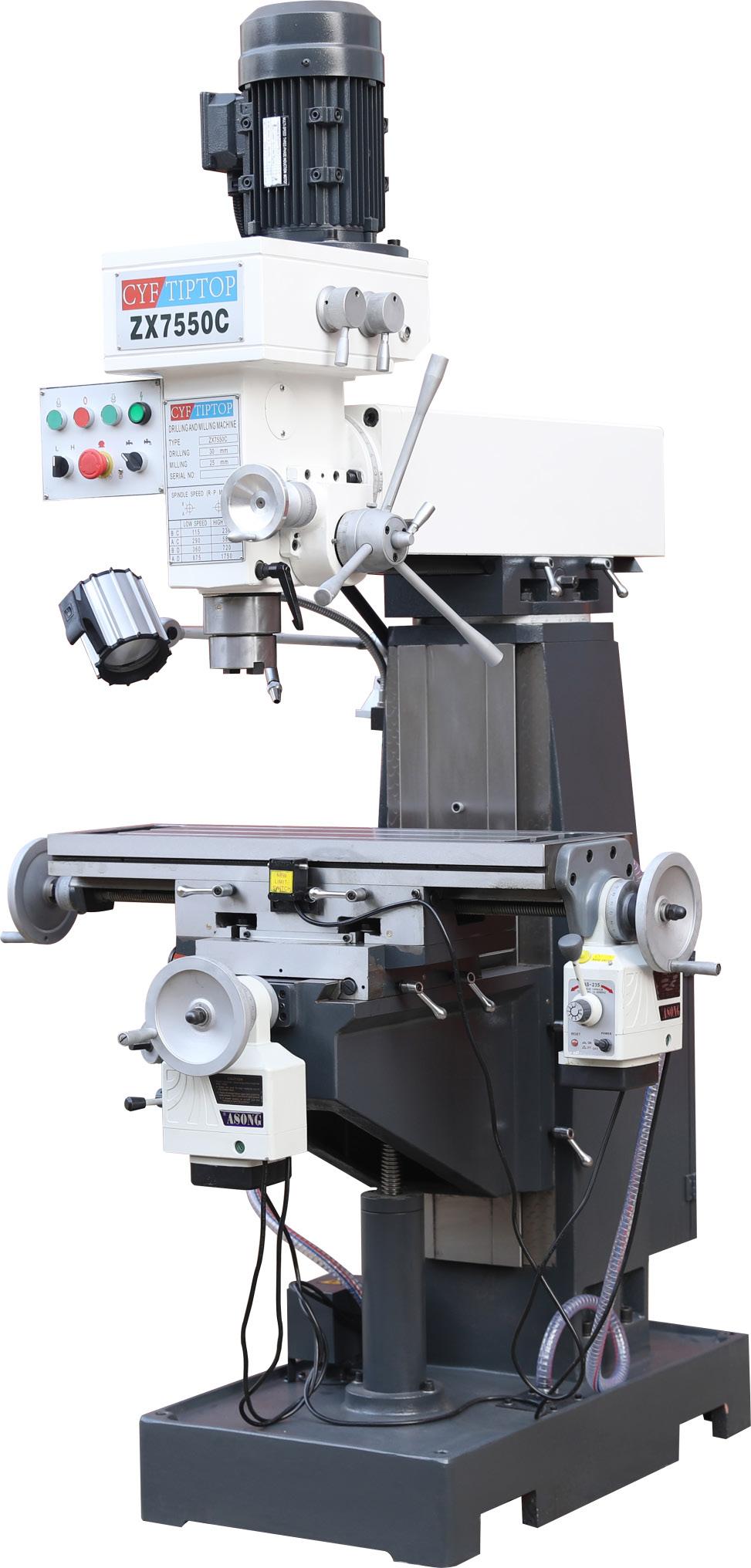

ZX7550CW

Features and standard configuration

• X-axis power feed

• Coolant system

• Chip tray

• Halogens work Light

configuration

• Bigger worktable 1000 mm x 240 mm

• Y-axis power feed

• Z-axis power feed

• Rotary table

• Work table protector

• Spindle protection with microswitch

• Replace with LED work light

• Suspended electric control cabinet with integrated SINO three-axis digital readout

• SINO three-axis digital readout

Optional accessories

• Vices 160 mm

• Milling Collet Chuck Sets, 8/11 pcs 4-16 mm, 8/15/18 pcs MT4/ER32

• Clamp Kits 58 pcs

area

Features and standard configuration

• Vertical and horizontal milling • X-axis power feed • Coolant system • Chip tray

• Halogens work Light

Optional configuration

• Bigger worktable 1000 mm x 240 mm

• Z-axis power feed

• Y-axis power feed

• Rotary table

• Work table protector

• Spindle protection with microswitch

• Replace with LED work light

• Suspended electric control cabinet with integrated SINO three-axis digital readout

• SINO three-axis digital readout

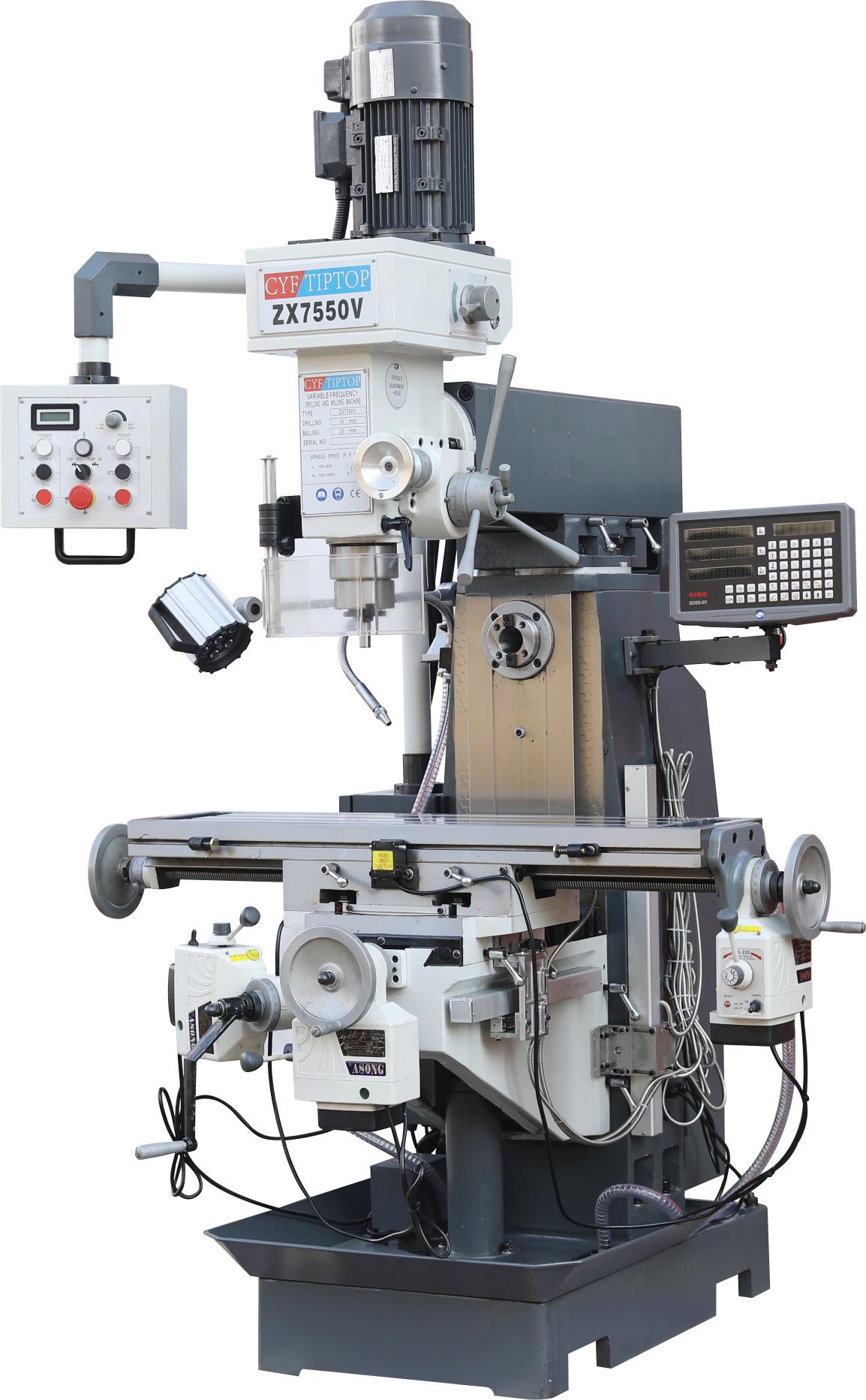

ZX7550V

Frequency motor and Delta inventor Variable speed

Universal milling machine Universal milling machine

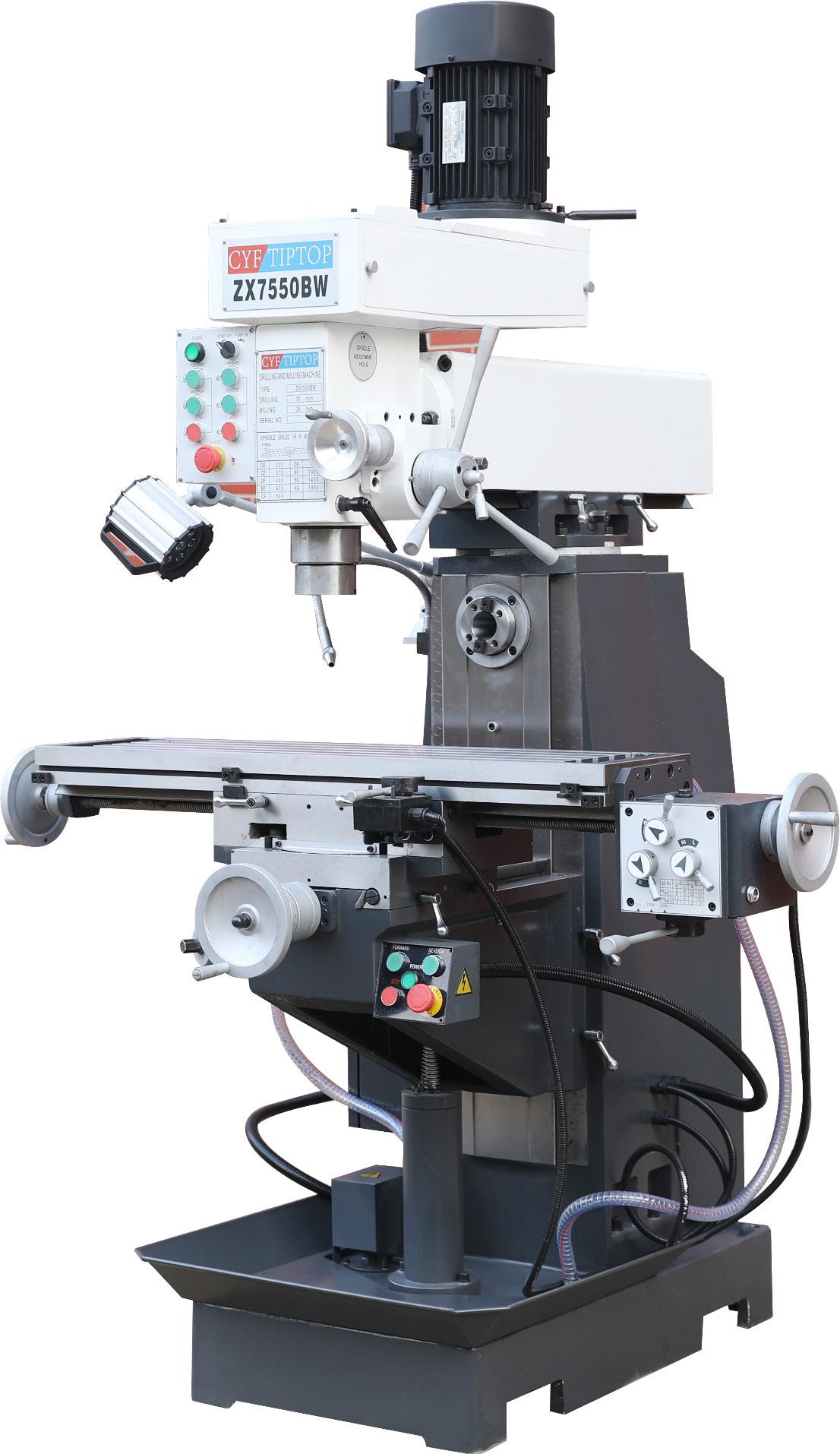

ZX7550BW

Features and standard configuration

• Vertical and horizontal milling

• X-axis power feed

• Coolant system

• Chip tray

• Halogens work Light

Optional configuration

• Bigger worktable 1000 mm x 240 mm

• Z-axis power feed

• Y-axis power feed

• Rotary table

• Work table protector

• Spindle protection with microswitch

• Replace with LED work light

• Suspended electric control cabinet with integrated SINO three-axis digital readout

• SINO three-axis digital readout

Optional accessories

• Vices 160 mm

• Milling Collet Chuck Sets, 8/11 pcs 4-16 mm, 8/15/18 pcs MT4/ER32

• Clamp Kits 58 pcs

Spindle

Quill

Head

Spindle

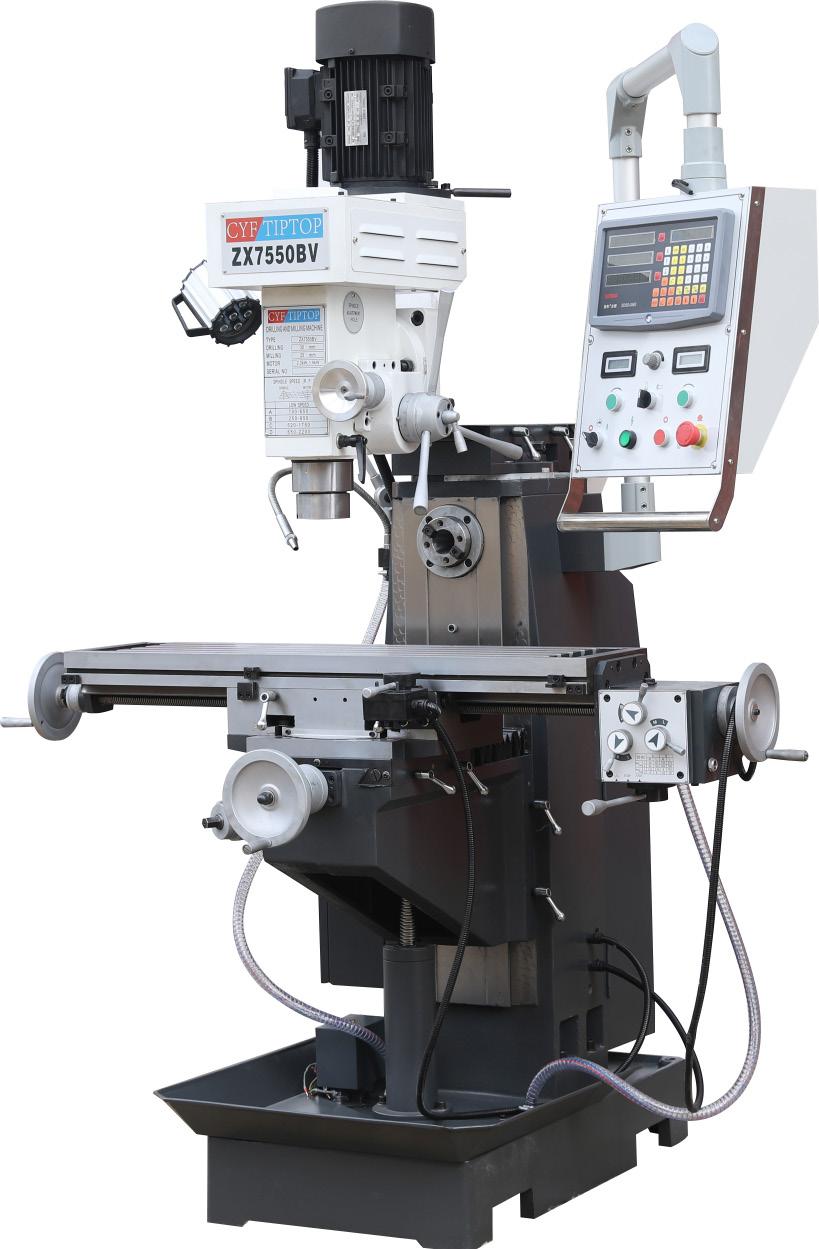

ZX7550BV

Features and standard configuration

• Frequency motor and Delta inventor

• Vertical and horizontal milling

• X-axis power feed

• Coolant system

• Chip tray

• Halogens work Light

Optional configuration

• Bigger worktable 1000 mm x 240 mm

• Z-axis power feed

• Y-axis power feed

• Rotary table

• Work table protector

• Spindle protection with microswitch

• Replace with LED work light

• Suspended electric control cabinet with integrated SINO three-axis digital readout

• SINO three-axis digital readout

Optional accessories

• Vices 160 mm

• Milling Collet Chuck Sets, 8/11 pcs 4-16 mm, 8/15/18 pcs MT4/ER32

• Clamp Kits 58 pcs

Spindle

Turning lathes

Turning lathe

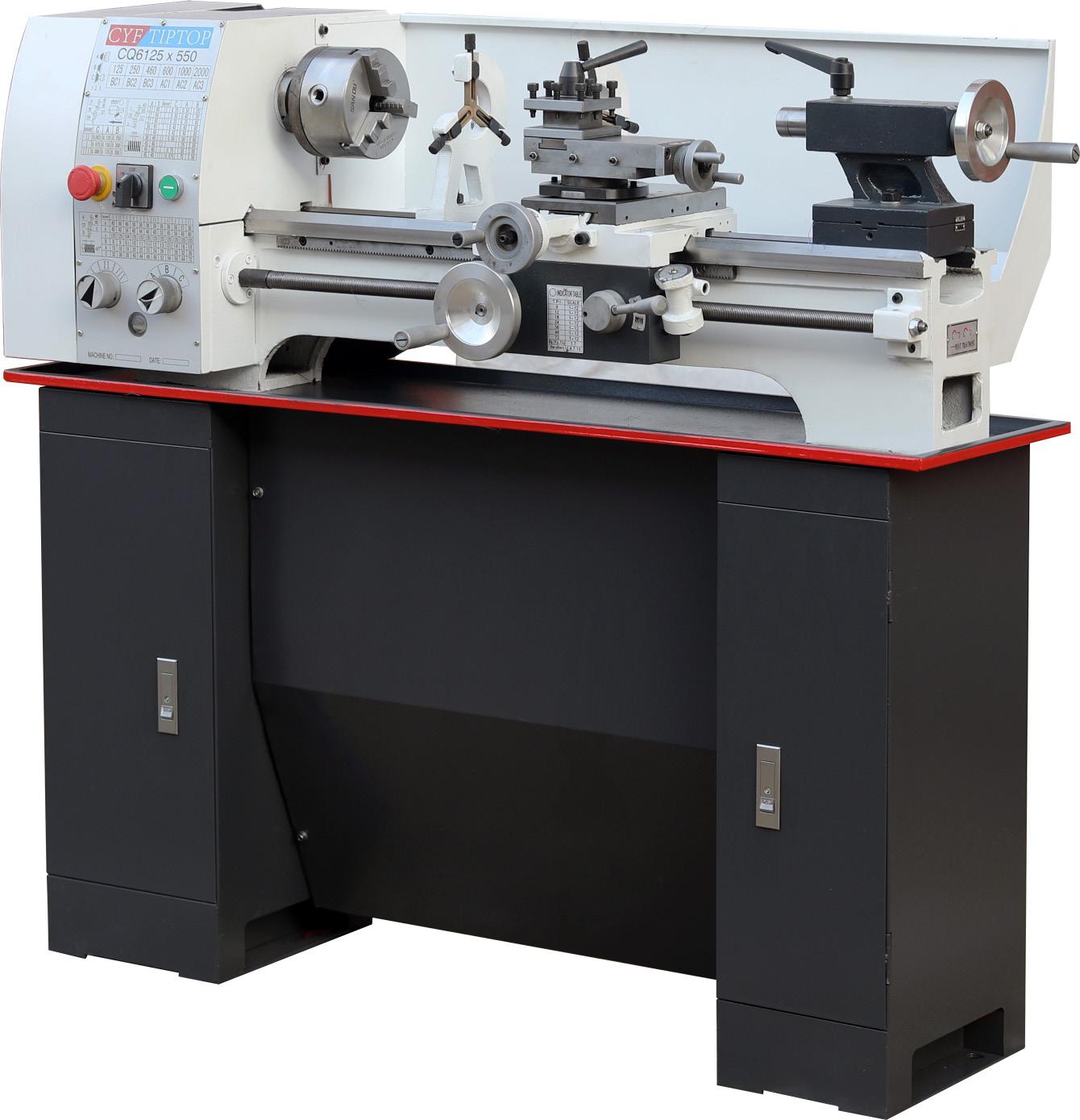

CQ6125

Features and standard configuration

• Left handwheel

• 3-jaw chuck 125 mm and square tool post

• Tailstock

• Backsplash and chip Pan

• Threading dial

Optional accessories

• Steel stand

• Center rest and follow rest

• 4-Jaw Chuck and back

• American Quick Change Tool post

• Faceplate

• Chuck guard with microswitch

• End cover with microswitch

• Leadscrew cover

• Tool post splash guard

CQ6125V

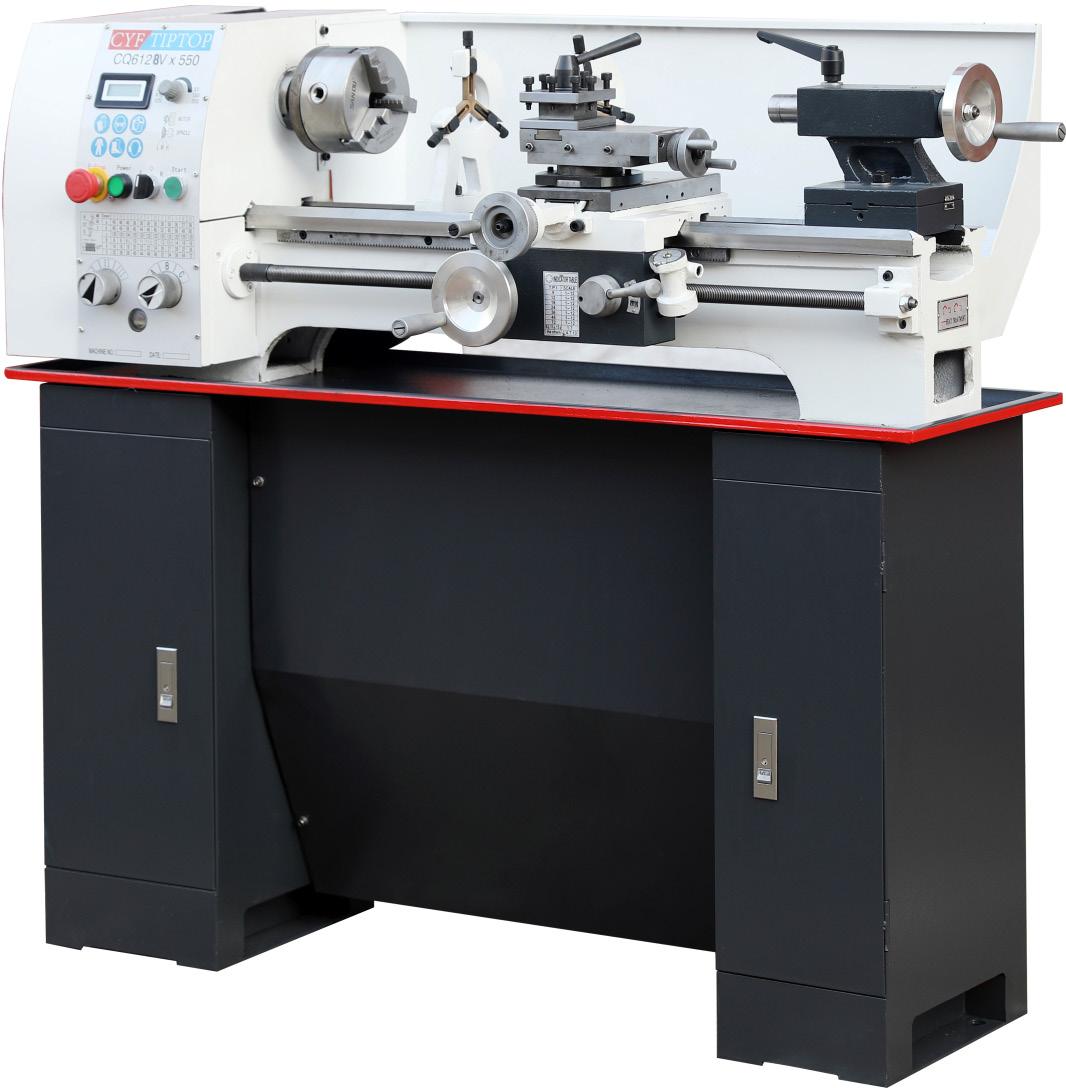

CQ6128

Features and standard configuration

handwheel

Turning lathe

CQ6128V

•

• 3-jaw chuck 125 mm and square tool post

• Tailstock

• Backsplash and chip Pan

• Threading dial

Optional accessories

• Steel stand

• Center rest and follow rest • 4-Jaw Chuck and back plate 160 mm

• American Quick Change Tool post

• Faceplate

• Chuck guard with microswitch

• End cover with microswitch

• Leadscrew cover

• Tool post splash guard

Optional accessories

Stead rest and follow steady Threading dial

Turning lathe Turning lathe

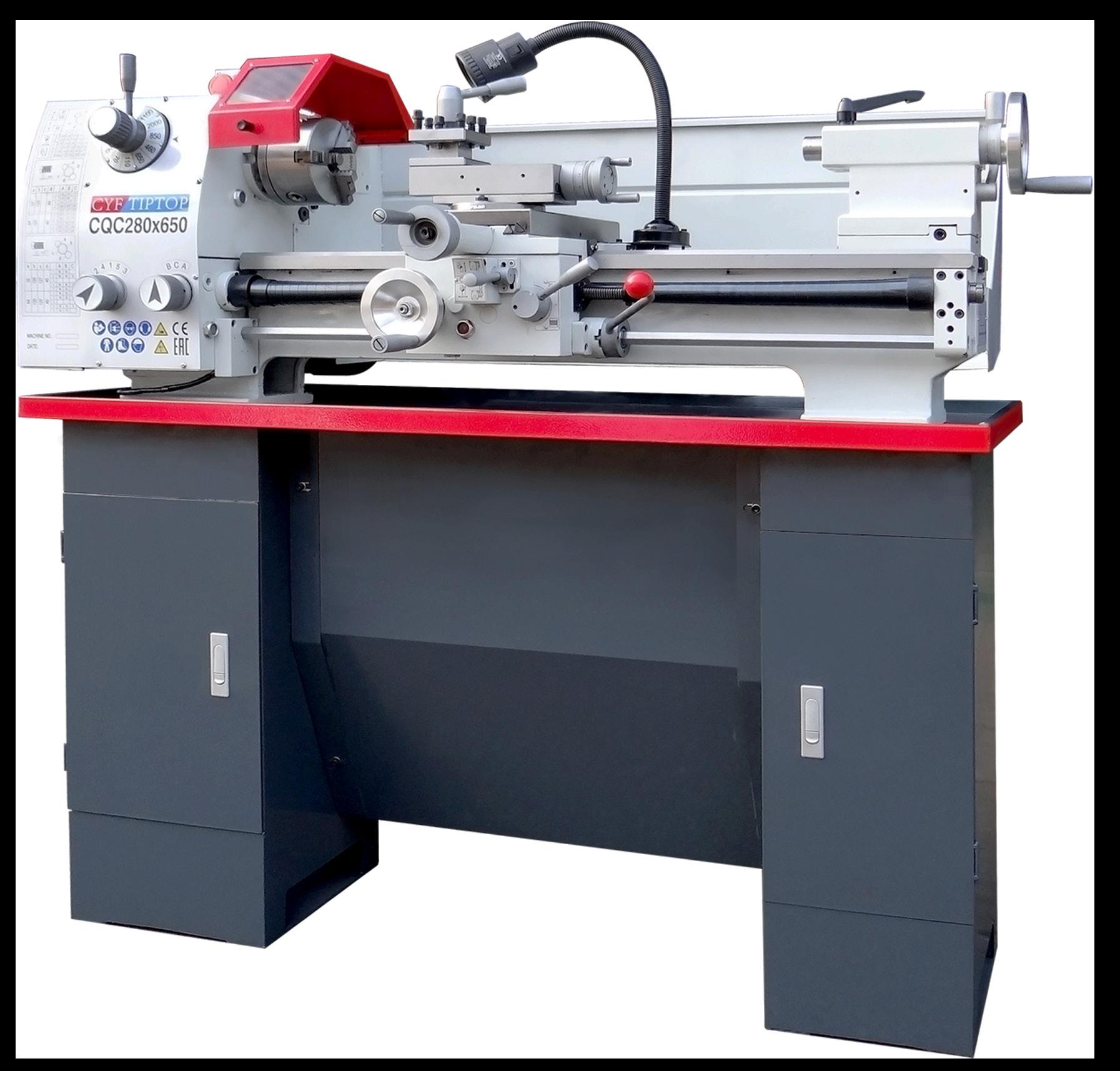

CQC280

Features and standard configuration

• 24V low voltage control

• Left handwheel

• 3-jaw chuck 125 mm

• Square tool post

• Tailstock

• Equipped with joystick

• Backsplash and Chip Pan

• Threading dial

• Stead rest and follow Steady

• Chuck guard with microswitch

• Tool post splash guard

• Leadscrew cover

• End Cover with microswitch

• Led work light

Optional accessories

• Steel stand

• 4-jaw chuck (without connecting plate

• American Quick Change Tool post

• Faceplate

• Replace with long LED light on the backsplash

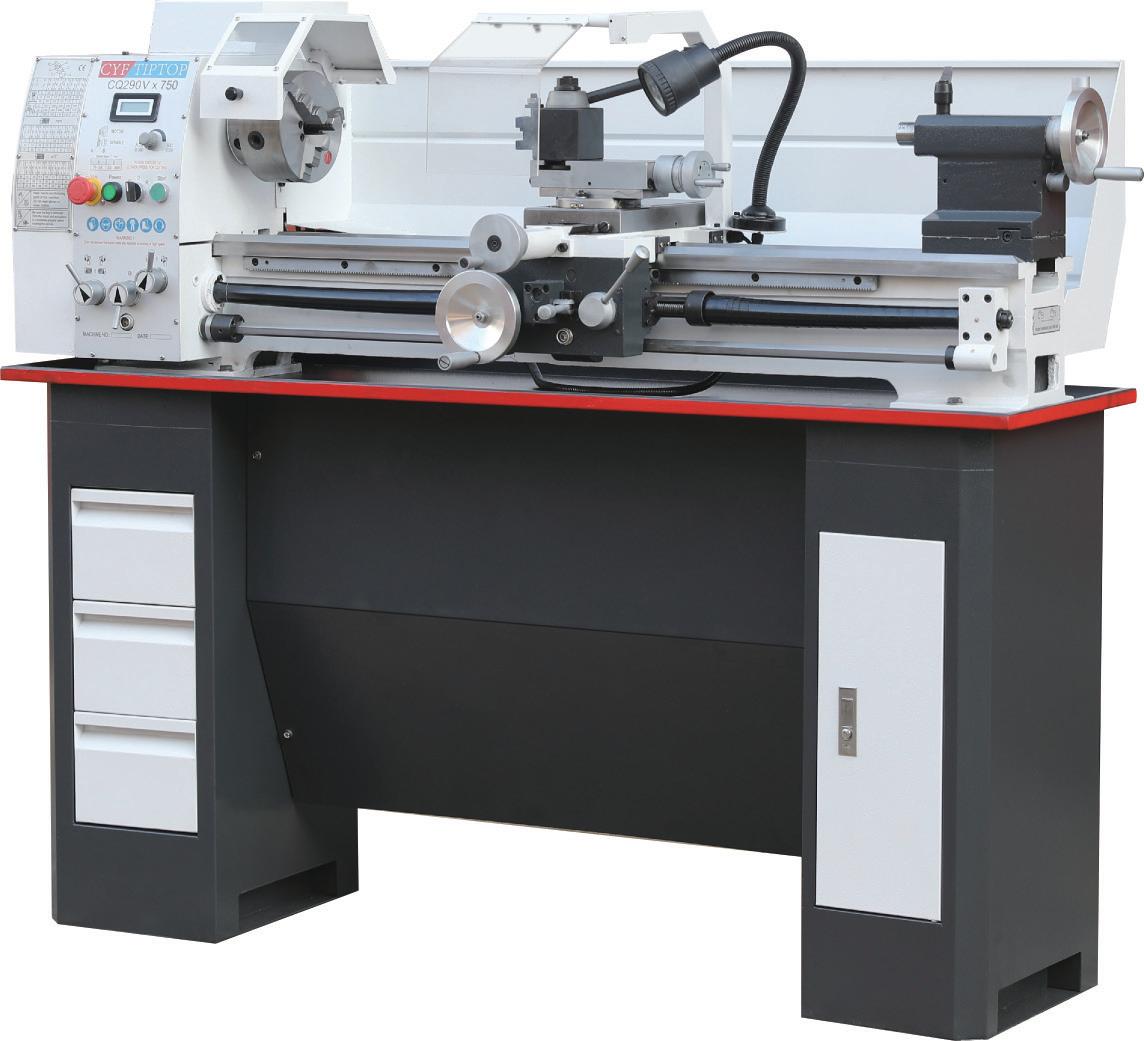

CQ290V

Features and standard configuration

• Frequency motor and Delta inventor

• Left handwheel

• 3-jaw chuck 160 mm

• Square tool post

• Tailstock

• Backsplash

• Chip Pan

• Threading dial

Optional accessories

• Steel stand with drawers

• Center rest and follow rest

• 4-Jaw Chuck and back plate 160 mm

• American Quick Change Tool post

• Faceplate

• Chuck guard with microswitch

• Leadscrew cover

• End Cover with microswitch

• Tool post guard with microswitch

• Simple Tool post guard

• LED work light

• SINO two axis digital readerout

• Limit block

• BF20 vertical milling head

Optional accessories

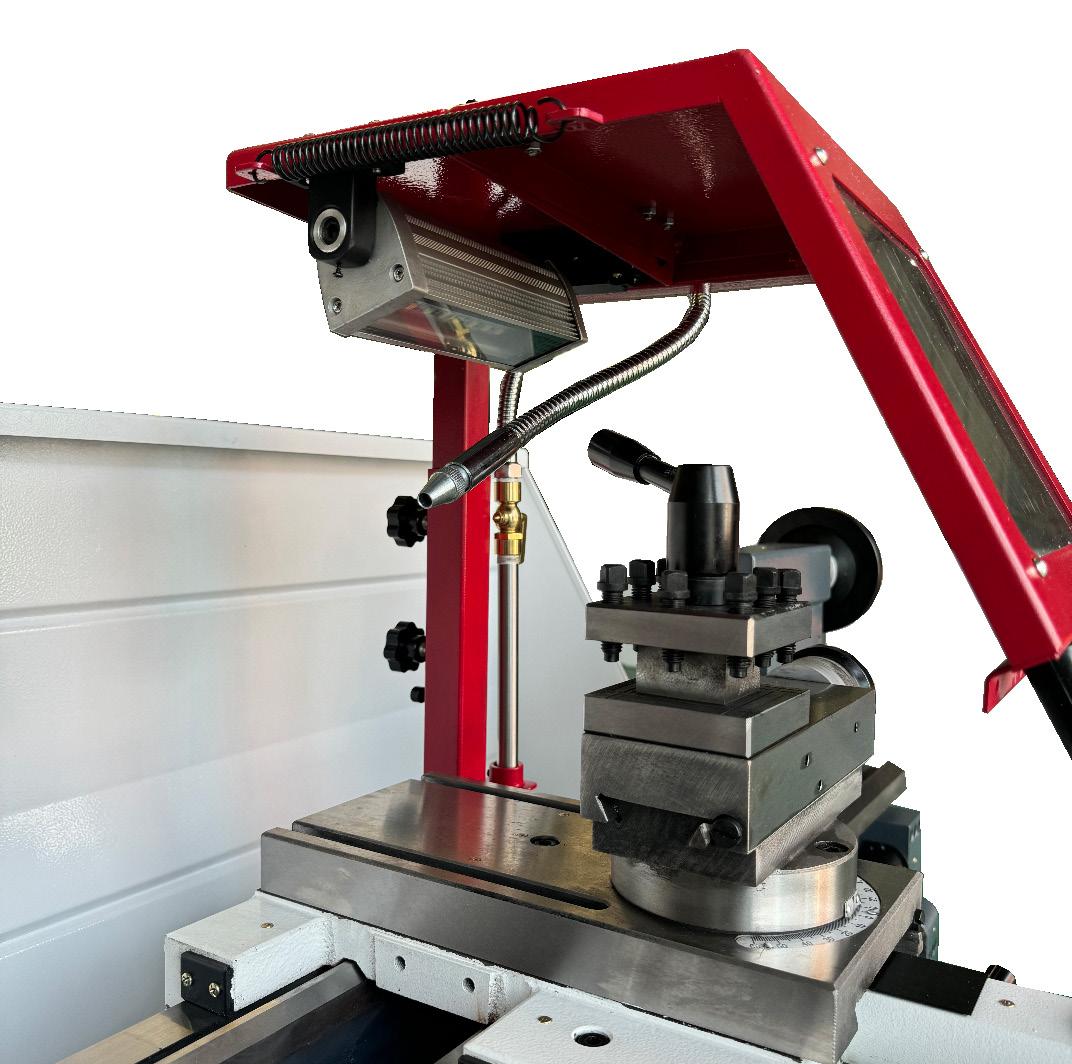

Chuck guard with microswitch Tool post splash guard LED work light

Turning lathe Turning lathe

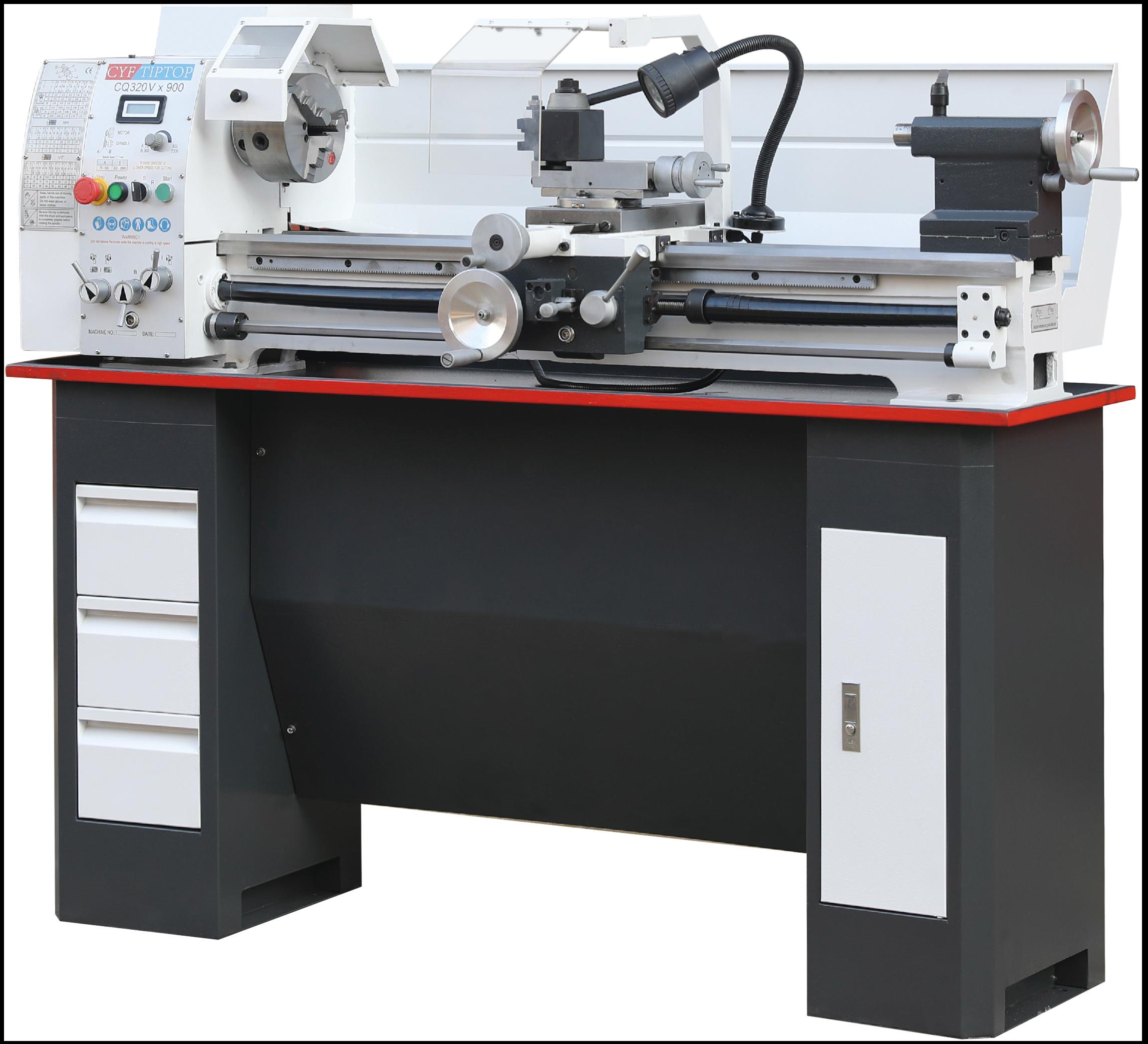

CQ320V

Features and standard configuration

• Frequency motor and Delta inventor

• Left handwheel

• 3-jaw chuck 160 mm

• Square tool post

• Tailstock

• Faceplate

• Backsplash

• Chip Pan

• Threading dial

Optional accessories

• Steel stand with drawers

• Center rest and follow rest

• 4-Jaw Chuck and back plate 160 mm

• American Quick Change Tool post

• Faceplate

• Chuck guard with microswitch

• Leadscrew cover

• End Cover with microswitch

• Tool post guard with microswitch

• Simple Tool post guard

• LED work light

• SINO two axis digital readerout

• Limit block

• BF20 vertical milling head

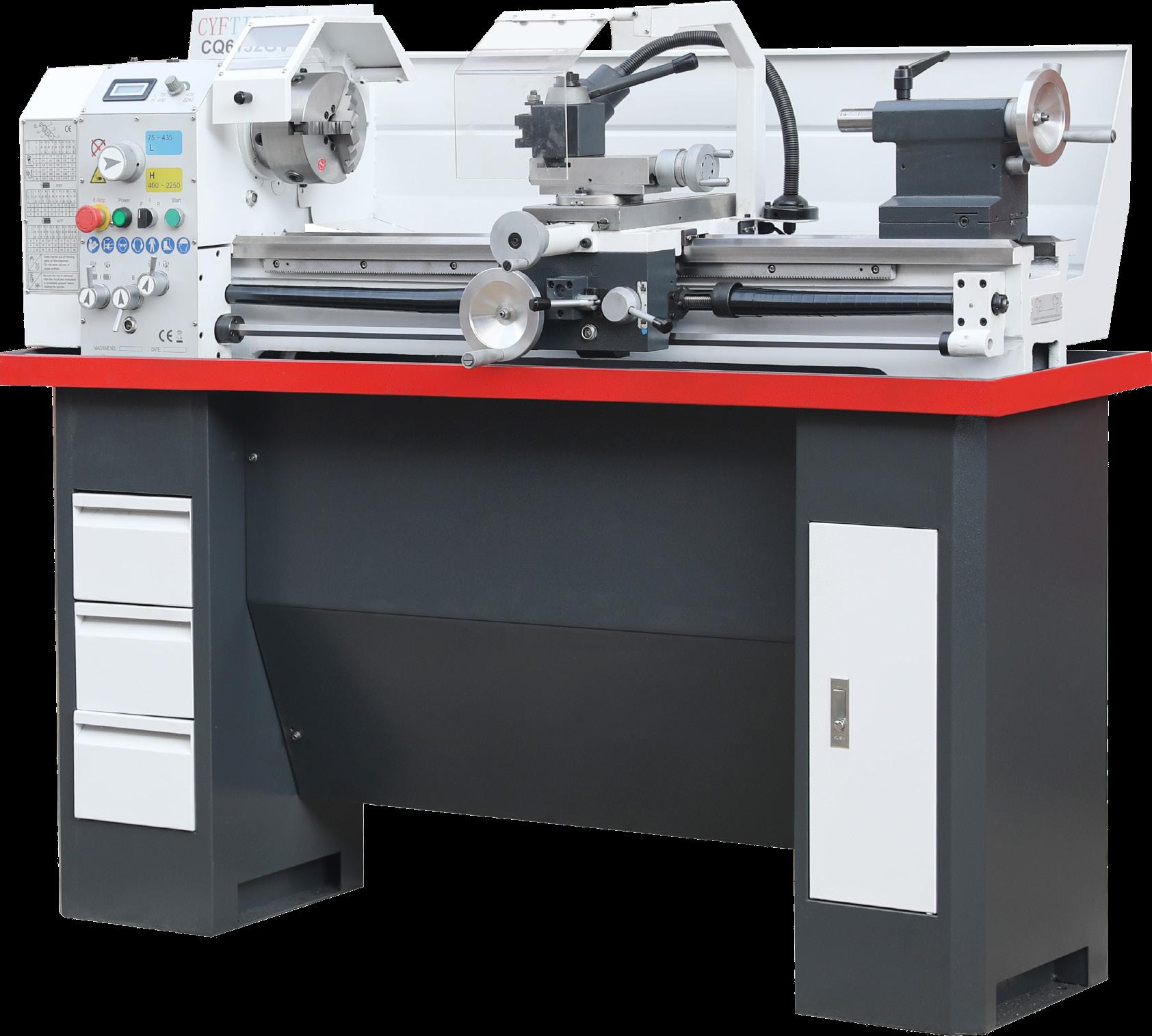

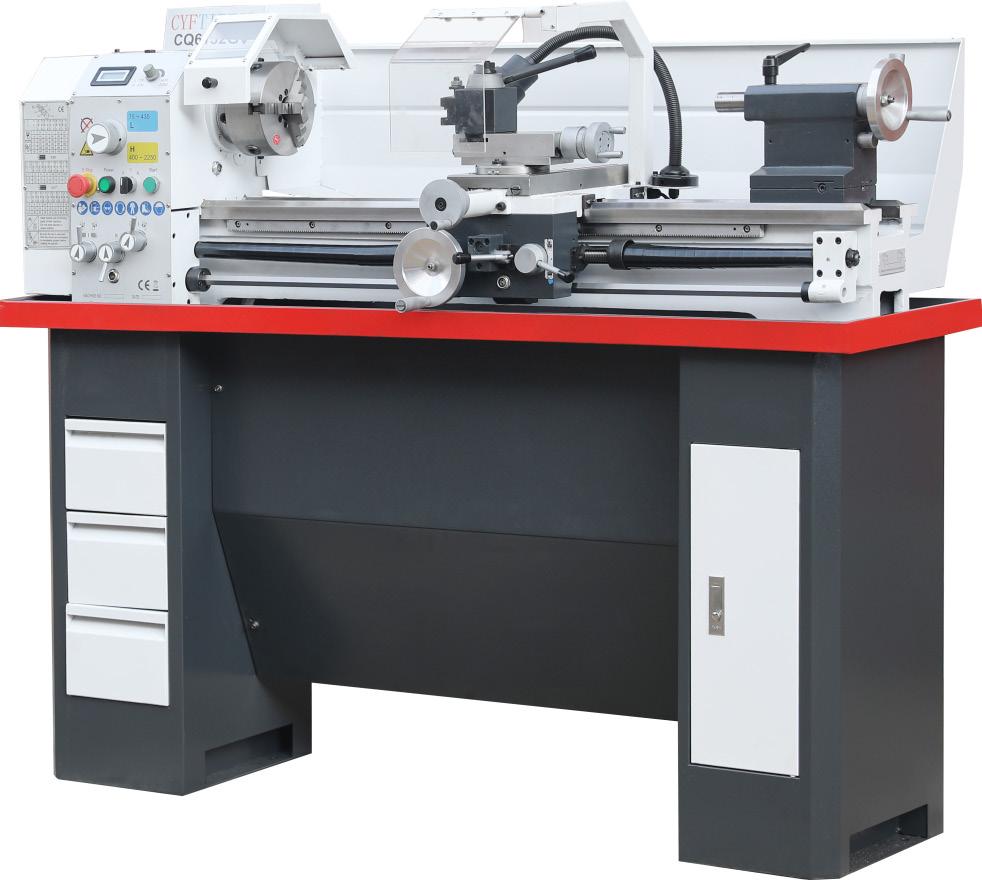

CQ6132GV

Features and standard configuration

• Frequency motor and Delta inventor

• Left handwheel

• 3-jaw chuck 160 mm and square tool post

• Tailstock

• Backsplash and chip Pan

• Threading dial

Optional accessories

• Steel stand

• SINO two axis digital readerout

• Stead rest

• Follow Steady

• 4-Jaw Chuck 160 mm and back plate 160 mm

• American Quick Change Tool post

• Faceplate

• Chuck guard with microswitch

• LED work light

• Leadscrew cover

• End Cover with microswitch

• Tool post splash guard

Turning lathe Turning lathe

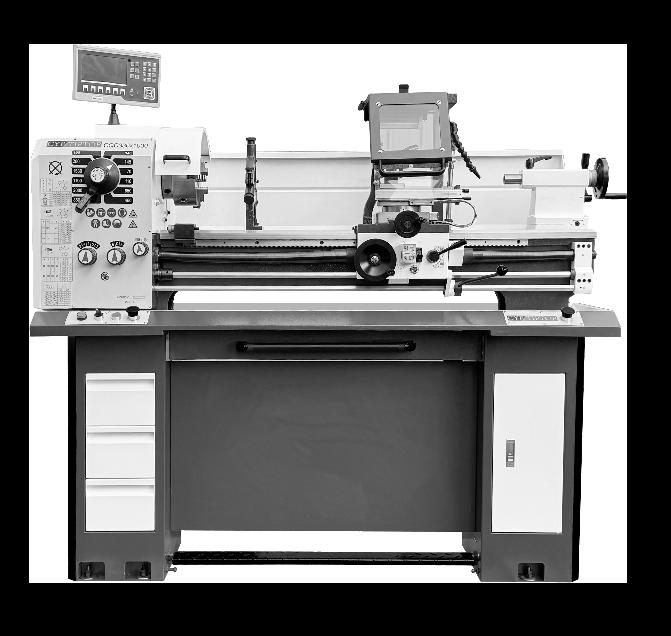

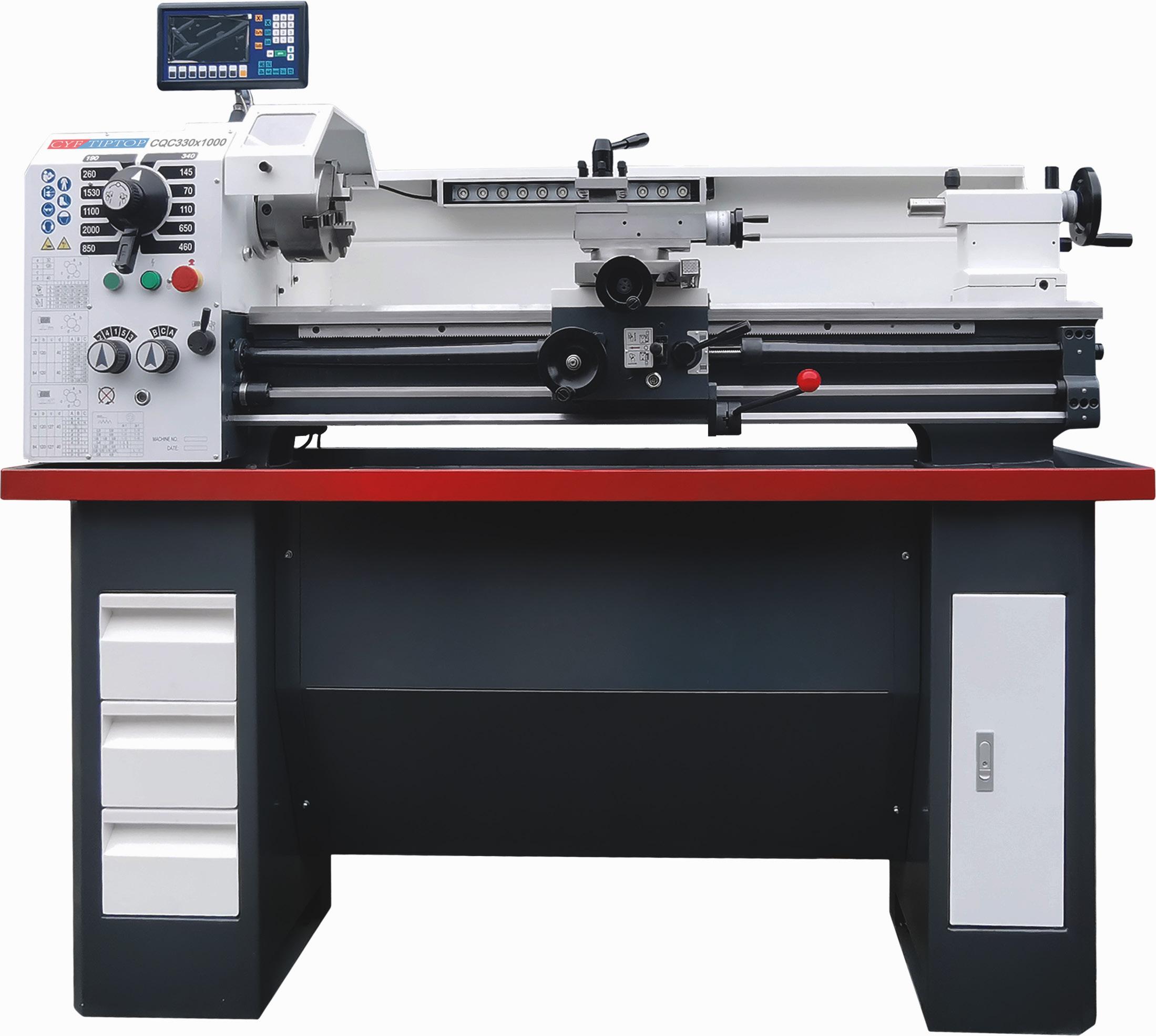

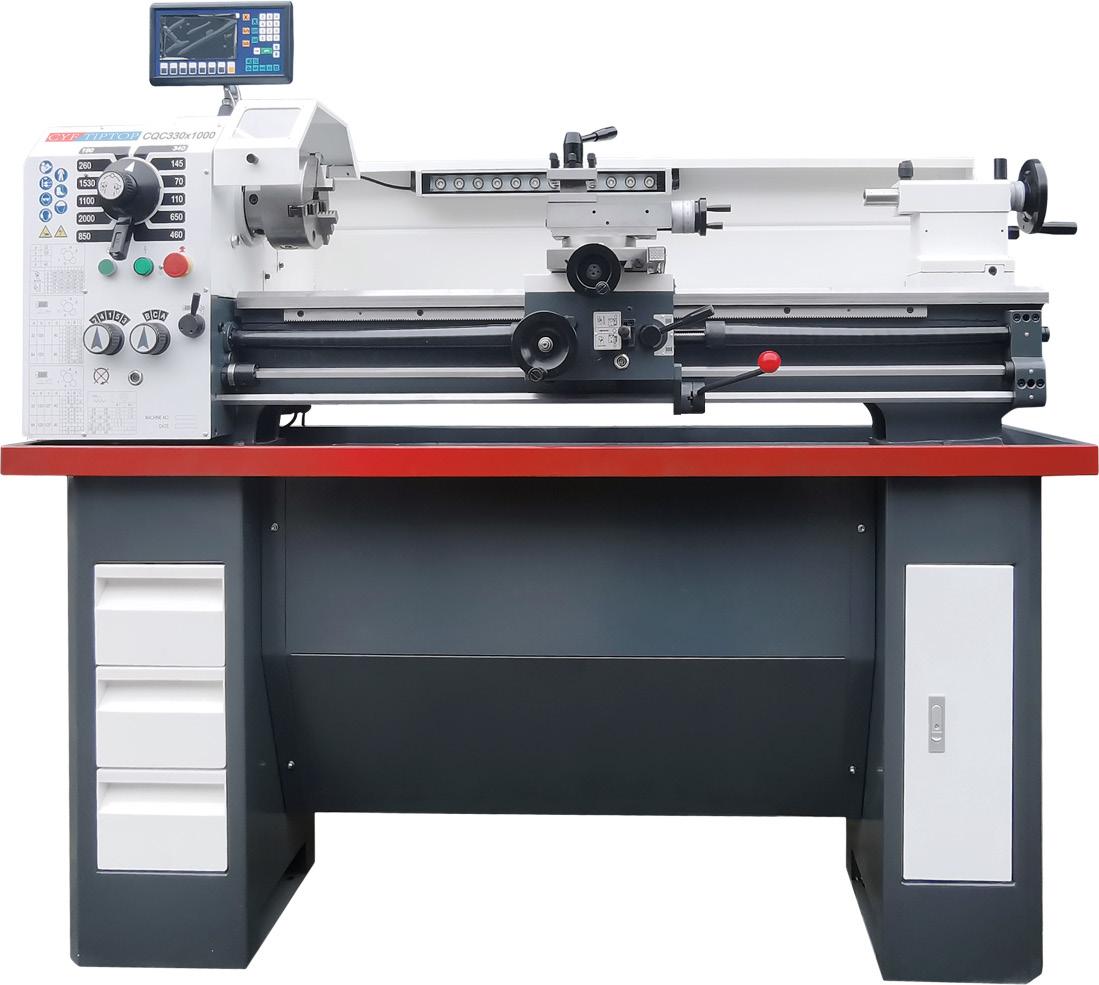

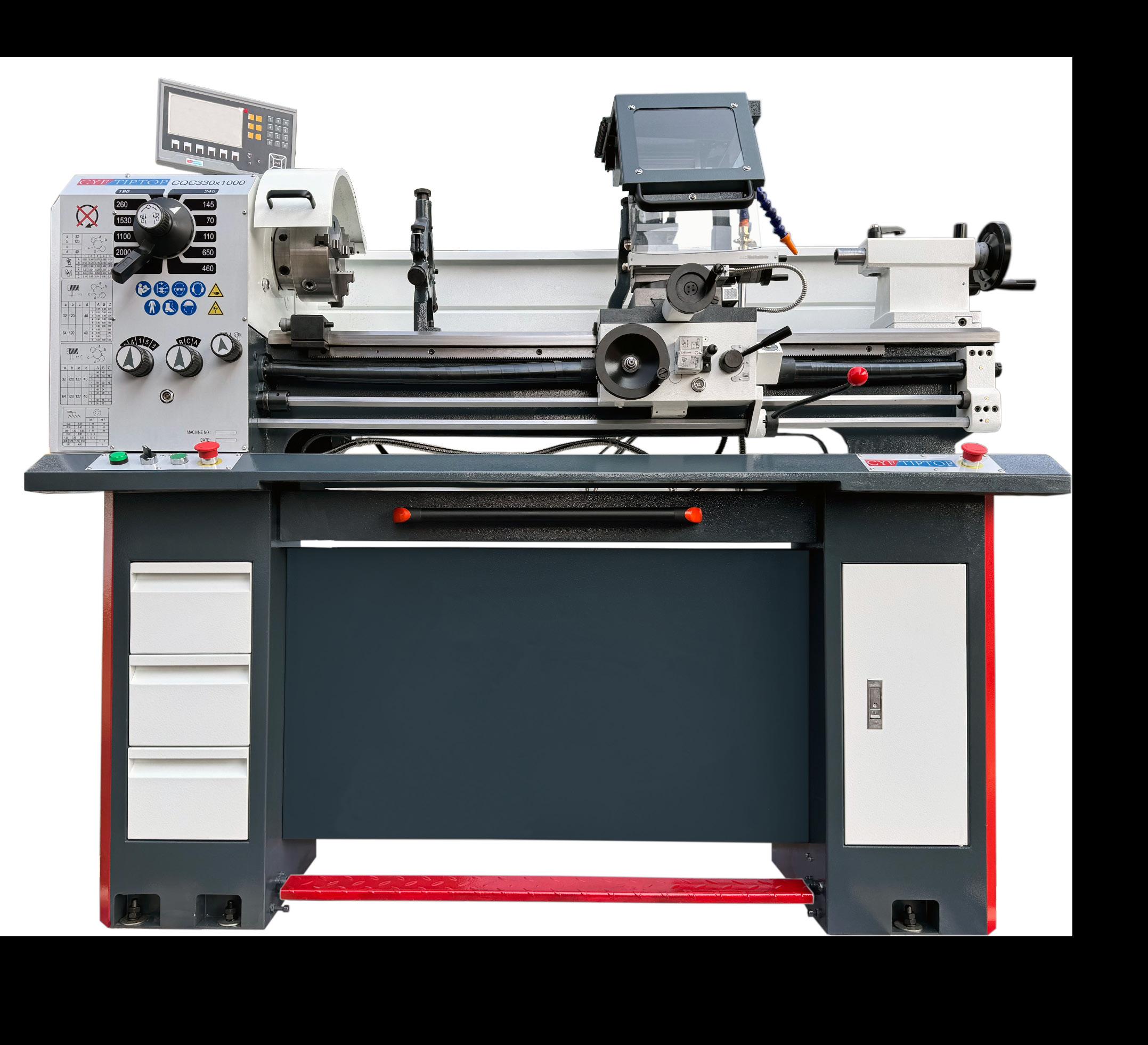

CQC330X1000

Features and standard configuration

• 3-jaw chuck 160 mm

• Square tool post

• Tailstock

• Backsplash

• Chip Pan

• Threading dial

• Chuck guard with microswitch

• Tool post splash guard

• Leadscrew cover

• End Cover with microswitch

Optional accessories

• Stand with drawer

• 4-Jaw Chuck and back plate

• American Quick Change Tool post

• Faceplate

• Stead rest and follow Steady

• SINO two axis digital readerout

• LED work light

• Long LED work light on the backsplash

• Limit block

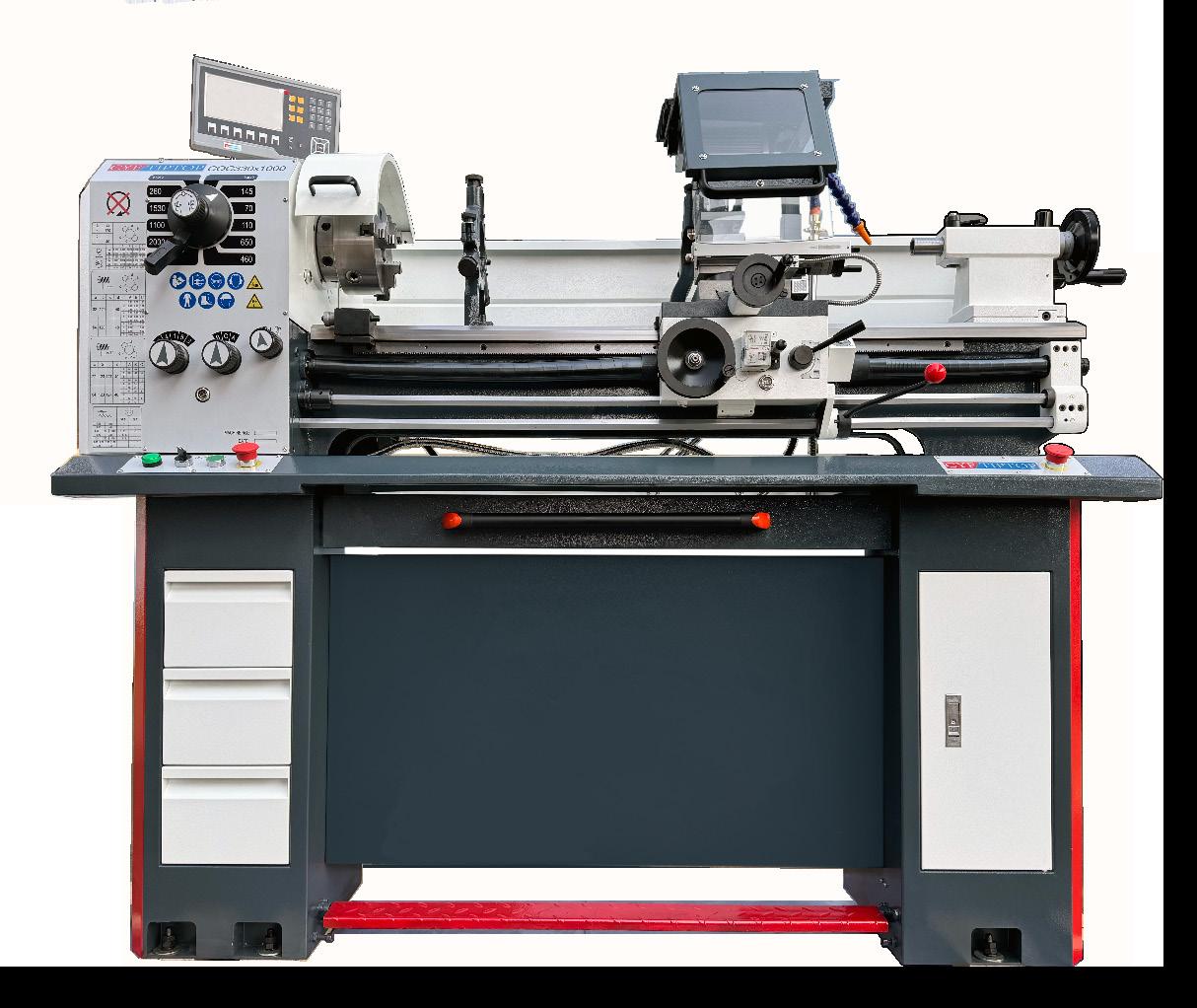

CQC330X1000(with

Features and standard configuration

• 24V low voltage control

• Left handwheel

• 3-jaw chuck 160 mm

• Square tool post

• Tailstock

• Backsplash and Chip Pan

• Threading dial

• Chuck guard with microswitch

• Tool post splash guard

• Leadscrew cover

• End Cover with microswitch

• Led work light

• Stand with oil pan and drawer

• Foot brake

• Coolant system

• Two axis digital readerout

• 4-Jaw Chuck and back plate

• American Quick Change Tool post

• Faceplate

• Stead rest and follow Steady

• Long LED work light on the backsplash

• Limit block

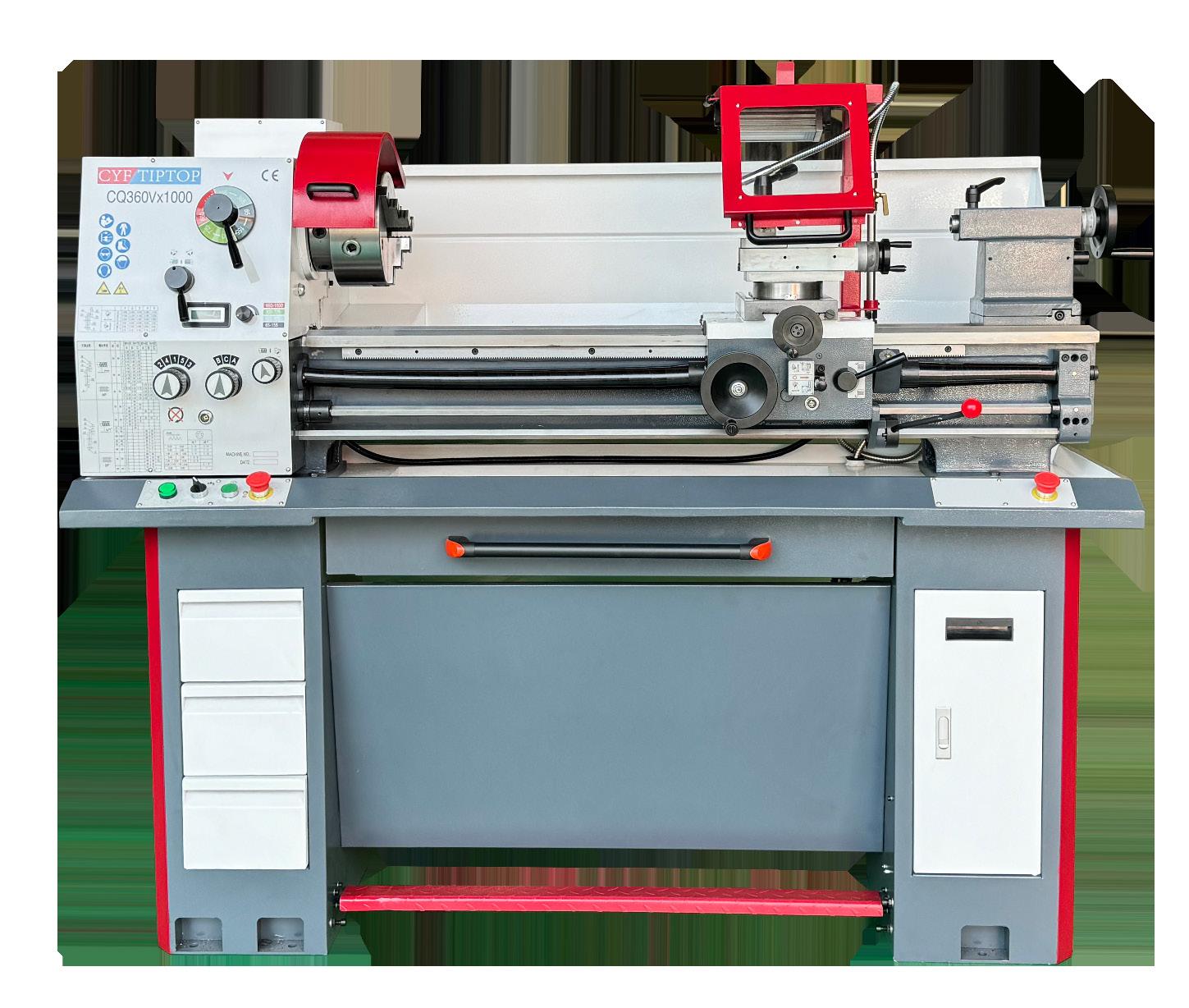

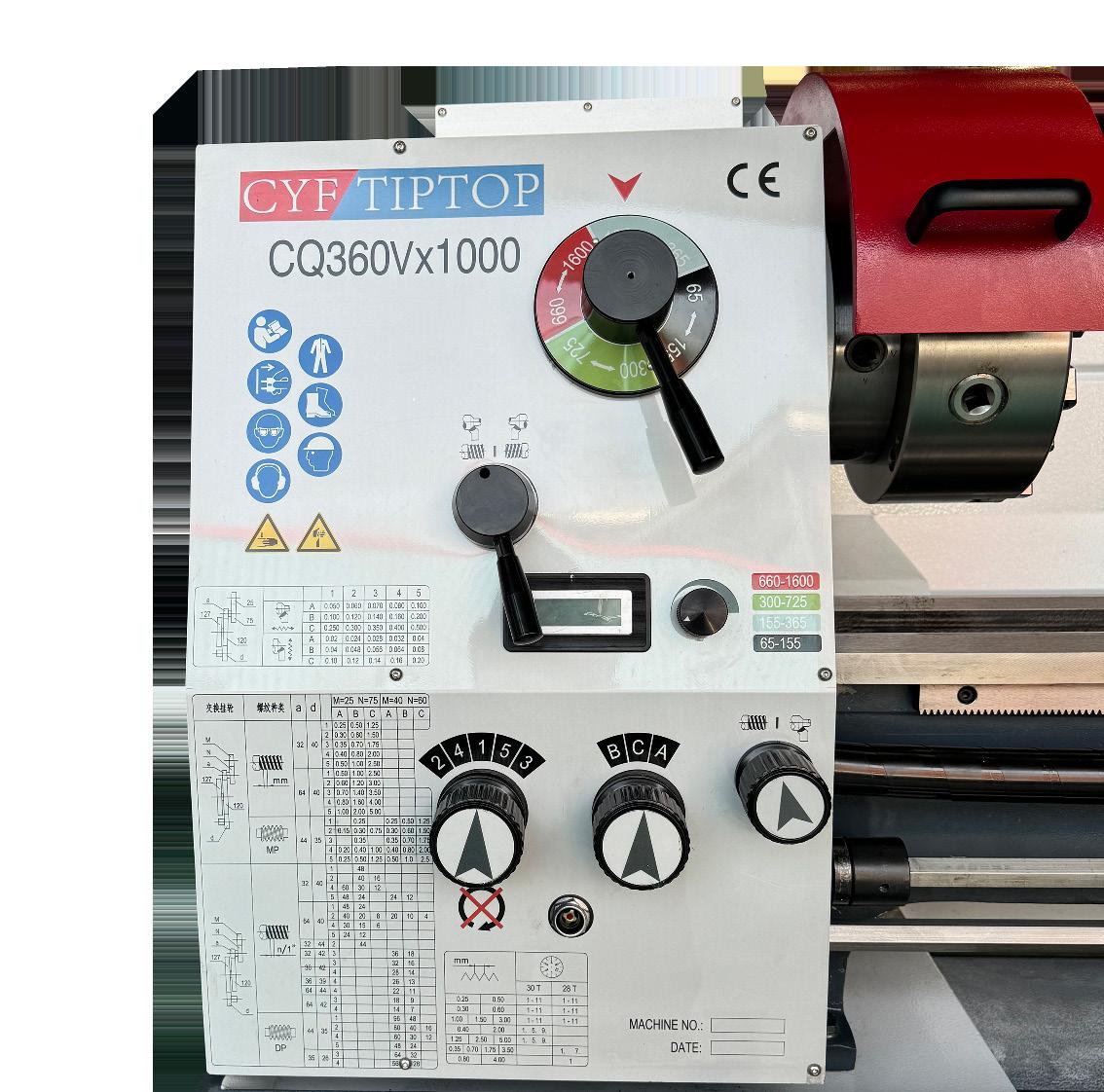

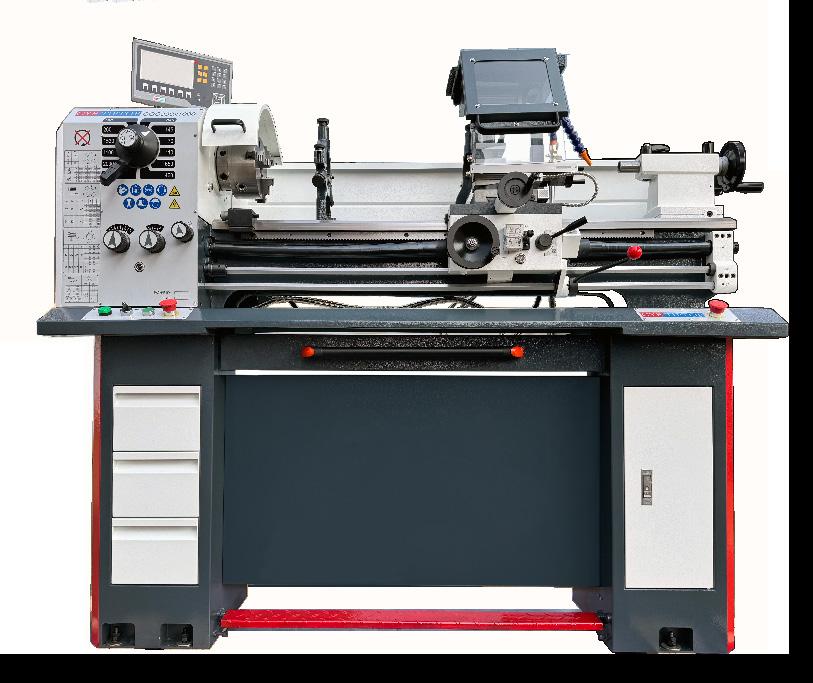

Turning lathe Turning lathe

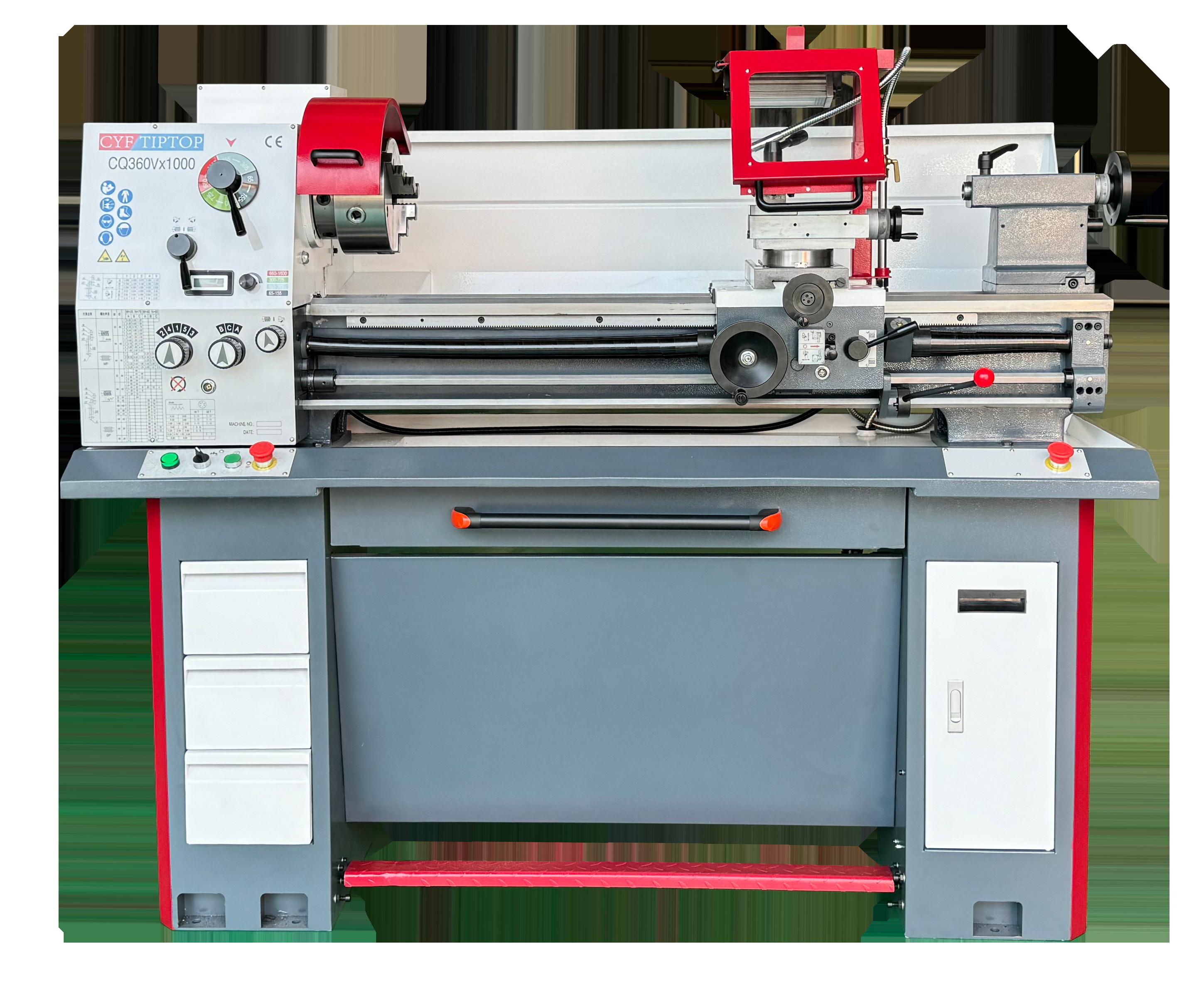

Features and standard configuration

• 24V low voltage control

• Left handwheel

• 3-jaw chuck 200 mm

• Square tool post

• Tailstock

• Backsplash

• Chip Pan with drawer

• Threading dial

• Chuck guard with microswitch

• Tool post splash guard

• Leadscrew cover

• End Cover with microswitch

• Led work light

• Stand with drawer and foot baker

• Coolant system

• Limit block

Technical Specifications Optional accessories

• Stead rest and follow Steady

• Sino 2 axis DRO

• Sina 3 axis DRO

Swing over bed 360mm (14-1/6")

Swing over cross slide 230mm (9")

Distance between centers 1000mm (39-3/8")

Spindle bore 52mm (2")

Spindle taper MT6

Speed range 65-1600 rpm

Threads which can be cut

Metric: 20 kinds, 0.25~5.0mm Inch: 25 kinds, 4~60T.P.I. Module: 17 kinds, 0.15~2.5M.P Diametral pitch: 13 kinds, 12~96D.P

Saddle feed range per spindle revolution 15 kinds, 0.05~0.50mm/rev.

Cross feed range per spindle revolution 15 kinds, 0.02~0.20mm/rev.

Threads per inch lead screw 3mm

Max. turn angle of tool post ±60°

Tailstock taper MT3

Tailstock dia. 32mm (1-1/4")

Tool slide travel 85mm (3-3/8")

Cross slide travel 185mm (7-1/4")

Saddle travel 900mm (35-3/8")

Tailstock quill stroke 85mm (3-3/8")

Motor horsepower 1.5kW (2HP)

Motor rotational speed 1400r/min or 1720r/min

Packaging size (LxWxH) 180x76x85cm (71"x30"x33-1/2")

Net weight 400 kg

Gross weight 450 kg

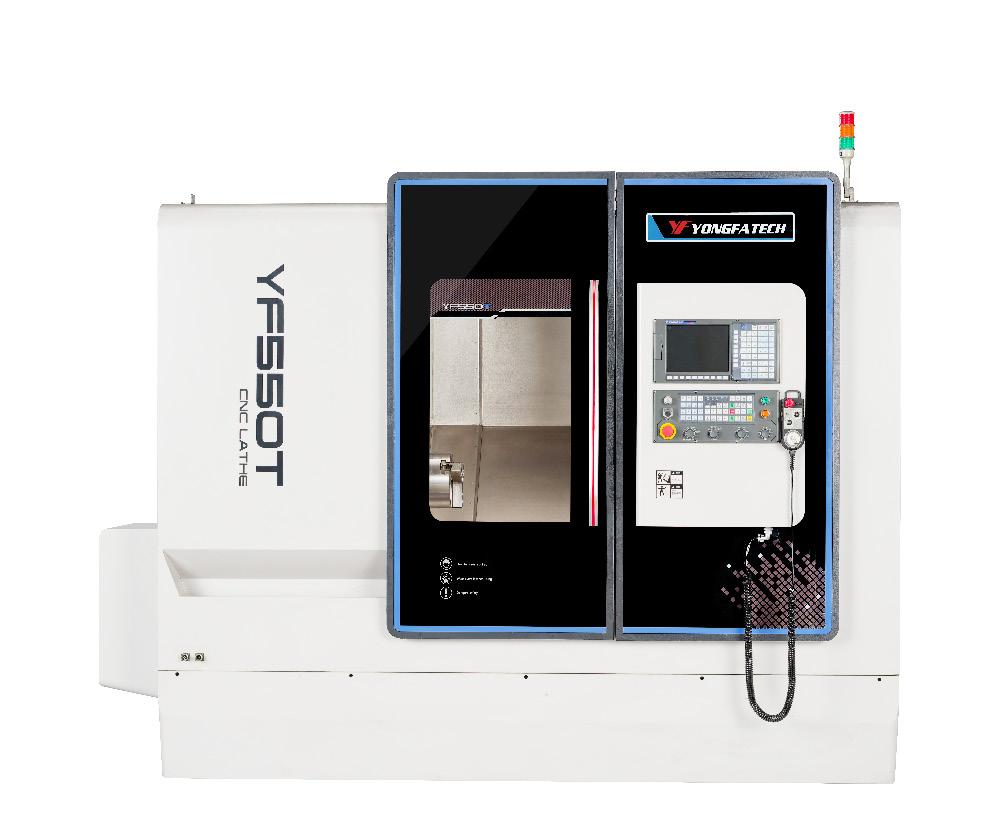

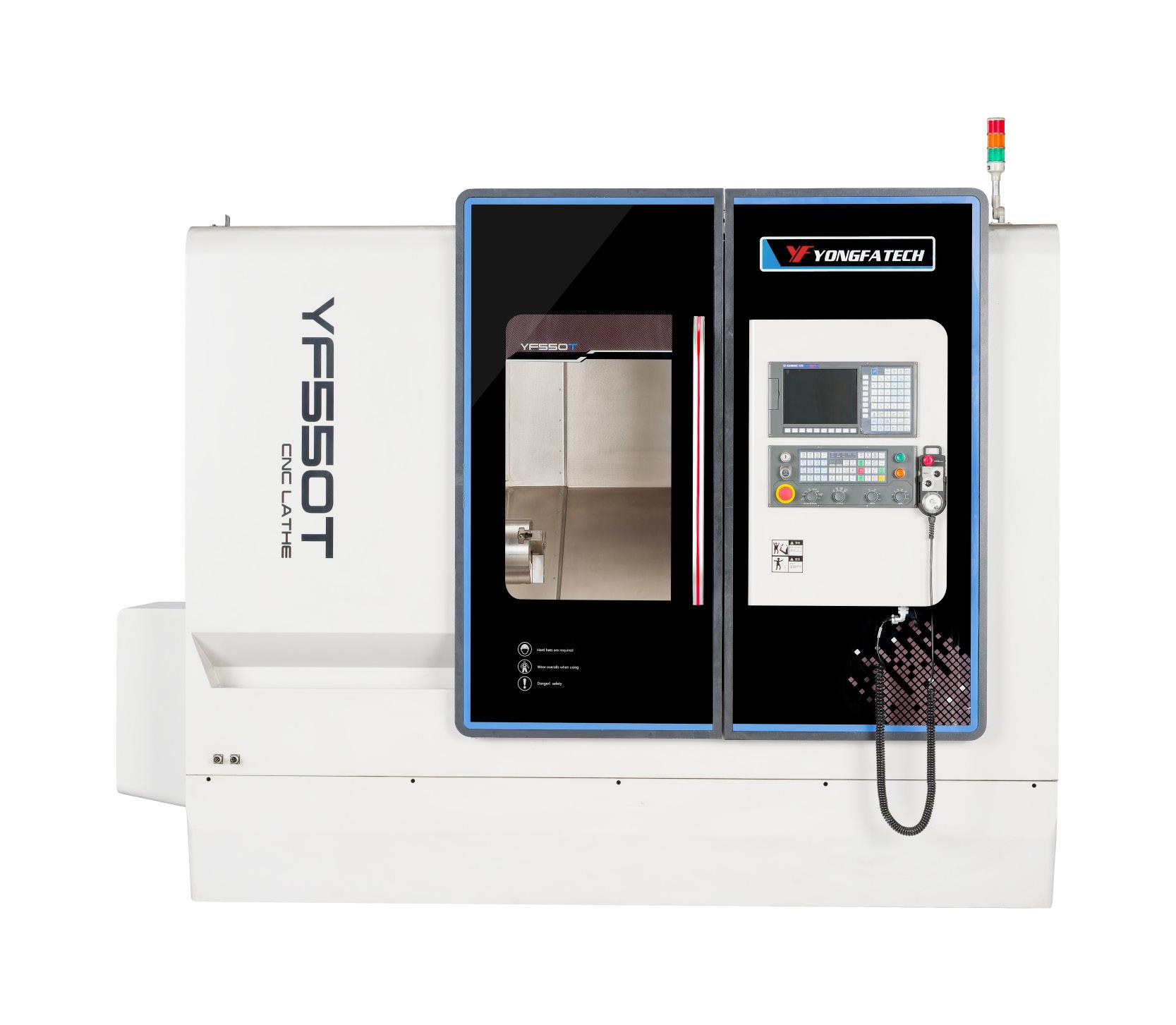

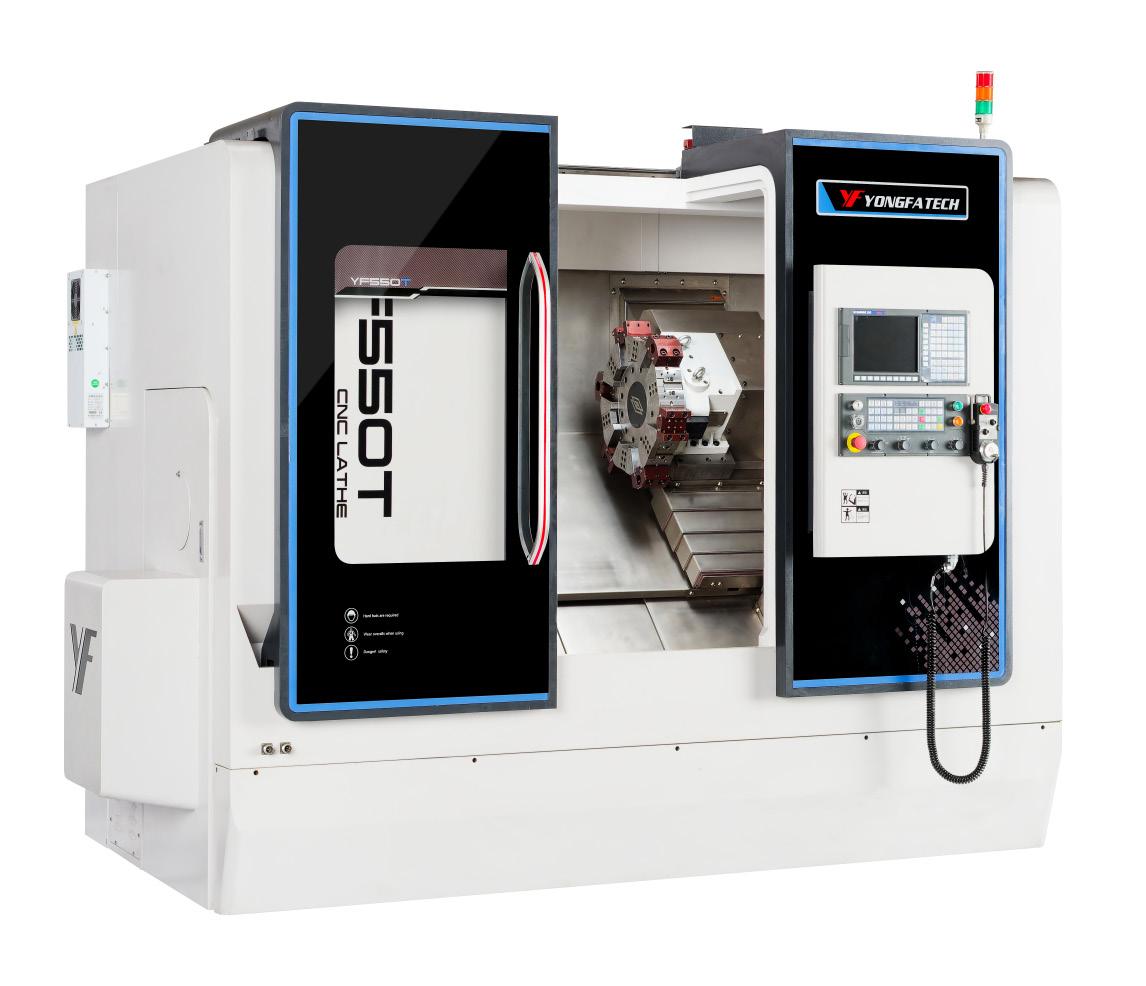

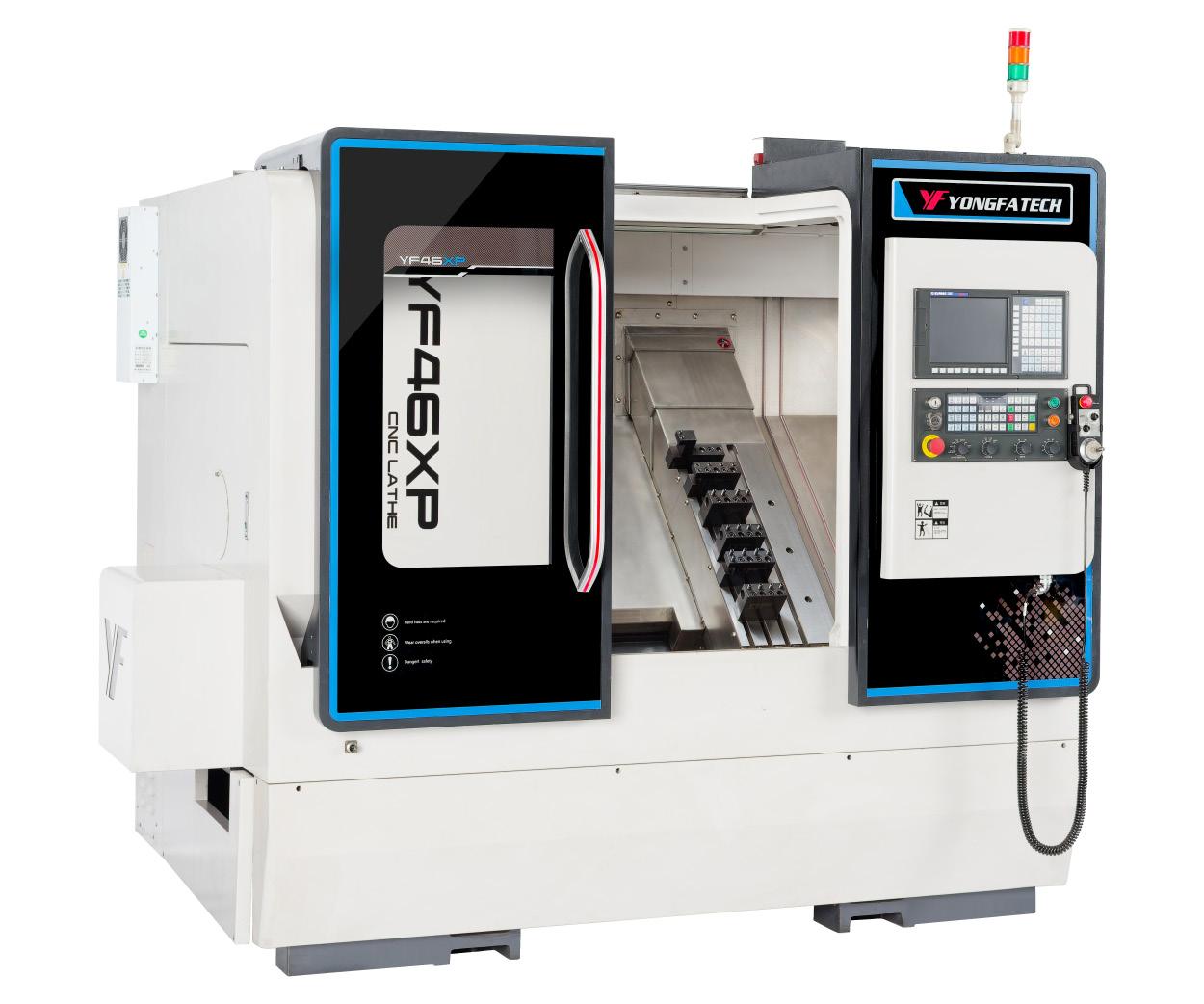

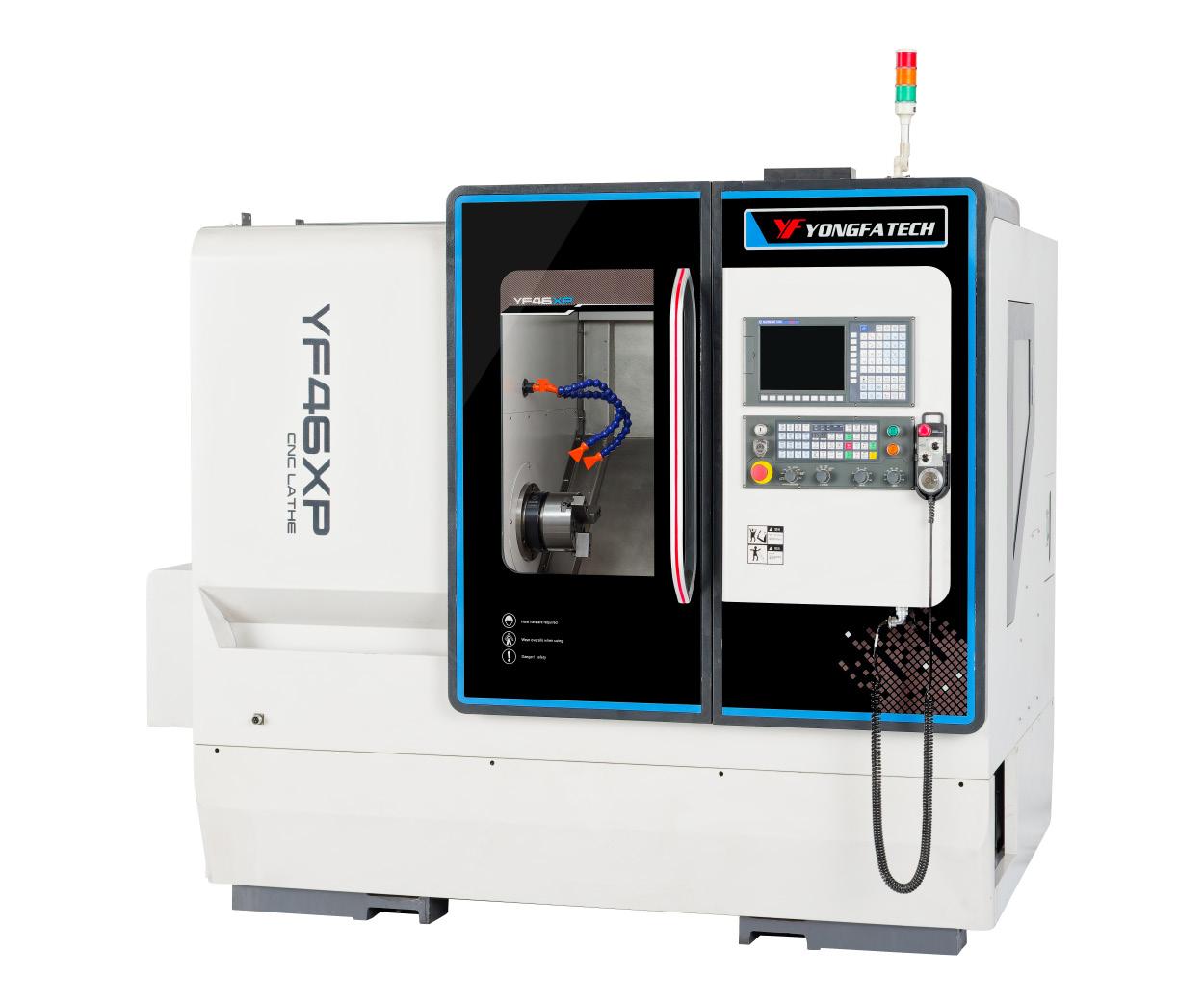

CNC turning lathe

Swing over bed

Swing over cross slide

Distance between centers

Machining diameter

mm

mm

mm

maximum bar stock pass-through diameter 45 mm

Spindle bore 56 mm

Max speed range 6000 rpm

CNC Control System

Servo motor

Turret Gang Tool Type/8-stations servo turret

Spindle nose fixture A2-5

Chuck and rotary cylinder size

Spindle center to ground

Spindle center to front door

Positioning accuracy

X-axis repeatability accuracy

Travel x-axis (one side)

Travel z-axis 420 mm

mm

mm

Servo motor Rapid feed x- / z-axis 30 m/min

X-axis, Z-axis servo motor 1.7 kw Bed structure 45-degree guide rail

X-axis linear rail specifications

Z-axis linear rail specifications

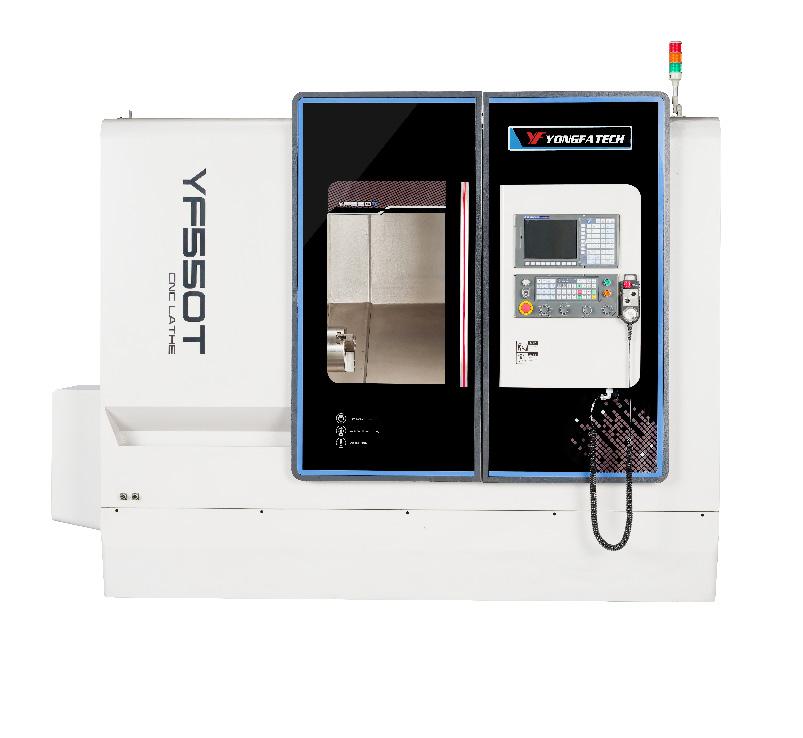

turning lathe

Swing over bed 500 mm

Swing over cross slide 220 mm

Distance between centers 550 mm

Machining diameter 480 mm

maximum bar stock pass-through diameter 52 mm / 72 mm

Spindle bore 66/86 mm

Max speed range 4000/3000 rpm

Servo motor 11 kw

Turret 12-stations servo turret

Spindle nose fixture A2-6/A2-8

Chuck and rotary cylinder size 8 inches and 10 inches

Spindle center to ground 1060 mm

Spindle center to front door 440 mm

Positioning accuracy ± 0.005 mm

X-axis repeatability accuracy ± 0.003 mm

Travel x-axis (diameter) 260 mm

Travel z-axis 550 mm

Rapid feed x- / z-axis 24 m/min

Travel of tailstock sleeve 450 mm

Taper of tailstock sleeve MT5

CNC Control System FANUC/SIEMENS/GSK

Bed structure 45-degree guide rail

X-axis linear rail specifications 35 mm roller

Z-axis linear rail specifications 35 mm roller

Machine

Gross

www.yongfamach.com

Tel: 08618601788759

e-mail: jun@yongfamach.com

Gaoyou, Yangzhou city, Jiangsu Province, China
