All prices subject to change without notice. Please verify all confirmations.
$750 Minimum Order Required for Prepaid Freight
Orders less than $750 will be subject to freight charges or may be held until additional orders accumulate reaching $750 or more.
Order Cut Off
Place orders 2 full business days before your scheduled delivery day.
Delivery Day: Order By:
Monday
Tuesday
End of day Wednesday
End of day Thursday
WednesdayEnd of day Friday
Thursday
Friday
Special Delivery
End of day Monday
End of day Tuesday
NOTE: Fence, Custom , and/or Gate orders, depending on size and style, will require additional lead time.
If delivery is requested sooner than your regular delivery day, the order will be subject to freight charges regardless of order size.
Returns
A 20% restock fee will be charged on all returns. NO returns accepted after 60 days of invoice date. NO returns on gates, Vista rail, pergola, fence or custom work. NO returns on pickets/balusters out of any sections. Additional Resources Visit
Venture decking
Research Report #RR-0100
Wood Plastic comPosite 12'16'20'
Grooved decking - 5 1/2" wide
Solid Edge decking - 5 1/2" wide N/A
Fascia (1/2" x 11 1/4" - 12')
Grooved Edge
Solid Edge
Venture Series features a lobed bottom profile and is 15/16" thick. Other series are 7/8" thick. Advised not to mix with other series when using Venture.
Visit Deckorators.com for installation instructions.

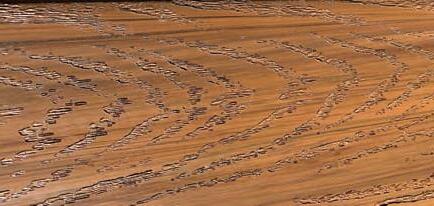

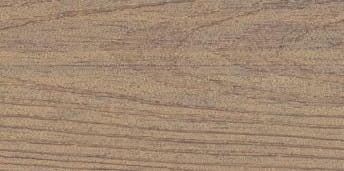

Venture series is a directional grain pattern. Each board has a unique appearance and should be arranged according to the end user’s preference.
Shoreline (SH)
Saltwater (SW)
Screws and pro-plug system must be used in the thickest part of the board.
Sandbar (SB)
Vista decking
Research Report #RR-0100
Wood Plastic comPosite 12'16'20'
Grooved decking - 5 1/2"
Riser (1/2" x 8" - 12')
Fascia (1/2" x 11 1/4" - 12')
Vista Series offers enhanced traction for increased slip resistance.
Vista Series has Class B Fire Rating
summit decking
mineral Based comPosite 12'16'20'
Grooved decking - 5 1/2" wide
Solid Edge decking - 5 1/2" wide N/A
Fascia (1/2" x 11 1/4" - 12')
Grooved Edge Solid Edge
These profiles are the same for Vista, Summit and Voyage
(B) Cliffside (C)
Glacier (G)
Voyage decking
Research Report #CCRR-0195
m ineral B ased comPosite 12'16'20'
D12V__D16V__D20V__
Grooved decking - 5 ½" wide
Grooved decking - 9 ¼" wide N/AN/A
D20V__9
Solid Edge decking - 5 ½" wide N/A D16V__SD20V__S
Solid Edge decking - 7 ¼" wide N/AN/A D20V__7S
Solid Edge decking - 9 ¼" wide N/AN/A D20V__9S
Riser (1/2" x 8" - 12')
Fascia (1/2" x 11 1/4" - 12')
White Fascia (1/2" x 11 1/4" - 12')
Varied-width decking is also available in 31/2", 7¼" widths Some by special order only.
Voyage decking features a water and ground contact warranty.
Picture Frame & Porch Floor
P icture F rame B oard 12'21'
Dark Slate color, solid edge - 3 1/2" N/A
Dark Slate color, solid edge - 5 1/2" N/A
Dark Slate color, solid edge - 7 ¼" N/A
Riser (1/2" x 8" - 12')
Fascia (1/2" x 11 1/4" - 12')
D21DSPF3
D21DSPF
D21DSPF7

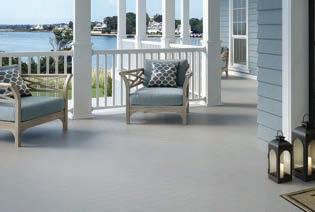

Porch Floor
7/8" x 3 1/2" - 12' - T&G
7/8" x 3 1/2" - 16' - T&G
7/8" x 3 1/2" - 12' - Solid Edge
D12PF-__
D16PF-__
D12PF-__S
SurestoneTM technology. Nonreversible wood grain surface for slip resistance. Can be installed in contact with the ground or water.
Porch floor has a 3 1/8" finished measurement.
*Chicory is a verigated color. Kettle is solid color.
D12DSPFR
D12DSPFF
decking Fasteners
Hidden Fastener Systems
Stowaway Clips - 90 clips/box (enough for 50 sq ft)
Stowaway Clips - 525 clips/box (enough for 300 sq ft)
Stealthlock/CAMO Clips - 90 clips/box (enough for 50 sq ft)
Stealthlock/CAMO Clips - 450 clips/box (enough for 250 sq ft)
Stealthlock/CAMO Clips - 900 clips/box (enough for 500 sq ft)
TC-G Fasteners - 90 clips/box (enough for 50 sq ft)
Butt Joint Fastener - 55 clips/box (“Reversed” TC-G - recommend for all butt joints )
TC-G Bucket - 900 clips/box (enough for 500 sq ft - NO SCREWS)
Please specify deck color when ordering Pro Plug System
Color match decking/ Porch Floor plugs* DP-_
*Each package includes 165 plugs, 150 screws and 1 tool. Covers about 100 lineal feet.
Pro Plugs Only
Color Match Plugs 375 ct DP375-_
Pro Plug Countersinking Tool PPT
Color Match 305 S/S Screws
#7 x 1 5/8" S/S Screws 100 ct S104-SST_
2 1/2" S/S Screws 350 ct S104-SS_ Call for S/S screw color options
SHF-50
SHF-300
SLF-90
SLF-450
SLF-900
TCG-50
TCG-BJ
TCG-500
TCG-P
allowsStowawayabout a 1/4" gap
Stealthlock allows about a 1/4" gap
*works with CAMO tools
TC-G allows about a 3/16" gap
Please specify deck color when ordering
Color Match Epoxy Screws
Color Match Epoxy Fascia Screws
#10 x 1 7/8" - 100 ct FS101D-_ Fascia Tool FST
Color Match S/S Screws for METAL Framing
1 5/8" S/S Screws - 100 ct S104-_Metal
1 5/8" S/S Screws - 350 ct S104-_Metal
Stocked in all Deckorators colors. Specify color.

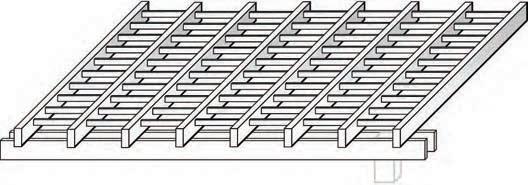

sleePer system
Butyl (joist) taPe
For gound-level patios or roof top decks, Deckorators® Sleeper System elevates your deck surface, helping protect your deck boards from damage due to moisture buildup.
Reversible. Used as gray or brown.
1-5/8" x 50' Roll
3-1/8" x 50' Roll
dexerdry system
Visit dexerdry.com for proper installation instructions.
d
exerdry
s ystem
Compatible with all Deckorators, Trex and Azek/TimberTech decking

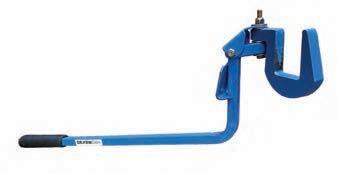

Blue Claw Installation Tool
50' Roll240' Roll
Specify specific series of decking
Special Order only for Fiberon decking.
Dexerdry is not a waterproof solution. Leaks may still occur with proper installation. No warranty for leaks.
gorilla decking
Unique interlocking design channels water to the edges of deck creating a watershedding installation. Not waterproof. For proper warranty coverage, homeowners must complete a warranty registration form within 30 days of purchase. *Chestnut is a solid color. Mocha Walnut is verigated color.
Mocha Walnut (M)
3/4" x 3 1/2" x 18' PVC Trim Board K34418
3/4" x 5 1/2" x 18' PVC Trim Board K34618
3/4" x 7 ¼" x 18' PVC Trim Board K34818
3/4" x 9 ¼" x 18' PVC Trim Board K341018
3/4" x 11 ¼" x 18' PVC Trim Board K341218 3/4" Trim Boards (actual size)
PVc trims & sheets
Trim Boards
structural Fasteners
Structural and Framing Fasteners
2 ⅞" FlatLOK - 50 ct. FL278-50
3 1/2" FlatLOK - 50 ct. FL350-50
3 1/2" FlatLOK - 250 ct./bucket FL350-250
5" FlatLOK - 50 ct. FL5-50
5" FlatLOK - 250 ct./bucket FL5-250
6" FlatLOK - 50 ct. FL6-50
6" FlatLOK - 250 ct./bucket FL6-250
6 3/4" FlatLOK - 50 ct. FL634-50
6 3/4" FlatLOK - 200 ct./bucket FL634-200
3 ⅝" LedgerLOK - 50 ct. LL358-50
3 ⅝" LedgerLOK - 250 ct./bucket LL358-250
5" LedgerLOK - 50 ct. LL5-50
5" LedgerLOK - 250 ct./bucket LL5-250
2 ⅞" HeadLOK - 50 ct.
2 ⅞" HeadLOK - 500 ct.bucket
4 1/2" HeadLOK - 50 ct.
4 1/2" HeadLOK - 250 ct./bucket
6" HeadLOK - 50 ct.
6" HeadLOK - 250 ct./bucket
2 1/2" TimberLOK - 50 ct.
2 1/2" TimberLOK - 500 ct./bucket
4" TimberLOK - 50 ct.
4" TimberLOK - 250 ct./bucket
6" TimberLOK - 50 ct.
6" TimberLOK - 250 ct./bucket
8" TimberLOK - 50 ct.
8" TimberLOK - 250 ct./bucket
10" LOGHOG - 250 ct./bucket
12" LOGHOG - 250 ct./bucket
HL278-50
HL278-500
HL450-50
HL450-250
HL6-50
HL6-250
TL25-50
TL25-500
TL4-50
TL4-250
TL6-50
TL6-250
TL8-50
TL8-250
LH10-250
LH12-250

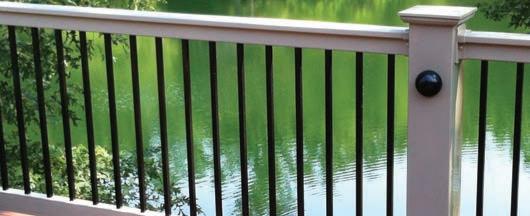

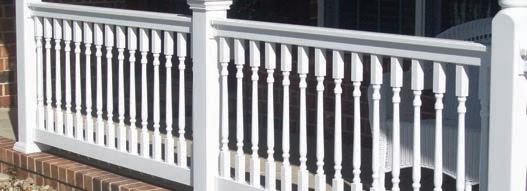

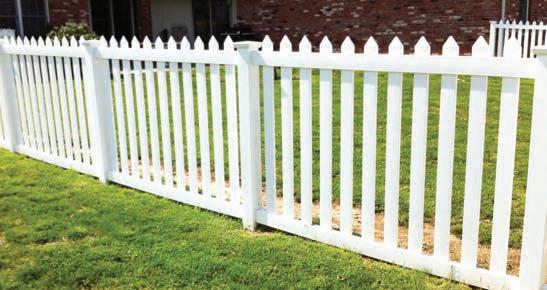

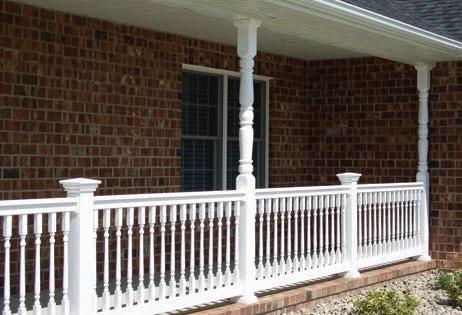

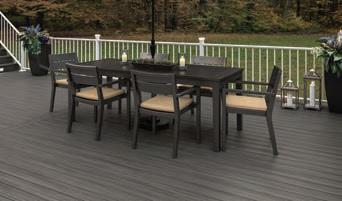

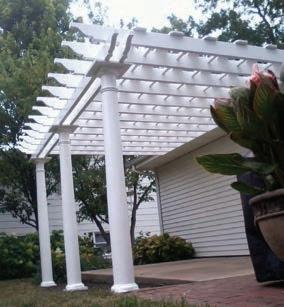

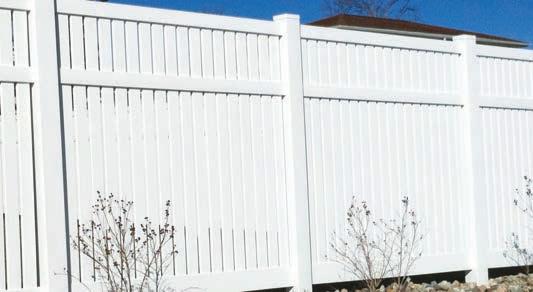

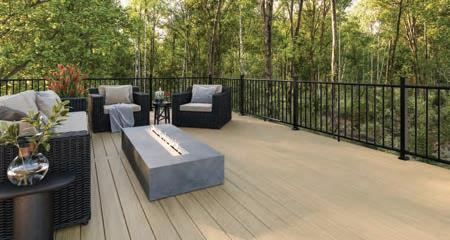

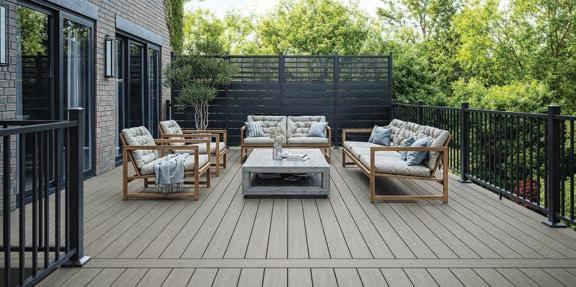

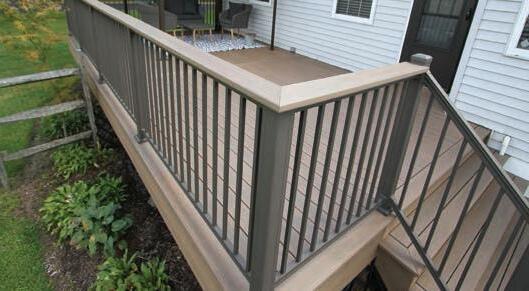

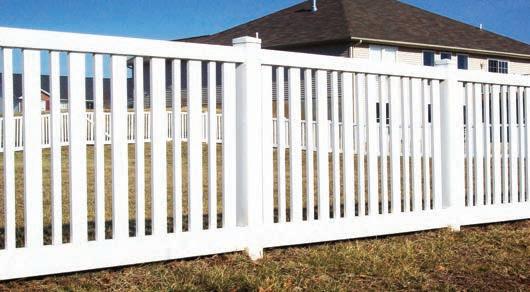

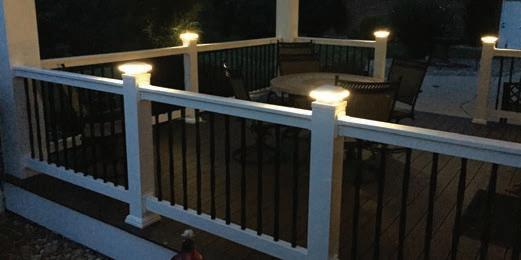

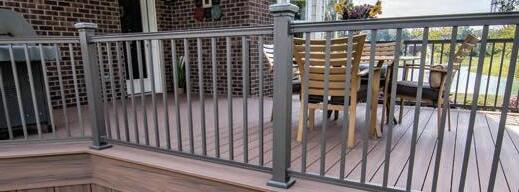

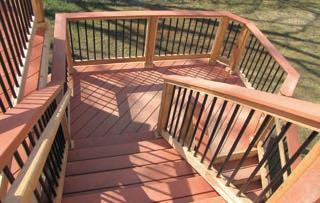

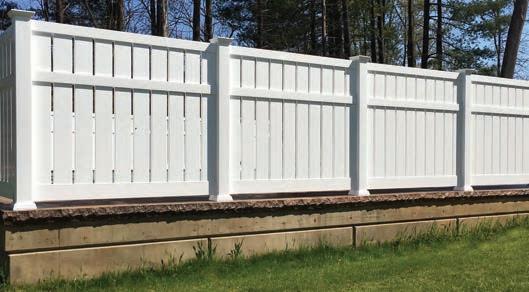

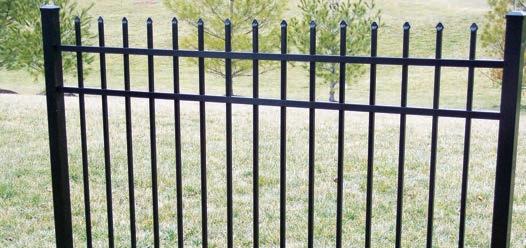

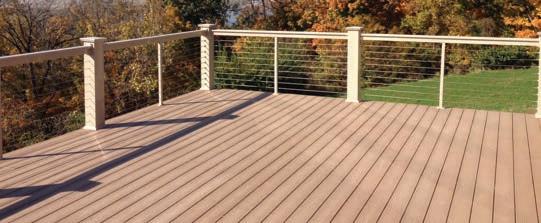

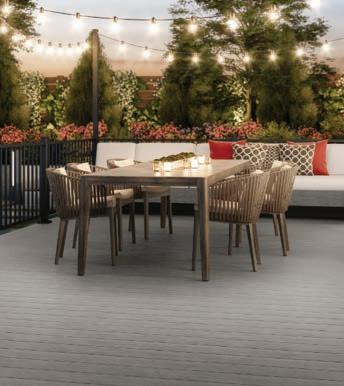

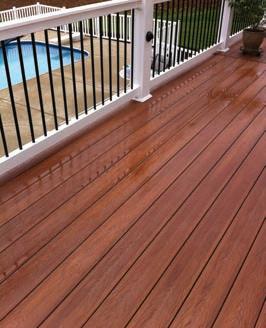

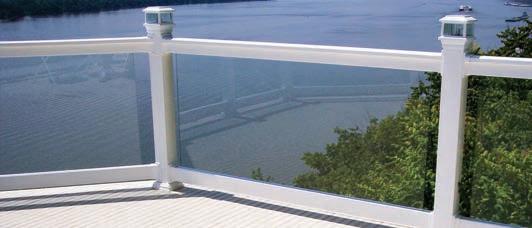

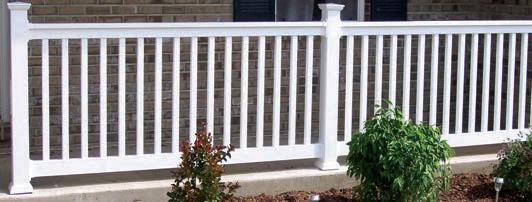

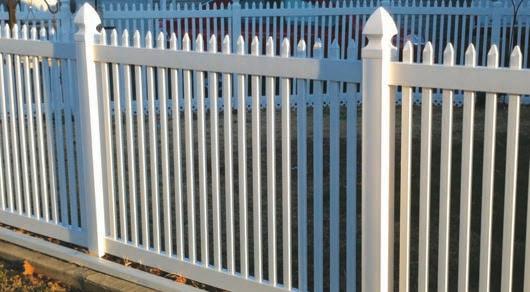

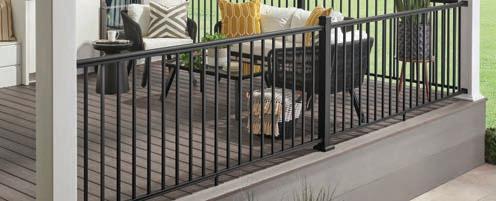

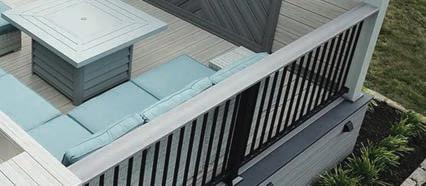

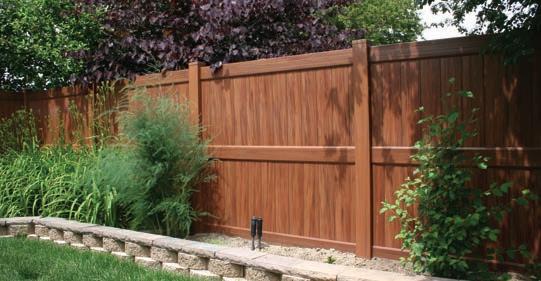

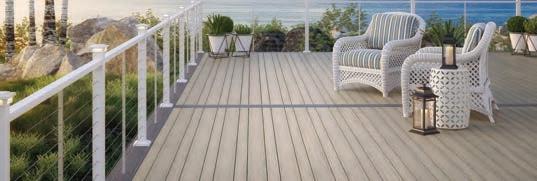

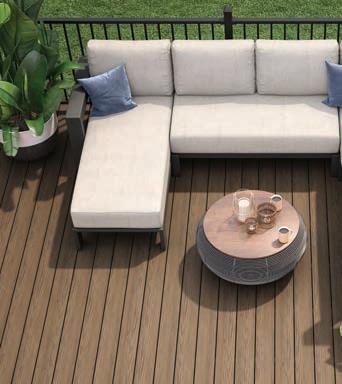

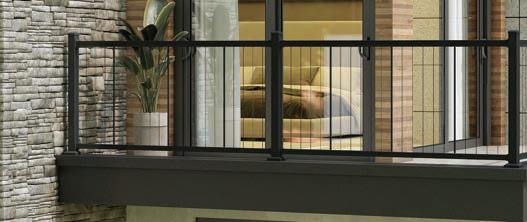

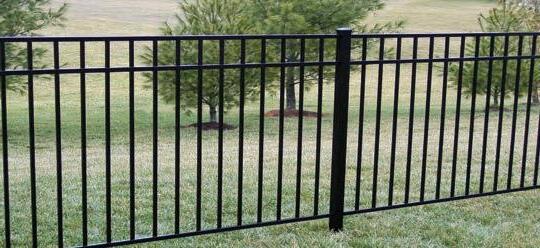

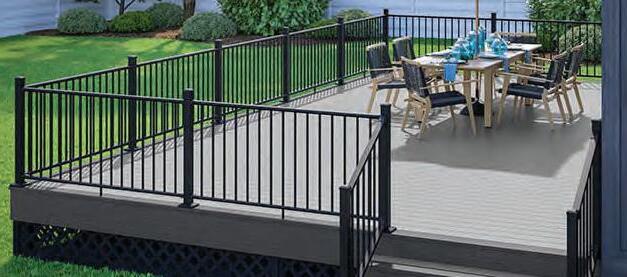

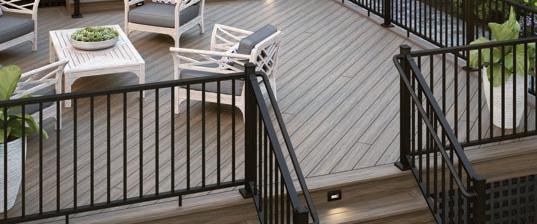

A few projects for inspiration
Square Baluster
AAMA 2604 Powder Coating
6' Discovery Rail Section (16 balusters)
Sections include rails and balusters. Level mounting brackets installed on post.
adjustable for horizontal (up to 45°) or stair (up to 40°) angles
2-1/2" x 38" Line Post w/ base plate and brackets
2-1/2" x 38" End Post w/ base plate and brackets
2-1/2" x 38" Corner Post w/ base plate and brackets
2-1/2" x 48" Post w/ base plate (for stairs, no brackets)
All 38" tall Discovery series level posts come with pre-installed brackets.
All posts come with cap and 2-pc skirt.
Gates
Standard Height
Discovery Gate
TB6DSR-S
TB8DSR-S
KDRB-TB
KDSRB-TB
KDMSB-TB
KDL382NP-TB
KDE382NP-TB
KDC382NP-TB
KD482NP-TB
Rough Opening
36" or Less37" - 48"
All gates are CUSTOM made to fit your rough opening. Gates made with 2-1/2" post.
All gates include hardware GATES ARE NOT RETURNABLE

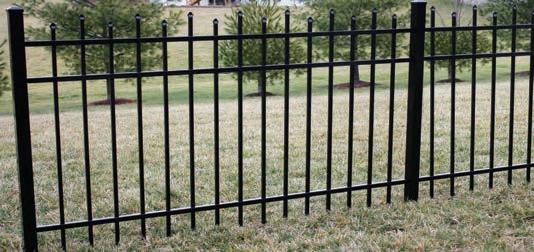

Aluminum
Sections include rails, balusters, mounting brackets & hardware.
Order posts, caps, & skirts separately.
Baluster spacing = 3-3/4"
5/8" x 5/8" square pickets
Rail length for level sections
6' = 72", 8' = 96"
Rail length for STAIR sections
6' = 70", 8' = 94"
o utlook 5/8" Square Baluster
*Add 15% to stock color pricing for special order textured colors
Outlook Rail Section (13 balusters)
(16 balusters)
(19 balusters)
1-1/2" W x 1-1/2” H
1” flat on top
1-1/8" W x 1” H
Rails
All gates are CUSTOM made to fit your rough opening. Gates made with 2-1/2" post. All gates include hardware GATES ARE NOT RETURNABLE
o utlook Accessories
Textured Black (TB) Matte Black (MB)
AFlat Rail Bracket Kit (Set of 4)
B Fixed Stair Bracket Kit (Set of 4) 32°-36° angle
C45° Fixed Angle Rail Bracket Kit (Set of 4)
Adjustable Stair Rail Bracket Kit
D
E
BUOSRB-_
Swivels up and down (Set of 4) up to a 30° angle
Adjustable Angle Rail Bracket Kit
Swivels side to side (Set of 4) up to a 40° angle BUOARB-_
FOutlook Rail Support
No multi-swivel bracket kits available for Outlook series.

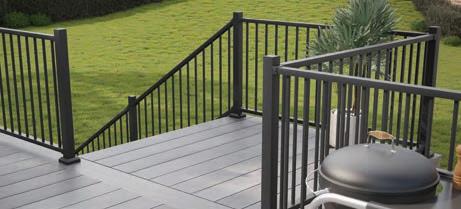

a merican 3/4 " Square Baluster
Sections include rails, balusters, mounting brackets & hardware.
Order posts, caps, & skirts separately.
Baluster spacing = 3-5/8"
3/4" x 3/4" square pickets
Rail length for level sections
6' = 72", 8' = 96"
Rail length for STAIR sections
6' American Rail Section (16 balusters)
5' American Rail Section (13 balusters) __5AR-S N/AN/A
__6AR-STB6AR-S-42TB6AR-S-48
7' American Rail Section (19 balusters) __7AR-S N/AN/A
8' American Rail Section (21 balusters) __8AR-STB8AR-S-42TB8AR-S-48
6' American STAIR Rail Section (12 balusters) __6ASR-STB6ASR-S-42 N/A
6' = 70", 8' = 94" To mix rails and baluster colors, i.e., black rails and white balusters. Call for pricing. Alternative rail and baluster options available, please visit keylinkonline.com for details.
Replacement Rails
6' Rail Only specify type of rail and color
8' Rail Only specify type of rail and color Call for pricing on other special order colors.
8' American STAIR Rail Section (17 balusters) __8ASR-STB8ASR-S-42 N/A
Add 10% for 42" tall and 20% for 48" tall
All gates are CUSTOM made to fit your rough opening. Gates made with 2-1/2" post. All gates include hardware GATES ARE NOT RETURNABLE
Brackets
Textured Black (TB)
Textured White (TW)
Textured Bronze (TBR)
AFlat Rail Bracket Kit (set of 4) ARB-_
B Fixed Stair Bracket Kit (set of 4) 32°- 36° angle ASRB-_
C45° Fixed Angle Rail Bracket Kit (set of 4) AARB-_
Multi Swivel Bracket Kit (4pk)
• Adjusts for horizontal or stair angle (not both together)
• Top photo in D box shows horizontal angle (up to 45° angle)
D
• Bottom photo in D box shows stair angle (up to 40° angle)
Discovery and Chesapeake series multi-swivel bracket kits operate the same as the American series AMSB-_
Radius Adapter for Flat or Stair Fixed Bracket (set of 4) Special Order
E Universal Adjustable Bracket Kit Swivels BOTH up and down and side to side (set of 4) BUUAARB-_

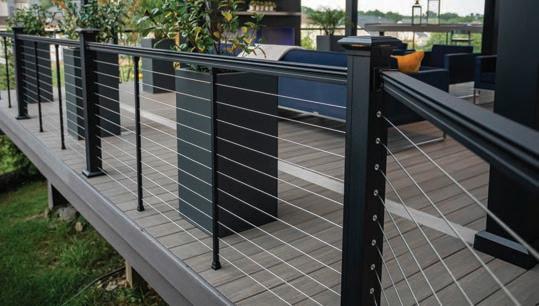

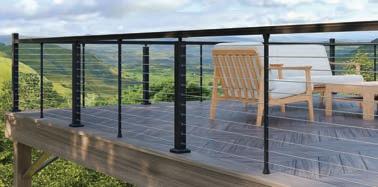

a merican Vertical Cable
Sections include rails, ATTACHED cables, mounting brackets & hardware.
Order posts, caps, & skirts separately.
Pre-drilled for cable spacing spacing = 2-7/8"
No job-site drilling required for typical installations.
*Add 15% to Textured Black for special order textured colors with S/S vertical cable infill (black infill shown above)
6' American Vertical S/S Cable Section
8' American Vertical S/S Cable Section
6' American STAIR S/S Vertical Section
8' American STAIR S/S Vertical Section
Gripping Pliers
Cable Cutter
Cable Tension Gauge AAMA 2604 Powder Coating
Please visit keylinkonline.com for proper installation instructions.
Stainless Infill Black Infill
TB6VAR-STB6VAR-S-B
TB8VAR-S TB8VAR-S-B
TB6VASR-STB6VASR-S-B
TB8VASR-STB8VASR-S-B
Uses same posts, caps, skirts and brackets as the American aluminum baluster series.
of Support Rods
View the chart above to determine the stainless steel support rods' positions, cut and remove unnecessary cables, then insert rods into empty holes.
All gates are CUSTOM made to fit your rough opening. Gates made with 2-1/2" post.
a merican Rod Rail
Sections include rails, 2 end and 1 center baluster, baluster mounts, ⅝ rods, mounting bracket kit.
Order posts, caps, & skirts separately.
*Add 15% to Textured Black pricing for special order textured colors T extured B lack
6' American Rod Rail Section
8' American Rod Rail Section
6' American STAIR Rod Rail Section
8' American STAIR Rod Rail Section
Rod Rail Level Section Cut Kit
Rod Rail Stair Section Cut Kit
Rod Rail Installation Tool ARRT AAMA 2604 Powder Coating
TB6ARR-S
TB8ARR-S
TB6ASRR-S
TB8ASRR-S
ARRCC-TB
ARRSCC-TB
Rod Rail Cut Kits include 2 end balusters, baluster mounts and a bracket kit (4 pk).
Please visit keylinkonline.com for proper installation instructions.
Uses same posts, caps, and skirts as the American aluminum baluster series.
All gates are CUSTOM made to fit your rough opening. Gates made with 2-1/2" post. All gates include hardware GATES ARE NOT RETURNABLE
c hesa P eake Drink Rail
3/4 " Square Baluster
Sections include rails, balusters, mounting brackets & hardware.
Order 3-¼" posts, caps, & skirts separately.
Baluster spacing = 3-5/8"
3/4" x 3/4" square pickets
Rail length for level sections
6' = 72", 8' = 96"
Rail length for STAIR sections
6' = 70", 8' = 94"
Textured Black Stock Color
Special Order Colors
Chesapeake Series is used only as a drink rail application. Refer to pages 5-7 for our deck options.
*Add 15% to Textured Black pricing for special order textured colors
6' Chesapeake Rail Section
8' Chesapeake Rail Section
6' Chesapeake STAIR Rail Section
8' Chesapeake STAIR Rail Section
TB6CPR-S
TB8CPR-S
TB6CPSR-S
TB8CPSR-S
Level Bracket Kits (set of 4) CPRB-TB
CPSRB-TB
Stair Bracket Kits (set of 4)
450 Wedge - use with Level bracket (set of 4) CPARB-TB
Multi Swivel Bracket Kit (4pk)
• Adjusts for horizontal or stair angle (not both together)
• Horizontal angle (up to 45° angle)
• Stair angle (up to 40° angle) CPMSB-TB
Must use at least 3-1/4" post, caps, and skirts with Chesapeake Series.
Drink rail screws included.
Rough Opening 36" or Less 37" - 48"
Deck boards not included with Discovery gates. All gate deck boards installed on job site. All gates are CUSTOM made to fit your rough opening. Gates made with 3-1/4" post. All gates include hardware GATES ARE NOT RETURNABLE
c hesa P eake Drink Rail
Black Vertical Cable
AAMA 2604 Powder Coating
Textured Black Stock Color
Stainless vertical cable infill option is available in the Chesapeake series by special order only in all 3 textured colors.
See page 20 for gripping pliers, cable cutter, tension gauge needed for installation.
Sections include rails, ATTACHED cables, mounting brackets & hardware.
Order 3-¼" posts, caps, & skirts separately.
Pre-drilled for cable spacing spacing = 2-7/8" No job-site drilling required for typical installations.
Chesapeake Series is used only as a drink rail application. Refer to pages 5-7 for our deck options.
Black vertical cable is only available in Textured Black
6' Chesapeake Vertical Cable Rail Section
8' Chesapeake Vertical Cable Rail Section
Stair sections are special order only. Add 25% to level rail sections.
Level Bracket Kits (set of 4)
Stair Bracket Kits (set of 4)
450 Wedge - use with Level bracket (set of 4)
Multi Swivel Bracket Kit (4pk)
• Adjusts for horizontal or stair angle (not both together)
• Horizontal angle (up to 45° angle)
• Stair angle (up to 40° angle)
Must use at least 3-1/4" post, caps, and skirts with Chesapeake Series.
Drink rail screws included. Gates
Rough Opening
TB8CPVR-S-B
- 48"
Deck boards not included with Discovery gates. All gate deck boards installed on job site. All gates are CUSTOM made to fit your rough opening. Gates made with 3-1/4" post. All gates include hardware GATES ARE NOT RETURNABLE
Aluminum
Textured Colors: Textured Black (TB), Textured White (TW), Textured Bronze (TBR)
2-1/2" x 38" Newel Post w/ base plate
2-1/2" x 48" Newel Post w/ base plate
3-1/4" x 38" Newel Post w/ base plate
3-1/4" x 48" Newel Post w/ base plate
3-1/4" x 52" Pool Fence Post w/ base plate
3-1/4" x 108" Newel Post w/ base plate
4" x 38" Newel Post w/ base plate
4" x 48" Newel Post w/ base plate
Post Under Deck Bracket
3-1/4" x 108" Structural Porch Post (with mounting plates) - 5,000# load bearing
Ornamental low voltage post cap lights available in 2½” and 3¼” in Black, Bronze, White. 4” available in Black Only.
Stair/Side light available in Black, Bronze, and White
LMT 50 Watt Smart Power Supply LV50XF
LMT 12 Watt Power Supply with photo eye LV12XF
LMT Dimmer for 12 Watt Power Supply LVDIM
• Lighting options shown are available in 3000 Kelvin
• Lumen and wattage draw varies on lighting choice
• All lighting requires a DC LED low voltage power supply, harness and complete line of accessories
• 5 year warranty on all lighting
Textured Black (TB)
Textured White (TW)
Textured Bronze (TBR)
2-1/2"
Ornamental side light available in Black, Bronze and White
s econdary h andrail s ystem
Available in Textured Black, Matte Black, Textured White and Textured Bronze See page 47 for a typical installation detail
Rail
SKU All Colors
J* 8'-8" pc 1-1/2" Straight Rail KRR88R-S-_
Connectors
M External Universal KRRXC-_
E Straight ConnectorKRRSC-_
B End Cap KRREC-_
Corners
K* 90° Elbow KRRI90-_
H* 34° Elbow KRRI32-_
* 5° Elbow KRRI5-_
O* 90° Outside CornerKRRO90-_
Brackets Returns
D Inline Bracket KRRIB-_
L Inside Corner BracketKRRIC-_
C* "P" Loop Return KRRPR-_
P 90° Post Return KRR90R-_
T Straight Wall Return KRRSR-_
* These components need to be used with straight connectors.
rail caP & Fascia mount
Chesapeake Series Only - Special Order T
17' Chesapeake Aluminum Flat Rail Cap (2 pk)
Chesapeake Flat Rail Cap Beauty Ring
Chesapeake Level Alignment Block (2 pk)
Chesapeake Stair Alignment Block (2 pk)
Chesapeake Flat Rail End Cap
ex Black
When joining 2 rail caps together, use the beauty ring with the proper alignment block.
Fascia mount Brackets for American and Chesapeake
Rapid Rail Kits include everything between the posts 2 aluminum base rails, 2 cap rails, balusters, baluster support block and 4 brackets. ⅝" square balusters.
6' rails = 68-3/4" 8' rails = 92-3/4"
Available only in Textured Black (TB)
6' Rapid Rail Level Kit
8' Rapid Rail Level Kit
6' Rapid Rail Stair Kit
8' Rapid Rail Stair Kit
6DRR-TB
8DRR-TB
6DSRR-TB
8DSRR-TB
Post kits come with Cap, Skirt, Leveling Plate. Post has a 5" base plate.
2-1/2" x 2-1/2" x 39" Post Kit
2-1/2" x 2-1/2" x 49" Post Kit
39ALX-__
49ALX-__
Rapid Rail Post/Bracket Template DRRPT
2-1/2" Post Cap
2-1/2" Post Skirt
4" Post Kits available by Special Order.
ALXC-__
ALXS-__
Rapid Rail Level Brackets (set of 4) DRRB-TB
Rapid Rail Stair Brackets (set of 4) DRRSB-TB
Rapid Rail Horizontal Angle (set of 4) DRRBUAB-TB
Stair Brackets
alx contemPorary Welded Baluster rail
Sections are PRE-ASSEMBLED and boxed with brackets Rectangle top and bottom profile. 3/4" square welded balusters. Stocked in Textured Black only. Other colors special order.
All cables comes w/ pre-attached threaded stud (w/ 1 pull-lock fitting, cap, washers & brass locknut.)
.125" x 10' Cable (10 cables needed for complete system) 10HCR
.125" x 20' Cable (10 cables needed for complete system) 20HCR
.125" x 30' Cable (10 cables needed for complete system) 30HCR
.125" x 40' Cable (10 cables needed for complete system) 40HCR
.125" x 50' Cable (10 cables needed for complete system) 50HCR
ALX Horizontal Cable Release Tool
ALX Horizontal Cable Mandrel & 2 Cut Off Wheels
DHCRRT
DHCRCC
PriVacy screen
Add character and privacy for a truly unique backyard style.
Privacy screen system is not to be used for railing or replace existing hand rail. Frame kits accommodate ¼", ⅝" & ⅞" thick materials. Each infill option covers 1/3rd of a complete panel.
Some items require extended lead times.
Frame Kits and Post Kits available in Textured Black Only
4' x 6' Fence Frame Kit
(All adapters, spacers and dividers included in kit)
Sections include rails, aluminum stiffeners, pickets, brackets & screws.
Posts, caps, & skirts are not included. Please order separately.
Picket spacing = 3 3/4"
Picket size = 7/8 x 1 1/2"
Additional bracket kits available Add $ /ft (LIST) for 42" & 48" tall rail.
2" x 3 1/2" Top Rail
6' Sonoma Rail Section (13 pickets)
8' Sonoma Rail Section (18 pickets)
10' Sonoma Rail Section (22 pickets)
12' Sonoma Rail Section (27 pickets)
6' Sonoma STAIR Section (11 pickets)
8' Sonoma STAIR Section (14 pickets)
10' Sonoma STAIR Section (18 pickets)
10' and 12' level sections come standard with a center leg.
REPLACEMENT RAILS
Rails DO NOT include aluminum stiffeners. Sold Separately. White Colors
6' - 2" x 3.5" Sonoma Rail 6ER (A or C)6ER
8'
__8ER-S
__10ER-S
__12ER-S
__6ESR-S
__8ESR-S
__10ESR-S
Adjustable Bracket Option:
To have your flat or stair rail sections packaged with adjustable brackets rather than the standard fixed brackets please add to the section cost: White (List) Colors (List)
Rough Opening 36" or Less37" - 48"
Standard Height Sonoma Gate (colors 15% up)
All gates are CUSTOM made to fit your rough opening. All gates include hardware GATES ARE NOT RETURNABLE
Sections include rails, aluminum stiffeners, pickets, brackets & screws.
Posts, caps, & skirts are not included. Please order separately.
Picket spacing = 3 3/8"
Picket size = 1 1/2" x 1 1/2"
Additional bracket kits available
Add $ /ft (LIST) for 42" & 48" tall rail.
Shown with ALZAR top rail
6' Americana Rail Section (14 pickets)
8' Americana Rail Section (19 pickets)
6PR-S (A or C)6PR-S6PRA-S (A or C)6PRA-S
8PR-S __8PR-S 8PRA-S__8PRA-S
10' Americana Rail Section (24 pickets) 10PR-S __10PR-S 10PRA-S__10PRA-S
12' Americana Rail Section (29 pickets)
6' Americana STAIR Section (11 pickets)
8' Americana STAIR Section (15 pickets)
10' Americana STAIR Section (19 pickets)
10' and 12' level sections come standard with a center leg.
REPLACEMENT RAILS
Rails DO NOT include aluminum stiffeners. Sold Separately.
6' - 2" x 3.5" Americana Rail 6PR (A or C)6PR
8' - 2" x 3.5" Americana Rail 8PR __8PR
10' - 2" x 3.5" Americana Rail 10PR __10PR
12' - 2" x 3.5" Americana Rail 12PR __12PR
6' - Americana / ALZAR Rail 6PRA __6PRA
8' - Americana / ALZAR Rail 8PRA __8PRA
10' - Americana / ALZAR Rail10PRA __10PRA
12' - Americana / ALZAR Rail12PRA __12PRA
6' - 2" x 3.5" Americana STAIR Rail6PSR __6PSR
8' - 2" x 3.5" Americana STAIR Rail8PSR __8PSR
10' - 2" x 3.5" Americana STAIR Rail10PSR __10PSR
6' - Americana / ALZAR STAIR Rail6PSRA __6PSRA
8' - Americana / ALZAR STAIR Rail8PSRA __8PSRA
10' - Americana / ALZAR STAIR Rail10PSRA __10PSRA
1.5" x 1.5" x 31-3/4" Pickets 32PCKT __32PCKT
12PR-S__12PR-S 12PRA-S__12PRA-S
6PSR-S__6PSR-S 6PSRA-S__6PSRA-S
8PSR-S__8PSR-S 8PSRA-S__8PSRA-S
10PSR-S__10PSR-S10PSRA-S__10PSRA-S
Adjustable Bracket Option:
To have your flat or stair rail sections packaged with adjustable brackets rather than the standard fixed brackets please add to the section cost: White (List) Colors (List)
Gates
Standard Height Americana Gate (colors 15% up)
Rough Opening 36" or Less37" - 48"
All gates are CUSTOM made to fit your rough opening.
All gates include hardware GATES ARE NOT RETURNABLE 2" x 3 1/2" Top Rail ALZAR Top Rail
White Tan (A) Adobe (C) White Tan (A) Adobe (C)
White Colors
Sections include rails, aluminum stiffeners, spindles, brackets & screws. Posts, caps, & skirts are not included. Please order separately.
Spindle spacing = 3-3/8"
Spindle size = 1-1/2" x 1-1/2"
Additional bracket kits available
Add $ /ft (LIST) for 42" tall rail.
2" x 3 1/2" Top Rail ALZAR Top Rail
Victoria Rail Section (14 spindles)
8'
10'
12'
6'
8'
10'
Victoria Rail Section (19 spindles)
Victoria Rail Section (24 spindles)
Victoria Rail Section (29 spindles)
Victoria STAIR Section (11 spindles)
Victoria STAIR Section (15 spindles) 8SSR-S__8SSR-S
Victoria STAIR Section (19 spindles) 10SSR-S__10SSR-S10SSRA-S__10SSRA-S
10' and 12' level sections come standard with a center leg.
REPLACEMENT RAILS
Rails DO NOT include aluminum stiffeners. Sold Separately.
8' - 2" x 3.5" Victoria STAIR Rail8SSR __8SSR
10'
6' - Victoria / ALZAR STAIR Rail6SSRA __6SSRA
8' - Victoria / ALZAR STAIR Rail8SSRA __8SSRA
10' - Victoria / ALZAR STAIR Rail10SSRA __10SSRA
1.5" x 1.5" x 32" Spindles 32SPNDL __32SPNDL
Adjustable Bracket Option:
To have your flat or stair rail sections packaged with adjustable brackets rather than the standard fixed brackets please add to the section cost:
White (List)
Colors (List)
Rough Opening 36" or Less37" - 48" Standard Height
Victoria Gate (colors 15% up)
All gates are CUSTOM made to fit your rough opening. All gates include hardware GATES ARE NOT RETURNABLE
Shown with ALZAR top rail option
White Colors
contemPra
Vinyl Rail with ROUND aluminum balusters
Sections include rails, aluminum stiffeners, balusters, brackets & screws. Posts, caps, & skirts are not included. Please order separately.
To have your flat or stair rail sections packaged with adjustable brackets rather than the standard fixed brackets please add to the section cost: White (List) Colors (List)
Gates
Standard Height Contempra 2 Gate (colors 10% up)
Rough Opening
36" or Less37" - 48"
All gates are CUSTOM made to fit your rough opening. All gates include hardware GATES ARE NOT RETURNABLE
White Colors
Vista rail system comes with Alzar or 2 x 3 1/2" top rail option.
Each rail set includes top and bottom rails, aluminum stiffeners, brackets, hardware and foam glazing tape
GLASS PANELS ARE NOT INCLUDED
For 36" tall rail, obtain ¼" thick x 32" tall tempered glass or acrylic panels at your local glass dealer.
Additional bracket kits available
Panel width should be 3" less than finished distance between posts.
REPLACEMENT RAILS
Rails DO NOT include aluminum stiffeners. Sold Separately.
No Returns on Vista Sections.
Gates are not available for the Vista Rail System
6' Vista Rail Set w/
8' Vista Rail Set w/ 1-1/2" sq. center leg
routed holes)
x 3-1/2"
Rail/Fence Stiffeners
4 x 4 Gate Post Stiffener
5 x 5 Gate Post Stiffener
5 x 5 "H" Stiffener (open 2 sides)
6'8'10'12'
"H" stiffeners used in all Alzar top rails.
"H" stiffener used in top and bottom 2"x3-1/2" rails. (Except for Sonoma rails)
Sonoma stiffeners used in all Sonoma rails except for 10' & 12' top rails.
"L" stiffeners used in the bottom 2" x 3-1/2" rails of 6' & 8' wide fence sections.
Galvanized stiffener used in the bottom 1-1/2" x 5-1/2" rails of 8' wide fence sections.
Bracket Kits - 2 Brackets Per Kit Hardware included with each
1
2
3
4
5
6
s P ecialty r ail B rackets
Bracket Kits - 4 Brackets Per Kit Brackets adjust up & down or side to side to match your custom angles.
s econdary h andrail s ystem
Available in Textured Black, Matte Black, Textured White and Textured Bronze See page 47 for a typical installation detail
Rail
SKU All Colors
J* 8'-8" pc 1-1/2" Straight Rail KRR88R-S-_
Connectors
M External Universal KRRXC-_
E Straight ConnectorKRRSC-_
B End Cap KRREC-_
Corners
K* 90° Elbow KRRI90-_
H* 34° Elbow KRRI32-_
* 5° Elbow KRRI5-_
O* 90° Outside CornerKRRO90-_
Brackets Returns
D Inline Bracket KRRIB-_
L Inside Corner BracketKRRIC-_
C* "P" Loop Return KRRPR-_
P 90° Post Return KRR90R-_
T Straight Wall Return KRRSR-_
* These components need to be used with straight connectors.
s econdary h andrail s ystem
Typical Installation Detail
Continuous Secondary Handrail
1-1/2" Square Rail with 1-¼" box stiffener. Includes two caps for each end. Does not include mounting brackets.
* These components need to be used with straight connectors.
Vinyl
Cable Railing components, used with wood or composite railing.
It is recommended staying within 4' section lengths to maintain structural integrity.
Order wire components separately. Each run of wire needs one Tensioner and one Swivel End. (Or two Tensioners)
Max cable run is 48' if using Tensioners on each end. If using a Tensioner and a Swivel End the max run is 25'.
c om P onent c a B le r ail s ystem
Cable 5/32" - 100' Roll
Cable 5/32" - 500' Roll
Tensioner - 2 pack
B
C
Tensioner - 10 pack
Swivel End - 2 pack
Swivel End - 10 pack
D Cable Sleeve - 10 pack
E Cable Cutter
F Drilling Template
The Swivel End is used in conjunction with a Tensioner in order to tension cable. The slotted base allows for angles up to 45° and is surfaced mounted
Made from grade 316 stainless steel with a 1 x 19 strand construction.
The Tensioner is the primary cable railing tensioning/fastening device. The compression fitting allows for installation and tensioning with simple hand tools.
The 1-½" Cable Sleeve is designed to protect your post from chafing and incidental damage from the cable rubbing around the outside of your mid post cable holes.
The Cable Cutter is an essential tool when installing a cable railing system. The hardened heat treated blades cut 5/32" cable cleanly and quickly for an easy installation.
The Drilling Template allows for an easy installation of the rail system. Cable runs are spaced 3" oncenter.
c om P onent c a B le r ail s ystem
Vinyl Sets:
(Cable components sold separately)
6' Flat Rail Set
8' Flat Rail Set
6' STAIR Rail Set
8' STAIR Rail Set
**Brackets are included in all rail sets.**
(Each set includes two brackets and hardware)
Cable 5/32" - 100' Roll
Cable 5/32" - 500' Roll
Tensioner - 2 pack
Tensioner - 10 pack
Swivel End - 2 pack
Swivel End- 10 pack
D Cable Sleeve - 10 pack
E Cable Cutter
F Drilling Template
Sets include rail, (either 2 x 3-1/2" or Alzar) aluminum stiffener, 48" long center support, foot bracket, rail brackets & screws.
Order wire components separately. Each run of wire needs one Tensioner and one Swivel End. (Or two tensioners)
Max cable run is 48' if using Tensioners on each end. If using a Tensioner and a Swivel End the max run is 25'.
Posts, caps, & skirts are not included. Please order separately.
Vinyl Sets include the following:
- Alzar top rail with aluminum stiffener
- (2) Brackets and Hardware
- (1)1-1/2" x 1-1/2" x 48" center support
(Holes will have to be drilled in center support on job site)
- (1) 1-1/2" Foot Bracket - to attach center support to deck.
Flat Bracket Sets:WhiteColors Alzar
STAIR Bracket Sets:WhiteColors
Made from grade 316 stainless steel with a 1 x 19 strand construction.
The Cable Sleeve is designed to protect your post from chafing and incidental damage from the cable rubbing around the outside of your mid post cable holes.
The Tensioner is the primary cable railing tensioning/ fastening device. The compression fitting allows for installation and tensioning with simple hand tools.
The Cable Cutter is an essential tool when installing a cable railing system. The hardened heat treated blades cut 5/32" cable cleanly and quickly for an easy installation.
The Swivel End is used in conjunction with a Tensioner in order to tension cable. The slotted base allows for angles up to 45° and is surfaced mounted
The Drilling Template allows for an easy installation of the rail system. Cable runs are spaced 3" on-center.
Use with 6" Posts
2 5/8" x 2 5/8" Balusters
4 1/2" x 3 3/8" Rails
Top and bottom rails are reinforced with aluminum stiffeners.
Baluster spacing= 5 1/4" on center spacing
V intage ( s P ecial o
Sections include rails, aluminum stiffeners, balusters and appropriate brackets.
Appropriate freight must be added for all Vintage orders.
Uses 6" posts, mounts, caps and skirts
Sections Flat StairWhite
6' 6JR-S6JSR-S 8' 8JR-S8JSR-S
6" Accessories
P ost s lee V es & m ounts
Vinyl Extrusions designed to slip over wood post or our post mounts. 4x4 - I.D. = 3-5/8" O.D. = 4" | 5x5 - I.D. = 4-5/8" O.D. = 5" | 6x6 - I.D. = 5-5/8" O.D. = 6"
Post Mounts/Bases SKUList
1 4 x 4 x 39" Universal Post Mount 5- ¼ " flange - with leveling plate and bolts 44FUPM
5 x 5 Adapter for Universal Post Mount (each)55RPC
6 x 6 Adapter for Universal Post Mount (each)66RPC
2 5 x 5 x 39" Standard Post Base* 55GPB
6 x 6 x 39" Standard Post Base 66GPB
3 4 x 4 x 36" - 42" Angle Wizard Post Mount with leveling guide 44UPM
-Used for mounting post to concrete.
-Mounts using (4) 3/8" x 3" wedge type anchor bolts (not included)
-Special blocking required when used on wood decks.
5x5 adapter (replaces 4x4 adapter)
6x6 adapter (used with 4x4 adapter)
Wood Post Mounting Plates
Designed to mount full length treated post. Use the one piece 4" New England Skirt or the one piece low-profile 6" skirt to cover mount.
2* View of 55GPB only
Holes on both sides to allow fence rails to slide through.
Standard
Post SizeSKUWhite Tan Adobe
4 x 444SCAP
5 x 555SCAP
6 x 666SCAP
New England
Post SizeSKUWhite Tan Adobe
4 x 444NCAP
5 x 555NCAP
6 x 666NCAP
8 x 888NCAP N/A
8" Cap is similar to the New England cap shown.
Gothic
Post SizeSKUWhite Tan Adobe
4 x 444GCAP
5 x 555GCAP
4x4 = 1-5/8" 5x5= 2-1/16"
= 5-15/16" 5"x5" = 6-15/16"
New England
6 x 6 N/A
8 x 8 88NSKRT N/A
= 5-5/8" 5x5 = 6-5/8"
2 Pc. Low Profile
6 x 6 N/A
= 7-5/8"
1 Pc. Low Profile
4 Pc. Universal
l oad B earing P orch P osts
SKU1-9
A4" x 9' Traditional SPP-44
A5" x 9' Traditional 400 Series SPP-400
A5" x 9' Traditional - TAN/CLAY SPP-T/A
B5"x 10' Plain SPP-P
B5" x 10' Plain - TAN/CLAY SPP-PT/A
C5" x 9' Madison (Colonial) SPP-M
D6" x 9' Recessed Panel SPP-RP
E6" x 9' Vintage SPP-V
F8" x 10' Tapered Round SPP8R-10
F10" x 10' Tapered Round SPP10R-10
Quantity Discounts Total Posts (same series) 10 -19 20+
All porch posts include mounting hardware. Trim skirts/sets are not included. The 400 Series structural post feature a continuous aluminum core along with stainless steel spacers.
Newel Post are White Only
• Newel posts do not include multi-mounts, see Post Sleeves and Mounts page.
• Caps and Skir ts not included. See appropriate page for selections.
New England Post Covers
• Slips over your cedar or treated posts. • "Telescopes" to any length up to 10'.
• Shipped complete with all shims and hardware. Post shown with optional New England Skirts.
To make a 4x6 post wrap, combine a 4x4 and 6x6 wrap. Style H only.
Style H (8-pc) Wrap - 10' long
Universal Wrap Skirts for Style H & X
A 4" to 6-1/2" Skirt (For 4"& 6" wraps)
B 6-1/2" to 12" Skirt
(For 6" style H when wrapping rough sawn cedar, 8x8 style H & 10x10 style H)
Post Wrap Caps for Style H & X
C 4-1/2" Neptune Cap
D 4" Wrap Cap
E 6" Wrap Cap
F 6-1/2" Flat Cap
G 7" Low Profile Wrap Cap (For style H) For 6x6 rough sawn cedar
2-1/4" tall 1-3/4" projection
X (4-pc) Wrap - 10' long
Style S (4-pc) Wrap - Smooth
l o W V oltage l ighted c a P s
Saturn LED Series - Flat Top
4" and 5" Saturn lighted caps comes with 1 watt LED bulbs. 6" Saturn lighted caps comes with 4 watt LED bulbs.
Triton
Nebula Eyeball Light
Recessed Riser Light
SKU White / Black / Bronze
have "warm" LED bulb that pulls 6 watts per light
t rans F ormers & P arts
Power Supply
LMT 50 Watt Smart Power Supply
LMT 12 Watt Power Supply with photo eye
LV50XF
LV12XF
LMT Dimmer for 12 Watt Power SupplyLVDIM
Wire
100' roll 12 gauge wire
Wire to Light Connectors
LV10012
60" Connection Pig-Tail (one per light) LVH01
Bulbs
(For Titan, Triton, & Sirius Lights)
Transformer buying guide:
Take the number of lights and multiply by the wattage of the bulb. That will be the minimum wattage rating of the transformer.
Must hard wire splice for the power supply.
Pig Tails:
Lay your wire in the groove, then close the connector and a connection to the wire is made.
Titan Series Flat Top Aluminum Caps
(Non-Stock on all Titan Aluminum Caps)
Available in several post sizes and colors
Sirius Series Flat Top Aluminum Caps
(Non-Stock on all Sirius Aluminum Caps)
Available in several post sizes and colors
Baluster Connectors
Black Only 20 / per bag
Black Only Contractor Pack 200 / per bag
ABBC-B per bag ABBC-CP per bag
Classic Aluminum Balusters - sold in 10 counts only
Price Per Baluster 26"32"36"
Black
Black Contractor Packs - 100 count
AB26-B AB32-B AB36-B
AB26B-CP AB32B-CP N/A
AB26-W AB32-W N/A
AB26-BR AB32-BR N/A
White Bronze Black
Baluster Stair Connectors
Black & Bronze w/screws 20 / per bag
ABBSC-B - Black per bag
ABBSC-BR - Bronze per bag
Baluster Installation Tool
Speed installation by automatically spacing baluster connectors at a standard 4-5/8" (3-7/8" in between)
Designer Baluster Connectors
Black Only w/screws 20 / per bag
ABCD-B per bag
Must use flat connector with stair adapter
Designer Baluster Stair Adapters
Black Only w/screws 20 / per bag
ABCDS-B per bag
Baroque Balusters
32-1/4"
BlackAB32BAR-B5 / 75
Mounting hardware included
Traditional Balusters
BlackAB32T-B10 / 120
32"
BronzeAB32T-BR10 / 120
(Order in Qty of 10)
Each baluster comes with 4 color matching stainless screws and 2 end caps.
Estate Balusters
26" Black AB26E-B10 / 120 BronzeAB26E-BR10 / 120 32" Black AB32E-B10 / 120
Deck Board Mounting Bracket
DBRC | Black (6-pack)
Connector measures ¾" x 3 ¼".
Deck board rail connector is reversible and can be used with vinyl or aluminum rail
Railing Connectors
2 Connectors per pack
Easy installation of 2x4 wood rails Black only
Straight - BlackABRC-B
Multi Degree - BlackABRCM-B
Stair - Black
ABRCS-B
Multi Degree Straight
Call for Special Order, non-stock Deckorators items.
Beige Stacked Stone
Stone Postcover Caps
Copper Cast Stone
Gray Flat Stone
Woodland Gray
Woodland Gray - Solar
WGS
Decorative Stone Postcovers
ColorSKU 42"53"
Gray Cobblestone DPC-GC
Gray Fieldstone DPC-GF
Beige Stacked Stone DPC-B
Deckorators cast stone postcovers are made of fiberglass-reinforced concrete that is hand-painted. Designed to fit over a 4x4 or 6x6 treated post.
8" x 8" x 42" or 53"
2-Piece Decorative Stone Postcovers
Cobblestone
Stacked Stone
Deckorators postcovers are made of fiberglassreinforced concrete that is hand-painted.
Outside dimension of 2-piece Cap is 10 ¼"
Gray Cobblestone Gray Fieldstone
Gray Flat Stone
Copper Cast Stone
Woodland Gray Woodland Gray Solar
Stringer Bracket Purlin Beam
"H" Stiffener
2x6 Rafter
2x6 Drop in Brackets
2x6 Rafter Beam
'C' Aluminum Stiffener can be used in Beams or in rafters (when you are attaching purlins to top of rafters)
Pergola
Gardem
P ergola r oo F s ystem
Vinyl Extrusions:
Rafters
8'12'16'
A End Rafter - 2 x 6
B Mid Rafter - 2 x 6
Aluminium 'H' Rafter Stiffeners
Purlins
Please specify purlin option when ordering.
C 1-1/2" x 1-1/2" Purlins
7/8" x 6" Purlins
7/8" x 3" Purlins
Beams
Beam - 2 x 6 (No Holes)
D
Beam - 2 x 8 (No Holes) (Only Available in White)
Stiffeners
12'16'24'
Pergola Accessories
2 x 6 Roman Caps
2 x 8 Roman Caps
2 x 3.5 Roman Caps
2 x 6 Flat Rail Plugs
2 x 8 Flat Rail Plugs
2 x 6 *Metal* Drop-In Bracket
2" Stringer Bracket
2 x 6 Vinyl Coupler
N/AN/A
2 x 6 'C' Stiffener
5 x 5 Beam Stiffener (use w/5x5 Post Sleeve)
Roman Cap
2x6 Drop in Brackets
All brackets (drop in and stringer brackets include screws) Stringer Bracket
5/8" Hole Plug
1" Hole Plug
1-1/2" Pointed Cap
7/8" x 3" Dog Ear Cap
7/8" x 6" Dog Ear Cap
1-1/4" x #10 SS Screws S101 S101-A S101-C
2-1/2" x #8 SS Screws S103 N/AN/A
Vinyl Adhesive Glue 1.5 oz CHG N/AN/A
P
All construction details shown are suggestions only. Builder is solely responsible for determining best methods based on individual project and site conditions.
ANo Returns on Pergola Components
A.End Rafter
B. Mid Rafter
C.Purlin
D. Beam
B C
D
2 x 6 hollow. Aluminum 'H' stiffeners are recommended. Holes for purlins routed for on side only. Same part make right or left.
2 x 6 hollow. Aluminum 'H' stiffeners are recommended. Holes for purlins routed through both sides.
1-1/2" x 1-1/2" or 7/8" x 6" hollow. No Stiffener. Runs continuous from end rafter to end rafter.
2 x 6 or 2 x 8 hollow. Uses nominal wood 2x's or 2x6 'C' alum. as stiffener. Bolts to existing posts. Bolts & wood by others.
Under normal applications, no more than 8' post spacing is recommended.
Typical cross section purlin spacing.
"H" Stiffener
Determined by Builder
8"16"16" 2x6 Rafter
Wood 2x's insert, not included. Could also use 'C' Stiffener.
2x6 or 2x8 Vinyl Beam
Pergola / Gardem / Specialty
Pergola Post Mount Kit
Fasten bottom mount to concrete substructure using at least 3/8" x 3" wedge type anchors (not provided). Measure, cut and insert the 3-¼" aluminum ex trusion into the bottom mount and fasten at all connection points (use ¼" x 4" bolts). Make sure all is square and plumb. May have to shim under mount for unlevel surfaces. Slide the top mount over the 3-¼" aluminum ex trusion to the built in stop and make sure plumb with the bottom mount. Fasten top mount (use ¼" x 4" bolts)
P ergola r oo F s ystem
Fasten spacer collars (round columns only) to aluminum post according to instructions. Make sure post & collars are stable. May need to modify spacers for 6" columns.
Install the 2x6 vinyl beam stock (with wood 2x6 inside) to the top mount. Either bolt through all pieces (using ¼" x 7 bolts) for superior stability or fasten each beam separately. Plug the bolt holes with hole plugs. Make sure bolts do not extend through where hole plugs will not work. 1 2 3 4
After checking square & plumb on mount, slide column over mount. Install all appropriate skirts and trims on column. Slide cellular PVC board over top mount to where it rests on top of column. You can trim down overall dimensions for a proportioned look. Install 4" vinyl sleeve and cap.
g ate h ard Ware & a ccessories
When ordering please give the width inside your finished opening. We will size the gate to allow for the hardware.
• All standard handrail gates include S/S Self Closing Hinge Set (#2) and a Nylon Keyed Latch (#7)
• All gates are reinforced with wood fillers on the hinge side. (Except Alzar top rail)
• All standard fence gates include S/S Hinge Set (#3) and a S/S Latch (#4)
• All double gates come with respective hinges, latch and standard drop rod.
Planter Boxes
(Inside dimensions
Vinyl Mail Box Posts
*Planter Boxes are designed to accommodate flower pots or baskets. From floor of box to top of rail for the
g arden & P atio a ccessories
Kingsport Pergola
• 53" Wide x 35" Deep x 96" High (Outside Measurements)
• Posts - 4" x 4" x 102"
• Secure to anchored wood posts (not included) AKP1
• 47-3/4" Wide x 74" High (Outside Measurements)
• Posts - 4" x 4"
• 12" for burial or secure to anchored wood posts (not included)
Kingsport Arbor
• 57" Wide x 35" Deep x 96" High (Outside Measurements)
• Both 6' & 8' wide sections have L stiffener in bottom rail
• Replacement par ts available, please call office for price
• 6' wide =72" on center
• 8' wide = 96" on center
• 4" caps sold separately
6' wide8’ wide SKU 1 - 101 - 10
36" tall Cascade 4 Section 36CS4-(6 ’ or 8')
4 x 4 Post (60" tall) 36CS4-_
48" tall Cascade 4 Section 48CS4-(6 ' or 8 ')
4 x 4 Post (72" tall) 48CS4-_
4 x 4 Post (84" tall)Pool Code Post
Specify when ordering pool code style fence. Post route; top of top rail to bottom of bottom rail is 48 1/2" tall.
60" tall Cascade 4 Section 60CS4-(6 ' or 8 ')
4 x 4 Post (90" tall) 60CS4-_
Specify ALL styles of posts ( L ine, E nd, C orner, T ee, B lank) when ordering
All gates are CUSTOM made to fit your rough opening. All Gates include hardware.
36" tall Cascade 4 Gate
48" tall Cascade 4 Gate
60" tall Cascade 4 Gate
GATES
Rough Opening Size 48"or less49" - 60"
GATES ARE NOT RETURNABLE
Quantity Discounts
Total Sections or Posts 11-25 26+ Sections and posts cannot be combined for quantity discounts.
Gates come with black hardware. White available upon request. For double gates, price as two singles. Hardware adjusted. All gates are made with a permanent diagonal brace.
Hinge post needs reinforcement. See Blank Rails and Stiffeners page for gate post stiffeners.
• Both 6' & 8' wide sections have L stiffener in bottom rail
• Replacement par ts available, please call office for price
• 6' wide =72" on center
• 8' wide = 96" on center
• 4" caps sold separately
Tan 25% up charge.
Adobe 25% up charge
6' wide8’ wide SKU 1 - 10 1 - 10
36" tall Logan Section 36LOG-(6’ or 8')
4 x 4 Post (60" tall) 36LOG-_
48" tall Logan Section 48LOG-(6' or 8')
4 x 4 Post (72" tall) 48LOG-_
60" tall Logan Section 60LOG-(6' or 8')
4 x 4 Post (90 tall") 60LOG-_
Specify ALL styles of posts ( L ine, E nd, C orner, T ee, B lank) when ordering
All gates are CUSTOM made to fit your rough opening. All Gates include hardware.
36" tall Logan Gate
48" tall Logan Gate
GATES
Rough Opening Size 48" or less49" - 60"
60" tall Logan Gate GATES ARE NOT RETURNABLE
Quantity Discounts
Total Sections or Posts 11-25 26+
Sections and posts cannot be combined for quantity discounts.
Gates come with black hardware. White available upon request.
For double gates, price as two singles. Hardware adjusted.
All gates are made with a permanent diagonal brace.
Hinge post needs reinforcement. See Blank Rails and Stiffeners page for gate post stiffeners.
No Returns on Fencing
Tan 25% up charge Adobe 25% up charge
• 48", 60" & 72" heights
• 2" x 3 1/2 " top rail
• 1 1/2 " x 5 1/2 " bott om rail
• 2" x 3 1/2 " mid rail on 60" & 72" tall
• 6' wide section includes:
7 - 7/8" x 1 1/2 " pickets
8 - 7/8" x 3" pickets
• 8' wide sections includes:
10 - 7/8" x 1 1/2 " pickets
11 - 7/8" x 3" pickets
• 2" space bet ween pickets
• 8' wide sections has metal stiffener in bottom rail
• Replacement par ts available, please call office for price.
• 6' wide = 72" on cent er
• 8' wide = 96" on cent er
• 5" caps sold separately
6' wide8’ wide SKU 1 - 101 - 10
48" tall Rainier Section 48RNR-(6’ or 8')
5 x 5 Post (72" tall) 48RNR-_
60" tall Rainier Section 60RNR-(6' or 8')
5 x 5 Post (90" line) 60RNR-_
72" tall Rainier Section 72RNR-(6' or 8')
5 x 5 Post (102" tall) 72RNR-_
Specify ALL styles of posts ( L ine, E nd, C orner, T ee, B lank) when ordering
All gates are CUSTOM made to fit your rough opening. All Gates include hardware.
48" tall Rainier Gate
60" tall Rainier Gate
GATES
Rough Opening Size 48" or less49" - 60"
72" tall Rainier Gate GATES ARE NOT RETURNABLE
Quantity Discounts
Total Sections or Posts 11-25 26+
Sections and posts cannot be combined for quantity discounts.
Gates come with black hardware. White available upon request. For double gates, price as two singles. Hardware adjusted. All gates are made with a permanent diagonal brace.
Hinge post needs reinforcement. See Blank Rails and Stiffeners page for gate post stiffeners.
• 8' wide sections has metal stiffener in bottom rail
• Replacement par ts available, please call office for price
• 6' wide = 72" on cent er
• 8' wide = 94" on cent er
• 5" caps sold separately
Tan 25% up charge. Adobe 25% up charge
48" tall Whitney Section 48WHT-(6’ or 8')
5 x 5 Post (72" tall) 48WHT-_
60" tall Whitney Section 60WHT-(6' or 8')
5 x 5 Post (90" tall) 60WHT-_
72" tall Whitney Section 72WHT-(6' or 8')
5 x 5 Post (102" tall) 72WHT-_
Specify ALL styles of posts ( L ine, E nd, C orner, T ee, B lank) when ordering
Quantity Discounts
Total Sections or Posts 11-25 26+
Sections and posts cannot be combined for quantity discounts.
All gates are CUSTOM made to fit your rough opening. All Gates include hardware.
48" tall Whitney Gate
60" tall Whitney Gate
GATES
Rough Opening Size 48" or less49" - 60"
72" tall Whitney Gate GATES ARE NOT RETURNABLE
Gates come with black hardware. White available upon request. For double gates, price as two singles. Hardware adjusted. All gates are made with a permanent diagonal brace.
Hinge post needs reinforcement. See Blank Rails and Stiffeners page for gate post stiffeners.
• 8' wide sections has metal stiffener in bottom rail
• Replacement par ts available, please call office for price
• 6' wide = 72" on center
• 8' wide = 96" on center
• 5" caps sold separately
Tan 25% up charge. Adobe 25% up charge
48" tall Cambridge Section 48CMB-(6’ or 8')
5 x 5 Post (72" tall) 48CMB-_
60" tall Cambridge Section 60CMB-(6' or 8')
5 x 5 Post (90" tall) 60CMB-_
72" tall Cambridge Section 72CMB-(6' or 8')
5 x 5 Post (102" tall) 72CMB-_
Specify ALL styles of posts ( L ine, E nd, C orner, T ee, B lank) when ordering
All gates are CUSTOM made to fit your rough opening. All Gates include hardware.
48" tall Cambridge Gate
60" tall Cambridge Gate
72" tall Cambridge Gate
GATES
Rough Opening Size 48" or less49" - 60"
GATES ARE NOT RETURNABLE
Quantity Discounts
Total Sections or Posts 11-25 26+
Sections and posts cannot be combined for quantity discounts.
Gates come with black hardware. White available upon request. For double gates, price as two singles. Hardware adjusted. All gates are made with a permanent diagonal brace.
Hinge post needs reinforcement. See Blank Rails and Stiffeners page for gate post stiffeners.
No Returns on Fencing
Tan 25% up charge. Adobe 25% up charge
48" tall McKinley Section 48MCK-(6’ or 8')
5 x 5 Line Post (72") 48MCK-_
60" tall McKinley Section 60MCK-(6' or 8')
5 x 5 Line Post (90") 60MCK-_
72" tall McKinley Section 72MCK-(6' or 8')
5 x 5 Line Post (102") 72MCK-_
Specify ALL styles of posts ( L ine, E nd, C orner, T ee, B lank) when ordering
All gates are CUSTOM made to fit your rough opening. All Gates include hardware.
• 8' wide sections has metal stiffener in bottom rail
• Replacement par ts available, please call office for price
• 6' wide = 72" on cent er
• 8' wide = 96" on cent er
• 5" caps sold separately
Quantity Discounts
Total Sections or Posts 11-25 26+
Sections and posts cannot be combined for quantity discounts.
Gates come with black hardware. White available upon request.
For double gates, price as two singles. Hardware adjusted.
All gates are made with a permanent diagonal brace.
Hinge post needs reinforcement. See Blank Rails and Stiffeners page for gate post stiffeners.
m onterey
No Returns on Fencing
• 48", 60" & 72" heights
• 2" x 3 1/2 " top rail
• 1 1/2 " x 5 1/2 " bott om rail
• 2" x 3 1/2 " mid rail on 60" & 72" tall
• 6' wide section includes:
7 - 7/8" x 3" pickets
6 - 7/8" x 6" pickets
• 8' wide sections includes:
9 - 7/8" x 3" pickets
8 - 7/8" x 6" pickets
• 11/16" space bet ween pickets
• Height based on tallest picket
• 7" difference between tallest and shortest pickets
• 8' wide sections has metal stiffener in bottom rail
• Replacement par ts available, please call office for price
• 6' wide = 72" on cent er
• 8' wide = 93" on cent er
• 5" caps sold separately
Tan 25% up charge.
Adobe 25% up charge
6' wide8’ wide SKU 1 - 101 - 10
48" tall Monterey Section 48MT-(6 ’ or 8')
5 x 5 Post (72" tall) 48MT-_
60" tall Monterey Section 60MT-(6 ' or 8 ')
5 x 5 Post (90" tall) 60MT-_
72" tall Monterey Section 72MT-(6 ' or 8 ')
5 x 5 Post (102" tall) 72MT-_
Specify ALL styles of posts ( L ine, E nd, C orner, T ee, B lank) when ordering
All gates are CUSTOM made to fit your rough opening.
All Gates include hardware.
48" tall Monterey Gate
60" tall Monterey Gate
72" tall Monterey Gate
GATES
Rough Opening Size 48" or less49" - 60"
GATES ARE NOT RETURNABLE
Quantity Discounts
Total Sections or Posts 11-25
26+
Sections and posts cannot be combined for quantity discounts.
Gates come with black hardware. White available upon request. For double gates, price as two singles. Hardware adjusted.
All gates are made with a permanent diagonal brace.
Hinge post needs reinforcement. See Blank Rails and Stiffeners page for gate post stiffeners.
No Returns on Fencing
Tan 25% up charge.
Adobe 25% up charge
• 48", 60" & 72" heights
• 2" x 3 1/2 " t op rail
• 1 1/2 " x 5 1/2 bott om rail
• 2" x 3 1/2 " mid rail on 60" & 72" tall
• 1-1/8" space bet ween pickets
• 6' wide section includes: 12 - 7/8" x 1 1/2 " pickets 5 - 7/8" x 6" pickets
• 8' wide sections includes: 16 - 7/8" x 1 1/2 " pickets 7 - 7/8" x 6" pickets
• 8' wide sections has metal stiffener in bottom rail
• Replacement rails available, please call office for price
• 6' wide = 72" on cent er
• 8' wide = 96" on cent er
• 5" caps sold separately
6' wide8’ wide SKU 1 - 101 - 10
48" tall Stanford Section 48SF-(6 ’ or 8')
5 x 5 Post (72" tall) 48SF-_
60" tall Stanford Section 60SF-(6 ' or 8 ')
5 x 5 Post (90" tall) 60SF-_
72" tall Stanford Section 72SF-(6 ' or 8 ')
5 x 5 Post (102" tall) 72SF-_
Specify ALL styles of posts ( L ine, E nd, C orner, T ee, B lank) when ordering
All gates are CUSTOM made to fit your rough opening. All Gates include hardware.
48" tall Stanford Gate
60" tall Stanford Gate
72" tall Stanford Gate
GATES
Rough Opening Size 48" or less49" - 60"
GATES ARE NOT RETURNABLE
Quantity Discounts
Total Sections or Posts 11-25 26+
Sections and posts cannot be combined for quantity discounts.
Gates come with black hardware. White available upon request. For double gates, price as two singles. Hardware adjusted. All gates are made with a permanent diagonal brace.
Hinge post needs reinforcement. See Blank Rails and Stiffeners page for gate post stiffeners.
No Returns on Fencing
• Post set on 96" on center
• 5" x 5" Post
.135" Wall thick ness
• 1 1/2 " x 5 1/2 " Rails'
.080" Wall Thickness
Int erior ribbing for superior rigidity
• 10 1/2 " bet ween rails on 2 & 3 rail
• 6 1/2 " bet ween rails on 4 rail
• 5" caps sold separately
Tan 25% up charge
Adobe 25% up charge
191-1/2" Rail (11/2" x 51/2") 1555R-R
2 Rail 5x5 - 60" Tall Post
L ine, E nd, C orner, T ee, B lank 2R_-R
3 Rail 5x5 - 78" Tall Post
L ine, E nd, C orner, T ee, B lank 3R_-R
4 Rail 5x5 - 84" Tall Post
L ine, E nd, C orner, T ee, B lank 4R_-R
All gates are CUSTOM made to fit your rough opening. All Gates include hardware.
2 Rail Residential Gate
3 Rail Residential Gate
GATES
Rough Opening Size 60" or Less61" - 96"
4 Rail Residential Gate GATES ARE NOT RETURNABLE
Approximate LIST price per foot. White color (figured with standard caps):
Missouri Vinyl Products is a fabricator and wholesale distributor of synthetic deckings, vinyl and aluminum railing and fencing. We offer a limited lifetime warranty on most vinyl extrusions. Our fabrication shop is equipped with state of the art computer controlled routing equipment, allowing us the flexibility to manufacture many custom designs.
