PRINCIPLES OF PERFORMANCE
Nobody says “no” to more torque and horsepower. Since the beginning, Harley-Davidson® motorcycle riders have felt the pull of amped up powertrain performance. Screamin’ Eagle® components are the key to greater acceleration, increased passing muscle, and more of that rip roaring raw exhaust note that makes power more than a li le addicting.
Ideal for riders who want to enhance the performance, look and sound of their motorcycle
• Most cost-e ective step to improve performance and the foundation for future performance upgrades

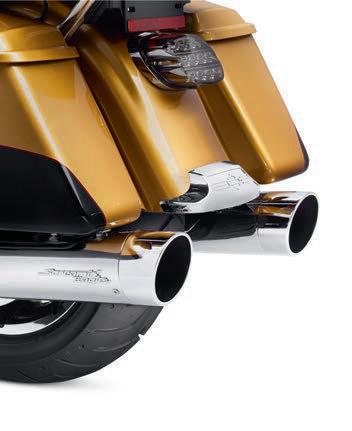

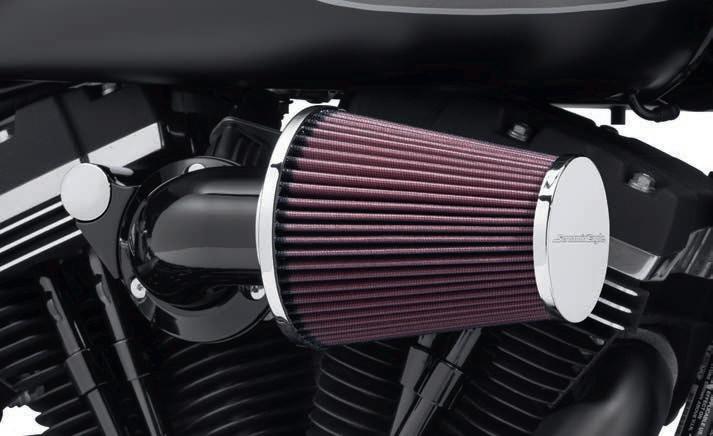

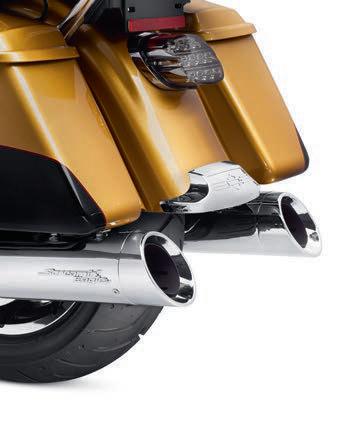

• Match any Screamin’ Eagle® high- ow air cleaner and exhaust with the proper ECM calibration to increase the air ow into and out of the engine
TORQUE KIT: Ideal for riders looking for instant passing power at cruising speeds
POWER KIT: Ideal for riders who want to feel the power build and pull all the way to the redline

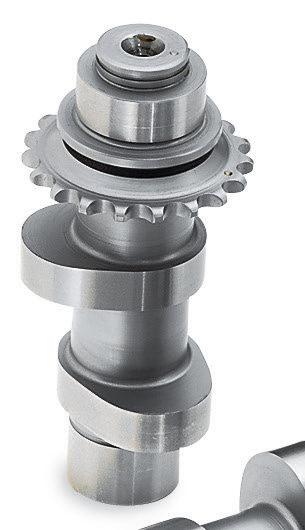

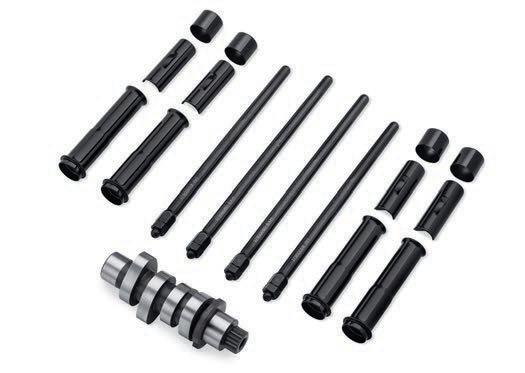

• Choose a TORQUE CAM or POWER CAM based on riding style

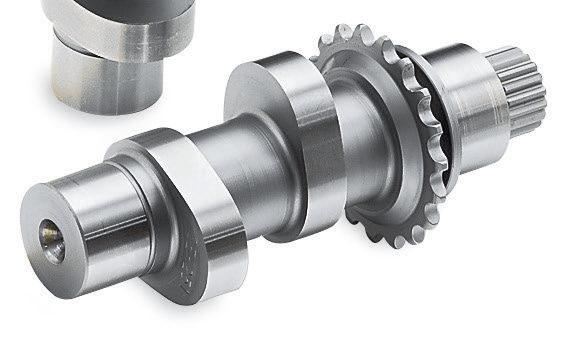

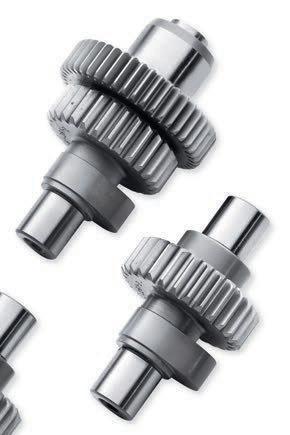

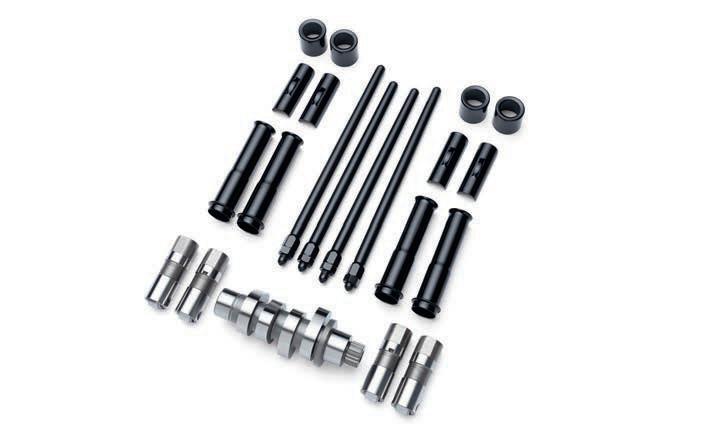

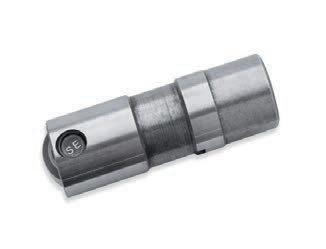

• A performance cam increases both the lift in the valve train (pushing the valve open farther) and the duration of the valve opening (how long the valve stays open)
The rider will feel up to a 10%* increase in performance when compared to stock bikes throughout the entire RPM range
AN OVERVIEW OF WARRANTY & CAUTION: Harley-Davidson has the engineering expertise, sophisticated dyno lab and complete testing facilities to provide enthusiasts with a line of performance products designed to produce good, solid, reliable horsepower and torque. Engine-related performance parts are intended for the experienced rider only.
WARRANTY: Installation of Screamin’ Eagle products and similar o road or competition products could impact your H-D™ motorcycle limited warranty claims. Speci cally, Harley-Davidson may exclude motorcycle limited warranty coverage for defects or damage caused by use of unauthorized parts, including defects or damage caused by use of non-Genuine Harley-Davidson parts or use of the vehicle for racing or competition, and denial of coverage may be based on installation of parts designed for unauthorized uses of the vehicle, such as a trailer hitch. Additionally, Harley-Davidson shall exclude motorcycle limited warranty coverage and deny all motorcycle limited warranty claims for functional defects of powertrain components for any Harley-Davidson® motorcycle registered in the United States if the vehicle was tuned using a tuning product not covered by a California Air and Resources Board Executive Order or that was otherwise approved by the Environmental Protection Agency, or if Harley-Davidson or any authorized Harley-Davidson® dealer has any information to show that the vehicle was tuned using a tuning product not covered by a California Air and Resources Board Executive Order or that was otherwise approved by the Environmental Protection Agency.
• TORQUE KIT: The rider will feel up to a 15%* increase in performance when compared to stock bikes in the low to mid RPM range
• Experience crisp throttle response and acceleration that can be felt at slower speeds, perfect for passing slow-moving vehicles without downshifting
• POWER KIT: The rider will feel up to a 25%* increase in performance when compared to stock bikes in the mid to upper RPM range
• Experience an adrenaline-pumping burst of speed while heading toward the redline
GO LIGHT: These Screamin’ Eagle® products are 50-State U.S. EPA compliant for sale and use on all applicable vehicles, including those that are pollution controlled. See Genuine Motor Parts and Accessories or Screamin’ Eagle Accessories catalog for tment information. Screamin’ Eagle Performance products are intended for the experienced rider only.
STOP HAND: Harley-Davidson® motorcycles modi ed with some Screamin’ Eagle® Performance products must not be used on public roads and, in some cases, may be restricted to closed-course competition. These performance parts are 49-state U.S. EPA compliant but are NOT compliant for sale or use in California on pollution-controlled motor vehicles. California guidelines on tampering can also lead to substantial nes and penalties. Screamin’ Eagle® Performance products are intended for the experienced rider only.
CAUTION: Harley-Davidson motorcycles modi ed with some Screamin’ Eagle high-performance engine parts must not be used on public roads and, in some cases, may be restricted to closedcourse competition.

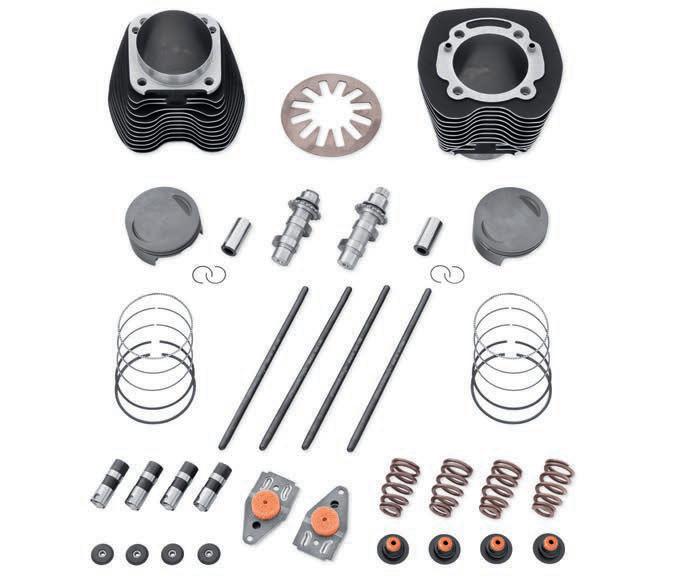

Ideal for riders who want the largest engine displacement and increased power throughout the entire RPM range
• An increase in engine displacement allows the engine to swallow more air and fuel, while a higher-compression piston squeezes the air and fuel into a more volatile mixture, generating more power when ignited

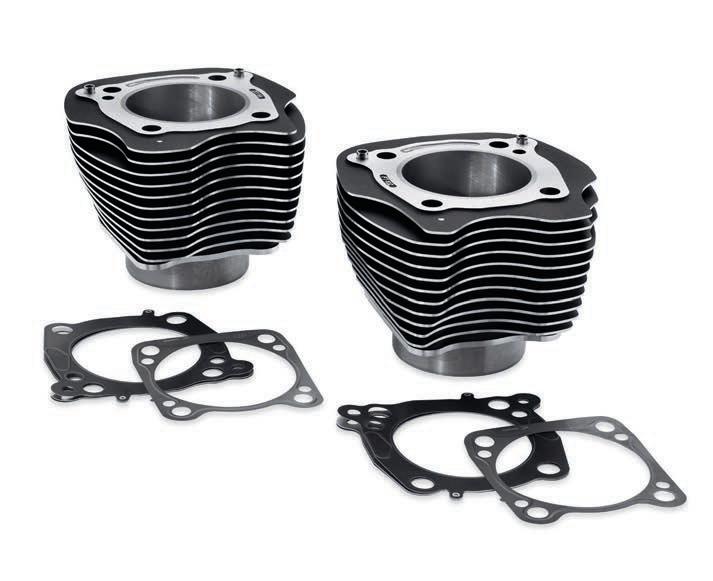

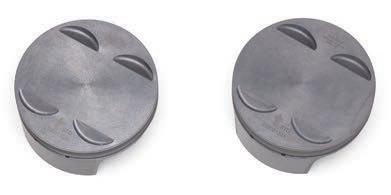

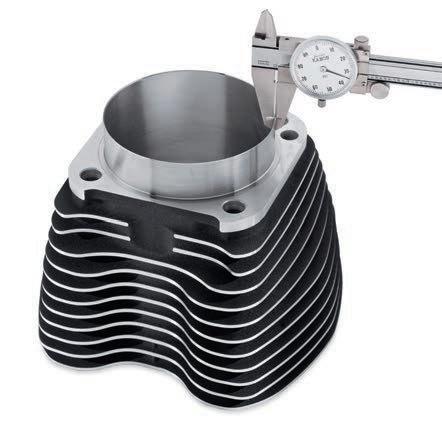

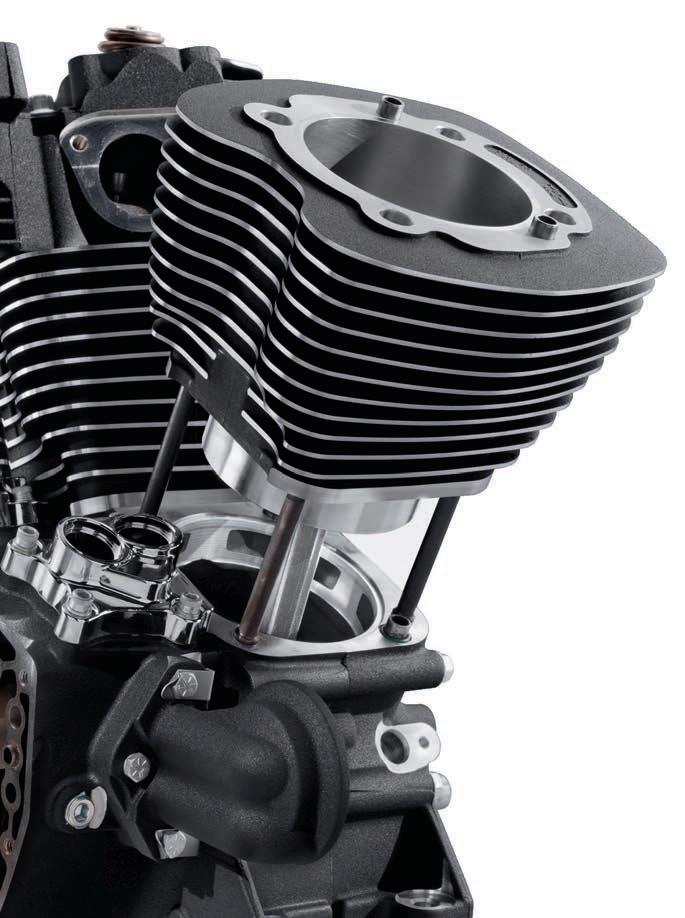

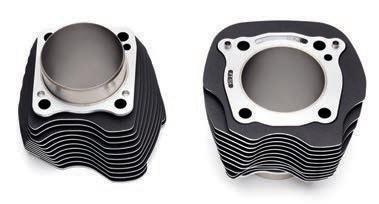

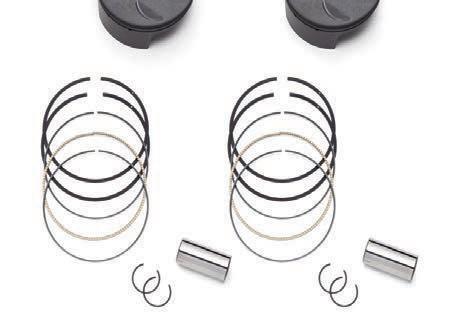

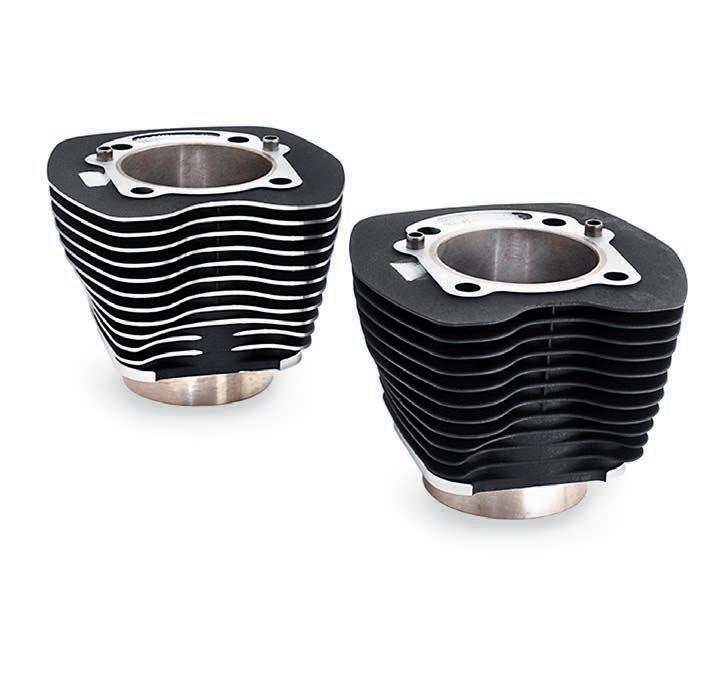

• Displacement increases are accomplished with larger cylinders, matching pistons and the proper cam upgrade

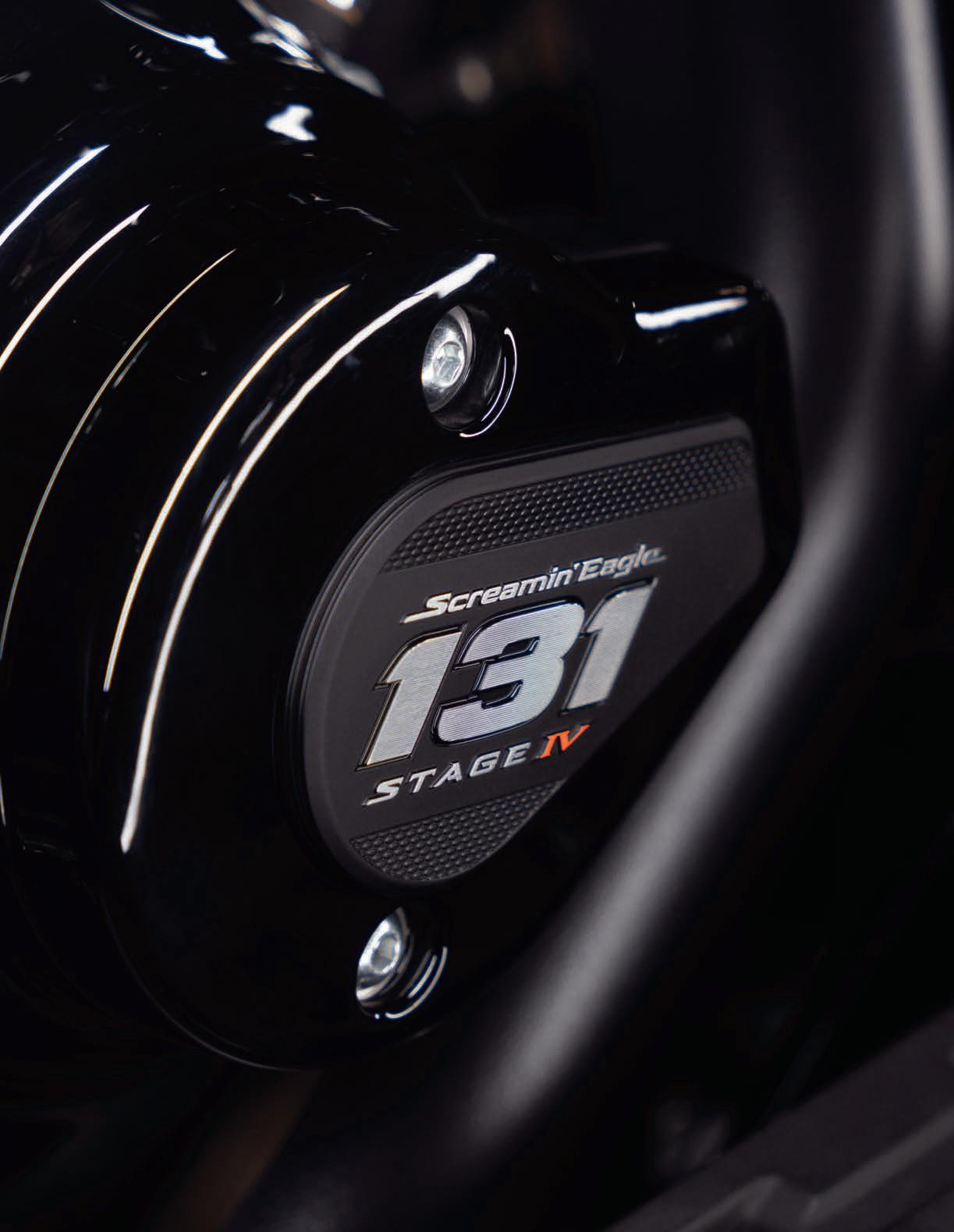

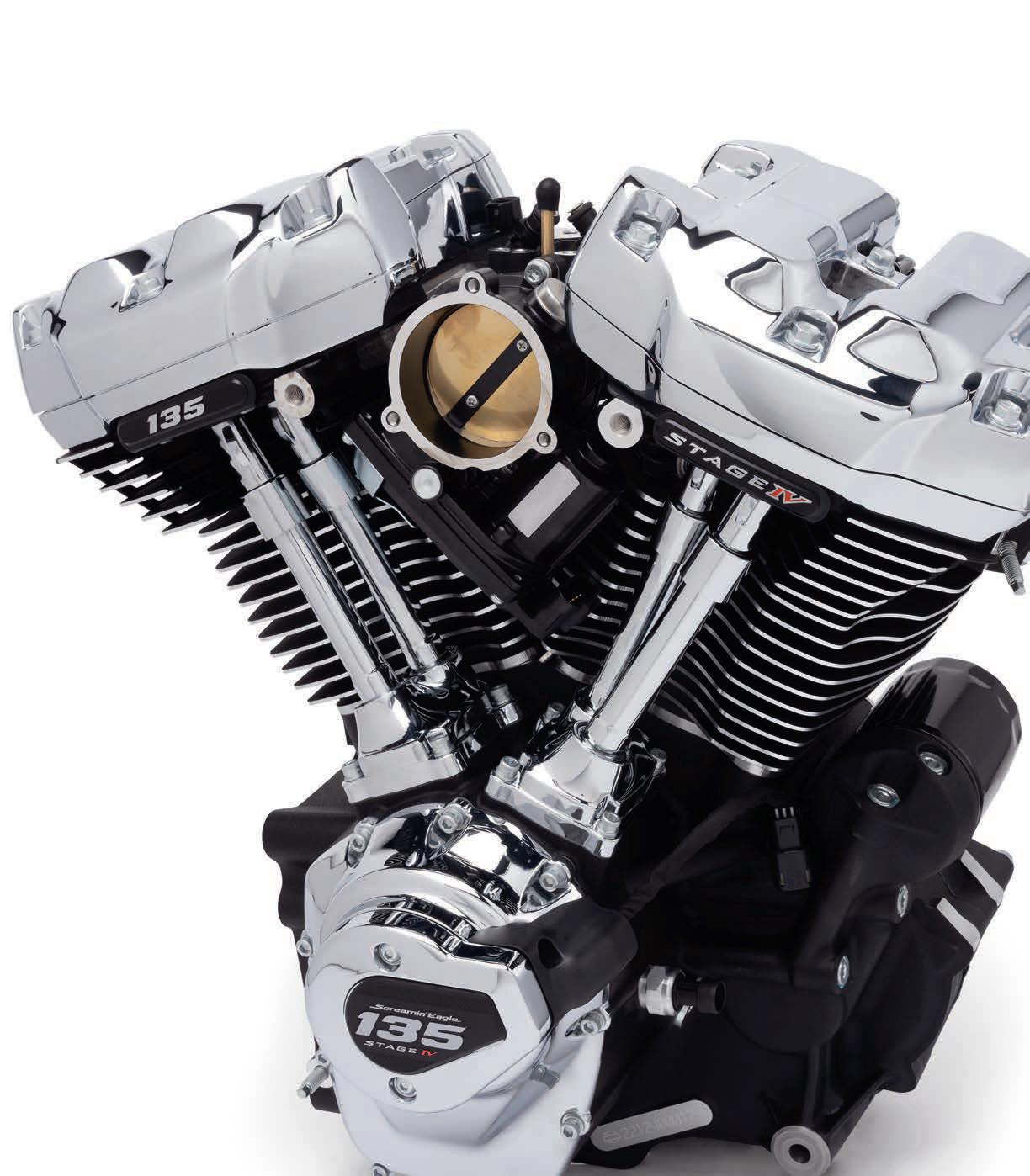

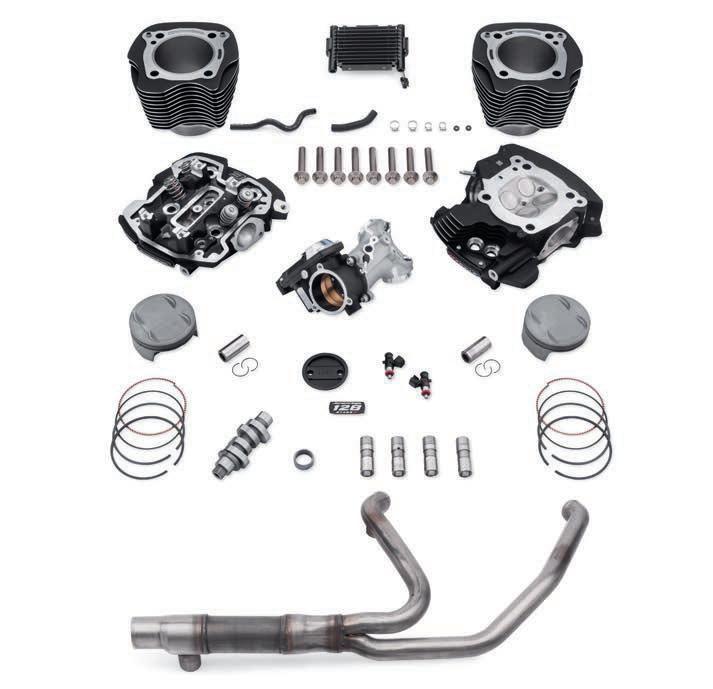

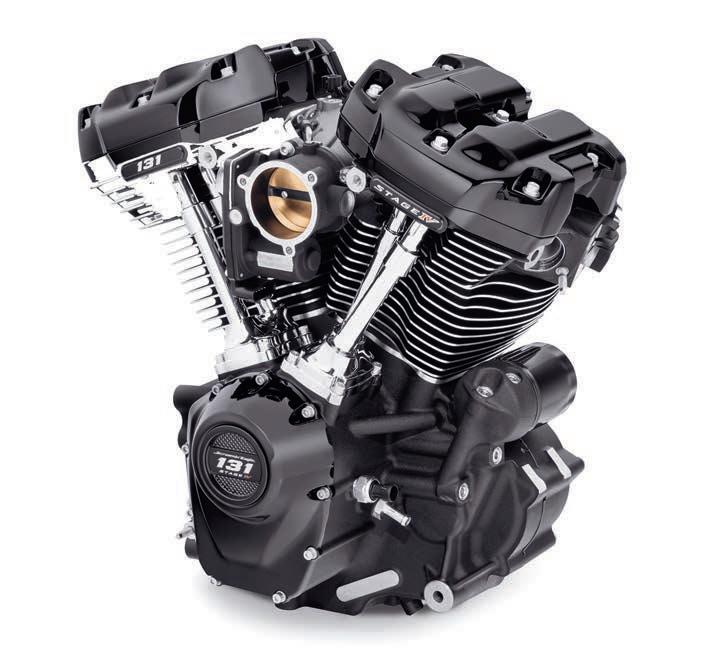

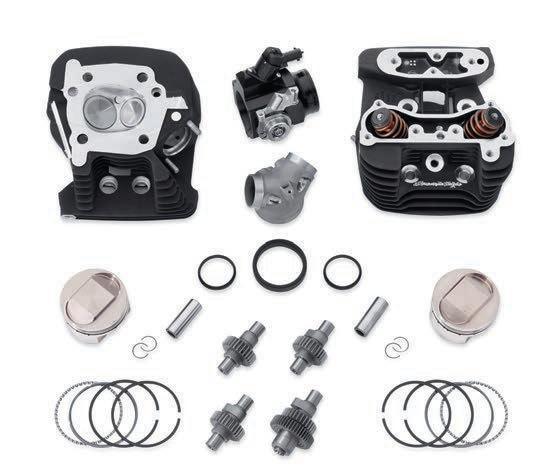

Ideal for riders who want the absolute best Harley-Davidson® performance upgrade available
• Highest-level performance upgrade available to provide a maximum increase in displacement, compression and ow

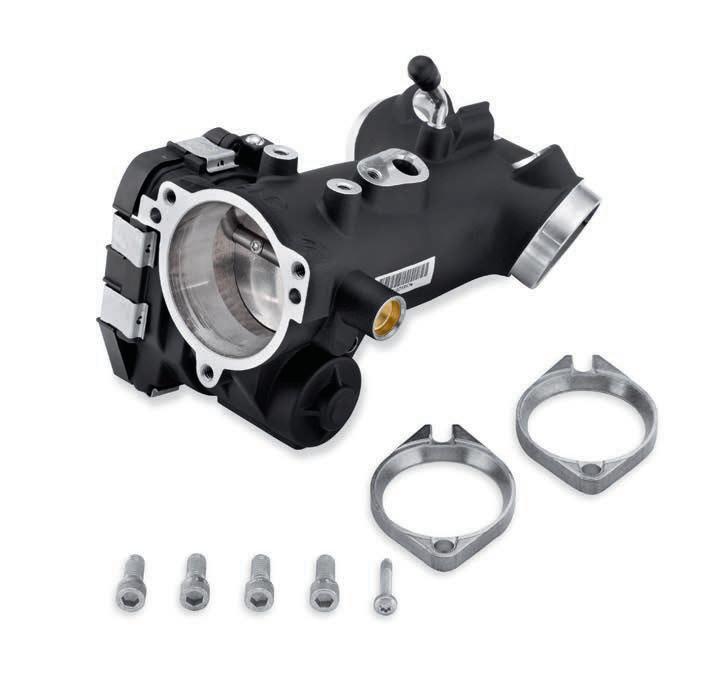

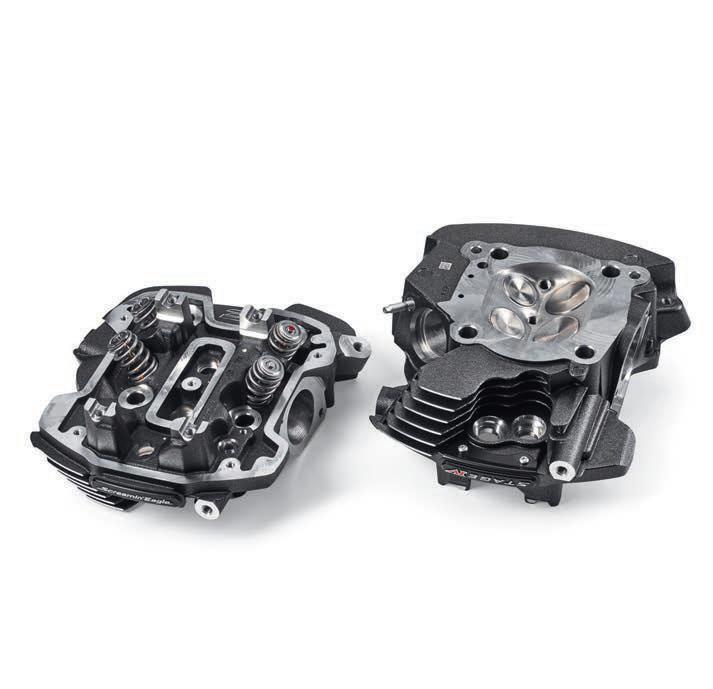

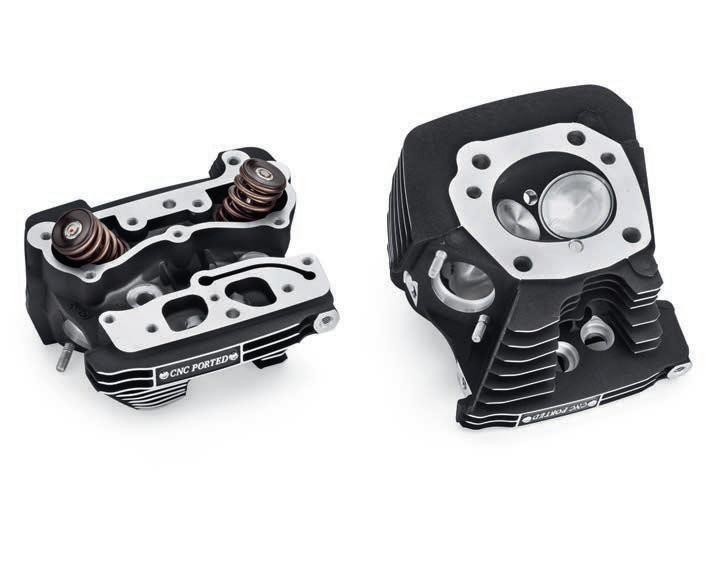

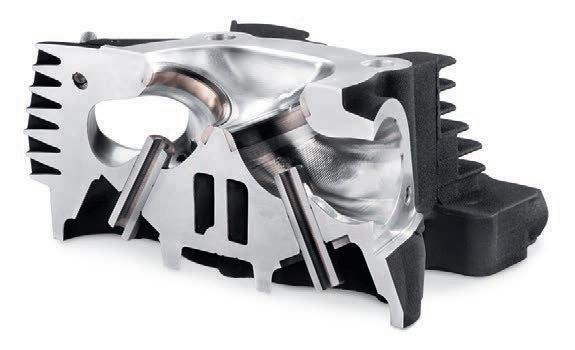

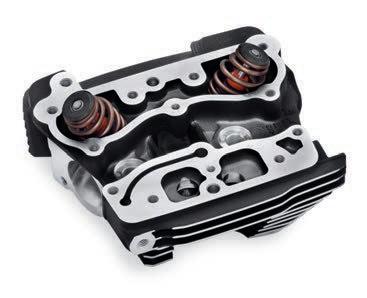

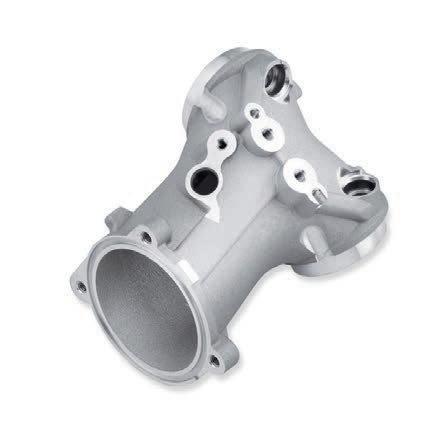

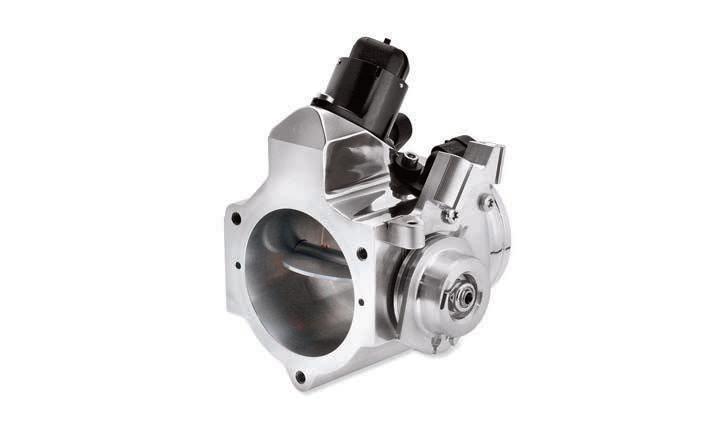

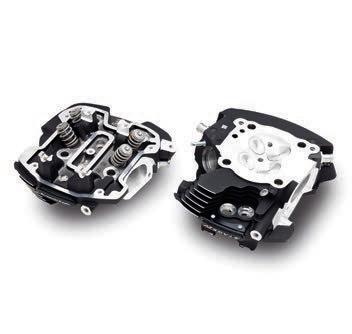

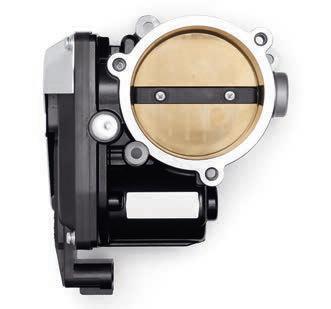

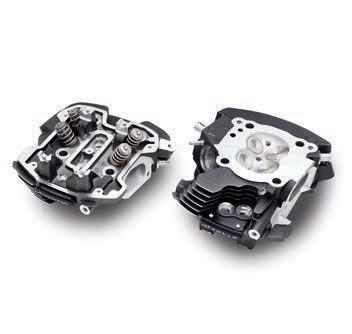

• Higher- owing CNC ported cylinder heads and larger bore throttle body increase the velocity and feed large volumes of air and fuel into the engine, which maximizes power on a larger displacement engine
• Combines ported cylinder heads and larger throttle body in combination with cylinders, matching pistons and proper cam upgrade
• Riders will experience a performance increase throughout the entire RPM range, with up to a 35%* increase when compared to stock bikes in the mid to upper RPM range
• Produces instant passing power without downshifting
• Delivers excellent stoplight to freeway speed and on-ramp acceleration
CALIFORNIA: These Screamin’ Eagle® products are street compliant for sale and use on speci c vehicles, outlined in the product’s tment statement within the State of California. Screamin’ Eagle Performance products are intended for the experienced rider only..
CROSS FLAGS: This product may be intended for race use only applications. It may also be certi ed for use in a 50-State U.S. EPA compliant application or kit. Use of any incomplete combination of certi ed kit products may not be legal for sale or use on U.S. market pollutioncontrolled vehicles and may be restricted to closed course competition use. See Genuine Motor Parts and Accessories or Screamin’ Eagle Accessories catalog for compliance, tment and warranty information. Screamin’ Eagle Performance products are intended for the experienced rider only.
The rider will feel exceptional acceleration, delivering signi cant gains and up to a 40%* increase when compared to stock bikes in the upper RPM range
DYNAMOMETER (DYNO) PERFORMANCE TESTING: Declared performance values in this catalog represent SAE J-1349 transient peak power output. Dynamometer settings, motorcycle condition, variation, climate and other factors can a ect performance output, and results can vary from the performance values declared by Harley-Davidson.
Street-legal and/or street-compliant statements refer to product meeting 50-state emissions and noise standards in the United States. The street legal and/or street compliant statements may not apply to markets outside of the United States.
Not all products are available in all countries — please consult your dealer for details.
*Dynamometer settings, motorcycle condition, variation, climate and other factors can a ect performance output, and results can vary from the performance values declared by Harley-Davidson.
You’ve built your dream pavement-pounding machine by selecting one of the Screamin’ Eagle® Stage upgrades.
• O ers base calibrations for your chosen Screamin’ Eagle Stage upgrade
• Constantly monitors the engine operation in the Part-Throttle Cruising Range
• Enables manual adjustments to ne-tune parameters within part- and full-throttle ranges*
(*may not be available in all markets)
• Uses the Pro Street Tuner base calibrations as a starting point
• Constantly monitors the engine operation and riding conditions in the Complete Motorcycle Operating Range
• Automatically adjusts tuning parameters in real time within the Complete Motorcycle Operating Range
Next, the motorcycle Engine Control Module (ECM) needs to be recalibrated. Screamin’ Eagle o ers base calibrations speci cally designed for the performance components on your bike.
base calibration All done; go ride or manually adjust with Dyno tuning or Smart Tune Live
Load base calibration from Pro Street Tuner.

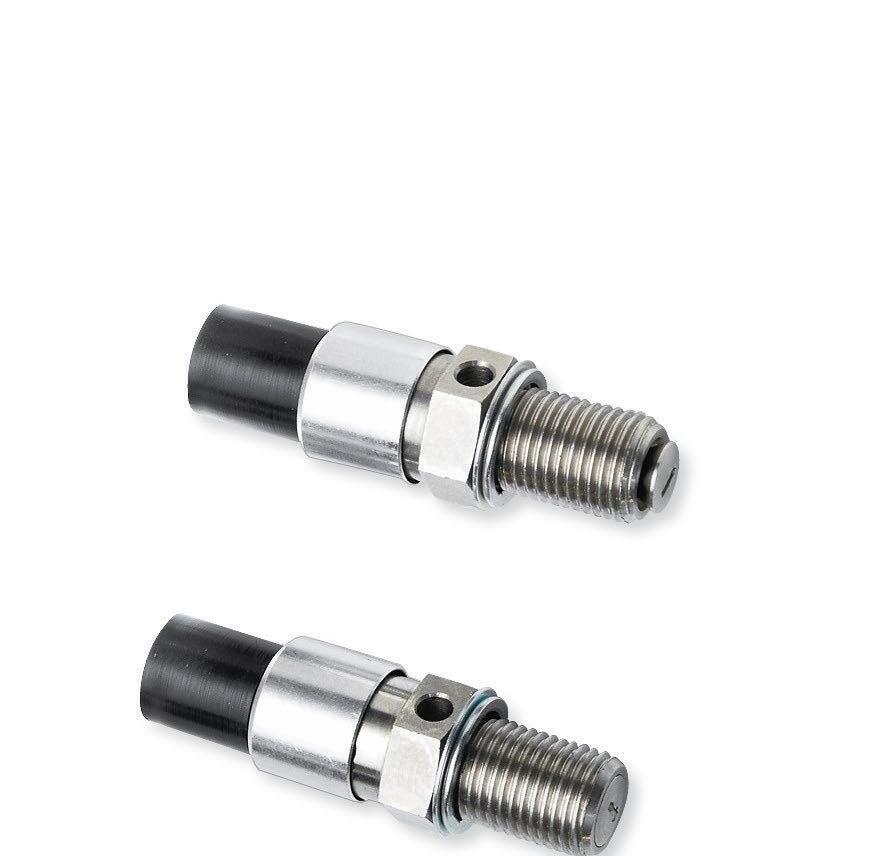

Install Smart Tune PRO and Wideband O2 Sensors onto motorcycle.
All done; go ride. Smart Tune PRO automatically does the rest!
Tuning adjusts the air-fuel ratio and other parameters based on your performance upgrades.
The end result? A properly tuned performance machine that gets the most out of your performance upgrades.
COMPLETE MOTORCYCLE OPERATING RANGE
PART-THROTTLE CRUISING RANGE
FULL-THROTTLE ACCELERATION RANGE
Original Equipment Narrowband O2
Sensors cannot measure or adjust in this range; requires manual adjustments to reference data tables to provide tuning information
COMPLETE MOTORCYCLE OPERATING RANGE
COMPLETE MOTORCYCLE OPERATING RANGE
Pro Street Tuner Base Calibration + Smart Tune PRO + Wideband O2
Sensors automatically monitor and adjust the engine in real time for all performance upgrades, operating ranges and riding conditions
MANUAL ADJUSTMENT FOR Maximum Performance + Optimal E ciency for your bike
AUTOMATIC ADJUSTMENT FOR Maximum Performance + Optimal E ciency + Automatic Adjustment for your bike in all riding conditions and combinations of performance upgrades

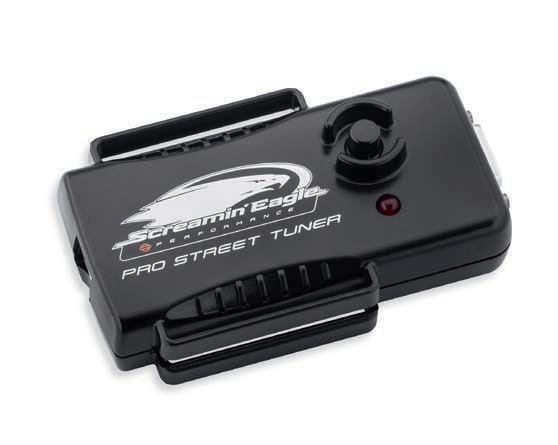

A. SCREAMIN’ EAGLE® PRO STREET TUNER
Next generation performance tuning made even easier. Now with a wireless and wired option, the new Screamin’ Eagle Pro Street Tuner maximizes performance while being 49-state emissions compliant. The Screamin’ Eagle® Pro Street Tuner is designed to simplify management of engine operating parameters as performance modifications are made. Once installed, the tuner allows you to adjust key parameters or simply upload the latest Engine Control Module (ECM) calibrations to match your bike’s state-of-tune. Start with a high-flow air cleaner and Street Performance mufflers and upload the calibration that provides the best performance mix. Add additional Stage upgrades later, and you simply upload the proper ECM calibration to match the model and hardware. With the all-new Screamin’ Eagle Street Tuner mobile app, you’ll have free online access to the latest factory calibrations via your smartphone. Ideal for real-world street performance applications, the Pro Street Tuner provides the adjustability to account for bike-tobike variation and when upgrading through various Stage kits, all while maintaining closed-loop fuel control for fuel economy in the part-throttle operating range. Unlike other aftermarket tuners, The Screamin’ Eagle Pro Street Tuner talks directly to your motorcycle’s ECM and re-programs the motorcycle’s operating system. The Pro Street Tuner discretely plugs into the bike’s data port, so no splicing or under-seat hardware is required. The Screamin’ Eagle Pro Street Tuner does not impact your Harley-Davidson® factory warranty coverage.
• Tune through Bluetooth® using the Screamin’ Eagle Street Tuner mobile app on your personal device. Screamin’ Eagle maintains a vast calibration library to ensure your performance calibration is plug and play
• Features a guided Smart Tune process to enable quick navigation through the software, whether new to tuning or an experienced user
• Smart Tune Live, a dynamic method to track engine data by running vehicle through a range of RPM and throttle positions, reduces time to modify existing Volumetric Efficiency tables (works on models with factory installed O2 sensors only)
• Compatible with Screamin’ Eagle Smart Tune Pro Automatic Tuning Module P/N 41000445A
• Stores run-time data, through phone’s memory, that can be downloaded to PC or viewed using the mobile app, allowing you to view and evaluate the bike’s air/fuel ratio, O2 sensor readings, engine speed and temperature, RPM and vehicle speed, throttle position, spark advance and much more. Detailed changes can be made via the Pro Street Tuner desktop application
• Adjustability to Spark Advance, Throttle Progressivity, and Volumetric Efficiency to custom tune the performance combination. Throttle Progressivity adjustability available on select models. Requires Desktop application and Y-Cable to fine tune areas of calibration
• New performance widgets and features available within the Mobile App (Engine Head Temp, Battery Voltage, Throttle Position, Engine Speed, Speedometer, Tachometer, Manifold Absolute Pressure, etc.) to view live engine data as you tune
• View and clear diagnostics functions
• Includes the Bluetooth Communications Interface (BCI) module and unlimited access to the latest software updates and calibrations available from Screamin’ Eagle
• Available Tuner Cable kit (P/N 41001142, sold separately) for computer connection for use in environments with poor Bluetooth connectivity, such as dyno rooms and to adjust specific parameters within calibrations
• 49-State U.S. EPA compliant
41001141A
$449.95
Fits '21-later Touring, Trike and Softail® models. Does not fit California models, ’21’24 California models instead require P/N 41001166A. The Screamin’ Eagle Pro Street Tuner mobile app supports both iOS version 15 and newer and Android version 11 and newer. 5
41001166A
$469.95
Fits ’21-’22 Touring, ’21-’22 Trike and ’21-’22 (except ’21-22 FXLRS and FXLRST) Softail California models only. Dealership installation only. Please see the What’s New section of the Screamin’ Eagle Street Tuner mobile app or PC software for the list of available calibrations. 6
Required to connect a Screamin’ Eagle Pro Street Tuner (P/N 41001141, sold separately) with ’21-Later models equipped with a Milwaukee-Eight® engine.
41001142
$99.95
For use with ’21-later Softail, Touring, and Trike models and the Screamin’ Eagle® Pro Street Tuner P/N 41001141. Does not fit California models.
2
The Screamin’ Eagle Pro Street Performance Tuner is designed to simplify management of engine operating parameters as performance modifications are made. Once installed, the kit allows you to adjust key parameters or simply upload the latest Engine Control Module (ECM) calibrations to match your bike’s state-oftune. Start with a high-flow air cleaner and Street Performance mufflers and upload the calibration that provides the best performance mix. Add additional Stage Upgrades later, and you simply upload the proper ECM calibration to match the model and hardware. Plus, you have free online access to the latest factory calibrations. Ideal for real-world street performance applications, the Pro Street Tuner provides the adjustability to account for bike-to-bike variation and for changes to cams, heads, intake and exhaust while maintaining closed-loop fuel control for fuel economy in the part-throttle operating range. Unlike other aftermarket tuners, The Screamin’ Eagle Pro Street Tuner actually talks directly to your motorcycle’s ECM and re-programs the motorcycle’s operating system. It isn’t a piggyback system that tries to fool the ECM into adding more fuel or changing the ignition timing. The Pro Street Tuner plugs into the bike’s data port, so no splicing or under-seat hardware is required. And unlike other race tuners or engine controllers, the Screamin’ Eagle® Pro Street Tuner does not impact your Harley-Davidson® factory warranty coverage.
• Features a guided SmartTune process to enable quick navigation through the software and permits tunability to optimize performance and drivability without compromising fuel efficiency, emission levels, engine durability, or 50-State U.S. EPA compliance
• Stores up to 15 minutes of run-time data that can be downloaded to PC, allowing you to view and evaluate the bike’s air/fuel ratio, O2 sensor readings, engine speed and temperature, RPM and vehicle speed, throttle position, spark advance and much more
• Vehicle Communications Interface (VCI) will record and display service codes for troubleshooting and diagnostics
• Smart Tune Live, a dynamic method to track engine data by running vehicle through a range of RPM and throttle positions, reduces time to modify existing Volumetric Efficiency tables (works on models with factory-installed O2 sensors only)
• Adjustability to Spark Advance, Throttle progressivity, and Volumetric Efficiency to custom tune the performance combination
• Includes the Vehicle Communications Interface (VCI) module and unlimited access to the latest software updates and calibrations available from Screamin’ Eagle. Screamin' Eagle Tuner Cable kits P/Ns 32184-08A, 41000018 and 41000979 available for seperate purchase. See h-d.com for model specific applications.
41000008C
$368.95
For use with ’17-’20 XG, ’14-’22 XL and ’07-’17 Dyna®, and ’07-’22 Softail® and Touring, and ’17-’22 Trike models. Requires separate purchase of model-specific Tuner Cable. Does not fit California ’21-later models. California models instead require P/N 41001212A. Refer to H-D.com/shop for status. 5
41001212A
$378.95
For use with ’17-’20 XG, ’14-’21 XL and ’07-’17 Dyna, and ’07-’22 Softail (except ’21-22 FXLRS and FXLRST), ’07-22 Touring and ’17-’22 Trike California models only. Requires separate purchase of model-specific Tuner Cable. Dealership installation only. Refer to H-D.com/shop for status.
Pro Street Tuner & Smart Tune Pro

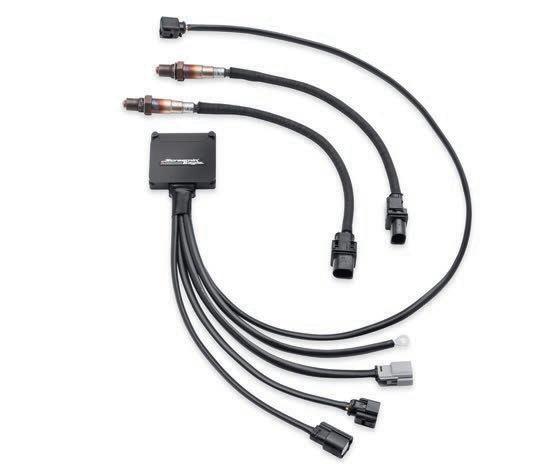

Smart Tune PRO works with the Screamin’ Eagle Pro Street Tuner to automatically adjust your bike for the combination of performance components, climates and vehicle load conditions you are operating in. You just install the upgraded wideband oxygen sensors in the exhaust headers, download the calibration that the Screamin’ Eagle engineers have developed as a starting point, then simply drive down the road and let Smart Tune PRO do the work.
Smart Tune PRO constantly monitors the operating parameters of your motorcycle, and automatically adjusts the bike’s Electronic Control Module (ECM) to maximize performance in your current riding conditions. Smart Tune PRO utilizes wideband O2 sensors that read oxygen levels in the exhaust stream to determine the optimum air/ fuel ratio your bike needs at this very moment. Smart Tune PRO analyzes the data and automatically makes real-time tuning adjustments to the ECM. Unlike the standard narrow-band O2 sensors that only provide feedback in the part-throttle cruising range, the wideband sensors can read and adjust tuning throughout the part throttle cruising and full-throttle acceleration operating range.
It is fully factory supported, and optimized to maximize performance while maintaining drivability and engine longevity. Smart Tune PRO is 50-State EPA compliant and does not impact the H-D™ factory warranty. Kit includes the Smart Tune PRO module with plug-in wiring harness, two M18 wideband O2 sensors and access to free software updates, future calibrations and free online training modules. Screamin’ Eagle Pro Street Tuner and model-specific installation hardware is sold separately.
41000445A
$599.95
Fits ’14-‘22 XL, '16-'17 Dyna FXDLS, '16-later Softail, '14-later Touring (except '25later FLTRXRRSE) and '17-later Trike models. Does not fit ’21-later California models. Installation requires exhaust modification to incorporate wide-band oxygen sensors. Some models require Oxygen Sensor Harness Extension. For model specific installation requirements see Installation Instructions on H-D.com/shop. All models require ECM calibration with Screamin’ Eagle Pro Street Tuner or dealership installed Screamin' Eagle calibration for proper installation.
Also available: (not shown)
M18 OXYGEN SENSOR INSTALLATION TOOL
Plug-in extension cable is wired to allow installation of the Screamin’ Eagle Smart Tune PRO Automatic Tuning Module hardware on specific models. No splicing or soldering is required.
14900150
$529.95
For use on '23-later FLHXSE, FLTRXSE, '24-later FLHX, FLTRX, FLTRXSTSE, '25-later FLHXU and '26-later Trike models for installation of M18 wide-band oxygen sensors. Use of a drill press is mandatory for installation. Requires the separate purchase of 14900105.

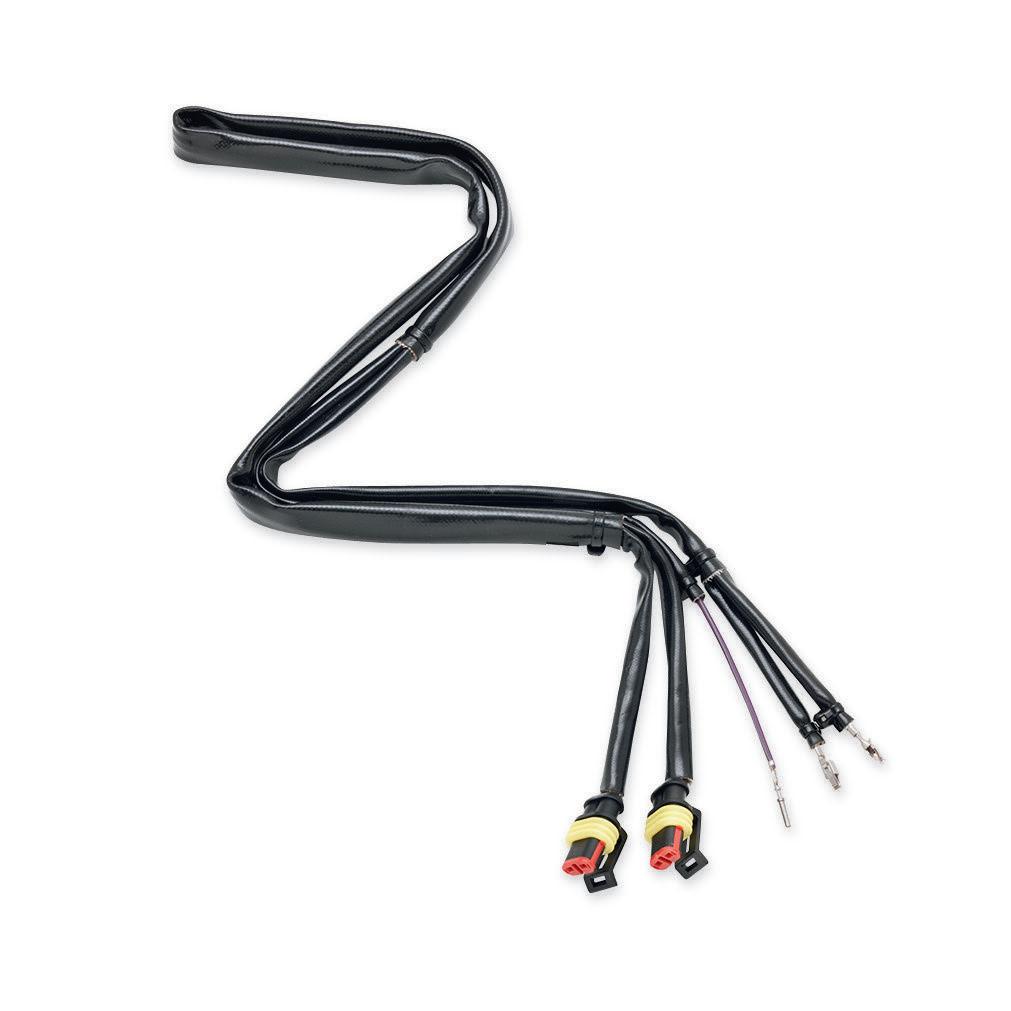

OXYGEN SENSOR HARNESS EXTENSION
Plug-in extension cable is wired to allow installation of the Screamin’ Eagle Smart Tune PRO Automatic Tuning Module hardware on specific models. No splicing or soldering is required.
69201704
$33.95
Required for use of Screamin’ Eagle Smart Tune PRO Automatic Tuning Module hardware on, ’16-’17 Dyna and Softail models.
Street legal and/or street compliant statements refer to product meeting 50-State emissions and noise standards in the United States. The street legal and/or street compliant statements may not apply to markets outside of the United States. Tuning parameters may not be available in all markets. Check your local dealership for more information.
Notice: The prices appearing in this catalog are the manufacturer’s suggested retail prices. Actual retail prices may vary.
Milwaukee-Eight® Stage Upgrades
Screamin’ Eagle® Stage upgrades o er complete street-compliant performance con gurations engineered to generate speci c torque and horsepower gains. Eliminating all the guesswork and trial-and-error testing normally associated with engine modi cations, Stage upgrades include everything you need to enhance your bike’s performance. Start with the foundation, the Stage I upgrade, then choose from Stage ll, lll or lV depending on your performance goals, budget and riding style.

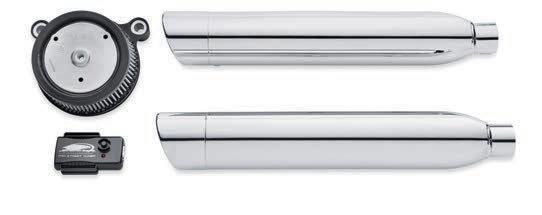

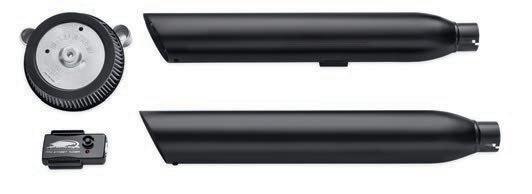

INTAKE + EXHAUST + TUNING
The easiest and most cost e ective step to improve your motorcycle’s performance is to increase the air ow into and out of the engine. A high- ow air cleaner and system-matched slip-on mu ers provide horsepower and torque improvements you can feel throughout the RPM range, and serve as the core components for all performance upgrades. ECM calibration is required to tune the fuel ow and timing required to accommodate the improved air ow.
Milwaukee-Eight® Stage Upgrades
I + CAM UPGRADE
Adding performance cams to a Stage I equipped bike is the next step to improved performance. Cam choices allow you to tailor the engine’s performance to your speci c needs. A torque cam o ers on-demand throttle response from low- to mid-RPM at cruising speed. A power cam targets high-RPM, wide-open throttle response that keeps pulling right up to the redline. ECM calibration tuning is required to accommodate the increased valve timing, and performance valve springs may be required for high-lift cams.
Stage II upgrade requires minor engine disassembly to replace the cam. Adjustable pushrods allow cam installation without removing the rocker box. Special tools and ECM tuning are required.

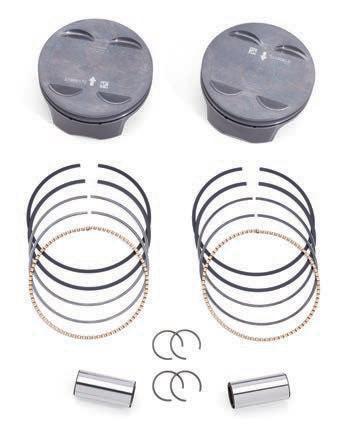

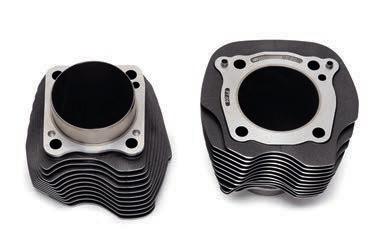

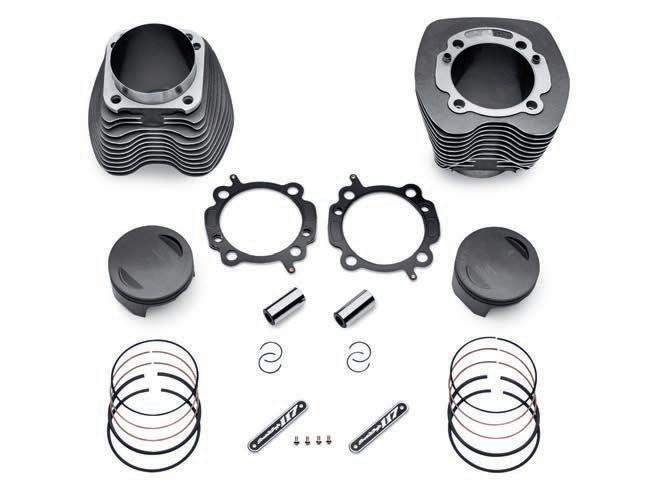

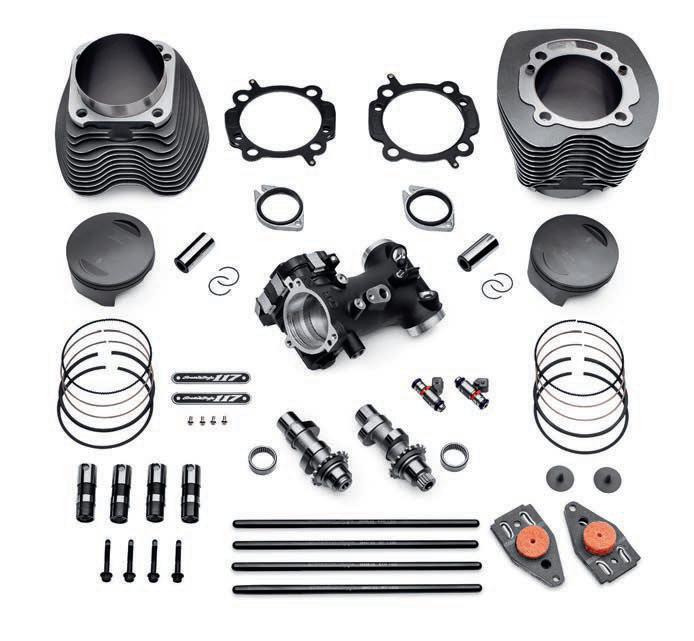

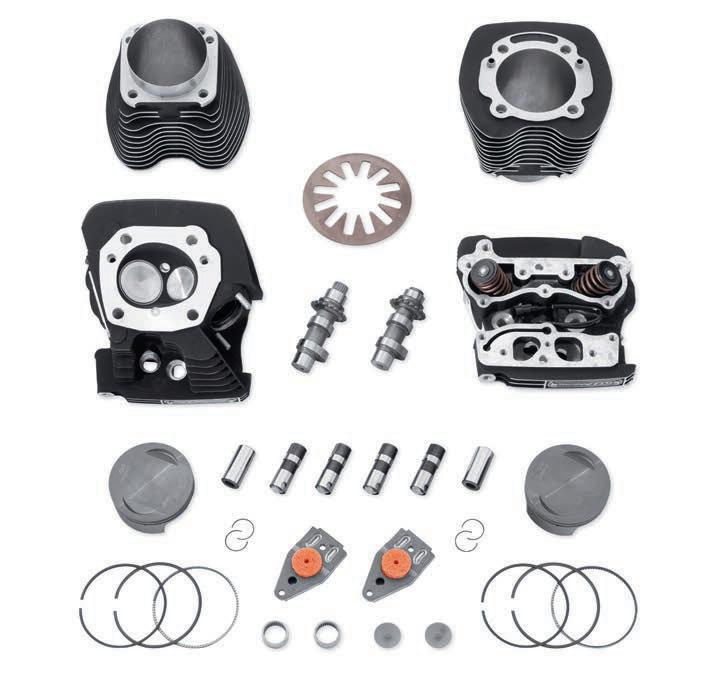

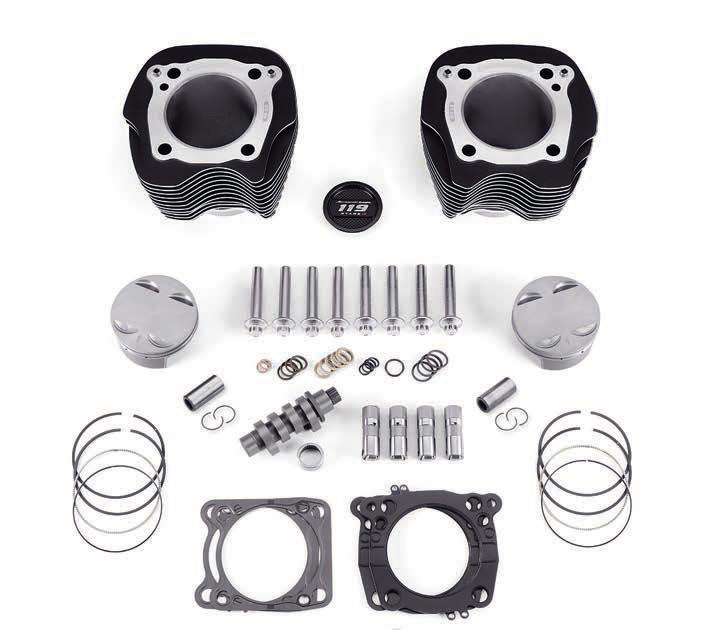

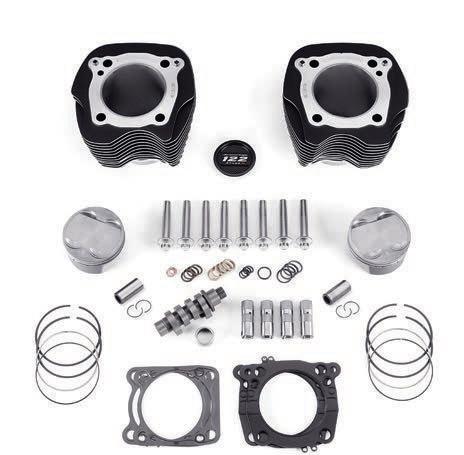

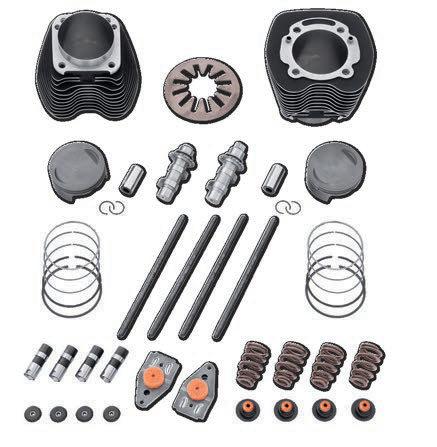

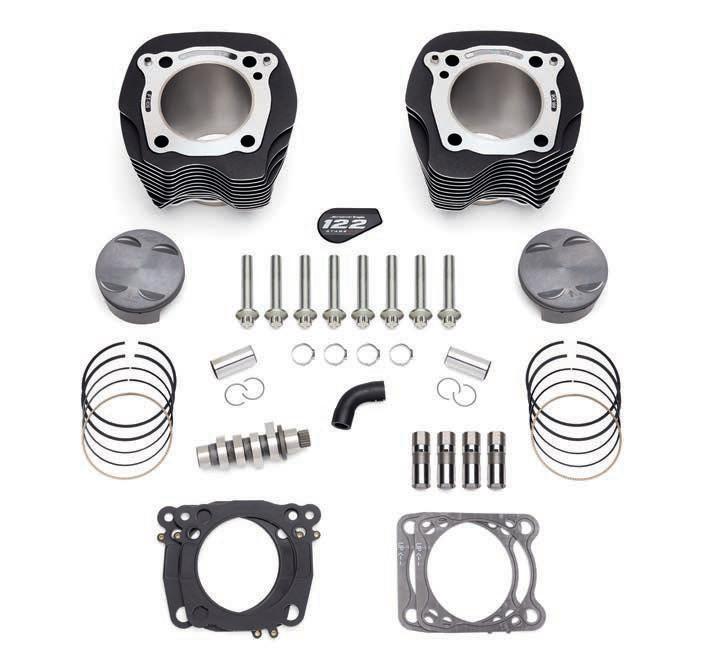

STAGE I + CAM, BIG BORE CYLINDERS & PISTONS
The next step on the performance journey is to build a bigger engine. An increase in engine displacement allows the engine to swallow more air and fuel, a higher compression piston squeezes the air/fuel into a more volatile mixture, and when combined, generates more power when ignited. A displacement and compression increase provides torque increases throughout the entire RPM range with a 15-25% improvement in the mid-range power. ECM calibration tuning is required to adjust fuel ow and timing to accommodate the increased displacement.
Stage III bolt-on upgrade requires removal of the engine’s top end and opening the cam chest. Engine remains in the chassis and no machining is required. Special tools and ECM tuning are required.

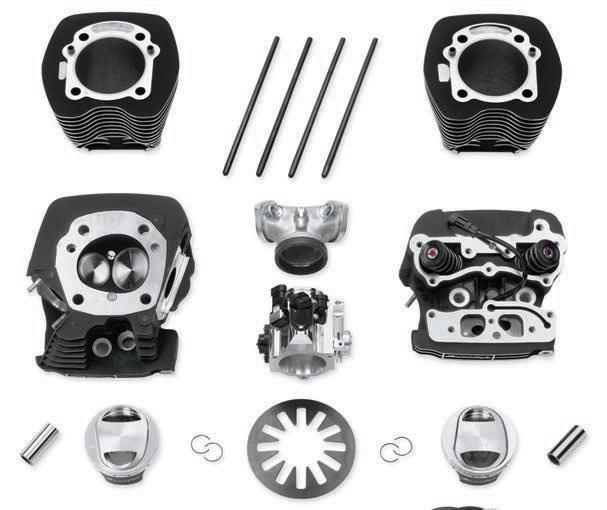

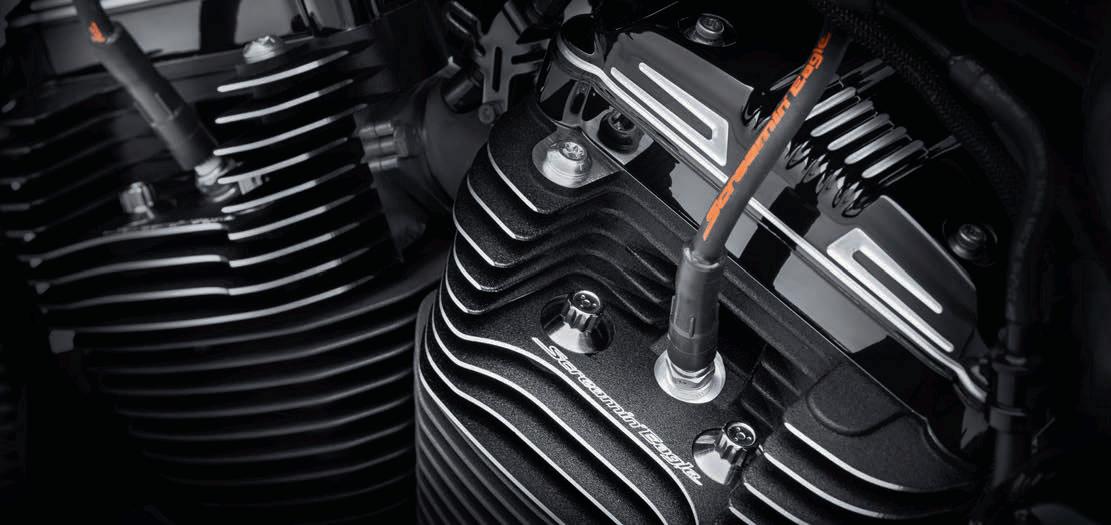

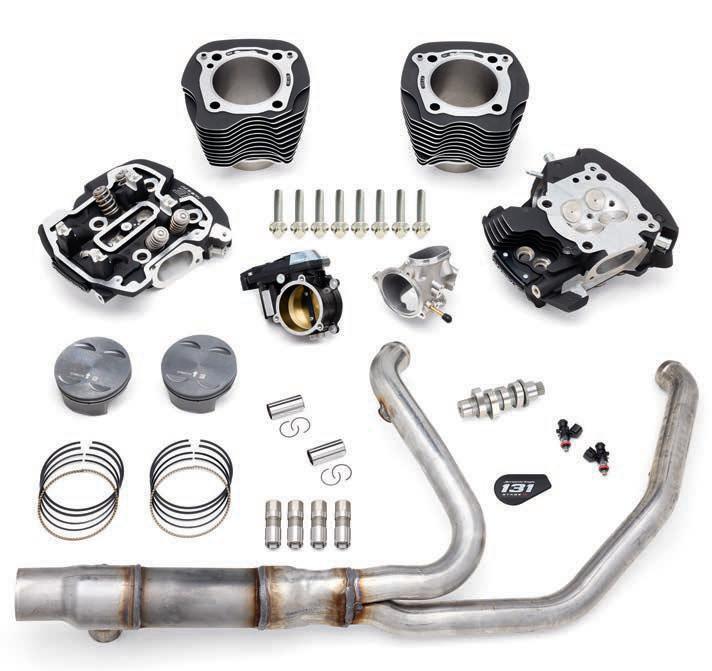

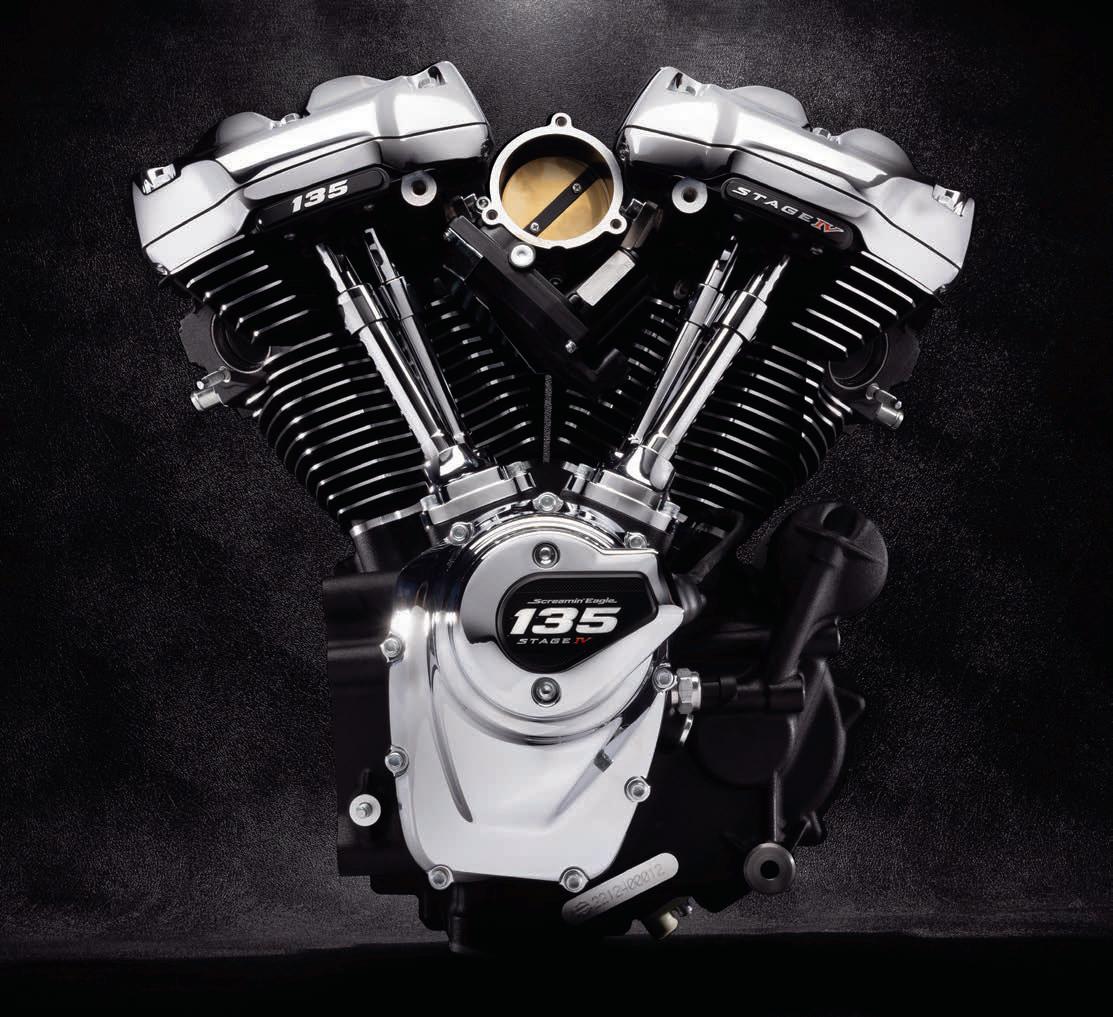

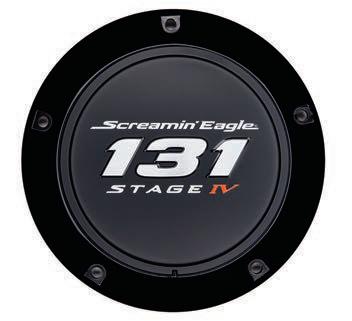

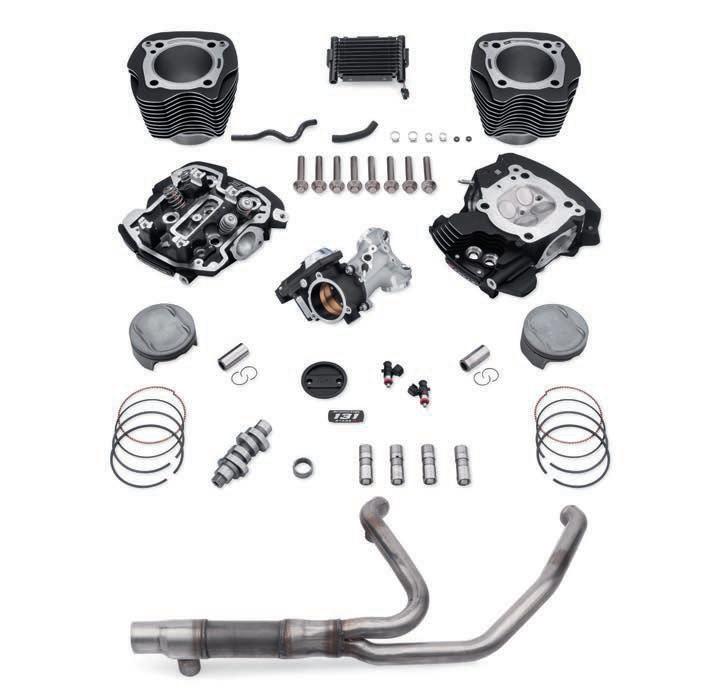

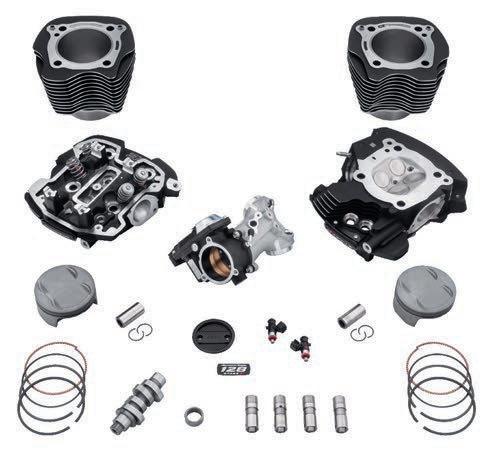

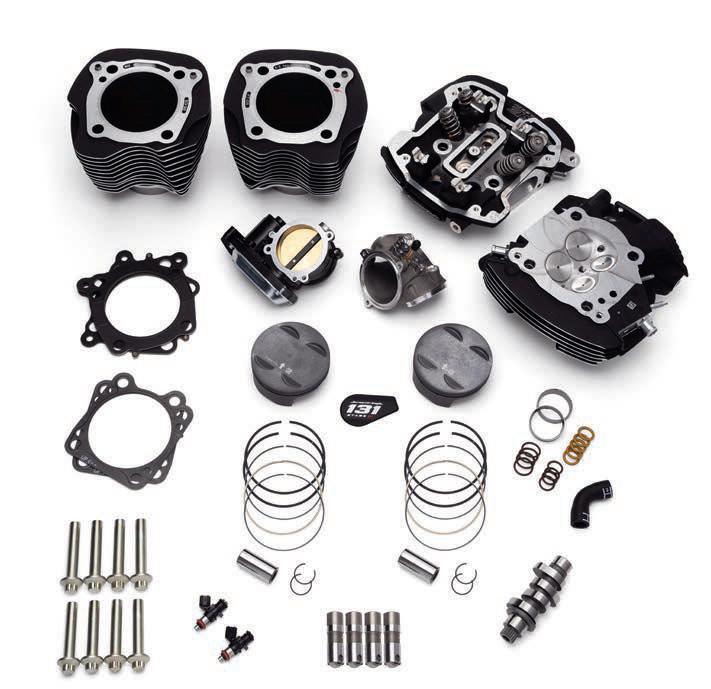

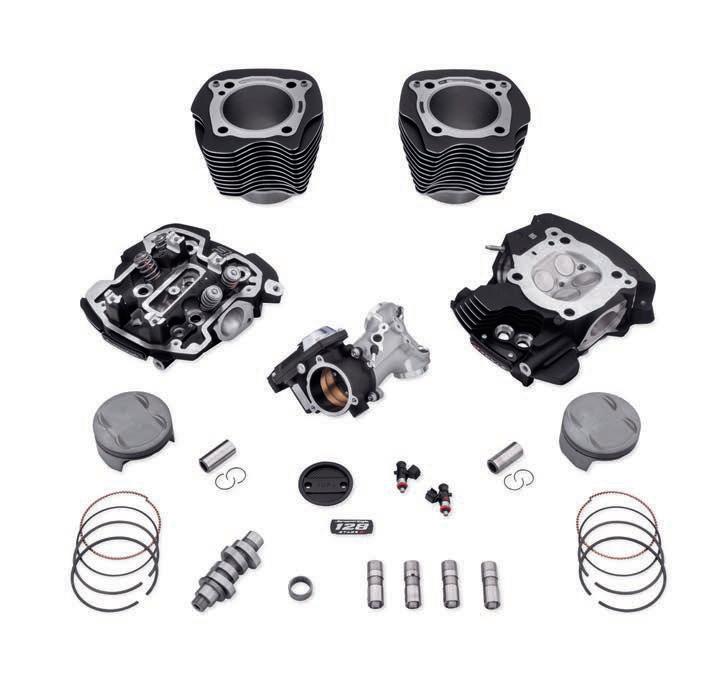

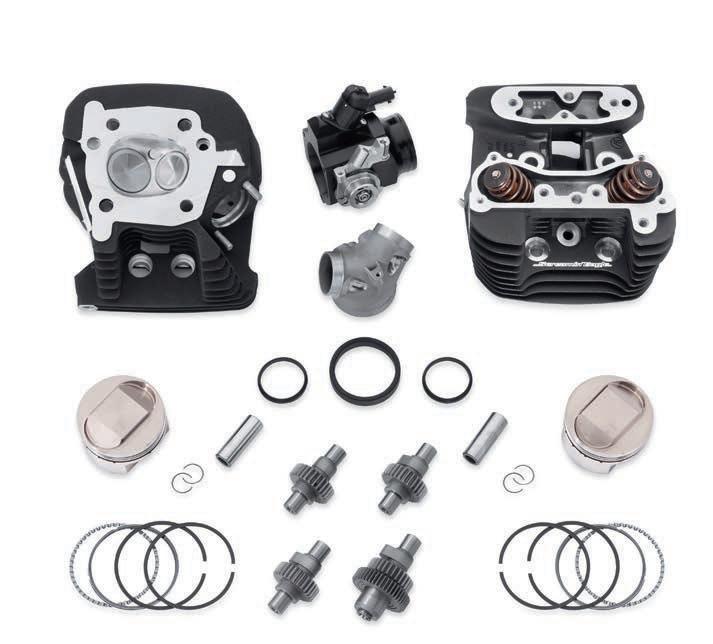

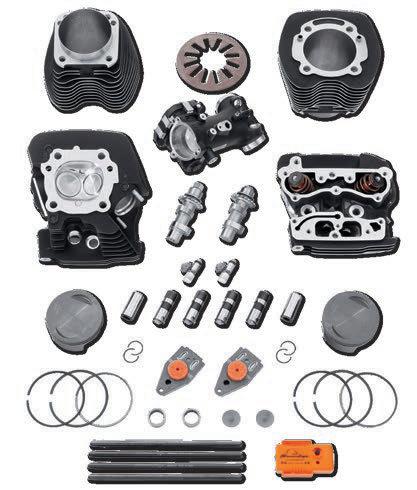

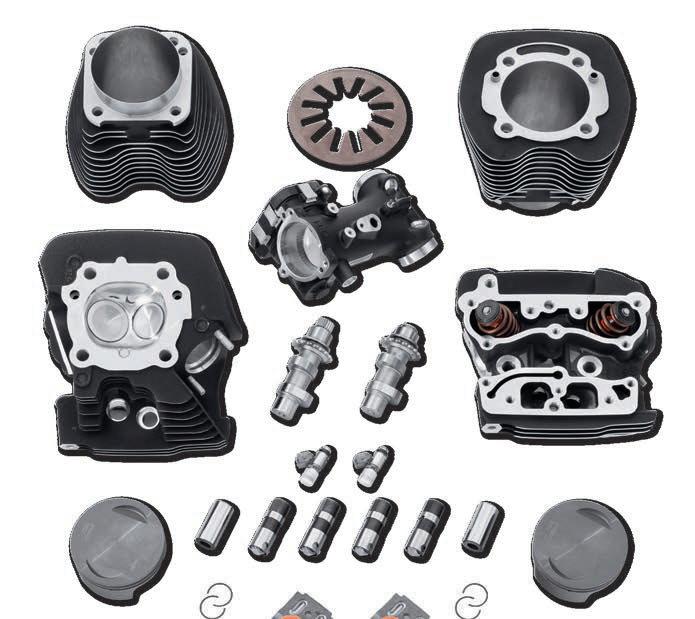

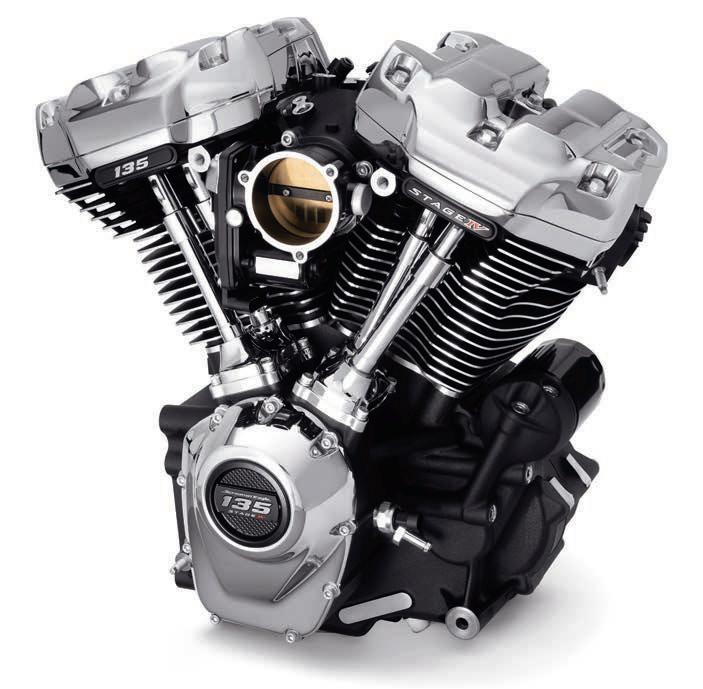

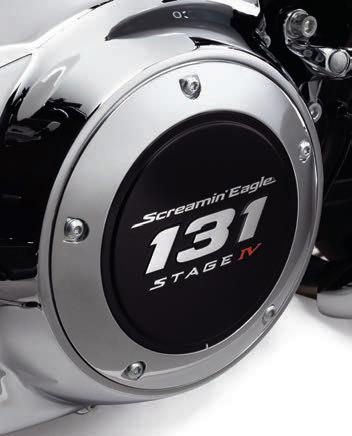

STAGE I + CAM, BIG BORE CYLINDERS, PISTONS, CYLINDER HEADS & THROTTLE BODY
To maximize the impact of the increased displacement gained with Stage III updates, the addition of free- owing ported cylinder heads and a big bore throttle body top o the performance build. Designed to satisfy the high-RPM, throttle-twisting rider, the Stage IV update delivers 20-30% increase in power that keeps pulling right up to the redline, without sacri cing mid-range torque. ECM calibration tuning is required to add more fuel, and a higher-lift cam may be required to deliver maximum power.
Stage IV bolt-on upgrade requires removal of the engine’s top-end and opening the cam chest. Engine remains in the chassis and no machining is required. Special tools and ECM tuning are required.
Vortex Extreme

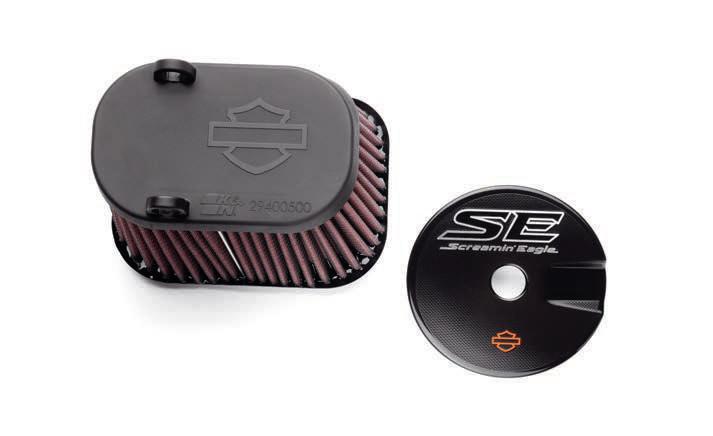

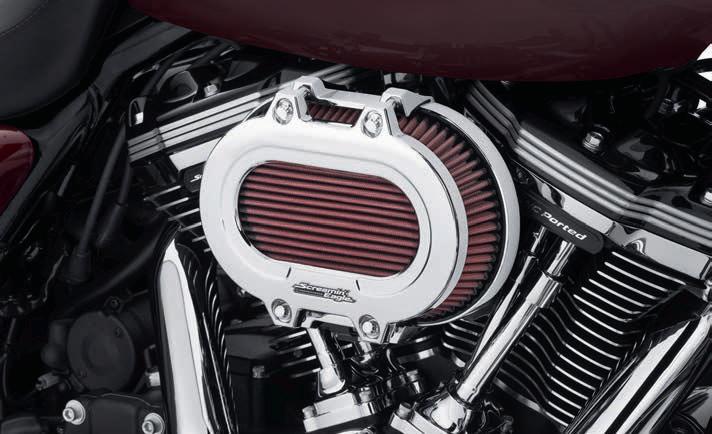

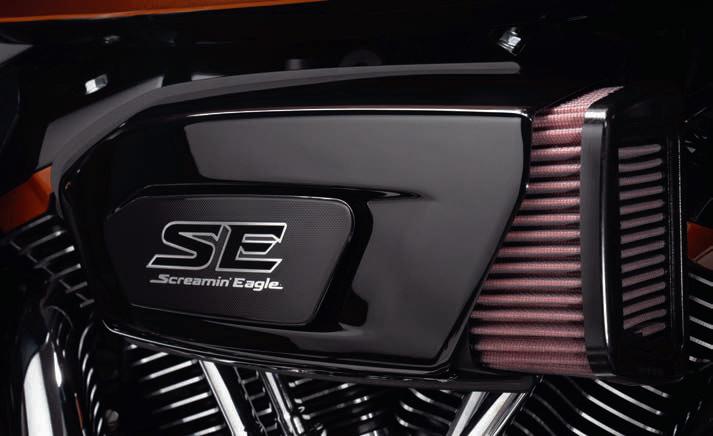

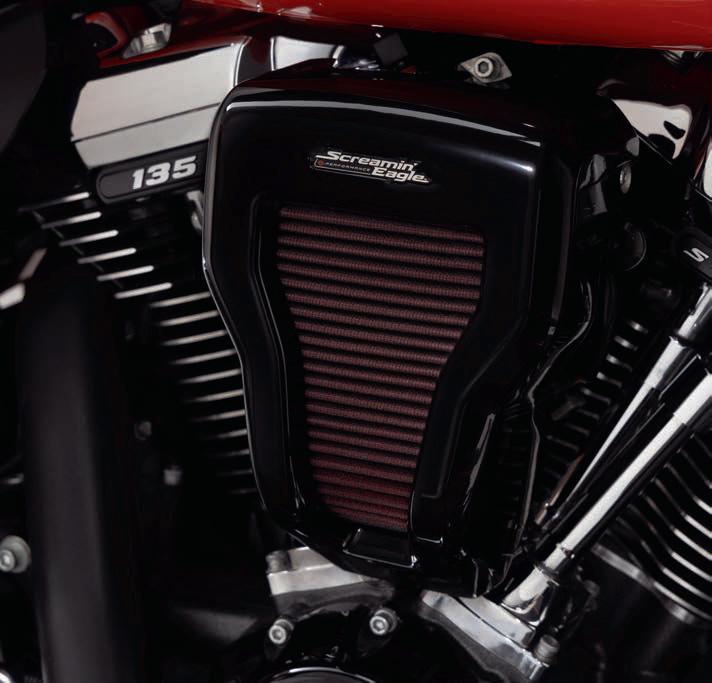

A. SCREAMIN' EAGLE® VORTEX EXTREME AIR CLEANER 2
Screamin' Eagle Vortex Extreme Flow Air Cleaner Kits allow free breathing and unobstructed airflow to your MilwaukeeEight® engine. Your engine gets more air, and you can feel more power throughout the rev range. Designed specifically for models with fairing lowers where legroom is essential.
• Shaped to maximize air flow and power gain while allowing for knee range of motion while using the rear brake and floorboard
• Showcases all four pushrods of the Milwaukee-Eight powertrain
• Standard rain sock keeps water, dust, and debris from contacting your air filter - extra insurance when riding in the elements

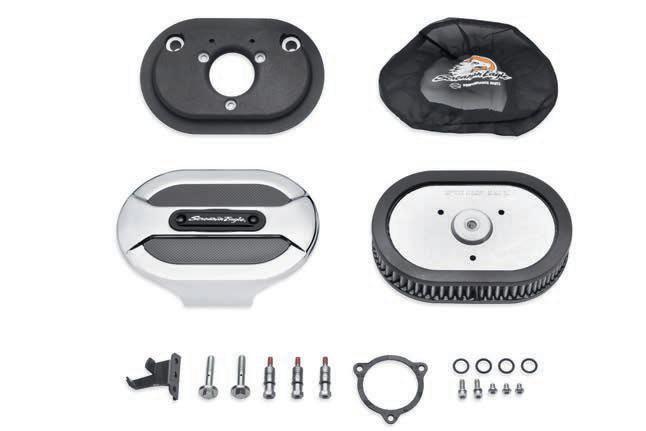

• Full kit includes backing plate, air filter element, cover, rain sock, and all necessary mounting hardware
• 49-State US Compliant
Fits '25-later Softail, '23-later Touring and '26-later Trike models with Center-Cooled Milwaukee-Eight engines. Does not fit California models. All models require ECM calibration with Screamin' Eagle Pro Street Tuner for proper installation.
A. SCREAMIN’ EAGLE® HEAVY BREATHER EXTREME AIR CLEANER 2
Designed for maximum performance, this race inspired Screamin’ Eagle Heavy Breather Extreme Air Cleaner flows 20% more air than the Original Equipment air box. At speeds over 60 mph, the air cleaner experiences a ram-air effect. The all-new filter design captures air from the Extreme face, on the front of the air cleaner. The air then travels through the race inspired elbow followed by a straight shot into the throttle body. Designed to feed a large-displacement engine enough clean air that can support output of over 150hp. This air cleaner provides a stout increase in torque throughout the mid-range, as compared to other air cleaner designs. Waterresistant K&N oiled-cotton filter is washable and rechargeable using K&N Air Filter Care Service Kit P/N 99850-92T). Standard rain sock keeps water, dust and debris from contacting your air filter. Extra insurance when riding in the elements. 49-State U.S. EPA compliant.
Fits '23-later Center Cooled Touring models, ’25-later Softail models (except FXLRST) and '26-later Trike models. Does not fit models with lower fairings. Does not fit California models. All models require ECM calibration with Screamin’ Eagle Pro Street Tuner for proper installation.
29400454 Black.
29400455 Chrome.
Also available: (not shown)

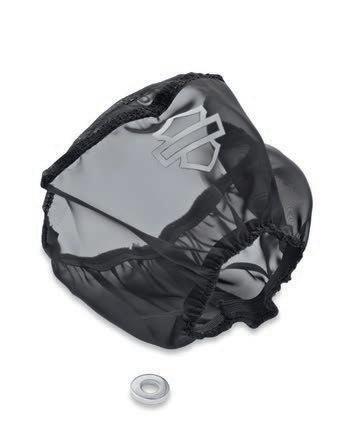

HEAVY BREATHER RAIN SOCK
$624.95
$624.95
Protect your exposed-element air cleaner during inclement weather with this Heavy Breather Rain Sock. The mesh cover stretches over the filter to repel moisture and the breathable cover does not significantly reduce air flow to the engine
29400524
$34.95
Fits ’24-later FLTRXSTSE and '26-later FLHXSTSE models equipped with the original-equipment air cleaner.
Notice:
Extreme Wedge
B. SCREAMIN’ EAGLE® AIR CLEANER – EXTREME WEDGE 2
Screamin’ Eagle Extreme Flow Air Cleaner Kits allow free breathing and unobstructed airflow to your Milwaukee-Eight® engine.Your engine gets more air, and you can feel more power throughout the rev range. Extreme open-face design and K&N washable oiled-cotton filter for maximum air flow in the iconic performance style of the Milwaukee-Eight® Wedge shape. Designed to flow 22% more air than a traditional air cleaner and eliminates the air cleaner cover. Designed to feed a large displacement engine enough clean air that can support output of over 150hp. Standard rain sock keeps water, dust, and debris from contacting your air filter. Extra insurance when riding in the elements Save money over the long run. Wash and re-oil this filter instead of buying replacement filters using K&N Air Filter Care Service Kit P/N 99850-92T). 49-State U.S. EPA compliant.
Fits '23-later Center Cooled Touring models, '25-later Softails, and '26-later Trike models. Does not fit California models. All models require ECM calibration with Screamin’ Eagle Pro Street Tuner for proper installation.
29400459 Black.
29400460 Chrome.
$549.95
$549.95
Fits '17-later Touring and Trike Models, and '18-'24 Softail® models. Does not fit Center Cooled models. Does not fit California models. All models require ECM calibration with Screamin’ Eagle Pro Street Tuner for proper installation.
29400466 Black.
$549.95
29400467 Chrome. $549.95
Notice: The prices appearing in this catalog are the manufacturer’s suggested retail prices.
Milwaukee-Eight® Stage I Upgrade

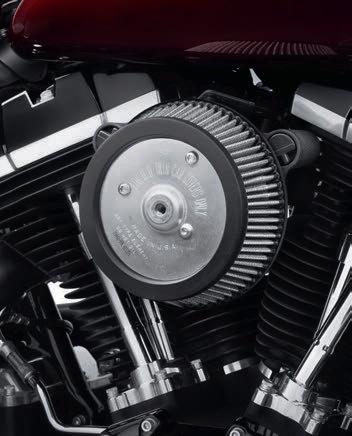

A. SCREAMIN’ EAGLE® HEAVY BREATHER
EXTREME AIR CLEANER
We’ve taken the iconic Screamin’ Eagle Heavy Breather Air Cleaner to the next level–an extreme performance level. Designed for maximum performance, this extra-large Screamin’ Eagle Heavy Breather Extreme Air Filter flows 42% more air than a traditional Heavy Breather filter. Air moves smoothly through the filter due to an interior bell-shape feature and then travels through a unique round to oval transitioned tube to improve leg clearance while providing unobstructed air to the throttle body. At speeds over 60 mph, the filter captures air from the front, forcing the air through a smaller area to create a RAM air effect, while the long intake tube enhances torque beyond other Ventilator and Round High-Flow Filters for enhanced acceleration. Designed to feed a large displacement engine enough clean air that can support output of over 150hp. The cast aluminum intake tube and back plate are dressed in rich, gloss black or mirror-like chrome. The back plate features a Screamin’ Eagle logo. Kit includes all required mounting hardware. Optional Rain Sock P/N 29400424 is available to protect the exposed element in inclement weather.
Fits '18-'24 Softail®, '17-'25 Touring (except models equipped with Fairing Lowers and Center Cooled models). Also fits ’17-later Freewheeler models. Does not fit models equipped with Fairing Lower Glove Boxes, Fairing Lower Speakers or Road Glide Fairing Spoilers. All models require ECM calibration with Screamin’ Eagle Pro Street Tuner or dealership installed Screamin’ Eagle calibration for proper installation. Pending approval for use in California on ’21 models. Refer to H-D.com/ shop for status. Does not fit Center Cooled models.
29400388 Chrome.
$509.95
Fits California 18-22 Softail, 17-22 Touring (except models equipped with Fairing Lowers) and 17-22 Freewheeler models. Does not fit models equipped with Fairing Lower Glove Boxes, Fairing Lower Speakers or Road Glide Fairing Spoilers. All models require ECM calibration with Screamin Eagle Pro Street Tuner for proper installation.
29400477 Chrome. $529.95
29400476 Gloss Black. $529.95
Street legal and/or street compliant statements refer to product meeting 50-State emissions and noise standards in the United States.
The street legal and/or street compliant statements may not apply to markets outside of the United States.
Notice: The prices appearing in this catalog are the manufacturer’s suggested retail prices. Actual retail prices may vary.
Milwaukee-Eight® Stage I Upgrade

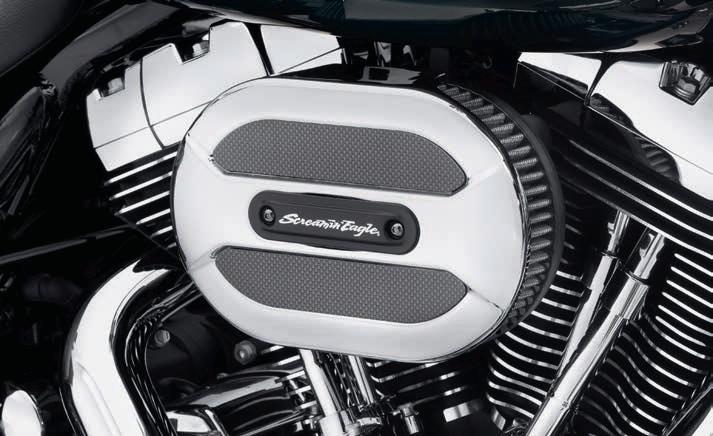

B. SCREAMIN’ EAGLE HEAVY BREATHER ELITE AIR CLEANER – MILWAUKEE-EIGHT® ENGINE 2
Take a deep breath. This Screamin’ Eagle® Heavy Breather Elite picks up where the past generation Milwaukee-Eight® Heavy Breather left off with a 15% air flow improvement. Redesigned to support even more performance with engine builds pushing over 135hp. The iconic Heavy Breather Air Cleaner features a forward-facing oiled cotton filter element that flows large volumes of clean air into the engine. The short, low profile cast tube rams the charge directly into the throttle body with little turbulence for increased power and torque, and the intake tube mounts to a custom back plate that features integral breathers and covers the throttle body electronics for a finished look. The slanted compact filter adds an aggressive performance look, and it is shaped to allow installation on Touring bikes equipped with fairing lowers. This Elite version includes an integrated cover manufactured from forged aluminum and precision machined to further enhance the stylized performance look while exposing a majority of the filter to maximize airflow. Available in your choice of chrome or gloss black finish, the kit includes filter, cover, intake tube, custom back plate, and all mounting hardware.
Fits ’18-’24 Softail models and ’17-’25 Touring (except ’23-later FLHXSE, FLTRXSE, ’24-later FLHX, FLTRX and ’25-later FLHXU) and Trike models. All models require ECM calibration with Screamin’ Eagle Pro Street Tuner for proper installation. Does not fit on models equipped with fairing lower glove boxes or fairing lower speakers. Pending approval for use in California on ’21-’22 models. Refer to H-D. com/shop for status.
29400406 Chrome. $599.95
29400407 Gloss Black.
$599.95
Fits California 18-22 Softail® models and 17-22 Touring and Trike models only. All models require ECM calibration with Screamin Eagle Pro Street Tuner for proper installation. Does not fit on models equipped with fairing lower glove boxes or fairing lower speakers.
Also available: SCREAMIN’ EAGLE HEAVY BREATHER ELITE AIR CLEANER - FILTER
K&N® replacement air filters are engineered to improve airflow for increased horsepower and quicker acceleration. K&N filters provide excellent filtration, and because they are washable and reusable, you can clean the filter whenever conditions demand. Designed as direct replacements for specified fitments.
29400405
$83.95
Fits ’18-’24 Softail and ’17-’25 Touring (except ’23-later FLHXSE, FLTRXSE, ’24-later FLHX, FLTRX and ’25-later FLHXU) and Trike models equipped with Heavy Breather Elite Air Cleaner P/N 29400406 or 29400407. Also fits models factory equipped with a Screamin’ Eagle Heavy Breather Elite Air Cleaner.
Also available:

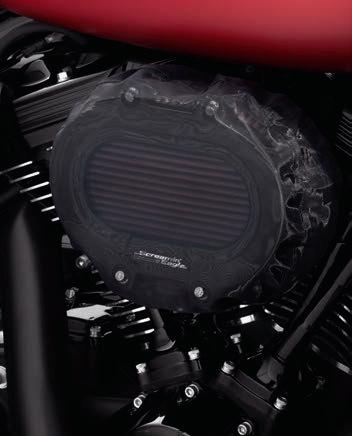

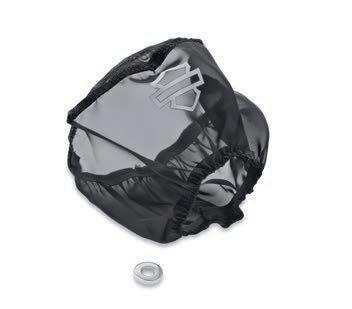

HEAVY BREATHER ELITE RAIN SOCK
Protect your exposed-element air cleaner during inclement weather with this Screamin’ Eagle Heavy Breather Rain Sock.
29400512A
$34.95
Fits Milwaukee-Eight models equipped with the Screamin’ Eagle Heavy Breather Elite Air Cleaner. Also fits ’22-’23 FLHXST and FLTRXST, and ’22-later FXLRS and FXLRST models that are factory equipped with the Heavy Breather Elite Air Cleaner.
Street legal and/or street compliant statements refer to products meeting EPA (49-State) and/or California (50-State) emissions and noise standards in the United States as specified.
The street legal and/or street compliant statements may not apply to markets outside of the United States.
Notice: The prices appearing in this catalog are the manufacturer’s suggested retail prices. Actual retail prices may vary.
Milwaukee-Eight® Stage I Upgrade

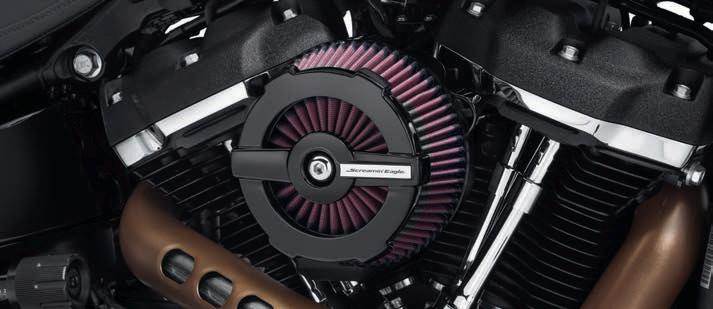

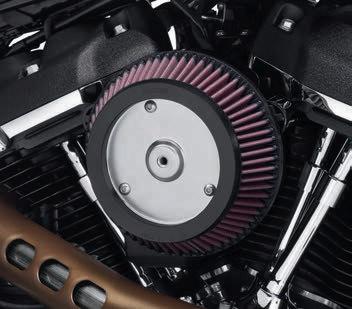

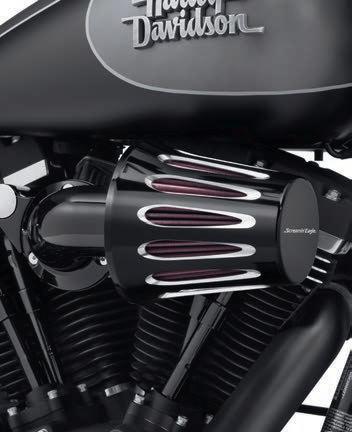

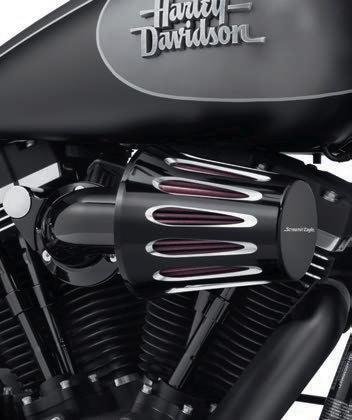

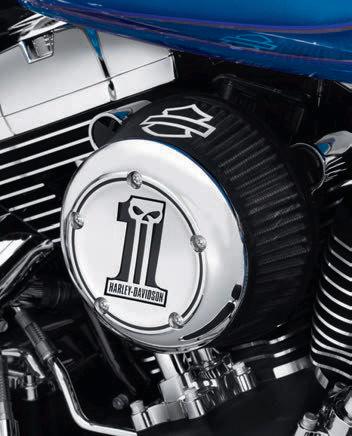

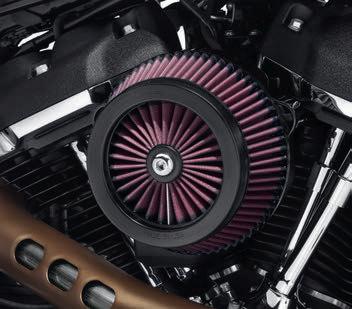

A. SCREAMIN’ EAGLE® VENTILATOR EXTREME AIR CLEANER
Let it breathe! The open-face filter design of the Screamin’ Eagle Ventilator Extreme Air Cleaner Kit flows 39% more air than a traditional perimeter high-flow filter. When combined with an additional 1/2" of air filter thickness and the smooth radius die-cast back plate, this open filter can feed a large displacement engine with an unobstructed flow of clean air that can support output of over 150hp. Kit includes a die-cast back plate, and open-face, water-resistant, washable oiledcotton filter element and all required installation gaskets and hardware. Optional Rain Sock P/N 29400412 is available to protect the exposed element in extreme weather. Choice of either Gloss Black (P/N 61300994) or Chrome (P/N 61300993) Cover Kit required to complete installation.
Fits ’18-’24 Softail® and ’17-’25 Touring (except ’23-later FLHXSE, FLTRXSE, ’24-later FLHX, FLTRX and ’25-later FLHXU) and Trike models. Requires Ventilator Extreme Air Cleaner Cover Kit P/N 61300993 or 61300994 to complete installation. All models require ECM calibration with Screamin Eagle Pro Street Tuner for proper installation. pending approval for use in California on ’21-’22 models. Refer to H-D. com/shop for status.
29400396 Chrome. $249.95
29400397 Gloss Black.
Fits California 18-22 Softail models and 17-22 Touring and Trike models only. All models require ECM calibration with Screamin Eagle Pro Street Tuner for proper installation.

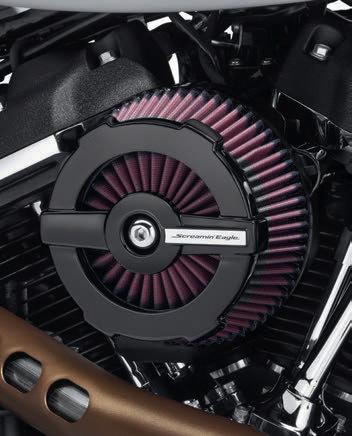

B. SCREAMIN’ EAGLE VENTILATOR EXTREME AIR CLEANER COVER
The Ventilator Extreme Air Cleaner Cover trims the face of the Screamin’ Eagle Ventilator Extreme filter in style and features aggressive mounting lugs, polished stainless-steel custom ARP fasteners and an inset Screamin’ Eagle medallion. The cast aluminum, rich gloss black cover wraps the leading edge of the filter element, covering the rubber gasket without restricting airflow. This Air Cleaner Cover is required to complete installation of the Ventilator Extreme Air Cleaner Kit P/N 29400396 & 29400397.
Fits Screamin’ Eagle Ventilator Extreme Air Cleaner Kits P/N 29400396 and 29400397. Includes necessary ARP hardware. Also fits standard Ventilator Air Cleaner Kits P/N 29400298 and 29400299 with separate purchase of Extreme Ventilator Air Filter P/N 29400400.
61300993 Chrome. $199.95
61300994 Gloss Black. $199.95
Street legal and/or street compliant statements refer to product meeting 50-State emissions and noise standards in the United States.
The street legal and/or street compliant statements may not apply to markets outside of the United States. B.
Notice: The prices appearing in this catalog are the manufacturer’s suggested retail prices. Actual retail prices may vary.
Milwaukee-Eight® Stage I Upgrade
C. SCREAMIN’ EAGLE AIR CLEANER RAIN SOCK
Protect your exposed-element air cleaner during inclement weather. This mesh cover stretches over the filter to repel moisture that could damage the filter and be drawn into the engine. The breathable cover does not significantly reduce air flow to the engine.
29400412
$29.95
Fits Screamin’ Eagle Ventilator Extreme Air Cleaner Kits.
D. SCREAMIN’ EAGLE VENTILATOR EXTREME K&N® AIR FILTER ELEMENT
K&N® replacement air filters are engineered to improve airflow for increased horsepower and quicker acceleration. The Screamin’ Eagle Extreme Ventilator K&N Air Filter Element is a replacement filter designed specifically for Screamin’ Eagle Extreme Ventilator Air Cleaners. This replacement filter provides excellent filtration and because they are washable and reusable, you can clean the filter whenever conditions demand.
29400400
$129.95
Fits Screamin’ Eagle Ventilator and Ventilator Extreme Air Cleaner Kits. Requires Ventilator Extreme Air Cleaner Cover Kit P/N 61300993 or 61300994 to complete installation. Does not fit ’23-later FLHXSE, FLTRXSE, ’24-later FLHX and FLTRX models.

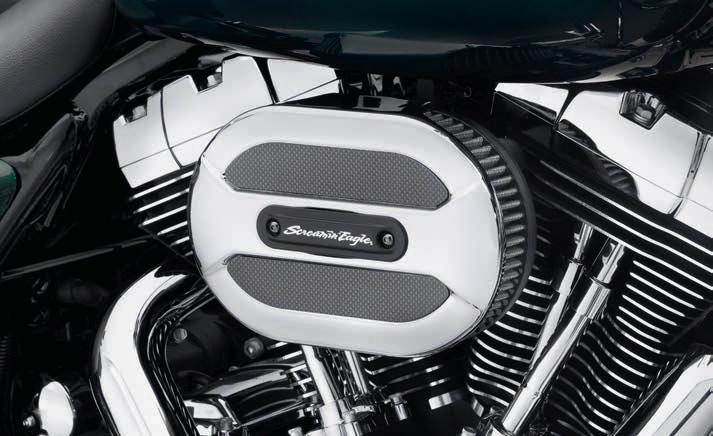

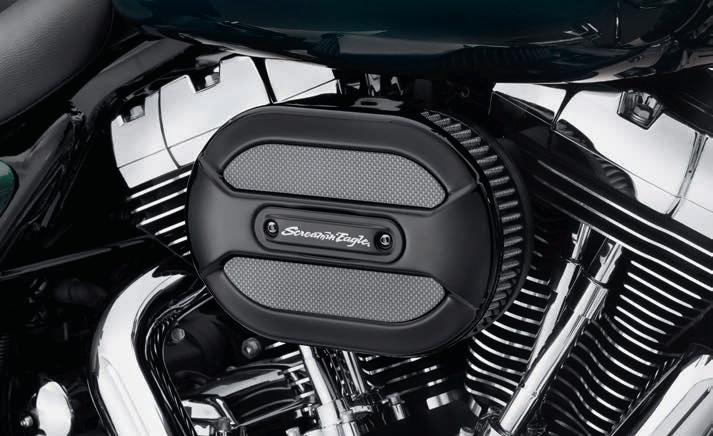

E. SCREAMIN’ EAGLE® VENTILATOR AIR CLEANER KIT – MILWAUKEE-EIGHT® ENGINE
2
This low-profile oval air cleaner features an exposed filter element and a cast back plate designed to provide maximum airflow to the throttle body. This easy-to-install air cleaner produces significant performance gains, while the stylish cover is tapered for added leg clearance. This complete kit includes low-profile air cleaner cover, high-flow filter element, cast aluminum back plate, diamond-cut Screamin’ Eagle® medallion and all required installation hardware. Protective Rain Sock is included. 50-State U.S. EPA compliant.
Fits ’18-’24 Softail® and ’17-’25 Touring (except ’23-later FLHXSE, FLTRXSE, ’24-later FLHX, FLTRX and ’25-later FLHXU) and Trike models. All models require ECM calibration with Screamin’ Eagle Pro Street Tuner for proper installation. ECE compliant on ’17-later CVO™ Touring models. Pending approval for use in California on ’21-’22 models. Refer to H-D. com/shop for status.
29400299 Chrome. $349.95
29400298 Gloss Black. $349.95
Street legal and/or street compliant statements refer to product meeting 50-State emissions and noise standards in the United States.
The street legal and/or street compliant statements may not apply to markets outside of the United States.
Notice: The prices appearing in this catalog are the manufacturer’s suggested retail prices. Actual retail prices may vary.
Extreme-Flow Round Air Cleaner Trim
Screamin’ Eagle Extreme Flow Air Cleaner Kits allow free breathing and unobstructed airflow to your Milwaukee-Eight® engine.Your engine gets more air, and you can feel more power throughout the rev range. With extreme open-face design and K&N® washable oiled-cotton filter for maximum air flow in the iconic performance style of a classic center-bolt filter shape. Designed to flow 20% more air than the Original Equipment air cleaner and eliminates the air cleaner cover. It is designed to feed a large displacement engine enough clean air that can support output of over 150hp. The standard rain sock keeps water, dust, and debris from contacting your air filter, for extra insurance when riding in the elements. Save money over the long run-wash and re-oil this filter instead of buying replacement filters. The air cleaner includes the gloss-black finished die-cast back plate, an open-face washable oiled-cotton filter element, and all required installation gaskets and hardware. All models require ECM calibration with Screamin’ Eagle Pro Street Tuner for proper installation. The air cleaner is 49-state U.S. EPA compliant. Screamin’ Eagle products are not available for sale and are not street legal in all countries. Please contact your local dealer for more information.
29400488
$274.95
Fits '23-later Center Cooled Touring models, '25-later Softail models, and '26-later Trike models. Does not fit California models. All models require ECM calibration with Screamin’ Eagle Pro Street Tuner for proper installation.
B. SCREAMIN’ EAGLE EXTREME CENTER-BOLT INTAKE COVER 2
Add some performance style to your Screamin’ Eagle Extreme Circle Air Cleaner with this five-spoke cast aluminum cover. The die cast air cleaner cover with stepped machining inside five-spoke design is in a Brilliant Chrome finish.
Fits models powered by Milwaukee-Eight® engine equipped with Screamin’ Eagle Center-Bolt Round Extreme-Flow Air Cleaners.
61301362 Black. $174.95
61301363 Chrome. $174.95
High-Flow Round Air Cleaner Trim
C. SCREAMIN’ EAGLE HIGH-FLOW AIR FILTER & AIR CLEANER TRIM
2
Never throw away another air filter. This washable and reusable performance air filter is specifically designed for increased air flow. Remove the miles of collected dust, dirt, and debris from the filter to reuse it trip after trip. It is factory engineered to be a perfect replacement and upgrade over the Original Equipment air filter. This air filter provides 36% more air flow to the engine than the Original Equipment filter to allow the engine to breathe in nearly all types of riding conditions. It provides a 22% pleated surface area increase as compared to the Original Equipment filter. It is washable and reusable --simply clean, dry and re-oil and realize savings on the cost of replacement filters. The kit includes a Screamin’ Eagle air cleaner face plate. Screamin’ Eagle® products are not available for sale and are not street legal in all countries. Please contact your local dealer for more information.
29400494
$149.95
Fits '24-later FLHX and FLTRX, ’25-later FLFB and FXBR and '26-later FLHXL, FLTRXL, FLHLT and FLTRT models. Does not fit California models. ECE compliant.
D. SCREAMIN’ EAGLE EXTREME-FLOW AIR FILTER & AIR CLEANER TRIM 2
Never throw away another air filter. This washable and reusable performance air filter is specifically designed for increased air flow. Remove the miles of collected dust, dirt, and debris from the filter to reuse it trip after trip. It is factory engineered to be a perfect replacement and upgrade over the Original Equipment air filter. This air filter provides 25% more air flow to the engine than the Original Equipment filter to allow the engine to breathe in nearly all types of riding conditions. The extreme filter face provides an 8% pleated surface area increase as compared to the Original Equipment filter. It is washable and reusable --simply clean, dry and re-oil and realize savings on the cost of replacement filters. The kit includes a Screamin’ Eagle air cleaner face plate. Screamin’ Eagle products are not available for sale and are not street legal in all countries. Please contact your local dealer for more information.
29400495
$159.95
Fits '23-later FLHXSE and FLTRXSE models, '26-later FLHLTSE and FLHXLSE. Does not fit California models.
E. SCREAMIN’ EAGLE HIGH-FLOW AIR FILTER & AIR CLEANER TRIM
2
Never throw away another air filter. This washable and reusable performance air filter is specifically designed for increased air flow. Remove the miles of collected dust, dirt, and debris from the filter to reuse it trip after trip. It is factory engineered to be a perfect replacement and upgrade over the Original Equipment air filter. The air filter provides 25% more air flow to the engine than the Original Equipment filter to allow the engine to breathe in nearly all types of riding conditions. It provides a 6% pleated surface area increase as compared to the Original Equipment filter. It is washable and reusable-simply clean, dry and re-oil and realize savings on the cost of replacement filters. The kit includes a Screamin’ Eagle air cleaner face plate. Screamin’ Eagle products are not available for sale and are not street legal in all countries. Please contact your local dealer for more information.
29400499
$159.95
Fits '24-later FLTRXSTSE and FLHXSTSE models. Does not fit California models. ECE compliant.
Notice: The prices appearing in this catalog are the manufacturer’s suggested retail prices. Actual retail prices may vary.
Milwaukee-Eight® Stage I Upgrade

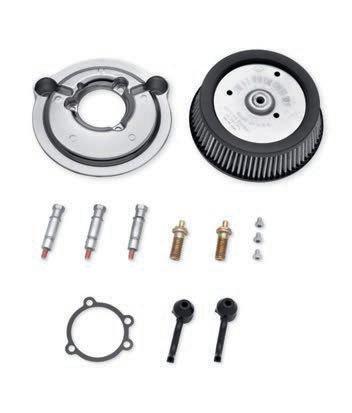

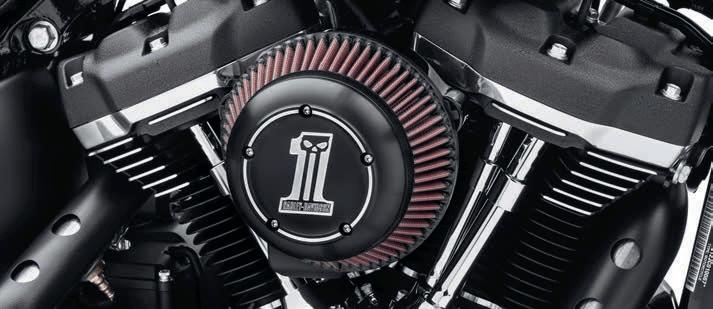

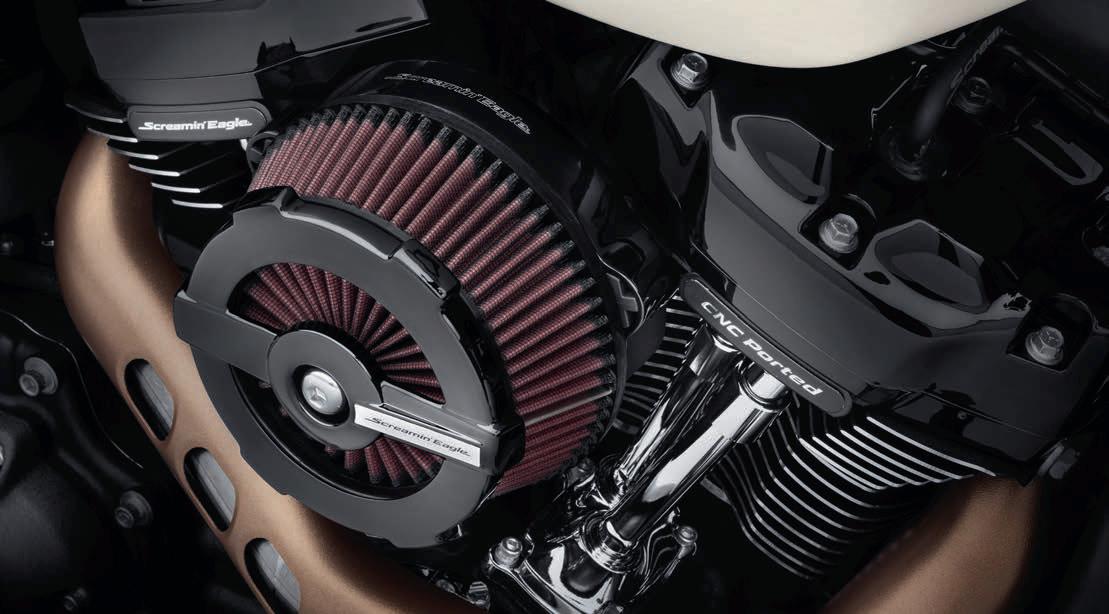

A. SCREAMIN’ EAGLE® ROUND EXTREME-FLOW AIR CLEANER – CENTER BOLT 2
Kit includes the gloss-black finished die-cast back plate with laser-engraved logo, an open-face washable oiled-cotton filter element, and all required installation gaskets and hardware.
50-State U.S. EPA compliant (except FLSB).
29400357 Extreme Open-Face Filter.
$249.95
Fits ’18-’24 Softail® and ’17-’25 Touring (except ’23-later FLHXSE and FLTRXSE, ’24-later FLHX, FLTRX, and FLTRXSTSE, and ’25-later FLHXU) and Trike models. ’17-’25 Touring and Trike models require separate purchase of accessory round air cleaner cover or trim. Not compatible with air cleaner cover on CVO Touring models. All models require ECM calibration with Screamin’ Eagle Pro Street Tuner or dealership installed Screamin’ Eagle calibration for proper installation. Pending approval for use in California on ’21 models. Refer to H-D.com/shop for status. Does not fit Center Cooled models.
29400475
$229.95
Fits California ’18-22 Softail and ’17-22 Touring and Trike models. ’17-22 Touring and Trike models require separate purchase of accessory round air cleaner cover or trim. Not compatible with air cleaner cover on CVO Touring models. All models require ECM calibration with Screamin Eagle Pro Street Tuner for proper installation.
B. SCREAMIN’ EAGLE ROUND HIGH-FLOW AIR CLEANER – CENTER BOLT
2
This kit includes air cleaner element, gloss black back plate with laser-engraved Screaming Eagle logo, breather and all required hardware. Optional Rain Sock P/N 29400363 is available to protect the exposed element in inclement weather.
50-State U.S. EPA compliant.
29400355 $199.95
Fits ’18-’24 Softail and ’17-’25 Touring (except ’23-later FLHXSE and FLTRXSE, ’24-later FLHX, FLTRX, and FLTRXSTSE, and ’25-later FLHXU) and Trike models. ’17-’25 Touring and Trike models require separate purchase of accessory round air cleaner cover or trim. Not compatible with air cleaner cover on CVO Touring models. All models require ECM calibration with Screamin’ Eagle Pro Street Tuner or dealership installed Screamin’ Eagle calibration for proper installation. Pending approval for use in California on ’21 models. Refer to H-D.com/shop for status. Does not fit Center Cooled models.
29400473
$214.95
Fits California ’18-22 Softail and ’17-22 Touring and Trike models. ’17-22 Touring and Trike models require separate purchase of accessory round air cleaner cover or trim. Not compatible with air cleaner cover on CVO™ Touring models. All models require ECM calibration with Screamin’ Eagle® Pro Street Tuner for proper installation.
C. SCREAMIN’ EAGLE ROUND HIGH-FLOW AIR CLEANER – PERIMETER BOLT
The kit includes the gloss-black finished die-cast back plate, a perimeter-flow washable oiled-cotton filter element, all required installation gaskets and hardware and a laserengraved Screamin’ Eagle logo to finish the look. 50 State U.S. EPA compliant.
29400356
$199.95
Fits ’18-’24 Softail and ’17-’25 Touring (except ’23-later FLHXSE and FLTRXSE, ’24-later FLHX, FLTRX, and FLTRXSTSE, and ’25-later FLHXU) and Trike models. ’17-’25 Touring and Trike models require separate purchase of accessory round air cleaner cover or trim. Not compatible with air cleaner cover on CVO Touring models. All models require ECM calibration with Screamin’ Eagle Pro Street Tuner or dealership installed Screamin’ Eagle calibration for proper installation. Pending approval for use in California on ’21 models. Refer to H-D.com/shop for status. Does not fit Center Cooled models.
29400474 $214.95
Fits California ’18-22 Softail and ’17-22 Touring and Trike models. ’17-22 Touring and Trike models require separate purchase of accessory round air cleaner cover or trim. Not compatible with air cleaner cover on CVO™ Touring models. All models require ECM calibration with Screamin’ Eagle® Pro Street Tuner for proper installation.
Street legal and/or street compliant statements refer to product meeting 50-State emissions and noise standards in the United States.
The street legal and/or street compliant statements may not apply to markets outside of the United States.
High-Flow Round Air Cleaner Covers
D. SCREAMIN’ EAGLE ROUND AIR CLEANER COVER –RATCHET
The Ratchet Air Cleaner Cover trims the face of the Screamin’ Eagle Round Air Cleaner filter in style. Ideal for use with Extreme open face filters, the forged aluminum cover wraps the leading edge of the filter element, covering the rubber gasket without restricting the airflow. The Ratchet Cover is finished in rich black, and features a center bar with Screamin’ Eagle script and a lugged outer ring. The kit includes a black filler plate to cover the unfinished face of standard High Flow filter for a clean blacked-out appearance.
61300845
$175.95
Fits ’18-later Softail® and ’17-’25 Touring and Trike models equipped with Screamin’ Eagle round High Flow Air Cleaner.

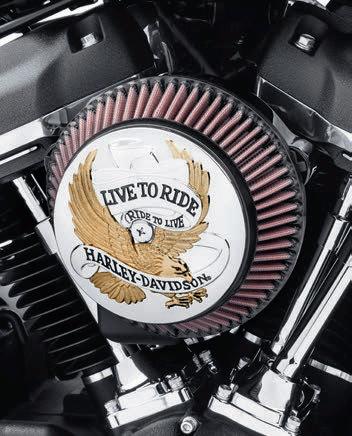

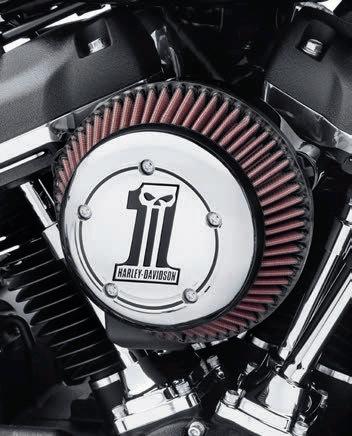

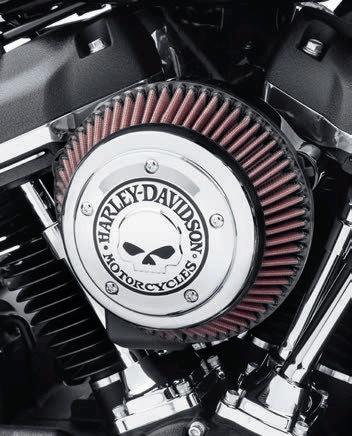

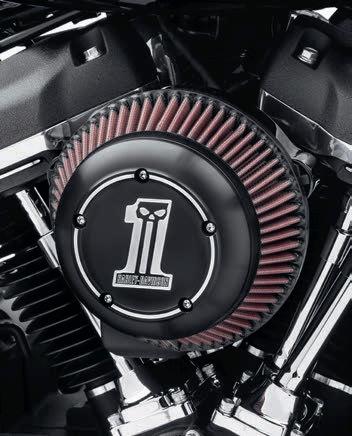

E. AIR CLEANER TRIM KITS
The perfect blend of performance and style. Available in a wide variety of styles, this bolt-on Air Cleaner Trim is sized to cover the face of most Screamin’ Eagle Round High-Flow Air Cleaners. You can continue the look of your custom collection while maximizing air flow to the engine. Model-specific rain socks are available to protect the open element during inclement weather.
Fits Evolution® 1340 models, ’99-’08 Dyna®, ’00-’15 Softail (except FLS, FLSS, FLSTSB, and FXS) and ’99-’13 Touring and Trike models equipped with oval-shaped Original Equipment air cleaner cover. Also fits models equipped with Screamin’ Eagle Round High-Flow Air Cleaner Kits with separate purchase of Rain Sock Kit P/N 28728-10 or Air Cleaner Trim Installation Kit P/N 12400158.
Also available: (not
SCREAMIN’ EAGLE AIR CLEANER RAIN SOCK
Protect your exposed-element air cleaner during inclement weather. This mesh cover stretches over the filter to repel moisture that could damage the filter and be drawn into the engine. The breathable cover does not significantly reduce air flow to the engine.
29400363 For Round High-Flow Filter. $39.95 Fits ’18-later Softail and ’17-’25 Touring and Trike models equipped with Screamin’ Eagle High-Flow Air Cleaners with round perimeter flow air cleaner element.
29493-05A For Heavy Breather Filter. $34.95 Fits models equipped with Screamin’ Eagle Heavy Breather Air Cleaner Kits (except Compact Heavy Breather P/N 2871610, Heavy Breather Elite P/N 29400173, 29400172 or 29400285, and Milwaukee-Eight® Heavy Breather P/N 29400263 or 29400264). Street
The
and/or
statements
Notice: The prices appearing in this catalog are the manufacturer’s suggested retail prices. Actual retail prices may vary.
Round Air Cleaner Covers

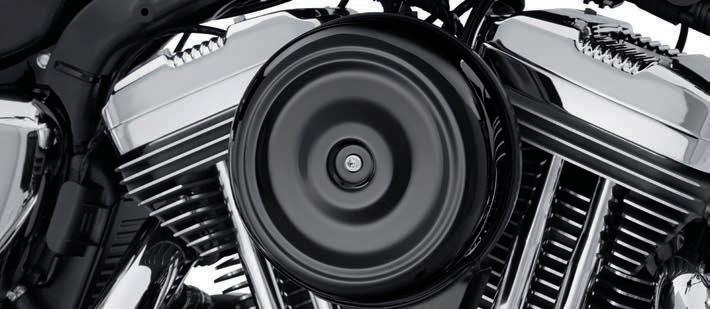

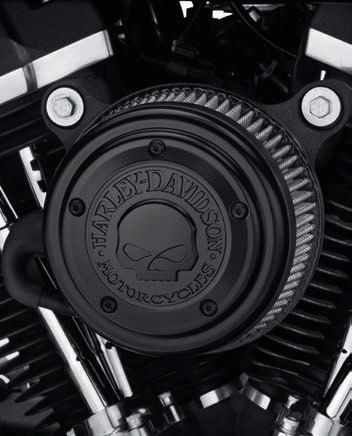

A. AIR CLEANER COVER – GLOSS BLACK
Complete the blacked-out look. Original Equipment on the FLSS model, this Gloss Black Air Cleaner Cover adds a sinister touch without changing the signature profile of your late model Twin Cam motor.
61300536
Fits ’16-’17
$79.95
Softail® (except FLSTFBS) and ’14-’16 Touring and Trike models (except CVO™) with Original Equipment Air Cleaner or models equipped with Screamin’ Eagle Round High-Flow Air Cleaner P/N 29400233 or 29400234.

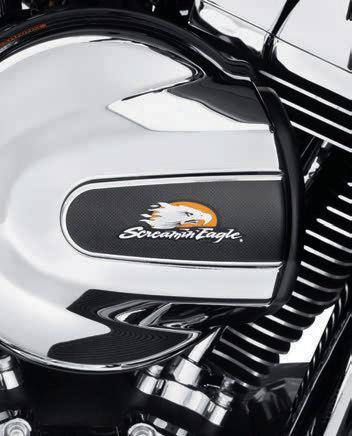

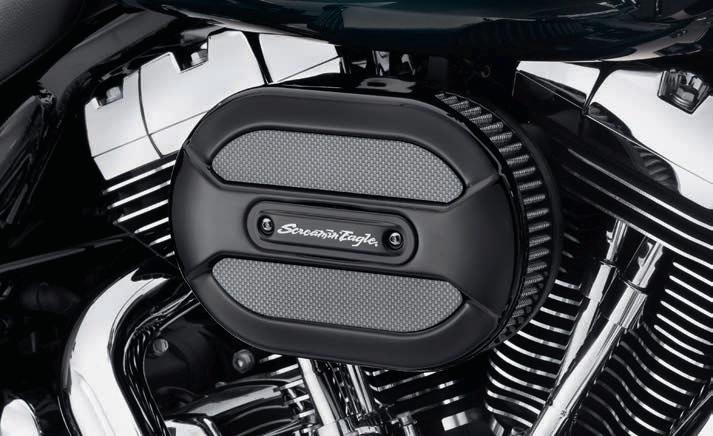

B. SCREAMIN’ EAGLE VENTILATOR ELITE AIR CLEANER COVER
Add a luxurious finishing touch to your Ventilator Air Cleaner. Designed as a direct replacement for the Screamin’ Eagle and CVO™ Ventilator Air Cleaners, this easy-to-install cover features a sleek center bar design surrounded with carbon fiber inserts. Kit includes low-profile cover, diamond-cut Screamin’ Eagle medallion and chrome mounting hardware.
Fits ’10-’17 Dyna®, ’09-’16 Softail, ’09-’16 Touring and Trike models equipped with Ventilator Air Cleaner Kits. Also fits Dyna HO103 and CVO models with Original Equipment Ventilator Air Cleaner.
61300516 Chrome. $124.95
61300517 Gloss Black. $124.95
Street legal and/or street compliant statements refer to product meeting 50-State emissions and noise standards in the United States.
The street legal and/or street compliant statements may not apply to markets outside of the United States.
Notice: The prices appearing in this catalog are the manufacturer’s suggested retail prices. Actual retail prices may vary.
Milwaukee-Eight® Stage I Upgrade

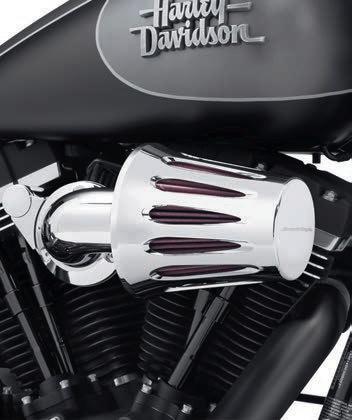

C. SCREAMIN’ EAGLE® WEDGE HIGH-FLOW AIR CLEANER 2
Screamin’ Eagle High-Flow Air Cleaner Kits allow free breathing and unobstructed airflow to your Milwaukee-Eight engine–while maintaining a subtle Original Equipment look. These kits feature a die-cast back plate sized to provide an open-element function that permits airflow around the entire perimeter of the air cleaner and through the ram air opening at the front. Your engine gets more air, and you feel more power throughout the rev range. Kit includes the die-cast back plate, a high-flow oiled-cotton filter element, all required installation gaskets and hardware and a diamond-cut Screamin’ Eagle medallion to finish the look. Kits are available with your choice of chrome or textured black back plate to match your customizing style. 50-State U.S. EPA compliant.
Fits ’17-’25 Touring (except ’24-later FLHX, FLTRX and ’25-later FLHXSE, FLHXU, FLTRXSE and FLTRXSTSE) and Trike models equipped with wedge style air cleaner. Not compatible with air cleaner cover on CVO™Touring models.All models require ECM calibration with Screamin’ Eagle Pro Street Tuner for proper installation. ECE compliant on 17-later CVO Touring models. Pending approval for use in California on ’21-’22 models. Refer to H-D.com/shop for status.
29400246A Chrome.
$199.95
29400245A Black. $199.95
Fits California ’17-22 Touring and Trike models. Not compatible with air cleaner cover on CVO™ Touring models. All models require ECM calibration with Screamin’ Eagle® Pro Street Tuner for proper installation.
2 2
29400472 Chrome. $214.95
29400471 Gloss Black. $214.95
Street legal and/or street compliant statements refer to product meeting 50-State emissions and noise standards in the United States.
The street legal and/or street compliant statements may not apply to markets outside of the United States.
Notice: The prices appearing in this catalog are the manufacturer’s suggested retail prices. Actual retail prices may vary.
Milwaukee-Eight® Stage I Upgrade

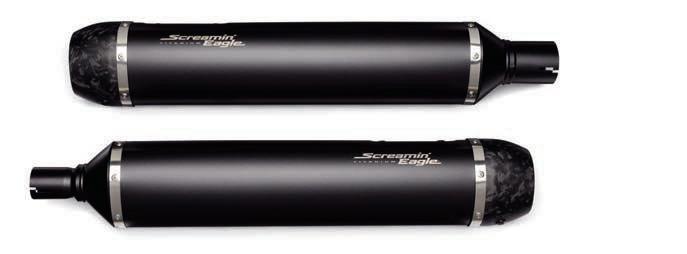

A. SCREAMIN’ EAGLE® EXTREME FLOW TITANIUM SLIP-ON MUFFLER
5
Realize a significant weight reduction and a deeper, more robust exhaust tone with this Screamin’ Eagle Extreme Flow Titanium muffler, designed specifically to fit on ’25-later Softail models. The Titanium muffler body construction with Forged Carbon Fiber end cap reduces overall weight by 20% compared to the Original Equipment exhaust. Matte black finish with laser etched Screamin’ Eagle logo. 49-state U.S. EPA compliant. Screamin’ Eagle products are not available for sale and are not street legal in all countries - Please contact your local dealer for more information.
Fits ’25-Later FXBB, FXLRS, FXLRST and FLHC models. All models require ECM calibration with Screamin’ Eagle Pro Street Tuner for proper installation.
64901405

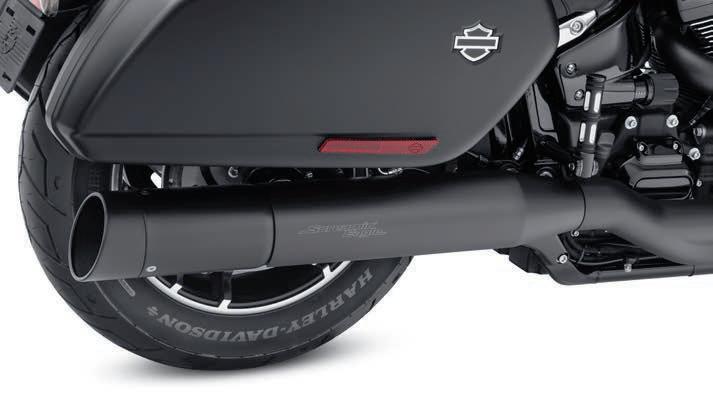

B. SCREAMIN’ EAGLE STREET CANNON MUFFLERS – SPORT GLIDE® MODELS
$749.95
2
Tuned to provide a deep bass exhaust note and great rumble throughout the RPM range, this 4.5" Street Cannon muffler delivers the famous Harley sound while preserving the peace with your neighbors. You get a nice bark when you get on the throttle, and a deep mellow tone when cruising at constant speed. The tuned baffle works with the internal high-flow catalyst to strike the perfect balance required to deliver performance that you can feel in your gut. The large 4.5" diameter Street Cannon provides free flow of exhaust gases with just the right amount of back pressure for a smooth-running ride and can be fitted with a wide variety of styled muffler end caps to provide the perfect finishing touch. Requires choice of chrome or satin black muffler shield with laser etched logo.
Designed for International markets that require ECE certified mufflers. Fits ’21-’24 FLSB models. Installation requires separate purchase of Muffler Shield, Muffler End Cap, Muffler Clamp P/N 65900007 (Qty 1) and Muffler Gasket P/N 65900040 (Qty 1).
64901191 Black, $799.95
Shown with:
MUFFLER SHIELD
Styled to hug the lines of the uniquely shaped stepped muffler design of the Screamin’ Eagle Street Cannon for Sport Glide® models. Offered in both chrome and satin black and feature a subtle engraved Screamin’ Eagle script for a clean look.
Fits ’18-’24 FLSB models equipped with Screamin’ Eagle Street Cannon Mufflers P/Ns 64900752, 64900754, 64900756, 64900758.
65400466 Chrome. $74.95
65400468 Black. $89.95
C. MUFFLER END CAPS – 4.5" Fits ’18-’24 FLSB and ’17-later Touring models equipped with 4.5" Screamin’ Eagle Street Cannon Mufflers. Does not fit CVO™ Touring mufflers. Sold Individually.
1.65100165 Slash Cut – Chrome. $69.95
2.65100166 Slash Cut – Black. $69.95 3.65100216 Empire – Chrome. $124.95 4.65100217 Empire – Black. $124.95
5.65100218 Empire – Machine Cut. $124.95
6.65100161 Two-Piece – Black. $99.95
NOTE: There is no warranty on exhaust pipes and mufflers with regard to any discoloration. Blueing is caused by tuning characteristics, cam timing, carburetor jetting, over-heating, etc. and is not caused by defective manufacturing.
Street legal and/or street compliant statements refer to product meeting 50-State emissions and noise standards in the United States.
The street legal and/or street compliant statements may not apply to markets outside of the United States.
Notice: The prices appearing in this catalog are the manufacturer’s suggested retail prices. Actual retail prices may vary.
Milwaukee-Eight® Stage I Upgrade
D. SATIN BLACK MUFFLER SHIELDS
Complete the blacked-out look. These rich satin-black shields wrap the chrome Street Cannon mufflers and complete the conversion to a sinister look. Styled to hug the lines of the mufflers, the blunt-cut shields are sized to expose the muffler end cap for a custom touch. Easy-to-install kit includes front and rear shields and black mounting clamps.
65400457 Short Shields.
$139.95
Fits ’18-’24 FLDE, FLHC and FLHCS models equipped with Screamin’ Eagle® Street Cannon Mufflers P/N 64900636 or 64900638.
65400461 Long Shields.
$149.95
Fits 18-’24 FLFB, FLFBS, FLSL, FXBB, FXBBS, FXBR, FXBRS, FXLR, FXLRS, FXLRST and FXST models equipped with Screamin’ Eagle® Street Cannon Mufflers P/N 64900690 or 64900691.

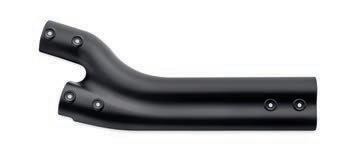

E. SATIN BLACK EXHAUST SHIELD KIT
Extend the custom look along the bike’s entire profile. These formed steel exhaust shields are available in a unique satin black ceramic finish that complements black Screamin’ Eagle Street Cannon Muffler Shields. This exhaust shield kit has survived stringent Harley-Davidson testing for durability and corrosion resistance. Manufactured to Original Equipment standards for exact fit, the easy-to-install kit includes front and rear head pipe shields.
65400460
Fits ’18-’24 FLFB, FLFBS, FXBR and FXBRS models.
$219.95
65400472 $184.95
Fits ’18-’24 FLSB, FXFB, FXFBS and ’19-’20 FXDRS models.
65400481 Collector Shield. $109.95 Fits ’18-’24 FXFB and FXFBS models.
NOTE: There is no warranty on exhaust pipes and mufflers with regard to any discoloration. Blueing is caused by tuning characteristics, cam timing, carburetor jetting, over-heating, etc. and is not caused by defective manufacturing.
Street legal and/or street compliant statements refer to product meeting 50-State emissions and noise standards in the United States.
The street legal and/or street compliant statements may not apply to markets outside of the United States.
Notice: The prices appearing in this catalog are the manufacturer’s suggested retail prices. Actual retail prices may vary.
Milwaukee-Eight® Stage I Upgrade

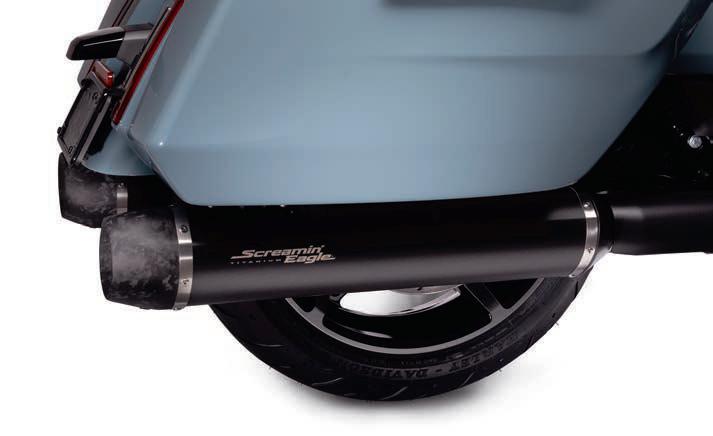

A. SCREAMIN’ EAGLE® EXTREME FLOW TITANIUM SLIP-ON MUFFLERS 2
Realize a significant weight reduction and a deep, sporty exhaust tone with these Screamin’ Eagle Extreme Street Cannon mufflers, designed specifically to fit on ’17-later Touring models. These mufflers weigh 10% less than the Original Equipment (CVO) 4.5” mufflers. The oval shape maintains the Original Equipment lean angle. The titanium mufflers and Forged Carbon Fiber end caps are both lightweight and durable. They have a matte black finish with laser etched Screamin’ Eagle logo and complement other lightweight Forged Carbon Fiber accessories. The mufflers are 49-state U.S. EPA compliant. Screamin’ Eagle products are not available for sale and are not street legal in all countries. Please contact your local dealer for more information.
64901365
$1,274.95
Fits ’17-later Touring models. Does not fit Trike or California models. All models require ECM calibration with Screamin’ Eagle Pro Street Tuner for proper installation.

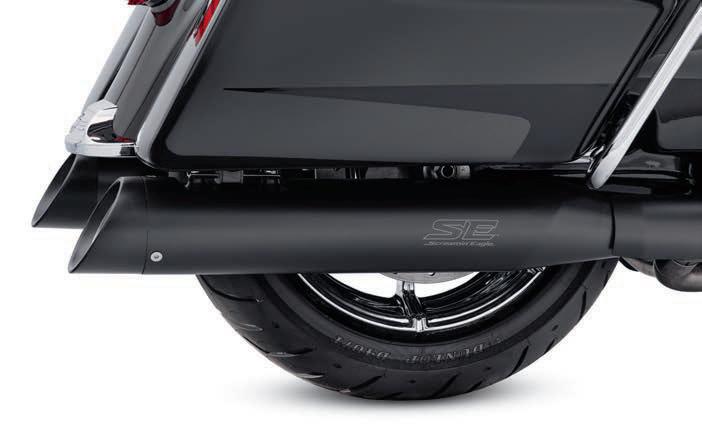

B. SCREAMIN’
Dialed in to enhance the performance of the MilwaukeeEight® engine, these slip-on mufflers feature a large inlet for improved airflow. When teamed with a free-flowing air cleaner, these Street Cannon mufflers deliver horsepower and torque gains you can feel. The large 4.5" diameter mufflers are tuned to provide a rich exhaust note, a deep bass rumble and great throaty sound when you roll on the throttle. But to strike a balance with your neighbors, the large internal volume and strategically designed baffles help maintain the peace at partial throttle. The large-diameter body adds a muscular look to your ride, and the newly designed mounts keep the mufflers tucked in close to the bags for a clean profile and can be fitted with a wide variety of styled muffler end caps to provide the perfect finishing touch.
Fits ’17-’25 Touring models (except ’23-later FLHXSE, FLTRXSE models, ’24-later FLHX, FLTRX and ’25 FLHXU models). Does not fit Trike models. Installation requires separate purchase of Muffler Clamps P/N 65900012 and 65900015. Requires separate purchase of end caps. All models require ECM calibration with Screamin’ Eagle® Pro Street Tuner for proper installation. Pending approval for use in California on ’21-’22 models. Refer to H-D.com/shop for status.
64900552A Chrome. $674.95
64900553B Satin Black. $674.95
Fits ’17-’20 114CI and 117CI Touring models. Does not fit Trike models. Designed for International markets that require ECE certified mufflers. Includes matching Two-piece Muffler end caps. Installation requires separate purchase of Muffler Clamps P/N 65900012 and 65900015.
64900555A Chrome – ECE Certified. $924.95
64900554B Satin Black – ECE Certified. $924.95
NOTE: There is no warranty on exhaust pipes and mufflers with regard to any discoloration. Blueing is caused by tuning characteristics, cam timing, carburetor jetting, over-heating, etc. and is not caused by defective manufacturing.
Street legal and/or street compliant statements refer to product meeting 50-State emissions and noise standards in the United States.
The street legal and/or street compliant statements may not apply to markets outside of the United States.
Notice: The prices appearing in this catalog are the manufacturer’s suggested retail prices. Actual retail prices may vary.
Milwaukee-Eight® Stage I Upgrade
C. TWO-PIECE MUFFLER END CAP KIT – 4.5"
Shaped to provide a complete finishing touch to the rear of your bike, these slash-cut end caps feature a reverse cone rolled edge for a massive solid billet look. The reverse cone opening hugs the internal slotted flash suppressor-inspired barrel for a weapons-grade style.
Fits ’17-’25 Touring models equipped with 4.5" Screamin’ Eagle® Street Cannon Mufflers and Screamin’ Eagle High-Flow Exhaust Systems with 4.5" Street Cannon Mufflers.
65100078 Chrome. $209.95
65100076A Satin Black. $209.95

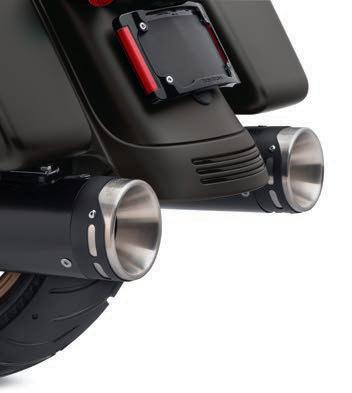

D. MUFFLER END CAP KIT – 4.5"
These easy-to-install performance end caps allow you to finish your 4.5” Screamin’ Eagle Street Cannon mufflers your way. Sold in pairs. Installation hardware included.
Fits ’17-’25 Touring models equipped with 4.5" Screamin’ Eagle Street Cannon Mufflers and Screamin’ Eagle High-Flow Exhaust Systems with 4.5" Street Cannon Mufflers.
65100196 Blunt/Stainless Steel. $164.95
65100205 Slash Up/Down/Out-Gloss Black. $209.95

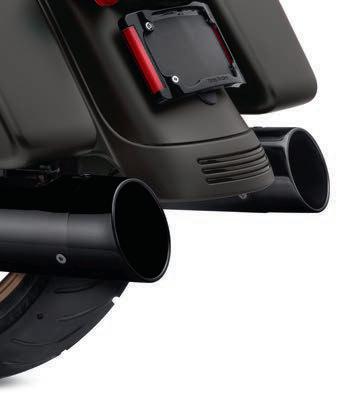

E. BLUNT SLASH UP/DOWN/OUT MUFFLER END CAP KIT – 4.5"
These easy-to-install slash-cut end caps allow you to finish your 4.5" Screamin’ Eagle Street Cannon mufflers your way. Sold in pairs. Installation hardware included.
Fits ’17-’25 Touring models equipped with 4.5" Screamin’ Eagle Street Cannon mufflers. Does not fit CVO™ Touring mufflers. Also fits High-Flow Exhaust Systems P/N’s 64800059, 64800062, 65600329, 65600330, 65600331 and 65600332. 65100085 Chrome. $174.95 65100084A Satin Black. $174.95 Street legal and/or street compliant statements refer to product meeting 50-State emissions and noise standards in the United States.
The street legal and/or street compliant statements may not apply to markets outside of the United States.
Notice: The prices appearing in this catalog are the manufacturer’s suggested retail prices. Actual retail prices may vary.
Milwaukee-Eight® Stage I Upgrade

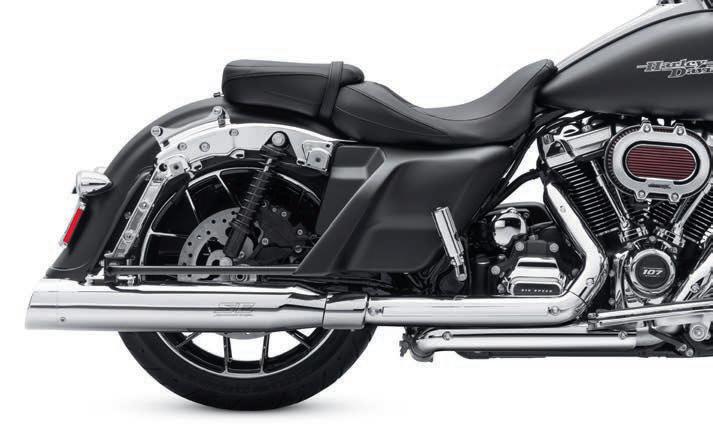

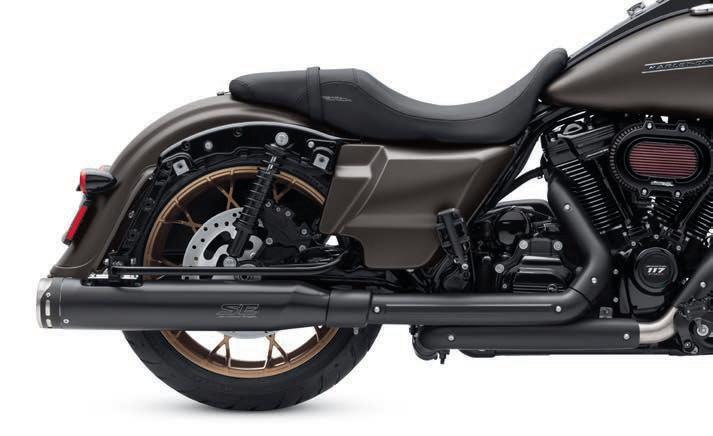

A. SCREAMIN’ EAGLE® HIGH-FLOW EXHAUST SYSTEM WITH STREET CANNON MUFFLERS 5
The Screamin’ Eagle High-Flow Exhaust system provides bolton performance by reducing the catalyst restrictions and improving exhaust flow. This exhaust system is optimized for use with Screamin’ Eagle Stage Kit-equipped MilwaukeeEight® engines. The complete exhaust system starts with race-shop constructed oversized mandrel-bent and hand TIG-welded stainless steel head pipes, and flows through a unique crossover to improve the flow of spent cylinder gasses. The large inlet 4.5" Street Cannon mufflers feature baffles that are optimized for aggressive performance and sound under acceleration, and deliver a rich mellow note. The combination of tuned-flow headers and Street Cannon mufflers with relocated catalyst maximizes horsepower, maintains solid midrange torque and manages heat. The proof is in the horsepower and torque numbers. Dial the system to your motorcycle by using the Screamin’ Eagle Pro Street Tuner to tune your ECM specifically to match your performance upgrades. The complete system includes exhaust headers pre-tapped for standard or Screamin’ Eagle wide-band O2 sensors, large 4.5" diameter Street Cannon mufflers, and matching exhaust heat shields. Complete the look with your choice of custom muffler end caps (sold separately). This High-Flow Exhaust System is designed to pair with a 128CI or 131CI Stage IV Kit or Crate Engine to ensure maximum performance. 49-State U.S. EPA compliant. Refer to www.H-D.com/Shop for status.
Fits ’17-’25 Touring models (except ’23-later FLHXSE, FLTRXSE, ’24-later FLHX, FLTRX and ’25-later FLHXU models). Does not fit Trike models. Does not fit with Dominion™ Transmission Side Covers. Separate purchase of Screamin’ Eagle 4.5" endcaps required. All models require ECM calibration with Screamin’ Eagle Pro Street Tuner for proper installation. See Dealer for details. Does not fit California models.
65600331 Chrome $1,749.95 with Chrome Mufflers.
65600332 Satin Black $1,849.95 with Satin Black Mufflers.
B. SATIN BLACK EXHAUST SHIELD KIT
These formed steel exhaust shields feature a unique black coating that complements the finish of the Screamin’ Eagle black slip-on mufflers. The rich black coating maintains its uniform black finish and has survived stringent HarleyDavidson testing for durability and corrosion resistance. Manufactured to Original Equipment standards for exacting fit, the easy-to-install kit includes front and rear head pipe shields.
65400285A $274.95
Fits ’17-later Touring and Trike models.
NOTE: There is no warranty on exhaust pipes and mufflers with regard to any discoloration. Blueing is caused by tuning characteristics, cam timing, carburetor jetting, over-heating, etc. and is not caused by defective manufacturing.
Street legal and/or street compliant statements refer to product meeting 50-State emissions and noise standards in the United States.
The street legal and/or street compliant statements may not apply to markets outside of the United States.
Notice: The prices appearing in this catalog are the manufacturer’s suggested retail prices. Actual retail prices may vary.
Milwaukee-Eight® Stage II Upgrade
The high-performance SE8-511 camshaft profile, initially developed for the Milwaukee-Eight® 121 High Output engine, delivers a high-octane performance boost for 117ci models. Designed for the horsepower junkie in mind, this camshaft kit will build additional horsepower @ 4000 RPM and continues to build by up to 21% increase at redline.
• Ideal for high octane riders that consistently push their vehicle to the upper RPM range
• Produces greater acceleration in the mid and upper RPM range

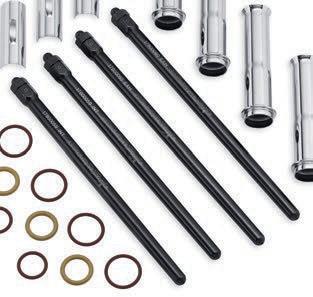

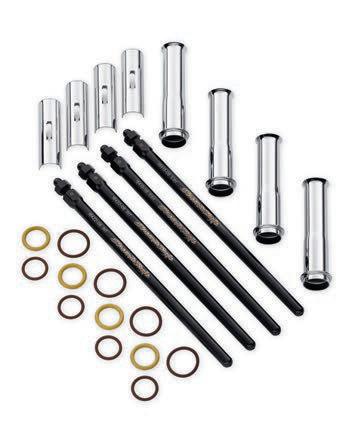

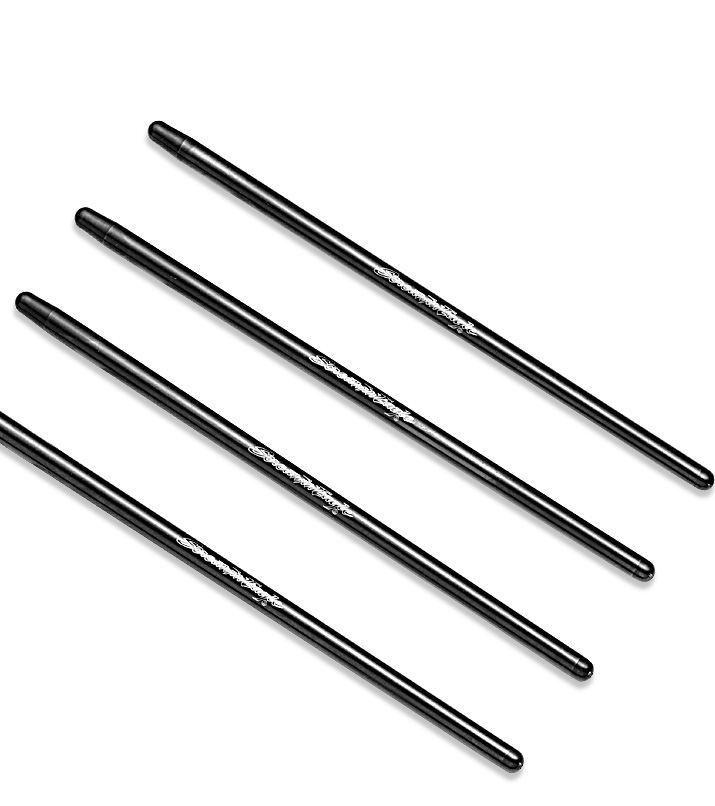

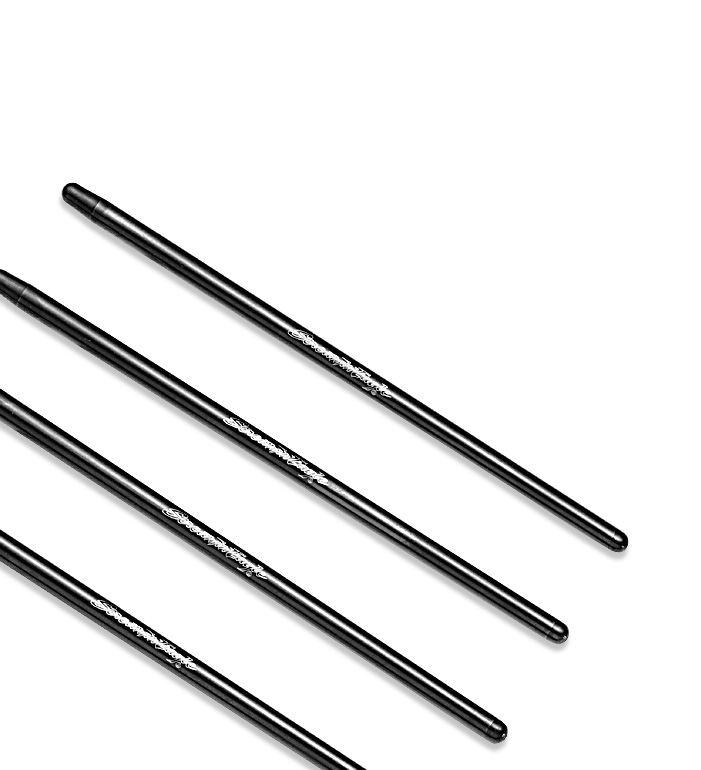

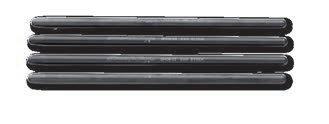

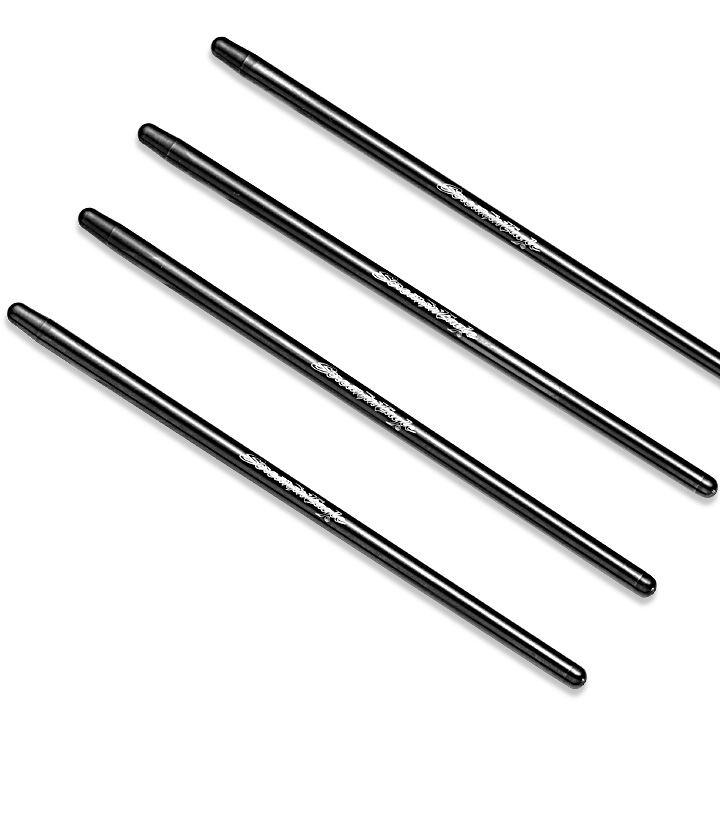

• Includes adjustable pushrods that allow SE8-511 camshaft installation without removing the cylinder heads, significantly reducing installation time and cost
• Kit includes Screamin’ Eagle High-Capacity Lifters
• Black pushrod tubes to match Black engine finish
• Screamin’ Eagle products are not available for sale and are not street legal in all countries. Please contact your local dealer for more information.
Fits '24-later FLHX, FLTRX and FLHXU models and '25-later Softail models. Factory equipment on '24-later FLTRXSTSE and '26-later FLHXSTSE and FLTRXP and '25-later FXLR and FXLRST models. Does not fit California models. Does not fit VVT equipped models.
92500132 Black. $679.95
92500133 Chrome. $679.95
B. SCREAMIN’ EAGLE SE8-511 CAM 2
Same camshaft specifications as the Milwaukee-Eight 121 High Output engine camshaft. Screamin’ Eagle products are not available for sale and are not street legal in all countries. Please contact your local dealer for more information.
25400476 $309.95
Fits '24-later FLHX, FLTRX and FLHXU models and '25-later Softail models. Factory equipment on '24-later FLTRXSTSE and '26-later FLHXSTSE and FLTRXP and '25-later FXLR and FXLRST models. Does not fit California models. Does not fit VVT equipped models.
Milwaukee-Eight® Stage II Upgrade
C. SCREAMIN’ EAGLE® PREMIUM TAPERED QUICK-INSTALL ADJUSTABLE PUSHRODS
2
These premium pushrods are tapered for enhanced clearance at the cylinder head, allowing the use of higher-lift cams. The one-piece chrome moly tube adds rigidity and durability and the threaded adjustment feature provides easy cam installation without removing the cylinder heads or rocker boxes. To simplify adjustment, the tube features six flats, with one flat marked with a large dot for tracking the adjustment. The threaded rod features 4 flats to reduce wrench swing. Kit includes 4 pushrods and required pushrod tube covers.
Fits ’18-later Softail® and ’17-later Touring and Trike models.
17900073 With Black Covers. $329.95
17900058 With Chrome Covers. $314.95

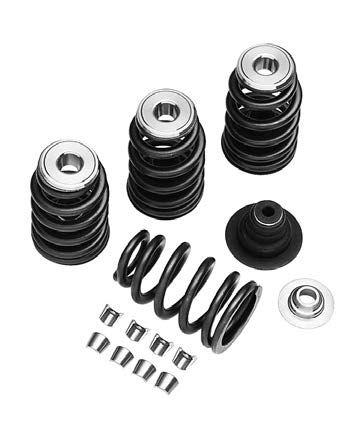

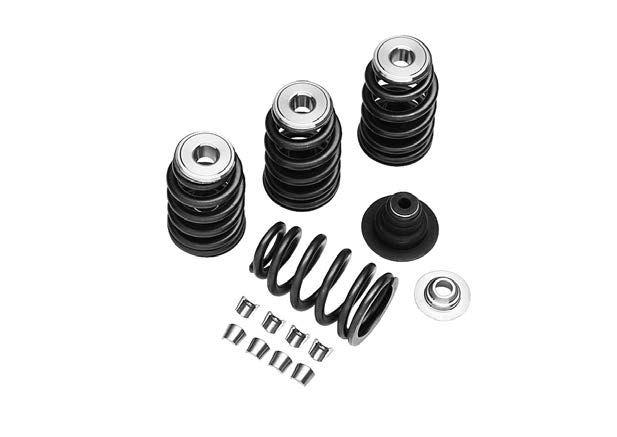

D. SCREAMIN’ EAGLE PERFORMANCE VALVE SPRING KIT
2
These performance beehive-shaped valve springs provide increased stiffness and strength in a compact design. Designed to support the installation of higher lift cams, these performance springs help maintain the stability of the valve train in high RPM conditions. Complete kit includes 8 springs, upper collars and keepers and lower collars with integral valve seals. Recommended for use with cam lifts greater than .470". 18100080 $349.95
Fits ’18-later Softail and ’17-later Touring and Trike models.
Street legal and/or street compliant statements refer to product meeting 50-State emissions and noise standards in the United States.
The street legal and/or street compliant statements may not apply to markets outside of the United States.
Notice: The
Milwaukee-Eight® Stage II Upgrade
• Choose a TORQUE CAM or POWER CAM based on riding style
• A performance cam increases both the lift in the valve train (pushing the valve open farther) and the duration of the valve opening (how long the valve stays open)
• The rider will feel up to a 15% increase in performance in the low to mid RPM range
• Experience crisp throttle response and acceleration that can be felt at slower speeds, perfect for passing slow moving vehicles without downshifting
POWER KIT
• The rider will feel up to a 25% increase in performance in the mid to upper RPM range
• Experience an adrenaline-pumping burst of speed while heading toward the red line
A. SCREAMIN’ EAGLE® MILWAUKEE-EIGHT® STAGE II – TORQUE KIT
This kit was developed for the budget-minded rider who wants to experience crisp throttle response and acceleration he or she can feel at slower speeds. The 5% increase in torque can be felt immediately off the line and continues to build by up to a 14% increase @ 4500 RPM – the ideal power band for passing slow-moving vehicles. SE8-447 Cam
• Delivers enhanced torque and horsepower in the low to mid RPM range
• Produces passing power without a downshift or high revs
• Minimally invasive, only requiring opening of the cam chest Fits ’18-’24 Softail® and ’17-’25 Touring (except Center Cooled Models) and Trike models. Not intended for use on ’18-later CVO™ Touring and Trike models. Not intended for use on Touring and Softail Models equipped with an OE 117 Engine. Requires separate purchase of Cam Drive Retention Kit P/N 25566-06. Installation may require Cam Spacer Kit P/N 25928-06. For ’17-’18 Touring models, installation of Oil Pump Cover P/N 62400206 is recommended (sold separately). All models require ECM calibration with Screamin’ Eagle® Pro Street Tuner for proper installation. See Dealer for details. Does not fit ’22 California models. Refer to H-D.com/shop for status.
92500047A Chrome Covers.
92500074A Gloss Black Covers.
$534.95
$564.95
6Fits '18-'24 California Softail® and '17-'25 California Touring equipped with oil/air or twin cooled engines and '17-later California Trike models. Not intended for use on 18-later CVO models or models equipped with an OE 117ci engine. Requires separate purchase of Cam Drive Retention Kit P/N 25566-06. Installation may require Cam Spacer Kit P/N 25928-06. For ’17-’18 Touring models, installation of Oil Pump Cover P/N 62400206 is recommended (sold separately). All models require ECM calibration with Screamin’ Eagle Pro Street Tuner for proper installation.
92500127 Chrome.
92500129 Gloss Black.
22 Notice: The prices appearing in this catalog are the manufacturer’s suggested retail prices. Actual retail prices may vary.
$564.95
$589.95
This kit was developed for the budget-minded rider who wants to experience that adrenaline-pumping burst of speed while heading toward the red line. The additional power starts to build @ 3000 RPM and continues to build by up to 24% at redline. Riding the bike aggressively will require downshifting to lower gears to keep the engine operating in the higher RPM range.
SE8-462 Cam
• Ideal for riders looking for excitement and willing to ride in the upper RPM range
• Produces greater acceleration in the mid and upper RPM range
• Minimally invasive, only requiring opening of the cam chest
Fits ’18-’24 Softail® and ’17-’25 Touring (except Center Cooled Models) models. Does not fit Trike models. Requires separate purchase of Cam Drive Retention Kit P/N 25566-06. Installation may require Cam Spacer Kit P/N 25928-06. For ’17-’18 Touring models, installation of Oil Pump Cover P/N 62400206 is recommended (sold separately). All models require ECM calibration with Screamin’ Eagle® Pro Street Tuner for proper installation. See Dealer for details. Does not fit ’22 California models. Refer to H-D.com/shop for status.
92500058A Chrome Covers.
92500075A Gloss Black Covers.
6
$534.95
$564.95
Fits ’18-22 California Softail and ’17-22 California Touring models. Does not fit California Trike models. Requires separate purchase of Cam Drive Retention Kit P/N 25566-06. Installation may require Cam Spacer Kit P/N 25928-06. For ’17-’18 Touring models, installation of Oil Pump Cover P/N 62400206 is recommended (sold separately). All models require ECM calibration with Screamin’ Eagle Pro Street Tuner for proper installation.
92500128 Chrome.
$564.95
92500130 Gloss Black. $589.95
Street legal and/or street compliant statements refer to product meeting 50-State emissions and noise standards in the United States. The street legal and/or street compliant statements may not apply to markets outside of the United States.
SE8-517
Milwaukee-Eight® Cams
C. MILWAUKEE-EIGHT® PERFORMANCE CAMS 2
Screamin’ Eagle® SE8-447 Cam – Torque
• Enhanced torque in the low to mid RPM band
• Ideal for a fully loaded bike
• Increased horsepower in the mid RPM range
• Responds well to roll-on throttle application
• Crisp throttle response and acceleration at lower speeds
• Can be used with stock valve springs
Fits ’18-'24 Softail® and ’17-later Touring and Trike models. Not intended for use on '18-later CVO Touring and Trike models. Not intended for use on Touring and Softail Models equipped with an OE 117 Engine. Requires separate purchase of Cam Drive Retention Kit P/N 25566-06. Installation requires removal of rocker box covers and rocker arms or installation of adjustable pushrods. Installation may require Cam Spacer Kit P/N 25928-06. All models require ECM calibration with Screamin’ Eagle® Pro Street Tuner for proper installation. Pending Regulatory approval for '21-later models. Refer to product information at www.H-D.com/shop for status.
25400199
Screamin’ Eagle SE8-462 Cam – Power
• Improved power in mid and upper RPM band
• Ideal for a fully loaded bike
• Thrilling acceleration and crisp throttle response
$309.95
Cylinder
Front Cylinder .112"/.066"
o ATDC
Rear Cylinder .515"/.513" Rear Cylinder 227o/242o Rear Cylinder Intake: 7o ATDC/40o ABDC Exhaust: 61o BBDC/.5o ATDC Rear Cylinder .112"/.052"
Theoretical, based on rocker arm ratio of 1.65. Valve train components, operation temperature and tolerance stack-up will affect actual lifts.
• Ideal for rider who likes to downshift and twist the throttle
• Responds well to aggressive throttle application
• Can be used with stock valve springs
Fits ’18-'24 Softail® and ’17-later Touring models (except Center-Cooled models). Requires separate purchase of Cam Drive Retention Kit P/N 25566-06. Installation may require Cam Spacer Kit P/N 25928-06. All models require ECM calibration with Screamin’ Eagle® Pro Street Tuner for proper installation.
25400200
Screamin’ Eagle SE8-498 Cam – Power
$309.95
Replacement cam for models equipped with Screamin’ Eagle Milwaukee-Eight® Stage III Kits.
• Improved acceleration on the straightaway
• Ideal for lighter bike with bigger displacement
• Exhilarating acceleration at high engine speeds.
• Responds well to a healthy twist of the throttle
• High-lift profile for complete filling of cylinders
• Requires Performance Valve Springs P/N 18100080
25400202
Screamin’ Eagle SE8-515 Cam
$309.95
Replacement cam for models equipped with Screamin’ Eagle Milwaukee-Eight 114 or 117ci Stage IV kits.
• Hard acceleration off the line
• Improved mid-range and high RPM horsepower
• Stump-pulling torque throughout the RPM band
• Significant increase in rear wheel torque and power
• High lift and long duration for complete cylinder filling
• Requires Performance Valve Springs P/N 18100080
25400201
Screamin’ Eagle SE8-517 Cam
$309.95
Developed for Milwaukee-Eight 128CI and 131CI Stage IV kits, this high-performance cam enhances efficient filling of the cylinder at the optimum timing. Offered as a stand-alone component for the engine builder looking to develop a custom performance recipe, it provides premium mid- to upper-range power.
Replacement cam for models equipped with Screamin' Eagle Milwaukee-Eight 128 or 131CI Stage IV kits. Does not fit '25-later Softail. Does not fit '23-later Center-Cooled Milwaukee-Eight Touring models.
25400353
$309.95
and/or
The prices appearing in
Milwaukee-Eight® Stage III Upgrade
A. SCREAMIN’ EAGLE® MILWAUKEE-EIGHT® ENGINE
STAGE III KIT - 117CI TO 122CI 5
This Stage III kit has been developed to deliver the kind of realworld power increase Touring riders will feel each time they roll on the throttle. The bump up in displacement and compression paired with a Screamin’ Eagle® SE8-511 camshaft deliver a significant increase in torque and power over stock and may restore the sensation of riding solo when you’re loaded down with a passenger and gear.
• Delivers up to 31% more horsepower and 18% more torque compared to the Original Equipment engine configuration.
• We’ve done your homework. This street-compliant performance kit has been designed and tested as a system by the performance experts at Harley-Davidson.
• Includes 4.155" Big Bore Bolt-On Cylinders, Forged 10.9:1 High Compression Pistons and Rings, SE8-511 Camshaft, High Capacity Tappets, Stage III Timer Cover Medallion.
• Includes Multi-Layer Coated Head Gaskets, Cylinder Base and Cam Cover Gaskets, most necessary gaskets and seals.
• Pending 49-State U.S. EPA compliant.
92500139 Black Highlighted.
$1,999.95
Fits '25-later Softail,'24-later FLHX and FLTRX, '25 FLHXU models, '26-later Touring (Except CVO models). Installation may require Cam Spacer Kit P/N 25928-06. All models require ECM calibration with Screamin' Eagle Pro Street Tuner for proper installation.
Milwaukee-Eight 122 Stage III vs Stock 117 Touring - SE Heavy Breather Extreme Air Cleaner / SE Titanium Slip-On Mufflers
Notice: The prices appearing in this catalog are the manufacturer’s suggested
Milwaukee-Eight® Stage III Upgrade
B. SCREAMIN' EAGLE ® MILWAUKEE EIGHT ENGINE STAGE III - 121CI TO 125CI 5
This Stage III kit has been developed to deliver the kind of realworld power increase Touring riders will feel each time they roll on the throttle. The bump up in displacement and compression paired with a Screamin' Eagle® SE8-511 camshaft deliver a significant increase in torque and power over stock and may restore the sensation of riding solo when you're loaded down with a passenger and gear.
• Black Granite Highlighted finish.
• Deletes Original Equipment Variable Valve Timing (VVT).
• Delivers up to 15% more horsepower and 17% more torque compared to the Original Equipment CVO engine configuration and 5% power and 4% torque increase over a CVO ST engine configuration.
• We've done your homework – This street-compliant performance kit has been designed and tested as a system by the performance experts at Harley-Davidson.
• Includes 4.155" Big Bore Bolt-On Cylinders, Forged 10.9:1 High Compression Pistons and Rings, SE8-511 Camshaft, High Capacity Tappets, Stage III Timer Cover Medallion.
• Includes Multi-Layer Coated Head Gaskets, Cylinder Base and Cam Cover Gaskets, most necessary gaskets and seals.
• 49-State U.S. EPA compliant.
92500141 Black Granite.
$1,999.95 Fits '23-later FLHXSE and FLTRXSE, ‘24-later FLTRXSTSE and '26-later FLHXLSE and FLHXSTSE models. All models require ECM calibration with Screamin' Eagle Pro Street Tuner for proper installation. Does not fit California models.
Street legal and/or street compliant statements refer to product meeting 50-State emissions and noise standards in the United States.
The street legal and/or street compliant statements may not apply to markets outside of the United States.
Notice: The prices appearing in this catalog are the manufacturer’s suggested retail
Milwaukee-Eight® Stage IV Upgrade
A. SCREAMIN' EAGLE® MILWAUKEE EIGHT ENGINE
STAGE IV KIT - 117CI TO 131CI 5
For the rider demanding no-compromise performance. This 117ci to 131ci Stage IV Kit was engineered by the pros at HarleyDavidson to deliver instant arm-stretching torque through the entire rpm range. Made for riders seeking maximum displacement, compression, and power to weight ratio. This Stage IV Kit features the finest Screamin' Eagle® components. Many of these new components were informed by extensive testing by the Harley-Davidson Factory Racing Team for the King of the Baggers racing series. The Stage IV kit consists of: All-new Screamin' Eagle® Extreme CNC-ported cylinder heads, 68mm throttle body and new cast 68mm intake manifold, new SE8-550 high-lift cam and 6.8 g/sec fuel injectors work together to feed the engine large volumes of air and fuel to help maximize power. New forged high-compression pistons and rings are designed to withstand increased combustion forces. Also includes high-performance tappets and new patent-protected 4.31" steel sleeve cylinders. Screamin' Eagle and Stage IV badging on the cylinder heads and timer cover highlights the powerplant.
• Black Highlighted.
• We've done your homework - Engineered and tested as a complete collection of high-performance components by the Screamin' Eagle pros at Harley-Davidson.
• This combination is designed for wide open throttle along with high end RPMs and a significant torque increase from a cruising speed.
• Provides thrilling acceleration when twisting the throttle.
• Can be installed without removing the engine from chassis.
• Screamin' Eagle products are not available for sale and are not street legal in all countries. Please contact your local dealer for more information.
92500146 $3,679.95
Fits '25-later Softail ® models. Requires ECM recalibration with Screamin Eagle Pro Street Tuner for proper installation. Does not fit California models.
Notice: The prices appearing in this catalog are the manufacturer’s suggested retail prices. Actual retail prices may vary.
Milwaukee-Eight® Stage IV Upgrade
B. SCREAMIN’ EAGLE® MILWAUKEE-EIGHT® ENGINE STAGE IV KIT - 117CI TO 131CI 5
For the rider demanding no-compromise performance. This 117ci to 131ci Stage IV Kit was engineered by the pros at HarleyDavidson to deliver instant arm-stretching torque through the entire rpm range. Made for riders seeking maximum displacement, compression, and flow, it delivers 131 horsepower and 139 ft-lb of torque to the rear wheel!
This Stage IV Kit features the finest Screamin’ Eagle® components. Many of these new components were informed by extensive testing by the Harley-Davidson Factory Racing Team for the King of the Baggers racing series. The Stage IV kit consists of: All-new Screamin’ Eagle® Extreme CNC-ported cylinder heads, 68mm throttle body and new cast 68mm intake manifold, new SE8-550 high-lift cam and 6.8 g/sec fuel injectors work together to feed the engine large volumes of air and fuel to help maximize power. New forged high-compression pistons and rings are designed to withstand increased combustion forces. Also includes high-performance tappets and new patent-protected 4.31" steel sleeve cylinders. Screamin’ Eagle and Stage IV badging on the cylinder heads and timer cover highlights the powerplant.
• We’ve done your homework. Engineered and tested as a complete collection of high-performance components by the Screamin’ Eagle® pros at Harley-Davidson. This combination is designed for wide open throttle along with high end RPMs and a significant torque increase from a cruising speed.
• Provides thrilling acceleration when twisting the throttle.
• Can be installed without removing the engine from chassis.
• Screamin’ Eagle products are not available for sale and are not street legal in all countries. Please contact your local dealer for more information.
92500100 Black Highlighted. $4,074.95 Fits ’24 FLHX and FLTRX models. Requires ECM recalibration with Pro Street Tuner for proper installation. Does not fit California models.
92500144 Black Highlighted. $4,074.95 Fits '25-later FLHX, FLTRX, FLHXU and '26-later FLHXL and FLTRXL models. Requires ECM recalibration with Pro Street Tuner for proper installation. Does not fit California models.
Street legal and/or street compliant statements refer to product meeting 50-State emissions and noise standards in the United States.
The street legal and/or street compliant statements may not apply to markets outside of the United States.
Notice: The prices appearing in this catalog are the manufacturer’s suggested retail prices. Actual retail prices may vary.
Milwaukee-Eight® Stage III Upgrade
A. SCREAMIN’ EAGLE® MILWAUKEE-EIGHT® ENGINE
STAGE IV KIT - 121CI TO 135CI
For the rider demanding no-compromise performance. With the largest displacement and the most power of any HarleyDavidson® Stage Kit, this 121ci to 135ci Stage IV Kit was engineered by the pros at Harley-Davidson to deliver instant arm-stretching torque through the entire rpm range. Made for riders seeking maximum displacement, compression, and flow, it delivers 144 horsepower and 149 ft-lb of torque to the rear wheel!
This Stage IV Kit features the finest Screamin’ Eagle® components. Many of these new components were informed by extensive testing by the Harley-Davidson Factory Racing Team for the King of the Baggers racing series. The Stage IV kit consists of: All-new Screamin’ Eagle® Extreme CNC-ported cylinder heads, 68mm throttle body and new cast 68mm intake manifold, new SE8-550 high-lift cam and 6.8 g/sec fuel injectors work together to feed the engine large volumes of air and fuel to help maximize power. New forged high-compression pistons and rings are designed to withstand increased combustion forces. Also includes high-performance tappets, new patent-protected 4.31" steel sleeve cylinders, and Screamin’ Eagle® Pro Billet Cam Plate and Oil Pump. Screamin’ Eagle and Stage IV badging on the cylinder heads and timer cover highlights the powerplant.
• We’ve done your homework. Engineered and tested as a complete collection of high-performance components by the Screamin’ Eagle® pros at Harley-Davidson. This combination is designed for wide open throttle along with high end RPMs and a significant torque increase from a cruising speed.
• Provides thrilling acceleration when twisting the throttle.
• Can be installed without removing the engine from chassis.
• Screamin’ Eagle products are not available for sale and are not street legal in all countries. Please contact your local dealer for more information.
92500143 Black Granite.
$4,574.95 Fits '23-later FLHXSE and FLTRXSE, '24-later FLTRXSTSE and '26-later FLHXL, FLHXLSE, FLHXSTSE and FLTRXL models. '23-'24 models require separate purchase of cylinder head retrofit kit P/N 29900147. Models factory equipped with VVT require a separate purchase of P/N 18400117 and 25400103, as the VVT will not be retained. Requires ECM recalibration with Pro Street Tuner for proper installation. Does not fit California models.
Street legal and/or street compliant statements refer to product meeting 50-State emissions and noise standards in the United States.
The street legal and/or street compliant statements may not apply to markets outside of the United States.
suggested retail prices. Actual retail prices may vary.
Milwaukee-Eight® Stage III Upgrade
B. SCREAMIN’ EAGLE® MILWAUKEE-EIGHT® ENGINE STAGE III KIT – 107CI TO 119CI 5
This Stage III kit has been developed for the rider looking for a solid “seat of the pants” increase you can feel every time you roll on the throttle. The bump up in displacement and compression deliver a significant increase in torque and power over stock, all the while restoring the sensation of riding solo when you’re loaded down. The Stage III 107CI to 119CI upgrade delivers up to 23% more horsepower and 17% more torque when compared to the Original Equipment engine configurations.
• Delivers increased response throughout the entire RPM range.
• Produces flexible roll-on passing power without a required downshift.
• Delivers excellent stop-light to freeway speed on-ramp acceleration.
49-State U.S. EPA Compliant on select ’18-later Softail® and ’17-later Touring models. Refer to www.H-D.com/Shop for status.
Performance components include:
• Screamin’ Eagle® 4.155 Big Bore Bolt-On Cylinders
• Screamin Eagle Forged 11.0:1 High-Compression Pistons and Rings
• Screamin’ Eagle SE8-447 Torque Cam
• Screamin’ Eagle High Capacity Tappets

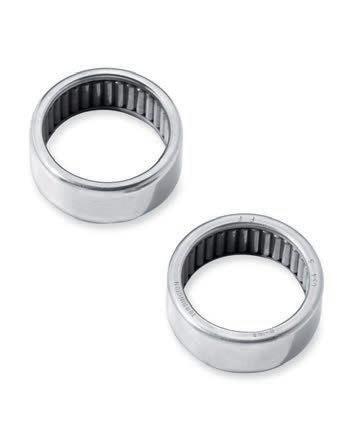

• Screamin’ Eagle High Performance Cam Bearing
• Screamin’ Eagle Stage III Timer Cover & Insert

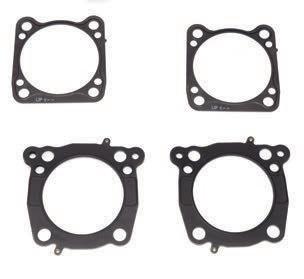

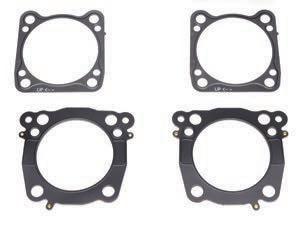

• Multi-layer coated Head Gaskets
• Cylinder Base and Cam Cover Gaskets
• Most necessary gaskets and seals
• 119CI Timer Cover Medallion and TimerCover Base
SCREAMIN’ EAGLE STAGE III - 107CI TO 119CI KIT
Fits '17-later Touring and '18-'24 Softail® models equipped with 107CI Milwaukee Eight engine. Does not fit Trike models. FXFB models require separate purchase of Screamin' Eagle Softail High-Flow Exhaust System P/N's 64900828 or 64900829. Requires separate purchase of Cam Drive Retention Kit P/N 91800088. Installation may require Cam Spacer Kit P/N 25928-06. For ’17-’18 Touring models, installation of Oil Pump Cover P/N 62400206 is recommended (sold separately). '17-'19 Touring models require separate purchase of HighCapacity Oil Pump P/N 62400247 for Oil-Cooled or 62400248 for Twin-Cooled models. All models require ECM calibration with Screamin' Eagle Pro Street Tuner for proper installation. Does not fit California models.
92500084 Black Highlighted. $2,074.95
Street legal and/or street compliant statements refer to product meeting 50-State emissions and noise standards in the United States.
The street legal and/or street compliant statements may not apply to markets outside of the United States.
Notice: The prices appearing in this catalog are the manufacturer’s suggested
Milwaukee-Eight® Stage III Upgrade
A. SCREAMIN’ EAGLE® MILWAUKEE-EIGHT® ENGINE
STAGE III KIT – 114CI OR 117CI TO 122CI 5
This Stage III kit has been developed for the rider looking for a solid “seat of the pants” increase you can feel every time you roll on the throttle. The bump up in displacement and compression deliver a significant increase in torque and power over stock, all the while restoring the sensation of riding solo when you’re loaded down. The Stage III upgrade delivers up to 15% more horsepower and 13% more torque when compared to the Original Equipment engine configurations.
• Delivers increased response throughout the entire RPM range.
• Provides thrilling acceleration when twisting the throttle.
• Maintains flat torque curve from cruising RPM to redline.
• Can be installed without removing the engine from chassis.
49-State U.S.EPACompliant on select ’18-later Softail® Models. Refer to www.H-D.com/Shop for status.
Performance components include:
• Screamin’ Eagle® 4.155 Big Bore Bolt-On Cylinders
• Screamin’Eagle® Forged 11.0:1 High-Compression Pistons and Rings
• Screamin’ Eagle SE8-447 Torque
• Screamin’ Eagle High Capacity Tappets
• Screamin’ Eagle High Performance Cam Bearing
• Screamin’ Eagle Stage III Timer Cover & Insert
• Multi-layer coated Head Gaskets
• Cylinder Base and Cam Cover Gaskets
• Most necessary gaskets and seals
• 122CI Timer Cover Medallion and Timer Cover Base
SCREAMIN’ EAGLE STAGE III - 114CI OR 117CI TO 122CI KIT
Fits '17-'25 Touring models (except '25-later FLTRXRRSE) and ’18-‘24 Softail models equipped with 114 or 117CI Milwaukee Eight engines. Does not fit Trike models. Does not fit ’23 later FLHXSE, FLTRXSE and ’24-later FLHX, FLTRX, and FLTRXSTSE models. Requires separate purchase of Cam Drive Retention Kit P/N 91800088. FXFB and FXFBS models require separate purchase of Screamin' Eagle Softail High Flow Exhaust P/N's 64900828 or 64900829. FXDR114 models require separate purchase of Header Pipe Assembly P/N 65600300. Installation may require Cam Spacer Kit P/N 25928-06. For ’17-’18 Touring models, installation of Oil Pump Cover P/N 62400206 is recommended (sold separately). '17-'19 models require separate purchase of High-Capacity Oil Pump P/N 62400247 for Oil-Cooled models or 62400248 for TwinCooled models All models require ECM calibration with Screamin' Eagle Pro Street Tuner or dealership installed Screamin’ Eagle calibration for proper installation. Does not fit California models.
92500086 Black Highlighted. $2,074.95
Street legal and/or street compliant statements refer to product meeting 50-State emissions and noise standards in the United States.
The street legal and/or street compliant statements may not apply to markets outside of the United States.
Notice: The prices appearing in this catalog are the manufacturer’s suggested retail prices. Actual retail prices may vary.
Milwaukee-Eight® Stage IV Upgrade
B. SCREAMIN’ EAGLE® MILWAUKEE-EIGHT® ENGINE STAGE IV KIT – 107CI TO 128CI 5
This Stage IV Kit was designed to deliver maximum horsepower – all the way to the redline. Features new CNC-ported heads with 1mm bigger valves and fully machined combustion chambers. Coupled with the kit s high-lift SE8-517 cam, high compression pistons and a 64mm throttle body and intake manifold, this combination delivers a thrilling 126 ft-lb of torque and 121 HP rear-wheel output when paired with Screamin’ Eagle® Street Cannon Mufflers.. It’s designed to run wide open at high-end RPMs and provide a significant boost of torque from cruising speed. You’ll feel the difference as soon as you twist the throttle.
• Delivers increased response throughout the entire RPM range
• Provides thrilling acceleration when twisting the throttle
• Maintains flat torque curve from cruising RPM to redline
• Can be installed without removing the engine from chassis
49-State U.S. EPA Compliant on select ’17-later Touring Models.
Performance components include:
• Screamin’ Eagle CNC Ported Cylinder Head with CNC machined chamber and 1mm larger valves
• 128 Stage IV Timer cover
• SE8-517 High-Lift Cam
• Forged High Compression Pistons
• Screamin’ Eagle High Performance Cam Bearing
• Screamin’ Eagle High Performance Tappets
• Screamin’ Eagle 4.31" Steel Sleeve Cylinders
• Screamin’ Eagle 64mm Throttle Body and Cast Manifold
• Screamin’ Eagle High Flow Injectors (5.5 g/sec)
Fits ’17-’18 Touring models equipped with air/Oil-Cooled Milwaukee-Eight 107CI engine. Does not fit Trike models. 17- 19 models require separate purchase of High-Capacity Oil Pump P/N 62400248. 17- 18 Screamin Eagle High-Capacity Clutch Plate Kit P/N 37000258. All models require ECM recalibration with the Pro Street Tuner for proper installation.
92500077 Twin-Cooled™
Black Highlighted.
92500078 Oil-Cooled
Black Highlighted.
$3,974.95
$3,974.95
Street legal and/or street compliant statements refer to product meeting 50-State emissions and noise standards in the United States.
The street legal and/or street compliant statements may not apply to markets outside of the United States.
Notice: The prices appearing in this catalog are the manufacturer’s suggested retail prices. Actual retail prices may vary.
Milwaukee-Eight® Stage IV Upgrade
A. SCREAMIN’ EAGLE® MILWAUKEE-EIGHT® ENGINE STAGE IV KIT 114CI OR 117CI TO 131CI 5
Go big or go home. With the largest displacement of any Harley-Davidson® Stage Kit, this 114CI to 131CI Stage IV Kit was designed to deliver maximum horsepower – all the way to the redline. Packaged with patent-protected cylinder technology, it allows for the largest bolt-on engine upgrade to any Milwaukee-Eight® motor. Features new CNC-ported heads with 1mm bigger valves and fully machined combustion chambers. Coupled with the kit’s high-lift SE8-517 cam, high compression pistons and a 64mm throttle body and intake manifold, this combination delivers a thrilling 131 ft-lb of torque and 121 HP rear-wheel output when paired with Screamin Eagle® Street Cannon Mufflers.. It’s designed to run wide open at high-end RPMs and provide a significant boost of torque from cruising speed. You’ll feel the difference as soon as you twist the throttle.
• Delivers increased response throughout the entire RPM range.
• Provides thrilling acceleration when twisting the throttle.
• Maintains flat torque curve from cruising RPM to redline.
• Can be installed without removing the engine from chassis.
49-State U.S. EPA Compliant on select ’18-later Touring Models. Refer to www.H-D.com/Shop for status.
Performance components include:
• Screamin’ Eagle CNC Ported Cylinder Head with CNC machined chamber and 1mm larger valves
• 131 Stage IV Timer cover
• SE8-517 High-Lift Cam
• Forged High Compression Pistons
• Screamin’ Eagle High Performance Cam Bearing
• Screamin’ Eagle High Performance Tappets
• Screamin’ Eagle 4.31" Steel Sleeve Cylinders
• Screamin’ Eagle 64mm Throttle Body and Cast Manifold
• Screamin’ Eagle High Flow Injectors (5.5 g/sec)
Street legal and/or street compliant statements refer to product meeting 50-State emissions and noise standards in the United States.
The street legal and/or street compliant statements may not apply to markets outside of the United States.
Notice: The prices appearing in this catalog are the manufacturer’s suggested retail prices. Actual retail prices may vary.
Milwaukee-Eight® Stage IV Upgrade
B. SCREAMIN’ EAGLE® MILWAUKEE-EIGHT® ENGINE STAGE IV KIT
Oil-Cooled: 5
Fits '17-later Touring models equipped with air/Oil-Cooled Milwaukee-Eight 114 or 117CI engine. Does not fit Trike models. Does not fit ’23-later FLHXSE, FLTRXSE and ’24-later FLHX, FLTRX, FLTRXSTSE, '25-later FLHXU, FLTRXRRSE and '26-later FLHXL, FLHXLSE, FLHXSTSE and FLTRXL models. '17-'19 models require separate purchase of High-Capacity Oil Pump P/N 62400247. '17-'18 Screamin' Eagle High-Capacity Clutch Plate Kit P/N 37000258. ’18-19 CVO models require separate purchase of 62700204. All models require ECM recalibration with the Pro Street Tuner or dealership installed Screamin’ Eagle calibration for proper installation. Does not fit California models, instead purchase P/N 92500107.
92500079 Black Highlighted. $3,974.95
92500082 Black Granite. $3,974.95
C. SCREAMIN’ EAGLE® MILWAUKEE-EIGHT® ENGINE STAGE IV KIT
Twin-Cooled™: 5
Fits '17-later Touring models equipped with Twin-Cooled Milwaukee-Eight 114 or 117CI engine. Does not fit Trike models. Does not fit ’23 later FLHXSE, FLTRXSE, ’24-later FLHX, FLTRX, FLTRXSTSE, 25-later FLHXU, '26-later FLHXL, FLHXLSE, FLHXSTSE and FLTRXL models. '17-'19 models require separate purchase of High-Capacity Oil Pump P/N 62400248. '17-'18 Screamin' Eagle High-Capacity Clutch Plate Kit P/N 37000258. All models require ECM recalibration with the Pro Street Tuner or dealership installed Screamin’ Eagle calibration for proper installation. Does not fit California models, instead purchase P/N 92500108. 92500080 Black Highlighted. $3,974.95 92500081 Black Granite. $3,974.95
Street legal and/or street compliant statements refer to products meeting EPA (49-State) and/or California (50-State) emissions and noise standards in the United States as specified. The street legal and/or street compliant statements may not apply to markets outside of the United States. Milwaukee-Eight Twin-Cooled 117 Stock vs. 131 Stage IV with Street Cannon Mu ers
Notice: The prices appearing in this catalog are the manufacturer’s suggested retail prices. Actual retail prices may vary.
Milwaukee-Eight® Stage IV Upgrade
SCREAMIN’ EAGLE® MILWAUKEE-EIGHT® ENGINE
STAGE IV KITS 5
Go big or go home. With the largest displacement of any Harley-Davidson® Stage Kit, this 107CI to 128CI or 114CI to 131CI Stage IV Kit is designed to deliver maximum horsepower – all the way to the redline. Packaged with patentprotected cylinder technology, it allows for the largest bolt-on engine upgrade to any Milwaukee-Eight® motor. Features new CNC-ported heads with 1mm bigger valves and fully machined combustion chambers. Coupled with the kit’s high-lift SE8-517 cam, high compression pistons and a 64mm throttle body and intake manifold, this combination delivers a thrilling 135 ft-lb of torque and 124 HP rear-wheel output when paired with the Screamin Eagle Street Cannon Mufflers and Ventilator Air Cleaner. It’s designed to run wide open at high-end RPMs and provide a significant boost of torque from cruising speed. You’ll feel the difference as soon as you twist the throttle.
• Delivers increased response throughout the entire RPM range.
• Provides thrilling acceleration when twisting the throttle.
• Maintains flat torque curve from cruising RPM to redline.
• Can be installed without removing the engine from chassis.
49-State U.S.EPACompliant on select ’18-later Softail® Models. Refer to www.H-D.com/Shop for status.
Performance components include:
• Screamin’ Eagle CNC PCNC-ported cylinder head with CNC-machined chamber and 1mm larger valves
• 128 or 131 Stage IV Timer cover
• SE8-517 High-Lift Cam
• Screamin’ Eagle Forged 10.7:1 High-Compression Pistons and Rings
• Screamin’ Eagle High Performance Cam Bearing
• Screamin’ Eagle High Performance Tappets
• Screamin’ Eagle 4.31" Steel Sleeve Cylinders
• Screamin’ Eagle 64mm Throttle Body and Cast Manifold
• Screamin’ Eagle High Flow Injectors (5.5 g/sec)
A.SCREAMIN’ EAGLE® STAGE IV - 107CI TO 128CI KIT 5 Fits 18- 24 Softail 107CI models. FXFB requires separate purchase of Screamin Eagle® Softail High Flow Exhaust P/N s 64900828 or 64900829. Requires separate purchase of Cam Drive Retention Kit P/N 25566-06. Installation may require Cam Spacer Kit P/N 25928-06. ’18-’19 models require separate purchase of High-Capacity Oil Pump P/N 62400247. All models require ECM calibration with Screamin’ Eagle Pro Street Tuner for proper installation. Does not fit California models.
92500094 107CI to 128CI
$3,799.95 Black Highlighted.
Milwaukee-Eight 128 Stage IV Softail vs 107 Softail Stock
Street legal and/or street compliant statements refer to products meeting EPA (49-State) and/or California (50-State) emissions and noise standards in the United States as specified. The street legal and/or street compliant statements may not apply to markets outside of the United States.
Notice:
Milwaukee-Eight® Stage IV Upgrade
B. SCREAMIN’ EAGLE® STAGE IV – 114CI TO 131CI KIT BLACK HIGHLIGHTED
Milwaukee-Eight 131 Stage IV Softail vs 114 Softail Stock
B. SCREAMIN’ EAGLE® STAGE IV – 114CI OR 117CI TO 131CI KIT 5 Fits ’18-’24 Softail® 114CI or 117CI models. FXFBS requires separate purchase of Screamin’ Eagle® Softail High Flow Exhaust P/N’s 64900828 or 64900829. Requires separate purchase of Cam Drive Retention Kit P/N 25566-06. Installation may require Cam Spacer Kit P/N 25928-06. ’18-’19 models require separate purchase of High-Capacity Oil Pump P/N 62400247. FXDR114 models require the separate purchase of 65600300. All models require ECM calibration with Screamin’ Eagle Pro Street Tuner for proper installation. Does not fit California models.
92500095 114CI to 131CI
$3,799.95 Black Highlighted.
Street legal and/or street compliant statements refer to products meeting EPA (49-State) and/or California (50-State) emissions and noise standards in the United States as specified. The street legal and/or street compliant statements may not apply to markets outside of the United States.
Notice: The prices appearing in this catalog are the manufacturer’s suggested retail prices. Actual retail prices may vary.

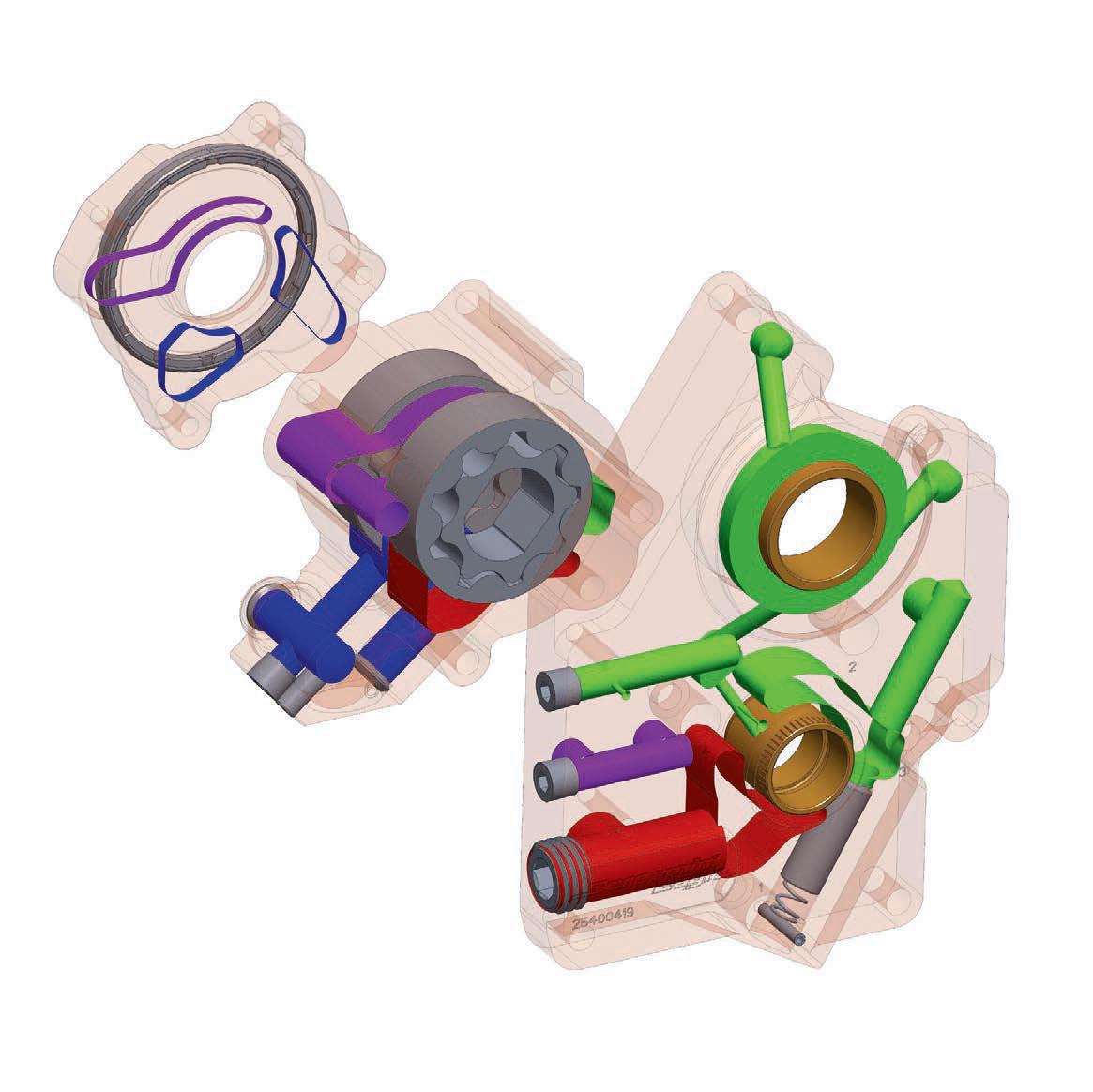

High Volume Oil Pump & Cam Support
A high-performance Milwaukee-Eight® engine deserves high-performance oiling. This new kit includes a Super Sucker oil pump to improve the oil flow rate to critical engine components, and a CNC machined billet aluminum cam plate for precise alignment of a high-performance cam and chain. It’s the ideal component combination for a tuned-up Milwaukee-Eight engine. Install and ride hard with confidence.
1
The cam support plate and oil pump are made from heattreated 6061 billet aluminum with a surface-hardened orange anodized nish. CNC machining ensures precise dimensions and constant material thickness across the plate and pump, enabling perfect alignment of components.
2
Pressed-in 660 bronze cam and pinion shaft bushings provide enhanced wear resistance under increased loads from highperformance cams for miles of worry-free riding.
3
The Super Sucker oil pump features a 9% larger gerotor for increased ow at idle and 33% more scavenge capacity compared to a 2020-Later Original Equipment oil pump, for increased performance, e ciency and engine durability.
4
The hub-and-spoke oil passage design improves oil ow rate to critical engine components by minimizing restrictions from intersecting passages.
5 ENHANCED
Two screens mounted in both pickups and a magnet in between the pickups provide extra oil ltering to remove potential contaminants before they can reach critical upper end components. This is key to promoting long life in highperformance engines.
High Volume Oil Pump & Cam Support

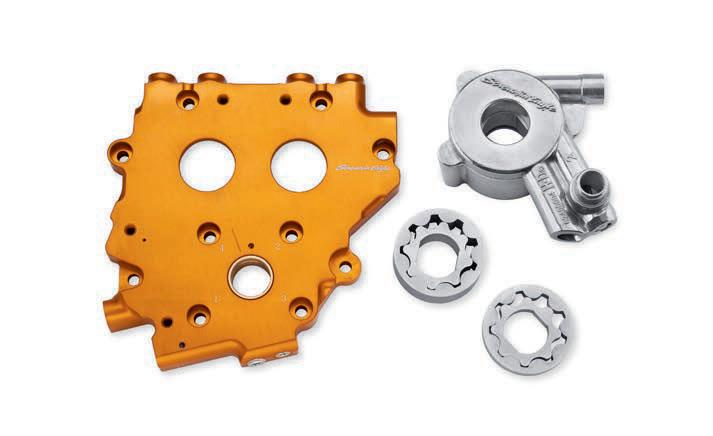

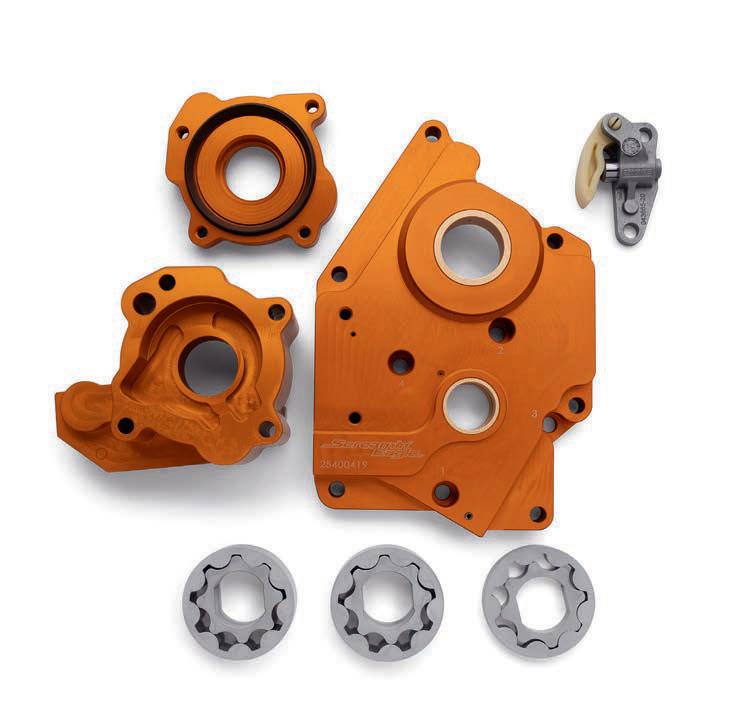

A. SCREAMIN’ EAGLE® PRO HIGH VOLUME OIL PUMP & CAM SUPPORT PLATE KIT
A high-performance Milwaukee-Eight® engine deserves high-performance oiling. This new kit(s) includes a Super Sucker oil pump to improve the oil flow rate to critical engine components, and a CNC machined billet aluminum cam plate for precise alignment of high-performance cam and chain. It’s the ideal component combination for a tuned-up Milwaukee-Eight engine. Install and ride hard with confidence.
• Heat-treated 6061 billet aluminum cam support plate with an orange anodized finish is strong and rigid to provide superior strength, rigidity, and durability
• CNC-precision machining ensures precise dimensions and constant material thickness across the plate, enabling perfect alignment of cams and chains
• Pressed-in 660 bronze cam bushings provide enhanced wear resistance under increased loads from high-performance cams for miles of worry-free riding
• Oil pump features a 9% larger gerotor for increased flow at idle and 33% more scavenge capacity compared to a 2020Later Original Equipment oil pump, for increased performance, efficiency and engine durability
• The hub-and-spoke oil passage design improves oil flow rate to critical engine components
• Upgraded filter protection promotes engine durability: Two screens mounted in both pickups and a magnet in between the pickups provide extra oil filtering to remove contaminants before they can reach critical upper end component
62400260
$799.95
Fits 17-later models equipped with an Air/Oil-Cooled Milwaukee-Eight® engine. Does not fit models equipped with VVT.
62400264
$799.95
Fits '17-later models equipped with Twin-Cooled MilwaukeeEight® engines and ’24-later models equipped with CenterCooled Milwaukee-Eight® engines. Does not fit models equipped with VVT.

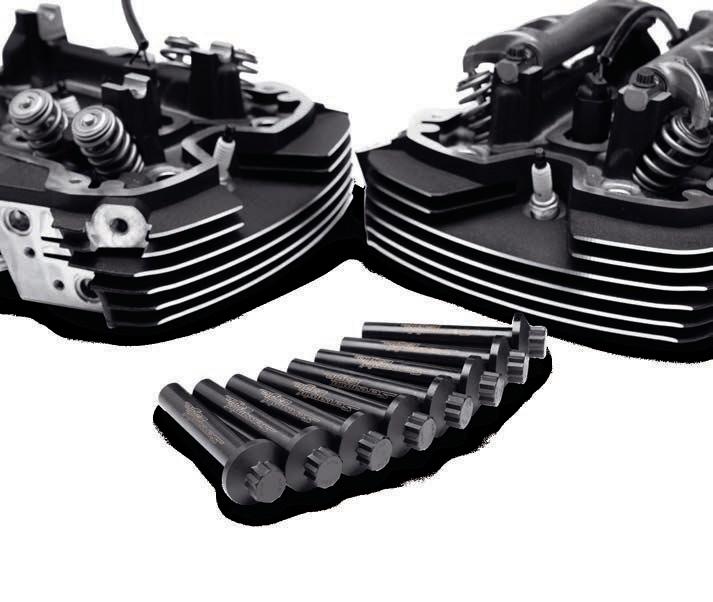

B. SCREAMIN’ EAGLE MILWAUKEE-EIGHT® – HEADBOLT KIT 2
Details matter when building a high-performance engine. Details like these Screamin Eagle® Milwaukee-Eight Head Bolts – made from 8740 chromoly to be 23 percent stronger than stock bolts. The ideal upgrade for big-displacement and high-compression racing applications or Stage III or Stage IV builds. Lock down your top end, for the long run.
• Black oxide finish with Screamin Eagle logo provides corrosion resistance and showcases performance.
• Premium 8740 chromoly steel bolts provide a 23% increase in ultimate strength and 23% increase in yield strength compared to Original Equipment head bolts for desirable clamp load on a higher-compression engine.
• Cost savings – these bolts may be reused if the top end is disassembled for upgrades or service
• Perfect upgrade during a Screamin’ Eagle® Stage III or Stage IV installation.
10400069
Fits ’17-later Milwaukee-Eight engines.
$299.95
Street legal and/or street compliant statements refer to products meeting EPA (49-State) and/or California (50-State) emissions and noise standards in the United States as specified. The street legal and/or street compliant statements may not apply to markets outside of the United States.
Notice: The prices appearing in this catalog are the manufacturer’s suggested retail prices. Actual retail prices may vary.
Milwaukee-Eight® Engine Trim
A. SCREAMIN’ EAGLE® TIMER COVER INSERTS - STAGE KIT LOGO
Showcase your bike’s performance enhancements with the Screamin’ Eagle Stage Inserts. The Stage Inserts are made to complement the Screamin’ Eagle Timer Cover Base (sold separately).
Fits ’18-’24 Softail® and ’17-later Touring and Trike models equipped with Screamin’ Eagle Timer Cover Base P/N 25600117.
1.25600118
Shown with:
15. SCREAMIN’ EAGLE TIMER COVER BASE
Showcase your bike’s performance enhancements with the Screamin’ Eagle Timer Cover Base. Start with this black Timer Cover and then select a Screamin’ Eagle Stage Upgrade Insert that matches your engine size and Stage upgrades. (Inserts sold separately.)
25600117
Fits ’18-later Softail and ’17-later Touring and Trike models. Requires separate purchase of Screamin Eagle Stage Insert. Does not fit center cooled models.
B. SCREAMIN’ EAGLE TIMER COVER MEDALLIONS
Brag a little. Let the world know you’re running HarleyDavidson® V-Twin performance. These Screamin’ Eagle Timer Cover Inserts show off what upgrade you’ve made and complement a Chrome or Black engine finish.. Fits ’23-later Center Cooled models.
7.14102078
8.14102079
The
Milwaukee-Eight® Engine Trim
C. SCREAMIN’ EAGLE® DERBY COVERS – GLOSS BLACK
Advertise the goods. This bold new Screamin’ Eagle® derby cover tells the world you’ve taken a Harley-Davidson® Milwaukee-Eight® engine beyond stock. Beautifully finished in chrome or gloss black, designed to fit many Touring, Trike and Softail® models.
• High contrast paint fill pops against derby cover finish while red Bar & Shield provides a premium performance look
• Gloss Black finish matches other dark finishes
25701403
$89.95
Fits ’16-later Touring and Trike and ’15-later FLHTCUL and FLHTKL models. Also fits ’07-later Touring and Trike models equipped with Narrow-Profile Outer Primary Cover P/N 25700385 or 25700438.
25701407
$89.95
Fits 18-later FLSB and 19-later Softail® models. Also fits 18 Softail models equipped with Narrow Profile Primary Cover P/Ns 25701077, 25700913, 25700937, 25700941, 25701039, 25701040 and 25701043.

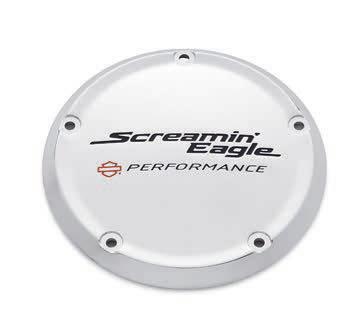

D. SCREAMIN’ EAGLE DERBY COVERS – CHROME
Advertise the goods. This bold new Screamin’ Eagle® derby cover tells the world you’ve taken a Harley-Davidson® Milwaukee-Eight engine beyond stock. Beautifully finished in chrome or gloss black, designed to fit many Touring, Trike and Softail models.
• Black paint fill pops against derby cover finish while Red Bar & Shield provides a premium performance look
• Chrome finish matches other bright finishes
25701404
$89.95
Fits ’16-later Touring and Trike and ’15-later FLHTCUL and FLHTKL models. Also fits ’07-later Touring and Trike models equipped with Narrow-Profile Outer Primary Cover P/N
25700385 or 25700438.
25701408
$89.95
Fits 18-later FLSB and 19-later Softail models. Also fits 18 Softail models equipped with Narrow Profile Primary Cover P/Ns 25701077, 25700913, 25700937, 25700941, 25701039, 25701040 and 25701043
E. SCREAMIN’ EAGLE 131 DERBY COVER
Brag a little. Let the world know you’re running 131 cubic inches of Harley-Davidson® V-Twin performance. Durable black finish matches black engine or contrasts with chrome engine finishes.
Fits ’16-later Touring and Trike and ’15-later FLHTCUL and FLHTKL models. Also fits ’07-later Touring and Trike models equipped with Narrow-Profile Outer Primary Cover P/N 25700385 or 25700438.
F. SCREAMIN’ EAGLE 135 DERBY COVER Brag a little. Let the world know you’re running 135 cubic inches of Harley-Davidson® V-Twin performance.
Fits 16-later Touring and Trike and 15-later FLHTCUL and FLHTKL models. Also fits ’07-later Touring and Trike models equipped with Narrow-Profile Outer Primary Cover P/N 25700385 or 25700438.
Black. $149.95
Street legal and/or street compliant statements refer to products meeting EPA (49-State) and/or California (50-State) emissions and noise standards in the United States as specified. The street legal and/or street compliant statements may not apply to markets outside of the United States.
Notice: The prices appearing in this catalog are the manufacturer’s suggested retail prices. Actual retail prices may vary.

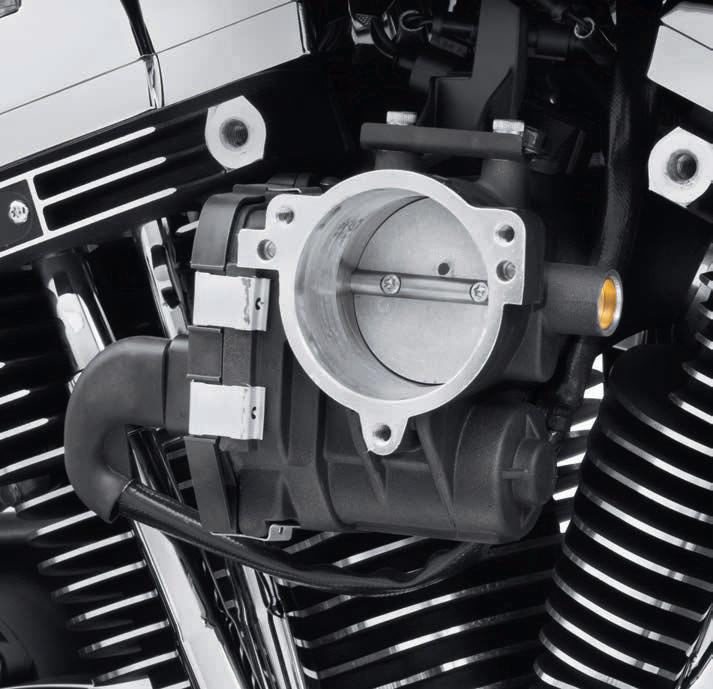

A. SCREAMIN’ EAGLE® 68MM – THROTTLE BODY
Large bore 68mm throttle body. Designed for use with 68mm Extreme CNC ported intake manifold. Combination provides increased flow and air velocity to maximize power of largedisplacement engines.
27300194
$314.95
Replacement throttle body for ’21-later Touring models equipped with Screamin’ Eagle® Milwaukee-Eight® Stage IV 135CI Performance Crate engine. Compatible with all Screamin’ Eagle Milwaukee-Eight High-Flow Air cleaners.

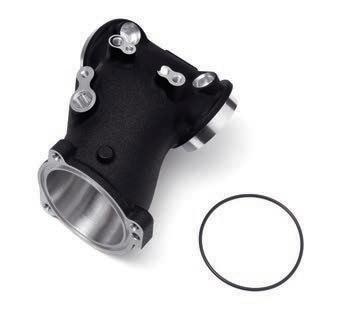

B. SCREAMIN’ EAGLE 68MM EXTREME CNC PORTED INTAKE MANIFOLD
The ultimate large bore 68mm CNC ported intake manifold. New shaped geometry informed by extensive testing by the Harley-Davidson Factory Racing Team for the King of the Baggers racing series. Designed for use with Screamin' Eagle® 68mm Throttle Body. CNC machined for precise port matching. Combination provides increased flow and air velocity to maximize power of large-displacement engines. Screamin' Eagle® products are not available for sale and are not street legal in all countries. Please contact your local dealer for more information.
27300217
$359.95
Fits all Center Cooled Touring equipped with a Screamin Eagle 131ci or 135ci Stage IV Kit. Original equipment on Screamin Eagle 135ci Center-Cooled Crate Engines.
Large bore 68mm intake manifold. Designed for use with Screamin’ Eagle 68mm Throttle Body. CNC machined for precise port matching. Combination provides increased flow and air velocity to maximize power of large-displacement engines.
27300210 $474.95
Fits ’21-later Touring models equipped with Screamin’ Eagle® Milwaukee-Eight® Stage IV 135CI Performance Crate engine. All models require ECM calibration with Screamin’ Eagle® Pro Street Tuner for proper installation. Does not fit California models.

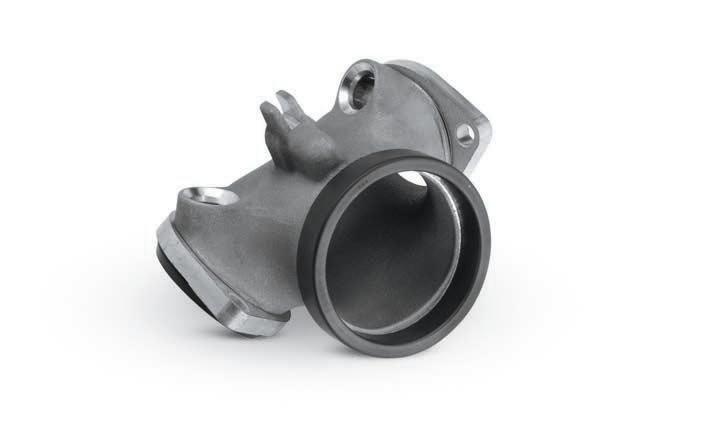

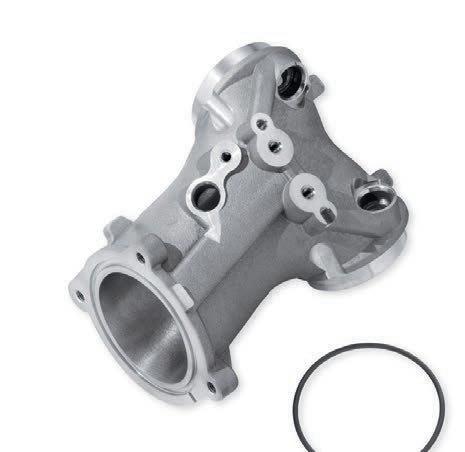

C. SCREAMIN' EAGLE HIGH-FLOW 68MM CAST MANIFOLD
Large bore as-cast 68mm intake manifold. New shaped geometry informed by extensive testing by the Harley-Davidson Factory Racing Team for the King of the Baggers racing series. Designed for use with Screamin' Eagle® 68mm Throttle Body. Combination provides increased flow and air velocity to maximize power of large-displacement engines. Screamin' Eagle products are not available for sale and are not street legal in all countries. Please contact your local dealer for more information.
27300218
$269.95
Replacement manifold for all Center Cooled Touring equipped with a Screamin' Eagle Stage IV 131ci or 135ci Stage IV kit.
D. SCREAMIN’ EAGLE HIGH COMPRESSION PISTONS –135 CI
High-compression pistons 4.310" bore. Forged pistons. Piston design and rings engineered to withstand increased combustion forces for outstanding durability.
21900164A
$449.95
Replacement pistons for ’21-later Milwaukee-Eight® Touring models equipped with 135CI Stage IV Performance Crate engine .
Notice: The prices appearing in this catalog are the manufacturer’s suggested retail prices. Actual retail prices may vary.
E. SCREAMIN’ EAGLE® HIGH-FLOW INJECTOR KIT
High flow rate fuel injectors designed to maximize power of large-displacement engines. Flow rate of 6.8 g/second. 27400067 $199.95
Replacement fuel injectors for ’21-later Touring models equipped with Screamin’ Eagle® Milwaukee- Eight® Stage IV 135CI Performance Crate engine. All models require ECM calibration with Screamin’ Eagle® Pro Street Tuner for proper installation. See Dealer for details.

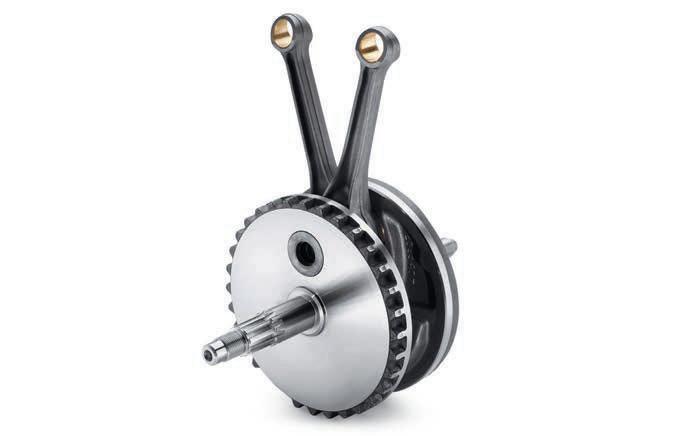

F. FLYWHEEL & ROD ASSEMBLY – 4-5/8"
Flywheel and connecting rod assembly with 4 5/8" stroke. 24100152 $1,499.95
Replacement flywheel assembly for ’21-later MilwaukeeEight® Touring models equipped with 135CI Stage IV Performance Crate engine. All models require ECM calibration with Screamin’ Eagle® Pro Street Tuner for proper installation. See Dealer for details.
Notice: The prices appearing in this catalog are the manufacturer’s suggested retail prices. Actual retail prices may vary.
A. SCREAMIN' EAGLE® 4.31" BIG BORE BOLT-ON CYLINDERS
Increase the displacement of your Milwaukee-Eight® engine without removing the engine from the chassis. The Screamin' Eagle product team has engineered a patent protected 4.31” Big Bore Cylinder that increases the internal bore but slips into the existing case bore without modification. Kit includes front and rear cylinders and gaskets. Screamin' Eagle products are not available for sale and are not street legal in all countries. Please contact your local dealer for more information
Replacement cylinders for all Center Cooled Touring equipped with a 131ci/135ci Stage IV kit or 135ci Crate Engine.
16800407 Black Highlighted.
16800404 Black Granite.
$1,249.95
$1,249.95
B. SCREAMIN' EAGLE MILWAUKEE-EIGHT® EXTREME PORTED CYLINDER HEADS
This Center-Cooled generation of Extreme Ported Cylinder Heads has been meticulously designed to help optimize air/fuel flow and velocity. Building on the previous Oil/TwinCooled generation of CNC-Ported Milwaukee-Eight® Cylinder Heads, the Screamin' Eagle team refined the intake and exhaust ports based on extensive racing efforts to help maximize the flow of high-velocity air through 2mm larger (42mm intake/34mm exhaust) valves than the Original Equipment heads and fully machined the combustion chamber to help optimize combustion efficiency. Due to the new race-inspired intake port geometry, these heads require the use of either Screamin' Eagle® High-Flow 68MM Intake Manifold (P/N 27300218) or Screamin' Eagle® Extreme Flow 68MM CNC Ported Intake Manifold (P/N 27300217). Factory equipped with high-performance valve springs that remain stable with high-lift cams and in high-RPM operation. Screamin' Eagle products are not available for sale and are not street legal in all countries. Please contact your local dealer for more information.
Replacement cylinder heads for all Center Cooled Touring equipped with a 131ci/135ci Stage IV kit or 135 Crate engine.
16501332 Black Highlighted.
16501333 Black Granite.
$1,649.95
$1,649.95
C. SCREAMIN' EAGLE SE8-550 CAM - MILWAUKEE-EIGHT ENGINE
The SE8-550 Cam is designed in conjunction with the systemmatched components contained in the Screamin' Eagle® Stage IV Kits and Crate Engines. The cam's high lift and long duration profile is ideal for opening the valves to efficiently fill the combustion chamber of larger displacement engines.
25400432
$309.95
Replacement camshaft for all Center Cooled Touring equipped with a 131ci/135ci Stage IV kit or 135 Crate engine
D. SCREAMIN' EAGLE HIGH COMPRESSION PISTONS
131", 4.31" BORE X 4.5" STROKE
High-compression pistons 4.310" bore. Forged flat-top pistons. Piston design and rings engineered to withstand increased combustion forces for outstanding durability. Updated ring package with 1mm compression and scraper rings. Gas-ported to assist with ring sealing while allowing for lowtension and reduced friction.
21900169
$449.95
Replacement pistons for '24-later Center-Cooled Touring and '25-later Softail models equipped with a 131ci Stage IV Kit.
Notice: The prices appearing in this catalog are the manufacturer’s suggested retail prices. Actual retail prices may vary.
Builder Components
E. SCREAMIN' EAGLE® 4.155" (122CI) BIG BORE BOLT-ON CYLINDERS – MILWAUKEE-EIGHT® ENGINE – BLACK HIGHLIGHTED
Increase the displacement of your Milwaukee-Eight® engine without removing the engine from the chassis. The Screamin' Eagle product team has engineered a patent protected 4.155” Big Bore Cylinder that increases the internal bore but slips into the existing case bore without modification. When combined with the appropriate piston combination in the Screamin' Eagle Stage III kits, these cylinders can increase the displacement of your Milwaukee-Eight engine from 117CI to 122CI. Kit includes front and rear cylinders and gaskets.
16800437
$949.95
Replacement cylinders for '24-later Center-Cooled Touring and '25-later Softail models equipped with a Screamin' Eagle 122ci Stage III kit.
F. SCREAMIN' EAGLE FORGED HIGH-COMPRESSION PISTON KIT – 4.155" X 4.5" (122CI)
Developed to work in concert with the Screamin' Eagle® Milwaukee-Eight 122CI engine Stage III kits, these pistons increase the engine's compression to 10.9:1 and deliver impressive gains in torque and horsepower when coupled with those kits. Forged from high-strength aluminum. Precisionmachined and features coated skirts for a tight-tolerance fit and quieter operation. Complete kit includes two pistons, rings, wrist pins and clips.
21900130A
$449.95
Replacement pistons for '24-later Center-Cooled Touring and '25-later Softail models equipped with a Screamin' Eagle 122ci Stage III kit.
G. SCREAMIN' EAGLE 4.155" (125CI) BIG BORE BOLT-ON CYLINDERS – MILWAUKEE-EIGHT ENGINE – BLACK GRANITE HIGHLIGHTED
Increase the displacement of your Milwaukee-Eight® engine without removing the engine from the chassis. The Screamin' Eagle product team has engineered a 4.155" Big Bore Cylinder that increases the internal bore but slips into the existing case bore without modification. When combined with the appropriate piston combination in the Screamin' Eagle ® Stage III kit, these cylinders can increase the displacement of your Milwaukee-Eight engine from 121CI to 125CI. Kit includes front and rear cylinders and gaskets.
16800442
$999.95
Replacement cylinders for '23-later FLHXSE and FLTRXSE, '24-later FLTRXSTSE and ‘26-later FLHXLSE and FLHXSTSE models equipped with a 121ci to 125ci Stage III kit.
H. SCREAMIN' EAGLE® FORGED HIGH-COMPRESSION PISTON KIT – 4.155" X 4.625" (125CI)
Developed to work in concert with the Screamin' Eagle® Milwaukee-Eight® 125CI engine Stage III kits, these pistons increase the engine's compression to 11.0:1 and deliver impressive gains in torque and horsepower when coupled with those kits. Designed for use with 4.155" Big Bore Cylinders. Forged from high-strength aluminum. Precision-machined and features coated skirts for a tight-tolerance fit and quieter operation. Complete kit includes two pistons, rings, wrist pins and clips
21900183
$424.95
Replacement pistons for '23-later FLHXSE and FLTRXSE, '24later FLTRXSTSE and ‘26-later FLHXLSE and FLHXSTSE models equipped with a 121ci to 125ci Stage III kit.
Notice: The prices appearing in this catalog are the manufacturer’s suggested retail prices.
56 MILWAUKEE-EIGHT® Builders Components
A. SCREAMIN’ EAGLE® MILWAUKEE-EIGHT®
ENGINE EXTREME CNC PORTED CYLINDER HEADS 2
Designed as part of the 128CI and 131CI Screamin’ Eagle® Milwaukee-Eight® Stage IV Performance Kit, this second generation of Extreme Ported Cylinder Heads has been meticulously designed to optimize air/fuel flow and velocity. Improving on the first generation of CNC-Ported MilwaukeeEight® Cylinder Heads, the Screamin’ Eagle team refined the intake and exhaust ports to maximize the flow of highvelocity air through the 1mm larger valves of 128CI and 131CI engines and fully machined the combustion chamber to optimize combustion efficiency. When combined with a larger bore throttle body, these CNC Cylinder Heads provide significantly improved efficiency of cylinder filling, leading to more explosive power and increased rear-wheel torque compared to stock. The Extreme Ported Cylinder Heads are factory equipped with high-performance valve springs that remain stable with high-lift cams and in high-RPM operation.
Replacement cylinder heads for Air/Oil-Cooled™ 17- 25 Milwaukee-Eight models equipped with 128 or 131CI Stage IV kits. All models require ECM calibration with Screamin’ Eagle Pro Street Tuner for proper installation. See Dealer for details.
16500750 Oil Cooled –
$1,649.95 Black Highlighted.
16500749 Oil Cooled – $1,649.95 Black Granite.
Replacement cylinder heads for Twin-Cooled ’17-’25 Milwaukee-Eight models equipped with 128 or 131CI Stage IV kits. All models require ECM calibration with Screamin’ Eagle Pro Street Tuner for proper installation. See Dealer for details.
16500748 Twin-Cooled™ – $1,649.95 Black Highlighted.
16500747 Twin-Cooled™ – $1,649.95 Black Granite.
B. SCREAMIN’ EAGLE® MILWAUKEE-EIGHT® ENGINE CNC PORTED CYLINDER HEADS 2
Designed in conjunction with the system-matched components of the Screamin’ Eagle® Milwaukee-Eight® Stage IV Performance Kit, these CNC-Ported Cylinder Heads have been meticulously machined to optimize air/fuel flow and velocity. Starting with a unique Screamin’ Eagle cylinder head casting, the Screamin’ Eagle team has dedicated countless hours of computer simulation and flow bench testing to maximize the flow through the intake and exhaust ports. The ports are meticulously machined on our five-axis CNC machine to increase the velocity of the intake charge and to maximize exhaust scavenging. When combined with a larger bore throttle body, these CNC Cylinder Heads provide improved efficiency of cylinder filling, leading to more explosive power and increased rear wheel torque when compared to stock.
The CNC Ported Heads are factory equipped with high-performance valve springs that remain stable with high-lift cams and in high RPM operation.
Replacement cylinder heads for Twin-Cooled™ ’17-’22 Touring and CVO™ models equipped with Screamin’ Eagle MilwaukeeEight 114 or 117CI Stage IV Kits. All models require ECM calibration with Screamin’ Eagle Pro Street Tuner for proper installation. See Dealer for details.
16500379 Twin-Cooled – $1,649.95 Black Highlighted.
16500527 Twin-Cooled – $1,649.95 Black Granite Highlighted.
Replacement cylinder heads for Air/Oil-Cooled ’18-’22 Softail® and ’17-’22 Touring and CVO models equipped with Screamin’ Eagle Milwaukee-Eight 114 or 117CI Stage IV Kits. All models require ECM calibration with Screamin’ Eagle Pro Street Tuner for proper installation. See Dealer for details.
16500512 Air/Oil-Cooled – $1,649.95 Black Highlighted.
16500538 Air/Oil-Cooled –Black Granite Highlighted. $1,649.95
Street legal and/or street compliant statements refer to product meeting 50-State emissions and noise standards in the United States.
The street legal and/or street compliant statements may not apply to markets outside of the United States. 2 2
Notice: The prices appearing in this catalog are the manufacturer’s suggested retail prices. Actual retail prices may vary.
MILWAUKEE-EIGHT ENGINE EXTREME CNC PORTED CYLINDER HEADS –TWIN-COOLED – BLACK GRANITE
B.
EAGLE MILWAUKEE-EIGHT ENGINE CNC PORTED CYLINDER HEADS –AIR/OIL-COOLED – BLACK HIGHLIGHTED
C. SCREAMIN’ EAGLE® 4.155" BIG BORE BOLT-ON CYLINDERS - MILWAUKEE-EIGHT® ENGINE 2
Increase the displacement of your Milwaukee-Eight® engine without removing the engine from the chassis. The Screamin’ Eagle product team has engineered a patent protected 4.155” Big Bore Cylinder that increases the internal bore but slips into the existing case bore without modification. When combined with the appropriate piston and flywheel combination in the Screamin’ Eagle Stage IV kits, these cylinders can increase the displacement of your Milwaukee-Eight engine from 107CI to 119CI or from 114CI & 117CI to 122CI. The kit includes front and rear cylinders and gaskets.
Replacement cylinders for '17-'25 Touring and '18-'24 Softail Milwaukee-Eight models equipped with Screamin' Eagle 119 or 122CI Stage III kits. Does not fit '23- later Center Cooled Touring or '25- later Softail models.
16800332 Black Highlighted. $924.95
D. SCREAMIN’ EAGLE® 4.075" BIG BORE BOLT-ON CYLINDERS – MILWAUKEE-EIGHT® POWERTRAIN 2
Now, you can increase the displacement of your MilwaukeeEight® engine without removing the engine from the chassis. The Screamin’ Eagle team has engineered a 4.075" Big Bore Cylinder that increase the internal bore but slips into the existing case bore without modification. When combined with the appropriate piston and flywheel combination in the Screamin’ Eagle® Stage III or IV kits, these cylinders can increase the displacement of your Milwaukee-Eight engine from 107 to 114CI or 114 to 117CI. The kit includes front and rear cylinders and cylinder head and cylinder base gaskets.
Replacement cylinders for ’18-’22 Softail® and ’17-’22 Milwaukee-Eight models equipped with Screamin’ Eagle 114 or 117CI Stage III and IV kits.
16800120 Black Highlighted. $499.95
16800125 Black Granite. $499.95
16800174 Black (non-highlighted). $499.95
Street legal and/or street compliant statements refer to product meeting 50-State emissions and noise standards in the United States.
The street legal and/or street compliant statements may not apply to markets outside of the United States.
Notice: The prices appearing in this catalog are the manufacturer’s suggested retail prices. Actual retail prices may vary.
A. SCREAMIN’ EAGLE HIGH COMPRESSION PISTONS 2
Developed to work in concert with the Screamin’ Eagle® Milwaukee-Eight® 119CI and 122CI Stage III kits and 128CI and 131CI Stage IV kits, these pistons increase the engine’s compression and deliver impressive gains in torque and horsepower when coupled with those kits. Forged from highstrength aluminum, the pistons are precision-machined and feature coated skirts for a tight-tolerance fit and quieter operation. Complete kit includes two pistons, rings, wrist pins and clips.
Replacement pistons for 17- 24 Milwaukee-Eight models equipped with 128CI Stage IV kits.
21900101 128" – 4.310" $449.95 Bore x 4.375" Stroke.
Replacement pistons for ’17-’24 Milwaukee-Eight models equipped with 131CI Stage IV kits.
21900099 131" – 4.310"
Bore x 4.5" Stroke.
$449.95
Replacement piston for ’17-’24 Milwaukee-Eight models equipped with Screamin’ Eagle 107 to 119ci Stage III kit. 21900129 107CI to 119CI.
$449.95
Replacement pistons for 17- 24 Milwaukee-Eight models equipped with Screamin Eagle 114 to 122 Stage III kit. 21900130 114CI or 117CI to 122CI.
$449.95
Developed to work in concert with the Screamin’ Eagle Milwaukee-Eight Stage III and IV kits, these pistons increase the engine’s compression ratio to 11.0:1, and deliver impressive gains in torque and horsepower when coupled with those kits. Forged from high-strength aluminum, the pistons are precision-machined, and feature coated skirts for a tight tolerance fit and quieter operation. The pistons are equipped with a 1mm, 1mm, 2mm ring pack that features a steel top ring with a friction-fighting coating and a napier second ring. Complete kit includes 2 pistons, rings, wrist pins and clips. 21900084 4.075" Bore x 4-3/8" Stroke –107 to 114CI Conversion. $449.95
Replacement pistons for ’18- 22 Softail, ’19- 22 Touring and ’17-later CVO Touring models equipped with Screamin’ Eagle Milwaukee-Eight Stage III and IV 107-114CI kit.
21900087 4.075" Bore x 4-1/2" Stroke –114 to 117CI Conversion. $449.95
Replacement pistons for ’18-1Softail and ’17-’21 CVO Touring models equipped with Screamin’ Eagle Milwaukee-Eight Stage III and IV 114-117CI kit.
C. SCREAMIN’ EAGLE HIGH-CAPACITY TAPPETS 2
This latest version of the Screamin Eagle High-Capacity Tappet incorporates a special heat treatment on the bearing needles and axle. In addition to the already proven, 25% larger, high-capacity needle bearings, this new heat treat technology increases material hardness and compressive strength, ultimately enabling the tappet to withstand the grueling engine speeds and high valve lift found in many performance engine configurations. The newest technology is identified with a laser-etched “SE” on the axle of the tappet (shown in product image). Set of 4.
18572-13
$284.95
Fits ’17-’18 Milwaukee-Eight-equipped models, ’99-’17 Twin Cam-equipped models and ’00-’22 XL and XR models.
Street legal and/or street compliant statements refer to product meeting 50-State emissions and noise standards in the United States.
The street legal and/or street compliant statements may not apply to markets outside of the United States.
Notice: The prices appearing in this catalog are the manufacturer’s suggested retail prices. Actual retail prices may vary.
F. SCREAMIN’ EAGLE® HIGH-FLOW 64MM THROTTLE BODY – MILWAUKEE-EIGHT® ENGINE 2
Standard equipment in Milwaukee-Eight engine Stage IV Kits, this high-flow 64mm Throttle Body will pass significantly more air and fuel mixture into your engine. Can be used with Original Equipment or High-Flow Injectors. Designed to be used with 64mm intake manifold P/Ns 27300145 or 27300185.
27300147
$299.95
Replacement throttle for ’18-’25 Softail® and ’17-’25 Touring models equipped with Screamin’ Eagle Milwaukee-Eight Stage IV kits. Compatible with all Screamin’ Eagle MilwaukeeEight High-Flow Air cleaners.
Shown with: SCREAMIN’ EAGLE MILWAUKEE-EIGHT 64MM CAST INTAKE MANIFOLD 2
27300145
$174.95
Replacement intake manifold for ’18-’25 Softail and ’17-’25 Touring models equipped with Screamin’ Eagle MilwaukeeEight Stage IV kits.
G. SCREAMIN’ EAGLE MILWAUKEE-EIGHT EXTREME-FLOW INTAKE MANIFOLD – 64MM 2
Optimize performance from your Stage IV equipped Milwaukee-Eight powertrain by bolting on this ExtremeFlow 64mm Intake Manifold. The cast aluminum body and ported intake runners provide smooth, undisturbed air intake you need for maximum power output. Updated calibrations make installation and tuning easy, delivering a 2% to 4% HP increase you’ll notice every time you twist the throttle.
27300185
$269.95
Fits ’18-’25 Softail, and ’17-’25 Touring models equipped with Screamin’ Eagle Milwaukee-Eight Stage IV kits. All models require ECM calibration with Screamin’ Eagle Pro Street Tuner for proper installation. Pending regulatory approval for use in California. See H-D.com/parts for status.
H. SCREAMIN’ EAGLE EXTREME-FLOW 55MM INTAKE MANIFOLD
2
This Screamin’ Eagle 55mm Extreme-Flow Intake Manifold features enhanced, 55mm, air-guzzling geometry and handpolished intake runners to provide uninhibited airflow to the engine resulting in a 2%-4% increase in horsepower that you will notice. The cast-aluminum construction of this intake manifold withstands sustained high-engine temperatures for reliability even under the harshest riding conditions. This Manifold fits the stock throttle body and all Screamin’ Eagle Intake Kits and works well with all current Screamin’ Eagle Pro Street Tuner calibrations.
27300167
$201.95
Fits ’18-later Softail and ’17-later Touring and Trike models. All models require ECM calibration with Screamin’ Eagle Pro Street Tuner for proper installation. 50-state U.S. EPA compliant. Pending approval for use in California on ’20 models. Refer to www.H-D.com/shop for status.
I. SCREAMIN’ EAGLE HIGH-FLOW INJECTOR KIT – MILWAUKEE-EIGHT ENGINE (5.5 G/SEC)*
2
Standard equipment in Milwaukee-Eight Stage IV Kits, these high-flow injectors provide fuel delivery at the rate of 5.5 grams/second, 24% more than the Original Equipment injectors. Designed to match the increased air velocity and fuel delivery demands of the Milwaukee-Eight engine equipped with big bore cylinders, ported heads and larger throttle body.
27400040
$174.95
Replacement fuel injectors for ’18-’25 Softail ’17-’25 Touring models equipped with Screamin’ Eagle Milwaukee-Eight Stage IV kits. All models require ECM calibration with Screamin’ Eagle Pro Street Tuner for proper installation. See Dealer for details.
*NOTICE: Installation of this kit requires recalibration for proper function. Failure to do so may cause a lean fuel condition, which may result in engine damage.
Street legal and/or street compliant statements refer to product meeting 50-State emissions and noise standards in the United States.
The street legal and/or street compliant statements may not apply to markets outside of the United States.
Notice: The prices appearing in this catalog are the manufacturer’s suggested retail prices. Actual retail prices may vary.
Twin Cam Stage Upgrades
Screamin’ Eagle® Stage upgrades o er complete street-compliant performance con gurations engineered to generate speci c torque and horsepower gains. Eliminating all the guesswork and trial-and-error testing normally associated with engine modi cations, Stage upgrades include everything you need to enhance your bike’s performance.
STAGE I
INTAKE + EXHAUST + TUNING
The easiest and most cost-e ective step to improve your motorcycle’s performance is to increase the air ow into and out of the engine. A high- ow air cleaner and system-matched slip-on mu es provide horsepower and torque improvements you can feel throughout the RPM range, and serve as the core components for all performance upgrades. ECM calibration is required to tune the fuel ow and timing required to accommodate the improved air ow.
Stage I upgrade can be installed without engine disassembly. No special tools are required. Requires ECM tuning.
Twin Cam Stage Upgrades
Adding performance cams to a Stage I equipped bike is the next step to improved performance. Cam choices allow you to tailor the engine’s performance to your speci c needs. A torque cam o ers on-demand throttle response from low to mid RPM at cruising speed. A power cam targets high-RPM, wide-open throttle response that keeps pulling right up to redline. ECM calibration tuning is required to accommodate the increased valve timing, and performance valve springs may be required for high-lift cams.
Stage II upgrade requires minor engine disassembly to replace the cam. Adjustable pushrods allow cam installation without removing the rocker box. Special tools and ECM tuning are required.
The next step on the performance journey is to build a bigger engine. An increase in engine displacement allows the engine to swallow more air and fuel, a highercompression piston squeezes the air/fuel into a more volatile mixture, and when combined, generates more power when ignited. A displacement and compression increase provides torque increases throughout the entire RPM range with a 15-25% improvement in the mid-range power. ECM calibration tuning is required to adjust fuel ow and timing to accommodate the increased displacement.
Stage III bolt-on upgrade requires removal of the engine’s top end and opening the cam chest. Engine remains in the chassis and no machining is required. Special tools and ECM tuning are required.
STAGE I + CAMS, BIG BORE CYLINDERS, PISTONS, CYLINDER HEADS & THROTTLE BODY
To maximize the impact of the increased displacement gained with Stage III updates, the addition of free- owing ported cylinder heads and a big bore throttle body top o the performance build. Designed to satisfy the high-RPM, throttle-twisting rider, the Stage IV update delivers 20-30% increase in power that keeps pulling right up to the redline, without sacri cing mid-range torque. ECM calibration tuning is required to add more fuel, and a higher-lift cam may be required to deliver maximum power.
Stage IV bolt-on upgrade requires removal of the engine’s top end and opening the cam chest. Engine remains in the chassis and no machining is required. Special tools and ECM tuning are required.
Street legal and/or street compliant statements refer to product meeting 50-State emissions and noise standards in the United States.
The street legal and/or street compliant statements may not apply to markets outside of the United States.
Twin Cam Stage I Upgrade
A. SCREAMIN’ EAGLE® HEAVY BREATHER FILTER COVER – TEARDROP
Dress up the Heavy Breather Air Cleaner with this radical cover. Manufactured from forged aluminum and precision CNC-machined and polished, these easy-to-install two-piece covers add a rich custom look. Cover is available in mirrorchrome or cut back gloss black finish to match your customizing direction. Kit includes water-repellent rain sock.
Fits models equipped with Screamin’ Eagle® Heavy Breather Air Cleaner Kits on Twin Cam and XL model. (except Compact Heavy Breather P/N 28716-10A, Heavy Breather Elite P/N 29400172 and Milwaukee-Eight® Heavy Breather P/N 29400263 or 29400264).
28739-10A Cut Back Gloss Black – End Logo. $224.95
28740-10A Chrome – End Logo. $224.95
B. SCREAMIN’ EAGLE HEAVY BREATHER DECORATIVE ENDCAP – WILLIE G SKULL
Add a sinister touch to your Heavy Breather Air Cleaner. Chrome-plated self-adhesive cover features a forward-facing Willie G Skull medallion.
28720-10
$42.95
Fits models equipped with Screamin’ Eagle Heavy Breather Air Cleaner Kits (except Compact Heavy Breather P/N 2871610A, Heavy Breather Elite P/N 29400172 and MilwaukeeEight Heavy Breather P/N 29400263 or 29400264).
C. SCREAMIN’ EAGLE HEAVY BREATHER DECORATIVE MEDALLION
Add the finishing touch to your Heavy Breather Air Cleaner by installing this medallion. Featuring a bright chrome-plated die-cast base and contrasting black inlay with diamond-cut Screamin’ Eagle script. Easy to install.
29017-09
$31.95
Fits models equipped with Screamin’ Eagle Heavy Breather Air Cleaner Kits (except Compact Heavy Breather P/N 2871610A, Heavy Breather Elite P/N 29400172 and MilwaukeeEight Heavy Breather P/N 29400263 or 29400264).
D. THROTTLE BODY COVER
This cover dresses the area between the Twin Cam cylinders for a custom look. The formed cover hugs the contour and conceals the electronic control module throttle body for a clean appearance. Available in your choice of mirror chrome or gloss black finish. Easy-to-install kit includes gaskets.
Fits ’14-’15 FLSTNSE, ’11-’12 FLSTSE, ’13-’14 FXSBSE, and ’16-’17 FXDLS and Softail®, ’08-’16 Touring and Trike models equipped with Screamin’ Eagle Heavy Breather or Burst Air Cleaner Kit.
61300109 Chrome.
$89.95
61300110 Gloss Black. $79.95 Street legal and/or street compliant statements refer to product meeting 50-State emissions and noise standards in the United States.
The street legal and/or street compliant statements may not apply to markets outside of the United States.
Notice: The prices appearing in this catalog are the manufacturer’s suggested retail prices. Actual retail prices may vary.
Twin Cam Stage I Upgrade E. SCREAMIN’ EAGLE® VENTILATOR ELITE AIR CLEANER KIT 2
This low-profile oval air cleaner features a 360° exposed filter element and a cast back plate designed to provide maximum airflow to the throttle body. This easy-to-install air cleaner produces significant performance gains, while the sleek center bar design cover with carbon fiber inserts add a luxurious touch. This complete kit includes low-profile air cleaner cover, high-flow filter element, back plate, diamondcut Screamin’ Eagle® medallion, protective rain sock and all required installation hardware. Street compliant when used with stock mufflers. 50-State U.S. EPA compliant.
Fits ’16-’17 FXDLS and Softail® and ’09-’16 Touring and Trike models. Also fits ’11-’17 CVO™ Softail models. All EFI models require ECM calibration for proper installation. ’17 models require recalibration with Screamin’ Eagle Pro Street Tuner (sold separately).
29400217 Chrome. $349.95
29400218 Gloss Black.
$349.95
Fits ’16-’17 FXDLS and Softail, ’14-’17 CVO Softail and ’14-’16 Touring and Trike models equipped with Screamin’ Eagle 58mm Throttle Body. All models require ECM calibration for proper installation. ’17 models require recalibration with Screamin’ Eagle Pro Street Tuner (sold separately).
29400219 Chrome. $349.95
29400230 Gloss Black. $349.95
Also available: SCREAMIN’ EAGLE VENTILATOR ELITE AIR CLEANER COVER
Add a luxurious finishing touch to your Ventilator Air Cleaner. Designed as a direct replacement for the Screamin’ Eagle and CVO Ventilator Air Cleaners, this easy-to-install cover features a sleek center bar design surrounded with carbon fiber inserts. Kit includes low-profile cover, diamond-cut Screamin’ Eagle medallion and chrome mounting hardware.
Fits ’10-’17 Dyna®, ’09-’16 Softail, ’09-’16 Touring and Trike models equipped with Ventilator Air Cleaner Kits. Also fits Dyna High Output 103 and CVO models with Original Equipment Ventilator Air Cleaner.
61300516 Chrome.
$124.95
61300517 Gloss Black. $124.95 Street legal and/or street compliant statements refer to product meeting 50-State emissions and noise standards in the United States.
The street legal and/or street compliant statements may not apply to markets outside of the United States.
Notice: The prices appearing in this catalog are the manufacturer’s suggested retail prices. Actual retail prices may vary.
Twin Cam Stage I Upgrade
A. SCREAMIN’ EAGLE® HIGH-FLOW AIR CLEANER – TWIN CAM
The High-Flow Air Cleaner Kit provides increased airflow to boost the power of your fuel-injected model. Kit features a one-piece cast back plate with integral breather and mounting brackets for simplified installation and a synthetic washable air cleaner element that does not require oiling. Available with a brilliant chrome or black back plate, this round air cleaner element can be dressed with most Original Equipment or accessory air cleaner covers. Or choose to flaunt your performance gains with the open element look, and finish it off with a Rain Sock Kit P/N 28728-10 and custom Air Cleaner Trim from one of the Harley-Davidson® decorative collections. This kit includes air cleaner, back plate, breather and all required hardware. 50-State U.S. EPA compliant.
Fits ’16-’17 Softail® and ’14-’16 Touring and Trike models (except CVO™ Touring) with Original Equipment 50mm Throttle Body. All models require ECM calibration for proper installation. ’17 models require recalibration with Screamin’ Eagle® Pro Street Tuner (sold separately). 29400234
Fits ’08-’15 Softail models (except CVO Softail). Also fits ’08-’17 Dyna® models (except ’16-’17 FXDLS) equipped with accessory Air Cleaner Cover. Also fits ’04-’07 EFI Dyna, ’01-’07 EFI Softail, and ’02-’07 EFI Touring. FXS, FLS, FLSTSB and ’13-’17 FXDB models require separate purchase of Gasket P/N 29591-99 and Screw P/N 29703-00. All models require ECM calibration for proper installation. ’17 models require recalibration with Screamin’ Eagle Pro Street Tuner (sold separately).
29400240 Chrome.
Fits ’08-’13 Touring and Trike models (except CVO Touring) with Original Equipment 50mm throttle body. All models require ECM calibration for proper installation.
29400238 Chrome.
Fits ’16-’17 FXDLS and Softail, ’14-’17 CVO Softail, and ’14-’16 Touring and Trike models equipped with Screamin’ Eagle 58mm EFI Throttle Body. Requires separate purchase of an Accessory Air Cleaner Cover. All models require ECM calibration for proper installation. ’17 models require recalibration with Screamin’ Eagle Pro Street Tuner (sold separately).
29400222 Raw Aluminium.
$189.95
Notice: The prices appearing in this catalog are the manufacturer’s suggested retail prices. Actual retail prices may vary.
Twin Cam Stage I Upgrade
B. SCREAMIN’ EAGLE® AIR CLEANER TRIM
Dress your air cleaner in the traditional H-D orange and black. Easy-to-install trim features Screamin’ Eagle script set against a gloss black background.
61300299
$34.95
Fits ’16-’17 Softail® (except FLSTFBS and FXSE) and ’14-’16 Touring and Trike models with Original Equipment air cleaner cover. Does not fit CVO™ models.
29503-07
$34.95
Fits ’07 Dyna®, ’07-’15 Softail (except FLSTSB and FXS), ’07’13 Touring and Trike models models with Original Equipment air cleaner cover.
C. SCREAMIN’ EAGLE AIR CLEANER RAIN SOCK
Add the open-element look to your Screamin’ Eagle High-Flow style Air Cleaner. This easy-to-install kit allows you to replace the traditional Original Equipment air cleaner cover with custom inserts from one of the H-D® Decorative Collections. Kit includes a breathable mesh cover with classic Bar & Shield logo that stretches over the filter to maximize airflow while protecting the exposed element from the rain. Fits traditional cone-shaped air cleaner elements featured in many Screamin’ Eagle Twin Cam Stage Kits.
28728-10
Fits Screamin’ Eagle Round High-Flow Air Cleaner Kits.
$34.95
D. SCREAMIN’ EAGLE AIR CLEANER BACK PLATE KITS 2
Finished in brilliant chrome or wrinkle black, these replacement back plates complement the finish of your engine. Cast back plate design features integral breather and mounting brackets for simplified installation.
Fits models equipped with Screamin’ Eagle High-Flow Air Cleaner Kits. Installation may require separate purchase of (2) O-Ring P/N 11292, (2) Breather Tube P/N 29557-05 and (2) Breather Screw P/N 29465-99. See your Dealer for details.
Fits ’99-’07 Dyna, ’99-’15 Softail (except ’11-later CVO) and ’02-’07 Touring models.
29510-05 Chrome. $65.03
29586-06 Wrinkle Black. $55.03
Fits 08- 15 Dyna®, 08- 13 Touring and Trike models with Original Equipment Teardrop Air Cleaner Cover.
29319-08 Wrinkle Black. $60.03
Street legal and/or street compliant statements refer to product meeting 50-State emissions and noise standards in the United States.
The street legal and/or street compliant statements may not apply to markets outside of the United States.
Notice: The prices appearing in this catalog are the manufacturer’s suggested retail prices. Actual retail prices may vary.
Stage III Upgrade
When stock cams just won’t do. This Big Bore Kit provides the parts you need to increase the horsepower of your EFI-equipped model. The kit increases the displacement of your ’99-’06 Twin Cam 88® from 88 cubic inches (1450cc) to 95 cubic inches (1550cc).
Kit includes:
- Big Bore Cylinders
- Big Bore Flat Top Pistons and Rings
- SE-203 Cams
- Top End Gasket Kit
- Heavy Duty Clutch Spring
Requires separate purchase of primary cover gasket and Air Cleaner Trim Ring. (Not all components shown.) All EFI-equipped models require ECM calibration* (priced separately). Forraceapplicationonly.
Fits ’04-’05 EFI Dyna® ’01-’06 EFI Softail® and ’02-’06 EFI Touring models.
29775-02C Black Highlighted.
$1,249.95
*Recalibration is required for proper installation. See Dealer for details. Labor cost not included.
NOTE: Separate purchase of Cam Spacer Kit P/N 25938-00 is recommended for ’99-’06 Touring, ’01-’06 Softail and ’04-’05 Dyna® models. This kit contains five different spacers to achieve proper sprocket alignment. Individual spacers can be purchased separately. For ’06 Dyna models, see service manual for proper procedure and Cam Spacer part numbers.
Notice: The prices appearing in this catalog are the manufacturer’s suggested retail prices. Actual retail prices may vary.
SCREAMIN’ EAGLE® TWIN CAM STAGE III KIT –103CI TO 110CI
2
Build a fast, reliable 110-cubic-inch Twin Cam hauler without having to remove the motor from the chassis. This Stage III Street Performance Kit combines system-matched Screamin’ Eagle® big bore cylinders, high compression pistons and performance cams and valve train components with the Original Equipment cylinder heads for a cost-effective boost in torque and performance. The exclusive bolt-on 4.0" cylinders are engineered with high strength slim-wall spigots that slip into the factory crank case without any additional machining. The 4" flat top pistons team with the stock cylinder heads to produce a performance-enhancing 10.2:1 compression ratio (10.4:1 on Twin-Cooled™ models), and the highlift SE-585 cam produces a boost in torque throughout the RPM range. 50-State U.S. EPA compliant.
Kit includes:
- Screamin’ Eagle 4.0" Bolt-On Cylinders
- Forged 10.2:1 Compression Pistons and Rings
- SE-585 Cams
- High Performance Valve Springs
- Perfect-Fit Pushrods
- Screamin’ Eagle High-Capacity Roller Tappets
- Top End and Cam Cover Gaskets
- Heavy Duty Clutch Spring
92500035 Black Highlighted. $2,149.95 Fits ’16-’17 Softail® and ’14-’16 Touring models. Does not fit Trike models, FLSS, FLSTFBS, CVO™ 110 models or models with engine cases that have been machined to accept largebore cylinders. Requires separate purchase of Cam Drive Retention Kit P/N 25566-06. Cam Spacer Kit P/N 25928-06 is recommended. Twin-Cooled models require separate purchase of model-specific head gaskets. All models require recalibration with Screamin’ Eagle Pro Street Tuner (sold separately).
NOTE: Installation of automatic or manual compression releases on large displacement engines is highly recommended.
Stock 103HOCI TQ
Stock 103HOCI HP
110CI Stage III (SE585) TQ
110CI Stage III (SE585) HP
Notice: The prices appearing in this catalog are the manufacturer’s suggested retail prices. Actual retail prices may vary.
Stage III Upgrade
SCREAMIN’ EAGLE® TWIN CAM STAGE IV KIT –96CI TO 103CI 3
If you’re looking to turn your 96CI Twin Cam into a track-ready 103, this kit eliminates the guess work.
Kit includes:
- 3-7/8" Big Bore Cylinders
- CNC Ported Factory Cylinder Heads with Performance Valve Springs
- Forged 10.5:1 Compression Piston Kit
- SST Piston Rings
- SE-259E Performance Cam Kit
- Perfect Fit Pushrods
- 58mm Throttle Body
- Intake Manifold
- High-Flow Injector Kit (4.9 g/s)
- Heavy Duty Clutch Spring
- Top End Gasket Kit
The kit also includes high-performance clutch spring and sprocket retention hardware to put the power to the ground. Kit includes top end gaskets. Installation requires separate purchase of Cam Service Kit P/N 17045-99D and Drive Gear Retention Kit P/N 25566-06. Forraceapplicationonly.
27516-08F Black Highlighted.
$3,099.95 Fits ’07-’14 Dyna® and Softail® and ’07 Touring models with Original Equipment Twin Cam 96™ engine. Not compatible with cruise control.
27517-08E Black Highlighted (not shown). $3,099.95 Fits ’08-’11 Touring models with Original Equipment Twin Cam 96 engine.
NOTE: Installation of automatic or manual compression releases on large displacement engines is highly recommended.
Street legal and/or street compliant statements refer to product meeting 50-State emissions and noise standards in the United States.
The street legal and/or street compliant statements may not apply to markets outside of the United States.
Notice: The prices appearing in this catalog are the manufacturer’s suggested retail prices. Actual retail prices may vary.
& Street Cannon Mu ers
Stock 96CI TQ
Stock 96CI HP
103CI Stage IV TQ
103CI Stage IV HP
Bring your Twin Cam motorcycle up to the same 110-cubicinch displacement and power output as the CVO™ Screamin’ Eagle® models without expensive machining or removing the engine from the chassis. This street compliant kit combines the proven SE-255 cams and cylinder heads of the CVO model with exclusive Screamin’ Eagle bolt-on 4.0" cylinders and system-matched pistons to deliver high torque and reliable everyday performance. The automatic compression releaseequipped cylinder heads and the flat top forged pistons combine to develop a 9.3:1 compression ratio for easy starting, and the Screamin’ Eagle lifters ensure quiet reliable valve train operation. 50-State U.S. EPA compliant.
Kit includes:
- Screamin’ Eagle 4.0" Bolt-On Cylinders
- Forged 9.3:1 Compression Pistons and Rings
- CVO 110 Cylinder Heads
- SE-255 Cams
- High-Capacity Roller Tappets
- Top End and Cam Cover Gaskets
- Heavy Duty Clutch Spring
- Cam Spacer Kit P/N 25928-06 is recommended
92500032 Black Highlighted. $2,749.95 Fits ’14-’16 FLHTCU, FLHTCUL, FLHTK, FLHTKL and FLTRU models with Twin-Cooled engines. Does not fit Trike models, CVO 110 models, or models with engine cases that have been machined to accept large bore cylinders. Requires separate purchase of Screamin’ Eagle high-flow air cleaner. Installation requires separate purchase of Primary Cover Gasket. Cam Drive Retention Kit P/N 25566-06. Cam Spacer Kit P/N 25928-06 is recommended. All models require ECM calibration for proper installation.
Street legal and/or street compliant statements refer to product meeting 50-State emissions and noise standards in the United States.
The street legal and/or street compliant statements may not apply to markets outside of the United States.
Notice:
SCREAMIN’ EAGLE® TWIN CAM TIRE SHREDDER KIT – 103CI TO 110CI 23
This comprehensive kit provides a complete package of matched components that allow you to build a high-performance 110CI Twin Cam without impacting the factory warranty. The unique Screamin’ Eagle® 4.0" big bore cylinders are engineered to slip into the engine cases without case machining or modification, so the engine stays in the chassis during the build.
Kit includes:
- Screamin’ Eagle 4.0" Bolt-On Cylinders
- Forged 10.2:1 High Compression Pistons and Rings
- Screamin’ Eagle 58mm Throttle Body
- High Flow Fuel Injectors (5.3 g/s)
- Screamin’ Eagle CNC-Ported Cylinder Heads
- SE-259E Cams
- Perfect-Fit Pushrods
- Screamin’ Eagle High-Capacity Roller Tappets
- Top End and Cam Cover Gaskets
- Heavy Duty Clutch Spring
92500038
$3,199.95
Fits 50-State ’14-’16 Touring models, Does not fit TwinCooled™ models. Does not fit Trike models, CVO™ 110 models or models with engine cases that have been machined to accept large-bore cylinders. Requires separate purchase of accessory 58mm air cleaner and Cam Drive Retention Kit P/N 25566-06. Cam Spacer Kit P/N 25928-06 is recommended. All models require recalibration with Screamin’ Eagle Pro Street Tuner (sold separately). 2
92500037A Black Highlighted. $3,249.95
Fits ’16-’17 Softail® and ’08-’13 Touring models. Cannot be installed on CVO 110 models, FLSS or FLSTFBS 110 models, or models with engine cases that have been machined to accept large-bore cylinders. Requires separate purchase of accessory 58mm air cleaner and Cam Drive Retention Kit P/N 25566-06. Cam Spacer Kit P/N 25928-06 is recommended. Models without automatic compression releases require installation of model specific Compression Release Kit and Wiring Harness. Forraceapplicationonly.
Street legal and/or street compliant statements refer to product meeting 50-State emissions and noise standards in the United States.
The street legal and/or street compliant statements may not apply to markets outside of the United States.
Notice:
SCREAMIN’ EAGLE® TWIN CAM BOLT-ON
110CI TO 117CI KIT
2
Turn your Original Equipment 110-cubic-inch model into a fast, reliable 117-cubic-inch Twin Cam hauler without having to remove the motor from the chassis. This Street Performance Kit combines system-matched Screamin’ Eagle® big bore cylinders, forged pistons and performance cams and valve train components with the Original Equipment cylinder heads for a cost-effective boost in torque and performance. The exclusive bolt-on 4.125" cylinders are engineered with highstrength slim-wall spigots that slip into the factory 110CI crank case without any additional machining. The 4.125" flat top pistons team with the stock cylinder heads to produce a performance-enhancing 9.9:1 compression ratio, and the high-lift SE-259E cam produces a boost in torque throughout the RPM range. 50-State U.S. EPA compliant.
Kit includes:
- Screamin’ Eagle 4.125" Bolt-On Cylinders
- Forged 9.9:1 Compression Pistons and Rings
- Screamin’ Eagle 58mm Throttle Body
- High Flow Fuel Injectors (5.3 g/s)
- SE-259E Cams
- Perfect-Fit Pushrods
- Screamin’ Eagle High-Capacity Roller Tappets
- Screamin’ Eagle Inner Cam Bearing Kit
- Top End and Cam Cover Gaskets
Fits ’14-’17 CVO™ 110CI Softail® and ’14-’16 CVO™ Touring models. Also fits ’16-’17 110CI FLSS, FLSTFBS and FXDLS models. Requires purchase of accessory 58mm air cleaner and Cam Drive Retention Kit P/N 25566-06 (except models equipped with Screamin’ Eagle Heavy Breather Elite Performance Air Cleaner Kits). Models equipped with Ventilator Air Cleaner require separate purchase of 58mm Air Cleaner Backplate P/N 29400038. All models require ECM calibration for proper installation. ’16-’17 FXDLS and all ’17 models require recalibration with Screamin’ Eagle Pro Street Tuner (sold separately). 92500055 Granite Finish. $2,449.95
Street legal and/or street compliant statements refer to product meeting 50-State emissions and noise standards in the United States.
The street legal and/or street compliant statements may not apply to markets outside of the United States.
A. SCREAMIN’ EAGLE® TWIN CAM BOLT-ON 110CI TO 117CI KIT
Turn your Original Equipment 110-cubic-inch model into a track-ready 117-cubic-inch hauler without removing the engine from the chassis. This kit features exclusive bolt-on 4.125" bore cylinders that are engineered with high-strength steel liners that slip into the existing factory 110CI Twin Cam crankcase openings. System-matched pistons combine with the Original Equipment CVO™ cylinder heads to produce a strong 9.9:1 compression ratio. Installation does not require case machining or modification.
Kit includes:
- Screamin’ Eagle® 4.125" Bolt-On Cylinders
- Forged 9.9:1 Compression Pistons and Rings
- Screamin’ Eagle 58mm Throttle Body
- High-Flow Injector Kit (5.3 g/s)
- SE-259E Cams
- Perfect-Fit Pushrods
- Screamin’ Eagle High-Capacity Roller Tappets
- Screamin’ Eagle Inner Cam Bearing Kit
- Top End and Cam Cover Gaskets
- Heavy Duty Clutch Spring
When installed with your choice of 58mm high-flow air cleaner and free-flowing exhaust, this engine has the potential to produce 114 horsepower at the rear wheel, a 42% increase over stock and 121 ft. lbs. of torque, a 20% increase over stock.
Fits ’11-’13 CVO 110CI Softail® models, ’08-’13 CVO 110CI Touring models. Also fits ’08-’13 Touring models with electronic throttle control and crankcases previously machined to accept 4.00" CVO-style cylinders. Requires purchase of accessory 58mm air cleaner and Cam Drive Retention Kit P/N 25566-06 (except models equipped with Screamin Eagle Heavy Breather Elite Performance Air Cleaner Kits). Models equipped with Ventilator Air Cleaner require separate purchase of 58mm Air Cleaner Backplate P/N 29400038. ’08-’12 CVO models require separate purchase of Primary Cover Gasket. All models will require ECM tuning. Forrace applicationonly.
92500053 Granite Finish.
92500052 Black Finish.
$2,574.95
$2,574.95
and/or
Notice: The prices appearing in this catalog are the manufacturer’s suggested retail prices. Actual retail prices may vary.
B. SCREAMIN’ EAGLE® STREET PERFORMANCE HIGH-FLOW 58MM EFI THROTTLE BODY*
2
The biggest engines deserve the most fuel and air. This huge 58mm Throttle Body (8mm or 16% larger than stock) won’t leave your engine starving for more air. The one-piece throttle body features Electronic Throttle Control technology. Just add your stock injectors. Choose from several different 58mm compatible high-flow air cleaner kits to feed this big-mouthed beast. All EFI equipped models require ECM calibration* (sold separately).
27200029
$489.95
Fits ’16-’17 FXDLS, FLSS and FLSTFBS, and ’14-’17 CVO™ Touring models equipped with 110CI engines. Also fits ’14-’17 Softail® and ’14-’16 Touring models equipped with Screamin’ Eagle® 110 Street Performance Upgrade Kits P/N 92500020, 92500031, 92500032 and 27508-11. Does not fit Trike models. Requires separate purchase of a 58mm Air Cleaner. 27713-08
Fits ’16-’17 Softail and ’11-’17 CVO Softail and ’08-’13 Touring models. Forraceapplicationonly.
$489.95
3
*NOTICE: Installation of this kit requires jetting or recalibration for proper function. Failure to do so may cause a lean fuel condition, which may result in engine damage.
Street legal and/or street compliant statements refer to product meeting 50-State emissions and noise standards in the United States.
The street legal and/or street compliant statements may not apply to markets outside of the United States.
Notice: The prices appearing in this catalog are the manufacturer’s suggested retail prices. Actual retail prices may vary.
Builders Components
A. SCREAMIN’ EAGLE PRO HIGH-FLOW
INJECTOR KIT – 5.3 g/s*
Injectors provide fuel delivery at the rate of 5.3 grams/second, 23% more than Original Equipment injectors. All models require ECM calibration (sold separately). Forraceapplicationonly.
27796-08
$179.95
Fits models equipped with Screamin’ Eagle 58mm Throttle Body P/N 27713-08 or Screamin’ Eagle High Flow Oval Port Intake Manifold P/N 27300035.
SCREAMIN’ EAGLE PRO HIGH-FLOW INJECTOR KIT – 4.9 g/s*
Injectors provide fuel delivery at the rate of 4.9 grams/second, 25% more than Original Equipment injectors. All models require ECM calibration (sold separately). Forraceapplicationonly.
27797-07
$179.95
Fits Twin Cam models equipped with Screamin’ Eagle 58mm EFI Throttle Body P/N 27639-07B or 62mm EFI Throttle Body P/N 27300019A.
A. SCREAMIN’ EAGLE PRO HIGH-FLOW INJECTOR KIT (27797-07 SHOWN)
SCREAMIN’ EAGLE (SE) & ORIGINAL EQUIPMENT (OE) FUEL
27796-08 5.3 g/s SE 58mm w/Electronic Throttle Control (ETC*)
27797-07 4.9 g/s
27609-01B 4.3 g/s
SE 50mm Cable Drive (1P), SE 58mm Cable Drive (2P), ’06-later Twin Cam (except ETC* models)
SE 43mm Dual Bore, OE 46mm Cable Drive (2P), OE 50mm / SE 58mm ETC*
27625-06 3.91 g/s OE 46mm Cable Drive (2P) ’06 Twin Cam
27709-06A 3.91 g/s
*NOTICE: Installation of this kit requires jetting or recalibration for proper function. Failure to do so may cause a lean fuel condition which may result in engine damage.
Street legal and/or street compliant statements refer to product meeting 50-State emissions and noise standards in the United States.
OE 46mm Cable Drive (2P) Late ’06-later Twin Cam (except ETC* models)
IWP029B printed on injector electrical connector, red band/gray connector
27654-06 printed on body of injector (opposite side of connector)
IWP162 printed on injector electrical connector, white band/gray connector
27625-06 printed on body of injector (opposite side of connector)
27709-06/A printed on body of injector (opposite side of connector)
*ETC-equipped models: ’16-’17 Softail, ’14-’15 FLSTNSE, ’11-’12 FLSTSE, ’13-’14 FXSBSE and ’08-’17 Touring and Trike models.
The street legal and/or street compliant statements may not apply to markets outside of the United States. Notice: The prices
B. SCREAMIN’ EAGLE® PRO HIGH-FLOW 58MM EFI THROTTLE BODY – CABLE OPERATED THROTTLE*
3
This massive 58mm bore Throttle Body is extruded, precision machined and polished to provide all the air you’ll need to dominate at the track. Designed for use with Screamin’ Eagle® Pro cylinder heads, installation requires separate purchase of Screamin’ Eagle Pro High-Flow Intake Manifold P/N 2966707, and either the Screamin’ Eagle Pro High-Flow Air Cleaner Kit P/N 29515-08 or the Heavy Breather Air Intake System 29253-08A, 29006-09A or 28716-10. Injectors mount to the Screamin’ Eagle Manifold, stock injectors can be reused for engines making up to 100 rear wheel horsepower, Screamin’ Eagle Pro High-Flow Injectors P/N 27797-07 are recommended for engines producing greater than 100 Rear Wheel Horsepower. All EFI-equipped models require ECM calibration (sold separately). Forraceapplicationonly.
27639-07B
$489.95
Fits ’06-’17 Dyna® (except FXDLS), ’06-’15 Softail® EFI models (except ’11-’15 CVO™) and ’06-’07 Touring EFI models. Not compatible with cruise control.
C. SCREAMIN’ EAGLE PRO HIGH-FLOW INTAKE MANIFOLD – 58MM THROTTLE BODY* 3
This manifold is cast and precision machined to provide an exact fit with Screamin’ Eagle Pro Accessory cylinder heads and the Screamin’ Eagle Pro 58mm EFI Throttle Body P/N 27639-07B. This manifold has intake runners that are .100" larger in diameter than all stock Twin Cam heads and early Screamin’ Eagle performance cylinder heads. The intake port diameter in the cylinder heads should be 1.750"; if not, an experienced engine builder can open the cylinder head ports to this diameter to ensure a smooth transition and airflow. Stock injectors can be reused for applications making up to 100 rear wheel horsepower, Screamin’ Eagle Pro High-Flow Injectors P/N 27797-07 are recommended for engines producing greater than 100 rear wheel horsepower. All EFI-equipped models require ECM calibration (sold separately). Forrace applicationonly.
29667-07
$129.95
Fits ’06-’17 Dyna (except FXDLS), ’06-’15 Softail EFI models (except ’11-’15 CVO) and ’06-’07 Touring EFI models equipped with Screamin’ Eagle Pro 58mm EFI Throttle Body P/N 27639-07B.
D. SCREAMIN’ EAGLE PRO HIGH-FLOW INTAKE MANIFOLD – 51MM SUPER BORE CARBURETOR 3
This manifold is designed for use with Screamin’ Eagle Pro Super Bore 51mm CV Carburetor P/N 27926-02A (sold separately). Large manifold eliminates restrictions and is machined for precision alignment to Screamin’ Eagle accessory cylinder head intake flange dimensions. Forraceapplicationonly.
27927-07
$149.95
Fits ’99-’06 carbureted Twin Cam models. This manifold has intake runners which are the same diameter as all stock Twin Cam heads and early Twin Cam performance heads. Install using stock intake flanges.
Street legal and/or street compliant statements refer to product meeting 50-State emissions and noise standards in the United States.
The street legal and/or street compliant statements may not apply to markets outside of the United States.
Notice: The prices appearing in this catalog are the manufacturer’s suggested retail prices. Actual retail prices may vary.
FOR ’99-’05 DYNA®, ’00-’06 SOFTAIL® AND ’99-’06 TOURING MODELS. Kits include front and rear cams. Splined rear cam is included for exceptional load handling capability. Gaskets and bearings not included. Dealer installation is recommended and special tools are required for proper installation. Cam Installation Kit P/N 17045-99C (sold separately) includes all required gaskets, bearings and seals for proper installation. ’99 models require splined Cam Sprocket P/N 25716-99 for installation. All EFI models require ECM calibration (Not available from Harley-Davidson for race applications). Forraceapplicationonly.
FOR ’06-’17 DYNA, ’07-’17 SOFTAIL AND ’07-’16 TOURING MODELS. Kits include front and rear cams. Splined rear cam is included for exceptional load handling capability. Gaskets and bearings not included. Dealer installation is recommended and special tools are required for proper installation. Cam Installation Kit P/N 17045-99C (sold separately) includes all required gaskets, bearings and seals for proper installation. All EFI models require ECM calibration (Not available from Harley-Davidson for race applications). Forraceapplicationonly.
In race applications, high-lift cams and sti valve springs put extreme pressure on the engine’s lifters and pushrods. At 7,000 RPM, instantaneous forces of up to 1200 lbs. can be experienced. This severe dynamic loading can lead to accelerated tappet wear. In these applications, we suggest installation of Screamin’ Eagle® High-Capacity Tappets and periodic tappet inspection and replacement to maximize engine life.
SE-203 CAM KIT
Bolt-in performance cams designed to provide exceptional midrange torque. Installation does not require any headwork or performance valve springs and will work well with stock or mildly ported heads. Peak power occurs around 5500 RPM. Works well with displacements up to 96 cubic inches. Forraceapplicationonly.
SE-204 CAM KIT
This midrange torque bolt-in cam produces peak horsepower around 5800 RPM and installation does not require any headwork or performance valve springs. Should be used in conjunction with open intake and exhaust. Forraceapplicationonly.
SE-211 CAM KIT
This camshaft works great with 103-cubic-inch and larger engines with free-flowing intake and exhaust. This bolt-in camshaft works well with stock heads and highcompression pistons. It increases midrange torque and top-end power. Forraceapplicationonly.
SE-253 CAM KIT*
This high lift, torque cam is designed for larger displacement engines where increased midrange power is desired. This cam works well with increased compression and free-flowing intake and exhaust. Forraceapplicationonly.
SE-254E CAM KIT
This cam provides great low-end torque along with good midrange. A good “all-around” cam, the SE-254E is a good match for a Dyna®, Softail® or light Touring bike - Road King®, Street Glide® or Road Glide® Customwhen the aggressive rider desires a little more top-end horsepower. In a 0-60 sprint or 1/4-mile drag race, the SE-254E-equipped model would pull ahead of an identical model with a SE-255 cam. Forraceapplicationonly.
SE-255 CAM KIT
The ultimate in torque cams, this cam offers substantial increase in low-end torque for engines up to 110 cubic inches with compression ratios up to 10 to 1. The lowend torque increases are great for heavy bikes or for the person who routinely shifts below 4500 RPM and wants the power available to pass without downshifting. The cam still makes peak power above 5000 RPM so people with lighter bikes will enjoy the torque increases without feeling like the bike runs out of air at higher engines speeds. These cams are used in the ’07-later street compliant 103 Stage II Kits and the 110 Stage I Kits. Compression releases may be required depending on displacement and compression ratio. Forraceapplicationonly.
SE-257 CAM KIT*
This cam delivers high-end horsepower you will feel in the straightaway while maintaining decent midrange torque. This cam requires increased compression for optimum performance. Works well in conjunction with big bore or larger cylinders, forged high-compression pistons, performance heads and open intake and exhaust. Forraceapplicationonly.
SE-259E CAM KIT – EFI*
Developed specifically for throttle body EFI systems, this cam has a modern lobe design that allows for higher valve lifts for a given duration. A high-lift version of the SE-211 camshaft, this cam works great with 103-cubicinch and larger engines with free-flowing intake and exhaust. It can be used with stock heads (updated with race springs) and high-compression pistons for even more torque than a SE-211 cam, or can be coupled with any of the performance heads to realize the full power potential. This cam is used in the 103-cubic-inch Stage III Race Kit. Forraceapplicationonly.
SE-585 CAM KIT*
This cam is a great match for riders of heavy Touring bikes looking for big torque at the low end. Just a quick downshift to fourth gear results in an effortless pass of that slow moving tractor-trailer ahead of you. This cam provides early on high torque at the low end of the RPM spectrum. A unique combination of lift, cam lobe duration and an enhanced cam profile ramp provides a performance boost you can feel. The cam’s QRD (Quiet Ramp Design) delivers high torque throughout the RPM range while reducing valve train noise. Forraceapplicationonly.
NOTE: Separate purchase of Cam Spacer Kit P/N 2592806 is recommended for ’06-’17 Dyna®, ’07-’17 Softail® and ’07-’16 Touring models. These kits contain five different spacers to achieve proper sprocket alignment. Individual spacers can be purchased separately.
’99-’05Dyna® ’06-’17Dyna TDC ’00-’06Softail®’07-’17Softail Lift@Valve Duration@.053
Timing@.053 Lift@Valve
Description ’99-’06Touring’07-’16TouringIntake/Exhaust Intake/Exhaust LiftOpen/Close Intake/Exhaust Stock .484"/.484"
TC88,95,103
Stock See Service .511"/511"
38° BBDC/04°ATDC
Intake: 02° BTDC/30°ABDC .091"/.125" TC 103 HO manual for
43° BBDC/10°ATDC specific P/N
MidrangeTQ
Low SpeedTQ Exhaust: 48° BBDC/7°ATDC
SE-259E*
Midrange HP
SE-585* 25400117 584"/.584" 234°/240°
58° BBDC/12°ATDC
18° BTDC/36°ABDC 0.178"/.142" MidrangeTQ Exhaust: 47° BBDC/13°ATDC
Theoretical based on rocker arm ratio of 1.65. Valve train components, operation temperature and tolerance stack-up will affect actual lifts.
*NOTICE: Requires use of Screamin’ Eagle® Valve Spring Kit and appropriate Screamin Eagle Pushrods for installation and to ensure proper clearance. Failure to comply may result in engine damage.
NOTE: It is recommended that older models should have valve springs replaced over time as valve springs lose their tension over time and lose their ability to support appropriate valve spring tension especially when used at higher RPM.
NOTE: Separate purchase of Cam Spacer Kit P/N 25928-06 is recommended for ’06-’17 Dyna®, ’07-’17 Softail® and ’07-’16 Touring models. These kits contain five different spacers to achieve proper sprocket alignment. Individual spacers can be purchased separately.
Builders Components
A. SCREAMIN’ EAGLE® RACE
VALVE SPRING KIT*
2
This straight coil double spring Race Valve Spring Kit will allow the engine to rev to 7000 RPM and enable the use of higher-lift cams. Complete kit includes springs, upper and lower collars and valve keys.
18281-02A 5/16" dia. Valve Stems. $199.95 Fits ’99-’04 Twin Cam, all Evolution® 1340 and ’86-’03 XL models. (not shown)
B. SCREAMIN’ EAGLE PERFORMANCE
VALVE SPRING KIT*
2
This performance Beehive-shaped Valve Spring Kit will permit the Sportster® engine to rev to 7000 RPM. The unique ovate wire yields increased performance from a compact spring design. The installed spring pressure is increased to 208 lbs, and allows a maximum lift of .590". Complete kit includes springs, upper collars and keepers and lower collars with integral valve seals.
18013-03A $199.95
Fits ’04-’22 XL, XR and ’05-’17 Twin Cam-equipped models. Does not fit FXDLS, FLSS, FLSTFBS or Screamin’ Eagle Performance Heads with .3125" diameter valves.
C. SCREAMIN’ EAGLE BIG BORE HIGH-PERFORMANCE HEAD GASKET KIT
2
This multi-layered head gasket provides improved sealing for 3-7/8" Big Bore high-performance engines. Sold in pairs. For engines with compression ratios above 10.0:1, Screamin’ Eagle High Tensile Cylinder Studs P/N 16505-01 are required.
16101-01
$69.95
Fits ’99-’17 Big Bore (3.875" bore) Twin Cam-equipped models. Does not fit FXDLS, FLSS, FLSTFBS, FXSE or TwinCooled™ models.
*NOTICE: Proper valve spring to rocker cover clearance must always be verified during installation of Screamin’ Eagle® Valve Spring Kits. Failure to have adequate clearance may result in engine damage.
Street legal and/or street compliant statements refer to product meeting 50-State emissions and noise standards in the United States.
The street legal and/or street compliant statements may not apply to markets outside of the United States.
Notice:
D. SCREAMIN’ EAGLE HIGH-CAPACITY TAPPETS*
2
This latest version of the Screamin Eagle High-Capacity Tappet incorporates a special heat treatment on the bearing needles and axle. In addition to the already proven, 25% larger, high capacity needle bearings, this new heat treat technology increases material hardness and compressive strength, ultimately enabling the tappet to withstand the grueling engine speeds and high valve lift found in many performance engine configurations. The newest technology is identified with a laser-etched “SE” on the axle of the tappet (shown in product image). Set of 4.
18572-13
$284.95
Fits ’18-later Milwaukee-Eight®-equipped models, ’99-’17 Twin Cam-equipped models and ’00-’22 XL and XR models.
E. SCREAMIN’ EAGLE TWIN CAM FORGED ROCKER SUPPORTS
2
Increased-strength Rocker Supports will handle the increased loads from higher-lift cams and higher RPM applications. This product keeps valve train geometry solid. Works with stock or roller rocker arms. Includes required hardware for installation.
17675-01B
Fits ’99-’17 Twin Cam-equipped models.
$249.95
*NOTE: In race applications, high-lift cams and stiff valve springs put extreme pressure on the engine’s lifters and pushrods. At 7,000 RPM, instantaneous forces of up to 1200 lbs. can be experienced. This severe dynamic loading can lead to accelerated tappet wear. In these applications, we suggest installation of Screamin’ Eagle® High-Capacity Tappets and periodic tappet inspection and replacement to maximize engine life.
Street legal and/or street compliant statements refer to product meeting 50-State emissions and noise standards in the United States.
The street legal and/or street compliant statements may not apply to markets outside of the United States.
Notice: The prices appearing in this catalog are the manufacturer’s suggested retail prices. Actual retail prices may vary.
Builders Components
A. SCREAMIN’ EAGLE® PREMIUM TAPERED QUICK-INSTALL ADJUSTABLE PUSHRODS 2
These premium pushrods are tapered for enhanced clearance at the cylinder head, allowing the use of higher lift cams. The one-piece chrome moly tube adds rigidity and durability and the threaded adjustment feature provides easy cam installation without removing the cylinder heads or rocker boxes. To simplify adjustment, the tube features six flats, with one flat marked with a large dot for tracking the adjustment. The threaded rod features 4 flats to reduce wrench swing. Each pushrod features the Screamin’ Eagle logo and is marked for Intake or Exhaust. Kit includes 4 pushrods and required pushrod tubes.
Fits ’99-’17 Twin Cam-equipped models. 17900032 With Gloss Black Covers. $329.95 18404-08 With Chrome Covers. $314.95
B. SCREAMIN’ EAGLE PRO PERFECT FIT PUSHRODS*
32
These one-piece tapered pushrods are stiffer than conventional pushrods and are lighter than adjustable pushrods. These are perfectly sized for the engine builder who knows what head and cam combination are being used. Four sizes to fit the most popular head and cam combinations. Refer to pages 76-77 for model-specific cam information. Sold in sets of 4.
Fits ’99-’17 Twin Cam engines. Refer to application chart at the bottom of this page for applicable cylinder head and cam combinations.
18400-03 Original Equipment Length. $169.95
18401-03 +.030" $169.95
18402-03 -.030" $169.95
A. SCREAMIN’ EAGLE PREMIUM TAPERED QUICK-INSTALL ADJUSTABLE PUSHRODS –GLOSS BLACK COVERS
*NOTE: Screamin’ Eagle Adjustable or Perfect Fit Pushrods are required when installing Screamin’ Eagle Twin Cam Cylinder Heads and SE-251, SE-257, SE-258 or SE-260 Camshafts.
*CAUTION: Proper valve spring to rocker cover clearance must always be verified during installation of Screamin’ Eagle Valve Spring Kits. Failure to have adequate clearance may result in engine damage.
Street legal and/or street compliant statements refer to product meeting 50-State emissions and noise standards in the United States.
The street legal and/or street compliant statements may not apply to markets outside of the United States.
Notice: The prices appearing in this catalog are the manufacturer’s suggested retail prices. Actual retail prices may vary.
Type of Head Installed Type of Cam Installed
Equipment CNC-Ported Factory Heads or Screamin’ Eagle MVA Heads Screamin’ Eagle Kompressor Heads
A. SCREAMIN’ EAGLE PREMIUM TAPERED QUICK-INSTALL ADJUSTABLE PUSHRODS –CHROME COVERS
Stock, SE-203, SE-204, SE-211, SE-253, SE-254E, SE-255
SE-251, SE-257, SE-258, SE-259E, SE-585
SE-264, SE-263E
SE-266E
3
PRO PERFECT FIT PUSHRODS
TWIN CAM 81
Builders Components
C. SCREAMIN’ EAGLE® HYDRAULIC CAM CHAIN TENSIONER AND HIGH-FLOW OIL PUMP UPGRADE KIT
2
This kit updates the cam chain of your Twin Cam 88® engine to the latest design, as featured on the Twin Cam 96™ engine. The billet cam support plate has been designed to allow the installation of the Twin Cam 96™ hydraulic cam chain tensioner to Twin Cam 88-equipped models. These Hydraulic Cam Chain Tensioners will significantly outlast the spring loaded tensioners and are an ideal addition to an engine modified for improved performance. In addition, ’02-’06 models utilize a Twin Cam 96 single row front roller chain and sprocket (included in kit). ’99-’01 models use Original Equipment front silent chain and sprocket to retain the cam position sensor function. The kit includes an improved Screamin’ Eagle® HighFlow Oil Pump that provides increased oil pressure at highoperating temperatures. This kit increases the oil supply by 23% and scavenging by 50% when compared to the ’99-’05 Original Equipment oil pump and reduces operating temperature of bearings to improve bearing life.
25284-11
$599.95
Fits ’99-’05 Dyna®, ’00-’06 Softail® and ’99-’06 Touring models. Installation requires separate purchase of Spacer Kit P/N 25285-08, Cam Service Kit P/N 17045-99D and Drive Gear Retention Kit P/N 25566-06.
Also available:
SCREAMIN’ EAGLE CAM CHAIN TENSIONER SPACER KIT
Specifically designed for Hydraulic Cam Chain Tensioner Upgrade Kit P/N 25284-11. Kit includes an assortment of six different spacers. Spacers are required to space the cam sprocket to correct alignment with the mating pinion chain sprocket.
25285-08
$44.95
Required for installation of Screamin’ Eagle Hydraulic Cam Chain Tensioner Upgrade Kit P/N 25284-11.
D. SCREAMIN’ EAGLE BILLET CAM SUPPORT PLATE WITH HIGH VOLUME OIL PUMP
2
A great upgrade for any performance motor. The Billet Cam Support Plate is manufactured from billet aluminum with pressed-in bronze bushings and is pre-assembled with the crankshaft bushing and oil pressure relief valve. Aluminum is specified at 6061 billet plate, heat treated to T6 specifications with a surface-hardened anodized finish to provide superior strength, rigidity and durability. CNC-precision machining ensures precise dimensions and constant material thickness across the plate, enabling perfect alignment of cams and chains. Cam bushings are made from 660 bronze materials to provide enhanced wear resistance and to stand up to increased loads from the high-lift cams common in large displacement motors. The improved Screamin’ Eagle highflow oil pump provides higher pressure when the oil is hot to keep pressure drops to a minimum and increases the oil supply by 16% and the scavenging by 29% over the ’06-’17
Original Equipment oil pump.
25282-11
$539.95
Fits ’06-’17 Dyna and ’07-’17 Softail, and ’07-’16 Touring and Trike models. Installation requires separate purchase of Cam Service Kit P/N 17045-99D and Drive Gear Retention Kit P/N 25566-06.
E. SCREAMIN’ EAGLE HIGH-PERFORMANCE INNER CAM BEARINGS
2
High-performance Inner Cam Bearings are a smart upgrade when installing high-lift cams in a race bike. These bearings provide increased load capacity and extend the engine life in extreme racing conditions. Kit includes two bearings required to complete one Twin Cam engine.
24017-10
$28.95
Fits ’99-’05 Dyna, ’00-’06 Softail and ’99-’06 Touring models.
24018-10
$28.95
Fits ’06-’17 Dyna, ’07-’17 Softail and ’07-’16 Touring and Trike models.
Street legal and/or street compliant statements refer to product meeting 50-State emissions and noise standards in the United States.
The street legal and/or street compliant statements may not apply to markets outside of the United States.
Notice: The prices appearing in this catalog are the manufacturer’s suggested retail prices. Actual retail prices may vary.
A. SCREAMIN’ EAGLE PRO MAXIMUM VELOCITY AREA (MVA) CYLINDER HEADS – CNC PORTED* 3
The most advanced Twin Cam performance cylinder head design available. Screamin’ Eagle CNC Ported Maximum Velocity Area (MVA) cylinder heads create power across the entire RPM range by maximizing velocity through the intake ports. Increased air speed velocity through the ports is achieved by “right sizing” port volume at 98cc, lowering the port roof and by precision-machining the shape of the port to complement the giant 2.120" intake valves. Screamin’ Eagle CNC-Ported MVA Cylinder Heads conquer a unique engineering challenge and provide the highest possible torque and acceleration at any RPM. MVA Heads will boost the punch of a 103-cubic-inch engine. When paired with high lift cams, MVA Heads can give a 110-cubic-inch or 113-cubic-inch motor everything it needs to achieve new levels of performance. Countless hours of dyno testing resulted in a 95cc combustion chamber that performs in perfect balance with the port size and shape and reduced detonation. MVA Heads feature Screamin’ Eagle Race Springs that permit the use of high lift cams (up to .660") and are machined to accept automatic compression releases (sold separately) for easier starting. MVA Heads are manufactured and assembled at HarleyDavidson’s world-class engine factory in Milwaukee, ensuring every set is made to exact tolerances. All EFI Models require ECM calibration (priced separately). Forraceapplications only.
16925-11 Black Highlighted. $1,799.95 Fits ’99-’17 Twin Cam equipped models (except Twin-Cooled models). ’99-’05 models require separate purchase of (2) Intake Seal Flanges P/N 26993-06. Requires Rocker Box clearance machining for valve springs.
NOTICE: Screamin’ Eagle® Adjustable or Perfect Fit Pushrods are required for installation.
*NOTE: See matrix on Page 86 for recommended cylinder head/piston combination.
Notice: The prices appearing in this catalog are the manufacturer’s suggested retail prices. Actual retail prices may vary.
B. SCREAMIN’ EAGLE® PRO CNC PORTED FACTORY HEADS WITH VALVE UPGRADE 3
A cost-effective alternative for upgrading the performance of your bike. The intake and exhaust ports are meticulously machined to smooth the surfaces, enhancing the flow characteristics of air and fuel to provide enhanced performance. But it doesn’t stop there; oversized (1.875") stainless steel intake valves and stock (1.575") stainless steel exhaust valves rest in reshaped valve seats that improve flow rates. The combustion chambers have been machined to smooth the surface and feature a blended radius on the bathtub’s edge to reduce detonation by eliminating hot spots and promoting improved combustion. The head gasket surface has been milled to maintain stock combustion chamber volume, which results in stock compression when used with Original Equipment pistons. Compression can be increased with the installation of matched Screamin’ Eagle® high compression pistons. Heads are assembled with high performance valve springs that support cams with lift up to .585". Heads are machined and threaded to simplify installation of Automatic Compression Release (sold separately). All EFI models require ECM calibration (priced separately). Forraceapplicationonly.
16500013A Complete Head Kit. $1,749.95 Fits ’99-’17 Twin Cam-equipped models. ’99-’05 models require separate purchase of (2) Intake Flanges P/N 2699306. Does not fit FXDLS, FLSS, FLSTBS, FXSE or Twin-Cooled equipped models.
NOTICE: Screamin’ Eagle® Adjustable or Perfect Fit Pushrods are required for installation.
Notice:
AND PISTON KIT –CVO™ 110CI TO 117CI
Racers can take their model’s Original Equipment 110-cubicinch motor to a full 117 cubic inches without removing the engine from the chassis. The Screamin’ Eagle team has engineered a 4.125" Big Bore Cylinder and Piston package that increase the internal bore from 4.0" to 4.125", without increasing the outside diameter of the cylinder spigot. The cylinder slips into the existing case bore without modification. Have you already installed a CVO™ Stage III performance kit on your CVO 110 Twin Cam motor? If so, you can retain that performance investment and combine those components with this kit. This kit will add a whopping 7 cubic inches of displacement for more torque throughout the RPM range. The kit includes front and rear cylinders, system-matched pistons with rings and cylinder head gaskets. All EFI models require ECM calibration (priced separately). Forraceapplicationonly.
Fits ’07-’17 CVO 110CI models. Also fits ’16-’17 110CI FLSS, FLSTFBS and FXDLS models. Requires custom tuning to your specific application.
92500051 Granite Highlighted. $1,549.95
92500050 Black Highlighted. $1,549.95
Street legal and/or street compliant statements refer to product meeting 50-State emissions and noise standards in the United States.
The street legal and/or street compliant statements may not apply to markets outside of the United States.
Notice: The prices appearing in this catalog are the manufacturer’s suggested retail prices. Actual retail prices may vary.
When it comes to increasing engine power, there is no substitute for more cubic inches. With e cient lling of the air/fuel mixture, the bigger the displacement, the more power your engine can produce. In the past, the only way to increase the bore of your 103- or 110-cubic-inch Twin Cam V-Twin motor was to tear down the motor and re-bore the engine cases to t larger bore cylinder spigots. It was a labor-intensive – and expensive – process.
The Screamin’ Eagle team has engineered a Big Bore Cylinder and Piston package that increases the internal bore without increasing the outside diameter of the cylinder spigot. The cylinder slips into the existing case bore without modi cation.
HIGH-STRENGTH CYLINDER LINERS ARE MACHINED TO SLIP INTO THE STOCK CASE OPENING
3
B. SCREAMIN’ EAGLE® PRO 4" BIG BORE BOLT-ON CYLINDER AND PISTON KIT – 96/103CI TO 110CI
3
Take your 96- or 103-cubic-inch motor to a full 110 cubic inches without removing the engine from the chassis. The Screamin’ Eagle team has engineered a 4" Big Bore Cylinder and Piston package that increases the internal bore from 3-7/8" to 4", without increasing the outside diameter of the cylinder spigot. The cylinder slips into the existing case bore without modification. Have you already installed a Stage III or Stage IV performance kit on your 103 Twin Cam motor? This kit will add a whopping 7 cubic inches of displacement for more torque throughout the RPM range. The kit includes front and rear cylinders, system-matched pistons with rings, and top head gaskets. All EFI models require ECM calibration (priced separately). Forraceapplicationonly.
92500039 Black Highlighted. $1,357.95 Fits ’07-’17 Twin Cam models with 4-3/8" stroke flywheel. Cannot be installed on CVO™ 110, FXDLS, FLSS or FLSTFBS 110 models or models with engine cases that have been machined to accept large-bore cylinders. Twin-Cooled™ models require separate purchase of model-specific head gaskets.
C. SCREAMIN’ EAGLE 3-7/8" BIG-BORE CYLINDER KIT
2
Bigger is better. This kit increases displacement of the Twin Cam 88 (1450) to 95 cubic inches (1550) or 103 cubic inches (1690) when used with Screamin’ Eagle Stroker Flywheel and Rod Assembly. Also can be used with Twin Cam 96™ (1584) models to produce 103 cubic inches (1690) with stock flywheels. These cylinders require no crankcase machining and are finished honed for standard size 3-7/8" pistons. Use with flat-top, high-compression or Stroker pistons. All EFI models require ECM calibration (priced separately).
Fits ’99-’17 Twin Cam 88 or 96CI-equipped models. 16500045A Black Non-Highlighted. (pair) $449.95 16546-99A Black Highlighted. (pair) $449.95
Street legal and/or street compliant statements refer to product meeting 50-State emissions and noise standards in the United States.
The street legal and/or street compliant statements may not apply to markets outside of the United States.
Notice: The prices appearing in this catalog are the manufacturer’s suggested retail prices. Actual retail prices may vary.
A. SCREAMIN’ EAGLE PRO TWIN CAM HIGH-COMPRESSION FORGED PISTONS FOR STOCK CYLINDER HEADS – 3-7/8"*
When combined with stock cylinder heads and 4-3/8" stroke flywheels, these forged 3-7/8" pistons boost the compression ratio of your 3-7/8" big bore cylinder setup. The combination results in a compression ratio of 10.5:1. Piston skirts feature a unique black coating for improved wear-resistance, better fit and reduced noise. These pistons include Titanium SST rings to withstand the stresses seen in racing. Complete kit includes pistons, rings, wrist pins and clips. All EFI models require ECM calibration (priced separately). Forraceapplicationonly.
Fits ’07-’17 Twin Cam models equipped with 3-7/8" cylinders and 4-3/8" stroke flywheels. Does not fit FXDLS, FLSS, FLSTFBS, FXSE or Twin-Cooled models.
22144-08B 3.875" Standard Bore. $424.95
B. SCREAMIN’ EAGLE PRO TWIN CAM BIG BORE FLAT-TOP CAST PISTON KITS* – 3-7/8"
These Flat-Top Cast Pistons are designed for use with 3-7/8" Big Bore performance cylinders (1550). Kit includes rings, clips and pins. All EFI models require ECM calibration (priced separately). Forraceapplicationonly.
Fits ’99-’06 Twin Cam 1550 models equipped with 3-7/8" cylinders.
22851-99A 3.875" Standard Bore. $324.95
*NOTE: See matrix on Page 87 for recommended cylinder head/piston combinations.
*Recalibration is required for proper installation. See Dealer for details. Labor cost not included.
*NOTICE: Always check piston-to-valve clearance with modified dome pistons and non-stock cam shafts.
Displacement Calculation:
π x r2 x stroke x 2 cylinders Where π = 3.14, and r = (bore diameter/2)
A. SCREAMIN’ EAGLE PRO TWIN CAM HIGH-COMPRESSION FORGED PISTONS FOR STOCK CYLINDER HEADS – 3-7/8"
NOTE: High-Compression Piston applications require installation of appropriate compression release in cylinder heads.
NOTICE: Cast pistons should not be used when engine speed is expected to exceed 6200 RPM. Failure to comply may result in engine damage.
SE Forged Flat-Top Stroker Pistons P/N 22942-00A
SE Forged High-Compression Pistons for stock TC 96™ heads or Kompressor Heads P/N 22144-08B
SE Forged Stroker Pistons for CVO™ 110 or CNC Ported MVA Heads P/N 22137-08B
SE Forged Race High-Compression Pistons for CVO 110 or CNC Ported MVA Heads P/N 21928-08A
SE High Compression Pistons – Twin-Cooled P/N 27000007
SE Forged High-Compression Pistons for CVO 110 or CNC Ported MVA Heads P/N 22502-07
SE Forged High-Compression Pistons for CVO 110 or CNC Ported MVA Heads P/N 22571-07B
Pro
SE Pro Twin Cam Forged Piston Kit for 4-5/8" Stroke P/N 21900001
“N.A.” denotes not applicable – these combinations are not recommended.
Notice: The prices appearing in this catalog are the manufacturer’s suggested retail prices. Actual retail prices may vary.
C. SCREAMIN’ EAGLE PRO STROKER FLYWHEEL AND ROD ASSEMBLY – 4-3/8"
This 4-3/8" stroker flywheel assembly can be combined with 3-7/8" cylinders and pistons to produce 1690cc (103") displacement, 4.00" cylinders and pistons for 1800cc (110") or with 4.060" cylinders and pistons for 1856cc (113") displacement. All EFI models require ECM calibration (priced separately).
23728-07A 4-3/8" Stroke. $1,399.95 Fits ’99-’05 Dyna and ’99-’06 Touring models. 3
23727-07A 4-3/8" Stroke. $1,399.95 Fits ’00-’06 Softail models. 3
24100021 4-3/8" Stroke. $1,699.95
Fits ’06 Dyna models. Stock on ’07-later Dyna and Touring Twin Cam 96™ models.
D. CRATE ENGINE SHORTBLOCK ASSEMBLY 2
The perfect starting point for building the engine of your dreams. Engine shortblocks are manufactured and assembled on Harley-Davidson’s main engine assembly line for exceptional quality and reliability. Shortblock cases, flywheels, bearings and rods are pre-assembled and ready for your custom build. Kit includes current spec Original Equipment cam plate, oil pump, cam drive components and the gaskets, seals and most of the hardware required to complete the engine and install it (not all components shown).You select your cylinders, heads, cams, covers and other top-end components. Choose one of the Screamin’ Eagle Stage kits to incorporate reliable performance and pick from our decorative engine covers to customize the look. Shortblock Assemblies are stamped with a new VIN and include MSO (Manufacturer’s Statement of Origin). The MSO is for Domestic only. Kits ship directly from the factory within 3-5 days.
16200070 Black 96CI/103CI. $3,249.95 Fits ’07-’17 Dyna (except FXDLS), and ’07-’16 Touring and Trike models (except CVO™).
16200071 Black 96CI/103CI. $4,199.95 Fits ’07-’17 Softail models (except FLSS, FLSTFBS and CVO).
E. SCREAMIN’ EAGLE PISTON OIL JET ASSEMBLY 2
This unique oil jet is designed to provide additional piston skirt clearance when used with flywheels featuring a stroke longer than the 4-3/8" Original Equipment configuration. This oil jet will provide appropriate clearance for flywheels with stroke up to 4-5/8" when used with Screamin’ Eagle pistons. Two required.
22315-06A
$44.95 Fits ’99-’17 Dyna, ’00-’17 Softail and ’99-’16 Touring models.
Notice: The prices appearing in this catalog are the manufacturer’s suggested retail prices. Actual retail prices may vary.
A. SCREAMIN’ EAGLE® AUTOMATIC COMPRESSION RELEASE
2
Automatic Compression Release (ACR) valves reduce the strain of starting your high-performance motor by reducing cylinder compression–automatically! The engine is easier to turn over, resulting in less wear on your starter and battery. After start, the ACR valves close to restore full compression. ACR gives you peace of mind and protects your investment. ACR can be installed on stock or Screamin’ Eagle® Performance cylinder heads for all ’07-’17 Twin Cam-equipped models. Installation requires machining to be performed by a competent machinist using the Screamin’ Eagle Automatic Compression Release Fixture Kit P/N 94648-08 (sold separately). Installation requires separate purchase of modelspecific ACR Wiring Harness.
28861-07A
$45.95
Fits ’07-’17 Twin Cam-equipped models. Can be used with Original Equipment or Screamin’ Eagle Cylinder Heads. Does not fit with Twin-Cooled™ engines. (each)
B. SCREAMIN’ EAGLE AUTOMATIC COMPRESSION RELEASE WIRING HARNESS
70623-06
2
$64.95
Fits ’07-’11 Dyna®, ’07-’10 Softail® and ’07 Touring models equipped with Automatic Compression Release Cylinder Heads.
70623-08
Fits ’08-’11 Touring models equipped with Automatic Compression Release Cylinder Heads.
70623-11
Fits ’11 Softail models equipped with Automatic Compression Release Heads.
C. SCREAMIN’ EAGLE PRO MECHANICAL COMPRESSION RELEASE
$64.95
$64.95
2
These compression releases may be used to ease starting on high-compression engines, especially Stroker flywheelequipped models. Releases are activated by pushing on the top before starting, which reduces cranking pressure, and allows the engine to spin over easier. After the engine starts they automatically close to restore full compression. Installation of these compression releases may require machining of the cylinder head. This operation should only be performed by a competent machinist or by using Mechanical Compression Release Machining Fixture P/N 94638-08. Sold in pairs.
32076-04
$99.95
Fits all Screamin’ Eagle Twin Cam Cylinder Heads (except heads equipped with Automatic Compression Release).
Street legal and/or street compliant statements refer to product meeting 50-State emissions and noise standards in the United States.
The street legal and/or street compliant statements may not apply to markets outside of the United States.
Notice: The prices appearing in this catalog are the manufacturer’s suggested retail prices. Actual retail prices may vary.
D. SCREAMIN’ EAGLE LEFTY BEARING
When high-performance engine modifications are made, the increased torque is transferred via the crankshaft to the drive system, putting a significantly higher load on the bearing. The Lefty Bearing is case hardened on the inner and outer race to provide increased load capacity and enhanced durability in high-torque applications. The bearing is installed in the left side of the crank case and supports the output shaft to the primary drive system. Actual bearing color may vary.
24004-03B
Fits ’03-’17 Twin Cam-equipped models and ’17-later Milwaukee Eight models.
$74.95
E. SCREAMIN’ EAGLE TIMKEN® BEARING SLEEVE
Convert a 2003-later Twin Cam model with a factory-installed roller bearing to a Timken® tapered bearing. When used with Screamin’ Eagle Timken Bearing Tool P/N 34823-08 (sold separately), the Bearing Sleeve can be installed without precision machining. Sleeve accepts press-in Timken bearing (sold separately).
34822-08
$149.95
Fits ’03-’17 Twin Cam-equipped models. Installation requires separate purchase of model-specific Sprocket Spacer. ’03’05 Dyna® use P/N 24038-99A, ’03-’06 Softail® use P/N 24039-01A, ’03-’06 Touring use P/N 24008-99 and ’06later Dyna and ’07-later Softail, Touring and Trike models use P/N 11887. Requires separate purchase of Tapered Roller Bearing Set P/N 9028.
Street legal and/or street compliant statements refer to product meeting 50-State emissions and noise standards in the United States.
The street legal and/or street compliant statements may not apply to markets outside of the United States.
Notice: The prices appearing in this catalog are the manufacturer’s suggested retail prices. Actual retail prices may vary.
Sportster® Stage Upgrades
Screamin’ Eagle® Stage upgrades o er complete street-compliant performance con gurations engineered to generate speci c torque and horsepower gains. Eliminating all the guesswork and trial-and-error testing normally associated with engine modi cations, Stage upgrades include everything you need to enhance your bike’s performance.
STAGE I
INTAKE + EXHAUST + TUNING
The easiest and most cost-e ective step to improve your motorcycle’s performance is to increase the air ow into and out of the engine. A high- ow air cleaner and system-matched slip-on mu ers provide horsepower and torque improvements you can feel throughout the RPM range, and serve as the core components for all performance upgrades. ECM calibration is required to tune the fuel ow and timing required to accommodate the improved air ow.
Stage I upgrade can be installed without engine disassembly. No special tools are required. Requires ECM tuning.
Sportster® Stage Upgrades
STAGE I + CAM UPGRADE
Adding performance cams to a Stage I equipped bike is the next step to improved performance. Cam choices allow you to tailor the engine’s performance to your speci c needs. A torque cam o ers on-demand throttle response from low to mid RPM at cruising speed. A power cam targets high-RPM, wide-open throttle response that keeps pulling right up to redline. ECM calibration tuning is required to accommodate the increased valve timing, and performance valve springs may be required for high-lift cams.
Sportster 1200 Stock vs. 1200 Stage II*
Stock1200 TQ
Stock1200HP
1200StageII TQ
1200StageIIHP
Engine Speed (rpm x 1000)
* 14-’22 XL1200 Stage II with Heavy Breather A/C & Street Cannon Mufflers
STAGE I + CAMS, PISTONS, CYLINDER HEADS & THROTTLE
(hp)
Stage II upgrade requires minor engine disassembly to replace the cam. Special tools and ECM tuning are required.
For maximum performance improvement, the addition of high-compression pistons, free- owing ported cylinder heads and a big bore throttle body top o a performance build. The large-diameter throttle body and port-matched intake manifold deliver huge volumes of fuel and air to the engine, the smooth passages and larger valves easily dump the mixture into the engine and the high compression pistons squeeze the air/fuel into a more volatile vapor. When ignited, the result is a major power increase. Designed to satisfy the high-RPM, throttle-twisting rider, the Stage IV update delivers 20-30% increase in power that keeps pulling right up to the redline, without sacri cing mid-range torque. ECM calibration tuning is required to add more fuel, and a higher-lift cam may be required to deliver maximum power.
Sportster 1200 Stock vs. 1200 Stage IV**
Stock1200 TQ
Stock1200HP
1200StageIV TQ
1200StageIV HP
Engine Speed (rpm x 1000)
** 1200 Stage IV with High-Flow A/C & Street Cannon Mufflers
(hp)
Stage IV “bolt-on” upgrade requires removal of the engine’s top end and opening the cam chest. Engine remains in the chassis and no machining is required. Special tools and ECM tuning are required.
Street legal and/or street compliant statements refer to product meeting 50-State emissions and noise standards in the United States. The street legal and/or street compliant statements may not apply to markets outside of the United States.
Stage I Upgrade – Intake
A. SCREAMIN’ EAGLE® HEAVY BREATHER PERFORMANCE AIR CLEANER KIT
This high-flow forward-facing exposed element Air Cleaner Kit is sure to turn heads at the starting line. Featuring a polished elbow and exposed filter, this unique air cleaner system offers improved performance and airflow when compared to the stock or Screamin’ Eagle® High-Flow Air Cleaner. The washable and rechargeable filter features a bright chrome end cap with a laser-engraved Screamin’ Eagle logo. Intake tube and back plate are made from die-cast lightweight aluminum and are polished and chrome-plated or painted black for a brilliant finish. The back plate features integral breathers and sealed breather bolt plug. Kit includes a water-repellent rain sock and all mounting hardware. 50-State U.S. EPA compliant.
Fits ’08-’22 XL models with Original Equipment Throttle Body. All models require ECM calibration for proper installation. ’17-later models require recalibration with Screamin’ Eagle Pro Street Tuner (sold separately).
29080-09A Gloss Black.
$424.95
Fits ’14-’22 XL1200 model equipped with Screamin’ Eagle High Flow 58mm Throttle Body. All models require ECM calibration for proper installation. ’17-later models require recalibration with Screamin’ Eagle Pro Street Tuner (sold separately).
29400227A Gloss Black.
$424.95
NOTE: The washable and rechargeable filter uses a special coating to help filter fine particles from the incoming air. With time, the oil in the filter will dissipate and the element will begin to turn gray. The original red color can be restored with an application of K&N®Air Filter Oil.
B. SCREAMIN’ EAGLE HEAVY BREATHER FILTER COVER – TEARDROP
Dress up the Heavy Breather Air Cleaner with this radical cover. Manufactured from forged aluminum and precision CNC-machined and polished, these easy-to-install two-piece covers add a rich custom look. Cover is available in mirrorchrome or cut back gloss black finish to match your customizing direction. Kit includes water-repellent rain sock.
Fits models equipped with Screamin’ Eagle Heavy Breather Air Cleaner Kits (except Compact Heavy Breather P/N 28716-10A, Heavy Breather Elite P/N 29400173, 29400172 or 29400285, and Milwaukee-Eight Heavy Breather P/N 29400263 or 29400264).
28739-10A Cut Back Gloss Black – End Logo. $224.95
28740-10A Chrome – End Logo. $224.95
C. SCREAMIN’ EAGLE® PERFORMANCE AIR CLEANER KIT – RAIL COLLECTION
The look is bold and the performance exhilarating. This raceinspired air cleaner is engineered to flow through the perimeter and the face of the air filter, providing high volumes of unrestricted airflow to the engine. The open-design face plate features a rich black finish with machined longitudinal strakes to expose the glowing aluminum below. Kit includes air cleaner trim, one-piece cast back plate, high-flow washable air filter element, rain sock and all required hardware. 50-State U.S. EPA compliant.
29400232A $424.95
Fits ’07-’22 XL models with Original Equipment throttle body. All models require ECM calibration for proper installation. ’17later models require recalibration with Screamin’ Eagle® Pro Street Tuner (sold separately).
NOTE: The washable and rechargeable filter use a special coating to help filter fine particles from the incoming air. With time, the oil in the filter will dissipate and the element will begin to turn gray. The original red color can be restored with an application of K&N®Air Filter Oil.
Street legal and/or street compliant statements refer to product meeting 50-State emissions and noise standards in the United States.
The street legal and/or street compliant statements may not apply to markets outside of the United States.
Notice: The prices appearing in this catalog are the manufacturer’s suggested retail prices. Actual retail prices may vary.
Stage I Upgrade – Intake
D. SCREAMIN’ EAGLE® OVAL HIGH-FLOW AIR CLEANER 2
The XL High-Flow Air Cleaner Kit provides increased airflow to boost the power of your fuel-injected Sportster® model. The complete kit features a composite air cleaner back plate, air cleaner cover adapter, a high-flow washable synthetic media filter element that does not require oiling and a breather system that routes gasses and excess oil directly into the intake. Kit also includes cover trim and all mounting hardware. Street compliant when used with stock mufflers. 50-State U.S. EPA compliant.
29782-07
$179.95
Fits ’07-’22 XL models with Original Equipment throttle body and oval air cleaner cover. All models require ECM calibration for proper installation. 17-later models require recalibration with Screamin Eagle® Pro Street Tuner (sold separately). Pending approval for use in California on ’21 models. Refer to H-D.com/shop for status.
E. SCREAMIN’ EAGLE ROUND HIGH-FLOW AIR CLEANER 2
The XL High-Flow Air Cleaner Kit provides increased airflow to boost the power of your fuel-injected Sportster model. Available with brilliant chrome or gloss black back plate, this Round Air Cleaner transforms the appearance of your Evolution powerplant and allows you to replace the Original Equipment oval air cleaner cover with your choice of accessory round covers. Or choose to flaunt your performance gains with the open element look, finished with custom Air Cleaner Trim from one of the Harley-Davidson® decorative collections. Kit includes one-piece cast back plate, high-flow washable air filter element and all required hardware. Street compliant when used with stock mufflers. 50-State U.S. EPA compliant. Fits ’07-’22 XL models with Original Equipment throttle body and round air cleaner cover or round air cleaner Trim. Proper installation with round air cleaner cover requires separate purchase of Air Cleaner Filter Gasket P/N 25700127. All models require ECM calibration for proper installation. ’17-later models require recalibration with Screamin’ Eagle Pro Street Tuner (sold separately). Pending approval for use in California on 21 models. Refer to H-D.com/shop for status.
The street legal and/or street compliant statements may not apply to markets outside of the United States. 2
29000019A
$179.95 Fits ’07-’22 California XL models with Original Equipment throttle body and round air cleaner cover or round air cleaner Trim. Proper installation with round air cleaner cover requires separate purchase of Air Cleaner Filter Gasket P/N 25700127. All models require ECM calibration for proper installation.
Chrome.
F. SCREAMIN’ EAGLE AIR CLEANER RAIN SOCK
Add the open-element look to your Screamin’ Eagle High-Flow style Air Cleaner. This easy-to-install kit allows you to replace the traditional Original Equipment air cleaner cover with custom inserts from one of the H-D® Decorative Collections. Kit includes a breathable mesh cover with classic Bar & Shield logo that stretches over the filter to maximize airflow while protecting the exposed element from the rain. Fits traditional cone-shaped air cleaner elements featured in many Screamin’ Eagle Twin Cam Stage Kits.
$34.95 Fits Screamin’ Eagle Round High-Flow Air Cleaner Kits. Street legal and/or street compliant statements refer to product meeting 50-State emissions and noise standards in the United States.
Notice: The prices appearing in this catalog are the manufacturer’s suggested retail prices. Actual retail prices may vary.
Sportster® Stage IV Upgrade
SCREAMIN’ EAGLE® SPORTSTER® CONVERSION KIT – 883CC TO 1200CC* 2
Make your Iron 883™ model roar. This complete conversion kit will alter the personality of your 883-equipped Sportster® model. Designed to bring your XL883 model up to XL1200 specifications. No case machining is required for installation. 50-State U.S. EPA compliant.
Kit includes:
Sportster High-Flow Air Cleaner Kit
XL1200 Cylinder Heads
XL1200 Cylinders
XL1200 Pistons and Rings
Heavy Duty Clutch Spring Top End Gasket Kit
29784-07 Black Highlighted. $2,149.95
Fits 50-state ’07-’22 XL883 models. All models require ECM calibration for proper installation. ’17-later models require recalibration with Screamin’ Eagle® Pro Street Tuner (sold separately).
30003-10 Black Non-Highlighted. $2,149.95
Fits 50-state ’08-’22 XL883 models. All models require ECM calibration for proper installation. ’17-later models require recalibration with Screamin’ Eagle Pro Street Tuner (sold separately).
Notice:
Sportster® Stage IV Upgrade
SCREAMIN’ EAGLE® SPORTSTER® STAGE IV KIT –1200CC TO 1200CC 2
Maximize the horsepower and torque available for your street compliant Sportster® model. This complete engine package includes all the components you need to build a high-performance ride while still retaining the original factory warranty. Installation does not require removal of the powertrain from the chassis. 50-State U.S. EPA compliant. Pending regulatory approval for ’20-’22 models. Refer to the product information at www.H-D.com/shop for status.
Kit includes:
CNC-Ported Cylinder Heads with Performance Valve Springs Screamin’ Eagle® XL SE-585 Cams
Forged Hi-Compression 10.5:1 Pistons and Rings
58mm Throttle Body and Intake Manifold
Top End Gasket Kit
Fits ’14-’22 XL1200 models. Requires separate purchase of 58mm compatible accessory air cleaner. All models require ECM calibration for proper installation. ’17-later models require recalibration with Screamin’ Eagle Pro Street Tuner (sold separately). Pending approval for use in California on ’21 -later models. Refer to H-D.com/shop for status.
92500042 Black Non-Highlighted Heads. $3,149.95
(lb-ft) Stock 1200 TQ Stock 1200 HP 1200 Stage IV TQ 1200 Stage IV HP
The street legal and/or street compliant statements may not apply to markets outside of the United States. Sportster 1200 Stock vs. 1200 Stage IV* Engine Speed (rpm x 1000) * 1200 Stage IV with 58MM Heavy Breather A/C & Street Cannon Mufflers
Street legal and/or street compliant statements refer to product meeting 50-State emissions and noise standards in the United States.
Notice: The prices appearing in this catalog are the manufacturer’s suggested retail prices. Actual retail prices may vary.
Builders Components
A. SCREAMIN’ EAGLE PERFORMANCE
VALVE SPRING KIT* 2
This performance beehive-shaped Valve Spring Kit will permit the Sportster® engine to rev to 7000 RPM. The unique ovate wire yields increased performance from a compact spring design. The installed spring pressure is increased to 208 lbs, and allows a maximum lift of .590". Complete kit includes springs, upper collars and keepers and lower collars with integral valve seals.
18013-03A
$199.95
Fits ’04-’22 XL, XR and ’05-’17 Twin Cam-equipped models. Does not fit FXDLS, FLSS, FLSTFBS or Screamin’ Eagle Performance Heads with .3125" diameter valves.
B. SCREAMIN’ EAGLE HIGH-CAPACITY TAPPETS* 2
This latest version of the Screamin’ Eagle High-Capacity Tappet incorporates a special heat treatment on the bearing needles and axle. In addition to the already proven, 25% larger, high-capacity needle bearings, this new heat treat technology increases material hardness and compressive strength, ultimately enabling the tappet to withstand the grueling engine speeds and high valve lift found in many performance engine configurations. The newest technology is identified with a laser-etched “SE” on the axle of the tappet (shown in product image). Set of 4.
18572-13
$284.95
Fits ’18-later Milwaukee-Eight®-equipped models, ’99-’17 TWIN Cam-equipped models and ’00-’22 XL and XR models.
*NOTE: In race applications, high-lift cams and stiff valve springs put extreme pressure on the engine’s lifters and pushrods. At 7,000 RPM, instantaneous forces of up to 1200 lbs. can be experienced. This severe dynamic loading can lead to accelerated tappet wear. In these applications, we suggest installation of Screamin’ Eagle High-Capacity Tappets and periodic tappet inspection and replacement to maximize engine life.
Street legal and/or street compliant statements refer to product meeting 50-State emissions and noise standards in the United States.
The street legal and/or street compliant statements may not apply to markets outside of the United States.
*NOTICE: Proper valve spring to rocker cover clearance must always be verified during installation of Screamin’ Eagle Valve Spring Kits. Failure to have adequate clearance may result in engine damage. B.
Notice: The prices appearing in this catalog are the manufacturer’s suggested retail prices. Actual retail prices may vary.
C. SCREAMIN’ EAGLE® PERFORMANCE II SE-585 CAM KIT– SPORTSTER 2
The high-lift full throttle cam kit provides significant horsepower gains when coupled with high-flowing exhaust and intake components, and is a great fit for full throttle horsepower junkies. 50-State U.S. EPA compliant.
25400125
$464.95
Fits ’14-’22 XL1200 models. Requires installation of Performance Cylinder Heads P/N 16500074 or 16500347, or upgrade of Original Equipment heads with Performance Valve Spring Kit P/N 18013-03A. All EFI models require ECM calibration for proper installation. ’17-later models require recalibration with Screamin’ Eagle Pro Street Tuner (sold separately). Labor cost not included. See Dealer for details.
D. SCREAMIN’ EAGLE PRO HIGH-FLOW INJECTOR – 4.3 g/s 3
Injectors provide fuel delivery at the rate of 4.3 grams/second. All EFI-equipped models require ECM calibration (sold separately). Forraceapplicationonly.
27609-01B
Fits XL models equipped with Screamin’ Eagle 58mm Throttle Body P/N 27200026.
$94.95
Theoretical, based on rocker arm ratio of 1.65. Valve train components, operation temperature and tolerance stack-up will affect actual lifts.
SCREAMIN’ EAGLE PRO SPORTSTER CAM KITS
*NOTE: In race applications, high-lift cams and stiff valve springs put extreme pressure on the engine’s lifters and pushrods. At 7,000 RPM, instantaneous forces of up to 1200 lbs. can be experienced. This severe dynamic loading can lead to accelerated tappet wear. In these applications, we suggest installation of Screamin’ Eagle High-Capacity Tappets and periodic tappet inspection and replacement to maximize engine life.
Street legal and/or street compliant statements refer to product meeting 50-State emissions and noise standards in the United States.
The street legal and/or street compliant statements may not apply to markets outside of the United States.
Notice: The prices appearing in this catalog are the manufacturer’s suggested retail prices. Actual retail prices may vary.
Builders Components
A. SCREAMIN’ EAGLE® PRO CNC PORTED FACTORY CYLINDER HEADS – SPORTSTER®
3
CNC Ported Heads offer a cost-effective approach to upgrading the performance of your motorcycle. The intake and exhaust ports are meticulously machined for smooth surfaces, improving the flow characteristics of air and fuel in order to provide enhanced performance. But it doesn’t end there; the proven stock valves rest in reshaped valve seats to further improve flow rates. The combustion chambers have been machined for smooth surfaces and feature a blended radius on the bathtub edge to reduce detonation by eliminating hot spots and promoting improved combustion. The head gasket surface has been milled to maintain stock combustion chamber volume (59.9cc), which results in stock compression when used with Original Equipment pistons. Compression can be increased with the installation of Screamin’ Eagle® highcompression pistons. Heads are assembled with Original Equipment valves and high-performance valve springs that support cams with lift up to .585". All EFI models require ECM calibration (priced separately). Forraceapplicationonly.
16500074 Black Non-Highlighted.
$1,299.95
Fits ’07-’22 XL1200 models. Requires installation of Perfect Fit Pushrod Kit (-.050) P/N 18424-06 when installed with Original Equipment cams.
B. SCREAMIN’ EAGLE PRO XL1200 FORGED HIGH-COMPRESSION PISTON KIT
3
Designed to develop a 10.5:1 compression ratio when combined with stock heads or when combined with Screamin’ Eagle Performance Heads. These forged pistons have been plated with electroless-nickel for maximum durability in highperformance applications. Kit includes a pair of pistons, wrist pins, rings and circlips. All EFI models require ECM calibration (priced separately). Forraceapplicationonly.
22711-04A Standard Bore.
$349.95
Fits ’04-’22 XL1200 models with Original Equipment cylinder heads and ’07-’22 XL1200 models with Screamin’ Eagle Cylinder Heads P/N 16500074 or 16500347. Also Fits ’92-’06 XL1200 models with Screamin’ Eagle Cylinder Heads P/N 16500164.
C. SCREAMIN’ EAGLE PRO FORGED HIGH-COMPRESSION XL883 TO 1200 CONVERSION PISTON KIT
3
Convert your XL883 to a full 1200cc with this Piston Kit. These forged pistons have a redesigned “dished” top that has been optimized for use with stock 883 heads. Compression ratio is increased to 10:1 and works great with Screamin’ Eagle cams. Kit includes pistons, rings, pins and circlips. All EFI models require ECM calibration (priced separately). Forraceapplicationonly.
Fits ’86-’22 XL883 models with stock heads. Requires separate purchase of 1200cc cylinders and gaskets.
22698-01A Standard Bore.
$349.95
Notice:
D. SCREAMIN’ EAGLE PRO BIG BORE 44MM CV CARBURETOR KIT
3
This carb kit is exclusive to Screamin’ Eagle® parts. The CV (constant velocity) design creates smooth air/fuel delivery for exceptional low- and mid-range power. The big 44mm bore allows this carb to feed even the most air hungry engine at high RPM. Easy to install with stock cables. Screamin’ Eagle Intake Manifold required for proper fitment. Separate purchase of Screamin’ Eagle High-Flow Air Cleaner Kit is recommended for optimal performance. This 44mm CV carburetor is not cruisecontrol compatible. Forraceapplicationonly.
27934-99
$347.95
Fits ’90-’99 carbureted Evolution 1340-equipped models, ’99-’06 carbureted Twin Cam-equipped models.
E. SCREAMIN’ EAGLE® RACE VALVE SPRING KIT*
2
This straight coil double spring Race Valve Spring Kit will allow the engine to rev to 7000 RPM and enable the use of higher-lift cams. Complete kit includes springs, upper and lower collars and valve keys.
18281-02A 5/16" dia. Valve Stems. $199.95
Fits ’99-’04 Twin Cam, all Evolution® 1340 and ’86-’03 XL models. (not shown)
Also available:
SCREAMIN’ EAGLE VALVE SPRING SHIM KIT 2
This Valve Spring Shim Kit allows the engine builder to adjust spring pressure by combining various-thickness shims. The kit is a great help when trying to obtain consistent spring pressure across all valves. Kit includes 12 shims (4 each: .015", .030", .060" thickness).
18226-03
$16.95
Fits ’04-’22 XL and ’05-’17 Twin Cam models equipped with Valve Spring Kit P/N 18344-05. Also fits ’99-’04 Twin Cam, all Evolution 1340 and ’86-’03 XL models equipped with Valve Spring Kit P/N 18013-03A.
*NOTE: In race applications, high-lift cams and stiff valve springs put extreme pressure on the engine’s lifters and pushrods. At 7,000 RPM, instantaneous forces of up to 1200 lbs. can be experienced. This severe dynamic loading can lead to accelerated tappet wear. In these applications, we suggest installation of Screamin’ Eagle HighCapacity Tappets and periodic tappet inspection and replacement to maximize engine life.
Street legal and/or street compliant statements refer to product meeting 50-State emissions and noise standards in the United States.
The street legal and/or street compliant statements may not apply to markets outside of the United States.
Notice: The prices appearing in this catalog are the manufacturer’s suggested retail prices. Actual retail prices may vary.
When building a performance powertrain, don’t overlook the small stu . After all, good clean air and a powerful spark are essential for maximum power and engine life. Air cleaner covers and washable K&N® air lters are available to dress your bike in style while maximizing the ow of air to your engine, and Screamin’ Eagle® premium spark plugs and plug wires will keep the re burning.
Air Cleaner Covers
A. SCREAMIN’ EAGLE® ROUND AIR CLEANER COVER –RATCHET
The Ratchet Air Cleaner Cover trims the face of the Screamin’ Eagle® Round Air Cleaner filter in style. Ideal for use with Extreme open face filters, the forged aluminum cover wraps the leading edge of the filter element, covering the rubber gasket without restricting the airflow. The Ratchet Cover is finished in rich black, and features a center bar with Screamin’ Eagle script and a lugged outer ring. The kit includes a black filler plate to cover the unfinished face of standard High Flow filter for a clean blacked-out appearance.
61300845
$175.95
Fits ’18-later Softail® and ’17-later Touring and Trike models equipped with Screamin’ Eagle round High Flow Air Cleaner.
B. AIR CLEANER TRIM KITS
The perfect blend of performance and style. Available in a wide variety of styles, this bolt-on Air Cleaner Trim is sized to cover the face of most Screamin’ Eagle Round High-Flow Air Cleaners. You can continue the look of your custom collection while maximizing airflow to the engine. Model-specific rain socks are available to protect the open element during inclement weather.
Fits Evolution® 1340 models, ’99-’08 Dyna, ’00-’15 Softail (except FLS, FLSS, FLSTSB and FXS) and ’99-’13 Touring and Trike models equipped with oval-shaped Original Equipment air cleaner cover. Also fits models equipped with Screamin’ Eagle Round High-Flow Air Cleaner Kits with separate purchase of Rain Sock Kit P/N 28728-10 or Air Cleaner Trim Installation Kit P/N 12400158.
A. AIR CLEANER TRIM KITS
The perfect blend of performance and style. Available in a wide variety of styles, this bolt-on Air Cleaner Trim is sized to cover the face of most Screamin’ Eagle Round High-Flow Air Cleaners. You can continue the look of your custom collection while maximizing airflow to the engine. Model-specific rain socks are available to protect the open element during inclement weather.
Fits Evolution® 1340 models, ’99-’08 Dyna, ’00-’15 Softail (except FLS, FLSS, FLSTSB and FXS) and ’99-’13 Touring and Trike models equipped with oval-shaped Original Equipment air cleaner cover. Also fits models equipped with Screamin’ Eagle Round High-Flow Air Cleaner Kits with separate purchase of Rain Sock Kit P/N 28728-10 or Air Cleaner Trim Installation Kit P/N 12400158.
29328-99 Live To Ride Collection – Gold. $64.95
B. SMOOTH AIR CLEANER COVER
Wrap your Screamin’ Eagle round air cleaner element in style. The mirror chrome low-profile Air Cleaner Cover shields the element and opens breathing space between the backing plate and the cover. Cut-away bottom design exposes the air cleaner element to maximize the airflow. Easy to install, the one-piece cover is the ideal complement to the Chrome Air Cleaner Back Plate P/N 29510-05.
29153-07
$59.95
Fits ’07-’22 XL models equipped with Screamin’ Eagle Round Filter Air Cleaner Kits and ’99-’17 Twin Cam models equipped with Screamin’ Eagle Round High-Flow Air Cleaner Kits.
C. BOBBER-STYLE ROUND AIR CLEANER COVER
Low-profile round air cleaner cover adds an attractive nostalgic look to any bike’s profile. This cover can be accented with your choice of stylish air cleaner trim collections (sold separately) for a personalized look. The cover features a cut-away bottom design that exposes the filter element to maximize the airflow when installed with a Screamin’ Eagle High-Flow Air Cleaner Kit.
Fits ’12-’16 XL1200V and ’11-’15 FLS and FXS models with Original Equipment round air cleaner. Also fits models equipped with Screamin’ Eagle Round High-Flow Air Cleaner Kits.
61300128 Gloss Black.
D. SCREAMIN’ EAGLE® AIR CLEANER RAIN SOCK
$69.95
Add the open-element look to your Screamin’ Eagle High Flow style Air Cleaner. This easy-to-install kit allows you to replace the traditional Original Equipment air cleaner cover with custom inserts from one of the H-D® Decorative Collections. Kit includes a breathable mesh cover with classic Bar & Shield logo that stretches over the filter to maximize airflow while protecting the exposed element from the rain. Fits traditional cone-shaped air cleaner elements featured in many Screamin’ Eagle Twin Cam Stage Kits.
28728-10
Fits Screamin’ Eagle Round High-Flow Air Cleaner Kits.
Also available: (not shown)
SCREAMIN’ EAGLE AIR CLEANER RAIN SOCK
$34.95
Protect your exposed-element air cleaner during inclement weather. This mesh cover stretches over the filter to repel moisture that could damage the filter and be drawn into the engine. The breathable cover does not significantly reduce airflow to the engine.
29400363 For Round High-Flow Filter. $39.95
Fits ’18-later Softail® and ’17-later Touring and Trike models equipped with Screamin’ Eagle High-Flow Air Cleaners with round perimeter flow air cleaner element.
29493-05A For Heavy Breather Filter. $34.95
Fits models equipped with Screamin’ Eagle Heavy Breather Air Cleaner Kits (except Compact Heavy Breather P/N 2871610, Heavy Breather Elite P/N 29400173, 29400172 or 29400285, and Milwaukee-Eight® Heavy Breather P/N 29400263 or 29400264).
Notice: The prices appearing in this catalog are the manufacturer’s suggested retail prices. Actual retail prices may vary.
E. SCREAMIN’ EAGLE® HIGH-FLO K&N® REPLACEMENT AIR FILTER ELEMENT 2
K&N® replacement air filters are engineered to improve airflow for increased horsepower and quicker acceleration. K&N filters provide excellent filtration, and because they are washable and reusable, you can clean the filter whenever conditions demand. Designed as direct replacements for specified fitments.
1.29400020 High-Flow – Multi-fit. $89.95 Fits ’07-’22 XL, ’99-’07 Dyna®, ’00-’15 Softail® and ’99-’07 Touring models equipped with High-Flow Air Cleaner Kits. Replacement for P/N 29442-99E.
2.29400355 High-Flow – Multi-fit. $199.95 Fits ’18-later Softail and ’17-later Touring and Trike models equipped with round High-Flow Air Cleaner P/N 29400355 or 29400356.
3.29400019 High-Flow – Touring. $89.95 Fits ’16-’17 Softail and ’08-’16 Touring and Trike models equipped with High-Flow Air Cleaner Kits. Replacement for P/N 29244-08.
4.29400247 High-Flow – Wedge Milwaukee-Eight® Engine. $109.95 Fits '17-'24 Touring and '17-later Trike models equipped with Wedge High-Flow Air Cleaner Kit P/N 29400245 or 29400246.
5.29400065 Extreme Billet. $109.95 Fits ’15-’20 XG, ’16-’17 Softail and ’08-’16 Touring and Trike models equipped with Extreme Billet Agitator and Chisel Air Cleaner Kits.
5.29400359 Extreme. $109.95 Fits ’18-later Softail and ’17-later Touring and Trike models equipped with round High-Flow Air Cleaner P/N 29400357.
5.29400118 Extreme Billet & Rail. $109.95 Fits ’07-’22 XL, ’08-’17 Dyna and ’08-’15 Softail and models equipped with Extreme Billet Chisel and Agitator or Rail Collection Air Cleaner Kits.
6.29400022A Ventilator – Multi-fit. $89.95 Fits models equipped with Twin Cam Ventilator and Extreme Billet Ventilator Performance Air Cleaner Kits. Replacement for P/N 29670-09.
7.29400293 Ventilator –Milwaukee-Eight Engine. $89.95 Fits ’18-later Softail, ’17-later Touring and Trike models equipped with Ventilator Air Cleaner P/N 29400298 or 29400299.
8.29702-08B Heavy Breather – Touring, Chrome. $109.95 Fits models equipped with Heavy Breather Kit P/N 29006-09B, 29253-08B, 29000065 or 292400105. 29400297 Heavy Breather – Touring, Black. $134.95 Fits ’16-’17 FXDLS and models equipped with Heavy Breather Kit P/N 29006-09B, 29253-08B, 29000065 or 29400105.
9.29400141 Heavy Breather Elite, Chrome. $129.95 Fits models equipped with Screamin’ Eagle® Heavy Breather Elite Performance Air Cleaner Kit P/N 29400407 and 29400406.
27300139 Heavy Breather Elite, Black. $139.95 Replacement air filter for models equipped with Screamin’ Eagle Heavy Breather Elite Performance Air Cleaner Kit P/N 29400285.
10.29400276 Heavy Breather –Milwaukee-Eight Engine, Black. $134.95 Fits '18-'24 Softail®, '17-'25 Touring and Trike models with Heavy Breather Kits P/N 29400263 or 29400264 and '22later Revolution Max models equipped with Heavy Breather P/N 29400440 or 29400442.
11.29400275 Heavy Breather –Milwaukee-Eight Engine, Chrome. $134.95 Fits '18-'24 Softail®, '17-'25 Touring and Trike models with Heavy Breather Kits P/N 29400263 or 29400264 and '22later Revolution Max models equipped with Heavy Breather P/N 29400440 or 29400442.
Notice: The prices appearing in this catalog are the manufacturer’s suggested retail prices. Actual retail prices may vary.
Air Filters
A. SCREAMIN’ EAGLE® 10MM PHAT SPARK PLUG WIRES
Fat 10mm plug wires add dimension and style to your ride. Screamin’ Eagle® boot design and suppression core wires ensure solid connection and maximum voltage transfer between coil and plugs. Screamin’ Eagle script printed along the wire to add style.
Fits ’15-later XG models.
31600048A Black.
Fits ’07-’22 XL models.
31901-08A Black.
31902-08A Orange.
Fits ’04-’06 XL models.
31958-04B Black.
Fits ’86-’03 XL models (except XL1200S).
32092-98B Black.
31963-89B Orange.
Fits ’99-’17 Dyna® models.
31930-99C Black.
31944-99C Orange.
31937-99C Red.
$39.95
$39.95
$39.95
$39.95
$39.95
$39.95
$39.95
$39.95
$39.95
Fits ’91-’98 Dyna, ’85-’99 Softail® and ’80-’84 Touring models.
32093-98B Black.
31964-89C Orange.
Fits ’18-later Softail models. 31600111A Black.
$39.95
$39.95
Fits ’00-’17 Softail models (except FXCW, FXCWC, FXS and ’13-’16 FXSB models).
31907-08A Black.
$39.95
32360-00C Orange. $39.95
32359-00C Red. $39.95
Fits ’08-’16 FXCW, FXCWC, FXS and FXSB models.
31965-08A Black. $39.95
31967-08A Red.
Fits ’17-’25 Touring and Trike models (except '23-later FLHXSE, FLTRXSE, '24-later FLHX, FLTRX, FLTRXSTSE and '25-later FLHXU).
31600108 Black. $62.95
31600110 Orange. $62.95
31600109 Red. $62.95
Fits ’09-’16 Touring and Trike models.
32303-08A Black.
32325-08A Orange.
$39.95
$39.95
32318-08A Red. $39.95
Fits ’99-’08 Touring models.
31932-99C Black.
31946-99C Orange.
31939-99C Red.
$39.95
$39.95
$39.95
B. SCREAMIN’ EAGLE 10MM PHAT SPARK PLUG WIRES –CUT TO LENGTH
Fat 10mm plug wires add dimension and style to your ride. Screamin’ Eagle boot design and suppression core wires ensure solid connection and maximum voltage transfer between coil and plugs. Screamin’ Eagle script printed along the wire to add style.
32095-98B Black.
$39.95
Multi-Fit – Cut to length. Fits ’86-’03 XL models (except XL1200S), ’91-’98 Dyna models, ’85-’99 Softail models and ’80-’84 Touring models.
Street legal and/or street compliant statements refer to product meeting 50-State emissions and noise standards in the United States.
The street legal and/or street compliant statements may not apply to markets outside of the United States.
Terminal Construction ensures solid watertight connection with standard or performance spark
Built-In Suppressor/Resistor reduces radio noise and interference.
Spark Plug Wires
C. SCREAMIN’ EAGLE® PERFORMANCE
SPARK PLUGS 2
Screamin’ Eagle® Spark Plugs feature double platinum coating for superior erosion resistance and extended life. The V trimmed ground electrode reduces shrouding of the flame front to promote flame propagation, and the fine wire center electrode enhances startups and ignitability. Screamin’ Eagle Plugs feature Ribbed Core Technology (RCT) that provides resistance to fouling, and are designed with Original Equipment-style noise suppression to prevent electrical interference with radios and CB communication equipment. Works great in racing applications where rich air/fuel conditions are required. Unique style with Screamin’ Eagle logo. Sold in pairs.
Standard Compression Applications
Designed for modified engines including performance carburetors, high-flow air cleaners, camshafts, exhaust systems and ignition systems in conjunction with stock compression ratios.
31600106 Standard Compression Applications. $29.95 Fits ’99-’17 Twin Cam-equipped models, and ’86-later Evolution® Sportster® 883, 1100 and 1200 models.
31600085 Standard Compression Applications. $29.95 Fits ’15-later XG models and ’17-later Milwaukee-Eight® engine equipped models (including Stage I, II, III and IV Upgrades).
31600180
$39.95 Fits ’21-later Revolution Max engine equipped models.
High Compression Applications
These plugs are designed for high-performance applications involving modifications in high-flow air cleaners, camshafts, exhaust, performance heads, ignition components, higher compression ratios above Original Equipment configurations or engines specific for racing applications.
31600105 High Compression Applications. $29.95 Fits ’99-’17 Twin Cam-equipped models. ’86-’22 XL and XR and Evolution 1340 models equipped with Screamin’ Eagle Performance Cylinder Heads.
RCT (Ribbed Core Technology) provides improved resistance to plug fouling. The rib’s proximity promotes spark discharge to the shell on plugs that are starting to foul, allowing the air/fuel charge in the cylinder to ignite and clear the plug.
Street legal and/or street compliant statements refer to product meeting 50-State emissions and noise standards in the United States.
The street legal and/or street compliant statements may not apply to markets outside of the United States.
Notice: The prices appearing in this catalog are the manufacturer’s suggested retail prices. Actual retail prices may vary.
Fresh from the factory, Harley-Davidson® Crate Engines are the ideal platform for building your high-performance ride. And once you’ve put your heart and soul into achieving just the type of horsepower and torque numbers you crave, we o er everything you need to get all that power to the pavement.
A. SCREAMIN’ EAGLE® 135CI STAGE IV PERFORMANCE CRATE ENGINE 5
For the rider demanding no-compromise performance. This is the most displacement, and the most power, ever created by Harley-Davidson for a street-compliant crate performance engine. Engineered by the pros at Harley-Davidson and built from the bottom up in Milwaukee, this street-tuned 135-cubicinch Screamin’ Eagle® Crate Engine is designed designed to deliver instant arm-stretching torque through the entire rpm range. Made for riders seeking maximum displacement, compression, and flow, it delivers 144 horsepower and 149 ft-lb of torque to the rear wheel! The 135ci engine compression ratio is 11.6:1. Exclusive 135 and Stage IV badging on the cylinder heads, and timer cover to highlight the powerplant. This street-ready performance motor features the finest Screamin’ Eagle® components. Many of these new components were informed by extensive testing by the HarleyDavidson Factory Racing Team for the King of the Baggers racing series. The 135ci Crate engine consists of: All-new Screamin’ Eagle® Extreme CNC-ported cylinder heads, new SE8-550 high-lift cam, new high-compression forged pistons, 68mm throttle body and new CNC-machined Extreme Flow 68mm intake manifold, high-performance cam bearing, high-performance tappets, new patent-protected 4.31" steel sleeve cylinders, 4 5/8" flywheel, 6.8 g/sec fuel injectors, and Screamin’ Eagle® Pro Billet Cam Plate and Oil Pump.
• We’ve done your homework. Engineered and tested as a complete collection of high-performance components by the Screamin’ Eagle® pros at Harley-Davidson. This combination is designed for wide open throttle along with high end RPMs and a significant torque increase from a cruising speed.
• Ready for bolt-in installation in the Original Equipment-style chassis of your Touring bike.
• No special fabrication or engine-mount relocation is required.
• Factory assembled at the Powertrain Operations facility in Milwaukee, Wisconsin.
• Screamin’ Eagle products are not available for sale and are not street legal in all countries. Please contact your local dealer for more information.
Fits '26-later Touring, ’23-later FLHXSE and FLTRXSE, ’24-later FLHX, FLTRX, and FLTRXSTSE and ’25-later FLHXU models. Requires separate purchase of Head Pipe P/N 65600177. Requires ECM recalibration with Pro Street Tuner for proper installation. Does not fit California models.
16200980 Black Highlighted/Gloss Black. $8,149.95
16200979 Black Highlighted/Chrome. $8,149.95
16200977 Black Granite/Chrome. $8,149.95
16200978 Black Granite/Gloss Black. $8,149.95
The street legal and/or street compliant statements may not apply to markets outside of the United States.
Notice: The prices appearing in this catalog are the manufacturer’s suggested retail prices. Actual retail prices may vary. Street legal and/or street compliant statements refer to products meeting EPA (49-State) and/or California (50-State) emissions and noise standards in the United States as specified.
A. SCREAMIN’ EAGLE® 135CI STAGE IV PERFORMANCE CRATE ENGINE - AIR/OIL COOLED 5
For the rider demanding for no-compromise performance.This is the most displacement, and the most power, ever created by Harley-Davidson for a street-compliant crate performance engine. Engineered by the pros at Harley-Davidson and built from the bottom up in Milwaukee, this street-tuned 135-cubicinch Screamin’ Eagle® Crate Engine is designed to run with a wide-open throttle at high engine speeds and provide instant passing power from cruising speed. Made for riders seeking maximum displacement, compression, and flow, it delivers 143 ft-lb of torque to the rear wheel as soon as the throttle is cranked. Stage IV equipped engine includes 135 Stage IV badging on the cylinder heads and timer cover to highlight the powerplant. This street-ready performance motor features the finest Screamin’ Eagle® components: Screamin’ Eagle® Extreme CNC-ported cylinder heads, SE8-517 high-lift cam, new high-compression forged pistons, high-performance cam bearing, high-performance tappets, patent-protected 4.31" steel sleeve cylinders, new 4 5/8" flywheel, new 68mm throttle body and CNC-machined 68mm intake manifold, new 6.8 g/sec fuel injectors, and Screamin’ Eagle® Pro Billet Cam Plate and Oil Pump.
• We’ve done your homework. Engineered and tested as a complete collection of high-performance components by the Screamin’ Eagle® pros at Harley-Davidson. This combination is designed for wide open throttle along with high end RPMs and a significant torque increase from a cruising speed.
• Ready for bolt-in installation in the Original Equipment-style chassis of your Touring bike
• No special fabrication or engine-mount relocation is required
• Factory assembled at the Powertrain Operations facility in Milwaukee, Wisconsin
• Choice of Black or Chrome finish
Fits ’21-’25 Touring models equipped with Air/Oil-Cooled Milwaukee-Eight® engine. Does not fit Trike models. Requires separate purchase of Head Pipe P/N 65600177 and Oil Cooler Fan Assist P/N 62700204 or Fan for Factory Oil Cooler P/N 26800195. All models require ECM recalibration with Screamin’ Eagle Pro Street Tuner for proper installation. Does not fit California models. Does not fit Center Cooled models.
Street legal and/or street compliant statements refer to products meeting EPA (49-State) and/or California (50-State) emissions and noise standards in the United States as specified. The street legal and/or street compliant statements may not apply to markets outside of the United States.
B. SCREAMIN’ EAGLE® 135CI STAGE IV PERFORMANCE CRATE ENGINE – TWIN COOLED™ 5
For the rider demanding for no-compromise performance.This is the most displacement, and the most power, ever created by Harley-Davidson for a street-compliant crate performance engine. Engineered by the pros at Harley-Davidson and built from the bottom up in Milwaukee, this street-tuned 135-cubicinch Screamin’ Eagle® Crate Engine is designed to run with a wide-open throttle at high engine speeds and provide instant passing power from cruising speed. Made for riders seeking maximum displacement, compression, and flow, it delivers 143 ft-lb of torque to the rear wheel as soon as the throttle is cranked. Stage IV equipped engine includes 135 Stage IV badging on the cylinder heads and timer cover to highlight the powerplant. This street-ready performance motor features the finest Screamin’ Eagle® components: Screamin’ Eagle® Extreme CNC-ported cylinder heads, SE8-517 high-lift cam, new high-compression forged pistons, high-performance cam bearing, high-performance tappets, patent-protected 4.31" steel sleeve cylinders, new 4 5/8" flywheel, new 68mm throttle body and CNC-machined 68mm intake manifold, new 6.8 g/sec fuel injectors, and Screamin’ Eagle® Pro Billet Cam Plate and Oil Pump.
• We’ve done your homework. Engineered and tested as a complete collection of high-performance components by the Screamin’ Eagle® pros at Harley-Davidson. This combination is designed for wide open throttle along with high end RPMs and a significant torque increase from a cruising speed.
• Ready for bolt-in installation in the Original Equipment-style chassis of your Touring bike
• No special fabrication or engine-mount relocation is required
• Factory assembled at the Powertrain Operations facility in Milwaukee, Wisconsin
• Choice of Black or Chrome finish
Fits ’21-’25 Touring models equipped with Twin-Cooled™ Milwaukee-Eight® engine. Does not fit Trike models. Requires separate purchase of Head Pipe P/N 65600177. All models require ECM recalibration with Screamin’ Eagle Pro Street Tuner for proper installation. Does not fit California models. Does not fit Center Cooled models.
$8,149.95
Chrome. $8,149.95
Street legal and/or street compliant statements refer to products meeting EPA (49-State) and/or California (50-State) emissions and noise standards in the United States as specified.
The street legal and/or street compliant statements may not apply to markets outside of the United States.
Notice: The prices appearing in this catalog are the manufacturer’s suggested retail prices. Actual retail prices may vary.
Milwaukee-Eight® Engines
A. SCREAMIN’ EAGLE® MILWAUKEE-EIGHT® ENGINE
131 CI PERFORMANCE CRATE ENGINE 5
Leave other riders in the dust with the biggest, most powerful street-compliant crate performance engine Harley-Davidson has ever created. Built from the bottom up in Milwaukee, this street-tuned 131-cubic-inch Screamin’ Eagle® Crate Engine is designed to run with a wide-open throttle at high engine speeds and provide instant passing power from cruising speed. Made for riders seeking maximum displacement, compression and flow, it delivers 135 ft-lb of torque to the rear wheel as soon as the throttle is cranked. Stage IV equipped engine includes 131 Stage IV badging on the cylinder heads and timer cover to highlight the powerplant. Ready for bolt-in installation in the Original Equipment-style chassis of your Softail® bike. No special fabrication or engine-mount relocation is required. Engine features one-year manufacturer’s warranty for unmatched confidence.
49-State U.S.EPACompliant on select ’18-later Softail® Models. Refer to www.H-D.com/Shop for status.
Performance components include:
•Engraved CNC-ported cylinder head with CNCmachined chamber and 1mm larger valves
• SE8-517 high-lift cam
• High-compression 10.7:1 forged pistons.
• High-performance cam bearing
• High-performance tappets
• Patent-protected 4.31" steel sleeve cylinders.
• 64mm throttle body and cast manifold
• 5.5 g/sec fuel injector
Fits ’18-’24 Softail® models. FXFB and FXFBS models require separate purchase of Screamin’ Eagle Softail High-Flow Exhaust System P/N 64900828 or 64900829. ’18 107ci models require separate purchase of SE High-Capacity Clutch Plate Kit P/N 37000258. FXDR114 models require the separate purchase of 65600300. All models require ECM calibration with Screamin Eagle Pro Street Tuner for proper installation. Does not fit California models.
16200341 Black & Chrome. $7,449.95
16200342 Black & Gloss Black. $7,449.95
Milwaukee-Eight 114 Softail Stock vs. 131 Softail Crate Engine w/ Ventilator A/C
Street legal and/or street compliant statements refer to products meeting EPA (49-State) and/or California (50-State) emissions and noise standards in the United States as specified. The street legal and/or street compliant statements may not apply to markets outside of the United States.
NOTE: Replacement engines must be re-fitted with emission control devices and systems appropriate for the vehicle model and model year in order to ensure emissions compliance. Failure to do so constitutes tampering under U.S. EPA guidelines and can lead to substantial fines and penalties.
Legal for use on public roads only when installed in the specified models. Not legal for use on public roads when installed in models other than the ones specified and not eligible for the P&A warranty when installed in models other than the ones specified. Please see the Parts and Accessories warranty statement and your dealer for more information.
Notice: The prices appearing in this catalog are the manufacturer’s suggested retail prices. Actual retail prices may vary.
x 1000)
Twin Cam SE120ST Crate Motor
B. SCREAMIN’ EAGLE® SE120ST STREET
PERFORMANCE CRATE MOTOR
2
This street-tuned 120-cubic-inch Screamin’ Eagle® Crate Motor takes your bagger from mild to wild. This engine is designed for bolt-in installation in the Original Equipmentstyle chassis of your Touring bike. No special fabrication or engine mount relocation is required. The crankcase, cylinders and heads are painted black, and feature machined aluminum highlights and chrome covers for a stunning “show-and-go” look. Equipped with the ultimate large bore Screamin’ Eagle 58mm Throttle Body (18% larger than stock), this engine is capable of producing 106 horsepower and 117 lb-ft of torque at the rear wheel. Engine features one-year manufacturer’s warranty. For best performance results, we recommend combining this engine with your choice of Screamin’ Eagle 58mm High-Flow Air Cleaner and the Screamin’ Eagle High Flow Exhaust System P/N 64800022.
This engine is 50-State U.S. EPA compliant when used with Original Equipment mufflers or the Screamin’ Eagle Street Performance Exhaust System P/N 64800022. All models require ECM calibration (priced separately). U.S. delivered engines include Manufacturer’s Statement of Origin (MSO).
Developed and tested in Milwaukee, this motor features the finest Screamin’ Eagle components:
– 4.060 big-bore cylinders.
– 4-5/8" stroke SE Pro stroker flywheel and rod assembly.
– 10.5:1 high-compression nickel-plated forged pistons with Teflon® coated skirt.
– Titanium SST piston rings.
– SE-259E high-lift cams.
– Perfect-Fit pushrods.
– SE high-performance lifters.
– CNC-ported MVA heads with automatic compression release.
– Screamin’ Eagle Pro High-Flow 58mm EFI Throttle Body, high-flow injectors and manifold clamps.
– Machined lower rocker boxes for valve spring collar clearance.
– Factory-machined engine cases.
– Unique piston oilers for stroker clearance.
– Screamin’ Eagle inner crankcase full complement cam needle bearings.
– SE Lefty high-performance crankcase output bearing and nitride bearing race.
– SE Performance spark plugs.
– 120ST cam cover and cylinder head medallions.
19221-15
$7,099.95
Fits 50-state ’10-’16 Touring models. Does not fit TwinCooled™ models. Does not fit Trike. ’10 Touring models require Screamin’ Eagle Big Twin Compensator Kit P/N 40100061. All models require ECM calibration for proper installation. ’10-’13 Touring models can be programmed by Dealer (sold separately). ’14-’16 Touring models can be calibrated using the Screamin’ Eagle Pro Street Tuner (sold separately).
Street legal and/or street compliant statements refer to product meeting 50-State emissions and noise standards in the United States.
The street legal and/or street compliant statements may not apply to markets outside of the United States.
Notice: The prices appearing in this catalog are the manufacturer’s suggested retail prices. Actual retail prices may vary.
Crate Engines – Twin Cam
SCREAMIN’ EAGLE® PRO SE120R HIGH-PERFORMANCE CRATE MOTOR 3
This track-ready 120-cubic-inch Screamin’ Eagle® Crate Motor is waiting to provide a racing enthusiast the opportunity to go racing at an affordable price. This engine is designed for boltin installation in the Original Equipment-style chassis of your track bike. No special fabrication or engine-mount relocation is required. The crankcase, cylinders and heads are painted black and feature machined aluminum highlights and chrome covers for a stunning “show-and-go” look. When equipped with appropriate high-flow carburetor or throttle body and injectors, an open air induction and tuned exhaust, this engine is capable of producing a reliable 135+ horsepower at the rear wheel. Engines include Manufacturer’s Statement of Origin (MSO-domestic only).
These race-use engines feature only the finest Screamin’ Eagle® components:
• 4.060" big-bore cylinders.
• 4-5/8" stroke SE Pro stroker flywheel and rod assembly.
• 10.5:1 high-compression nickel-plated forged pistons with Teflon coated skirts.
• Titanium SST piston rings.
• SE-266E high-lift cams.
• Perfect Fit pushrods +.030.
• SE high-performance lifters.
• CNC-ported MVA heads with automatic compression release (19206-12 and 19220-12 only).
• Machined lower rocker boxes for valve spring collar clearance.
• Factory-machined engine cases.
• Unique piston oilers for stroker clearances.
• Screamin’ Eagle performance inner cam bearings.
• Lefty high-performance crankcase output bearing.
• SE performance spark plugs.
• 120R cam cover and head medallions.
• High-volume oil pump.
• Billet cam plate.
Requires separate purchase of appropriate Screamin’ Eagle induction system and a high-performance clutch upgrade. Just add your choice of race exhaust, high-flow air cleaner and tuning. Forraceapplicationonly.
19220-16 Black & Chrome.
$6,799.95 Fits ’06-’17 Dyna® and ’07-’16 Touring (except Twin-Cooled™) models. ’06-’13 Dyna and ’07-’13 Touring models require separate purchase of Compensator P/N 42200064 or 40100061.
19206-16 Black & Chrome.
$7,499.95
Fits ’07-’17 Softail® models. ’07-’11 Softail models (except FXCW, FXCWC and ’09 FXSTSSE) require separate purchase of Compensator P/N 40100061.
SCREAMIN’ EAGLE PRO SE120R HIGH PERFORMANCE CRATE MOTOR
Crate Engines – Twin Cam
JIMS® TWIN CAM RACE ENGINES
3
The JIMS® Twin Cam Race Engines, available exclusively through Harley-Davidson® dealers, are a complete component package designed to serve as a solid foundation for racers seeking big horsepower and displacement. Developed by JIMS of Camarillo, CA, these race engines are designed to fit within the frame of Harley-Davidson models originally powered by Evolution® 1340 or air-cooled Twin Cam engines. JIMS Twin Cam Race Engines are NOT street compliant. This engine was developed under Harley-Davidson license, granted to JIMS for use of specific Harley-Davidson Twin Cam intellectual property. The JIMS Twin Cam Race engines are based on a 356-T6 aluminum crankcase with enough case material to support a bore size up to 4.800 inches. This is not a bored stock case, but a new JIMS crankcase with increased wall thickness for larger bore potential. As a new crankcase, the engine ships with a JIMS serial number and a Manufacturer’s Statement of Ownership (MSO). Forraceapplicationonly.
JIMS Race Engines are available in black or silver powder coat, color-matched to Original Equipment Harley-Davidson transmissions. For more details, options, ordering information and pricing, see your Dealer or visit www.jimsusa.com
Available to fit ’91-’17 Dyna®, Softail® and ’91-’16 Touring model frames (except Twin-Cooled™ models), including models originally equipped with Evolution engines. Forraceapplication only.
For more details, ordering information and pricing, see your Dealer or visit www.jimsusa.com
Clutch & Drivetrain
A. SCREAMIN’ EAGLE® HIGH CAPACITY CLUTCH KIT – MILWAUKEE-EIGHT® ENGINE
2
The Screamin’ Eagle® High Capacity Clutch Kit increases the drivetrain’s ability to reliably support high torque applications without significantly increasing lever effort. Designed to fit in the stock clutch basket, this kit provides smooth shifting, progressive engagement and works with the factory Assist and Slip clutch system to keep clutch lever effort similar to the stock levels. Kit contains 10 fiber clutch plates and 10 contact plates–one more than Original Equipment–and 3-1200 Newton clutch springs. This combination provides 11% more clutch surface area for greater power handling capability.
37000287
Fits ’18-later Softail® and ’17-later Touring models.
Also available:
SCREAMIN’ EAGLE HIGH CAPACITY CLUTCH PLATE KIT – MILWAUKEE-EIGHT ENGINE
$294.95
2
Replacement clutch plates for the Screamin’ Eagle High Capacity Clutch Kit P/N 37000287. Kit includes 9 fiber friction plates and 10 contact plates.
37000258
Fits ’18-later Softail and ’17-later Touring models.
MILWAUKEE-EIGHT ENGINE CLUTCH SPRINGS – 1275N
$249.95
2
High-tension springs are engineered to add additional clutch capacity in high torque and high horsepower applications. Kit includes 3-1275 Newton (N) coil springs, and is designed to complement the Screamin’ Eagle High Capacity Clutch Plate Kit P/N 37000258. When combined with the High Capacity Clutch Plate Kit, torque capacity is increased to the maximum level available. Installation will increase capacity and lever effort. Springs can be installed without removing the outer primary cover. Included in Milwaukee-Eight Stage III and IV Kits.
37000286
Fit’s ’18-later Softail and ’17-later Touring models.
MILWAUKEE-EIGHT ENGINE CLUTCH
SPRINGS – 1200N
$39.95
2
Replacement clutch springs for the Screamin’ Eagle High Capacity Clutch Kit P/N 37000287. Kit includes 3-1200 Newton (N) coiled clutch springs. Installation of these springs with Original Equipment clutch plates will increase clutch capacity and lever effort. Springs can be installed without removing the outer primary cover.
37000288
Fit’s ’18-later Softail and ’17-later Touring models.
2
$39.95
Street legal and/or street compliant statements refer to product meeting 50-State emissions and noise standards in the United States.
The street legal and/or street compliant statements may not apply to markets outside of the United States.
Notice: The prices appearing in this catalog are the manufacturer’s suggested retail prices. Actual retail prices may vary.
Con guration
’17-’18 MilwaukeeEight® 107CI Original Equipment (9-Disk/1100N Spring)
’17-’18 114 & 117CI and all ’19-later Milwaukee-Eight Original Equipment (10 Disk/1100N Spring) (P/N 37000287)
Screamin’ Eagle High Capacity Clutch Kit 10 Disk/1200N Spring
10 Disk/1275N Spring
BIG TWIN COMPENSATOR
C. SCREAMIN’ EAGLE VARIABLE PRESSURE CLUTCH
B. SCREAMIN’ EAGLE® BIG TWIN COMPENSATOR 2
This premium compensator has been engineered with heavier springs and increased travel to support the high torque output associated with high-compression race and large displacement engines. Designed to outperform the Original Equipment compensator, this unit helps protect the engine and driveline components during harsh drag race launches. Compensator features improved oil passages, oil deflectors and a needle bearing thrust washer that improves the overall operation of these components.
42200064A
$349.95
Fits ’12-’13 Dyna®, ’12-’13 Softail® (except FXCW, FXCWC, FXSB, FXSBSE and ’09 FXSTSSE), ’11-’13 Touring and ’09-’13 Trike models. Original Equipment on ’14-’17 Dyna, Softail and ’14-’16 Touring models. Requires separate purchase of Installation Adhesive Kit P/N 11100088.
40100061
$459.95
Fits ’06-’11 Dyna, ’07-’11 Softail (except FXCW and FXCWC), ’07-’10 Touring, and ’07-’09 CVO™ (except ’09 FXSTSSE) models. Does not fit Trike. Requires separate purchase of Installation Adhesive Kit P/N 11100088. Kit includes Rotor Assembly P/N 30041-08. Installation on ’06 Dyna models require separate purchase of ’07-style stator.
42200095A
$349.95
Fits ’08-’12 FXCWC and ’09 FXSTSSE models and ’13-’17 FXSB models. If P/N 40274-08A has been installed previously, the rotor shell, P/N 30041-08A is not required.
C. SCREAMIN’ EAGLE VARIABLE PRESSURE CLUTCH 2
Get more performance from the Original Equipment clutch. The Screamin’ Eagle® Variable Pressure Clutch is designed to help put the added power from a Screamin’ Eagle Stage Kit to the pavement. This bolt-on kit harnesses the centrifugal force of spinning weights to increase the clutch capacity as engine speed increases. The mechanism applies increasing pressure to the stock clutch pressure plate as RPM rises. The result: high torque-handling capabilities without increasing clutch lever effort at idle. The Variable Pressure Clutch also provides smoother clutch disengagement at lower speed. Kit fits behind most stock derby covers with no modifications. See installation manual for additional accessory derby cover fitment information.
To match the performance demands of your engine, team the Variable Pressure Clutch with your choice of clutch diaphragm springs. We recommend the higher-capacity Screamin’ Eagle Diaphragm Spring P/N 37951-98 for major performance upgrades.
Spring P/N 37951-98
37000121A
$374.95 Fits ’99-’17 Evolution® 1340 and Twin Cam-equipped models. Will not fit ’16-later Touring and Trike models, ’15-later FLHTCUL or FLHTKL models or ’07-later Touring or Trike models equipped with Narrow-Profile Outer Primary Cover P/N 25700385 or 25700438. Will not fit ’13-later CVO models with hydraulic actuated clutch, ’16-’17 FXDLS, FLSS and FLSTFBS, or ’14-later Touring and Trike models equipped with Screamin’ Eagle A&S Clutch Kit P/N 37000026. Derby Covers P/N 25001-03, 25441-04A, 25770-99, 25331-10, 25339-10, 25700250 and 25700062 require Spacer Kit P/N 37000123. Does not fit Derby Covers P/N 25347-02 or 25345-01.
Street legal and/or street compliant statements refer to product meeting 50-State emissions and noise standards in the United States.
The street legal and/or street compliant statements may not apply to markets outside of the United States.
Notice: The prices appearing in this catalog are the manufacturer’s suggested retail prices. Actual retail prices may vary.
A. SCREAMIN’ EAGLE® TWIN CAM PERFORMANCE ASSIST AND SLIP (A&S) CLUTCH KIT
2
Developed for the high-thrust 110CI engine featured as Original Equipment on ’14-’16 CVO™ models, this A&S clutch provides significantly increased torque-handling capacity (135 lb/ft). Clutch is designed to improve engagement grip and provides minor slippage during downshifting to reduce shock to the power train. Reduces hand lever pull effort by over 1 pound. Complete kit features improved clutch plates for enhanced wear resistance and is the perfect addition when installing a high-output Screamin’ Eagle® Stage Kit.
37000026
$437.95
Fits ’14-’16 Touring and Trike models with hydraulic clutch actuator. Original Equipment on FXDLS, FLSS, FLSTBS and FXSE models.
B. SCREAMIN’ EAGLE PERFORMANCE CLUTCH FRICTION DISC KIT
2
Newly developed friction material delivers longer life than Original Equipment friction discs. Kit includes new precisionmachined flat steel plates. This Friction Disc Kit is a perfect match for the Screamin’ Eagle Twin Cam Performance Race Clutch Hub Kit P/N 37976-08.
37980-10
Fits ’99-’17
$229.95
Twin Cam-equipped models and ’98-’99 Evolution® 1340-equipped models. Will not fit ’13-’16 CVO Touring models with hydraulic actuated clutch or, ’15-’16 FLHTCUL and FLHTKL, ’16-’17 FXDLS, FLSS, FLSTFBS, FXSE or ’13-’16 CVO Touring models with hydraulic actuated clutch, ’15-’16 FLHTCUL and FLHTKL or ’14-’16 Touring and Trike models equipped with Screamin’ Eagle A&S Clutch Kit P/N 37000026.
Also available: (not shown)
HEAVY DUTY CLUTCH SPRING FOR STOCK CLUTCH
37951-98
2
$39.95
Fits ’99-’17 Twin Cam-equipped models and ’98-’99 Evolution 1340-equipped models. Will not fit ’16-’17 FXDLS, FLSS, FLSTFBS and FXSE or ’13-’16 CVO Touring models with hydraulic actuated clutch, or ’15-’16 FLHTCUL and FLHTKL, ’14-’16 Touring and Trike models equipped with Screamin’ Eagle A&S Clutch Kit P/N 37000026.
C. SCREAMIN’ EAGLE PERFORMANCE CLUTCH KIT 2
Performance Clutch Kit converts the 8-plate clutch to a 9-plate design. The surface area is increased by 13% and the spring rate is increased by 10% for a combination that can handle over 115 ft-lbs of torque at the crank, a 23% increase over the stock-rated capacity. Kit includes Kevlar® fiber-based friction discs and performance clutch spring.
38002-04
$229.95
Fits ’91-’22 XL and ’94-’97 Evolution 1340-equipped models.
D. SCREAMIN’ EAGLE MANUAL PRIMARY CHAIN TENSION ADJUSTER
Ideal for bikes equipped with big displacement high performance (100hp+) engines that are regularly used for track-day drag racing, this Screamin’ Eagle Tension Adjuster permits manual selection of primary chain tension. A direct replacement for the Original Equipment automatic version, this anodized billet aluminum adjuster allows you to fine-tune the settings and lock the position when the freeplay is properly set. The manual adjustment locks the chain tension in place to prevent the chain from adjusting during severe shifting. Kit includes required mounting hardware.
36500020
$174.95
Fits ’06-’17 Dyna®, ’07-’17 Softail®, and ’07-’16 Touring and Trike models. Requires separate purchase of model-specific primary gaskets and seals.
E. AUTOMATIC PRIMARY CHAIN TENSION ADJUSTER
Original Equipment on ’06-’17 Dyna and ’07-’17 Softail and Touring models, this Automatic Primary Chain Adjuster eliminates the need to manually adjust the primary chain tension at traditional service intervals.
40063-05B
$129.95
Fits ’85-’06 Evolution 1340 (except ’85-’88 Softail) and Twin Cam powertrain. Requires separate purchase of modelspecific primary gasket and seals.
Street legal and/or street compliant statements refer to product meeting 50-State emissions and noise standards in the United States.
The street legal and/or street compliant statements may not apply to markets outside of the United States.
Notice: The prices appearing in this catalog are the manufacturer’s suggested retail prices. Actual retail prices may vary.
When it comes time to repower your motorcycle, the first stop should be your local Harley® Dealer. They can set you up with a replacement shortblock or longblock engine that is manufactured from 100% new Original Equipment parts and subjected to the same rigorous testing as all Harley® engines. Plus, all longblock engines feature a one-year factory warranty and your original VIN stamped on the case.
F. SHORTBLOCK ASSEMBLY
The perfect starting point for building the engine of your dreams. Engine shortblocks are manufactured and assembled on Harley-Davidson’s main engine assembly line for exceptional quality and reliability. Shortblock cases, flywheels, bearings and rods are preassembled and ready for your custom build. Kit includes current spec Original Equipment cam plate, oil pump, cam drive components and the gaskets, seals and most of the hardware required to complete the engine and install it (not all components shown).You select your cylinders, heads, cams, covers and other top-end components. Choose one of the Screamin’ Eagle® Stage kits to incorporate reliable performance and pick from our decorative engine covers to customize the look. Shortblock Assemblies are stamped with a new VIN and include MSO (Manufacturers Statement of Origin). The MSO is for Domestic only. Kits ship directly from the factory within 3-5 days. Assembly comes stamped with a new VIN on Twin Cam Kits. (For VIN matching shortblock assemblies see the appropriate Service Parts Catalog.)
Twin Cam Engine
16200070 Black 96CI/103CI. $3,249.95
Fits ’07-’17 Dyna® (except FXDLS), and ’07-’16 Touring and Trike models (except CVO™).
16200071 Black 96CI/103CI. $4,199.95
Fits ’07-’17 Softail® models (except FLSS, FLSTFBS and CVO).
Milwaukee-Eight® Engine (not shown)
See your Dealer for details.
NOTE: Replacement engines must be re-fitted with emission control devices and systems appropriate for the vehicle model and model year in order to ensure emissions compliance. Failure to do so constitutes tampering under U.S. EPA guidelines and can lead to substantial fines and penalties.
Legal for use on public roads only when installed in the specified models. Not legal for use on public roads when installed in models other than the ones specified and not eligible for the P&A warranty when installed in models other than the ones specified. Please see the Parts and Accessories warranty statement and your dealer for more information.
Street legal and/or street compliant statements refer to product meeting 50-State emissions and noise standards in the United States.
The street legal and/or street compliant statements may not apply to markets outside of the United States.
Notice: The prices appearing in this catalog are the manufacturer’s suggested retail prices. Actual retail prices may vary.
Born from racing, the Screamin’ Eagle® Racing - King 6 is a battle-tested performance transmission developed by the Harley-Davidson Factory Race Team competing in the Mission King of the Baggers series. Engineered for enhanced gear engagement and durability. Key features include modified back-cut angles on the shift dogs to improve gear engagement and super premium heat treat and shot peening on gears and shafts ensure race-tough strength and durability. You’ll enjoy the smooth shifting performance and know this transmission is built for extreme performance in mind.
• Bolt-in installation.
• Super premium heat treated and shot peened gears ensure race-tough strength and durability.
• Torque capacity increased by +25% over the Original Equipment transmission.
• Smooth gear engagement for quicker shifts.
• Back cut gears and shift lug/pockets undercut for improved engagement and reduced friction.
• Upgraded bearings Screamin’Eagle branding on bearing door (P/N 36300037 only).
• Installation kit (P/N 36300043) includes gaskets, O-rings, main drive seal and bearing, and inner primary bearing race (sold separately).
• Transmission gears and shafts may have a blue coating. This blue coating is an manufacturing aid and will not affect King 6 Transmission or Oil Performance. Upon first fluid change the oil may have a slight discoloration.
36300041
$3,495.95
Fits ’23-later Center-Cooled Touring models and ’25-later Softail® models. Installation requires separate purchase of Gasket Installation Kit P/N 36300043.
36300037
$3,495.95
Fits ’07-’24 Touring, ’07-’24 Softail® and ’06-’17 Dyna® models. Does not fit ’23-Later Center-Cooled Touring models. Installation requires separate purchase of Gasket Installation Kit P/N 36300043.
B. SCREAMIN' EAGLE ® RACING PRO BILLET CLUTCH BASKET – 46T
A race-proven component for your high-performance Milwaukee-Eight® engine. This Screamin' Eagle® Racing Pro Billet Clutch Basket was developed by the Harley-Davidson Factory Race Team competing in the Mission King of the Baggers series. Precision CNC machined from premium 7075T6 aluminum for superior strength and durability.
• CNC machined from 7075-T6 aluminum for superior strength and durability.
• Hard anodized finish for superior wear resistance.
• Assemble to a new ring gear and bearing enables quicker installation.
• Laser etched Screamin' Eagle logo.
37000402A
$999.95
Fits '17-later models equipped with Milwaukee-Eight engines.
NOTE: There is no warranty on exhaust pipes and mufflers with regard to any discoloration. Blueing is caused by tuning characteristics, cam timing, carburetor jetting, over-heating, etc. and is not caused by defective manufacturing.
Street legal and/or street compliant statements refer to product meeting 50-State emissions and noise standards in the United States.
The street legal and/or street compliant statements may not apply to markets outside of the United States.
Notice: The prices appearing in this catalog are the manufacturer’s suggested retail prices. Actual retail prices may vary.
C. . SCREAMIN' EAGLE® GENUINE SYN3® FULL SYNTHETIC LUBRICANT - SAE 15W50 / SAE 50 OIL
Give your Harley-Davidson® powertrain the ultimate in protection with premium Screamin' Eagle® SYN3® Synthetic Lubricant. This dual-weight, full-synthetic lubricant is developed, tested and validated by Harley-Davidson engineers specifically for all Harley-Davidson® engine, transmission and primary drive applications. Blended with premium base stocks and Harley-Davidson proprietary additives for optimized durability, minimal friction loss, and a wide ambient operating temperature range. Trusted by Harley-Davidson Factory Racing to stand up to the challenge of full-throttle competition, formulated to keep your street bike running strong season after season.
• New, Improved formula is backward compatible to all H-D models that use SAE 20W50 oil
• Custom-formulated to protect your Harley-Davidson powertrain and maintain its performance in the harshest conditions
• Unmatched shear stability to resist viscosity break-down beyond the full oil-change interval
• Innovative dual-weight formula delivers the best of both SAE 50 and SAE 15W50
• 15W rating provides excellent cold-start protection even at low ambient temperatures
• The ultimate high-temperature protection of SAE 50
• Specifically formulated for motorcycle clutch compatibility
• Compatible with both non-catalyst and catalyst-equipped engines
• The only oil used by Harley-Davidson® Factory Racing
United States
D. OIL CHANGE KITS
SYN3 – SAE 15W50 / SAE 50
Fits ’99-later Twin Cam and Sportster® Evolution® models (except ’08-’13 XR) and can be used as an upgrade for any models that requires Oil Filter P/N 62600021, 63796-77A, 63805-80A, 63812-90 or 63813-90.
62600082 4 Quarts + Chrome Oil Filter. $95.95
62600083 4 Quarts + Black Oil Filter. $92.95
Fits ’17-later Milwaukee-Eight® engine equipped models.
62600085A 5 Quarts + Chrome Oil Filter. $112.95
62600084A 5 Quarts + Black Oil Filter. $109.95
Fits ’21-later Revolution® Max models.
62600112 4 Quarts + Black Oil Filter. $91.95
SYN3® SAE 15W50 / SAE 50 TUNE UP KITS
Do it right with Genuine Motor Parts. Each Tune Up Kit packs everything you need for a DIY service interval in a single box that's easy to buy and easy to store. Includes Oil and Lubricants,Oil Filter, Gaskets and O ring, and spark plugs. Fits '17-later Milwaukee-Eight engine-equipped models. 62600123 Black Filter. $194.95
62600128 Chrome Filter. $197.95
Fits '99-'18 Twin Cam models.
62600139 Black Filter. $174.95
62600138 Chrome Filter. $177.95
Fits '04-'22 Sportster® models.
62600136 Black Filter. $109.95
62600137 Chrome Filter. $110.95
Notice: The prices appearing in this catalog are the manufacturer’s suggested retail prices. Actual retail prices may vary.
A. SCREAMIN' EAGLE®/ÖHLINS® REMOTE RESERVOIR REAR SHOCKS*
Upgrade to Screamin' Eagle Factory Race Team suspension with these performance rear shocks. These high-performance rear shocks for Touring models were designed with Öhlins specifically for Screamin' Eagle® Factory Team race bikes. Now you can experience the same ultimate in handling and ride quality. These mono tube remote reservoir shocks are completely adjustable to match your riding style. Set the sag with the adjustable preload then fine tune the response with adjustable compression and rebound damping. Add performance style with a remote reservoir and exposed adjusters. Get a perfect factory fit tuned to complement Screamin' Eagle/ Öhlins Inverted Front end kits.
• Expertly tuned by Öhlins and Screamin' Eagle with the aggressive performance bagger rider in mind.
• High-performance style: Exposed remote reservoirs with stainless steel lines and Screamin' Eagle/Öhlins branding.
• Preload setting on both shocks allows suspension adjustment based on rider, passenger, and gear weight for optimal performance.
• No tools required for compression and rebound damping adjustments so changes can be made quickly and easily.
• New race-spec linear spring rate.
• Standard 13" Height with +8/-2 mm of length adjustment.
• High-pressure nitrogen gas-charged design resists heat fading and low-friction shaft/seal head design for smooth performance.
• 36mm piston diameter.
• Includes billet aluminum preload adjustment tool. Fully serviceable and rebuildable.
• Reservoir brackets are designed to accommodate all HarleyDavidson® Two-Up accessories, rear lighting and saddlebag lids.
Fits '26-later Touring, '23-later FLHXSE and FLTRXSE, '24-later FLHX, FLTRX, FLTRXSTSE, and '25 FLHXU models. Does not fit with Sissy Bar Uprights P/N 45248-09A, 52627-09A, 5261009A, and 54247-09A.
54000350
1WARNING: Installation of any accessory suspension components may affect cornering clearance and jiffy stand operation. This could distract the rider, causing loss of control and death or serious injury.
Notice: The prices appearing in this catalog are the manufacturer’s suggested retail prices. Actual retail prices may vary.
B. SCREAMIN' EAGLE® / ÖHLINS® INVERTED FORK LEGS*
Upgrade to the premium performance of Screamin' Eagle Factory Race Team suspension. These 48mm Öhlins forks legs are developed in partnership between Öhlins and HarleyDavidson® offer no-compromise front suspension performance for confidence-inspiring handling. Forks are fully adjustable for pre-load and compression and rebound damping. Inverted fork design provides enhanced front end rigidity with reduced steering inertia for unmatched handling and feedback to the rider. Requires separate purchase of vehicle specific installation kit for models not factory equipped with an inverted front fork.
• Expertly tuned by Öhlins and Screamin' Eagle with the aggressive performance bagger rider in mind.
• Adjust preload plus rebound/compression damping on the top caps of the fork assemblies.
• Micro-polished inner tubes reduce friction for smooth performance.
• Gold TiN (titanium nitride) coating on the fork sliders reduces friction and increases wear resistance as compared to chrome plating.
• Forks utilize 30mm pistons and NIX technology to maintain optimal damping at higher frequency to improve control, noticed by the rider as improved tire contact feel.
• Fully serviceable and rebuildable.
• Provides a 13% weight reduction compared to the traditional original equipment front fork assembly.
• Separate purchase of vehicle specific Front Fork Installation kit required for '24-Later FLHX and FLTRX, and '25-later FLHXU models.
Fits '26-later Touring, '23-later FLHXSE and FLTRXSE, '24-later FLHX, FLTRX and FLTRXSTSE, and '25 FLHXU models. Separate purchase of vehicle specific Front Fork Installation kit required for FLHX, FLHXU, FLHXL FLTRX, and FLTRXL 45400392A Black. $2,999.95 45400393A Gold. $2,999.95
Required for installation of Screamin' Eagle X Öhlins Inverted Fork Legs P/N 45400392 and 45400393 on models factory equipped with traditional Front Forks. Kit includes dual Brembo™ radial mounted front calipers offering the aggressive rider enhanced brake feel. Kit includes a super-premium liquid aluminum forged triple clamp, originally offered on CVO™ models. Kit includes all necessary hardware for installation. Product requires the use of specialty tools and Digital Technician, installation by an authorized Harley-Davidson dealership is required.
45400391 Street Glide®.
$1,249.95
Fits '24-Later FLHX, '25 FLHXU and '26-later FLHXL Specialty tools and a Digital Technician update required for installation. Installation by authorized Harley-Davidson dealer required. See your local Harley-Davidson dealer for details.
45400390 Road Glide®.
$1,249.95
Fits '24-later FLTRX and '26-later FLTRXL models. Specialty tools and a Digital Technician update required for installation. Installation by authorized Harley-Davidson dealer required. See your local Harley-Davidson dealer for details.
*WARNING: Installation of any accessory suspension components may affect cornering clearance and jiffy stand operation. This could distract the rider, causing loss of control and death or serious injury.
Notice: The prices appearing in this catalog are the manufacturer’s suggested retail prices. Actual retail prices may vary.
A. SCREAMIN’ EAGLE® SOFTAIL® SUSPENSION TUNED BY ÖHLINS® FRONT KIT*
Now you can experience the ultimate in handling and ride quality with this Screamin’ Eagle®/Öhlins® Double Cartridge Fork Kit. Converts the Original Equipment front suspension with high-performance components from the suspension experts at Öhlins®. Provides superior ride quality and adjustability to match your riding style. Set the sag with the adjustable preload then fine tune the response with adjustable compression and rebound damping.
• External adjustment for compression, rebound damping and preload
• Compression in the left leg
• Rebound in the right leg
• Easy to dial up performance adjustments based on riding style and weight of rider and gear
• Fully serviceable and repairable by Öhlins®
• Kit includes left and right cartridge, springs and oil. Installation tools sold separately. Installation by authorized Harley-Davidson dealer highly recommended due to required specialty tools.
Fits ’18-Later Softail models with inverted front forks. Does not fit FXDR114 models. Installation by authorized HarleyDavidson® dealer highly recommended due to required specialty tools.
45400355
$1,249.95
Fits '18-Later Softail models with traditional front forks. Installation by authorized Harley-Davidson® dealer highly recommended due to required specialty tools.
45400356
$1,249.95
B. SCREAMIN’ EAGLE®/ÖHLINS® REMOTE RESERVOIR REAR SUSPENSION*
Experience the ultimate in handling and ride quality with this Screamin’ Eagle®/Öhlins® Remote Reservoir Rear Shock. This mono tube remote reservoir coil-over shock is adjustable to match your riding style. Set the sag with the adjustable preload then fine tune the response with adjustable compression and rebound damping. These shocks perform great and add a performance style with a remote reservoir and exposed adjusters. Expertly tuned by Öhlins® and Screamin’ Eagle® with the aggressive Softail® rider in mind.
• No tools required for preload, compression and rebound damping adjustments so changes can be made quickly and easily
• Use external adjuster to set suspension preload for optimal performance based on rider, passenger, and gear weight
• Adjustable compression damping on the remote reservoir
• Adjustable rebound damping on bottom of shock body
• 46mm piston diameter
• Hard-anodized precision CNC-machined components
• High-pressure nitrogen gas-charged design resists heat fading and low-friction shaft/seal head design for smooth performance
• Fully serviceable and repairable through Öhlins® 54000384
Fits '25-Later Softail ® models.
54000325
$1,149.95
$1,149.95
Fits ’18-’24 Softail models. Models not factory-equipped with a preload adjuster side cover will require a separate purchase of P/N 54000321.
C. SCREAMIN’ EAGLE®/ÖHLINS® REMOTE RESERVOIR REAR SHOCKS
Upgrade to Screamin’ Eagle® Factory Race Team suspension with these performance rear shocks. These high-performance rear shocks for Touring models were designed with Öhlins® specifically for Screamin’ Eagle® Factory Team race bikes. Now you can experience the ultimate in handling and ride quality with these Screamin’ Eagle®/Öhlins® Remote Reservoir Rear Shocks. These mono tube remote reservoir shocks are completely adjustable to match your riding style. Set the sag with the adjustable preload then fine tune the response with adjustable compression and rebound damping. These shocks perform great and add a performance style with a remote reservoir and exposed adjusters.
- Get a perfect factory fit. Reservoir brackets are designed to accommodate all Harley-Davidson® accessories
- Expertly tuned by Ohlins and Screamin’ Eagle for the aggressive performance bagger rider in mind
- Preload setting on both shocks allows suspension adjustment based on rider, passenger, and gear weight for optimal performance
- No tools required for compression and rebound damping adjustments so changes can be made quickly and easily
- High-performance style: Exposed remote reservoirs with stainless steel lines and Screamin’ Eagle/Öhlins branding
- Progressive rate springs stiffen quickly for improved control when you pick up the pace
- Standard Height with +8/-2 mm of length adjustment
- High-pressure nitrogen gas-charged design resists heat fading
- Low-friction shaft/seal head design for smooth performance
- 36mm piston diameter
- Includes billet aluminum preload adjustment tool
Fully serviceable and rebuildable
Fits ’14-’25 Touring models (except FLHTKL, FLHTCUL, ’23-later FLHXSE, FLTRXSE, ’24-later FLHX, FLTRX, ’24 FLTRXSTSE and ’25-later FLHXU).
54000193
1 COMPRESSION ADJUSTER
Fine-tunes suspension to control the upward wheel movement when hitting a bump
Adjusts the speed at which the suspension compresses
Critical for balancing ride quality and suspension bottoming
Remote reservoir keeps the shock oil cooler to maintain damping performance
Internal bladder separates the oil from the nitrogen gas to reduce cavitation during aggressive riding
2
Fine-tunes the downward wheel movement after riding over bumps or potholes
Adjusts the speed at which the suspension returns from extension
Critical for balancing ride quality and suspension bounce 3 PRELOAD
Critical to setting the proper suspension travel to soak up large potholes and absorb large bumps
Adjusts for rider sag–the amount the suspension drops under the weight of the rider and cargo
The shock length is adjustable from +8mm or -2mm over the standard height.
$1,699.95
Notice: The prices appearing in this catalog are the manufacturer’s suggested retail prices. Actual retail prices may vary.
86 22315-06A 87 22698-01A 98 22711-04A 98 22851-99A 86 23727-07A 87 23728-07A 87 24004-03B 89 24017-10 81 24018-10 81 24100152 53 24100021 87 25149-00 77 25282-11 81 25284-11 81 25285-08 81 25376-03 77 25400476 32
35
35 25400202 35 25400201 35 25400353 35 25400432 54 25400117 77 25400125 97 25464-06 77
25465-06 77
25482-10 77
25600118 50
25600119 50 25600132 50
25600120 50 25600121 50 25600122 50 25600123 50 25600124 50 25600125 50 25600153 50 25600154 50 25600127 50
50
50
50 25638-07 77 25701403 51
51
27516-08F 68
27517-08E 68 27609-01B 97
51 25701408 51 25701573 51 25701574 51 25701480 51 25701517 51 25937-99B 77 27200029 73 27300194 52 27300217 52 27300210 52 27300218 52 27300147 59 27300145 59 27300185 59 27300167 59 27300139 103 27400067 53 27400040 59
SE/OHLINSSUSPENSION
The sale or use of these parts or accessories does not grant the purchaser a license or other right under any HarleyDavidson patent.
IMPORTANT, PLEASE READ: We have tried to make this catalog comprehensive and factual. All product descriptions (including depictions, speci cations, dimensions, measurements, ratings and competitive comparisons) are based on available information at the time of publication. Although such descriptions are believed correct, errors and changes can occur and complete accuracy cannot be guaranteed. Harley-Davidson may make changes at any time to prices and speci cations, and may change or discontinue any of the items depicted in this catalog, without notice and without incurring any obligation.
HEAD PORTING SERVICES: See your dealer for complete Porting Service details. The program is available for new heads removed from new bikes with less than 3,500 miles only. This is not a refurbish program for old heads or a coreexchange program.You will receive the same heads that were shipped for service. Heads will be disassembled by the Dealer prior to shipping, and heads will be inspected upon receipt. Heads may be rejected and returned based on condition. Porting Service is available to U.S. dealers only.
ATTENTION: Vehicles in the con gurations shown and the accessories described in this catalog may not be available for sale or use in some locations. Please check with your dealer for complete product details and the latest information.
Bar & Shield logo, Destroyer, Deuce, Dyna, Electra Glide, Evolution, Fat Bob, Fat Boy, Harley, Harley-Davidson, HD, H-D, Heritage Softail, Heritage Springer, Hugger, Milwaukee-Eight, Revolution, Revolution X, Road Glide, Road King, Screamin’ Eagle, Softail, Sportster, Springer, Street Bob, Street Glide, Street Rod, Super Glide, SYN3, Twin Cam 88, Twin Cam 88B, Twin Cam 96, Twin Cam 96B, Twin Cam 103, Twin Cam 103B, Twin Cam 110, Twin Cam 110B, Ultra Classic, V-Rod, VRSC, Wide Glide, and the Harley-Davidson Genuine Motor Parts and Genuine Motor Accessories Logo are among the trademarks of H-D U.S.A., LLC.
AHDRA, AMA, Dunlop, Dynojet, FullThrottle, JIMS, Mello Yello, NHRA, Vance & Hines, Windows, Windows Vista and all other third-party marks are property of their respective owners. Harley-Davidson® Parts and Accessories Division,a facility of Harley-Davidson Motor Company,recently achieved certification to its ISO 9001:2015 International Quality Standard registration.
