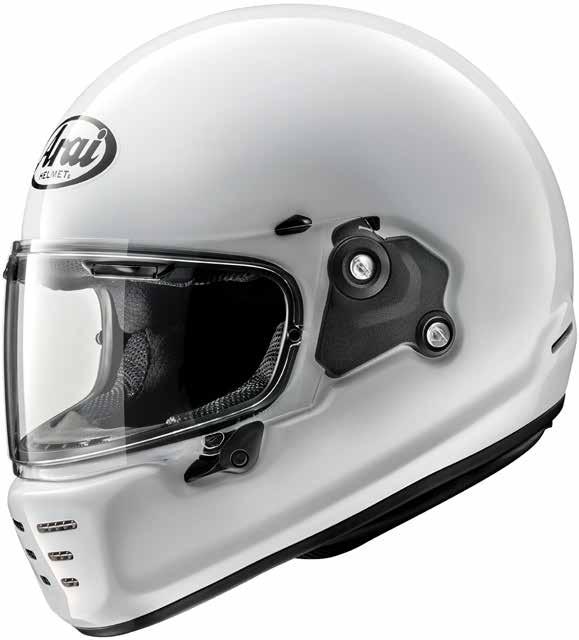

CONCEPT-XE araihelmet.eu
Ventilation
The Concept-XE’s sleek outer shell hides a secret; Arai’s internal ventilation system. Cooling air feeds into the visor brow vents and is drawn through the comfort liner and out three upper crown exhaust holes, via a hidden multi-stage air channel within the EPS liner, by the negative pressure created by the combined Venturi effect of the side exhaust ports and neckroll vent. Up front the six meshed slots close to demist and open for airflow.
General 4 Outer shell PB e-cLc 4 Variable Axis System (VAS) Ventilation
4 Free Flow System (FFS) 4 Hidden multi-stage air channel Front ventilation
4 Brow vents** 4 Inner chin (bar) vent shutter Rear ventilation
4 Neck exhaust vent 4 Side exhausts Aerodynamics
4 Fixed Chin Spoiler Visor
4 VAS Max Vision Visor with De-Mist option 4 New shield latch lever 4 Pinlock insert lens included Interior
4 Antimicrobial Liner material 4 Replaceable Cheek Pads/Ear cups 4 Replaceable Interior 4 Speaker pockets 4 Facial Contour System (FCS) 4 5mm ’’Peel Away’’ Ear cups/Cheek pads 4 5mm ’’Peel Away’’ Temple pad Comfort
XS-XL
4 Emergency Release System (ERS)
CONCEPT-XE
Available sizes:
White
Approval
4 ECE R22-06 ** Innovated and exclusively offered by Arai
PRIORITY FOR PROTECTION
Facial Contour System
PB e-cLc Outer shell
Peripherally Belted e-Complex Laminate Construction (PB e-cLc). The Concept-XE’s outer shell uses a Peripherally Belted e-Complex Laminate Construction (PB e-cLc) for lightweight strength; it’s designed to glance off and spread impact forces. New materials have been used to substitute the AR-mat as middle layer, resulting in a substantial weight reduction while maintaining the same strength as the PB-cLc construction.
VAS V MV Visor
VAS MAX Vision shield is standard to provide better visibility in all seasons and for all types of riding. Comes standard with Clear anti-fog Pinlock insert to be installed as needed.
Facial Contour System
Replaceable interior
Depending on the model, cheek pads, ear cups or the complete interior may be easily removed. All parts (replaceable or not) can be cleaned with lukewarm water and mild soap. Rinse well after cleaning and never dry in direct sunlight or near a heat source. Interior parts in different size thickness are available for a custom fit for every rider.
Hidden multi-stage air channel
Allows hot air to be pulled out of the helmet through 3 holes in the EPS liner to the patented Twin Venturi Exhaust ports.
Emergency Release System (ERS)
Allows easier access to an injured rider. By pulling the orange tabs integrated in the pads, the cheek pads slide out. Making helmet removal easier for trained medical personnel and rescuers. Minimising the risk of additional injury.
