NEW PRODUCT INTRODUCTION:
Program Categorization
The future is rapidly evolving, from consumer devices and AI to industrial robotics. As industries deliver new functionality, innovation is found not only in the final product but also in the reinvention of the components within.
The NPI program is focused on releasing solutions that support the next era of applications. Over the last decade, we have launched and continue to enhance our NPI program that introduces new products for the general market. Each new release is categorized to show how it complements our product offerings, whether as an innovation, enhancement or extension.
Our Categories
INNOVATION
New to Molex or new to market
ENHANCEMENT
New variations of an existing product range
EXTENSION
Additions to complete an existing range
INNOVATION
VersaPower Connectors
SERIES 226276, 226277
Featuring a fine 0.30mm pitch and a compact mated height of only 0.60mm, VersaPower Connectors are a next-generation embedded connector system engineered to meet the demanding needs of modern electronics.
Product Highlights
• High Performance: Lower resistance decreases energy loss due to heat reduction and improves overall conductivity.
• Compact and Robust: The space-saving design delivers high durability to withstand shock, vibration and harsh environments.
• Easy Assembly: Larger alignment features enable fast, secure connections while streamlining manufacturing and maintenance.
FEATURES AND ADVANTAGES
Enhances electrical conductivity
Lower resistance minimizes energy loss by reducing heat generation
Improves manufacturing efficiency and product quality
Simplifies assembly and maintenance, decreasing downtime and production costs through the large alignment feature
Helps maintain stable performance in high-current and highpower environments
Designed to handle currents up to 15.0A, which helps prevent overheating and failures due to excessive current flow
Delivers high mechanical reliability
Withstands shock and vibrations, minimizing the risk of failures through the robust design
APPLICATIONS BY INDUSTRY
Appliances
Refrigerators
TVs
Washing machines
Automotive
Advanced driver-assistance systems
Car infotainment systems
Engine control units
Industrial Automation
Factory automation equipment
Robotic arms
MedTech
Diagnostic equipment
Patient-monitoring devices
Mobile Devices
Laptops
Personal computing devices
Smartphones
Tablets
Networking
Routers
Switches
Wireless access points
INNOVATION

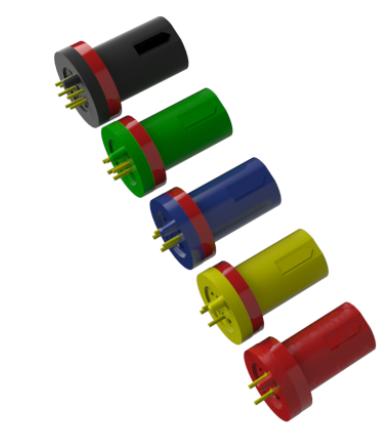

MiniCirc Circular Connectors
SERIES
230030, 230031, 230032
The MiniCirc Circular Connector series delivers reliable performance for compact electric mobility and other space-constrained applications by combining stable electrical connections, rugged protection and a compact, easy-to-route design. Crimp-termination technology ensures consistent, vibration-resistant electrical performance without the variability of soldering, while the robust mating structure and IP68 sealing protect against water, dust and harsh outdoor conditions. These connectors provide a reliable, rugged and space-saving solution for next-generation mobility, robotics, consumer devices and more.
FEATURES AND ADVANTAGES
Provides clear tactile feedback when fully assembled
The buckle design ensures a firm and reliable mechanical lock, preventing accidental disconnection and securing proper mating.
Allows easy integration and cable threading
The connector’s compact size reduces installation complexity by minimizing space consumption.
Provides easy mating and unmating
The color-coded arrow symbols offer easy identification of connector types to simplify assembly. The poka-yoke design helps prevent incorrect connections.
Helps simplify cable routing
The short-body design simplifies the process of threading connectors through narrow, angled or curved tubes in e-bikes and scooter frames by reducing connector length and bulk.
Provides optional sealing to reduce opening size in outdoor applications
The connector’s circular design supports smaller, easier-to-seal openings, enhancing protection and durability in outdoor applications.
APPLICATIONS BY INDUSTRY
Agricultural Machinery
Harvesters
Irrigation system sensors
Automotive
Electric bikes and scooters
Golf carts
Quad bikes
Snowmobiles
Charging Infrastructure
Charging guns
Charging stations
Electrical and Power
Alarm systems
Lighting strings
Security sensors
Home Energy Storage
Batteries
Inverters
HVAC
Air conditioners
Heat pumps
Ventilation units
INNOVATION

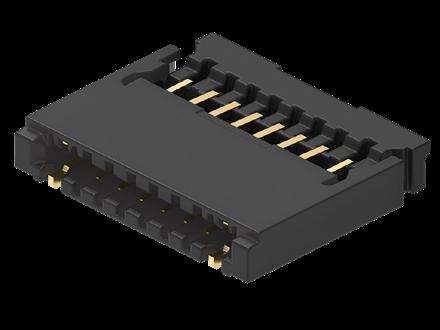

Rely-On Connectors
SERIES
223936, 223937, 223938, 223939
Featuring a 1.00mm pitch, Rely-On high-performance wire-to-board connectors provide excellent durability, vibration resistance and stable signal integrity in harsh conditions.
Designed for space-constrained applications, these connectors support product miniaturization without sacrificing reliability. Their robust construction includes an innovative dual-split nail mechanism, increased solder contact area and a secure locking system that ensures strong PCB retention that helps prevent accidental disengagement from shock and vibration.
FEATURES AND ADVANTAGES
Offers exceptional space savings
The 1.00mm-pitch delivers reliable electrical performance in compact, space-constrained applications.
Delivers robust board retention to help avoid connector disengagement
The dual-split nail design in the vertical type and an increased solder contact area in the right-angle design help increase mounting strength.
Meets automotive industry standards
The connector complies with USCAR2 Class V1 and LV214 Class S1 standards for vibration and mechanical shock.
Affords high vibration and shock resistance
The narrow clearance and the stabilizer on the terminal deliver outstanding vibration control, while the tip shape maximizes the contact area and minimizes stabilizer deformation.
Provides a sturdy, user-friendly locking system
A large latch area improves locking operability, while two locking locations for higher circuit sizes increase security and help prevent connector breakage.
APPLICATIONS BY INDUSTRY
Appliances and Mobile Devices
Compact portable appliances
Smart speakers
Tablet PCs
Wearable devices
Automotive
USCAR
• Driver monitoring systems
• Heads-up displays
• Heated seat modules
• Interior lighting
• Interior rearview mirrors
• Steering wheels
• Taillamps and headlamps
HVAC
Air conditioners
Heat pumps
Humidifiers
Ventilators
Industrial Automation
Drones
Unmanned aircraft vehicles
INNOVATION

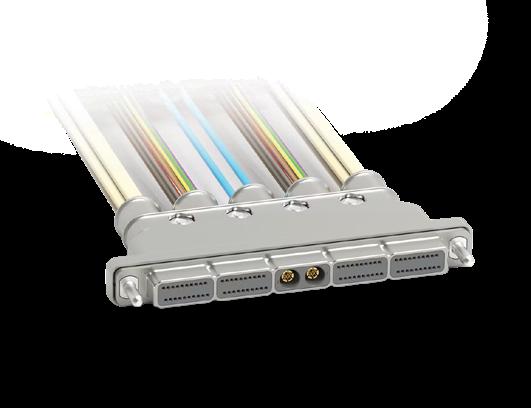

AirBorn SInergy Modular High-Speed Hybrid Connectors
SERIES
SRR, SVP, SVR, SCPP, SCRP, SCRR
AirBorn SInergy Modular High-Speed Hybrid Connectors enable up to 25Gbps per lane and 25.0A power delivery within a modular, customizable design. High-power modules integrate with signal and subminiature push-on micro (SMPM) RF contacts to provide a single, space-saving solution for aerospace and defense applications, qualified to MIL-DTL-83513 standards for reliable performance in demanding environments.
FEATURES AND ADVANTAGES
Reduces weight and saves PCB space
With a contact pitch of 0.80mm (0.0315″) for signal contacts and 4.39mm (0.173″) for SMPM RF and power contacts, the small form factor helps optimize contact density.
Minimizes footprint for compact designs
Power contacts support up to 25.0A in a MIL-DTL-39029 crimp/ contact design, delivering reliable high-power performance in a miniaturized form factor.
Helps prevent connection failures in vibration- or shockprone applications
Versatile locking, jacking and guide hardware options optimize mechanical alignment and mating security while securely fastening the connector to the PCB.
Enhances corrosion resistance and reduces the chances of signal failure
Robust 50-microinch gold interface plating and solderable termination plating improve durability and signal reliability.
Reduces board congestion, part count and assembly size
Interchangeable, molded insulator bays support contact type customization and position-by-position configuration, enabling signal, power and RF modules in a single interface.
APPLICATIONS BY INDUSTRY
Aerospace
Avionics
Drones
Full-authority digital electronics control systems
Head-up displays
Defense
Combat vehicles
Communications devices
Missile systems
Radar systems
Radio communication devices
Satellites
Space
Cube satellites
Satellites
Vision/camera systems
ENHANCEMENT

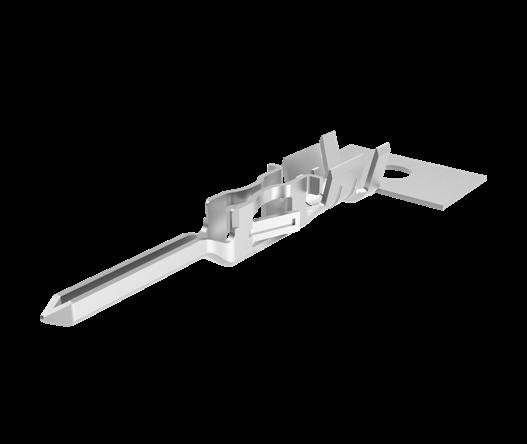

Micro-Fit First-Mate-Last-Break (FMLB) Terminals SERIES
Design engineers often face challenges such as electrical arcing, inrush current during live mating, and poor grounding. These hazards can lead to component damage and safety risks during servicing. Systems may also need to be powered down to connect or disconnect cables.
Micro-Fit FMLB terminals address these challenges through built-in mechanical sequencing. The ground contact is longer, ensuring it mates first and disconnects last. This provides safer connections while reducing arcing and preventing damage. The result is improved reliability, enhanced operator safety and easier servicing in live environments.
FEATURES AND ADVANTAGES
Allows up to 2.54mm misalignment
The self-aligning feature is molded into the housings for blindmating capability.
Offers header retention and strain relief options
Terminals are available with fitting nails and solderable clips.
Increases durability, supports ergonomics and provides userfriendly interfaces
These connectors offer reduced mating force terminals.
Provides excellent cost savings
These potting-capable solutions require no sealants and help reduce raw material costs.
Improves safety due to hot-mating compatible design
They are rated and designed for safe use in hot-plugging environments, helping engineers safely enable hot-plug connections by controlling circuit order.
Helps prevent connector damage
The FMLB option controls connection order to ensure grounding occurs first, followed by power and signal, with disconnection in reverse order to help minimize arcing and extend connector life.
APPLICATIONS BY INDUSTRY
Appliances
Freezers
HVAC systems
Printers
Refrigerators
Scanners
Security systems
Smart homes
Washing machines
Automotive
Harness manufacturers
Interior automotive devices
Non-sealed applications
Power for Data Center
Routers and switches
Servers
Storage systems

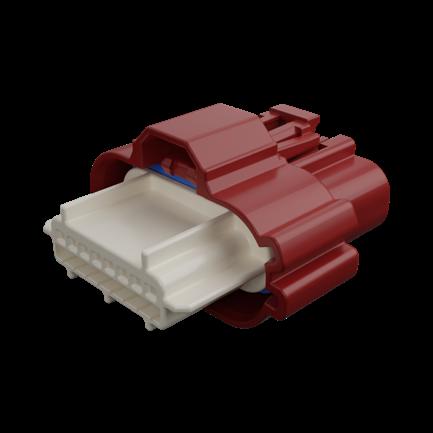

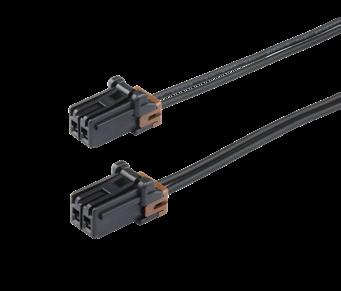

Squba 1.80mm-Pitch Connectors - Colors and CPA
SERIES
204220, 204233
The Squba 1.80mm-pitch sealed wire-to-wire connector system now offers color mechanically keyed receptacle housings with built-in connector position assurance (CPA) for greater design flexibility across a wide range of applications. Color mechanically keyed housings help prevent mismating in applications with multiple connections, while built-in CPA housings guard against accidental disconnection in rugged environments, reducing the risk of electrical failures.
FEATURES AND ADVANTAGES
Delivers reliable connections in high-vibration applications
The CPA helps prevent accidental disengagement or loosening that can occur due to vibrations or shocks during operation.
Helps ensure reliable HVAC performance and is suitable for wet conditions
These connectors meet the UL 1230 standard for resistance to moisture effects, helping prevent electrical hazards and maintaining performance in wet environments.
Provides connector stability and security while offering easy assembly
The latch design helps lock the connector in place, reducing the risk of disconnection.
Delivers an IP68-sealed rating
The sealed components help prevent water and dust ingress for reliable connections and proven performance.
Ensures proper alignment and mating
These connectors are colored and mechanically keyed for enhanced efficiency and reliability.
APPLICATIONS BY INDUSTRY
Commercial Vehicles
ATVs
Buses
Forklifts
Marine: under-das wiring, lighting
Recreational vehicles
Trucks
Connected Home
Home automation systems
Home health and wellness systems
Security and surveillance equipment
Smart appliances
Consumer
HVAC equipment
Home appliances
Landscaping equipment
Vending machines
Washing machines
Industrial Automation
Food processing equipment
Industrial controllers
Industrial machines and motors machines
Robotics

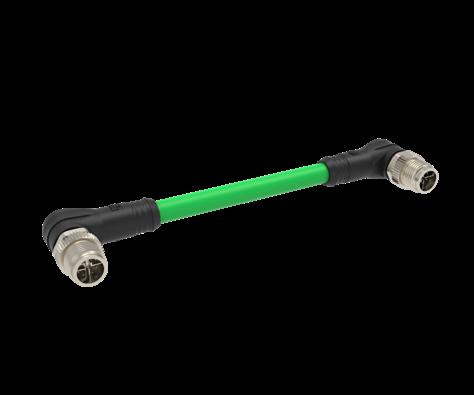

M12 X-Code Cable Assemblies with Right-Angle Connectors
SERIES 120341
M12 X-Code Cable Assemblies with right-angle connectors support data rates up to 10Gbps and help simplify installation in tight or hard-to-reach spaces. Rugged, IP67-rated construction with EMI shielding ensures reliable signal, data and power transmission in harsh industrial environments. Available with RJ45 interfaces and high-precision options, these high-speed assemblies are ideal for space-constrained applications such as rail, robotics and industrial automation, delivering durable connectivity to support global manufacturing needs.
FEATURES AND ADVANTAGES
Simplifies installation
The quick-connect design reduces installation time, enabling rapid deployment.
Supports industrial automation and Industry 4.0 applications
These solutions support data rates up to 10Gbps, delivering fast and efficient data transfer for high-volume automated systems.
Streamlines upgrades and expansions
The standard M12 form factor simplifies upgrades and adaptations, reducing the cost of network expansions and minimizing downtime. Right-angle connectors enable horizontal cabling and high-density port usage, improving efficiency.
Enables use in challenging environments
These solutions are IP67 rated against dust and water ingress, permitting use in harsh environments while simplifying design and inventory management.
APPLICATIONS BY INDUSTRY
Agricultural Machinery
Construction vehicles
Forestry equipment
Heavy machinery
Mining equipment
Onboard vehicle networking
Automotive
Automotive manufacturing plants
Industrial Ethernet switches
Routers
Smart warehouses
Industrial Automation
Assembly lines
Automated production facilities
Automated warehouses
Manufacturing facilities
Real-time safety monitoring systems
Robotics
Vision systems
EXTENSION

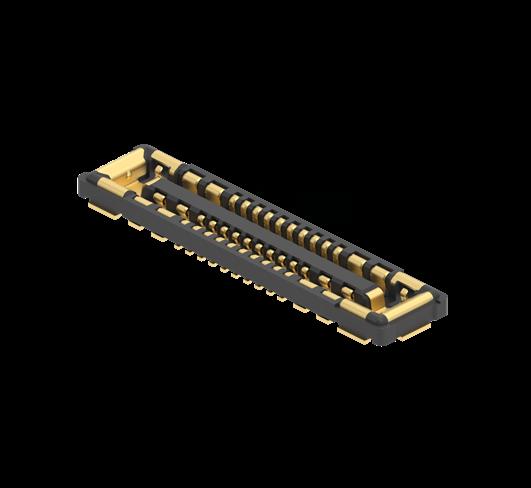

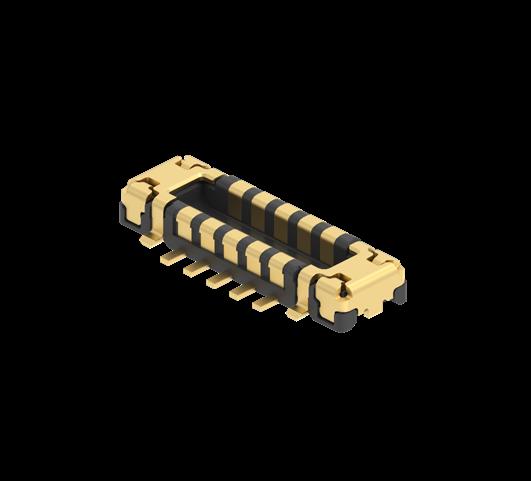

SlimStack 0.35mm ACB6+ PCB Board-toBoard Connectors
- Adding 10 circuit option
SERIES
216700, 216701
Now available with a 10-circuit option, SlimStack Board-to-Board Connectors, 0.35mm-pitch, 0.60mm-height, full-armor ACB6 Plus Series, deliver excellent performance with up to 5.0A power-nail and full-armor housing protection. With mating guidance and electrical contact assurance, these connectors ensure superior reliability in challenging applications.
FEATURES AND ADVANTAGES
Meets high power requirements in a compact package
The power nail structure enables delivery up to 5.0A for highcurrent demands.
Helps reduce housing damage during assembly and performs well in harsh environments
The full armor design protects the connector from environmental hazards.
Simplifies mating to improve efficiency and reduce housing damage
A wide alignment enables easier mating by guiding connectors into the proper placement, helping prevent damage.
Helps prevent solder wicking and interference for reliable connections
A nickel barrier separates the contact and solder areas between the terminal and nail to help prevent solder interference and maintain connection integrity. Gold flash on the plug nail and contact terminal further reduces solder wicking.
APPLICATIONS BY INDUSTRY
Consumer
5G and RF devices
AR/VR devices
Drones
IoT and smart home devices
Portable audio equipment
Portable navigation equipment
Smartphones
Tablet PCs
Wearable devices
Defense
Aircraft avionics
Unmanned vehicles
Medical Devices
Patient-monitoring devices
Therapeutic and surgical equipment
Easy-On FFC/FPC Connectors, FlatLock 65
Easy-On FFC/FPC Connectors, FlatLock Series, now offer a 0.40mm pitch and 0.65mm stack height option. This new configuration enhances the existing portfolio, providing greater flexibility for compact device designs.
As space constraints continue to challenge engineers, this extension delivers a low-profile, high-performance solution ideal for today’s smaller, more demanding applications.
FEATURES AND ADVANTAGES
Includes backflip actuator with dual contact connection and pre-lock feature
Located on the anti-slip side, the actuator’s wide depth offers dual-contact capability by connecting top and bottom surfaces. The pre-lock feature helps prevent the cable from slipping during assembly.
Ensures consistent and efficient performance throughout its life cycle
Endures up to 15 cycles of mating and un-mating, maintaining the reliability required for complex assembly procedures.
Fits into extremely tight spaces
With a low-profile height of 0.65mm/0.90mm, these connectors support compact designs, making them ideal for modern electronic devices and other space-constrained applications.
Supports 0.40mm/0.50mm pitch configuration
This series of connectors uses a common 0.40mm/0.50mm pitch in-line pad, delivering an effective solution for connectors and cables in small devices.
APPLICATIONS BY INDUSTRY
Appliances
Dryers
Ovens
Refrigerators
Vacuum cleaners
Washing machines
Mobile Devices
AR/VR devices
Drones
Gaming consoles and controllers
IoT and smart-home devices
Laptops
Smartphones and tablets
Wearables
Earbuds
Healthcare devices
Smartwatches
Off-The-Shelf (OTS) Cable Assemblies And Pre-Crimped Leads
Off-the-Shelf Cable Assemblies and Pre-Crimped Leads offer simple and cost-effective solutions for pre-production, prototyping and mass production requirements. These products are available for the most popular Molex connector families.
High-Speed FAKRA-Mini (HFM) Off-the-Shelf (OTS) Cable Assemblies
High-Speed Mini-FAKRA (HFM) OTS HighSpeed Cable Assemblies are standardized, automotive-grade, pre-terminated coaxial cable assemblies available in standard lengths. Designed to support agile development, they enable rapid prototyping and validation, helping accelerate testing, shorten lead times and reduce costs. By providing small-quantity, high-performance connection solutions, these cable assemblies simplify early-stage development and keep fast-paced automotive design programs on schedule.
(OTS)
PowerWize Blind Mating Interface (BMI) 3.40mm-pitch cable assemblies deliver up to 75.0A and support voltages up to 400V. The blind-mating interface, combined with two positive locking features, secures the terminal position assurance retainer, helping prevent crimp contacts from backing out during mating and un-mating.
These off-the-shelf assemblies are available in defined wire gauges and fixed cable lengths, and use PowerWize BMI connectors to support reliable, ready-to-use integration in power distribution designs.
RESOURCES

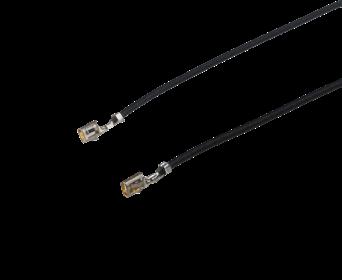

SERIES 231750, 231751
Pico-Clasp 1.00mm pitch pre-crimped leads provide a simple, cost-effective solution for pre-production, prototyping and full-scale production. Featuring a compact positive-lock wire-to-board system with inner and outer locking options, these leads deliver secure mating retention, low mating and un-mating forces, a space-saving design and support for automated SMT assembly across a wide range of applications.
Designed to deliver up to 7.5A of current and support voltages up to 500V, these assemblies provide dependable performance for demanding applications. Improving creepage and clearance distances, these cable assemblies help reduce the risk of arcing, even in environments exposed to moisture or contaminants.
Ideal for applications where reliability and electrical safety are critical, CP-3.3 Receptacle Cable Assemblies offer a robust solution for consistent power delivery in challenging conditions.

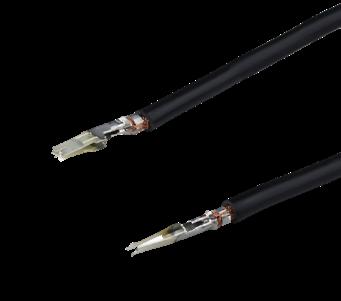

Pre-Crimped Leads are ready-to-use solutions that simplify assembly while maintaining high-current performance. Supporting power applications up to 50.0A, they provide a reliable option for both wire-to-wire and wire-to-board configurations.
Pre-crimped contacts reduce manual processing and accelerate assembly, while terminal position assurance and polarization features ensure secure, accurate mating. Together, these features support high-density designs without compromising performance.
Ideal for a wide range of industries, these solutions streamline production, improve reliability and reduce assembly time.
Automotive
MX-DaSH Modular Wire-to-Wire Connectors
KEY FEATURES
These solutions consolidate multiple connector types into a single housing.
ADVANTAGES
This design helps simplify wiring and harness architecture while improving flexibility, adaptability and scalability.
APPLICATIONS
Instrument panel-to-body, seat power and signal, zonal harness
ZN Stack 0.50mm-pitch Floating Board-to-Board Connectors
KEY FEATURES
These connectors offer 10.00 to 30.00mm stack heights, 60 to 200 circuits and data rates up to 32Gbps.
ADVANTAGES
They address data processing, power distribution and system reliability demands in vehicle designs.
APPLICATIONS
ADAS, infotainment, zonal/high speed computing systems
Float Stack Automotive Board-to-Board Connectors
Excellent anti-vibration performance, a high-current rating and multiple stack heights.
ADVANTAGES
Large floating range compensates for mating tolerance variations, enabling faster production.
KEY FEATURES APPLICATIONS
Battery management systems, DC-to-DC converters, inverters
DIN Rail Terminal Blocks
These solutions include options for screw, spring and push-in wiring terminations.
ADVANTAGES
They offer safe and reliable power connectivity in a modular, scalable system.
KEY FEATURES APPLICATIONS
Plant electrical distribution systems
Mega-Fit ColorLock Connectors
Their colored housings facilitate quick connector identification and ease of assembly.
ADVANTAGES
These connectors ensure proper mating during termination.
KEY FEATURES APPLICATIONS
Unsealed electronic control modules
USB Type-C Port-On Connectors w/Upright 24 Pin
This product upgrade includes a new space-saving, slim-fit spring feature.
ADVANTAGES
Their flexible height and slim-fit spring feature help save PCB real estate.
KEY FEATURES APPLICATIONS
In-vehicle infotainment center stacks
Networking
Impulse 112G Backplane Connector System
KEY FEATURES
Their high-density design improves airflow and signal integrity.
ADVANTAGES
These solutions deliver high-speed data rates of up to 112Gbps in a modular and scalable backplane system.
APPLICATIONS
Data storage devices, routers, servers, switches
ChargeStack Connectors
KEY FEATURES
These connectors integrate power and signal contacts within a single footprint to maximize PCB space.
ADVANTAGES
Power and reliability are delivered in a compact, space-saving design.
APPLICATIONS
Gateways, hubs, modems, routers
Tower Accessories
ADVANTAGES
These weatherproof accessories enhance signal integrity while providing durability and flexible cable support. They enhance reliability and durability while simplifying inventory management.
KEY FEATURES APPLICATIONS
AM/FM radio systems, broadcast equipment, tower-based communications
Cardinal Wave High-Frequency RF Test Cables
KEY FEATURES
These cables provide a broader frequency range with a low-loss cable design.
ADVANTAGES
The combination of low insertion loss and exceptional VSWR delivers high-quality signal transmission.
APPLICATIONS
Microwave backhaul radios, test and measurement equipment
RF High-Frequency Right-Angle Precision Adapters
KEY FEATURES
The design streamlines cable management and withstands up to 500 mating cycles.
ADVANTAGES
Space optimization and signal integrity are enhanced in high-frequency applications.
APPLICATIONS
Microwave backhaul radios, test and measurement equipment
DIN Rail Terminal Blocks
KEY FEATURES
This update includes options for screw, spring and push-in wiring terminations.
ADVANTAGES
Designed for flexibility, the modular, scalable system provides safe and reliable power connectivity.
APPLICATIONS
Server cabinets
HF RF Precision Connectors and Adapters
KEY FEATURES
These solutions provide exceptional signal integrity.
ADVANTAGES
They provide a versatile, robust, compact high-frequency coaxial connection, are reusable, and easy to install.
APPLICATIONS
Test and measurement equipment
Mega-Fit ColorLock Connectors
Their colored housings facilitate quick connector identification and ease of assembly.
ADVANTAGES
These connectors ensure proper mating during termination.
KEY FEATURES APPLICATIONS
Power supplies and distribution servers
Q3 2026 NPI
USB Type-C Port-On Connectors w/Upright 24 Pin
KEY FEATURES
This update adds a new space-saving, slim-fit spring feature.
ADVANTAGES
Their flexible height and slim-fit spring feature help save PCB real estate.
APPLICATIONS
Handsets
Appliances
ChargeStack Connectors
KEY FEATURES
These connectors integrate power and signal contacts within a single footprint to maximize PCB space.
ADVANTAGES
Power and reliability are delivered in a compact, space-saving design.
APPLICATIONS
AR / VR glasses, smart phones and tables, wearables
DIN Rail Terminal Blocks
This update includes options for screw, spring and push-in wiring terminations.
ADVANTAGES
Designed for flexibility, the modular, scalable system provides safe and reliable power connectivity.
KEY FEATURES APPLICATIONS
Battery storage systems
Mega-Fit ColorLock Connectors
Their colored housings facilitate quick connector identification and ease of assembly.
ADVANTAGES
These connectors ensure proper mating during termination.
KEY FEATURES APPLICATIONS
Dishwashers, dryers, HVAC equipment, refrigerators
USB Type-C Port-On Connectors w/Upright 24 Pin
KEY FEATURES
This update adds a new space-saving, slim-fit spring feature.
ADVANTAGES
Their flexible height and slim-fit spring feature help save PCB real estate.
APPLICATIONS
Smart home systems
CP-6.5 Panel Mount Connector System
KEY FEATURES
The addition of mounting ears enables panels to be installed with frames.
ADVANTAGES
It allows designers to standardize on one connector family for internal and panel-mount requirements.
APPLICATIONS
Dishwashers, dryers, HVAC equipment, refrigerators
MedTech
EasyLock D-Sub Connector Backshells
KEY FEATURES
The quick-lock mechanism enables fast, single-handed plugging and unplugging without the need for tools.
ADVANTAGES
Faster assembly times help reduce labor costs compared to existing plastic and metal D-Sub hoods.
APPLICATIONS
Diagnostic equipment, patient-monitoring equipment
USB Type-C Port-On Connectors w/Upright 24 Pin
This update adds a new space-saving, slim-fit spring feature.
ADVANTAGES
Their flexible height and slim-fit spring feature help save PCB real estate.
KEY FEATURES APPLICATIONS
Electronic inhalers, blood pressure and glucose monitors
CP-6.5 Panel Mount Connector System
The addition of mounting ears enables panels to be installed with frames.
ADVANTAGES
It allows designers to standardize on one connector family for internal and panel-mount requirements.
KEY FEATURES APPLICATIONS
Autoclaves
Aerospace & Defense
RF High-Frequency Right-Angle Precision Adapters
KEY FEATURES
The design streamlines cable management and withstands up to 500 mating cycles.
ADVANTAGES
Space optimization and signal integrity are enhanced in high-frequency applications.
APPLICATIONS
Military communications, radar systems, satellite communications systems
Cardinal Wave High-Frequency RF Test Cables
KEY FEATURES
These cables provide a broader frequency range with a low-loss cable design.
ADVANTAGES
The combination of low insertion loss and exceptional VSWR delivers high-quality signal transmission.
APPLICATIONS
Military communications, radar systems, satellite communications systems
EasyLock D-Sub Connector Backshells
KEY FEATURES
The quick-lock mechanism enables fast, single-handed plugging and unplugging without the need for tools.
ADVANTAGES
Faster assembly times help reduce labor costs compared to existing plastic and metal D-Sub hoods.
APPLICATIONS
Signaling systems, test and measurement equipment
HF RF Precision Connectors and Adapters
KEY FEATURES
These solutions provide exceptional signal integrity.
ADVANTAGES
They provide a versatile, robust, compact high-frequency coaxial connection, are reusable, and easy to install.
APPLICATIONS
High-frequency communication equipment, satellite communication systems
Industrial
Float Stack Automotive Board-to-Board Connectors
KEY FEATURES
Excellent anti-vibration performance, a high-current rating and multiple stack heights.
ADVANTAGES
Large floating range compensates for mating tolerance variations, enabling faster production.
APPLICATIONS
Robot arms, SMT machines
ZN Stack 0.50mm-pitch Floating Board-to-Board Connectors
KEY FEATURES
These connectors offer 10.00 to 30.00mm stack heights, 60 to 200 circuits and data rates up to 32Gbps.
ADVANTAGES
They address data processing, power distribution and system reliability demands in vehicle designs.
APPLICATIONS
Factory automation
EasyLock D-Sub Connector Backshells
The quick-lock mechanism enables fast, single-handed plugging and unplugging without the need for tools.
ADVANTAGES
Faster assembly times help reduce labor costs compared to existing plastic and metal D-Sub hoods.
KEY FEATURES APPLICATIONS
Battery modules, CNC machines, control panels
DIN Rail Terminal Blocks
KEY FEATURES
This update includes options for screw, spring and push-in wiring terminations.
ADVANTAGES
Designed for flexibility, the modular, scalable system provides safe and reliable power connectivity.
APPLICATIONS
Control cabinets, distribution panels
Mega-Fit ColorLock Connectors
KEY FEATURES
Their colored housings facilitate quick connector identification and ease of assembly.
ADVANTAGES
These connectors ensure proper mating during termination.
APPLICATIONS
Automation equipment, lighting
CP-6.5 Panel Mount Connector System
KEY FEATURES
The addition of mounting ears enables panels to be installed with frames.
ADVANTAGES
It allows designers to standardize on one connector family for internal and panel-mount requirements.
APPLICATIONS
Industrial controllers
HF RF Precision Connectors and Adapters
KEY FEATURES
These solutions provide exceptional signal integrity.
ADVANTAGES
They provide a versatile, robust, compact high-frequency coaxial connection, are reusable, and easy to install.
APPLICATIONS
Automated test equipment
