NEW PRODUCT INTRODUCTION:
Program Categorization
The future is rapidly evolving, from consumer devices and artificial intelligence to industrial robotics. As industries deliver new functionality, innovation is found not only in the final product but also in the reinvention of the components within.
The Molex New Product Introduction (NPI) program is focused on releasing solutions that support the next era of applications. Over the last decade, we have launched and continue to enhance our NPI program that introduces new products for the general market. Each new release is categorized to show how it complements our product offerings, whether as an innovation, enhancement or extension.
Our
Categories
INNOVATION
New to Molex or new to market
ENHANCEMENT
New variations of an existing product range
EXTENSION
Additions to complete an existing range
INNOVATION

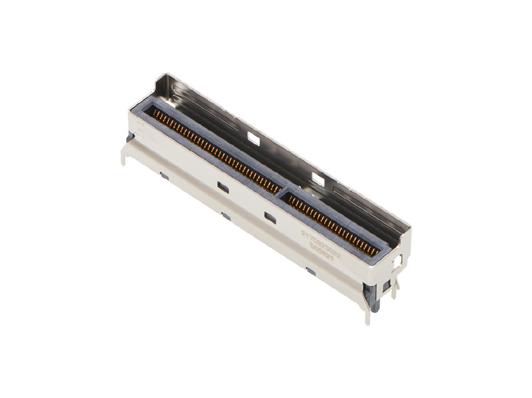

Mini Cool Edge (MCIO) Connectors and Cable Assemblies
SERIES
217082, 217346, 215070, 215072, 215731, 215071, 215073, 215732, 216610, 216611, 216612, 221278, 217237, 217722, 216832, 216833, 216834
The Mini Cool Edge (MCIO) connectors and cables offer options with 4, 8, 16 and 20 lanes, supporting high-speed data rates of 16, 32 and up to 64Gbps. MCIO cable assemblies meet PCIe standards in extremely flexible configurations.
FEATURES AND ADVANTAGES
Delivers improved flexibility in system design with straight, right-angle and side-exit options for multiple plug types.
Offers extendable and customizable differential signal (DS) pairs for high-speed channel applications by using sideband with DS pairs.
Prevents damage to the pins because of anti-slant, anti-reverse and pull-tab features with contact protection and enhanced mechanical design.
Permits high-speed data transmission that meets PCIe industry standards due to high-speed 64Gbps specifications.
Offers a wide range of pinout options, including 4, 8, 16 and 20 lanes because of pinout flexibility.
Provides the flexibility to pair with a variety of wire sizes, including 29, 30 and 32 AWG , due to its loose pair and ribbon cable features.
APPLICATIONS BY INDUSTRY
Telecommunications
Routers
Switches
Servers
Edge computing
Power for Data Centers
Data centers
Storage racks
Storage controllers
RAIDS (Redundant Array of Independent Disks Storage)
JBODS (Just a Bunch of Disks Storage)
HBAS (Host Bus Adapter Services)
Enterprise storage systems
Servers and high-performance computing
INNOVATION

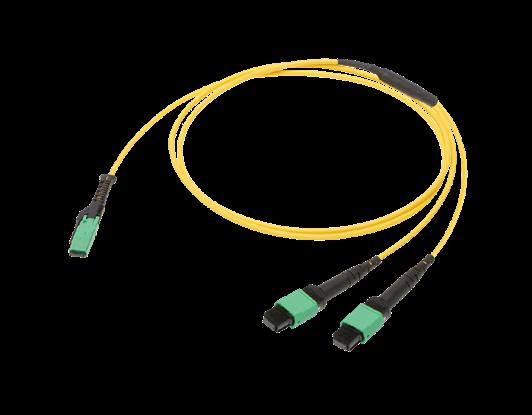

MMC Connectors and Assemblies
SERIES
106114, 106292
Helping data centers optimize space and density to meet AI-driven demands for increased capacity and performance, the MMC system leverages a very small form factor (VSFF) design to achieve higher density within the same footprint. MMC Cable Assemblies and Adapters are available with 16 or 24 fibers, providing higher cabling port density and low loss performance in a compact design to support highbandwidth applications.
FEATURES AND ADVANTAGES
Offers higher port density than alternative optical connectors
The significant space savings due to the compact form factor and efficient design of the MMC connectors yield approximately three times the cabling port density over MPO formats.
Helps enable data centers to consolidate multiple MPO 8F transceivers into a single 16F MMC connector
The aggregation of multiple fiber connections into a single connector facilitates the efficient use of fiber optic infrastructure, maximizing bandwidth, optimizing space and enhancing overall network performance and reliability.
Helps allow data centers to achieve higher data rates
MMC connectors are designed to support higher fiber counts, typically up to 16 fibers or more in a single connector. This scalability allows for greater aggregation of data channels within a smaller physical space compared to base 12F or base 8F connectors.
Simplifies mating and unmating
The push-pull boot design provides an intuitive, quick and secure connection mechanism for faster mating and unmating of connectors.
Offers a complete line of EMI Adapters for MMC and various other form factors
The connectors address electromagnetic interference through a combination of shielded designs, grounding mechanisms, highquality materials and careful engineering to ensure signal integrity.
APPLICATIONS BY INDUSTRY
Servers and Storage
VSFF devices
16F/24F applications
OptoConnect aggregation enclosures
Signal aggregation devices
Industrial Automation Robots Telecommunications High-bandwidth transceivers
INNOVATION

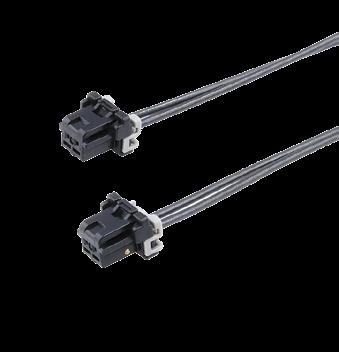

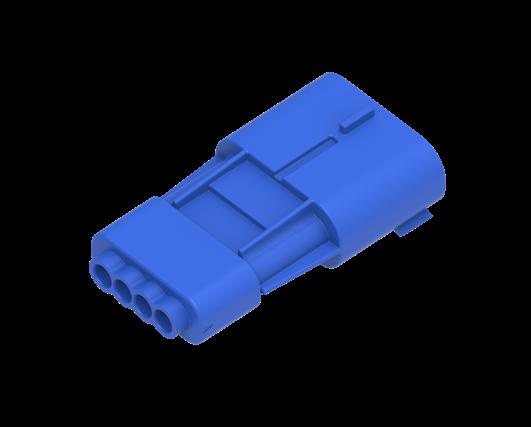

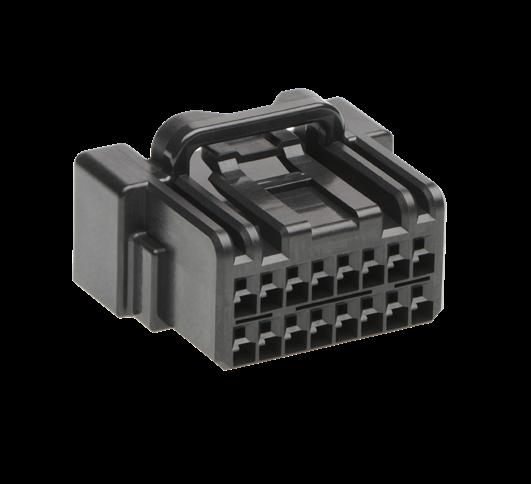

MX-DaSH Connector System, Wire-to-Wire
SERIES
215958, 300091, 300092, 300158, 300159
The MX-DaSH Connector System (Molex Data-Signal Hybrid) reduces weight, size and cost requirements; simplifies assembly operations; and supports zonal architecture by combining power circuits, ground circuits and high-speed data connections into one connector that can replace multiple traditional connectors in vehicle applications.
FEATURES AND ADVANTAGES
Optimizes wiring harness by combining multiple connectors into one connector
The design incorporates power, signal and data connections using 1.20, 1.50 and 2.80mm terminals as well as High-Speed FAKRA Mini (HFM) modules for high-speed data transmission.
Delivers reliable operation in harsh conditions through the available T2/ V1/S3-rated sealing and the mat seal
The mat seal eliminates the need for individual cable seals, providing reduced package size and reducing the cost of connectors subject to harsh conditions inside or outside the cabin.
Ensures secure mating and reliable connectivity
Features include an available independent secondary lock (ISL), pin protection plate (PPP) and blade protection.
Eases implementation and incorporation into designs
Using complete assemblies for male and female housings minimizes assembly operations.
Prevents mis-mating and minimizes assembly errors
Four unique keyways are available to ensure proper orientation.
APPLICATIONS BY INDUSTRY
Automotive
VSFF devices
Autonomous driving modules
Computing modules
Camera systems
Gateway/switch modules
GPS devices
High-resolution displays (4K displays)
High-speed cable networking
Sensor-device connectivity
Surround-view cameras LiDAR devices
Commercial Vehicle
GPS Devices
Infotainment devices
INNOVATION

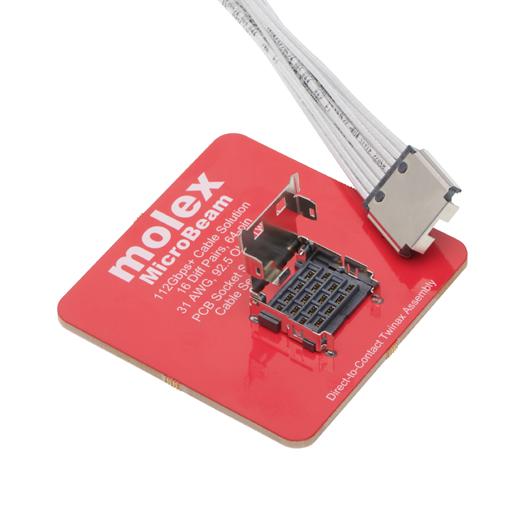

MicroBeam Connectors and Cable Assemblies
SERIES
219030, 221633, 221635
Delivering low-profile and high-performance connectivity for high-density, near-chip applications, MicroBeam Connectors and Cable
Assemblies deliver up to 112Gbps with exceptional signal integrity (SI) and 12 or 16 differential pairs (DPs). The compact design, with a low overall mated height of less than 7.00mm, reduces interference with other components while improving airflow and thermal management.
FEATURES AND ADVANTAGES
Optimizes thermal management
The low-profile mated height of less than 7.00mm enables the conductor to sit underneath heat sink components, maximizing airflow to improve cooling.
Ensures stable performance
With a robust design featuring a metal cage and cover, the connector can withstand high mechanical forces to help prevent damage and maintain consistent operation.
Simplifies assembly and maintenance operations
The easy and intuitive design can be inserted, mated and unmated without tools or specialized training, reducing system downtime and helping eliminate mis-mating errors.
Delivers high data rates and excellent signal integrity
Data rates of up to 112Gbps, supported by twinax cable that optimizes SI, enable customers to meet market demands with BiPass cabled connectivity.
APPLICATIONS BY INDUSTRY
Networking
Ethernet switches
AI hardware
High-speed cabling to the panel
INNOVATION

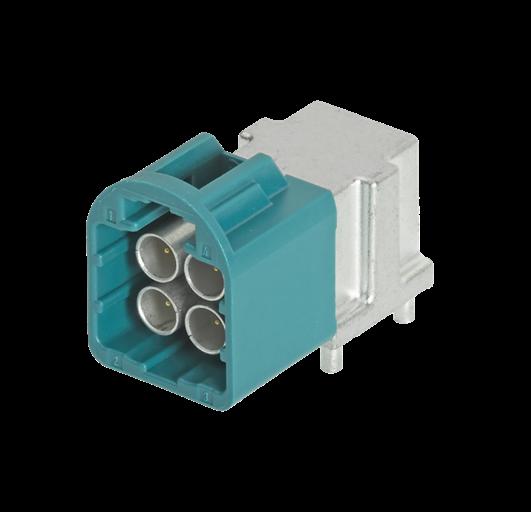

High-Speed FAKRA-Mini (HFM) Interconnect System
SERIES
207911, 207912, 208241, 208242, 208244, 208246
Designed to provide high-speed data connectivity for advanced automotive systems including cameras and telematics, High-Speed FAKRA-Mini (HFM) Connectors deliver data rates of up to 28Gbps at frequencies up to 20 GHz in a compact, lightweight form factor optimized for rugged reliability and space efficiency.
FEATURES AND ADVANTAGES
Optimizes space and weight
The compact design is up to 80% smaller than FAKRA connectors, significantly reducing weight and saving installation space.
Enables real-time communication with high-performance devices
The HFM system provides reliable, fully shielded coaxial cable connections, enabling high-speed communication with highresolution cameras, telematics and infotainment devices.
Prevents accidental disconnection in high-vibration applications
The integrated secondary lock (ISL) and available connector position assurance (CPA) provide robust terminal and connector retention.
Improves flexibility and supports future upgrades
The versatile, modular system aids in future-proofing vehicle architectures with single, dual, dual-stack and quad connectors for wire-to-wire, wire-to-module and wire-to-device solutions.
APPLICATIONS BY INDUSTRY
Automotive
Advanced driver assistance systems (ADAS)
Autonomous driving systems
Camera systems (including surround view, driver monitor, lane assist and other systems)
High-resolution (4K) displays
High-speed cable networks
Infotainment systems
Internet connections
Radar systems
Rear-seat entertainment devices
Sensor-to-device connections
Telematics solutions, including:
• 5G
• Bluetooth
• Global position satellite (GPS)
• Satellite radio
• Vehicle-to-everything (V2X)
• Wi-Fi and WiGig
INNOVATION

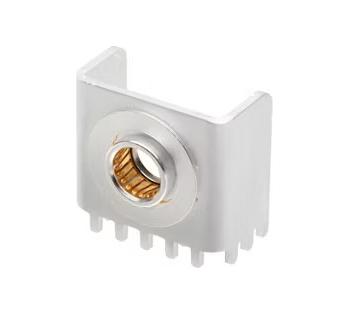

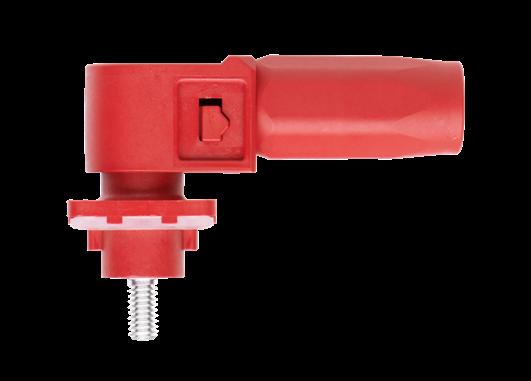

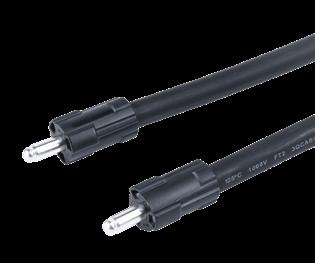

SideWize High-Voltage Connectors
SERIES
223985, 223987, 223988
Maximize performance by leveraging SideWize High-Voltage Connectors, designed for space savings in power distribution applications. These connectors offer easy mating, increase operator safety and meet low-halogen global compliance requirements. Providing high-current and high-voltage connections, SideWize connectors are designed to transfer power across a range of applications, including data center servers, battery energy storage systems and electric vehicle charging stations.
FEATURES AND ADVANTAGES
Eliminates cable bend radius; ideal for space-constrained applications
Right-angle receptacles reduce the bending required to route cables, protecting them in tight spaces and mitigating cable strain that can degrade cable performance and durability.
Provides easy mating and cable assembly dressing
These connectors offer 360° cable assembly rotation during and after mating, reducing stress on solder joints.
Helps prevent risk of electric shock when handling connectors or cable assemblies
The touch-proof and finger-safe feature allows for safety enhancement, protecting operators from harm.
Accelerates system integration and reliability
Color-coded connectors minimize mis-mating the cable assembly with the bulkhead connector.
APPLICATIONS BY INDUSTRY
Energy Storage
Power distribution in energy storage system (ESS) racks
Servers and Storage
Power distribution in power shelves
Industrial Automation
Power distribution in articulated robots
Telecommunications
Power distribution in uninterruptible power supply equipment
INNOVATION

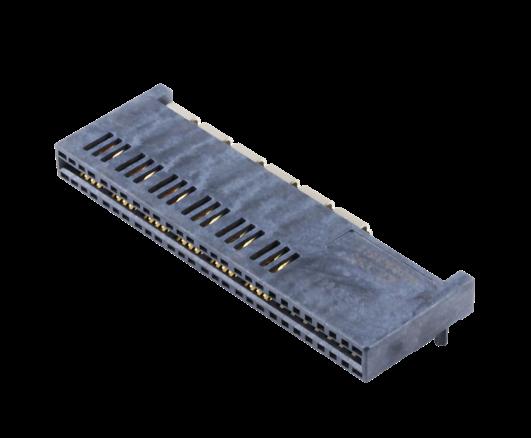

EXTreme PowerEdge Plus Card Edge Connectors
As data centers consume massive amounts of energy, engineers are tasked with finding ways to enhance energy efficiency without compromising performance. EXTreme PowerEdge Plus Card Edge Connectors revolutionize data center power management by affording high current density and low-profile housing. This high-power card edge connector also meets the Modular-Common Redundant Power Supply (M-CRPS) mechanical standards and exceeds electrical requirements, offering customers extra performance margins for their designs. Experience superior efficiency and reliability with this state-of-the-art card edge connector technology.
FEATURES AND ADVANTAGES
Provides lower contact resistance, lower power loss and higher reliability
Each power circuit has eight independent points of contact (mating points to the PCB) ensuring multiple paths for current flow. This decreases overall contact resistance, thereby reducing energy inefficiencies and heat generation.
Meets M-CRPS mechanical requirements and exceed the electrical requirements
These connectors feature a 7.62mm pitch for power circuits and a 2.54mm pitch for signal circuits, ensuring compliance with M-CRPS standards to optimize efficiency and minimize the risk of downtime caused by power failures.
Higher current density than any edgecard connector in the market

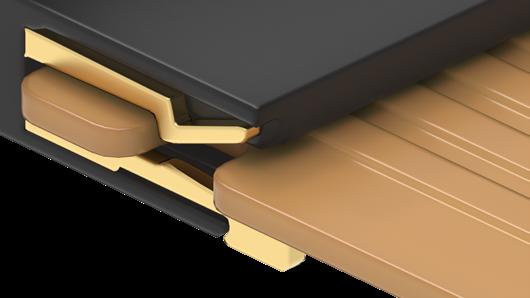

These connectors use an innovative dual-layer terminal design delivering greater than 3,300W at 12V. Customers benefit by not having to compromise on size or efficiency.
Avoids overheating system
The low-profile housing allows for improved airflow enhancing system cooling and helping prevent thermal damage.
APPLICATIONS BY INDUSTRY
Data center
Power shelves
Power supplies
Telecommunications/Networking
Servers
Storage devices
Switches
INNOVATION

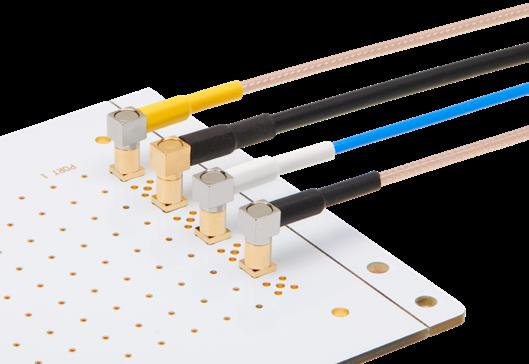

MMCX Power-over-Coax (PoC) Connectors
MMCX Power-over-Coax (PoC) Connectors are tailored for applications requiring a compact radio frequency (RF) connection within the DC to 6 GHz range and provide the capability to deliver remote power over the same connection. These connectors offer a robust, reliable solution that simplifies the upgrade process and enhances performance in challenging environments, directly addressing the customer’s need for stable connections and efficient integration.
FEATURES AND ADVANTAGES
Helps deliver remote power in dynamic environments
MMCX PoC Connectors enable single-cable data and power transmission, reduce installation complexity and are flexible enough for a wide range of applications.
Provides cost savings, time efficiency and simplicity
MMCX PoC connectors are backward compatible to IEC 6116952 MMCX products and will not require PCB receptacle changes (connector or PCB footprint).
Ensures full compatibility with standard MMCX Jack connectors
The fully compatible feature enhances the snap-on mating mechanism by ensuring easy integration, providing a reliable connection and maintaining consistent performance across various applications.
Provides stable and reliable GND continuity
These connectors feature a full-locking mating mechanism with zero gap and a non-snap ring design.
APPLICATIONS BY INDUSTRY
Automotive
Digital rearview mirrors
Driver monitoring systems
Intelligent transport management systems
Centralized monitoring and control (CMC) panels
Telematics systems
Wireless infrastructure
Open-path gas leak detectors
Sensors
Video devices
GPS receivers
Consumer electronics devices
GPS surveying equipment
Vehicle-mounted GPS antennas
Industrial
RF industrial applications
Wireless meter readers
Agricultural machinery
Agricultural market GPS antennas

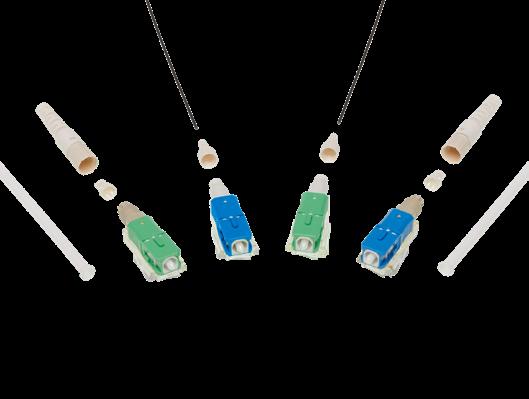

Quasar OptiX FieldMountable Connector (FMC)
Quasar OptiX Field-Mountable Connectors (FMCs) are new additions to the existing line of Molex outside plant (OSP) products, designed for use in optical connectivity applications subject to outdoor environmental conditions. FMCs enable installers in the field to quickly and easily install optical connectors on cables with minimal training and tooling.
FEATURES AND ADVANTAGES
Enables faster installations in the field while reducing downtime and maintenance costs
Assembling and installing the connector takes as little as two minutes and requires no curing or polishing steps.
Improves signal strength and network integrity
The high fiber retention force maintains constant connectivity while the factory-polished connector interfaces help reduce signal loss.
Simplifies requirements for on-site installation of fiber optic cables
Minimal operating skills are necessary with only strip, cleaving and visual fault locator (VFL) tools, reducing fixture costs when compared with expensive fusion splicers. Terminations can be done in exposed areas in bad weather, unlike fusion splicing operations where equipment damage can occur.
Supports use in protected outdoor environments
Reliable performance in a wide temperature range—from -40 to +75°C depending on cable type—enables outdoor installation in regions with extreme temperature variations.
APPLICATIONS BY INDUSTRY
Telecommunications
Broadband service provider installations
Fiber to the x (FTTX) architectures
Distributed access/remote PHY systems
Networking
Fiber to the home devices
Servers and Storage
Radio access network devices

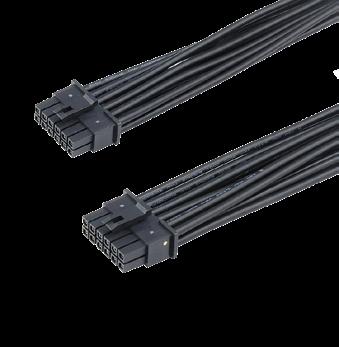

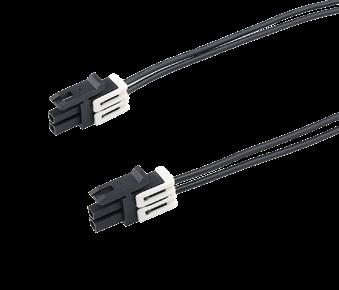

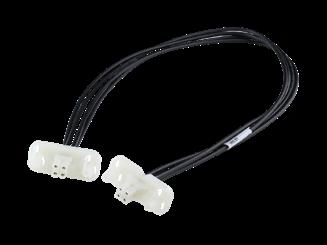

PowerWize 3.40mm Interconnects
SERIES
221888, 221887, 221597, 221616
Leveraging our COEUR socket technology, PowerWize Interconnects offer a 3.40mm size to deliver the power efficiency that is critical for cost management. These high-power connectors are designed for manufacturing flexibility and exceptional electrical performance.
FEATURES AND ADVANTAGES
Provides optimal current-carrying capacity
Multiple contact beams help ensure low contact resistance, low voltage drop and minimal heat generation at the contact interface.
Offers finger touch-safe headers and receptacles
These connectors are designed per UL 60950 to isolate the crimp contacts and to prevent accidental contact with an energized circuit.
Helps ensure secure mating and helps prevent cable assemblies from disengaging headers due to shock, vibration, or mishandling Positive-locking headers and receptacles afford Operators tactile and audible feedback during system integration.
Helps prevent mis-mating white/natural receptacles to black headers and the reverse
These connectors are mechanically keyed and color-coded connectors for geometric differences between the black and white/ natural connectors; Ideal when multiple cable assemblies are used in the same application.
APPLICATIONS BY INDUSTRY
Networking
Copiers
Printers
Bluetooth equipment
Industrial Automation
Industrial equipment
Automation equipment
Food and beverage dispensers
Telecommunications
5G/6G Base Stations
Data storage units
Power distribution units (PDUs)
Digital cross connect switches
Network routers
Servers
Uninterruptable power supplies (UPSs)

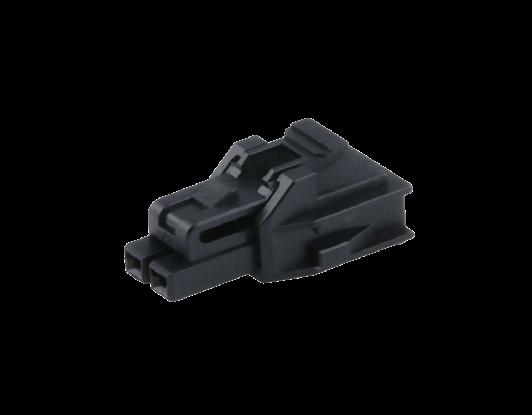

PowerWize Blind-Mate Interface (BMI) 8.00mm Vertical Headers
SERIES 221991
Enabling speed upgrades in space-constrained telecommunications and data center applications tuned for 100-Ohm impedance, NearStack 100-Ohm Connectors and Cable Assemblies deliver a dense, low-profile, near-ASIC cabled solution supporting jumper-type and I/O BiPass connections up to 56 Gbps PAM-4 for telecommunications and data center applications.
FEATURES AND ADVANTAGES
Allows the option for mating vertical headers to panel-mount receptacle when required
Vertical headers are available in 8.00mm connectors.
Allows the panel-mount receptacle +/- 2.00mm of radial float to mitigate tolerance stack-up issues
Self-aligning panel-mount receptacle flanges accepts either force-fit standoffs paired with bolts (used when the assembler only has access to one side of the panel) or shoulder screws paired with nuts (often used when the assembler has access to both sides of the panel).
Helps ensure right-angle headers are properly oriented on printed circuit board or busbar
Mechanical keying with crush/locating pegs are on the headers.
Provides terminal backout assurance
Two (opposed) positive locks hold the TPA retainer securely to the blind-mate receptacle housing silo with six beams robustly holding the crimp contact inside the TPA retainer.
APPLICATIONS BY INDUSTRY
Telecommunications/Networking
Servers
Data storage units
Power distribution units (PDUs)
Uninterruptible power supplies
Digital cross-connect switches
Network routers

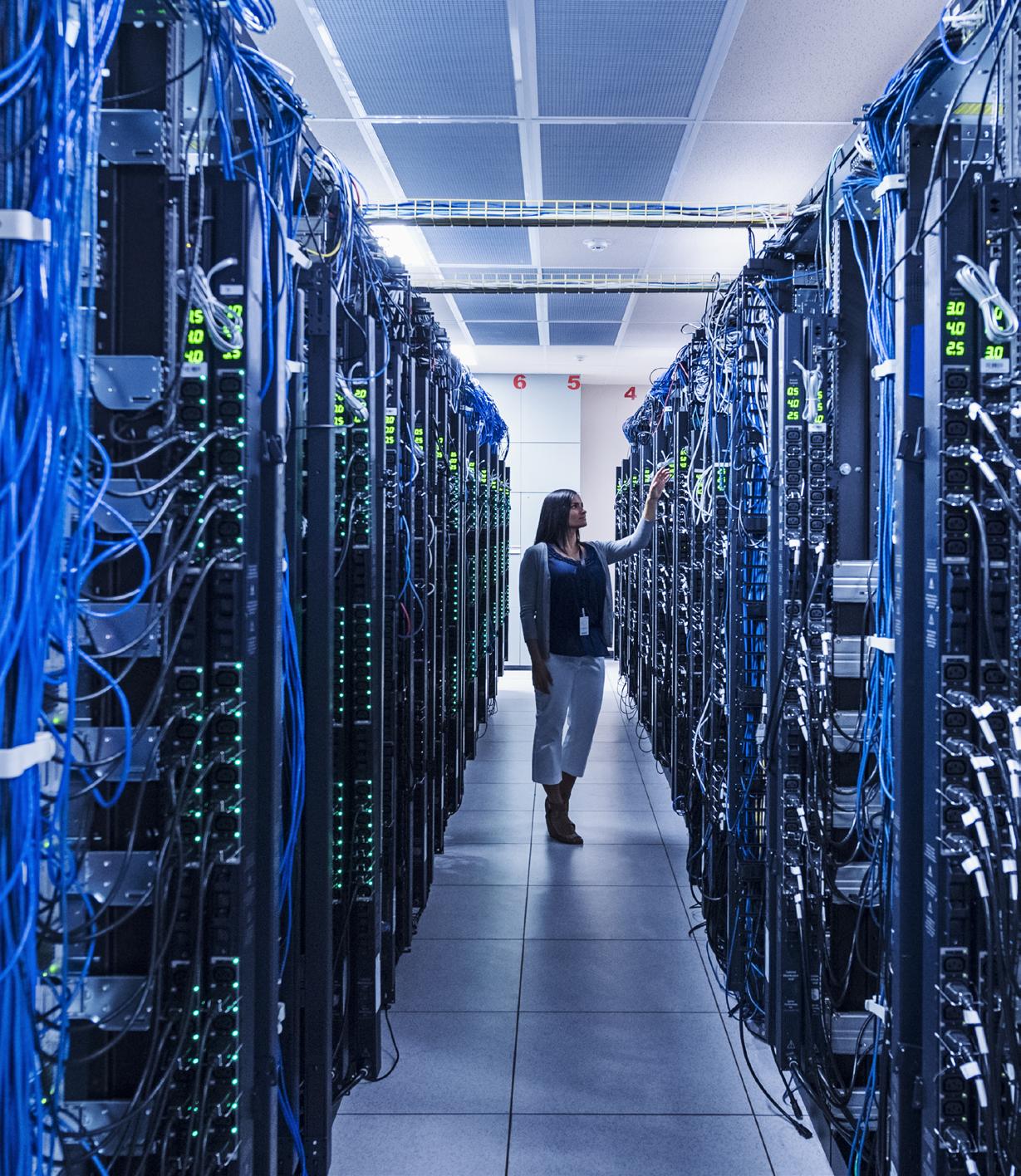

Data Centers
Power for Data Center
Servers
Data storage units
Power shelves
Power distribution units (PDUs)
Uninterruptible power supplies
Environmental control equipment
Charging Infrastructure
Electric vehicle (EV) charging stations

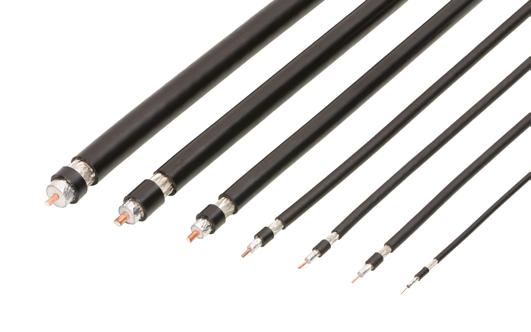

MLX Coaxial Cable
SERIES 100063
RESOURCES
Featuring an innovative design that improves flexibility and reduces signal loss over long distances, MLX Coaxial Cable uses foam dielectric to increase velocity of propagation and incorporates superior shielding to better withstand electromagnetic interference (EMI), providing enhanced signal reliability and clarity.
FEATURES AND ADVANTAGES
Improves system performance over long distances
Precision engineering enhances reliability and signal integrity for high-performance applications.
Enables flexible routing in space-constrained installations
A single-time bend radius of 2.5 times the cable diameter enables use in tight spaces and makes installation work easier.
Resists EMI and RF leakage
Enhanced shielding helps withstand high levels of EMI and RFI in high-density systems and environments subject to high radio traffic.
Delivers long-term reliability for outdoor applications
The rugged design is resistant to ultraviolet light, moisture and temperature extremes, making it ideal for either indoor or outdoor use in harsh environmental conditions.
APPLICATIONS BY INDUSTRY
Wireless Infrastructure
Cellular network base stations
Cellular antennas and repeaters
Emergency service communication systems
RFID reader-to-antenna connections
Two-way radio systems
Wi-Fi system access points
Telecommunications
Distributed antenna systems
Public safety networks in buildings and tunnels
Radio transmitters, receivers and antennas
Satellite dish connections
Military/Aerospace
Avionics
Camera systems
Ground-to-air communication systems
Imaging system sensors and control units
Navigation systems
Shipboard systems
Tactical radio communication systems

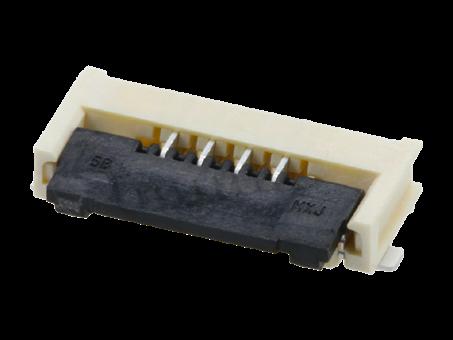

Easy-On FFC/FPC Connectors, FlatLock Series
SERIES 221378
Space savings and design flexibility are essential considerations for connectors and cables in small devices. The Easy-On FFC/FPC Connectors, FlatLock Series (0.50mm-pitch) offer a low profile and compact design with innovative features that deliver an efficient and reliable performance, including dual contact connection, pre-locking capability and a high mating cycle rating.
FEATURES AND ADVANTAGES
Includes backflip actuator with dual contact connection and prelock feature
Located on the anti-slip side, the actuator with its wide depth can connect top and bottom surfaces to offer dual-contact capability. The pre-lock feature helps prevent FFC/FPC cable from accidentally slipping out during assembly.
Endures up to 15 cycles of mating and unmating while maintaining reliability
This is essential for complex assembly procedures that require multiple mating/ un-mating instances, ensuring that the connector performs consistently and efficiently throughout its life cycle.
Offers a low-profile height of 0.90mm and dual contact connection
This enables the connector to fit into extremely compact spaces, making it ideal for modern electronic devices and applications with stringent space requirements.
Supports 0.50mm pitch configuration
This series of connectors utilize the general/common 0.50mm pitch in-line pad, which is essential for connectors and cables in small devices.
APPLICATIONS BY INDUSTRY
Mobile Devices
Laptops
Smartphones and tablets
IoT and smart-home devices
Gaming consoles and controllers
AR/VR devices
Drones
Wearables
Smartwatches
Healthcare devices
Earbuds
Appliances
Vacuum cleaners
Refrigerators
Washing machines
Dryers
Ovens

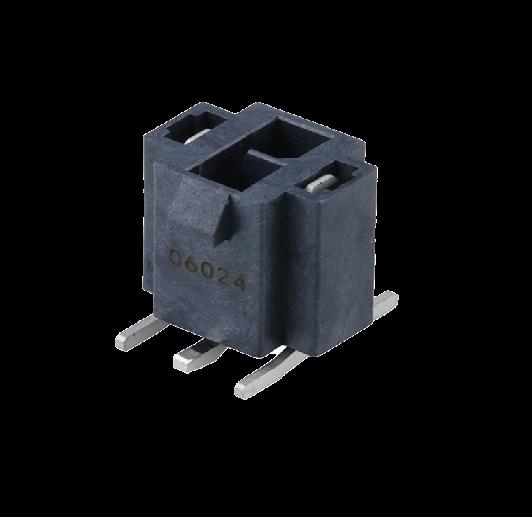

Mini-Fit Max Surface-Mount (SMT) Connectors
SERIES
224491, 224494, 224900, 224903
The Mini-Fit Max Wire-to-Board Connector delivers 20.5A of current in a compact form factor, and provides a simplified and diverse array of mid-range power solutions. Available in both single- and dual-row configurations, these connectors offer versatile design options and durable features, making them ideal for both power and signal applications.
FEATURES AND ADVANTAGES
Reduces the cost of materials and labor, and allows customers to meet the European standard for electrical requirements
The 94 V-O Glow Wire combination resin makes the connector both V-0 and Glow Wire-compatible in a single part number per component.
Saves PCB space
These connectors offer a slim profile design for space savings.
Allows for improved strength and reliability
These connectors are available in termination interface style SMT.
Helps prevent mis-mating; different from the standard Mini-Fit connector
Keying and polarization options allow for easy identification and accurate mating.
APPLICATIONS BY INDUSTRY
Telecommunications/Networking Switches
Servers
Power supplies and distribution equipment
Network towers
Industrial
Commercial equipment
Commercial lighting
Industrial HVAC systems
Home Appliance
Heaters and air conditioners
Washers and dryers

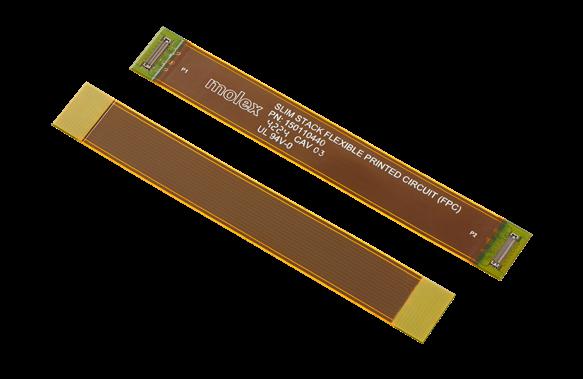

Premo-Flex SlimStack FFC/FPC Jumpers
Premo-Flex Flat Flexible Cable (FFC)/Flexible Printed Circuit (FPC) jumpers are designed to mate with SlimStack 0.35mm microminiature flexto-board connectors. These off-the-shelf flexible circuits support data rates up to 30Gbps, provide superior signal integrity and enhance design flexibility for applications requiring compact, high-speed data transmission capability.
FEATURES AND ADVANTAGES
Enables flexible high-speed data and power connectivity
Dedicated power, ground and signal pins enable flexible operation with two different voltages in the same cable or a single voltage using both rails for higher current handling.
Provides high-speed data transmission
High-performance SlimStack Connectors and FFC jumpers deliver data rates up to 30Gbps, operating at 5 GHz, with an insertion loss of 10 dB per foot (30.5cm).
Minimizes space requirements
Miniaturized 0.35mm-pitch connectors and a low-profile mated height of 1.27mm (including cable) simplify design work for spaceconstrained applications.
Supports multiple data protocols
Controlled impedance of 50 Ohms (single-ended) or 95 Ohms (differential) with ±10% matching enables use with HDMI and USB protocols.
APPLICATIONS BY INDUSTRY
Servers and Storage
Servers
Automotive
Infotainment devices
Appliances
Washing Machines
Refrigerators
MedTech
Monitoring devices
Therapeutic devices
Surgical devices
Mobile Devices
Smartphones
Tablet computers
Wearables
Portable audio devices
ENHANCEMENT

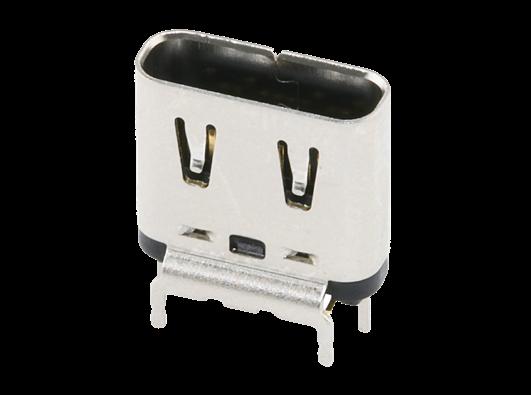

USB Type-C Port-On Connectors
SERIES
221455, 204711, 217179
USB Type-C Port-On Connectors include USB4, USB 3.2 and USB 2.0 standard products with various design options that support power delivery, high-data transmission rates and reliable connectivity. The new Spring Terminal Insertion and De-Insertion (TID) feature acts as a verification that the device has been tested and meets the USB4 specification, allowing users to trust its compatibility and functionality. Customers have the assurance that these products meet USB standards for reliability.
FEATURES AND ADVANTAGES
Provides protection against water ingress
With IPX5 and IPX8 ratings, USB connectors are durable in harsh environments.
Available with a TID number
These connectors have a USB certificate.
Enables fast charging and high-speed data transfer
These connectors support 5.0A/240W power and up to 10Gbps data rates.
Allows alignment for devices that need lower center line positions
The low-profile design helps facilitate better alignment in a confined space.
APPLICATIONS BY INDUSTRY
Mobile Devices
Smartphones
Wireless chargers
Power banks
Laptops
Video games
Graphic cards
Appliances
PCs
Television
Aviation
In-flight entertainment systems
MedTech
Glucometers
Electronic inhalers
Industrial and Commercial
Identity door-locking systems
Oscilloscopes
Projectors
Point-of-sale registers
Automotive
Vehicle infotainment
Navigation equipment
Wearables
Electronic watches
AR/VR devices
ENHANCEMENT

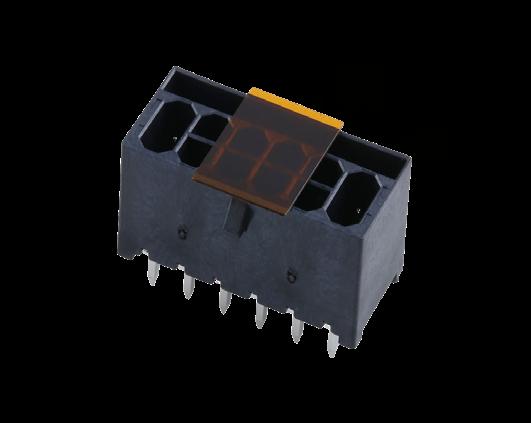

Micro-Fit+ OCP M-PIC 12V Connectors
SERIES
221591, 221626, 221751, 224179, 219197
As product miniaturization continues to rise, manufacturers require more power within a small footprint. Micro-Fit+ OCP M-PIC 12V Connectors meet this demand by supporting up to 864W to peripheral devices as defined within Open Compute Project (OCP) M-PIC specifications. This connector solution enables high-power delivery without increasing the connector size.
FEATURES AND ADVANTAGES
Eases assembly for decreasing operator fatigue
The mating force is reduced by 40% compared to standard MicroFit, due to its unique design.
Provides design flexibility
These connectors have a smaller PCB footprint for improved manufacturing designs.
Reduces labor costs and saves time and resources
Reflow options are available.
Helps prevent mis-mating
Using multiple color-keyed options and selective mating, these connectors help ensure operational safety and efficient assembly.
APPLICATIONS BY INDUSTRY
Automotive
Interior automotive devices
Non-sealed applications
Telemetrics
Consumer
3D printers
Copiers
Freezers
Pinball and slot machines
Refrigerators
Vending machines
Video poker and pachinko equipment
Washing machines
Networking and Telecommunications
Edge compute equipment (OCP)
Routers
Servers
Storages systems
Switches
Servers and Storage
DC-MHS servers (OCP M-PIC)
ENHANCEMENT
DuraClik Robust Dual-Row Connectors
SERIES
206583, 206584, 503116
Available in expanded 16- and 24-circuit options to meet the needs of more complex designs, DuraClik Robust Dual-Row Connectors provide an elevated level of performance. Offering a powerful 100 N retention force—significantly stronger than standard DuraClik versions—they ensure secure, stable connections even in harsh conditions filled with shock and vibration. These connectors are dependable choice for mission-critical applications where reliability cannot be compromised.
FEATURES AND ADVANTAGES
Ensures secure connector-to-PCB header retention
Robust secondary lock variants and wide solder tabs can withstand an upward pull force of 100N (10kgf) to meet automotive vibration requirements and help prevent accidental disconnections.
Offers greater design flexibility
Different header options of two to 24 circuits—in vertical, horizontal, single and dual-row configurations—are available, reducing design challenges.
Confirms correct and secure mating: durability + click (sound) = DuraClik
An audible click sound on mating and built-in inertia lock available in versions up to 15 circuits helps prevent mis-mating errors and ensure a reliable connection.
Provides secure mating and space savings; helps prevent latch breakage from wire tangling
An inner positive lock helps prevent unintended disconnection.
APPLICATIONS BY INDUSTRY
Automotive
Battery management systems
Camera modules
DC-DC converters
Door modules
Electric vehicle controllers
Gear shifts
Headlamps and tail lamps
Heads-up displays
Infotainment systems
Commercial Vehicle
Cranes
Industrial machinery
Tractors
Consumer
E-bike battery management systems
Energy storage systems
Induction cooking heaters
LED lighting
Vending/gaming machines
White goods
Easy-On FFC/FPC FS19Adding Tin-Bismuth Series
SERIES
505278, 200529
Various applications require connectors to accommodate different types of cables and a wide variety of circuit sizes. Engineered to integrate seamlessly with a variety of cable types, the Easy-On FFC/FPC FS19 series with Tin-Bismuth plating offers an extensive range of circuit counts to meet the diverse needs of several applications. The FS19 series features a generously sized actuator that ensures effortless operation, making it the perfect choice for enhancing productivity and reducing strain on operators.
FEATURES AND ADVANTAGES
Facilitates Easy Operation
Easy-On FFC/FPC FS19 Tin-Bismuth Connectors have a large actuator, which provides ample space for the finger to open or close the actuator, allowing easier operation.
Enhances Design Flexibility
The connectors are designed to seamlessly mate with both eared and non-eared cables. Along with an extensive circuit range, these connectors effortlessly cater to a wide array of customer needs, ensuring maximum versatility and satisfaction.
APPLICATIONS BY INDUSTRY
Industrial Automation
Industrial controls
Robots
Consumer
Smartphones with multimedia/computing/connection functionality
Gaming devices
Appliances
LCD devices
Washing machines
Dryers Dishwashers
Refrigerators Microwaves
Ovens
Induction stoves

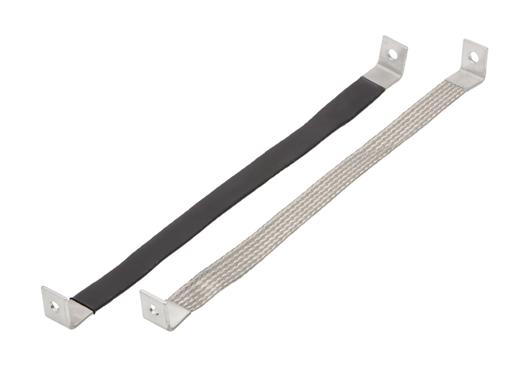

Flexible Ground StrapsAdding 90° bend options
Molex has set a new standard in space-saving connections with the latest iterations of general market ground straps. Molex Off-theShelf Grounding Jumper solutions enable safe management of high-power distribution with 90° bends that allow customers to fit these grounding straps into space-constrained systems.
FEATURES AND ADVANTAGES
Helps ensure quality, safety and reliability
The Grounding Jumpers are UL-certified that enable safe management of highpower applications and customized versions offer variable lengths and terminations ensuring reliability.
Provides adaptability to varying environments and space constraints
Grounding Jumper solutions enable a 90-degree bend for a variety of orientations.
Offers increased cross-sectional contact area and pull-out strength
The fused terminations provide 93% solid termination throughout compression, providing rugged connectivity, reducing thermal resistance and increasing pull-out strength.
APPLICATIONS BY INDUSTRY
Networking
Servers
High-end computers
Industrial Automation
Mining utilities
Electrical enclosures
Electrical panel doors
Fences and gate jumpers
Generators and transformers
Power and utility boards
Other equipment used in static grounding
Factory automation equipment
Squba 3.60mm-Pitch Sealed Wire-To-Wire Connector SystemAdding Additional Colors
SERIES 207778, 207782
As the trend towards miniaturization continues to accelerate, the demand for compact connector solutions increases. Squba connectors offer significant space savings to meet this demand. Exposure to moisture poses a risk to connectors for reliable performance. Squba sealed connectors are designed to protect against ingress with an IP68-seal rating and carry 14.0A of current to deliver reliable power in a wide range of space-constrained applications.
FEATURES AND ADVANTAGES
Prevents wire from getting caught on latch and damaging it; minimizes latch size to prevent latch from adding to connector’s package size
The positive latch has a protected, low profile.
Protects seals from damage during shipping and handling; aligns terminals to help prevent seal from being punctured during assembly
These connectors offer weather caps to provide optimal protection and terminal guidance for reliable connections and quality performance.
Reduces the cost of materials and labor and allows customers to the European standard for electrical requirements
This product uses V0 Glow-Wire combination resin.
Avoids seal punctures
The clean-body terminals have wraparound insulation crimp.
APPLICATIONS BY INDUSTRY
Consumer
Liquid dispensing equipment
HVAC equipment
Home appliances
Landscaping equipment
Commercial Vehicle
ATVs
Marine: under-dash wiring, lighting
Trucks
Buses
Recreational vehicles
Industrial Automation
Robotics
Industrial machines and motors
Food processing equipment/facilities
Industrial controllers
EXTENSION
Mega-Fit, Nano-Fit and Ultra-Fit CPA
SERIES
217140, 217185, 228006
VIEW PRODUCT RESOURCES

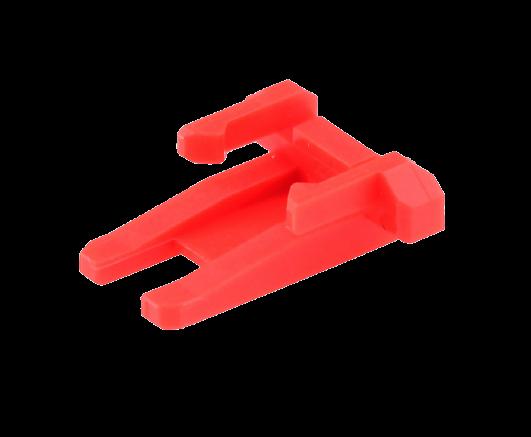

Adding a connector position assurance (CPA) option to the Mega-Fit, Nano-Fit and Ultra-Fit product families to address mating retention force concerns related to the angle of insertion and/or extraction. Wires and housing must be on the same plane for insertion and extraction – if the cable is slightly bent, the latch strength is weakened causing mating difficulties. The CPA option provides an effective, low-cost solution to help prevent faulty mating, which can lead to poor connections causing safety hazards, power loss and equipment damage. With the CPA option, customers can avoid system downtime and ensure their electrical connections are secure for enhanced reliability.

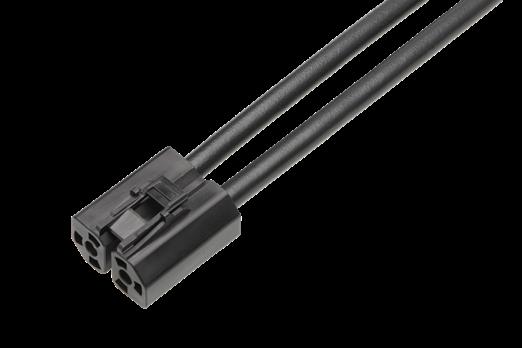

FEATURES AND ADVANTAGES
Connector Position Assurance (CPA) prevents faulty mating
By addressing mating retention force concerns related to insertion/extraction angles. Ensures secure connections, reducing the risk of power loss, safety hazards, and equipment damage.
CPA design requires wires and housing
To remain on the same plane for proper insertion and extraction, even if cables are slightly bent. Enhances mating reliability, avoiding difficulties caused by weakened latch strength due to misalignment.
CPA is an effective, low-cost solution integrated into the MegaFit, Nano-Fit, and Ultra-Fit product families. Minimizes system downtime while providing durable and reliable electrical connections for enhanced operational efficiency.
APPLICATIONS BY INDUSTRY
Appliances
Freezers
Refrigerators
Washing machines
Dryers
Microwaves
Ovens
Dishwashers
Automotive
Lighting and automation systems
Interior dashboards
Power converters
Unsealed electronic control modules
Interior lighting and navigation
EV chargers
Batteries
Mopeds
Infotainment systems
Mirrors
Telecommunications
Power supplies and distribution
Switches
Servers
Datacom
Servers
Switches
Graphics processing units (GPUs)
Auxiliary power devices
Compute boards
GPU trays

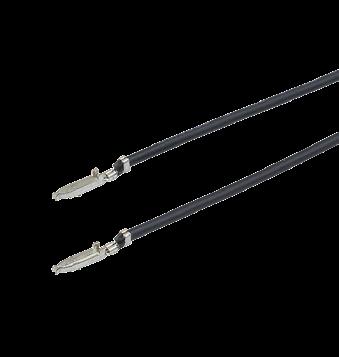

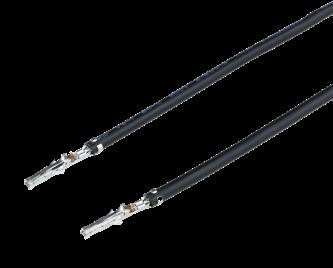

Nano-Fit ConnectorsAdding 20 AWG
SERIES 226354, 226362, 226471
The typical signal wire type used in HVAC and appliance applications is UL 1569/1007. Nano-Fit Connectors now offer a 20 AWG UL 1569/1007 option, providing a more economical wire choice for customers designing for high volume and low cost. These connectors also comply with the voltage ratings that HVAC and appliance manufacturers require for their designs.
FEATURES AND ADVANTAGES
Allows same-circuit, multiple-connector use with virtually no chance of cross mating and provides visual indication of the properly mated connector for faster assembly There are multiple mechanical keying and color-coded options for operational safety and efficient assembly.
Ensures mated connector assemblies will not accidentally disengage
The terminal position assurance (TPA) feature reduces assembly errors and ensures terminals are fully seated and will not back out. These connectors also offer a CPA option for additional locking security.
Offers design flexibility and ensures proper fitting in the terminated wire housing
The 20 AWG with UL 1569/1007 complies with the voltage ratings that HVAC and APL manufacturers need to meet within their designs.
Enables operators to mate connectors in hard-to-reach areas without a visual Nano-Fit Connectors have a BMI option.
APPLICATIONS BY INDUSTRY
Appliances
Dryers
Freezers
Microwave ovens
Ovens
Refrigerators
Washing machines
Water heaters/boilers
Vacuum cleaners
Automotive
Interior lighting and navigation
EV chargers
Batteries
Mopeds
Infotainment systems
Mirrors
Datacom
Servers
Switches
Graphics processing units
Auxiliary power devices
Compute boards
GPU tray
HVAC
Interior lighting and navigation
EV chargers

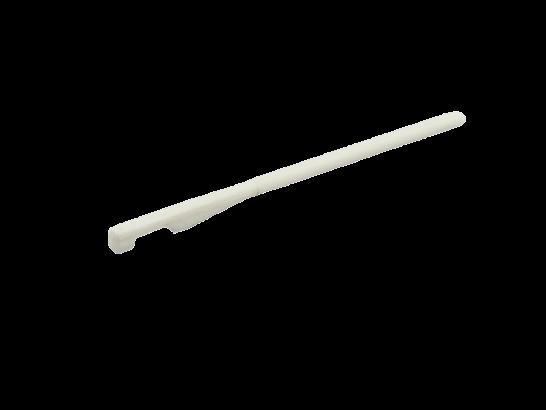

Squba Sealed Cavity Plugs
SERIES
224247, 224248, 224249
Squba Connectors enable designers to instantly reconfigure the number of active circuits they need, rather than waiting for new housing development or purchasing new parts. With built-in sealed cavity plugs, customers can safeguard unused cavities against moisture ingress, eliminating the risk of electrical failures. This level of design flexibility helps minimize delays and avoid additional expenses, making Squba Connectors an ideal choice for performance and cost savings.
FEATURES AND ADVANTAGES
Streamlines the bill of materials
These connectors convert even-circuit parts to odd-circuit parts allowing customers to avoid purchasing new components; ideal for cost savings.
Meets European standard for electrical requirements
This product uses a V-0/Glow Wire combination resin for compliance with international safety standards, facilitating greater market access.
Avoids seal punctures
The clean body terminals feature wraparound insulation crimps to help prevent punctures that can lead to electrical failures.
Helps ensure reliable HVAC performance; suitable for wet conditions
These connectors meet the UL 1230 standard for resistance to moisture effects, preventing electrical hazards and maintaining performance in wet environments.
APPLICATIONS BY INDUSTRY
Consumer
HVAC equipment
Home Appliances
Landscaping equipment
Liquid dispensing equipment
Vending machines
Washing machines
Commercial Vehicle
ATVs
Buses
Forklifts
Marine: under-das wiring, lighting
Recreational vehicles
Trucks
Industrial Automation
Food processing facilities
Food processing equipment
Industrial controllers
Industrial machines and motors machines
Robotics
Connected Home
Home automation systems
Home health and wellness systems
Security and surveillance equipment
Smart appliances

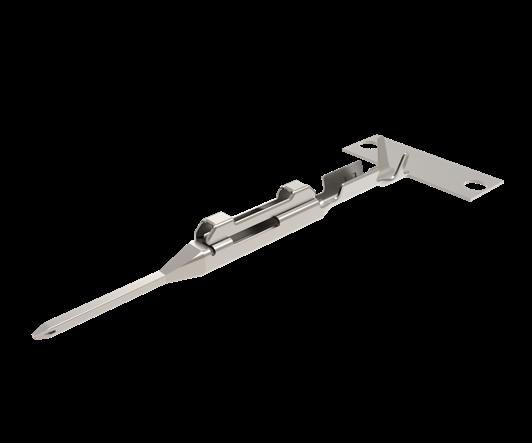

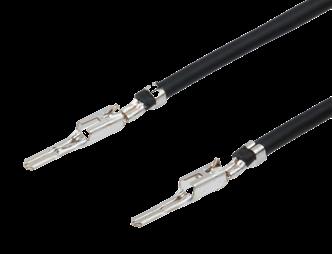

Squba 26 AWG Terminals
204301, 204226
Squba 1.80mm-pitch connectors now offer 26 AWG terminals designed to securely grip smaller wire gauges ensuring reliable connections and helping eliminate intermittent electrical faults. These new terminals promote optimal current flow to minimize contact resistance that leads to voltage drops and damage connected devices. Ultimately, Squba 26 AWG terminals help prevent strain on wires stemming from mismatched terminals to keep manufacturing costs low.
FEATURES AND ADVANTAGES
Streamlines the bill of materials
These connectors convert even-circuit parts to odd-circuit parts allowing customers to avoid purchasing new components; ideal for cost savings.
Meets European standard for electrical requirements
This product uses V-0 Glow-Wire combination resin for compliance with international safety standards, facilitating greater market access.
Avoids seal punctures
The clean-body terminals have wraparound insulation crimps to help prevent punctures that lead to electrical failures.
Provides connector stability and security; offers easy assembly for operators
The latch design helps lock the connector into place to avoid disconnection.
APPLICATIONS BY INDUSTRY
Consumer
HVAC equipment
Home Appliances
Landscaping equipment
Liquid dispensing equipment
Vending machines
Washing machines
Commercial Vehicle
ATVs
Buses
Forklifts
Marine: under-das wiring, lighting
Recreational vehicles
Trucks
Industrial Automation
Food processing facilities
Food processing equipment
Industrial controllers
Industrial machines and motors machines
Robotics
Connected Home
Home automation systems
Home health and wellness systems
Security and surveillance equipment
Smart appliances
EXTENSION

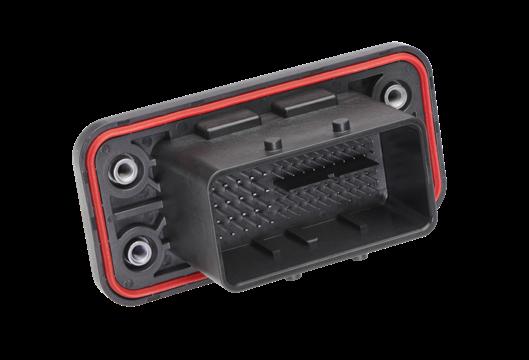

Compactus 80-Circuit Panel-Mount Headers
SERIES
300960, 301955, 560154
Compactus 80-Circuit Panel-Mount Headers provide a panel-mount connection system that saves space, ensures reliability, and simplifies assembly and maintenance operations in electric vehicle (EV) applications such as powertrain subsystems, control units and N-in-1 electric drive (E-drive) units. The Compactus 80-Circuit Panel-Mount Header is the first 80-circuit product on the market that serves the needs of EV and E-drive manufacturers by providing a space-efficient, sealed, USCAR-standard wire-to-board interconnect solution.
FEATURES AND ADVANTAGES
Improves real estate optimization
Short and long wire dress cover options permit close clearances and avoid wasting space in compact applications.
Aids weight reduction
The connector is designed for thin wires which reduce weight and help lower emissions.
Provides designed-in flexibility for mounting in the dense engine space
Connectors are available with left or right flexible cable outlets, reducing design limitations.
Achieves high performance within the harsh engine environment
The connector offers a heat-resistant, vibration-resistant, sealed design that helps prevent inadvertent disconnections and failures due to moisture or dust ingress.
APPLICATIONS BY INDUSTRY
Commercial Vehicle
Construction/agriculture machinery
Door control unit modules
Motorcycles
VCU modules
Automotive
Automatic doors
Battery packs
Body electronics
Chassis control unit modules
DC-to-DC converters Electric motors
Electric vehicle (EV) reducers
Electronic control units
Electronically controlled parking brakes
Engine control unit modules
Hybrid electric vehicle and EV inverters
Illumination control systems
Junction/fuse boxes
Motor control units
N-in-1 E-drive units
Onboard chargers
Power distribution units
Suspension controllers
Transmission controllers
Vehicle control unit (VCU) modules
Zonal control units

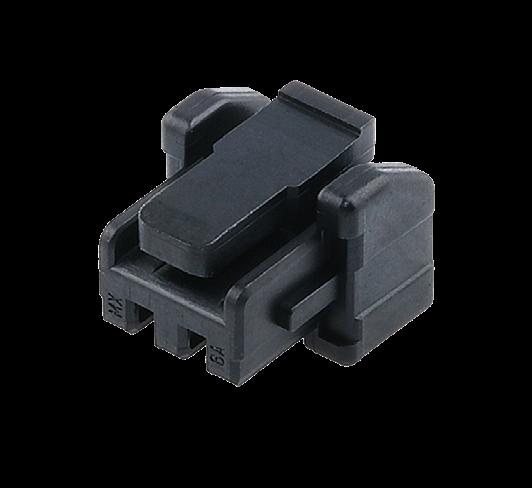

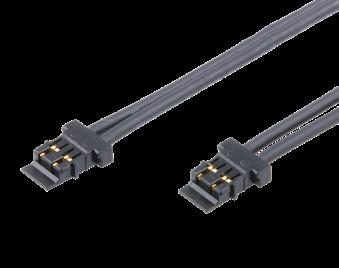

Micro-Lock Plus 1.50mm Connectors
SERIES
225051, 225052, 225053, 225054
Ideal for compact applications, the Micro-Lock Plus Connector System addresses the challenges of designing components into smaller spaces to reduce overall package size. The 1.50mm-pitch connector series expands the Micro-Lock Plus family, offering a low-profile, space-saving design ideal for tight spaces. Its exceptional reliability, compact form and user-friendly features make it perfect for demanding applications.
FEATURES AND ADVANTAGES
Provides secure mating retention
The wide latch design increases the surface area that holds the connector together. The audible click that occurs when the connector is fully mated serves as an important confirmation for users.
Provides improved retention force
A positive lock provides a strong retention force so that the connector is less likely to become detached due to pulling or tension on the cables.
Strengthens lock for more reliable connection
The positive-lock for the single-row version provides additional points of contact and engagement between the connector and its mating counterpart. This added stability helps to maintain the connection even in environments where the connector may be subjected to mechanical stresses.
Meets industry standards for harsh environments
The ability of the Micro-Lock Plus 1.50mm-Pitch Connector to withstand operating temperatures of up to 105°C ensures that the connector can function effectively without degradation or failure, meeting the thermal standards.
APPLICATIONS BY INDUSTRY
Automotive
Car infotainment
Mirrors
Steering wheels
Switches
Appliances
White goods
Gaming machines
Drones
Laser Printers
Vacuum cleaners
HVAC
Air conditioners
Industrial Automation
Restaurant serving robots
Automation equipment

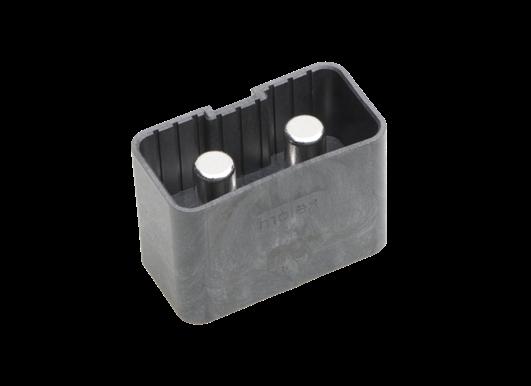

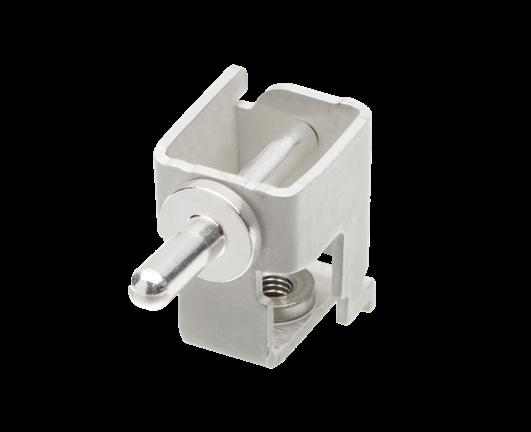

Sentrality 3.40mm RightAngle Pin and Socket Interconnects
SERIES
205000, 204314
Sentrality Right-Angle Pin and Socket Interconnects enable co-planar, offset-planar and reverse-planar mating configurations, while providing a +/- 1.00mm self-aligning feature on the socket assemblies to mitigate tolerance stack-up issues. With Sentrality pin and socket assemblies, manufacturers can have the design flexibility they need and achieve high electrical performance in their products.
FEATURES AND ADVANTAGES
Offers low contact resistance
Multiple contact beams minimize heat generation at the contact interface, resulting in optimized electrical performance.
Enables for tighter board-to-board stack heights with shorter socket assemblies than most market equivalents using hyperbolic sockets
This interconnect system has a compact conical socket design.
Allows the socket to freely move radially +/- 1.00mm within the socket assembly during mating to help ensure no contact beam deformation
Its self-aligning sockets float between wave springs.
Offers design flexibility for attaching pins to various substrates
The screw-mount pins attach to both printed circuit boards (PCBs) and busbars; the surface-mount pins attach to printed circuit boards; the knurled press-fit pins attach to busbars.
APPLICATIONS BY INDUSTRY
Telecommunication/Networking
Servers
Data storage units
Power distribution units (PDUs)
Uninterruptible power supplies
Digital cross-connect switches
Network routers
Energy storage system
Data Centers
Enterprise switches
Servers
Data storage units
Power shelves
Power distribution units (PDUs)
Uninterruptible power supplies
Environmental control equipment
Industrial Automation
Battery charging stations
DC-to-AC inverters
AC-to-DC rectifiers
Robotics

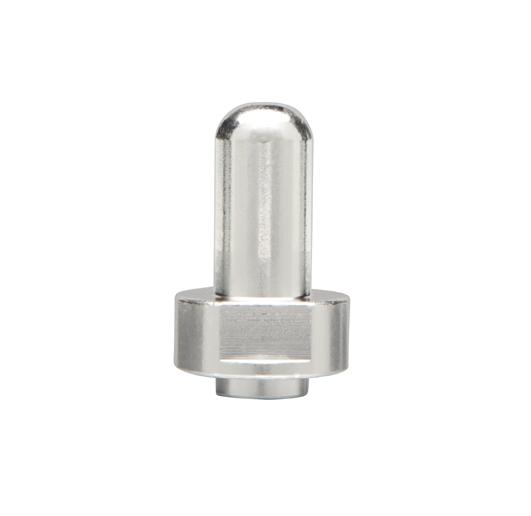

Sentrality 3.40mmAdding Additional lengths
SERIES
227004, 227005, 227006, 227007
Introducing additional pin lengths of 16, 26 and 36mm for 3.40mm range. Sentrality Right-Angle Pin and Socket Interconnects support various planar configurations and feature a +/-1.00mm self-aligning socket to address tolerance stack-up, offering design flexibility and high electrical performance.
FEATURES AND ADVANTAGES
Offers low contact resistance
Multiple contact beams minimize heat generation at the contact interface, resulting in optimized electrical performance.
Enables for tighter board-to-board stack heights with shorter socket assemblies than most market equivalents using hyperbolic sockets
This interconnect system has a compact conical socket design.
Allows the socket to freely move radially +/- 1.00mm within the socket assembly during mating to help ensure no contact beam deformation
Its self-aligning sockets float between wave springs.
Offers design flexibility for attaching pins to various substrates
The screw-mount pins attach to both printed circuit boards (PCBs) and busbars; the surface-mount pins attach to printed circuit boards; the knurled press-fit pins attach to busbars.
APPLICATIONS BY INDUSTRY
Telecommunication/Networking
Servers
Data storage units
Power distribution units (PDUs)
Uninterruptible power supplies
Digital cross-connect switches
Network routers
Energy storage system
Data Centers
Enterprise switches
Servers
Data storage units
Power shelves
Power distribution units (PDUs)
Uninterruptible power supplies
Environmental control equipment
Industrial Automation
Battery charging stations
DC-to-AC inverters
AC-to-DC rectifiers
Robotics
EXTENSION

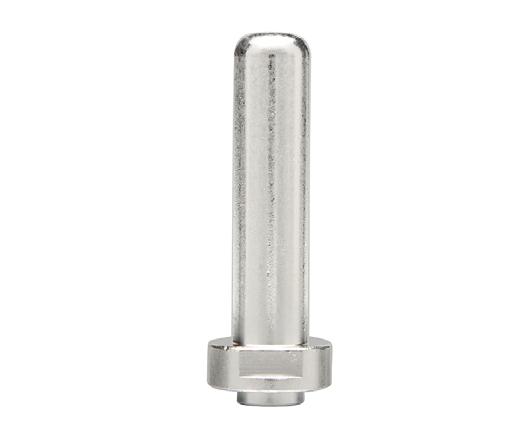

Sentrality 8.00mmAdditional Lengths
Sentrality Pin and Socket Interconnects are available in four different pin sizes (3.40, 6.00, 8.00 and 11.00mm diameters) and enable co-planar, offset-planar and reverse-planar mating configurations. They also provide a +/- 1.00mm self-aligning feature on the socket assemblies to mitigate tolerance stack-up issues. With Sentrality pin and socket assemblies, manufacturers can have the design flexibility they need and achieve high electrical performance in their products. Additional pin lengths of 16, 26 and 36mm are now available for the 8.00mm diameter range.
FEATURES AND ADVANTAGES
Offers low contact resistance
Multiple contact beams minimize heat generation at the contact interface, resulting in optimized electrical performance.
Enables for tighter board-to-board stack heights with shorter socket assemblies than most market equivalents using hyperbolic sockets
This interconnect system has a compact conical socket design.
Allows the socket to freely move radially +/- 1.00mm within the socket assembly during mating to help ensure no contact beam deformation
Its self-aligning sockets float between wave springs.
Offers design flexibility for attaching pins to various substrates
The screw-mount pins attach to both printed circuit boards (PCBs) and busbars; the surface-mount pins attach to PCBs; the knurled press-fit pins attach to busbars.
APPLICATIONS BY INDUSTRY
Telecommunication/Networking
Servers
Data storage units
Power distribution units (PDUs)
Uninterruptible power supplies
Digital cross-connect switches
Network routers
Energy storage system
Data Centers
Enterprise switches
Servers
Data storage units
Power shelves
Power distribution units (PDUs)
Uninterruptible power supplies
Environmental control equipment
Industrial Automation
Battery charging stations
DC-to-AC inverters
AC-to-DC rectifiers
Robotics

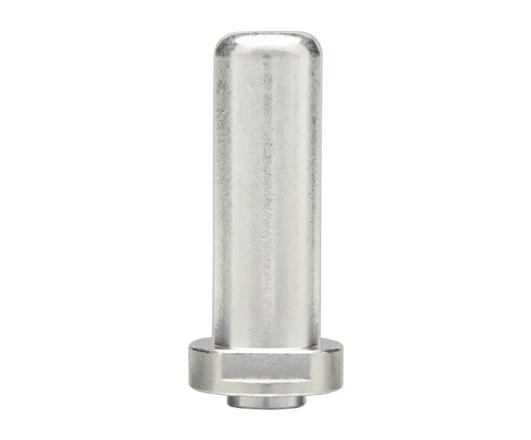

Sentrality 11.00mm Pin and Socket Interconnects - Additional Lengths
SERIES
213900, 213901, 213902
Sentrality Pin and Socket Interconnects come in four pin diameters (3.40, 6.00, 8.00, and 11.00mm) and support co-planar, offset-planar and reverse-planar mating configurations. The socket assemblies feature a ±1.00mm self-aligning mechanism to reduce tolerance stack-up issues, offering manufacturers enhanced design flexibility and high electrical performance. New pin lengths of 16, 26 and 36mm are now available for the 11.00mm diameter range.
FEATURES AND ADVANTAGES
Offers low contact resistance
Multiple contact beams minimize heat generation at the contact interface, resulting in optimized electrical performance.
Enables for tighter board-to-board stack heights with shorter socket assemblies than most market equivalents using hyperbolic sockets
This interconnect system has a compact conical socket design.
Allows the socket to freely move radially +/- 1.00mm within the socket assembly during mating to help ensure no contact beam deformation
Its self-aligning sockets float between wave springs.
Mitigates tolerance stack-up issues
Pin and socket assemblies are oriented to attach to PCBs with a right-angle orientation.
APPLICATIONS BY INDUSTRY
Telecommunication/Networking
Servers
Data storage units
Power distribution units (PDUs)
Uninterruptible power supplies
Digital cross-connect switches
Network routers
Energy storage system
Data Centers
Enterprise switches
Servers
Data storage units
Power shelves
Power distribution units (PDUs)
Uninterruptible power supplies
Environmental control equipment
Industrial Automation
Battery charging stations
DC-to-AC inverters
AC-to-DC rectifiers
Robotics
Sentrality 11.00mm Right-Angle Socket Assembly
SERIES
Sentrality Right-Angle Pin and Socket Interconnects enable co-planar, offset-planar and reverse-planar mating configurations, while providing a +/- 1.00mm self-aligning feature on the socket assemblies to mitigate tolerance stack-up issues. With Sentrality pin and socket assemblies, manufacturers can have the design flexibility they need and achieve high electrical performance in their products.
FEATURES AND ADVANTAGES
Offers low contact resistance
Multiple contact beams minimize heat generation at the contact interface, resulting in optimized electrical performance.
Enables for tighter board-to-board stack heights with shorter socket assemblies than most market equivalents using hyperbolic sockets
This interconnect system has a compact conical socket design.
Allows the socket to freely move radially +/- 1.00mm within the socket assembly during mating to help ensure no contact beam deformation
Its self-aligning sockets float between wave springs.
Mitigates tolerance stack-up issues
Pin and socket assemblies are oriented to attach to PCBs with a right-angle orientation.
APPLICATIONS BY INDUSTRY
Telecommunication/Networking
Servers
Data storage units
Power distribution units (PDUs)
Uninterruptible power supplies
Digital cross-connect switches
Network routers
Energy storage system
Data Centers
Enterprise switches
Servers
Data storage units
Power shelves
Power distribution units (PDUs)
Uninterruptible power supplies
Environmental control equipment
Industrial Automation
Battery charging stations
DC-to-AC inverters
AC-to-DC rectifiers
Robotics
Sentrality Pin and Socket Interconnects 6.00mmAdditional Lengths
SERIES
Sentrality Pin and Socket Interconnects are available in four different pin sizes (3.40, 6.00, 8.00 and 11.00mm diameters) and enable co-planar, offset-planar and reverse-planar mating configurations, while providing a +/- 1.00mm self-aligning feature on the socket assemblies to mitigate tolerance stack-up issues. With Sentrality pin and socket assemblies, manufacturers can have the design flexibility they need and achieve high electrical performance in their products. Introducing additional pin lengths of 16, 26 and 36mm for 6.00mm diameter range.
FEATURES AND ADVANTAGES
Offers low contact resistance
Multiple contact beams minimize heat generation at the contact interface, resulting in optimized electrical performance.
Enables for tighter board-to-board stack heights with shorter socket assemblies than most market equivalents using hyperbolic sockets
This interconnect system has a compact conical socket design.
Allows the socket to freely move radially +/- 1.00mm within the socket assembly during mating to help ensure no contact beam deformation
Its self-aligning sockets float between wave springs.
Mitigates tolerance stack-up issues
Pin and socket assemblies are oriented to attach to PCBs with a right-angle orientation.
APPLICATIONS BY INDUSTRY
Telecommunication/Networking
Servers
Data storage units
Power distribution units (PDUs)
Uninterruptible power supplies
Digital cross-connect switches
Network routers
Energy storage system
Data Centers
Enterprise switches
Servers
Data storage units
Power shelves
Power distribution units (PDUs)
Uninterruptible power supplies
Environmental control equipment
Industrial Automation
Battery charging stations
DC-to-AC inverters
AC-to-DC rectifiers
Robotics
Off-The-Shelf (OTS) Cable Assemblies And Pre-Crimped Leads
Off-the-Shelf Cable Assemblies and Pre-Crimped Leads offer simple and cost-effective solutions for preproduction, prototyping and mass production requirements. These products are available for the most popular Molex connector families.
EXTENSION
Off-the-Shelf (OTS)
Micro-Fit + Cable Assemblies
SERIES
228363, 228364, 228410, 228411
EXTENSION
Off-the-Shelf (OTS)
DuraClik Cable Assemblies
SERIES
228367, 228368, 228425, 228426
EXTENSION
Off-the-Shelf (OTS)
Micro-Fit+ PCIe CEM5
Pre-Crimped Leads
SERIES
228369, 228370, 228431, 228432
Micro-Fit+ 3.00mm-Pitch Cable Assemblies were designed with the largest wire gauge that the connectors can accommodate to meet any prototype requirement on the market, delivering a current rating of 6.5A to 8.5A across a range of circuits.
DuraClik 2.00mm-Pitch Cable Assemblies were designed with the largest wire gauge that the connectors can accommodate to meet any prototype requirement on the market, they can carry up to 2.0A of current per circuit in a dual row configuration.
The Micro-Fit+ PCIe 12V-2x6 Auxiliary Connector System is a CEM (card electromechanical) hybrid solution supporting next-gen PCIe 5.0 and 6.0 applications. These pre-crimped leads conform to CEM specifications, integrating 12x9.5A-capable power pins and 4x sideband signal pins in a compact, space-saving design.
VIEW PRODUCT PAGE
EXTENSION
Off-the-Shelf (OTS)
Micro-Fit+ PCIe CEM5
Cable Assemblies
SERIES
228371, 228372
VIEW PRODUCT RESOURCES
EXTENSION
Off-the-Shelf (OTS)
Mini-Fit Sigma Low
Insertion Force PreCrimped Leads
SERIES
229556, 229557, 229558, 229559, 229560, 229561, 229562, 229563, 229564, 229565, 229566, 229567
EXTENSION
Off-the-Shelf (OTS)
HyperQube Cable Assemblies
SERIES
228962, 228963, 228964, 228965, 228966, 228967, 228968, 228969, 228970, 228971, 228972, 228973, 228974, 228975, 228976, 228977, 228978, 228979
The Micro-Fit+ PCIe 12V-2x6 Auxiliary Connector System is a CEM (card electromechanical) hybrid solution supporting next-gen PCIe 5.0 and 6.0 applications. These cable assemblies conform to CEM specifications, integrating 12x9.5A-capable power pins and 4x sideband signal pins in a compact, space-saving design.
Mini-Fit Sigma Connectors offer a slim profile and mate with existing Mini-Fit headers, allowing for space savings without changing the bill of materials. These receptacles also include TPA for secure and stable connections to avoid terminal backout issues. Additionally, Glow Wirecompatible options are available to meet European electrical standards. Mini-Fit Sigma Connectors address many challenges PCB designers encounter and provide robust, reliability-enhancing features.
Off-the-Shelf (OTS) HyperQube Cable
Assemblies reduce both mechanical and electrical engineering requirements as well as the purchasing time needed to qualify a cable. Additionally, they are crimped in an automated press, eliminating the risk of poor crimping during prototyping. These cables offer reliable performance throughout all stages, from prototyping to mass production.
Off-The-Shelf (OTS) Cable Assemblies And Pre-Crimped Leads
EXTENSION
Off-the-Shelf (OTS)
CP-3.3 Pre-Crimped Leads
SERIES
229112, 229113, 229114, 229115, 229116, 229117, 229118, 229119
CP-3.3 Wire-to-Wire, Power Connectors and Terminal Retainers have combined safety features to ensure prevention of electrical shortage from condensation of moisture in high-current applications.
EXTENSION
Off-the-Shelf (OTS)
Mini-Fit BMI Cable Assemblies
SERIES
229584, 229585, 229586, 229587, 229588, 229589, 229590, 229591, 229592, 229593, 229594, 229595, 229596, 229597, 229598, 229599
EXTENSION
Off-the-Shelf (OTS)
Pico-EZmate 1.80mm
High-Current (HC) Cable Assemblies
SERIES 229086, 229087
Pico-EZmate 1.80mm HC cable assemblies offer the highest electric current of 5.0A among the Pico-EZmate family, delivering robust power in a compact form factor. This enables designers to create space-saving solutions, especially for small consumer devices where mounting space is limited. VIEW PRODUCT RESOURCES VIEW PRODUCT
The Mini-Fit BMI 4.20mm-pitch cable assemblies support a maximum current of up to 13.0A per circuit, providing highpower delivery for demanding applications. These assemblies ensure a secure and reliable connection between the header and receptacle, offering design flexibility while helping to reduce overall lead times.
Q1 2026 NPI Pipeline
INNOVATION
Product Category
Product Name Product Highlights
RF Cable Assemblies
Cardinal Wave High-Frequency Cable Assemblies
Board-to-Board Connectors
Float Stack Automotive Board-to-Board Connectors
Board-to-Board Connectors
VersaPower Board-to-Board Connectors
With the increasing demand for higher-frequency and higher-speed connectivity, Cardinal Wave High-Frequency Cable Assemblies deliver high-performance solutions that enable seamless integration with evolving technologies. These cable assemblies address the challenges of rapidly changing environments while reducing maintenance costs and enhancing system efficiency.
Float Stack Automotive Board-to-Board Connectors provide design flexibility while meeting high-data rate requirements and high–current demands. Their layout enables automated assembly and complies with USCAR2 V2 standards.
VersaPower Board-to-Board Connectors are designed to integrate larger-circuit-size connectors with high-power lines, reduce battery power loss through low-level contact resistance of 5m Ohms and facilitate easy mating with large alignment features.
Target Market
Aerospace Defense Networking Telecommunications Wireless infrastructure
Automotive Industrial Automation
Cable-to-Board Connectors
Flexi-Latch+ Connectors
Cable-to-Board Connectors
Easy-On FFC/ FPC FlexiSnap-15 Connectors
Flexi-Latch+ Connectors streamline manufacturing processes and maximize PCB real estate. These solutions help ensure accurate mating, deliver excellent reliability and comply with USCAR2 V2/LV214 S1 and PG19 standards.
Easy-On FFC/FPC FlexiSnap-15 Connectors simplify assembly through a one-touch locking mechanism and dual locking nails, reducing the risk of failure and saving time. These connectors are compatible with standard 0.50mm pitch FFC/FPC cables, eliminating the need for custom solutions. Their robust design ensures secure mating, reliable electrical contact and strong mechanical performance, providing increased dependability with a compact footprint.
Appliances
Mobile Devices Wearables
Circular Connectors
MiniCirc Series Connectors and Harnesses
MiniCirc Series Connectors and Harnesses deliver stable, high-performance connections with 60V/3.0A capacity, IP68 protection and robust vibration resistance. The compact 6.00mm plug supports up to six circuits and features color-coded, poka-yoke alignment to ensure easy, reliable assembly. This design allows OEMs to route cables through tight spaces and reduces overall design size.
Automotive Industrial Automation
Appliances Mobile Devices Wearables
Automotive Agricultural Machinery
Charging Infrastructure Home Energy Storage HVAC
Automotive Connectivity
eHV60 HighVoltage Automotive Connectors
eHV60 High-Voltage Automotive Connectors feature a compact, rugged, sealed and fully shielded power connector that complies with global standards for auxiliary high-voltage, medium-current electrified architectures in automotive and industrial applications.
Automotive Industrial Automation
Q1 2026 NPI Pipeline
ENHANCEMENT
Product Category
Product Name
Product Highlights
RF Connectors High Frequency RF Right-Angle Adapters
High-Power Solutions
EXTreme Ten60 Mezzanine Connectors
Automotive Connectivity ConnTAK50 Connectors
Optimized for high-performance applications requiring exceptional signal integrity, High-Frequency RF Right-Angle Precision Adapters offer low-voltage standing wave ratio (VSWR), robust construction and multiple connector options. They deliver reliable signal integrity and help simplify cable routing, reducing downtime and maintenance costs.
EXTreme Ten60 Mezzanine Connectors enable designers to deliver power and signals between parallel boards in one connector at the same stack height, resulting in a significantly smaller footprint. The addition of these hybrid mezzanine connectors enhances design flexibility and increases the modularity provided by EXTreme Power products.
Providing compact connectivity solutions for nextgeneration automotive modules, ConnTAK50 Connectors offer significant space savings and superior reliability. With an industry-first no-void connector position assurance (CPA) design, these connectors reduce size and weight by eliminating unused receptacle voids.
Target Market
Aerospace Defense Networking Telecommunications Wireless Infrastructure
Appliances Automotive Networking Power for Data Center Telecommunications
Board-to-Board Connectors Quad-Row Connectors
Backplane Connectors
Impulse 112G Backplane Connector System
More circuit sizes are being added to Quad-Row Connectors, expanding the count from 12 to 80. These connectors enable manufacturers and designers who require compactness, easy mating, secure contact and superior reliability in challenging environments to deliver robust power within a highly compact package.
The Impulse 112G Backplane Connector System provides a high-speed, scalable and modular solution for cable, conventional and orthogonal board-to-board connectivity at speeds up to 112G. The high-density design improves airflow, enhances signal integrity and is uniquely suited to support cable backplane and cable midplane solutions for next-generation data center architectures.
Automotive Industrial Automation Telecommunications
Automotive Connectivity
Mini50 Sealed Panel-Mount Connectors
Wire-to-Wire Connectors
Squba 1.80mm Colors (with CPA)
Versatile and efficient, USCAR2-8-validated and IP67/IP69Krated Mini50 Sealed Panel-Mount Connectors offer 33 circuits and multiple header options to deliver up to 40% space savings compared with 0.64mm connectors. These connectors provide reliable, space-efficient connectivity for critical applications in battery-electric vehicles and other harsh environments subject to dust or water ingress.
The Squba Sealed 1.80mm-pitch sealed wire-to-wire connector system now offers color mechanically keyed housings and receptacle housings with built-in CPAs, providing wider design flexibility for a range of applications. Color mechanically keyed housings help operators avoid mis-mating connectors in applications with multiple connections. Built-in CPA housings eliminate accidental disconnection in rugged environments, reducing electrical failures and ensuring reliable connections.
Mobile Devices Wearables
Networking Servers and Storage
Automotive
Appliances
Automotive HVAC
Q1 2026 NPI Pipeline
EXTENSION
Product Category
RF Connectors
Solderless High-Frequency Precision PCB Connectors
Wire-to-Board Connectors
Micro-Lock Plus 1.50mm Connectors
Wire-to-Board Connectors Zero-Hachi Dual Row Connectors
New Solderless High-Frequency Precision PCB Connectors include 1.00mm, 2.92mm and vertical-launch connector options designed for precision RF applications such as test and measurement, aerospace and telecommunications systems.
This extension adds a 1.50mm series to the Micro-Lock Plus family, introducing a more compact size that provides 46.7% space savings compared to CLIK-Mate. The new product helps customers design components for smaller spaces, reducing overall package size.
As devices shrink and speeds increase, engineers need compact connectors to keep up with these demands. ZeroHachi 0.80mm pitch vertical-entry, dual-row connectors deliver higher circuit density and high-speed performance in the same tight footprint giving designers the reliability, flexibility and size required for next-generation products.
Target Market
Aerospace Defense Networking Telecommunications Wireless Infrastructure
Appliances Automotive HVAC Industrial Automation
Mobile Devices Wearables Wireless Infrastructure
Wire-to-Board Connectors
Premo-Flex Flat
Flexible Cables
Off-the-Shelf Cable
Assemblies and PreCrimped Leads
Micro-One 2.00mm Connectors with Gold Plating
Off-the-Shelf Cable
Assemblies and PreCrimped Leads
Premo-Flex 15036-Series Ultra Flexible, Superior Retention FFC/ FPC Jumpers
Pico-EZmate 1.80mm HighCurrent (HC) Cable Assemblies
Micro-One 2.00mm-pitch connectors ensure secure, reliable connections with an Independent Secondary Lock and Terminal Position Assurance for proper retention. They support potting for protection against dust, moisture and corrosion while meeting strict flammability requirements with full Glow Wire compliance. These connectors are built for confidence in harsh environments.
Premo-Flex 15036-Series Ultra Flexible, Superior Retention FFC/FPC Jumpers are ideal for compact applications subject to repeated flex cycles. Designed to integrate with FlexiSnap-15 Connectors, these jumpers feature locking nails for efficient assembly and superior retention while supporting up to 5 million flex cycles.
Pico-EZmate 1.80mm High-Current Cable Assemblies offer the highest electric current of 5.0A among the Pico-EZmate family, delivering robust power in a compact form factor. This enables designers to create space-saving solutions, especially for small consumer devices with limited mounting space.
Appliances Automotive HVAC Industrial Automation Power for Data Center
Appliances Automotive MedTech Mobile Devices Telecommunications
Appliances Automotive MedTech Mobile Devices
Zero-Hachi PreCrimped LeadsAdding Gold (Au) Plating
The miniaturized Zero-Hachi 0.80mm Pitch Wire-to-Board Connectors fine pitch, low-profile height and extensive circuit size range address the challenges of shrinking electronic devices. The connector’s dual-point contacts enhance electrical reliability during operation, while the easy-to-grip housing supports more efficient and error-free mating operations. They are now available with a gold (Au) plating option.
Appliances Industrial Automation Mobile Devices
Q1 2026 NPI Pipeline
EXTENSION
Off-the-Shelf Cable
Assemblies and PreCrimped Leads
Off-the-Shelf Cable
Assemblies and PreCrimped Leads
High-Speed FAKRA-Mini (HFM) Cable Assemblies
Off-the-Shelf Cable
Assemblies and PreCrimped Leads
Micro-Lock Plus 2.00-Pitch Connector System
Pico-Lock 3.00mm Wire-toBoard Connector System
High-Speed FAKRA-Mini (HFM) Cable Assemblies deliver up to 28Gbps at frequencies up to 20 GHz, providing compact, lightweight and rugged connectivity for advanced automotive systems such as cameras and telematics to optimize high-speed performance in space-constrained environments.
The Micro-Lock Plus 2.00-Pitch Connector System offers a compact design with high-temperature reliability, excellent space savings and robust electrical and mechanical performance. These connectors are engineered to meet stringent industry standards, even in harsh environments.
Pico-Lock 3.00mm Wire-to-Board Connectors deliver ultra-low-profile, high-current and secure connections. The Pico-Lock system ensures reliable locking under shock and vibration and is available in 1.00–3.00mm pitches to meet modern compact device demands.
Appliances
Automotive Power for Data Center
This is not a definitive list of applications for these products. It represents some of the more common uses.
Industrial Automation
