Vidiem VStar - Annexure

 Compact size

Gearbox- size

 wider size

Construction

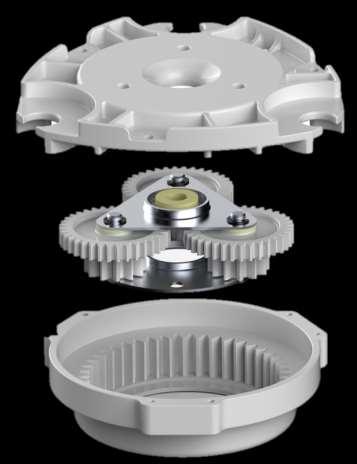

 Separate Gear Box assembly & Housing

Gear Box Seating on Rubber Dampers, will avoid vibration & act as noise suppressor

 Gears are fitted with Housing

 Will create more noise

Life&Durability

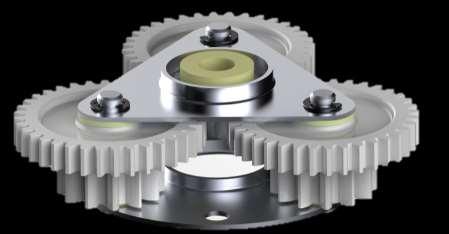

 Separate Gear Box Assembly for perfect alignment of Gears.

 Thick Gears with double reduction

 Wide & Thick Gears for heavy load and continuous running.

 Durable & long life

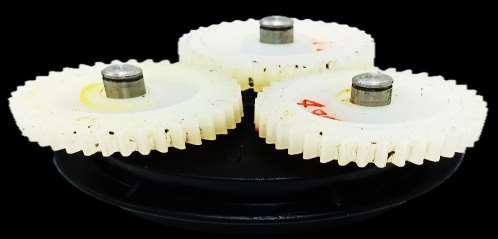

 Gears are directly fitted into Housing leads to misalignment

 Thin & flimsy Gears

 Cannot withstand heavy load & continuous running

 Prone to break and wear

 Double reduction.

 13:1 Ratio, ~ 1250 RPM

 Less noise & High torque

Gearreduction

 Single reduction.

 10 : 1 Ratio, ~ 1500 RPM

 More noise & Low torque

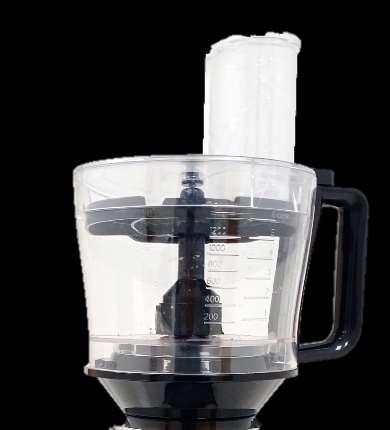

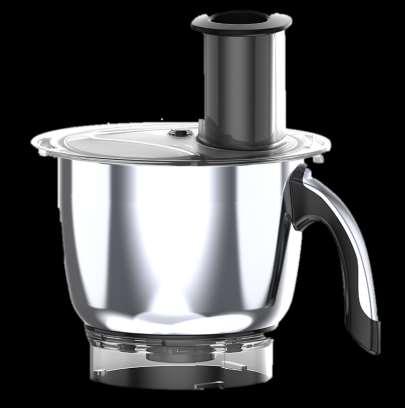

 Stainless Steel Collecting Bowl.

 Polycarbonate Housing & Lid.

 Sturdy chromed Handle.

 Rigid, Strong & Long Life.

 Easy to clean.

 Plastic Collecting Bowl

 Will get Scratch.

 Will Break easily

Vidiem - ADC

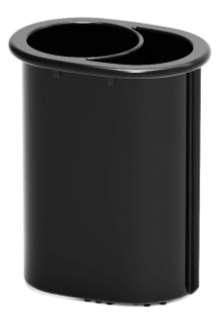

 Double Pusher

Preethi - Zodiac

 Round Pusher for thin vegetables like Beans, Carrot, Radish, Ladies Finger etc.

 Single pusher

 The Big Pusher for large vegetables like Potato, Onion, Tomato, Beetroot, Yam etc….

 Difficult to use thin vegetables

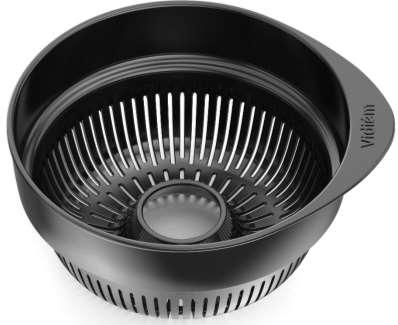

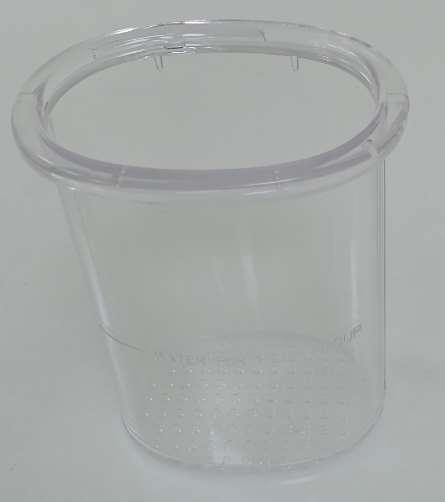

Citrus Filter Bowl

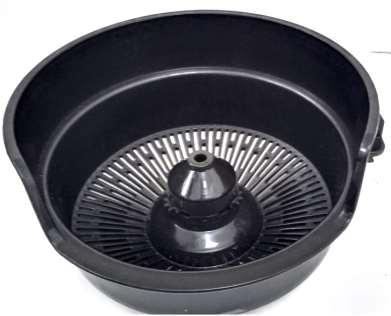

CitrusBowl

 No Gears

 No failure

Citrus Bowl With Gears

 Flimsy Gears cannot withstand the load.

 Gear will break or worn-out quickly

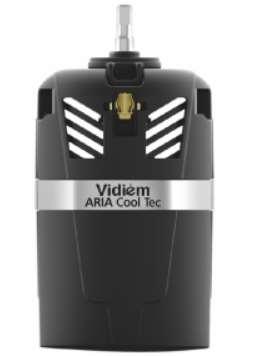

Aria Cool Tec Motor

Construction

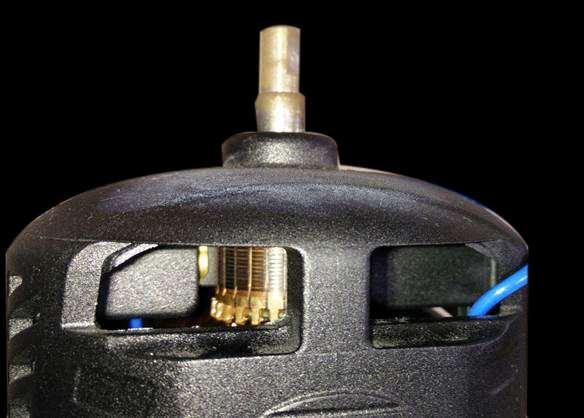

 Fully covered Motor

 Eliminates misalignment

 Maintains an uniform air gap between Rotor & Stator.

 Increases Motor efficiency & reduces vibration.

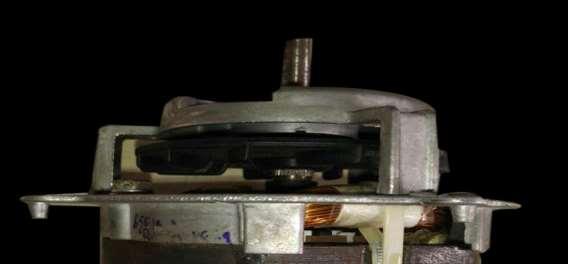

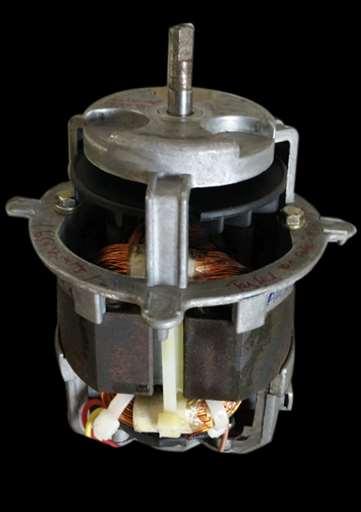

 Open type Motor

 Can misalign - wear & tear and failure of Bush

 Air-Gap consistency cannot be maintained.

 Loss of efficiency & vibration.

 rubbing of Rotor & Stator – can lead to Motor failure.

40%MoreCooling

AirFlow

 On load temperature, Rotor 100 Degrees.

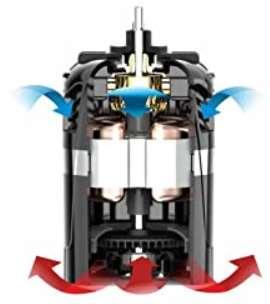

 Guides cool air over the Rotor, Stator, Commutator and Windings.

 Does not allow hot and cool air to mix.

 On load temperature, Rotor 140 Degrees

 Air flow from various directions.

 Hot and cool air will mix

ARIA COMPETITION

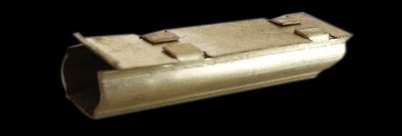

 Integrated Brush Holder - perfect alignment of Carbon Brushes.

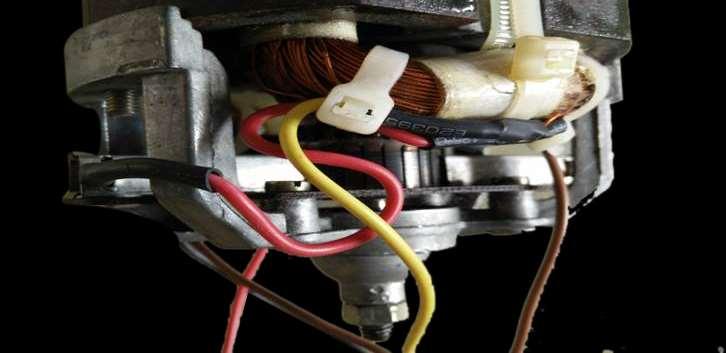

 Alignment cannot be maintained - uneven wear of the Carbon Brushes, sparking and premature failure.

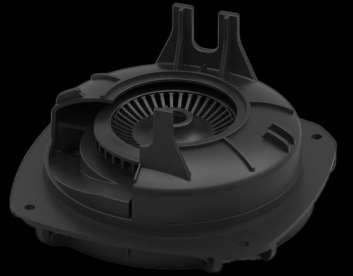

AirFlowSystem

 Power consumed by Fan 270 Watts.

 Air Pump System

 Transmits 60 Watts More power for grinding.

 Reduced air noise.

 Power consumed by Fan – 330 Watts

 Air Fan System

 Delivers less power for grinding.

 Increased air noise.

VIDIEM COMPETITION

Jars

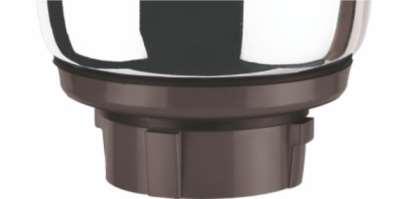

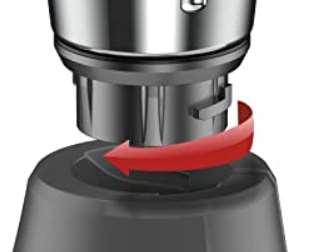

 Self locking - Automatically locks on to the Body

 Manual locking - Needs to be manually rotated to lock

 Proper mating of Couplers & seating of Jar.

 Improper Jar placement can cause damage to Couplers.

Blades

 Dynamically Balanced BladesPrevents wear & tear of Bush.

 Vortex flow, Hardened, Ribbed, Stainless Steel Blades for tough grinding.

Bushlifecyclestest

 Self-aligning.

Couplers

 No Self-aligning.

 No Secure mating.

 Secure mating.

 High strength.

 Thin teeth can break when misaligned or misused.
