Midwich | Cables & Infrastructure Guide 2025

What’s new?

10m to 20m USB 3.2 Gen 2 & DP 1.4 Type C Hybrid Cable For data and video extension which supports DisplayPort Alternate Mode and DP 1.4 (4 lanes).

Discover more on pages 4 & 6

Multi-format USB C Adaptor Cable

Discover more on page 13

Discover more on page 27

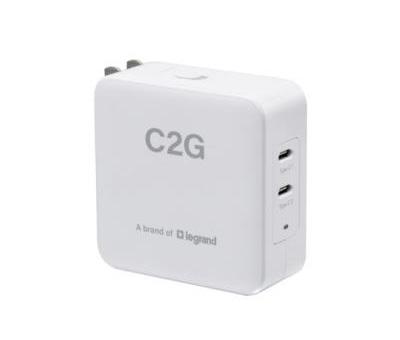

C2G Dual USB-C Power Adapter -

Discover more on page 37

Discover more on pages 73 & 79

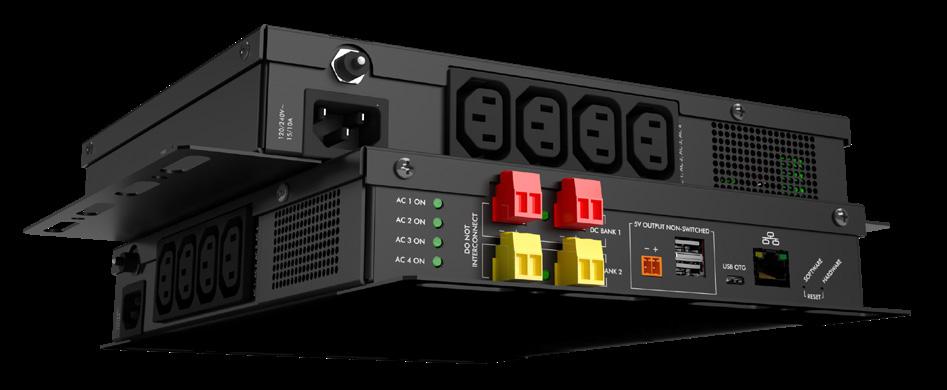

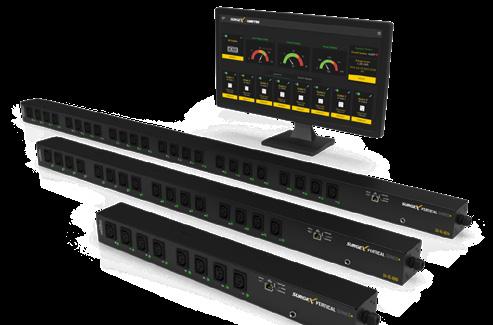

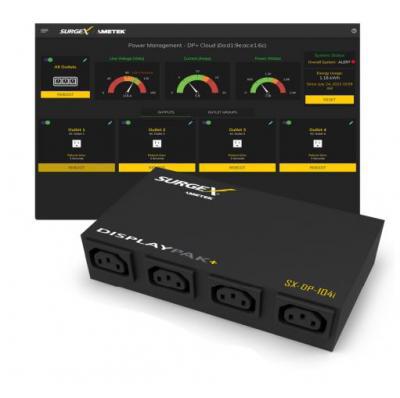

DisplayPak+ Wi-Fi Enabled Power Management

Discover more on page 92

Welcome to the Contents

Inside the new Midwich Cables & Infrastructure Guide, you will find various new products and brands that meet your pressing needs in this ever-changing market.

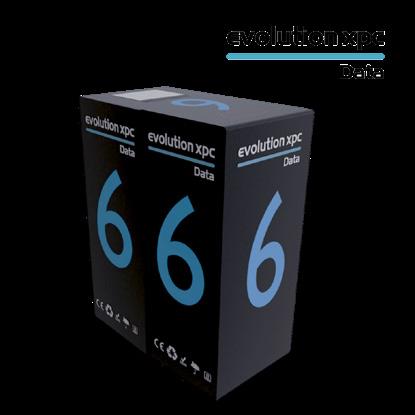

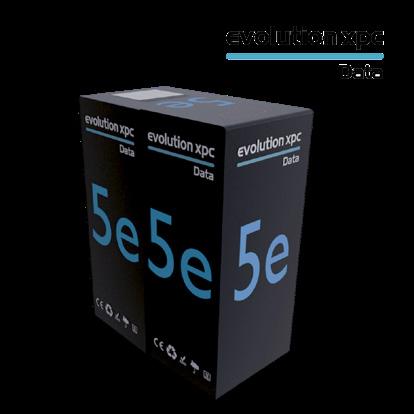

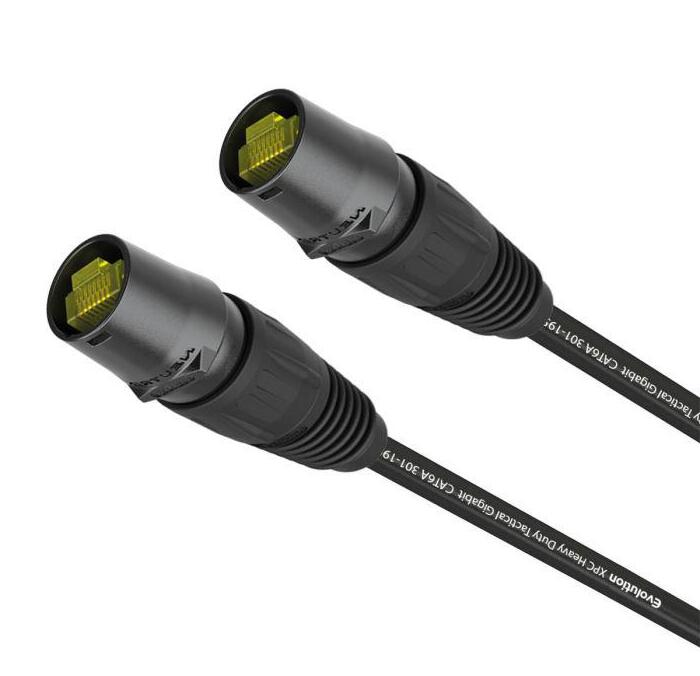

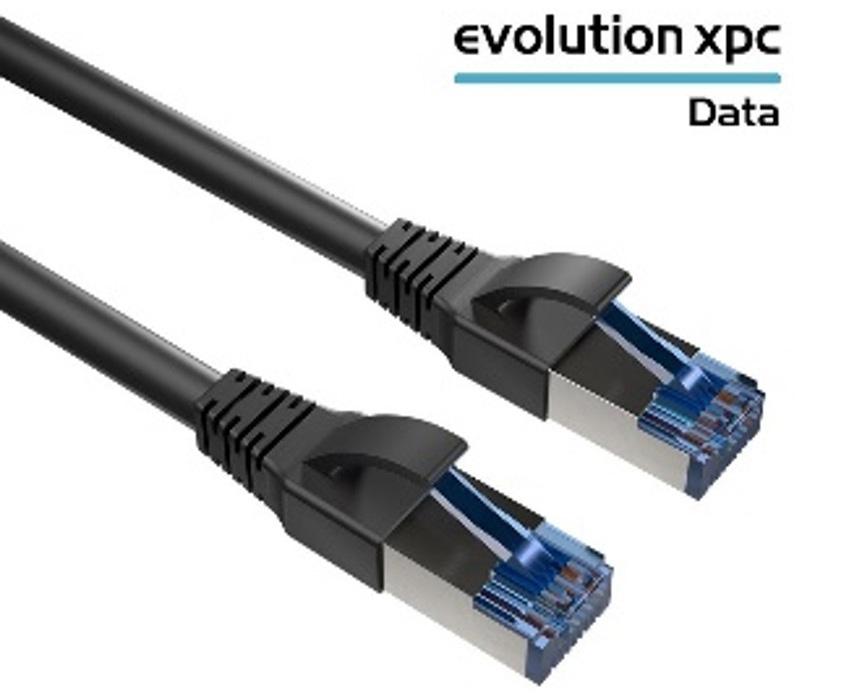

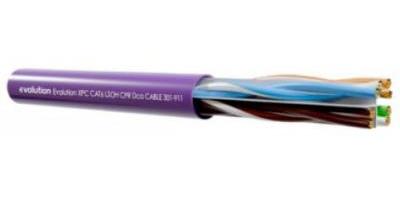

New brands in this edition include Evolution XPC, which has built up a reputation as a reliable, quality trade supplier to the professional audio, broadcast, light and power industries and SurgeX, which offers a new range of IP-controlled, multi-stage surge protection products to save you time and money.

Additionally, you will notice a selection of new USB-C and HDMI cables from brands such as Lindy, Kramer, C2G, FastFlex and Connektgear.

This guide encompasses multiple products and options to help you find the right fit for your application.

If you see anything of interest or need further assistance, please contact the Cables Team at 07583 176096 or email cables@midwich.com.

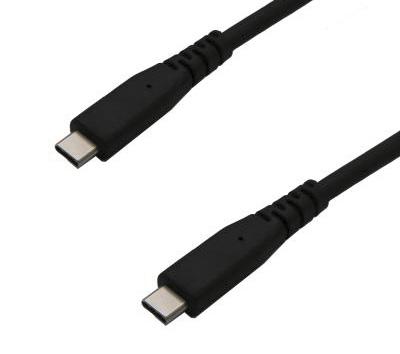

USB-3 & USB-4 Type C Male-Male Cables

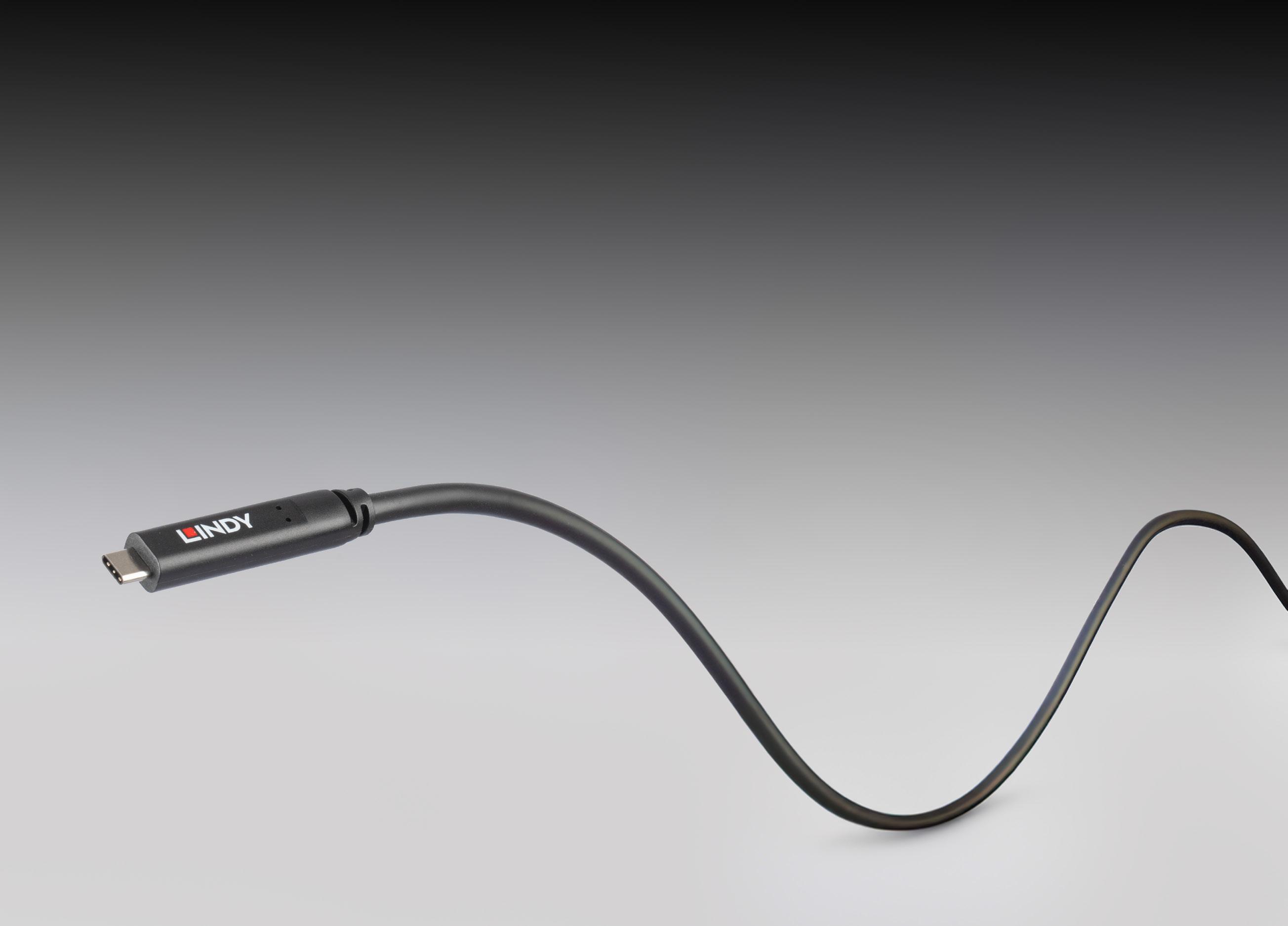

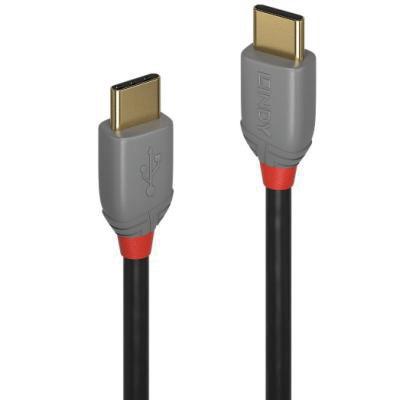

Lindy 0.8m USB-4 Type C

Male-Male Cable, 40Gbps, Anthra Line

Professional choice USB-4 Gen 3x2

Type C to C cable for commercial and high-performance AV and IT installations

Supports data transfer speeds up to 40Gbps (backwards compatible with USB 3.2, USB 2.0 and Thunderbolt 3)

Supports DisplayPort 2.0 Alternate Mode and USB Power Delivery 3.0 up to 100W (20V 5A)

Triple-shielded coaxial cable, goldplated contacts and nickel-plated connectors

Lindy 1m Thunderbolt 4 Cable, 40Gbps, Passive

• Thunderbolt 4 Cable, 40Gbps, Passive

• Connects to Thunderbolt 4 devices and transfers data with bandwidths up to 40Gbps

• Supports single 8K or dual 4K@60Hz

• Supports Power Delivery up to 100W (20V 5A)

• Supports PCle at 32Gbps for storage speeds up to 3,000Mbps

USB 3.2 Right-Angles USB-C to Right-Angled USB-C Cable,

• Entry-level USB 3.2 Type C cable for home and small office applications

• Both USB Type C plugs are angled at 90°

• Supports data rates of up to 10Gbps

• Robust PVC housing with nickel-plated contacts

• Professional-choice USB 3.1 Type C to C, 5A cable for commercial and highperformance AV and IT installations

• Supports SuperSpeed+ data transfer speeds up to 10Gbps

• Robust PVC housing, 24K gold-plated connectors and contacts

• Triple-shielded cable, corrosionresistant tinned copper conductors

Anthra Line

USB3.2 Type C Male to Male Cables

C-U32/FF is a USB-C Male to USB C Male Passive Cable with Below Features

• USB 3.2 Gen 2 Full-Featured Passive Cable

• Supports 10G data, 4K60 video, 100W charging

• K-Lock mechanism

• USB-C male to USB-C male

• Length: 3ft, 6ft

CLS-AOCU32/FF is a USB C Male to USB C Male Active AOC Cable with Below Features

• USB 3.2 Gen 2 Active AOC Extender Cable

• Supports 10G data, 4K60 video, 100W charging up to 35ft/10.6M

• Supports 10G data, 4K60 video and 60W charging at the 50ft(15.2M) and 66ft (20M) lengths and also both 2 and 4 lane technology

• K-Lock mechanism

• USB-C male to USB-C male

• Length 15-66ft

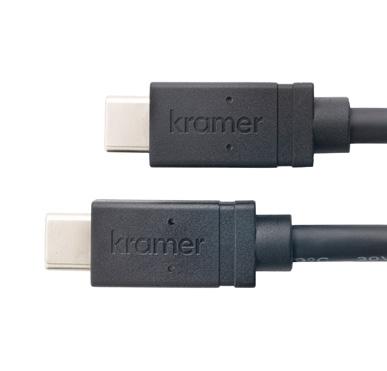

C-U32/MFF is a USB 3.2 GEN–2

Full Featured USB–C Male to USB–C Male Cable

• Quality Construction — Micro coax wires, triple shielding that helps prevent electromagnetic interference and ensures reliable data communication.

• Reversible USB Type–C connector with integrated locking mechanism.

• Video 4K@60 4:4:4 (DP Alt mode).

• Transfer Rates — Up to 10Gbps, USB 3.2 Gen 2.

• USB 2.0.

• 100W power (5A, 20V).

• PC, Mac and mobile compatible.

• Plug and play — For monitors, web cameras, printers, scanners, keyboards and other digital devices.

• USB Backward Compatibility — 1.0, 1.1, 2.0 and 3.0.

All Kramer USB-C cables on this page support the

USB-4 Type C Male-Male cables

FastFlex 2m USB-4

Type C Male to C

40Gbps Cable

• Future-proofed backward compatibility – this cable features Thunderbolt 4 standard and compatibility with Thunderbolt 3 devices and hosts. It is also backwards compatible with USB4, USB-C 3.2, 3.1 and 2.0 speeds and devices.

• High-speed up to 40Gbps (the data transfer speed depends on the host and device support).

• 8K@30Hz/5K@60Hz video display – this cable can drive one 8K display or two 4K displays.

• Charging up to 100W – this cable with power delivery of up to 100W is ideal for use with Thunderbolt 3, USB4 or USB-C devices that can provide laptop power delivery.

• Wide compatibility – support 2016+ MacBook Pro, iPad mini 2021, 2017+ iMac Pro, 2020+ MacBook Air, Windows Thunderbolt 3/4 laptop & PCs, Thunderbolt docking stations, high-speed storage and peripheral devices.

This versatile cable provides true Type C faster charging, SuperSpeed data transfer speeds and error-free transmission. It is also a charge-and-sync cable, enabling userst to transfer files between a USB device and PC, or it can be used as a charging cable.

Active Optical Type C Male to Type C Male 10Gbps

This highly versatile cable provides universal compatibility, high data transfer speeds, up to 60W charging rate and ultra-high video quality. USB4 Active Optical Cabling (AOC) will futureproof your Type C devices.

Thunderbolt & USB-4 Type C Male-Male Cables

C2G Thunderbolt 4 USB-C Male to Male Cables

This Thunderbolt 4 USB-C cable brings lightning-speed data transfers, 4K video support and power delivery up to 100W. Get more done with less hassle by carrying one cable for the simplest, most reliable and fastest connectivity for video, data and power.

C2G28885 0.5m Thunderbolt 4 USB-C M-M Cable

C2G28886 0.8m Thunderbolt 4 USB-C M-M Cable

C2G28887 2m Thunderbolt 4 USB-C Active M-M Cable

C2G USB-4 Type C® Male to USB-C Male Cable (20V 5A) – (40Gbps)

This USB-4 USB-C cable brings lightning-speed data transfers, up to 8K video support and power delivery of up to 100W – perfect for connecting USB4 enabled devices for fast charging and quick data transfers.

Code Description

C2G28877

2.5ft (0.8m) USB4 Type C® Male to USB-C Male Cable (20V

Type C Male to C Male Cable (48V 5A) (40Gbps) 240W Charging

Coming Soon

C2G Thunderbolt 5 USB C Male to Male Cables

• Supports TBT Gen3, Gen4 or Gen5 full duplex high-speed transmission

• Supports 1-CH USB3.2 Gen1 or Gen2 or supports 2-CH USB3.2 Gen2 full duplex high-speed transmission

• Supports 1-CH USB2.0 half duplex transmission

• Support DP2.1, 4-lane DisplayPort video signal transmission, DP alternate mode

• Dual-protocol support for TBT mode (PCI Express and DisplayPort) and can be used for daisy-chaining devices

• Triple-protocol support for USB4 mode (USB, PCI Express and DisplayPort) and can be used for USB4 daisy chaining devices

• Plug flip able use

• Thin cable design, OD=4.8mm

• Compliant with USB Power Delivery, Specification Rev3.1 Maximum power delivery capacity up to 5A

New Thunderbolt 5 Passive Cable

It provides a robust solution designed to meet the performance, power delivery and quality required of certified Thunderbolt. Fully interoperable with Thunderbolt 5 PCs and Devices, Thunderbolt 5 will deliver 80Gbps of bi-directional bandwidth and with bandwidth boost it will provide up to 120Gbps for the best display experience.

Lengths and part numbers coming soon. Please contact cables@midwich.com for more information.

USB-4 Type C Male-Male Cables

USB-C 2.0 Male to Male Cables

More lengths available upon request.

USB-C 3.1 & 3.2

Gen 1 & 2 USB-C Male to USB-C Male Cables

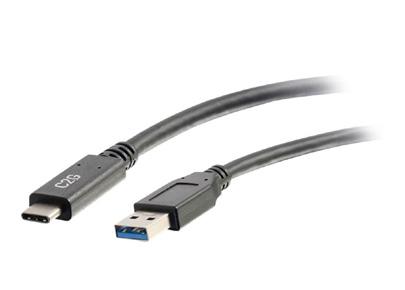

USB-C Male to USB 3.0 A Male Cable (3A)

Charging and data transfer speeds up to 5Gbps.

C2G 3ft (0.9m) USB-C® to DisplayPort™ Adaptor Cable - 4K 60Hz

USB-C® Male to HDMI®Male Audio/ Video Adaptor Cable - 4K 60Hz

USB-C® Male to Lightning Male Sync and Charging Cable

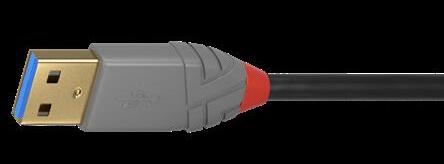

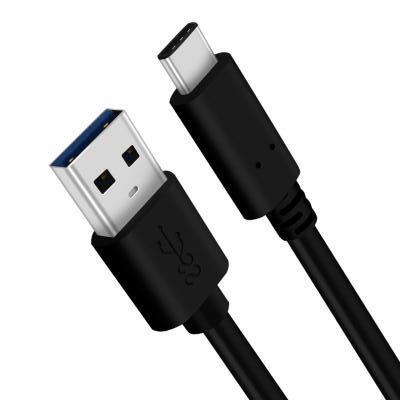

Lindy USB 3.2 Type A Male to C Male Cable, 10Gbps, 3A Black Line

• Entry-level USB 3.2 Gen 2 Type A to C cable for home and small office applications

• SuperSpeed USB 10Gbps – support data transfer speeds up to 10Gbps (UB 3.1, USB 3.1 Gen 2)

• Robust PVC housing, nickel connectors and gold-plated contacts

• Triple-shielded cable, corrosion-resistant tinned copper conductors

Lindy USB3.2 Gen1 Type A Male to C Male Fibre

Optic Hybrid Cable

• Active Optical USB 3.2 Gen 1 Cable, backwards compatible with USB 2.0

• Supports transfer rates up to 5Gbps, backwards compatible with USB 2.0 devices

• Aramid fibres for a robust cable structure

• Low RFI/EMI for sensitive environments

Lindy USB 3.2 Type A Male to C Male Cable, 10Gbps, 5A Anthra Line

• Professional choice USB 3.2 Gen 2 Type A to C, 15W (5V 3A), cable for commercial and highperformance AV and IT installations.

• SuperSpeed USB 10Gbps – supports data transfer speeds up to 10Gbps (USB 3.1, USB 3.1 Gen 2)

• Triple-shielded cable and corrosion-resistant tinned copper conductors

LINDY USB Type C Male to HDMI 4K60Hz Male Adaptor

Cable with HDR

Pack of 4 USB Type C Port Blockers and 1 Key

• Physically blocks access to a USB Type C / Thunderbolt 3 Port

• Quick and simple to use

• Includes 1 key and 4 Port Blockers

• Also available in packs of 10 (Without Key)

LINDY40465

Blue Pack of 4 USB Type C Port Blockers & 1 Key

LINDY40425 Pink Pack of 4 USB Type C Port Blockers & 1 Key

LINDY40426 Green Pack of 4 USB Type C Port Blockers & 1 Key

LINDY40427 White Pack of 4 USB Type C Port Blockers & 1 Key

LINDY40428 Orange Pack of 4 USB Type C Port Blockers & 1 Key

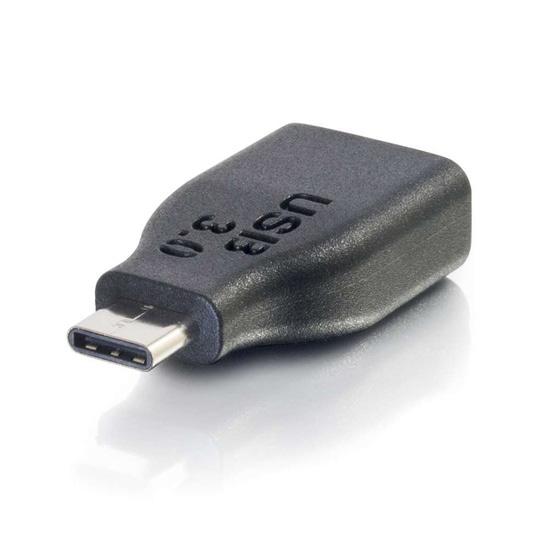

Lindy USB 3.2 Type C Male to A Female Adaptor

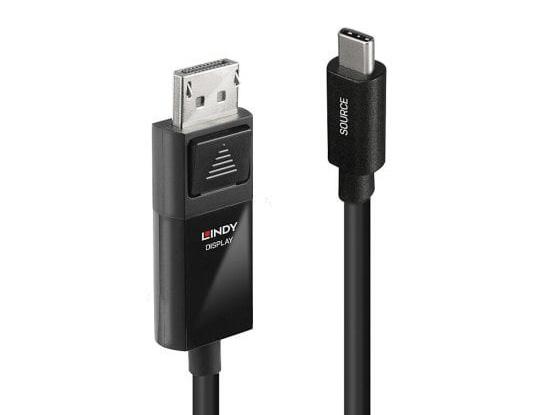

LINDY USB Type C Male to DisplayPort

Lindy USB 3.2 Type A Male to C Female Adaptor

Lindy USB 2.0 Type C to C Cable, Anthra Line

USB C Male to HDMI Cables

KRAMCUSBCHM6 1.8m White KRAMCUSBCHM10 3m White

KRAMCUSBCHM15 4.6m White

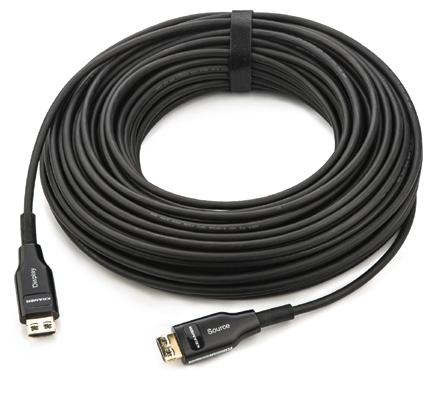

CLS-AOCU/CH is an Active Optical 4K USB Type C (M) to HDMI (M)

• Lengths — 5-30m (15-98')

• Max. data rate: 18Gbps

• Max. resolution: 4K@60Hz

• Low smoke & halogen-free

• No external power required

• Supports HDCP 2.2

KRAMCLSAOCUCH15 4.6m Black

KRAMCLSAOCUCH66 20m Black

KRAMCLSAOCUCH98 30m Black

USB 3.1 Gen–2 Cables

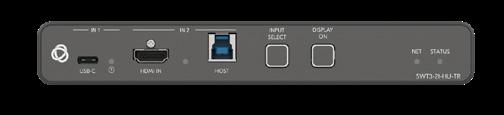

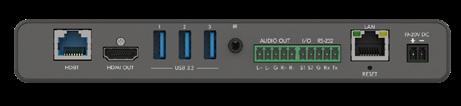

SWT3-21-HU-TR 2X1+1 4K60, 4:4:4 Hybrid Presentation Switch

• Choice of USB-C or HDMI+USB presenter’s port inputs

• Hybrid system : Local or remote USB Host / AV source

• Configurable direction HDBT port -40 meter reach

• Analog audio output port

• IO and RS-232 (over HDBT or gateway driven)

• Local lecturer’s port + remote HDBaseT port

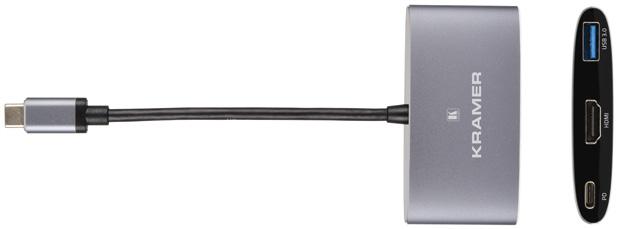

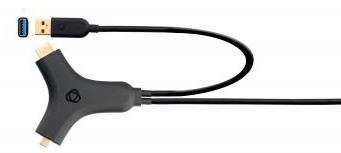

Active Multi-Format Input Male to USB-C

Output Male Adaptor Cable

C−CU32/UC+H is an active multi-format male input to USB-C male output adaptor that enables users to connect HDMI and USB 3 or USB Type C source (laptop) to an USB−C acceptor (monitor or switcher).

The adaptor supports full USB-C 3.2 features (when the input is HDMI, users will need to connect the USB 3.2 A type connector).

The adaptor is perfect for BYOD meeting rooms for direct connection between the laptop and the USB-C monitor or for use in a big meeting room by connecting it from the laptop to the under-the-desk USB-C switcher (the SWT3−31−HU−TR is recommended to set the input EDID to 4K@30 4:4:4).

10cm USB 3.2 GEN–2 Full Featured USB–C Female to USB–C Male Cable

PG−U32/FF is a 10cm USB−C(F) to USB−C(M), USB 3.2 Gen−2 SuperSpeed+ cable adaptor offering a whole new level of reliable connectivity thanks to Kramer's unique cable construction providing flexibility and our popular K−lock (on the male side).

Transfer Video 4K@60 4:4:4, data at incredible speeds (10G), high−rate charging (100W) − all with just one Passive cable adapter.

USB 3.1 Type-C Male to HDMI Type A Female Adaptor Cable

Kramer’s ADC−U31C/HF is a USB 3.1 Type-C to HDMI adaptor cable that lets you output HDMI video and audio from a USB Type-C™ device to easily connect extra monitors to a laptop or desktop without having an extra graphic card. This short cable adaptor is ideal for connecting your MacBook, Chromebook or laptop with USB Type-C to a HDMI monitor or projector supporting resolution up to 4K@60Hz.

USB 3.2 GEN-2 Optical USB-A (M) to USB-C (M) Cable

Providing throughput of up to 10Gbps when used with a USB 3.2 host and device.

CLS-AOCU32/AC is suitable for use with USB cameras, printers, webcams, speaker phones and more

• No external power needed – pulls power from the USB source device

• True plug & play – no additional drivers needed

• Available lengths – 7.6 to 50m (25 to 164ft)

• High transfer rates – up to 10Gbps

• USB backward compatibility – 1.1 (up to 50ft), 2.0 and 3.0

• Hybrid cable – fibre and copper

• Request that remote devices be self-powered

KRAMCLSA32CA25 7.6m

KRAMCLSA32CA35 10.7m

KRAMCLSA32CA50 15.2m

KRAMCLSA32CA66 20m

KRAMCLSA32CA98 30m

KRAMCLSA32CA131 40m

KRAMCLSA32CA164 50m

FastFlex USB-C Male to HDMI Male 4K 60Hz 28AWG

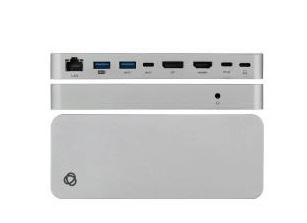

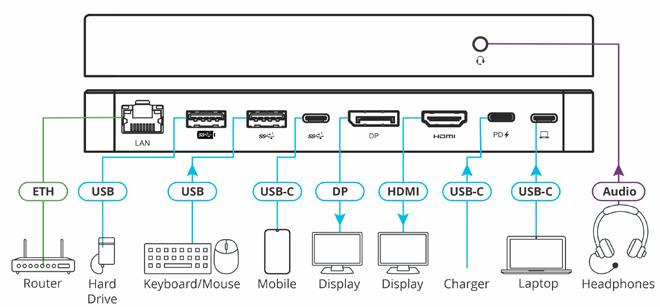

FastFlex Type C Dual Screen Docking Station with 100W PD

• DeX Compatible turns your mobile device into a PC like experience

• 2x UHD HDMI 4K resolution @30Hz

• 1x VGA 1080p @60Hz

• 1 Gbps Ethernet LAN Port

• 3x USB 3.0 Ports providing data transfer rates up to 5Gbps

• USB Type C port: Power Delivery up to 100W and data transfer rates up to 5Gbps

• Supports Display Mirror Mode (this copies your current screen to another)

• Supports Display Extend Mode (this extends your current screen to another)

USB Type C Adaptors

FFUSBCMINIDPFEM

FFUSBCDPFEM

USB Type C to DisplayPort female

USB Type C to Mini-DisplayPort female

FFUSBCHDMIFEM

USB Type C to HDMI female

USB 3.0 A Male to USB3.0 Type C Male cable 60W(20V/3A) 5Gbps Cable

USB Type C to VGA female

USB Type C to DVI female FFUSBCVGAFEM

FFUSBCDVIFEM

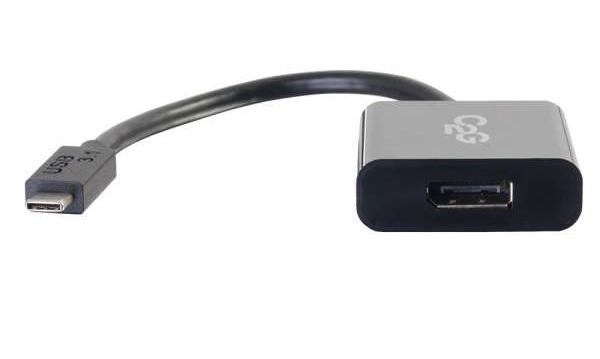

USB-C Male To DisplayPort

Female Adaptor - 4K 30Hz

Code Colour

C2G80521 Black

C2G80520 White

USB-C Male to Ethernet RJ45 Female Network Adaptor

Add a wired network connection using a USB Type-C port.

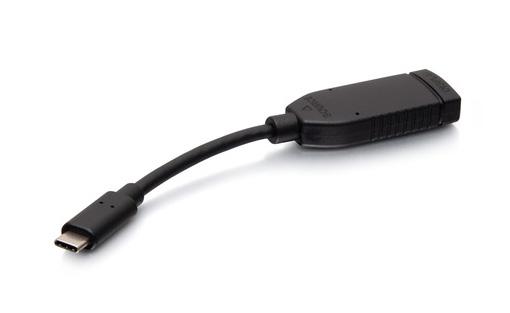

USB-C Male to HDMI Female Adaptor - 4K 60Hz

Code Colour

C2G54459 Black

Code Colour

C2G29826 Black

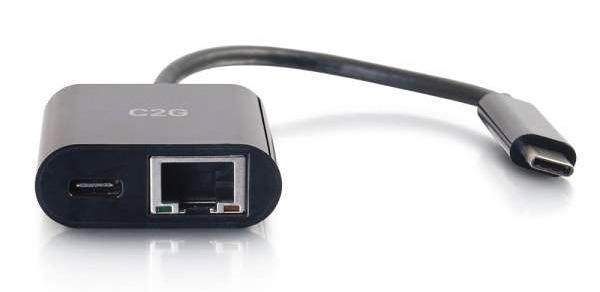

USB-C Male to Ethernet RJ45 Female with Power Delivery

Add a wired network connection using a USB Type-C port while simultaneously charging the device.

Code Colour

C2G82408 Black

C2G82407 White

USB-C Male To VGA Female Video Adaptor with Power Delivery

Deliver video content to a VGA-equipped display from a USB-C device while simultaneously charging the device.

Code Colour

C2G29533 Black

C2G29534 White

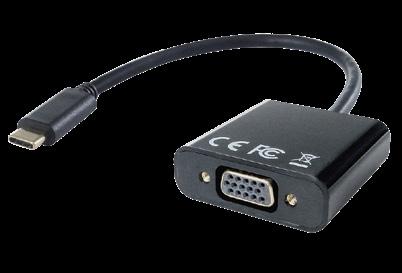

USB 3.1 USB-C To VGA Video Adaptor

Connect a device with a USB 3.1 Type C connector to a VGA monitor or projector to display video.

Code Colour

Black

USB-C Adaptors

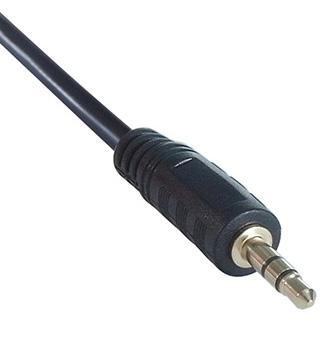

USB-C® to AUX (3.5mm) Adaptor Converter

The USB-C to AUX Adaptor Converter is an ideal solution for connecting a USB-C enabled device to headphones, speakers or microphones that have a 3.5mm auxiliary audio plug.

USB-C® to Dual HDMI® MST Hub - 4K

The USB-C to Dual HDMI MST Hub allows a USB-C enabled device to connect to two HDMI enabled displays for video mirroring, video extension or viewing a single video image across two displays.

USB-C® Male to USB-A Female Adaptor Converter - USB 3.2 Gen 1 (5Gbps)

The USB-C Male to USB-A Female Adaptor Converter - USB 3.2 Gen 1 (5Gbps) is the perfect solution for connecting a flash drive, keyboard, mouse or other device that has a USB-A connector to a laptop or desktop computer that has a USB-C port for USB 3.2 Gen 1 communication.

USB 3.0 (USB 3.1 Gen 1) USB-C Male to USB-A Female Adaptor Converter

This USB 3.0 (USB 3.1 Gen 1) USB-C to USB-A Adaptor Converter is the perfect solution for connecting a flash drive, keyboard, mouse or other device that has a USB A connector to a laptop or desktop computer that has a USB Type-C port.

USB-C® Female to USB-A Male SuperSpeed USB 5Gbps Adaptor Converter

This USB-C Female to USB-A Male SuperSpeed USB 5Gbps Adaptor Converter is the perfect solution for connecting a USB-C device to a laptop or desktop computer that does not have a USB-C port.

USB C Male to HDMI Female Converter

USB-C Docks, Hubs and Mini Docks

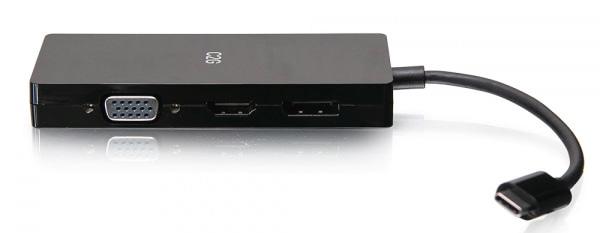

USB-C Male Multiport, 4-in-1 Adaptor with Female HDMI®, DisplayPort™, DVI, & VGA - 4K 60Hz

Connect a USB-C laptop to an HDMI, DisplayPort, DVI, or VGA display.

USB-C Male Mini Dock with Female HDMI®

Ethernet, USB and Power Delivery up to 60W - 4K 30Hz

Code Colour

Black

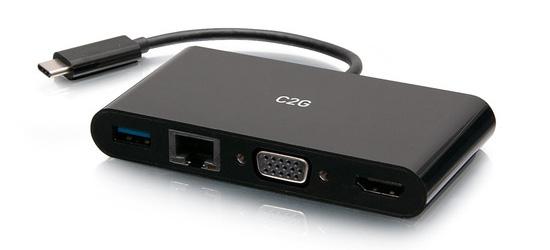

USB-C® to HDMI®, VGA, USB-A and RJ45 Multiport Adaptor - 4K 30Hz - Black

Code

USB-C® 4.0 6-in-1 Mini Docking Station with HDMI®, USB-A, Ethernet and USB-C® 85W - 8K 60HZ

Code G2G88846

4-Port USB-A 3.0 Hub – SuperSpeed USB 5Gbps

Code C2G54461

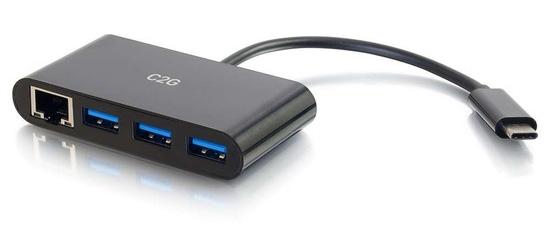

USB-C® to Ethernet Adaptor with 3-Port USB Hub - Black

• RJ45 Gigabit Ethernet

• Three SuperSpeed USB 3.0 ports

• Supports PXE Boot

• Compatible with USB-C and Thunderbolt™ 3 ports

• Reversible, symmetrical USB-C connector

Thunderbolt & USB-4 Type C Male-Male Cables

USB-C® 7-in-1 Dual Display MST Docking Station with HDMI®, DisplayPort™, Ethernet, USB and Power Delivery up to 100W - 4K 60Hz

This USB-C Dual Display MST docking station supports connected devices, such as keyboards, mice, portable hard drives and other peripherals, all while supporting up to 100W of power delivery to charge and power a laptop. The maximum power capacity depends on how much power the connected adaptor can supply. The right amount of power is necessary to keep the laptop battery charged for all connected devices to function and for the dock to provide that connectivity.

The MST feature allows for two different display configurations on dual monitors connected to a single source with a USB-C output. MST is great for multiple-display desk setup — improving multitasking and productivity. The MST dual display feature supports resolutions up to 1920 x 1080 at 60Hz. The docking station will support 4K (3840 x 2160) at 60Hz resolution when using the DisplayPort or HDMI port independently.

The USB-A ports support SuperSpeed USB 5Gbps data transfers, enabling a full HD movie to be downloaded in under a minute. The USB-C port supports SuperSpeed USB 10Gbps allowing for twice the amount of data in the same amount of time as the USB-A ports. Optimise performance by connecting displays designed for 1080p or 4K signals and USB-C devices designed for 10Gbps transfer speeds. The Ethernet port allows for reliable internet connectivity with file transfer speeds up to 1G.

USB-C® 9-in-1 Dual Display Docking Station

The USB-C 9-in-1 Dual Display Docking Station with HDMI, Ethernet, USB, 3.5 Audio and Power Delivery connects to USB-C or Thunderbolt™ 3 enabled laptops. It is perfect for contributing to a desktop solution - making it ideal for those extra connectivity demands that inside reps have for multitasking and increasing productivity while in the office or when working from home.

This USB-C Dual Display Docking Station supports connected devices, such as keyboards, mice, portable hard drives, and other peripherals, all while supporting up to 60W of power delivery to keep the laptop battery charged.

USB-C® 11-in-1 Hybrid DisplayLink and

DP Alt Mode Triple 4K

Docking Station

with HDMI®, DisplayPort™, Ethernet, USB, 3.5mm Audio and Power Delivery up to 100W

This docking station supports crisp, high-definition images and video when connecting one, two or three 4K displays. The front USB-A and USB-C 3.2 Gen 2 ports support BC 1.2 for quick mobile device charging and data transferring up to 10Gbps while the two USB-A Gen 1 ports on the rear support 5Gbps data transfers. The Ethernet port facilitates reliable internet connectivity with file transfer speeds up to 1000Mbps.

The 130W power supply keeps the connected laptop charged and ready to go with 100W power delivery while supporting connected devices, such as keyboards, mice, portable hard drives and other peripherals. The maximum power capacity depends on how much power the connected adaptor can supply. The right amount of power is necessary to keep the laptop battery charged for all connected devices to function and for the dock to provide that connectivity. Laptops or tablets that require more than 100W may charge at lower speeds.

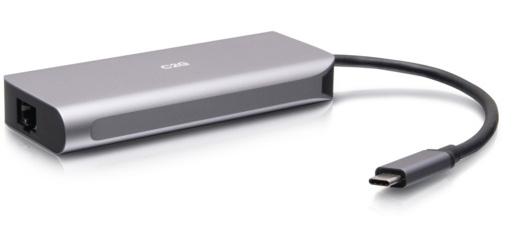

USB-C® 4.0 6-in-1 Mini Docking Station with HDMI®, USB-A, Ethernet and USB-C® 85W - 8K 60HZ

The C2G USB-C Mini Docking Station with HDMI, USB-A, Ethernet and USB-C Power Delivery connects to USB-C or Thunderbolt™ 3 and offers best-in-class video resolutions, supporting monitor resolutions up to 8K 60Hz. Utilising USB 4.0, it matches the performance of leading Thunderbolt™ 4 solutions on the market, providing the best technology at an affordable price without sacrificing performance.

USB-C Docks

USB–C Hub Multiport Adaptor (KDOCK-1)

• 4K@30 HDMI output

• USB 3.0

• USB–C charging pass–through

Kramer USB−C hub Multiport Adaptor and Ergonomic Laptop Stand

• 4K@60 HDMI output

• 4K@60 DisplayPort output

• USB 3.0 data and charging ports

• Ethernet port

• USB-C charging pass-through

• Headset + mic port

USB–C Hub Multiport Adaptor (KDOCK-3)

• 4K@30 HDMI output

• 4K@30 DisplayPort output

• USB 3.0 data and charging port

• Ethernet port

• USB–C data port and charging pass–through

USB–C Hub Multiport Adaptor

• 4K@60 HDMI output

• 4K@60 DisplayPort output

• USB 3.0 data and charging ports

• Ethernet port

• USB-C charging pass-through

• Headset + mic port

• Supports HDMI and DisplayPort video outputs

• Supports USB 5G speed connection between host and docking station

• Supports Ethernet 1Gbps

• Includes a 3.5mm headset jack

KDock-6 is a USB-C hub multiport adaptor and ergonomic laptop stand. It has adjustable height and positioning and is an ideal accessory for MacBooks, laptops equipped with USB Type-C and tablets. KDock-6 can connect your USB-C device to HDMI™, DisplayPort video outputs, 3 USB 3.2 Gen 1 ports, an Ethernet port, an audio and microphone port and USB−C charging pass−through port.

The bracket and dock are affixed with magnetic suctions and buckles. Users can choose to use them separately or together according.

The laptop holder contains holes for heat dissipation and rubber sheets for easier gripping.

USB-C Docks

Lindy DST-Pro 5K XT, USB-C Laptop Docking Station with Triple Display (4K) or Single Display (5K) & 100W Pass-Through Charging

• Connects an HDMI and/or up to 2 DisplayPort displays, USB peripherals and power over a single cable

• Supports 5K 60Hz for a single DisplayPort display or 4K 60Hz for a single HDMI display

• Integrated 4 port USB SuperSpeed 5Gbps Hub (3x Type A, 1 x Type C)

• USB power delivery capable of up to 100W

DST-Pro Universal Laptop Docking Station | USB-C & USB-A | 3x 4K HDMI®/DP | 100W PD

Lindy DST-Mini USB-C Laptop Mini Docking Station with 4K Support & 100W Pass-Through Charging

• Inputs: 1 x USB Type C (Male)

• Outputs: 1 x USB Type C (Female), 1 x VGA (Female), 1 x RJ45 (Female), 1 x SD slot and 1 x MicroSD slot

• Power: 1 x USB Type C PD (Female)

• Power delivery: PD 3.0 up to 100W (20V 5A)

DST-Mini XT 810 Laptop Docking Station | USB-C | 1x 8K DP, 2x 4K HDMI®/DP | 100W PD

• Connects an HDMI and/or a DisplayPort display, USB peripherals and power over a single cable

• Supports 8K 30Hz for a single display or 4K 60Hz for two displays (MST)*

• Integrated 3-port USB SuperSpeed 10Gbps Hub (2 x Type A, 1 x Type C)

• USB power delivery up to 100W

• Interface: USB Type C to 3x USB Type A, 2x USB Type C, 1x RJ45, 3x HDMI®, 2x DP, 1x 3.5mm Audio

• Supported Bandwidth: HDMI® 1.4 with 10.2Gbps, DP 1.2 (21.6Gbps), USB 3.2 / 3.1 up to 10Gbps, Gigabit LAN (10/100/1000Mbps)

• Maximum Input Resolution: 3840x2160 60Hz

• Maximum Output Resolution:

• Single Display: 3840x2160@60Hz

• Dual Display: 3840x2160@60Hz; HDMI®3: 4K30Hz (DP Alt Mode)

• Triple display: 2x 4K 60Hz, 1x 4K 30Hz (on HDMI®3)

• Chipset: DL6950, PS8822, PS176, VL103R, VL162, VL162, VL817, VL822, RTL8211F

• Compatibility: USB Type C/A or Thunderbolt Type C equipped computers; Windows, macOS, Linux, Android, Chrome OS

• Power Delivery: PD 3.0 up to 100W (20V 5A)

DST-Pro USB-4, USB-C Laptop Docking Station

• Connects an HDMI and/or a DisplayPort display, USB peripherals and power over a single cable

• Supports 8K 30Hz for a single display or 4K 60Hz for two displays (MST)*

• Integrated 4-port USB SuperSpeed 10Gbps Hub (3 x Type A, 1 x Type C)

• USB power delivery up to 100W

USB Extension Over CAT or Fibre Cable

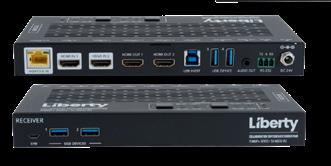

TeamUp+ Series Dual or Single Screen Collaboration Switcher / Extender / Hub

• Switch AV & USB sources on both sides of HDBT circuit, including dual screen support from the RX for BYOM applications

• Dual AV plus USB host inputs on RX support Room PC’s located at display location

• Use as a 2x1 stand alone or 4x2 collaboration switcher

• Supports uncompressed HDMI 2.0 4K video over HDBaseT3.0 and USB 2.0 High speed with Isochronous support for max camera compatibility

• Switch between HDMI & USB-C on TX or RX. USB-C supports full functionality including AV (ALT-DP), USB data & device charging power

• USB3.0 Hub and switching auto switches for BYOM environments

• Auto switching, TCP/IP or RS232 controllable

• EDID & HDCP management options built into WebGUI

• Built in display control with scheduling capability for powering on/off connected displays

• TU-HUC42-KIT is a kit sku that includes TX part number TUHUC42-TX and RX part number TU-HUC42-RX. These can be purchased individually as well

• For reliable, full featured performance, and to support all resolutions / capabilities of all HDBaseT 3.0 devices, shielded Cat6A U/FTP or above must be used

• TAA Compliant

USB 2.0 High Speed High Performance Twisted Pair Extender Set

• Extends USB high-speed (480 Mbps) up to 100 m (330 ft) & supports isochronous data for use with USB cameras

• Includes transmitter and receiver

• Can be powered at either the client or host device

• Uses any CAT5e/6/6A twisted pair cabling

• Supplies 500mA to USB devices

• Can also be used to extend USB 1.1 signals

• Transparent USB; Plug & Play (no software drivers needed)

• Compatible with all major operating systems

Intelix Series USB3.2 over HDBaseT Client Side Extender with DisplayLink

• Client / Remote 100m HDBaseT extender over Cat6A or above

• Built in DisplayLink technology offers screen extend support for PCs & Macs with DisplayLink drivers

• USB-A & C client ports and dual HDMI outputs

Liberty Intelix Series USB 2.0 High Speed Extension with Isochronous Data Support up to 50m

• Uses HDBaseT USB Data only technology

• Supports USB3.2 Gen 1 data to Host extender

Intelix Series USB3.2 Gen 1 Extender Host

• Host Side Box format with 1 USB-B Host and 2 USB-A client ports

• Extension of USB 3.2 Gen1 5Gbps data transfer

• Backwards compatible USB 2.0 and 1.1

• Supports all transfer types including isochronous and bulk transfer

• Plug-and-play operation

• RS-232 passthrough

• Supports bidirectional 24V POC (power over cable)

• TAA Compliant

Ranger 2301

• Supports USB 2.0 and USB 1.1

• 1-port USB extension

• Extend up to 100m over CAT5e or better

• Up to 480Mbps

Ranger 2304

• Compatible with USB 3.0, 2.0 and USB 1.1

• 4-port USB extension

• Extend up to 100m over CAT5e or better

• Speeds up to 480Mbps

Raven 3124

• Supports all 3, 2 and 1.1 devices simultaneously at full bandwidth

• 4 USB 3.1 ports at up to 5Gbps

• Extend up to 200m over OM3 ultimode Fiber cable

• 100Mbps Ethernet channel

Ranger 3204C Pro

• 4-port USB 3, 2 and 1.1 devices simultaneously up to 5Gps (shared)

• Extend up to 200m across 10GbE LAN

• Extend up to 100m through single CAT6a/7 cable

• 1Gb Ethernet pass-through

00-00378 ICRON0000378

2.0 Ranger 2304GE-LAN - UK

00-00465 ICRON0000465 USB 2.0 Ranger 2304PoE

00-00393 ICRON0000393 USB 2.0 Ranger 2301 - UK

00-00398 ICRON0000398 USB 2.0 Ranger 2301GE-LAN - UK

00-00403 ICRON0000403 USB 2.0 Ranger 2311 - UK

00-00408 ICRON0000408

00-00413 ICRON0000413

2.0 Ranger 2312 - UK

2.0 Ranger 2324 - UK

00-00418 ICRON0000418 USB 2.0 Ranger 2344 - UK

00-00439 ICRON0000439 USB 3-2-1 Raven 3124 - UK

00-00478 ICRON0000478 Icron USB3-2-1 Raven 3204C Pro - UK

00-00468 ICRON0000468 Icron Polaris 7044 Matrix - UK

00-00483 ICRON0000483 Icron USB 3 Raven 3301 ECO System - UK

00-00488 ICRON0000488 Icron USB 3 Raven 3301 System - UK

00-00493 ICRON0000493 Icron USB C Arbutus 63301 LEX - UK

00-00498 ICRON0000498 Icron USB C Arbutus 63301 REX - UK

00-00503 ICRON0000503 Icron HDMI Arbutus 53304 REX - UK

00-00508 ICRON0000508 Icron USB-C Arbutus 63304 REX - UK

00-00513 ICRON0000513 Icron USB 3 Raven 3304 System - UK Code

USB Extension over CAT or Fibre Cable

Lindy 100m Fibre Optic USB

3.2 Type C Extender

• Extends USB 3.2 Gen 2 connections up to 100m

• Supports data transfer rates up to 10Gbps

• Uses standard “off the shelf” LC duplex fibre cabling

• Resistant to RF & EM interference for use in highly sensitive areas

The extender is ideal for long distance use with remote desktop links, industrial control systems, surveillance control rooms and external storage applications.

The Fibre Optic USB 3.2 Type C Extender is supplied with a USB Type A to Micro-B cable which can be attached to a second USB port or to a USB power supply (not included).

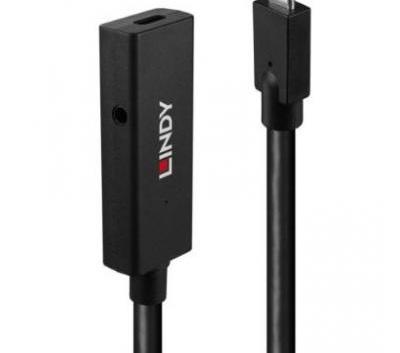

Lindy 30m Fibre Optic USB

3.0 Type A Male to A Female Extension Cable

• 30m Active Optical (AOC) USB 3.0 Cable, backwards compatible with USB 2.0/1.1

• Supports transfer rates up to 5Gbps

• Cascadeable up to 3 times – also in combination with the 100m version No. 43346

• Low RFI/EMI for sensitive environments

The cable supports far longer distances than standard copper cables whilst retaining SuperSpeed transfer rates of up to 5Gbps. Up to 3 cables can be connected in series up to a length of 90m. Plus, a combination with the 100m version No. 43346 is possible.

• Extends a single USB port up to 50m using a low-cost CAT.5e/6 network cable (not included)

• Power over cable requires a single power supply to be connected to the transmitter only

• Plug & Play installation

• Supports USB 2.0 High Speed and USB 1.1 Full Speed / Low Speed

• Extend 2 USB 2.0 ports up to 100m using low-cost CAT. 5e/6 network cable (not included)

• Bi-directional PoC (Power over Cable) requires a power supply connection from only one side of the installation

• Supports USB 2.0 High Speed and USB 1.1 Full Speed / Low Speed

• Plug & play installation

• USB Standard: USB 2.0

• Supported Bandwidth: 480Mbps

• Maximum Distance: 50m (164.04ft)

• Transmission Medium: CAT.5e/6 or higher network cable

• Chipset: LG-8311

• Special Features: Supports isochronous data transfer

This Lindy USB 2.0 CAT.6 Extender can be used to extend the distance between two USB peripheral devices and the host computer by up to 100m. A standard, low-cost CAT.5e/6 network cable (not included) is used to bridge the connection between the transmitter and the receiver unit. For best performance and compatibility, we recommend the use of solid core patched cables.

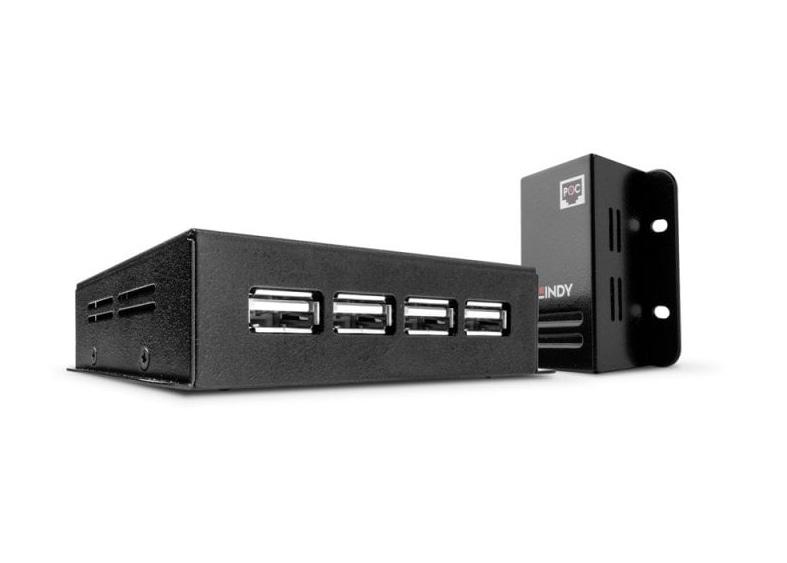

100m 4-port USB 3.2 Gen 1 CAT.6A HDBaseT Extender

The Lindy USB 3.2 Gen 1 CAT.6A HDBaseT Extender eliminates barriers, extending 4 USB connections up to 100m while maintaining class-leading performance. Perfect for applications such as industrial automation, healthcare, AV integration and retail, this powerful extender ensures seamless data transfer, device control and power delivery.

• Extend 4 USB 3.2 Gen 1 ports up to 100m using CAT.6A network cable (not included)

• Power over cable requires a single power supply to be connected to the transmitter or receiver only

• Supports USB 3.2 Gen 1 (USB 3.0) up to 5Gbps, USB 2.0/1.1 backwards compatibility, RS232 and FSYNC pass-through ports

• Plug & Play installation

This can be used to extend the distance between USB peripheral devices and 2 host computers by up to 100m. Supports multiple USB signals, control, bulk, interrupt and isochronous data transfer.

A standard Cat.6A or above network cable* (not included) is used to bridge the connection between the transmitter and the receiver unit at the maximum supported distance of 100m (328.08ft). It’s also possible to reach up to 40m using a Cat.6 cable.

The Extender features Power over Cable, which requires a single power supply only to be connected either to the transmitter unit or to the receiver unit. The Transmitter has 2 switchable host ports, one Type C and one Type B, with additional local device ports; 4 ports on the Receiver can provide 5V power as well to the connected devices: 2 Type A ports support up to 1.5A each, 1 Type A and 1 Type C ports support up to 1A each.

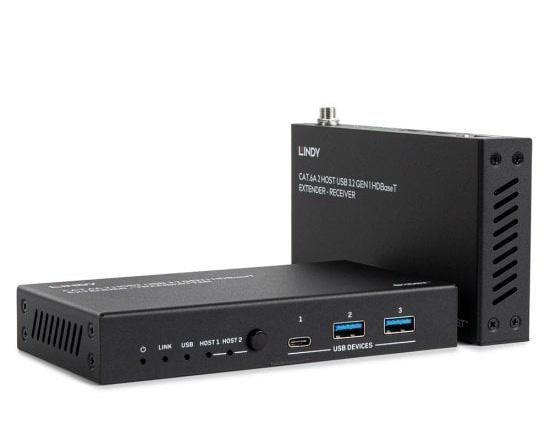

• Extend USB 3.2 Gen 1 signals from 2 hosts up to 100m using Cat.6A network cable (not included)

• Power over Cable requires a single power supply to be connected to the transmitter or receiver only

• Supports USB 3.2 Gen 1 (USB 3.0) up to 5Gbps, USB 2.0/1.1 backwards compatibility, RS232, APIs and FSYNC pass-through ports

• Plug & Play installation

This Lindy USB 2.0 CAT.6 Extender can be used to extend the distance between 4 USB peripheral devices and the host computer by up to 50m.

A standard, low-cost CAT.5e/6 network cable (not included) is used to bridge the connection between the transmitter and the receiver unit. For best performance and compatibility, we recommend the use of solid core patched cables.

The Extender features Power over Cable, which requires a single power supply only to be connected to the transmitter unit. This handy feature allows the receiver unit and connected devices to be located more freely as no power supply is required.

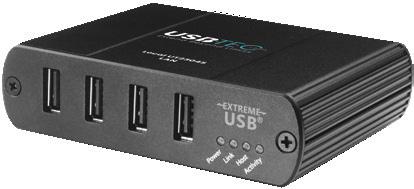

With robust metal housing and integrated mounting brackets, this Extender is the ideal solution for industrial environments.

• Extend 4 USB 3.2 Gen 1 ports up to 100m using CAT.6A network cable (not included)

• Power over cable requires a single power supply to be connected to the transmitter or receiver only

• Supports USB 3.2 Gen 1 (USB 3.0) up to 5Gbps, USB 2.0/1.1 backwards compatibility, RS232 and FSYNC pass-through ports

• Plug & Play installation

USB Extension over CAT/Fibre Cable & USB3 Extension Cables

C2G 1-Port USB-C Extender Transmitter to Receiver Kit – USB 3.2 Gen 1 (5Gbps) up to 10m

Code

C2G54278

• USB speeds: SuperSpeed 5Gbps, high speed, full speed and low speed

• USB bandwidth: up to 5Gbps

• Max number of USB devices: 30, including hubs

• Point-to-point range: 32.8ft (10m) CM-rated link cable

The 1-Port USB-C Extender Transmitter to Receiver Kit is a perfect solution for classrooms, conference rooms and huddle spaces needing an innovatively simple yet powerful solution for extending USB signals beyond their native 16.4-foot length limitation.

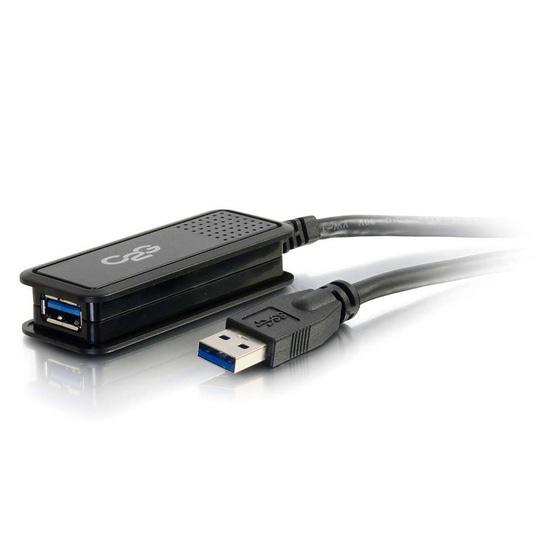

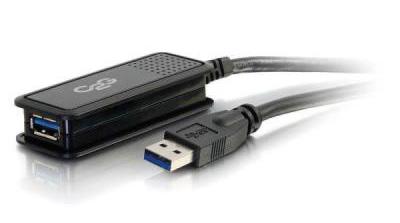

C2G 5m USB 3.0 USB-A Male to USB-A Female Active Extension Cable

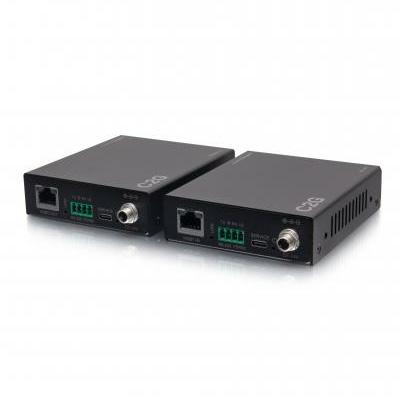

Superbooster® 4-port USB over CAT6a Extender Kit - USB 3.2 Gen1 (5Gbps)

C2G’s Superbooster 4-port USB over CAT6a Extender Kit – USB 3.2 Gen 1 (5Gbps) was designed to extend data from USB 3.2, 2.0 and 1.1 devices simultaneously up to 328ft (100m) over a single CAT6a F/FTP cable, making it a perfect solution for USB 3.2 conferencing cameras, interactive white boards, security and monitoring, remote storage and/or any other USB 3, 2 and 1 device.

Extend a USB 3.0 cable 5m from a desktop, laptop or remote terminal to a PTZ camera, an interactive display, hard drive or other peripheral device with this USB 3.0 active extension cable. This cable supports all USB 3.0 functionality with data transfer rates up to 5Gbps and the use of USB bus power eliminates the need for external power adaptors. This simple, one connection solution allows for quick, plug-and-play installation - encouraging productivity and simplifying device connectivity.

No software drivers are required, making installation quick and easy with true plug and play convenience. Simply connect the Transmitter to the source computer, extend with a single category cable and connect the Receiver to as many as 4 USB devices.

This Superbooster 4-port Extender Kit provides the ability to connect USB 3.2 Gen 1 (5 Gbps) device types and is backwards compatible to USB 2.0 and 1.1 across a point-to-point connection.

Tried and tested

This C2G Superbooster USB Extender has undergone rigorous compatibility testing with industry-leading video conferencing cameras, as well as solid state drives, docks, keyboards, mice and flash drives – ensuring total reliability and deployment confidence, plus, saving valuable time for AV integrators.

This package includes:

• 1x USB 3.0 Extender (Transmitter)

• 1x USB 3.0 Extender (Receiver)

• 1x 24V/2A Power Supply with US/EU/ UK/AU Plugs

• 2x 4pin-3.5mm Phoenix Connector (male)

• 4x Mounting Ear

• 8x Machine Screw (KM3*4)

USB-3 Extension Cables

USB Extension Cables

Kramer USB 3.1

Gen 2 Type C Male to Type A Female Adaptor Cable

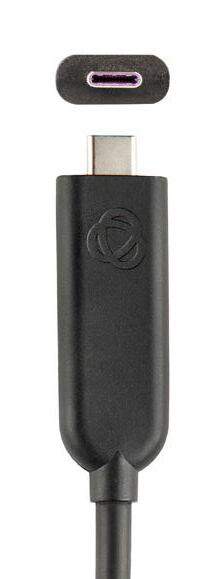

CA−USB31/CAE is an active extender cable designed to extend USB 3.1 GEN 2 (USB 3.2) signals. Typically, USB 3.1 GEN 2 cables have a maximum length of about 1m (3ft), CA−USB31/CAE enables cable lengths of up to 4.7m (15ft).

This bus−powered cable contains active electronics that enables it to extend without any signal loss or potential performance problems. With no need for an external power source, CA−USB31/ CAE is suitable for use with USB cameras‚ printers‚ webcams, Soundbar, keyboards, mice and more.

Note: This cable is for data transfer only, not for charging.

KRAMCUSB31CAE10 3m

KRAMCUSB31CAE15 4.6m

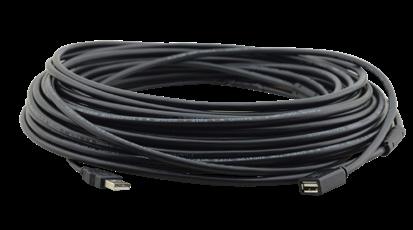

USB 3.0 A (M) to A (F)

Extension Cable

KRAMEXT3U3

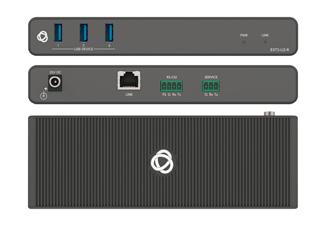

100m USB3.2 Gen1 Extender

• USB hub functionalty

• Three device ports at receiver unit

• RS232 and FSYNC signals passthrough extension

• PoE+ powered device

• Demi Tool form factor

Code Description

KRAMEXT3U3R USB3.2 Gen1 Receiver (devices Side)

KRAMEXT3U3T USB3.2 Gen1 Transmitter (Host Side)

KRAMEXT3UKIT

USB 2.0 PoC Extender Kit over Extended–Reach CAT

• 4-port USB 2.0 100m (330ft) extender kit

• Fast remote device charging

• Two-way powering

• Compact

KRAMPT3UC 4m Active USB 3.2 Extender

PT-3UC is an innovative active USB 3.2 extender that extends the USB cable distance between the host and the device by reclocking and equalising the USB signal. Placing PT-3UC in the transmission path removes dropout and digital noise (sparkles) in your installation that may result from using long USB cables.

KRAMCUSB3AAE3 0.9m Blue

KRAMCUSB3AAE6 1.8m Blue

USB 3.0 Type C Male to Type A Female Adaptor Cable

USB 3.0 Type C Male to Type A Female Adaptor Cable

Inputs: USB 3.2 Gen 2: On a USB type-C female connector

Outputs: USB 3.2 Gen 2: On a USB type-C female connector

General: Max. Data Rate: 10Gbps

Max: video resolution 4K@60

Max output power: 2.5A (12.5W)

Max. range: 10Gbps - 4m, 2m to PT-3UC, 2m to device

Backwards compatibility: USB 3.0, 2.0, 1.1

Power: Self consumption: ≤ 1W

USB-2 Extension Cables

USB Extension Cables

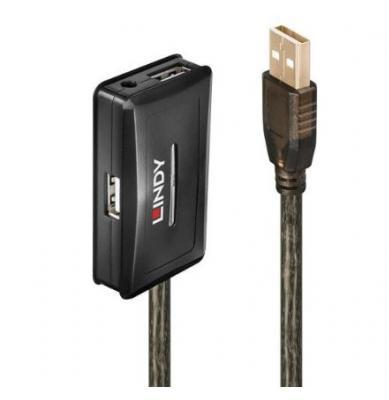

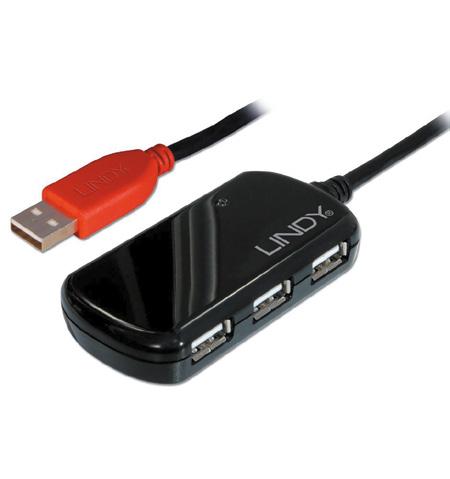

• High performance hub with active cable that provides an extended 12m connection between a computer and up to 4 USB 2.0 devices

• Can be used standalone or as part of the Lindy Active Extension System Pro to create bespoke extension systems of up to 60m

• Supports USB 2.0 high speed bandwidth for speeds of 480Mbps

• USB A Male to 4x USB A Female

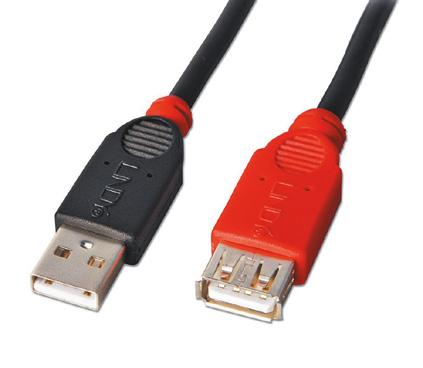

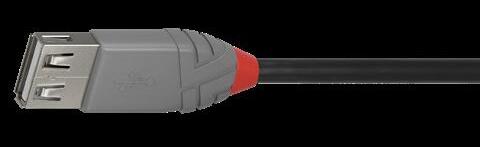

USB 2.0 type A Male to A Female Cables, Anthra Line

LINDY36700 0.2m Grey/Black

LINDY36701 0.5m Grey/Black

LINDY36702 1m Grey/Black

LINDY36703 2m Grey/Black

LINDY36704 3m Grey/Black

LINDY36705 5m Grey/Black

• Extend the cable length of up to 4 USB 2.0 devices by 10m

• Supports USB 2.0 high speed transfer rates of up to 480Mbps

• For even greater distances simply connect 2 USB 2.0 Active Extension Hubs in series

• Plug & play

USB-2 & USB-3 Male to Male Cables

LINDY36671 0.5m Grey/Black

LINDY36672 1m Grey/Black

LINDY36673 2m Grey/Black

LINDY36674 3m Grey/Black

LINDY36675 5m Grey/Black

LINDY36676 7.5m Grey/Black LINDY36677 10m Grey/Black

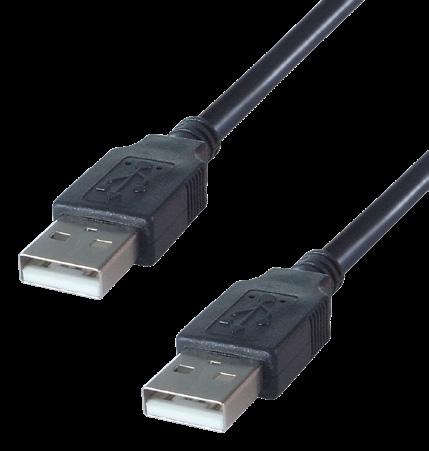

USB 2.0 A Male to A Male Cable

FFUSB2AM-AM2 2m Black

FFUSB2AM-AM3 3m Black

FFUSB2AM-AM5 5m Black

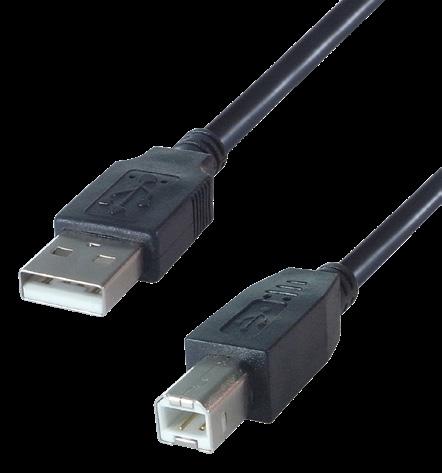

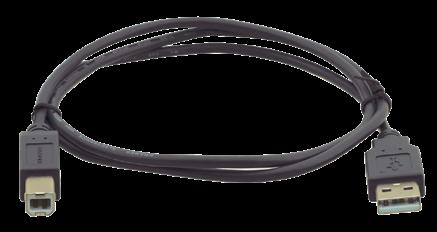

USB 2.0 A Male to B Male Cable

FFUSB2AM-BM1 1m Black

FFUSB2AM-BM2 2m Black

FFUSB2AM-BM3 3m Black

FFUSB2AM-BM5 5m Black

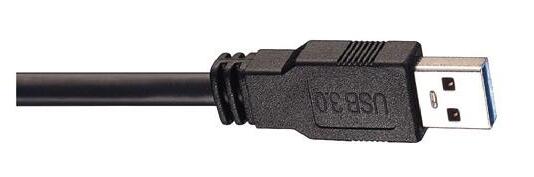

USB 3.0 type A Male to B Male Cable More USB 3 cables available on request

C2G USB 2.0 Type A Male to B Male Cable

C2G USB 2.0 Type A Male to B Male Cable

FFUSB3AM-BM2 2m Black

2m White

C2G USB 3.0 Type A Male to B Male Cable

USB Male to Male Cables & USB Switcher

USB-2 Adaptors and Port Blockers

Product name

NEUNAUSB3

Reversible USB 3.0 gender changer (Type A and B), Nickel D-housing

NEUNAUSB3B Reversible USB 3.0 gender changer (Type A and B), black D-housing

NEUNAUSB Reversible USB 2.0 gender changer (Type A and B), Nickel D-housing

NEUNAUSB-W-B Reversible USB 2.0 gender changer (Type A and B), black D-housing

USB 3.2 Type A Female to C Male Adapter

• Connects a USB Type A cable to a USB Type C device

• Robust PVC housing and nickel connectors

• Compact size, perfect for use when travelling or in discreet installations

• Supports USB data transfer speeds up to superspeed USB 10Gbps

USB 3.2 Type A Male to C Female Adapter

• Turn a USB Type A port into a USB Type C port to connect peripherals with USB Type C connector to devices with built-in USB Type A ports

• Robust TPE housing, nickel connectors and gold-plated contacts

• Compact size, perfect for use in discreet installations

• Supports data transfer speeds up to superspeed USB 10Gbps (USB 3.2 Gen 2, backwards compatible with USB 2.0, 1.1)

USB 2.0 Type A Male to Type C Female Adaptor

Code

Pack of 4 USB Type A Port Blockers & 1 Key

Code Description

LINDY40450 Pink pack of 4 USB Type A Port Blockers & 1 Key

LINDY40451 Green pack of 4 USB Type A Port Blockers & 1 Key

LINDY40452 Blue pack of 4 USB Type A Port Blockers & 1 Key

LINDY40453 Orange pack of 4 USB Type A Port Blockers & 1 Key

LINDY40454 White pack of 4 USB Type A Port Blockers & 1 Key

Pack of 10 USB Type A Port Blockers without Key

Code Description

LINDY40460 Pink Pack of 10 USB Type A Port Blockers (without Key)

LINDY40461 Green Pack of 10 USB Type A Port Blockers (without Key)

LINDY40462 Blue Pack of 10 USB Type A Port Blockers (without Key)

LINDY40463 Orange Pack of 10 USB Type A Port Blockers (without Key)

LINDY40464 White Pack of 10 USB Type A Port Blockers (without Key)

USB Charging

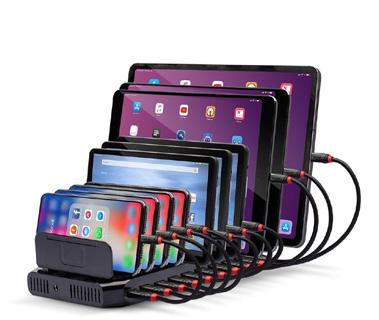

96W 10-Port USB Charging Station

• Simultaneous charging of up to 10 tablets, mobile phones and other USB devices

• Max. 2.4A charging per port, simultaneous use of all 10 ports allows max. 1.8A charging per port

• Smart charging function adjusts the current for optimum, safe charging

• Battery Charging Standard 1.2 supports fast charging & Apple Charging Protocol

100W 4-Port USB Type A & C GaN Charger

• Charges and powers multiple devices simultaneously via multiple USB Type C and USB Type A ports

• 100W power delivery via the USB Type C ports provide fast charging for smartphones, tablets, laptops and other mobile devices

• Compact design for maximum mobility

• Built-in safety features such as overvoltage and overcurrent protection

160W 6-Port USB Charging Station

• Simultaneous charging of up to 6 tablets, smartphones and/or a laptop or MacBook with up to 140W or other USB Type A and Type C devices

120W 10-Port USB Charging Station

• Simultaneous charging of up to 10 tablets, smartphones and other USB devices

• Max. 5V 2.4A charging per USB Type A port, max. 5V 3A charging per USB Type C port

• Smart charging function adjusts the current for optimum, safe charging

• Battery Charging Standard 1.2 supports fast charging, Apple Charging Protocol, QC 3.0 and Samsung AFC 9V supported

• Max. 5V 2.4A charging per USB Type A port, max. 30W or 140W charging per USB Type C port

• Supports USB power delivery: 2x PD 3.0 up to 30W each and 1x PD 3.1 up to 140W

C2G Dual USB-C Power Adapter (UK, EU, US) - 65W

30W USB Type A & C Charger UK Plug

• Charges and powers multiple devices simultaneously via multiple USB Type C and USB Type A ports

• 100W power delivery via the USB Type C ports provide fast charging for smartphones, tablets, laptops and other mobile devices

• Compact design for maximum mobility

• Built-in safety features such as overvoltage and overcurrent protection

With its sleek and elegant design, the 65W Dual USB-C Power Adapter from C2G combines style, functionality, and reliability, making it a must-have for professionals, students, and travelers alike. Stay powered, protected, and connected wherever you go!

• Delivers up to 65W of total power, allowing simultaneous charging of two devices with efficient and reliable performance.

• Compatible with top laptop brands, including Apple®, Microsoft® Surface®, and other leading laptops and tablets.

• Battery Charging Standard 1.2 supports fast charging, Apple Charging Protocol, QC

3.0/4.0 and Samsung AFC supported

• Battery Charging Standard 1.2 supports fast charging, Apple Charging Protocol, QC 3.0/4.0 and Samsung AFC supported

• Travel-Friendly Design with foldable AC prongs and interchangeable plugs (UK, EU, US) make it ideal for global use.

• Supports multiple voltage levels, including 5V, 9V, 15V, and 20V, ensuring compatibility with a wide range of devices.

• Advanced Safety Protections – Includes overcurrent, overvoltage, overload, short circuit, and over-temperature protection for safe and reliable charging.

HDMI Adaptor Rings

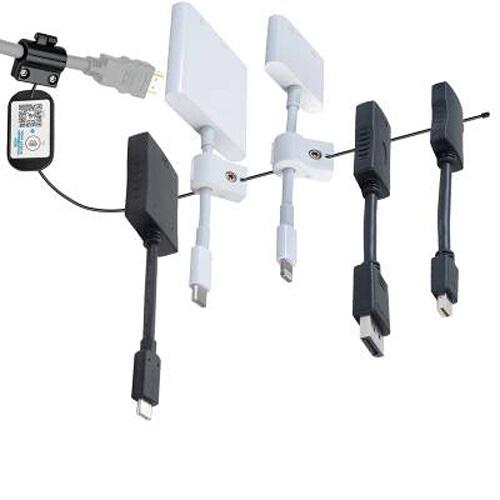

HDMI Adaptor Ring with 1 Adaptor, Tailed USB C Male to HDMI Female

FFDL-AR1882 includes:

• 1 Adaptor Cable USB-C male to HDMI female 9in long (AR-UCM-HDF)

• 1 Base security clamp, cable and hardware for DL-AR system

• 1 Adaptor Cable USB-C male to HDMI female 9in long (AR-UCM-HDF)

• 1 Base security clamp, cable and hardware for DL-AR system

HDMI Adaptor Ring with 1 Adaptor Cable, Apple USB Type C Male to HDMI Female

FFDL-AR2765 includes:

• MJ1K2AM/A1 Apple-certified Adaptor USB-C to HDMI w/USB A Port (MJ1K2AM/A)

• DL-AP1 Security clamp to attach Apple Adaptors to DL-AR system (DL-AP)

• DL-CL1 Base security clamp, cable and hardware for DL-AR system

FFDL-ARDA

DL-ARDA includes:

• 1 Adaptor Cable DisplayPort male to HDMI female 5 inches long (AR-DPM-HDF)

• 1 Adaptor Cable Mini-DisplayPort Male to HDMI Female 8 inches long for Thunderbolt® (AR-MDPM-HDF)

• 1 Apple Certified Adaptor Lightning (M) to HDMI (F) and Lightning (F) to Power Device (MD826AM/A)

• 1 Apple USB Type-C Adaptor (MUF82AM/A)

• 1 Adaptor Cable USB “C” male to HDMI female 5 inches long (AR-UCM-HDF)

• 2 Security Clamp to attach Apple Adaptors to DL-AR System (DL-AP2)

• 1 Adaptor Line Clamp and Security Cable

DL-ARDA includes:

• 1 Adaptor Cable DisplayPort male to HDMI female 5 inches long (AR-DPM-HDF)

• 1 Adaptor Cable Mini-DisplayPort Male to HDMI Female 8 inches long for Thunderbolt® (AR-MDPM-HDF)

• 1 Adaptor Cable USB “C” male to HDMI female 5 inches long (AR-UCM-HDF)

• 1 Adaptor Line Clamp and Security Cable

Features and Benefits

• New, updated ‘line-style’ easily tucks away into table boxes.

• AdaptorLine (tether) is made of durable stainless steel.

• Faster and more convenient to add or remove adaptors. Undo one wire end to add/remove adaptors. Opposite end has fixed cap.

• Simple to attach the individual adaptors to the HDMI cable head - no awkward twisting.

• New die cast aluminium clamp (DL-CL2) is smaller and stronger with metal hinge and clasp.

• The clamp and line use the same torx screw as previous adaptor rings. No need to have separate allen wrench, saving assembly time.

• US Patent No. 9,784,338 and 10,041,565

Kramer HDMI Adaptor Rings

AD−RING is a stainless steel ring of HDMI adaptors that attaches to your display cable so you can plug different presentation sources into the HDMI cable.

Code Description

KRAMTLRING

UK Part Number

KRAMADRING11

KRAMADRING12

TL-RING is a tool set used for installing or modifying Kramer’s AD-RING HDMI adapter ring

Included Adaptors Resolution

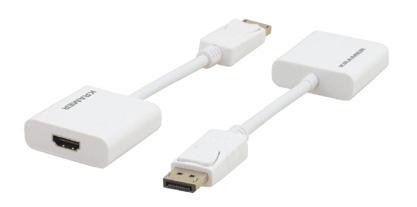

Display Port (M) to HDMI (F); Mini DisplayPort (M) to HDMI (F) (for Thunderbolt); USB type–C (M) to HDMI (F)

Included Cable (12.7 cm) adaptors: Display Port (M) to HDMI (F); Mini DisplayPort (M) to HDMI (F) (for Thunderbolt); USB type–C (M) to HDMI (F)

Display Port/ Mini DisplayPort (M) to HDMI (F)-1080P@60^ USB type–C (M) to HDMI (F)-4K@30

Display Port/ Mini DisplayPort (M) to HDMI (F)-1080P@60^ USB type–C (M) to HDMI (F)-4K@30

KRAMEXT3CWPRTUK 4K60 4:4:4 USB–C Wall–plate Transmitter with USB, Ethernet, RS–232, & IR over Extended–Reach HDBaseT 3.0

• Uncompressed 4K@60Hz (4:4:4) HDMI and USB 2.0 extension

• Full USB-C docking with up to 60W charging

• WW wall-plate offering

• Up to 100m (330ft) reach

• PoE acceptor

EXT3-C-WP-XR-T USB-C transmitter is a high-performance, extended-reach HDBaseT 3.0 transmitter for 4K60Hz (4:4:4) HDMI, USB, Ethernet, RS–232, and IR signals over twisted pair. The EXT3-C-WP-XR-T transmitter converts all input signals into the transmitted HDBaseT 3.0 signal and extends it over HDBT to a compatible receiver. The EXT3-C-WP-XR-T transmitter accepts power over the copper extension cable from a PoE provider remote device.

HDMI Rings and BYOD

While Stocks last

Kramer Spider

The Kramer Spider is an active MultiFormat Adaptor array supporting the most common BYOD source formats.

It’s simple and elegant but incredibly powerful. The Spider supports input resolutions up to full 4K60Hz 4:4:4 with connectivity for DisplayPort, Mini DisplayPort, USB-C and of course HDMI.

connected device and comes with a 3M lead to

• HDMI: On a male HDMI connector over 6.5cm (2.5”) pigtail

• USB-C: On a male USB type–C port over 6.5cm (2.5”) pigtail

• DisplayPort: On a male DisplayPort connector over 6.5cm (2.5”) pigtail

SWT3-31-HU

3x1 4K60 USB-C/HDMI Switcher

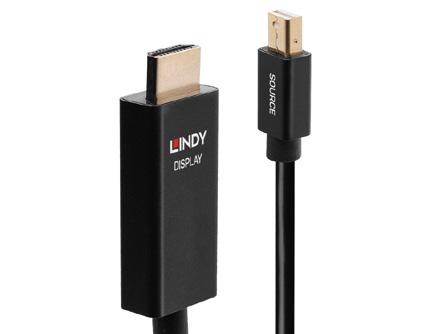

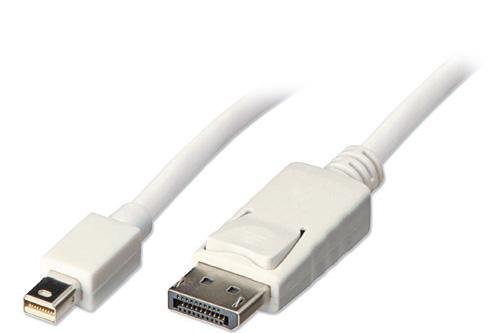

• Mini DP: On a male mini DisplayPort connector over 6.5cm (2.5”) pigtail

SWT3-31-HU is a high-performance auto-switcher with one USB-C and two HDMI/USB inputs and HDMI output. The connected USB peripherals, such as a room camera and microphone, are switchable for use of the active USB host, for convenient hybrid meeting operation with both room and online participants.

• 4K60 4:4:4 AV and USB 3.2 coupled signals switching

• Built-in USB-C docking

• PoE powering

• Secured remote control and management

4K60 4:4:4 Receiver with Bidirectional PoE, USB, Ethernet, RS–232, & IR over Extended–Reach HDBaseT 3.0

EXT3–POE–XR–R is a high-performance, extended-reach HDBaseT 3.0 receiver for 4K60Hz (4:4:4) HDMI, USB, Ethernet, RS–232, and IR signals and 2–way powering over twisted pair. EXT3–POE–XR–R receiver receives the HDBaseT 3.0 signal and converts it back into the original input signals. It extends video signals to up 100m (330ft) over CAT copper cables at up to 4K@60Hz (4:4:4) video resolution.

This receiver either provides power over the copper extension cable to a POE (Power over Ethernet) acceptor device, or accepts PoE through the extension cable from a PoE provider remote device, as auto–sensed by the receiver.

• Uncompressed 4K@60Hz (4:4:4) HDMI extension

• Bidirectional PoE (Power over Ethernet/HDBaseT)

• Flexible USB 2.0 host & devices extension

• 1Gbps Ethernet extension

• Up to 100m (330ft) reach

HDMI Cables

• Higher video resolutions support a range of high resolutions and faster refresh rates including 8K60Hz and 4K120Hz for immersive viewing and smooth fast-action detail.

• Dynamic HDR support ensures every moment of a video is displayed at its ideal values for depth, detail, brightness, contrast and wider colour gamuts— on a scene-by-scene or even a frame-by-frame basis.

• The Ultra High Speed HDMI Cable supports the 48G bandwidth for uncompressed HDMI 2.1 feature support.

• eARC simplifies connectivity, provides greater ease of use, and supports the most advanced audio formats and highest audio quality.

• Enhanced refresh rate features ensure an added level of smooth and seamless motion and transitions for gaming, movies and video. They include:

• Variable Refresh Rate (VRR) reduces or eliminates lag, stutter and frame tearing for more fluid and better detailed gameplay.

• Quick Media Switching (QMS) for movies and video eliminates the delay that can result in blank screens before content is displayed.

• Quick Frame Transport (QFT) reduces latency for smoother no-lag gaming, and real-time interactive virtual reality.

• Auto Low Latency Mode (ALLM) allows the ideal latency setting to automatically be set allowing for smooth, lag-free and uninterrupted viewing and interactivity.

High Speed Black HDMI Cable with Ethernet

48Gbps

THE INTELLIGENT CABLE CHOICE

GOLD LINE

ULTRA HIGH SPEED HDMI

Ultimate performance certified Ultra High Speed HDMI cable. Supports resolutions up to 10240x4320 4:2:0 12bit

Full metal 24K gold plated housing, 24K gold plated connectors and contacts. Low attenuation triple shielded cable, corrosion resistant, high performance conductors.

Code Length Colour

LINDY37601 1M GOLD

LINDY37602 2M GOLD

LINDY37603 3M GOLD

LINDY37604 5M GOLD

CROMO LINE

HIGH SPEED HDMI

Cromo Line HDMI Cables feature corrosion resistant tinned copper conductors to deliver resolutions up to 4096x2160@60Hz over distances up to 10m.*

LINDY37871 1M CHROME/ANTHRACITE

LINDY37872 2M CHROME/ANTHRACITE

LINDY37873 3M CHROME/ANTHRACITE

LINDY37874 5M CHROME/ANTHRACITE

LINDY37875 7.5M CHROME/ANTHRACITE

LINDY37876 10M CHROME/ANTHRACITE

ANTHRA LINE

HIGH SPEED HDMI

Ultra High Speed HDMI Cable for commercial and high performance AV and IT installations. Supports resolutions up to 10240x4320 4:2:0 12bit.

Code Length Colour

LINDY36951 0.5M ANTHRACITE/BLACK

LINDY36952 1M ANTHRACITE/BLACK

LINDY36953 2M ANTHRACITE/BLACK

LINDY36954 3M ANTHRACITE/BLACK

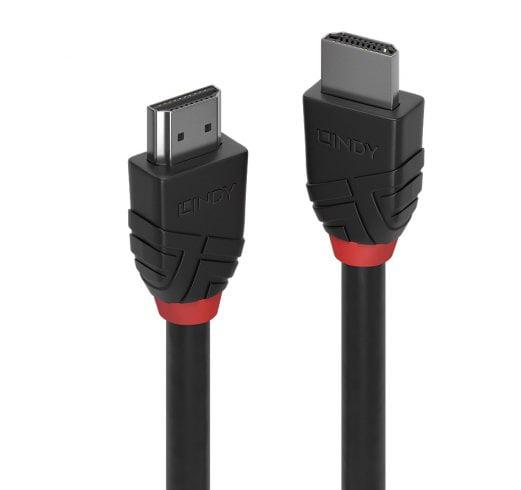

Black Line HDMI Cables feature copper coated steel conductors capable of transmitting resolutions up to 4096x2160@60Hz. ACTIVE

Lindy’s Active HDMI 2.0 18G cables combine sleek, modern design with superior performance to provide high quality, reliable HDMI transmission over longer distances.

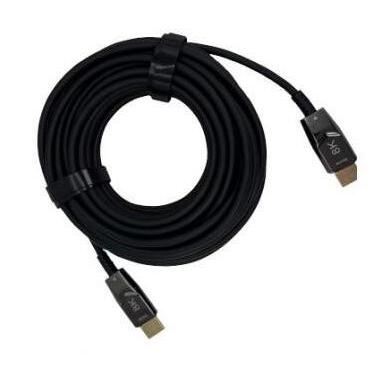

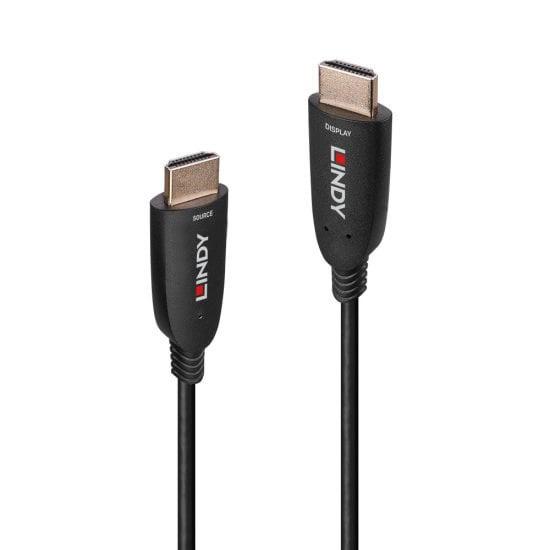

FIBRE OPTIC HYBRID HDMI 8K60 CABLE

Lindy's range of Fibre Optic Hybrid cables are a professional solution for extending signals over longer distances. Combining the flexibility and high EMI & RFI resistance of fibre optic cable with standard copper cabling, these hybrid cables are ideal for use in critical AV setups, commercial displays or high-performance residential solutions.

Armoured Fibre Optic Hybrid HDMI 8K60Hz

Cables

Code Length

LINDY38527 10m

LINDY38528 15m

LINDY38529 20m

LINDY38530 30m

LINDY38531 50m

LINDY38532 70m

LINDY38533 100m

Lindy's range of Armoured Fibre Optic Hybrid cables are a professional solution for extending HDMI® signals over longer distances. The construction of this extreme, rugged HDMI® hybrid cable has under-the-cable sheath aramid fibres and an additional armoured jacket, maintaining a good flexibility and high EMI & RFI resistance. These hybrid cables are ideal for use in critical AV setups and professional installation such as live events and trade shows.

The maximum pulling force supported is up to 100N with a crush resistance up to 2000N, whilst with a 6mm diameter, the cable is very thin despite the aramid fibres and the steel jacket under the TPE sheath. The connectors are also extremely rugged with gold plated pins, they are enclosed from special protective sleeves, secured against transport damage.

The internal technology provides uncompressed amplification of the HDMI® signal, allowing long distance extension of HDMI® 8K content that is simply not possible with passive cables.

With 48Gbps bandwidth, these cables support HDMI® 2.1 resolutions up to 3840x2160@120Hz and 7680x4320 / 10240x4320@60Hz. Content can be viewed with incredible detail and clarity at higher refresh rates for optimum viewing of movies, graphics or imagery.

As well as static HDR, HDMI® hybrid cables also bring further support for dynamic HDR formats such as Dolby Vision and HDR10+. This provides every moment of content whether scene by scene or even frame by frame, with a much wider colour gamut based on the BT.2020 colour space, higher peak brightness and deep blacks for optimum contrasts, as well as greater depth of colour.

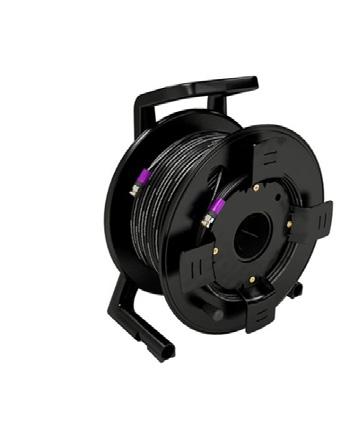

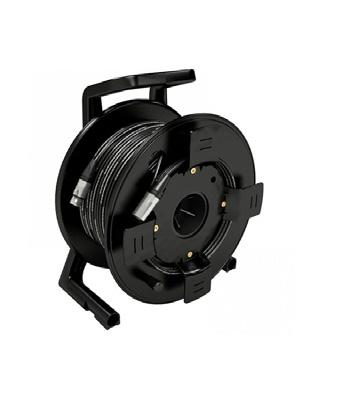

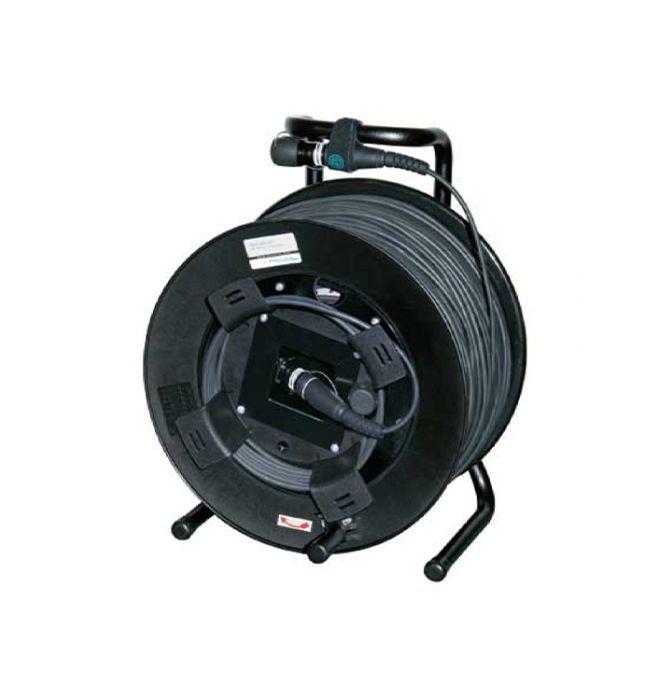

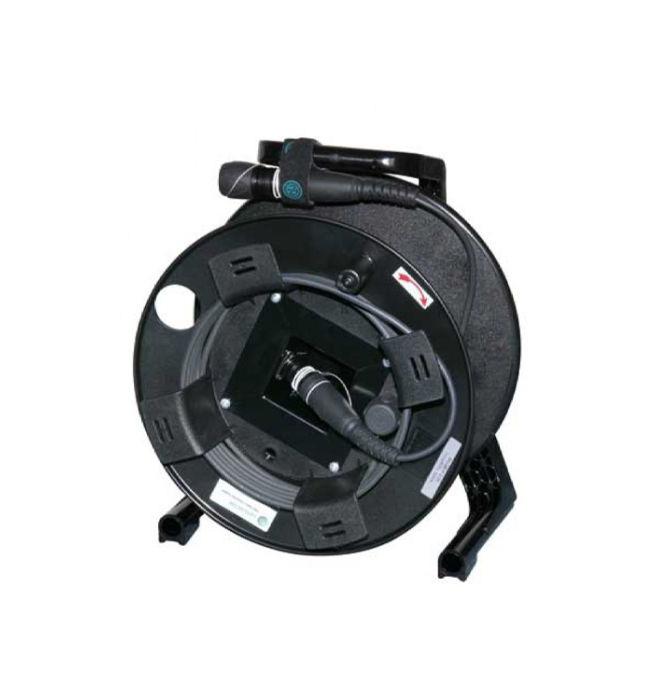

Provided with spool for better handling.

Please note: eARC/ARC and CEC functions are not supported for lengths over 30m.

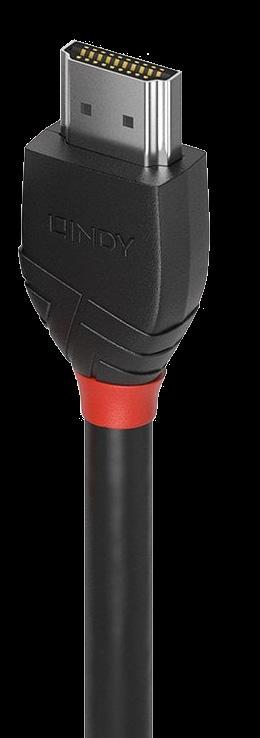

8K60Hz HDMI Cable, Black Line

• Entry level HDMI cable for home and small office applications

• Supports UHD resolutions up to 7680x4320@60Hz 4:4:4 10bit

• Robust PVC housing, nickel connectors, gold flashed contacts

• Triple shielded cable, corrosion resistant copper coated steel 30AWG conductors

• Supports 3D, 8K, 48Gbps, HEC, ARC, EARC CEC, Dolby True HD, DTS-HD Master Audio, Dolby Atomos, DTS:X

Code Description

LINDY36770 0.5m 8K60Hz HDMI Cable, Black Line

LINDY36771 1m 8K60Hz HDMI Cable, Black Line

LINDY36772 2m 8K60Hz HDMI Cable, Black Line

LINDY36773 3m 8K60Hz HDMI Cable, Black Line

LINDY36774 5m 8K60Hz HDMI Cable, Black Line

LINDY37255 7.5m 8K60Hz HDMI Cable, Black Line

LINDY37256 10m 8K60Hz HDMI Cable, Black Line

8k120Hz Ultra High Speed HDMI Cable, Anthra Line

• Professional choice Ultra High Speed HDMI® cable for commercial and high performance AV and IT installations

• Supports resolutions up to 10240x4320@120Hz 4:2:0 12bit or 7680x4320@60Hz 4:4:4 12bit

• 10k 120Hz resolution with DSC, 8k120Hz without DSC

• Robust PVC housing, 24K gold plated connectors and contacts

• Triple shielded cable, corrosion resistant copper 30AWG conductors

Description

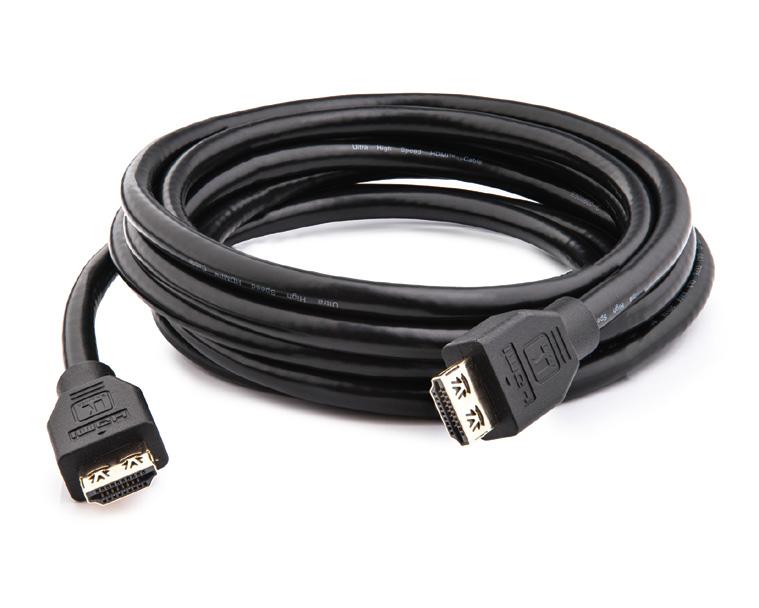

Kramer 8K@60Hz and Rental HDMI Cables

• Max. Data Rate: 48Gbps

• Max. Resolution: 8K@60Hz

• Short Connectors

• K–Lock Connectors

• Lengths — 0.9–4.6m

Ultra High–Speed HDMI Optic Hybrid Cable — LSHF

• Max. data rate: 48Gbps

• Max. resolution: 8K@60Hz

• Low Smoke & Halogen Free

• K–Lock connectors

• Lengths 10-100M (33-328ft)

• No external power required

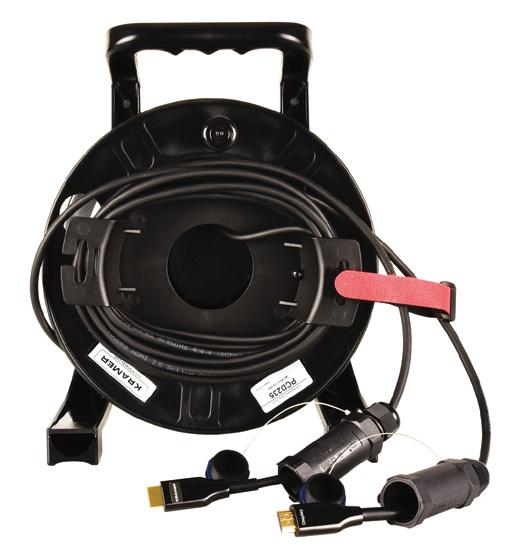

Active Optical Armoured 4K HDMI Cable

• Low Smoke & Halogen Free

• 4K@60 (4:4:4) 18 Gbps for all lengths

• Extremely Durable

• Armoured Optical HDMI cable designed for Rental and Staging use

KRAMCAOCHUF164

Kramer High-Quality HDMI Cables for Premium Signal Integrity

CLS-AOCH/60F

High-Speed HDMI 4K@60Hz (4:4:4)

Active Optical Hybrid Cable – LSHF.

KRAMCAOCH60F33 10m Black

KRAMCAOCH60F50 15.0m Black

KRAMCAOCH60F66 20m Black

KRAMCAOCH60F98 30m Black

KRAMCAOCH60F164 50m Black

KRAMCAOCH60F295 90m Black

lengths available on request

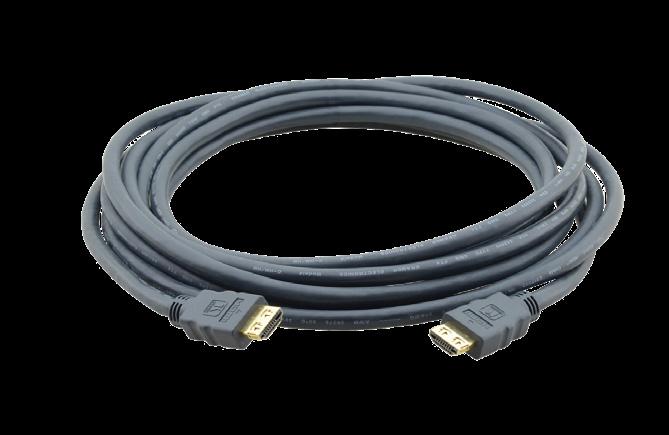

C-HM/ETH Range

C-HM/ETH is a high−performance cable with molded HDMI connectors at both ends. It supports Ethernet Channel, Deep Color, x.v.Color™, Lip Sync, 7.1 PCM, Dolby TrueHD, DTS−HD, CEC and ARC and resolutions up to 4K@60Hz (4:4:4) to 4.6m.

CLS-AOCH/60

KRAMCAOCH60-33 10m Black

KRAMCAOCH60-66 20m Black

KRAMCAOCH60-98 30m Black

KRAMCAOCH60-131 40m Black

KRAMCAOCH60-164 50m Black

KRAMCAOCH60-328 100m Black

Active optical 4K@60Hz (4:4:4) pluggable HDMI cable − low smoke and halogen free.

lengths available on request

KRAMCHMETH3 0.9m Black

KRAMCHMETH6 1.8m Black

KRAMCHMETH10 3m Black

KRAMCHMETH15 4.6m Black

KRAMCHMETH25 7.6m Black

KRAMCHMETH35 10.7 Black

KRAMCHMETH50 15.2 Black

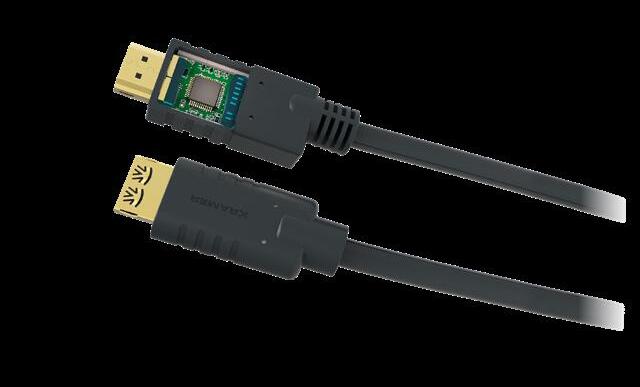

Kramer Active High Speed

HDMI Cable with Ethernet

CA−HM active HDMI copper cable provides a perfect cable solution for delivering HDMI signals over long distances: 4K/60Hz (4:4:4) up to 20M. 4K/60Hz (4:2:0) up to 25M, 1080p/60Hz (12 bit) up to 30M. The innovative technology utilised in the cable’s connector features superior equalizing and signal compensation to meet the most demanding challenges in Pro AV installations.

lengths available on request

C-MHM/MHM High-Speed

HDMI Cable with Ethernet

Flexible high−speed 4K@60Hz (4:4:4) HDMI cable with Ethernet. It is a highperformance cable that supports signals up to 4K@60Hz (4:4:4) and HDMI Ethernet channel, Deep Color, x.v.Color™, Lip Sync, 7.1 PCM, Dolby TrueHD, DTS−HD, CEC.

Max resolution

4K@60Hz (4:4:4).

Max distance

4K/60Hz 4:4:4 to 10ft 1080p to 35ft

K–Lock pull–resistant connectors provide 15lbs of restraining force for a non–slip connection.

Selection of Lengths: 0.3 to 10.7m (1, 2, 3, 6, 10, 15, 25 and 35ft).

C-HM/HM

Range

PREMIUM High–Speed HDMI Cable. Male to male.

KRAMCMHMMHMW6 1.8m White

KRAMCMHMMHMW10 3m White

KRAMCMHMMHMW15 4.6m White

KRAMCMHMMHMW25 7.6m White

C-HM/HM/PRO Range

Premium / High–Speed HDMI Cable with Ethernet. Male to male. Supports 4K/60Hz (4:4:4) to 20ft/6M.

KRAMCHMPRO6 1.8m Black

KRAMCHMPRO10 3m Black

KRAMCHMPRO15 4.6m Black

KRAMCHMPRO35 10.6m Black

Other lengths available on request

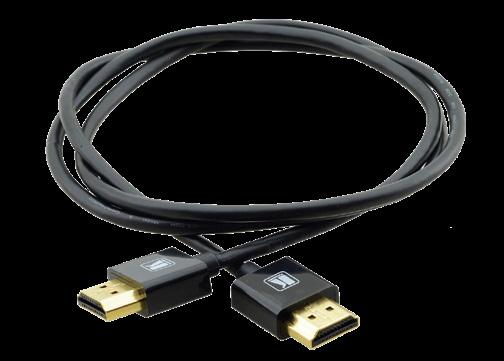

Pico HDMI Cable

KRAMCMHMMHMW35 10.6m White lengths available on request

Kramer’s C−HM/HM/PICO is an ultra−slim high−speed HDMI cable with Ethernet. The slim HDMI connector and narrower cable diameter fits more easily into tight spaces behind televisions or in a cabinet. It supports resolutions up to 4K@60Hz (4:4:4).

Max distance: 4K/60Hz 4:4:4 to 6ft 4K/60Hz 4:2:0 to 10ft Available in Black, Blue, Green and White

KRAMCHMPICOBK1 0.3m Black

KRAMCHMPICOBK2 0.6m Black

KRAMCHMPICOBK3 0.9 Various

KRAMCHMPICOBK6 1.8 Various

KRAMCHMPICOBK10 3m Various

HDMI Cables

C2G Core Series High-Speed HDMI™ Cable with Ethernet – 4K 60Hz

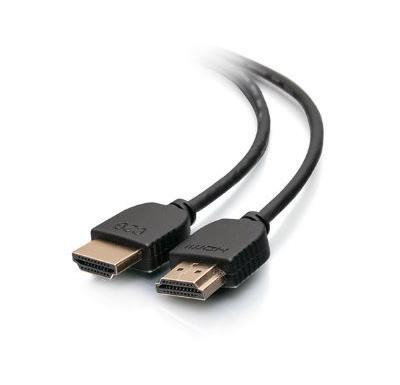

C2G Plus Series Slim Flexible HDMI™ Cable with Low-Profile Connectors – 4K 60Hz

C2G Performance Series Ultra-Flexible, High-Speed HDMI™ Cable - 4K 60Hz

Features:

• Supports all HDMI™ 2.0 features including resolutions up to 4K (4096 x 2160) at 60Hz, which means higher quality video for viewing your screen content

• Supports 3D video for a more appealing and realistic video experience

• Supports 32 audio channels for an immersive audio experience

• Supports CEC extensions for control of consumer electronics devices through a single control point

• Gold-plated connectors for increased electrical conductivity and enhanced durability

Features:

• Supports all HDMI™ features, including resolutions up to 4K (4096 x 2160) at 60Hz), which enables higher quality video for viewing screen content

• Ultra-slim cable construction (36AWG) and low-profile connectors, designed for installations in tight spaces

In-Wall, CMG (FT4) Rated

Features:

Other lengths available upon request.

C2G

Plus Series Certified Ultra-High-Speed HDMI™ Cable with Ethernet – 8K 60Hz

Features:

• Tested to conform with the Ultra-High-Speed HDMI™ Cable Certification Program to ensure quality and support for all HDMI™ features

• Supports 8K 60Hz, 4K 120Hz and 10K resolutions and refresh rates for immersive viewing

C2G10413 3.6m

Supports all HDMI™ 2.0 features including resolutions up to 4K (4096 x 2160) at 60Hz 4:4:4, which enables higher quality video for viewing screen content

• In-wall (CMG/FT4) rated jacket, so you can safely run the cable inside of a wall and have a clutter free, clean look

• Integrated finger grips on the connectors for easy insertion and removal

• Gripping connector shell for 2x greater port retention

• Gold-plated connectors for increased electrical conductivity and enhanced durability

• Supports CEC extensions for control of consumer electronics devices through a single control point

C2G Performance Series Ultra-Flexible

Active High-Speed HDMI™ Cable - 4K

60Hz In-Wall, CMG (FT4) Rated

Features:

• Supports output resolutions up to 4K (3840 x 2160) at 60Hz, providing high-quality video for viewing screen content

• In-wall (CMG/FT4) rated jacket so you can safely run the cable inside of a wall and have a clean, clutter-free look

• Integrated finger grips on the connectors for easy insertion and removal

• Gripping connector shell for 2x greater port retention

• Gold-plated connectors for increased electrical conductivity and enhanced durability

• Directional cable with source connector labelled and tagged to easily differentiate from the labelled display connector

• Supports CEC extensions for control of consumer electronics devices through a single control point

C2G Performance Series High-Speed

HDMI™ Active Optical Cables (AOC) – 4K

60Hz Plenum-Rated

Features:

• Commercial grade connectors that feature compact overmolding for high-density environments

• Supports all HDMI™ features including resolutions up to 4K (4096 x 2160) at 60Hz, which enables higher quality video for viewing screen content

• Plenum-rated jacket, so you can safely run the cable inside of a wall and have a clean, clutter-free look

• Integrated finger grips on the connectors for easy insertion and removal

• Gripping connector shell has 2x greater port retention to keep your devices connected

• Gold-plated connectors for increased electrical conductivity and enhanced durability

• Directional cable with source connector labelled and tagged to easily differentiate from the labelled display connector

C2G Performance Series

Ultra-High-Speed HDMI™ Cables

Features:

• Tested to conform with the Ultra-High-Speed HDMI™ Cable CertificatTion Program to ensure quality and support for all HDMI features

• Supports 8K 60Hz, 4K 120Hz and 10K resolutions and refresh rates for immersive viewing

• Bandwidth up to 48Gbps to support ultra-high-speed features

• Dynamic HDR for greater image detail

• Enhanced Audio Return Channel (eARC), which supports the latest audio formats

• In-wall (CMG/FT4) rated jacket, so you can safely run the cable inside of a wall and have a clean, clutter-free look

• Integrated finger grips on the connectors for easy insertion and removal

• Gripping connector shell for 2x greater port retention

• Ultra-High-Speed Cable type, backward compatible with earlier HDMI specifications

• Exceptionally low EMI (electro-magnetic interference), which reduces interference with nearby wireless devices

C2G41490

C2G41491

Evolution XPC OFC 8K 60Hz High-Speed HDMI Cable

• Higher video resolutions & faster refresh rates including 8K60Hz and 4K120Hz for immersive viewing and smooth fast-action detail.

• eARC simplifies connectivity, provides greater ease of use and supports the most advanced audio formats and highest audio quality.

XPCHDMI8K05 0.5m Black

XPCHDMI8K1 1m Black

XPCHDMI8K2 2m Black

XPCHDMI8K3 3m Black

XPCHDMI8K5 5m Black

Evolution XPC Deep Colour High-Speed 4K 60Hz HDMI Cable

Length Colour

XPCHDMI05 0.5m Black

XPCHDMI1 1m Black

XPCHDMI2 2m Black

XPCHDMI3 3m Black

XPCHDMI5 5m Black

XPCHDMI7 7m Black

Connektgear 4K 60HZ UHD HDMI Male to Male Cable

• 4K Digital Cinema Standard UHD display 4096x2160 resolution

• 60Hz Refresh rate

• Multi-channel digital audio

• Ethernet channel

• 3D compatible

• Shielded cable preventing electro-magnetic interference

• Flexible strain relief moulded collar

FF26-70054K 0.5m Black

FF26-70104K 1m Black

FF26-70204K 2m Black

FF26-70304K 3m Black

FF26-70504K 5m Black

FF26-71004K 10m Black

FF26-71504K 15m Black

FF26-72004K 20m Black

Connektgear 8K UHD Active Optical HDMI Male to Male Cable

• 8K Digital Cinema Standard UHD display resolution

• 60Hz Refresh rate

• Multi-channel digital audio

• Ethernet channel

• 3D compatible

• Shielded cable preventing electromagnetic interference

• Flexible strain relief moulded collar

• Active Optical Cable (AOC)

• Source and Display-Marked Connectors

FF26-70208K 2m Black

FF26-70308K 3m Black

FF26-70508K 5m Black

FF26-71008K 10m Black

FF26-71508K 15m Black

FF26-72008K 20m Black

FF26-73008K 30m Black

HDMI Male to Female Extension Cable

HDMI Female to Female Coupler

Adaptors

High Speed HDMI MaleFemale Extension Cable, Anthra Line

LINDY36475 0.5m Black/Grey

LINDY36476 1m Black/Grey

LINDY36477 2m Black/Grey

LINDY36478 3m Black/Grey

Emulators

Code Description

LINDY32114 HDMI 4K60 EDID Emulator, HDCP 2.2

LINDY32115 HDMI 4K60 EDID Emulator

LINDY32104 HDMI 4K30 EDID Emulator

LINDY32119 HDMI 8K60 EDID Emulator

HDMI to DVI Male to Male 18+1 Single Link

KRAMCHMDM3 0.9m

KRAMCHMDM6 1.8m

KRAMCHMDM10 3m

KRAMCHMDM15 4.6m

KRAMCHMDM35 10.7m

Other lengths available upon request.

4K HDMI (M) to DisplayPort (F) Adaptor Cable

HDMI (F/F)

Gender Changer

HDMI Male to DVI-D Single Link Male Cables

Code Length

C2G42513 0.5m

C2G42514 1m

C2G42516 2m

C2G42517 3m

C2G42518 5m

20cm HDMI Male to DVI-D Single Link Female Adaptor

Other lengths available on request

C2G41352

HDMI Male to VGA Female Converter

Code Description

C2G41350 HDMI Male to VGA Female Converter

C2G41351 HDMI Male to VGA Female & 3.5mm Stereo Female Converter

C2G41352 HDMI Male to DVI Female Converter

Sold in quantity of 10 a time

HDMI Male to DVI Male Cable HDMI Male to DisplayPort Male Cable

• Connect an HDMI equipped device to a DisplayPort display

• Supports high quality resolutions up to 4K@60Hz

• Compliant with HDMI 2.0 and DisplayPort 1.2 specification

Multi AV Faceplate

• Installation ready Multi AV faceplate with 10cm trailing leads

• Single gang, plastic wall plate design – fits a standard mains black box

• Connectors: HDMI, VGA, USB, Audio

• Faceplate size: 86mm x 86mm

HDMI® Male to USB Type C Female Converter with USB Power A Male for optional Powe

• Connects an HDMI® source to a USB Type-C equipped display

• Supports resolutions up to 4K UHD 3840x2160@60Hz

• Supports 7.1 channel surround audio

• Integrated USB Power cable for use with low power HDMI® sources

Universal AV snap-in modular kit, featuring back boxes, faceplates, and various snap-in modules

Ideal for installing and concealing AV cables within walls or trunking. The snap-in modules feature a socket on the front of the plate and a female socket on the reverse via a trailing cable. No soldering required!

type B module

FFCABKIT3-BMOD 3m AV cable Kit with USB Type B Module, VGA, 3.5mm and HDMI

FFCABKIT5-BMOD 5m AV cable Kit with USB Type B Module, VGA, 3.5mm and HDMI

FFCABKIT10-BMOD 10m AV cable Kit with USB Type B Module, VGA, 3.5mm and HDMI

FFCABKIT15-BMOD 15m AV cable Kit with USB Type B Module, VGA, 3.5mm and HDMI

Kit includes face plate, back box, cables and modules:

Available in usb type A or type B modules

Available in 3m, 5m, 10m, 15m and 20m kits

AV single gang plate kits

With 2 x HDMI modules and HDMI cables to suit.

Code Length

FFCABKIT2HDMI5 5m

FFCABKIT2HDMI10 10m

AV single gang 2 x HDMI plate kits

With HDMI & USB Type B Modules and cables to suit.

Code Length

FFCABKITSG3HU-B 3m

FFCABKITSG5-B 5m

FFCABKITSG10-B 10m

FFCABKITSG15-B 15m

FFCABKITSG20-B 20m

Spare faceplates and extra module options

FF20-0001 2 module AV white faceplate

FFCABKIT-USB3A USB 3 Type A tailed module

FF20-0003 4 module AV white faceplate

FFCABKIT-DPORT DisplayPort tailed module

FFBLANKMOD white single blanking plate

FFCABKIT-RCA dual RCA phono module

White Brush Faceplates

Code

FFWPB100 White Double Gang with Black Brush

HDMI Splitters and Switchers

HDMI® Ultra-Slim HDBaseT + RS232 and IR over CAT Extender Box Transmitter – 4K 60Hz

The HDMI Ultra-Slim HDBaseT + RS232 and IR over CAT Extender Box Transmitter - 4K 60Hz allows a 4K HDMI source to be extended up to 130ft to a 4K display using a single CAT6a Ethernet cable. This is an ideal solution where HDMI video and audio need to be extended to displays in conference rooms, classrooms, lecture halls and many other installation needs that are far beyond the length limitations of standard HDMI cabling.

This transmitter extends HDMI signals over a single network patch cable. Extend 4K HDMI up to 115 feet and 1080p up to 230ft using a CAT5e or CAT6 cable. For longer 4K distances, extend 4K HDMI or up to 130 feet using a CAT6a cable.

HDMI Over CAT5/6 Extender up to 164ft (50m)

The HDMI Over CAT5/6 Extender is ideal for extending digital video and audio, making it a great solution for digital signs, schools, churches, trade show presentations or any application where the HDMI source is farther than 50 feet from the display. The extender can also send HDMI signals over existing CAT5 or CAT6 cable infrastructure for cost-effective reliability while maintaining high performance quality.

HDMI® HDBaseT Extender over CAT Box Transmitter to Box Receiver - 4K 60Hz

The HDMI HDBaseT Extender over CAT Box Transmitter to Box Receiver – 4K 60Hz allows a 4K HDMI source to be extended up to 130ft to a 4K display using a single CAT6a Ethernet cable. This is an ideal solution for delivering uncompressed HDMI video and audio to displays in conference rooms, classrooms, lecture halls and many other installation needs that are far beyond the length limitations of standard HDMI cabling.

HDMI® Distribution Amplifier Splitter’s4K 60Hz

4-Port HDMI® Switch4K 60Hz

The 4-Port HDMI Switch - 4K 60Hz is a 4-input 1-output switch supporting up to 4K (3840 x 2160 at 60hz, 4:4:4). A perfect solution for connecting and switching between computers, Blu-ray™ players, gaming consoles, digital cable or satellite boxes, and A/V receivers.

HDMI 18G Splitter

Splits a single 4K UHD source to 4K UHD displays. HDCP 2.2 Compliant for use with the latest AV equipment.

50m CAT.6 HDMI 4K60 & IR Extender with PoC & Loop Out

• Extends 4K HDMI 18G signals over 50m distances with standard network cable

HDMI 18G Switch

High performance, video switch for use with the latest 4K HDMI devices and displays. HDMI 2.0 HDCP 2.2 and HDR compatible - 3 and 5 port versions available.

4 Port HDMI 8K60 Switch with eARC

• Switch between 4 HDMI® 2.1 source devices connected to a single HDMI® 2.1 display

• Supports resolutions up to 8K@60Hz, with additional support for HDR

• Supports eARC and the extraction of digital and analogue audio from a HDMI® source device

• Seamless control via IR remote, push button and auto switching

• Supports resolutions up to 3840x2160@goHz 4:4:4 8bit, with support for HDR

• An HDMI loop-through output creates an additional viewing zone with a local display

• PoC (Power over Cable) functionality for power from a single power supply

100m CAT.6 HDMI 4K60, Audio, IR & RS-232 HDBaseT Extender

• Distributes HDMI resolutions up to 100m over CAT.6 network cable via HDBaseT technology

• Supports HDMI 18G resolutions up to 4K@60Hz 4:4:4, with additional support for HDR

• ARC Support as well as RS-232, CEC & Ethernet pass-through & bi-directional IR for simple control

• Supports PoC (Power over cable), requiring a power supply connection from only one side of the installation

70m CAT.6 4 Port HDMI 4K Splitter Extender's

This CAT.6 splitter allows for distribution for up to 4 remote locatons using the included receivers, at up to 70m in distance, ideal for sharing content simultaneously in sports bars or at events. The local HDMI output on the splitter allows for monitoring using a connected display, or alternatively can be combined with up to 2 additional CAT.6 splitters for even larger scale content distribution.

HDMI & IR over IP Extender

• Distribute HDMI® signals 1-1 or 1-many as part of a networked installation

• Supports resolutions up to 1920x1080 @60Hz

• Supports IR and HDMI loop-out port on the transmitter

• Add additional receivers to the network for larger scale distribution

Package Contents

• Transmitter unit

• Receiver unit

• IR emitter cable, 1.5m

• IR receiver cable, 1.5m

• Multi-Country Power Supply (EU, UK, US & AUS)

• Lindy manual

4K30 HDMI & USB over IP system – Controller

• Controller module for the Lindy 4K30 HDMI® & USB over IP System

• Allows a wide variety of custom AV and KVM distribution systems to be implemented

Package Contents

• 4K30 HDMI® & USB over IP Controller

• IR Receiver Cable, 1.5m

HDMI & IR over IP Extender – Receiver

• Add additional HDMI over IP receivers to create larger networked distribution setups

• Simple, scalable solution for developing 1-to-many installations

• Supports resolutions up to 1920x1080 @60Hz

• Supports IR extension from the transmitter

Package Contents

• Receiver unit

• IR receiver cable, 1.5m

• Multi-Country Power Supply (EU, UK, US & AUS)

• Lindy manual

• Supports 4K30 HDMI®, audio, RS-232, IR remote, LAN, KVM and 3rd party control systems

• Built-in Web GUI browser interface supporting drag & drop operations and image preview

• 3-Pin Terminal Block

• 6-Pin Terminal Block

• Multi-country Power Supply (UK, EU, US & AUS)

4K30 HDMI & USB over IP System – Encoder

• Encoder module for the Lindy 4K30 HDMI & USB over IP System

• Allows a wide variety of custom AV and KVM distribution systems to be implemented

• Supports 4K30 HDMI, audio, RS-232, IR remote, LAN, KVM and 3rd party control systems

Package Contents

• 4K30 HDMI® & USB over IP Encoder

• IR Emitter Cable, 1.5m

• IR Receiver Cable, 1.5m

4K30 HDMI & USB over IP System - Decoder

• Decoder module for the Lindy 4K30 HDMI® & USB over IP System

• Allows a wide variety of custom AV and KVM distribution systems to be implemented

• Supports 4K30 HDMI®, audio, RS-232, IR remote, LAN, KVM and 3rd party control systems

• Built-in Web GUI browser interface supporting drag & drop operations and image preview

• Built-in Web GUI browser interface supporting drag & drop operations and image preview

• 2 x Mounting Ears & 4 x Screws

• 3 x 3-Pin Terminal Block

• Multi-country Power Supply (UK, EU, US & AUS)

• Lindy Manual

Package Contents

• 4K30 HDMI® & USB over IP Decoder

• IR Emitter Cable, 1.5m

• IR Receiver Cable, 1.5m

• 2 x Mounting Ears & 4 x Screws

• 3 x 3-Pin Terminal Block

• Multi-country Power Supply (UK, EU, US & AUS)

• Lindy Manual

• 2 x Mounting Ears & 4 x Screws

• Lindy Manual

DisplayPort Cables

Black Line DisplayPort

• Perfect for connecting a PC to a display in home and small office environments

• Pure performance copper conductors capable of transmitting resolutions up to 4096x2160@60Hz

• Professional grade triple shielding provides superior EMI & RF resistance

• 24K gold contacts with nickel connector plating.

Anthra Line DisplayPort

• The perfect choice for connecting to displays in digital signage and professional AV installations

• Corrosion resistant tinned copper conductors to deliver resolutions up to 4096x2160@60Hz.

• Professional grade triple shielding provides superior EMI & RF resistance

• 24K gold connectors and contacts ensure complete signal integrity.

Active DisplayPort 1.4 Male to Male Cable

• Creates a long-distance connection between a DisplayPort source device and display

• Supports high-quality resolutions up to 4K@144Hz

• High Dynamic Range support for enhanced colour, brightness and contrasts

• In-built active chipset for reliable longer-length DisplayPort transmission

3m Black

(Other lengths available on request)

LINDY36480 0.5m Grey/Black

LINDY36481 1m Grey/Black

LINDY36482 2m Grey/Black

LINDY36483 3m Grey/Black

LINDY36484 5m Grey/Black

LINDY41167 5m Black

LINDY41168 7.5m Black

LINDY41169 10m Black

LINDY41079* 15m Black

LINDY41081* 20m Black

*1.2 Spec 4K@60Hz.

DisplayPort Cables

Display Port 1.4 Male to HDMI Female 4K120Hz Adapter

DisplayPort to VGA Adaptors

Mini DisplayPort Male to DisplayPort Male Cable, White

DisplayPort to DVI-D Cable, Black

Active Mini DisplayPort Male to HDMI Male Cable with HDR

Optic Hybrid DisplayPort 2.0 Male to Male UHBR10 Cable

• Combines copper and fibre optic cable for a hybrid, longdistance DisplayPort connectivity solution

• Supports resolutions up to 4K@144Hz, 8K@60Hz

• DP2.0 standard with UHBR10 support, 40Gbps bandwidth (4 lanes, 10Gbps per channel)

• Flexible and robust cable structure for any kind of installations

LINDY38520 10m Black

LINDY38521 15m Black

LINDY38522 20m Black

LINDY38523 30m Black

LINDY38524 40m Black

LINDY38525 50m Black

KRAMCDP3 0.9m 4K 60 (4:4:4)

KRAMCDP6 1.8m 4K 60 (4:4:4)

KRAMCDP10 3m 4K 60 (4:4:4)

KRAMCDP15 4.6m 4K 60 (4:4:4)

DisplayPort (M) to HDMI (M) 4K Active Cable

4K DisplayPort Cable Supports an HBR2 Bandwidth of up to 21.6Gbps Active Optical DisplayPort 1.4

DisplayPort (M) to HDMI (F) 4K Active Adaptor Cable

KRAMCDP25 7.6m 4K 60 (4:4:4)

KRAMCDP35 10.7m 1080p

KRAMCDP50 15.2m 1080p

KRAMCDPMHMUHD3 0.9m 4K 60 (4:4:4)

1.8m 4K 60 (4:4:4)

3m 4K 60 (4:4:4)

8K DisplayPort Male to Male Cable

1.8m

3m

Mini-DisplayPort (M) to HDMI (F) 4K Active Adaptor Cable

DisplayPort Cables & Adaptors

DisplayPort Male to Male

FFDPORTMM-2 2m Black

(Other lengths available on request)

Xerxes 1.4 8K Display Port Male to Male Cable

FFDPORTMM-5 5m Black Code Length Resolution

XERXDPORT2 2m 8k@60Hz

XERXDPORT3 3m 8k@60Hz

XERXDPORT5 5m 8k@60Hz

Mini DisplayPort Male to DisplayPort Male Cable

Code Length Colour

FFMINIDP-DP1 1m Black

FFMINIDP-DP2 2m Black

C2G DisplayPort Male to HDMI Female Converters

DisplayPort Male to HDMI Male

Code Length Colour

FFDPORT-HDMI2 2m Black

FFDPORT-HDMI5 5m Black

C2G 1.2 4K 60Hz DisplayPort Male to Male Cable

Other lengths available on request

VGA Adaptors & Extenders

4K60 4:2:0 HDMI & VGA Wall–Plate Auto Switcher/ Transmitter over Extended–Reach PoE over HDBaseT with Maestro Room Automation

• 2x1 BYOD Plug and Play Wall–mounted Switching

• Built–in intelligent Maestro Room Automation

• Up to 4K@60Hz (4:2:0) Resolution

• Up to 100m (330ft) standard HDBaseT Extension

• PoE acceptor

VP-426

The VP−426 is a high–performance digital scaler for computer graphics/HDTV and HDMI signals. The unit up– or down–scales computer graphics and HDTV signals to resolutions of up to WUXGA and 1080p.

• Inputs — RGBHV, YPbPr or HDMI.

• Outputs — RGBHV and HDMI simultaneously.

• HDTV Compatible.

• HDCP Compliant.

• Input Auto–Scanning.

• EDID Capture — Copies and stores the EDID from a display device.

• Analog/Embedded Audio Support.

• Control — Front panel, OSD (on screen display), contact closure.

• Non–Volatile Memory — Saves final settings.

• Freeze Button.

• Contact Closure — For remote switching of sources.

• USB Port — For upgrading firmware

• Built-In ProcAmp — Color, hue, sharpness, contrast, and brightness controls.

VGA & Audio Cables

Vga Male to Male

FFSVGAMM-2 2m Black

FFSVGAMM-3 3m Black

FFSVGAMM-5 5m Black

FFSVGAMM-10 10m Black

FFSVGAMM-15 15m Black

FFSVGAMM-20 20m Black

VGA & Audio to HDMI Converter

Converts and combines VGA and analogue audio signals into an HDMI signal. Perfect for using older VGA equipment with a HDMI display. Supports resolutions up to 1080p.

3.5mm Stereo Jack Plug to Plug

FF35SP-SP2 2m Black

FF35SP-SP3 3m Black

FF35SP-SP5 5m Black

FF35SP-SP10 10m Black

FF35SP-SP15 15m Black

Black MC505 Desktop PC Microphone

• Ball-joint housing allows you to tilt and turn the microphone to the position you require

• Gooseneck design

• Noise reducing microphone reduces background noise creating a clearer recording

3.5mm Stereo Jack Male to 2 x RCA Phono Male Cables

FF23-1020 2m Black

FF23-1030 3m Black

FF23-1050 5m Black

FF23-1100 10m Black

USB A to 2 x 3.5mm Stereo Jack Adapter A Male to 2 x 3.5mm Female

This USB Sound Adapter plugs into your USB source creating two 3.5mm sockets allowing you to connect your standard 3.5mm headset and microphone into your chosen PC, laptop or tablet. This adapter allows you to continue to use your 3.5mm headset rather than having the expense of upgrading your headset to a USB model.

Kramer PA-240Z 240W Power Amplifier

PA−240Z is a high–performance, selectable Hi–Z (70V/100V) or Lo–Z (4Ω/8Ω) power amplifier featuring balanced and unbalanced inputs and additional line–level output. This versatile amplifier features built–in DSP, auto–standby, and maximum durability. PA–240Z is suitable for a vast range of AV installations.

Kramer FC-46H2 4K HDR HDMI Audio De–embedder

The FC−46H2 is a professional HDMI audio de−embedder for HDMI signals up to 4K@60Hz (4:4:4) resolution. The unit de−embeds the audio signal from the HDMI input or from the HDMI output ARC (Audio Return Channel) and simultaneously outputs it to the S/PDIF® and 5–pin balanced audio outputs.

Audio Cable 3.5mm Male-Male

Other lengths available on request

KRAMCA35MA35M3 0.9m Black

KRAMCA35MA35M6 1.8m Black

KRAMCA35MA35M15 4.6m Black

KRAMCA35MA35M35 10.7m Black

KRAMCA35MA35M75 22.9m Black

KRAMCA35M2RAM3 0.9m Black

KRAMCA35M2RAM6 1.8m Black

KRAMCA35M2RAM10 3m Black

KRAMCA35M2RAM35 10.7m Black

Other lengths

Kramer FC-102 NET 2–Channel Dante Encoder & PoE Acceptor

FC−102Net is a compact 2–channel Dante™ encoder with 2 balanced mono audio inputs that enables connecting non–Dante sources, such as microphones, laptops and players to a Dante network. It supports line level and microphone level sources and can provide 48V phantom power per input. FC−102Net is powered over Ethernet from any standard PoE providing network switch.

Kramer PA-240Net 240W Networked Power Amplifier

PA−240Net is a high–performance, selectable Hi–Z (70V/100V) or Lo–Z (4Ω/8Ω) power amplifier featuring balanced and unbalanced inputs and additional line–level output and Dante interface. This versatile amplifier features built–in DSP, auto–standby and maximum durability. PA–240Net is suitable for a vast range of AV installations.

3.5mm Stereo

Jack Male to 2 x RCA Phono

Male

Premium 3.5mm

Stereo Jack Male to 3.5mm Stereo Jack Male Cable

Toslink SPDIF

Digital Optical Male-Male Cable

150m Cat.6 TosLink (Optical) & Coaxial Digital Audio Extender

• Extends TosLink (Optical) & coaxial digital audio up to 150m over network cable

• Supports stereo and multi-channel audio formats including Dolby Digital & DTS

• Supports PoC (Power over Cat Cable) from the transmitter to receiver

• Simultaneous audio output

(Other lengths available on request)

100m CAT6 Stereo Audio Extender

• Extends analogue audio signals by up to 100m

• Uses a CAT6 Network

Cable - Not included

• 2 x Phono/RCA male to RJ45 female (each unit)

• Gold plated connectors

HDMI 4K audio extractor de-embedder

• Extracts stereo or multi-channel audio from an HDMI signal

• HDMI audio pass-through allows audio to be sent to a HDMI display

• Supports HDTV resolutions up to UHD 4K, including 1080p & 1080p3D

• Audio Output via TOSLink & COAXIAL (Digital) and 3.5mm Stereo (Analogue)

Bulk

Audio & Speaker Cable

Black 2 Core 2 x

0.75mm LSOH Speaker

Cable

Black 2 Core 2 x 1.5mm LSOH Speaker

Cable

100m 1 Pair Screened

9501 Type LSOH 24AWG Cable

300m 1 Shielded Pair: 20 AWG Audio or

Control Bulk Cable Black 2 Core 2 x 2.5mm LSOH

Speaker Cable

Violet 14/2 Speaker

Cable 14awg 2core Low

16/2-Pink LSOH 30/0.24mm Pro

Speaker Cable

100m Reel Black 16/2 PE (105/0.16mm) Pro

Speaker Cable

Violet 14/4 Speaker

Cable 14awg 4core Low Smoke NonHalogen (LSNH)

Kramer 2 Core

Speaker Cable

Evolution XPC OFC Install 1 Pair LSOH Black Cable

• Conductors: 7 x 0.20mm 24 AWG Pure OFC Copper

• •Insulation: XPLE cross lined polythene

• Screen: Aluminium foil

Evolution XPC OFC Digital Install 1 Pair LSOH Black Cable

• Conductors: 7 x 0.20mm Pure OFC Copper

• Insulation: Foam PE 1.4mm

• Screen: Aluminum/polyester tape 100% coverage

Evolution XPC OFC Install Starquad Black LSOH Cable

• Conductors: 4 x 10 x 0.12mm pure OFC copper

• Pair Insulation: XLPE

• Screen: Aluminum/polyester tape 100% coverage

• Drain: 7 x 0.20mm 24 AWG Pure OFC Copper

• Jacket: Flexible Black/Grey LSOH

Evolution XPC OFC LSOH Speaker

Cable 2 x 1mm Black Cable

• Conductors: 7 x 0.20mm Pure OFC Copper

• Insulation: Foam PE 1.4mm

• Screen: Aluminum/polyester tape 100% coverage

• Drain: 7 x 0.20mm 24 AWG Pure tinned Copper

• Jacket: Flexible Black LSOH

• Drain: 7 x 0.20mm 24 AWG Pure tinned Copper

• Jacket: Flexible Black LSOH

Evolution XPC OFC LSOH Speaker

Cable Black 2 X 1.5mm

• Conductor: 30 x 0.25mm

• Insulation: LSOH 2 Core Red & Blue

• Conductor Resistance: 11.00 Ω/m @ 20°C

• Jacket: Black LSOH, Diameter 7.3mm

• Drain: 7 x 0.20mm 24 AWG Pure OFC Copper tinned

• Jacket: Flexible Black LSOH

Evolution XPC OFC LSOH Speaker

Cable Black 4 X 2.5mm

• Conductor: 50 x 0.25mm

• Insulation: LSOH 2 Core Red, Blue, Green and Yellow

• Conductor Resistance: 7.30 Ω/m @ 20°C

• Jacket: Black LSOH, Diameter 10.6mm

Evolution XPC OFC Premade Cables

Professional

Evolution XPC Mic Cables with Neutrik Connectors Cables

(Other lengths available on request)

Evolution XPC

Professional

Microphone cable

Drum Mounted on GT style drums with Flange terminated with Neutrik XLR Connectors

Professional Speakon

NL4FXX – NL4FXX

Evolution XPC 4 x 2.5mm

Professional AES/EBU Mic Lead

• Evolution XPC OFC "TRUE" 110 ohm

• Digital Mic Cable terminated

• with Neutrik XLRS 5 Colours

Evolution XPC OFC Professional 4 x 2.5mm Speaker

cable hand Terminated with Neutrik metal

NLT4FXX-BAG Connectors

Evolution XPC OFC

Professional 8 x 2.5mm

Speaker Cable with Neutrik NLT8FXX-BAG at each end

Neutrik XLR Connectors

NEUNC3FXX

NEUNC3FXXD100

NEUNC3MXX

NEUNC3MXXD100

NEUNC3FXXBAGD

NEUNC5MXX

NEUNC5MXXD100

NEUNC5MXXBAGD

NEUNC3FDLX

NEUNC3FDLXBAG

NEUNC3FDLXM3

NEUNC3FXXBAGD

NEUNC5FXX

NEUNC5FXXD100

NEUNC5FXXBAGD

NEUNC3FDLXBAGM3 NEUNC3MDLX

NEUNC3MDLXBAG

NEUNC3MDLXM3

NEUNC3MDLXBAGM3

NEUNL2FXXWS

NEUNL4FXXWS

NEUNL4FXXWSD

SpeakON FXX Series Connectors SpeakON panel mount connectors

NEUNL4FXXWL

NEUNL4FXXWLD

NEUNLT4FXX

2 Pole SpeakON for for cable diameters 6 to 12 mm 4 pole chassis connector, black D-size flange

4 Pole SpeakON for for cable diameters 6 to 12 mm

4 Pole SpeakON for for cable diameters 6 to 12 mm

NEUNL4MPXX

NEUNL8MPRXX

NEUNL8MPRXXBAG

Bulk Pack of 100 8 pole male chassis connector, black metal square G-size housing

4 Pole SpeakON for for cable diameters 10 to 16 mm

4 Pole SpeakON for for cable diameters 10 to 16 mm

Bulk Pack of 100

NEUNLT4FXXBAG

4 pole female cable connector, metal housing

8 pole male chassis connector, metal square G-size housing 4 pole female cable connector, black metal housing

SpeakON FC Series Connectors

NEUNL8FC

8 pole SpeakON FC Series cable connector, latch lock, chuck type strain relief for cables 8 - 20 mm diameter

NEUNLT4MXX

SpeakON STXX Series 4 pole Female Connectors SpeakON STXX Series 4 pole Male Connectors

pole Male cable connector, metal housing

NEUNLT4MXXBAG

SpeakON STXX Series 8 pole Connectors

NEUNLT8FXX

8 pole female cable connector, metal housing, chuck strain relief

NEUNLT8FXXBAG

NEUNLT8MXXBAG

8 pole female cable connector, Black metal housing, chuck type strain relief

8 pole male cable connector, black metal housing, chuck type strain relief

Neutrik Ethercon Connectors & Cables

The etherCON cable connector carrier upgrades a conventional RJ45 connector to an extremely robust lockable solution

NEUNE8MX1

NEUNE8MX1D

NEUNE8MX1B

NEUNE8MX1BD

Cable connector carrier consists of a nickel shell, chuck and boot

Bulk Pack 100 Cable connector carrier consists of a nickel shell, chuck and boot

RJ45 cable connector carrier for pre-assembled RJ45 plugs consists of black chromium shell

RJ45 cable connector carrier for pre-assembled RJ45 plugs consists of black chromium shell

D-shape CAT6A panel connector, shielded, feedthrough

NEUNE8FDXP6

NEUNE8FDXP6B

D-shape CAT6A panel connector, shielded, feedthrough, Nickel housing

D-shape CAT6A panel connector, shielded, feedthrough, black housing

D-shape CAT6A panel connector, shielded, IDC termination

RJ45 feedthrough receptacle, D-shape metal flange with the latch lock, mounting screws included

NEUNE8FDP

NEUNE8FDPB

RJ45 feedthrough receptacle Nickel Housing

RJ45 feedthrough receptacle Black Housing

NEUNE8FDXY6

NEUNE8FDXY6B

etherCON RJ45 feedthrough coupler for cable extensions

etherCON RJ45 feedthrough coupler for cable extensions

etherCON CAT6A feedthrough coupler for cable extensions.

Evolution XPC Shielded

Tactical Cat6A with Standard

Black Neutrik Ethercon and Cat6A RJ45 Cable

NEUNE8FF

NEUNE8FXX6W

etherCON RJ45 feedthrough coupler for cable extensions

etherCON CAT6A feedthrough coupler for cable extensions.

Evolution CAT5 and CAT6 Cable

Trusted by professionals

Reliability you can trust, performance you can rely on

With over 25 years of heritage, the Evolution XPC range of bulk cables is specifically designed to meet the high-performance demands required in AV and IT installations.

Built with 100% copper conductors, Evolution XPC networkengineered cables deliver the clarity, reliability and durability required for your needs.

CAT5

Purple CAT5E UTP

LSZH Cable 305m Box XPC301-901

CAT6

Purple CAT6 UTP

LSZH Cable 305m Box XPC301-911

Black CAT5e UTP PE External Cable 305m Box XPC301-902

Grey CAT5E UTP PVC Cable 305m Box XPC301-900

Black CAT6 UTP PE External Cable 305m Box XPC301-910

Grey CAT6 UTP PVC Cable 305m Box

Why choose Evolution XPC for your installations?

• 100% copper for maximum signal integrity – Eliminates interference and ensures stable connections

• Professional-grade engineering – Designed for high-definition CCTV and AV systems, including IP & analogue setups

• Trusted by industry experts – A go-to solution for professionals

• Exceptional value for money – Premium quality without the premium price tag

CAT6A

Black CAT6A U/FTP LSOH B2CA 305M Reel Box. XPC301917305RB

Ice Blue CAT6A U/FTP LSOH D2CA 305M Reel. XPC301918305

CAT5, CAT6 & CAT6A Cables/Connectors

Excel CAT5 & CAT6 Cables

Kramer CAT6A Cables

Code Description

Webro CAT6 & CAT7 Cables

KRAMBCUKLSHF100 100m Blue CAT6A 23 Awg U/FTP UNIKat Cable, HDBaseT Approved, CPR Rating=DCA

KRAMBCUKLSHF305 305m Blue CAT6A 23 Awg U/FTP UNIKat Cable, HDBaseT Approved, CPR Rating=DCA

KRAMBCUKLSHF500 500m Blue CAT6A 23 Awg U/FTP UNIKat Cable, HDBaseT Approved, CPR Rating=DCA

KRAMBCUKLSHF3BK 305m Black CAT6A 23 Awg U/FTP UNIKat Cable, HDBaseT Approved, CPR Rating=DCA

KRAMBCUNIKATBCA

305m Black B2CA 23AWG U/FTP CAT6a Bulk Cable for DGKat, HDBaseT and Lan AppliCATion, CPR Rating = B2CA

KRAMCONFIELD

Kramer Field Assembly Connectors Kramer RJ-45 Connectors & Boots

Field assembly 180° Shielded RJ–45 Connector for CAT Cable — Minimum Order Quantity of 10 pieces or multiples there of

KRAMCONFIELD360 Field assembly 360° Shielded RJ–45 Connector for CAT Cable — Minimum Order Quantity of 10 pieces or multiples there of

KRAMCONRJ45-3 Pack of 10 K-Lan Crimp Style RJ-45 Connectors for 24AWG to 23 AWG CATegory Cables

KRAMCBLBLUE Kramer Pack of 10 Light Blue RJ-45 Boots

KRAMCBBLACK Kramer Pack of 10 Black RJ-45 Boots Code Description

RJ45 Patch Cables

Blue CAT6A U/FTP LSOH Video & LAN HDBaseT Cable

KRAMCUNIKAT2 C-UNIKAT-2 0.6m

KRAMCUNIKAT3 C-UNIKAT-3 0.9m

KRAMCUNIKAT6 C-UNIKAT-6 1.8m

KRAMCUNIKAT10 C-UNIKAT-10 3m

KRAMCUNIKAT15 C-UNIKAT-15 4.6m

KRAMCUNIKAT25 C-UNIKAT-25 7.6m

KRAMCUNIKAT35 C-UNIKAT-35 10.7m

KRAMCUNIKAT50 C-UNIKAT-50 15.2m

KRAMCUNIKAT75 C-UNIKAT-75 22.9m

KRAMCUNIKAT100 C-UNIKAT-100 30.5m

KRAMCUNIKAT125 C-UNIKAT-125 38.1m

KRAMCUNIKAT125 C-UNIKAT-150 38.1m

KRAMCUNIKAT150 C-UNIKAT-164 45.7m

KRAMCUNIKAT164 C-UNIKAT-200 50m

KRAMCUNIKAT200 C-UNIKAT-230 60m

KRAMCUNIKAT230 C-UNIKAT-328 70m

KRAMCUNIKAT328 C-UNIKAT-328 100m

CAT5e UTP RJ45

Patch Cables

Other colours available on request

CAT6 UTP RJ45

Patch Cables

FFNTA5-0.5GREY 0.5m Grey

FFNTA5-1GREY 1m Grey

FFNTA5-2GREY 2m Grey

FFNTA5-3GREY 3m Grey

FFNTA5-5GREY 5m Grey

FFNTA5-10GREY 10m Grey

CAT6A S/FTP LSOH Snagless

FFNTA6A-0.5GRY 0.5m Grey

FFNTA6A-1GRY 1m Grey

FFNTA6A-2GRY 2m Grey

FFNTA6A-3GRY 3m Grey

FFNTA6A-5GRY 5m Grey

FFNTA6A-10GRY 10m Grey

FFNTA6A-15GRY 15m Grey

FFNTA6A-20GRY 20m Grey

FFNTA6-0.5GRY 0.5m Grey

FFNTA6-1GRY 1m Grey

FFNTA6-2GRY 2m Grey

FFNTA6-3GRY 3m Grey

FFNTA6-5GRY 5m Grey

FFNTA6-10GRY 10m Grey

OM4 Multimode LC and OS2 Singlemode LC

Other colours available on request

Other colours available on request More fibre cables available on request

Fibre Patch Cables

FFFIBOM4LCLC-1 1m LC-LC 50/125 Duplex OM4

FFFIBOM4LCLC2 2m LC-LC 50/125 Duplex OM4

FFFIBOM4LCLC5 5m LC-LC 50/125 Duplex OM4

FFFIBOM4LCLC10 10m LC-LC 50/125 Duplex OM4

FFFIBOM4LCLC20 20m LC-LC 50/125 Duplex OM4

FFFIBLCLC9-5 5m Singlemode LC-LC 9/125 Duplex

FFFIBLCLC9-10 10m Singlemode LC-LC 9/125 Duplex

FFFIBLCLC9-20 20m Singlemode LCLC 9/125 Duplex

Cables

0.3M 83159 83179

0.5M 83140 83160 83180

1M 83141 83161 83181

1.5M 83142 83162 83182

2M 83143 83163 83183

3M 83144 83164 83184 5M 83145 83165 83185

7M 83146 83166 83186 10M 83147 83167 83187 15M 83148 83168 83188

83149 83169 83189

More colours and lengths available on request.

CAT6 Booted UTP Patch Cables

CAT6A Snagless Unshielded (UTP) Slim Ethernet Patch Cable

Cat6 UTP Snagless Network

LINDY48000

LINDY48001

LINDY48002

LINDY48003

LINDY48004

LINDY48005

LINDY48006

LINDY48007

LINDY48008

LINDY48009

LINDY48010

CAT6 U/UTP Snagless Gigabit Network Cable | Grey

CAT6 U/UTP Snagless Gigabit Network Cable | Grey

CAT6 U/UTP Snagless Gigabit Network Cable | Grey

CAT6 U/UTP Snagless Gigabit Network Cable | Grey

CAT6 U/UTP Snagless Gigabit Network Cable | Grey

CAT6 U/UTP Snagless Gigabit Network Cable | Grey

CAT6 U/UTP Snagless Gigabit Network Cable | Grey

CAT6 U/UTP Snagless Gigabit Network Cable | Grey

CAT6 U/UTP Snagless Gigabit Network Cable | Grey

CAT6 U/UTP Snagless Gigabit Network Cable | Grey

CAT6 U/UTP Snagless Gigabit Network Cable | Grey

S/FTP LSZH

CAT6a S/FTP LS0H Snagless Gigabit Network Cable

Code Length Description

LINDY47175

LINDY47176

LINDY47177

LINDY47178

LINDY47179

LINDY47180

LINDY47181

LINDY47182

LINDY47183

LINDY47184

LINDY47185

LINDY47186

Black Cat6a S/FTP LSOH Snagless RJ45 Gigabit Network Cable

Black Cat6a S/FTP LSOH Snagless RJ45 Gigabit Network Cable

Black Cat6a S/FTP LSOH Snagless RJ45 Gigabit Network Cable

Black Cat6a S/FTP LSOH Snagless RJ45 Gigabit Network Cable

Black Cat6a S/FTP LSOH Snagless RJ45 Gigabit Network Cable

Black Cat6a S/FTP LSOH Snagless RJ45 Gigabit Network Cable

Black Cat6a S/FTP LSOH Snagless RJ45 Gigabit Network Cable

Black Cat6a S/FTP LSOH Snagless RJ45 Gigabit Network Cable

Black Cat6a S/FTP LSOH Snagless RJ45 Gigabit Network Cable

Black Cat6a S/FTP LSOH Snagless RJ45 Gigabit Network Cable

Black Cat6a S/FTP LSOH Snagless RJ45 Gigabit Network Cable

Black Cat6a S/FTP LSOH Snagless RJ45 Gigabit Network Cable

CAT6a S/FTP LS0H

Snagless

Gigabit Network Cable Other colours available on request

LINDY47130 0.3m

LINDY47131

LINDY47132

LINDY47133 15m Grey CAT6a S/FTP LS0H

Evolution Black Cat6A S/FTP LSOH Snagless

RJ45 Patch Cable

XPCCAT6A05BK 0.5m Black

XPCCAT6A1BK 1m Black

XPCCAT6A2BK 2m Black

XPCCAT6A3BK 3m Black

XPCCAT6A5BK 5m Black

XPCCAT6A10BK 10m Black

Drum mounted Evolution XPC Tactical

Evolution Grey Cat6A S/FTP LSOH Snagless

RJ45 Patch Cable

soon Coming soon

Extreme CAT6A Cable with standard Black Neutrik Ethercons and CAT6A RJ45 Plugs

XPC144550EXD 50m Black

XPC144575EXD 75m Black

XPC1445100EXD 100m Black

XPCCAT6A05GY 0.5m Grey

XPCCAT6A1GY 1m Grey

XPCCAT6A2GY 2m Grey

XPCCAT6A3GY 3m Grey

XPCCAT6A5GY 5m Grey

XPCCAT6A10GY 10m Grey More lengths available on request More lengths available on request

Drum mounted Evolution XPC Tactical CAT 7

Ethercon Drum Mounted Cable

Neutrik opticalCON DUO Singlemode Cable

• Ruggerised and dirt-protected fiber optic connection system

• Waterproof acc. to IP65 safety standard in mated condition

• Extra robust hybrid cable with 2 multimode fibres and 4 x 0.75 mm copper wires

• opticalCON multimode fibre cables offer laser and bend-optimised OM3 fibres

• Accommodates standard optical LC-Duplex connectors

• Cable connector features rugged all-metal housing and heavy-duty cable retention

• Excellent dust and dirt protection due to automatic sealing shutter with silicone gasket

• Reliable Push-Pull locking mechanism

Neutrik opticalCON DUO Singlemode Cable Drum Mounted GT310

• Ruggedized and dirt-protected fiber optic connection system

• Waterproof acc. to IP65 safety standard in mated condition

• 2-pole military-approved robust and lightweight mobile field cable with multi- or single-mode fibres

• opticalCON multimode fibre cables offer laser and bend-optimized OM3 fibres

• Accommodates standard optical LC-Duplex connectors

• Cable connector features rugged all-metal housing and heavy-duty cable retention

• Excellent dust and dirt protection due to automatic sealing shutter with silicone gasket

• Reliable Push-Pull locking mechanism

• Easy to clean, no special tools required

• Available in different packaging versions

Neutrik opticalCON DUO Multimode Cable

• Ruggedized and dirt-protected fiber optic connection system

• Waterproof acc. to IP65 safety standard in mated condition

• 2-pole military-approved robust and lightweight mobile field cable with multi- or single-mode fibres

• opticalCON multimode fibre cables offer laser and bend-optimized OM3 fibres

• Accommodates standard optical LCDuplex connectors

• Cable connector features rugged all-metal housing and heavy-duty cable retention

• Excellent dust and dirt protection due to automatic sealing shutter with silicone gasket

• Reliable Push-Pull locking mechanism

Neutrik Opticalcon Duo Multimode Assemblies Drum Mounted

• Ruggedized and dirt-protected fiber optic connection system

• Waterproof acc. to IP65 safety standard in mated condition

• 2-pole military-approved robust and lightweight mobile field cable with multi- or single-mode fibres

• opticalCON multimode fibre cables offer laser and bend-optimized OM3 fibres

• Accommodates standard optical LC-Duplex connectors

• Cable connector features rugged all-metal housing and heavy-duty cable retention

• Excellent dust and dirt protection due to automatic sealing shutter with silicone gasket

• Reliable Push-Pull locking mechanism

• Easy to clean, no special tools required

• Available in different packaging versions

Neutrik Opticalcon Quad Singlemode Assemblies

• Ruggedized and dirt-protected fiber optic connection system

• Waterproof acc. to IP65 safety standard in mated condition

• 2-pole military-approved robust and lightweight mobile field cable with multi- or single-mode fibres

• opticalCON multimode fibre cables offer laser and bend-optimized OM3 fibres

• Accommodates standard optical LC-Duplex connectors

• Cable connector features rugged all-metal housing and heavy-duty cable retention

• Excellent dust and dirt protection due to automatic sealing shutter with silicone gasket

• Reliable Push-Pull locking mechanism

• Easy to clean, no special tools required

• Available in different packaging versions

Neutrik Opticalcon Quad Singlemode Assemblies Drum Mounted

• Ruggedized and dirt-protected fiber optic connection system

• Waterproof acc. to IP65 safety standard in mated condition

• 2-pole military-approved robust and lightweight mobile field cable with multi- or single-mode fibres

• opticalCON multimode fibre cables offer laser and bend-optimized OM3 fibres

• Accommodates standard optical LC-Duplex connectors

• Cable connector features rugged all-metal housing and heavy-duty cable retention

• Excellent dust and dirt protection due to automatic sealing shutter with silicone gasket

• Reliable Push-Pull locking mechanism

• Easy to clean, no special tools required

• Available in different packaging versions

Chassis Connector, black Chromium plating. 4 Solder contacts and 1 LC-Duplex feedthrough socket, waterproof acc to IP65 ingress protection in mated condition with SCDP NO2-4FDW-A - Neutrik*

Chassis connector, black chromium plating, front panel mount IP65 ingress protection in mated condition with SCDP-*.

The rear compatibility of opticalCON MTP® chassis fitting with standard MTP® (ELITE male) breakout cable allows easy adaptation to fibre standard connectors such as LC, SC, ST. The approved dust shutter ensures high mating cycles and minimal maintenance

Neutrik Rugged rubber sealing cover for opticalCON chassis connectors

Rugged rubber sealing cover for opticalCON chassis connectors

Neutrik Rugged rubber sealing cover for opticalCON chassis connectors

Rugged, all metal sealing cover for opticalCON chassis connectors

Neutrik Rugged, all metal sealing cover for opticalCON chassis connectors

The rear compatibility of opticalCON MTP® 24 chassis fitting with standard MTP® 24 (ELITE male with 20 N springforce) breakout cable allows easy adaptation to fibre standard connectors such as LC, SC, ST. The approved dust shutter ensures high mating cycles and minimal maintenance

Neutrik Ruggedized 12-Channel OpticalCON Chassis Connector

C2G Single-Mode Fibre Optic Cables

LC-LC 9/125 OS2 Duplex

Single-Mode Fibre Optic Cable (LSZH) - Yellow

LC-SC OS2 9/125 Duplex

Single-Mode Fibre Optic Cable (LSZH) - Yellow

LC-ST OS2 9/125 Duplex

Single-Mode Fibre Optic Cable (LSZH) - Yellow

SC & ST OS2 9/125 Duplex Single-Mode Fibre Optic Cable Options (LSZH) - Yellow

C2G Multi-Mode Fibre Optic Cables

LC/LC Multi-Mode 50/125 LSZH

Fibre Patch Cables LC/SC Multi-Mode 50/125 LSZH Fibre Patch Cables

C2G81749 1m

C2G81760 2m Purple LC-SC OM4

C2G81763 7m Purple LC-SC OM4

C2G81765 15m Purple LC-SC OM4

C2G81766 20m Purple LC-SC OM4

C2G81767 30m Purple LC-SC OM4

C2G81768 50m Purple LC-SC OM4

CG85531 1m Aqua LC-SC OM3

CG85532 2m Aqua LC-SC OM3

CG85533 3m Aqua LC-SC OM3

CG85534 5m Aqua LC-SC OM3

CG85535 7m Aqua LC-SC OM3

CG85536 10m Aqua LC-SC OM3

CG85537 15m Aqua LC-SC OM3

C2G85556 20m Aqua LC-LC OM3

C2G85557 30m Aqua LC-LC OM3

C2G85558 50m Aqua LC-LC OM3

C2G85542 3m

C2G85543 5m

CG85539 30m Aqua LC-SC OM3 Code Length Colour Connections Cable Type

C2G81739 1m Purple SC-SC OM4

C2G81743 7m Purple SC-SC OM4

C2G81744 10m Purple SC-SC OM4

C2G81746 20m Purple SC-SC OM4

C2G85513 1m Aqua SC-SC OM3

C2G85514 2m Aqua SC-SC OM3

C2G85518 10m Aqua SC-SC OM3

C2G85522 1m Aqua SC-ST OM3

C2G85523 2m Aqua SC-ST OM3

C2G85524 3m Aqua SC-ST OM3

C2G85525 5m Aqua SC-ST OM3

C2G85527 10m Aqua SC-ST OM3

C2G85504 1m Aqua ST-ST OM3

C2G85506 3m Aqua ST-ST OM3

Fibre Optic Patch Cables and RJ45 Port Blockers

Port Blockers with Key OM5 Green LC/LC Multi Mode 50/125 LSZH Fibre Patch Cables

Fibre Patch Cable

Fibre Patch Cable

Fibre Patch Cable LINDY46314

LSZH Fibre Patch Cable

LINDY46315

LSZH Fibre Patch Cable

Fibre Patch Cables

Fibre Patch Cables

LINDY47892 Pack Of 20 RJ45 Port Blockers Without Key Black

LINDY47895 Pack Of 20 RJ45 Port Blockers Without Key Green

LINDY47898 Pack Of 20 RJ45 Port Blockers Without Key Orange

Pack of 20 RJ45 Port Blockers (Without Key) Black RJ45 Port

LINDY47901 Pack Of 20 RJ45 Port Blockers Without Key Yellow Code LINDY47890

Other colours available on request.

Premium High Performance Coax Cables and Connectors

Belden 1694A HD SDI BNC

Kramer 152.4m Black RG6

Broadcast Quality Optimized for 3G HD−SDI Bulk Cable

FFBNCCABSDI20M

High-Performance RG−6 Cable with 75Ω BNC Connectors

Evolution XPC 12GHz Coax

Minature UHD BNC Male to Male

Cable designed for high-quality 8K and 4K UHD Transmission

Evolution Drum Mounted XPC 12GHz Flexible Extended Distance

UHD Coaxial BNC Male to BNC

Male Cable

XPC130930FD12G 30m Black

XPC130950FD12G 50m Black

XPC130980FD12G 80m Black

Evolution XPC 12GHz UHD

Precision Video Cable Extended Distance 8K UHD 12G-SDI coaxial BNC Male to BNC Male

XPC13085212G 2m Black

XPC13085512G 5m Black

XPC13085612G 10m Black

XPC13085812G 15m Black

lengths available on request

lengths available on request

XPC13090212G 2m Black

XPC13090512G 5m Black

XPC13091012G 10m Black

XPC13091512G 15m Black

lengths available on request

Heavy duty 20 amp PowerCon extension Cables

Made in the UK with industry standard HO7 (TRS) 3 X 2.5mm Cable and Neutrik PowerCon Connectors

Heavy Duty Powercon True TOP Male to Female extension Cables

Made in the UK with Titanex 3 x 2.5mm HO7RNF Cable and NAC3F-TRU1-S & NAC3M-TRUE1-S Connectors

XPC674-001 1m

XPC674-003 3m

XPC674-005 5m

XPC674-010 10m

XPC674-020 20m

More lengths available on request.

XPC674-001T25 1m

XPC674-003T25 3m

XPC674-005T25 5m

XPC674-010T25 10m

XPC674-020T25 20m

More lengths available on request.

Neutrik NAC3FXXA-W Locking Power Connectors

Keyed and colour-coded (blue) for power-in, screw terminal assembly, for cable diameters 6 - 16 mm.

NEUNAC3FXXAWS NAC3FXXA-W-S 6-12mm NEUNAC3FXXAWL NAC3FXXA-W-L 10-16mm

More lengths available on request.

Neutrik NAC3MTRUE1 Locking Male powerCON Connectors for cable diameters 6 - 16mm

Neutrik NAC3FTRUE1 Locking Female powerCON Connectors for cable diameters 6 - 16mm

Neutrik NAC3FXXB-W Locking Power Connectors keyed and colour-coded (grey) for power-out, screw terminal assembly, for cable diameters 6 - 16mm

NEUNAC3MTRUE1S NAC3M-TRUE1-S 6-12mm

NEUNAC3MTRUE1L NAC3M-TRUE1-L 10-16mm Midwich Code

NEUNAC3FTRUE1S NAC3F-TRUE1-S 6-12mm

NEUNAC3FTRUE1L NAC3F-TRUE1-L 10-16mm Midwich Code Neutrik

NEUNAC3FXXBWS NAC3FXXB-W-S 6-12mm

NEUNAC3FXXBWL NAC3FXXB-W-L 10-16mm

UK 3-Pin Plug to 2 x IEC C13

Female Extension Cable 13 Amp

IEC Splitter

Cable IEC C14 to 2x IEC C13

UK 3-Pin Plug to IEC C5

Female & IEC

C13 Female, 13 Amp

IEC Extension

Cable, Black

UK 3-Pin Mains Plug to Hot Conditioned IEC C15 Female Power Cable

UK 3-Pin Plug to IEC C5

Female & IEC

C13 Female, 13 Amp

IEC C14 Male to IEC C15 Female Hot Condition Power Cable

IEC C5 to C14

Male Mains Cable, lead free

UK Mains to IEC C13 Female Cable

UK Mains to Clover Leaf C5 Power Cable

UK Mains to Figure of 8 (C7) Power Cable

UK 2.5m 13Amp Plug to IEC C19 Black PVC 1.5mm Power Cable

IEC C13-C14 Mains Power Male to Female Extension IEC C14 Plug to C15 Socket Hot Rated Power Cable Euro Schuko Plug to C5 Cloverleaf European Schuko to C13 Mains Cable

3m Black UK Mains to 2 x IEC C13 Female Splitter Cable

UK Power Cords (IEC320C13 to BS 1363)

UK Mains Plug to IEC 90 Degree Right Angle IEC320C13R Socket

European Power Cords (IEC320C13 to CEE 7/7)

UK Mains Plug to IEC C7 Fig 8 Power Cord

IEC C13-C14 Computer Power

UK Laptop Power Cord

BS1363 to IEC 60320 C5

C2G80600 0.5m Black

C2G80601 1m Black

C2G80602 2m Black

C2G80603 3m Black

European Non-Polarised Power Cord (CEE7/7 to IEC 60320 C7)

European Laptop Power Cord (CEE 7/7 to IEC 60320 C5)

4-Way Surge

Protected Power Extension

Socket with 13Amp Plug Cable

FFPOWUKB4BSP5 5m Black

FFPOWUKB4W-SP5 5m White

FFPOWUKB4B-SP10 10m Black

6-Way Surge

Protected Power Extension Socket with 13Amp Plug Cable

2m 8-Way Surge

Protected

UK Socket Tower

Block with USB-A and USB-C ports

4-Way Power

Extension Socket with 13Amp Plug

Cable

Black Vertical PDU with UK Mains Sockets and a 3m UK Mains Plug with UK 13Amp

6-Way Power

Extension Socket with 13Amp Plug

Cable

Black Vertical PDU with UK Mains Sockets and a 3m IEC C14 Plug Cable

1U 6 Way UK S ockets, Horizontal PDU with IEC C14 Cable

IEC Sockets Horizontal PDU with a 3m UK Mains Plug

Behind The Screen

AC Power Management in a super compact form factor. Fully IPcontrolled and monitored outlets for your applications in digital signage, mobile or collaboration space environments.

Features:

• Network IP Control, customisable UI

• Multi-stage surge protection

• 2 or 4 individually switchable outlets

• Remote turn on/off, power cycling and sequencing

• Advanced scheduling, AutoPing and threshold triggered events

• Remote power management and analytics

• Seamless integration with third party control systems

Advanced Series Mode Protection

Axess ELITE+ provides non-sacrificial surge protection Advanced Series Mode, network control, remote management, power cycling, and sequencing.

Features:

• Network IP Control, customisable UI

• Remote management and control of connected devices

• Monitor energy consumption per device

• Real-time diagnostics and analytical insights

• Advanced Series Mode® surge elimination technology

• 11 individually switchable outlets

• Seamless integration with third party control systems

Outside The Rack

Inside The Rack

Fully IP-controlled, the Vertical Series+ smart PDU is feature-packed, with remote turn on/off, power cycling, sequencing, triggers, remote power management and analytics. Flexible sizing options ensure the perfect fit for any rack configuration.

Features:

• Network IP Control, customisable UI

• 8, 16 and 24 outlet configurations

• Individually switchable outlets

• Remote turn on/off, power cycling and sequencing

• Advanced scheduling, AutoPing and threshold triggered events

• Remote power management and analytics

• Seamless integration with third-party control systems

The Defender Series+ provides multi-stage surge protection, power filtration, inlet current monitoring, analytics and control triggers, enabling integrators to protect, control, diagnose and automate faulty equipment.

Features:

• Network IP Control, customisable UI

• Multi-stage surge protection

• Swappable power cord with lock

• 8 individually switchable outlets and 1 always ON outlet

• Remote turn on/off, power cycling and sequencing

• Advanced scheduling, AutoPing and threshold triggered events

• Remote power management and analytics

• Seamless integration with third party control systems

ALL-IN-ONE

Protection and Power Management Solutions

AC/DC power protection, boxed network control, and analytical software in one chassis. For use in small meeting/huddle spaces while eliminating wall worts.

SURSX10Ei (SX-AX10Ei)

Surge Elimination with Remote Turn-On

Rack Mount

&

DIAGNOSTICS

Safeguard AV equipment with ASM technology as well as remote turn-on/off for quick reboots, via contact closure to reduce service calls.

Surge Elimination Outside of a Rack

Premium protection for AV, security and PC systems outside of a rack. Optional brackets allow for mounting inside a cabinet.

UPS

True Sine Wave with Hot-Swappable Batteries

Online double/conversion technology ensures clean, continuous power.

Battery backup provides the assurance that downtime will never be an issue.

IP-enabled connectivity provides remote monitoring and management.

Features:

• Online double conversion technology

• True sinewave output

• Controllable receptacles

• Hot swappable battery

• Configurable as tower or 48.26cm rack

• Intuitive LCD screen

• Optional SNMP card to monitor and manage the UPS via the network

UPS-17202-53R

UPS-17302-60R

How To Make Smart Energy Savings in the Classroom

SX-DC-8-24-230

DC 12V & 24V Outlets

DC 5V

Ethernet Port

Select Series PDU with RackLink CE Rated

RackLink™ Select Features & Benefits:

• 10A

• 100 - 240V

• Available in 2, 4 and 9 outlets

Premium+ IEC PDU with RackLink CE Rated

• 16A

• 100 - 240V

• Available in 4 and 9 outlets

Premium+ Features & Benefits: Remote Management System to monitor everything plugged into the PDU Save programming with integrated scheduling, variable timed sequencing, ping sequencing, auto healing, thresholds and multiple notification options.

• Includes mounting bracket for on-wall installation

• 24/7/365 connectivity with the RackLink™

• Connect via Wi-Fi with a 3rd party dongle

Forum™ Free-Standing 66" (3 Bay) Display Stand for (2) 66" to 75" Displays, Light Finish

The Forum™ 3 Bay (66" Wide) Free-Standing Display Stand is designed for workspaces where hybrid collaboration is necessary in either open or closed spaces.

• This is how hybrid works. A Freestanding Display Stand with an included Chief Fusion Modular Extrusion and fixed interface brackets for a dual 66" to 75" displays wrapped in acoustic felt for crystal clear meetings.

• The base is powder coated in a semi-gloss white.

• The equipment storage area is Wilsonart Designer White high pressure laminate (HPL).

• The upper tower and display shroud are Silver Gray Acoustic Felt.

• The Free-Standing Display Stand and display shroud are wrapped in silver grey acoustic fabric to limit audio reverberation for the highest quality audio experience for local and remote participants.

• The acoustic material is made of 100% polyester, containing up to 50% of recycled plastic bottles (PET).

Floor & Pull-Out Racks

5-14-26

5-21

5-37

5-37-26

Other availablesizes for the SRSR, AXS and CFR Series

BGR Series

Lead generallytime7-10 days

(if not already in stock)

BGR-4127 MAPBGR4127 Floor / Multi-bay 41U 609mm 1360kg

BGR-4132 MAPBGR4132 Floor / Multi-bay 41U 736mm 1360kg

BGR-4527 MAPBGR4527 Floor / Multi-bay 45U 609mm 1360kg

BGR-4532 MAPBGR4532 Floor / Multi-bay 45U 736mm 1360kg

MAPSRSR424 In Wall & Rotate 24U 482mm 113kg

AV,

AV SRSR-4-30 MAPSRSR430 In Wall & Rotate 30U 482mm 113kg Commercial AV, Residential AV

ERK Series

ERK-2120 MAPERK2120

/ Multi-bay 21U 469mm 1133kg

ERK-2125 MAPERK2125 Floor / Multi-bay 21U 589mm 1133kg

ERK-2720 MAPERK2720 Floor

469mm 1133kg

ERK-3525 MAPERK3525 Floor / Multi-bay 35U 589mm 1133kg

ERK-4020 MAPERK4020 Floor / Multi-bay 40U 469mm 1133kg

ERK-4425 MAPERK4425 Floor / Multi-bay 44U 589mm 1133kg

Slide-Out & Wall / Floor Racks

AXS Series

AXS-24 MAPAXS24 In Wall 24U 508mm 294kg

AXS-27 MAPAXS27 In Wall 27U 508mm 294kg Residential AV

AXS-37 MAPAXS37 In Wall 37U 508mm 294kg Residential AV

AXS-40 MAPAXS40 In Wall 40U 508mm 294kg

AXS-40-26 MAPAXS4026 In Wall 40U 660mm 294kg

AXS-43 MAPAXS43 In Wall 43U 508mm 294kg

AXS-43-26 MAPAXS4326 In Wall 43U 660mm 294kg

DWR Series

CFR Series

DWR-12-22

Horizontal 12U 508mm 136kg

DWR-12-26 MAPDWR1226 Horizontal 12U 609mm 136kg

DWR-16-17 MAPDWR1617 Horizontal 16U 381mm 36kg

DWR-16-22 MAPDWR1622 Horizontal 16U 508mm 136kg

DWR-18-17 MAPDWR1817 Horizontal 18U 381mm 136kg

DWR-18-22 MAPDWR1822 Horizontal 18U 508mm 136kg

DWR-18-26 MAPDWR1826 Horizontal 18U 609mm 136kg

DWR-21-17 MAPDWR2117 Horizontal 21U 381mm 136kg

AV, Residential AV, Security

AV, Residential AV, Security

AV, Residential AV, Security

Commercial AV, Residential AV, Security

Commercial AV, Residential AV, Security

Commercial AV, Residential AV, Security

DWR-21-22 MAPDWR2122 Horizontal 21U 508mm 136kg Commercial AV, Residential AV, Security

DWR-24-17 MAPDWR2417 Horizontal 24U 381mm 136kg Commercial AV, Residential AV, Security

DWR-24-22 MAPDWR2422 Horizontal 24U 508mm 136kg

DWR-35-22 MAPDWR3522 Horizontal 35U 508mm 136kg

DWR-35-26 MAPDWR3526 Horizontal 35U 609mm 136kg

AV, Residential AV, Security

AV, Residential AV, Security

SANUS Series

Wall / Floor Racks

XeLAN Black Wall Rack

500mm & 600mm Deep Cabinets with Glass front Door

Midwich P/N Xelan P/N U Height Depth

XEL5006-0500

XEL5009-0500

XEL5012-0500

XEL5015-0500

5006-0500 6U 500mm

5009-0500 9U 500mm

5012-0500 12U 500mm

5015-0500 15U 500mm

XEL5021-0500 5021-0500 21U 500mm

XEL5006-0600

XEL5009-0600

5006-0600 6U 600mm

5009-0600 9U 600mm

XEL5012-0600 5012-0600 12U 600mm

XEL5015-0600

5015-0600 15U 600mm

XEL5021-0600 5021-0600 21U 600mm

XeLAN Black 600mm Wide Floor Cabinets with Glass front Door

XEL5420-1566 5420-1566 15U 600mm 600mm

XEL5420-2066

XEL5420-2966 5420-2966 29U

XEL5420-3366 5420-3366 33U

XEL5420-4266 5420-4266 42U

XEL5420-4268 5420-4268 42U

XEL5420-4261 5420-4261 42U

Excel Grey White 800mm

Wide Floor Cabinets with Glass front Door

EXCE422486GSBFG 542-2486-GSBF-GW 24U

EXCE422488GSBFG 542-2488-GSBF-GW 24U 800mm

EXCE422986GSBFG 542-2986-GSBF-GW 29U

EXCE422988GSBFG 542-2988-GSBF-GW 29U

EXCE229810GSBFG 542-29810-GSBF-GW 29U

EXCE423386GSBFG 542-3386-GSBF-GW 33U

EXCE423388GSBFG 542-3388-GSBF-GW 33U

EXCE233810GSBFG 542-33810-GSBF-GW 33U

XeLAN Black 800mm Wide Floor Cabinets with Glass front Door

XEL5420-2988 5420-2988 29U 800mm 800mm

XEL5420-3386 5420-3386 33U 800mm 600mm

XEL5420-3388 5420-3388 33U 800mm 800mm

XEL5420-4281 5420-4281 42U 800mm 1000mm

XEL5420-4288 5420-4288 42U 800mm 800mm

XEL5420-4286 5420-4286 42U 800mm 600mm

XEL5420-4788 5420-4788 47U 800mm 800mm

Excel Racks Accessories

1U 4 Vertical Metal Hoops 65mm Black Cable ManagementBar

1U 4 Vertical Metal Hoops 100mm Black Cable Management Bar Black Blanking Plates

Environ 1U 190mm Deep Cantilever Shelf

1U Brush Strip Black

Environ 1U 400mm Deep Cantilever Shelf

Racks & Accessories

R4000 Tower Range

600mm / 23.62” Wide Rack Tower, with M6 Threaded Rail and Lockable Front Door

Midwich P/N

PENNR4066-18

PENNR4066-22

PENN44066-32

PENNR4066-37

PENNR4066-42

PENNR4066-47

PENNR4066V-18

PENNR4066V-22

PENN44066V-32

PENNR4066V-37

PENNR4066V-42

PENNR4066V-47

R4066-18UK 18U Poly

R4066-22UK 22U Poly

R4066-32UK 32U Poly

R4066-37UK 37U Poly

R4066-42UK 42U Poly

R4066-47UK 47U Poly

R4066-V-18UK 18U Vented

R4066-V-22UK 22U Vented

R4066-V-32UK 32U Vented

R4066-V-37UK 37U Vented

R4066-V-42UK 42U Vented

R4066-V-47UK 47U Vented

1U 16A 10-Channel Power Distribution Unit (UK)

PDU16-10DJ-UK

Cant find the Penn Elcom Product you want contact Racks@midwich.com and we will come back with a price for you

R6600 Wall Mount Range

P/N

PENNR6606-M6 R6606-M6 6U Poly

PENNR6609-M6 R6609-M6 9U Poly

PENNR6612-M6 R6612-M6 12U Poly

PENNR6618-M6 R6618-M6 18U Poly

PENNR6606V-M6 R6606V-M6 6U Vented

PENNR6609V-M6 R6609V-M6 9U Vented

PENNR6612V-M6 R6612V-M6 12U Vented

PENNR6618V-M6 R6618V-M6 18U Vented

Thermal management

600mm / 23.62” Deep Wall Mount Rack Enclosures 19” Rack Mount Thermal Management

PENNRFP02Q3U FP02-Q-3U 3

PENNRFT01Q-DTC FT101Q-DTC 1

Low noise heat extraction unit designed to be fitted to the front or back of a 19” rack to extract hot air

Rack mountable digital thermostatically controlled quiet fan tray unit, for use in 19” equipment racks

PENNRCOOLRAC-B COOLRAC-B 1

PENNRFT01Q FT01-Q 1

Extremely quiet hot air extraction unit, which uses 3 miniature blowers to expel heat from any 19” equipment racks

Blower unit with low noise fans to reduce noise levels from the rack. Can be used as 1U horizontal tray or 6U blower positioned vertically

R1194 19” Rack Shelves

1U and 2U Rack Shelves made from 1.5mm / 16-gauge steel in a black powder coated finish. Vented steel model available for up to 61% more air circulation around electronic rack mount equipment.

PENNR11941UK R1194/1UK 1U 270.5mm Plain

PENNR11942UK R1194/2UK 2U 368.2mm Plain

PENNR11943UK R1194/3UK 3U 368.2mm Plain

PENNR11944UK R1194/4UK 4U

PENNR11941UVK R1194/1UVK 1U

Plain

19” Rack Panels

1.2mm/0.05” Steel Rack Panels

PENNR1268/1UK R1268/1UK 1U Plain

PENNR1268/2UK R1268/2UK 2U Plain

PENNR12683UK R1268/3UK 3U Plain

PENNR1268/4UK R1268/4UK 4U Plain

PENNR1268/5UK R1268/5UK 5U Plain

Vented

Vented PENNR11942UVK R1194/2UVK 2U

PENNR11943UVK R1194/2UVK 3U 368.2mm Vented

Panel with cable access

Rack Panel with cable access slot and brushes with extruded aluminium body.

Size U

PENNR12681UKPBS R1268/1UK-PBS 1U

PENNR12682UKPBS R1268/2UK-PBS 2U

PENNR1268/6UK R1268/6UK 6U Plain

PENNR1286/05UVK R1286/05UVK 1/2U Perforated

PENNR11944UVK R1194/2UVK 4U 368.2mm Vented Midwich

PENNR1286/1UVK R1286/1UVK 1U Perforated

PENNR1286/2UVK R1286/1UVK 2U Perforated

PENNR1286/3UVK R1286/1UVK 3U Perforated

PENNR1286/4UVK R1286/1UVK 4U Perforated

Mount Cable Support Bar

19” horizontal cable support bar with slots for cable tires.

PENNR1311 R1311 12.4mm

PENNR1311-1A R1311-1A 51mm

PENNR1311-2A R1311-2A 92mm

PENNR1311-3A R1311-3A 133mm

19Inch Network Patch Panels for Racks

1U Cat6 24 Port Unscreened Patch Panel LSA Punch Down

• 1Rear cable management

• LSA style right angled termination

• Cage nuts and mini cable ties included

• T568A/B wiring configuration

• Rear cable management

• LSA style right angled termination

• Cage nuts and mini cable ties included

• T568A/B wiring configuration

• Rear cable management

• LSA style right angled termination

• Cage nuts and mini cable ties included

• T568A/B wiring configuration

• High quality angled terminal block contacts accept 22-26 AWG solid core wire

• Dual type terminal blocks (for Krone/110 compatible punchdown tools) and dual T568A/T568B colour coding

• Cable tie mounts and cable ties supplied for cable management

• Earthing kit, cage nuts and mini cable ties included

• Fast fit rear cable management

• For screened systems

• High quality angled terminal block contacts accept 22-26 AWG solid core wire

• Dual type terminal blocks (for Krone/110 compatible punchdown tools) and dual T568A/T568B colour coding

• Cable tie mounts and cable ties supplied for cable management

PC Accessories

KB235 USB Standard UK Layout

Keyboard and 3 Button Optical Mouse – Black

HP521 Stereo In-Ear Headphones – White

KB238 Wireless Multimedia UK Layout Keyboard and 5 Button Optical Mouse - Silver With Black Keys

MO542 USB Mid-Size 3 Button

Optical Mouse – Black

HP531 Stereo Mobile On-Ear Headset with In-Line Mic and Controller - Black/Red

2.4 GHz wireless headset with detachable mic and USB A/C Dongle
