REBOTECHOISTS
Lifting&Sit-stand
Versatile, portable hoists for patient positioning
PatientHoists

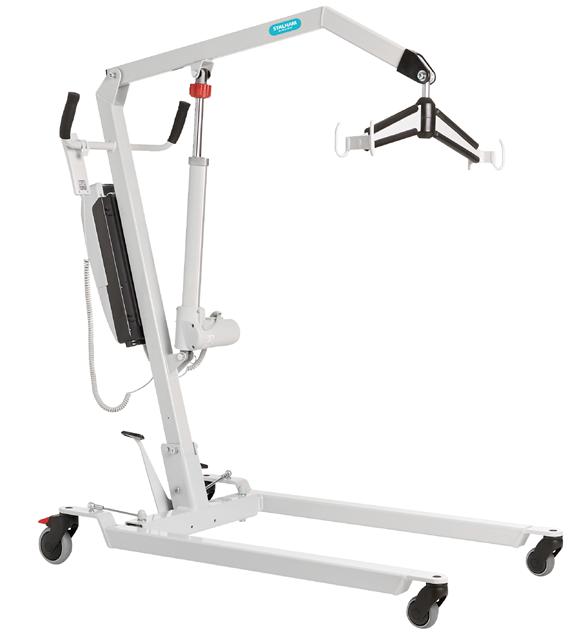

ARNOLD 150 LIFTING HOIST
Structure
Epoxy coated steel frame.
Complete lifting hoist can be assembled in just a few minutes.
Utilises electric lifting arm.
Comfort
A range of comfortable slings are available to fit patient requirements.
Ergonomic handles.
Ease Of Handling
Wired remote control for user controls in any position around the lift.
Capable of lowering patient to the ground.
The base frame has a very low construction to allow for very good under-ride possibilities.
Undercarriage is expandable as needed by means of foot pedal.
Mounted on four swivelling castors for portability. Each rear castor is braked.
Safety
Features easy to access emergency stop button.
Lift can allow for emergency mechanical lowering if required.
Additional battery backup.
Medical grade electric lifting arm.

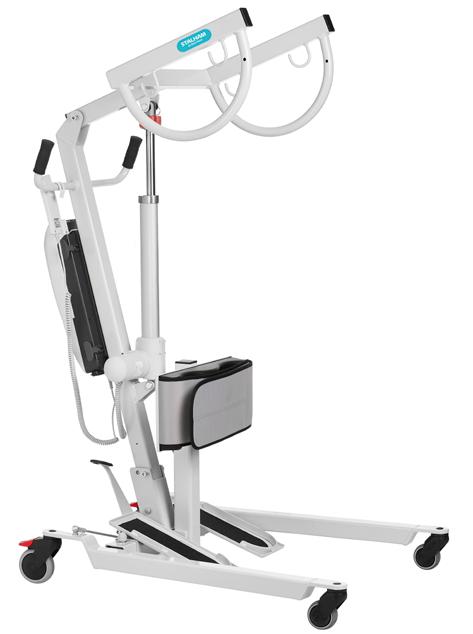

PatientHoists JAMES 150 SIT-STAND LIFT
Structure
Epoxy coated steel frame.
Complete lifting hoist can be assembled in just a few minutes.
Utilises electric lifting arm.
Comfort

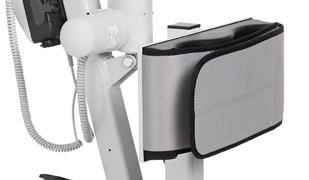

Leg straps ensure comfort and stability for patient when lifting.
180° grab handles support patient.
Angled foot rests secure feet in place when in use.
Ease Of Handling
Wired remote control for user controls in any position around the lift.
The base frame has a very low construction to allow for very good under-ride possibilities.
Undercarriage is expandable as needed by means of foot pedal.
Mounted on four swivelling castors for portability. Each rear castor is braked.
Safety
Features easy to access emergency stop button.
Lift can allow for emergency mechanical lowering if required.
Additional battery backup.
Medical grade electric lifting arm.
Speciications ARNOLD 150 LIFTING HOIST
Hoist: 150 LIFTING HOIST
Lift height (min.) 55 cm
Lift height (max.) 174 cm
Underpin height 14 cm
Device weight 43 kg
Max. user weight 150 kg

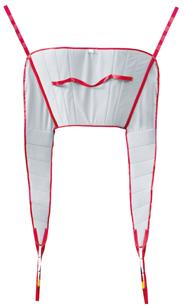

Universal sling (S, M/L, XL/XXL)
Approved up to 250 kg weight

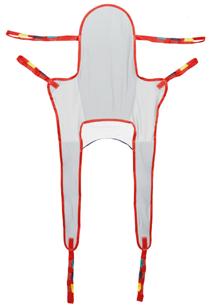

Net/bath sling (S, M/L, XL/XXL)
Approved up to 250 kg weight
Accessories:
Toilet sling (optional velcro fastener version)
Approved up to 250 kg weight
Universal sling with headrest (M/L)
Approved up to 300 kg weight

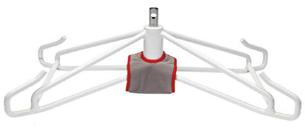

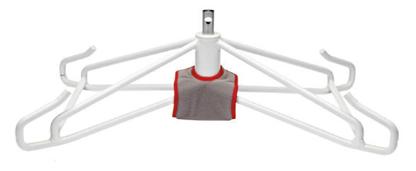

Wide Hanger
4-point spreader bar 56 x 33 x 14cm
Bariatric sling
Approved up to 300 kg weight

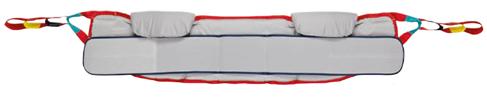

Horizontal sling (optional split leg)
Approved up to 250 kg weight
Speciications
JAMES 150 SIT-STAND HOIST
Hoist: 150 SIT-STAND LIFT
Lift height (min.) 84 cm
Lift height (max.) 150 cm
Underpin height 14 cm
Device weight 53 kg
Max. user weight 150 kg
Accessories:
Back support sling
Approved up to 250 kg weight
belt
Calf support
