www.medi-plinth.co.uk
PatientHoists
ARNOLD LIFTING HOIST
Structure
Epoxy coated steel frame.
Complete lifting hoist can be assembled in just a few minutes.
Utilises electric lifting arm.
Comfort
A range of comfortable slings are available to fit patient requirements.
Ergonomic handles.
Ease Of Handling
Wired remote control for user controls in any position around the lift.
Capable of lowering patient to the ground.
The base frame has a very low construction to allow for very good under-ride possibilities.
Undercarriage is expandable as needed by means of foot pedal.
Mounted on four swivelling castors for portability. Each rear castor is braked.
Safety
Features easy to access emergency stop button. Lift can allow for emergency mechanical lowering if required.
Additional battery backup. Medical grade electric lifting arm.
JAMES 150 SIT-STAND LIFT
Structure
Epoxy coated steel frame.
Complete lifting hoist can be assembled in just a few minutes.
Utilises electric lifting arm.
Comfort
Leg straps ensure comfort and stability for patient when lifting.
180° grab handles support patient.
Angled foot rests secure feet in place when in use.
Ease Of Handling
Wired remote control for user controls in any position around the lift.
The base frame has a very low construction to allow for very good under-ride possibilities.
Undercarriage is expandable as needed by means of foot pedal.
Mounted on four swivelling castors for portability. Each rear castor is braked.
Safety
Features easy to access emergency stop button.
Lift can allow for emergency mechanical lowering if required.
Additional battery backup.
Medical grade electric lifting arm.
Speciications
ARNOLD 150 LIFTING HOIST
Hoist: 150 LIFTING HOIST
Lift height (min.) 55 cm
Lift height (max.) 174 cm
Underpin height 14 cm
Accessories:

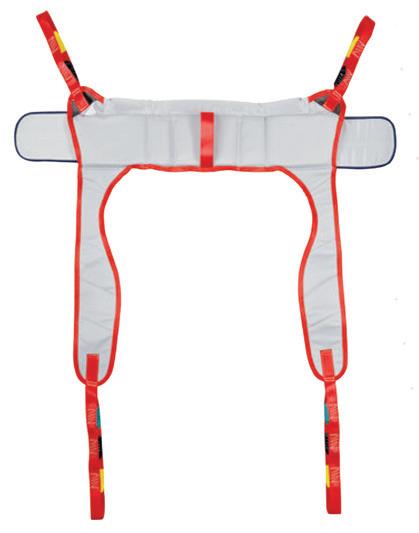

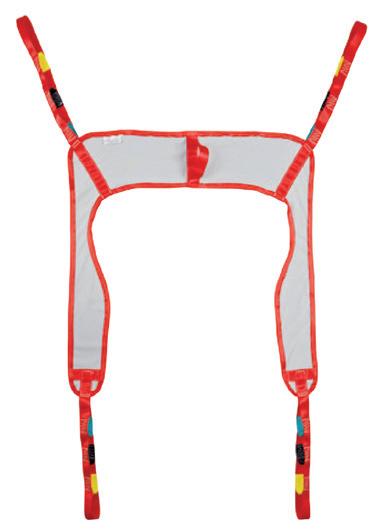

Toilet sling (optional velcro fastener version)
Approved up to 250 kg weight
Device weight 43 kg
Max. user weight 150 kg

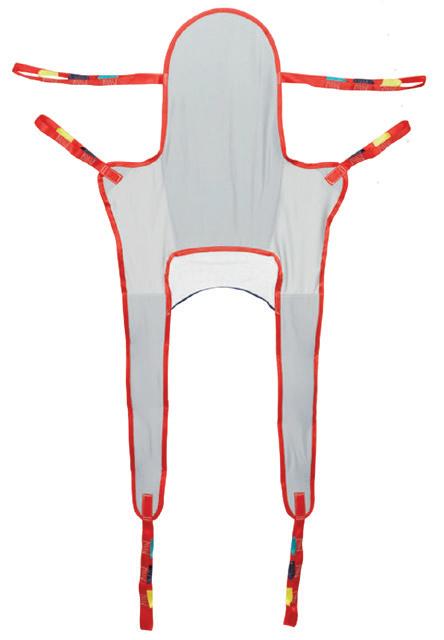

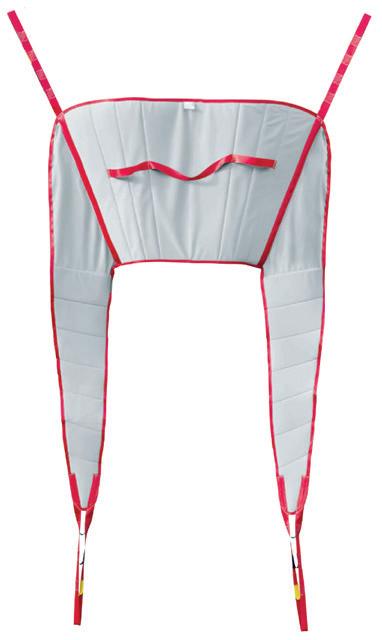

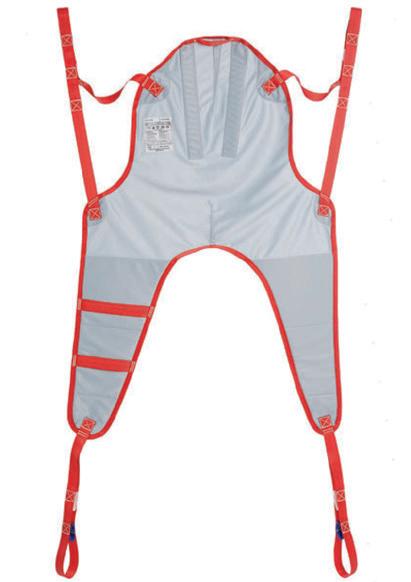

Universal sling (S, M/L, XL/XXL)
Approved up to 250 kg weight
Net/bath sling (S, M/L, XL/XXL)
Approved up to 250 kg weight
Universal sling with headrest (M/L)
Approved up to 300 kg weight
Bariatric sling Approved up to 300 kg weight

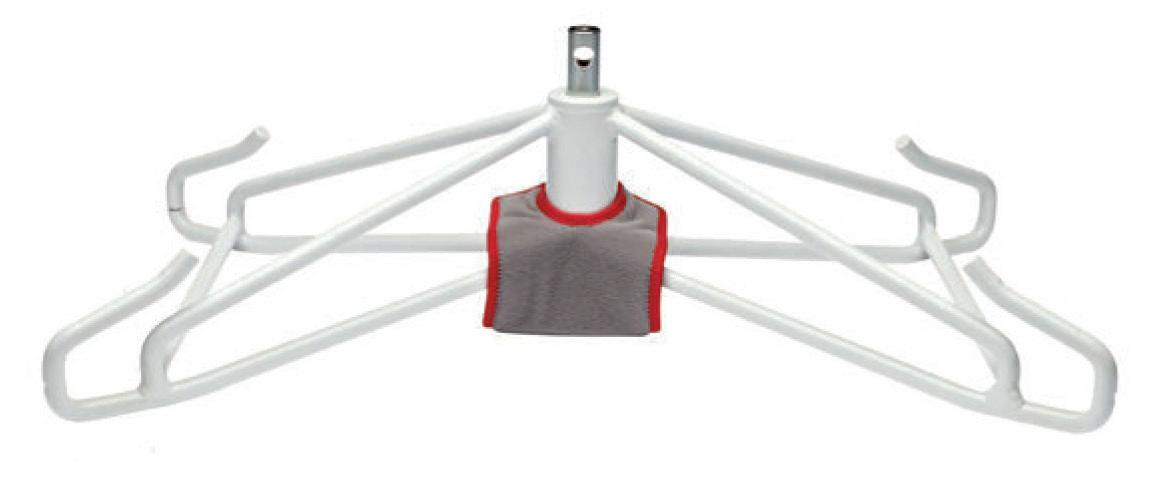

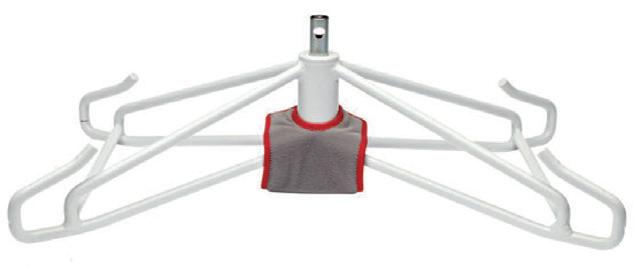

Wide Hanger 4-point spreader bar 56 x 33 x 14cm

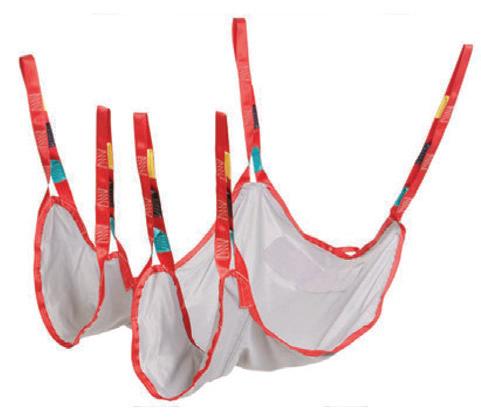

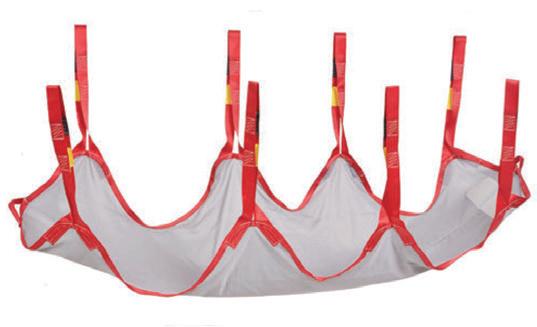

Horizontal sling (optional split leg) Approved up to 250 kg weight

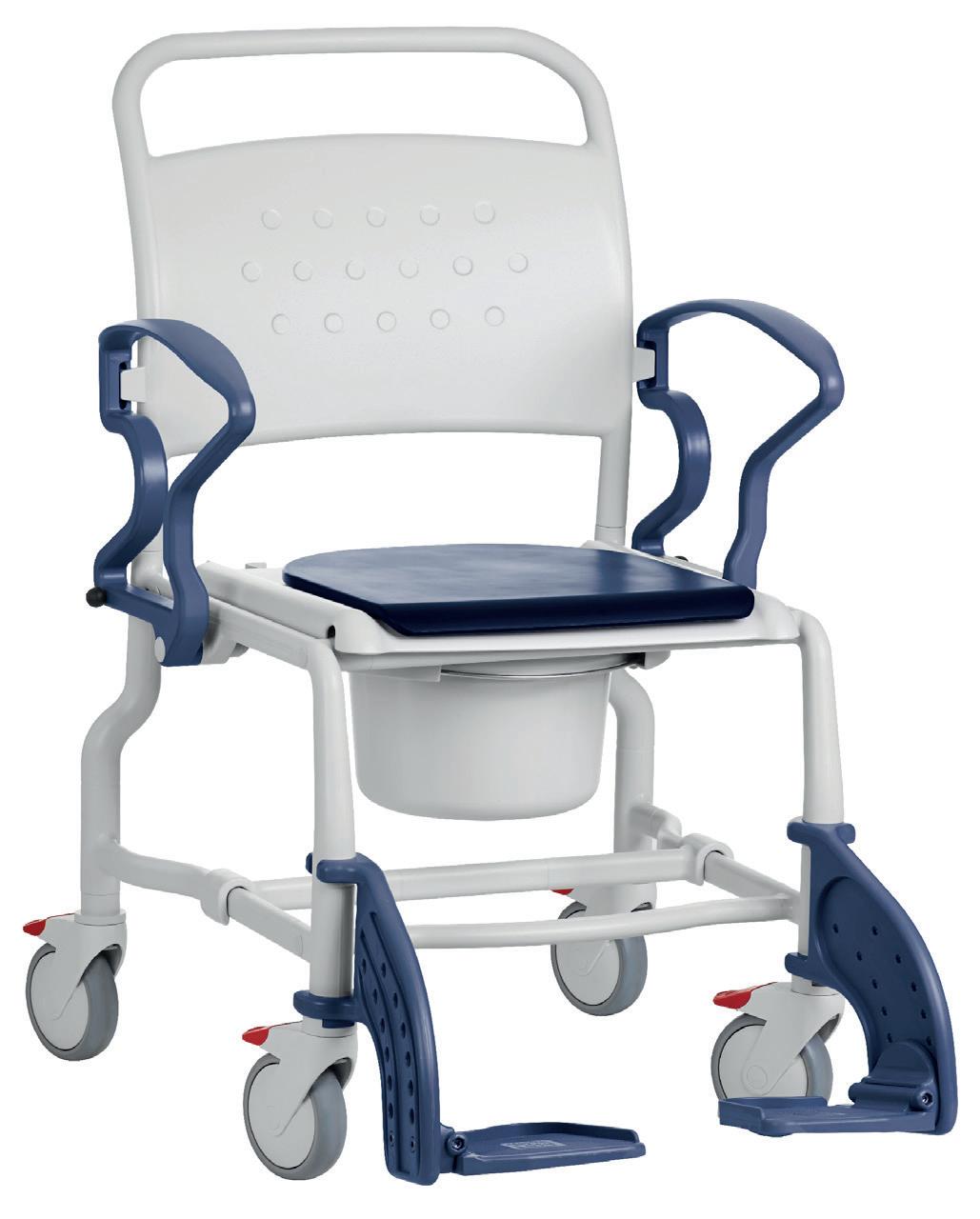

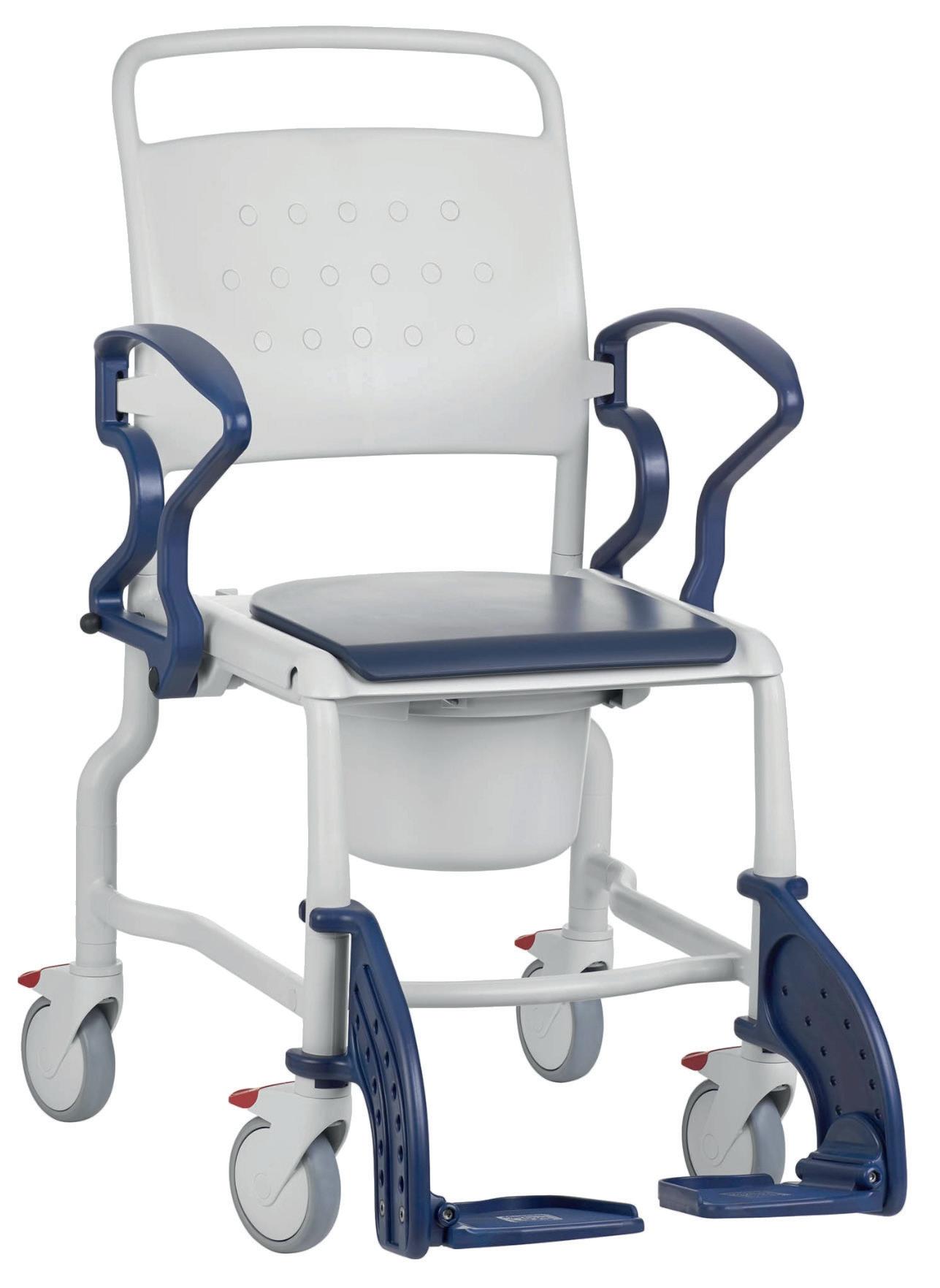

PortableCommodes BONN & HAMBURG
Structure
Utilises a completely synthetic frame making it durable and lightweight. Coated tube frame design allows for a very high resistance to wear
Strong, rigid materials also have the added benefit of shock dissipation.
Includes a moulded removable potty as standard (stainless steel rack also available)
Comfort
Moulded backrest is ergonomically designed to be comfortable for users.
Available as fixed, adjustable or wide models. Offering adjustable height or increased width to accommodate patients of different sizes.
Footrests are height adjustable and swing away when not required.

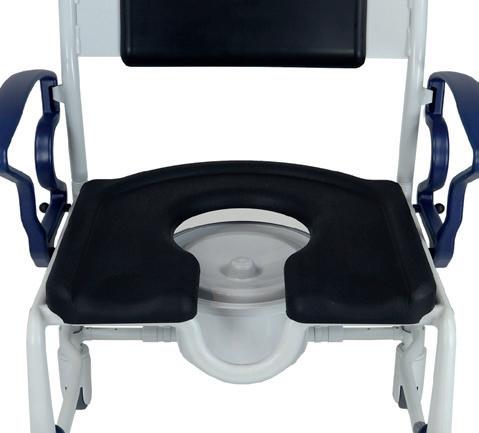

Moulded synthetic rubber over-seat which securely encloses the aperture and is kind to patient skin.
Ease Of Handling
Push handle integrated in back frame for easy and accurate portering.
Fitted with four Ø 125mm braked castors
Arm rests which are easily retractable to enable secure transfer and patient access.
Rubber over-seat has no seams and will not rip/ tear.
Easy Cleaning
Chair can be dismantled within 20 seconds without tools to allow for thorough cleaning.
Designed without welding to avoid rust or micro-fracture weak points. Seamless joints ensure dirt or bodily fluids cannot be trapped.
Capable of withstanding the most rigorous cleaning regime. Suitable for cleaning with NHS approved cleaning solutions and Clinell wipes (or other alcohol based wipes).

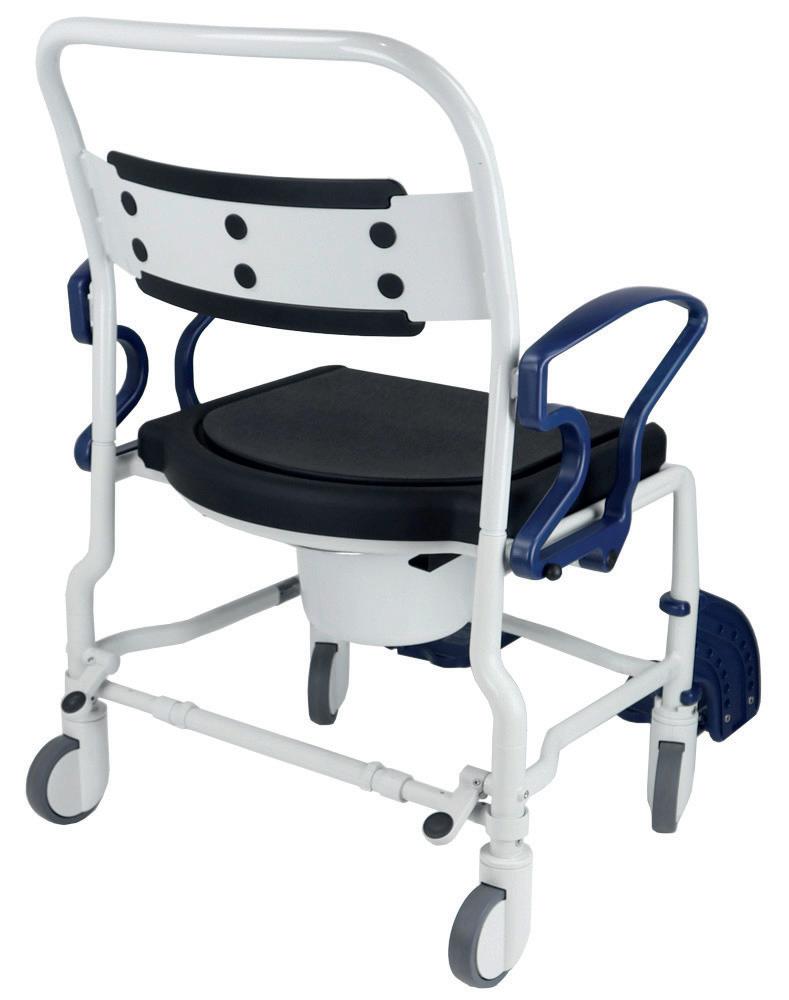

BONN, HAMBURG & BOSTON RANGE
Commode:BONN
Overall dimensions 102 x 57 x 60 cm
Aperture seat height 51 cm
Under aperture height49 cm
Over-seat height 53 cm
Seat width 47 cm
Seat depth 40 cm
Armrest height 26 cm
Backrest height 52 cm
Clears toilet of height49 cm
Safe working load
Product weight 15 kg
Commode:HAMBURG
Identicaldimensionsbutwithheightadjustment:
cm
Aperture seat height
cm Clears toilet of height
cm
Commode:BOSTON
Awiderdesignwithlargersafeworkingload:
Overall dimensions
x 60 cm

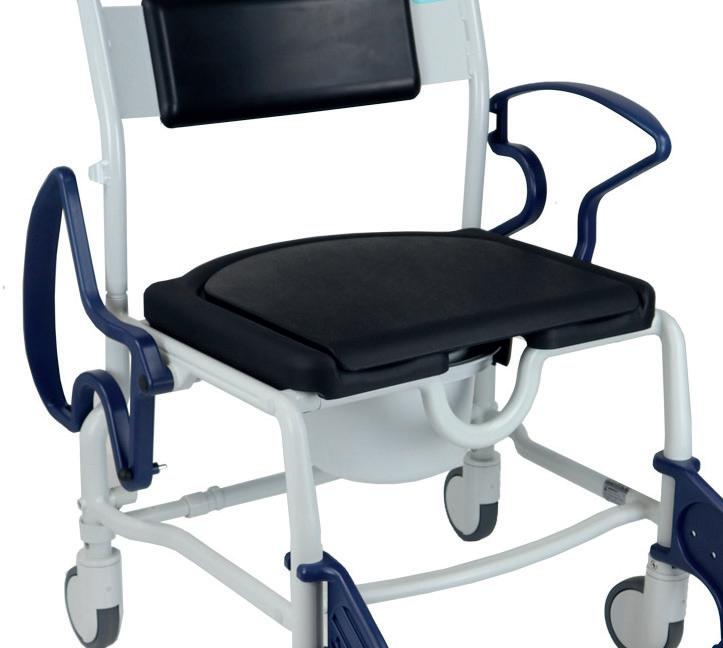

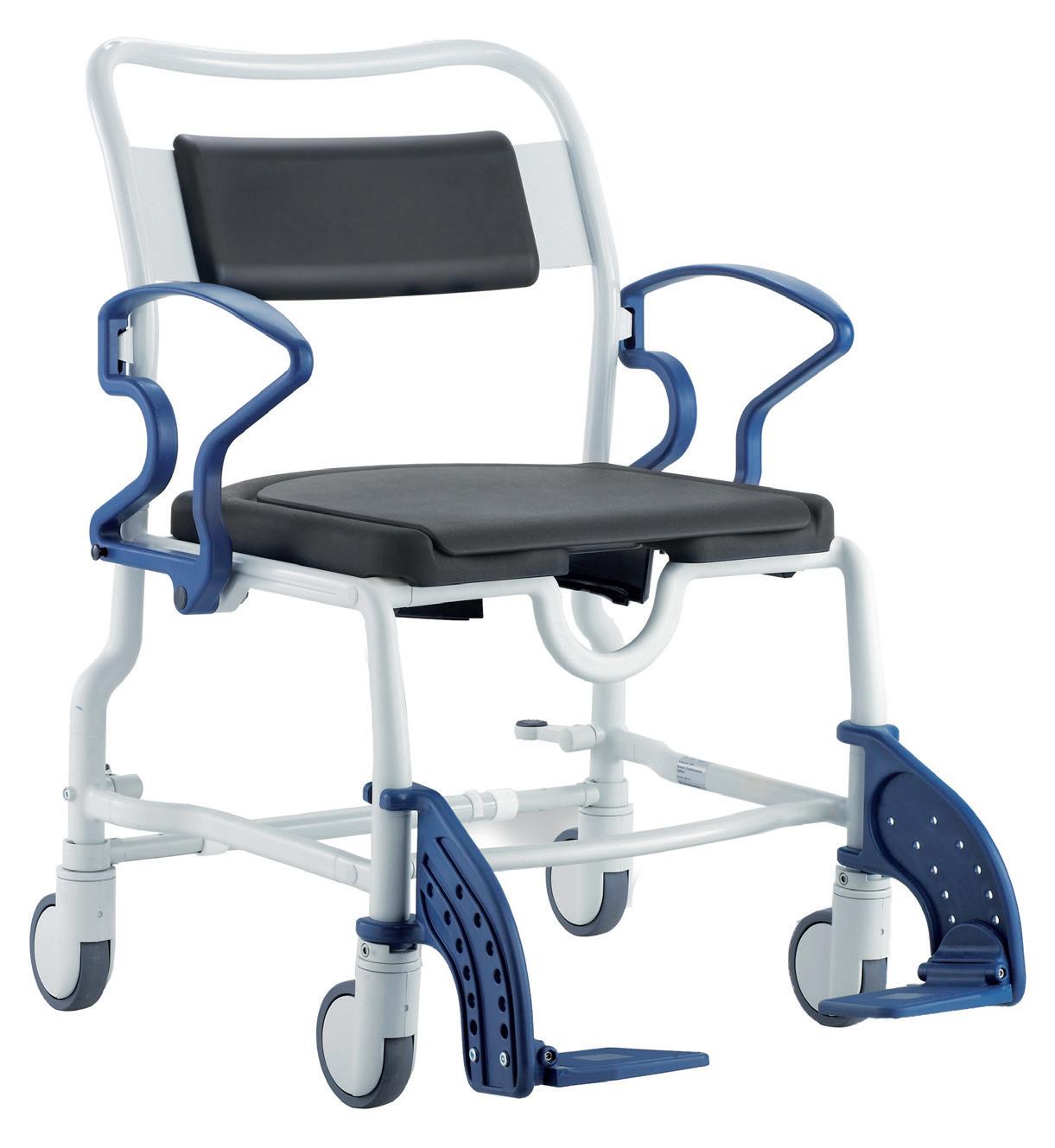

PortableCommodes DALLAS BARIATRIC COMMODE
Structure
Utilises a completely synthetic frame making it durable and lightweight. Coated tube frame design allows for a very high resistance to wear
Strong, rigid materials also have the added benefit of shock dissipation.
Heavy-duty backrest with aluminium construction to secure patient.
Includes a bucket device and bucket.
Comfort
Moulded back section features contoured rubber backrest for optimum patient comfort.
Wider seat is designed to accommodate larger patients.
The foot rests are height adjustable and swing away when not required.
Moulded synthetic rubber over-seat which securely encloses the aperture and is kind to patient skin.
Ease Of Handling
Arched rear frame section acts as ergonomic push handle and allows for easy and accurate portering.
Fitted with four Ø 125mm braked castors
Arm rests which are easily retractable to enable secure transfer and patient access.
Rubber over-seat has no seams and will not rip/ tear.
Easy Cleaning
Chair can be dismantled within 20 seconds without tools to allow for thorough cleaning.
Designed without welding to avoid rust or micro-fracture weak points. Seamless joints ensure dirt or bodily fluids cannot be trapped. Seamless joints ensure dirt or bodily fluids cannot be trapped.
Capable of withstanding the most rigorous cleaning regime. Suitable for cleaning with NHS approved cleaning solutions and Clinell wipes (or other alcohol based wipes).

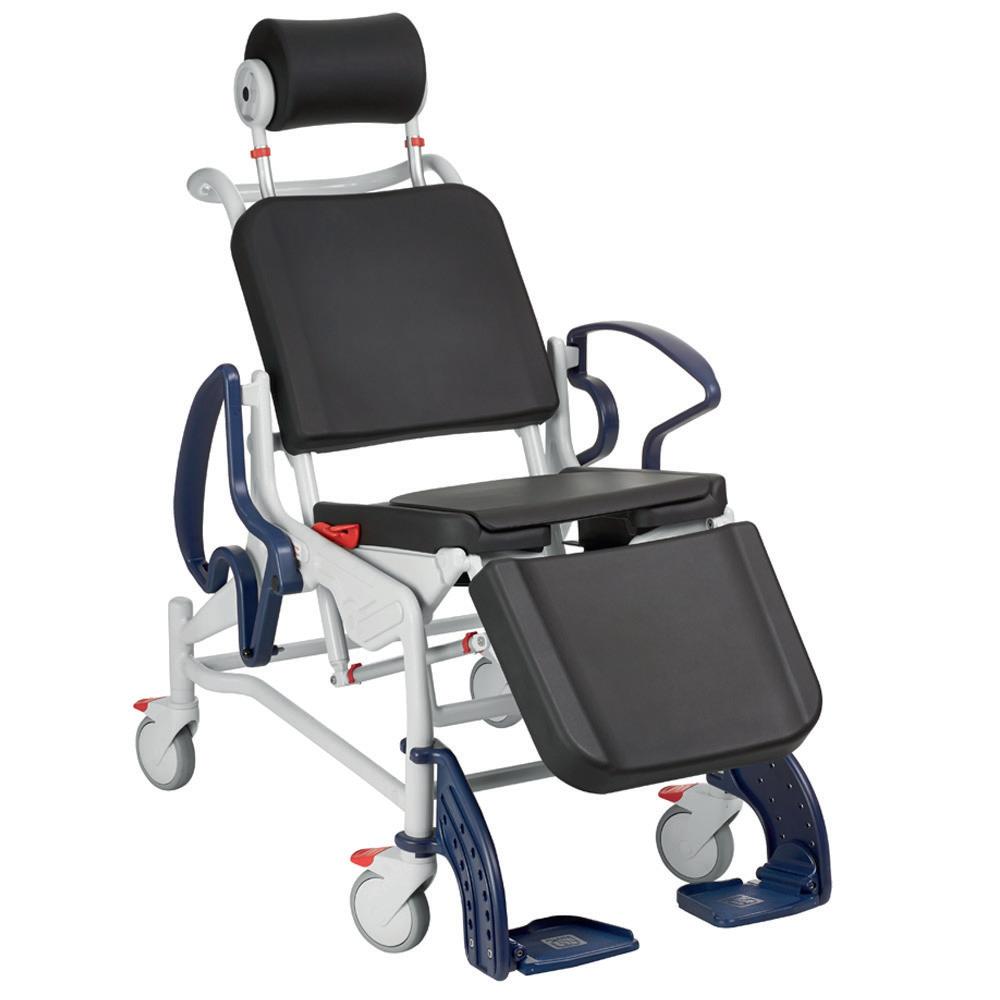

PortableCommodes PHOENIX SHOWER COMMODES
Structure
Utilises a completely synthetic frame making it durable and lightweight. Coated tube frame design allows for a very high resistance to wear
Strong, rigid materials also have the added benefit of shock dissipation.
Available with electric or hydraulic lift mechanism.
Chair frame extends to recline seat and backrest.
Also includes a bucket device and bucket.
Comfort
Comfortable, adjustable head rest which combined with the tilting function allows for endless positions with this versatile chair.
Sturdy, contoured back, head and led supports have been ergonomically designed for optimum patient comfort.
The foot rests are height adjustable and swing away when not required.
Moulded synthetic rubber over-seat which sits over the aperture securely and is kind to the skin.
Ease Of Handling
Easy to use level mechanism allows fine adjustment of the chair back rest angle.
A push handle is integrated for easy and accurate portering.
Headrest tilt and height are adjusted with simple to use clip mechanisms.
Fitted with four Ø 125mm braked castors
Arm rests which are easily retractable to enable secure transfer and patient access.
Rubber over-seat has no seams and will not rip/ tear.
Easy Cleaning
Chair can be dismantled within 20 seconds without tools to allow for thorough cleaning.
Designed without welding to avoid rust or micro-fracture weak points. Seamless joints ensure dirt or bodily fluids cannot be trapped. Seamless joints ensure dirt or bodily fluids cannot be trapped.
Capable of withstanding the most rigorous cleaning regime. Suitable for cleaning with NHS approved cleaning solutions and Clinell wipes (or other alcohol based wipes).
DALLAS &PHOENIXTILT SHOWER COMMODE
Commode:DALLAS
Overall dimensions
Seat height
Seat depth
Seat width
x 68 x 90 cm
Toilet height with bucket 44 cm
Toilet height w/o bucket 47 cm
Safe working load 200 kg
Product
DialysisChair:PHOENIX
Overall dimensions
Seat
Seat
Length when extended
Armrest
Push handle height 104 cm
Backrest tilt from seat 103°–128°
Headrest Adjustment± 12 cm
Headrest Rotation 360° Safe working load 150 kg Product weight 29 kg
x 65 cm
ShowerTransferChairs

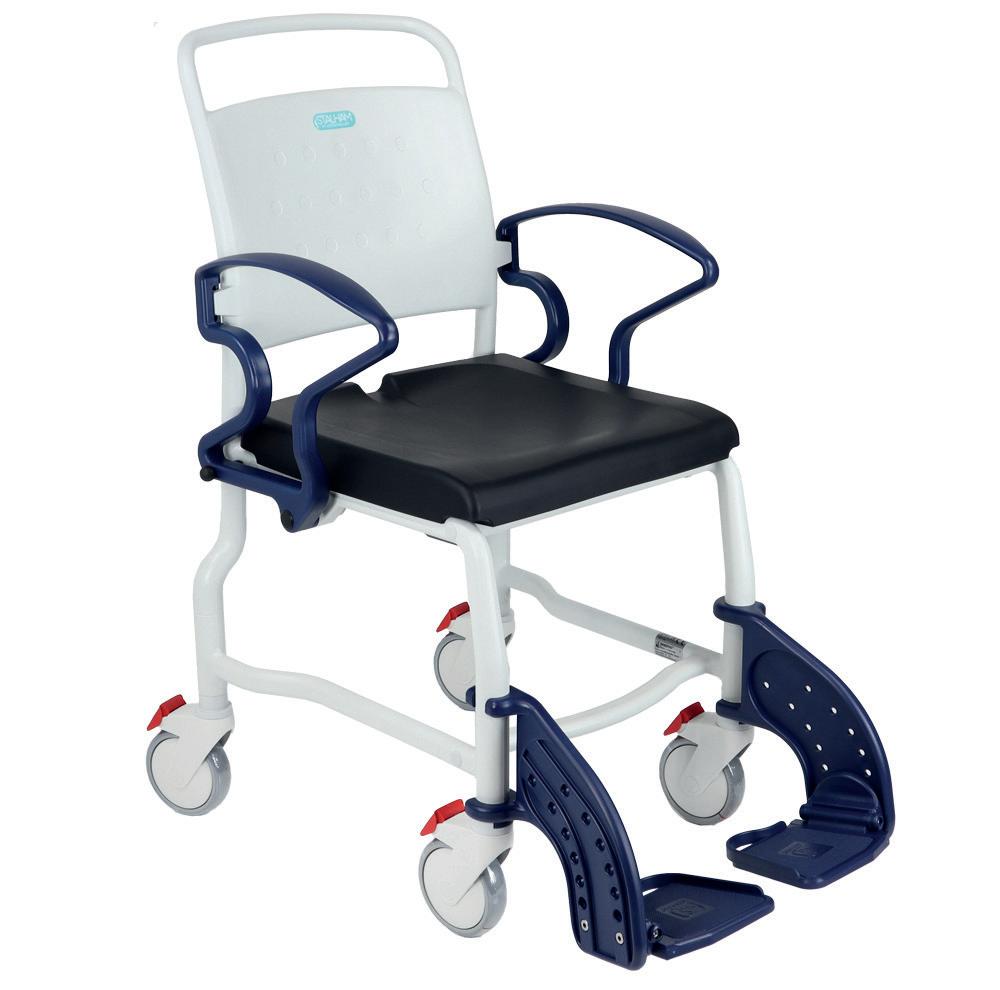

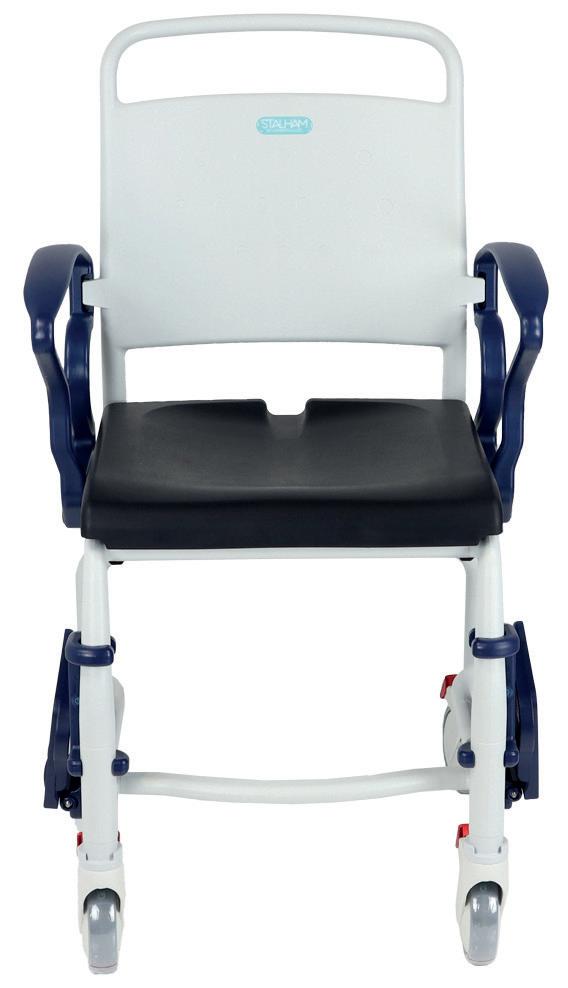

OSLO COMPACT
Structure
Utilises a completely synthetic frame making it durable and lightweight. Coated tube frame design allows for a very high resistance to wear
Strong, rigid materials also have the added benefit of shock dissipation.
Compact design for space-saving benefits.
Includes a moulded removable potty as standard (stainless steel rack also available)
Comfort
Moulded backrest is ergonomically designed to be comfortable for users.
Footrests are height adjustable and swing away when not required.
Seat pad is contoured for patient comfort and features a rear drainage channel for water run-off
Ease Of Handling
Push handle integrated in back frame for easy and accurate portering.
Fitted with four Ø 125mm braked castors
Arm rests which are easily retractable to enable secure transfer and patient access.
Rubber over-seat has no seams and will not rip/ tear.
Easy Cleaning
Chair can be dismantled within 20 seconds without tools to allow for thorough cleaning.
Designed without welding to avoid rust or micro-fracture weak points. Seamless joints ensure dirt or bodily fluids cannot be trapped.
Capable of withstanding the most rigorous cleaning regime. Suitable for cleaning with NHS approved cleaning solutions and Clinell wipes (or other alcohol based wipes).

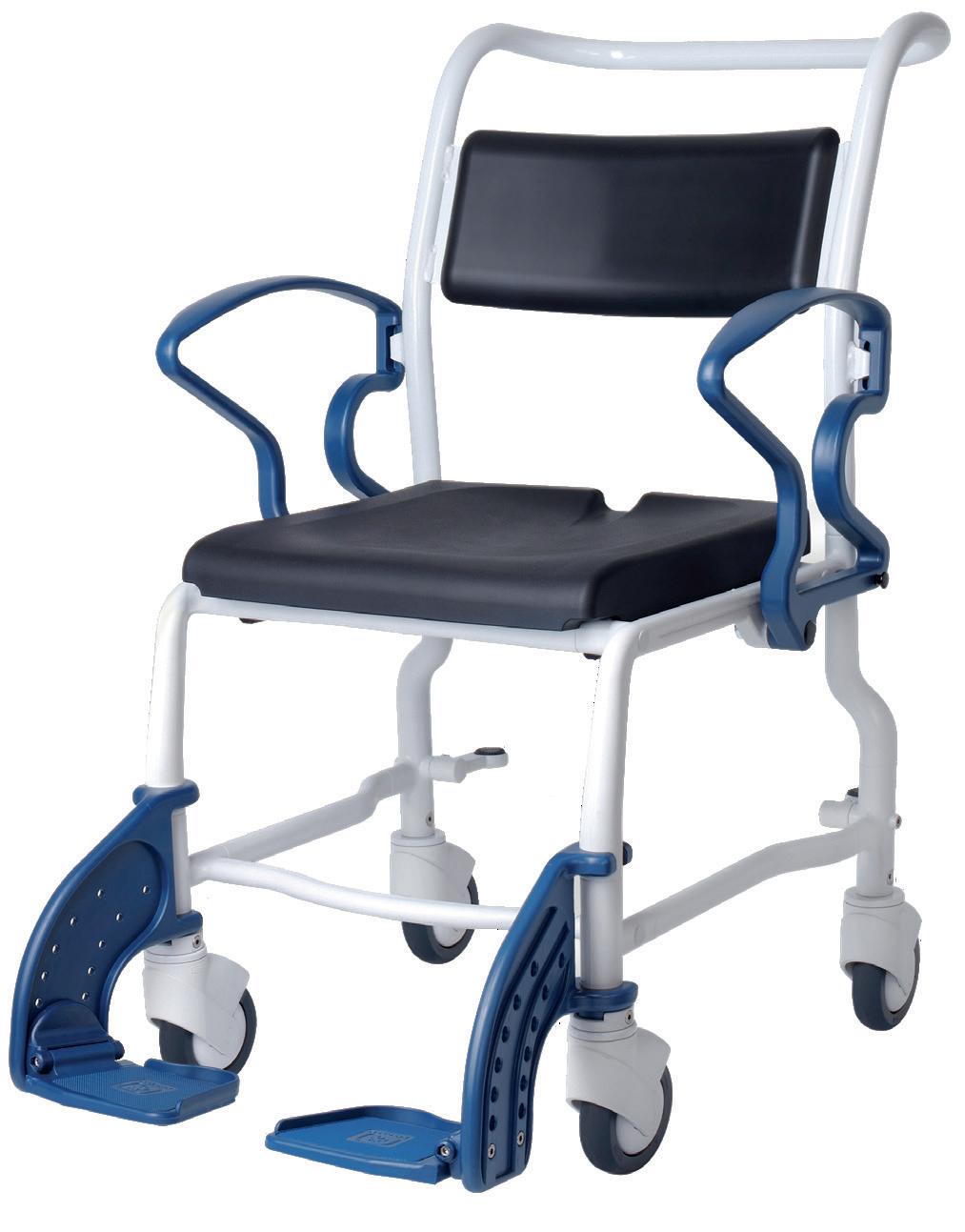

ShowerTransferChairs
OSLO BRAKING
Structure
Utilises a completely synthetic frame making it durable and lightweight. Coated tube frame design allows for a very high resistance to wear
Strong, rigid materials also have the added benefit of shock dissipation.
Heavy-duty backrest with aluminium construction to secure patient.
Accessory points are available for the addition of: IV pole, safety belt and arm pads
Comfort
Moulded back section features contoured rubber backrest for optimum patient comfort.
The foot rests are height adjustable and swing away when not required.
Seat pad is contoured for patient comfort and features a rear drainage channel for water run-off
Ease Of Handling
Arched rear frame section acts as ergonomic push handle and allows for easy and accurate portering.
Fitted with four Ø 125mm castors, two rear locking which can either swivel freely, lock in-line or fully lock.
Arm rests which are easily retractable to enable secure transfer and patient access.
Rubber over-seat has no seams and will not rip/ tear.
Easy Cleaning
Chair can be dismantled within 20 seconds without tools to allow for thorough cleaning.
Designed without welding to avoid rust or micro-fracture weak points. Seamless joints ensure dirt or bodily fluids cannot be trapped.
Capable of withstanding the most rigorous cleaning regime. Suitable for cleaning with NHS approved cleaning solutions and Clinell wipes (or other alcohol based wipes).
Speciications
OSLO COMPACT & BRAKING
ShowerChair:OSLOCOMPACT
Overall
ShowerChair:OSLOBRAKING
Overall
Armrest
Backrest
Product
Backrest

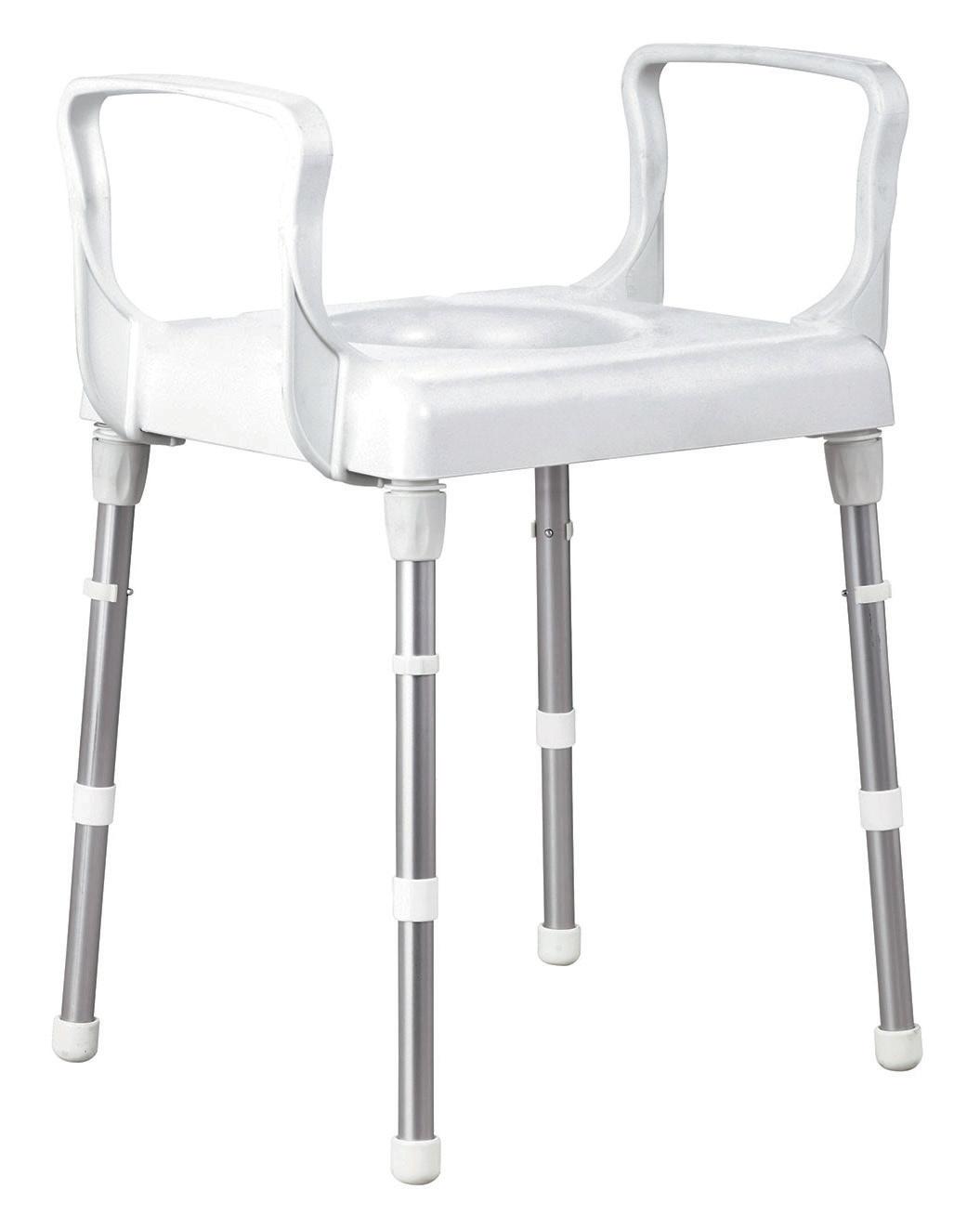

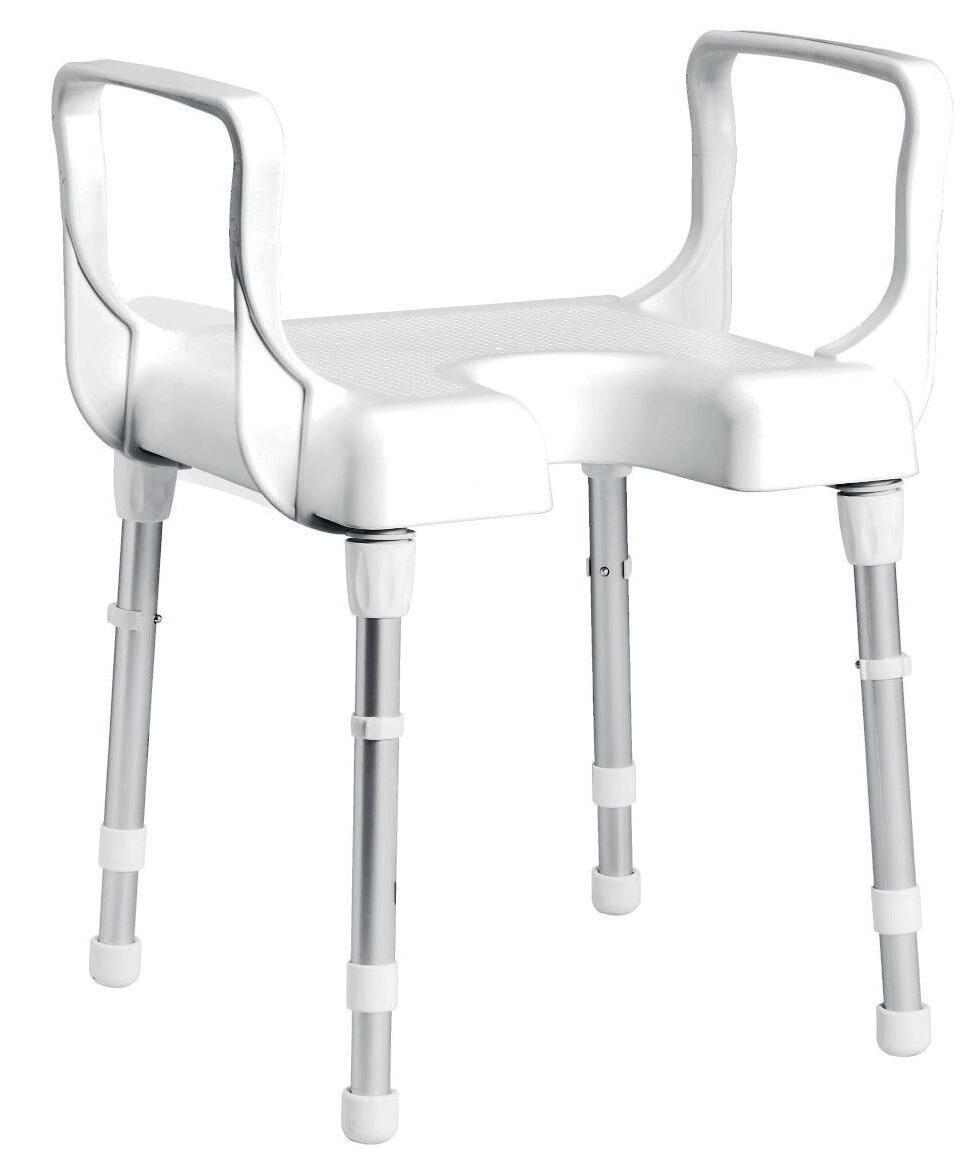

BREST COMMODE CHAIR & CANNES TOILET FRAME
Features
Manufactured with plastic and aluminium.
Designed to fit over the toilet.
Adjustable height with seven positions.
Approved up to 130 kg body weight.
Available with or without backrest.
Accessories
• Bucket
• Seat upholstery
• Travel carry bag
•Holder for disposable bags
•Disposable bags
Chair:BREST
Frame:CANNES

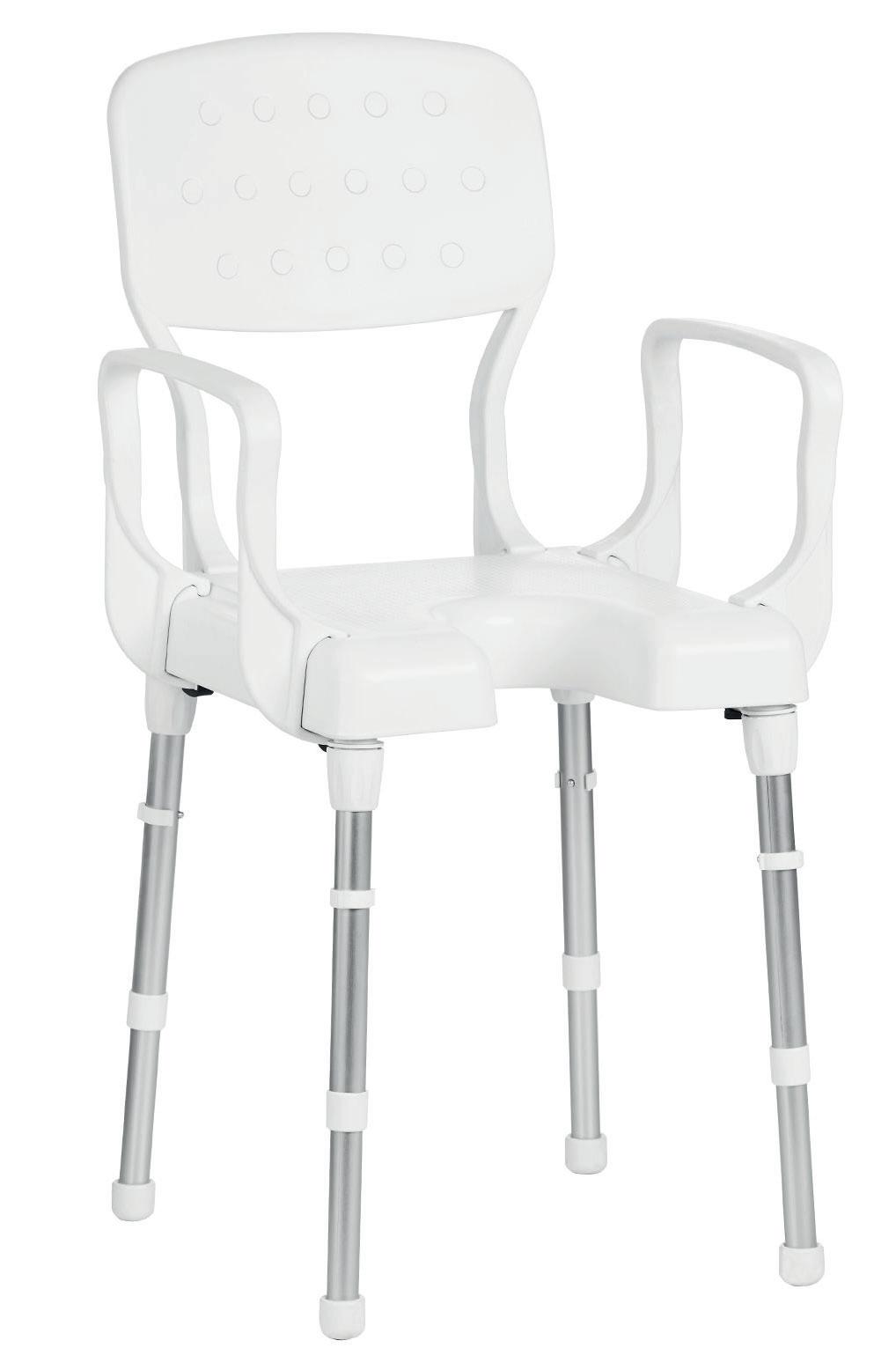

ShowerChairs

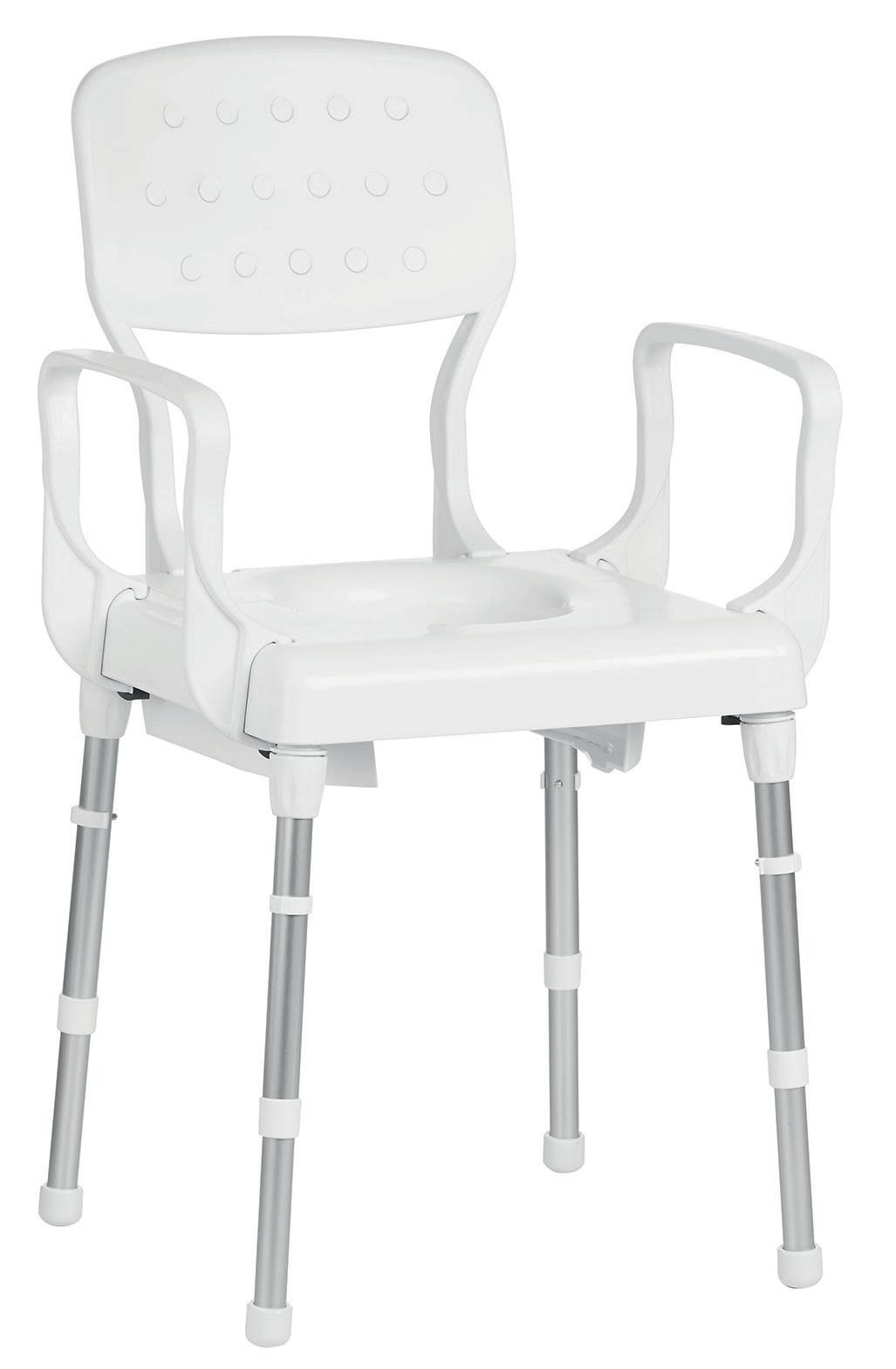

NIZZA SHOWER CHAIR & MONACO STOOL
Features
Manufactured with plastic and aluminium.
Designed for patient showering.
Adjustable height with seven positions.
Approved up to 130 kg body weight.
Available with or without backrest.
Accessories
• Travel carry bag
Stool:MONACO Max
Chair:NIZZA
