MOTION STRETCHERS
2 & 4 Section
Advanced ergonomic transport stretchers

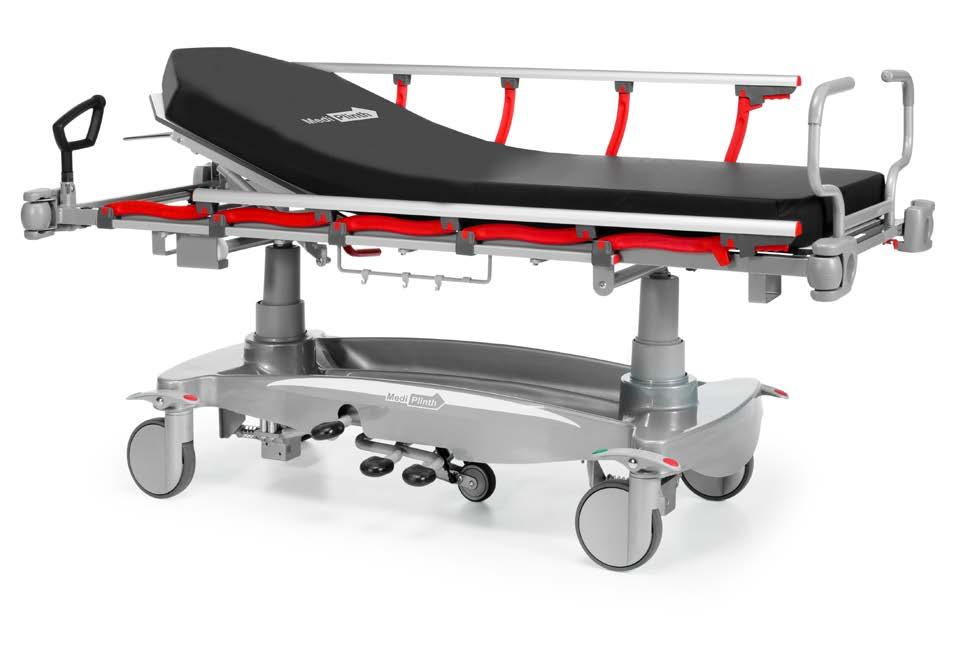

Transport Stretcher
MOTION & MOTION PLUS
Structure
Epoxy coated steel tube frame.
Two or four section platform made of damp-proof and impact-resistant HPL material, resistant to humidity and shock.
Motion Plus (4 section) hydraulically operated.
Comfort
High-density polyurethane construction, ergonimically designed for optimum comfort.
Hydraulically operated backrest and height adjustment from 66–97.5 cm.

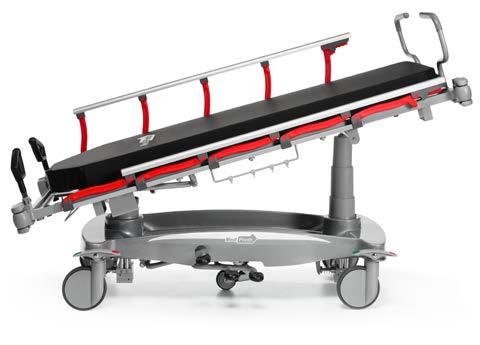

Hydraulic Trendelenburg and reverse Trendelenburg postions (+/-18º).
Foot pedals at either side of the stretcher control height, Trendelenburg and reverse Trendelenburg adjustment.
Easy Cleaning
Mattress upholstered with antimicrobial, anti-static covering. Easy to clean and maintain.
Smooth surfaces and removable panels allow easy, fast cleaning and disinfection.
Ease Of Handling
Ø 200 mm castors with single-point braking system, controlled by foot pedals on each corner of the stretcher.
The fifth wheel improves manoeuvrability and control; allows 360° rotation on its axis.
Ergonomically designed folding handles for easier greater control when manoeuvring.
Safety
X-ray translucent platform 10cm height mattress complies with BS 7176 (Medium Hazard).
Integrated siderails help secure patient. Their lowest position does not exceed the height of the mattress, making transfers simpler and safer.
Buffers located on each corner of the stretcher.
ABS base cover protects the stretcher mechanism and facilitates easy cleaning.
Conforms to Regulation (EU) 2017/745.
Specifications
MOTION & MOTION PLUS
2 Section stretcher: MOTION
Overall dimensions218 x 82cm
Patient surface 190 x 72cm
Height adjustment 59–88cm
Back section dimensions62 x 71cm
Leg section dimensions66 x 116cm
Backrest tilting 90º
Weight w/o accessories 100kg
Safe working load 300kg
Trendelenburg / Reverse ±18º
4 Section stretcher: MOTION PLUS
Overall dimensions210 x 82cm
Patient surface 190 x 72cm
Height adjustment 59–88cm
Back section dimensions62 x 71cm
Leg section dimensions62 x 34cm
Foot section dimensions62 x 47cm
Backrest tilting 90º
Legrest tilting 35º
Weight w/o accessories 100kg
Safe working load 300kg
Trendelenburg / Reverse ±18º
