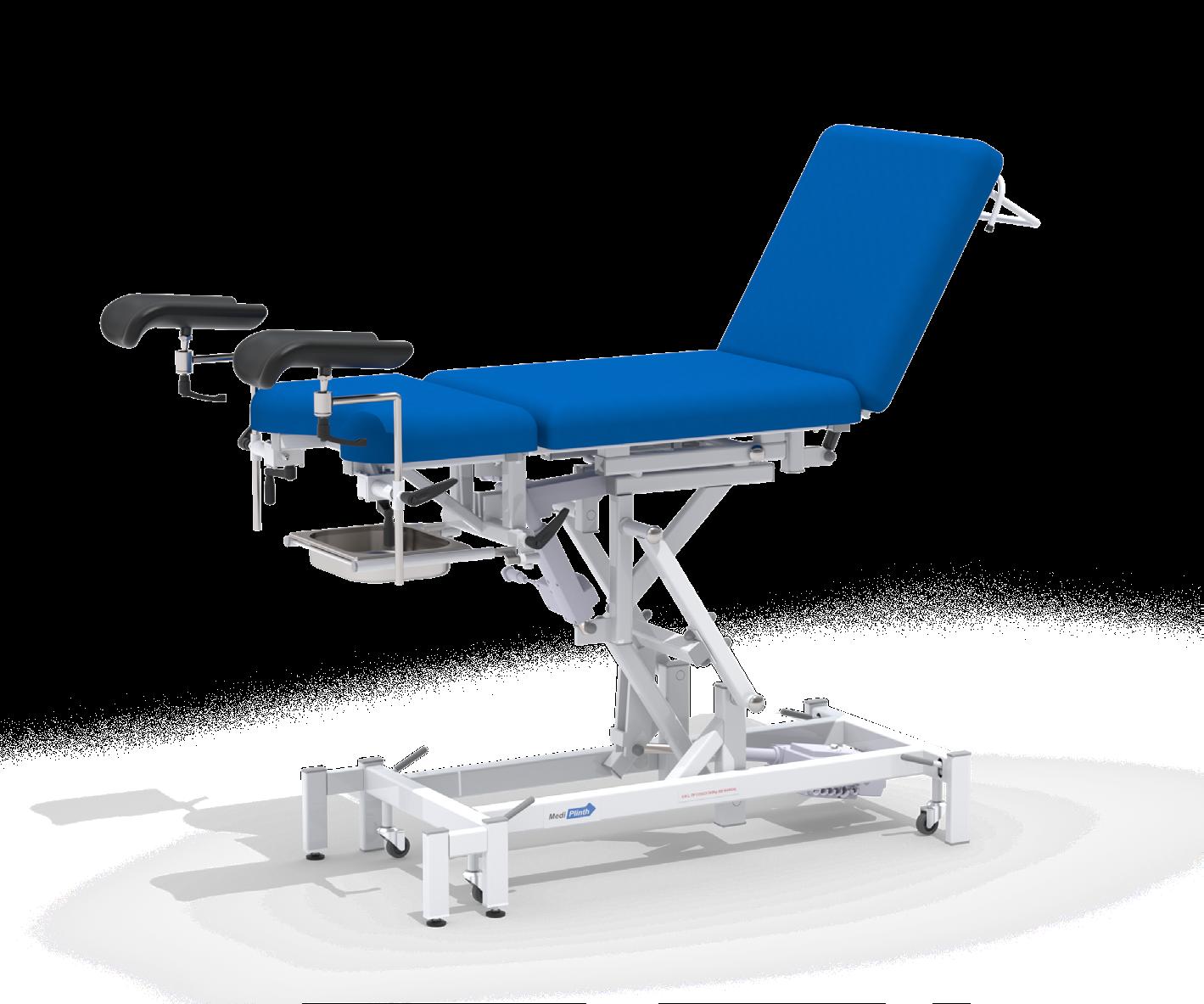

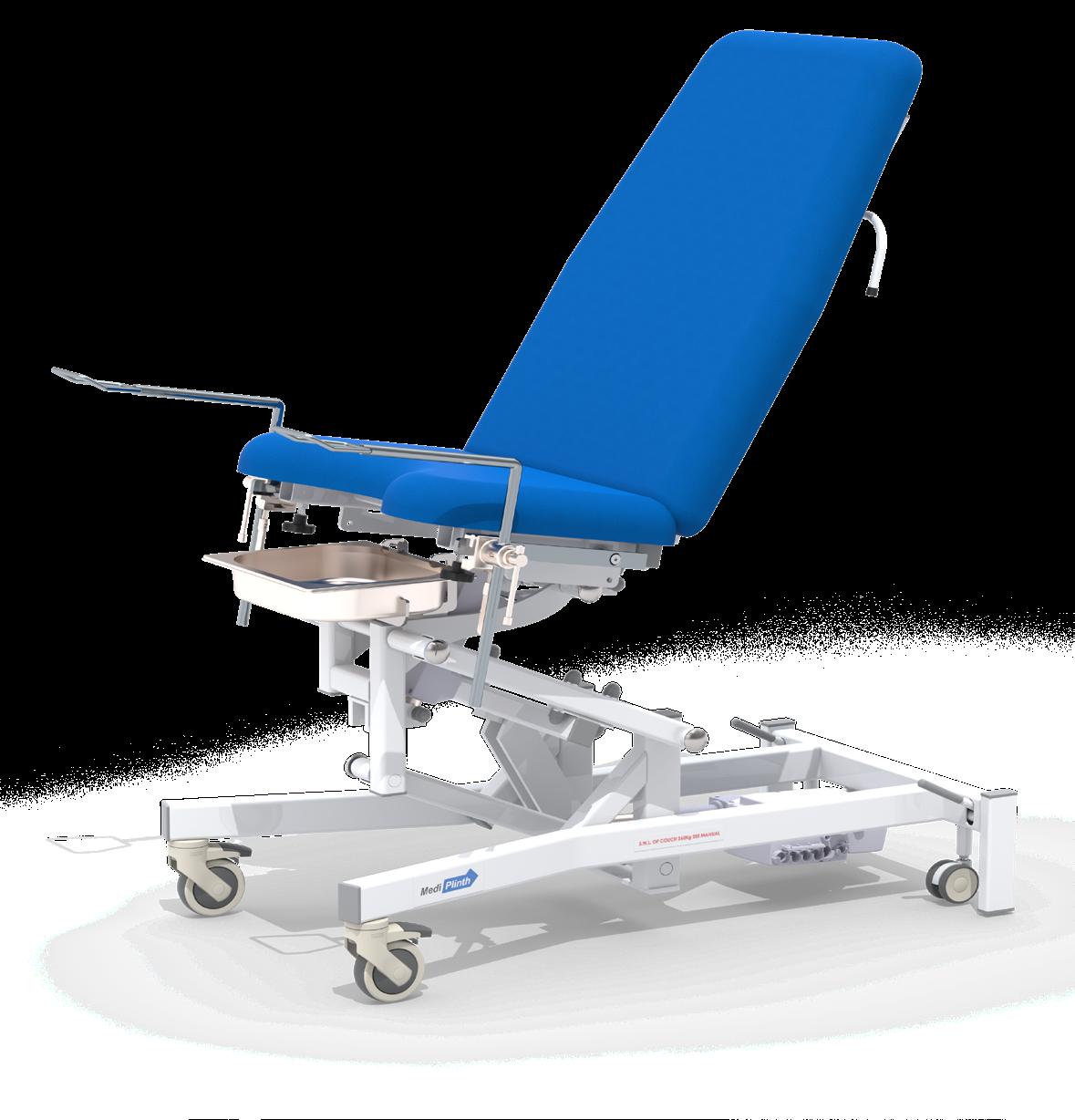

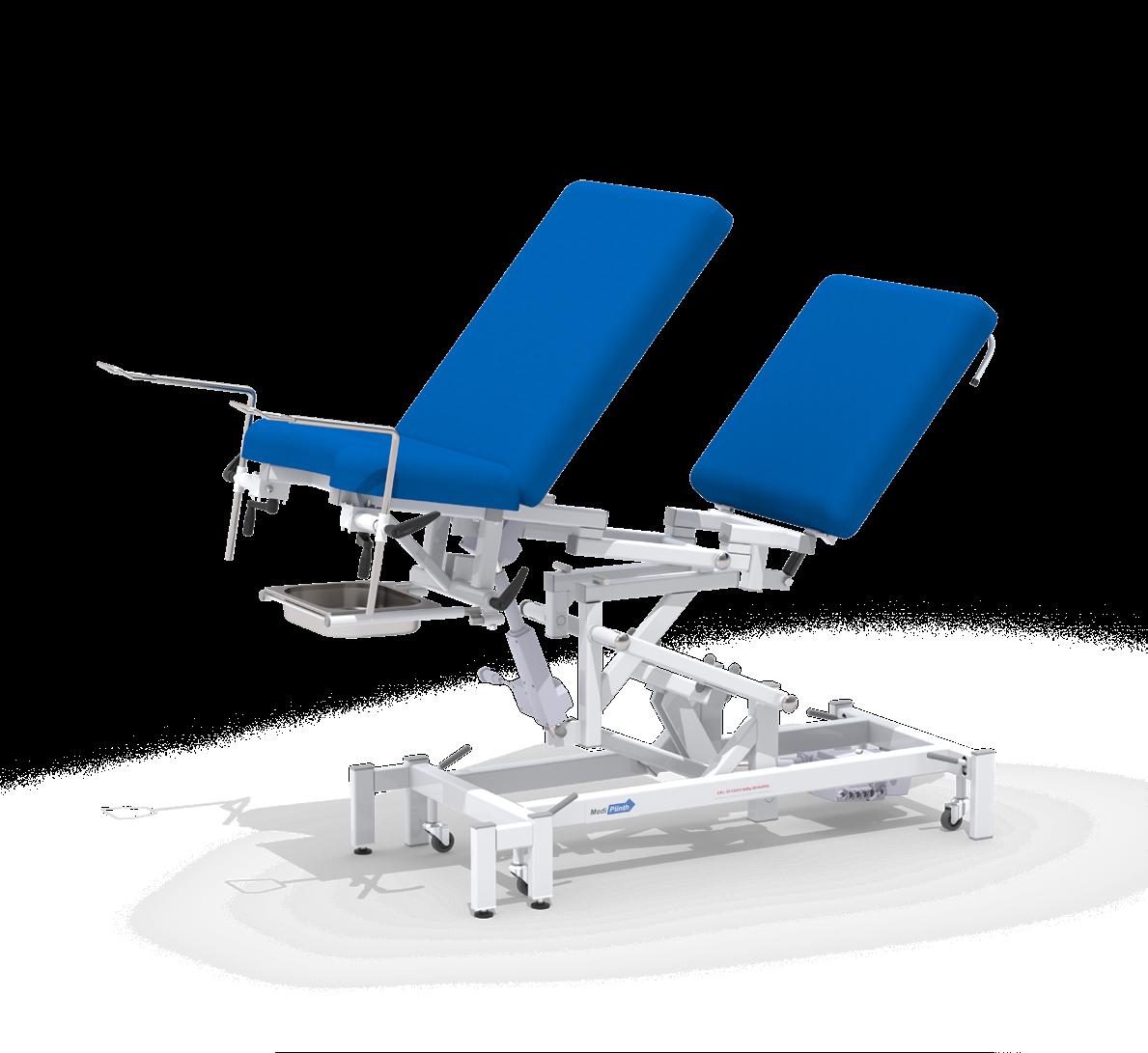

GP GYNAE PLINTHS

Structure

Epoxy coated steel frame.

100% usable patient surface. Excellent lithotomy access and foot space clinician.

Industry-leading Linak ‘High Reliability’ actuators. Electric lifting system provides optimum stability and supports weights of up to 260 kg.

Electric lifting with handset controls. Removeable leg section included as standard.

Easy Cleaning

Upholstery compatible with all NHS approved cleaning solutions such as Chlor-Clean, Haz-Tab, Milton and Tristel, plus Clinell wipes and other alcohol based wipes.

Comfort

Soft, durable vinyl to ensure patient comfort. Patient-centric design enables enhanced positioning for improved comfort during examinations.

Safety

Anti-entrapment Suspa gas strut operated backrest. MRSA resistant anti-bacterial & fire retardant upholstery.

Comprehensive parts and labour warranty covering manufacturing or material defects of seven years for the frame and three years for moving parts.

Complies with applicable medical regulations.

Ease Of Handling

Retractable, easy clean Tente castors provide excellent manoeuvrability. Removable leg section enables couch to be used as a standard two section plinth. The electric seat enables Trendelenburg positioning.

Heavy duty adjustable feet allow simple levelling of the platform on uneven floors. Mobile hoist clearance space beneath base. Extra low entry height for wheel chair transfer.

Specifications GP GYNAE PLINTH

GP GYNAE: THREE SECTION

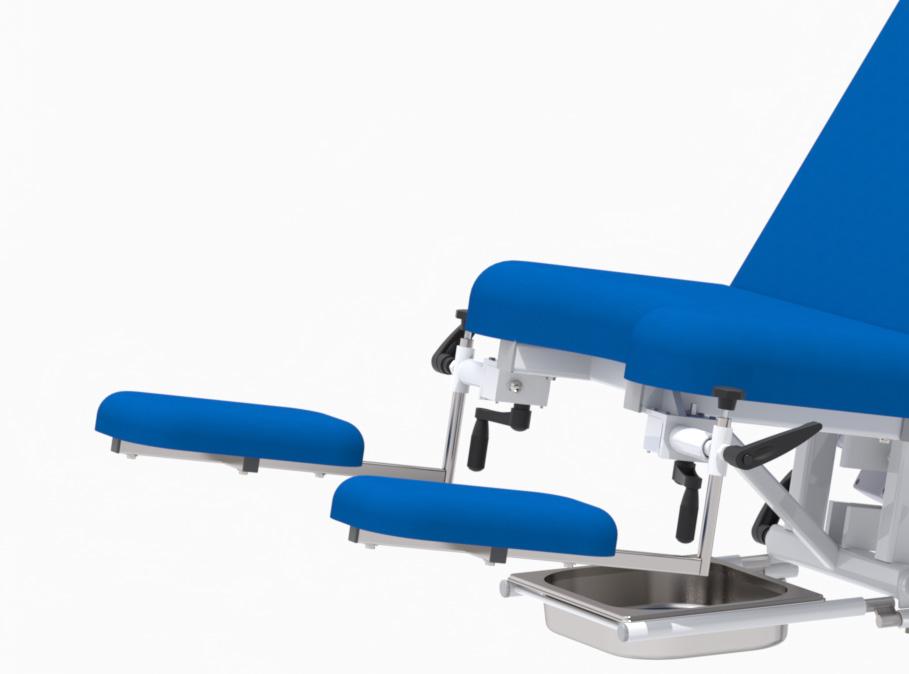

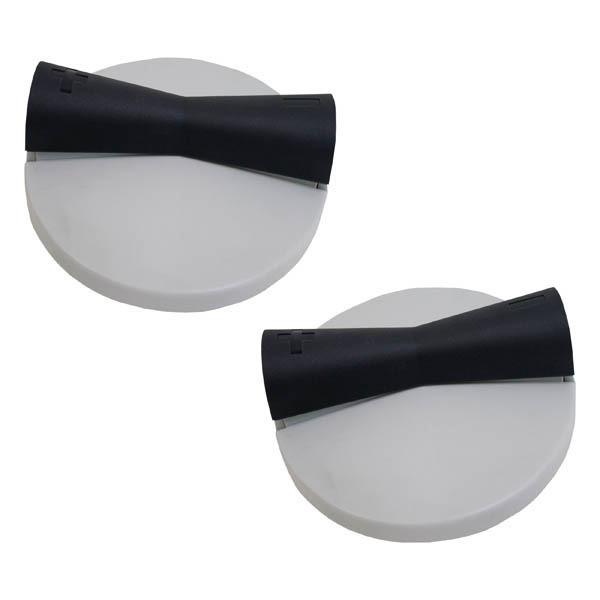

With Foot pads: GY02EF

With Stirrups: GY02ES

With Troughs: GY02ET

Removeable leg sectioned pictured for use as a standard two section plinth.

Patient surface 173 x 63 cm

Height adjustment 50–95 cm

Backrest raises 85º

Trendelenburg -15º

Electric max. load 260kg

Upholstery Options:

Guide colours for indication use only. Samples avaliable on request. Power

Protection indicator IPX4

Protection class Class 2.B

Electric shock protection TYPE B

White Ash Grey

Apple Mint Beige Black

Candy Citrus Green Damson Dark Blue Gun Metal Grey

Mid Blue Pillar Box Red Raspberry Crush Sky Blue

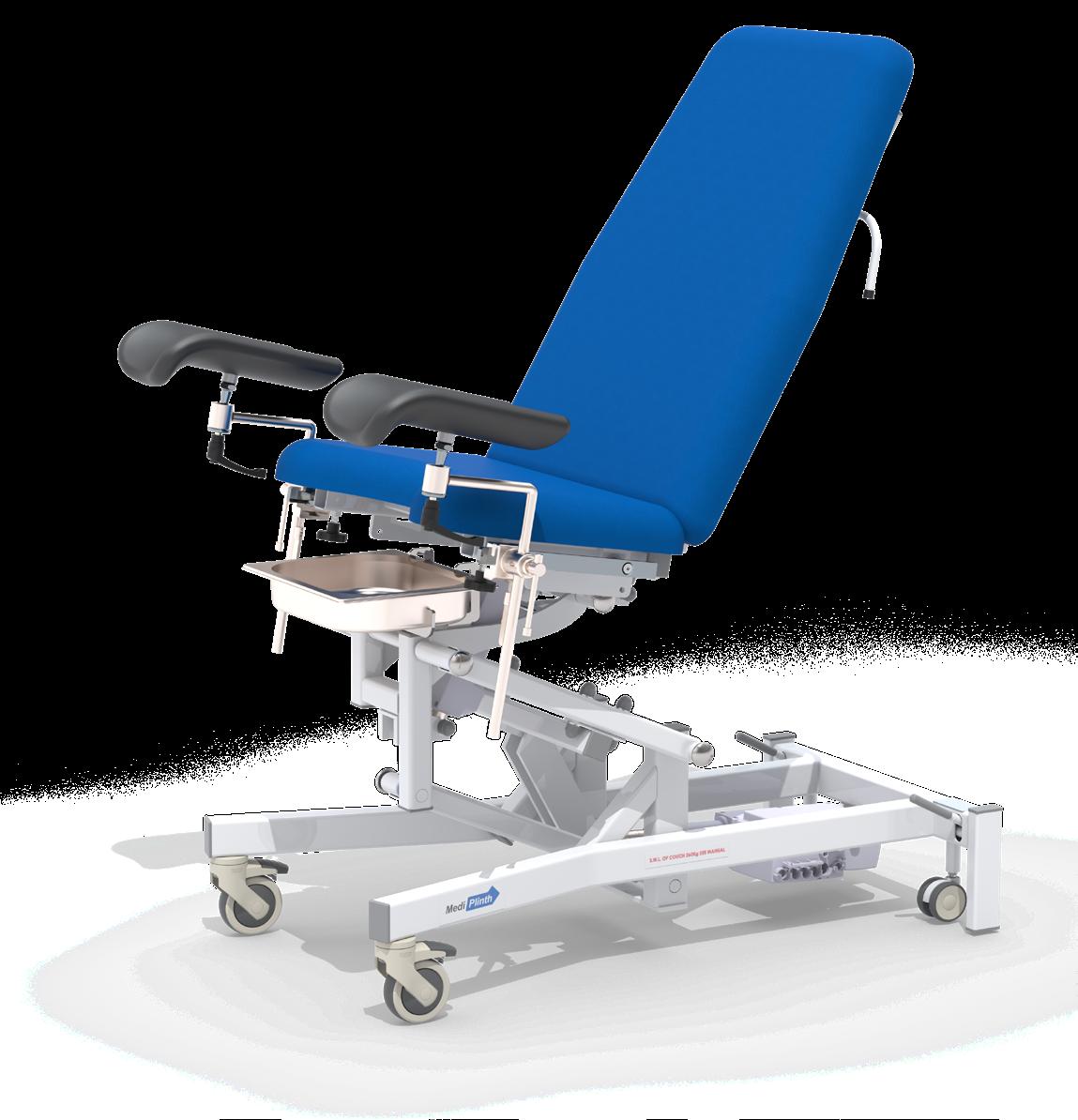

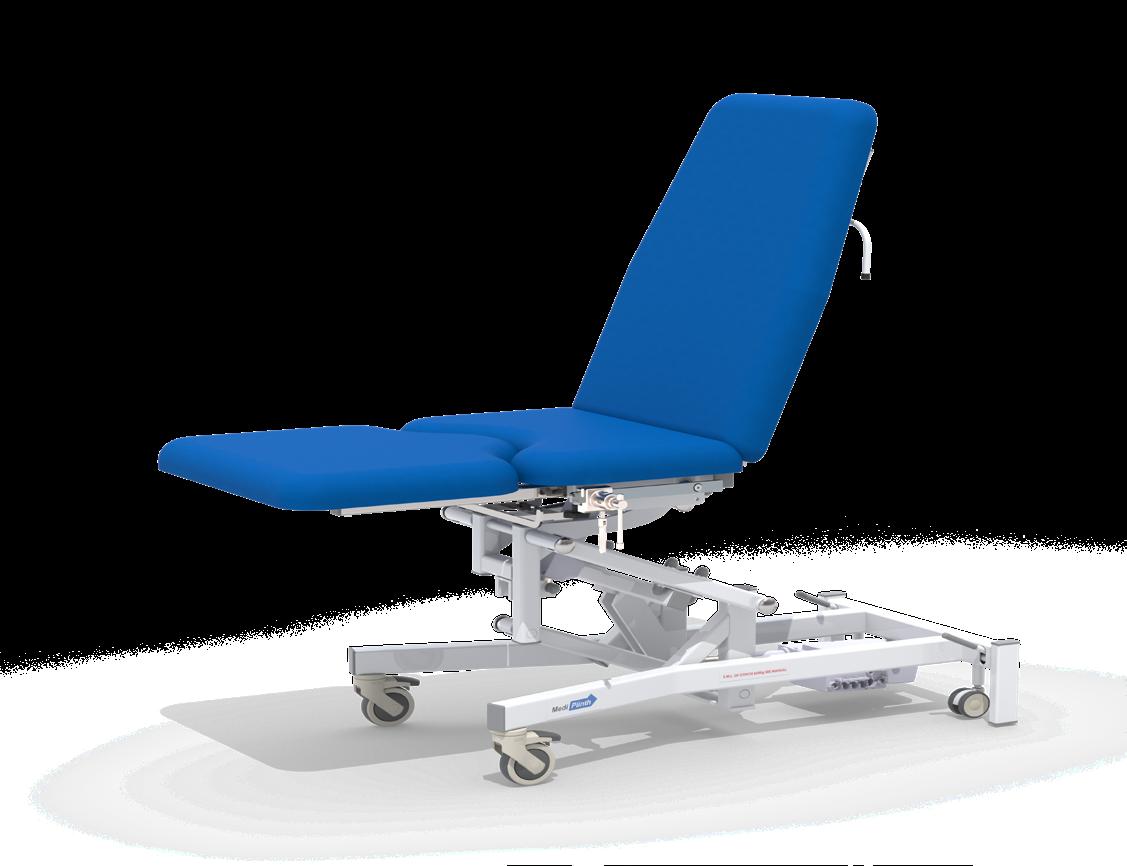

ULTRA GYNAE PLINTH

Structure

Epoxy coated steel frame. 100% usable patient surface. Excellent lithotomy access and foot space for the clinician.

Industry-leading Linak ‘High Reliability’ actuators. Stainless steel tray included as standard. Electric lifting system provides optimum stability and supports weights of up to 260 kg.

Easy Cleaning

Upholstery compatible with all NHS approved cleaning solutions such as Chlor-Clean, Haz-Tab, Milton and Tristel, plus Clinell wipes and other alcohol based wipes.

Comfort

Soft, durable vinyl to ensure patient comfort. Patient-centric design enables enhanced positioning for improved comfort during examinations.

Safety

Anti-entrapment Suspa gas strut operated backrest. MRSA resistant anti-bacterial & fire retardant upholstery.

Comprehensive parts and labour warranty covering manufacturing or material defects of seven years for the frame and three years for moving parts.

Complies with applicable medical regulations.

Ease Of Handling

Features three electric motors for height, tilt and backrest control. The electric seat enables Trendelenburg. Retractable, easy clean Tente castors provide excellent manoeuvrability.

Heavy duty adjustable feet allow simple levelling of the platform on uneven floors. Mobile hoist clearance space beneath base. Extra low entry height for wheel chair transfer.

Specifications ULTRA GYNAE PLINTH

ULTRA GYNAE PLINTHS

With Foot Pads: GY04EF

With Stirrups: GY04ES

With Troughs: GY02ET

Patient surface 184 x 63 cm

Height adjustment 60cm - 105.5 cm

Backrest raises 85º

Footrest raises

Trendelenburg

max load 260kg

Upholstery Options:

Electric Features:

Maximum current intake 5A, 100-240V

Protectio indicator IPX4

Protection class Class 2.B

Electric shock protection TYPE B

White Ash Grey Apple Mint Beige Black

Candy Citrus Green Damson Dark Blue Gun Metal Grey

Mid Blue Pillar Box Red Raspberry Crush Sky Blue

Guide colours for indication use only. Samples avaliable on request.

Accessories

OPERATOR STOOLS

Structure

High polished steel stool base. Stool frame capable of supporting weights of up to 150 kg.

The Black PU Operators Stool is a cost effective alternative with a seat produced from robust polyurethane.

Easy Cleaning

Upholstery/ PU compatible with all NHS approved cleaning solutions such as Chlor-Clean, Haz-Tab, Milton and Tristel, plus Clinell wipes and other alcohol based wipes.

Comfort

Soft, durable vinyl to ensure patient comfort. Ergonomically designed seating.

Safety

Operating gas-strut secured within poly tubing. MRSA resistant anti-bacterial & fire retardant upholstery. Five star castor base for superior stability. Our full range of chairs and stools are available with a standard one year manufacturers warranty.

Ease Of Handling

Gas-assisted height adjustment. 360° adjustment lever for simple control of seat height.

Available with height adjustable backrest and adjustable peripheral footring.

Specifications

OPERATOR STOOLS

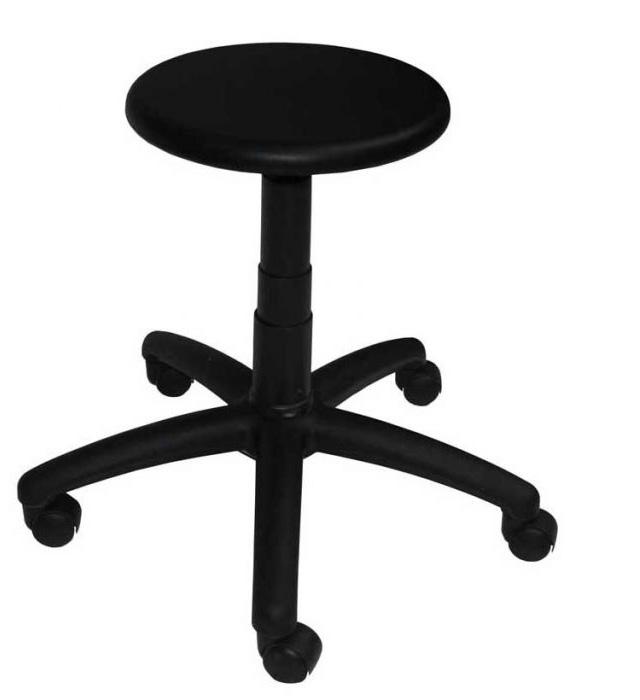

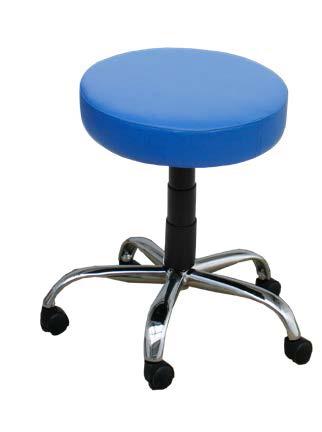

OPERATOR STOOL

Standard Operators Stool: OSS1

Operators Stool With Foot Ring: OSS1FR

Operators Stoolin Black PU: OSS1PU

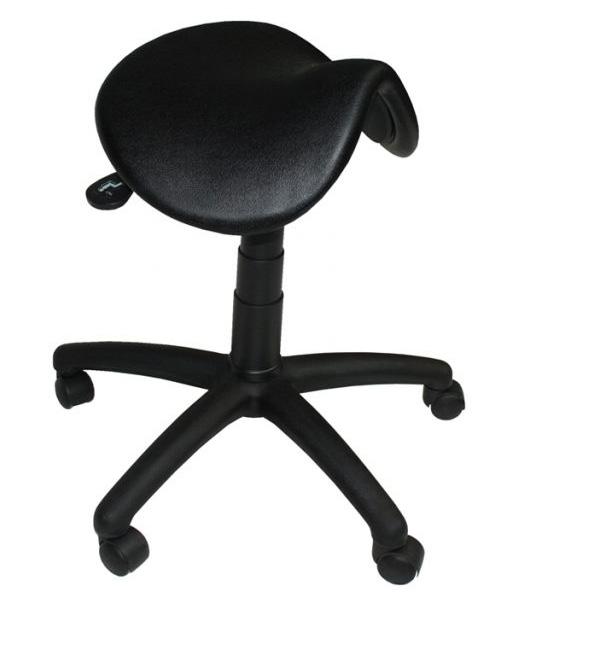

SADDLE STOOL

Standard Saddle Stool: SAD01

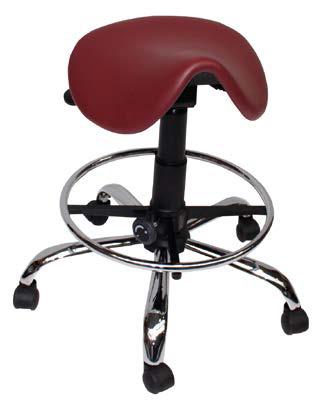

Saddle Stool With Foot Ring: SAD01FR

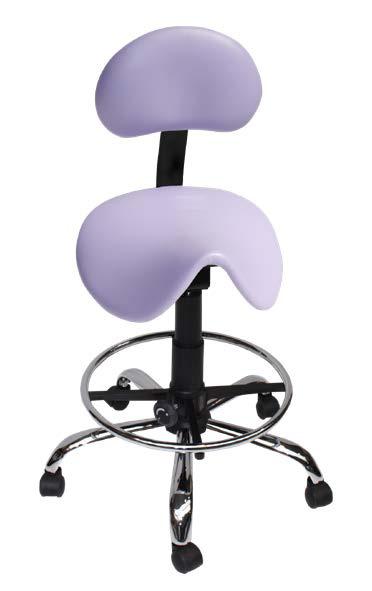

Saddle Stool With Backrest: SAD01BKR

Saddle Stool With Backrest & Foot Ring: SAD01BKRFR

Saddle Stool in Black PU: SAD01PU

Base diameter (approx.) 42 cm

Seat height adjustment 45-59 cm

Adjustment via 360º lever

Weight (approx.) 7 kg

Maximum working load 150 kg

Upholstery Options:

Base diameter (approx.) 42 cm

Seat height adjustment Adjustment via

(approx.)

White Ash Grey Apple Mint Beige Black

Candy Citrus Green Damson Dark Blue Gun Metal Grey Mid Blue Pillar Box Red Raspberry Crush Sky Blue

Accessories

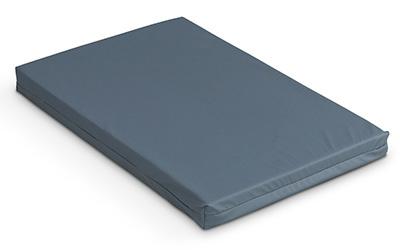

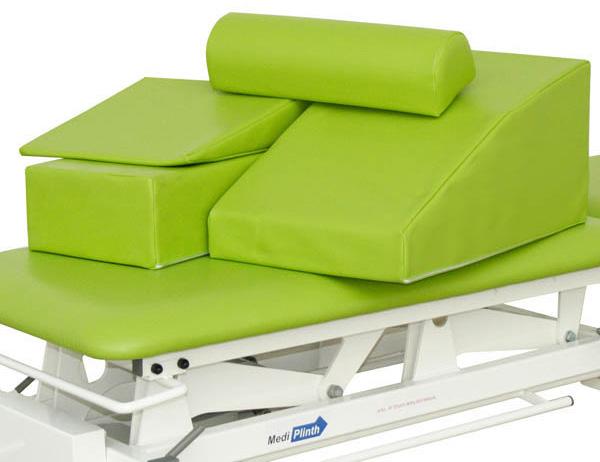

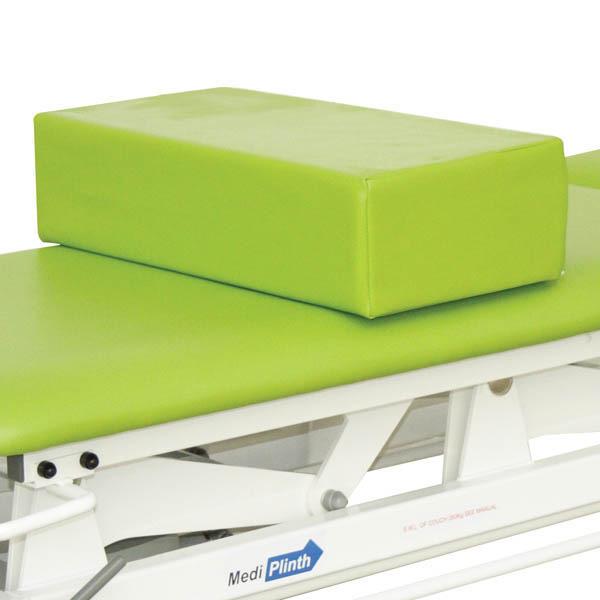

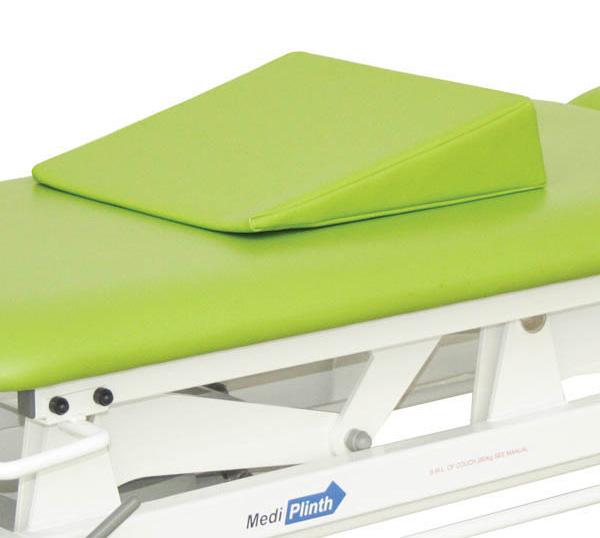

POSITIONING AIDS

Features

The positioning aids provide a vital method of both support for the clinician whilst they undertake a variety of positioning and therapy activities. The range is available as a complete set of 4 aids or individually. All positioning aids are available in Medi-Plinths standard 25 vinyl colour options.

Upholstery on Medi-Plinth couches have been developed over many years to eliminate folding, stitching and minimise creasing. This ensures smooth coverage and easy maintenance of infection control.

All of the upholstery is upholstered in durable and comfortable vinyl which inhibits MRSA (3352 Methicillin resistant to Staphylococcus Aurous) Bio-Pruf treated to resist the growth of mould, mildew and odour causing microbes.

ACCESSORIES: POSITIONING

Trapezium Shaped Foam Wedge: WEDGE001

Semi-Circular Shaped Foam Wedge: WEDGE002

Triangular Shaped Foam Wedge: WEDGE003

Rectangular Shaped Foam Wedge: WEDGE004

Foam Wedge Set 1-4: WEDGESET

WEDGE001 (W x H) 65 x 9 cm

WEDGE002 (W)

WEDGE003 (W x H) 40 x 30 cm 15 cm

WEDGE004 (W x H) 50 x 13 cm

Accessories PLINTH ACCESSORIES

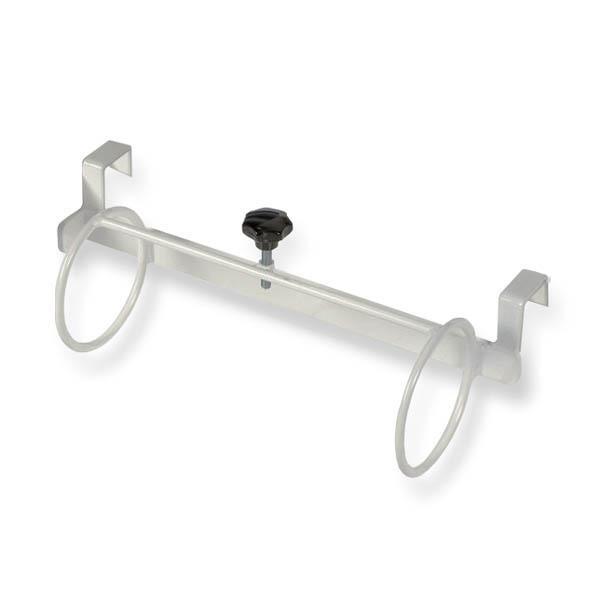

OXYGEN BOTTLE HOLDER: OBH

Oxygen Bottle Holder option for Medi-Plinth Couches.

OPTIONAL FOOTSWITCH: FO02/FO03

Optional footswitch for handsfree operation of your plinth avaliable for two or three channel motors.

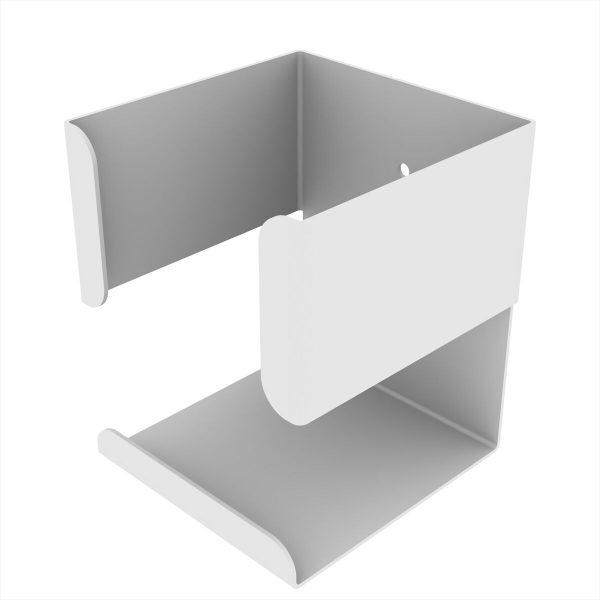

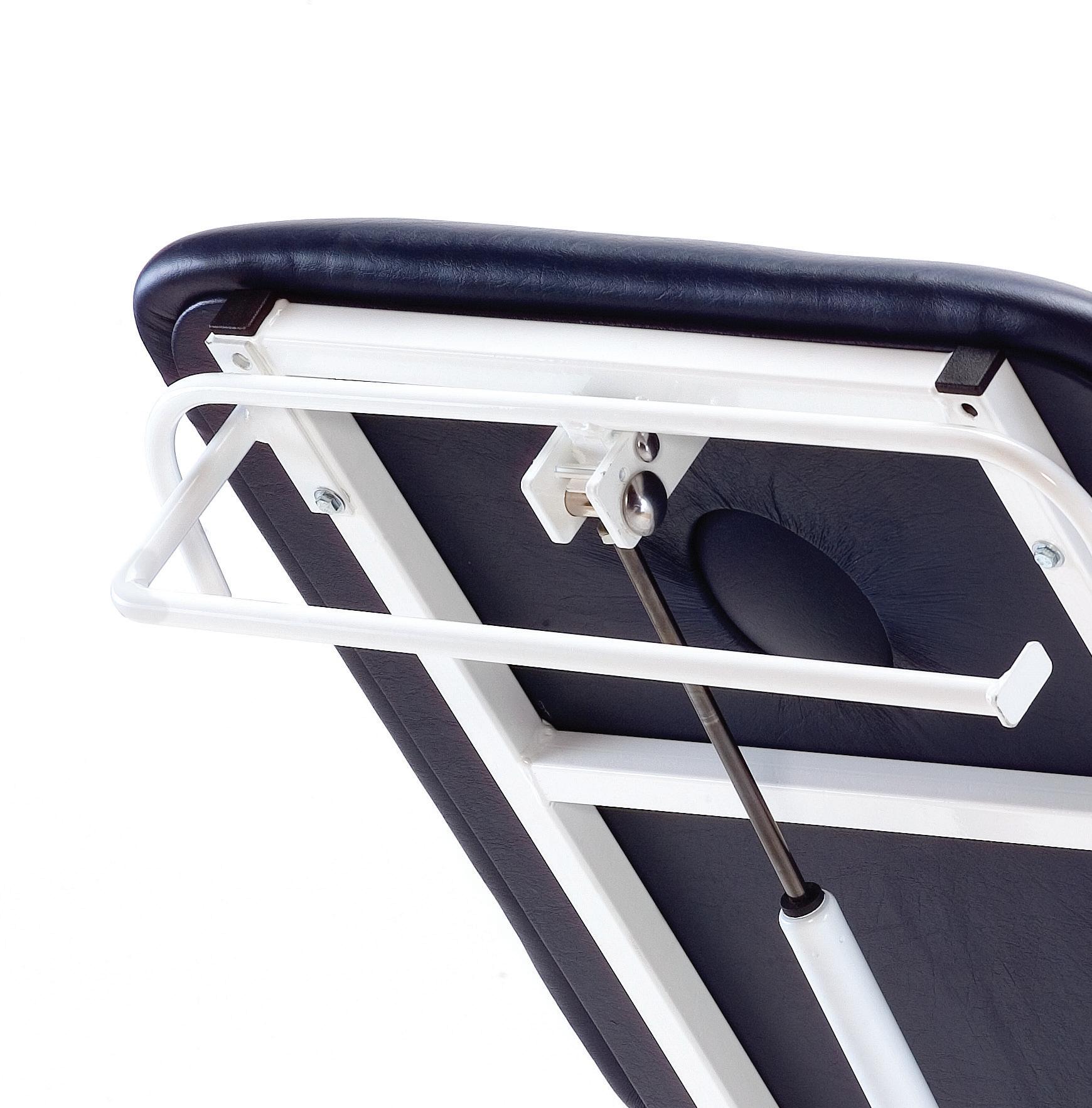

PAPER ROLL HOLDER: PR01

Standard Paper Roll Holder

Accessory/Attachment for Medi-Plinth Couch.

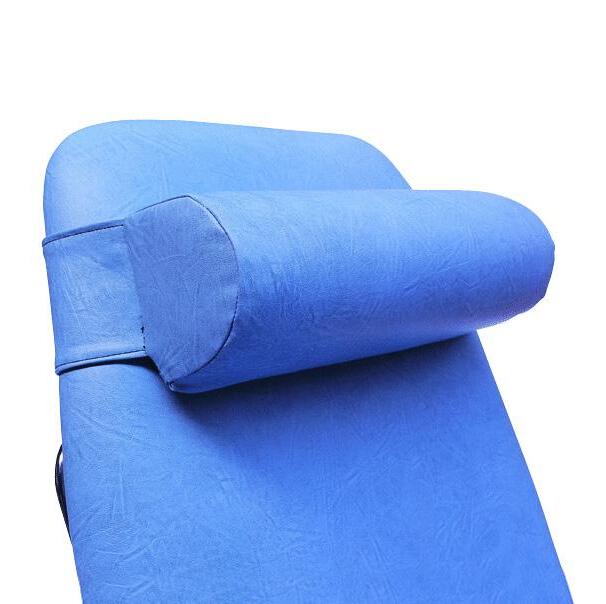

DETACHABLE HEAD REST: DHR01

The headrest provides additional comfort for patients lying on the plinth during examinations or procedures.

Patient Chairs

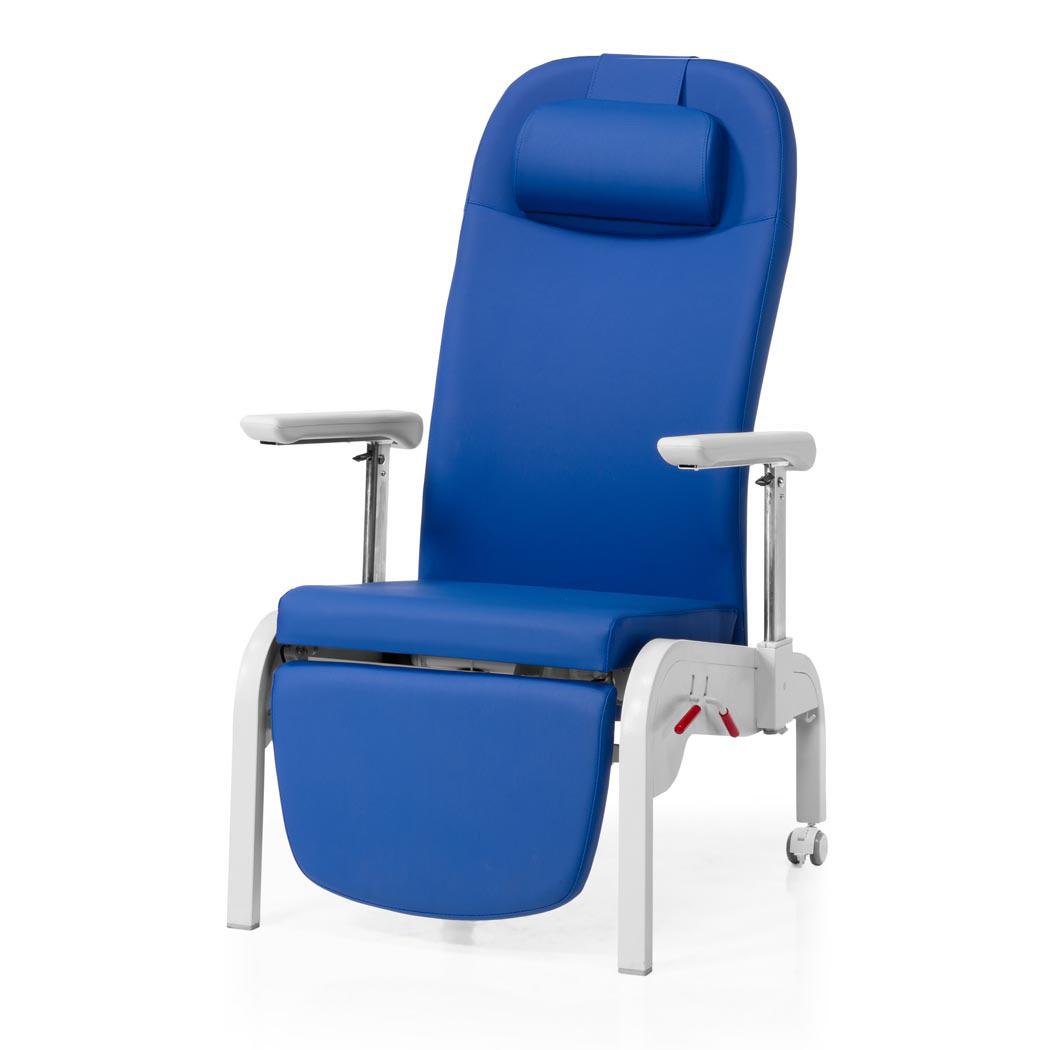

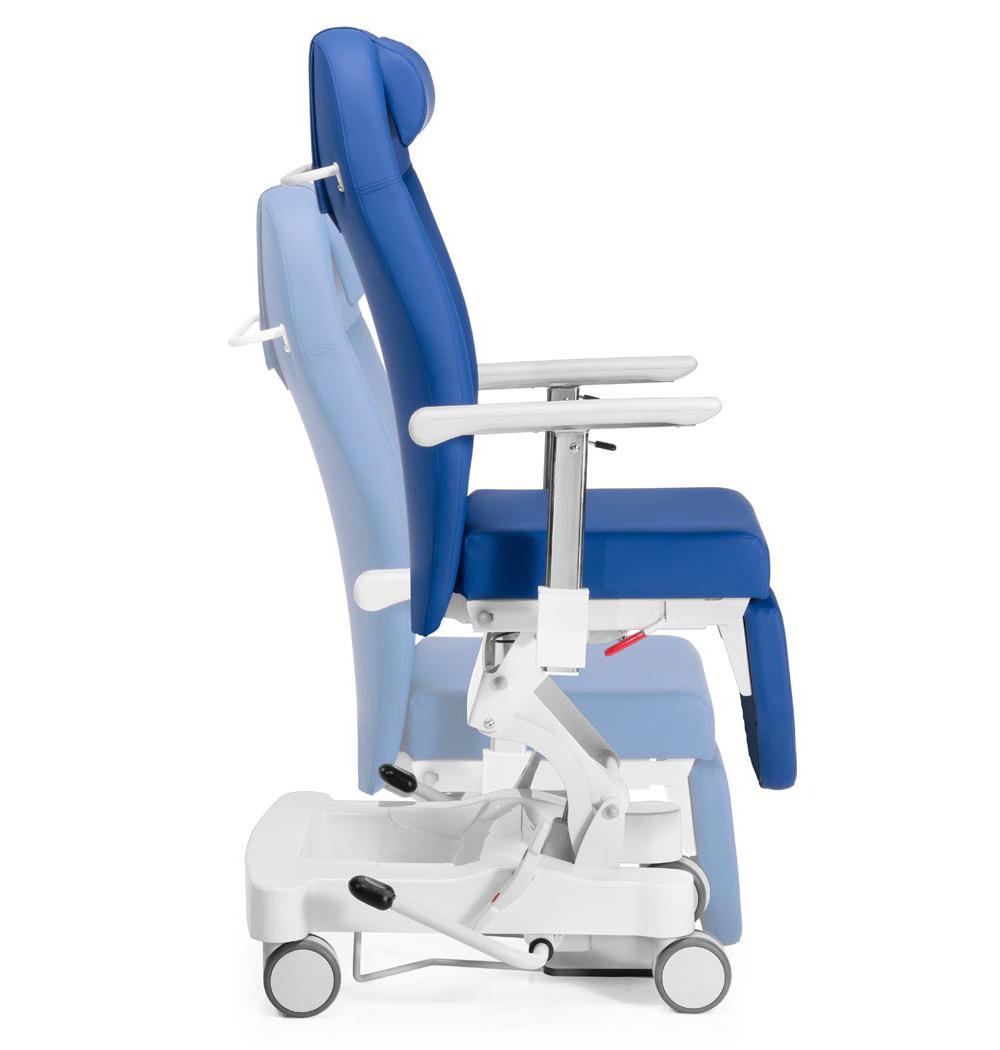

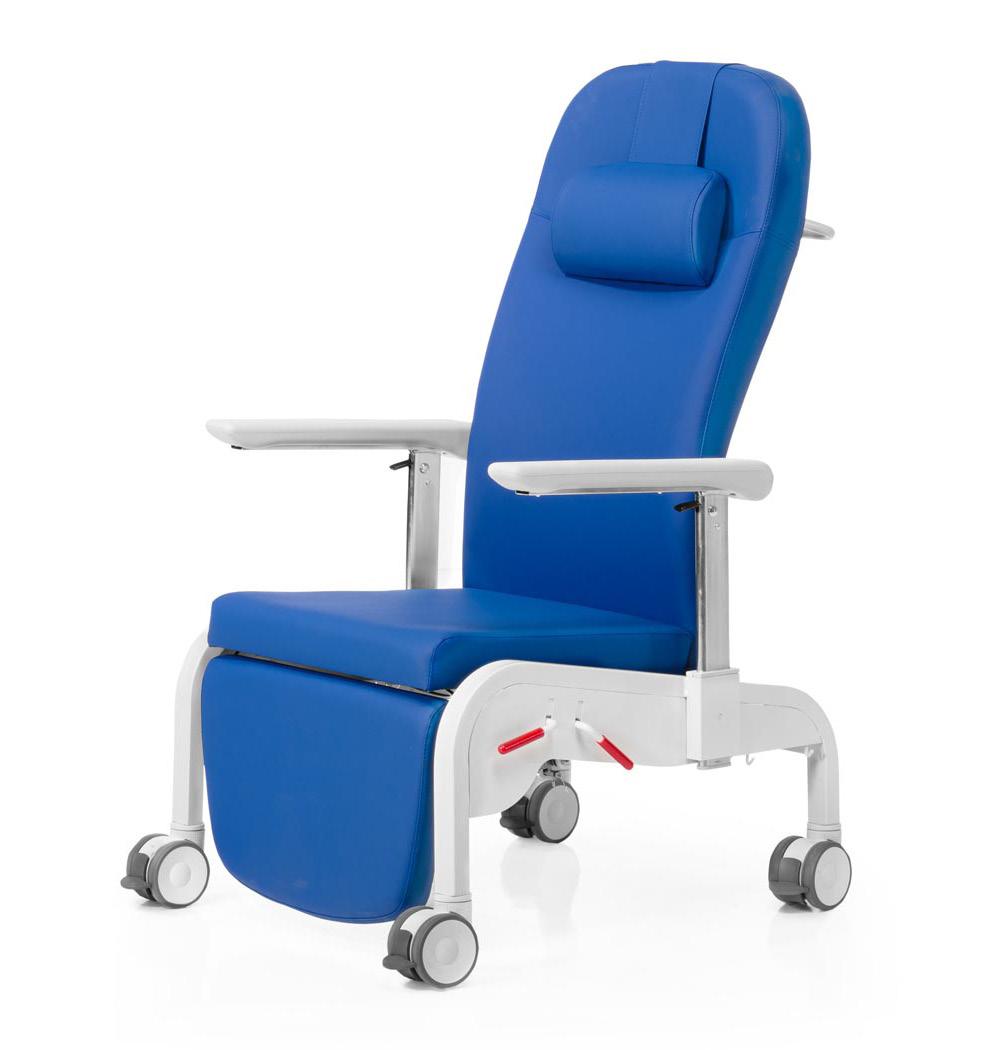

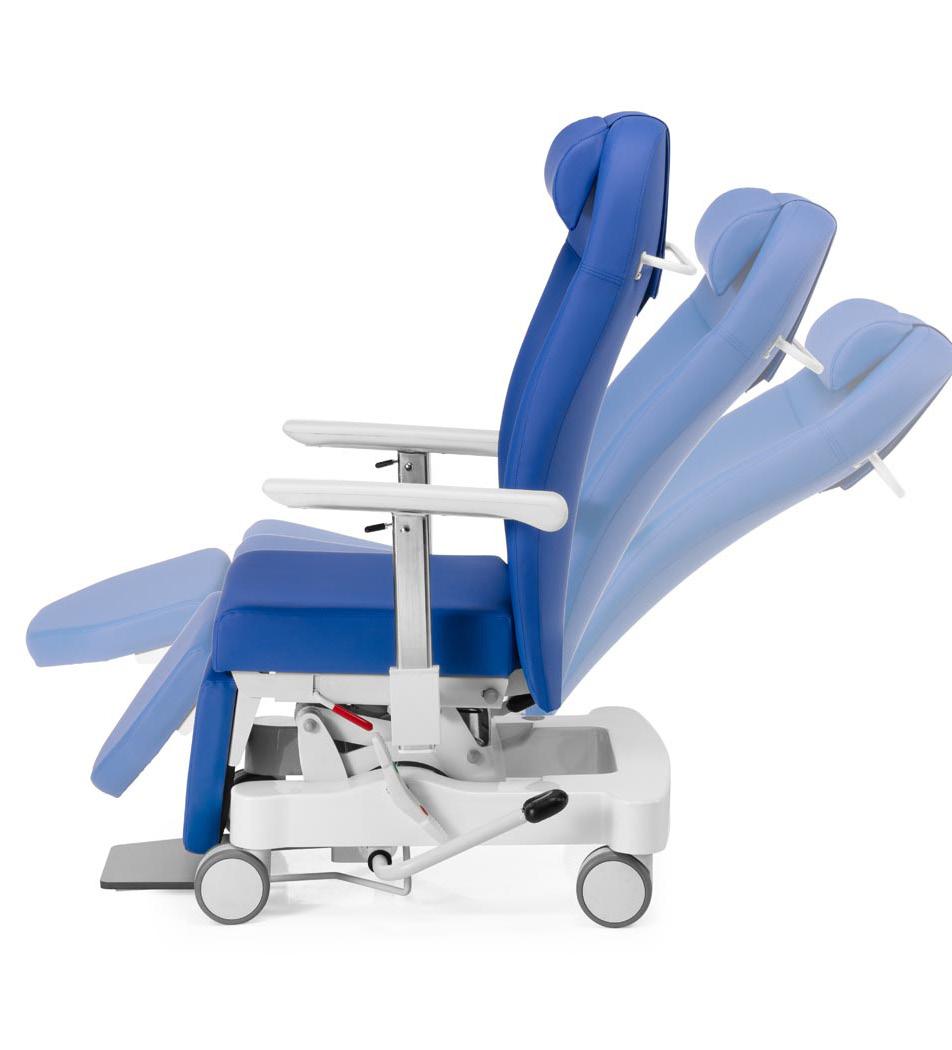

BREEZE 2 & 4 WHEEL

Structure

Constructed with an epoxy-coated steel tube frame for secure platform. Handle for an easy transport (optional in 2 wheels model, and included in 4 wheels model). IV pole socket and hooks for urine bags.

Comfort

High anatomical backrest, padded in high density injected and cold moulded polyurethane foam, designed for optimum comfort and ergonomic adjustment.

Height-adjustable padded headrest cushion, removable, for maximum comfort. Polyurethane armrests are adjustable in height in five different positions by means of an integrated button.

Easy Cleaning

Upholstery compatible with all NHS approved cleaning solutions such as Chlor-Clean, Haz-Tab, Milton and Tristel, plus Clinell wipes and other alcohol based wipes.

Ease Of Handling

Independent adjustment of backrest and legrest, by means of gas spring with “Bloc-o-Lift” system. Allows fixing the backrest in multiple positions to guarantee a better patient rest and comfort.

Backrest tilting system and ergonomic design combined with seat movement keeps the patient suspended in “zero gravity” avoiding pressures inthe lower back, pelvis and legs. Includes castors for improved manoeuvrability.

Patient Chairs BREEZE PLUS

Structure

Constructed with an epoxy-coated steel tube frame for secure platform. Handle included for an easy transport. IV pole socket and hooks for urine bags. Footrest attached under-seat.

Comfort

High anatomical backrest, padded in high density injected and cold moulded polyurethane foam, designed for optimum comfort and ergonomic adjustment. Height-adjustable padded headrest cushion, removable, for maximum comfort.

Polyurethane armrests are adjustable in height in five different positions by means of an integrated button. Integrated footrest for added patient comfort.

Easy Cleaning

Manufactured from high quality materials, guaranteeing their long life and endurance. Upholstered in self-extinguishing vinyl fabric (according to M2 standard. EN1021.1-2) antibacterial and resistant to absorption and stains, easy cleaning and maintenance.

Ease Of Handling

Independent adjustment of backrest and legrest, by means of gas spring with “Bloc-o-Lift” system. Allows fixing the backrest in multiple positions to guarantee a better patient rest and comfort.

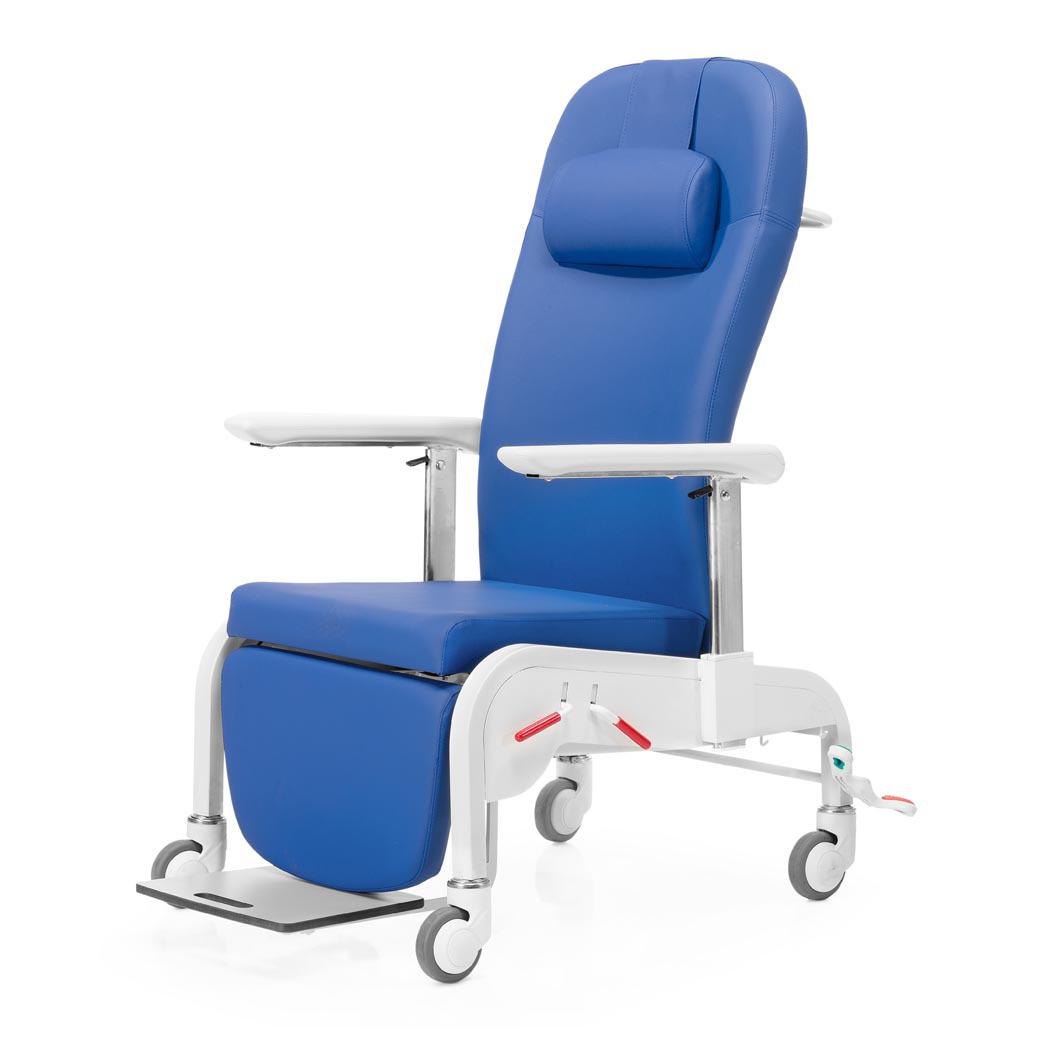

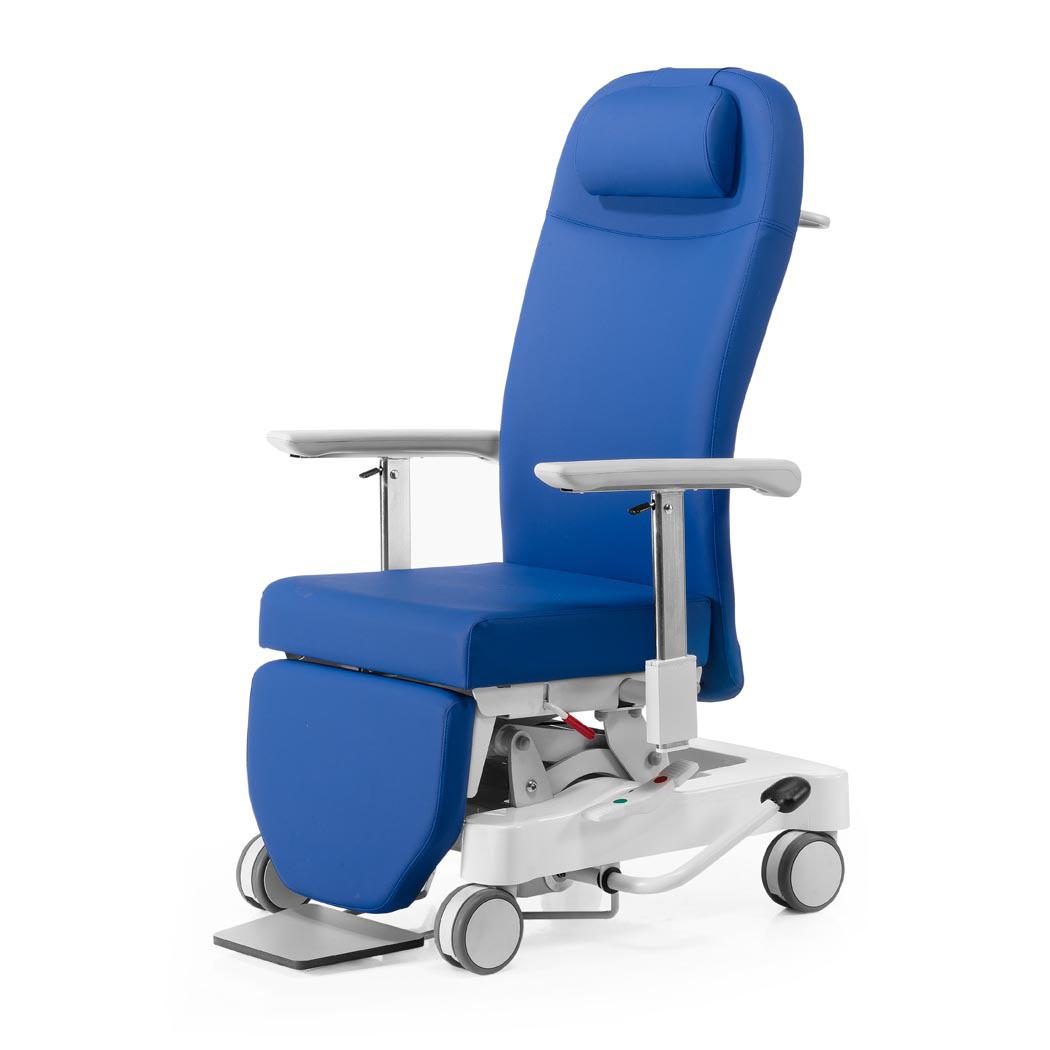

Patient Chairs BREEZE ELEVATE

Structure

Epoxy-coated steel tube frame. Ergonomic handle for easy transport. Sockets for IV pole available (upon request). Footrest attached under-seat.

Comfort

High anatomical backrest, padded in high density injected and cold moulded polyurethane foam, designed for optimum comfort and ergonomic adjustment.

Contoured front to the backrest stimulates blood circulation.

Seat angled towards the backrest to secure patient in position

Height-adjustable padded headrest cushion, removable, for maximum comfort.

Polyurethane armrests are adjustable in height in five different positions by means of an integrated button.

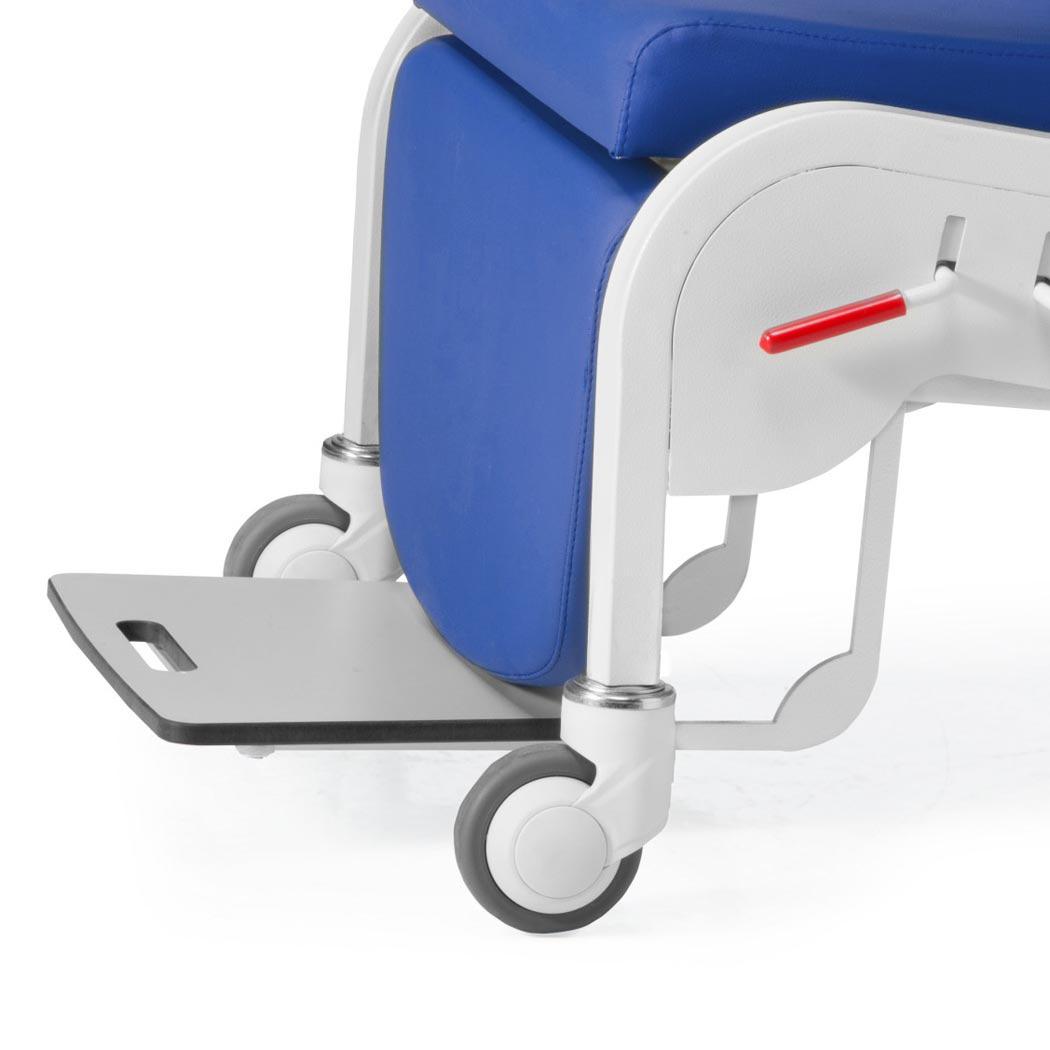

Integrated footrest for added patient comfort.

Easy Cleaning

Manufactured from high quality materials, guaranteeing their long life and endurance.

Upholstered in self-extinguishing vinyl fabric (according to M2 standard. EN1021.1-2) antibacterial and resistant to absorption and stains, easy cleaning and maintenance.

Ease Of Handling

Hydraulic height adjustment by foot pedal, accessible from both sides of the chair.

Includes four Ø 75 mm castors with a central locking system for quick, secure braking.

Backrest tilting system and ergonomic design combined with seat movement keeps the patient suspended in “zero gravity” avoiding pressures in the lower back, pelvis and legs.

Accessible for lifts/hoists from front section and suitable for overbed tables.

Specifications

BREEZE (2&4), BREEZE PLUS & BREEZE ELEVATE

Patient Chair: BREEZE (2&4 WHEEL), PLUS

Overall dimensions (2w)

Overall dimensions (4w)

Extended

Back section dimensions

Seat dimensions

Leg sections dimensions

Footrest

Backrest

Weight

x 72 x 81 cm

x 72 x 86 cm

x 52 x 46 cm

x 34 cm

Patient Chair: BREEZE ELEVATE

Overall

Extended length

Back section dimensions

Seat dimensions

Leg sections dimensions

Backrest tilting

Height range

x 54 x 54 - 80

x 34 cm

- 168º

- 80 cm

- 35 x 22 cm

Weight w/o accessories

Safe working load

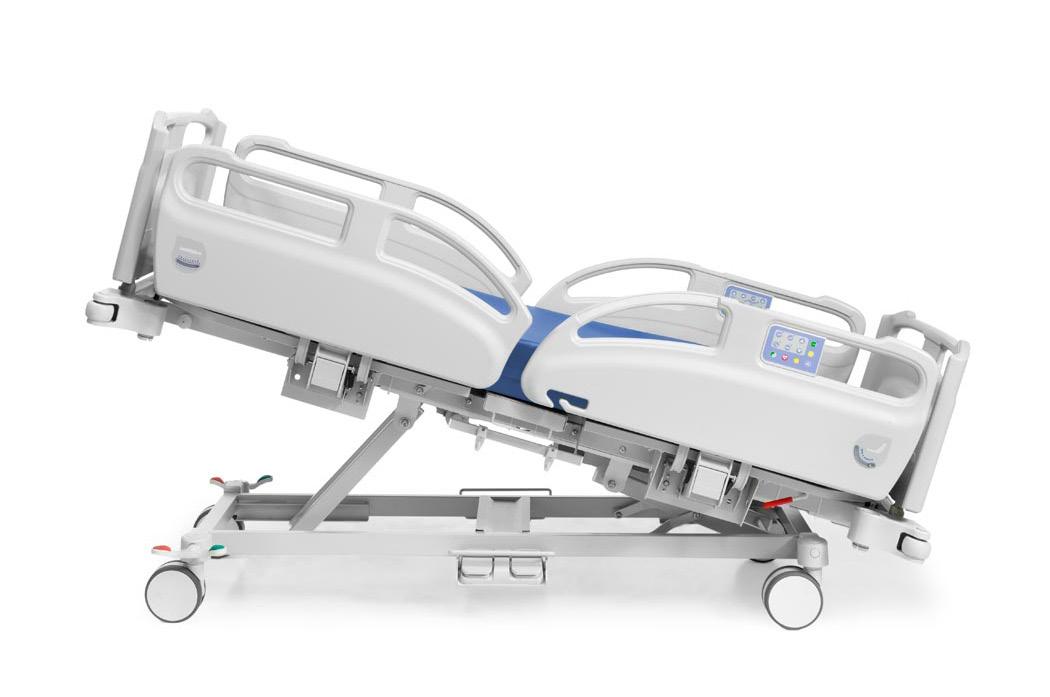

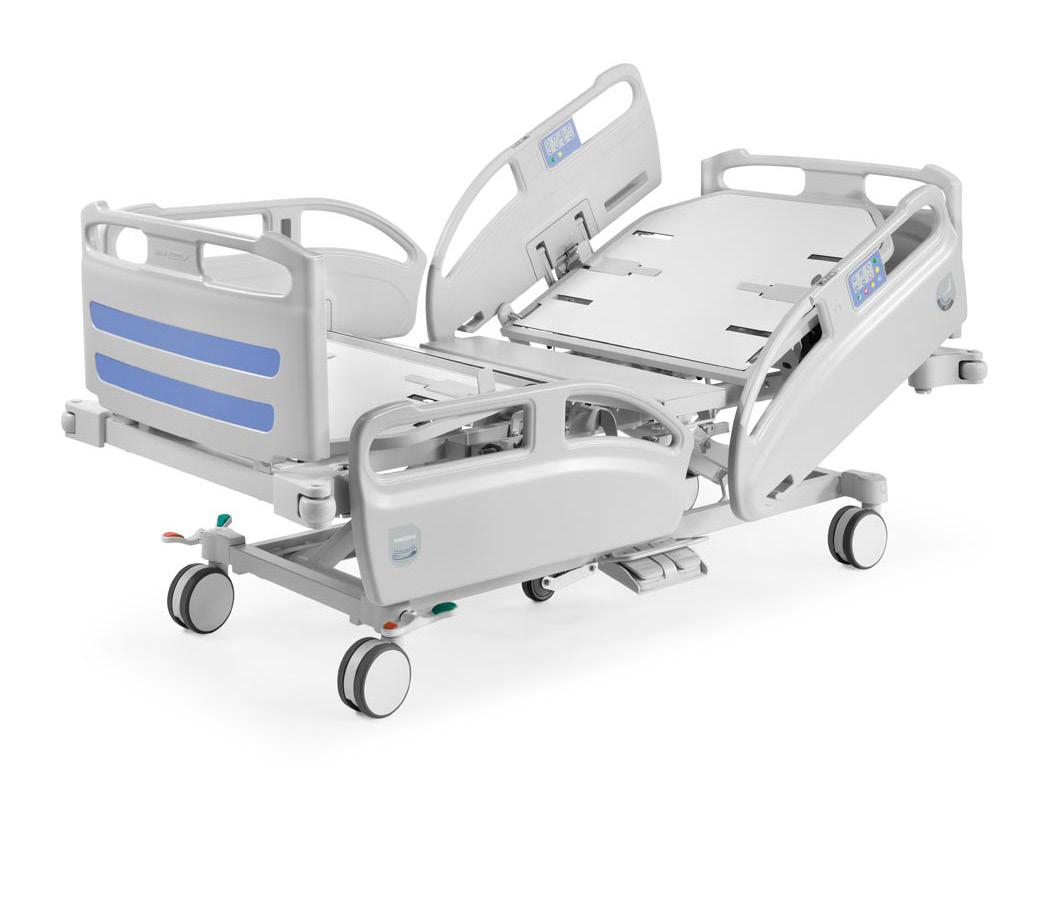

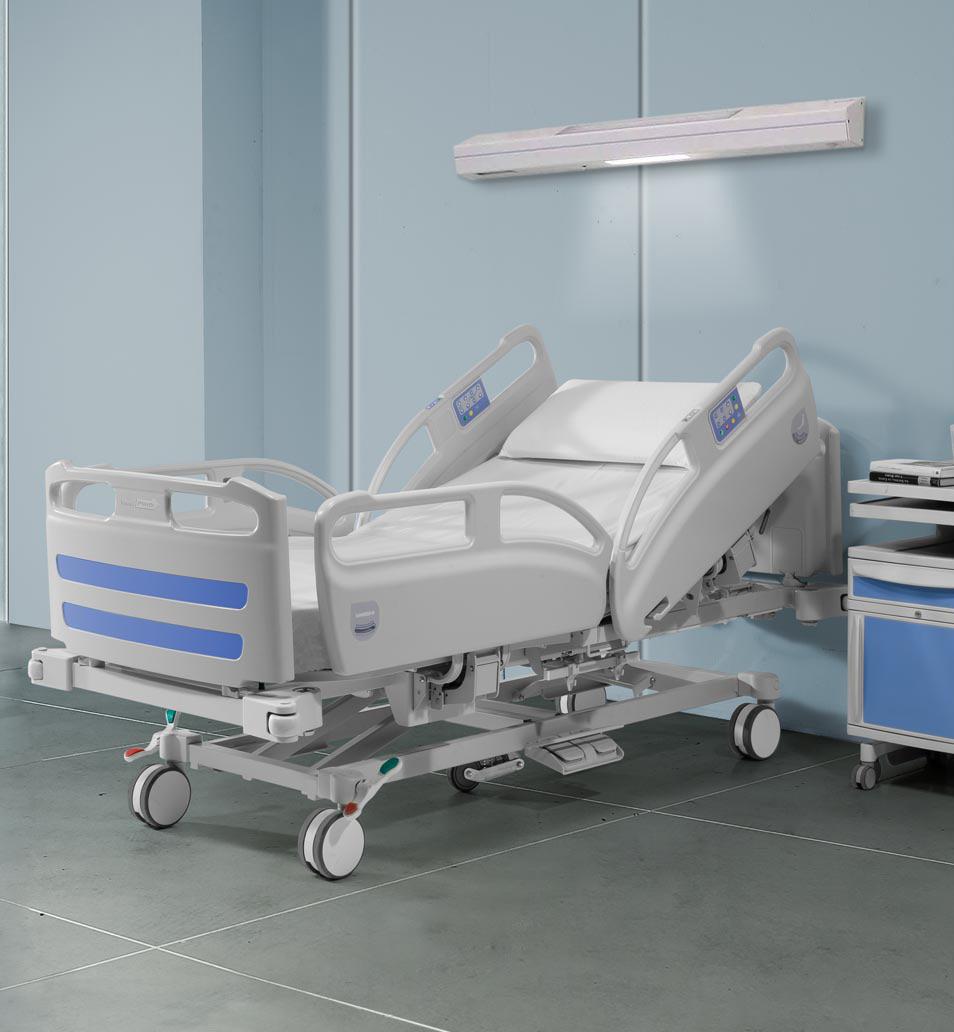

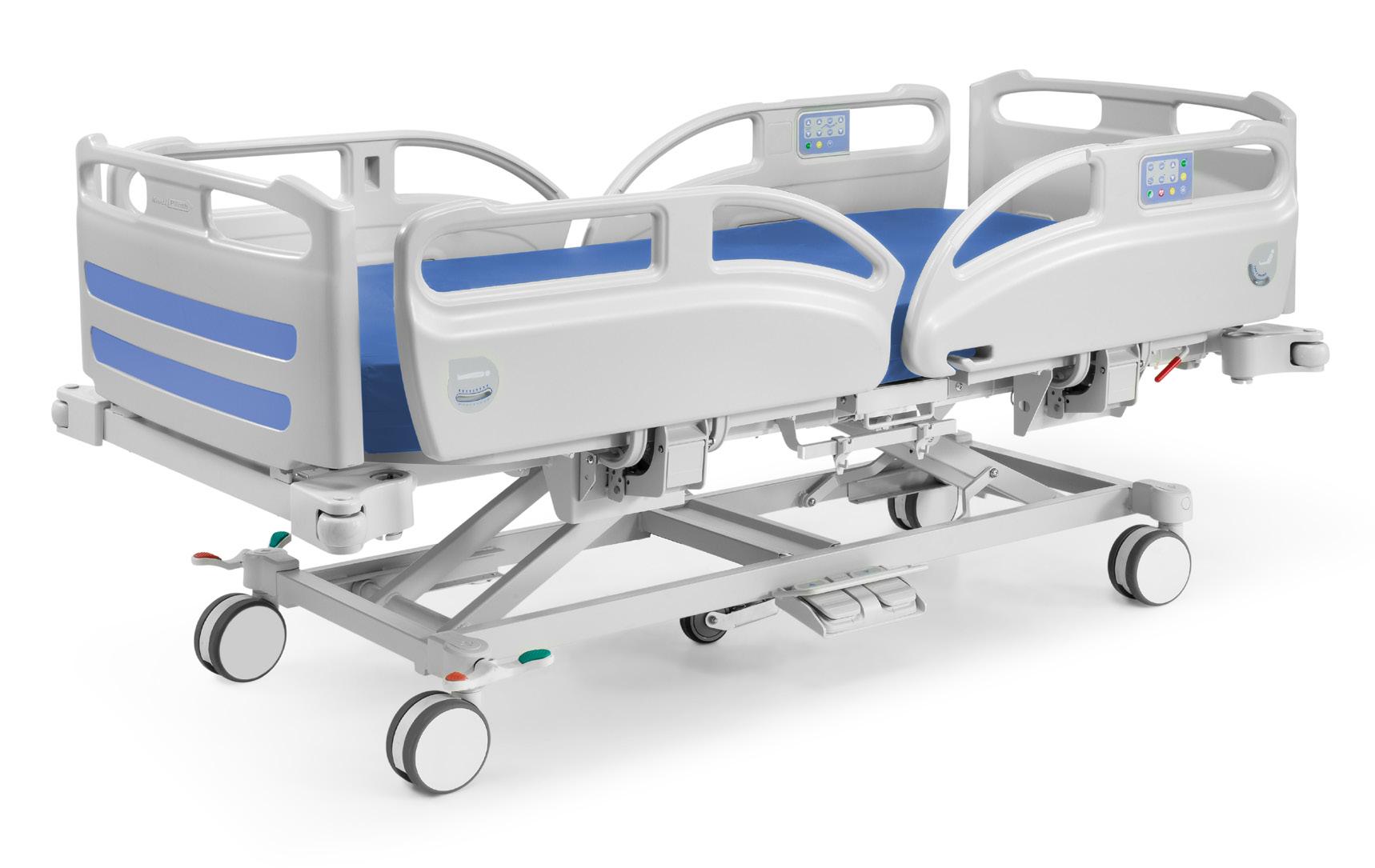

Hospital Beds CARE SURE

Structure

Epoxy coated steel tube frame.

Head and foot board ensure mattress retention, preventing displacement. Mattress platform is easily removable without the need for tools.

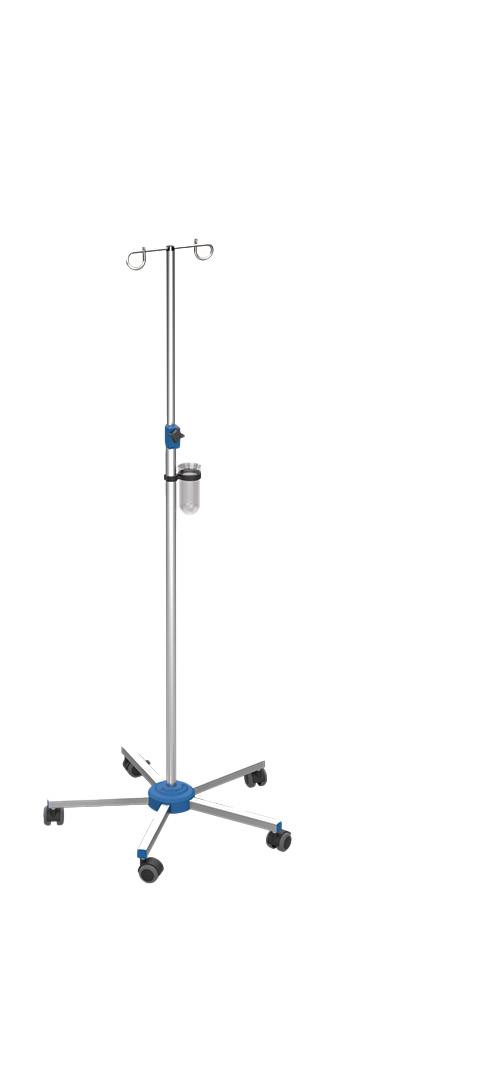

Complete with supports for accessories (IV drip rod, lifting pole, etc.) on each corner of the bed. Scissor-lift system provides optimum stability and supports weights of up to 250 kg.

Safety

Emergency release of backrest for quick lowering of the section in the event of an emergency, battery or power failure (CPR Position).

Double LED safety positioning light (green indicates bed is below minimum height, red shows bed has exceeded minimum safety height).

Anti-trapping sensor with automatic engine stop when detecting an obstacle.

Medical grade electric motors with integrated anticollapse safety measures.

IPX6 protection against water and dust ingress.

Comfort

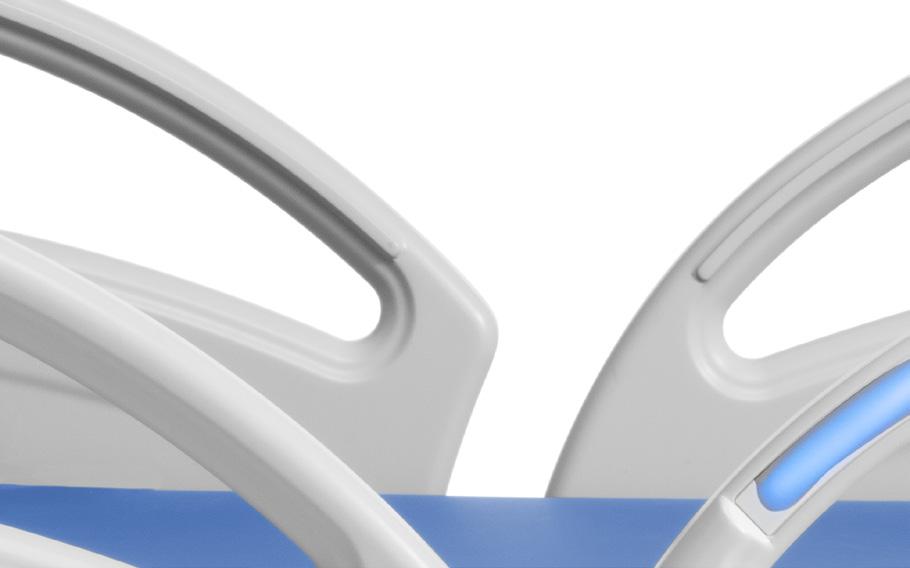

Four independent HDPE side rails that comply with EN 60601-2-52 standards. Each include gas spring dampers to allow for single-hand operation.

Siderails use an innovative mechanism allowing them to fold closely to the bed frame (no more than 7.5 cm). Each has an integrated angle indicator.

‘Help to stand up’ button aids safe patient transfer with control of bed positioning.

Automatic positioning system allows lowering of the back section (by 15 cm) and leg regression (by 7 cm) for protection against bedsores.

Integrated pull-out linen shelf, providing linen storage whilst changing bed linen.

Automatic alarm sounds when bed backrest is positioned at 30º.

Hospital Beds CARE SURE

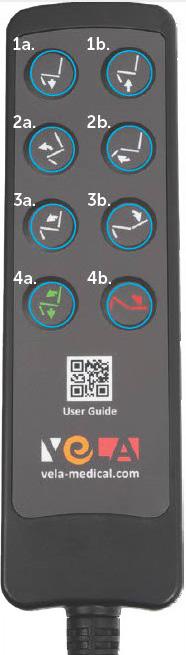

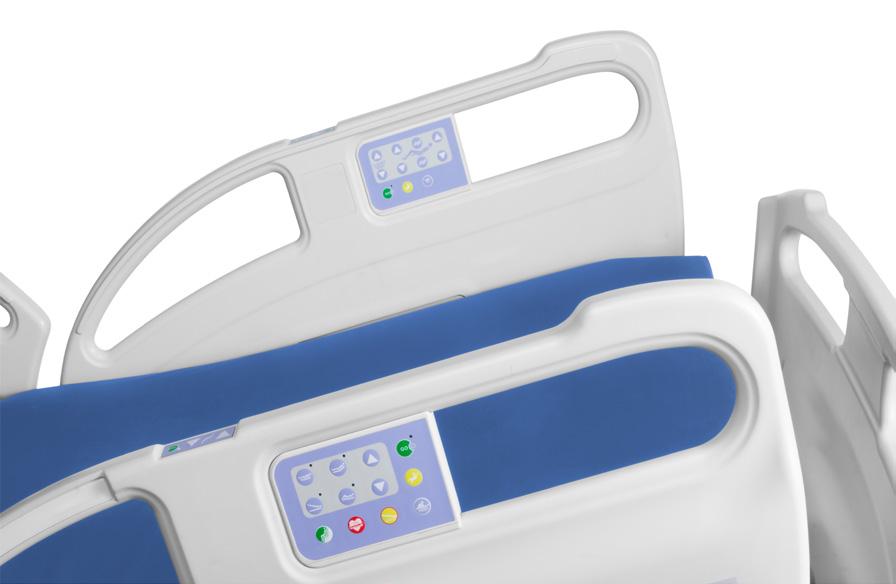

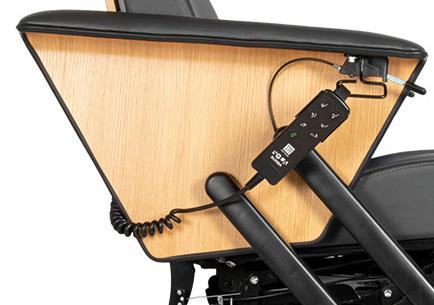

Controls Ease Of Handling

Clinician handset (outside of rail).

Panel for medical staff, allows activation/override . ofthe different functions of the bed. Incorporates preprogrammed functions (Trendelenburg, CPR shock position, emergency Trendelenburg, cardiac chair and exam position).

Patient handset (inside of rail).

Allows patients to control and position the sections of the backrest, back/foot and height, activation of the “GO” button and the night light under the bed. It has pre-programmed functions such as patient exit button and sitting position.

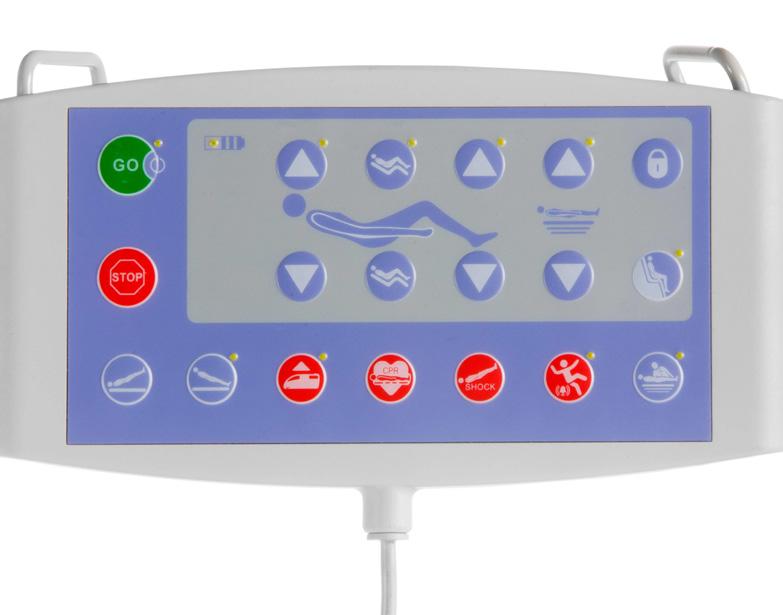

Nurse handset (external).

Allows medical staff to work efficiently and control the bed from different locations. Includes practical default functions and activation of security alarm.

Allows activation/override of the bed adjustment functions, individually or synchronously, using the “STOP” button.

Hydraulic height adjustment by foot pedal, accessible from both sides of the chair.

Includes four Ø 75 mm castors with a central locking system for quick, secure braking.

Backrest tilting system and ergonomic design combined with seat movement keeps the patient suspended in “zero gravity” avoiding pressures in the lower back, pelvis and legs.

Accessible for lifts/hoists from front section and suitable for overbed tables.

Positioning

Foot section includes electrically controlled kneebreak allowing for five positions. The cardiac chair position is critical for patients with heart and breathing problems, helping to enhance their recovery. This feature is activated simply by pressing a lever.

Exit position button, reduces height and feet section to lowest position, whilst back is elevated to 67º allowing for easy transfer.

Specifications CARE SURE BED

Hospital Bed: CARE SURE

External

Patient

Height

Backrest

Legrest

Footrest

Trendelenburg/Reverse

Backrest

Footrest

Maximum

Weight

Electric Features

Hospital Beds

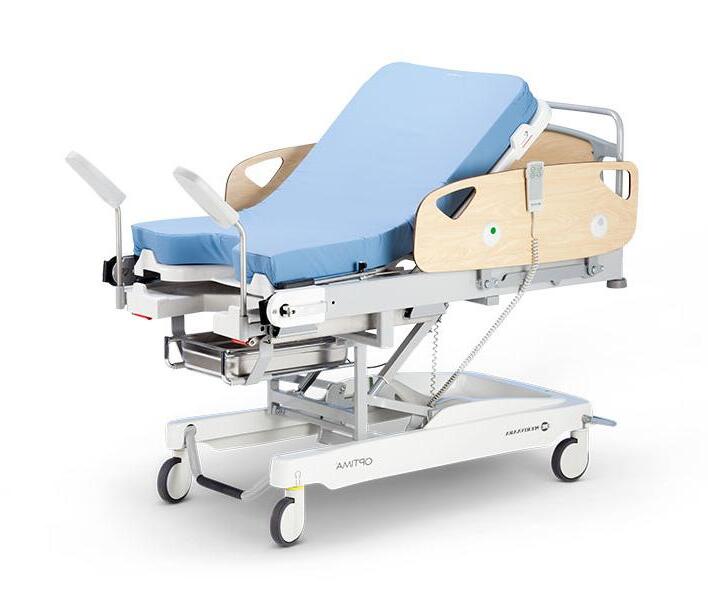

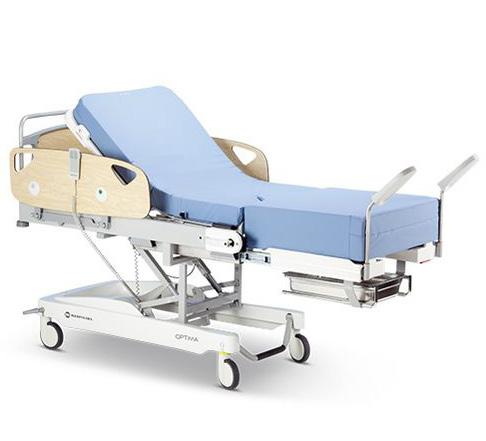

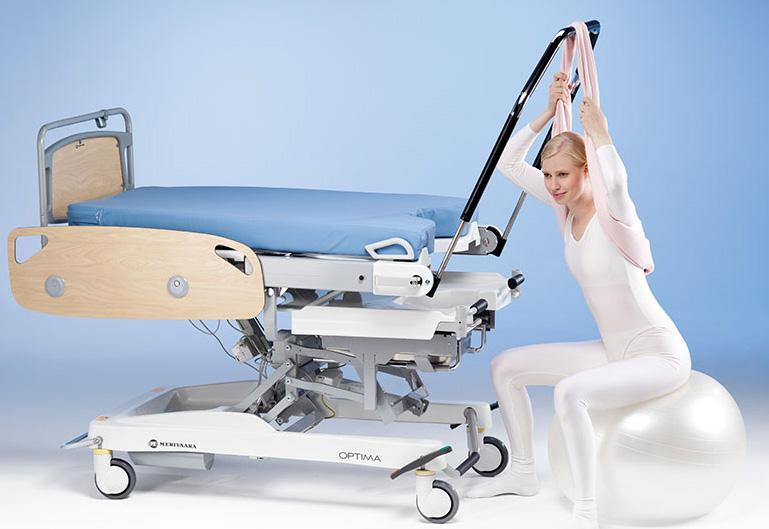

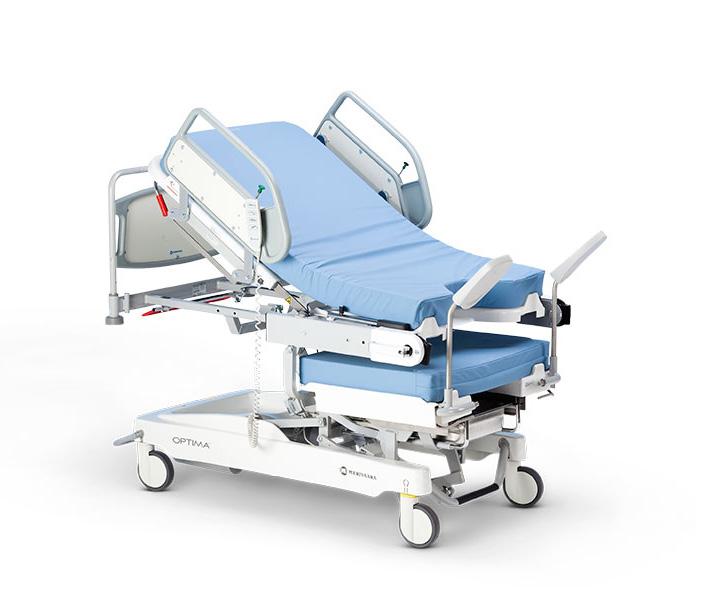

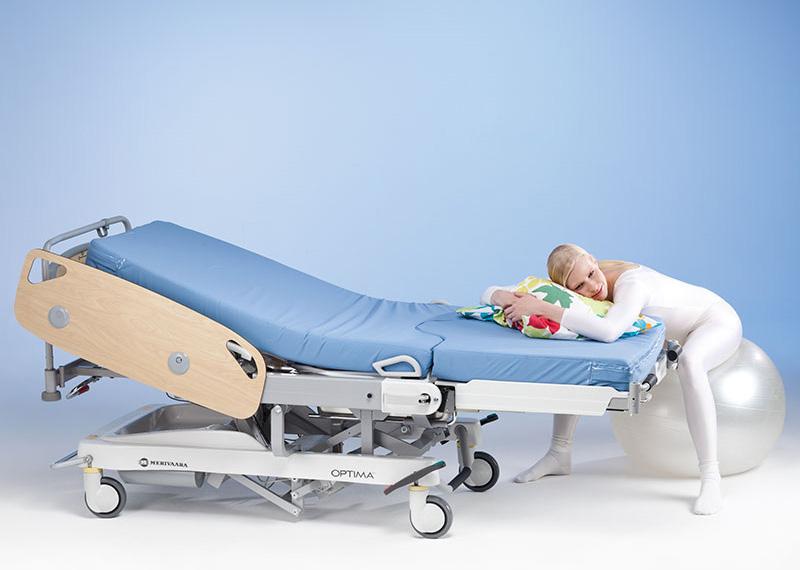

OPTIMA BIRTHING BED

Structure

4-motor: electric height, back section, leg section and Trendelenburg adjustment.

Leg section movement in/ out and tilting manually. Manual Trendelenburg and quick release back section.

2-motor: electric height and back section adjustment. Leg section movement in/ out, Trendelenburg and quick release for back section manually.

Hydraulic: hydraulic height adjustment and gas spring assisted adjustment of back section.

Leg section movement in/ out, Trendelenburg and quick release for back section manually.

Safety

150mm diameter castors with central braking and steering facility operated from head-end for ease of use when portering.

Emergency release of the backrest for quick lowering of the section in the event of an emergency.

Conforms to Regulation (EU) 2017/745.

Comfort

Multiple delivery positions in a single unit offers a greater level of comfort for the mother.

Ergonomic foot section extends bed by up to 25cm and slides under the bed when not in use.

Low minimum height adjustment, 58.5– 95.5cm.

Handset designed to allow easy and quick positioning of the bed sections.

Electric Trendelenburg / Manual Trendelenburg position to (12º).

Ultra light yet stable, the leg section is easy to manoeuvre and slides in under the bed together with the mattress, making work flow faster and more ergonomic.

Manufactured from high quality materials, guaranteeing their long life and durability.

Clear frame construction enables easy cleaning and high level of hygiene.

Hospital Beds

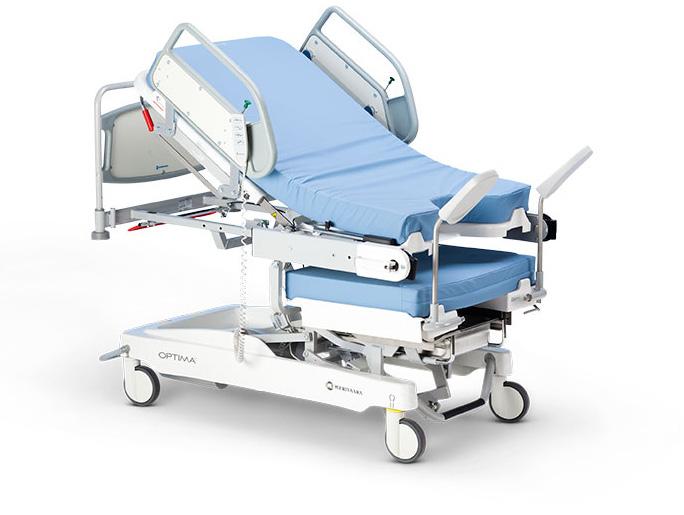

OPTIMA BIRTHING BED

OPTIMA 2-MOTOR

Electric functions:

Height adjustment. Back section adjustment.

Manual functions:

Leg section movement. Trendelenburg.

Quick release for back section.

OPTIMA 4-MOTOR

Electric functions:

Height adjustment.

Back section adjustment.

Leg section height adjustment. Trendelenburg.

OPTIMA HYDRAULIC

Manual functions:

Back section (gas spring assisted).

Height adjustment (hydraulic pedal).

Leg section movement in and out. Trendelenburg.

OPTIMA BIRTHING BED

BIRTHING

BED

Optima Birthing Bed, Hydraulic: 100000012

Optima Birthing Bed 2-Motor: 100000011

Optima Birthing Bed 4-Motor: 100000009

Total width

Patient surface width

Height

Patient

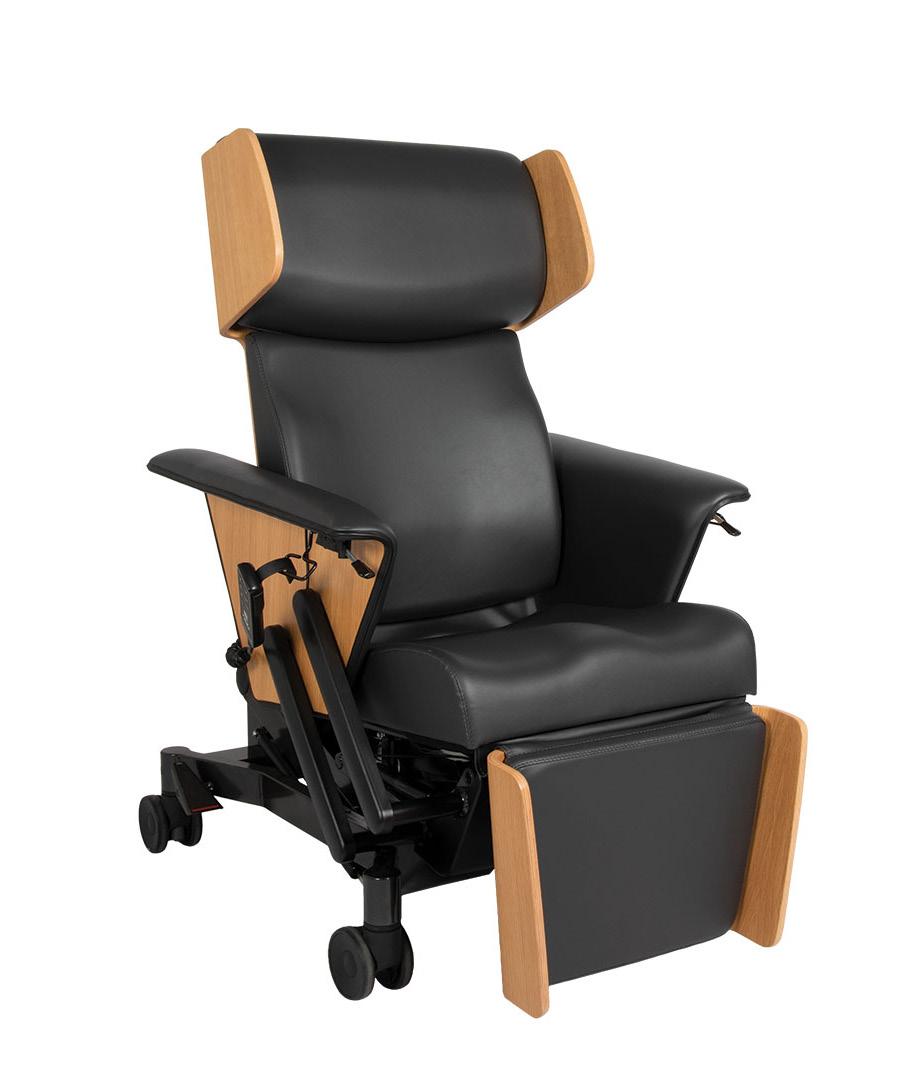

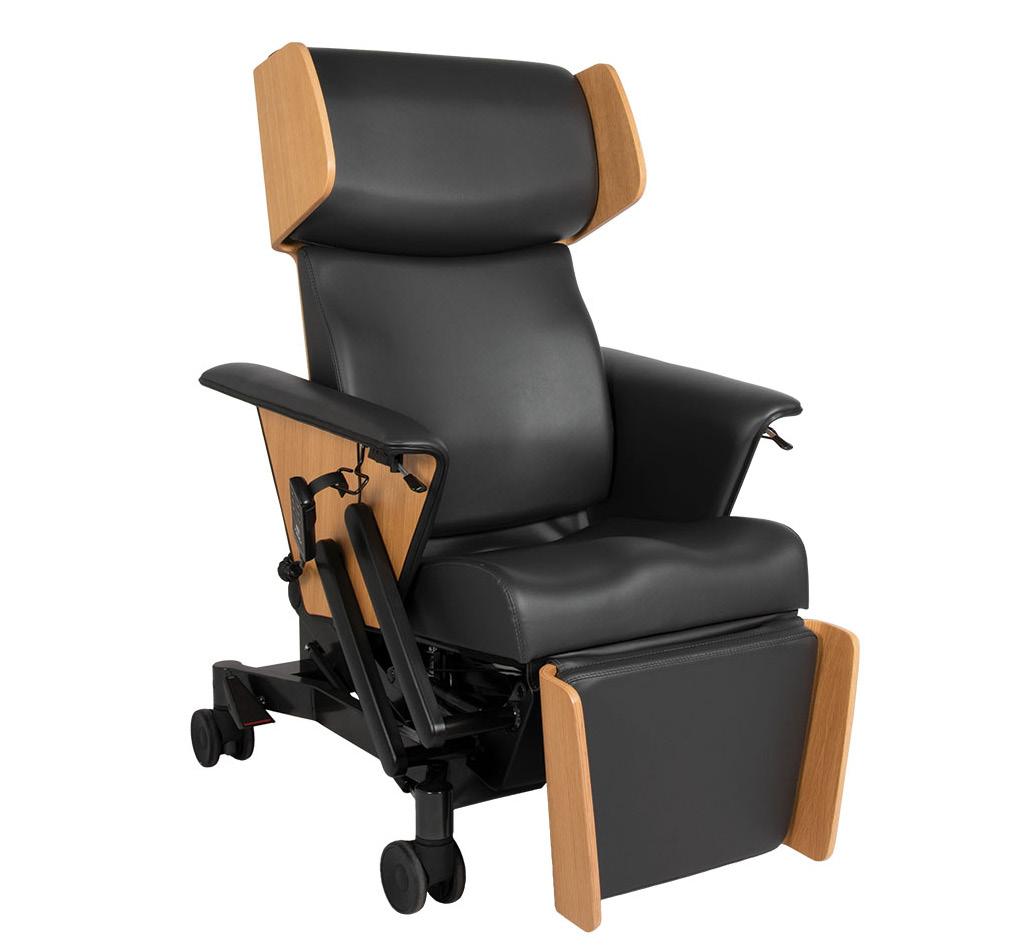

Neonatal NEONATAL CHAIR

Structure

This design prioritizes the comfort and safety of both the parent and the child while facilitating essential bonding activities such as breastfeeding and skin-toskin contact in neonatal care settings.

Stable base with smooth-rolling castor wheels.

Ergonomically designed seating to support during extended periods of sitting.

Individual electric setting of the backrest/footrest provides comfort and variation. Plus alighting assistance allows parents to stand up and sit down with the child without having to call staff.

Safety

CE marked in accordance with the Medical Device Regulation MDR 2017/745. The chairs electrical functions are tested and approved in accordance with the latest demands regarding electromagnetic compatibility (EMC).

Comfort

Optimal Positioning: This chair allows for optimal angling during breastfeeding and milk pumping, reducing the need for repositioning and minimizing stress on the infant.

Mobility: The chair’s sit-to-stand assistance aids parents in sitting down or getting up with or without the child, which is especially appreciated post-caesarean section.

Ergonomic Design: The chair provides excellent back and neck support, ensuring that parents and caregivers can sit comfortably for extended periods during critical bonding and care activities.

Space Saving: It occupies less space than a hospital bed and is as easy to operate with its electric functions.

Specifications

NEONATAL CHAIR

NEONATAL CHAIR: 87212

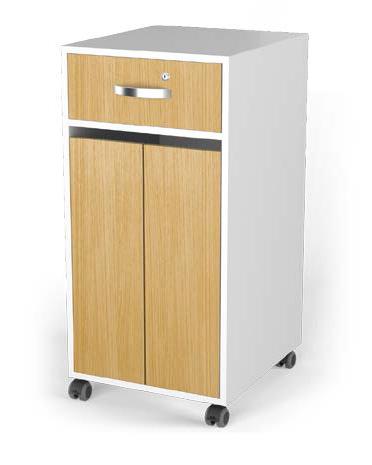

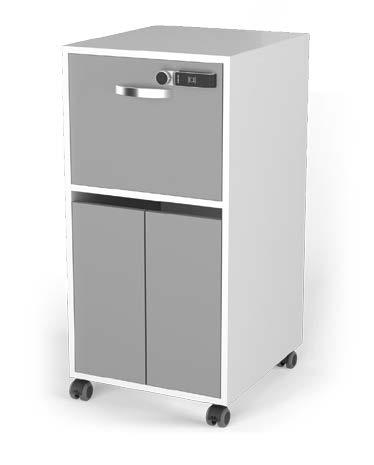

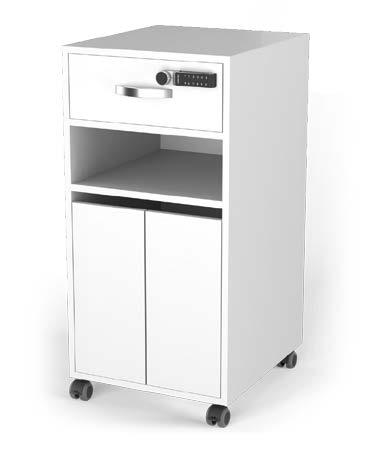

EASY CLEAN BEDSIDE LOCKERS

Features

Our Easy Clean Bedside Locker range sees durable construction and exceptional functionality combined. Meeting BS 1765-2:1976, it provides generous storagespace, customizable lock features, braked castors andadjustable shelving. Independently tested and certificated by Fira International Ltd reaching requirements of BS EN 16121:2013 Level 2 Safety, Strength, Durability & Stability.

• Bolted ‘through’ castors and door fixings for hygiene strength and longevity

• Available in White, Oak or Grey

• All units come with a lockable item drawer or flap.

• Easy access cupboard with twin doors

• Available with a cam Lock, RFID Lock or digital lock to secure patient belongings

• Optional extras include a white plastic easy clean top, to control spillages. Also the option to add a towel rail and washbowl holder.

• 5 year manufacturer warranty included.

STORAGE: BEDSIDE LOCKER

Cupboard & lockable drawer: ECBSL01

Cupboard, lockable drawer & shelf: ECBSL02

Cupboard & lockable flap: ECBSL03

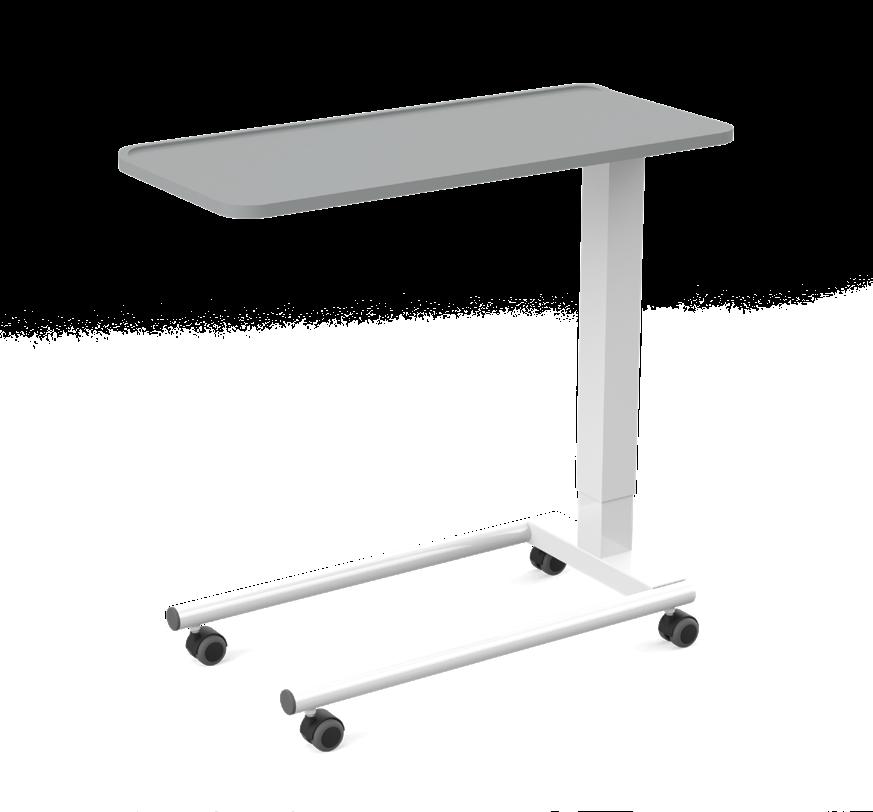

EASY CLEAN OVERBED TABLES

Features

Designed to enhance patient comfort, convenience and safety. Its user-focused, adjustable height mechanism and varying base designs allow for healthcare professionals and patients to create a stable platform.

Our seamless one piece tops allow for easy cleaning to help maximize infection control. Suitable for use over beds and chairs.

Independently tested and certificated by Fira International Ltd reaching requirements of BS 2483:1977.

• Available in straight leg or ‘C’ shaped base for use with either beds or chairs as required.

• Maximum safe working load of 25kg.

• Anti-entrapment safety features for safety.

• Available with white, oak or grey tabletop.

• Available with flat, recessed or upstand tabletop to secure contents.

• Seamless one piece tops for easy cleaning and durability.

• 5 year manufacturer warranty included.

TABLES: OVERBED TABLES

C’ leg base with flat top: ECOBT01

‘C’ leg base with upstand top: ECOBT02

‘C’ leg base with recessed top: ECOBT03

Straight leg base with flat top: ECOBT04

Straight leg base with upstand top: ECOBT05

Straight leg base with recessed top: ECOBT06

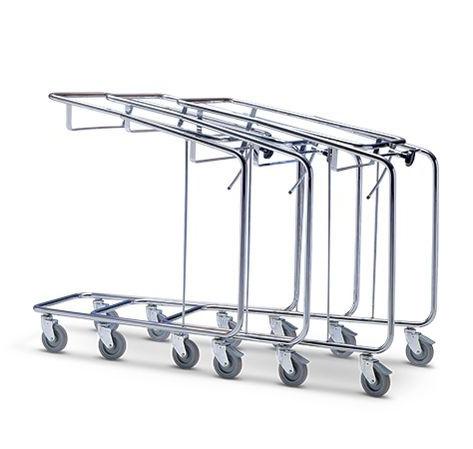

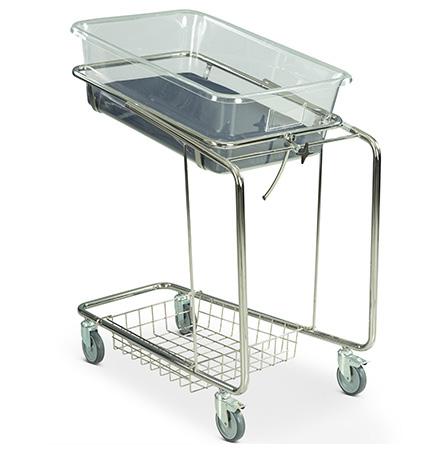

Ward accessories BABY CRIB & MATTRESS

Structure

CE marked/MDR Compliant

Chrome plated frame.

Stackable design for easy transportation/storage.

Removable acrylic cradle for easy cleaning and transfer.

The large 100 mm castors make the crib easy to move, equipped with two lockable castors.

Hydraulic Trendelenburg / reverse Trendelenburg position up to ±12º. Easy to adjust with manual lever.

Safety

Conforms to Regulation (EU) 2017/745.

Comfort

Crib can be positioned across the bed of the mother, thus allowing convenient access to the baby.

Includes fire-resistant polyurethane mattress with cover.

Easy Cleaning

Oeko-Tex certified, bi-elastic and antimicrobial polyester mattress cover.

The mattress zipper is protected by a drip flap to prevent moisture from entering inside of the hygiene cover.

Machine washable mattress cover.

Specifications BABY CRIB & MATTRESS

BABY CRIB & MATTRESS

Baby Crib: 100.000.380

Baby Mattress: 100000902

Baby Crib

Length

Trendelenburg 12º

Anti-Trendelenburg 12º

Castors

mm (2 lockable) Width of mattress base 392 mm

Weight

Safe working load 15 kg

Baby Mattress

Foam density

Mattress dimensions

Mattress

Hygiene Cover Material

x 62 x 5 cm

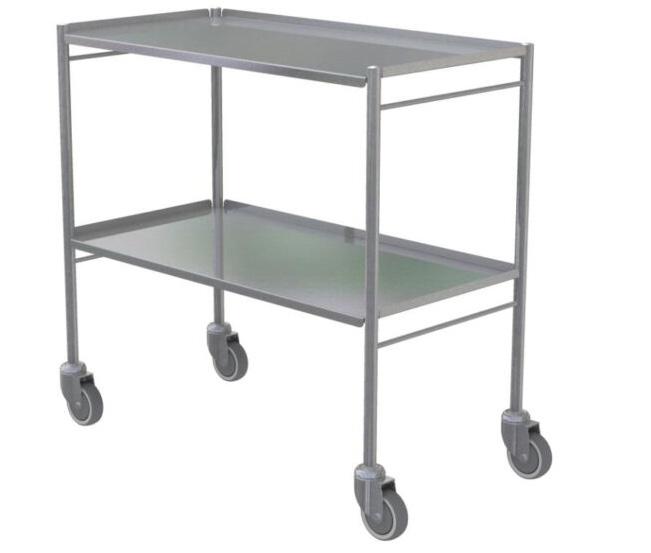

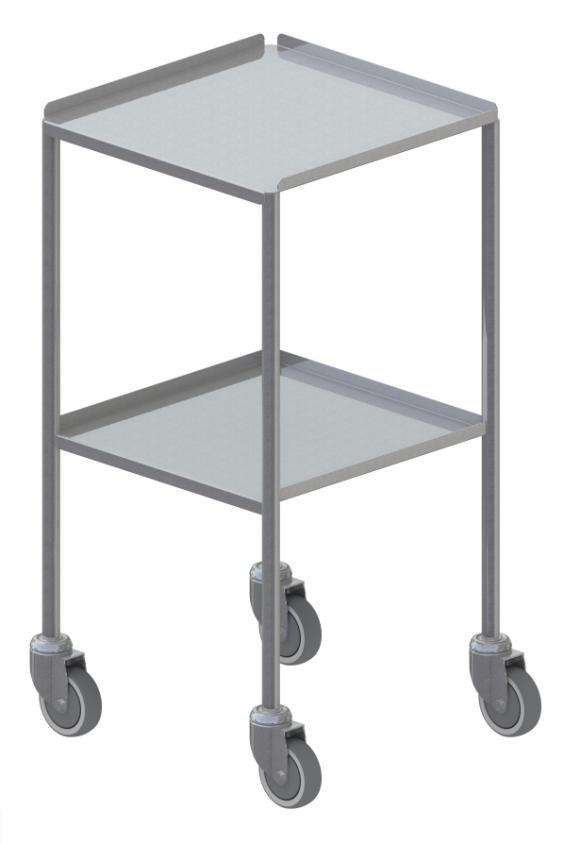

Stainless Steel Furniture DRESSING TROLLEYS

Features

Stainless steel dressing trolleys designed for the efficient organisation and transport of medical supplies. Manufactured from high-quality stainless steel, these trolleys offer durability, hygiene and are corrosion resistant. Ideal for hospitals, clinics, and other medical facilities, these help make it easier for healthcare professionals to deliver patient care swiftly and effectively.

• Manufactured with 1.5mm 304 Grade stainless steel

• Each trolley includes one flat and three edged- up sides (sides and rear) to secure contents on shelves

• Mounted on four anti-static castors

• Designed with smooth surfaces and easy-to-clean design help maintain sterility

DRESSING TROLLEYS

Small Dressing Trolley: DRT004

Medium Dressing Trolley: DRT014

Large Dressing Trolley: DRT018

X-Large Dressing Trolley: DRT036 DRT004

Stainless Steel Furniture STAINLESS STEEL EQUIPMENT

Features

Designed with hygiene as the main focus, these stainless steel items are featured in almost all operating rooms. These products are suitable for use in operations taking place in a controlled, sterile area.

Each item can be dismantled for easy cleaning and sterilisation. All items are mounted on castors to allow them to be easily manoeuvred to the desired location during use.

• Manufactured from 304 grade stainless steel

• Removeable sections for ease of cleaning/ sterilisation

• 12 litre buckets where applicable

• Easily manoeuvred

• Mounted on swivel castors

EQUIPMENT

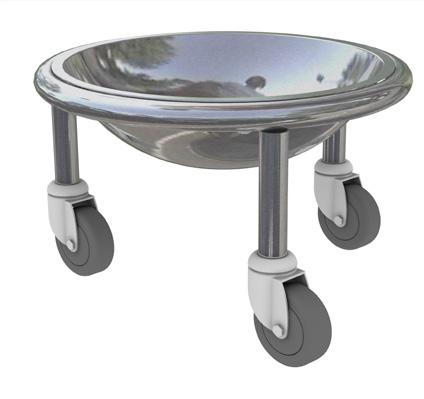

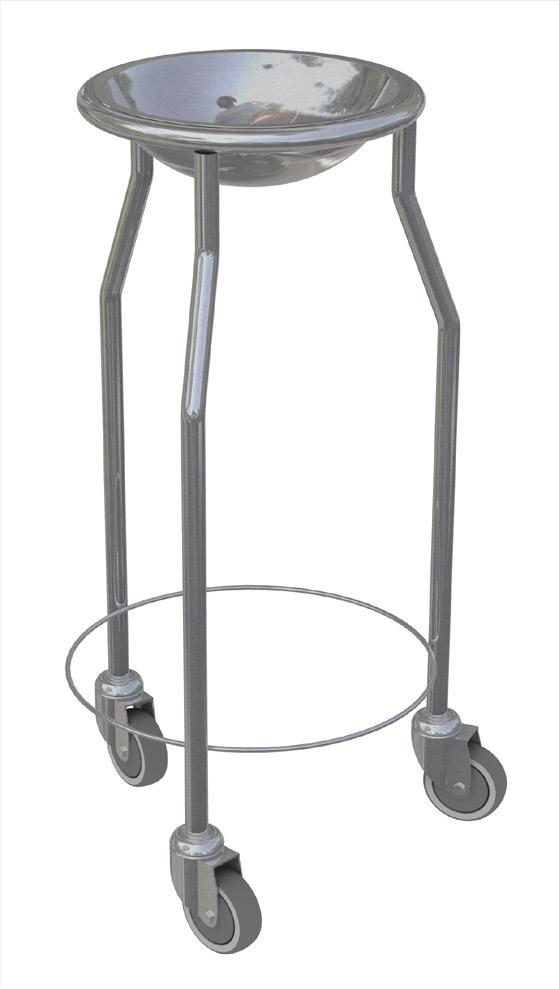

Kick About Bowl with Stand: OTE001

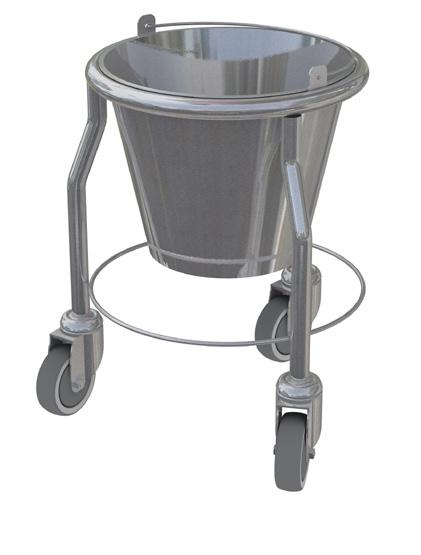

Kick About Bucket with Stand: OTE002

Kick About Bowl with Tall Stand: OTE003

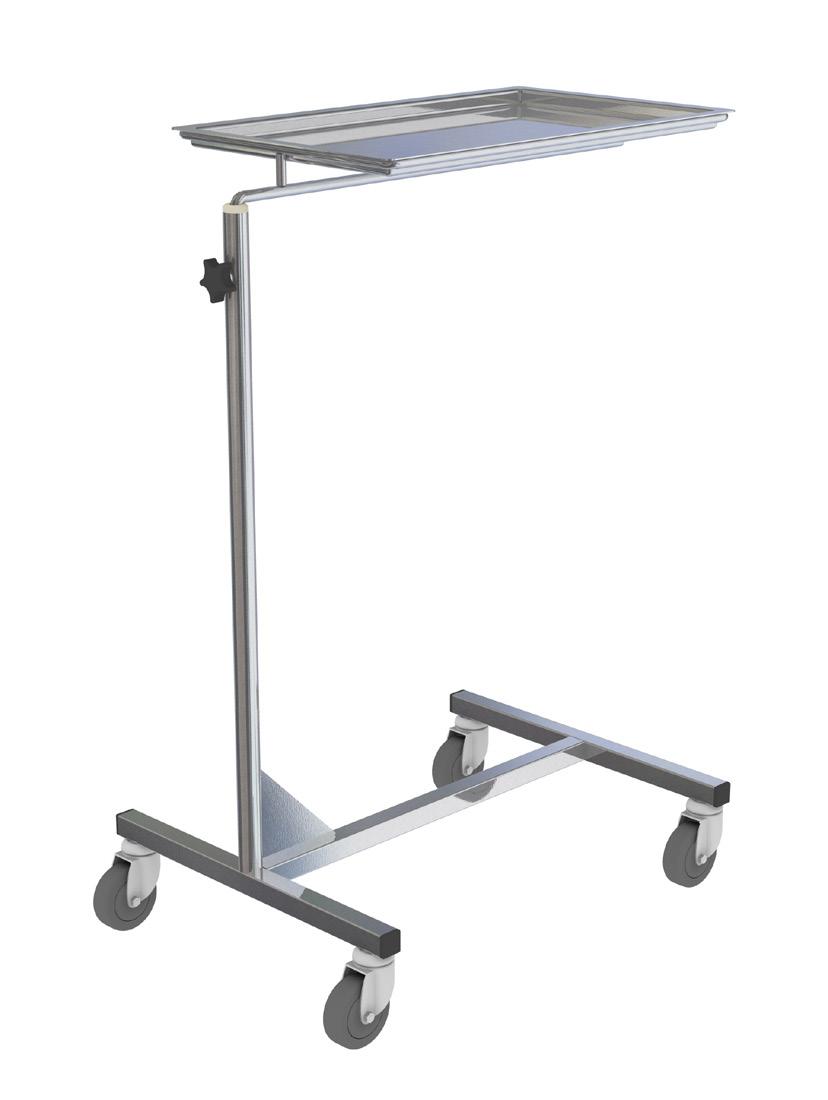

Height Adjustable Mayo Table: OTE005

OTE001 (WxDxH) 315 x 315 x 240 mm

OTE002 (WxDxH)

OTE003 (WxDxH)

OTE005 (WxDxH)

x 500 mm

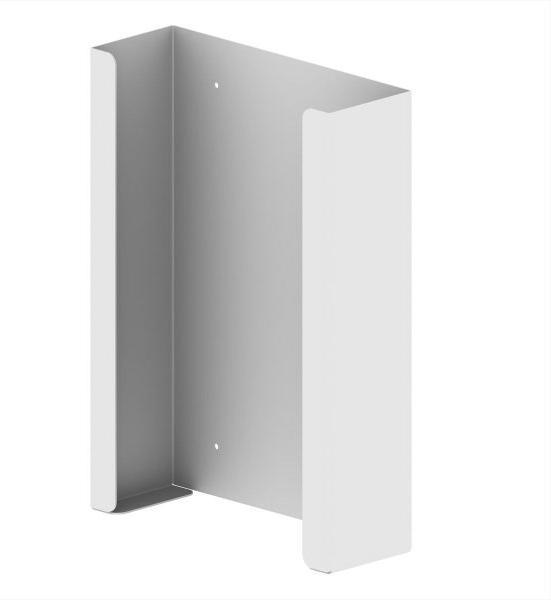

Furniture DISPENSERS

Features

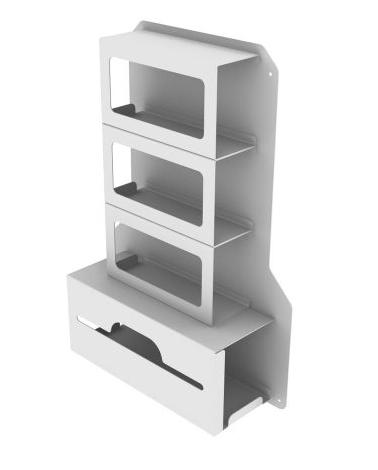

Our multiple dispenser units play a vital role in hospitals and care homes. Our glove and apron dispensers allow simple storage and easy access. Our wall-mounted hand-gel dispensers and bedpan/ urinal bottle holders are robust, secure and can be easily removed for cleaning.

DISPENSERS

Handgel Holde : DSP001

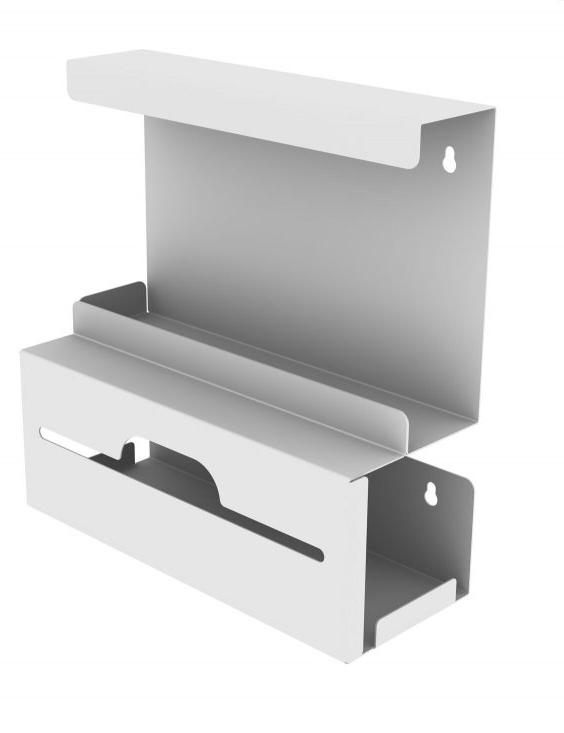

Triple Glove Dispenser: DSP002

Single Apron Dispenser,: DSP003

Triple Glove Dispenser: DSP004

Triple Glove and Apron Dispenser: DSP005

Triple Glove and Apron Dispenser: DSP006

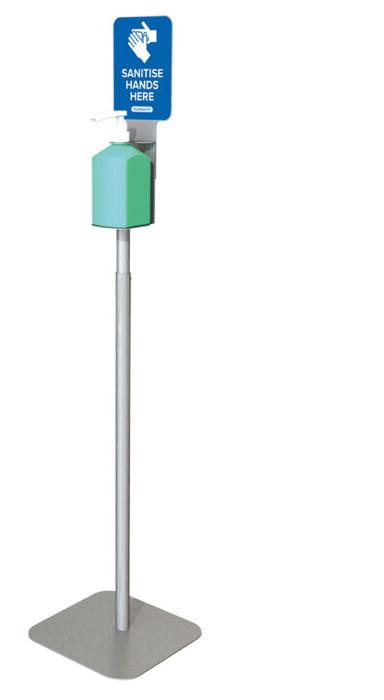

Stainless Steel Hand Sanitiser Stand: DSP008

DSP004 (WxDxH)

DSP005 (WxDxH)

DSP006 (WxDxH)

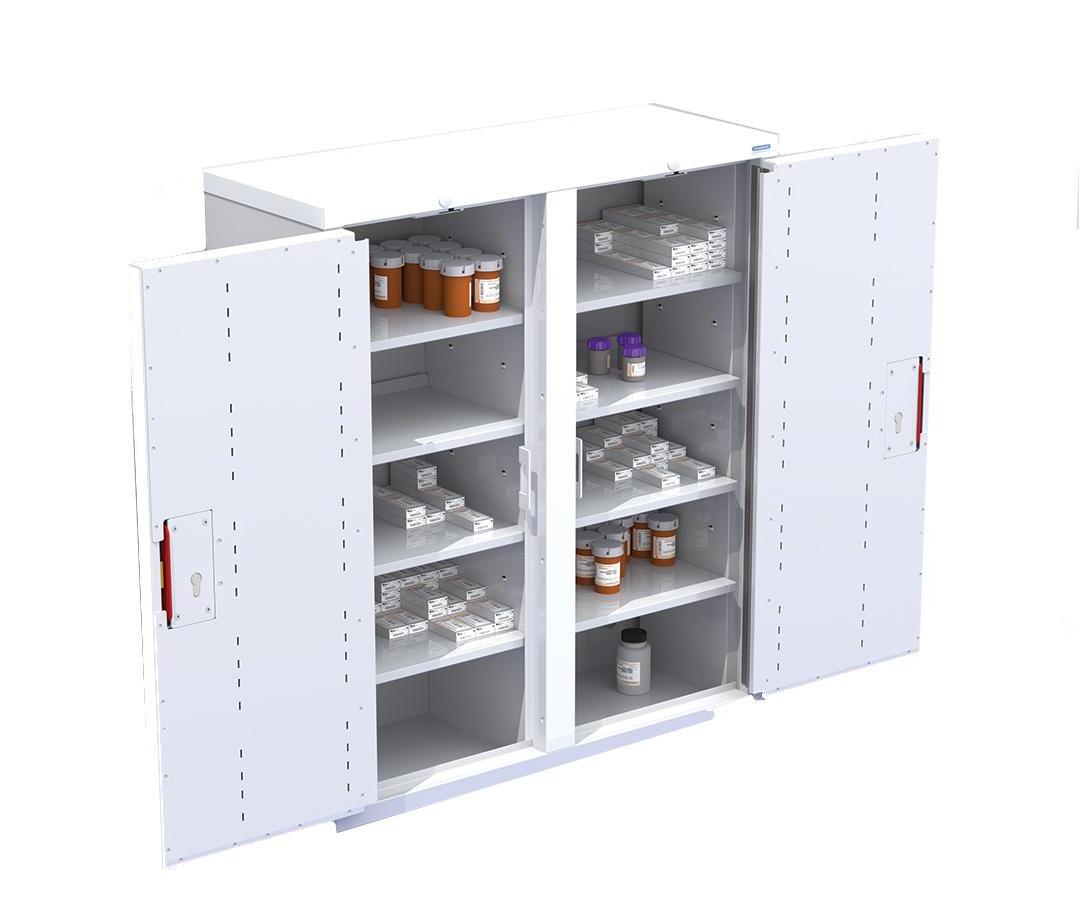

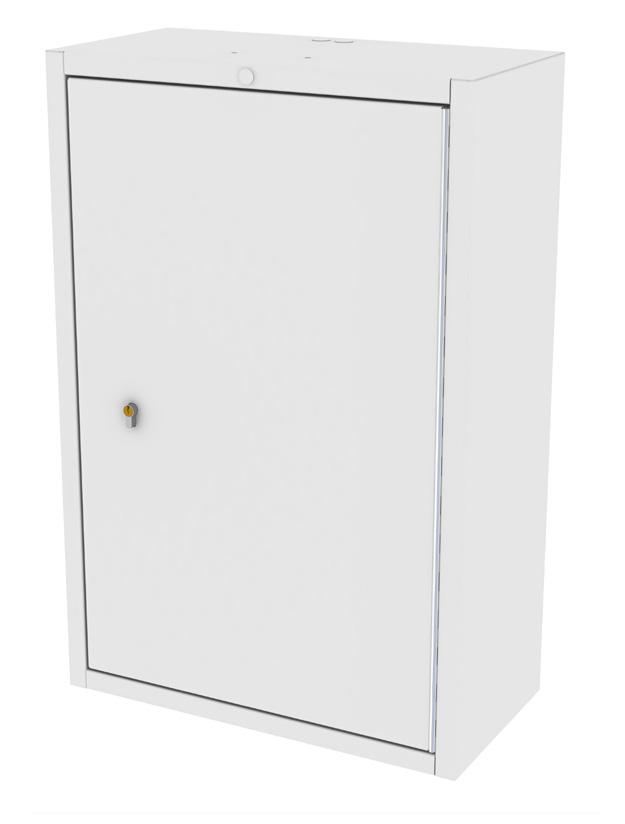

CONTROLLED DRUG CABINETS

Features

Our general drug cabinets provide a safe location for drug storage in medical settings. These cabinets are designed to be both secure and easy to access.

Fully compliant with BS2881:1989 and meets legal requirements for the storage of a controlled drug in the United Kingdom: ‘The mis-use of drugs (Safe Custody) Regulations 1973’.

We have a varying range of size options which are of simple design, yet strong, robust and easy to clean.

• Manufactured from mild steel

• Available in a range of varying sizes and door configurations

• BS3621 Compliant lock with 2 keys included as standard

• Internal anchor plates

• Durable, secure drug storage solutions

• Detailed manufacturer inside door

• Powder coated white epoxy for ease of cleaning

EQUIPMENT

Small Cabinet, Single Door: CDC004

Medium Cabinet, Single Door: CDC007

Large Cabinet, Twin Doors: CDC009

X-Large Cabinet, Twin Doors: CDC012

(WxDxH)

Furniture

MEDICAL STORAGE TROLLEYS

Features

Our comprehensive range of medical trolleys are designed for quick access storage in medical environments. These trolleys are available in single or double column variations, with the option of either narrow or wide depths. Combine this with your preferred choice of the four tray configurations to create a trolley built for your needs.

• All relevant storage trays are included as standard

• Manufactured from mild steel

• Powder coated in white epoxy for ease of cleaning

• Recessed top tray to secure contents

• Mounted on 100mm swivel castors

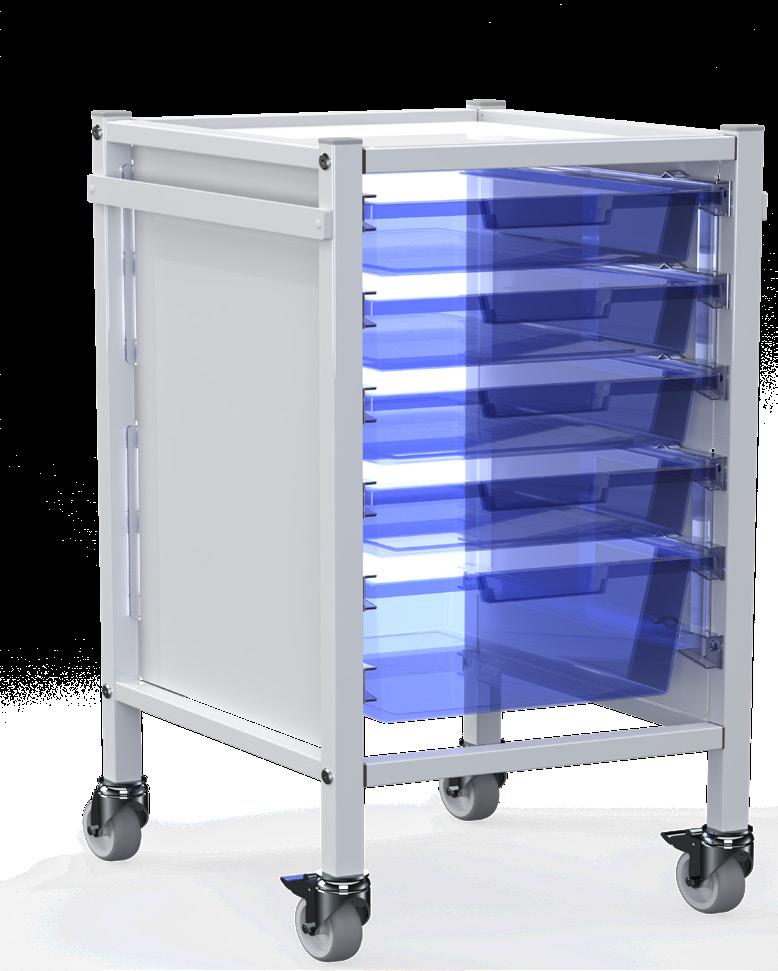

Storage Trolleys: A4 SINGLE COLUMN

Enclosed sides: MST002

Enclosed sides & locking door: MST003

Trolley Dimensions 411 x 467 x 947.50 mm

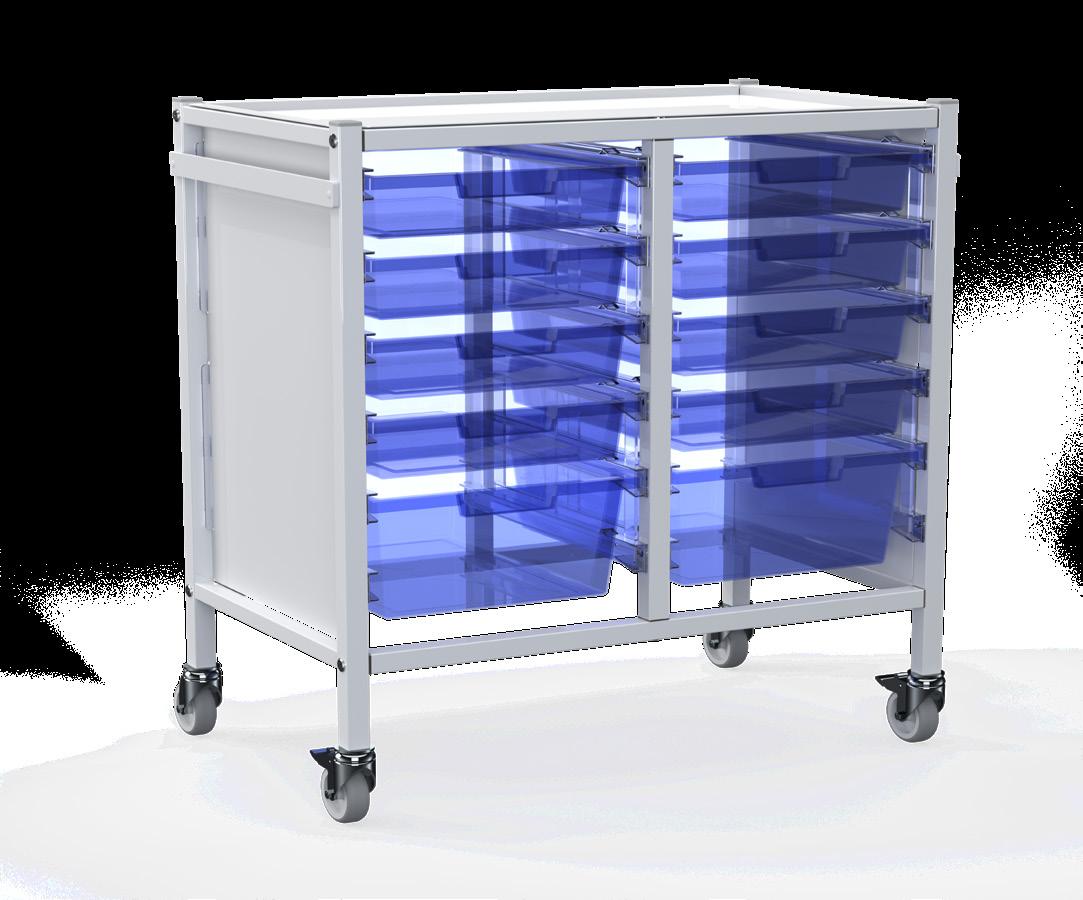

Storage Trolleys: A4 DOUBLE COLUMN

Enclosed sides: MST0014

Enclosed sides & locking door: MST015

Trolley Dimensions 762 x 467 x 947.50 mm

Storage Trolleys: A3 DOUBLE COLUMN

Enclosed sides: MST029

Enclosed sides, bow handles, locking door: MST030

Trolley Dimensions 565 x 467 x 947.50 mm

ACCESSORIES

MEDICAL STORAGE TROLLEYS

Features

Our range of medical trolley accessories are designed for quick access storage in medical environments. Avaliable in sharps bin holder, glove and hand gel holders and document holder.

TRAC02 (WxDxH)

X 130 X 82 mm

TRAC03 (WxDxH) 233 X 96 X 90 mm

TRAC04 (WxDxH)

TRAC05 WxDxH)

X 240 X 30 mm

X 130 X 118 mm

ACCESSORIES

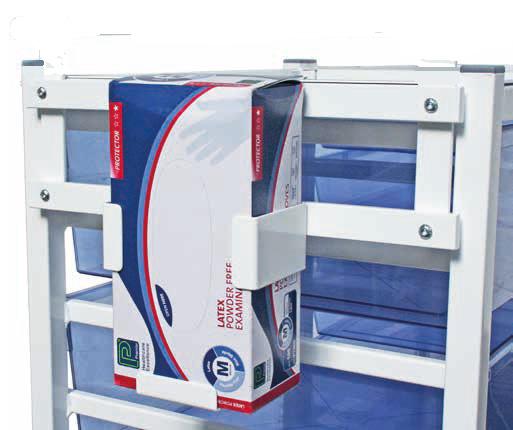

Glove Box Holder: TRAC02

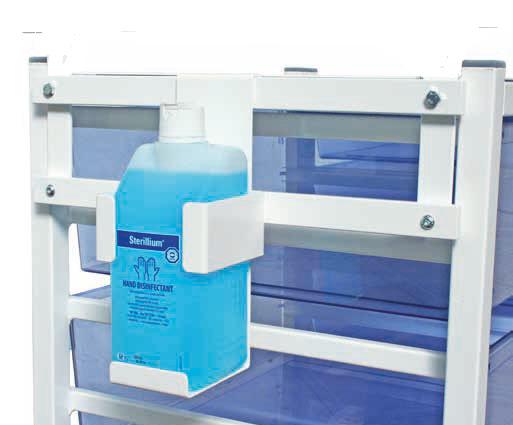

Hand Gel Holder: TRAC03

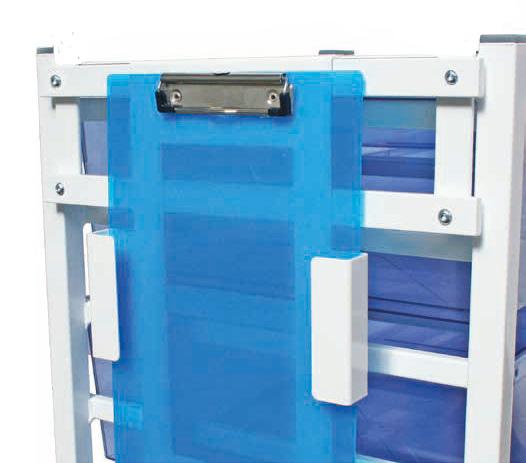

Document Holder: TRAC04

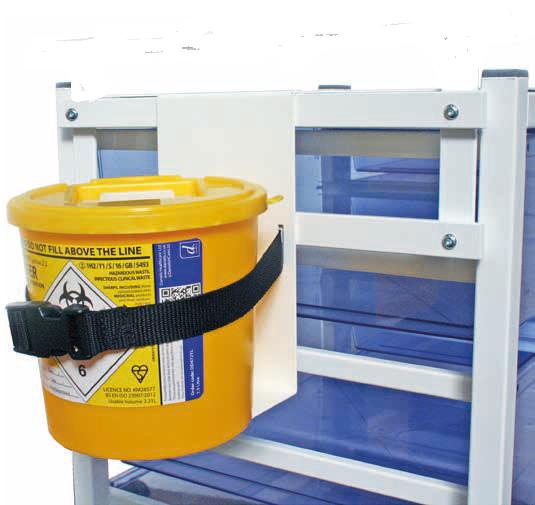

Sharps Bin Holder: TRAC05

Furniture

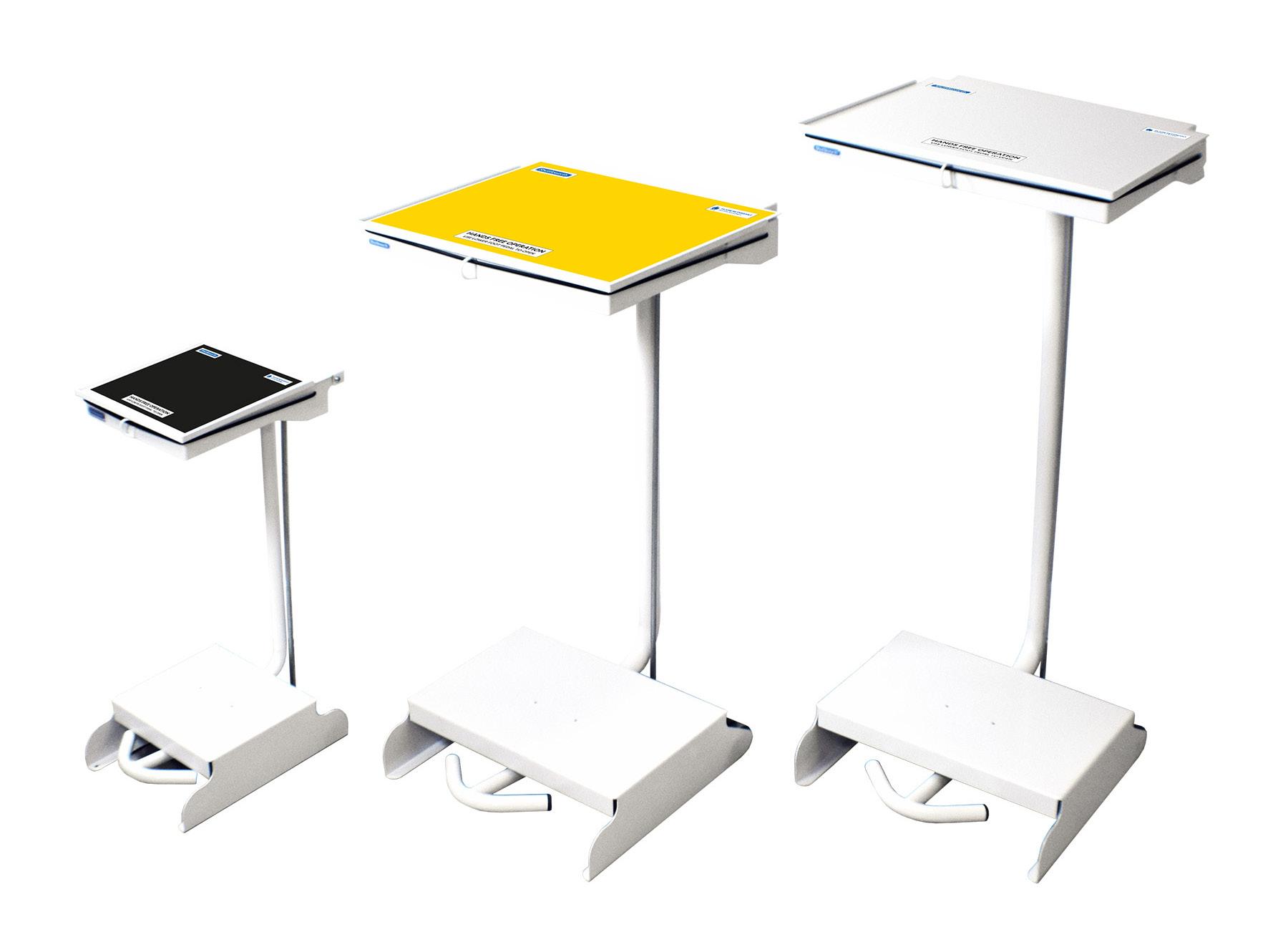

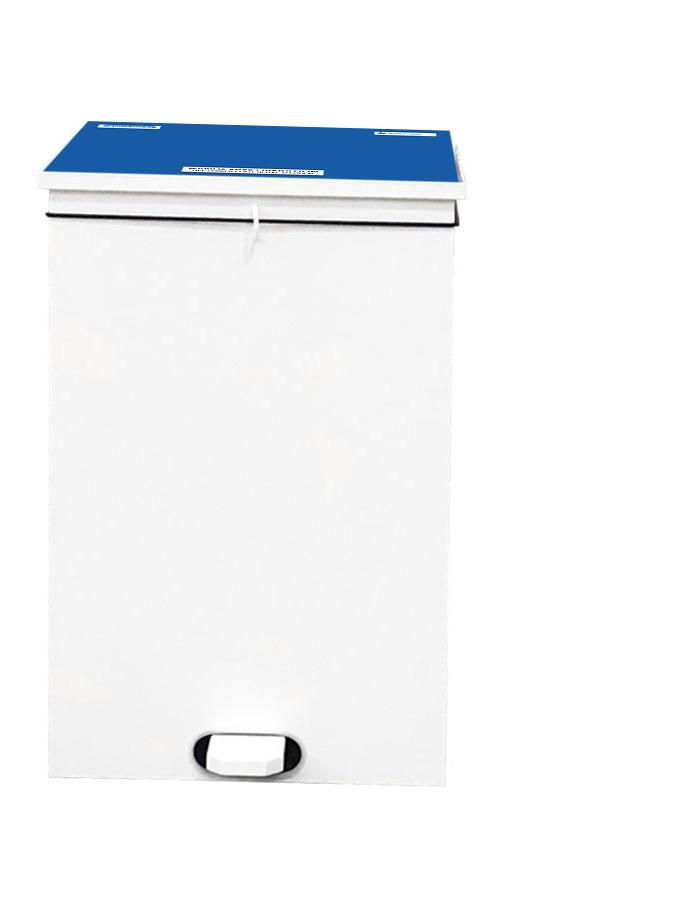

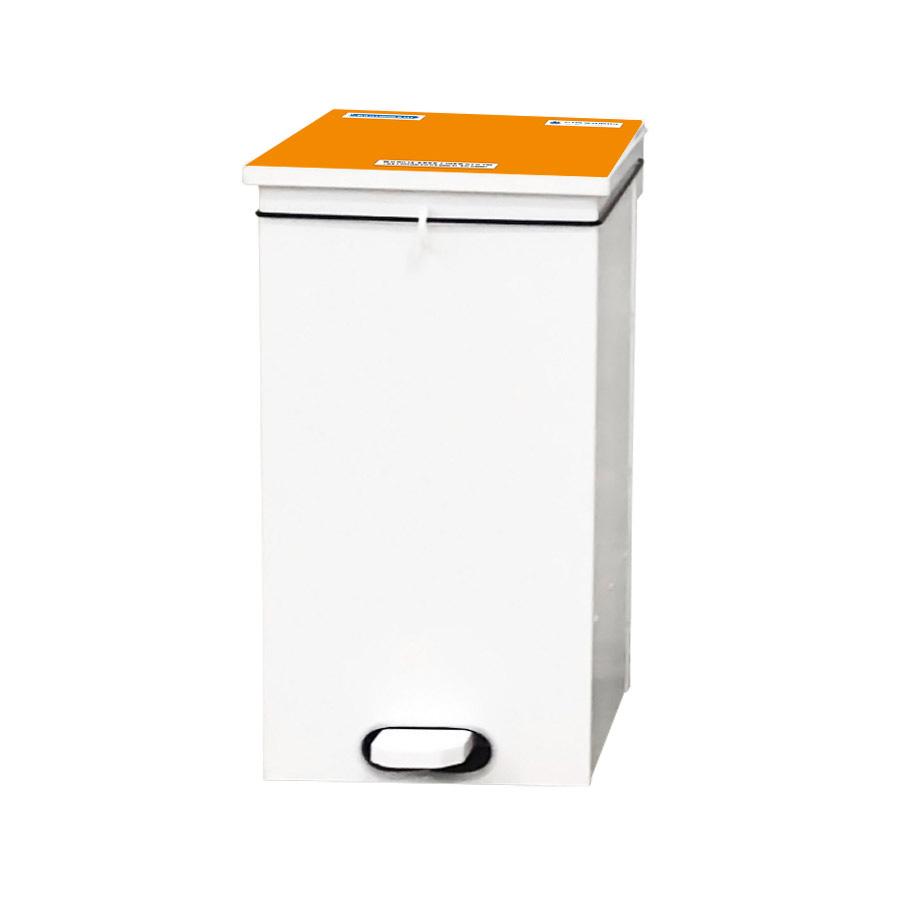

BINS & SACKHOLDERS

Features

Fire retardant soft close bins

Manufactured from mild steel

Powder coated in white epoxy for ease of cleaning

Pedal operated silent closing lids

Available with a variety of standard waste segregation coloured lids in adherence to infection control guidelines

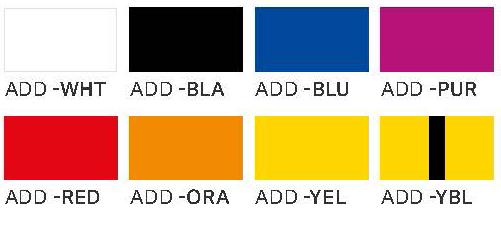

LID COLOURS

• White Lid – General Use / Amalgam

• Black Lid – Domestic Waste

• Blue Lid – Medical Waste For Incineration

• Purple Lid – Cytotoxic & Cytostatic Waste

• Red Lid – Anatomical Waste For Incineration

• Orange Lid – Waste Which May Be Treated

• Yellow Lid – Waste for Incineration

• Yellow & Black Lid – Offensive / Hygiene Waste

SOFT CLOSE BINS

20 Litre Bin: BIN020 + LID COLOUR CODE

50 Litre Bin: BIN050 + LID COLOUR CODE

70 Litre Bin: BIN070 + LID COLOUR CODE

BINS & SACKHOLDERS

Features

Created with corrosive resistant materials.

Easy to clean design with soft close lids via foot pedal.

Supplied fully assembled.

Elasticated cord and finger loop for securing waste bag.

Available with a variety of standard waste segregation coloured lids in adherence to infection control guidelines.

LID COLOURS

• White Lid – General Use / Amalgam

• Black Lid – Domestic Waste

• Yellow Lid – Waste for Incineration

20 Litre: BINSH020 + LID COLOUR CODE

50 Litre: BINSH050 + LID COLOUR CODE

70 Litre: BINSH070 + LID COLOUR CODE SACKHOLDERS

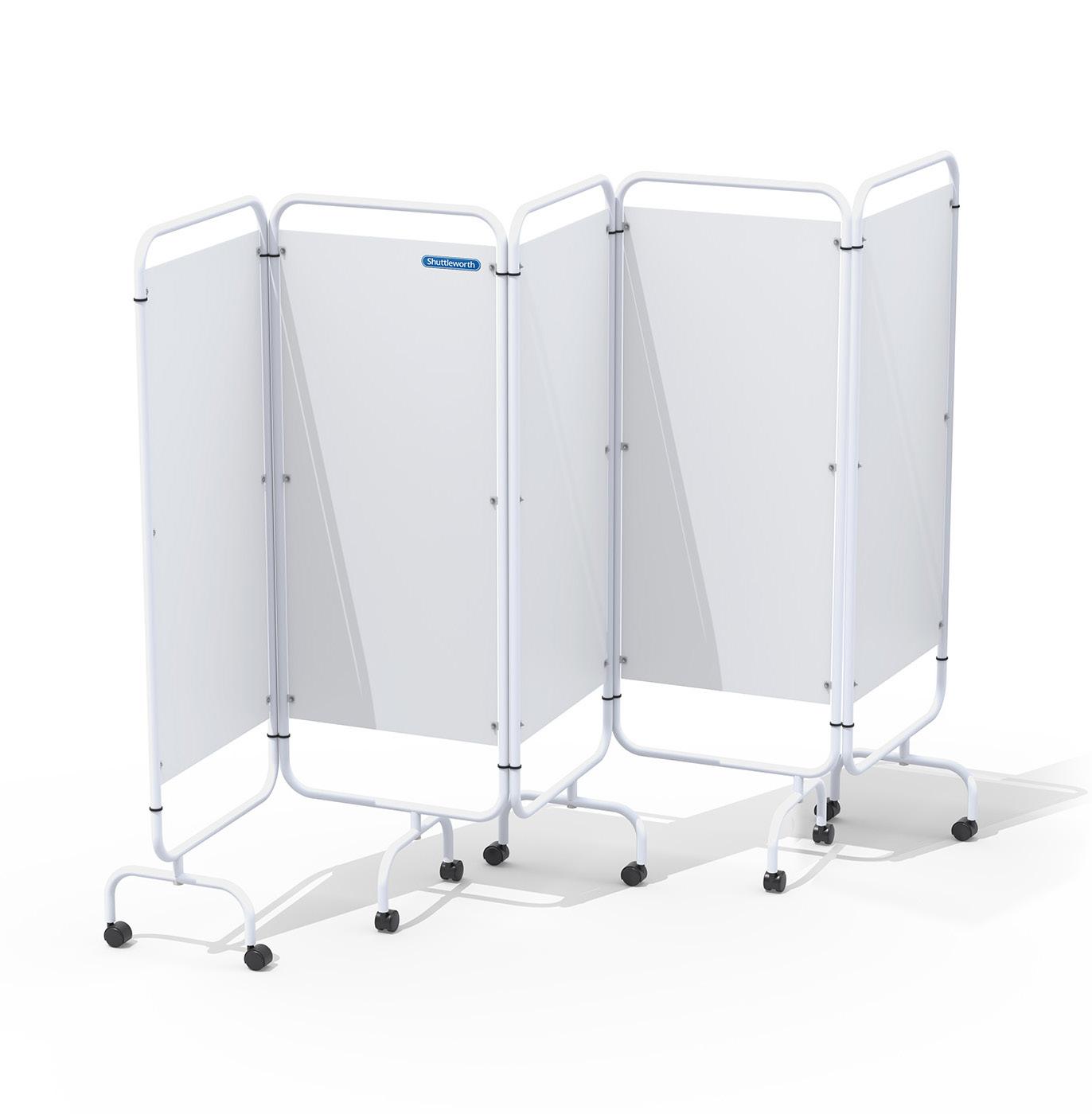

Furniture WARD SCREENS

Features

Manufactured with corrosive resistant materials. Supplied fully assembled. Hygienic, easy to clean design PVC panels, a strong, sturdy leg structure together with swivel castors for ease of movement and positioning. A clever, fold up, space saving design ideal for storage. Panels can be easily removed or replaced if required.

Used heavily in NHS COVID-19 vaccine centres Available in three sizes: 3 Panel, 4 Panel & 5 Panel.

WARD SCREENS

3 Panel Ward Screen, Solid Panels: MWS001

4 Panel Ward Screen, Solid Panels: MWS002

5 Panel Ward Screen, Solid Panels: MWS003

MWS001 (Total Width) 184.5 cm

MWS002 (Total Width)

MWS003 (Total Width) 307.5 cm

Height

Depth

cm Individual Panel 121 x 56 cm

Furniture

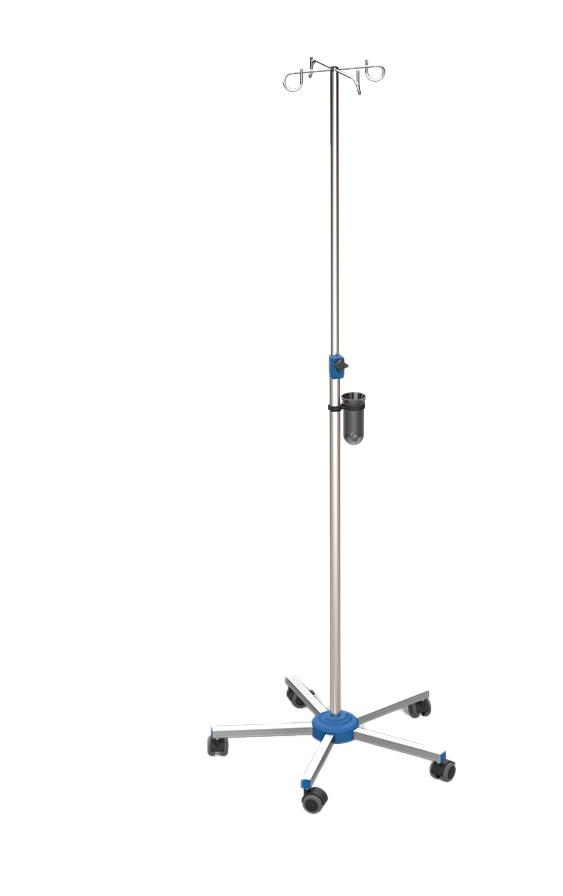

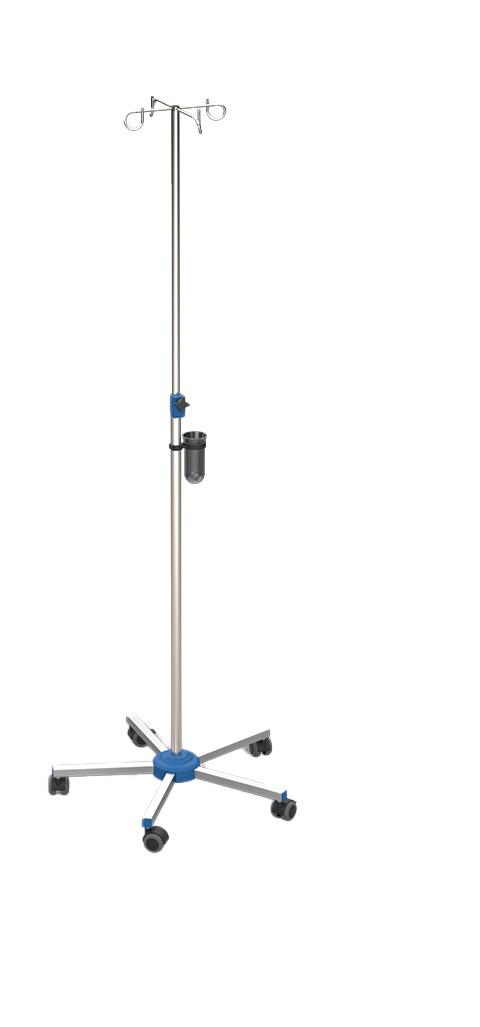

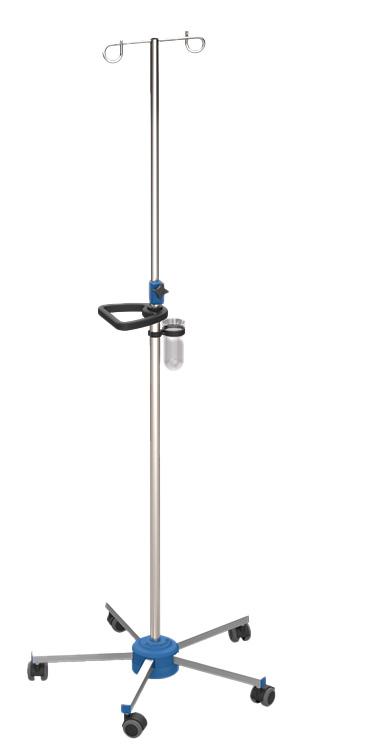

IV POLES / DRIP STANDS

Features

These easy-assembly drip stands are manufactured from medical grade stainless steel and high-quality injection moulded parts. All IV poles come with a quick clip drop catcher. The weighted base models include a sturdy handle for help with moveability. The five-legged bases with swivel castors ensure excellent stability and manoeuvrability. The adjustable height range with simple locking mechanism are perfect for most care homes or hospital environments.

• To reduce transport costs and unnecessary packaging IV poles are flat packed.

• Drop catcher with quick clip.

• Two hook or four hook.

• Handle with included with weighted base models.

• Two hook wall mounted version also available.

• Five ESD (Electrostatic dissipative) swivel castors, two of which are locking.

• Drips Stands comply to BS ISO 15375:2010
