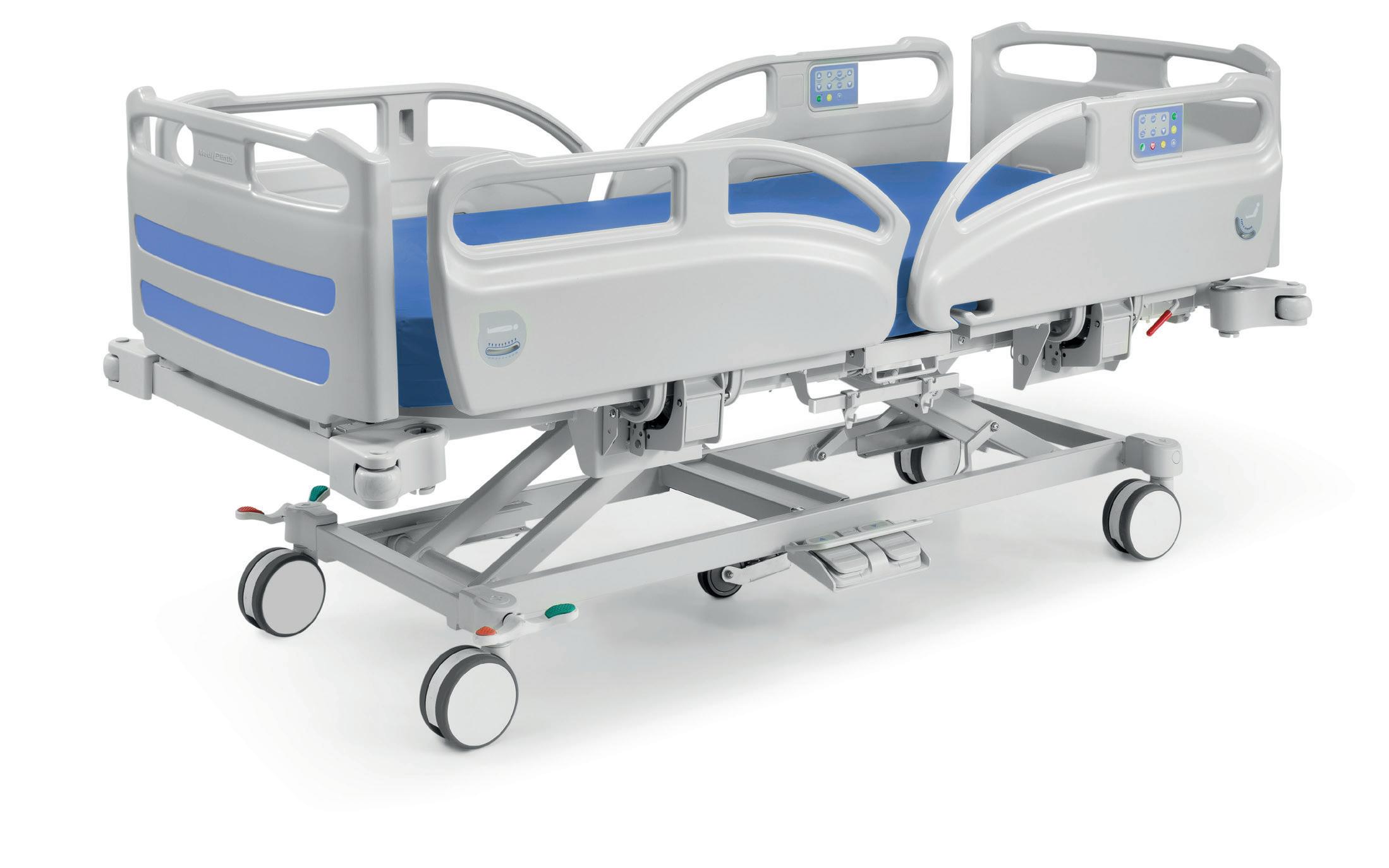

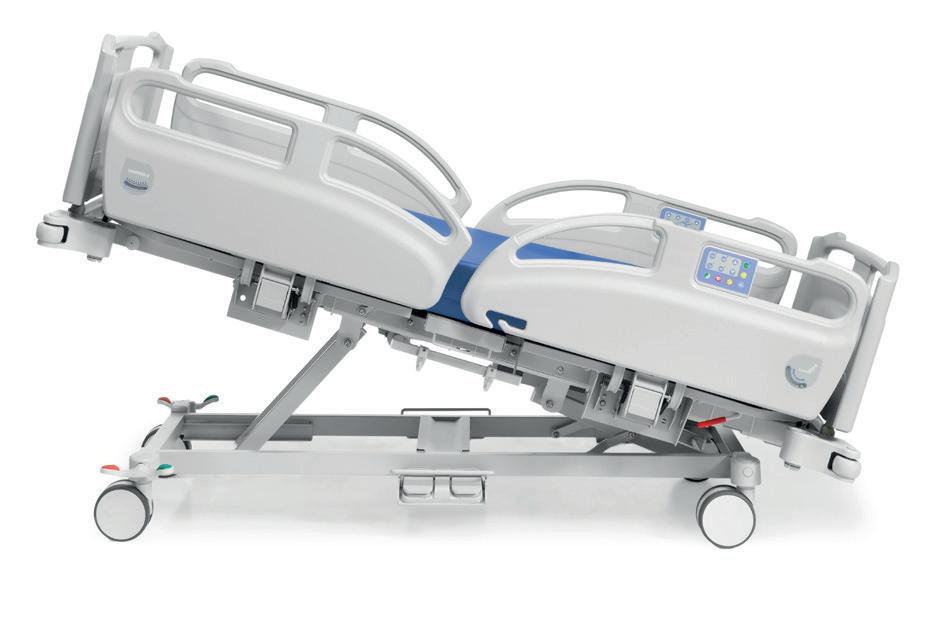

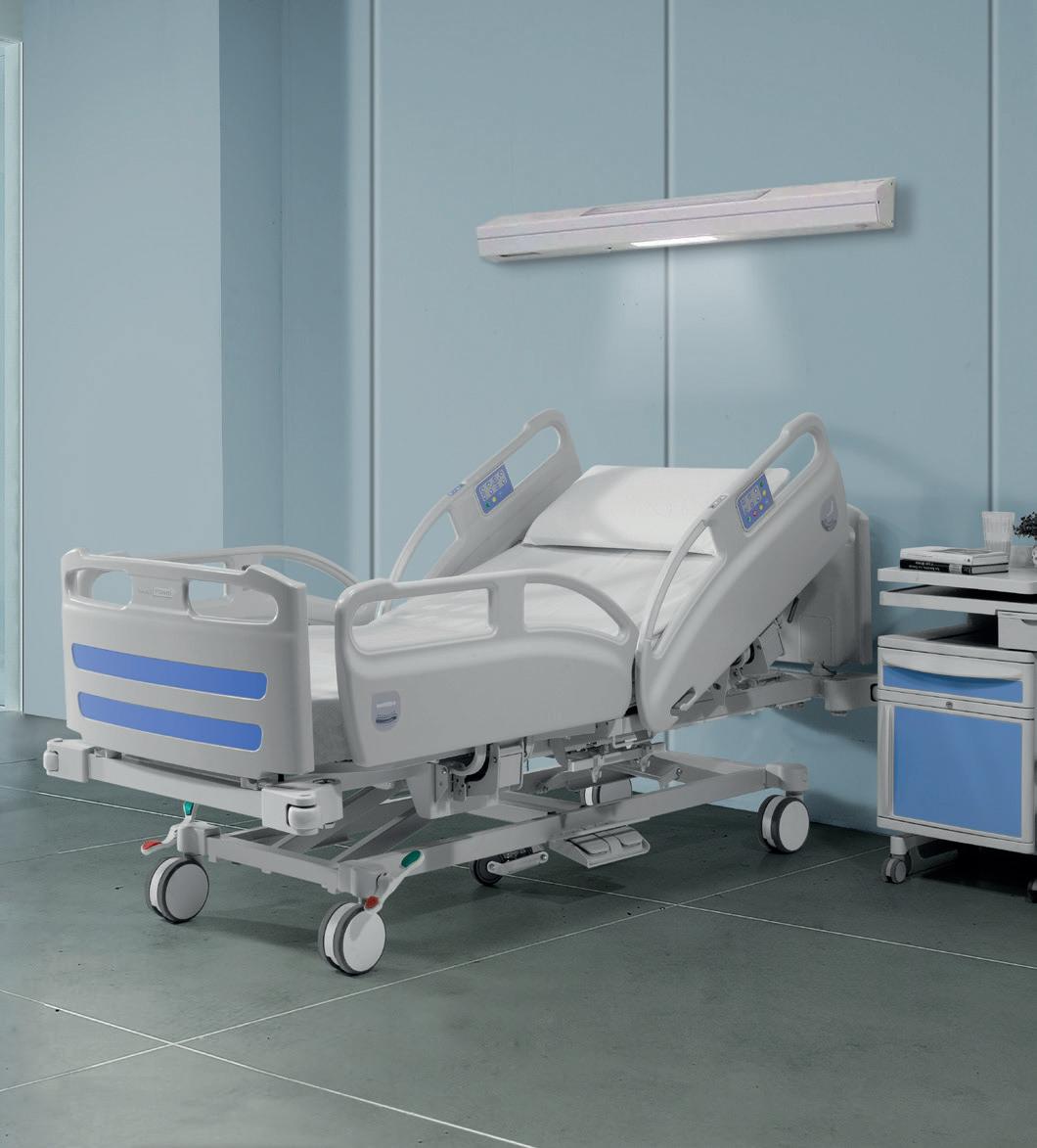

Hospital Bed CARE SURE

Structure

Epoxy coated steel tube frame.

Head and foot board ensure mattress retention, preventing displacement. Mattress platform is easily removable without the need for tools.

Complete with supports for accessories (IV drip rod, lifting pole, etc.) on each corner of the bed.

Scissor-lift system provides optimum stability and supports weights of up to 250 kg.

100% usable patient surface.

Safety

Emergency release of backrest for quick lowering of the section in the event of an emergency, battery or power failure (CPR Position).

Double LED safety positioning light (green indicates bed is below minimum height, red shows bed has exceeded minimum safety height).

Anti-trapping sensor with automatic engine stop when detecting an obstacle.

Medical grade electric motors with integrated anticollapse safety measures.

IPX6 protection against water and dust ingress.

Conforms to Regulation (EU) 2017/745.

Comfort

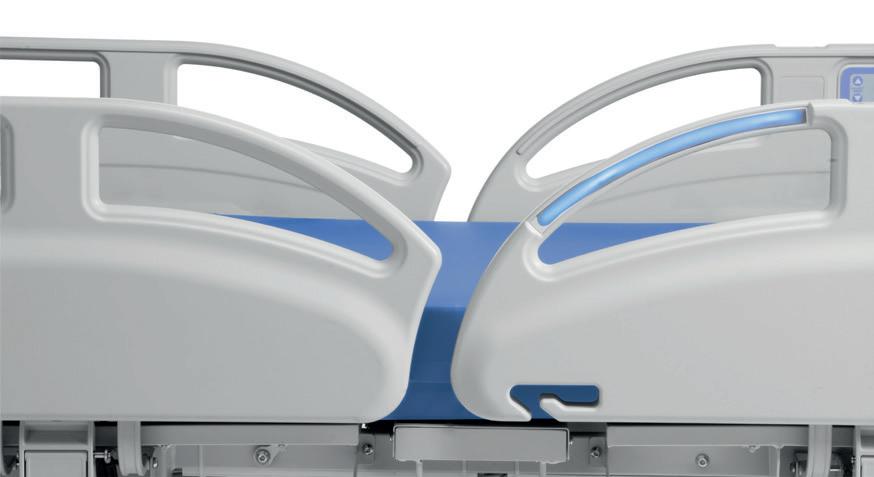

Four independent HDPE side rails that comply with EN 60601-2-52 standards. Each include gas spring dampers to allow for single-hand operation.

Siderails use an innovative mechanism allowing them to fold closely to the bed frame (no more than 7.5 cm). Each has an integrated angle indicator.

‘Help to stand up’ button. Aids safe patient transfer with control of bed positioning.

Automatic positioning system to allows lowering of the back section (by 15 cm) and leg regression (by 7 cm) for protection against bedsores.

Integrated pull-out linen shelf, providing linen storage whilst changing bed linen.

Automatic alarm sounds when bed backrest is positioned at 30º.

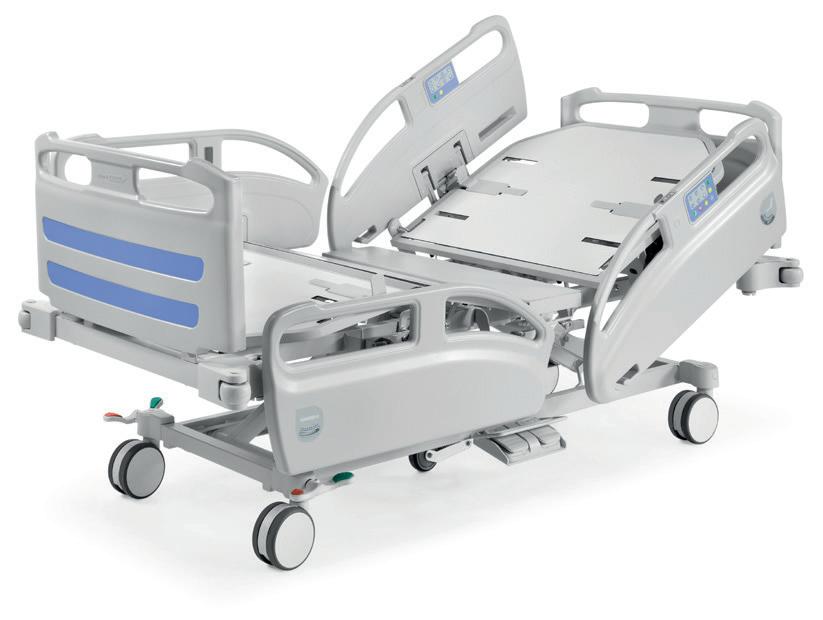

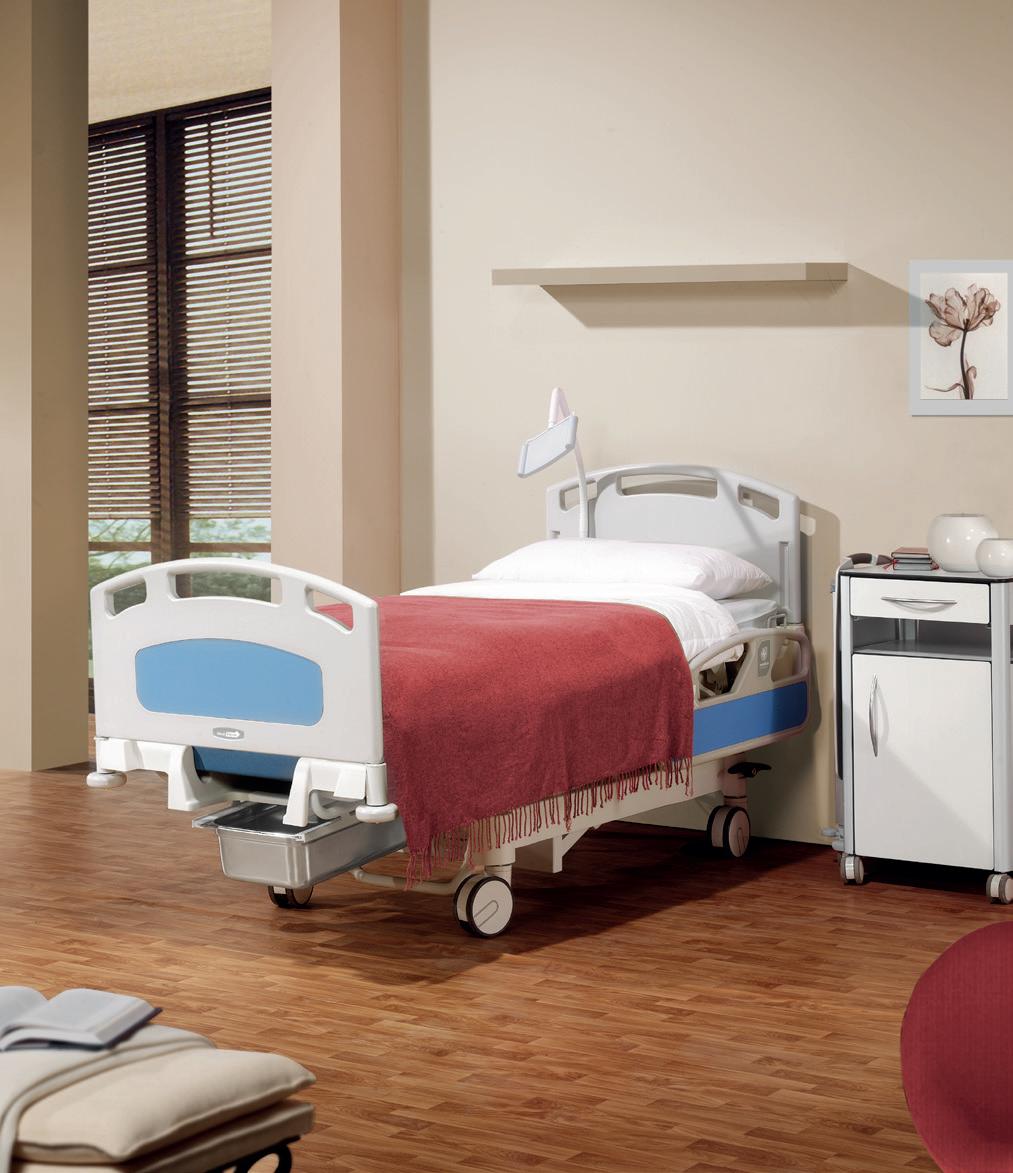

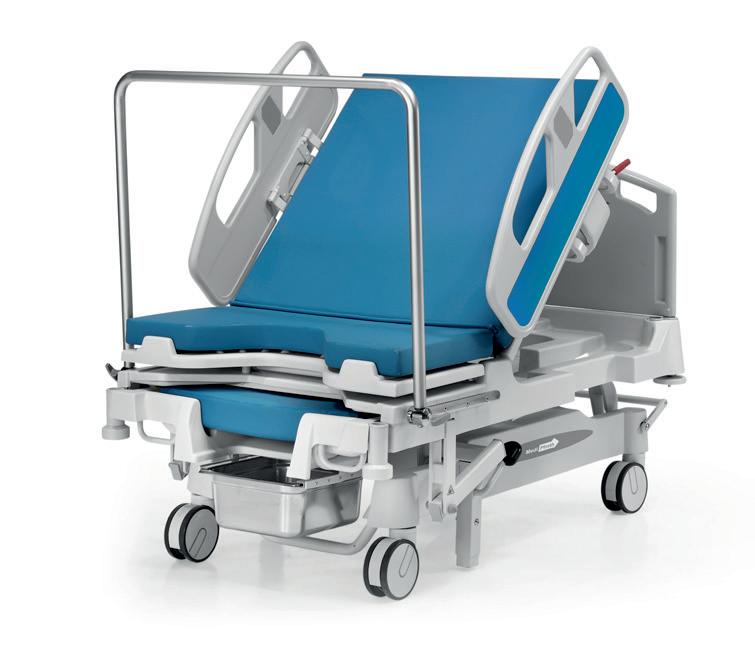

Hospital Bed CARE SURE

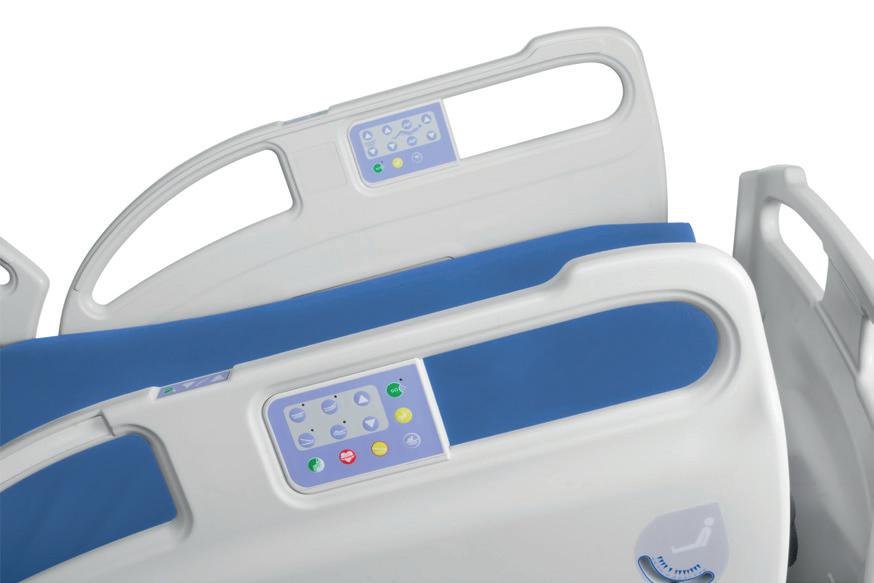

Controls

Clinician handset (outside of rail)

Panel for medical staff, allows activation/override of the different functions of the bed. Incorporates preprogrammed functions (Trendelenburg, CPR shock position, emergency Trendelenburg, cardiac chair and exam position).

Patient handset (inside of rail)

Allows patients to control and position the sections of the backrest, back/foot and height, activation of the “GO” button and the night light under the bed. It has pre-programmed functions such as patient exit button and sitting position.

Nurse handset (external)

Allows medical staff to work efficiently and control the bed from different locations. Includes practical default functions and activation of security alarm.

Allows activation/override of the bed adjustment functions, individually or synchronously, using the “STOP” button.

Incorporates pre-programmed functions (cardiac chair, CPR, exam position etc.)

Ease Of Handling

Controlled by in-built software that ensures smoothed and synchronized movements and positioning of bed sections.

Controls include pictograms for ease of use regardless of spoken language.

Foot pedal controls height adjustment, accessible from both sides of the chair.

Centralised braking system and steering facility.

Medical grade double wheel anti-static castors Ø 150 mm allows better manoeuvrability and stability when subjected to heavy loads.

Positioning

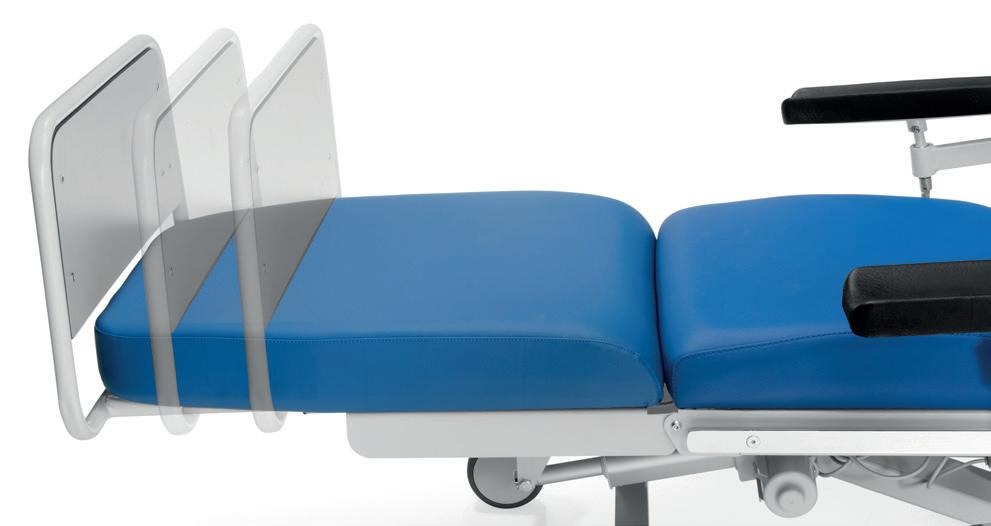

Foot section includes electrically controlled kneebreak allowing for five positions.

The cardiac chair position is critical for patients with heart and breathing problems, helping to enhance their recovery. This feature is activated simply by pressing a lever.

Exit position button, reduces height and feet section to lowest position, whilst back is elevated to 67º allowing for easy transfer.

Specifications CARE SURE BED

Hospital Bed: CARE SURE

External dimensions 223 x 98 cm

Patient surface 200 x 85 cm

Height adjustment 39–77 cm

Backrest tilting 67º

Legrest tilting 28º

Footrest tilting 19º

Trendelenburg/Reverse ±16º

Backrest autoregression 15 cm

Footrest autoregression 7 cm

Maximum working load 250 kg

Weight w/o accessories 150 kg

Electric features:

Power supply 110-240V / 50-60Hz

Maximum current intake 5A, 100-240V

Protection indicator IP66

Protection class Class I

Electric shock protection TYPE B

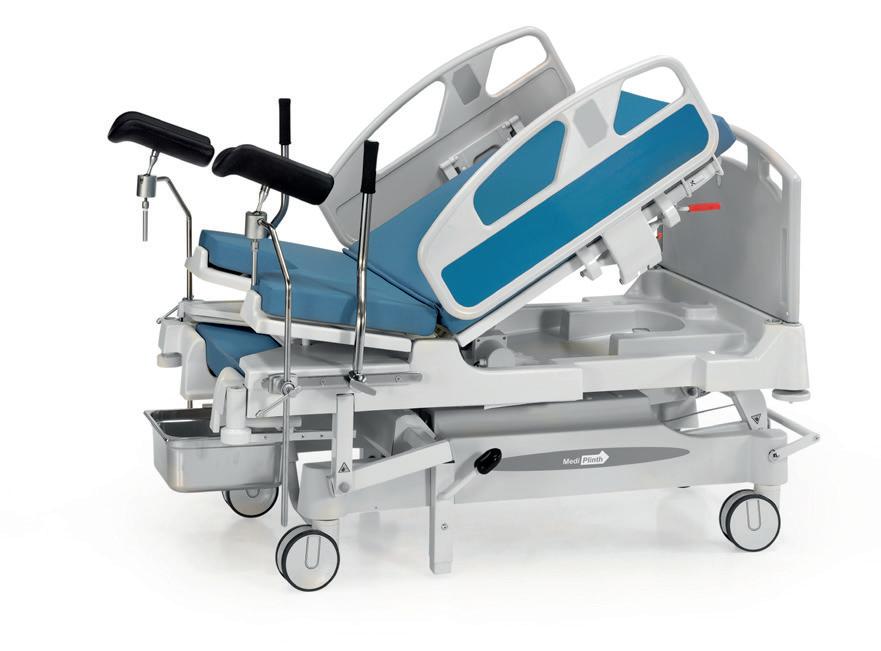

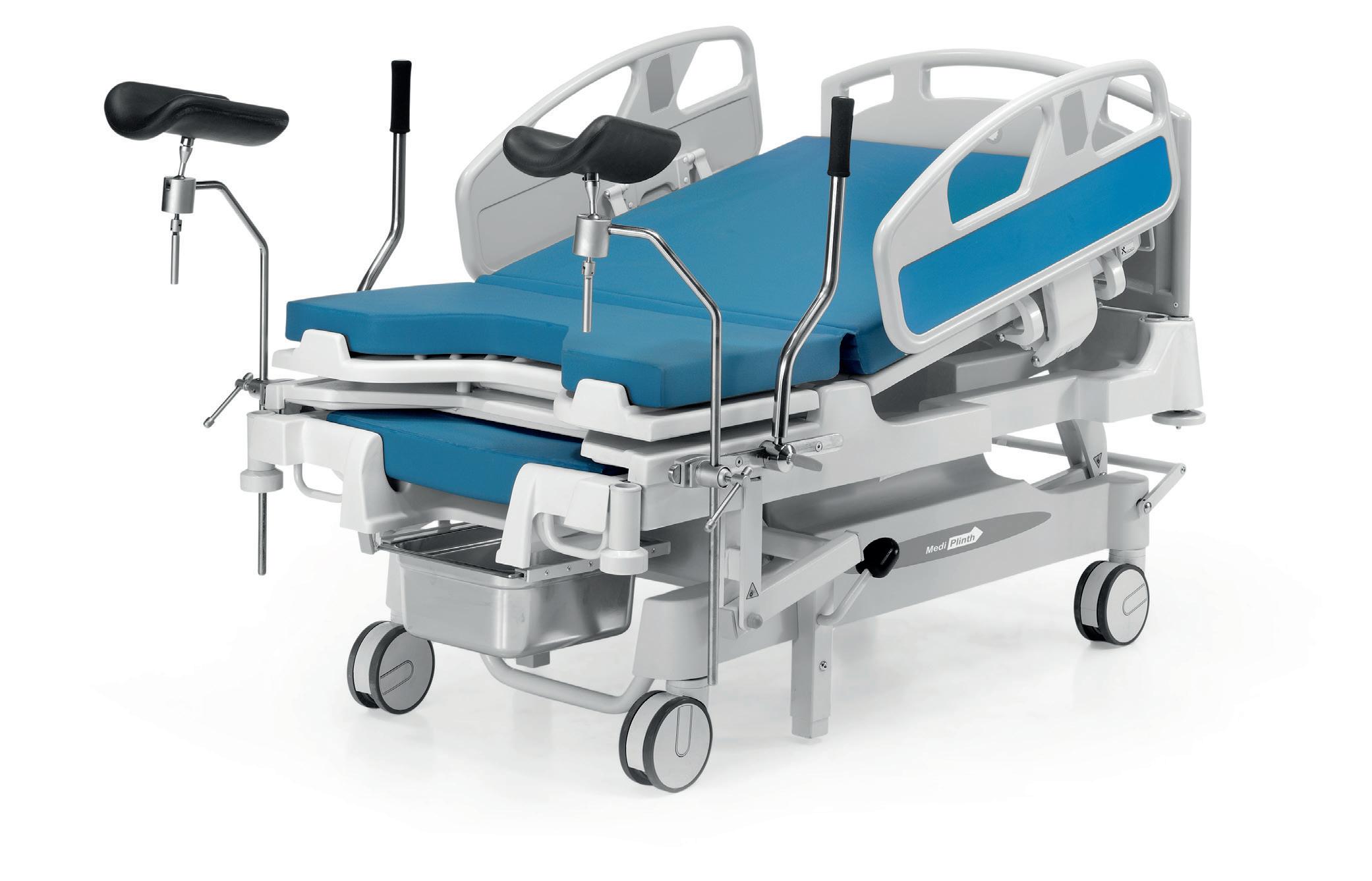

Delivery Bed BIRTH SURE

Structure

Epoxy-coated steel tube frame.

Headboard and footboard easy to assemble without tools.

Retractable floor support.

Scissor-lift system provides optimum stability and supports weights of up to 230 kg.

Comfort

Independent and removable ABS sections.

Bed fully adjustable with medical grade electric motors compliant with EN 60601-1.

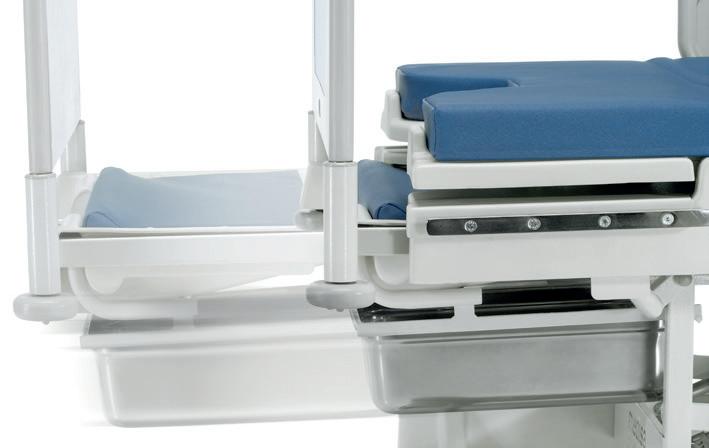

Ergonomic foot section extends bed by up to 20cm and slides under the bed when not in use.

Electric height adjustment, 64–100cm.

Ease Of Handling

Handset designed to allow easy and quick positioning of the bed sections.

Electric Trendelenburg / Reverse Trendelenburg position to (16º / 5º).

Electric seat section tilts pelvis up to 30º

Optional integrated controls in side rail.

Safety

Ø 150mm diameter castors with central braking and steering facility operated from head-end for ease of use when portering.

Thermoplastic main frame protects the bed mechanism and facilitates easy cleaning.

Height adjustment system that prevents collapse in case of failure.

Anti-trapping system that automatically stops the motor on detection of an obstacle.

Emergency release of backrest for quick lowering of the section in the event of an emergency, battery or power failure.

Conforms to Regulation (EU) 2017/745.

Delivery Bed BIRTH SURE

Controls

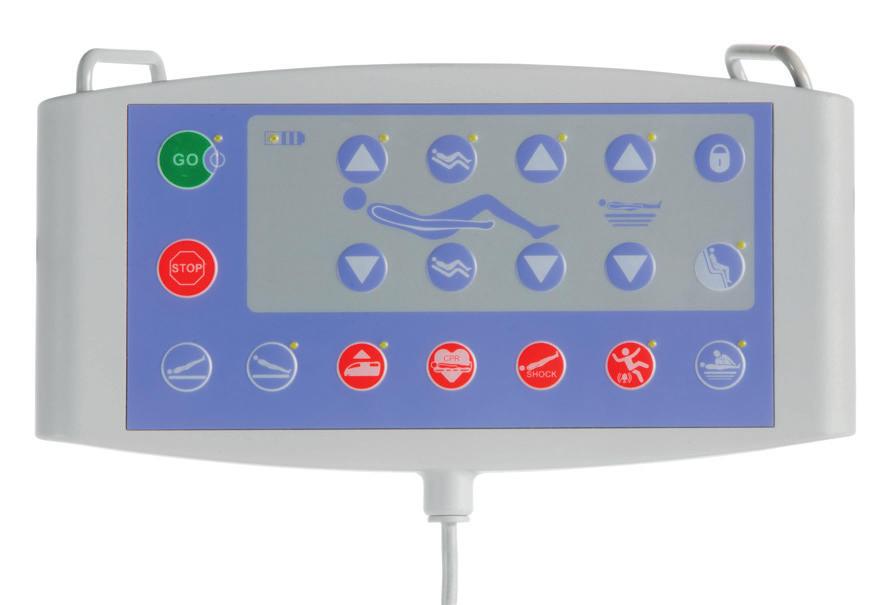

Nurses Control Panel

A panel that is for the sole use of medical personnel that allows the different functions of the bed to be activated or overridden.

In addition, certain functions are pre-programmed (Trendelenburg, CPR, cardiac chair and Fowler positions) and can be activated by simply pressing a button.

Control panel

The command includes two functions, one to adopt the cardiac chair position and another to reset the bed.

Easy Cleaning

Manufactured from high quality materials, guaranteeing their long life and durability.

Smooth surfaces and removable panels allow easy, fast cleaning and disinfection. Designed to improve cleaning time by up to 30%, allowing staff more time with the patient as opposed to cleaning the product.

Positioning

The cardiac chair position is critical for patients with heart and breathing problems, helping to enhance their recovery. This feature is activated simply by pressing a lever.

Using this bed it is no longer necessary to move the patient in labour to another bed at any time, as the bed is suitable for gynaecological and maternity patients at any stage of pregnancy or childbirth, as well as post-partum.

Included Equipment

• Set of bed mattresses

• Set of gynaecology leg troughs

• Set of patient comfort handles/grips

• Patient overbed rail

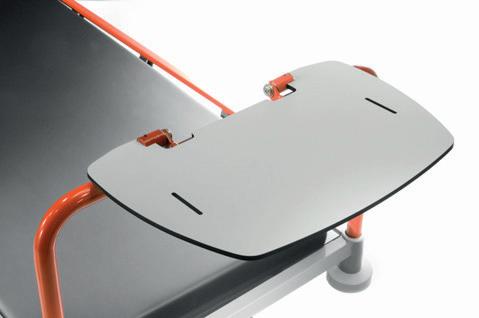

• Gynaecology tray

BIRTH SURE BED

Delivery Bed: BIRTH SURE

Total length 212cm

Length (chair position) 164.5cm

Width including rails 103cm

Patient surface width 89cm

Height (floor to frame) 64–100cm

Backrest tilting 70°

Seat section angle 17°

Trendelenburg / Reverse 16° / 5°

Safe working load 230kg

Electric features:

Power supply 110-230V / 50-60Hz

Maximum current intake 1.6A, 370V

Liquid ingress protection IP 66

Protection class Class I

Electric shock protection Type B

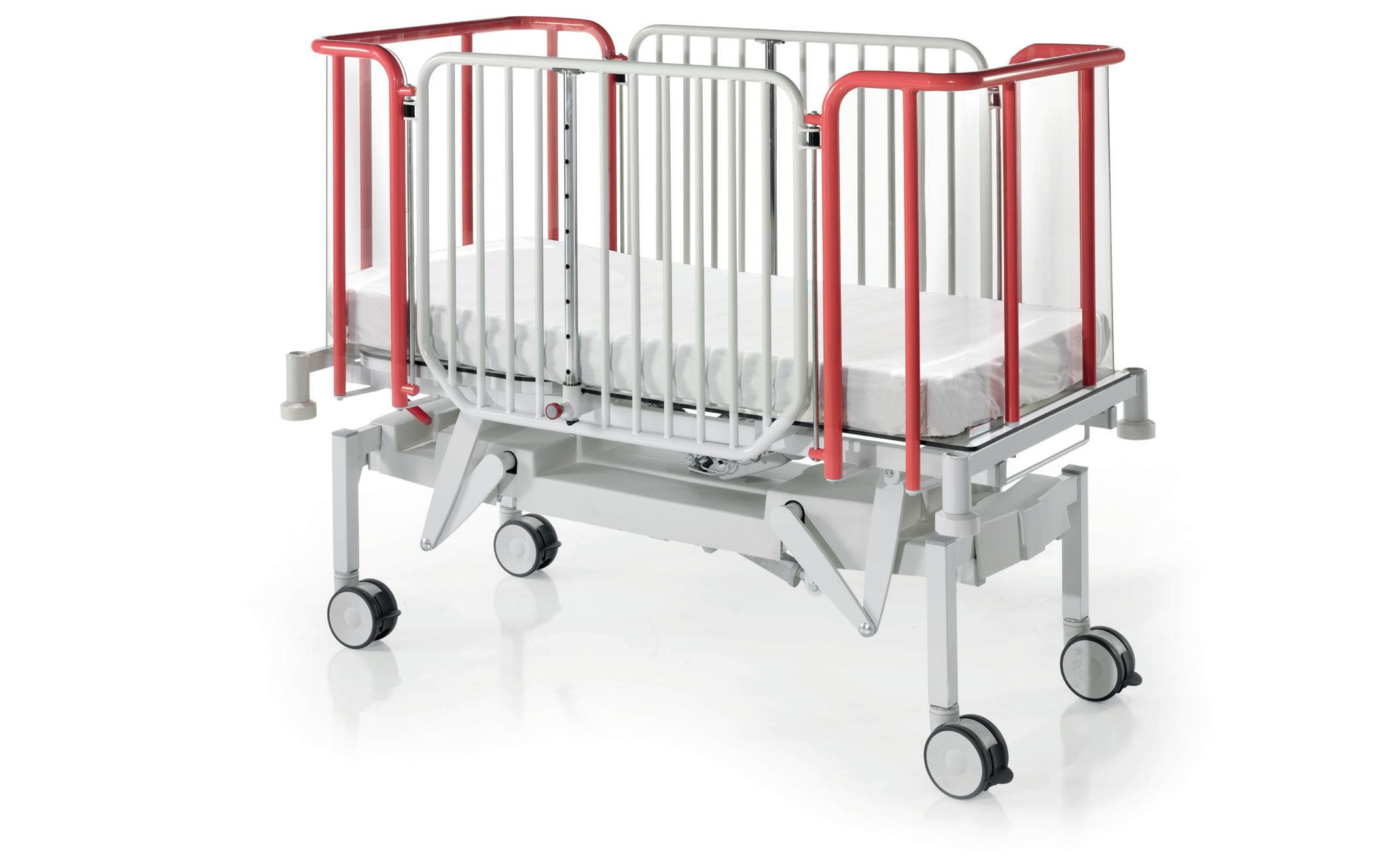

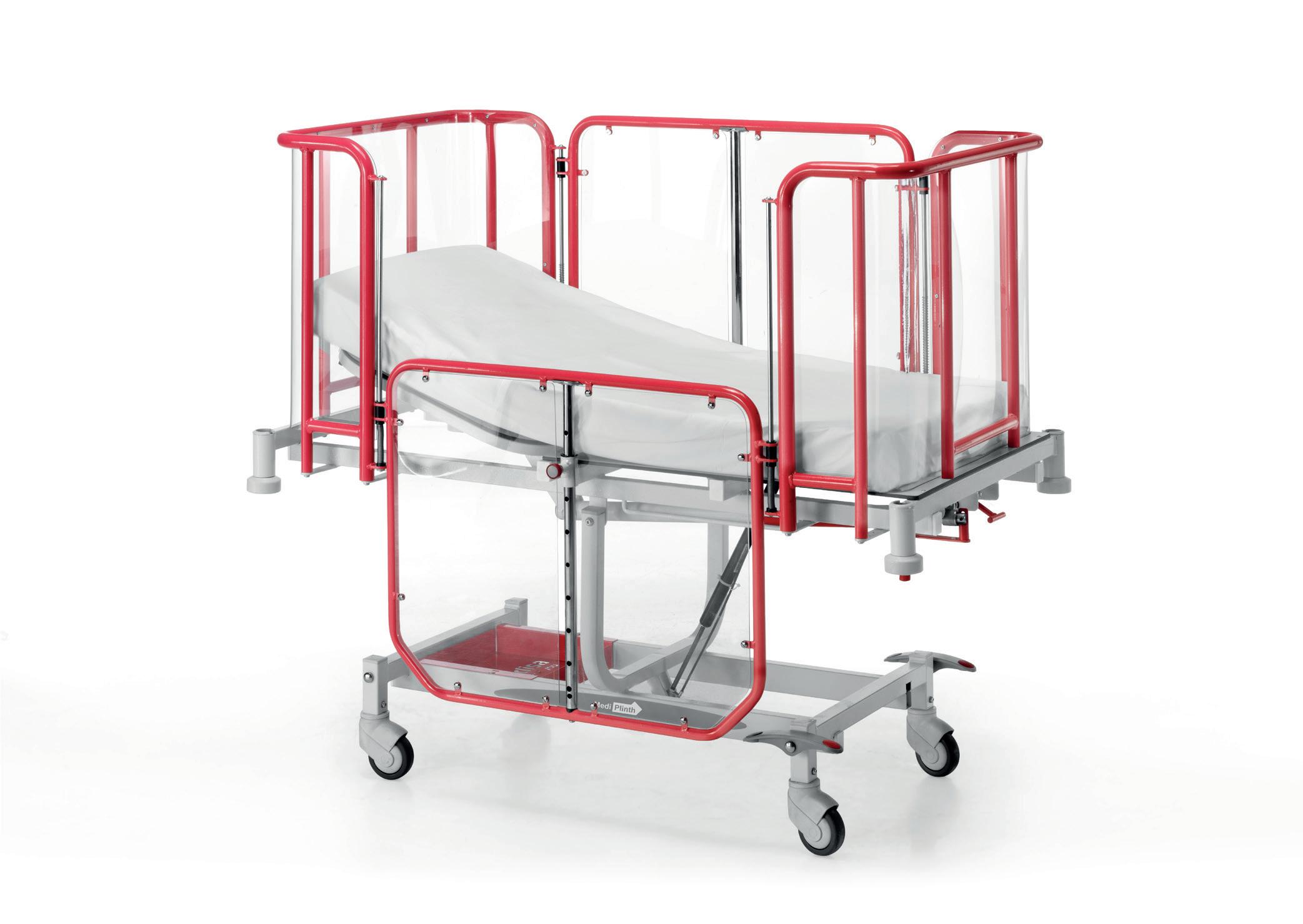

Paediatric cot CHILD ASSURE

Structure

Epoxy-coated steel tube frame.

Four sockets for accessories (IV pole, mosquito net, etc.)

Four bumpers (one on each corner of the bed) integrated into the structure, avoiding damage to the product and reducing the required space.

Nappy/storage tray located to the base of the cot.

Comfort

Two independent sections made of damp-proof and impact-resistant compact HPL material, resistant to humidity and shock, easy to clean.

100% usable patient surface.

Ease Of Handling

Backrest adjustment (semi-fowler position) by means of a specially designed handle for effortless operation.

Hydraulic Trendelenburg / reverse Trendelenburg position up to ±13º. Easy to adjust with manual lever.

Fixed height: 740 mm.

Ø125 mm castors with central braking system and steer facility, integrated in the structure. This system allows for ease of cleaning and disinfection.

Pedal brake operation with 3 position indicator (total brake, steering, brake released).

Safety

Steel side rails with sliding adjustment up to 7 different positions allowing easy access. This system has a safety plunger to avoid accidental opening of the side rail.

Peripheral vision of 360º due to its side rails made of transparent material, with compliant safety distances at sections joints to prevent entrapments.

Conforms to Regulation (EU) 2017/745.

CHILD ASSURE CARE

Structure

Epoxy-coated steel tube frame.

Four sockets for accessories (IV pole, mosquito net, etc).

Four bumpers (one on each corner of the bed) integrated into the structure, avoiding damage to the product and reducing the required space.

Comfort

Two independent sections made of damp-proof and impact-resistant compact HPL material, resistant to humidity and shock.

100% usable patient surface.

Sections adjusted by medical grade electric motors, in compliance with the standards of EN 60601-1.

Ease Of Handling

Electric height adjustment ranging from 58 cm to 90 cm by electric actuators.

Ø100 mm castors with central braking system and steer facility.

Quick emergency release backrest system for emergency events or electrical failure.

Electric Trendelenburg / reverse Trendelenburg position up to ±16º.

Clinician handset for ease of use.

Safety

Steel side rails with sliding adjustment up to 7 different positions allowing easy access. This system has a safety plunger to avoid accidental opening of the side rail.

Compliant safety distances at all sections and joints to prevent any entrapments.

Conforms to Regulation (EU) 2017/745.

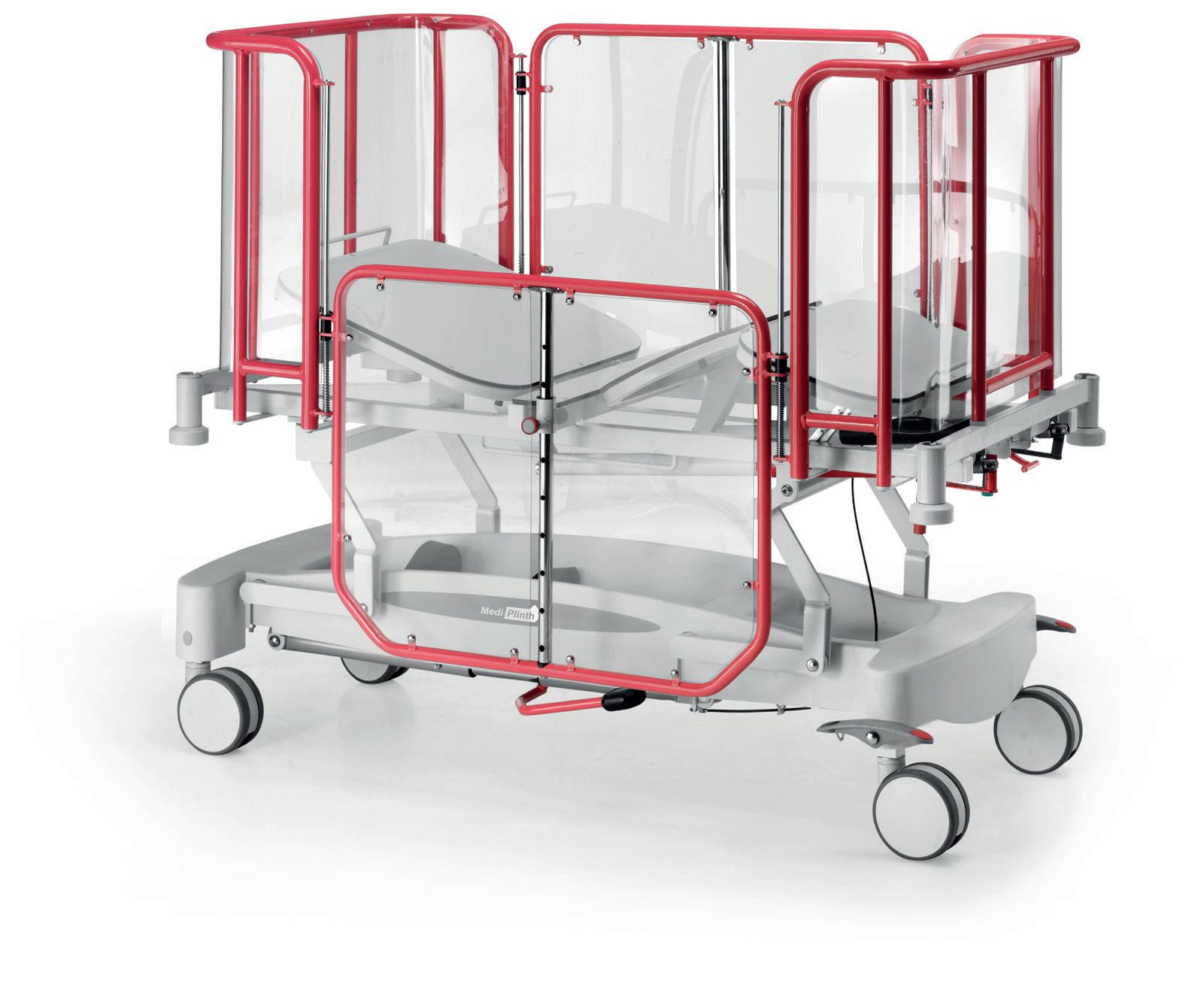

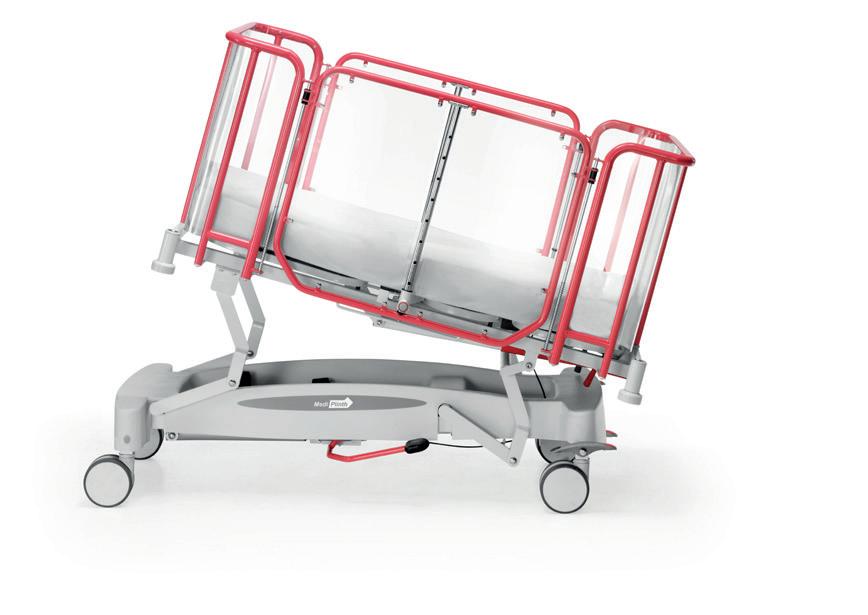

Paediatric cot CHILD ASSURE INTENSIVE

Structure

Epoxy-coated steel tube frame.

Four sockets for accessories (IV pole, mosquito net, etc).

Four bumpers (one on each corner of the bed) integrated into the structure, avoiding damage to the product and reducing the required space.

ABS covered base that protects the mechanisms and allows easy cleaning. Also includes area for oxygen bottle holder and patient belongings.

Comfort

Four independent sections made of damp-proof and impact-resistant compact HPL material, resistant to humidity and shock, easy to clean and fireproof.

100% usable patient surface.

Ease Of Handling

Sections adjustment by means of a specially designed handle for effortless operation.

Hydraulic Trendelenburg / reverse Trendelenburg position (±7º/18º). Easy to adjust with manual lever.

Fixed height: 740 mm.

Ø125 mm castors with central braking system and steer facility, integrated in the structure. This system allows for ease of cleaning and disinfection.

Pedal brake operation with 3 position indicator (total brake, steering, brake released).

Safety

Steel side rails with sliding adjustment up to 7 different positions allowing easy access. This system has a safety plunger to avoid accidental opening of the side rail.

Peripheral vision of 360º due to its side rails made of transparent material, with compliant safety distances at sections joints to prevent entrapments.

Compliant safety distances at all sections and joints to prevent any entrapments.

Conforms to Regulation (EU) 2017/745.

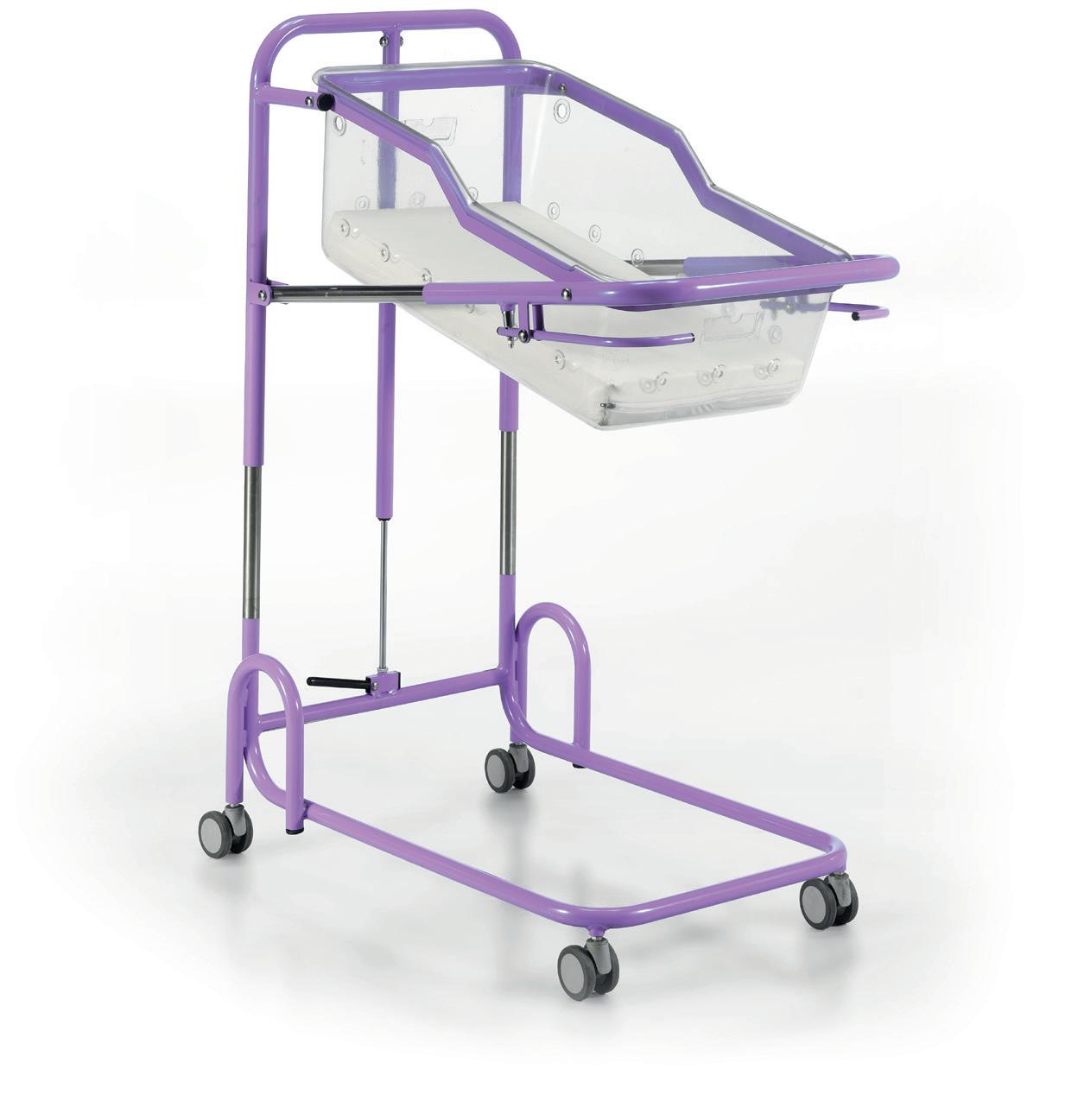

Neonatal cot BABY ASSURE

Structure

Epoxy-coated steel tube frame.

Gas strut height adjustment with manual lever situated under the cradle.

Removable methacrylate cradle for easy cleaning and transfer.

Comfort

100% usable patient surface.

Includes polyurethane mattress with cover.

Ease Of Handling

Four 65 mm swivelling castors for ease of manoeuvrability, two brake castors and two freewheeling castors.

Hydraulic Trendelenburg / reverse Trendelenburg position up to ±13º. Easy to adjust with manual lever.

Hydraulic height adjustment, 640–940 mm.

Safety

Conforms to Regulation (EU) 2017/745.

Specifications

ASSURE, ASSURE CARE,

ASSURE INTENSIVE & BABY

Paediatric cot: CHILD ASSURE

Overall dimensions 86 x 54 x 136.5cm

Height to mattress 75cm

Trendelenburg / Reverse ±13º

Safe working load 85kg

Weight w/o accessories 57kg

Paediatric cot: CHILD ASSURE CARE

Overall dimensions 157.5 x 89 x 155cm

Surface dimensions 140 x 72cm

Height adjustment 62–92cm

Backrest angle 42.5º

Trendelenburg / Reverse ±16º

Electric features:

Power supply 110-230V / 50-60Hz

Maximum consumption 3.15A

Protection indicator IP X 4

Protection class Class II

ASSURE

Paediatric cot: CHILD ASSURE INTENSIVE

Overall dimensions 85.5 x 154cm

Patient surface 70.5 x 134cm

Back section dimensions 66 x 55cm

Fixed section dimensions 70.5 x 9.5cm

Leg section dimensions 66 x 25cm

Foot section dimensions 55 x 32.5cm

Backrest tilting 72º

Legrest angle 36º

Height adjustment 56–90cm

Trendelenburg / Reverse ±7º / ±18º

Safe working load 90kg

Weight w/o accessories 95kg

Paediatric cot: BABY ASSURE

Overall dimensions 92 x 57 x 102cm

Height adjustment 64–94cm

Trendelenburg / Reverse ±13º

Cradle dimensions 65 x 36 x 22–29cm

Safe working load 15kg

Weight w/o accessories 21kg

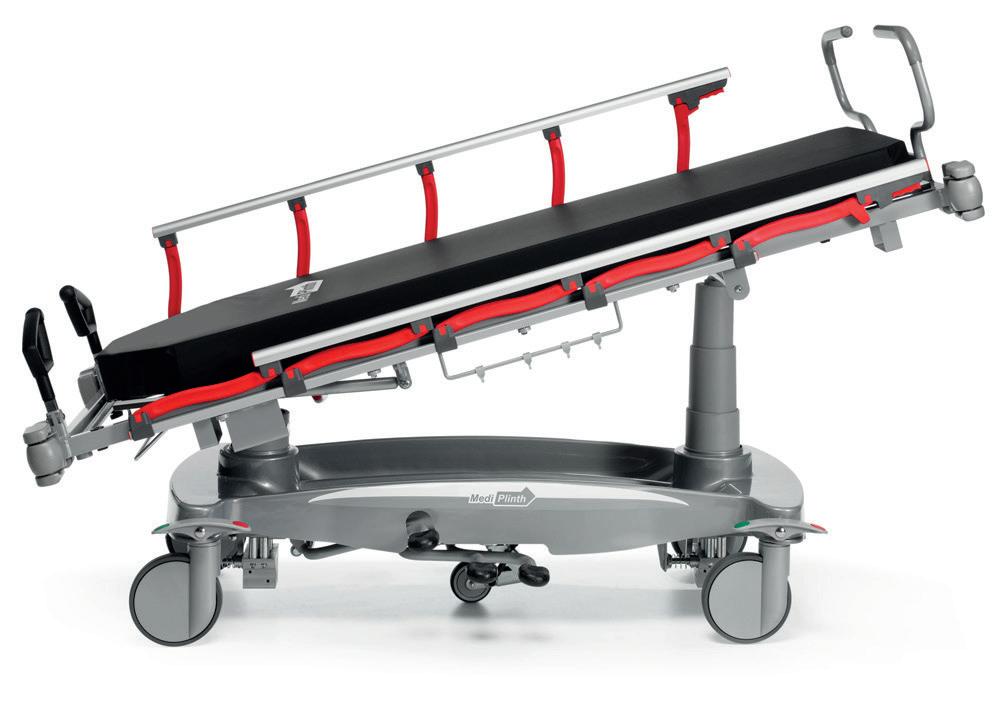

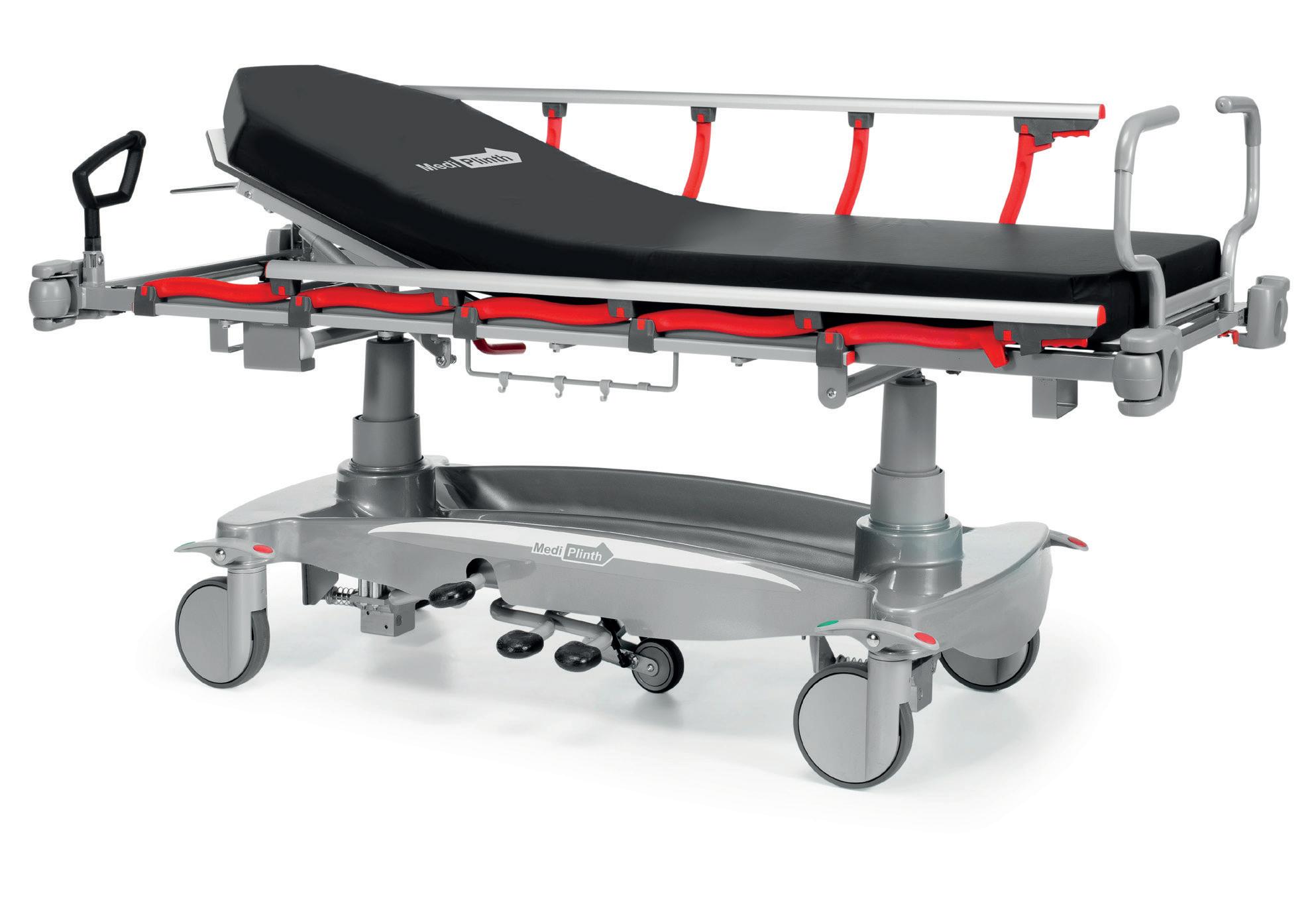

Transport Stretcher

MOTION & MOTION PLUS

Structure

Epoxy coated steel tube frame.

Two or four section platform made of damp-proof and impact-resistant HPL material, resistant to humidity and shock.

Motion Plus (4 section) hydraulically operated.

Comfort

High-density polyurethane construction, ergonimically designed for optimum comfort.

Hydraulically operated backrest and height adjustment from 66–97.5 cm.

Hydraulic Trendelenburg and reverse Trendelenburg postions (+/-18º).

Foot pedals at either side of the stretcher control height, Trendelenburg and reverse Trendelenburg adjustment.

Easy Cleaning

Mattress upholstered with antimicrobial, anti-static covering. Easy to clean and maintain.

Smooth surfaces and removable panels allow easy, fast cleaning and disinfection.

Ease Of Handling

Ø 200 mm castors with single-point braking system, controlled by foot pedals on each corner of the stretcher.

The fifth wheel improves manoeuvrability and control; allows 360° rotation on its axis.

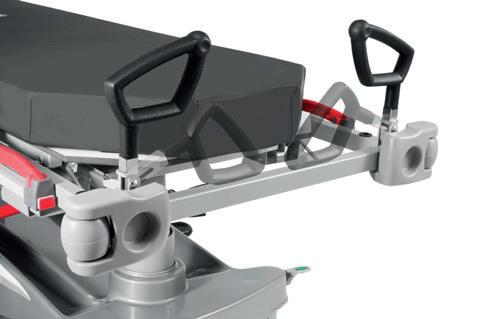

Ergonomically designed folding handles for easier greater control when manoeuvring.

Safety

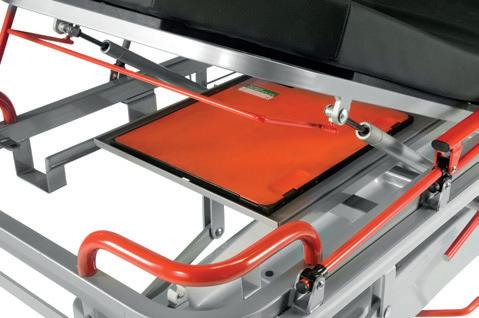

X-ray translucent platform 10cm height mattress complies with BS 7176 (Medium Hazard).

Integrated siderails help secure patient. Their lowest position does not exceed the height of the mattress, making transfers simpler and safer.

Buffers located on each corner of the stretcher.

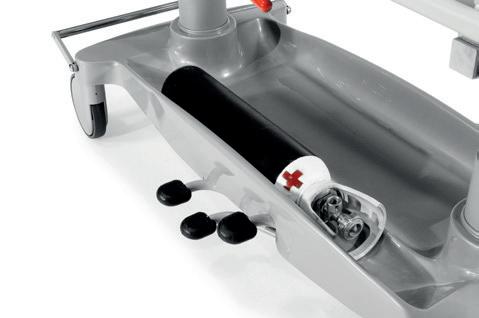

ABS base cover protects the stretcher mechanism and facilitates easy cleaning.

Conforms to Regulation (EU) 2017/745.

Specifications

MOTION & MOTION PLUS

2 Section stretcher: MOTION

Overall dimensions 218 x 82cm

Patient surface 190 x 72cm

Height adjustment 59–88cm

Back section dimensions 62 x 71cm

Leg section dimensions 66 x 116cm

Backrest tilting 90º

Weight w/o accessories 100kg

Safe working load 300kg

Trendelenburg / Reverse ±18º

4 Section stretcher: MOTION PLUS

Overall dimensions 210 x 82cm

Patient surface 190 x 72cm

Height adjustment 59–88cm

Back section dimensions 62 x 71cm

Leg section dimensions 62 x 34cm

Foot section dimensions 62 x 47cm

Backrest tilting 90º

Legrest tilting 35º

Weight w/o accessories 100kg

Safe working load 300kg

Trendelenburg / Reverse ±18º

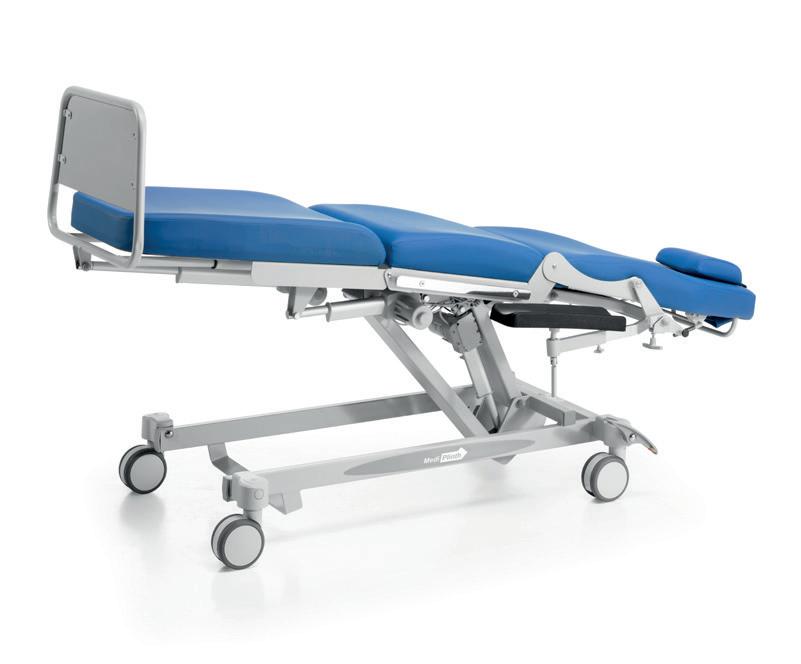

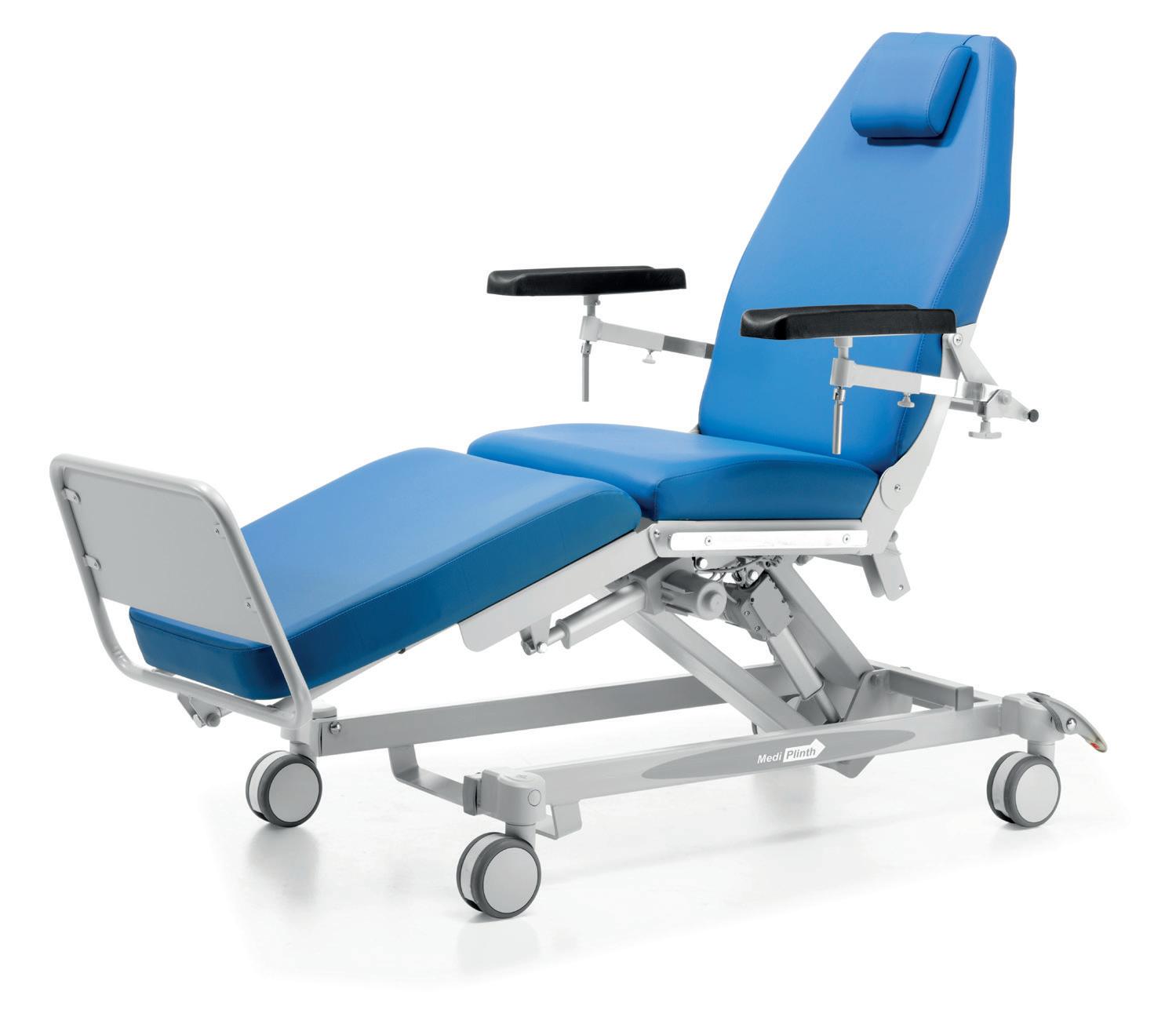

Dialysis Chair SOLACE

Structure

Epoxy-coated steel tube frame.

Scissor-lift system provides optimum stability and supports weights of up to 230 kg.

Integrated portering handle for ease of transport

Comfort

100% usable patient surface.

Sections fully adjustable with medical grade electric motors compliant with EN 60601-1.

Handset controls independent electric adjustment of height, backrest, legs and Trendelenburg position

Contoured polyurethane armrests fully adjustable for patient comfort.

Upholstery

High-density polyurethane foam for optimum patient comfort. 10 cm of height.

Upholstered with high quality anti-microbial, abrasion-resistant, Crib 5 vinyl. Easy to clean and maintain.

Ease Of Handling

Handset designed to allow quick and easy positioning of the chair sections.

Includes two pre-programmed functions: emergency Trendelenburg (shock position) and patient exit position (height descends to minimum, backrest and legrest achieve chair position).

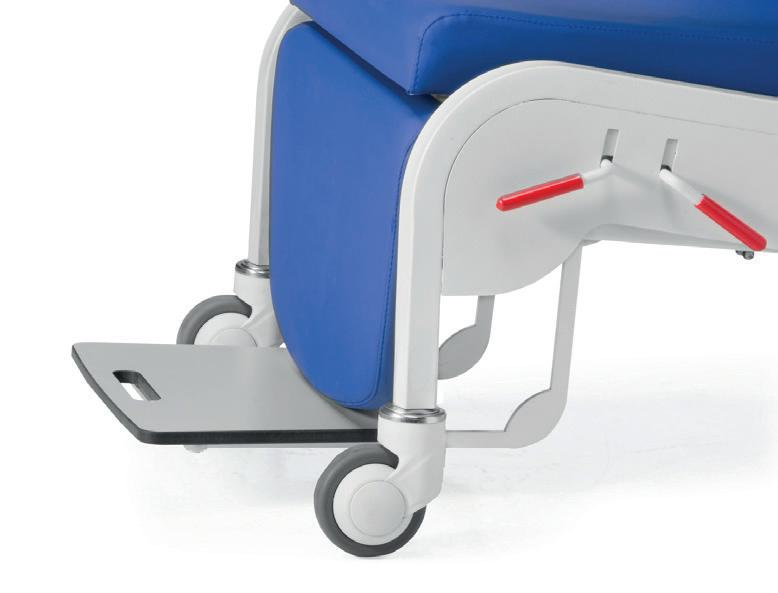

Four Ø 125 mm diameter swivel castors with central brake and steer.

Electric adjustment of footrest.

Safety

Emergency release of backrest for quick lowering of the section in the event of an emergency, battery or power failure.

Low-voltage medical grade electric motors compliant with EN 60601-1.

Conforms to Regulation (EU) 2017/745.

Specifications SOLACE DIALYSIS CHAIR

Dialysis Chair: SOLACE

External dimension 220 x 87.5 cm

Patient surface 214 x 57 cm

Backrest dimensions 88 x 57 cm

Seat dimensions 54 x 57 cm

Legrest dimensions 72 x 57 cm

Height adjustment 51–76 cm

Backrest tilting 72º

Footrest dimensions 25 x 58 cm

Trendelenburg 25º

Maximum load 230 kg

Weight w/o accessories 98 kg

Electric features:

Power supply 100-240V 50-60Hz

Maximum consumption 1,6 A

Protection Indicator IP54

Class of protection Class II

Surge Protection Type B

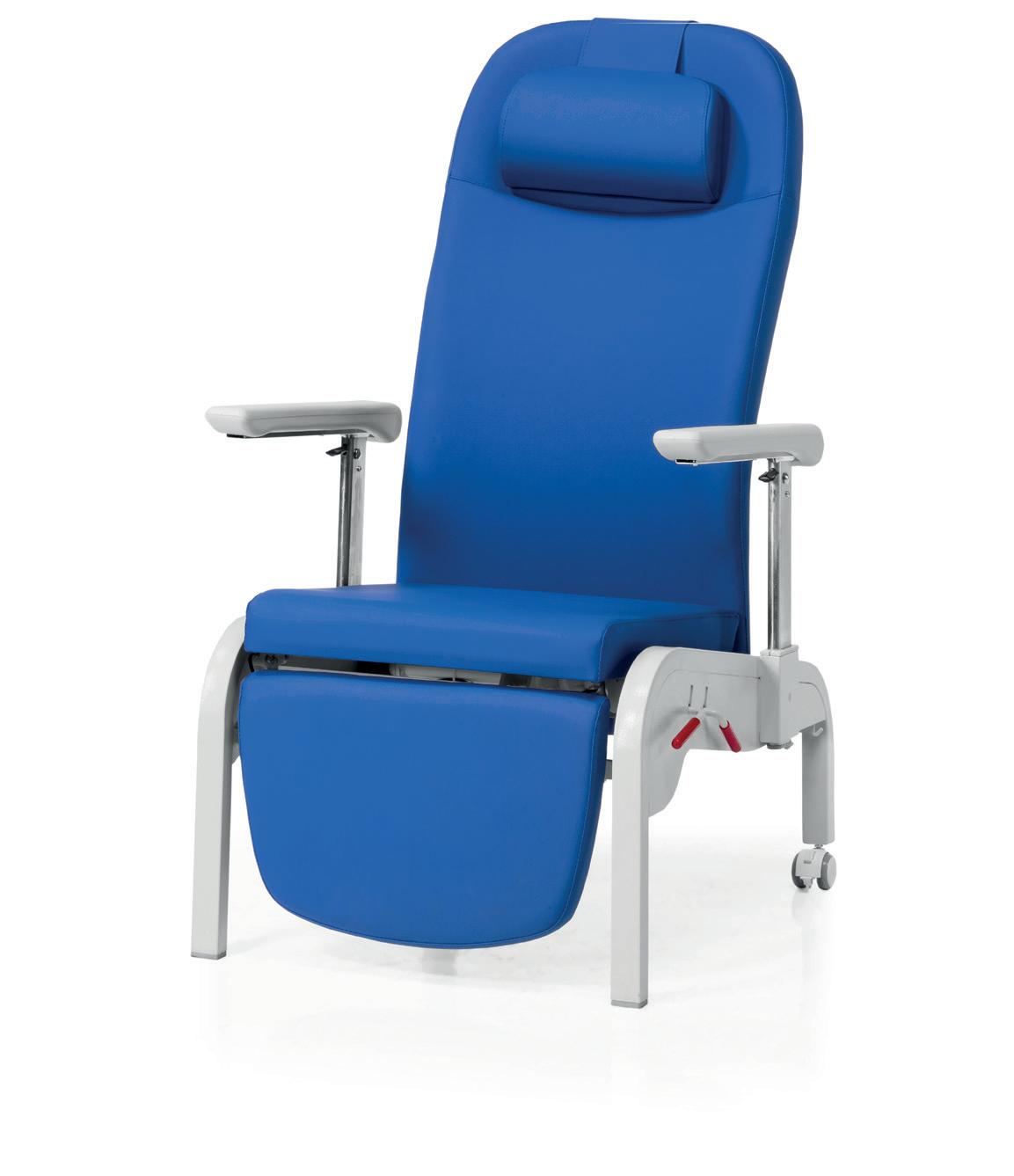

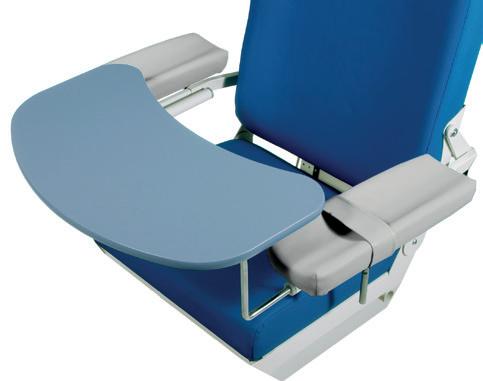

Patient Chairs BREEZE 2 & 4 WHEEL

Structure

Easy Cleaning

Constructed with an epoxy-coated steel tube frame for secure platform.

Handle for an easy transport (optional in 2 wheels model, and included in 4 wheels model).

IV pole socket and hooks for urine bags.

Comfort

High anatomical backrest, padded in high density injected and cold moulded polyurethane foam, designed for optimum comfort and ergonomic adjustment.

Height-adjustable padded headrest cushion, removable, for maximum comfort.

Polyurethane armrests are adjustable in height in five different positions by means of an integrated button.

Manufactured from high quality materials, guaranteeing their long life and endurance. Upholstered in self-extinguishing vinyl fabric (according to M2 standard. EN1021.1-2) antibacterial and resistant to absorption and stains, easy cleaning and maintenance.

Ease Of Handling

Independent adjustment of backrest and legrest, by means of gas spring with “Bloc-o-Lift” system. Allows fixing the backrest in multiple positions to guarantee a better patient rest and comfort.

Backrest tilting system and ergonomic design combined with seat movement keeps the patient suspended in “zero gravity” avoiding pressures in the lower back, pelvis and legs.

Includes castors for improved manoeuvrability. (Four Ø100 mm braked or two Ø50 mm braked).

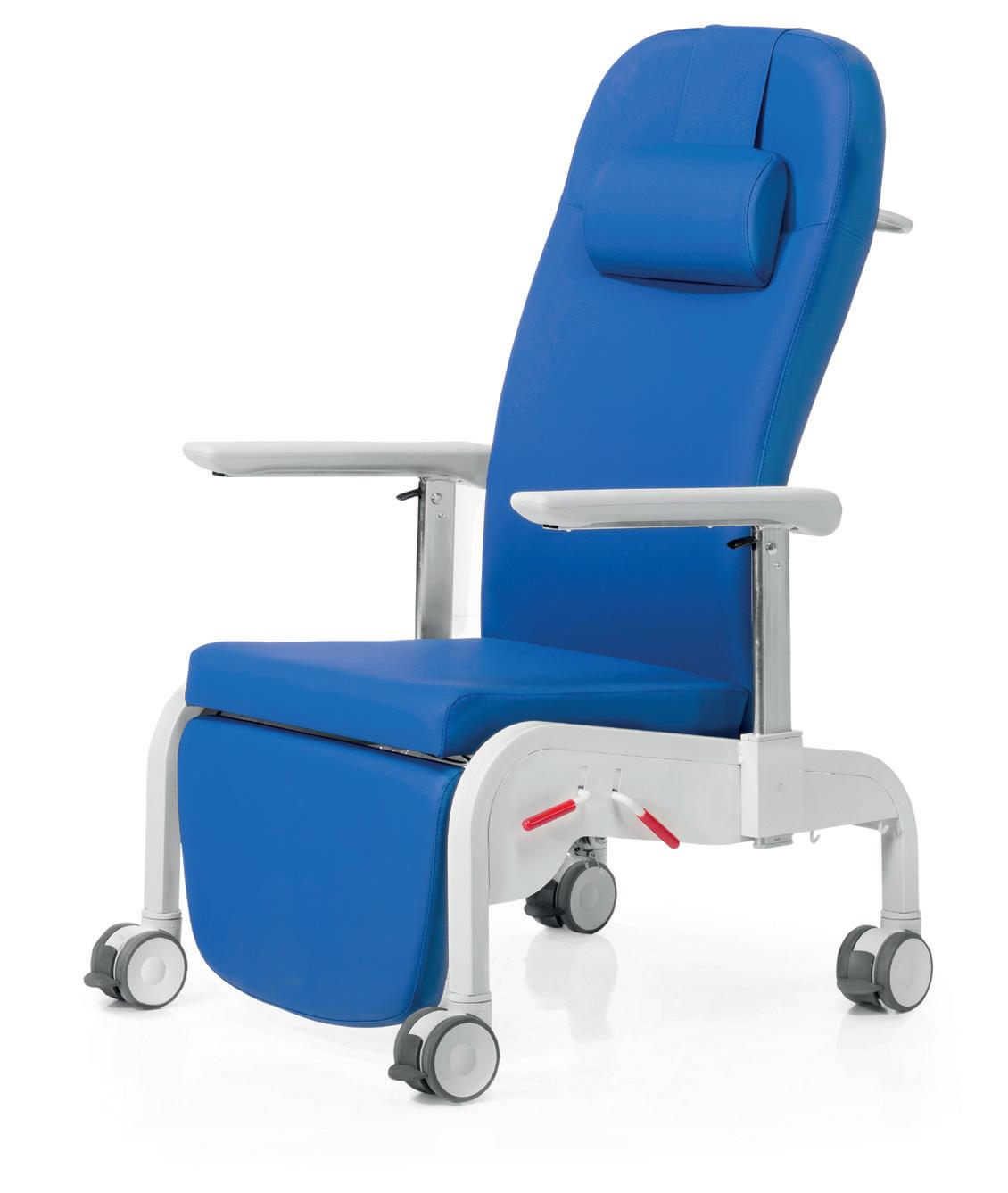

Patient Chairs BREEZE PLUS

Structure

Constructed with an epoxy-coated steel tube frame for secure platform.

Handle included for an easy transport.

IV pole socket and hooks for urine bags.

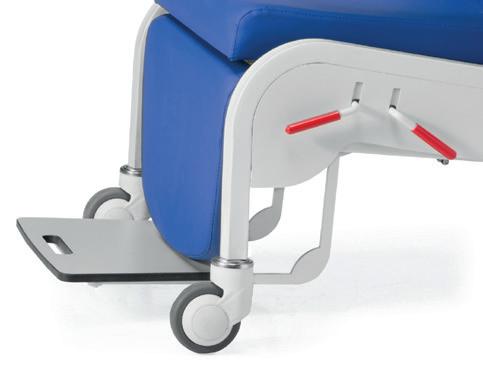

Footrest attached under-seat.

Comfort

High anatomical backrest, padded in high density injected and cold moulded polyurethane foam, designed for optimum comfort and ergonomic adjustment.

Height-adjustable padded headrest cushion, removable, for maximum comfort.

Polyurethane armrests are adjustable in height in five different positions by means of an integrated button.

Integrated footrest for added patient comfort.

Easy Cleaning

Manufactured from high quality materials, guaranteeing their long life and endurance.

Upholstered in self-extinguishing vinyl fabric (according to M2 standard. EN1021.1-2) antibacterial and resistant to absorption and stains, easy cleaning and maintenance.

Ease Of Handling

Independent adjustment of backrest and legrest, by means of gas spring with “Bloc-o-Lift” system. Allows fixing the backrest in multiple positions to guarantee a better patient rest and comfort.

Includes four Ø 100 mm castors with a central locking system for quick, secure braking.

Backrest tilting system and ergonomic design combined with seat movement keeps the patient suspended in “zero gravity” avoiding pressures in the lower back, pelvis and legs.

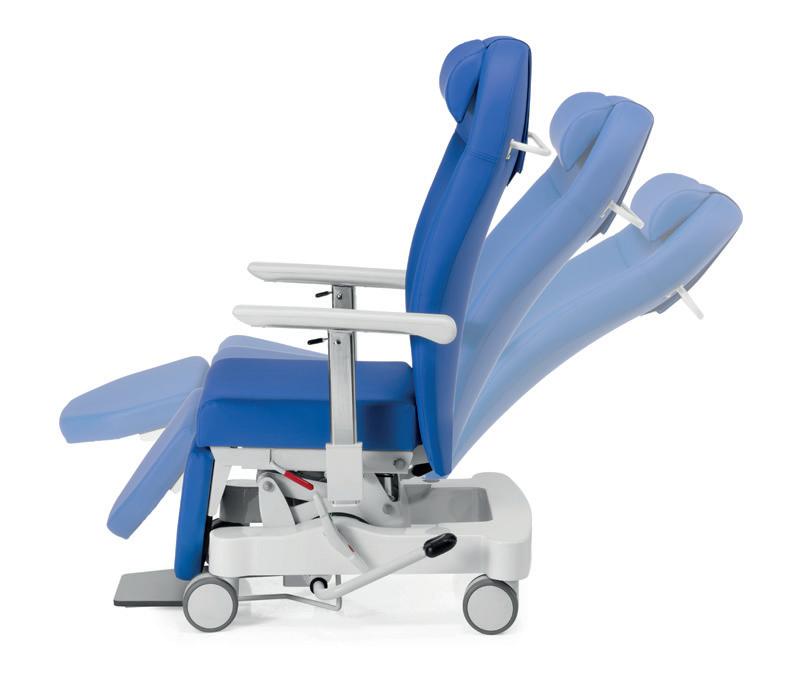

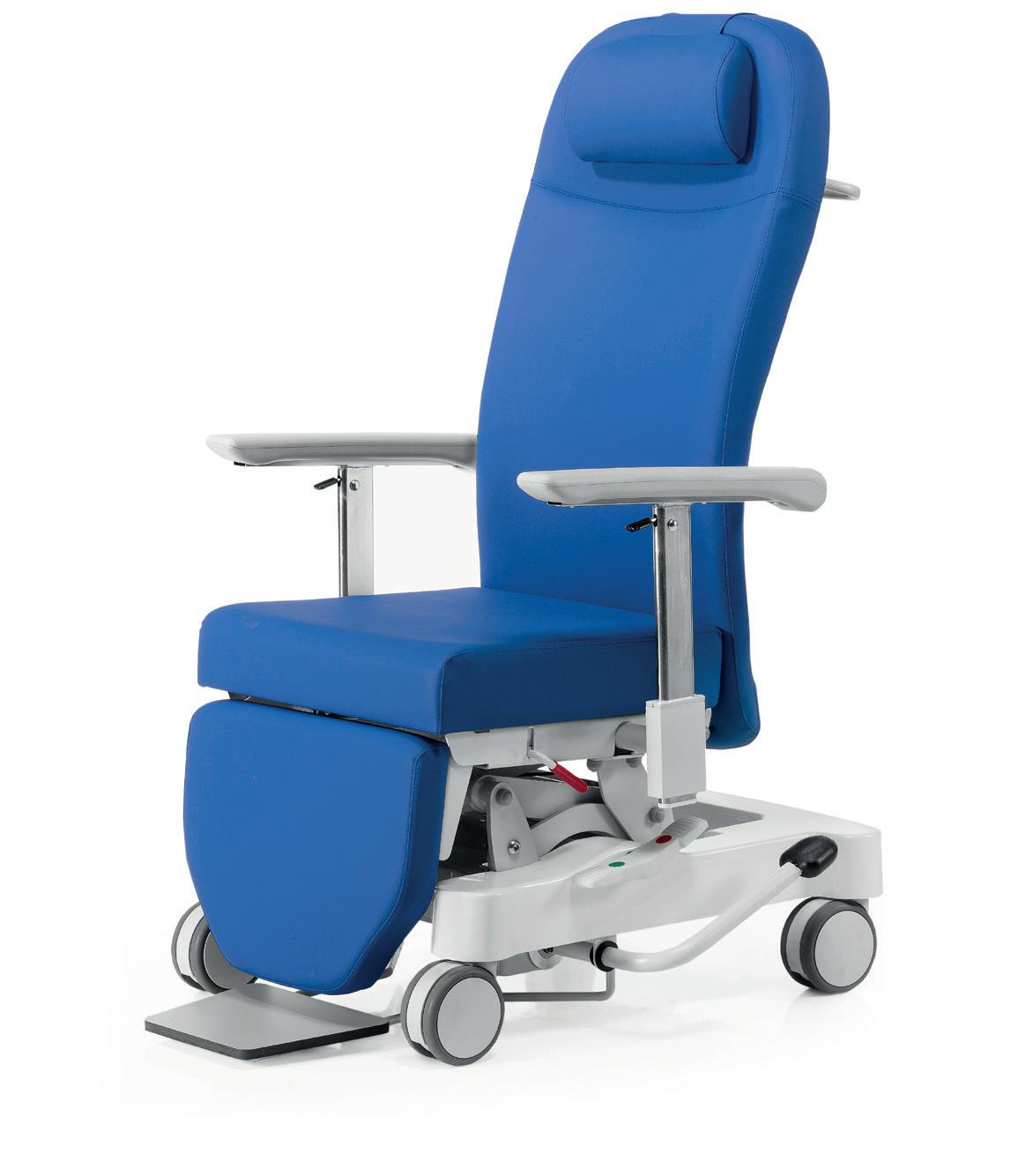

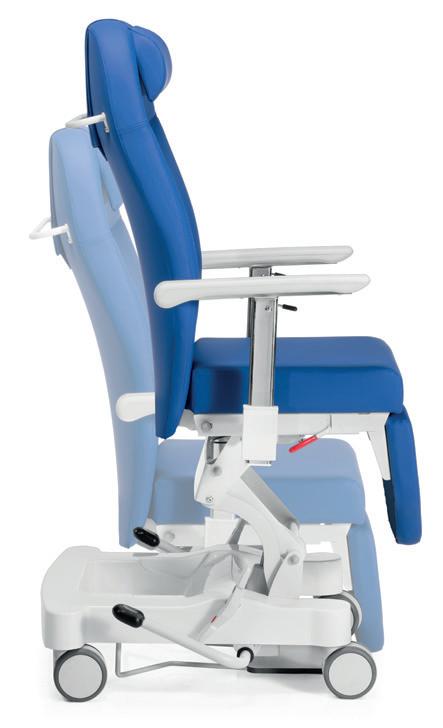

Patient Chairs BREEZE ELEVATE

Structure

Epoxy-coated steel tube frame.

Ergonomic handle for easy transport.

Sockets for IV pole available (upon request).

Footrest attached under-seat.

Comfort

High anatomical backrest, padded in high density injected and cold moulded polyurethane foam, designed for optimum comfort and ergonomic adjustment.

Contoured front to the backrest stimulates blood circulation.

Seat angled towards the backrest to secure patient in position

Height-adjustable padded headrest cushion, removable, for maximum comfort.

Polyurethane armrests are adjustable in height in five different positions by means of an integrated button.

Integrated footrest for added patient comfort.

Easy Cleaning

Manufactured from high quality materials, guaranteeing their long life and endurance.

Upholstered in self-extinguishing vinyl fabric (according to M2 standard. EN1021.1-2) antibacterial and resistant to absorption and stains, easy cleaning and maintenance.

Ease Of Handling

Hydraulic height adjustment by foot pedal, accessible from both sides of the chair.

Includes four Ø 75 mm castors with a central locking system for quick, secure braking.

Backrest tilting system and ergonomic design combined with seat movement keeps the patient suspended in “zero gravity” avoiding pressures in the lower back, pelvis and legs.

Accessible for lifts/hoists from front section and suitable for overbed tables.
