Commodes&showerchairs
The next generation of effortless, portable chairs

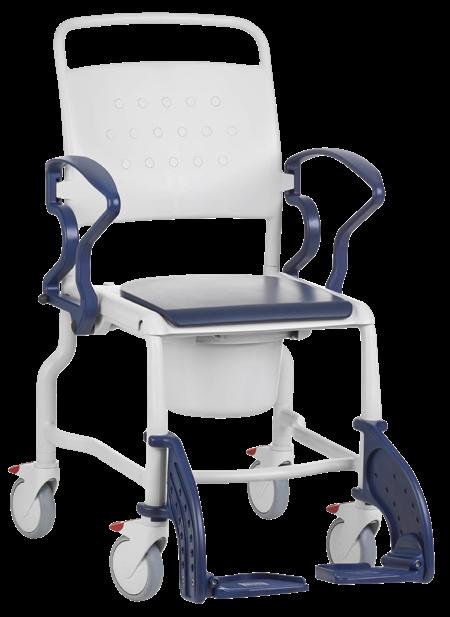

PortableCommodes
Structure
Utilises a completely synthetic frame making it durable and lightweight. Coated tube frame design allows for a very high resistance to wear.
Strong, rigid materials also have the added benefit of shock dissipation.
Includes a moulded removable potty as standard (stainless steel rack also available).
Comfort
Moulded backrest is ergonomically designed to be comfortable for users.
Available as fixed, adjustable or wide models. Offering adjustable height or increased width to accommodate patients of different sizes.
Footrests are height adjustable and swing away when not required.
Moulded synthetic rubber over-seat which securely encloses the aperture and is kind to patient skin.
Ease Of Handling
Push handle integrated in back frame for easy and accurate portering.
Fitted with four Ø 125mm braked castors.
Arm rests which are easily retractable to enable secure transfer and patient access.
Rubber over-seat has no seams and will not rip/ tear.
Easy Cleaning
Chair can be dismantled within 20 seconds without tools to allow for thorough cleaning.
Designed without welding to avoid rust or micro-fracture weak points. Seamless joints ensure dirt or bodily fluids cannot be trapped.
Capable of withstanding the most rigorous cleaning regime. Suitable for cleaning with NHS approved cleaning solutions and Clinell wipes (or other alcohol based wipes).
Specifications BONN, HAMBURG & BOSTON

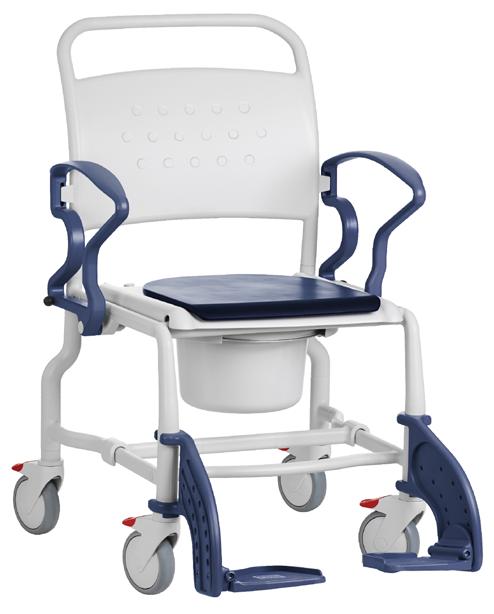

Commode:BONN
Overall dimensions 102 x 57 x 60 cm
Aperture seat height 51 cm
Under aperture height49 cm
Over-seat height 53 cm
Seat width 47 cm
Seat depth 40 cm
Armrest height 26 cm
Backrest height 52 cm
Clears toilet of height49 cm
Safe working load
Product weight 15 kg
Commode:HAMBURG
Identicaldimensionsbutwithheightadjustment:
Aperture

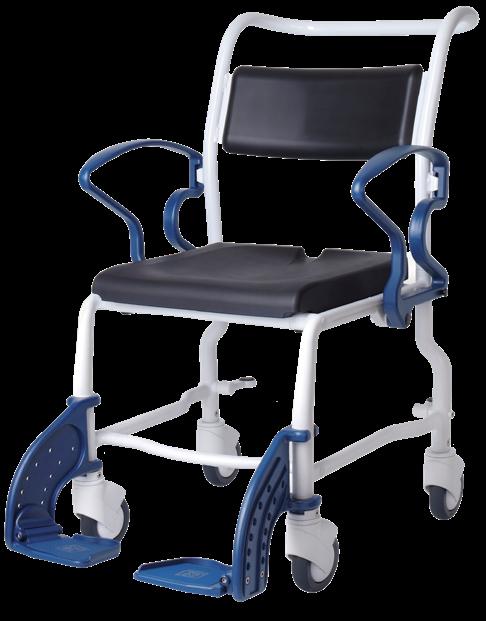

Commode:BOSTON
Awiderdesignwithlargersafeworkingload:
Overall dimensions
Product

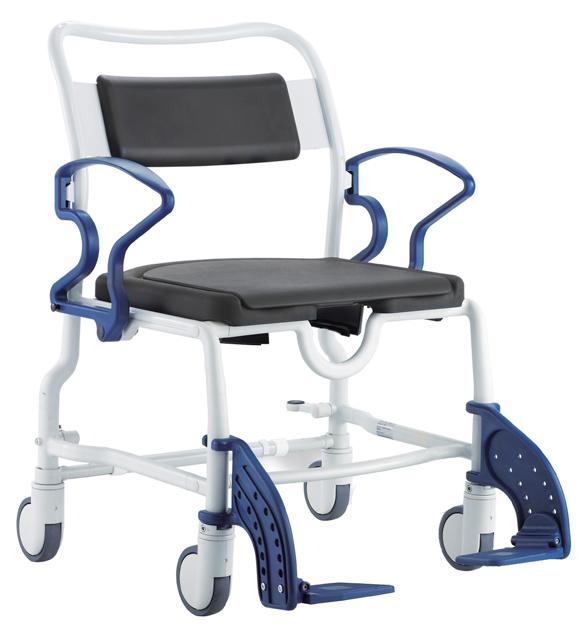

PortableCommodes DALLAS BARIATRIC
Structure
Utilises a completely synthetic frame making it durable and lightweight. Coated tube frame design allows for a very high resistance to wear.
Strong, rigid materials also have the added benefit of shock dissipation.
Heavy-duty backrest with aluminium construction to secure patient.
Includes a device with bucket.
Comfort
Moulded back section features contoured rubber backrest for optimum patient comfort.
Wider seat is designed to accommodate larger patients.
The foot rests are height adjustable and swing away when not required.
Moulded synthetic rubber over-seat which securely encloses the aperture and is kind to patient skin.
Ease Of Handling
Arched rear frame section acts as ergonomic push handle and allows for easy and accurate portering.
Fitted with four Ø 125mm braked castors.
Arm rests which are easily retractable to enable secure transfer and patient access.
Rubber over-seat has no seams and will not rip/ tear.
Easy Cleaning
Chair can be dismantled within 20 seconds without tools to allow for thorough cleaning.
Designed without welding to avoid rust or micro-fracture weak points. Seamless joints ensure dirt or bodily fluids cannot be trapped. Seamless joints ensure dirt or bodily fluids cannot be trapped.
Capable of withstanding the most rigorous cleaning regime. Suitable for cleaning with NHS approved cleaning solutions and Clinell wipes (or other alcohol based wipes).

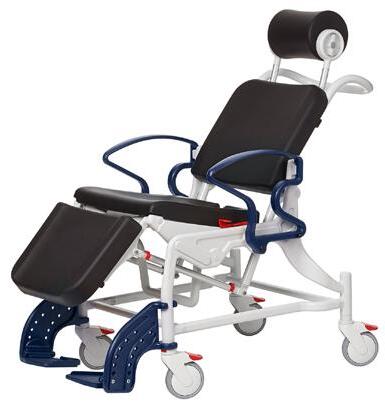

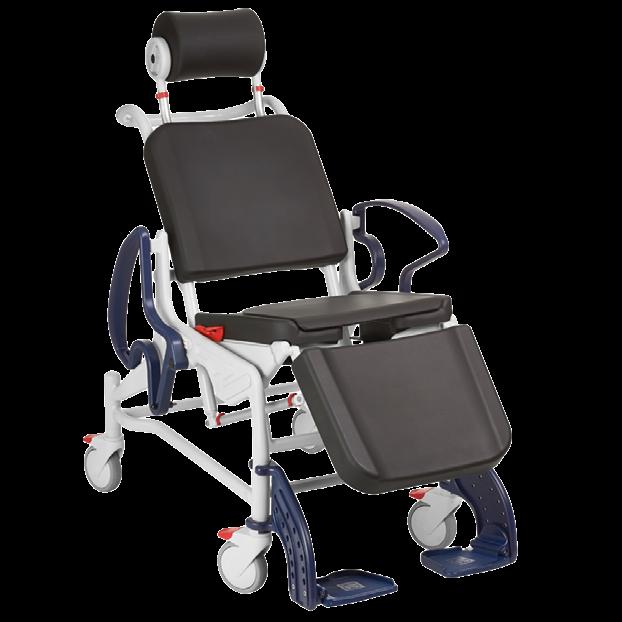

PortableCommodes PHEONIX TILT SHOWER COMMODES
Structure
Utilises a completely synthetic frame making it durable and lightweight. Coated tube frame design allows for a very high resistance to wear.
Strong, rigid materials also have the added benefit of shock dissipation.
Available with electric or hydraulic lift mechanism.
Chair frame extends to recline seat and backrest.
Also includes a device with bucket.
Comfort
Comfortable, adjustable head rest which combined with the tilting function allows for endless positions with this versatile chair.
Sturdy, contoured back, head and leg supports have been ergonomically designed for optimum patient comfort.
The foot rests are height adjustable and swing away when not required.
Moulded synthetic rubber over-seat which sits over the aperture securely and is kind to patient skin.
Ease Of Handling
Easy to use level mechanism allows fine adjustment of the chair back rest angle.
A push handle is integrated for easy and accurate portering.
Headrest tilt and height are adjusted with simple to use clip mechanisms.
Fitted with four Ø 125mm braked castors.
Arm rests which are easily retractable to enable secure transfer and patient access.
Rubber over-seat has no seams and will not rip/ tear.
Easy Cleaning
Chair can be dismantled within 20 seconds without tools to allow for thorough cleaning.
Designed without welding to avoid rust or micro-fracture weak points. Seamless joints ensure dirt or bodily fluids cannot be trapped. Seamless joints ensure dirt or bodily fluids cannot be trapped.
Capable of withstanding the most rigorous cleaning regime. Suitable for cleaning with NHS approved cleaning solutions and Clinell wipes (or other alcohol based wipes).
Specifications DALLAS & PHOENIX
Commode:DALLAS
Overall dimensions 104 x 68 x 90 cm
Seat height
Seat depth
Seat width 64 cm
Toilet height with bucket 44 cm
Toilet height w/o bucket 47 cm
Safe working load 200 kg
Product weight 21 kg
ShowerChair:Phoenix
Overall dimensions 120 x 111 x 65 cm
Seat
Seat depth 43 cm
Length when extended 144cm
Armrest height 76 cm
Push handle height 104 cm
Backrest tilt from seat 103°–128°
Headrest Adjustment± 12 cm
Headrest Rotation 360°
Safe working load 150 kg
Product weight 29 kg

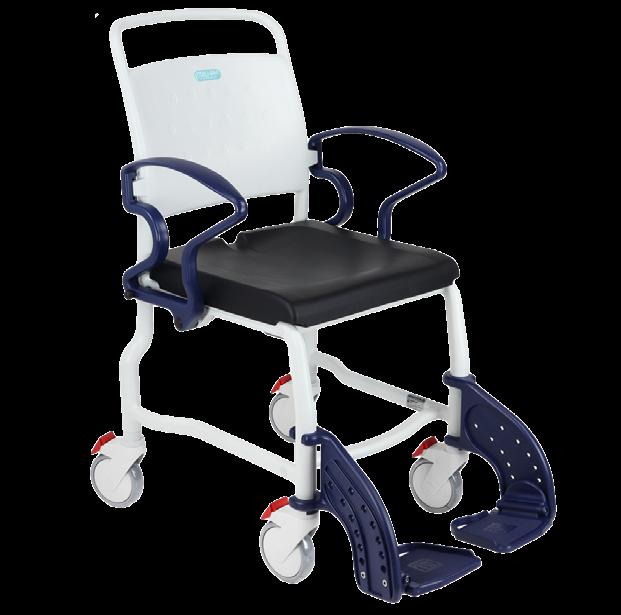

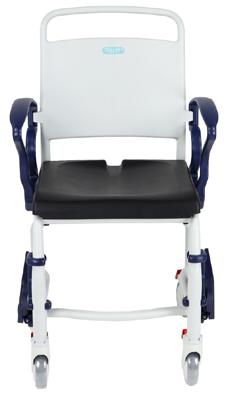

ShowerTransferChairs OSLO COMPACT
Structure
Utilises a completely synthetic frame making it durable and lightweight. Coated tube frame design allows for a very high resistance to wear.
Strong, rigid materials also have the added benefit of shock dissipation.
Compact design for space-saving benefits. Includes a moulded removable potty as standard (stainless steel rack also available).
Comfort
Moulded backrest is ergonomically designed to be comfortable for users.
Footrests are height adjustable and swing away when not required.
Seat pad is contoured for patient comfort and features a rear drainage channel for water run-off.
Ease Of Handling
Push handle integrated in back frame for easy and accurate portering.
Fitted with four Ø 125mm braked castors.
Arm rests which are easily retractable to enable secure transfer and patient access.
Rubber over-seat has no seams and will not rip/ tear.
Easy Cleaning
Chair can be dismantled within 20 seconds without tools to allow for thorough cleaning.
Designed without welding to avoid rust or micro-fracture weak points. Seamless joints ensure dirt or bodily fluids cannot be trapped.
Capable of withstanding the most rigorous cleaning regime. Suitable for cleaning with NHS approved cleaning solutions and Clinell wipes (or other alcohol based wipes).

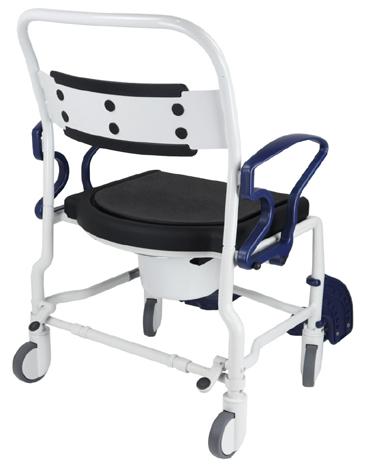

ShowerTransferChairs OSLO BRAKING
Structure
Utilises a completely synthetic frame making it durable and lightweight. Coated tube frame design allows for a very high resistance to wear.
Strong, rigid materials also have the added benefit of shock dissipation.
Heavy-duty backrest with aluminium construction to secure patient.
Accessory points are available for the addition of: IV pole, safety belt and arm pads.
Comfort
Moulded back section features contoured rubber backrest for optimum patient comfort.
The foot rests are height adjustable and swing away when not required.
Seat pad is contoured for patient comfort and features a rear drainage channel for water run-off.
Ease Of Handling
Arched rear frame section acts as ergonomic push handle and allows for easy and accurate portering.
Fitted with four Ø 125mm castors, two rear locking which can either swivel freely, lock in-line or fully lock.
Arm rests which are easily retractable to enable secure transfer and patient access.
Rubber over-seat has no seams and will not rip/ tear.
Easy Cleaning
Chair can be dismantled within 20 seconds without tools to allow for thorough cleaning.
Designed without welding to avoid rust or micro-fracture weak points. Seamless joints ensure dirt or bodily fluids cannot be trapped.
Capable of withstanding the most rigorous cleaning regime. Suitable for cleaning with NHS approved cleaning solutions and Clinell wipes (or other alcohol based wipes).
ShowerChair:OSLO
Overall
ShowerChair:OSLOBRAKING
Overall
Armrest
Backrest
