BREEZE PATIENT CHAIRS
2 & 4 Wheeled
Ergonomic easily-portable patient chairs

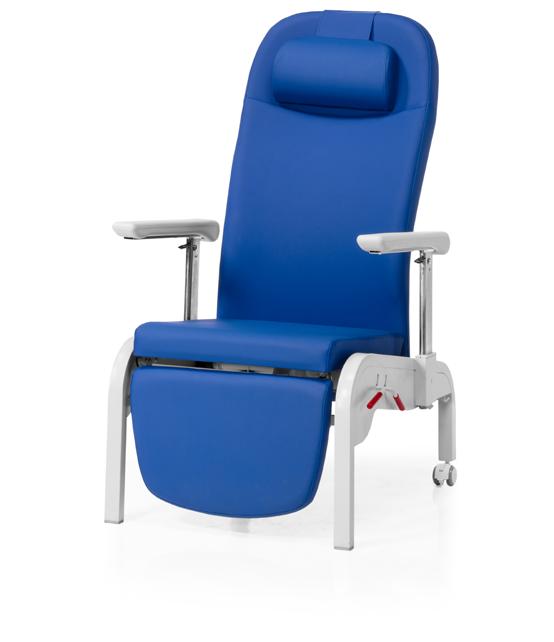

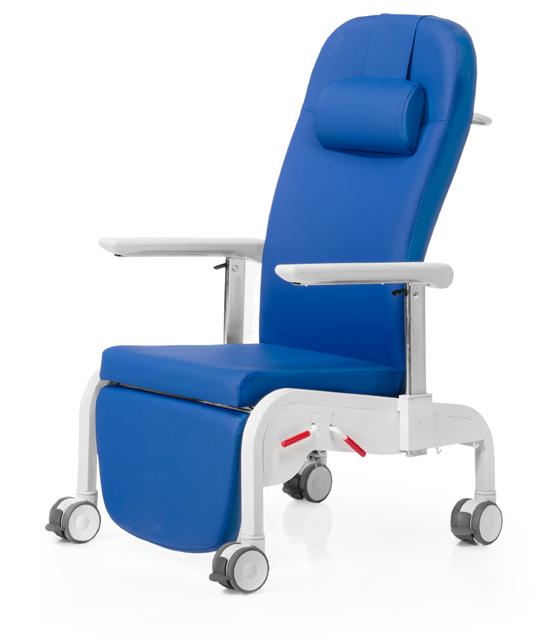

Patient Chairs BREEZE 2 & 4 WHEEL
Structure
Constructed with an epoxy-coated steel tube frame for secure platform.
Handle for an easy transport (optional in 2 wheels model, and included in 4 wheels model).
IV pole socket and hooks for urine bags.
Comfort
High anatomical backrest, padded in high density injected and cold moulded polyurethane foam, designed for optimum comfort and ergonomic adjustment.
Height-adjustable padded headrest cushion, removable, for maximum comfort.
Polyurethane armrests are adjustable in height in five different positions by means of an integrated button.
Easy Cleaning
Manufactured from high quality materials, guaranteeing their long life and endurance. Upholstered in self-extinguishing vinyl fabric (according to M2 standard. EN1021.1-2) antibacterial and resistant to absorption and stains, easy cleaning and maintenance.
Ease Of Handling
Independent adjustment of backrest and legrest, by means of gas spring with “Bloc-o-Lift” system. Allows fixing the backrest in multiple positions to guarantee a better patient rest and comfort.

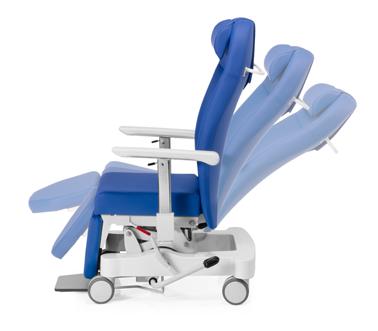

Backrest tilting system and ergonomic design combined with seat movement keeps the patient suspended in “zero gravity” avoiding pressures in the lower back, pelvis and legs.
Includes castors for improved manoeuvrability. (Four Ø100 mm braked or two Ø50 mm braked).

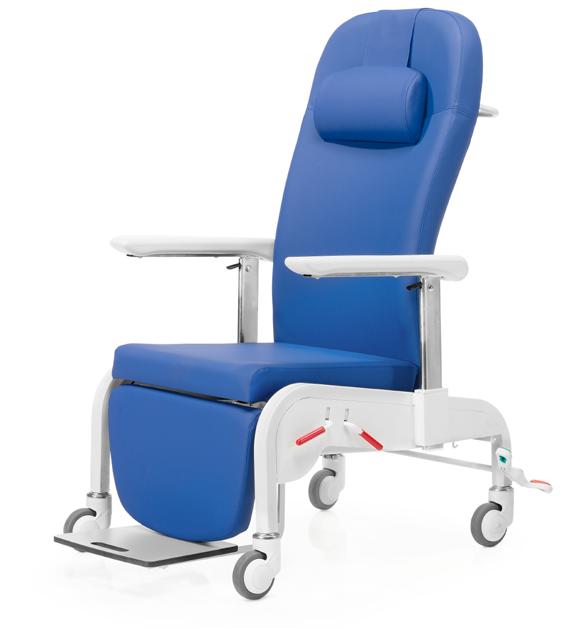

Patient Chairs BREEZE PLUS
Structure
Constructed with an epoxy-coated steel tube frame for secure platform.
Handle included for an easy transport.
IV pole socket and hooks for urine bags.

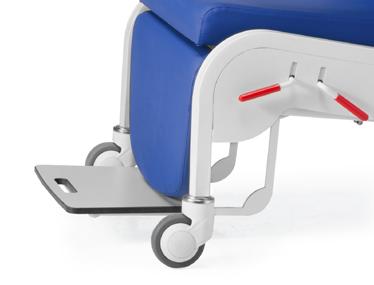

Footrest attached under-seat.
Comfort
High anatomical backrest, padded in high density injected and cold moulded polyurethane foam, designed for optimum comfort and ergonomic adjustment.
Height-adjustable padded headrest cushion, removable, for maximum comfort.
Polyurethane armrests are adjustable in height in five different positions by means of an integrated button.
Integrated footrest for added patient comfort.
Easy Cleaning
Manufactured from high quality materials, guaranteeing their long life and endurance.
Upholstered in self-extinguishing vinyl fabric (according to M2 standard. EN1021.1-2) antibacterial and resistant to absorption and stains, easy cleaning and maintenance.
Ease Of Handling
Independent adjustment of backrest and legrest, by means of gas spring with “Bloc-o-Lift” system. Allows fixing the backrest in multiple positions to guarantee a better patient rest and comfort.
Includes four Ø 100 mm castors with a central locking system for quick, secure braking.
Backrest tilting system and ergonomic design combined with seat movement keeps the patient suspended in “zero gravity” avoiding pressures in the lower back, pelvis and legs.

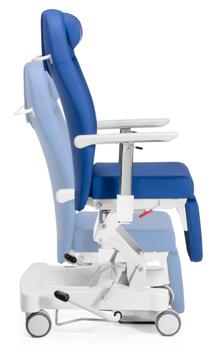

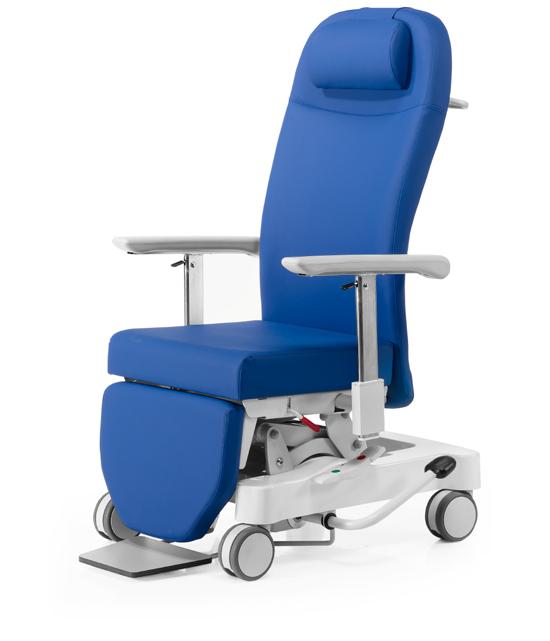

Patient Chairs BREEZE ELEVATE
Structure
Epoxy-coated steel tube frame.
Ergonomic handle for easy transport.
Sockets for IV pole available (upon request).
Footrest attached under-seat.
Comfort
High anatomical backrest, padded in high density injected and cold moulded polyurethane foam, designed for optimum comfort and ergonomic adjustment.
Contoured front to the backrest stimulates blood circulation.
Seat angled towards the backrest to secure patient in position
Height-adjustable padded headrest cushion, removable, for maximum comfort.
Polyurethane armrests are adjustable in height in five different positions by means of an integrated button.
Integrated footrest for added patient comfort.
Easy Cleaning
Manufactured from high quality materials, guaranteeing their long life and endurance.
Upholstered in self-extinguishing vinyl fabric (according to M2 standard. EN1021.1-2) antibacterial and resistant to absorption and stains, easy cleaning and maintenance.
Ease Of Handling
Hydraulic height adjustment by foot pedal, accessible from both sides of the chair.
Includes four Ø 75 mm castors with a central locking system for quick, secure braking.
Backrest tilting system and ergonomic design combined with seat movement keeps the patient suspended in “zero gravity” avoiding pressures in the lower back, pelvis and legs.
Accessible for lifts/hoists from front section and suitable for overbed tables.
Specifications
BREEZE (2&4), BREEZE PLUS & BREEZE ELEVATE
Patient Chair: BREEZE (2&4 WHEEL), PLUS
Overall dimensions (2w) 122.5 x 72 x 81cm
Overall dimensions (4w) 122.5 x 72 x 86cm
Extended length 165cm
Back section dimensions 84 x 51cm
Seat dimensions 52 x 52 x 46cm
Leg section dimensions 51 x 34cm
Footrest dimensions 29-35 x 22cm
Backrest tilting 85–168º
Arm rests dimensions 70 x 49cm
Weight w/o accessories 45kg
Safe working load 180kg
Patient Chair: BREEZE ELEVATE
Overall dimensions 141 x 73.5 x 80cm
Extended length 163cm
Back section dimensions 84 x 51cm
Seat dimensions 51 x 54 x 54–80cm
Leg section dimensions 51 x 34cm
Backrest tilting 85–168º
Height range 540–80cm
Extending footrest 29-35 x 22cm
Arm rests dimensions 70 x 49cm
Weight w/o accessories 45kg
Safe working load 180kg
