Marking Twenty Years of Excellence..
For over 20 years, we’ve been focused on one thing..providing scuba hoses divers can rely on, dive after dive. From local training waters to demanding open-water conditions, our gear has been shaped by real experiences and continuous refinement.
Our anniversary marks more than time, it reflects the trust divers place in our equipment.
This latest collection of scuba hoses brings together everything we’ve learned: flexibility, lasting strength, and performance you can depend on beneath the surface.
“It all began with three colours”..
This collection isn’t just our milestone. It’s the continuation of our proud commitment to quality service, supporting dependable equipment, so you can focus on diving.
It all began with three colours and today we offer a range made up of fourteen colour variations from stock.
We also offer our thanks to all our customers for their support throughout the years.
Built on years of experience.. ..Refined for every dive.
Miflex Deep Black Hoses
Page 4-5
Miflex LP Regulator Hoses
Page 6 -11
Miflex Xtreme LP BCD Inflator Hoses
Pages 12-15
Miflex XT-Tech Regulator & BCD Inflator Hoses
Page16
Miflex High Pressure Gauge Hoses Page 17 Gauges and Consoles
Pages 18-21 Spares and Maintainance
Pages 22-23

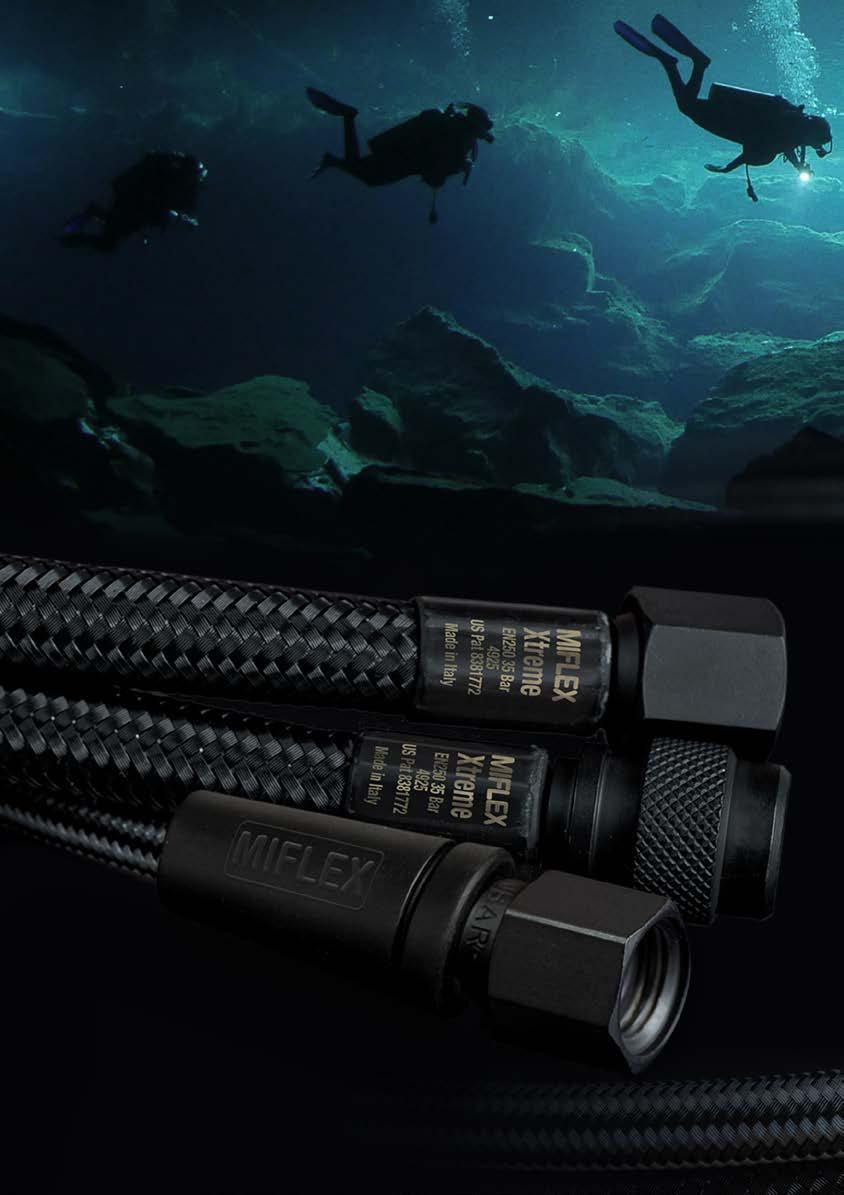

Miflex Xtreme DEEP BLACK
DEEP BLACK
The New Generation of Specialist Diving Hoses
l Manufactured in accordance with EN250
l High Quality Hoses from Miflex
l Supplying the Diving Industry since 2006

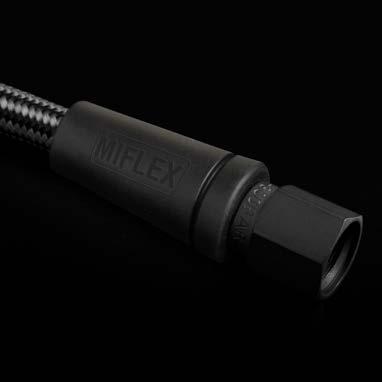

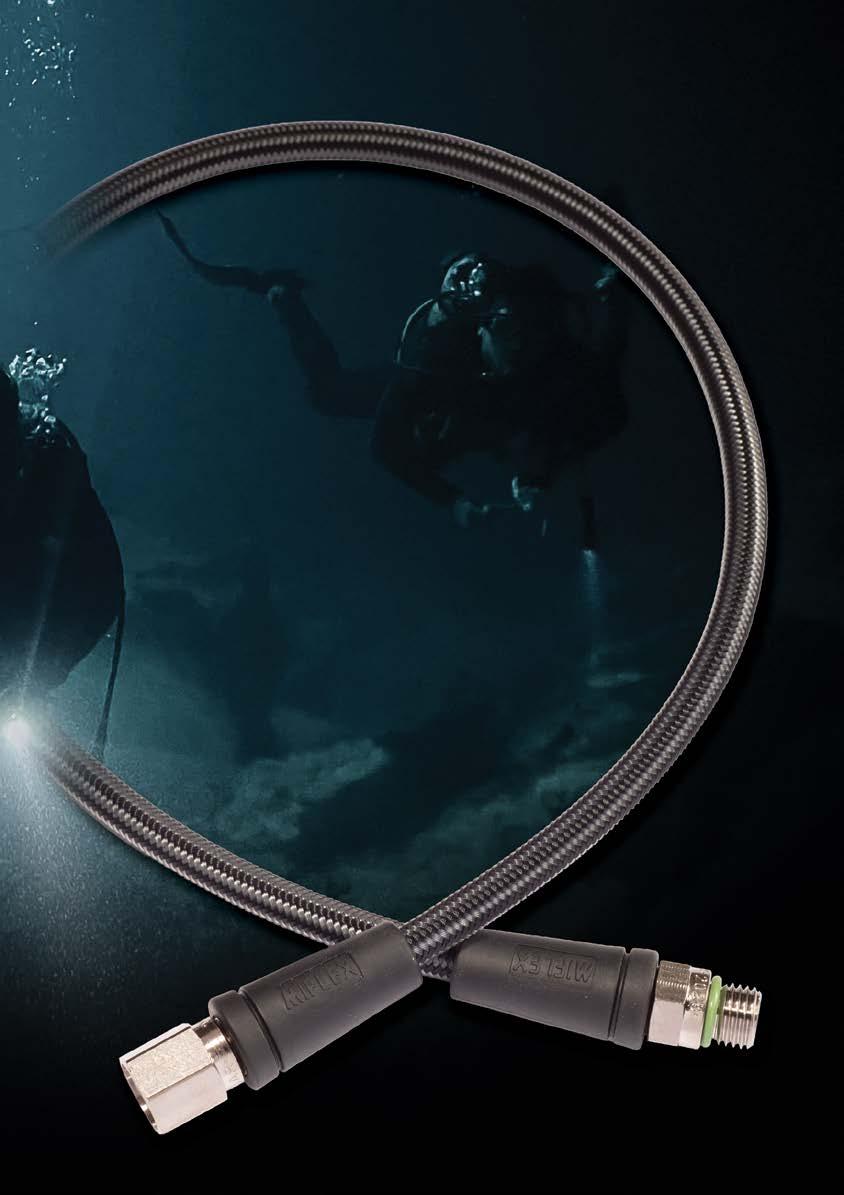

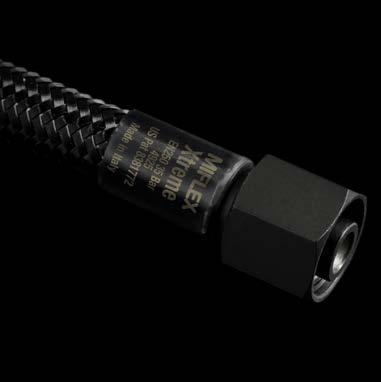

Miflex Xtreme “Deep Black” LP Regulator & Inflator Hoses are black coloured hoses with black hand finished fittings.
Deep Black Range are made from: Quality Brass with Electroless Nickel Plating & Hand Finished Black Ceramic Coating to the exposed surfaces.
Miflex Carbon HD “Deep Black” High Pressure Gauge Hoses are Carbon Black coloured hoses with black hand finished fittings.

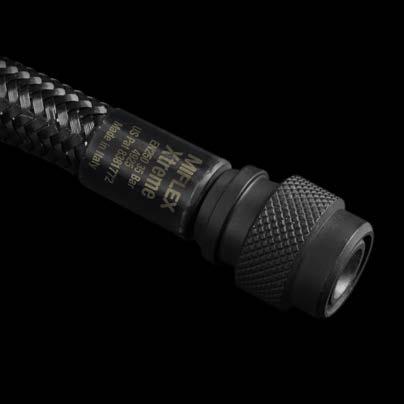

Miflex Xtreme Inflator Hoses
Miflex Carbon HD Hoses
Fittings:
Miflex Xtreme DEEP BLACK CARBON

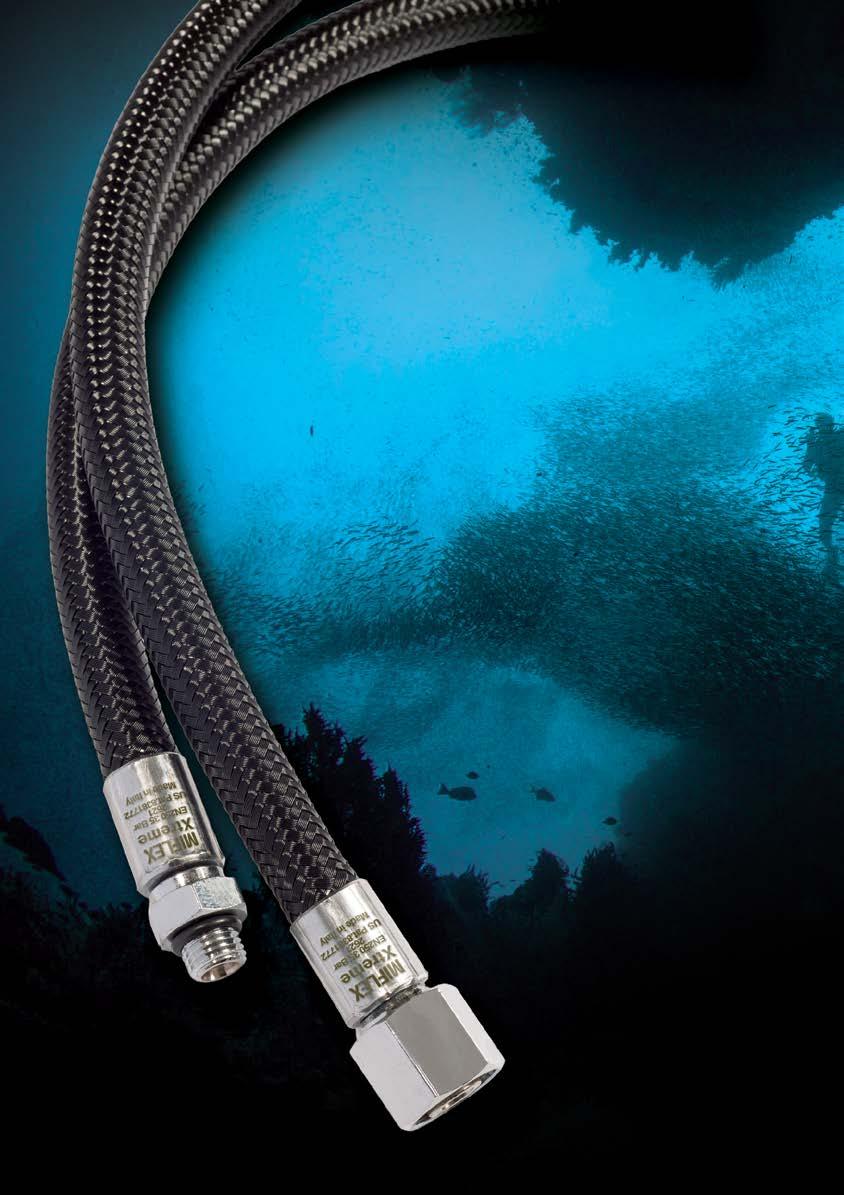

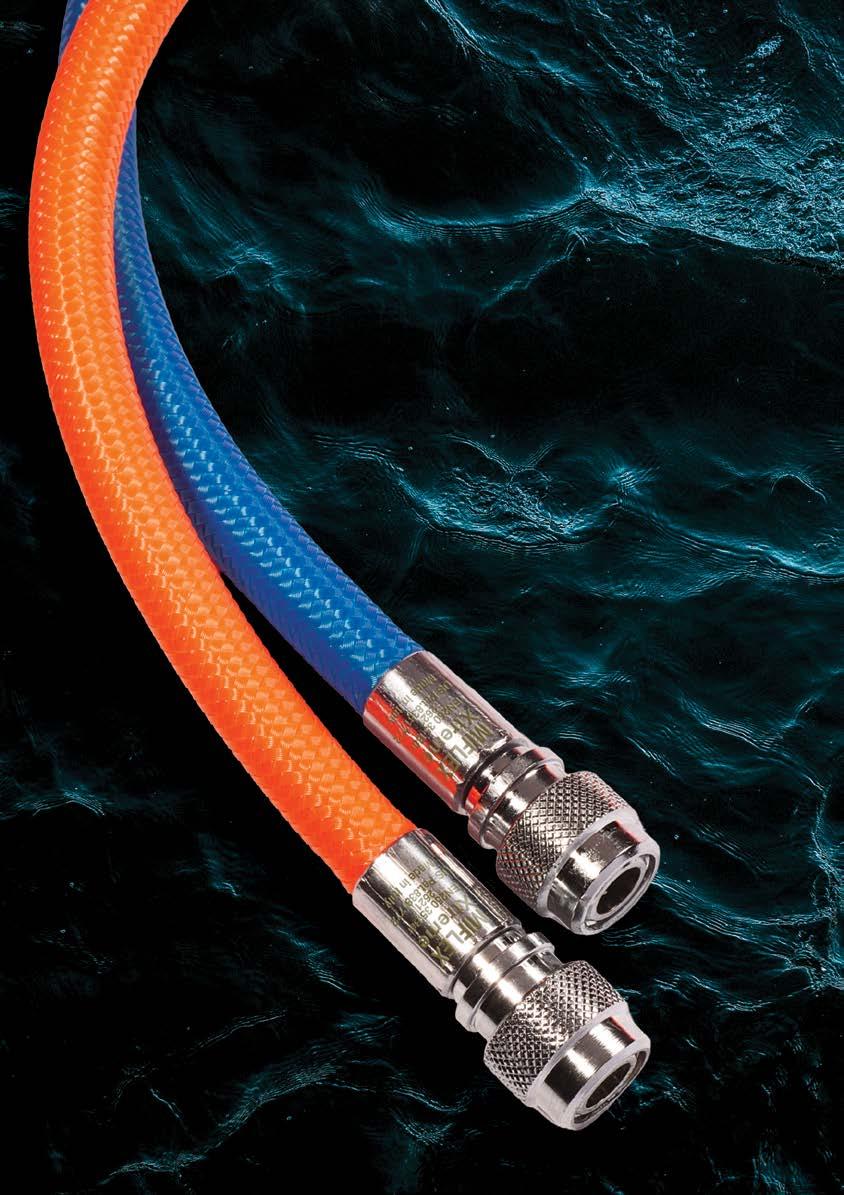

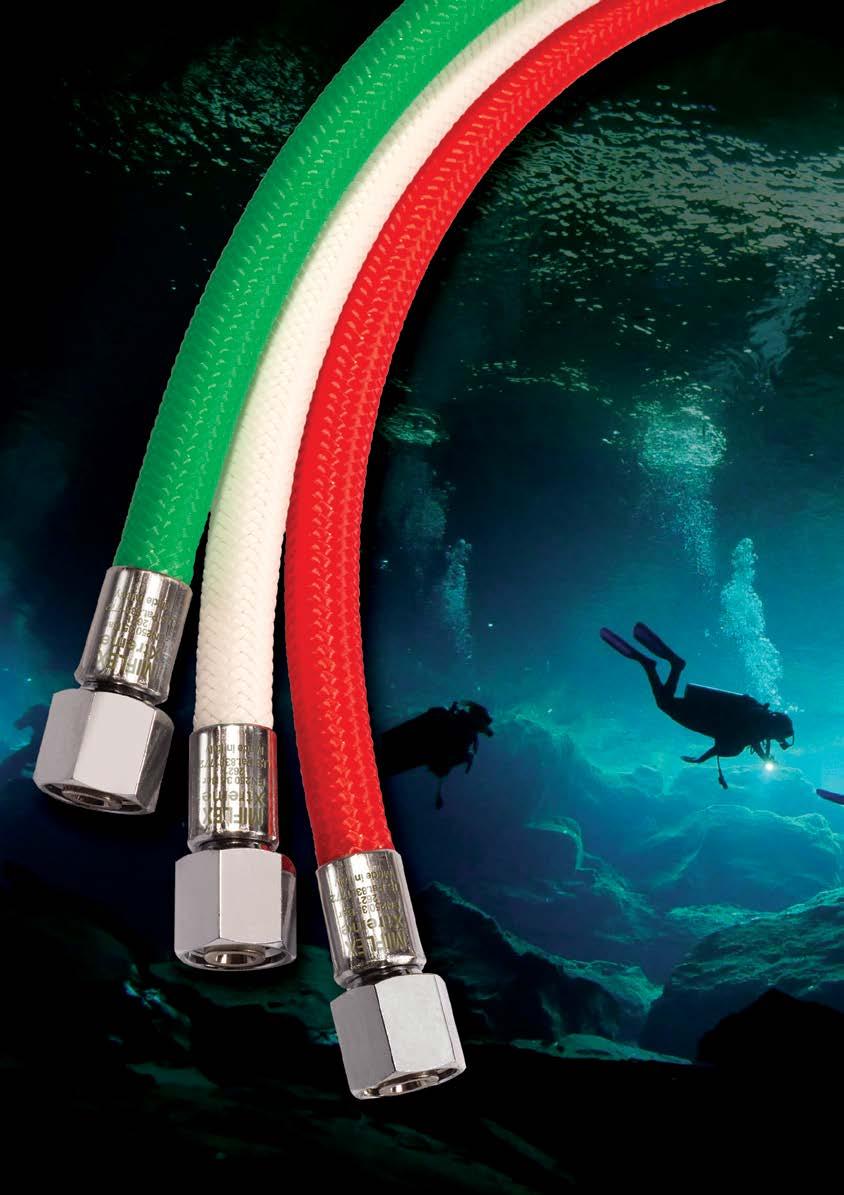

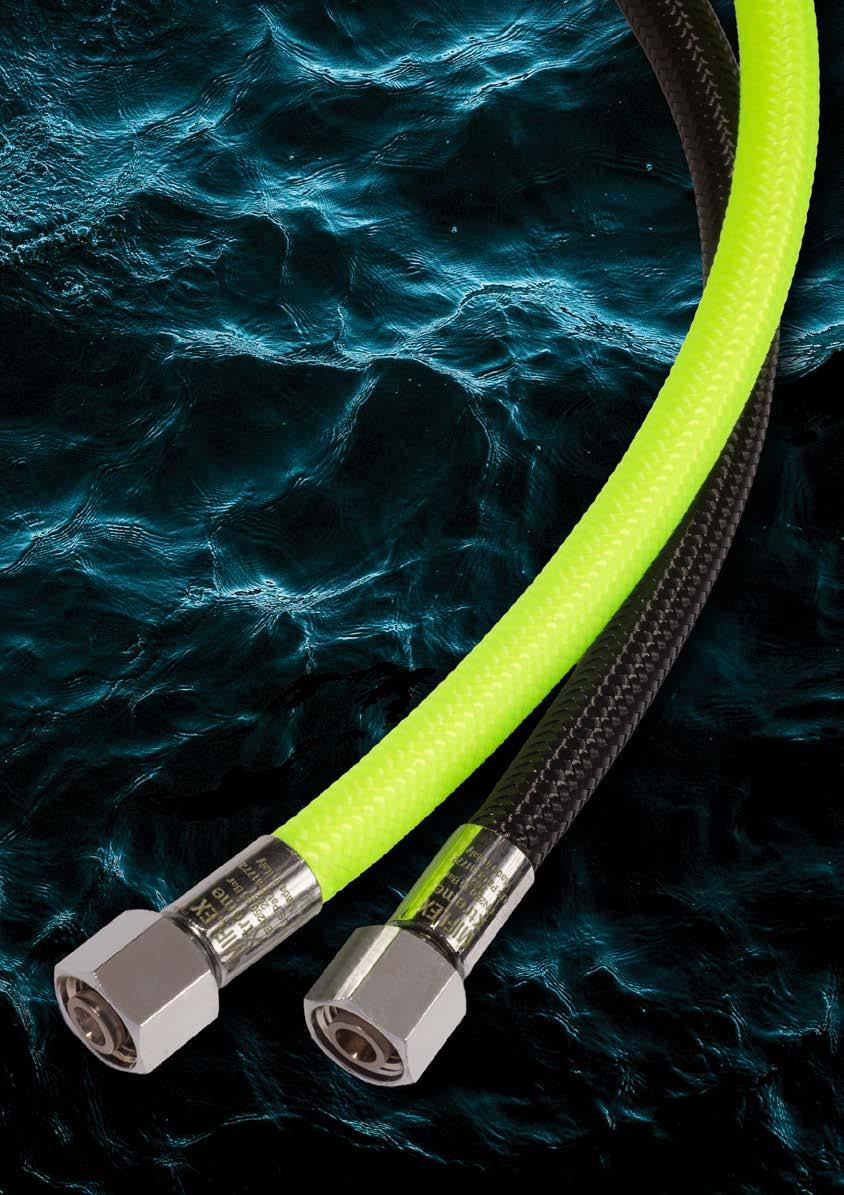

Miflex Xtreme LP Regulator Hoses 3/8”

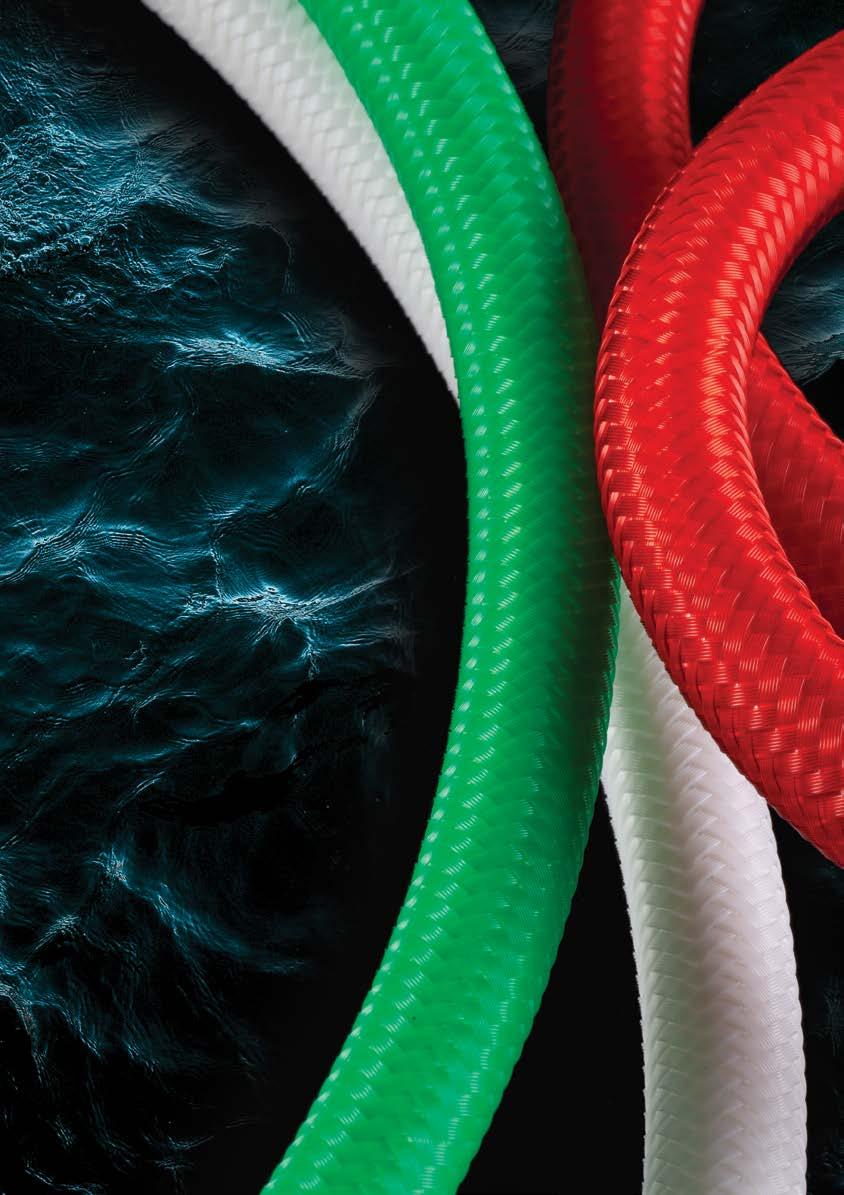

Miflex Xtreme LP regulator hoses are available in twelve colours, whether above or below water, this allows divers to personalise their equipment as they require for easy identification. All Miflex hoses are clearly marked with the Miflex brand and technical information as required by EN250. Black regulator hoses are available in the widest range of lengths based on our customers’ requests.
Black LP Regulator Hoses Fittings: 3/8”UNF
Miflex Xtreme LP Regulator Hoses 3/8”
Yellow LP Regulator Hoses
Fittings: 3/8”UNF Male x 9/16”Female
Mellow Yellow LP Regulator Hoses
Octopus hoses
3/8” UNF male thread is the standard size used for the majority of 1st stage’s, but certain models require the larger ½” UNF size (see page 11).
If you are unsure of this please check!
Orange LP Regulator Hoses
Fittings: 3/8”UNF Male x 9/16”Female
Yellow
Mellow Yellow
Orange
Miflex Xtreme LP Regulator Hoses 3/8”
Miflex diving hoses are 100% made in Italy and are specialist high quality engineered products for the diving industry.
Green LP Regulator Hoses
Fittings: 3/8”UNF Male x 9/16”Female
Green
White LP Regulator Hoses
Fittings:
Red LP Regulator Hoses
Fittings:
Purple LP Regulator Hoses
Fittings: 3/8”UNF Male x 9/16”Female

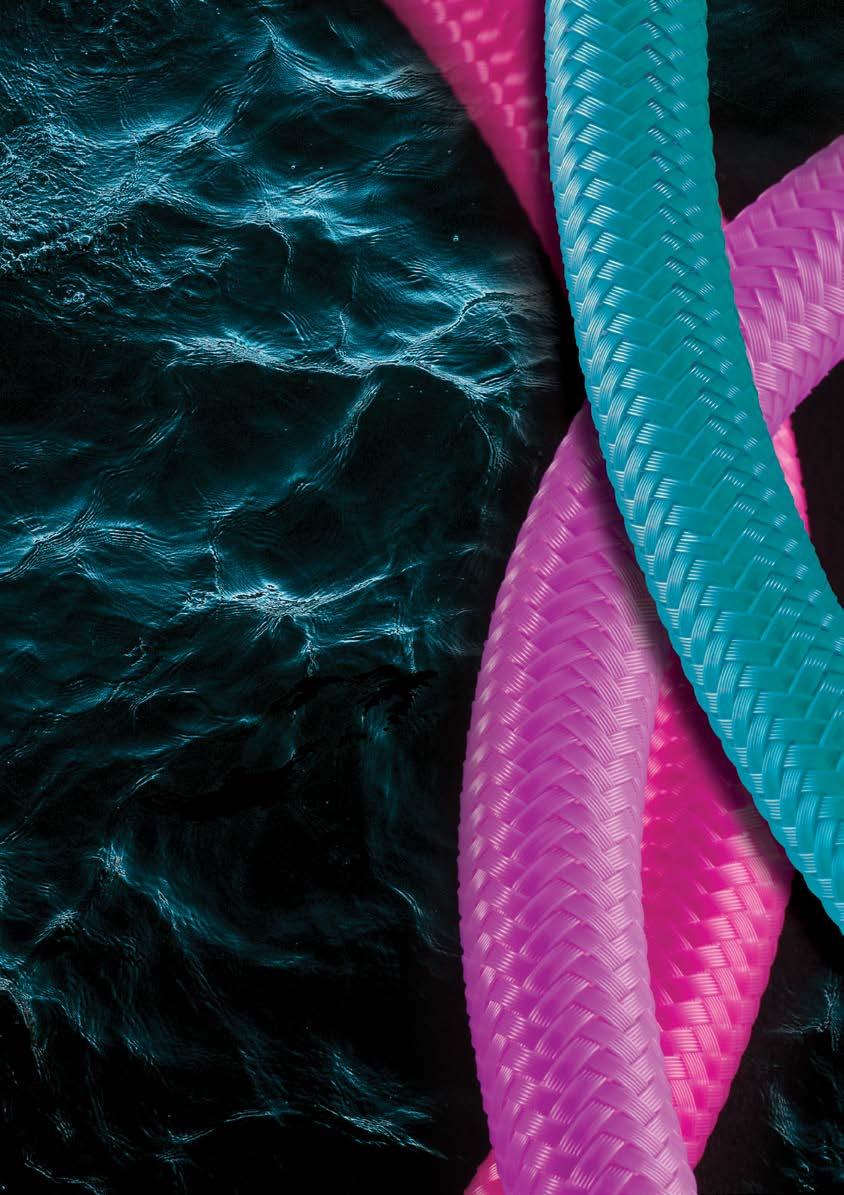

Pink LP Regulator Hoses
Purple
Teal LP Regulator Hoses
Miflex Xtreme LP Regulator Hoses
Blue LP Regulator Hoses
Hoses
Miflex Xtreme LP Regulator Hoses 1/2”
Certain 1st stage regulators require a hose with a ½” UNF thread. Please check your manufacturers technical information for guidance. We believe these include: Mares: Abyss 22 series / Prestige 22 / Abyss 52 Series Apeks: ATX 50 / ATX 100 / ATX 200
Black
LP
Regulator Hoses
Fittings: 1/2”UNF Male x 9/16”Female
Yellow LP Regulator Hoses
Black
Yellow

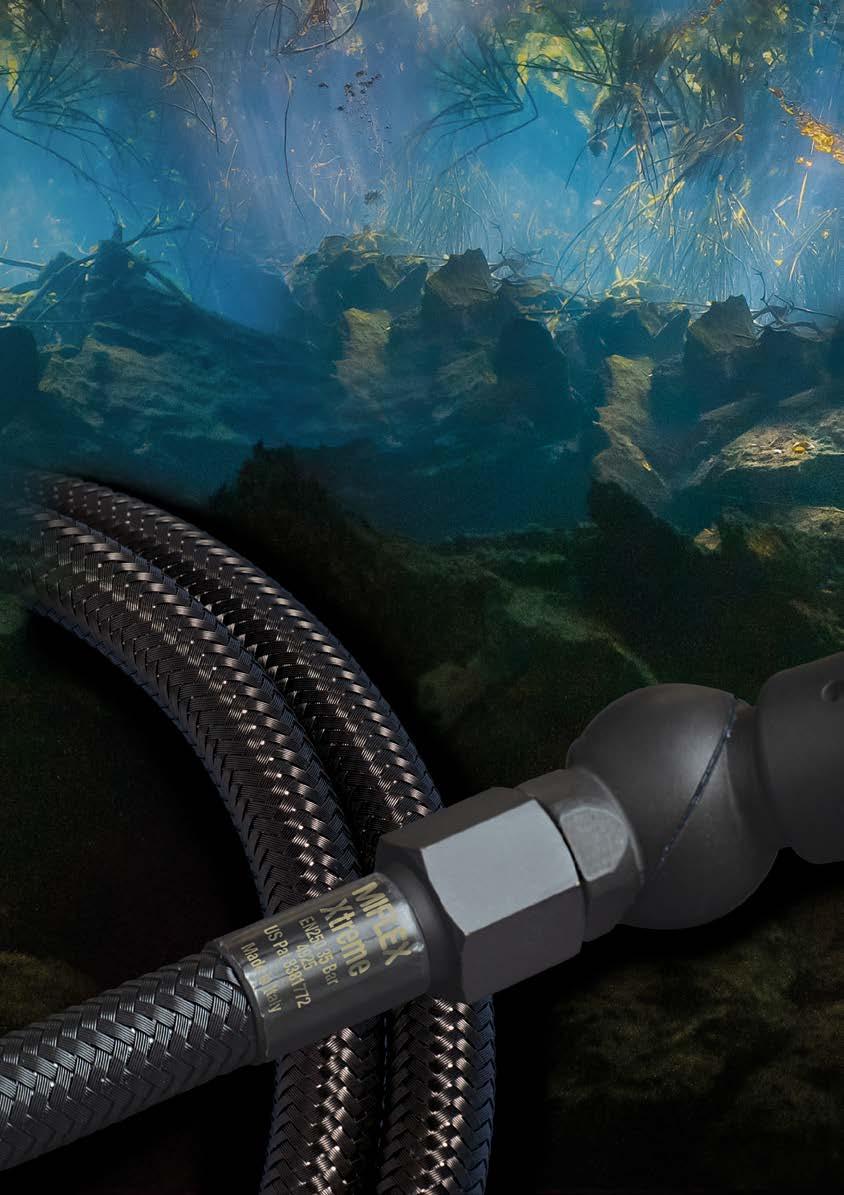

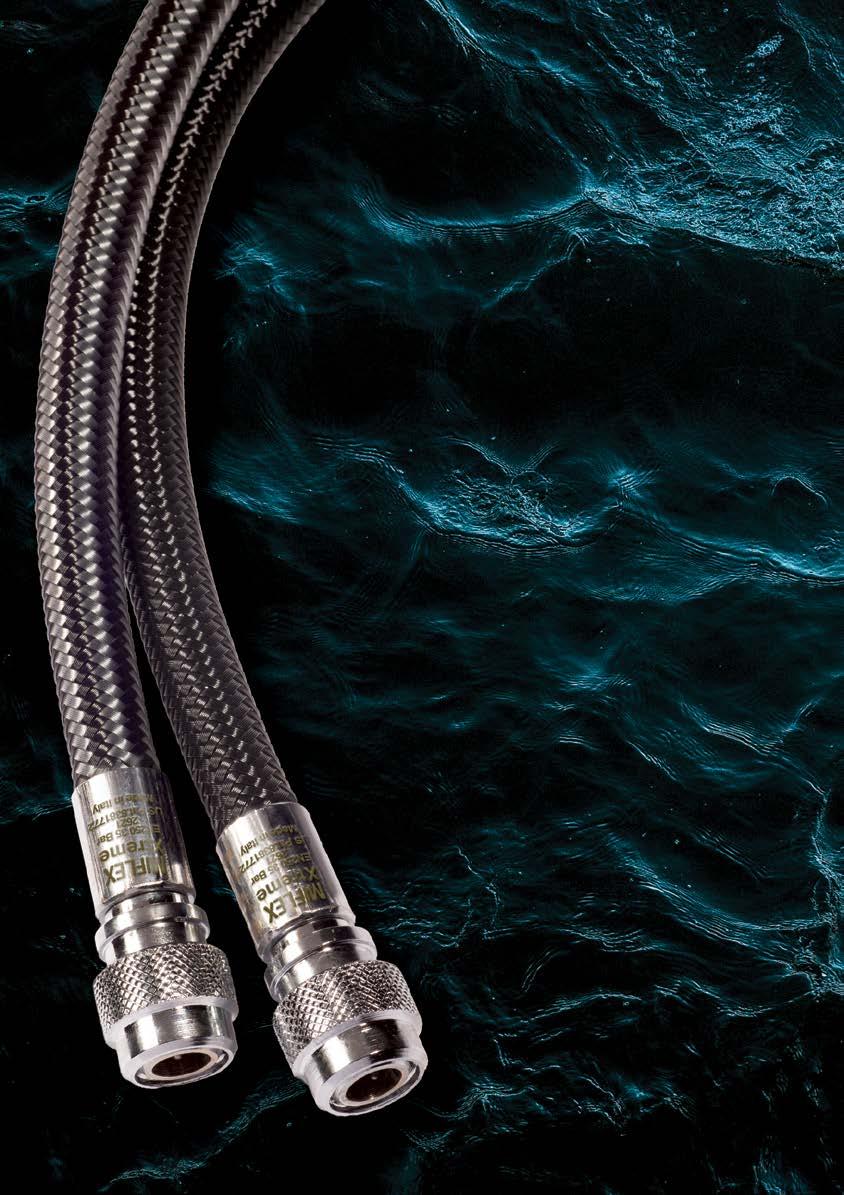

Miflex Xtreme LP BCD/Inflator Hoses
Miflex Xtreme LP inflator hoses use an inflator fitting which has a standard BCD (seatec) style fitting with an internal serviceable schraider valve.
This is the most common design of inflator fitting used in the diving industry.
All Miflex hoses are clearly marked with the Miflex brand and technical information as required by EN250.
Miflex Xtreme LP inflator hoses are available in ten colours, whether above or below water, this allows divers to personalise their equipment as they require for easy identification.
Black BCD/Inflator Hoses
Carbon Black
Black
Carbon Black BCD/Inflator Hoses
Green
Miflex Xtreme LP BCD/Inflator Hoses
Hoses
White BCD/Inflator Hoses
Red BCD/Inflator Hoses
Miflex Xtreme LP BCD/Inflator Hoses
Miflex Xtreme LP inflator hoses are available in ten colours, whether above or below water, this allows divers to personalise their equipment as they require for easy identification.
Blue BCD/Inflator Hoses
Orange BCD/Inflator Hoses
Blue
Orange
Miflex LP Inflator hoses have a working pressure of 35 BAR and fully comply with EN250.
Purple BCD/Inflator Hoses
Pink BCD/Inflator Hoses
Teal BCD/Inflator Hoses

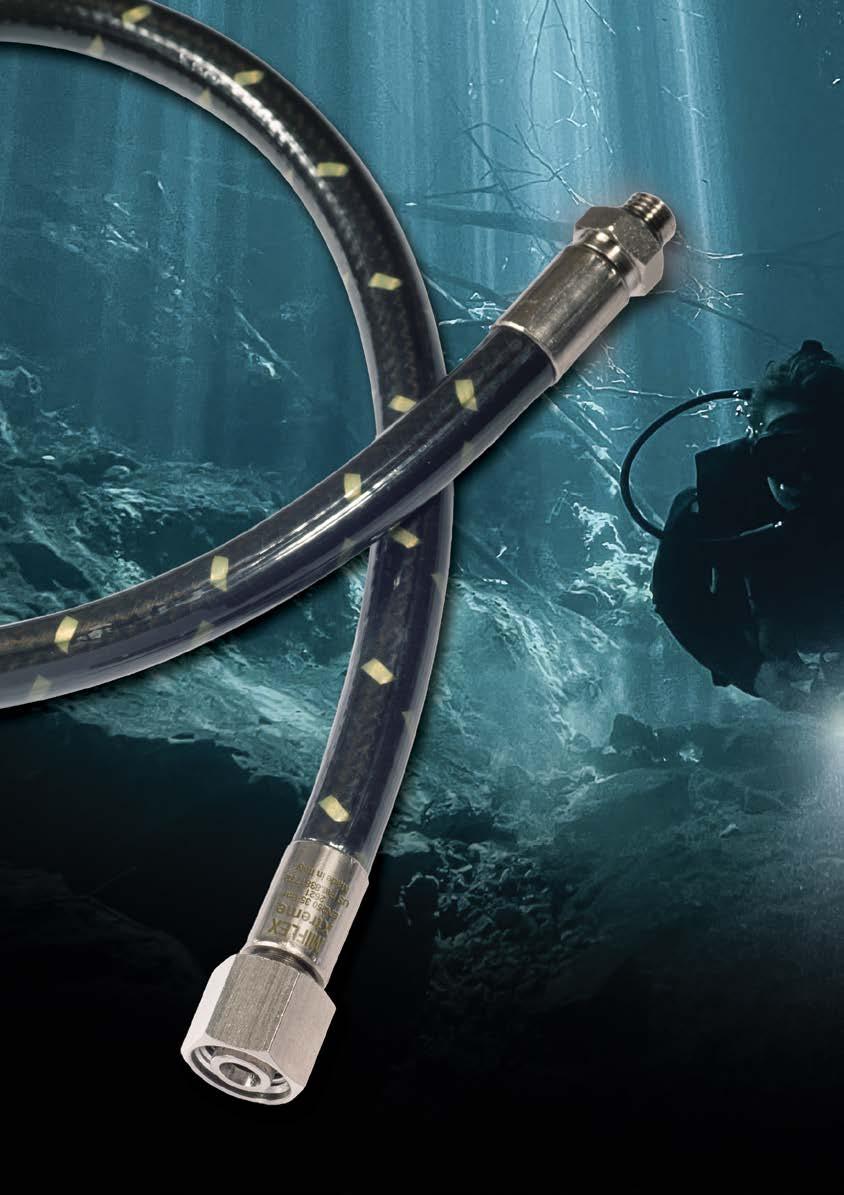

The XT-Tech series of medium pressure flexible scuba diving hoses, have been developed with the main purpose to offer technical divers additional safety with Kevlar reinforcement in the inner braiding, combined with a smooth outer PU layer. For Technical Divers
l Inner core of Polyether based PU
l Smooth Outer Layer
l Kevlar Reinforcement
l Complies with EN250
All Miflex Hoses are supplied complete with manufacturer re-usable drybag packaging, as well as important Miflex user information & warranty details.
XT-Tech Technical Diving Regulator Hoses Fittings: 3/8”UNF Male x 9/16”Female

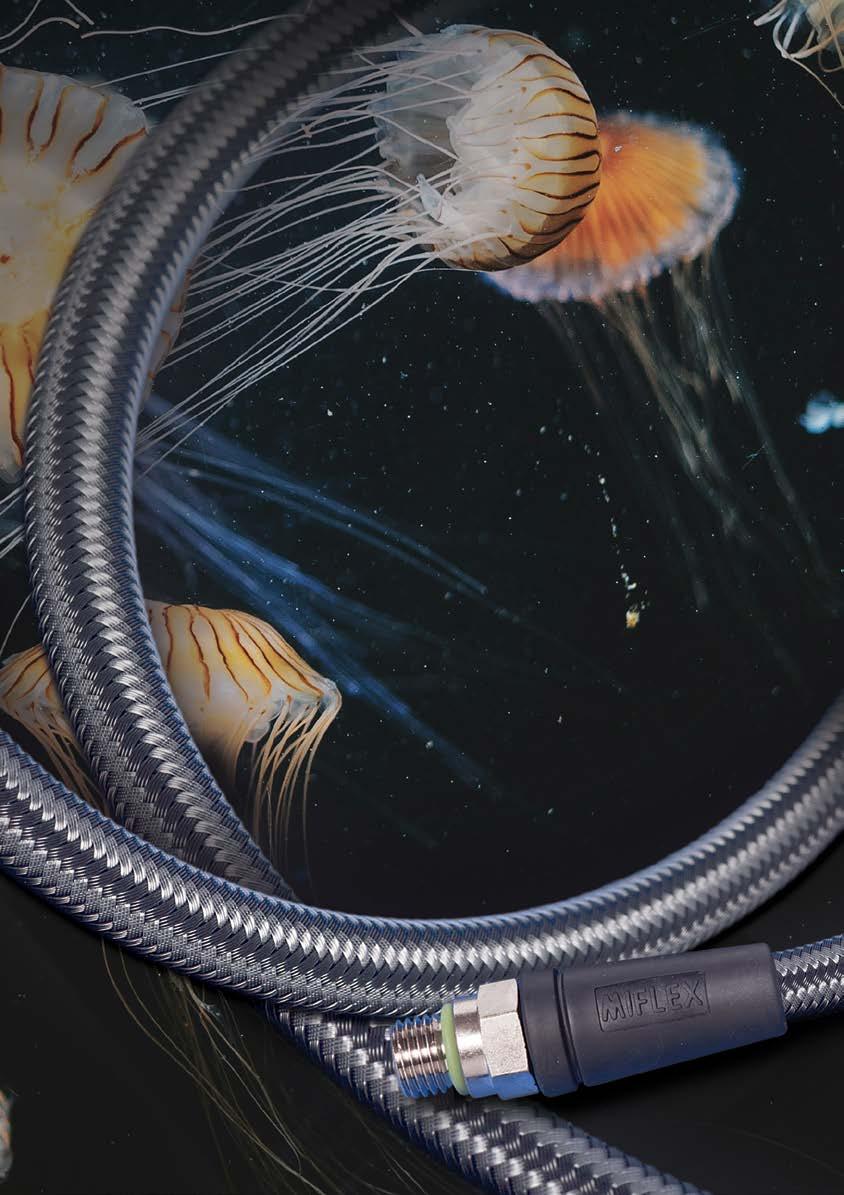

Miflex High Pressure Gauge Hoses
The Miflex Carbon HD range of high pressure gauge hoses have been developed with different diver configuration requirements in mind. This range is recommended and used by many dive equipment and rebreather manufacturers.
Miflex Carbon HD Hoses
Fittings: 7/16”UNF MxF.
CARBON HD
Miflex Carbon HD high pressure hoses are approved according to the EN250 standard.
Specification
Standard fittings: M 7/16” UNF, F 7/16” UNF.
Working Pressure: 300 Bar. Outside Diameter: 7.5mm
Test Results
Burst Test Pressure: >1800 Bar (EN250 requirement >1200 Bar)
Pull-out test: > 2400 N (EN250 requirement >1000 N)

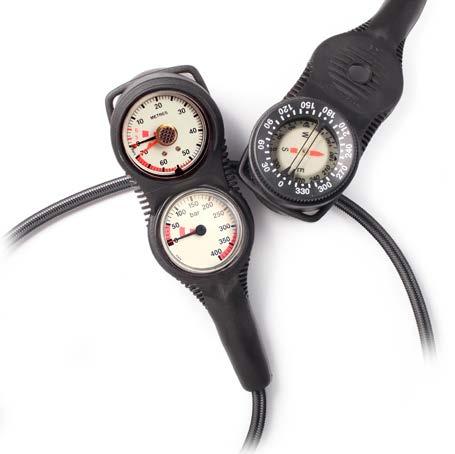

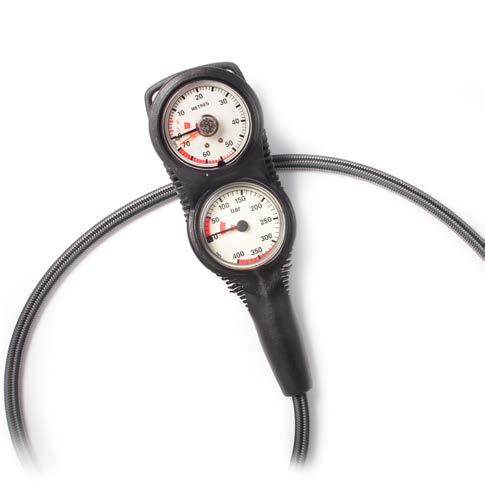

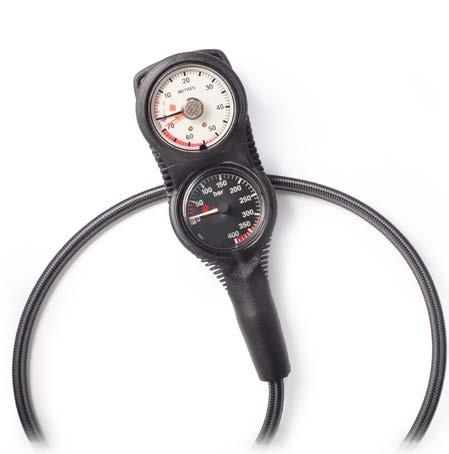

Gauges and Consoles

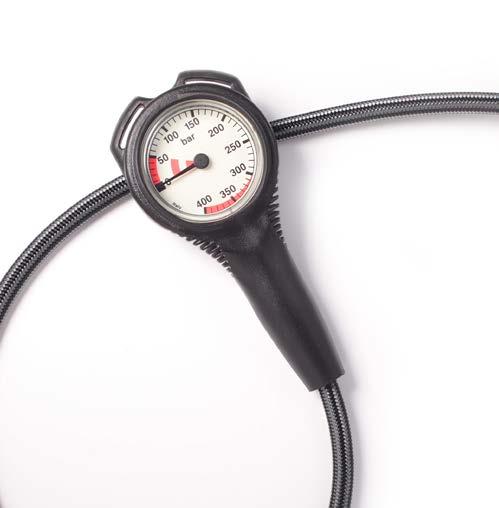

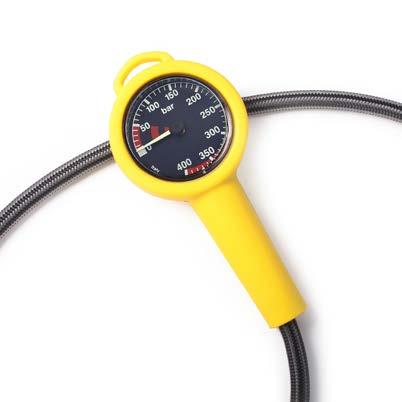

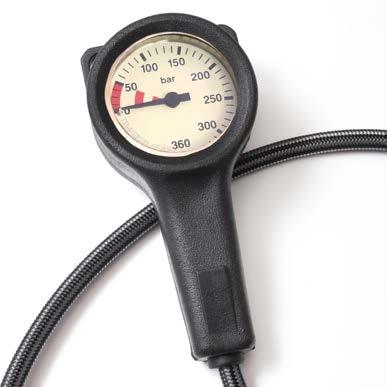

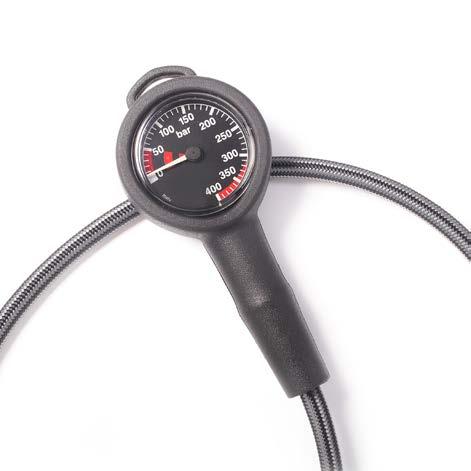

2010 Series SPG complete with 80cm Miflex Carbon HD Hose
2010SPG-C
2010SPG-CBK
52mm Tech Gauge complete with 80cm Miflex Carbon HD Hose
SPG52-C
SPG52B-C

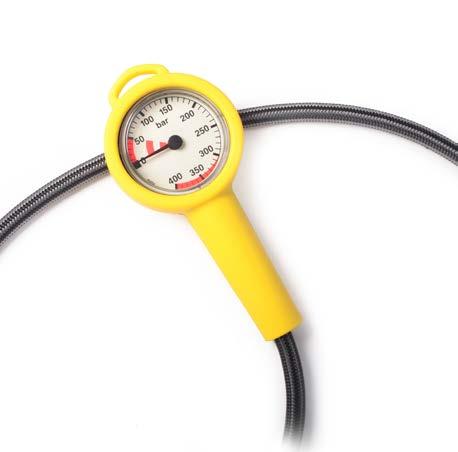

Series Gauge Covers (AB0768N) Black (AB0768V) Green (AB0768G) Yellow
White Faced 2010 Series Gauge (2KGO)
This is a 52mm diameter, one piece brass body with a polycarbonate transparent window.
Suggested Retail Price: £50.00 Price excluding VAT: £41.67
White Faced 52mm Tech Gauge (52GO)
This 52mm diameter white faced tech gauge, it has a brass double chrome mirror case with tempered glass.
300 Bar Working Pressure / 360 Bar Range.
Suggested Retail Price: £56.00 Price excluding VAT: £46.67
Black Faced 63mm Tech Gauge (63GO-BLK)
This
300 Bar Working Pressure / 360 Bar Range.
Suggested Retail Price: £65.00 Price excluding VAT: £54.17
White Faced 52mm Tech Snap Gauge (52GOSP)
Nickel
Gauges and Consoles
Black Faced 2010 Series Gauge (2KGO-BK)
This is a 52mm diameter, one piece brass body with a polycarbonate transparent window.
Suggested Retail Price: £53.00 Price excluding VAT: £44.17

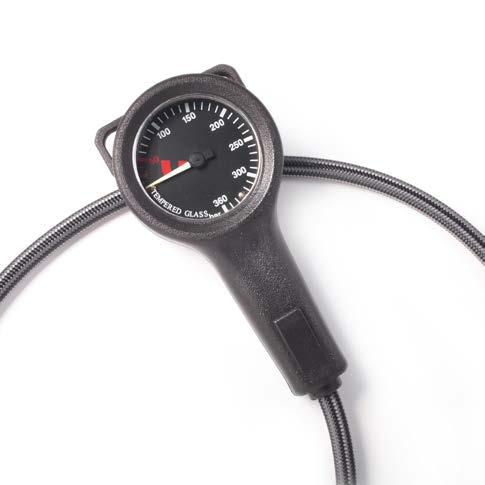

Black Faced 52mm Tech Gauge (52GO-BLK)
This 52mm diameter black faced tech gauge, it has a brass black/chrome case with tempered glass and luminous numbers. 300 Bar Working Pressure / 360 Bar Range.
Suggested Retail Price: £64.00

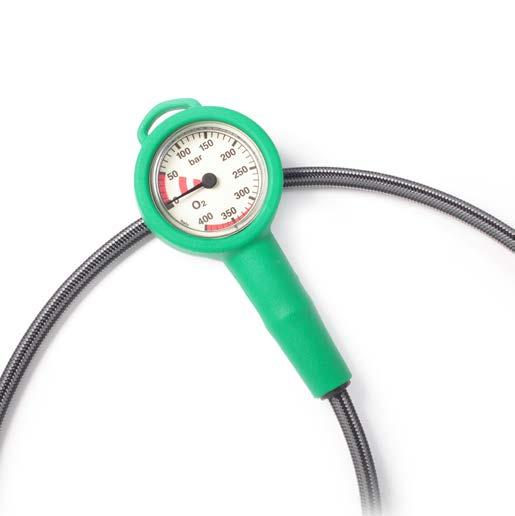

White Faced 2010 Series Oxygen Gauge (2KOXYGO)
An oxygen compatible version of the 2010 series gauge (2KGO)
Suggested Retail Price: £50.00 Price excluding
Straight Design Airspool OD 4.25 X 19.1mm (SPOOL-02)
Black Faced 52mm Tech Snap Gauge (52GOSP-BK)
Nickel plated solid brass housing with extremely transparent tempered glass. Available in a wide 270 degree sweep, from “0”to full scale. Range graduations: 0-360 bar.
Suggested Retail Price: £70.00 Price excluding VAT: £58.33 HP Airspools
Shoulder Type (HL303V)
Required to seal any HP hose to the SPG gauge or transmitter. Shoulder type (HL303V) with Vitron O-Rings.
Suggested

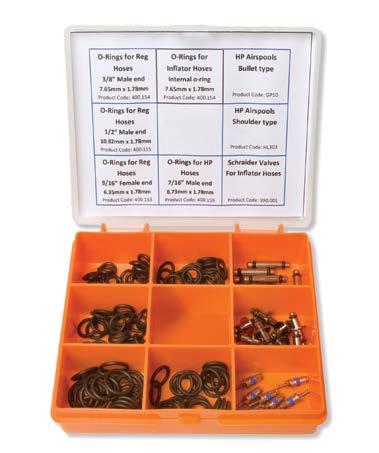

Spares & Maintenance
Miflex
Service Box (MSB-3)
Miflex
Service Box (MOB-1)
25 x O-rings for 9/16” female LP
25 x O-rings for 3/8” male LP
25 x O-rings for LP Inflator
25 x O-rings for 1/2” male LP
25 x O-rings for 7/16” male HP
50 x O-rings for HP swivel (vitron)
Suggested Retail Price: £36.00
Price excluding VAT: £30.00
Miflex
Service Box (MSB-1)
6 x Airspools (HL303)
3 x Schraider Valves
10 x O-rings for 9/16” female LP
10 x O-rings for 3/8” male LP
10 x O-rings for LP Inflator
10 x O-rings for 1/2” male LP
10 x O-rings for 7/16” male HP
Other Service Boxes available.
Suggested Retail Price: £36.00
Price excluding VAT: £30.00
Miflex
Service Box (MSB-2)
10 x Airspools (HL303)
5 x Schraider Valves
20 x O-rings for 9/16” female LP
20 x O-rings for 3/8” male LP
20 x O-rings for LP Inflator
20 x O-rings for 1/2” male LP
20 x O-rings for 7/16” male
Suggested Retail Price: £52.00
Price excluding VAT: £43.33
20 x Airspools
10 x Schraider Valves
25 x O-rings for 9/16” female LP
25 x O-rings for 3/8” male LP
25 x O-rings for LP Inflator
25 x O-rings for 1/2” male LP
25 x O-rings for 7/16” male HP
Other Service Boxes available.
Suggested Retail Price: £95.00
Price excluding VAT: £79.17
Suggested Retail Price: £9.00 Price excluding VAT: £7.50
Suggested Retail Price: £15.79 Price excluding VAT: £13.16
Bags of 25 LP O-Rings
Bags of 25 LP O-Rings
3/8”
